Next Article in Journal
Raman Spectroscopic Study of TiO2 Nanoparticles’ Effects on the Hemoglobin State in Individual Red Blood Cells
Previous Article in Journal
Study on Structural Design and Analysis of Composite Boat Hull Manufactured by Resin Infusion Simulation
Article

Formation of Dislocations and Stacking Faults in Embedded Individual Grains during In Situ Tensile Loading of an Austenitic Stainless Steel

1
Department of Materials Science and Engineering, KTH Royal Institute of Technology, 11428 Stockholm, Sweden
2
Cornell High Energy Synchrotron Source (CHESS), Ithaca, NY 14853, USA
3
Deutsches Elektronen-Synchrotron (DESY), 22607 Hamburg, Germany
*
Author to whom correspondence should be addressed.
Current address: Department of Materials Science and Applied Mathematics, Malmö University, 21119 Malmö, Sweden.
Academic Editor: Andrey Belyakov
Materials 2021, 14(20), 5919; https://doi.org/10.3390/ma14205919
Received: 15 September 2021 / Revised: 3 October 2021 / Accepted: 5 October 2021 / Published: 9 October 2021
The formation of stacking faults and dislocations in individual austenite (fcc) grains embedded in a polycrystalline bulk Fe-18Cr-10.5Ni (wt.%) steel was investigated by non-destructive high-energy diffraction microscopy (HEDM) and line profile analysis. The broadening and position of intensity, diffracted from individual grains, were followed during in situ tensile loading up to 0.09 strain. Furthermore, the predominant deformation mechanism of the individual grains as a function of grain orientation was investigated, and the formation of stacking faults was quantified. Grains oriented with [100] along the tensile axis form dislocations at low strains, whilst at higher strains, the formation of stacking faults becomes the dominant deformation mechanism. In contrast, grains oriented with [111] along the tensile axis deform mainly through the formation and slip of dislocations at all strain states. However, the present study also reveals that grain orientation is not sufficient to predict the deformation characteristics of single grains in polycrystalline bulk materials. This is witnessed specifically within one grain oriented with [111] along the tensile axis that deforms through the generation of stacking faults. The reason for this behavior is due to other grain-specific parameters, such as size and local neighborhood. View Full-Text
Keywords: high-energy X-ray diffraction microscopy; XRD line profile analysis; in situ deformation; metastable austenitic steels; stacking faults high-energy X-ray diffraction microscopy; XRD line profile analysis; in situ deformation; metastable austenitic steels; stacking faults
Show Figures

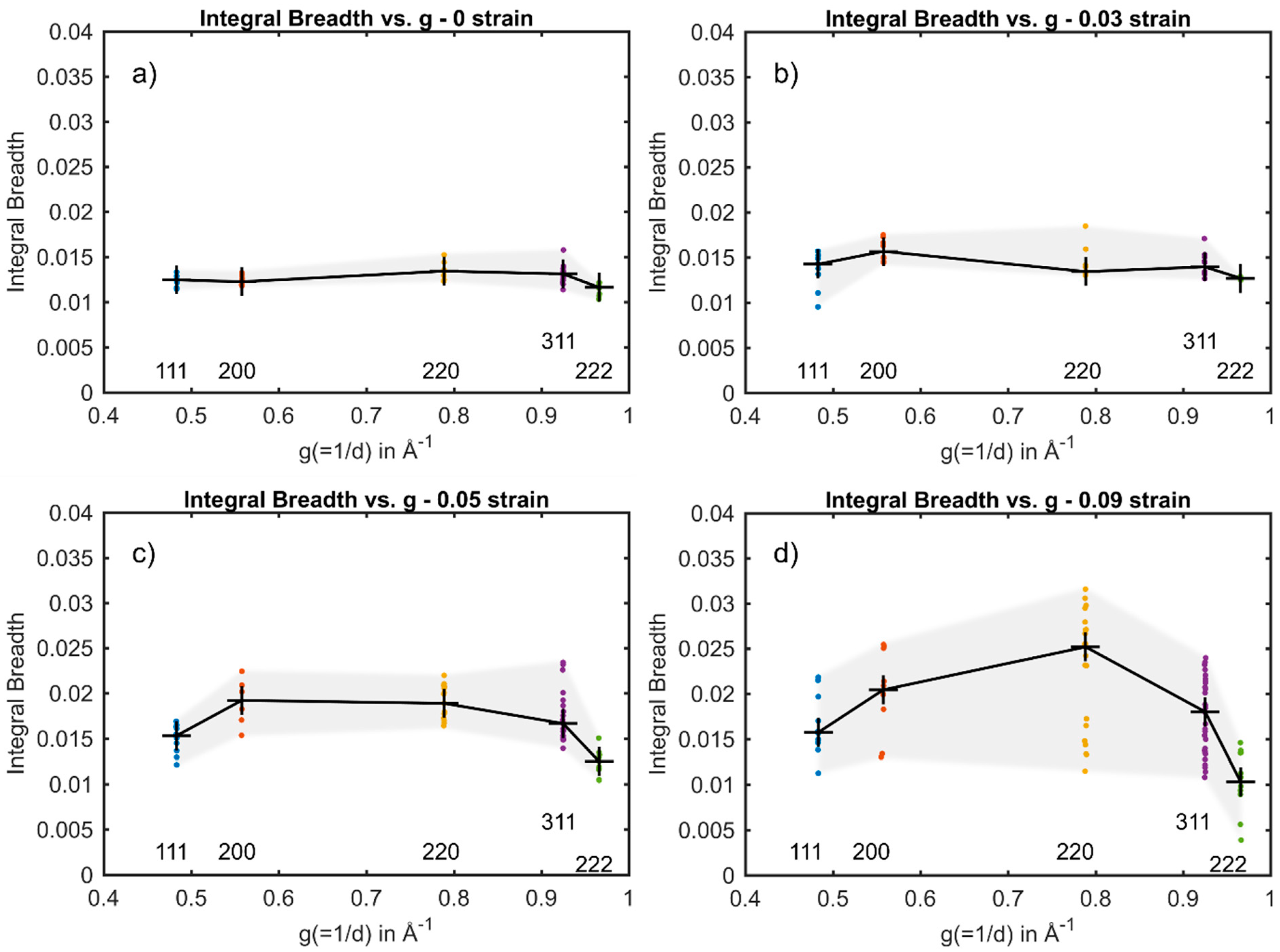

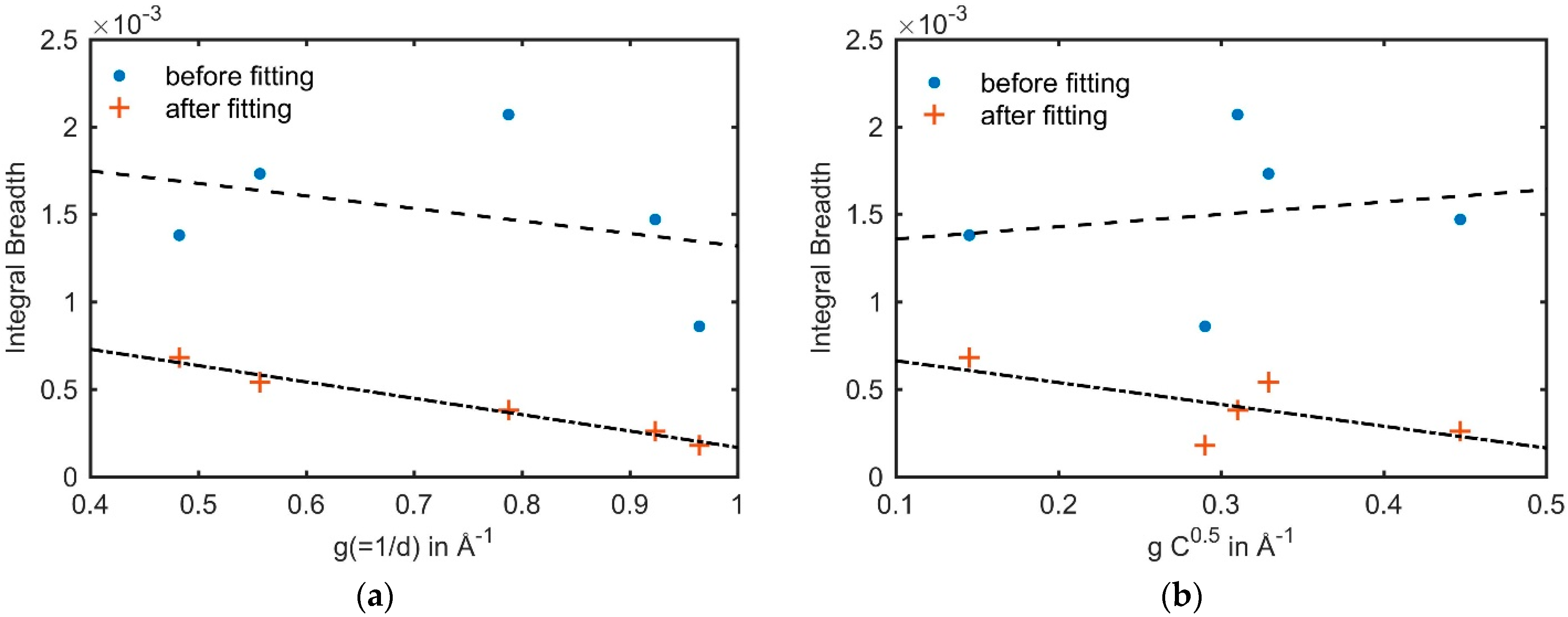

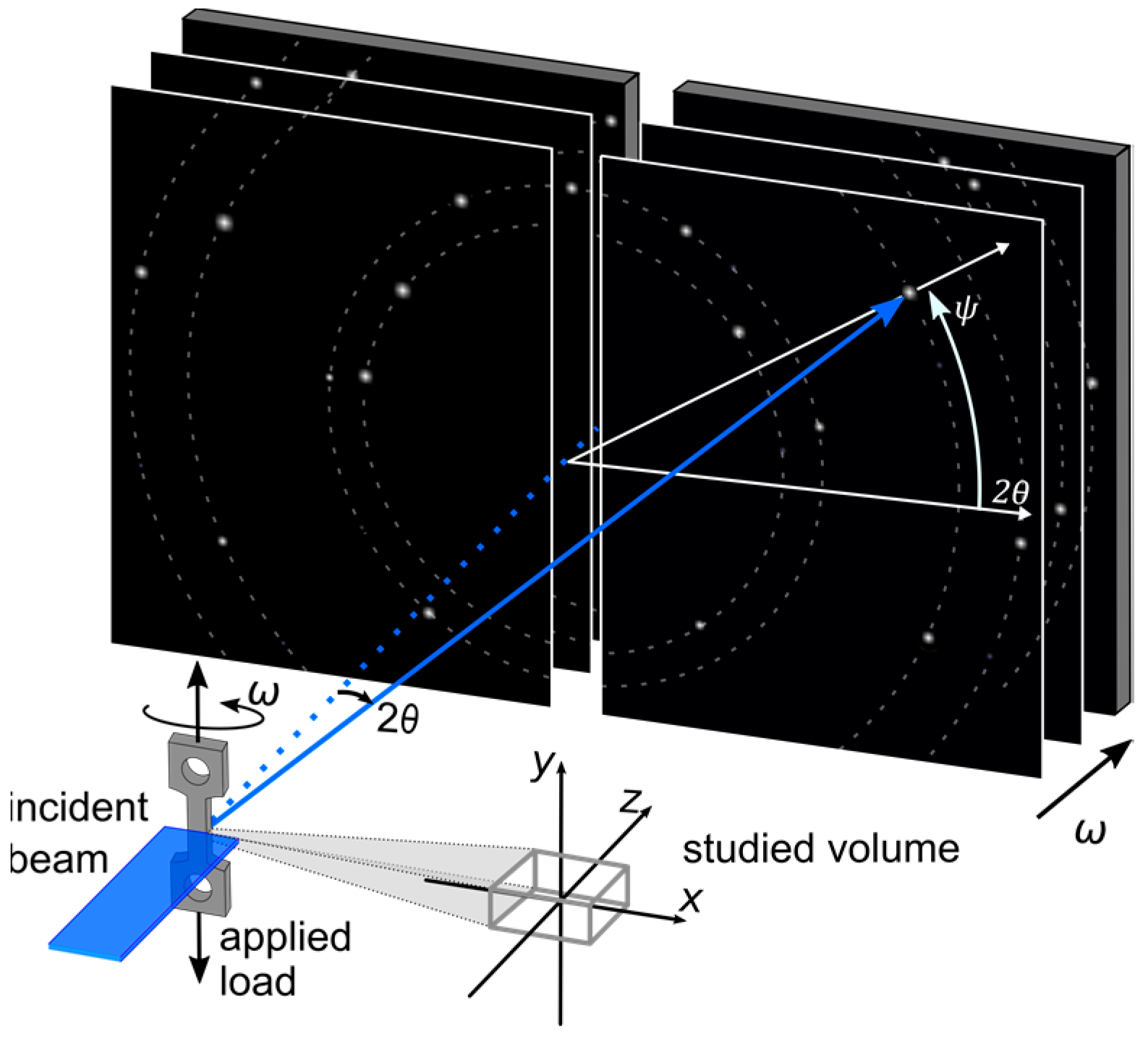

Figure 1

MDPI and ACS Style

Neding, B.; Pagan, D.C.; Hektor, J.; Hedström, P. Formation of Dislocations and Stacking Faults in Embedded Individual Grains during In Situ Tensile Loading of an Austenitic Stainless Steel. Materials 2021, 14, 5919. https://doi.org/10.3390/ma14205919

AMA Style

Neding B, Pagan DC, Hektor J, Hedström P. Formation of Dislocations and Stacking Faults in Embedded Individual Grains during In Situ Tensile Loading of an Austenitic Stainless Steel. Materials. 2021; 14(20):5919. https://doi.org/10.3390/ma14205919

Chicago/Turabian Style

Neding, Benjamin, Darren C. Pagan, Johan Hektor, and Peter Hedström. 2021. "Formation of Dislocations and Stacking Faults in Embedded Individual Grains during In Situ Tensile Loading of an Austenitic Stainless Steel" Materials 14, no. 20: 5919. https://doi.org/10.3390/ma14205919

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
