Next Article in Journal
Electrically Conductive Micropatterned Polyaniline-Poly(ethylene glycol) Composite Hydrogel
Next Article in Special Issue
Influence of Boundary Migration Induced Softening on the Steady State of Discontinuous Dynamic Recrystallization
Previous Article in Journal
Diagnostics of Concrete and Steel in Elements of an Historic Reinforced Concrete Structure
Previous Article in Special Issue
Improved Predictability of Microstructure Evolution during Hot Deformation of Titanium Alloys


Article

Hot Deformation and Dynamic Recrystallisation Behaviour of Twin-Roll Cast Mg-6.8Y-2.5Zn-0.4Zr Magnesium Alloy

Institute of Metal Forming, Technische Universität Bergakademie Freiberg, Bernhard-von-Cotta-Straße 4, 09599 Freiberg, Germany
*
Author to whom correspondence should be addressed.
Materials 2021, 14(2), 307; https://doi.org/10.3390/ma14020307
Received: 17 November 2020 / Revised: 30 December 2020 / Accepted: 4 January 2021 / Published: 8 January 2021
(This article belongs to the Special Issue Dynamic Recrystallization Behaviors in Metals and Alloys)

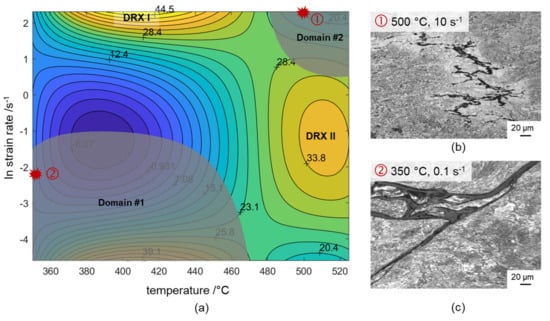

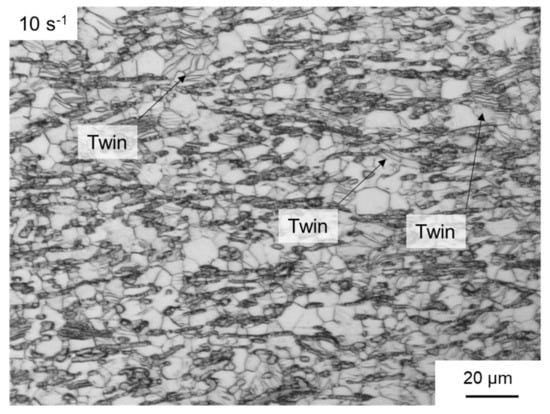

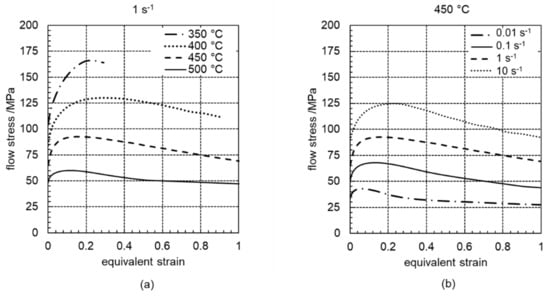

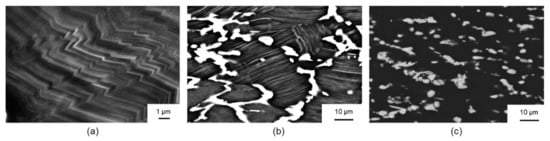

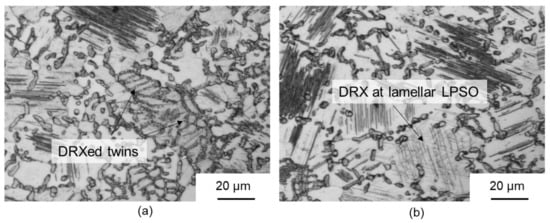

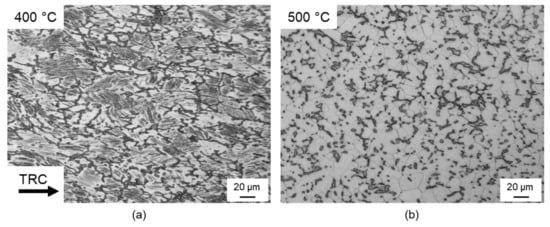

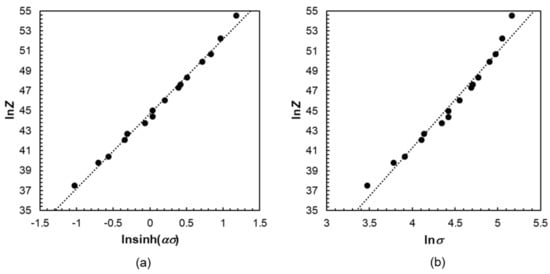

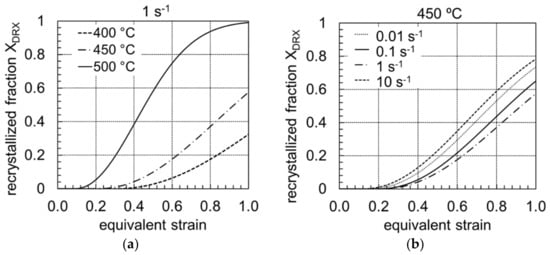

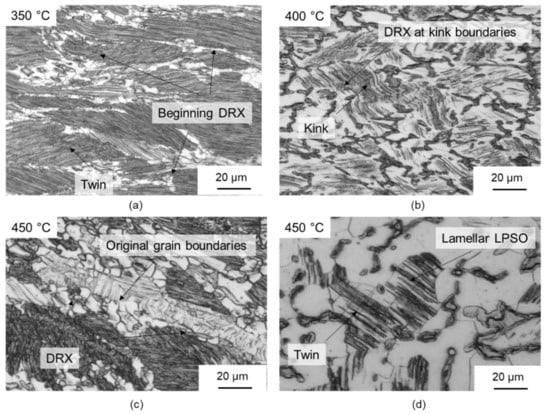

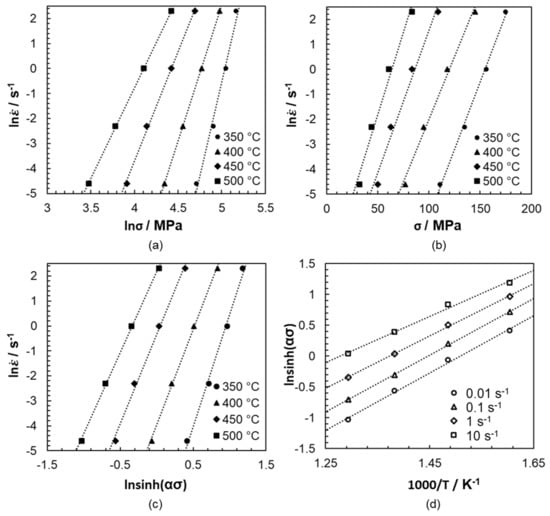

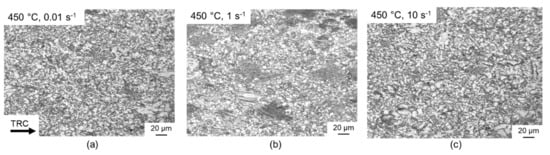

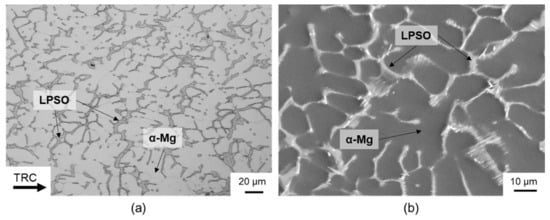

In this work, the deformation behaviour of a twin-roll cast (TRC) Mg-6.8Y-2.5Zn-0.4Zr alloy during plane strain compression was characterised by high-temperature testing. Based on the experimental data, the values of strain-rate sensitivity, the efficiency of power dissipation and the instability parameter were investigated under the conditions of various hot deformation parameters. In contrast to conventionally cast material, no lamellae of the LPSO (long period stacking ordered) phase were precipitated in the magnesium matrix after TRC. The precipitation of fine lamellar LPSO phases only occurred during cooling to forming temperature after the heat treatment. Dynamic recrystallization (DRX) hardly occurred during deformation at temperatures between 350 °C and 400 °C. This can be attributed to the precipitation of the lamellar LSPO phases, which contribute to retardation of the DRX process. At higher deformation temperatures and strain rates DRX is pronounced and the twin-induced (TRDX) as well as continuous dynamic recrystallization could be identified as the dominant softening mechanisms. The processing maps were established by superimposing the instability map over the power dissipation map, this being associated with microstructural evolution analysis in the hot deformation processes. Two instability zones could be recognised for the twin-roll cast and heat-treated Mg-6.8Y-2.5Zn-0.4Zr alloy: (1) 350 °C to 460 °C and 0.01 s−1 to 0.3 s−1 and (2) 485 °C to 525 °C and 2.5 s−1 to 10 s−1, where deformation is not favourable. View Full-Text
Keywords: flow curve; dynamic recrystallisation; processing map; LPSO phase; Mg-6.8Y-2.5Zn-0.4Zr; twin-roll casting flow curve; dynamic recrystallisation; processing map; LPSO phase; Mg-6.8Y-2.5Zn-0.4Zr; twin-roll casting
Show Figures

Figure 1

MDPI and ACS Style

Ullmann, M.; Kittner, K.; Prahl, U. Hot Deformation and Dynamic Recrystallisation Behaviour of Twin-Roll Cast Mg-6.8Y-2.5Zn-0.4Zr Magnesium Alloy. Materials 2021, 14, 307. https://doi.org/10.3390/ma14020307

AMA Style

Ullmann M, Kittner K, Prahl U. Hot Deformation and Dynamic Recrystallisation Behaviour of Twin-Roll Cast Mg-6.8Y-2.5Zn-0.4Zr Magnesium Alloy. Materials. 2021; 14(2):307. https://doi.org/10.3390/ma14020307

Chicago/Turabian Style

Ullmann, Madlen, Kristina Kittner, and Ulrich Prahl. 2021. "Hot Deformation and Dynamic Recrystallisation Behaviour of Twin-Roll Cast Mg-6.8Y-2.5Zn-0.4Zr Magnesium Alloy" Materials 14, no. 2: 307. https://doi.org/10.3390/ma14020307

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
