Chitin Cryogels Prepared by Regeneration from Phosphoric Acid Solutions

by
Irina V. Tyshkunova
1,
Dmitry G. Chukhchin
2,
Iosif V. Gofman
1,
Ekaterina N. Pavlova
1,
Vadim A. Ushakov
1,
Elena N. Vlasova
1,
Daria N. Poshina
1 and
Yury A. Skorik
1,*
1
Institute of Macromolecular Compounds of the Russian Academy of Sciences, Bolshoi VO 31, St. Petersburg 199004, Russia
2
Department of Biology, Ecology and Biotechnology, Northern (Arctic) Federal University Named after M.V. Lomonosov, Severnaya Dvina Emb. 17, Arkhangelsk 163002, Russia
*
Author to whom correspondence should be addressed.
Materials 2021, 14(18), 5191; https://doi.org/10.3390/ma14185191
Submission received: 2 August 2021 / Revised: 3 September 2021 / Accepted: 6 September 2021 / Published: 9 September 2021
(This article belongs to the Section Biomaterials)
Browse Figures
Versions Notes

Abstract

:
Cryogelation is a developing technique for the production of polysaccharide materials for biomedical applications. The formation of a macroporous structure during the freeze-drying of polysaccharide solutions creates biomaterials suitable for tissue engineering. Due to its availability, biocompatibility, biodegradability, and non-toxicity, chitin is a promising natural polysaccharide for the production of porous materials for tissue engineering; however, its use is limited due to the difficulty of dissolving it. This work describes the preparation of cryogels using phosphoric acid as the solvent. Compared to typical chitin solvents phosphoric acid can be easily removed from the product and recovered. The effects of chitin dissolution conditions on the structure and properties of cryogels were studied. Lightweight (ρ 0.025–0.059 g/cm3), highly porous (96–98%) chitin cryogels with various heterogeneous morphology were produced at a dissolution temperature of 20 ± 3 °C, a chitin concentration of 3–15%, and a dissolution time of 6–25 h. The crystallinity of the chitin and chitin cryogels was evaluated by 13C CP-MAS NMR spectroscopy and X-ray diffractometry. Using FTIR spectroscopy, no phosphoric acid esters were found in the chitin cryogels. The cryogels had compressive modulus E values from 118–345 kPa and specific surface areas of 0.3–0.7 m2/g. The results indicate that chitin cryogels can be promising biomaterials for tissue engineering.

1. Introduction

Chitin is a widespread polysaccharide in Nature, the second most abundant after cellulose [1,2]. Its biocompatibility, biodegradability, renewability and antibacterial properties make it attractive for use in various fields, including the production of materials for biomedical applications [3,4,5]. One of the new directions for producing these materials is cryogelation, and freeze-dried chitin hydrogels can produce materials with heterogeneous porous structures [6]. However, the presence of strong inter- and intramolecular hydrogen bonds between the chitin polymer chains decreases the solubility of chitin in many organic solvents, thereby limiting its wide application [7].
Previously [8,9,10], ionic liquids were used as chitin solvents, and several ionic liquids were used to produce chitin/cellulose composite gels. Heating up to 100 °C also produced a composite solution with a chitin concentration of 5% and cellulose concentration of 10%. In this case, the time required for the formation of gels was 4 days [10]. Chitin can also be dissolved using LiCl/dimethylacetamide (DMAc) [11,12], alkali solutions, a mixture of NaOH and urea, thiourea [13,14,15], and methanol saturated with calcium chloride dehydrate [16,17].
The type of solvent and the conditions of dissolution affect the ultimate structure and properties of porous chitin-based materials. Materials with a density of 0.125 g/cm3 and a porosity of 92% were obtained by dissolving chitin in DMAc/LiCl, regenerating, and drying in supercritical CO2 [12]. Ultra-light porous chitin aerogels with a density of 0.039–0.063 g/cm3, a porosity of 84–90%, and low crystallinity as a result of the redistribution of hydrogen bonds in the chitin structure were obtained by dissolving chitin in ionic liquids, regenerating in ethanol, and then drying in supercritical CO2. These aerogels showed extremely low cytotoxicity with L929 fibroblasts [18].
Aerogels obtained by dissolving chitin in an aqueous KOH/urea solution and electrophoretic deposition showed a large surface area (289 m2/g), substantial nanoporosity (100 nm), good biocompatibility (cell viability > 90%), and high water adsorption capacity (397%) [19]. Compared to gauze and commercial wound dressings, the chitin-based aerogels showed a higher stimulatory effect on wound healing and contributed to better cytocompatibility, hydrophilicity, and air permeability. Aerogels with a density of 0.043–0.113 g/cm3, porosity up to 97%, surface area of 261 m2/g, and good mechanical properties (compressive modulus from 7 to 9.3 MPa) were produced from chitin nanoparticles obtained by hydrolysis of chitin in 3N HCl for 90 min under stirring [20]. Aerogels produced by ultrasonic treatment retained the thermal stability of the chitin nanoparticles, a feature that is important in tissue engineering. Cryogels with good mechanical strength, a density of 0.89–10.83 mg/cm3, and a porosity of 99.24–99.94% were also obtained using chitin nanoparticles obtained by treating chitin with 33% NaOH at 90 °C for 4 h, dispersing with a microfluidizer, crosslinking with glutaraldehyde, and subjecting to a freeze-thaw step [21].
Scaffolds based on chitin have been obtained using a solvent system of calcium chloride and methanol, followed by freeze-drying the regenerated aqueous chitin [17]. Composite scaffolds were obtained by freeze-drying an α-chitin hydrogel with bioactive glass-ceramic nanoparticles [22]. The produced materials had good swelling, mechanical strength, and high porosity and showed high biological activity.
Taken together, the available evidence indicates possibilities for the production and application of chitin-based cryogels in tissue engineering. However, the methods used previously for dissolving chitin to produce porous materials are lengthy and require special conditions. The chitin solvents used also have significant disadvantages, including the low volatility of ionic liquids, which complicates their regeneration. The significant disadvantage of using DMAc/LiCl is the difficulty of removing LiCl from the final products. When using solvents containing NaOH, Na+ ions penetrate deeply into the structure of the polysaccharide, so alkalis are difficult to remove. All these impurities are unfavorable for biomedical applications.
A less common solvent for chitin dissolution is concentrated phosphoric acid [23,24]. At a minimum concentration of 75%, phosphoric acid easily dissolves α-chitin at room temperature [25]. In this case, the maximum concentration of chitin in the solution was 3%. During the first hours in a phosphoric acid solution, the regenerated chitin is not chemically modified, but its molecular weight decreases. The high viscosity of the solution rapidly decreases within 12 h, and the prolonged dissolution of chitin (one week) in phosphoric acid results in the formation primarily of the monophosphate. Previous studies [25] have identified concentrated phosphoric acid as a good solvent for chitins with an average degree of polymerization from 100 to 1000, and up to 4% chitin was easily dissolved in 85% phosphoric acid. Subsequent regeneration in water produced chitin nanofiber and nanosphere structures [24]. Changing the temperature and dissolution time changed the yields and sizes of the chitin nanofibers. In the process of dissolution, the degree of phosphorylation of chitin was less than 1%, whereas the crystallinity decreased after regeneration [24].
In the present study, the disadvantages of typical chitin solvents (ionic liquids, LiCl/DMAc, alkaline solutions, methanol saturated with calcium chloride dehydrate) were taken into account, and a method was proposed to produce cryogels after dissolving chitin in phosphoric acid. Phosphoric acid is used in the food industry (production of salts for animal feed, acidification of food and drink), in the pharmaceutical industry, for surface treatment and the production of fertilizers [26]. Phosphoric acid can be considered a “green” solvent, as it gently dissolves chitin [23] and can be easily removed, regenerated, and reused. This makes phosphoric acid a technologically superior and easy to use solvent. The dissolution process of chitin in phosphoric acid was previously studied [23,24,25]; however, no attempt was made to produce chitin cryogels using phosphoric acid as a solvent. Here, the effects of the production process parameters on the structure and properties of the resulting chitin cryogels were investigated. Scheme 1 illustrates the overall structure of the work.

2. Materials and Methods

2.1. Materials

The crab α-chitin (Biolog Heppe GmbH, Landsberg, Germany) used had a weight average molecular weight (Mw) of 5.86 × 105 and dispersity (Ð) of 4.3. A degree of acetylation of 0.98 was calculated using solid-state cross-polarization magic angle spinning carbon-13 nuclear magnetic resonance (13C CP-MAS NMR) spectroscopy. Phosphoric acid 85 wt.% in H2O (99.99% trace metals basis), acetone (purity of 99.7%) and DMAc (purity of 99.95%) were supplied by Vekton (St. Petersburg, Russia). Lithium chloride (purity of 99%) was supplied by Sigma-Aldrich (St. Louis, MO, USA).

2.2. Preparation of Chitin Cryogels

Chitin solutions (3.0–15.0 wt.%) were prepared using 85% H3PO4. Chitin powder was mixed with H3PO4 under various conditions (different chitin concentrations and dissolution times, Table 1). The solutions (5 mL) were periodically stirred until the complete dissolution of chitin (transparent solutions). Acetone was used as a precipitant for chitin from phosphoric acid solutions. The regenerated chitin was washed with distilled water via several cycles of centrifugation (4500 rpm for 5 min) until neutral pH, frozen at −18 °C, and freeze-dried in a 10 N freeze-dryer (Shanghai Drawell Scientific Instrument Co., Shanghai, China).

2.3. General Methods

High performance size-exclusion chromatography was performed on a Prominence LC-20 system (Shimadzu, Kyoto, Japan) consisting of a parallel double micro plunger pump (LC-20AD), a degassing unit (DGU-20 A3R), a 20 μL manual injector (Rheodyne 7725i), a column oven (CTO-20A), and a refractive index (RID-20A) detector. Chromatographic separation was carried out using two GRAM columns (PSS, Mainz, Germany) (1000 Å, 300 × 8 mm) and a GRAM precolumn (50 × 8 mm). The column oven and refractive index detector were maintained at 70 °C and 55 °C, respectively. Chitin samples were prepared according to the method previously described for cellulose [27] and eluted at a flow rate of 1.0 mL/min with a mobile phase of 0.5% LiCl in DMAc. The detector was calibrated with a pullulan standards kit with Mw ranging from 345 to 805,000 (PSS, Mainz, Germany). Data were acquired using LC-Solution software (version 5.71 SP1), while LabSolutions GPC software (version 5,93, 2018, Shimadzu, Kyoto, Japan) was used for molecular weight calculations. Note that the molecular weights determined from size-exclusion chromatography are the apparent molecular weights relative to pullulan standards.
The cryogel yield, geometrical dimensions, volume shrinkage, volume variation (∆V), density (ρ), specific mass, porosity (the density of bulk chitin is taken as 1.425 g/cm3 [28], and swelling were measured and calculated as described previously [29].
The 13C CP-MAS NMR spectra were recorded on a Bruker AVANCE II-500 WB instrument (Bruker, Billerica, MA, USA). The degree of acetylation of chitin was determined from the ratio of the integral intensities of the C1 signal and the CH3 group signal [30].
X-ray diffraction was performed using a DRON-3M instrument (Burevestnik, St. Petersburg, Russia) at a radiation wavelength of Cu Kα λ = 1.54 Å. The crystallinity of the chitin and chitin cryogels was calculated as the ratio of the intensity of the (110) reflex to the amorphous halo at 2θ = 16° [31].
FTIR spectra were obtained using a Vertex-70 FTIR spectrometer (Bruker) equipped with a ZnSe attenuated total reflectance accessory (PIKE Technologies, Fitchburg, WI, USA). When analyzing the spectra, a correction was introduced for the depth of penetration of the beam into the sample depending on the wavelength. FTIR and NMR spectra were processed using MestReNova software (version 6.0.2-5475, 2009, Mestrelab Research S.L., Santiago de Compostela, Spain).
The morphology of the chitin cryogels was studied using a SIGMA VP field emission scanning electron microscope (ZEISS Research Microscopy Solutions, Jena, Germany) at 10 kV accelerated voltage. The samples were coated with 5-nm Pt/Pd metal layer using a Q150TES sputtering system (Quorum, Laughton, East Sussex, UK).
The specific surface area was determined using a QuadraSorb instrument (Quantachrome Instruments, Boynton Beach, FL, USA) and the Brunauer, Emmett, and Teller approach. The Kr adsorption isotherm were measured at 77 K after degassing of the samples at 70 °C.
The mechanical properties of the chitin cryogels were studied on an AG-100kN X Plus setup (Shimadzu, Kyoto, Japan). The test samples were prepared in tablet form with a height and diameter of about 1 and 2 cm, respectively. The compression was performed at room temperature (20 ± 3 °C) with a compression rate of 5 mm/min. All experiments were performed in triplicate, and the data are displayed as mean ± standard deviation.

3. Results and Discussion

3.1. Chitin Dissolution in 85% Phosphoric Acid and Preparation of Chitin Cryogels

Previous work confirmed that chitin at concentrations up to 4% was easily dissolved in concentrated phosphoric acid [24]. Initially, we tested the production of cryogels from a solution with a chitin concentration of 1%. In this case, a powder was obtained, and some fragments of cryogel were visible. Therefore, we decided to use chitin concentrations from 3 to 15% (Table 1), similarly to the previously obtained cellulose cryogels [29,32].
The production of transparent solutions was assumed to correspond to the complete dissolution of chitin in phosphoric acid. The use of water as a precipitant led to the complete dissolution of chitin at the phosphoric acid washing stage. Therefore, we used acetone to precipitate the chitin from the phosphoric acid solutions. The regenerated chitin was washed free of residual phosphoric acid using water, and then frozen and freeze-dried. Cryogels that retained the shape of the test tubes in which the freezing and freeze-drying took place were obtained from all solutions except Sample 7.
We obtained 5% solutions of chitin in 16 h at room temperature (20 ± 3 °C). Small fragments of chitin were still visible in the solution after 6 h of dissolution (Sample 5). We obtained 10 and 15% solutions of chitin in 24–25 h at 20 ± 3 °C; this was a shorter time than the 48 h required for 8.4% cellulose solution at 20 ± 2 °C [29]. The solution with a 15% chitin concentration of was difficult to stir at the initial stages of dissolution. After 6 h of dissolution, the stirring improved.
The lowest cryogel yield was obtained for Sample 1 (Table 1). This is explained by the easier access of the solvent to the chitin polymer chains at low concentrations. A lower yield (45.4%) was also obtained for Sample 7. Increasing the chitin dissolution time to 48 h led to the formation of a powder that did not form a cryogel. Samples 2–4 gave cryogel yields of about 77%. Sample 5 gave a smaller yield (66.8%) due to losses at the washing stage during regeneration of the chitin from phosphoric acid and due to incomplete dissolution of chitin in acid after 6 h. The highest yield (81.2%) was obtained for Sample 6 (the dissolution time for chitin was 16 h).
The cryogels with the lowest density (Samples 1 and 5) had the highest porosity, at 98%. Increasing the chitin concentration resulted in a lower porosity (96–97%) and a higher density (ρ 0.04–0.06 g/cm3) (Samples 2–4). Chitin cryogels were less dense than the previously obtained cellulose cryogels (ρ 0.091–0.161 g/cm3) using phosphoric acid as a solvent [29]. Only cryogels based on nanochitin had a lower density (ρ 0.89 ± 0.22 and 1.28 ± 0.24 mg/cm3) [21]. Notably, the density of the obtained cryogels was similar to the density for previously obtained chitin aerogels (ρ from 0.0048 to 0.100 g/cm3) [12,20,28,33].
The Mw of chitin decreased after dissolution in phosphoric acid and regeneration (Table 1). The smallest value was obtained for Sample 7 (powder). The Mw of Sample 1 was 41,000, which is sufficient to obtain a cryogel. The highest Mw was obtained for Sample 5 (Table 1). After 6 h of dissolution in phosphoric acid, chitin showed less destruction. The Mw/Mn ratio (or the dispersity, Ð) is a measure of the nonuniformity of the polymer sample. A Ð value close to 1 indicates a narrow molar mass distribution, while higher values reflect increasing non-uniformity (i.e., broad or stretched molar mass distributions). The dispersity increased with an increase in the chitin concentration or a decrease in the dissolution time of chitin when producing cryogels (Table 1).
The regeneration of chitin from solutions of phosphoric acid and the subsequent freezing and freeze-drying caused a volume shrinkage of the cryogel samples when compared with the volume of the initial solution. The greatest shrinkage was noted for Sample 1 (33.5%) and was associated with the lowest concentration of polysaccharide in solution and the lowest cryogel volume (3.3 cm3). Increasing the chitin concentration in solution up to 5% reduced this volume shrinkage to 26% for Sample 2 (cryogel volume 3.7 cm3) and to 3.9% for Sample 6 (cryogel volume 4.8 cm3). Samples 3, 4, and 5 did not show shrinkage, and their cryogels had a larger volume (7.8, 9.7, and 6.8 cm3, respectively) compared to the initial volume of the solutions (5 cm3).
The chitin hydrogels (washed, regenerated chitin) were characterized by determining the volume variation (the ratio of the hydrogel volume to the volume of the initial solution). In this case, a negative value corresponds to shrinkage, while a positive value corresponds to chitin swelling after regeneration. Positive results were obtained for all samples (Table 1). An increase in the chitin concentration (Samples 1–4) also increased the volume of the swollen hydrogel. Samples 3 and 4 had the largest values for volume variation.
Thus, to obtain chitin cryogels, a dissolution time of 16–25 h is sufficient. During this time, solutions with a chitin concentration from 5 to 15% in phosphoric acid can be obtained. This confirms the better solubility of chitin in comparison with the previously studied cellulose [29].

3.2. Swelling in Water of Chitin Cryogels

The degree of swelling of the hydrogels (the ratio of the mass of the original chitin and the mass of the obtained hydrogel) was also evaluated (Table 1). A higher chitin concentration resulted in a lower swelling, in agreement with previously obtained results for cellulose cryogels [29].
The stability of chitin cryogels in water was determined at room temperature (20 ± 3 °C). After storage in water for 24 h, the samples were weighed. The swelling ratios (SR) are shown in Table 1. Sample 1 fell apart during weighing. Samples 2–6 were stable in water. A lower sample density gave a higher SR value. Sample 5 had the lowest density and the highest SR value.

3.3. Specific Surface Area of Chitin Cryogels

The specific surface area of chitin cryogels ranged from 0.3 to 0.7 m2/g (Table 1). A previous study [21] on cryogels based on nanochitin showed a decrease in the specific surface area from 25.3 to 12.2 m2/g with an increase in the nanochitin content from 0.2 to 0.6%. In the present case, samples with chitin concentrations of 3 and 5% gave approximately the same results for the specific surface area (0.3 m2/g). An increase in the chitin concentration to 10% led to an increase in the specific surface area to 0.66 m2/g (Sample 3). A further increase in the chitin concentration (15%) resulted in a twofold decrease in the specific surface area (Sample 4). Notably, the specific surface area was lower for the chitin cryogels than for cellulose cryogels obtained using the same methodology (from 1.03 to 1.77 m2/g) [29].

3.4. Crystallinity of Chitin and Chitin Cryogels

The method for determining the crystallinity of chitin by 13C CP-MAS NMR spectroscopy is not described. In contrast to cellulose [29], the spectra of chitin showed no separation of signals from C4 (82.4 ppm), C6 (61.1 ppm), or C3 and C5 (74.9 ppm). Changes in the spectrum of chitin after dissolution in phosphoric acid (chitin cryogel spectra) are shown in Figure 1. Chitin cryogels show a separation of signals from the C3 and C5 atoms, whereas the original chitin showed no separation. Separation of the C3 and C5 signals has been described in the literature as a characteristic of α-chitin [34], whereas these signals are not separated in the β-chitin spectrum. These two allomorphic forms of chitin differ in the configuration of their space group and crystal lattice, which is determined by the orientation of the polysaccharide chains and the H-bonding pattern. α-Chitin is more widespread in nature; it is characterized by antiparallel chains and a strong network of intra- and inter-molecular H-bonds, including bonding between sheetlike molecular structures [35]. Due to its supramolecular structure, α-chitin has high stability; it is found mostly in the rigid tissues of crabs and insects. By contrast, β-chitin is derived from the flexible structures of squid pen and pogonophora tubes and has a parallel chain orientation but weak intersheet bonding. Therefore, it shows greater swelling ability and reactivity compared to α-chitin [36].
Tanner et al. [37] demonstrated that the highly crystalline β-chitin from diatoms also showed separation of the C3 and C5 signals in 13C CP-MAS spectra. The crystalline samples gave narrow signals that were used for accurate determination of β-chitin chemical shifts and for signal assignment in spectra of more amorphous β-chitin samples [38], where signal broadening and merging occurred. Thus, 13C CP-MAS spectra are not sufficient for the correct determination of chitin allomorph modifications [36,37].
Another difference between the spectra of α- and β-chitin is in the acetyl carbon signal at approximately 174 ppm. In the case of α-chitin, the deconvolution of carbonyl signal allowed determination of the carbonyl groups involved in double and single H-bonding [30]. In the case of β-chitin, carbonyl peak asymmetry is believed to arise from coupling with the 14N nucleus [37]. In our case, the peaks in the original chitin spectrum were rather broad, which precluded a clear distinguishing of the crystalline modification. Since only the α-chitin structure has been described for crab chitin, we assume that our original chitin is a highly amorphous sample with a destroyed H-bond network. The cryogels did show a separation of signals from the C3 and C5 atoms, becoming more similar to the crab α-chitin spectra described in the literature [34] and indicating crystallinity changes after regeneration from phosphoric acid. Notably, the degree of chitin acetylation did not change after dissolution in phosphoric acid and regeneration with acetone.
We determined the crystallinity of the original chitin sample and chitin cryogels by X-ray diffraction; the X-ray diffraction diagrams for chitin and several chitin cryogel samples are presented in Figure 2. We chose a cryogel obtained with the shortest chitin dissolution time (Sample 5) and a cryogel obtained from a solution with the maximum chitin concentration (Sample 4). According to the literature, both α- and β-chitin show two sharp diffraction peaks at 2θ of approximately 8.5–9.5° from the (020) planes and 18.5–19.5° from the (110) planes of crystalline unit cells, as well as some weak peaks [31]. Kaya et al. [34] observed (020) reflection for α- and β-chitin at 9.46° and 8.59°, respectively. For α-chitin, a sharper second reflection peak was observed at 12.74°, while the same peak for β-chitin was slightly weaker and appeared at 12.29° [34]. In our case, the (020) crystalline reflection was observed at 8.84° for chitin and at 9.14° (Sample 4) and 9.28° (Sample 5) for cryogels. For chitin cryogels, the second reflection peak was observed at 12.48° (Sample 4) and at 12.8° (Sample 5). For the original chitin, determining a clear peak was difficult.
Therefore, the main difference in the XRD diagrams of the original chitin and the obtained cryogels was related to a narrowing of the crystalline reflections due to an increase in the crystallinity of chitin after treatment with phosphoric acid and the subsequent stage of regeneration. The crystallinity of chitin was estimated as 58%, while for cryogels the crystallinity increased to 85%. This difference was rather large, indicating significant crystallinity changes during regeneration. For crystallinity assessment, we used the approximate evaluation involving a total intensity at 2θ of 20° and an intensity of amorphous scattering at 16°. This crude estimation has recently been shown to be inaccurate [39]; however, it is easy and does not require any crystalline and amorphous reference samples.

3.5. FTIR Spectroscopy

The FTIR spectra of the original chitin and chitin cryogels were similar (Figure 3). All spectra had characteristic chitin functional groups, including an NH stretching vibration band at 3269 cm−1, an amide I band at 1640 cm−1, and an amide II band at 1552 cm−1. This indicated that the chemical structure of chitin did not change after dissolution in phosphoric acid and regeneration with acetone.
The most obvious spectral difference between α- and β-chitin described in the literature is the frequency of the vibration modes of amide I in the region 1660–1620 cm−1 (two absorption bands appear with α-chitin, but only one band with β-chitin) [40]. However, for highly crystalline β-chitin, a two-band pattern in the region of 1660–1620 cm−1 has also been reported [41]. Chitin cryogels were characterized by two absorption bands at 1646–1650 cm−1 and at 1625–1629 cm−1. The original chitin had two absorption bands at 1659 cm−1 and 1625 cm−1. Poor band separation compared to cryogels may be due to the higher water content.
Two bands in α-chitin characterize two types of amides: half of the carbonyl groups are hydrogen bonded to the amino group within the same chain (C = O…H–N), and this is responsible for the vibration mode at 1650 cm−1. The remaining carbonyl groups give the same bond, plus one more with the –CH2OH group from the side chain, which appears as a band at 1629 cm−1. The existence of these interchain bonds is responsible for the high chemical stability of the α-chitin structure.
In the region of the OH and NH groups (3600–3000 cm−1), α-chitin has a more detailed structure than β-chitin due to the different H-bond pattern [38]. The bands in the region of 3340–3440 cm−1 reflect intramolecular hydrogen bonds with the participation of OH(6)…O=C, O(3)H…O(5) from the ring. The bands at 3269 cm−1 and 3097 cm−1 characterize NH vibrations of the amide (intermolecular hydrogen bond C=O…H–N and the NH groups intramolecularly bonded by H, respectively). In our case, the differences in the region of the OH and NH groups were not significant, supporting the conclusion that the original chitin was in a highly amorphous α-chitin state and that the crystallinity of the samples should be considered when interpreting the 13C CP-MAS and IR spectra.
Previously, the phosphorylation of chitin was confirmed by the appearance of a broad peak at 3428 cm−1 (P–OH group), a peak at about 1221 cm−1 (asymmetric stretching of the phosphate group (P=O), a small peak at 975 cm−1 (P-OH), a small peak at 800 cm−1, and a peak at 1050 cm−1 (stretching C–O–P) [42]. However, these bands were absent from the FTIR spectra of the cryogels (Figure 3), indicating that, during the regeneration with acetone and washing with water, the phosphate groups were completely hydrolyzed, in agreement with what we have observed for cellulose [29].

3.6. Mechanical Properties

Strength is an important quality of cryogels for tissue engineering applications [43,44]. Compressive modulus (E), yield stress (σy), and stress corresponding to the critical deformation of 70% (σmax) were determined for chitin cryogels. Note that recording the moment of destruction of the samples was not possible during the compression testing. The stress-strain curves did not show a sharp decrease in stress, which could indicate destruction of the material. Therefore, the compression strain limit was set at 70%. The mechanical parameters are presented in Table 2, and the types of deformation curves are shown in Figure 4.
The shape of the stress–strain curves was similar for all the cryogel samples. The lowest compressive modulus E was obtained for the cryogel sample with the lowest Mw (Sample 1). Samples 2, 5, and 6 (chitin concentration 5%) were characterized by a decrease in the Mw of chitin with an increase in dissolution time, and, accordingly, a decrease in the modulus E (Table 2). Sample 3 had the highest modulus E.
Thus, an increase in the chitin Mw increased the strength of the cryogel, in agreement with previous findings for cellulose cryogels [29]. However, the chitin cryogels are not as strong as cellulose cryogels obtained with the same methodology (for cellulose, the compressive modulus E is from 330 to 3675 kPa) [29].

3.7. SEM Morphology of Chitin Cryogels

All cryogels had a similar morphology. Both film and network structures were found, consisting of cauliflower-like structures formed by clusters of small spheres (examples are shown in Figure 5). The chitin cryogels had a similar morphology to that of previously obtained nanochitin cryogels [21] and chitin aerogels [19,28,45]. The chitin aerogels with complex hierarchical morphology accelerated the healing of wounds [19]. Cell studies have shown that fibroblast cells (L929 cell line) are well attached onto chitin aerogels and maintain their normal morphologies compared with controls in normal culture plates, indicating a certain biocompatibility of the chitin aerogels [28].
The physical properties and morphology of nanochitin cryogels were deemed suitable for advanced biobased materials [21]. Therefore, chitin cryogels are good candidate scaffolds for tissue engineering because of their complex hierarchical morphology.

4. Conclusions

Ultralight (0.025–0.059 g/cm3), highly porous (96–98%) chitin cryogels were obtained using phosphoric acid as a solvent. The influence of the dissolution time and the polysaccharide concentration on the properties of cryogels was estimated. Cryogels could not be produced from a solution with a chitin concentration of less than 3%, whereas obtaining a solution with a chitin concentration of 15% was difficult in the first stages of the dissolution process due to the complexity of mixing. Dissolving chitin in phosphoric acid is a simple process compared to dissolving cellulose, and a dissolution time of 16–25 h at 20 ± 3 °C was sufficient to obtain 5–15% solutions. The use of acetone is necessary to precipitate chitin from phosphoric acid solutions. The cryogel with the greatest durability and stability in water and the highest specific surface area was a cryogel obtained from a 10% chitin solution. The decrease in the chitin Mw (to 41,000) after dissolution in phosphoric acid and regeneration with acetone did not prevent the formation of cryogels.
Analysis by 13C CP-MAS NMR spectroscopy, FTIR spectroscopy, and X-ray diffraction showed that, after dissolution in phosphoric acid, chitin undergoes the α-modification and that crystallinity increased significantly. No phosphorylation was evident.
All chitin cryogels had a multifarious, heterogeneous morphology ranging from film and network structures to spherical structures and aggregates of spherical structures. The morphology is similar to that previously described for nanochitin cryogels and chitin aerogels prepared from various solvents. This morphology makes cryogels good candidates for tissue engineering scaffolds.
Thus, the optimal parameters for the production of light, highly porous chitin cryogels with various heterogeneous morphology were determined as a dissolution temperature of 20 ± 3 °C, concentration of chitin in solution from 5%, and a dissolution time of 16–25 h. The molecular weight of chitin decreases significantly upon dissolution in phosphoric acid; however, this does not preclude the production of shape-retained cryogels.
The dissolution of chitin in phosphoric acid and regeneration with acetone allows the production of cryogels with different mechanical properties and porosities. The properties of the produced cryogels can be changed by varying the dissolution conditions for chitin. The resulting chitin materials can find applications in tissue engineering due to their biocompatibility, biodegradability, and nontoxicity.

Author Contributions

Conceptualization, I.V.T. and Y.A.S.; methodology, I.V.T., E.N.P., V.A.U., E.N.V. and D.N.P.; investigation, I.V.T., D.G.C., I.V.G., E.N.P., V.A.U., E.N.V. and D.N.P.; writing—original draft preparation, I.V.T., D.G.C., I.V.G. and D.N.P.; writing—review and editing, Y.A.S.; supervision, Y.A.S.; project administration, I.V.T.; funding acquisition, I.V.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Foundation for Basic Research (project 19-33-60014).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data are contained within the article.

Acknowledgments

This study was performed using the equipment of the Shared Use of Equipment Center Arktika at Northern (Arctic) Federal University named after M.V. Lomonosov, and the Centre for Diagnostics of Functional Materials for Medicine, Pharmacology, and Nanoelectronics of the Research Park of the Saint Petersburg State University. The authors are grateful to A.V. Dobrodumov for conducting the NMR studies and to D.P. Romanov for conducting the X-ray diffraction analysis.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Azuma, K.; Ifuku, S.; Osaki, T.; Okamoto, Y.; Minami, S. Preparation and biomedical applications of chitin and chitosan nanofibers. J. Biomed. Nanotechnol. 2014, 10, 2891–2920. [Google Scholar] [CrossRef] [PubMed]
  2. Jayakumar, R.; Prabaharan, M.; Kumar, P.S.; Nair, S.; Tamura, H. Biomaterials based on chitin and chitosan in wound dressing applications. Biotechnol. Adv. 2011, 29, 322–337. [Google Scholar] [CrossRef] [PubMed]
  3. Satitsri, S.; Muanprasat, C. Chitin and chitosan derivatives as biomaterial resources for biological and biomedical applications. Molecules 2020, 25, 5961. [Google Scholar] [CrossRef] [PubMed]
  4. Yang, T.-L. Chitin-based materials in tissue engineering: Applications in soft tissue and epithelial organ. Int. J. Mol. Sci. 2011, 12, 1936–1963. [Google Scholar] [CrossRef] [Green Version]
  5. Park, B.K.; Kim, M.-M. Applications of chitin and its derivatives in biological medicine. Int. J. Mol. Sci. 2010, 11, 5152–5164. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Bakhshpour, M.; Idil, N.; Perçin, I.; Denizli, A. Biomedical applications of polymeric cryogels. App. Sci. 2019, 9, 553. [Google Scholar] [CrossRef] [Green Version]
  7. Silva, S.S.; Mano, J.F.; Reis, R.L. Potential applications of natural origin polymer-based systems in soft tissue regeneration. Crit. Rev. Biotechnol. 2010, 30, 200–221. [Google Scholar] [CrossRef] [Green Version]
  8. Silva, S.S.; Mano, J.F.; Reis, R.L. Ionic liquids in the processing and chemical modification of chitin and chitosan for biomedical applications. Green Chem. 2017, 19, 1208–1220. [Google Scholar] [CrossRef]
  9. Xie, H.; Zhang, S.; Li, S. Chitin and chitosan dissolved in ionic liquids as reversible sorbents of CO2. Green Chem. 2006, 8, 630–633. [Google Scholar] [CrossRef]
  10. Takegawa, A.; Murakami, M.-A.; Kaneko, Y.; Kadokawa, J.-I. Preparation of chitin/cellulose composite gels and films with ionic liquids. Carbohydr. Polym. 2010, 79, 85–90. [Google Scholar] [CrossRef]
  11. García-González, C.A.; Alnaief, M.; Smirnova, I. Polysaccharide-based aerogels—Promising biodegradable carriers for drug delivery systems. Carbohydr. Polym. 2011, 86, 1425–1438. [Google Scholar] [CrossRef]
  12. Tsioptsias, C.; Michailof, C.; Stauropoulos, G.; Panayiotou, C. Chitin and carbon aerogels from chitin alcogels. Carbohydr. Polym. 2009, 76, 535–540. [Google Scholar] [CrossRef]
  13. Abe, K.; Ifuku, S.; Kawata, M.; Yano, H. Preparation of tough hydrogels based on β-chitin nanofibers via naoh treatment. Cellulose 2014, 21, 535–540. [Google Scholar] [CrossRef]
  14. Chang, C.; Chen, S.; Zhang, L. Novel hydrogels prepared via direct dissolution of chitin at low temperature: Structure and biocompatibility. J. Mat Chem. 2011, 21, 3865–3871. [Google Scholar] [CrossRef]
  15. Hu, X.; Du, Y.; Tang, Y.; Wang, Q.; Feng, T.; Yang, J.; Kennedy, J.F. Solubility and property of chitin in naoh/urea aqueous solution. Carbohydr. Polym. 2007, 70, 451–458. [Google Scholar] [CrossRef]
  16. Tamura, H.; Nagahama, H.; Tokura, S. Preparation of chitin hydrogel under mild conditions. Cellulose 2006, 13, 357–364. [Google Scholar] [CrossRef]
  17. Tamura, H.; Furuike, T.; Nair, S.; Jayakumar, R. Biomedical applications of chitin hydrogel membranes and scaffolds. Carbohydr. Polym. 2011, 84, 820–824. [Google Scholar] [CrossRef]
  18. Silva, S.S.; Duarte, A.R.C.; Carvalho, A.P.; Mano, J.F.; Reis, R.L. Green processing of porous chitin structures for biomedical applications combining ionic liquids and supercritical fluid technology. Acta Biomater. 2011, 7, 1166–1172. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Guo, X.; Xu, D.; Zhao, Y.; Gao, H.; Shi, X.; Cai, J.; Deng, H.; Chen, Y.; Du, Y. Electroassembly of chitin nanoparticles to construct freestanding hydrogels and high porous aerogels for wound healing. ACS Appl. Mater. Interfaces 2019, 11, 34766–34776. [Google Scholar] [CrossRef]
  20. Heath, L.; Zhu, L.; Thielemans, W. Chitin nanowhisker aerogels. ChemSusChem 2013, 6, 537–544. [Google Scholar] [CrossRef] [Green Version]
  21. Liu, L.; Bai, L.; Tripathi, A.; Yu, J.; Wang, Z.; Borghei, M.; Fan, Y.; Rojas, O.J. High axial ratio nanochitins for ultrastrong and shape-recoverable hydrogels and cryogels via ice templating. ACS Nano 2019, 13, 2927–2935. [Google Scholar] [CrossRef] [Green Version]
  22. Peter, M.; Kumar, P.T.S.; Binulal, N.S.; Nair, S.V.; Tamura, H.; Jayakumar, R. Development of novel α-chitin/nanobioactive glass ceramic composite scaffolds for tissue engineering applications. Carbohydr. Polym. 2009, 78, 926–931. [Google Scholar] [CrossRef]
  23. Ingavle, G.C.; Baillie, L.W.; Zheng, Y.; Lis, E.K.; Savina, I.N.; Howell, C.A.; Mikhalovsky, S.V.; Sandeman, S.R. Affinity binding of antibodies to supermacroporous cryogel adsorbents with immobilized protein a for removal of anthrax toxin protective antigen. Biomaterials 2015, 50, 140–153. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Wu, T.; Wang, G.; Gao, C.; Chen, Z.; Feng, L.; Wang, P.; Zeng, X.; Wu, Z. Phosphoric acid-based preparing of chitin nanofibers and nanospheres. Cellulose 2016, 23, 477–491. [Google Scholar] [CrossRef]
  25. Vincendon, M. Regenerated chitin from phosphoric acid solutions. Carbohydr. Polym. 1997, 32, 233–237. [Google Scholar] [CrossRef]
  26. Assuncao, M.C.; Cote, G.; Andre, M.; Halleux, H.; Chagnes, A. Phosphoric acid recovery from concentrated aqueous feeds by a mixture of di-isopropyl ether (dipe) and tri-n-butylphosphate (tpb): Extraction data and modelling. RSC Adv. 2017, 7, 6922–6930. [Google Scholar] [CrossRef] [Green Version]
  27. Satish, N.; Patkar, P.D.P. Development and validation of method for molecular weight determination of cellulose using gpc column in hplc. Int. J. Adv. Res. 2016, 4, 516–530. [Google Scholar]
  28. Ding, B.; Cai, J.; Huang, J.; Zhang, L.; Chen, Y.; Shi, X.; Du, Y.; Kuga, S. Facile preparation of robust and biocompatible chitin aerogels. J. Mater. Chem. 2012, 22, 5801–5809. [Google Scholar] [CrossRef]
  29. Tyshkunova, I.V.; Chukhchin, D.G.; Gofman, I.V.; Poshina, D.N.; Skorik, Y.A. Cellulose cryogels prepared by regeneration from phosphoric acid solutions. Cellulose 2021, 28, 4975–4989. [Google Scholar] [CrossRef]
  30. Kameda, T.; Miyazawa, M.; Ono, H.; Yoshida, M. Hydrogen bonding structure and stability of α-chitin studied by 13c solid-state nmr. Macromol. Biosci. 2005, 5, 103–106. [Google Scholar] [CrossRef] [PubMed]
  31. Ioelovich, M. Crystallinity and hydrophility of chitin and chitosan. J. Chem. 2014, 3, 7–14. [Google Scholar]
  32. Buchtova, N.; Budtova, T. Cellulose aero-, cryo-and xerogels: Towards understanding of morphology control. Cellulose 2016, 23, 2585–2595. [Google Scholar] [CrossRef]
  33. Tsutsumi, Y.; Koga, H.; Qi, Z.-D.; Saito, T.; Isogai, A. Nanofibrillar chitin aerogels as renewable base catalysts. Biomacromolecules 2014, 15, 4314–4319. [Google Scholar] [CrossRef] [PubMed]
  34. Kaya, M.; Mujtaba, M.; Ehrlich, H.; Salaberria, A.M.; Baran, T.; Amemiya, C.T.; Galli, R.; Akyuz, L.; Sargin, I.; Labidi, J. On chemistry of γ-chitin. Carbohydr. Polym. 2017, 176, 177–186. [Google Scholar] [CrossRef]
  35. Cuong, H.N.; Minh, N.C.; Van Hoa, N.; Trung, T.S. Preparation and characterization of high purity β-chitin from squid pens (loligo chenisis). Int. J. Biol. Macromol. 2016, 93, 442–447. [Google Scholar] [CrossRef]
  36. Rinaudo, M. Chitin and chitosan: Properties and applications. Prog. Polym. Sci. 2006, 31, 603–632. [Google Scholar] [CrossRef]
  37. Tanner, S.F.; Chanzy, H.; Vincendon, M.; Roux, J.C.; Gaill, F. High-resolution solid-state carbon-13 nuclear magnetic resonance study of chitin. Macromolecules 1990, 23, 3576–3583. [Google Scholar] [CrossRef]
  38. Kumirska, J.; Czerwicka, M.; Kaczyński, Z.; Bychowska, A.; Brzozowski, K.; Thöming, J.; Stepnowski, P. Application of spectroscopic methods for structural analysis of chitin and chitosan. Mar. Drugs 2010, 8, 1567–1636. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Chukhchin, D.G.; Malkov, A.; Tyshkunova, I.V.; Mayer, L.V.; Novozhilov, E.V. Diffractometric method for determining the degree of crystallinity of materials. Crystallogr. Rep. 2016, 61, 371–375. [Google Scholar] [CrossRef]
  40. Cárdenas, G.; Cabrera, G.; Taboada, E.; Miranda, S.P. Chitin characterization by sem, ftir, xrd, and 13c cross polarization/mass angle spinning nmr. J. Appl. Polym. Sci. 2004, 93, 1876–1885. [Google Scholar] [CrossRef]
  41. Blackwell, J.; Parker, K.D.; Rudall, K.M. Chitin in pogonophore tubes. J. Mar. Biol. Assoc. U. K. 1965, 45, 659–661. [Google Scholar] [CrossRef]
  42. Kumar, K.V.; Rao, B.V.A.; Hebalkar, N.Y. Phosphorylated chitin as a chemically modified polymer for ecofriendly corrosion inhibition of copper in aqueous chloride environment. Res. Chem. Intermed. 2017, 43, 5811–5828. [Google Scholar] [CrossRef]
  43. Shih, T.-Y.; Blacklow, S.O.; Li, A.W.; Freedman, B.R.; Bencherif, S.; Koshy, S.T.; Darnell, M.C.; Mooney, D.J. Injectable, tough alginate cryogels as cancer vaccines. Adv. Healthc. Mater. 2018, 7, 1701469. [Google Scholar] [CrossRef] [PubMed]
  44. Koshy, S.T.; Zhang, D.K.; Grolman, J.M.; Stafford, A.G.; Mooney, D.J. Injectable nanocomposite cryogels for versatile protein drug delivery. Acta Biomater. 2018, 65, 36–43. [Google Scholar] [CrossRef] [PubMed]
  45. Chau, T.T.L.; Le, D.Q.T.; Le, H.T.; Nguyen, C.D.; Nguyen, L.V.; Nguyen, T.-D. Chitin liquid-crystal-templated oxide semiconductor aerogels. ACS Appl. Mater. Interfaces 2017, 9, 30812–30820. [Google Scholar] [CrossRef]
Materials 14 05191 sch001 550

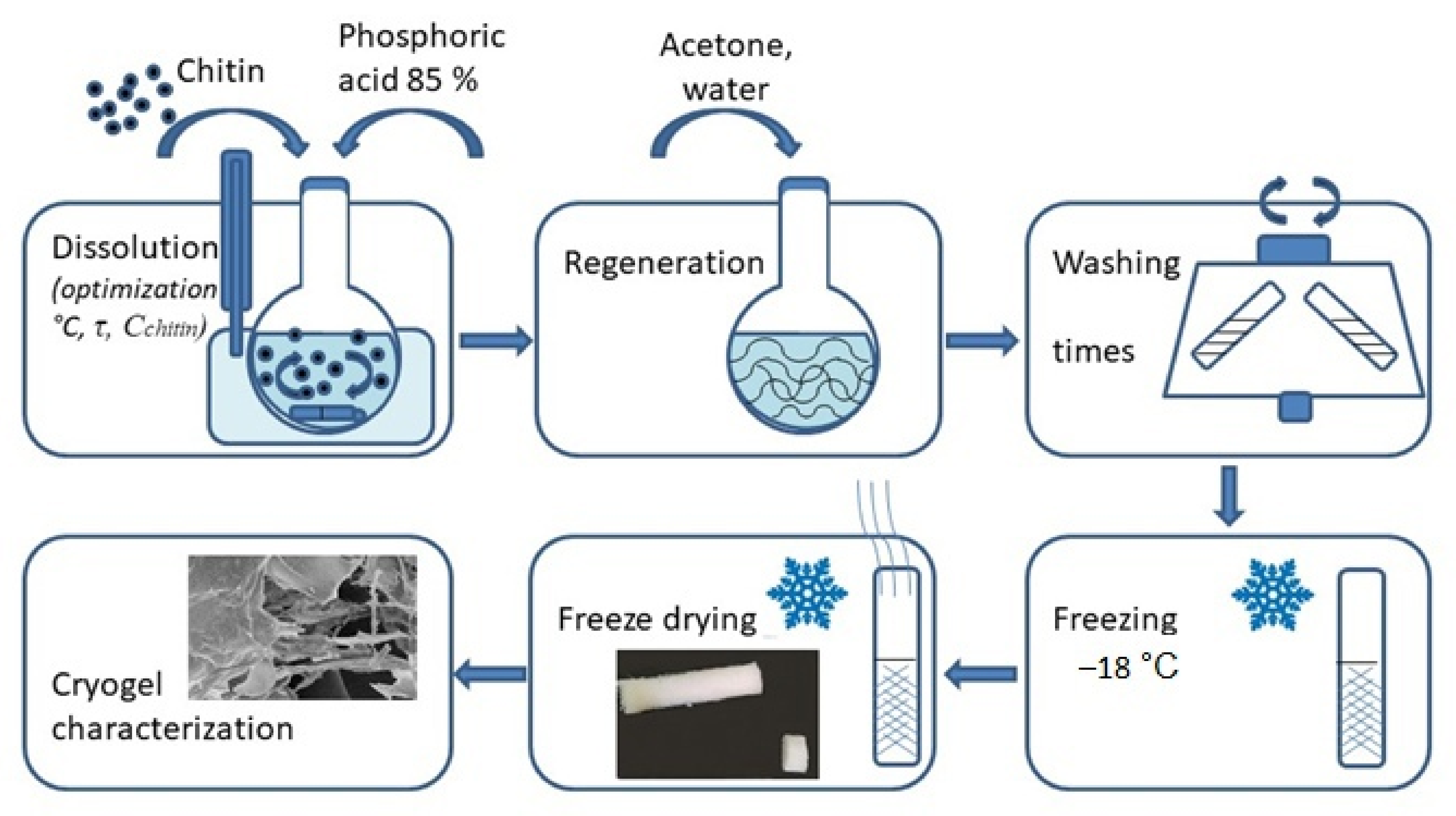

Scheme 1. The overall structure of the work.
Scheme 1. The overall structure of the work.
Materials 14 05191 sch001
Materials 14 05191 g001 550

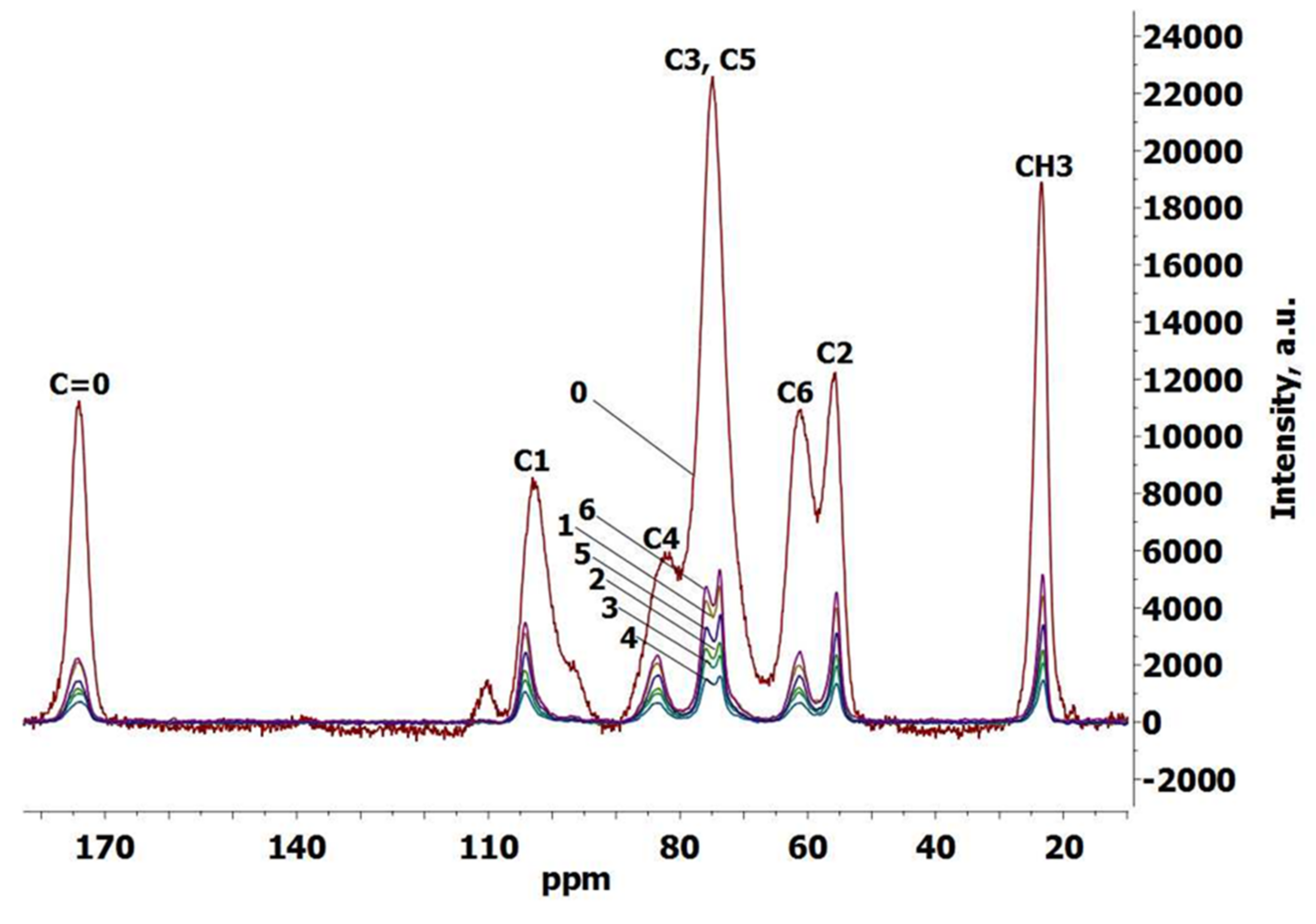

Figure 1. 13C CP-MAS NMR spectra of chitin and chitin cryogels: 0 = chitin, 1–6 = chitin cryogel samples according to Table 1.
Figure 1. 13C CP-MAS NMR spectra of chitin and chitin cryogels: 0 = chitin, 1–6 = chitin cryogel samples according to Table 1.
Materials 14 05191 g001
Materials 14 05191 g002 550

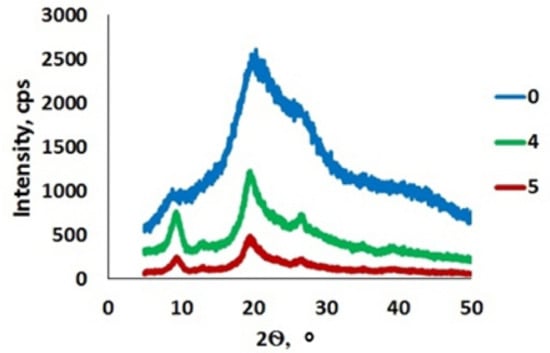

Figure 2. X-ray diffraction patterns of the original chitin (0) and chitin cryogel samples 4 and 5.
Figure 2. X-ray diffraction patterns of the original chitin (0) and chitin cryogel samples 4 and 5.
Materials 14 05191 g002
Materials 14 05191 g003 550

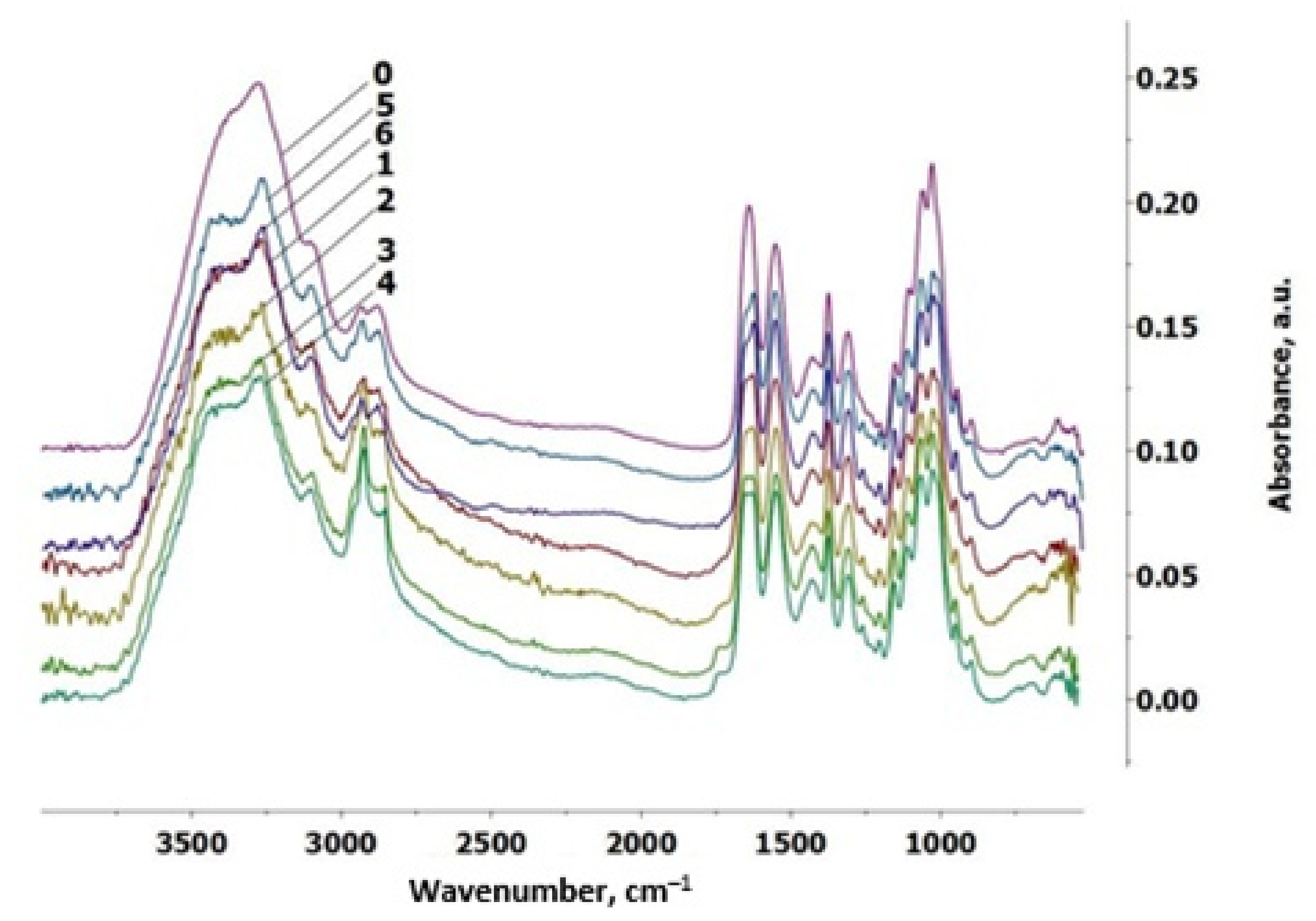

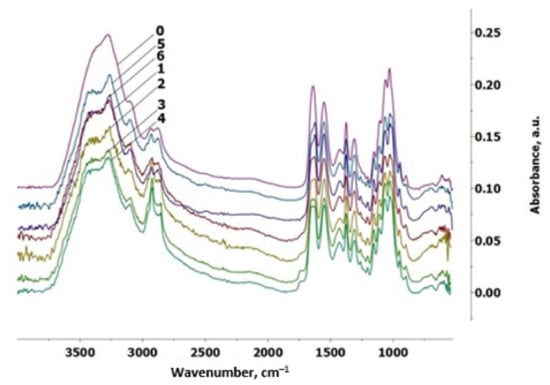

Figure 3. FTIR spectra of chitin and chitin cryogels; 0 = original chitin, 1–6 = samples of chitin cryogels according to Table 1.
Figure 3. FTIR spectra of chitin and chitin cryogels; 0 = original chitin, 1–6 = samples of chitin cryogels according to Table 1.
Materials 14 05191 g003
Materials 14 05191 g004 550

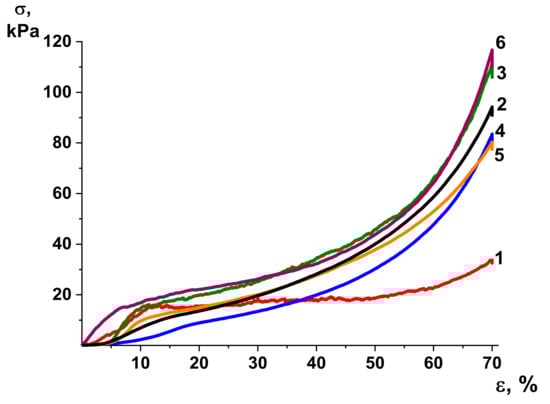

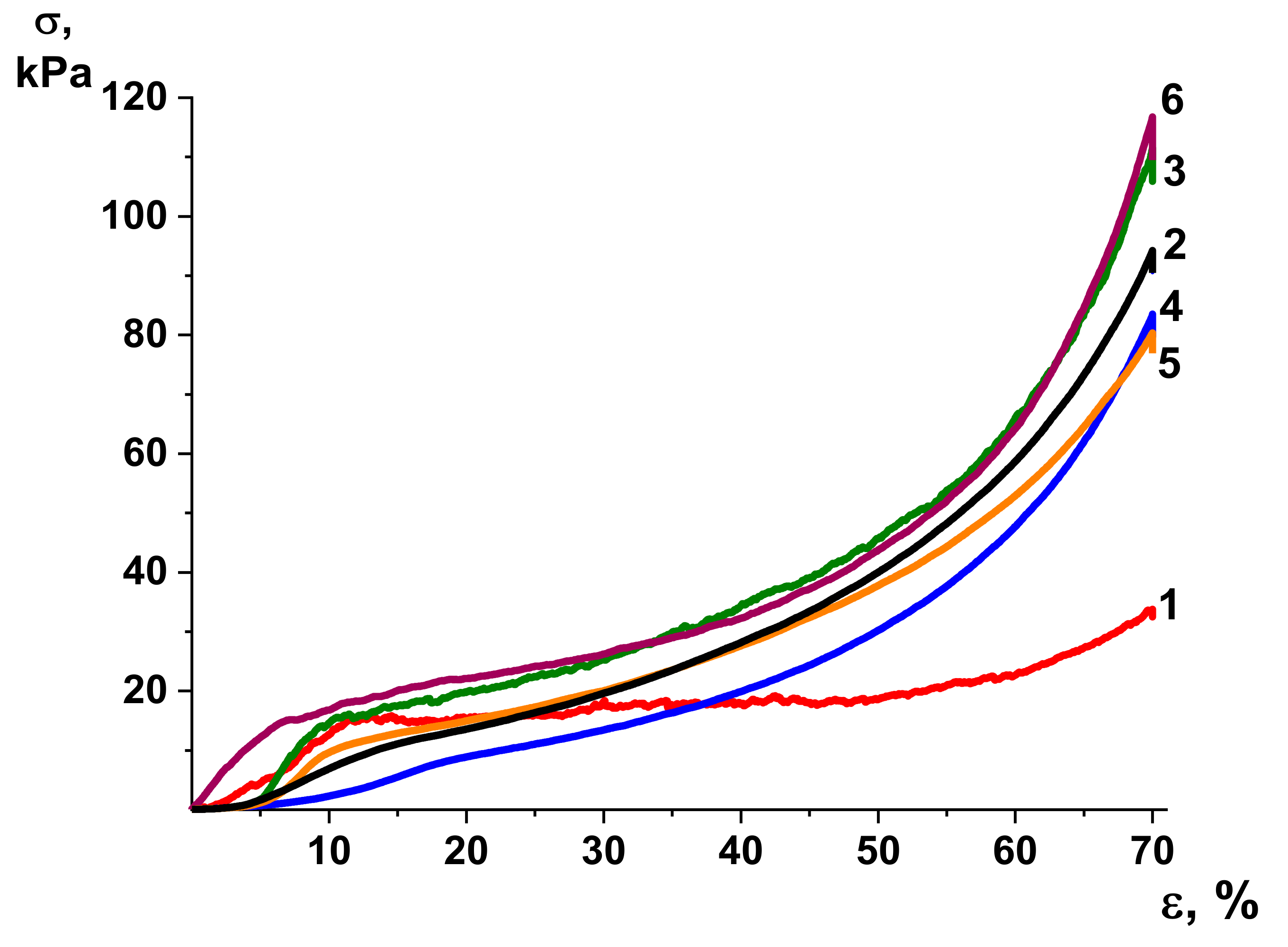

Figure 4. Stress–strain curves for chitin cryogels (Samples 1–6).
Figure 4. Stress–strain curves for chitin cryogels (Samples 1–6).
Materials 14 05191 g004
Materials 14 05191 g005 550
Figure 5. SEM images of chitin cryogels (Samples 1–4).
Figure 5. SEM images of chitin cryogels (Samples 1–4).
Materials 14 05191 g005
Table
Table 1. Dissolution conditions and characteristics of chitin cryogels prepared from 3–15% chitin solutions in 85% phosphoric acid at 20 ± 3 °C.
Table 1. Dissolution conditions and characteristics of chitin cryogels prepared from 3–15% chitin solutions in 85% phosphoric acid at 20 ± 3 °C.
SampleChitin Concentration, %Dissolution Time, hSample ShapeYield, %Cryogel Volume, cm3Volume Shrinkage, %∆V, %ρ, g/cm3Porosity, % Q m a x , %Mw (Ð) *SR, g/gSpecific Surface Area, m2/g
1324Intact cylindrical60.73.333.5200.02798.1638841,000 (4.6)Sample fall apart0.334
252477.63.726.0740.05096.3441673,000 (7.3)7.20.292
3102477.47.8−56.01480.04996.5309180,450 (7.8)7.80.660
4152576.49.7−93.31700.05995.8228263,830 (7.4)7.20.330
55666.86.8−35.6900.02598.35737274,600 (15.3)16.4-
651681.24.83.9900.04297.0461078,980 (8.2)10.0-
7548Powder45.4------10,140 (2.0)--
* Ð = Mw/Mn is the dispersity, where Mw is the weight average molecular weight and Mn is the number average molecular weight.
Table
Table 2. Mechanical parameters of chitin cryogels, mean ± standard deviation, n = 3.
Table 2. Mechanical parameters of chitin cryogels, mean ± standard deviation, n = 3.
SampleE, kPaσy, kPaσmax, kPaεmax, %
1118 ± 611 ± 333 ± 470
2170 ± 21 10 ± 187 ± 770
3345 ± 2315 ± 3112 ± 2270
4154 ± 379 ± 283 ± 1670
5230 ± 711 ± 180 ± 1270
6214 ± 2318 ± 7116 ± 2170
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tyshkunova, I.V.; Chukhchin, D.G.; Gofman, I.V.; Pavlova, E.N.; Ushakov, V.A.; Vlasova, E.N.; Poshina, D.N.; Skorik, Y.A. Chitin Cryogels Prepared by Regeneration from Phosphoric Acid Solutions. Materials 2021, 14, 5191. https://doi.org/10.3390/ma14185191

AMA Style

Tyshkunova IV, Chukhchin DG, Gofman IV, Pavlova EN, Ushakov VA, Vlasova EN, Poshina DN, Skorik YA. Chitin Cryogels Prepared by Regeneration from Phosphoric Acid Solutions. Materials. 2021; 14(18):5191. https://doi.org/10.3390/ma14185191

Chicago/Turabian Style

Tyshkunova, Irina V., Dmitry G. Chukhchin, Iosif V. Gofman, Ekaterina N. Pavlova, Vadim A. Ushakov, Elena N. Vlasova, Daria N. Poshina, and Yury A. Skorik. 2021. "Chitin Cryogels Prepared by Regeneration from Phosphoric Acid Solutions" Materials 14, no. 18: 5191. https://doi.org/10.3390/ma14185191

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
