Next Article in Journal
Structural Properties of Thin ZnO Films Deposited by ALD under O-Rich and Zn-Rich Growth Conditions and Their Relationship with Electrical Parameters
Next Article in Special Issue
Dendritic Iron(III) Carbazole Complexes: Structural, Optical, and Magnetic Characteristics
Previous Article in Journal
Analyzing the Effects of the Kinematic System on the Quality of Holes Drilled in 42CrMo4 + QT Steel


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Thermodynamic Description of Dilution and Dissolution Processes in the MgCl2−CsCl−H2O Ternary System

1
Department of Chemistry, Natural Science Faculty, Ben Gurion University of Negev, Beer Sheva 84105, Israel
2
Chemistry Institute, Saint Petersburg State University, 198504 Saint Petersburg, Russia
3
Research Park, Center for Thermogravimetric and Calorimetric Research, Saint Petersburg State University, 198504 Saint Petersburg, Russia
*
Author to whom correspondence should be addressed.
Materials 2021, 14(14), 4047; https://doi.org/10.3390/ma14144047
Submission received: 15 June 2021 / Revised: 15 July 2021 / Accepted: 16 July 2021 / Published: 20 July 2021
(This article belongs to the Special Issue Solvated Metal Ions: From Solution to Solid)

Abstract

:
Thermodynamic data on the properties of the water-based electrolyte systems are very valuable for fundamental physical chemistry and for industrial applications. The missing data both on the dilution and dissolution enthalpies for the ternary CsCl−MgCl2−H2O mixed electrolyte system were investigated by means of the calorimetry method. The dilution calorimetry was performed at 298 K for the set of solutions from diluted to concentrated at constant ratio Cs+/Mg2+ = 1.8 . The relative partial molar enthalpies, ideal, total, and excess ones were calculated. By means of the dissolution calorimetry, the standard enthalpies of formation, the enthalpies, and entropies for the double salt formation from simple salts were evaluated. The results obtained indicate that entropy as the major factor affecting the formation of the joint compound, both in the liquid and solid phases. These data can be implemented in thermodynamic databases and allow for accurate thermodynamic calculations for the salts extraction from natural water sources and for its possible application as thermochemical energy storage.

1. Introduction

With the fast development of the theoretical and calculation methods, the need of the fundamental properties of the compounds arises. The thermodynamic properties of the compounds and systems are among those key parameters which undoubtedly play a crucial role in the physical chemistry field. Application of thermodynamic functions go far beyond theoretical calculations. It is essential for chemical reactions’ heat effect and direction calculations, for the multicomponent complex system phase diagram predictions. It is used to estimate the equilibrium conditions of the relevant system, etc. Particularly, the thermodynamical modeling is extremely useful for the prediction of properties of multicomponent systems. It is useful for systems imitating the composition of the natural water reservoirs, for the extraction of evaporites from the waters and other sources. Sometimes, it is the only way to receive pure and cheap enough chemicals. Among other ore minerals, carnallite is a natural source of the MgCl2 [1], KCl [2], and includes insignificant impurities of CsCl and RbCl [3]. However, carnallite and carnallite-like minerals of the MCl·MgCl2·nH2O composition are interesting not only as natural sources of chemical compounds, but also they can be made use of in renewable thermochemical energy storage since their hydration reactions are exothermic [4,5,6]. With the intention to use carnallite alike compounds as inorganic materials such as analogues of the thermochemical energy storages, we investigated their thermodynamic properties and formation processes.
The comprehensive thermodynamical studies of carnallite alike compounds will help to expand the opportunities horizon for utilization of this type of minerals. The thermodynamical properties of the MgCl2−CsCl−H2O system were studied by different methods. The earlier studies are related to the solid MgCl2·CsCl·6H2O structure [7,8,9,10], whereas the more recent papers are focusing on the liquid phase of this ternary system [11,12,13]. However, no data describing enthalpies, which are needed for the complete thermodynamic description of this system, were found in the literature. The heat effect of transition process from ions in the solution to the solid phase can be described with thermodynamic functions in particular standard enthalpy of the formation of the complex salts; furthermore, it can be compared to the similar data of the akin inorganic salts in terms of the differences in their crystal structures. Formation of the solid phase in essence is a complex and sophisticated process which requires the description by means of a model. The chosen model is validated by the agreement between the conclusions about the thermodynamical properties of the system under study. Thereby, in this paper, we are presenting the experimentally obtained dilution heat effects of the water based carnallite-like MgCl2−CsCl−H2O system, the dissolution heat effects of the solid double salt MgCl2·CsCl·6H2O, and of the mixture of constituent simple salts CsCl and MgCl2.

2. Materials and Methods

2.1. Samples’ Preparation Details

All chemicals used in this work were of analytical grade. The distilled water was used in each experiment. In the current study, a set of ten solutions was prepared in the CsCl:MgCl2 concentration ratio 1.8 . Here, the concentration range of CsCl is 3.73–0.13 M and corresponding MgCl2 is 2.07–0.07 M. The saturated solution of MgCl2 was prepared, and the concentration of the Mg2+ cations was determined using a complexometry titration method, and the concentration of Cl- anions was determined by a Mohr method [14]. The comparison of these two methods showed a good agreement. The calculated volume of MgCl2 solution and the calculated mass of CsCl were added into the volumetric flask and diluted with distilled water to the mark. The solutions with smaller concentration were prepared from the stock solution by the dilution method.
The double salt MgCl2·CsCl·H2O was prepared from the most concentrated solution by slow evaporation in the dissicator under low pressure over anhydrous granular CaCl2. The obtained crystals were placed in the thin-walled glass tubes and vacuumed at 323 K for several hours.

2.2. X-ray Crystallography and Powder Diffraction

X-ray crystallography (XRC) analysis was performed on a single-crystal diffractometer Oxford Diffraction “Xcalibur” (Agilent Technologies, Santa Clara, CA, USA) The sample was frozen to 100 K . Results of X-ray analysis were obtained using the program Olex2. The structure was determined making use of the ShelXL program with the least squares method. Samples for powder diffraction were radiographed to determine the phase composition with automatic diffractometer Bruker Phaser D2 (Bruker, Billerica, MA, USA). The following parameters were used for the studies: radiation 1.5444 Å, tube operation mode 30 kV / 10 mA, position sensitive detector, reflection geometry, Bragg–Brentano focusing scheme, sample rotation speed of 20 revolutions per minute, diffraction angle interval 2 θ = 6–90 , T = 25 C, and the atmosphere is air. The sample was prepared by dry pressing the test mixture into a cuvette.

2.3. Dissolution Calorimetry

A calorimetric study was performed to determine the dissolution enthalpies of double salts and dry mixtures of components. A conductive microcalorimeter of the Calvet type (Etalon, Almaty, Kazakhstan), equipped with two differential calorimetric cells, was used in this work. This device recorded time-resolved difference in heat flow in the working cell and in the comparison cell. The detailed description of the equipment can be found elsewhere [15]. The calorimeter was calibrated with the well-known data for KCl dissolution enthalpy [16]. The exact mass of the KCl was weighed on the balances with error ± 0.0005 g. In order to receive a good signal-to-noise ratio, the mass of the samples was taken at about 0.03 g and the water-to-salt ratio was around 6500. The exact mass, heat effect, and calorimeter constant calculation are given in the Table A1. The dissolution thermal effect of KCl was recorded for the set of 8 samples, and the calorimeter constant was calculated. Right before the calorimetric experiment, the samples were dried under heating in the vacuum for 7 hours and sealed in the tiny glass vials. A part from these vials (4 vials) was used for calorimetric experiment and another part (4 vials) was investigated with the powder diffraction method. The glass vials were carefully weighed before and after drying to obtain the weight of the dried samples. The 50 ml of distilled water were poured into the reference cell and into the working cell, and a sealed glass vial with a known amount of salt or mixture was placed inside the working cell. The molar ratio of salts under study to water was kept around 1:35,000, which corresponds to the infinitely diluted solution. After several hours when the baseline was established, the glass vial was broken, and the sample was dissolved. The heat effect was later integrated and the enthalpy of dissolution ( Δ H s o l ) of the salts was calculated with the help of calorimeter constant and the corresponding integral value. The exact experimental Δ H s o l are given in the Table A2 for double salt MgCl2·CsCl·6H2O and Table A3 for mixture of MgCl2·6H2O and CsCl.

2.4. Dilution Calorimetry

The heats of dilution of the salts were measured using the TA Instruments Nano ITC 2G titration microcalorimeter (TA Instruments, New Castle, DE, USA). The volume of 1 ml of the solution under study was placed in the cylindrical cell of the calorimeter and equilibrated. The temperature was kept constant within ± 0.0003 K at 298.15 K , and the stirring was constant at 350 rpm. After the equilibrium was achieved, distilled water was added as a set of 6 sequential injections each of 0.28 μ L volume. The calorimetrical signals in forms of peaks were integrated and recalculated into the enthalpy of dilution. The defined heat effects were averaged and attributed to the differential molar enthalpies of dilution and the error of the measured values was no more than 4 % . The amount of the added portions of water was rather small compared to the solution and the mole ratio was approximately 1:1700 depending on the solution concentration. This ratio corresponds to the addition of an infinitely small portion to an infinitely large solution. Thus, the defined heat effect equals partial molar enthalpy of dilution Δ H m / m .

3. Results and Discussion

3.1. X-ray Crystallography and Powder Diffraction

The crystal structure of the double salt MgCl2·CsCl·6H2O is well-known from the literature [8,17]. The former data are in very good agreement with parameters obtained from the crystal in our experiment. The unit cell of the double salt MgCl2·CsCl·6H2O is presented in Figure 1, and its principal crystallographic parameters are given in the Table A4. The Mg2+ ion is surrounded by six water molecules forming an isolated octahedra (Figure 2), which line up interspersed with rows of cesium rectangular prisms formed by chlorine. It should be noted that cesium polyhedra have common chlorine atoms with each neighboring cesium polyhedron; together, they form an extended layered structure. The distance between the nearest Mg atoms is 6.7258 Å, and the distances between O and Mg atoms in the octahedron vary from 2.051 Å to 2.071 Å. The distance between the nearest Cs atoms is 6.7275 Å, and the distances Cs−Cl are 3.3686 Å.
The double salt MgCl2·CsCl·6H2O is formed from two simple salts CsCl and MgCl2·6H2O. They can be obtained as individual compounds, and it is possible to follow the structural changes between simple constituent salts and double salt. The comprehensive representation of anhydrous CsCl structure is given in Figure 3 [18]. The major differences between simple CsCl and double salt lie in the symmetry of CsCl8 polyhedron. Whereas in simple salt it is clearly cubic with common chlorines shared through faces, in the double salt, it is octahedric with chlorines on the vertices. The distances between atoms in simple and double salts are also different as shown in Table 1. In the anhydrous CsCl salt, the distances between the nearest Cs are shrunk compared to the double salt, and the Cs−Cl distances are increased compared to the double salt.
The MgCl2−H2O system exhibits a huge variety of crystalline hydrates MgCl2·nH2O. In the double MgCl2·CsCl·6H2O salt, the nearest surroundings of Mg consist of six water molecules (Figure 2) that matches the Mg environment in simple MgCl2·6H2O crystalline hydrate [19,20]. The graphical representation of this salt is given in Figure 3. As it was mentioned, the magnesium surrounding in MgCl2·6H2O and MgCl2·CsCl·6H2O remains constant. The central Mg atom is surrounded by six water molecules and forms an octahedron that is isolated from the similar octahedra. The only changes in the simple salt compared to the double salt are the decreased distances between neighboring central Mg atoms in MgCl2·6H2O. As far as the distances between central Mg and surrounding water molecules are connected, they almost did not change as it is given in Table 2.
To conclude, we can tell that the formation mechanism of the double salt is a structurally forced intrusion according to the classification given in [21]. Both MgCl2 and CsCl have to change sufficiently their crystal structure in order to form the joint compound. The changes of the order and the structure obviously would influence the thermodynamical properties of the compound.
X-ray phase analysis was carried out in parallel with the calorimetric experiment for the same probes of MgCl2·CsCl·6H2O double salt. The thermal effects obtained from calorimetric measurements are extremely sensitive to impurities and excess of water. It was necessary to make sure that the samples contain only one phase with no impurities. The theoretical powder pattern for comparison with experimental one was produced using the program Diamond on the basis of the XRC experimental data. Comparison of the calculated and experimental diagrams of MgCl2·CsCl·6H2O crystal structure gives a good match as shown in Figure 4. It confirms the purity of the samples used in dissolution calorimetric experiments.

3.2. Dissolution Calorimetry

The dissolution enthalpies Δ H s o l of MgCl2·CsCl·6H2O double salt and mixture of constituent MgCl2·6H2O and CsCl salts were determined with the help of dissolution calorimetry. The experimentally obtained enthalpies are 111 ± 4 kJ/mol for the double salt and 17.25 ± 0.66 kJ/mol for mixture of salts. The detailed experimental results are given in Table A2 and Table A3, respectively. In its turn, the dissolution enthalpy of natural carnallite KCl·MgCl2·6H2O is known to be 9.34–10.8 kJ/mol [22,23]. Such a discrepancy between MgCl2·KCl·6H2O and MgCl2·CsCl·6H2O can be explained by the high stability of natural carnallite crystal structure. As given in the literature [8,24], the tolerance factor of natural carnallite is 1.061 and the octahedral factor is 0.73 , whereas the tolerance factor of MgCl2·CsCl·6H2O is 0.963 , and the octahedral factor is 0.91 . Both carnallites lie in the area of the pervoskite type structure existence [25]; however, cesium carnallite is located very near to the boundaries, thereby it has less stable structure.
In order to calculate the desired Δ f H 298 0 , one needs to apply Hess’s law and build thermodynamic cycle (Figure 5), where for both cases the final states are infinitely diluted solutions.
Here:
  • Δ H 1 is dissolution enthalpy of salt mixture 17 ± 0.66 kJ/mol
  • Δ H 2 is double salt dissolution enthalpy 111 ± 4 kJ/mol
  • Δ H 3 0 is enthalpy of [MgCl2·6H2O]s+ [CsCl]s = [MgCl2·CsCl·6H2O]s reaction
  • Δ H 4 0 is the sum of the standard formation enthalpies of [MgCl2·6H2O]s and [CsCl]s salts
  • Δ f H 298 0 is the standard formation enthalpy of the solid double salt
The formation of the double salt from constituent salts can be described by the reaction:
[ MgCl 2 · 6 H 2 O ] s + [ CsCl ] s = [ MgCl 2 · CsCl · 6 H 2 O ] s .
The thermal effect of this reaction can be calculated according to the following formula:
Δ H 3 0 = Δ H 1 Δ H 2 = 94 ± 4 kJ / mol .
The Δ f H 298 0 ( MgCl 2 · 6 H 2 O ) = 2498.852 ± 0.836 kJ/mol and Δ f H 298 0 ( CsCl ) = 442.437 ± 0.251 kJ/mol were taken from the literature data [26,27,28] to calculate the Δ H 4 0 :
Δ H 4 0 = Δ f H 298 0 ( MgCl 2 · 6 H 2 O ) + Δ f H 298 0 ( CsCl ) = 2941.29 kJ / mol .
Finally, the standard formation enthalpy of double salt Δ f H 298 0 ( MgCl 2 · CsCl · 6 H 2 O ) is calculated according to the equation:
Δ f H 298 0 = Δ H 4 0 + Δ H 3 0 = 2847 ± 4 kJ / mol .
One cannot but notice the fact that the double salt MgCl2·CsCl·6H2O formation from simple salts reaction (Equation (2)) has a positive thermal effect and the reaction occurs with the heat absorption. Most likely, this effect is the consequence of the observed changes between the surrounding of Cs in simple CsCl and double MgCl2·CsCl·6H2O salts. The break of CsCl lattice and the following formation of the double salt requires external heat. Moreover, it means the transformation of the cubic surrounding of Cs to an octahedral one, which is the major difference between structures of constituent and double salts. With the aid of the literature data [29] for MgCl2·CsCl·6H2O on the changes of the formation Gibbs energy from the simple salts Δ r G 298 0 = 8.668 kJ/mol, it is possible to calculate the entropy of the reaction Equation (2) Δ r S 298 0 = 345 J · mol 1 K 1 . The entropy change for the reaction is high and the T · Δ r S 298 0 > Δ r H 298 0 , whereas the Δ r G 298 0 is negative, but very small. The formation of the double salt from its constituents is impeded according to the thermodynamical functions:
Δ S = Δ H Δ G T
The dissolution heat of the double salt and of the mixture of the constituents salts was experimentally measured in order to calculate the Δ f H 298 0 of the double salt MgCl2·CsCl·6H2O to be 2847 kJ/mol. The reaction shown in Equation (2) is endothermic, and its enthalpy is evaluated to be equal to 94 ± 4 kJ/mol.The heat of the reaction Equation (2) defines the reaction type as endothermic, and was calculated to be 94 ± 4 kJ/mol. The entropy of the reaction was determined on the basis of the literature data to be Δ r S 298 0 = 345 J · mol 1 K 1 .
The results obtained lead us to the conclusion that the major factor in the formation of the joint compound from the constituents is the entropic factor. As it has been mentioned above (see the discussion section for the X-ray experimental results), the distances between polyhedra both for Mg and Cs in the structure of MgCl2·CsCl·6H2O are higher compared to simple salts. It leads us to the supposition that the energy of MgCl2·CsCl·6H2O crystal structure is lower than the sum of energies of CsCl and MgCl2·6H2O. Since the dissolution was carried out to infinite dilution, it can be assumed that the hydration energy for double salt and the mixture of components is the same. Then, the difference between the thermal effect of dissolving double salt and the sum of the thermal effect of dissolving simple salts should be endothermic. This is proved by our experiments.

3.3. Dilution Calorimetry

The molar differential dilution enthalpies were measured by the differential dilution calorimetry method for the solutions of the concentrations listed in Table 3. The data were used to investigate the behavior of partial molal entropy of water dependence on the concentration.
In Table 3, the results of dilution calorimetry experiment for 10 ternary solutions are presented. Using Equation (6) ([30]), the relative partial molal enthalpies of the solvent L ¯ w were calculated from experimentally obtained partial molal enthalpies. The results are shown in Table 3, and the comparison between these two enthalpies is presented in Figure 6.
Δ L ¯ w = m 2 m w · Δ H m m ,
where m is total molality of the solution that can be calculated as m = i m i · ν i (i= CsCl, MgCl2); ν i is the total number of ions yielding from the dissociation of the salt. m w = 55.508 mol/kg is water molality. Δ H m / m is experimentally obtained partial enthalpy of dilution [31].
The second step in the data analysis was to obtain the appropriate water activities for concentrations under study. From the literature data [13], the water activities for the solutions with Cs + / Mg 2 + = 1.8 were acquired. After that, they were recalculated to water activities for the concentrations under study. The results are presented in Table 3. Retrieved activities were needed to calculate the chemical potential for each solution as given by the following equation:
Δ μ w i = R T · l n ( a w i ) ,
where Δ μ w i is the difference of water chemical potential in pure water solution and in i solution, R is a universal gas constant, and T = 298.15 K .
The total relative partial molar entropy stands for the entropy change of the solution, when the infinitely small amount of the solvent is added to the infinitely large amount of solution. It was calculated as given below:
Δ S ¯ w t = Δ L ¯ w Δ μ w i T .
The relative partial molar ideal entropy of the solvent (water) Δ S ¯ w i , which presumes the interaction among different molecules as the interaction among identical atoms and molecules, would depend on its mole fraction χ :
Δ S ¯ w i = R · ln ( χ ) .
The excess relative partial molar entropy describes the deviations of the real solution from the ideal solution. This entropy was found according to the following formula:
Δ S ¯ w e = Δ S ¯ w t Δ S ¯ w i .

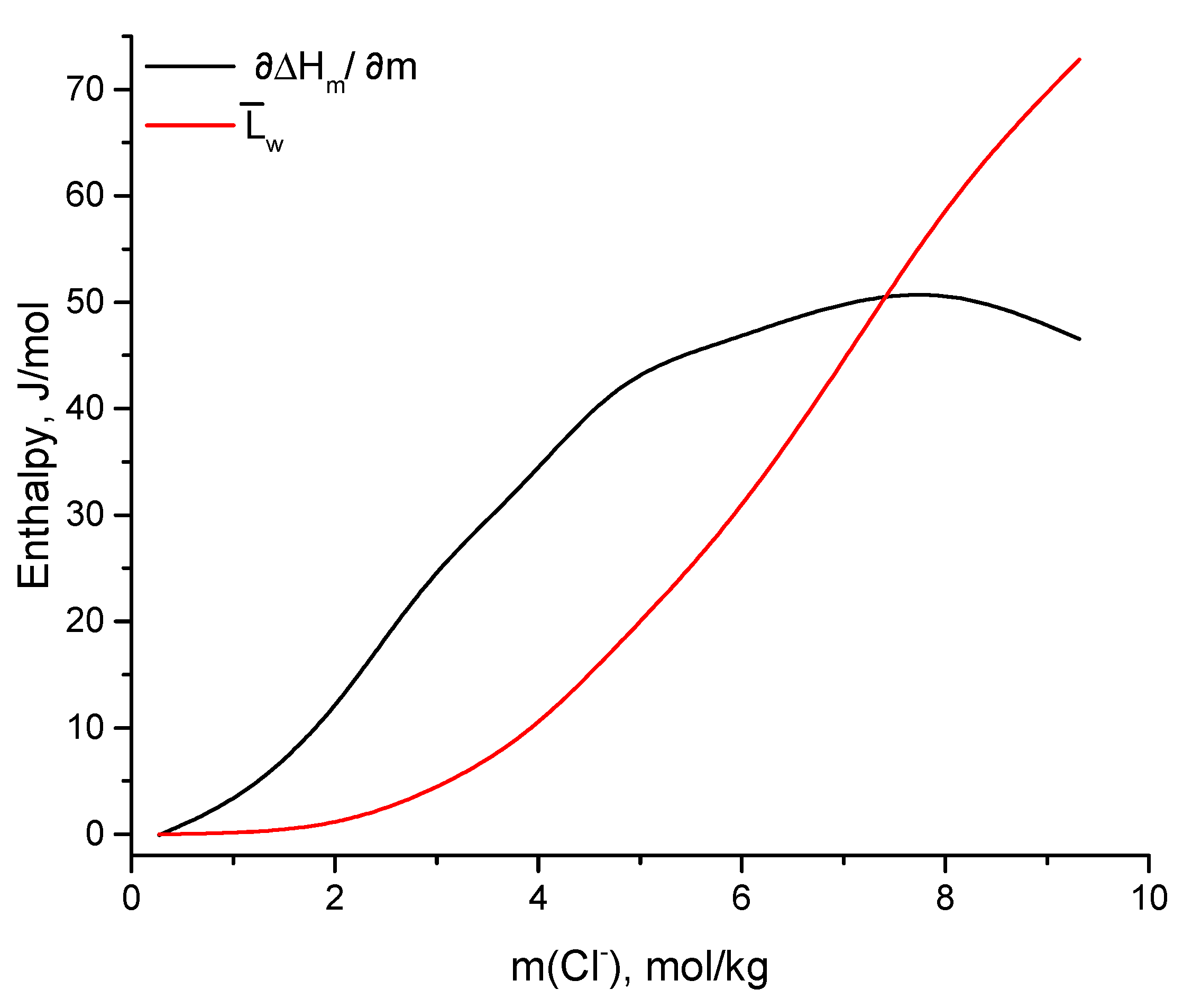

Figure 6 shows the dependence of the partial molar ( Δ H m / m ) and relative partial molar ( L ¯ w ) enthalpies for water solvent on the total Cl- molality of the ternary system. As it can be seen, the dependence of the experimentally measured partial molar enthalpy steadily goes up approximately 8 mol/kg of total Cl-. This concentration corresponds to the eutectic point of the ternary system at the concentration ratio Cs+/Mg2+  = 1.8 [32]. On the graph, we see the growths of the partial molar enthalpy in the beginning, which represents the endothermic effect, meaning the addition of small portion of water to the solution and the subsequent solvation of this water requires additional energy. At pre-eutectic concentration, there is a huge amount of free water molecules, compared to the water molecules solvating Mg2+, Cs+, Cl ions. The free water molecules are connected with each other by means of strong hydrogen-bonds. The introduction of new water to the solution makes hydrogen bonds break and reorients towards additional water molecules. The injection of small amount of the component (water) into the equilibrated system (solution) leads to the disturbance of the D-structure and heat absorbance. Furthermore, the rise of concentrations drives the D-structure of the solution further away from that of the introduced component, taking more energy for the equilibration process.
With further growth of concentration in the region of eutectic concentration, the slow deceleration of the endothermic effect trend is observed. It is known [33,34,35,36,37] that, at this point, the change of the structural dominant occurs. The water molecules can no longer be regarded as a solvent, but as a solute or as an inclusion into new dominant structure. In addition, the amount of free water molecules in comparison with water molecules solvating ions is very low. The calorimetric measurements, in particular, differential enthalpy of dilution, as it can be seen, are sensitive to the transition of the solution beyond eutectic concentration. Despite being mobile, water molecules have a different life-time in the nearest surroundings of different ions; as soon as Mg2+ is a kosmotropic ion, water molecules linger a considerable amount of time in its hydration shell and the hydration itself is exothermic reaction. At such high concentrations with the introduction of water molecules, the exothermic effect of the ions hydration overbalances the endothermic effect of the D-structure breakage.
In its turn, the relative partial molar enthalpy increases with growths of the concentration throughout all the measured concentration range. The L ¯ w enthalpy describes the difference between the state under study and the reference state of the ideal solution (infinitely diluted solution). According to the graph, before m ( Cl ) = 2 mol/kg, the solution under study can be described with rules suitable for the infinitely diluted solutions because the change of L ¯ w is very small in this region. Onward, after this concentration, relative partial molar enthalpy experiences a dramatic increase and reflects the state of the water molecules in studied solutions. One can no longer call them ideal, and it is necessary to take the ion–ion interactions into consideration.

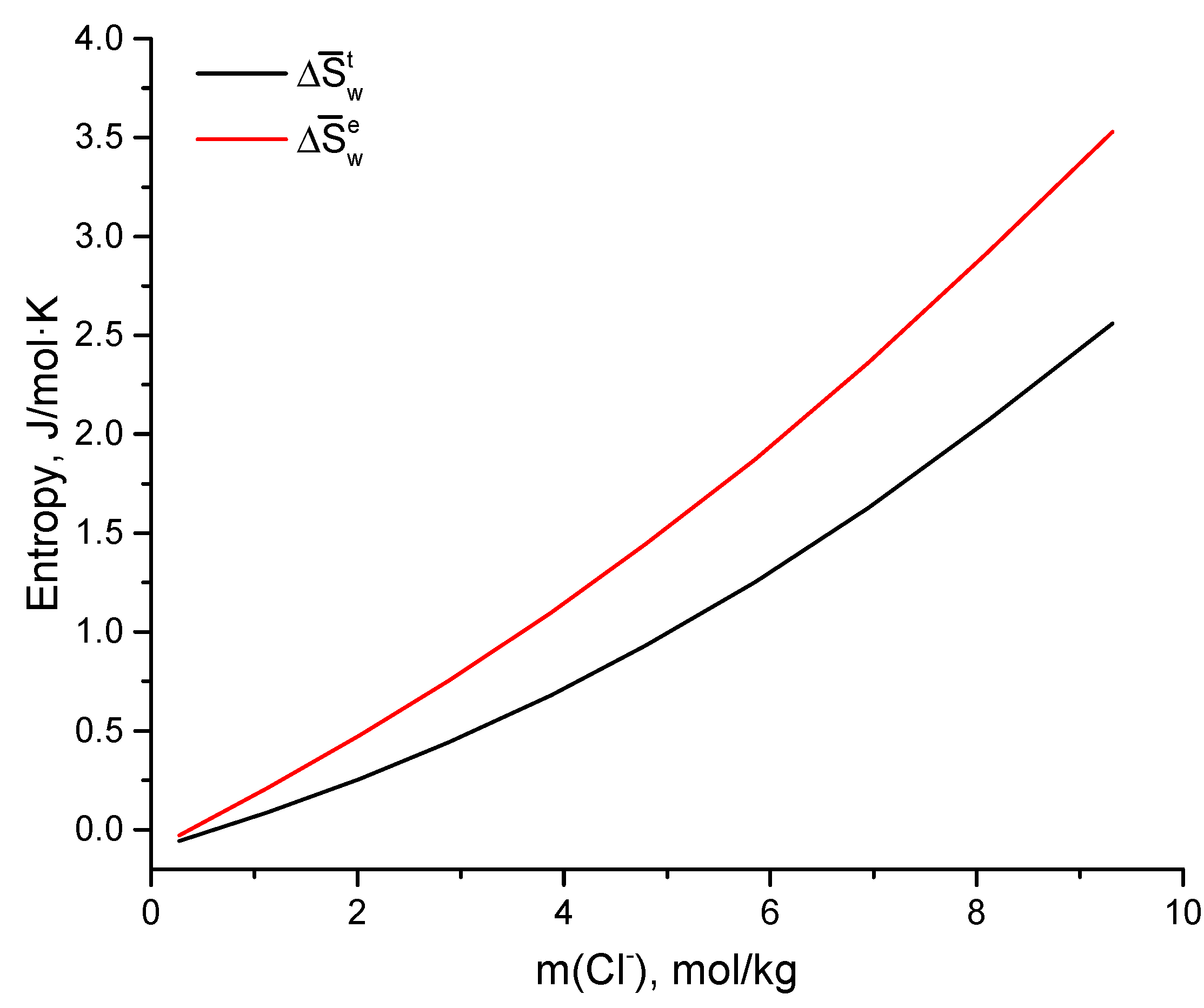

The dependence of relative partial molar Δ S ¯ w t and excess relative partial molar Δ S ¯ w e entropies on total Cl concentration are presented in Figure 7. The growths of the Δ S ¯ w t depend on two factors.
The first one is the mobility increase for the fraction of the water molecules. Insofar as the water molecules are leaving the third and second hydration shells of ions, with a further increase of concentration and formation of solvent-separated and then contact ion pairs. This is facilitated by the chaotropic nature of the cesium ion [38]. Additionally, the amount of CsCl in the solution is twice as much as magnesium chloride. At the same time, Mg2+ as a kosmotropic ion inclines to form the first solvation shell with six water molecules, and has an ability to form the second solvation shell with water molecules even in concentrated solutions [39].
The second factor defining the increase of entropy is thermodynamic probability of the system, the appearance of many different structures containing water. In solution, the diversity of structures containing water rises with growths of concentration, which influences the trend of entropy.

4. Conclusions

In this paper, the novel studies of the liquid and solid phases pertaining to the ternary MgCl2−CsCl−H2O system are presented. The analysis of the structure of solid compounds (MgCl2·6H2O·CsCl, CsCl, MgCl2·6H2O) revealed the loosening of the double salt structure in comparison with simple salts, such as the dramatic increase of distances between corresponding atoms and the separation of the tightly connected Cs polyhedra. According to the dissolution calorimetry results, the loosening was reflected in the endothermic enthalpy for double salt formation from simple salts, insofar as the crystal structure energy of the double salt MgCl2·6H2O·CsCl is lower than the sum of those for simple constituent MgCl2·6H2O and CsCl salts. The standard formation enthalpy Δ f H 298 0 of the double salt MgCl2·CsCl·6H2O was calculated to be 2847 ± 4 kJ/mol by use of the dissolution calorimetry method. The reaction heat of the double salt formation from simple salts was defined to be 94 ± 4 kJ/mol. The entropy of the reaction was determined with the help of the literature data to be Δ r S 298 0 = 345 J/mol 1 K 1 . The molar differential dilution enthalpy is endothermic throughout all the concentration range according to the dilution calorimetric experiment results. The combination of the conclusions from calorimteric measurements and X-ray experimental data shows that the formation of double salt from simple salts as well as the formation of joint compound from ternary solution is due to the increase of the entropy factor. The significant value of dissolution enthalpy of double salt makes it attractive for use as a thermochemical energy storage.

Author Contributions

The dissolution calorimetry experiment, data analysis, and paper writing were conducted by V.B.; the dilution calorimetry experiment and data analysis were completed by M.B. and Y.A.; supervision, paper writing, and editing were conducted by O.P.; validation, methodology, paper editing, and supervision were handled by M.S., Y.K., and V.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Results data can be obtained upon request to the corresponding author.

Acknowledgments

The dilution calorimetric experiments, X-ray crystallography and Powder diffraction experiments were performed in the Saint-Petersburg University Research Park. We would like to thank the Thermogravimetric and Calorimetric Research Centre and Centre for X-ray Diffraction Studies for their accurate measurements and opportune consultations.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
XRCX-ray crystallography
Δ H s o l The dissolution enthalpy
Δ f H 298 0 The standard formation enthalpy
Δ r G 298 0 The Gibbs energy change of the reaction
Δ r S 298 0 The entropy change of the reaction
Δ r H 298 0 The enthalpy change of the reaction
Δ L ¯ w The relative partial molal enthalpy of the solvent (water)
Δ H m / m The molar differential dilution enthalpy
Δ S ¯ w t The total relative partial molar entropy
Δ S ¯ w i The ideal relative partial molar entropy
Δ S ¯ w e The excess relative partial molar entropy

Appendix A

Table A1. Details of the calorimeter calibration with KCl.
Table A1. Details of the calorimeter calibration with KCl.
Mass, g ν , molS | Q | , kJKError
0.02733.66 × 10 4 1.6446.320.2600.008
0.02323.11 × 10 4 1.4685.370.274−0.005
0.02323.11 × 10 4 1.4085.370.2620.006
0.02823.78 × 10 4 1.6526.530.2530.015
0.03154.23 × 10 4 1.9497.290.2670.001
0.02182.92 × 10 4 1.4285.040.283−0.015
0.02443.27 × 10 4 1.5595.650.276−0.008
0.02032.72 × 10 4 1.2664.700.270−0.001
0.268±0.021
where m is the mass of the sample, v is the mole of the sample, S is an integral of the curve, |Q| is a module of the heat effect calculated as Q = v·ΔHsol(KCl)s·1000, and K is a calorimeter constant K = S/Q.
Table A2. Details of the Δ H s o l ( MgCl 2 · CsCl · 6 H 2 O ) measurements.
Table A2. Details of the Δ H s o l ( MgCl 2 · CsCl · 6 H 2 O ) measurements.
Mass, g ν , molS | Q | , kJ Δ H sol , kJError
0.02356.32 × 10 5 1.9057.11−1121.79
0.03709.95 × 10 5 2.92810.93−110−0.88
0.03028.12 × 10 5 2.3508.77−108−2.71
0.03921.05 × 10 5 3.67811.86−1121.80
−128±4.07
Table A3. Details of the Δ H s o l ( MgCl 2 · 6 H 2 O + CsCl ) measurements.
Table A3. Details of the Δ H s o l ( MgCl 2 · 6 H 2 O + CsCl ) measurements.
m(MgCl2·6H2O), gm(CsCl), gS | Q | , kJ Δ H sol , kJError
0.02640.02241.1794.04−16.73−0.52
0.02750.02591.3555.06−17.490.24
0.01350.01190.6262.34−17.05−0.20
0.01350.01120.6222.32−17.450.20
−17.25±0.66
Table A4. X-ray diffraction parameters of double salt MgCl2·CsCl·6H2O.
Table A4. X-ray diffraction parameters of double salt MgCl2·CsCl·6H2O.
ParameterValue
Formula sumCl3 H12 Cs Mg O6
Formula weight371.69 g/mol
Crystal systemmonoclinic
Space-groupC 1 2/c 1 (15)
Cell parametersa = 9.4134(3) Å
b = 9.6425(3) Å
c = 13.4708(3) Å
β = 90.280 ( 3 )
Cell ratioa/b = 0.9762
b/c = 0.7158
c/a = 1.4310
Cell volume1222.71(6) Å 3
Z4
Calc. density2.01891 g/cm 3
RAll0.0322
Pearson codemC100
Formula typeNO2P4Q6R12
Wyckoff sequencef12e

References

  1. Høy-Petersen, N.; Rizley, J.H. Magnesium Processing; Encyclopædia Britannica Inc.: Chicago, IL, USA, 2020. [Google Scholar]
  2. Tavares, J.; Moura, L.; Bernardo, A.; Giulietti, M. Crystallization and separation of KCl from carnallite ore: Process development, simulation, and economic feasibility. Chem. Ind. Chem. Eng. Q. 2018, 24, 239–249. [Google Scholar] [CrossRef]
  3. Prokhorov, A.; Knunyants, I. Khimicheskaia Entsiklopedia: V Piati Tomakh (Chemical Encyclopedia in 5 Volumes); Soviet Encyclopedia: Moscow, Russia, 1988; pp. 654–656. [Google Scholar]
  4. Mamani, V.; Gutiérrez, A.; Fernández, A.; Ushak, S. Industrial carnallite-waste for thermochemical energy storage application. Appl. Energy 2020, 265, 114738. [Google Scholar] [CrossRef]
  5. Gutierrez, A.; Ushak, S.; Mamani, V.; Vargas, P.; Barreneche, C.; Cabeza, L.F.; Grágeda, M. Characterization of wastes based on inorganic double salt hydrates as potential thermal energy storage materials. Sol. Energy Mater. Sol. Cells 2017, 170, 149–159. [Google Scholar] [CrossRef] [Green Version]
  6. Gutierrez, A.; Ushak, S.; Linder, M. High Carnallite-Bearing Material for Thermochemical Energy Storage: Thermophysical Characterization. ACS Sustain. Chem. Eng. 2018, 6, 6135–6145. [Google Scholar] [CrossRef]
  7. Emons, H.H. Mechanism and kinetics of formation and decomposition of carnallitic double salts. J. Therm. Anal. 1988, 33, 113–120. [Google Scholar] [CrossRef]
  8. Emons, H.; Brand, P.; Pohl, T.; Köhnke, K. Crystal chemistry of MX·MgX2·6H2O type compounds. ZAAC J. Inorg. Gen. Chem. 1988, 563, 180–184. [Google Scholar] [CrossRef]
  9. Emons, H.H.; Naumann, R.; Pohl, T.; Voigt, H. Thermoanalytical investigations on the decomposition of double salts. J. Therm. Anal. 1984, 29, 571–579. [Google Scholar] [CrossRef]
  10. Balarew, C.; Tepavitcharova, S. Co-Crystallization in systems with carnallite-type double salts. Z. Für Anorg. Und Allg. Chem. 1990, 583, 186–194. [Google Scholar] [CrossRef]
  11. Hu, M.; Zhang, W.; Li, S.; Zhai, Q.; Jiang, Y. Thermodynamic investigation of a ternary mixed electrolyte (CsCl/MgCl2/H2O) system using electromotive force measurement at 298.15 K. J. Chem. Eng. Data 2009, 54, 2023–2027. [Google Scholar] [CrossRef]
  12. Guo, L.; Tu, L.; Wang, Y.; Li, J. Water Activity and Solubility Measurements and Model Simulation of the CsCl−MgCl2−H2O Ternary System at 323.15 K. J. Chem. Eng. Data 2018, 63, 483–487. [Google Scholar] [CrossRef]
  13. Guo, L.; Wang, Y.; Tu, L.; Li, J. Thermodynamics and Phase Equilibrium of the System CsCl−MgCl2−H2O at 298.15 K. J. Chem. Eng. Data 2017, 62, 1397–1402. [Google Scholar] [CrossRef]
  14. Skoog, D.A.; West, D.M.; Holler, F.J. Fundamentals of Analytical Chemistry, 7th ed.; Saunders Golden Sunburst Series; Saunders College Pub.: Fort Worth, TX, USA, 1996. [Google Scholar]
  15. Pestova, O.; Bukesova, V.; Kondrat’ev, Y.; Khripun, V.; Baranauskaite, V. Energy Characteristics of Lithium–Cesium Binary Chloride Dissolution in Water. Russ. J. Gen. Chem. 2018, 88, 596–597. [Google Scholar] [CrossRef]
  16. Kilday, M. The enthalpy of solution of SRM 1655 (KCl) in H2O. J. Res. Natl. Bur. Stand. 1980, 85, 467. [Google Scholar] [CrossRef]
  17. Waizumi, K.; Masuda, H.; Ohtaki, H.; Scripkin, M.Y.; Burkov, K.A. Crystallographic investigations of [Mg(H2O)6]XCl3 double salts (X+ = K+, Rb+, Cs+, NH4+): Crystal structure of [Mg(H2O)6]CsCl3. Am. Mineral. 1991, 76, 1884–1888. [Google Scholar]
  18. Ahtee, M. Lattice constants of some binary alkali halide solid solutions. Ann. Acad. Sci. Fenn. Ser. A Phys. 1969, 313, 1–11. [Google Scholar]
  19. Agron, P.A.; Busing, W.R. Magnesium dichloride hexahydrate, MgCl2·6H2O, by neutron diffraction. Acta Crystallogr. Sect. C Cryst. Struct. Commun. 1985, 41, 8–10. [Google Scholar] [CrossRef]
  20. Andress, K.R.; Carpenter, C. Kristallhydrate. Z. Krist. Cryst. Mater. 1934, 87. [Google Scholar] [CrossRef]
  21. Khripun, M.; Karavan, S.; Bulgakov, S. Vzaimosvjaz’ struktury i stroenija v koncentrirovannyh rastvorah jelektrolitov. (The correlation of the structure and the order in the concentrated electrolyte solutions). Probl. Sovrem. Him. Koord. Soedin. Quest. Contemp. Chem. Complex Compd. 1987, 8, 123–141. [Google Scholar]
  22. Naumov, G.B.; Ryzhenko, B.N.; Khodakovski, I.L.; Barnes, I.; Speltz, V. Handbook of Thermodynamic Data; N.T.I.S: Menlo Park, CA, USA, 1974.
  23. Fiziko-Chimiceskie Svojstva Galurgiceskich Rastvorov i Solej: Chloridy Natrija, Kalija i Magnija; Spravocnik; Chimija: Sankt-Peterburg, Russia, 1997; p. 172.
  24. Waizumi, K.; Masuda, H.; Ohtaki, H.; Burkov, K.A.; Scripkin, M.Y. Structure of MgCl2·RbCl·6H2O. Acta Crystallogr. Sect. C Cryst. Struct. Commun. 1991, 47, 251–254. [Google Scholar] [CrossRef]
  25. Travis, W.; Glover, E.N.K.; Bronstein, H.; Scanlon, D.O.; Palgrave, R.G. On the application of the tolerance factor to inorganic and hybrid halide perovskites: A revised system. Chem. Sci. 2016, 7, 4548–4556. [Google Scholar] [CrossRef] [Green Version]
  26. Shomate, C.H.; Huffman, E.H. Heats of Formation of MgO, MgCl2, MgCl2·H2O, MgCl2·2H2O, MgCl2·4H2O, and MgCl2·6H2O. J. Am. Chem. Soc. 1943, 65, 1625–1629. [Google Scholar] [CrossRef]
  27. Johnson, G.K.; Gayer, K.H. The enthalpies of solution and formation of the chlorides of cesium and rubidium. J. Chem. Thermodyn. 1979, 11, 41–46. [Google Scholar] [CrossRef]
  28. Li, D.; Zeng, D.; Yin, X.; Gao, D.; Fan, Y. Phase diagrams and thermochemical modeling of salt lake brine systems. IV. Thermodynamic framework and program implementation for multicomponent systems. Calphad 2020, 71, 101806. [Google Scholar] [CrossRef]
  29. Balarew, C.; Christov, C.; Valyashko, V.; Petrenko, S. Thermodynamics of formation of carnallite type double salts. J. Solut. Chem. 1993, 22, 173–181. [Google Scholar] [CrossRef]
  30. Pepple, G.W. Relative Apparent Molal Heat Contents of Some Aqueous Rare-Earth Chloride Solutions at 25  C. Ph.D. Thesis, Iowa State University, Iowa, ON, Canada, 1967. [Google Scholar] [CrossRef]
  31. Mishchenko, K.P.; Poltoratskiy, G.M. Termodinamika i Stroenie Vodnyh i Nevodnyh Rastvorov Elektrolitov (Thermodynamics and Structure of the Water and Non-Water Electrolyte Solutions), 2nd ed.; Chimiya (Chemistry): Leningrad, Russia, 1976; p. 186. [Google Scholar]
  32. Belysheva, M.; Pestova, O.; Baranauskaite, V.; Anufrikov, Y. Dissolution and Dilution Enthalpies of the Ternary System MgCl2−CsCl−H2O at 298,15 K. In Proceedings of the Mendeleev 2019 Conference, Saint Petersburg, Russia, 9–13 September 2019; p. 42. [Google Scholar]
  33. Enderby, J.E.; Neilson, G.W. The structure of electrolyte solutions. Rep. Prog. Phys. 1981, 44, 593–653. [Google Scholar] [CrossRef]
  34. Copestake, A.P.; Neilson, G.W.; Enderby, J.E. The structure of a highly concentrated aqueous solution of lithium chloride. J. Phys. C Solid State Phys. 1985, 18, 4211–4216. [Google Scholar] [CrossRef]
  35. Podolsky, R.J. The Structure of Water and Electrolyte Solutions. Circulation 1960, 21, 818–827. [Google Scholar] [CrossRef] [Green Version]
  36. Efimov, A.Y.; Khripun, M.K.; Myund, L.A.; Pestova, O.N. Mobile nanostructures (cybotactic groups) as a basis of generalised phenomenological model of aqueous electrolyte solutions. Int. J. Nanotechnol. 2016, 13, 95. [Google Scholar] [CrossRef]
  37. Pestova, O.N.; Efimov, A.Y.; Myund, L.A.; Kudrev, A.G.; Khripun, V.D.; Davidian, A.G.; Baranauskaite, V.E. Structural Inhomogeneity in Electrolyte Solutions: The Calcium Perchlorate–Water System. J. Solut. Chem. 2017, 46, 1854–1870. [Google Scholar] [CrossRef]
  38. Pham, V.T.; Fulton, J.L. Contact ion-pair structure in concentrated cesium chloride aqueous solutions: An extended X-ray absorption fine structure study. J. Electron Spectrosc. Relat. Phenom. 2018, 229, 20–25. [Google Scholar] [CrossRef]
  39. Afanas’ev, V.N.; Ustinov, A.N. Hydration numbers and the state of water in hydration spheres of magnesium chloride and magnesium sulfate solutions. Russ. J. Inorg. Chem. 2012, 57, 1107–1122. [Google Scholar] [CrossRef]

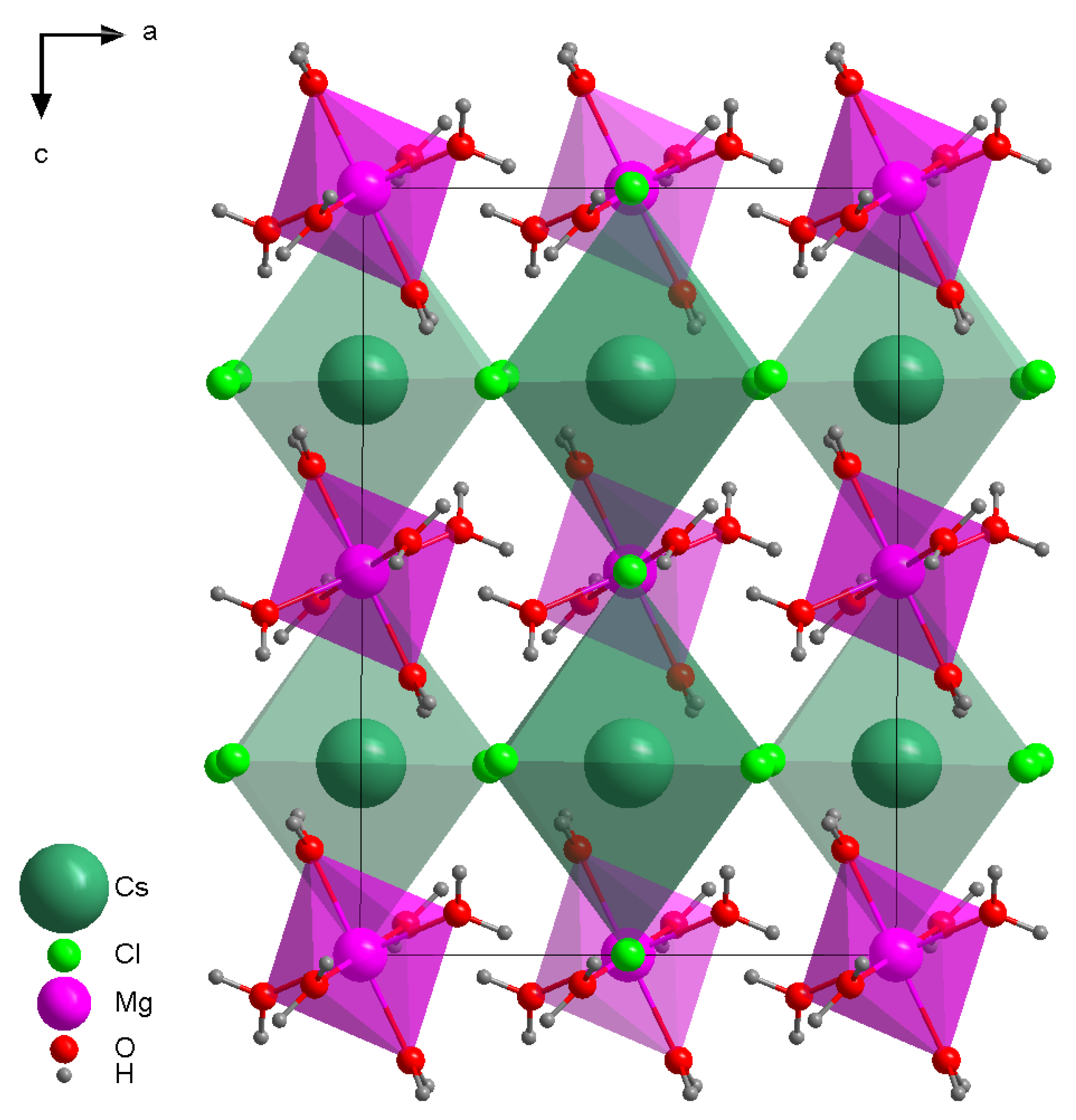

Figure 1. The unit cell of MgCl2·CsCl·6H2O double salt, ac projection.
Figure 1. The unit cell of MgCl2·CsCl·6H2O double salt, ac projection.
Materials 14 04047 g001
Figure 2. Octahedral environment of magnesium.
Figure 2. Octahedral environment of magnesium.
Materials 14 04047 g002
Figure 3. The structures of simple constituents salts. (a) the structure of anhydrous CsCl salt; (b) the structure of MgCl2·6H2O salt.
Figure 3. The structures of simple constituents salts. (a) the structure of anhydrous CsCl salt; (b) the structure of MgCl2·6H2O salt.
Materials 14 04047 g003

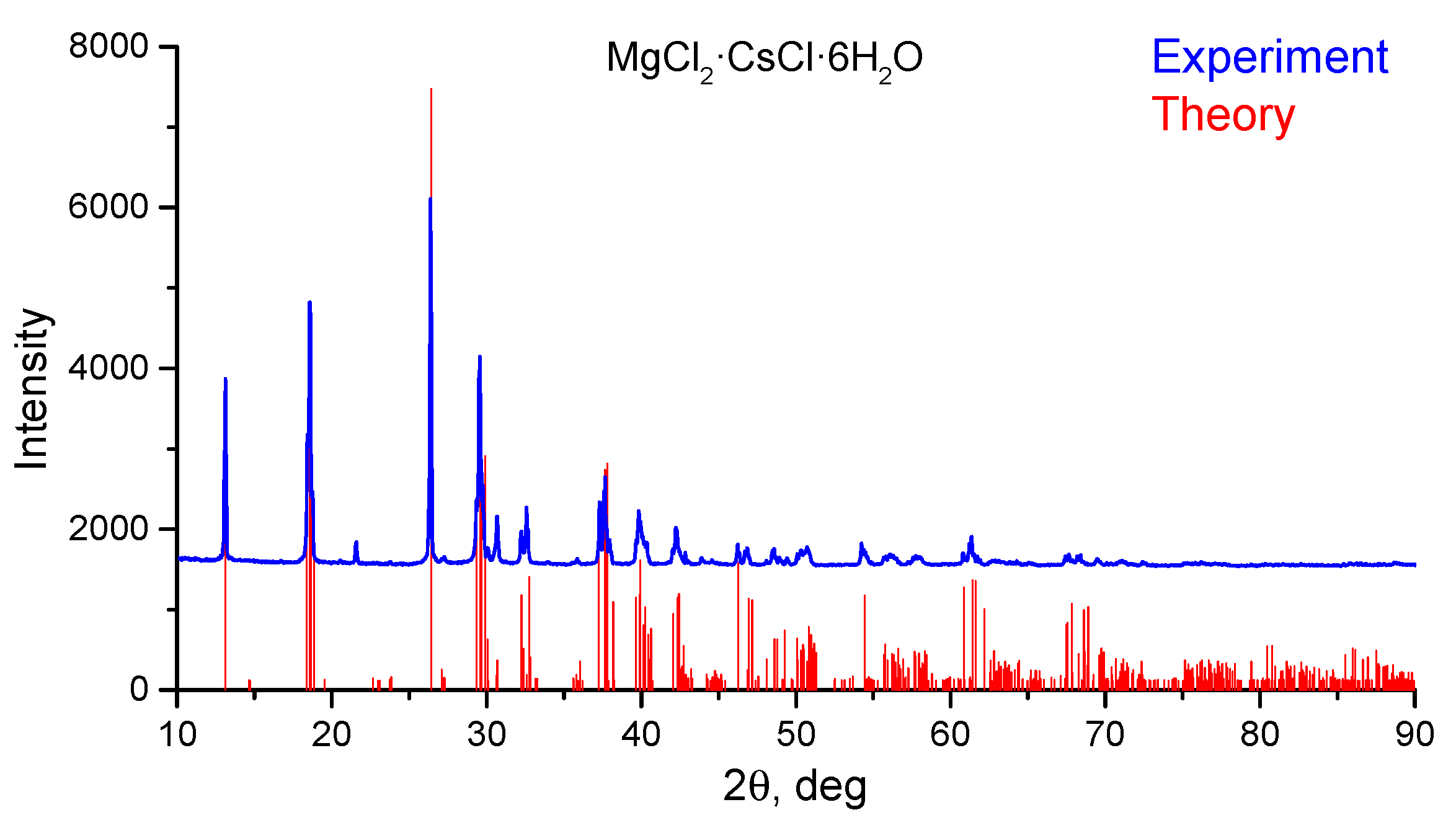

Figure 4. Comparison of calculated and experimental diffraction patterns of MgCl2·CsCl·6H2O double salt.
Figure 4. Comparison of calculated and experimental diffraction patterns of MgCl2·CsCl·6H2O double salt.
Materials 14 04047 g004

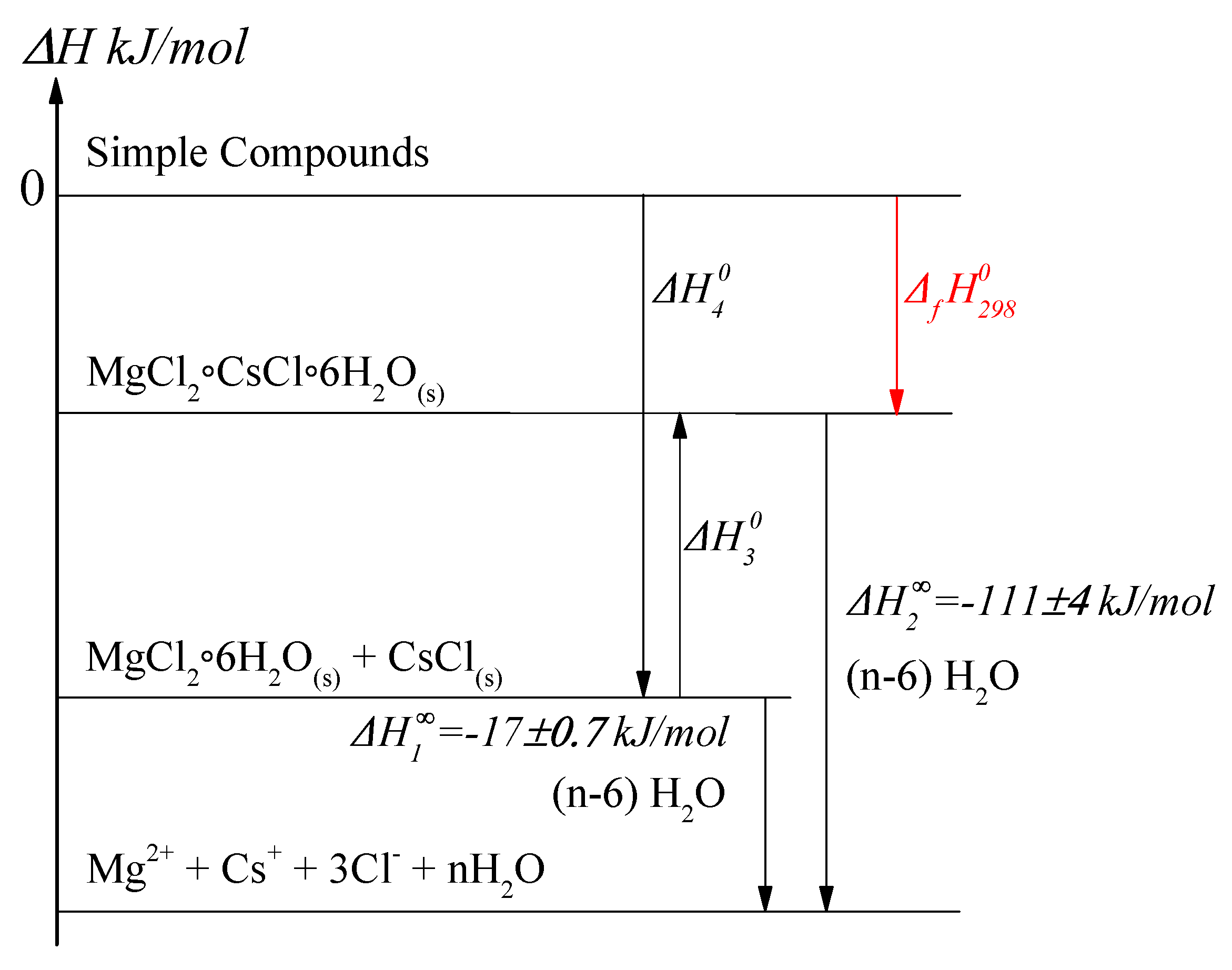

Figure 5. Thermochemical cycle for MgCl2·CsCl·6H2O dissolution.
Figure 5. Thermochemical cycle for MgCl2·CsCl·6H2O dissolution.
Materials 14 04047 g005
Figure 6. Partial molar ( Δ H m / m ) and relative partial molar ( L ¯ w ) enthalpies dependency on total Cl molality.
Figure 6. Partial molar ( Δ H m / m ) and relative partial molar ( L ¯ w ) enthalpies dependency on total Cl molality.
Materials 14 04047 g006
Figure 7. Dependence of total relative partial molar Δ S ¯ w t and excess relative partial molar Δ S ¯ w e entropies on total Cl molality.
Figure 7. Dependence of total relative partial molar Δ S ¯ w t and excess relative partial molar Δ S ¯ w e entropies on total Cl molality.
Materials 14 04047 g007
Table 1. The comparison of distances between neighboring atoms for simple CsCl and double salt.
Table 1. The comparison of distances between neighboring atoms for simple CsCl and double salt.
Saltd(Cs-Cs), Åd(Cs-Cl), Å
MgCl2·CsCl·6H2O6.72753.3686
CsCl4.11503.5637
Table 2. The comparison of distances between neighboring atoms for simple MgCl2·6H2O and double salt.
Table 2. The comparison of distances between neighboring atoms for simple MgCl2·6H2O and double salt.
Saltd(Mg-Mg), Åd(Mg-O), Å
MgCl2·CsCl·6H2O6.72582.051–2.071
MgCl2·6H2O6.07372.0573–2.0620
Table 3. The parameters obtained from dilution calorimetry experiment.
Table 3. The parameters obtained from dilution calorimetry experiment.
MgCl2CsClCl a w Δ H m / m Δ L ¯ w Δ S ¯ w i Δ S ¯ w e Δ S ¯ w t
mol/kg J/molJ/mol · K
2.454.419.320.6746.5572.810.972.563.53
2.133.848.110.7251.4760.920.852.072.92
1.833.296.950.7750.1343.630.731.632.36
1.542.775.850.8146.3028.570.621.251.87
1.262.274.790.8543.2317.880.510.931.44
1.021.843.880.8832.838.890.420.681.10
0.761.372.880.9124.143.620.310.440.75
0.530.962.030.9411.590.860.220.260.48
0.300.541.130.973.500.080.120.090.21
0.070.130.271.00−0.100.000.03−0.06−0.03
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Baranauskaite, V.; Belysheva, M.; Pestova, O.; Anufrikov, Y.; Skripkin, M.; Kondratiev, Y.; Khripun, V. Thermodynamic Description of Dilution and Dissolution Processes in the MgCl2−CsCl−H2O Ternary System. Materials 2021, 14, 4047. https://doi.org/10.3390/ma14144047

AMA Style

Baranauskaite V, Belysheva M, Pestova O, Anufrikov Y, Skripkin M, Kondratiev Y, Khripun V. Thermodynamic Description of Dilution and Dissolution Processes in the MgCl2−CsCl−H2O Ternary System. Materials. 2021; 14(14):4047. https://doi.org/10.3390/ma14144047

Chicago/Turabian Style

Baranauskaite, Valeriia, Maria Belysheva, Olga Pestova, Yuri Anufrikov, Mikhail Skripkin, Yuri Kondratiev, and Vassily Khripun. 2021. "Thermodynamic Description of Dilution and Dissolution Processes in the MgCl2−CsCl−H2O Ternary System" Materials 14, no. 14: 4047. https://doi.org/10.3390/ma14144047

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
