In Vitro Analysis of Wearing of Hip Joint Prostheses Composed of Different Contact Materials
Abstract
:1. Introduction
2. Materials and Methods
2.1. Samples

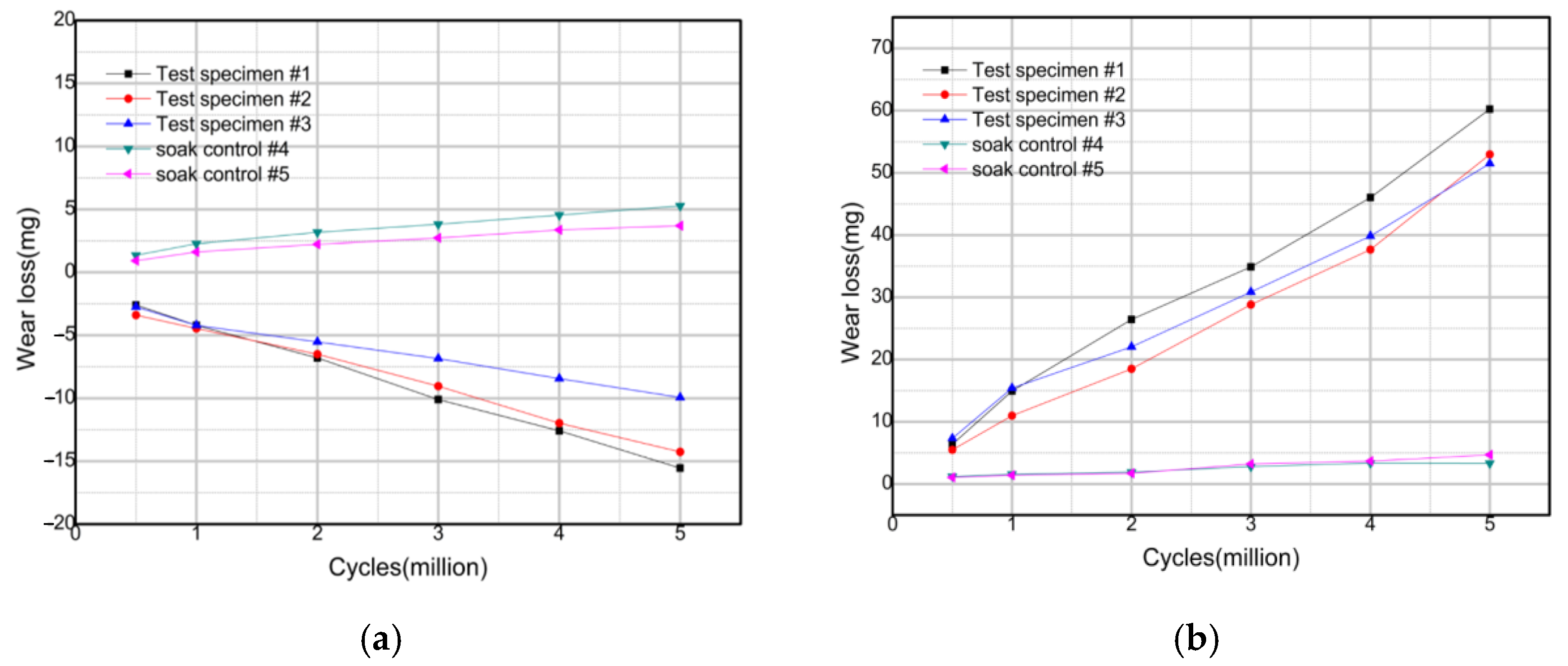

2.2. Wear Tests
- —the mass of the test specimen before the wear test
- —the mass of the test specimen after n loading cycles
- —the increase in mass of the control specimen over the same period
- —the mass of the control specimen before the wear test
- —the mass of the control specimen after n loading cycles
- Wn—the net loss in quality of the test specimen after n load cycles
- n—cycles
- b—constant
3. Results

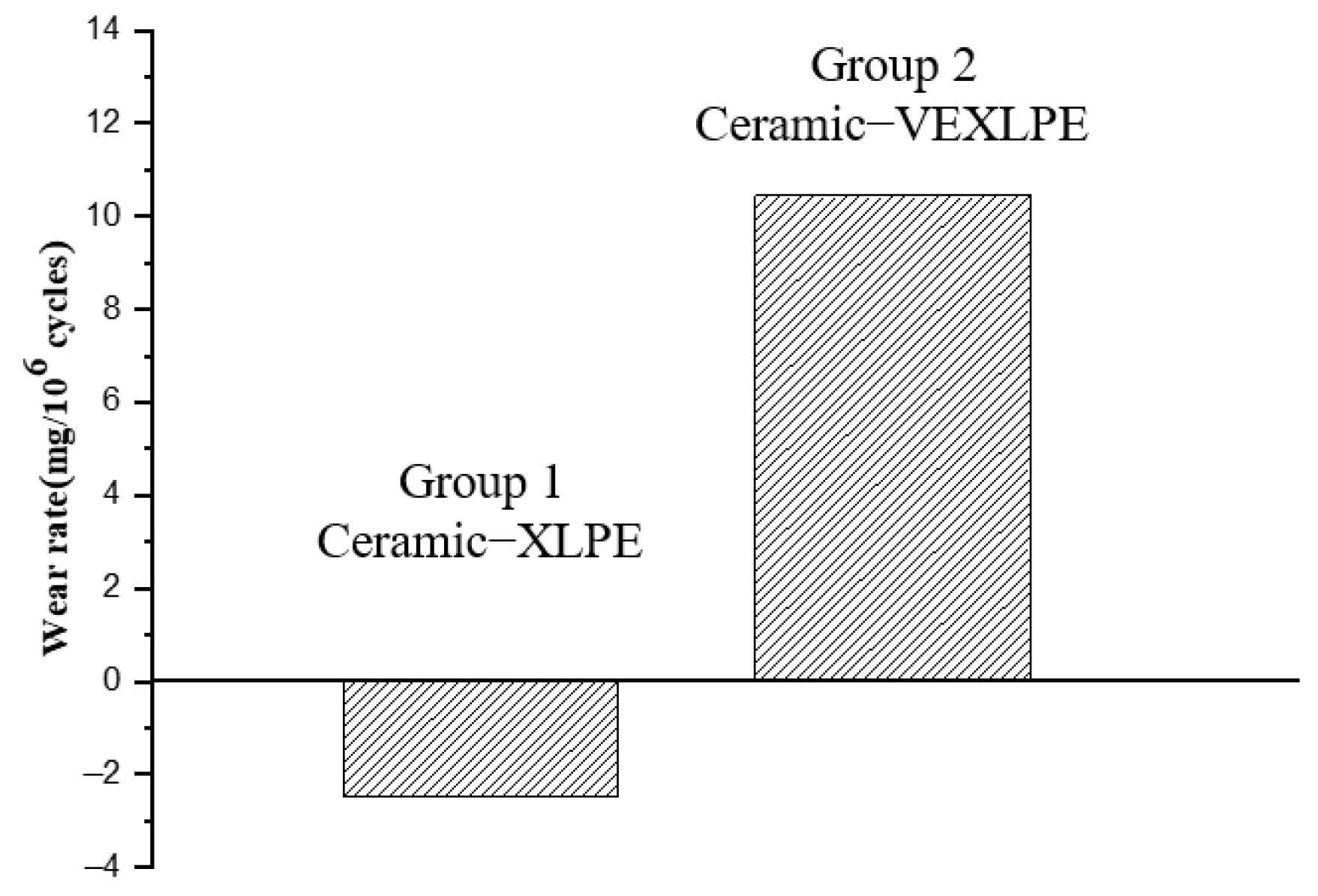

3.1. Ceramic Head with XLPE and VEXLPE Liners

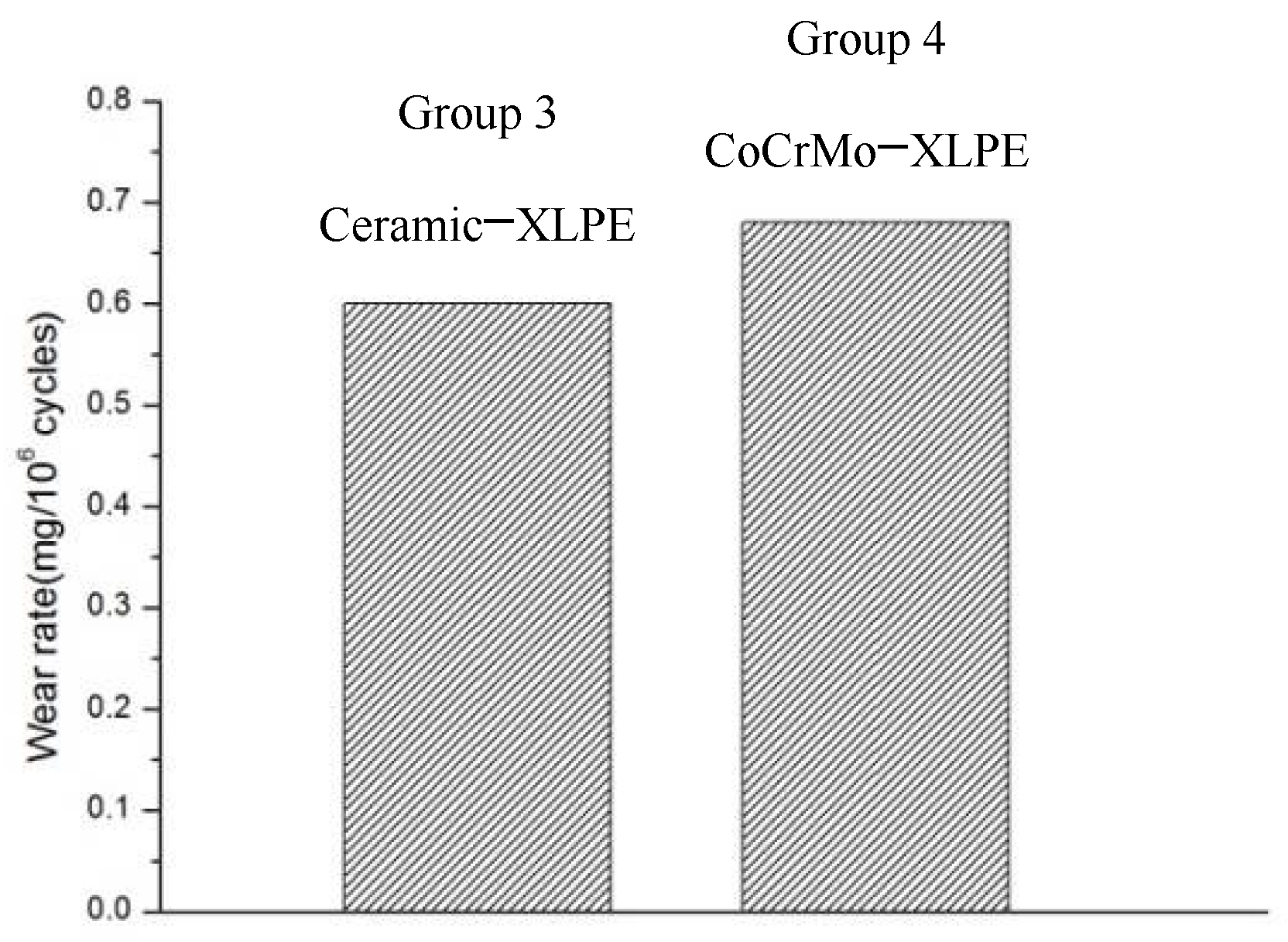

3.2. Ceramic and CoCrMo Femoral Heads with XLPE Liner

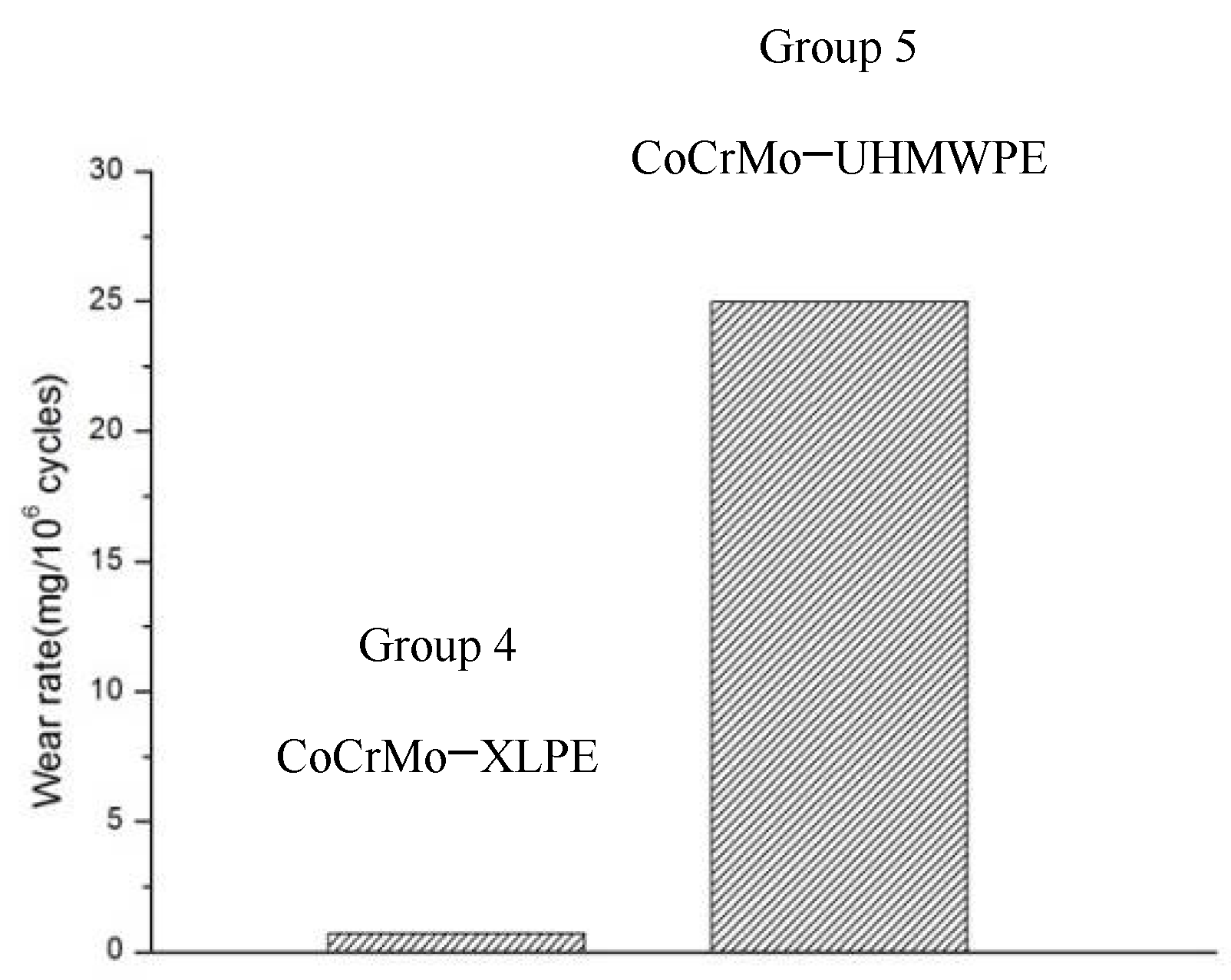

3.3. CoCrMo Femoral Head with XLPE and UHMWPE Liners
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Mcalindon, T.E.; Lavalley, M.P.; Gulin, J.P.; Felson, D.T.J.J. Glucosamine and Chondroitin for Treatment of Osteoarthritis: A Systematic Quality Assessment and Meta-analysis. JAMA 2000, 283, 1469–1475. [Google Scholar] [CrossRef] [PubMed]
- Mayer, C.; Rommelmann, M.; Behringer, M.; Jäger, M.; Krauspe, R.; Zilkens, C. Wear Kinetics of Highly Cross-Linked and Conventional Polyethylene Are Similar at Medium-term Follow-Up After Primary Total Hip Arthroplasty. J. Arthroplast. 2018, 33, 2671–2676. [Google Scholar] [CrossRef] [PubMed]
- Jalali, O.; Scudday, T.; Fickenscher, M.-C.; Barnett, S.; Gorab, R. Third-Generation Medium Cross-Linked Polyethylene Demonstrates Very Low Wear in Total Hip Arthroplasty. Arthroplast. Today 2020, 6, 316–321. [Google Scholar] [CrossRef]
- Purdue, P.E.; Koulouvaris, P.; Potter, H.G.; Nestor, B.J.; Sculco, T.P. The Cellular and Molecular Biology of Periprosthetic Osteolysis. Clin. Orthop. Relat. Res. 2007, 454, 251–261. [Google Scholar] [CrossRef]
- Gallo, J.; Raska, M.; Mrázek, F.; Petrek, M. Bone remodeling, particle disease and individual susceptibility to periprosthetic osteolysis. Physiol. Res. 2008, 57, 339–349. [Google Scholar] [CrossRef] [PubMed]
- Mattei, L.; Di Puccio, F.; Ciulli, E.; Pauschitz, A. Experimental investigation on wear map evolution of ceramic-on-UHMWPE hip prosthesis. Tribol. Int. 2020, 143, 106068. [Google Scholar] [CrossRef]
- Jäger, M.; Van Wasen, A.; Warwas, S.; Landgraeber, S.; Haversath, M.; VITAS Group. A multicenter approach evaluating the impact of vitamin E-blended polyethylene in cementless total hip replacement. Orthop. Rev. 2014, 6, 5285. [Google Scholar]
- Lachiewicz, P.F.; Kleeman, L.T.; Seyler, T. Bearing Surfaces for Total Hip Arthroplasty. J. Am. Acad. Orthop. Surg. 2018, 26, 45–57. [Google Scholar] [CrossRef] [PubMed]
- Herrera, L.; Lee, R.; Longaray, J.; Essner, A.; Wang, A. Hip simulator evaluation of the effect of femoral head size on sequentially cross-linked acetabular liners. Wear 2007, 263, 1034–1037. [Google Scholar] [CrossRef]
- Affatato, S.; Bersaglia, G.; Rocchi, M.; Taddei, P.; Fagnano, C.; Toni, A. Wear behaviour of cross-linked polyethylene assessed in vitro under severe conditions. Biomaterials 2005, 26, 3259–3267. [Google Scholar] [CrossRef]
- Saikko, V. Wear and friction of thin, large-diameter acetabular liners made from highly cross-linked, vitamin-E-stabilized UHMWPE against CoCr femoral heads. Wear 2019, 432–433, 202948. [Google Scholar] [CrossRef]
- Bracco, P.; Oral, E. Vitamin E-stabilized UHMWPE for Total Joint Implants: A Review. Clin. Orthop. Relat. Res. 2011, 469, 2286–2293. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Tipper, J.; Firkins, P.; Besong, A.; Barbour, P.; Nevelos, J.; Stone, M.; Ingham, E.; Fisher, J. Characterisation of wear debris from UHMWPE on zirconia ceramic, metal-on-metal and alumina ceramic-on-ceramic hip prostheses generated in a physiological anatomical hip joint simulator. Wear 2001, 250, 120–128. [Google Scholar] [CrossRef]
- Hermida, J.C.; Bergula, A.; Chen, P.; Colwell, C.W.; D’lima, D.D. Comparison Of The Wear Rates Of Twenty-Eight And Thirty-Two-Millimeter Femoral Heads On Cross-Linked Polyethylene Acetabular Cups In A Wear Simulator. J. Bone Jt. Surg.-Am. Vol. 2003, 85, 2325–2331. [Google Scholar] [CrossRef]
- Estok, D.M., 2nd; Burroughs, B.R.; Muratoglu, O.K.; Harris, W.H. Comparison of hip simulator wear of 2 different highly cross-linked ultra high molecular weight polyethylene acetabular components using both 32- and 38-mm femoral heads. J. Arthroplast. 2007, 22, 581–589. [Google Scholar] [CrossRef] [PubMed]
- ISO 14242-1. Implants for Surgery—Wear of Total Hipjoint Prostheses—Part 1: Loading and Displacement Parameters for Wear-Testing Machines and Corresponding Environmental Conditions for Test; ISO Copyright Office: Geneva, Switzerland, 2014. [Google Scholar]
- ISO 14242-2. Implants for Surgery—Wear of Total Hip-Joint Prostheses—Part 2: Methods of Measurement; ISO Copyright Office: Geneva, Switzerland, 2016. [Google Scholar]
- YY 0118-2016. Joint Replacement Implants-Hip Joint Prostheses; China Food and Drug Adminstration: Beijing, China, 2016.
- ISO 7206-2. Implants for Surgery—Partial and Total Hip Joint Prostheses —Part 2: Articulating Surfaces Made of Metallic, Ceramic and Plastics Materials; ISO Copyright Office: Geneva, Switzerland, 2011. [Google Scholar]
- Niemczewska-Wójcik, M.; Piekoszewski, W. The surface topography of a metallic femoral head and its influence on the wear mechanism of a polymeric acetabulum. Arch. Civ. Mech. Eng. 2017, 17, 307–317. [Google Scholar] [CrossRef]
- Merola, M.; Affatato, S. Materials for Hip Prostheses: A Review of Wear and Loading Considerations. Materials 2019, 12, 495. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Affatato, S.; Freccero, N.; Taddei, P. The biomaterials challenge: A comparison of polyethylene wear using a hip joint simulator. J. Mech. Behav. Biomed. Mater. 2016, 53, 40–48. [Google Scholar] [CrossRef] [PubMed]
- Krushell, R.J.; Fingeroth, R.J.; Cushing, M.C. Early femoral head penetration of a highly cross-linked polyethylene liner vs a conventional polyethylene liner: A case-controlled study. J. Arthroplast. 2005, 20 (Suppl. 3), 73–76. [Google Scholar] [CrossRef] [PubMed]
- Meneghini, R.M.; Lovro, L.R.; Wallace, J.M.; Ziemba-Davis, M.J.J.A. Large Metal Heads and Vitamin E Polyethylene Increase Frictional Torque in Total Hip Arthroplasty. J. Arthroplast. 2016, 31, 710–714. [Google Scholar] [CrossRef] [PubMed]
- Krushell, R.J.; Fingeroth, R.J. Paper #1 Early Wear of a Crosslinked Polyethylene Liner Versus a Conventional Polyethylene Liner: A Case-Controlled Study. J. Arthroplast. 2005, 20, 265. [Google Scholar]
Group Number | Material | Head Diameter (mm) | Manufacturer |
---|---|---|---|
1 | Ceramic head & XLPE liner | 36 | Company A, Beijing Economic and Technological Development Zone, Beijing |
2 | Ceramic head & VEXLPE liner | 36 | Company B, Shunyi, Beijing |
3 | Ceramic head & XLPE liner | 28 | Company C, Haidian, Beijing |
4 | CoCrMo head & XLPE liner | 28 | Company D, Haidian, Beijing |
5 | CoCrMo head & UHMWPE liner | 28 | Company E, Tuttlingen, Germany |
Group Number | Head Diameter (mm) | Materials | Wear Rate of Liner (mg/million Cycles) | Mean Wear Rate (mg/million Cycles) |
---|---|---|---|---|
1 | 36 | Ceramic−XLPE | −3.000 | −2.48 ± 0.64 |
−2.660 | ||||
−1.770 | ||||
2 | 36 | Ceramic−VEXLPE | 11.600 | 10.45 ± 1.01 |
10.070 | ||||
9.690 | ||||
3 | 28 | Ceramic−XLPE | 0.640 | 0.60 ± 0.21 |
0.610 | ||||
0.540 | ||||
4 | 28 | CoCrMo− XLPE | 0.599 | 0.68 ± 0.11 |
0.808 | ||||
0.630 | ||||
5 | 28 | CoCrMo−UHMWPE | 26.333 | 24.97 ± 1.59 |
25.362 | ||||
23.223 |
