Electrochemical Oscillation during Galvanostatic Charging of LiCrTiO4 in Li-Ion Batteries

by
Zhijie Xu
1,
Fangxu Hu
1,
De Li
1,* and
Yong Chen
1,2,*
1
State Key Laboratory on Marine Resource Utilization in South China Sea, Hainan Provincial Key Laboratory of Research on Utilization of Si-Zr-Ti Resources, School of Materials Science and Engineering, Hainan University, Haikou 570228, China
2
Guangdong Key Laboratory for Hydrogen Energy Technologies, School of Materials Science and Hydrogen Energy, Foshan University, Foshan 528000, China
*
Authors to whom correspondence should be addressed.
Materials 2021, 14(13), 3624; https://doi.org/10.3390/ma14133624
Submission received: 16 May 2021 / Revised: 1 June 2021 / Accepted: 8 June 2021 / Published: 29 June 2021
Browse Figures
Versions Notes

Abstract

:
In the late 1960s, the establishment of Prigogine’s dissipative structure theory laid the foundation for the (electro)chemical oscillation phenomenon, which has been widely investigated in some electrochemical reactions, such as electro-catalysis and electro-deposition, while the electrochemical oscillation of Li-ion batteries has just been discovered in spinel Li4Ti5O12 a few years before. In this work, spinel LiCrTiO4 samples were synthesized by using a high-temperature solid-state method, characterized with SEM (Scanning electron microscope), XRD (X-ray diffraction), Raman and XPS (X-ray photoelectron spectroscopy) measurements, and electrochemically tested in Li-ion batteries to study the electrochemical oscillation. When sintering in a powder form at a temperature between 800 and 900 °C, we achieved the electrochemical oscillation of spinel LiCrTiO4 during charging, and it is suppressed in the non-stoichiometric LiCrTiO4 samples, especially for reducing the Li content or increasing the Cr content. Therefore, this work developed another two-phase material as the powder-sintered LiCrTiO4 exhibiting the electrochemical oscillation in Li-ion batteries, which would inspire us to explore more two-phase electrode materials in Li-ion batteries, Na-ion batteries, etc.

1. Introduction

Li-ion batteries have been widely used in portable electronic devices and electric vehicles, [1,2,3] and graphite is a commercial anode material in Li-ion batteries, while it suffers from poor rate capability and serious safety issues, owing to lithium dendritic growth, especially at low temperature [4,5]. Spinel Li4Ti5O12 is considered among the promising anode materials, which can prevent the growth of lithium dendrites to achieve safe and reliable high-power Li-ion batteries, owing to the high operating voltage of 1.565 V [6,7,8,9]. Since Li4Ti5O12 has smooth discharge and charge plateaus, even subtle voltage changes can be observed on the discharge/charge curves, such as the memory effect and the electrochemical oscillation [10,11,12,13].
In the late 1960s, the establishment of Prigogine’s dissipative structure theory laid the foundation for the (electro)chemical oscillation phenomenon, which attracted a lot of attention in some electrochemical reactions, such as electro-synthesis [14,15], electrocatalysis [16,17] and electrodeposition [18,19]. The electrochemical oscillation can not only be adopted to interpret some interesting electrochemical phenomena, but also be developed for some potential applications [20,21]. However, the electrochemical oscillation of Li-ion batteries has just been discovered in spinel Li4Ti5O12 a few years before, which presents as a periodic voltage oscillation during the galvanostatic process in Li-ion batteries. Up to now, there is no report about the electrochemical oscillation of any other two-phase materials in Li-ion batteries.
Recently, LiCrTiO4 has been comprehensively studied due to its similar characteristics to Li4Ti5O12 [22,23,24,25]. In this work, spinel LiCrTiO4 was synthesized by using a high-temperature solid-state method, characterized with SEM, XRD, Raman and XPS measurements, and electrochemically tested in Li-ion batteries. Through tailoring the sintering temperature, the elemental ratio of Li:Cr:Ti, and the sintering form as powder or pellet, we found that the electrochemical oscillation can be achieved in the stoichiometric LiCrTiO4 sintered in a powder form between 800 and 900 °C. This work firstly discovered the electrochemical oscillation in another two-phase material of spinel LiCrTiO4, which can promote the investigation of electrochemical oscillation in Li-ion batteries, Na-ion batteries, etc.

2. Experimental Section

Spinel LiCrTiO4 was synthesized by using a high-temperature solid-state method. The raw materials as Li2CO3 (99.9%, Xilong Chemical, Guangzhou, China), Cr2O3 (99.9%, Aladdin, Shanghai, China) and TiO2 (nano-sized, 99.9%, Aladdin, Shanghai, China) were weighted with an elemental ratio of Li:Cr:Ti as 1:1:1, their mixture was thoroughly ground for 2 h, then the powder was directly sintered in a muffle furnace with air atmosphere at a temperature of 750, 800, 850, 900 and 950 ℃, respectively, for 16 h, in which the product of 850 ℃ was marked as LiCrTiO4-850-powder [26]. In comparison, the ground powder was pressed into a pellet and sintered in a muffle furnace with air atmosphere at a temperature of 850 ℃ for 16 h, and the product was marked as LiCrTiO4-850-pellet. By using the same method, another six LiCrTiO4 samples were synthesized with an elemental ratio of Li:Cr:Ti as 1.05:1:1, 0.95:1:1, 1:1.05:1, 1:0.95:1, 1:1:1.05 and 1:1:0.95, respectively, which were sintered in a powder form at a temperature of 850 °C.
As-prepared LiCrTiO4 samples were characterized using an X-ray diffractometer (XRD, Bruker D8 advance, Bruker, Karlsruhe, Germany), a Raman spectrometer (Raman, Thermo Fisher DXRxi, Madison, WI, USA) using an argon laser with a wavelength of 532 nm, a scanning electron microscope (SEM, Phenom ProX, Phenom-World BV, Eindhoven, Netherlands), and an X-ray photoelectron spectroscope (XPS, ESCALAB 250xi, Thermo Fisher Scientific, Waltham, MA, USA) with a focused monochromatized Al-Ka radiation (1486.6 eV). Electrochemical measurements were conducted within coin-type cells (CR2025). The working electrode was a composite film (ϕ = 4 mm) firmly pressed on a carbon paper, which contained 42.5 wt.% active material, 42.5 wt.% acetylene black and 15 wt.% polytetrafluoroethylene (PTFE), the counter electrode of lithium metal was separated from the working electrode with a Celgard 2500 (Celgard, Charlotte, NC, USA) microporous polypropylene film, and the electrolyte was 1 M LiClO4/EC + DEC (volume ratio of 1:1). The dried components were assembled in a glovebox filled with Ar gas. The galvanostatic (dis)charging measurements were conducted at a current rate of 0.1 C between 1.2 and 2.0 V in the Hokuto Denko battery test system (HJ1001SD8, Hokuto Denko Corporation, Gifu, Japan) under an operating temperature of 25 °C.

3. Results and Discussion

Figure 1 shows the SEM images of LiCrTiO4 sintered in a powder form at a temperature of 750, 800, 850, 900 and 950 °C, respectively. Each sample is an aggregation of sub-microparticles and microparticles, and the particle size becomes large at the high temperature. As shown in Figure 2a and Figure S1, their XRD patterns are consistent with the standard Bragg reflections in JCPDS No. 47-0139, assigned to a spinel phase with space group Fd-3m [27,28]. There are four peaks at 243, 396, 584 and 665 cm−1 in their Raman spectra, as shown in Figure 2b. The peaks at 584 and 665 cm−1 can be attributed to the vibrational modes of Cr–O bonds in CrO6 octahedra and Ti–O bonds in TiO6 octahedra. The peak at 396 cm−1 can be assigned to the stretching vibrational mode of Li–O bonds in LiO4 tetrahedra. Additionally, the peak at 243 cm−1 is ascribed to the vibration of Li–O bonds [29,30]. For the LiCrTiO4 sintered at 750 ℃, the peak at 396 cm−1 is higher and the peak at 665 cm−1 is lower than that of high temperatures. Additionally, the peak at 243 cm−1 disappears at the high temperature of 900 and 950 °C. Accordingly, the local structure of LiCrTiO4 is sensitive to the sintering temperature, compared with its crystal structure.
The galvanostatic (dis)charging measurements were conducted for these LiCrTiO4 samples, as shown in Figure 3, where the current rate was 0.1 C and the operating temperature was 25 °C. As shown in Figure 3a,b, the charging curve is very smooth for the LiCrTiO4 sintered at 750 °C. The electrochemical oscillation (voltage oscillation) appears for the LiCrTiO4 sintered at 800 °C, and its range and amplitude increase continuously as the temperature rises from 800 to 900 °C. However, the electrochemical oscillation disappears completely when the sintering temperature reaches 950 °C. To analyze the oscillation, the relationship between the period and the average voltage was plotted in Figure 3c. At the beginning of electrochemical oscillation, the period gradually increases, while the average voltage is nearly constant. Then, the period and the average voltage gradually become smaller and higher, respectively, and the period basically has a negative logarithmic relationship with the average voltage. By increasing the temperature, the negative logarithmic lines gradually shift to the large period, possibly owing to the fact that the growing particle size prolongs the time of phase transition in each particle, as shown in Figure 1. Therefore, the electrochemical oscillation of LiCrTiO4 is significantly dependent on the sintering temperature, and the middle temperature of 850 °C was chosen in the following study, for this temperature is very popular to synthesize the spinel LiCrTiO4.
The elemental ratio was tailored to study the electrochemical oscillation of LiCrTiO4. The elemental ratio of Li:Cr:Ti was controlled as 1.05:1:1, 0.95:1:1, 1:1.05:1, 1:0.95:1, 1:1:1.05 and 1:1:0.95 in a series of LiCrTiO4 samples, which were sintered in a powder form at a temperature of 850 °C. As shown in Figure 4, all sample appear as an aggregation of sub-micro-particles and micro-particles, and the particle size seems large by increasing the Li content (1.05:1:1 vs. 0.95:1:1) or reducing the Cr content (1:1.05:1 vs. 1:0.95:1), while there was no evident difference by varying the Ti content (1:1:1.05 vs. 1:1:0.95). As shown in Figure 5a and Figure S2, their XRD patterns are consistent with the spinel structure of LiCrTiO4. As shown in Figure 5b, similar Raman spectra were observed by varying the Li content (1.05:1:1 vs. 0.95:1:1) or the Cr content (1:1.05:1 vs. 1:0.95:1), while the peaks at 580 cm−1 and 662 cm−1 became broad by reducing the Ti content (1:1:1.05 vs. 1:1:0.95). Additionally, the peak at 251 cm−1 is only observed in the LiCrTiO4 of Li:Cr:Ti = 1.05:1:1. Thus, both the local structure and the crystal structure of LiCrTiO4 are quite robust under non-stoichiometry.
Figure 6 shows the galvanostatic discharge/charge curves of the LiCrTiO4 samples with different elemental ratios. Compared with the stoichiometric LiCrTiO4 (Li:Cr:Ti = 1:1:1), the electrochemical oscillation is reduced in range and amplitude for the non-stoichiometric LiCrTiO4 samples. As to each element, the electrochemical oscillation disappears by reducing the Li content (Li:Cr:Ti = 0.95:1:1) or increasing the Cr content (Li:Cr:Ti = 1:1.05:1), while it always exists by varying the Ti content (Li:Cr:Ti = 1:1:1.05 or 1:1:0.95). As shown in Figure 6c, the negative logarithmic line shifts to the high voltage for the LiCrTiO4 of Li:Cr:Ti = 1.05:1:1, and moves to the low voltage for the LiCrTiO4 of Li:Cr:Ti = 1:1:0.95. Thereby, the electrochemical oscillation strongly depends on the elemental ratio, especially for the Li and Cr contents.
Additionally, we also synthetized the composite of LiCrTiO4 + Li2Ti3O7, LiCrTiO4 + Li4Ti5O12 and LiCrTiO4 + Li2TiO3 to study the effect of different lithium titanates, as shown in Figure S3 [31]. As shown in Figure 7a,b, the range of electrochemical oscillation gradually becomes smaller as the Li content in lithium titanate increases, consistent with that of the LiCrTiO4 samples (Li:Cr:Ti = 1.05:1:1 vs.1:1:1) in Figure 6, and the amplitude of electrochemical oscillation is largest for the composite of LiCrTiO4 + Li4Ti5O12, indicating a positive effect of spinel Li4Ti5O12. As shown in Figure 7c, the negative logarithmic lines shift to the low voltage for the LiCrTiO4 composites. Thus, the electrochemical oscillation is affected by the Li content in lithium titanates, as well as spinel Li4Ti5O12 phase in the composite.
Usually, the raw materials are pressed into a pellet for sintering in the high-temperature solid-state method, so we also synthesized LiCrTiO4-850-pellet sintered in a pellet form at 850 °C. Compared with LiCrTiO4-850-powder, the LiCrTiO4-850-pellet has a similar XRD pattern and Raman spectrum, while there is an additional minor peak at 857 cm−1 which should originate from the stretching vibration of Cr6+=O as shown in Figure 8a,b, and the particles evidently become large in the LiCrTiO4-850 pellet, as shown in Figure 8c. The galvanostatic discharge/charge curves are plotted in Figure 8d, in which there is no electrochemical oscillation at the end of charging plateau.
The XPS measurement was adopted to analyze the difference between LiCrTiO4-850-powder and LiCrTiO4-850-pellet, as shown in Figure 9. The Li 1s peak at ca. 54.7 eV was observed for both samples, as shown in Figure 9a [32]. There are four binding energies: 576.4 eV for Cr3+ 2p3/2, 579.6 eV for Cr6+ 2p3/2, 586.3 eV for Cr3+ 2p1/2 and 588.9 eV for Cr6+ 2p1/2, as shown in Figure 9b [33,34,35]. The ratio between Cr6+ and Cr3+ is 0.735:1 for LiCrTiO4-850-powder and 0.632:1 for the LiCrTiO4-850-pellet, according to their peak areas. The Cr element exists in the form of Cr3+ in spinel LiCrTiO4, and the Cr6+ ions on the surface should be attributed to the high-temperature sintering in air atmosphere, especially for LiCrTiO4-850-powder. As shown in Figure 9c, the Ti 2p3/2 peak at 458.4 eV and Ti 2p1/2 peak at 464.1 eV indicate that the Ti element mainly exists in the form of Ti4+ [36]. As for the O 1s spectra in Figure 9d, the binding energies of 529.8 eV and 531.2 eV are assigned to the lattice oxygen and the CO32−, respectively [37,38,39]. Here, the raw material of Li2CO3 might leave the CO32− on the particle surface, especially for LiCrTiO4-850-pellet. Therefore, the LiCrTiO4-850-powder has more Cr6+ and less CO32− on the particle surface than the LiCrTiO4-850-pellet, which should be correlative to the occurrence of electrochemical oscillation.
Figure 10 shows the research progress in the electrochemical oscillation of Li-ion batteries, which was first discovered during the galvanostatic charge and discharge processes of spinel Li4Ti5O12 prepared by carbothermic method, as shown in Figure 10a. Here, our work reveals the electrochemical oscillation during the galvanostatic charge process of spinel LiCrTiO4, as shown in Figure 10b. Olivine LiFePO4 is a well-known two-phase cathode material in Li-ion batteries, but no electrochemical oscillation has been observed during the galvanostatic discharge and charge processes, as shown in Figure 10c, possibly owing to the anisotropic crystal structure and the poor electrical conductivity of LiFePO4. Thereby, the research of electrochemical oscillation has been expanded to the charge process of spinel LiCrTiO4, inspiring us to explore more two-phase electrode materials in Li-ion batteries, Na-ion batteries, etc., as shown in Figure 10d.

4. Conclusions

In this work, spinel LiCrTiO4 samples were synthesized by using a high-temperature solid-state method, characterized with SEM, XRD, Raman and XPS measurements, and electrochemically tested in Li-ion batteries to study the electrochemical oscillation. Through tailoring the sintering temperature, we found that the electrochemical oscillation during charging can be observed for the temperatures 800 to 900 °C, of which the range and amplitude increase with the temperature. Compared with the stoichiometric LiCrTiO4, the electrochemical oscillation is reduced in range and amplitude for the non-stoichiometric LiCrTiO4 samples, and it even disappears by reducing the Li content or increasing the Cr content. When the LiCrTiO4 is sintered in a pellet form, there is no electrochemical oscillation in the end of charging plateau. According to the XPS results, the powder-sintered LiCrTiO4 has more Cr6+ and less CO32− on the particle surface than the pellet-sintered LiCrTiO4, which should be correlative to the occurrence of electrochemical oscillation. Thereby, this work developed another two-phase material as the powder-sintered LiCrTiO4 to study the electrochemical oscillation, which would encourage us to explore more two-phase electrode materials in Li-ion batteries, Na-ion batteries, etc.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ma14133624/s1, Supplementary Materials contained in Figure S1–S3, including enlarged XRD patterns of LiCrTiO4 for different sintering temperatures and different elemental ratios, SEM images of LiCrTiO4 composites with Li2Ti3O7, Li4Ti5O12 and Li2TiO3, respectively, sintered in a powder form at a temperature of 850 °C.

Author Contributions

Methodology, D.L.; investigation, Z.X. and F.H.; writing—original draft preparation, Z.X.; writing—review and editing, D.L., Z.X., Y.C. and F.H.; supervision, D.L. and Y.C.; funding acquisition, Y.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by Key Research and Development Project of Hainan Province (ZDYF2019012 and ZDYF2020028), National Natural Science Foundation of China (21603048 and 52062012), the Innovation Team of Universities of Guangdong Province (2020KCXTD011), the Engineering Research Center of Universities of Guangdong Province (2019GCZX002), and the Guangdong Key Laboratory for Hydrogen Energy Technologies (2018B030322005).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Eddahech, A.; Briat, O.; Vinassa, J.-M. Lithium-ion battery performance improvement based on capacity recovery exploitation. Electrochim. Acta 2013, 114, 750–757. [Google Scholar] [CrossRef]
  2. Mulder, G.; Omar, N.; Pauwels, S.; Meeus, M.; Leemans, F.; Verbrugge, B.; Nijs, W.D.; Van den Bossche, P.; Six, D.; Van Mierlo, J. Comparison of commercial battery cells in relation to material properties. Electrochim. Acta 2013, 87, 473–488. [Google Scholar] [CrossRef]
  3. Scrosati, B.; Garche, J. Lithium batteries: Status, prospects and future. J. Power Sources 2010, 195, 2419–2430. [Google Scholar] [CrossRef]
  4. Chen, Z.; Qin, Y.; Ren, Y.; Lu, W.; Orendorff, C.; Roth, E.P.; Amine, K. Multi-scale study of thermal stability of lithiated graphite. Energy Environ. Sci. 2011, 4, 4023–4030. [Google Scholar] [CrossRef]
  5. Guo, B.; Wang, X.; Fulvio, P.F.; Chi, M.; Mahurin, S.M.; Sun, X.G.; Dai, S. Soft-templated mesoporous carbon-carbon nanotube composites for high performance lithium-ion batteries. Adv. Mater. 2011, 23, 4661–4666. [Google Scholar] [CrossRef]
  6. Li, C.; Huang, Q.; Mao, J. Improve the low-temperature electrochemical performance of Li4Ti5O12 anode materials by ion doping. J. Mater. Sci. Mater. Electron. 2020, 31, 21444–21454. [Google Scholar] [CrossRef]
  7. Jung, H.-G.; Myung, S.-T.; Yoon, C.S.; Son, S.-B.; Oh, K.H.; Amine, K.; Scrosati, B.; Sun, Y.-K. Microscale spherical carbon-coated Li4Ti5O12 as ultra high power anode material for lithium batteries. Energy Environ. Sci. 2011, 4, 1345–1351. [Google Scholar] [CrossRef]
  8. Zhao, L.; Hu, Y.S.; Li, H.; Wang, Z.; Chen, L. Porous Li4Ti5 O12 coated with N-doped carbon from ionic liquids for Li-ion batteries. Adv. Mater. 2011, 23, 1385–1388. [Google Scholar] [CrossRef]
  9. Li, X.; Huang, Y.; Li, Y.; Sun, S.; Liu, Y.; Luo, J.; Han, J.; Huang, Y. Al doping effects on LiCrTiO4 as an anode for lithium-ion batteries. RSC Adv. 2017, 7, 4791–4797. [Google Scholar] [CrossRef] [Green Version]
  10. Allen, J.L.; Jow, T.R.; Wolfenstine, J. Low temperature performance of nanophase Li4Ti5O12. J. Power Sources 2006, 159, 1340–1345. [Google Scholar] [CrossRef]
  11. Arun, N.; Jain, A.; Aravindan, V.; Jayaraman, S.; Chui Ling, W.; Srinivasan, M.P.; Madhavi, S. Nanostructured spinel LiNi0.5 Mn1.5 O4 as new insertion anode for advanced Li-ion capacitors with high power capability. Nano Energy 2015, 12, 69–75. [Google Scholar] [CrossRef]
  12. Bai, P.; Cogswell, D.A.; Bazant, M.Z. Suppression of phase separation in LiFePO(4) nanoparticles during battery discharge. Nano Lett. 2011, 11, 4890–4896. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Luo, G.; He, J.; Song, X.; Huang, X.; Yu, X.; Fang, Y.; Chen, D. Bamboo carbon assisted sol–gel synthesis of Li4Ti5O12 anode material with enhanced electrochemical activity for lithium ion battery. J. Alloys Compd. 2015, 621, 268–273. [Google Scholar] [CrossRef]
  14. Gurzęda, B.; Krawczyk, P. Potential oscillations affected by the electrochemical overoxidation of graphite in aqueous nitric acid. Electrochim. Acta 2018, 267, 102–109. [Google Scholar] [CrossRef]
  15. Ozkan, S.; Mazare, A.; Schmuki, P. Self-induced current oscillations during anodization of Ti in LA containing DMSO electrolyte. Electrochem. Commun. 2016, 65, 18–22. [Google Scholar] [CrossRef]
  16. Spendelow, J.S.; Wieckowski, A. Electrocatalysis of oxygen reduction and small alcohol oxidation in alkaline media. Phys. Chem. Chem. Phys. 2007, 9, 2654–2675. [Google Scholar] [CrossRef]
  17. Stamenkovic, V.R.; Mun, B.S.; Arenz, M.; Mayrhofer, K.J.; Lucas, C.A.; Wang, G.; Ross, P.N.; Markovic, N.M. Trends in electrocatalysis on extended and nanoscale Pt-bimetallic alloy surfaces. Nat. Mater. 2007, 6, 241–247. [Google Scholar] [CrossRef] [PubMed]
  18. Kamiya, K.; Hashimoto, K.; Nakanishi, S. Acceleration effect of adsorbed thiocyanate ions on electrodeposition of CuSCN, causing spontaneous electrochemical oscillation. Chem. Phys. Lett. 2012, 530, 77–80. [Google Scholar] [CrossRef]
  19. Kuběna, J.; Kuběna, A.; Caha, O.; Mikulík, P. Development of oxide precipitates in silicon: Calculation of the distribution function of the classical theory of nucleation by a nodal-points approximation. J. Phys. Condens. Matter. 2007, 19, 496202. [Google Scholar] [CrossRef]
  20. Sugiura, H.; Ito, M.; Okuaki, T.; Mori, Y.; Kitahata, H.; Takinoue, M. Pulse-density modulation control of chemical oscillation far from equilibrium in a droplet open-reactor system. Nat. Commun. 2016, 7, 10212. [Google Scholar] [CrossRef] [Green Version]
  21. Xie, Z.; Liu, Z.; Zhang, X.; Yang, L.; Chang, J.; Tao, C. Electrochemical oscillation on anode regulated by sodium oleate in electrolytic metal manganese. J. Electroanal. Chem. 2019, 845, 13–21. [Google Scholar] [CrossRef]
  22. Tang, Y.; Liu, L.; Zhao, H.; Gao, S.; Lv, Y.; Kong, L.; Ma, J.; Jia, D. Hybrid porous bamboo-like CNTs embedding ultrasmall LiCrTiO4 nanoparticles as high rate and long life anode materials for lithium ion batteries. Chem. Commun. 2017, 53, 1033–1036. [Google Scholar] [CrossRef] [PubMed]
  23. Kuhn, A.; Díaz-Carrasco, P.; Arroyo y de Dompablo, M.E.; García-Alvarado, F. On the synthesis of ramsdellite LiTiMO4 (M = Ti, V, Cr, Mn, Fe): An experimental and computational study of the spinel–ramsdellite transformation. Eur. J. Inorg. Chem. 2007, 2007, 3375–3384. [Google Scholar] [CrossRef]
  24. Kuhn, A.; Martín, M.; García-Alvarado, F. Synthesis, structure and electrochemical lithium intercalation chemistry of ramsdellite-type LiCrTiO4. Z. Anorg. Allg. Chem. 2008, 634, 880–886. [Google Scholar] [CrossRef]
  25. Wang, L.; Xiao, Q.; Wu, L.; Lei, G.; Li, Z. Spinel LiCrTiO4 fibers as an advanced anode material in high performance lithium ion batteries. Solid State Ion. 2013, 236, 43–47. [Google Scholar] [CrossRef]
  26. Yang, J.; Yan, B.; Ye, J.; Li, X.; Liu, Y.; You, H. Carbon-coated LiCrTiO4 electrode material promoting phase transition to reduce asymmetric polarization for lithium-ion batteries. Phys. Chem. Chem. Phys. 2014, 16, 2882–2891. [Google Scholar] [CrossRef]
  27. Aravindan, V.; Ling, W.C.; Madhavi, S. LiCrTiO(4): A high-performance insertion anode for lithium-ion batteries. ChemPhysChem 2012, 13, 3263–3266. [Google Scholar] [CrossRef]
  28. Luo, M.; Yu, H.; Cheng, X.; Zhu, H.; Ye, W.; Yan, L.; Qian, S.; Shui, M.; Shu, J. LiCrTiO4 Nanowires with the (111) peak evolution during cycling for high-performance lithium ion battery anodes. ACS Sustain. Chem. Eng. 2017, 5, 10580–10587. [Google Scholar] [CrossRef]
  29. Feng, X.; Shen, C.; Ding, N.; Chen, C. Lithium chromium oxide modified spinel LiCrTiO4 with improved electrochemical properties. J. Mater. Chem. 2012, 22, 20861–20865. [Google Scholar] [CrossRef]
  30. Yao, Y.; Zhang, L.; Bie, X.; Chen, H.; Wang, C.; Du, F.; Chen, G. Exploration of spinel LiCrTiO4 as cathode material for rechargeable Mg-Li hybrid batteries. Chemistry 2017, 23, 17935–17939. [Google Scholar] [CrossRef] [PubMed]
  31. Zhu, G.-N.; Chen, L.; Wang, Y.-G.; Wang, C.-X.; Che, R.-C.; Xia, Y.-Y. Binary Li4Ti5O12-Li2Ti3O7 nanocomposite as an anode material for Li-Ion batteries. Adv. Funct. Mater. 2013, 23, 640–647. [Google Scholar] [CrossRef]
  32. Charles-Blin, Y.; Flahaut, D.; Ledeuil, J.-B.; Guérin, K.; Dubois, M.; Deschamps, M.; Perbost, A.-M.; Monconduit, L.; Martinez, H.; Louvain, N. Atomic layer fluorination of the Li4Ti5O12 surface: A multiprobing survey. ACS Appl. Energy Mater. 2019, 2, 6681–6692. [Google Scholar] [CrossRef]
  33. Tian, H. Synthesis and electrochemical properties of spinel LiCrTiO4 and its application in LiFePO4/LiCrTiO4 full cells. Int. J. Electrochem. Sci. 2017, 6980–6989. [Google Scholar] [CrossRef]
  34. Yu, H.; Qian, S.; Yan, L.; Li, P.; Lin, X.; Luo, M.; Long, N.; Shui, M.; Shu, J. Observation of the lithium storage behavior in LiCrTiO4 via in-situ and ex-situ techniques. Electrochim. Acta 2016, 212, 84–94. [Google Scholar] [CrossRef]
  35. Zhang, W.; Song, S.; Nath, M.; Xue, Z.; Ma, G.; Li, Y. Inhibition of Cr6+ by the formation of in-situ Cr3+ containing solid-solution in Al2O3–CaO–Cr2O3–SiO2 system. Ceram. Int. 2021, 47, 9578–9584. [Google Scholar] [CrossRef]
  36. Yuan, L.; Weng, X.; Zhou, M.; Zhang, Q.; Deng, L. Structural and visible-near infrared optical properties of Cr-doped TiO2 for colored cool pigments. Nanoscale Res. Lett. 2017, 12, 597. [Google Scholar] [CrossRef] [Green Version]
  37. Almaev, A.V.; Kushnarev, B.O.; Chernikov, E.V.; Novikov, V.A.; Korusenko, P.M.; Nesov, S.N. Structural, electrical and gas-sensitive properties of Cr2O3 thin films. Superlattices Microstruct. 2021, 151, 106835. [Google Scholar] [CrossRef]
  38. Orliukas, A.F.; Fung, K.Z.; Venckutė, V.; Kazlauskienė, V.; Miškinis, J.; Lelis, M. Structure, surface and broadband impedance spectroscopy of Li4Ti5O12 based ceramics with Nb and Ta. Solid State Ion. 2015, 271, 34–41. [Google Scholar] [CrossRef]
  39. Shi, Y.; Wen, L.; Li, F.; Cheng, H.-M. Nanosized Li4Ti5O12/graphene hybrid materials with low polarization for high rate lithium ion batteries. J. Power Sources 2011, 196, 8610–8617. [Google Scholar] [CrossRef]
Materials 14 03624 g001 550
Figure 1. The SEM (Scanning electron microscope) images of LiCrTiO4 sintered in a powder form at a temperature of (a) 750 °C; (b) 800 °C; (c) 850 °C; (d) 900 °C and (e) 950 °C.
Figure 1. The SEM (Scanning electron microscope) images of LiCrTiO4 sintered in a powder form at a temperature of (a) 750 °C; (b) 800 °C; (c) 850 °C; (d) 900 °C and (e) 950 °C.
Materials 14 03624 g001
Materials 14 03624 g002 550

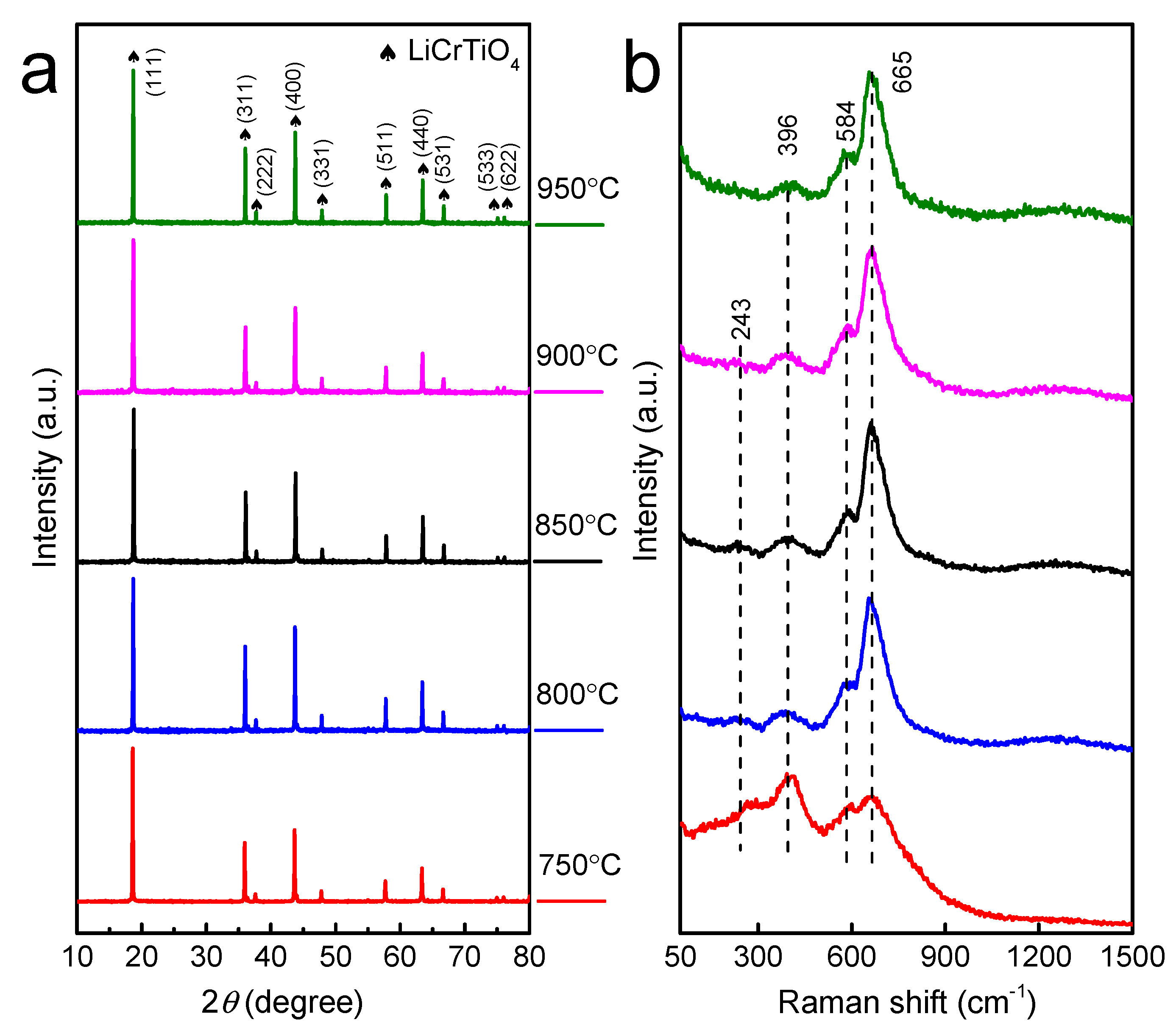

Figure 2. (a) The XRD (X-ray diffraction)patterns and (b) the Raman spectra of LiCrTiO4 sintered in a powder form at a temperature of 750 °C (red), 800 °C (blue), 850 °C (black), 900 °C (magenta) and 950 °C (olive).
Figure 2. (a) The XRD (X-ray diffraction)patterns and (b) the Raman spectra of LiCrTiO4 sintered in a powder form at a temperature of 750 °C (red), 800 °C (blue), 850 °C (black), 900 °C (magenta) and 950 °C (olive).
Materials 14 03624 g002
Materials 14 03624 g003 550

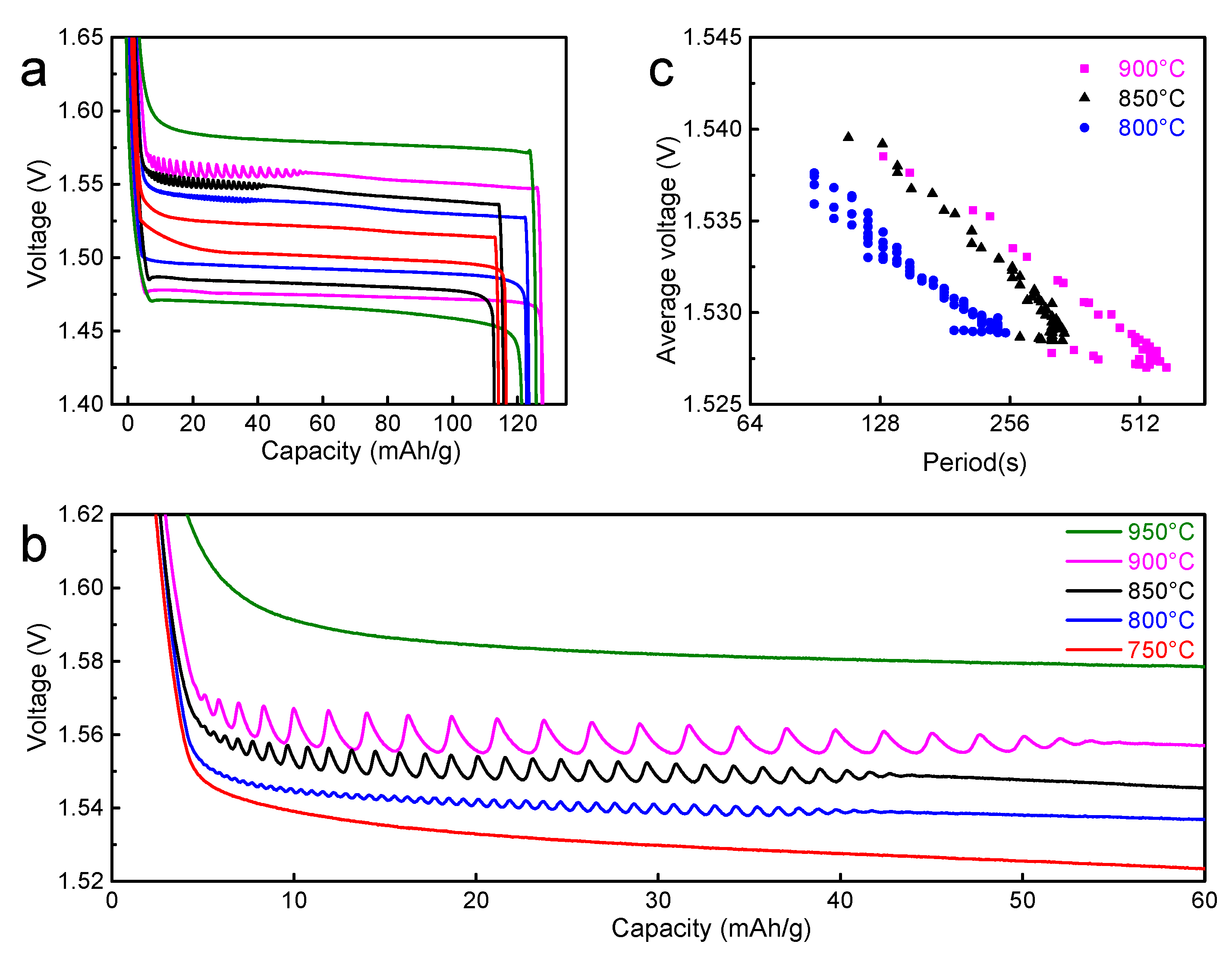

Figure 3. (a) The galvanostatic discharge/charge curves of LiCrTiO4 sintered in a powder form at a temperature of 750, 800, 850, 900 and 950 °C, respectively. (b) The enlarged view in the end of charge plateaus. The data are shifted along the vertical axis (750 °C ±0 mV; 800 °C ±10 mV; 850 °C ±20 mV; 900 °C ±30 mV; 950 °C ±40 mV) for viewing convenience. (c) The relationship between the period and the average voltage, which were calculated from (b).
Figure 3. (a) The galvanostatic discharge/charge curves of LiCrTiO4 sintered in a powder form at a temperature of 750, 800, 850, 900 and 950 °C, respectively. (b) The enlarged view in the end of charge plateaus. The data are shifted along the vertical axis (750 °C ±0 mV; 800 °C ±10 mV; 850 °C ±20 mV; 900 °C ±30 mV; 950 °C ±40 mV) for viewing convenience. (c) The relationship between the period and the average voltage, which were calculated from (b).
Materials 14 03624 g003
Materials 14 03624 g004 550

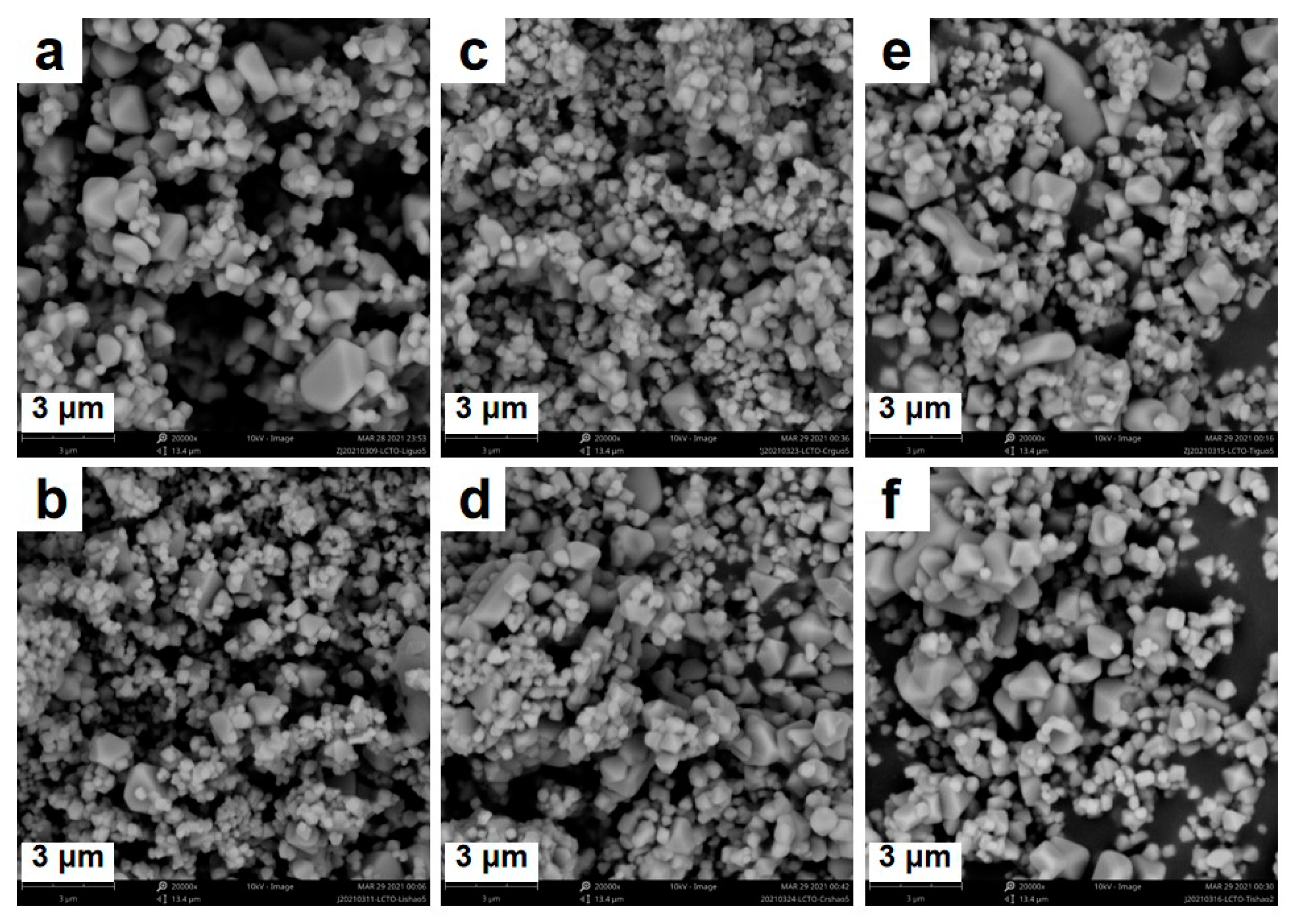

Figure 4. The SEM images of LiCrTiO4 sintered in a powder form at a temperature of 850 °C with an elemental ratio of Li:Cr:Ti as (a) 1.05:1:1; (b) 0.95:1:1; (c) 1:1.05:1; (d) 1:0.95:1; (e) 1:1:1.05 and (f) 1:1:0.95, respectively.
Figure 4. The SEM images of LiCrTiO4 sintered in a powder form at a temperature of 850 °C with an elemental ratio of Li:Cr:Ti as (a) 1.05:1:1; (b) 0.95:1:1; (c) 1:1.05:1; (d) 1:0.95:1; (e) 1:1:1.05 and (f) 1:1:0.95, respectively.
Materials 14 03624 g004
Materials 14 03624 g005 550

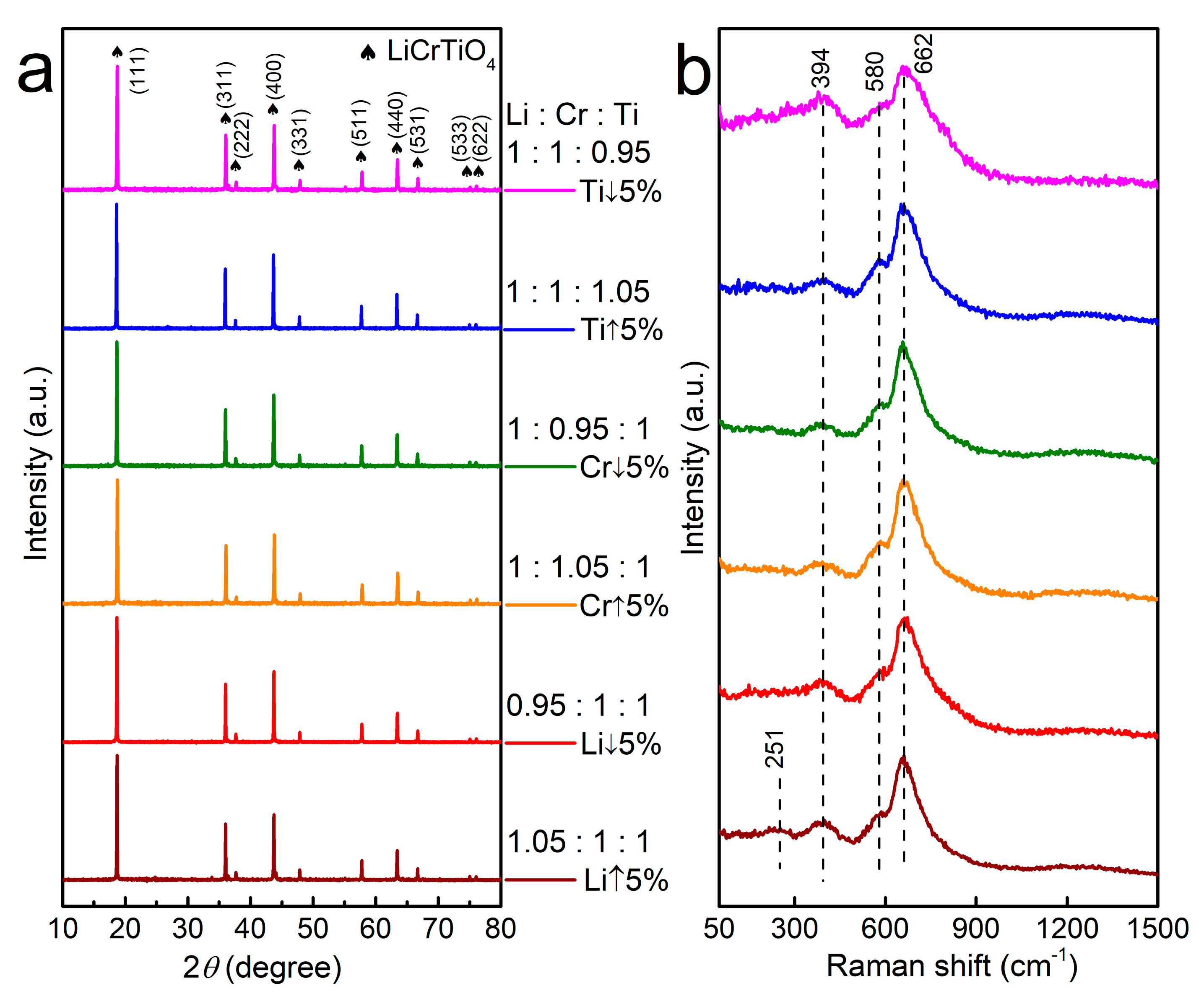

Figure 5. (a) The XRD patterns and (b) the Raman spectra of LiCrTiO4 sintered in a powder form at a temperature of 850 °C with an elemental ratio of Li:Cr:Ti as1.05:1:1 (wine), 0.95:1:1 (red), 1:1.05:1 (orange), 1:0.95 (olive):1, 1:1:1.05 (blue) and 1:1:0.95 (magenta), respectively.
Figure 5. (a) The XRD patterns and (b) the Raman spectra of LiCrTiO4 sintered in a powder form at a temperature of 850 °C with an elemental ratio of Li:Cr:Ti as1.05:1:1 (wine), 0.95:1:1 (red), 1:1.05:1 (orange), 1:0.95 (olive):1, 1:1:1.05 (blue) and 1:1:0.95 (magenta), respectively.
Materials 14 03624 g005
Materials 14 03624 g006 550

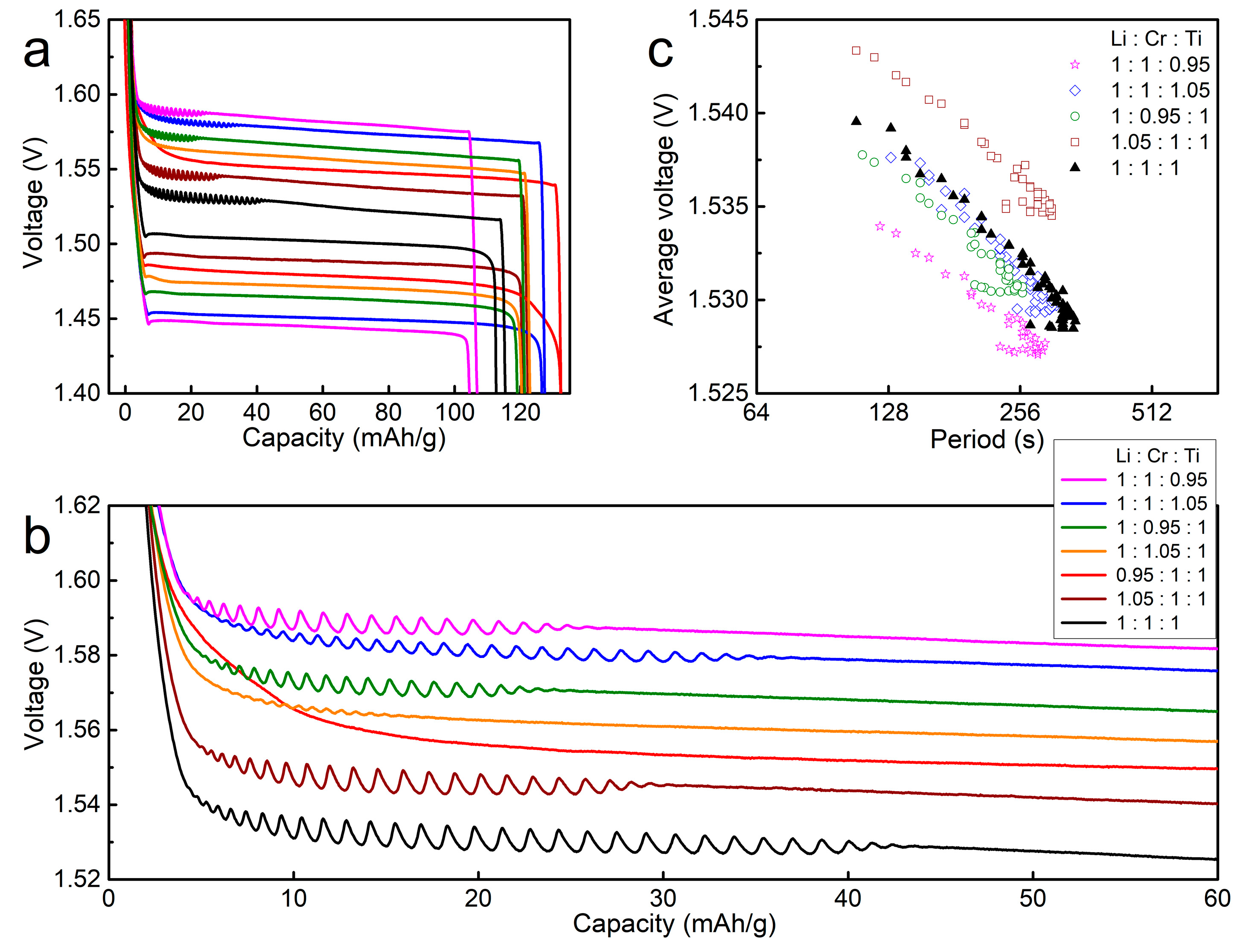

Figure 6. (a) The galvanostatic discharge/charge curves of LiCrTiO4 sintered in a powder form at a temperature of 850 °C with an elemental ratio of Li:Cr:Ti as 1:1:1 (black), 1.05:1:1 (wine), 0.95:1:1 (red), 1:1.05:1 (orange), 1:0.95:1 (olive), 1:1:1.05 (blue) and 1:1:0.95 (magenta), respectively. (b) The enlarged view in the end of charge plateaus. The data are shifted along the vertical axis (1:1:1 ±0 mV; 1.05:1:1 ±10 mV; 0.95:1:1 ±20 mV; 1:1.05:1 ±30 mV; 1:0.95:1 ±40 mV; 1:1:1.05 ±50 mV; 1:1:0.95 ±60 mV) for viewing convenience. (c) The relationship between the period and the average voltage, which were calculated from (b).
Figure 6. (a) The galvanostatic discharge/charge curves of LiCrTiO4 sintered in a powder form at a temperature of 850 °C with an elemental ratio of Li:Cr:Ti as 1:1:1 (black), 1.05:1:1 (wine), 0.95:1:1 (red), 1:1.05:1 (orange), 1:0.95:1 (olive), 1:1:1.05 (blue) and 1:1:0.95 (magenta), respectively. (b) The enlarged view in the end of charge plateaus. The data are shifted along the vertical axis (1:1:1 ±0 mV; 1.05:1:1 ±10 mV; 0.95:1:1 ±20 mV; 1:1.05:1 ±30 mV; 1:0.95:1 ±40 mV; 1:1:1.05 ±50 mV; 1:1:0.95 ±60 mV) for viewing convenience. (c) The relationship between the period and the average voltage, which were calculated from (b).
Materials 14 03624 g006
Materials 14 03624 g007 550

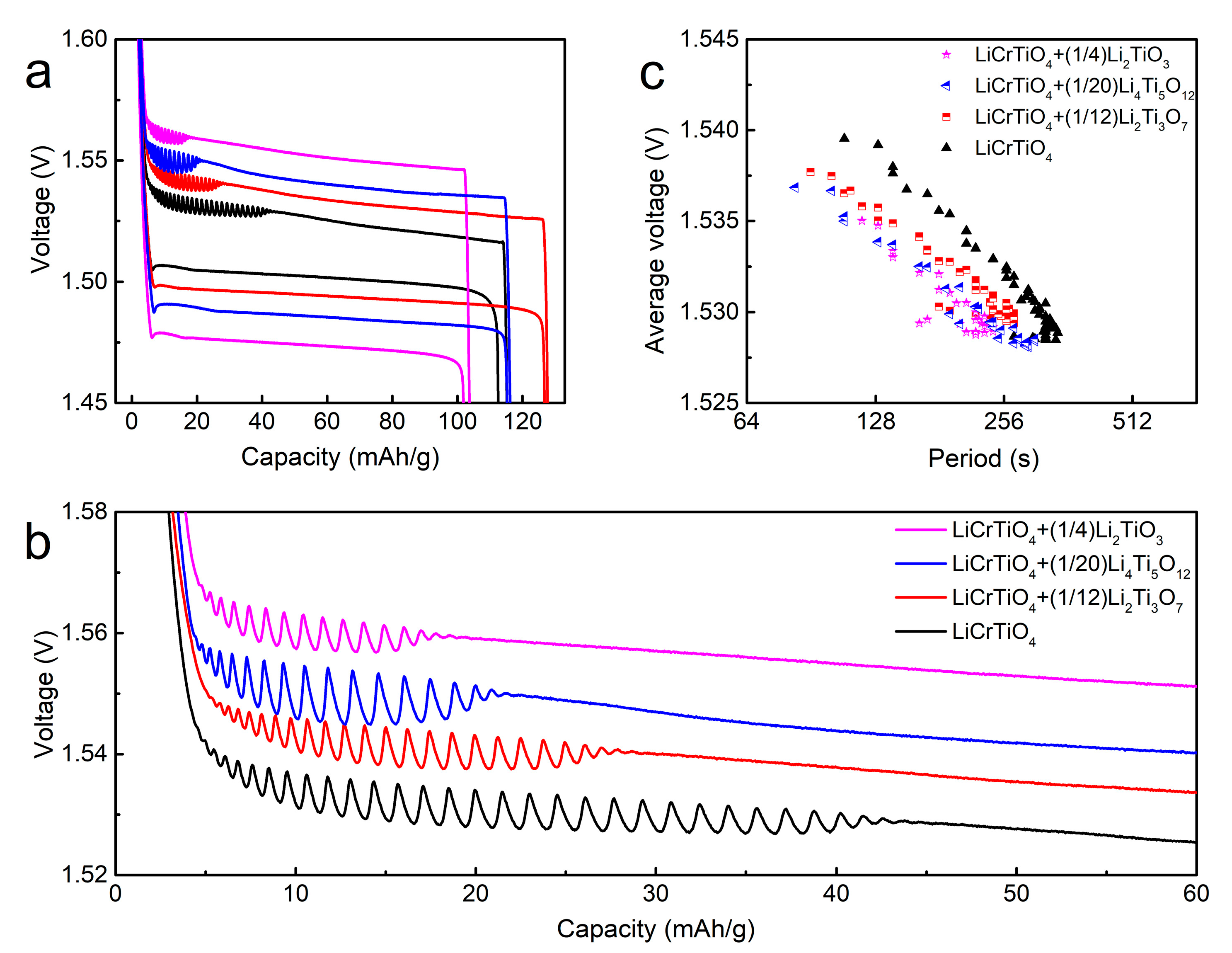

Figure 7. (a) The galvanostatic discharge/charge curves of LiCrTiO4 (black), the composite of LiCrTiO4 +   1 12 · Li2Ti3O7 (red), the composite of LiCrTiO4 +   1 20 · Li4Ti5O12 (blue) and the composite of LiCrTiO4 +   1 4 · Li2TiO3 (magenta), which were sintered in a powder form at a temperature of 850 °C. (b) The enlarged view in the end of charge plateaus. The data are shifted along the vertical axis (LiCrTiO4 ±0 mV; LiCrTiO4 +   1 12 · Li2Ti3O7 ±10 mV; LiCrTiO4 + 1 20 · Li4Ti5O12 ±20 mV; LiCrTiO4 +   1 4 · Li2TiO3 ±30 mV) for viewing convenience. (c) The relationship between the period and the average voltage, which were calculated from (b).
Figure 7. (a) The galvanostatic discharge/charge curves of LiCrTiO4 (black), the composite of LiCrTiO4 +   1 12 · Li2Ti3O7 (red), the composite of LiCrTiO4 +   1 20 · Li4Ti5O12 (blue) and the composite of LiCrTiO4 +   1 4 · Li2TiO3 (magenta), which were sintered in a powder form at a temperature of 850 °C. (b) The enlarged view in the end of charge plateaus. The data are shifted along the vertical axis (LiCrTiO4 ±0 mV; LiCrTiO4 +   1 12 · Li2Ti3O7 ±10 mV; LiCrTiO4 + 1 20 · Li4Ti5O12 ±20 mV; LiCrTiO4 +   1 4 · Li2TiO3 ±30 mV) for viewing convenience. (c) The relationship between the period and the average voltage, which were calculated from (b).
Materials 14 03624 g007
Materials 14 03624 g008 550
Figure 8. (a) The XRD pattern, (b) the Raman spectrum, (c) the SEM image and (d) the galvanostatic discharge/charge curves of LiCrTiO4 sintered in a pellet form at a temperature of 850 °C.
Figure 8. (a) The XRD pattern, (b) the Raman spectrum, (c) the SEM image and (d) the galvanostatic discharge/charge curves of LiCrTiO4 sintered in a pellet form at a temperature of 850 °C.
Materials 14 03624 g008
Materials 14 03624 g009 550

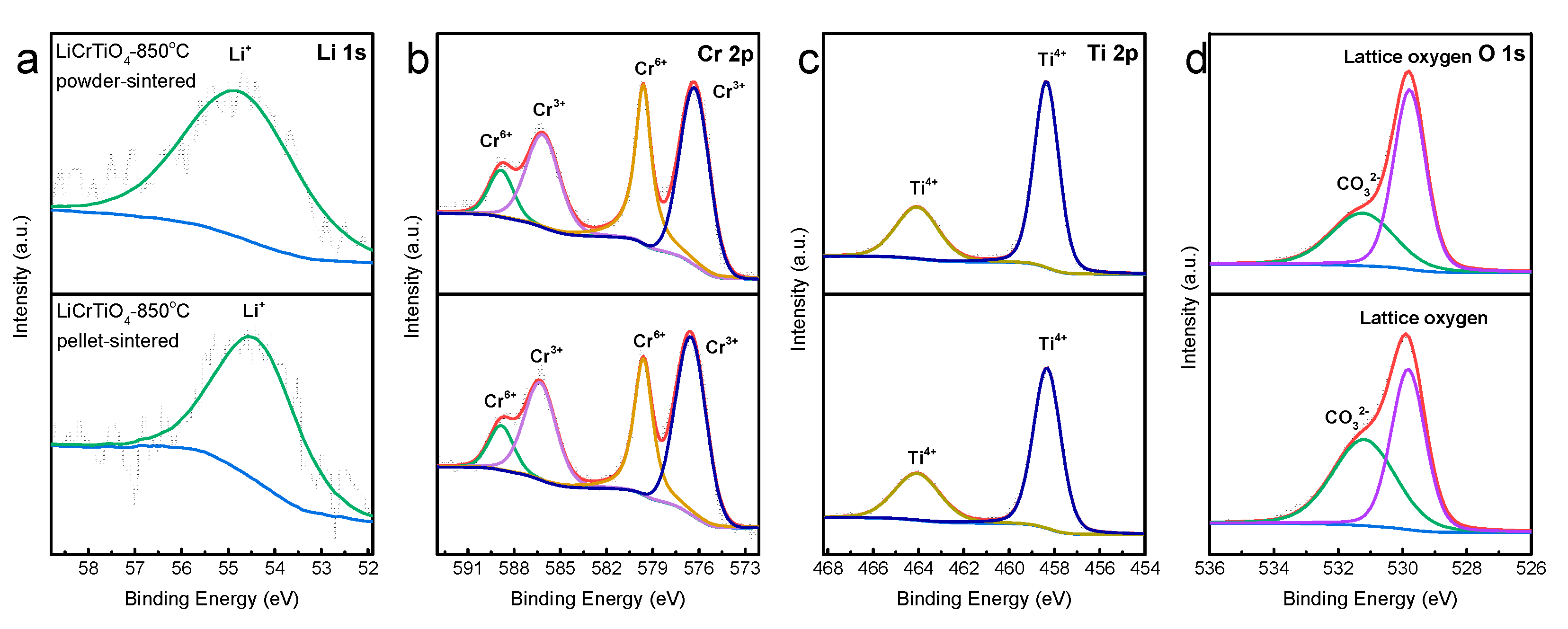

Figure 9. XPS core levels of (a) Li 1s; (b) Cr 2p; (c) Ti 2p, and (d) O 1s for LiCrTiO4 sintered at a temperature of 850 °C in a powder form (upper) and in a pellet form (lower).
Figure 9. XPS core levels of (a) Li 1s; (b) Cr 2p; (c) Ti 2p, and (d) O 1s for LiCrTiO4 sintered at a temperature of 850 °C in a powder form (upper) and in a pellet form (lower).
Materials 14 03624 g009
Materials 14 03624 g010 550

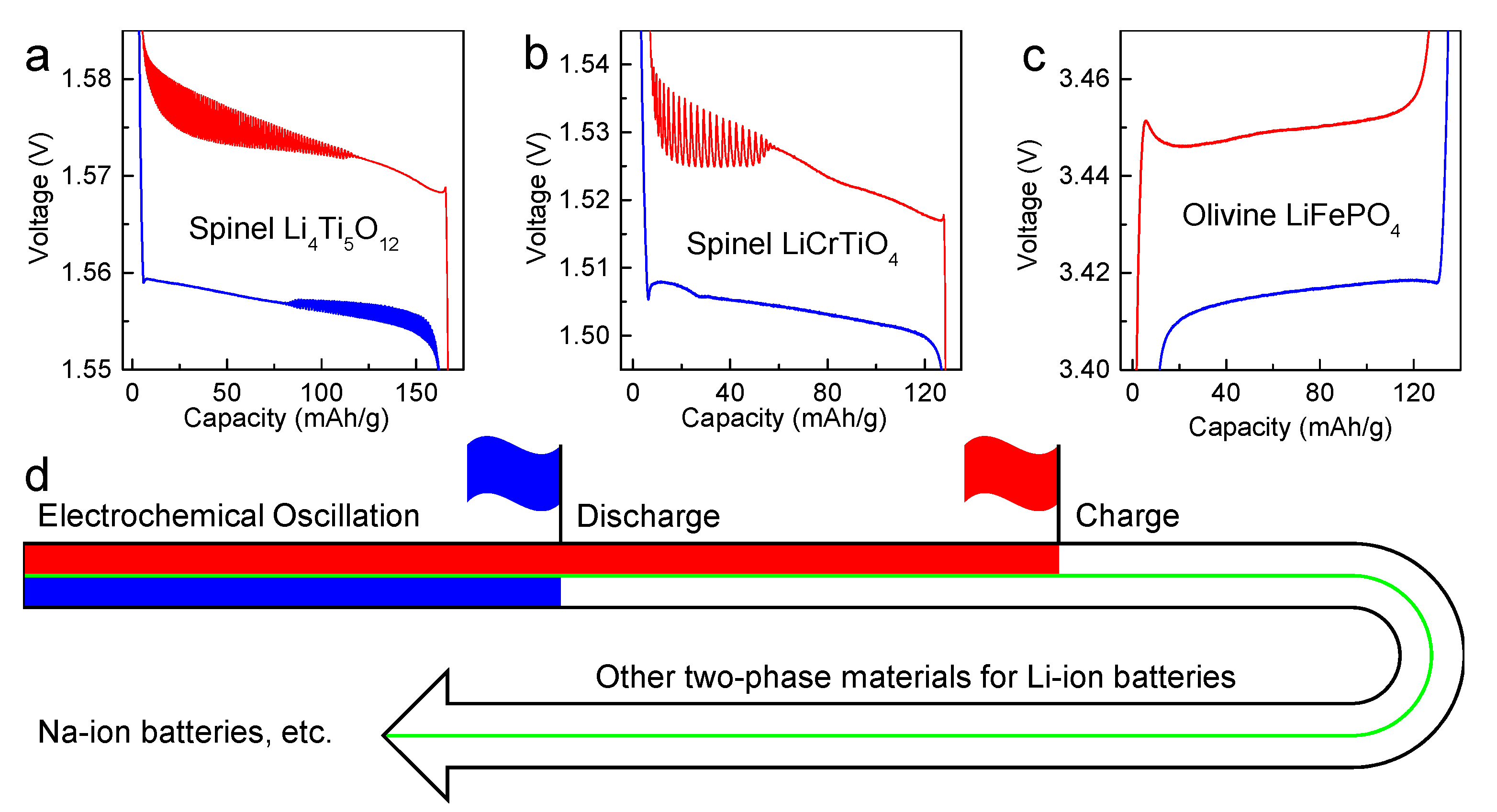

Figure 10. The galvanostatic discharge/charge curves of different electrode materials in Li-ion batteries: (a) Li4Ti5O12 prepared by carbothermic method; (b) LiCrTiO4 prepared by high-temperature solid-state method, and (c) commercial LiFePO4, (d) the research progress in electrochemical oscillation of Li-ion batteries.
