Synthesis of Si-Based High-Efficiency and High-Durability Superhydrophilic-Underwater Superoleophobic Membrane of Oil–Water Separation

by
Xiao-Hui Fang
1,2,
Su-Hui Chen
1,
Lan-Lin Yi
1,2,
Zhong-Bin Yin
1,2,
Yong-Jun Chen
1,
Hong Jiang
1 and
Chang-Jiu Li
1,2,*
1
State Key Laboratory of Marine Resource Utilization in South China Sea, Special Glass Key Lab of Hainan Province, Hainan University, Haikou 570228, China
2
Key Laboratory of Advanced Materials of Tropical Island Resources of Ministry of Education, Haikou 570228, China
*
Author to whom correspondence should be addressed.
Materials 2021, 14(10), 2628; https://doi.org/10.3390/ma14102628
Submission received: 31 March 2021 / Revised: 2 May 2021 / Accepted: 10 May 2021 / Published: 18 May 2021
Browse Figures
Review Reports Versions Notes

Abstract

:
Oil pollution is caused by the frequent discharge of contaminated industrial wastewater and accidental oil spills and is a severe environmental and health concern. Therefore, efficient materials and processes for effective oil–water separation are being developed. Herein, SiO2-Na2SiO3-coated stainless steel fibers (SSF) with underwater superoleophobic and low-adhesion properties were successfully prepared via a one-step hydrothermal process. The modified surfaces were characterized with scanning electron microscopy (SEM), and contact angle measurements to observe the surface morphology, confirm the successful incorporation of SiO2, and evaluate the wettability, as well as with X-ray diffraction (XRD). The results revealed that SiO2 nanoparticles were successfully grown on the stainless-steel fiber surface through the facile hydrothermal synthesis, and the formation of sodium silicate was detected with XRD. The SiO2-Na2SiO3-coated SSF surface exhibited superior underwater superoleophobic properties (153–162°), super-hydrophilicity and high separation efficiency for dichloromethane–water, n-hexane–water, tetrachloromethane–water, paroline–water, and hexadecane–water mixtures. In addition, the as-prepared SiO2-Na2SiO3-coated SSF demonstrated superior wear resistance, long-term stability, and re-usability. We suggest that the improved durability may be due to the presence of sodium silicate that enhanced the membrane strength. The SiO2-Na2SiO3-coated SSF also exhibited desirable corrosion resistance in salty and acidic environments; however, further optimization is needed for their use in basic media. The current study presents a novel approach to fabricate high-performance oil–water separation membranes.

Graphical Abstract

1. Introduction

The massive discharge of industrial wastewater contaminated with oil, oil pollution due to daily human activities, and accidental oil spills in water systems are major environmental and health concerns [1,2,3,4,5,6,7,8,9]. Thus, there is an urgent need for novel materials and processes to treat oil-containing wastewater. Accordingly, several oil–water separation techniques based on adsorption, sand filtration, evaporation, oxidation, electrochemical, photocatalytic treatment, and room-temperature ionic liquid treatment, have been developed by different research groups [10,11,12,13,14]. However, most of these traditional methods incur high costs, employ toxic compounds, require large areas for installation and processing, and generate secondary pollutants. Therefore, it is of utmost significance to design functional materials for low-cost and high-efficiency oil–water separation processes [15,16,17].
Recently, membrane technologies have garnered significant research attention for efficient oil–water separation [18]. Membrane separation processes have several advantages over traditional oil–water separation methods including simplicity, low energy consumption, and high efficiency [19,20,21,22]. Oil–water separation membranes are usually superhydrophobic–superoleophilic membranes; however, such lipophilic membrane materials are easily blocked by oil during the separation process, which reduces the effective oil flux through the membrane. By comparison, underwater superoleophobic membranes do not suffer from this same limitation, and research on developing novel underwater superoleophobic membranes is of great significance [23,24,25]. However, the successful realization of superoleophobic membranes for oil–water separation is hindered by different challenges. For example, Li et al. created a layered-structure by chemical etching a stainless-steel mesh and coating it with PVA-Na2SiO3. The resulting material was a hydrophilic mesh that reached 97% oil–water separation efficiency after 10 cycles of oil–water separation [26]. Gou et al. reported a simple method based on immersing a stainless steel substrate into a cement solution to create an SSM; however, the oil–water separation efficiency decreased to only 95% after five cycles [27]. Zhou used dip coating to deposit hydrophobic VPOSS (Octavinyl-polyhedral oligomeric silsesquioxane) nanoparticles onto a surface and then grafted the surface with a hydrophilic 2-mercaptoethyl containing carboxyl group (containing carboxyl group) to prepared a CF membrane. The membrane can be used for oil–water separation. After 10, 20, 30, 40 and 50 separation cycles, the separation efficiency reached 99.1%, 98.4%, 97.6%, 96.5% and 95.2% [28], respectively. Wang et al. grafted Kaolin particles onto a stainless-steel mesh to form a filter with a unique, micro-rough surface with connected pores, thus providing a path for quick gravity-driven oil–water separation. However, after 10 oil–water separation cycles, the separation efficiency dropped to only 97.2% [29]. The unique surface structure was destroyed by liquid flowing through the membrane due to an adverse interaction between the nanoparticles and the matrix, resulting in a decrease in the oil–water separation efficiency over use. Moreover, the nanoparticles had a smaller size scale and were not biodegradable [30,31,32]. Therefore, there is a great need for stable and environmentally friendly superhydrophilic and underwater superoleophobic materials for effective, long-lasting, and environmentally friendly oil/water separation.
Wang et al. deposited PDA (polydopamine) particles in situ to generate surface roughness, and then enhanced the surface hydrophilicity and underwater lipophilicity of the membrane by adsorbing hydrophilic chitosan to the surface [32]. Yang et al. coated the surface of a cellulose membrane with sodium alginate and then assembled CaCO3 particles on the surface using ASP (alternating soaking process) to obtain a superhydrophilic/underwater superoleophobic cellulose membrane for oil/water separation [30]. You et al. prepared a phosphorylated polyvinyl alcohol (PPVA) hydrogel and then sprayed the hydrogel with an aqueous metal ion to quickly crosslink the PPVA, producing a superhydrophilic material with underwater superoleophobicity [33]. Qing et al. prepared hydrophilic PVA (Polyvinyl alcohol) nanofiber membranes by electrospinning and then grew silica nanoparticles on the nanofibers using an in situ, modified Stöber reaction [34]. Wang et al. modified a PVDF-HFP (polyvinylidene fluoride-co-hexafluoropropyle) tubular nanofiber membrane with Ag nanoparticles by co-depositing CA (catechol) and PEI (polyethyleneimine) on the surface and then adding KH560 (glycidyloxy propyltrimethoxysilane) to obtain a membrane with super-hydrophilicity and good antifouling properties [35].
Herein, SiO2 nanocrystal coated stainless steel fibers (SSF) are fabricated using a facile, one-step hydrothermal process to construct a micro-nano surface with special wetting properties. The SiO2-Na2SiO3-coated SSF showed excellent superhydrophilicity in air and superoleophobicity underwater for different oils. The as-prepared SiO2-Na2SiO3-coated SSF showed excellent performance in oil–water separation tests, sandpaper abrasion tests, long-term stability tests, and after separation cycle tests. Moreover, the water flux through the membranes reached 76,433 L m−2 h−1. The current study shows that the newly created SiO2-Na2SiO3-coated SSF are promising candidates for oil–water separation.

2. Experimental Section

2.1. Materials and Synthesis

Tetraethyl silicate, ethanol, NaOH, n-hexane, HCl, and NaCl (analytical grade) were purchased from Shanghai Maclin Biochemical Technology Co., Ltd., Shanghai, China. Kerosene, hydraulic oil (“Great Wall” Brand, Beijing, China), machine oil (“Great Wall” Brand, Beijing, China), soybean oil (“Arawan” Brand), and SSF (Fe, Al, Ni) were purchased from the local supermarket. The diesel was obtained from the local oil station.
Briefly, 75 mL of ethanol, 25 mL of water, 4.5 mL of tetraethyl silicate and 12.15 g of sodium hydroxide were added into a beaker and magnetically stirred for 20 min, followed by pouring into the reaction kettle. The stainless-steel mesh was cut into 4 cm × 4 cm pieces, cleaned with ethanol and placed in a reaction kettle with the above solution. Then, the reaction kettle was placed in a hydrothermal oven at 95 °C for 40 min. After 40 min, SSF were taken out, and the SSF were washed with water and dried in an oven at 85 °C for 24 h.

2.2. Characterization

The surface morphology of SiO2-Na2SiO3-coated SSF was observed by a field emission scanning electron microscope (FESEM; TESCAN MIRA3, Brno, Czech Republic). The contact angle was measured by using an optical contact angle meter (Drop meter A-100, Maishi Testing Technology Co., Ltd., Ningbo, China) at ambient temperature. The volume of oil droplet was ~5 µL, X-ray diffraction (XRD, Bruker D8 Advance X, Aachen, Germany) analysis was performed on a Bruker D2 X-ray diffractometer, equipped with Cu Kα radiations (40 kV, 40 mA).

2.3. Oil/Water Separation

SiO2-Na2SiO3-coated SSF was fixed between two glass devices, which were pre-soaked with water. The oil/water mixture (v:v = 1:1) was slowly poured into the glass tube and permeated liquid was collected by using a beaker. Herein, we utilized engine oil, hydraulic oil, soybean oil, n-hexane, diesel oil and kerosene. In the separation process, the water rapidly passed through the treated fabric, whereas the oil was repelled by the fabric. The separation efficiency (E) was calculated by using the given relationship [27,32,36]:
E = (m1/m0 × 100%)
where m0 and m1 respectively represent the weight of water in the original mixture and the weight of water collected after separation. The permeation flux of as-prepared SiO2-Na2SiO3-coated SSF was calculated by using the permeate volume per unit time, as given below [27,32,37]:
Flux = V/(A × t)
where V represents the permeate volume (L), A denotes the effective filtration area of the as-prepared Ti-foam (m2) and t refers to the filtration time (h).

2.4. Corrosion Resistance

The corrosion resistance of SiO2-Na2SiO3-coated SSF was measured by using oil-corrosive aqueous solution separation tests of hexane-3.5 wt % NaCl, saturated NaCl, 1 M HCl and 1 M NaOH [38].

2.5. Sandpaper Abrasion Test

A sandpaper abrasion test was carried out to investigate the mechanical stability of SiO2-Na2SiO3-coated SSF. The SiO2-Na2SiO3-coated SSF (4 cm × 4 cm) was placed against sandpaper (grit No. 1000) under a 100 g weight and an external force was applied to move 10 cm away from the initial position and return back. This process was repeated 100 times [39].

2.6. Long-Term Stability

To assess the long-term stability, SiO2-Na2SiO3-coated SSF was immersed in water, maintained at 60 °C, for two weeks. The stability was assessed by evaluating the underwater oil contact angle and oil antifouling (self-cleaning) performance [40].

3. Results and Discussion

3.1. SEM Analysis

Figure 1a–d presents the SEM images of the as-received and SiO2-Na2SiO3-coated SSF. Figure 1a,b shows that the as-received SSF had a smooth surface, and the fibers were hydrophobic with a water contact angle of ~146.5°. As expected, the SEM image of SiO2-Na2SiO3-coated SSF revealed the presence of a large number of SiO2 particles Figure 1c,d that were uniformly distributed on the surface, creating a microscopically rough structure. Figure 1d shows a high-magnification SEM image of the SiO2-Na2SiO3-coated SSF with a hierarchical microstructure formed by a large number of SiO2 nanoparticles. Moreover, this SiO2 coating influenced the wettability of the matrix surface, as shown in the insets of Figure 1c,d. The SiO2-Na2SiO3-coated SSF were super hydrophilic (~0°) and superoleophobic (~160.5°) in air and underwater, respectively. Herein, dichloromethane was utilized as a model oil.

3.2. EDS and XRD Analysis

The surface elemental composition of the oil–water separation membrane was studied with EDS. As shown in Figure 2a, in addition to the metal elements from the stainless steel fibers, silicon, oxygen, and sodium, were also detected on the surface, which supported that the SiO2 and Na2SiO3 were successfully deposited. X-ray powder diffraction was used to further confirm that the fiber surface was coated with SiO2-Na2SiO3. Figure 2b shows the XRD pattern of the oil–water separation membrane measured by the X-ray powder diffraction method. The blue curve represents the data for the prepared oil–water separation membrane, and the green and red curves represent the standard cards for SiO2 and Na2SiO3, respectively. From the data, we see that the characteristic peaks of SiO2 appeared at 21.03°, 26.7°, 36.7°, 39.55° and other positions, which supported that the SiO2 was formed in the mixed powder. The characteristic peaks of Na2SiO3 appeared at 21.03°, 28.87°, 30.66°, 33.85° and other positions, supporting that Na2SiO3 was also present in the sample. From the EDS and XRD analysis, we can conclude that Si4+ was hydrolyzed to produce SiO2, the SiO2 reacted with sodium hydroxide to produce Na2SiO3, and SiO2 and Na2SiO3 self-assembled to obtain SiO2-Na2SiO3 coated oil–water separation membrane during the synthesis procedure.

3.3. Surface Wettability

Figure 3a,b presents the contact angle (CA) and sliding angle (SA) of underwater oil droplets on the surface of SiO2-Na2SiO3-coated SSF membranes. We selected dichloromethane, hexadecane, n-hexane, paraffin oil, and carbon tetrachloride as model oils to prepare different oil–water mixtures for measuring the contact angle of underwater oil. Selected dichloromethane, carbon tetrachloride, Chloroform, C6F15N and dichloroethylene were used as model oils to measure the rolling angle of underwater oil. The SiO2-Na2SiO3-coated SSF membranes were immersed in water, and the oil wettability was characterized by measuring the underwater oil CA and SA. The SiO2-Na2SiO3-coated SSF membranes exhibited underwater superoleophobicity to the different oils with an oil CA of >150 and SA < 10°. The wettability of the original and SiO2-Na2SiO3-coated SSF was evaluated by the water and oil contact angle (CA) and sliding angle (SA) measurements. As shown in Figure 3c, when a water droplet (5 µL) touched the original SSF, a hydrophobic behavior was observed. On the other hand, when a water droplet (5 µL) was dropped onto the SiO2-Na2SiO3-coated SSF membrane, it quickly spread with a CA of almost 0°, as shown in Figure 3d. Therefore, the SSF surface changed from hydrophobic to superhydrophilic after the surface treatment and had underwater superoleophobic properties.

3.4. Oil and Water Separation Efficiency Test

When separating oil and water, it was observed that the water droplets permeated through SiO2-Na2SiO3-coated SSF membrane and reached the glass container under the action of gravity, whereas the oil was retained on top of the membrane due to the fact that underwater super oleophobicity of the membrane makes the oil impenetrable, as shown in Figure 4d. We use the above Equation (1) to calculate the oil–water separation efficiency. The separation efficiency of various oil/water mixtures were shown in Figure 4a. For all selected oils, the separation efficiency is greater than 99%. As shown in Figure 4b, after 50 cycles, the separation efficiency of the SiO2-Na2SiO3-coated stainless steel fiber still maintained very high (>99%), showing good oil–water separation performance and, as shown in Figure 4c, the SiO2 nanoparticles are still present on the surface.

3.5. The Water Flux Test

The Equation (2) was used to calculate the water flux. Herein, a high water flux of 76,433 L m−2 h−1 is rendered by SiO2-Na2SiO3-coated SSF. We also conducted 50 oil–water separations and observed the changes in water flux with the number of separations. As shown in Figure 5a. after 50 oil–water separations, there is still a large water flux. One should note that self-cleaning is another essential indicator of coating stability. As shown in Figure 5b, the original SSF is stained with oil droplets, and the oil droplets do not float when the original SSF is put into water, whereas the oil droplets are quickly separated in the case of SiO2-Na2SiO3-coated SSF, therefore, the SiO2-Na2SiO3-coated SSF has self-cleaning property in water [41].

3.6. The Abrasion Test

Furthermore, the mechanical stability of SiO2-Na2SiO3-coated SSF was investigated by evaluating the separation capability after the abrasion test, as described in the experimental section. As shown in Figure 6a, the separation efficiency of SiO2-Na2SiO3-coated SSF remained higher than 99% for different oil/water mixtures. Compared with Figure 1c,d, Figure 6b shows that the density of SiO2 nanoparticles was significantly reduced due to the abrasion, however, still, a reasonable number of SiO2 particles remained attached to the surface of SiO2-Na2SiO3-coated SSF.

3.7. Long-Term Stability Test

The stability of the SiO2 coating layer plays a vital role in the long-term stability of the separation membrane. Therefore, we evaluated the separation efficiency of SiO2-Na2SiO3-coated SSF, immersed in hot water for 2 weeks, to assess the durability of as-prepared SiO2-Na2SiO3-coated SSF. Figure 7a shows the separation efficiency of SiO2-Na2SiO3-coated stainless steel fiber for different oil/water mixtures under long-term immersion in hot water at 60 °C. It can be readily observed that the separation efficiency remained higher than 99%, indicating the stable performance of as-prepared SiO2-Na2SiO3-coated SSF in an aqueous environment. Moreover, the morphology and distribution of SiO2 nanocrystals did not change after being immersed in hot water, as shown in Figure 7b.

3.8. Corrosion Resistance Test

Lastly, we examined the corrosion resistance of as-prepared SiO2-Na2SiO3-coated SSF by evaluating the separation efficiency of an oil-corrosive aqueous solution, which has been prepared by independently mixing hexane (dyed in red with red O) with 1 M NaCl, 1 M HCl and 1 M NaOH. The results reveal that hexane-1 M NaCl and hexane-1 M HCl mixtures were completely separated, as shown in Figure 8a,b, after 50 oil–water separations, the separation efficiency is still greater than 99%, indicating excellent resistance towards salt and acid environments. However, in the case of hexane–NaOH solution, the color of the filtrate turned blue, which implies that the as-prepared SiO2 nanocrystals were damaged in the presence of a base. a small amount of oil (hexane) passed through SiO2-Na2SiO3-coated SSF and permeated the filtrate, which indicates that the base resistance of SiO2-Na2SiO3-coated SSF should be further improved, which may be caused by the existence of a chemical reaction between SiO2 and NaOH.

3.9. Principle of Strong Membrane Bonding

Figure 9a illustrates the steps in an ordinary oil–water separation membrane separation process. In a typical membrane, the surface structure is destroyed after the separation, which causes the separation efficiency to drop. Figure 9b illustrates the separation using a superhydrophilic-underwater superoleophobic membrane prepared by a one-step hydrothermal method. The precursor ethyl orthosilicate was cracked to form Si4+ under alkaline conditions, and SiO2 was formed by a hydrolysis reaction [42]. The SiO2 continued to react with NaOH to form sodium silicate. However, the reaction between SiO2 and NaOH was slow, thus a mixed solution of SiO2 and sodium silicate could be prepared by controlling the reaction time. After drying, the SSF coated with a SiO2-Na2SiO3 film were formed. Sodium silicate is a good adhesive with excellent film-forming properties. It is worth mentioning that SiO2 is a low-cost, environmentally friendly material, which is very suitable for a wide range of applications. Moreover, after 50 cycles, the oil–water separation efficiency was still above 99%. The reason for the good performance was that the sodium silicate was not only adhered physically to the fibers, but the SiO2 and Fe2O3 were adsorbed onto the surface through chemical, electrostatic, and hydrogen bonding interactions. Therefore, the SiO2 was strongly bound to the SSF [43,44,45].

4. Conclusions

In summary, a SiO2-Na2SiO3-coated stainless steel fiber (SSF) membrane with superior underwater superoleophobic behavior was successfully fabricated using a simple, one-step hydrothermal route. The original and SiO2-Na2SiO3-coated SSF membranes had different surface topographies and roughness, resulting in superior oil–water separation performance in the coated membrane. The SiO2-Na2SiO3-coated SSF exhibited a high separation efficiency of dichloromethane–water, n-hexane–water, tetrachloromethane–water, paroline–water, and hexadecane–water mixtures. Moreover, the SiO2 layer remained stable after being immersed in hot water (60 °C) for two weeks and demonstrated excellent wear resistance. In addition, the SiO2-Na2SiO3-coated SSF maintained a high separation efficiency of >99% after 50 separation cycles. Lastly, the SiO2-Na2SiO3-coated SSF membranes exhibited superior salt and acid resistance; however, the as-prepared separation membrane was not stable in a basic medium. The successful realization of SiO2-Na2SiO3-coated SSF membranes affords a wide range of potential applications, including underwater oil transport, flexible and wearable oil-repellent, and oil/water separation materials.

Author Contributions

Data curation, X.-H.F., S.-H.C. and L.-L.Y.; Formal analysis, X.-H.F., Z.-B.Y. and C.-J.L.; Funding acquisition, Y.-J.C., H.J. and C.-J.L.; Methodology, X.-H.F., S.-H.C., Z.-B.Y. and C.-J.L.; Resources, X.-H.F.; investigation, S.-H.C. and L.-L.Y., project administration, L.-L.Y., Z.-B.Y. supervision, Y.-J.C. and H.J. Writing—original draft, X.-H.F. and Y.-J.C. writing—review and editing, H.J. All authors have read and agreed to the published version of the manuscript.

Funding

The authors gratefully acknowledge the financial support of Hainan Provincial Natural Science Foundation of China (519MS022), Special funds for guiding local scientific and technological development by China government (ZY2019HN0904), the Key Scientific & Technological Project of Hainan Province (ZDYF2020015).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. He, H.; Li, Z.; Ouyang, L.; Liang, Y.; Yuan, S. Hierarchical WO3@Cu(OH)2 nanorod arrays grown on copper mesh with superwetting and self-cleaning properties for high-performance oil/water separation. J. Alloys Compd. 2021, 855, 157421. [Google Scholar] [CrossRef]
  2. Wang, J.; Wang, H. Easily enlarged and coating-free underwater superoleophobic fabric for oil/water and emulsion separation via a facile NaClO2 treatment. Sep. Purif. Technol. 2018, 195, 358–366. [Google Scholar] [CrossRef]
  3. Chen, L.; Huang, Y.; Yang, T.; Bennett, P.; Zheng, Z.; Yang, Q.; Liu, D. Laser-structured superhydrophobic/superoleophilic aluminum surfaces for efficient oil/water separation. Environ. Sci. Pollut. Res. 2020, 27, 43138–43149. [Google Scholar] [CrossRef] [PubMed]
  4. Zhao, M.; Tao, Y.; Wang, J.; He, Y. Facile preparation of superhydrophobic porous wood for continuous oil-water separation. J. Water Process. Eng. 2020, 36, 101279. [Google Scholar] [CrossRef]
  5. Lai, H.; Yu, X.; Liu, M.; Cheng, Z. One-step solution immersion process for the fabrication of low adhesive underwater superoleophobic copper mesh film toward high-flux oil/water separation. Appl. Surf. Sci. 2018, 448, 241–247. [Google Scholar] [CrossRef]
  6. Nemade, P.R.; Ganjare, A.V.; Ramesh, K.; Rakte, D.M.; Vaishnavi, P.; Thapa, G. Low fouling sulphonated carbon soot-polysulphone membranes for rapid dehydration of stabilized oil-water emulsions. J. Water Process. Eng. 2020, 38, 101590. [Google Scholar] [CrossRef]
  7. Thakur, K.; Rajhans, A.; Kandasubramanian, B. Starch/PVA hydrogels for oil/water separation. Environ. Sci. Pollut. Res. 2019, 26, 32013–32028. [Google Scholar] [CrossRef] [PubMed]
  8. Elshorafa, R.; Saththasivam, J.; Liu, Z.; Ahzi, S. Efficient oil/saltwater separation using a highly permeable and fouling-resistant all-inorganic nanocomposite membrane. Environ. Sci. Pollut. Res. 2020, 27, 15488–15497. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Huang, H.; Liu, M.; Li, Y.; Yu, Y.; Yin, X.; Wu, J.; Chen, S.; Xu, J.; Wang, L.; Wang, H. Polyphenylene sulfide microfiber membrane with superhydrophobicity and superoleophilicity for oil/water separation. J. Mater. Sci. 2018, 53, 13243–13252. [Google Scholar] [CrossRef]
  10. Zeng, J.; Guo, Z. Superhydrophilic and underwater superoleophobic MFI zeolite-coated film for oil/water separation. Colloids Surf. A Physicochem. Eng. Asp. 2014, 444, 283–288. [Google Scholar] [CrossRef]
  11. Naik, N.S.; Padaki, M.; Déon, S.; Karunakaran, G.; Dizge, N.; Saxena, M. The efficient mixed matrix antifouling membrane for surfactant stabilized oil-in-water nanoemulsion separation. J. Water Process. Eng. 2019, 32, 100959. [Google Scholar] [CrossRef]
  12. Cui, J.; Wang, Q.; Xie, A.; Lang, J.; Zhou, Z.; Yan, Y. Construction of superhydrophilic and underwater superoleophobic membranes via in situ oriented NiCo-LDH growth for gravity-driven oil/water emulsion separation. J. Taiwan Inst. Chem. Eng. 2019, 104, 240–249. [Google Scholar] [CrossRef]
  13. Tan, L.; Han, N.; Qian, Y.; Zhang, H.; Gao, H.; Zhang, L.; Zhang, X. Superhydrophilic and underwater superoleophobic poly (acrylonitrile-co-methyl acrylate) membrane for highly efficient separation of oil-in-water emulsions. J. Membr. Sci. 2018, 564, 712–721. [Google Scholar] [CrossRef]
  14. Wang, J.; Wang, S. A simple and eco-friendly route for fabricating iron-based coating on metal mesh for efficient oil/water separation. Sep. Purif. Technol. 2019, 226, 31–38. [Google Scholar] [CrossRef]
  15. Sun, Y.; Zong, Y.; Yang, N.; Zhang, N.; Jiang, B.; Zhang, L.; Xiao, X. Surface hydrophilic modification of PVDF membranes based on tannin and zwitterionic substance towards effective oil-in-water emulsion separation. Sep. Purif. Technol. 2020, 234, 116015. [Google Scholar] [CrossRef]
  16. Saki, S.; Uzal, N. Preparation and characterization of PSF/PEI/CaCO3 nanocomposite membranes for oil/water separation. Environ. Sci. Pollut. Res. 2018, 25, 25315–25326. [Google Scholar] [CrossRef] [PubMed]
  17. Huaijie, C.; Ying, L. Facile design of a stable and inorganic underwater superoleophobic copper mesh modified by self-assembly sodium silicate and aluminum oxide for oil/water separation with high flux. J. Colloid Interface Sci. 2021, 598, 483–491. [Google Scholar]
  18. Deng, W.; Li, C.; Pan, F.; Li, Y. Efficient oil/water separation by a durable underwater superoleophobic mesh membrane with TiO2 coating via biomineralization. Sep. Purif. Technol. 2019, 222, 35–44. [Google Scholar] [CrossRef]
  19. Hou, Y.; Li, R.; Liang, J. Superhydrophilic nickel-coated meshes with controllable pore size prepared by electrodeposition from deep eutectic solvent for efficient oil/water separation. Sep. Purif. Technol. 2018, 192, 21–29. [Google Scholar] [CrossRef]
  20. Cui, J.; Zhou, Z.; Xie, A.; Meng, M.; Cui, Y.; Liu, S.; Lu, J.; Zhou, S.; Yan, Y.; Dong, H. Bio-inspired fabrication of superhydrophilic nanocomposite membrane based on surface modification of SiO2 anchored by polydopamine towards effective oil-water emulsions separation. Sep. Purif. Technol. 2019, 209, 434–442. [Google Scholar] [CrossRef]
  21. Zhang, W.; Zhang, F.; Gao, S.; Zhu, Y.; Li, J.; Jin, J. Micro/nano hierarchical poly(acrylic acid)-grafted-poly(vinylidene fluoride) layer coated foam membrane for temperature-controlled separation of heavy oil/water. Sep. Purif. Technol. 2015, 156, 207–214. [Google Scholar] [CrossRef]
  22. Zhang, C.; Zhang, T.; Huang, J.; Yan, T.; Li, C.; Liu, L.; Wang, L.; Jiao, F. Copper hydroxyphosphate nanosheets-covered robust membranes with superhydrophilicity and underwater ultralow adhesive superoleophobicity for oil/water separation and visible light photodegradation. Colloids Surf. A Physicochem. Eng. Asp. 2020, 584, 124000. [Google Scholar] [CrossRef]
  23. Sunab, F.; Li, T.-T.; Zhanga, X.; Shiuc, B.-C.; Zhanga, Y.; Rena, H.-T.; Penga, H.-K.; Linabcdefg, J.-H.; Louabcfhi, C.-W. Facile fabrication of hydrophilic-underwater superoleophobic poly(N-isopropylacrylamide) coated PP/LPET nonwoven fabrics for highly efficient oil/water separation. Prog. Org. Coat. 2020, 148, 105780. [Google Scholar] [CrossRef]
  24. Yang, S.; Li, M.; Fang, G.; Xue, M.; Lu, Y. Flexible cement-sand coated cotton fabrics with superhydrophilic and underwater superoleophobic wettability for the separation of water/oil mixtures and oil-in-water emulsions. Colloids Surf. A Physicochem. Eng. Asp. 2021, 608, 125611. [Google Scholar] [CrossRef]
  25. Zhu, T.; Jiang, C.; Wu, J.; Wang, M.; Zhu, C.; Zhao, N.; Xu, J. Eco-friendly and one-step modification of poly(vinylidene fluoride) membrane with underwater superoleophobicity for effective emulsion separation. Colloids Surf. A Physicochem. Eng. Asp. 2021, 610, 125939. [Google Scholar] [CrossRef]
  26. Li, K.; Chen, W.; Wu, W.; Pan, Z.; Liang, Z.; Gan, J. Facile fabrication of superhydrophilic/underwater superoleophobic polyvinyl acetate/sodium silicate composite coating for the effective water/oil separation and the study on the anti-fouling property, durability and separation mechanism. Prog. Org. Coat. 2021, 150, 105979. [Google Scholar] [CrossRef]
  27. Gou, X.; Zhang, Y.; Long, L.; Liu, Y.; Tian, D.; Shen, F.; Yang, G.; Zhang, X.; Wang, L.; Deng, S. Superhydrophilic and underwater superoleophobic cement-coated mesh for oil/water separation by gravity. Colloids Surf. A Physicochem. Eng. Asp. 2020, 605, 125338. [Google Scholar] [CrossRef]
  28. Zhou, D.-L.; Yang, D.; Han, D.; Zhang, Q.; Chen, F.; Fu, Q. Fabrication of superhydrophilic and underwater superoleophobic membranes for fast and effective oil/water separation with excellent durability. J. Membr. Sci. 2021, 620, 118898. [Google Scholar] [CrossRef]
  29. Wang, Y.; Luo, S.; Chen, A.; Shang, C.; Peng, L.; Shao, J.; Liu, Z. Environmentally friendly kaolin-coated meshes with superhydrophilicity and underwater superoleophobicity for oil/water separation. Sep. Purif. Technol. 2020, 239, 116541. [Google Scholar] [CrossRef]
  30. Yanga, J.; Cuib, J.; Xieb, A.; Daia, J.; Lia, C.; Yana, Y. Facile preparation of superhydrophilic/underwater superoleophobic cellulose membrane with CaCO3 particles for oil/water separation. Colloids Surf. A Physicochem. Eng. Asp. 2021, 608, 125583. [Google Scholar] [CrossRef]
  31. Shang, B.; Zhan, Y.; Chen, M.; Wu, L. NIR triggered healable underwater superoleophobic coating with exceptional anti-biofouling performance. Appl. Surf. Sci. 2020, 528, 146805. [Google Scholar] [CrossRef]
  32. Wang, M.; Peng, M.; Zhu, J.; Li, Y.-D.; Zeng, J.-B. Mussel-inspired chitosan modified superhydrophilic and underwater superoleophobic cotton fabric for efficient oil/water separation. Carbohydr. Polym. 2020, 244, 116449. [Google Scholar] [CrossRef] [PubMed]
  33. You, H.; Song, G.; Liu, Q.; Yang, C.; Qiu, J.; Zang, L.; Liu, H.; Chen, J. A facile route for the fabrication of a superhydrophilic and underwater superoleophobic phosphorylated PVA-coated mesh for both oil/water immiscible mixture and emulsion separation. Appl. Surf. Sci. 2021, 537, 147986. [Google Scholar] [CrossRef]
  34. Qing, W.; Li, X.; Wu, Y.; Shao, S.; Guo, H.; Yao, Z.; Chen, Y.; Zhang, W.; Tang, C.Y. In situ silica growth for superhydrophilic-underwater superoleophobic Silica/PVA nanofibrous membrane for gravity-driven oil-in-water emulsion separation. J. Membr. Sci. 2020, 612, 118476. [Google Scholar] [CrossRef]
  35. Wang, X.; Xiao, C.; Liu, H.; Chen, M.; Xu, H.; Luo, W.; Zhang, F. Robust functionalization of underwater superoleophobic PVDF-HFP tubular nanofiber membranes and applications for continuous dye degradation and oil/water separation. J. Membr. Sci. 2020, 596, 117583. [Google Scholar] [CrossRef]
  36. Tian, L.; Li, W.; Ye, H.; Zhu, L.; Chen, H.; Liu, H. Environmentally benign development of superhydrophilic and underwater superoleophobic mesh for effective oil/water separation. Surf. Coat. Technol. 2019, 377, 124892. [Google Scholar] [CrossRef]
  37. Su, M.; Liu, Y.; Li, S.; Fang, Z.; He, B.; Zhang, Y.; Li, Y.; He, P. A rubber-like, underwater superoleophobic hydrogel for efficient oil/water separation. Chem. Eng. J. 2019, 361, 364–372. [Google Scholar] [CrossRef]
  38. Li, J.; Li, D.; Li, W.; Li, H.; She, H.; Zha, F. Facile fabrication of underwater superoleophobic SiO2 coated meshes for separation of polluted oils from corrosive and hot water. Sep. Purif. Technol. 2016, 168, 209–214. [Google Scholar] [CrossRef]
  39. Yu, H.; Lian, Z.; Xu, J.; Wan, Y.; Wang, Z.; Li, Y.; Yu, Z.; Weng, Z. Mechanically durable underwater superoleophobic surfaces based on hydrophilic bulk metals for oil/water separation. Appl. Surf. Sci. 2018, 437, 400–409. [Google Scholar] [CrossRef]
  40. Chen, X.; Zhai, Y.; Han, X.; Liu, H.; Hu, Y. Surface chemistry-dominated underwater superoleophobic mesh with mussel-inspired zwitterionic coatings for oil/water separation and self-cleaning. Appl. Surf. Sci. 2019, 483, 399–408. [Google Scholar] [CrossRef]
  41. Gu, Y.; Yang, J.; Zhou, S. A facile immersion-curing approach to surface-tailored poly(vinyl alcohol)/silica underwater superoleophobic coatings with improved transparency and robustness. J. Mater. Chem. A 2017, 5, 10866–10875. [Google Scholar] [CrossRef]
  42. Caoab, X.; Zhangb, Q.; Zhangb, C.; Lib, Z.; Zhengb, W.; Liub, M.; Wangb, B.; Huangb, S.; Libc, L.; Huanga, X.; et al. A novel approach to coat silica on quantum dots: Forcing decomposition of tetraethyl orthosilicate in toluene at high temperature. J. Alloys Compd. 2020, 817, 152698. [Google Scholar] [CrossRef]
  43. Koohestani, B.; Mokhtari, P.; Yilmaz, E.; Mahdipour, F.; Darban, A.K. Geopolymerization mechanism of binder-free mine tailings by sodium silicate. Constr. Build. Mater. 2021, 268, 121217. [Google Scholar] [CrossRef]
  44. Hao, H.; Cao, Y.; Li, L.; Fan, G.; Liu, J. Dispersion and depression mechanism of sodium silicate on quartz: Combined molecular dynamics simulations and density functional theory calculations. Appl. Surf. Sci. 2021, 537, 147926. [Google Scholar] [CrossRef]
  45. Jolsterå, R.; Gunneriusson, L.; Forsling, W. Adsorption and surface complex modeling of silicates on maghemite in aqueous suspensions. J. Colloid Interface Sci. 2010, 342, 493–498. [Google Scholar] [CrossRef]
Materials 14 02628 g001 550

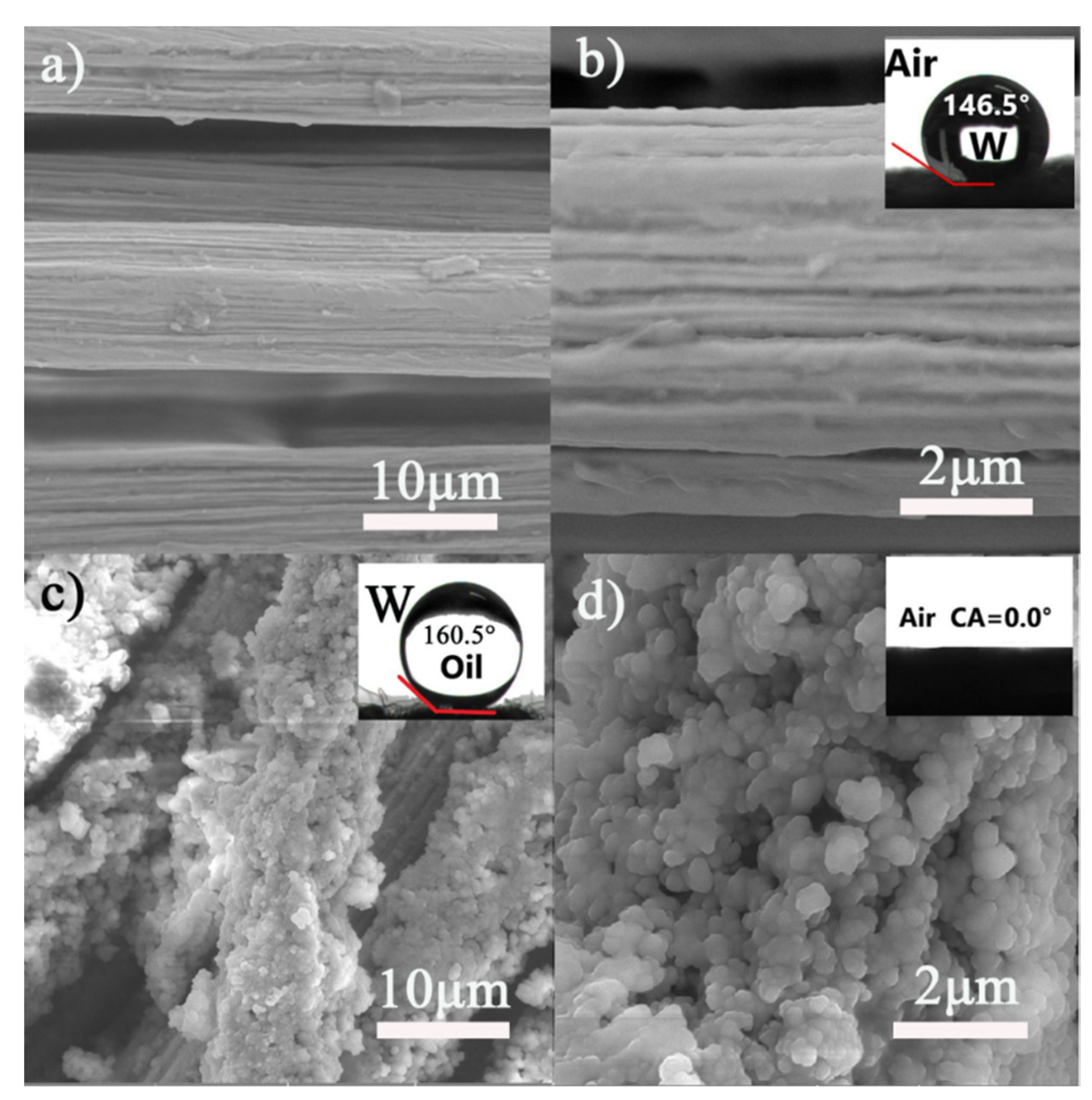

Figure 1. SEM images of (a,b) original stainless steel fibers (SSF) and SiO2-Na2SiO3-coated (c,d) SSF. The insets show the contact angle (b) of raw SSF, treated underwater oil contact angle (c) and water contact angle (d) in air.
Figure 1. SEM images of (a,b) original stainless steel fibers (SSF) and SiO2-Na2SiO3-coated (c,d) SSF. The insets show the contact angle (b) of raw SSF, treated underwater oil contact angle (c) and water contact angle (d) in air.
Materials 14 02628 g001
Materials 14 02628 g002 550

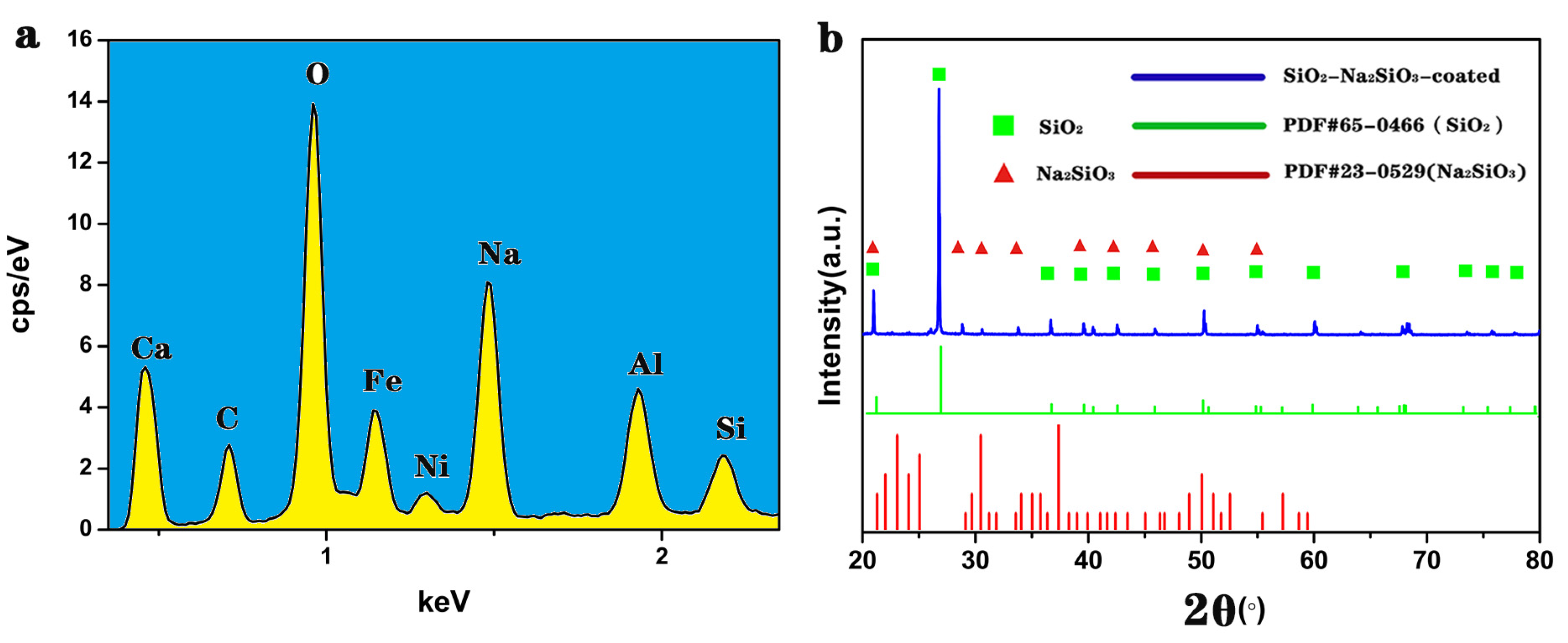

Figure 2. (a) EDS spectrum of the SiO2-Na2SiO3-coated SSF and (b) the XRD diffraction patterns.
Figure 2. (a) EDS spectrum of the SiO2-Na2SiO3-coated SSF and (b) the XRD diffraction patterns.
Materials 14 02628 g002
Materials 14 02628 g003 550

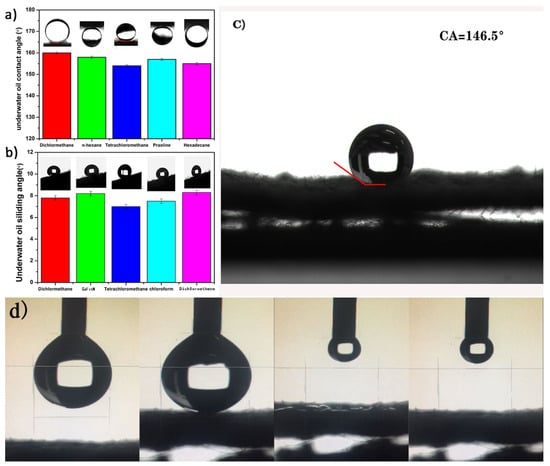

Figure 3. The underwater contact (a) angle and sliding angle (b) of different oil droplets on the SiO2-Na2SiO3-coated SSF membrane, the hydrophobicity (c) of original SSF and the superhydrophilicity (d) of SiO2-Na2SiO3-coated.
Figure 3. The underwater contact (a) angle and sliding angle (b) of different oil droplets on the SiO2-Na2SiO3-coated SSF membrane, the hydrophobicity (c) of original SSF and the superhydrophilicity (d) of SiO2-Na2SiO3-coated.
Materials 14 02628 g003
Materials 14 02628 g004 550

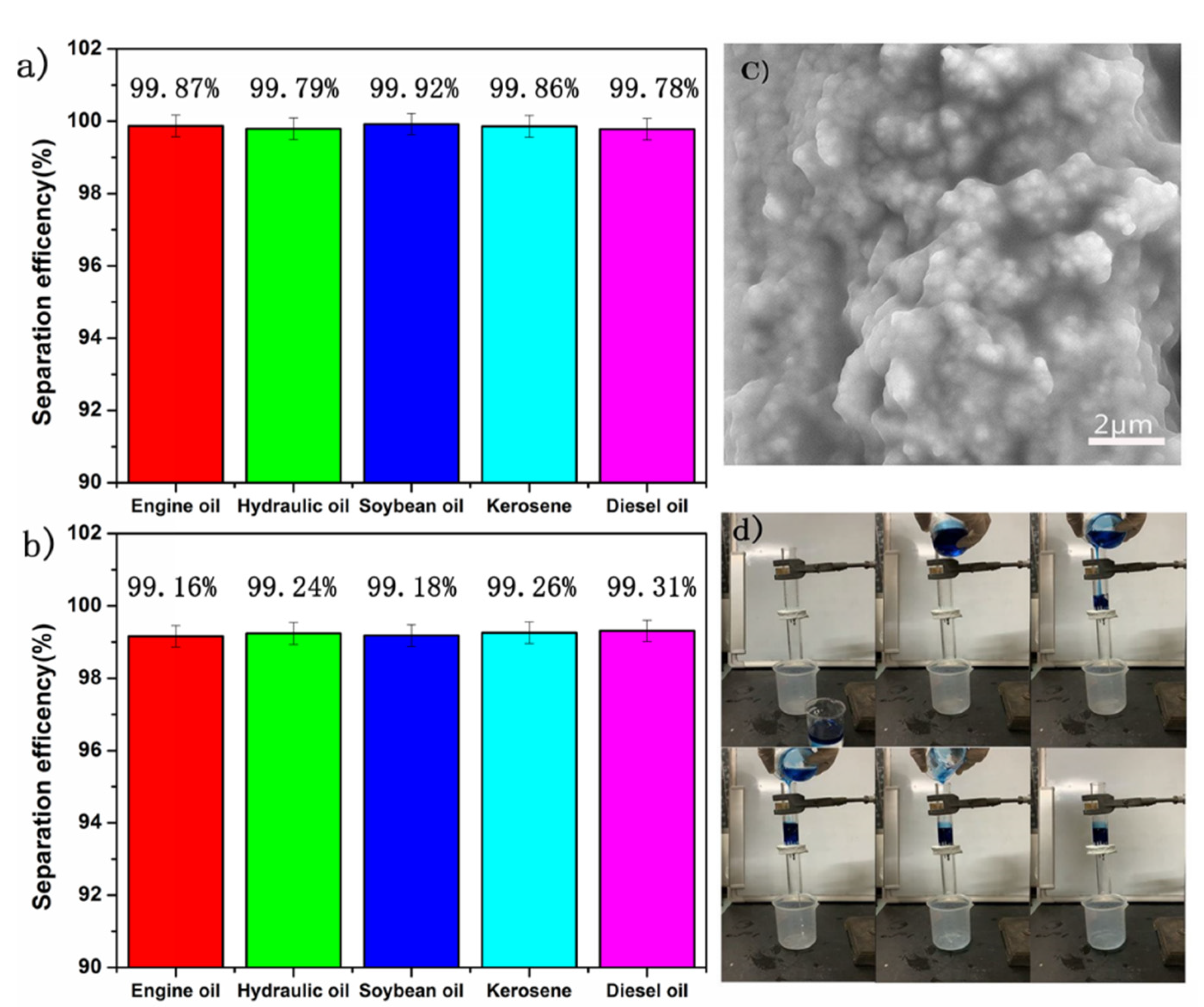

Figure 4. The separation efficiency of different oil/water mixtures (a) before and (b) 50 separation cycles SEM image (c) of SiO2-Na2SiO3-coated SSF after 50 separation cycles with the separation process (d).
Figure 4. The separation efficiency of different oil/water mixtures (a) before and (b) 50 separation cycles SEM image (c) of SiO2-Na2SiO3-coated SSF after 50 separation cycles with the separation process (d).
Materials 14 02628 g004
Materials 14 02628 g005 550

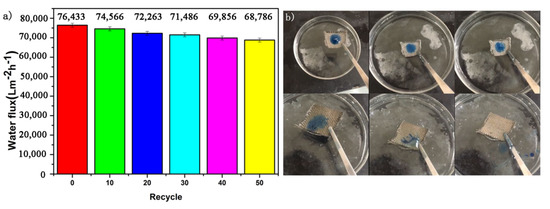

Figure 5. Variation of water flux with the number of recycles (a) and self-cleaning performance (b).
Figure 5. Variation of water flux with the number of recycles (a) and self-cleaning performance (b).
Materials 14 02628 g005
Materials 14 02628 g006 550

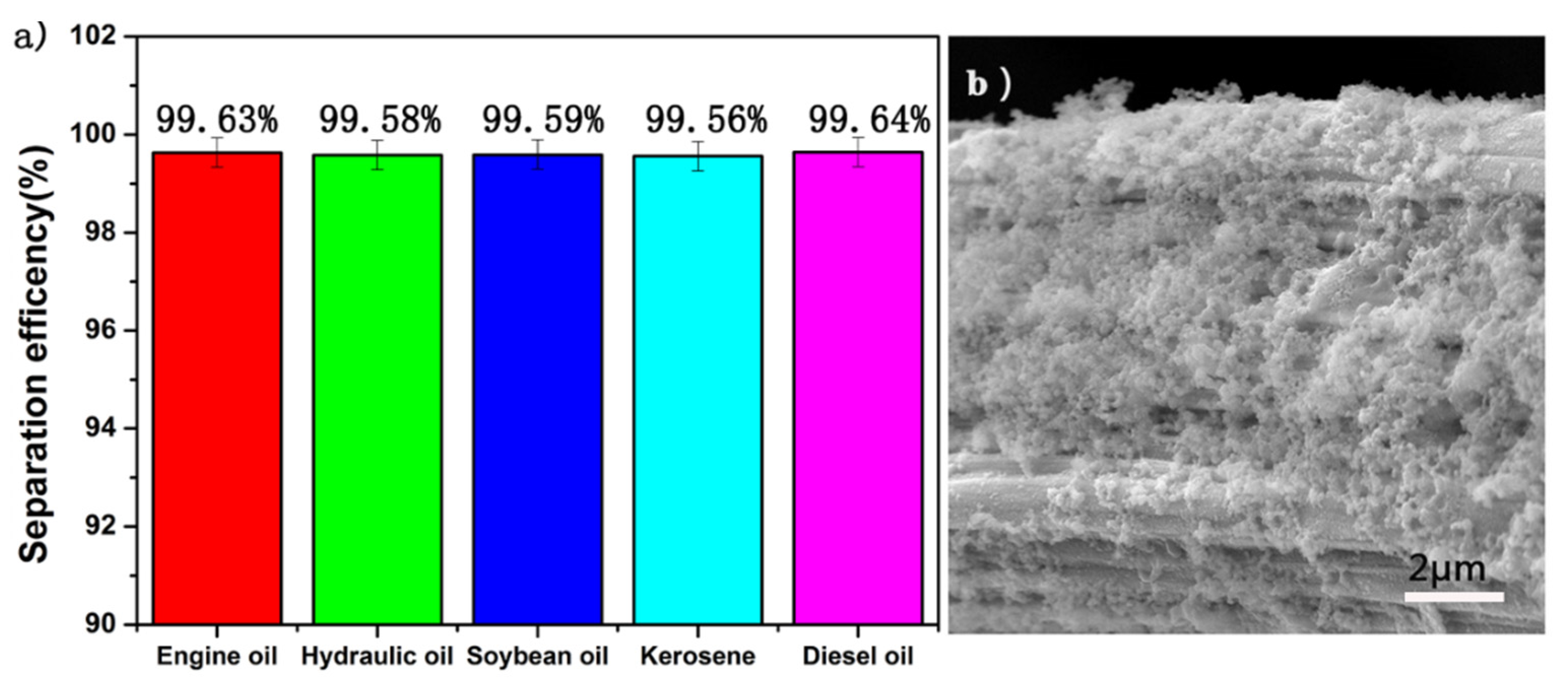

Figure 6. (a) The separation efficiency of SiO2-Na2SiO3-coated SSF after sandpaper abrasion and (b) the corresponding SEM image.
Figure 6. (a) The separation efficiency of SiO2-Na2SiO3-coated SSF after sandpaper abrasion and (b) the corresponding SEM image.
Materials 14 02628 g006
Materials 14 02628 g007 550
Figure 7. (a) The separation efficiency of SiO2-Na2SiO3-coated SSF after being immersed in hot water for 2 weeks and (b) corresponding SEM image.
Figure 7. (a) The separation efficiency of SiO2-Na2SiO3-coated SSF after being immersed in hot water for 2 weeks and (b) corresponding SEM image.
Materials 14 02628 g007
Materials 14 02628 g008 550

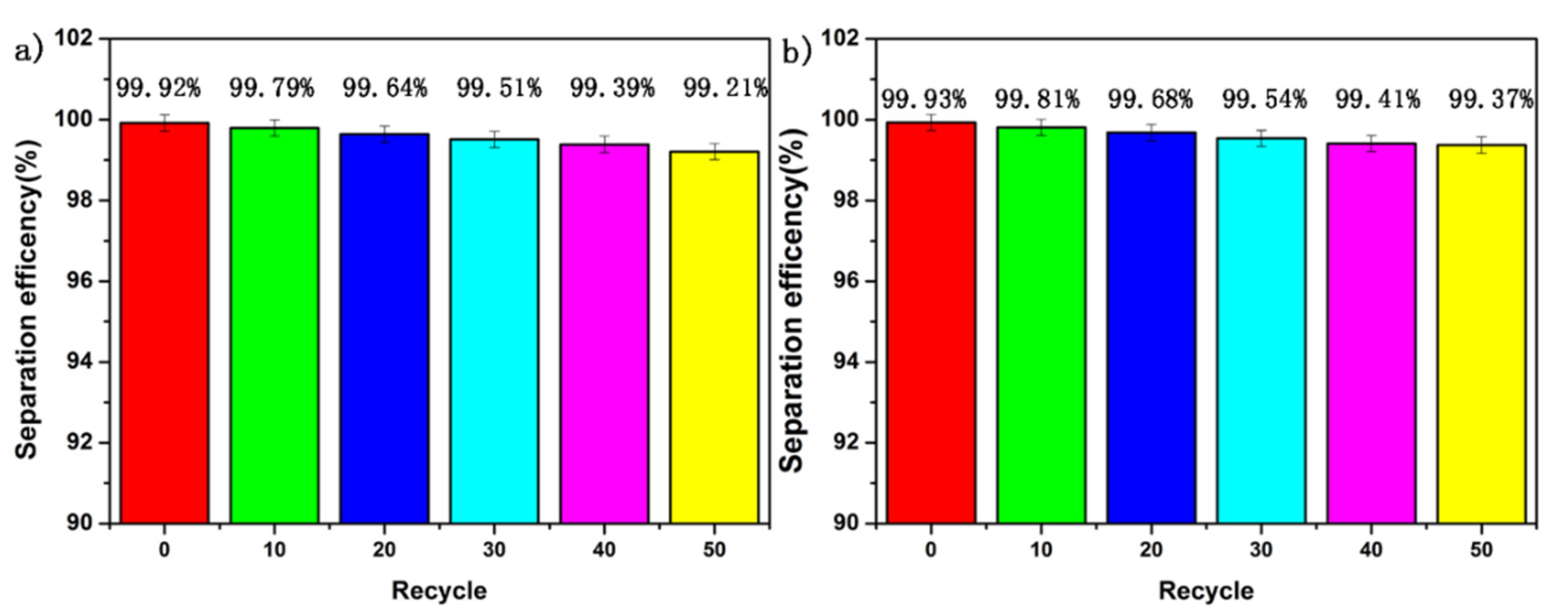

Figure 8. Variation of separation efficiency with times under salt (a) and acid (b) environments.
Figure 8. Variation of separation efficiency with times under salt (a) and acid (b) environments.
Materials 14 02628 g008
Materials 14 02628 g009 550

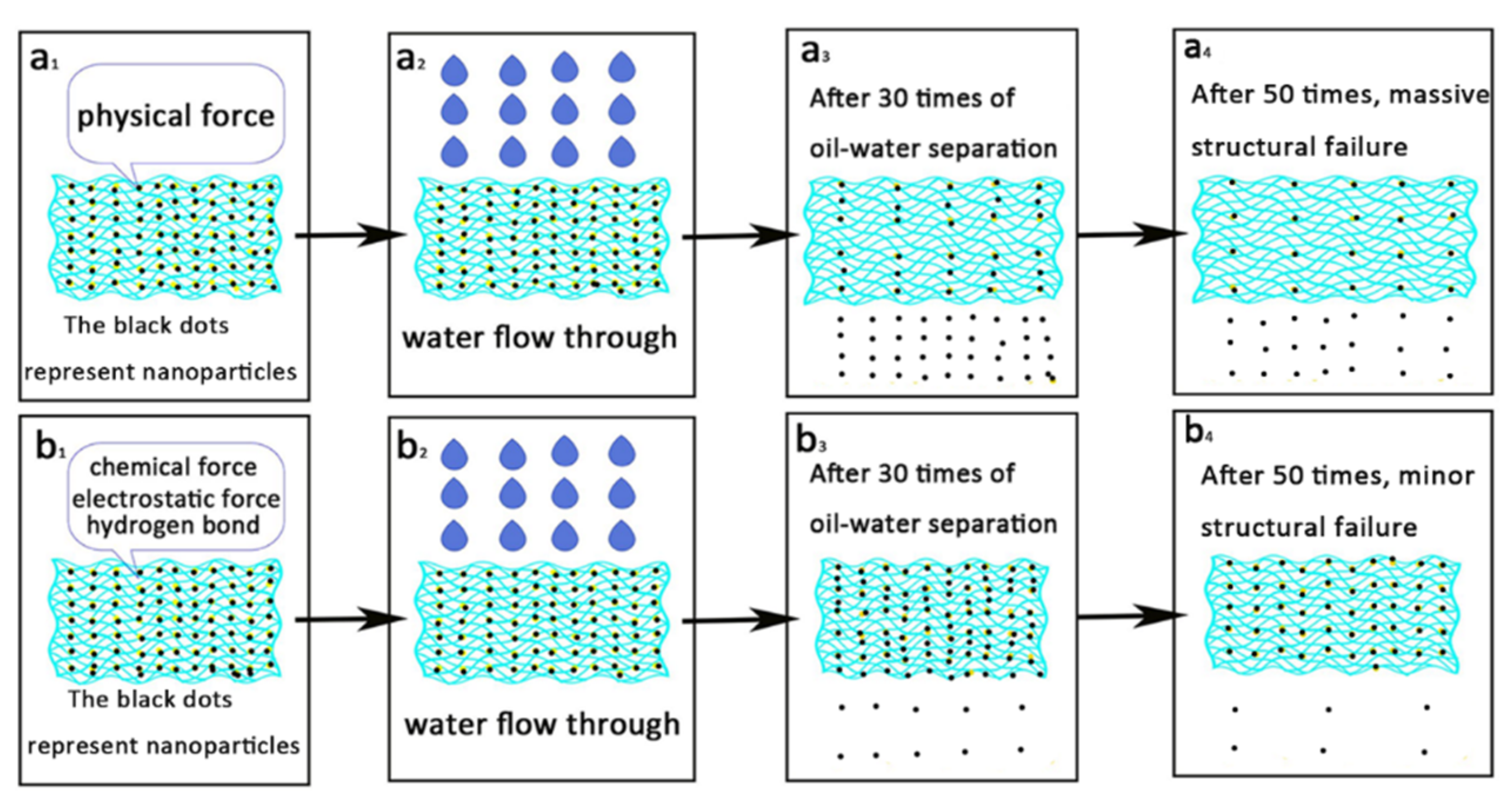

Figure 9. (a1–4) illustration of the ordinary oil–water membrane separation process, and (b1–4) illustrate separation using the superhydrophilic-underwater superoleophobic membrane as reported in this article.
