Next Article in Journal
A Durable and Self-Cleaning Superhydrophobic Surface Prepared by Precipitating Flower-Like Crystals on a Glass-Ceramic Surface
Next Article in Special Issue
Cytotoxicity and Bioactivity of Dental Pulp-Capping Agents towards Human Tooth-Pulp Cells: A Systematic Review of In-Vitro Studies and Meta-Analysis of Randomized and Controlled Clinical Trials
Previous Article in Journal
In Situ Recrystallization of Mesoporous Carbon–Silica Composite for the Synthesis of Hierarchically Porous Zeolites
Previous Article in Special Issue
Viability and Stimulation of Human Stem Cells from the Apical Papilla (hSCAPs) Induced by Silicate-Based Materials for Their Potential Use in Regenerative Endodontics: A Systematic Review
Open AccessArticle

A Microstructure Insight of MTA Repair HP of Rapid Setting Capacity and Bioactive Response

1
Department of Stomatology, Faculty of Dentistry, University of Sevilla, 41009 Sevilla, Spain
2
Materials Science Institute of Seville (ICMS), Joint CSIC-University of Sevilla Center, 41092 Sevilla, Spain
3
Networking Research Center on Bioengineering, Biomaterials and Nanomedicine (CIBER-BBN), 28029 Madrid, Spain
*
Author to whom correspondence should be addressed.
Materials 2020, 13(7), 1641; https://doi.org/10.3390/ma13071641
Received: 6 March 2020 / Revised: 26 March 2020 / Accepted: 30 March 2020 / Published: 2 April 2020
(This article belongs to the Special Issue Biocompatibility and Bioactivity of New Endodontic Materials)

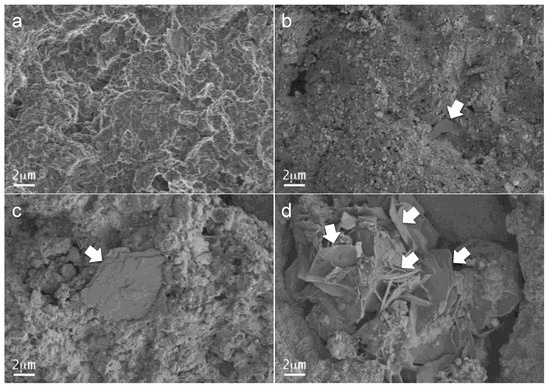

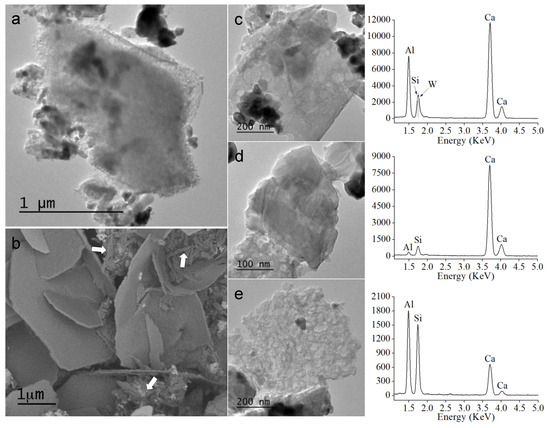

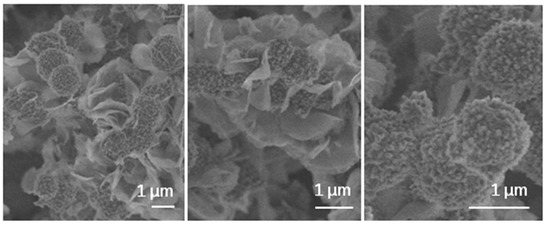

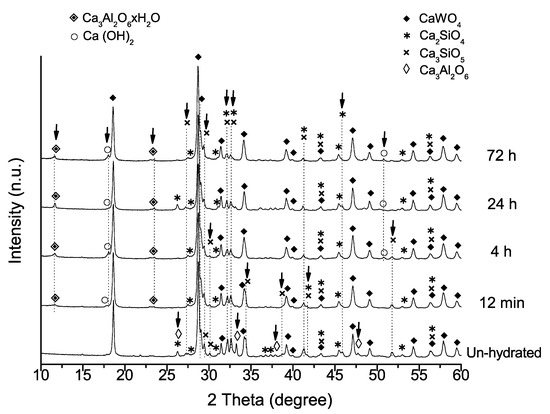

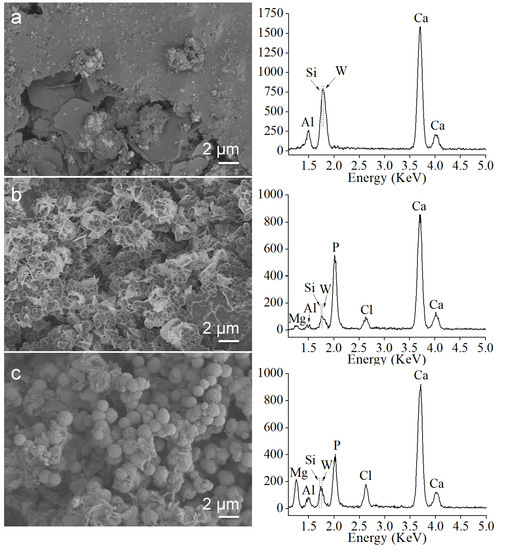

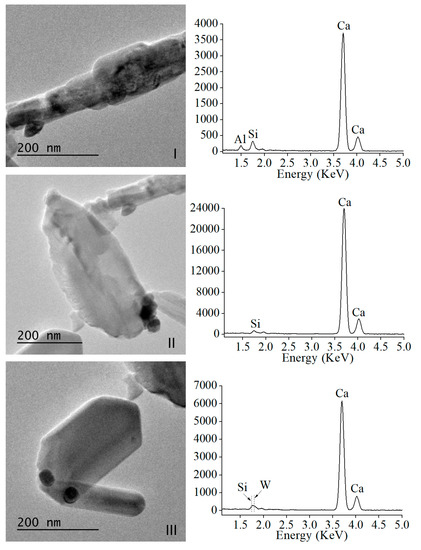

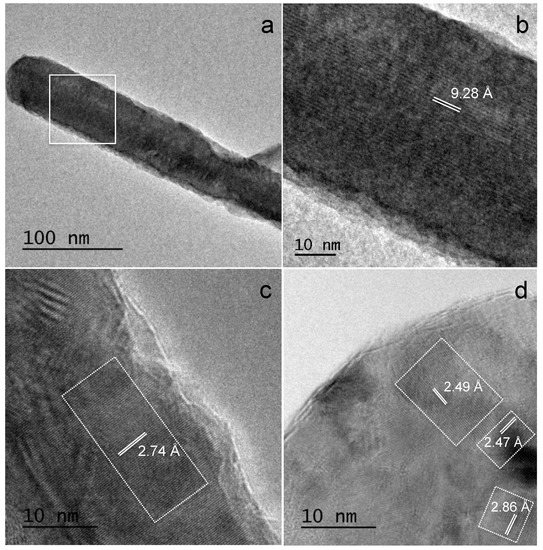

Mineral trioxide aggregate (MTA) is considered a bioactive endodontic material, which promotes natural mineralization at the material-tooth tissue interface. MTA Repair HP stands out because of the short setting time and the quick and effective bioactive response in vitro. The bioactivity, depens on material composition and microstructure. This work is devoted to analyze MTA Repair HP microstructural features, of both the powder precursor and set material, to get insights into the material physicochemical parameters—functionality performance relationships. Transmission electron microscopy (TEM), and field emission gun scanning electron microscopy (FEG-SEM) coupled with energy-dispersive X-ray (EDX) analyses were performed. X-ray diffraction (XRD) measurements were carried out at different times to investigate setting process. Bioactivity evaluation in vitro was carried out by soaking the processed cement disk in simulated body fluid (SBF). The presented results point out those MTA Repair HP precursor material characteristics of tricalcium silicate particles of nanometric size and high aspect ratio, which provide an elevated surface area and maximized components dispersion of calcium silicate and very reactive calcium aluminate. The MTA Repair HP precursor powder nanostructure and formulation, allows a hydration process comprising silicate hydrate structures, which are very effective to achieve both fast setting and efficient bioactive response. View Full-Text
Keywords: bioactive endodontic cement; calcium silicate-based materials; MTA Repair HP; microstructure; SBF; bioceramic characterization bioactive endodontic cement; calcium silicate-based materials; MTA Repair HP; microstructure; SBF; bioceramic characterization
Show Figures

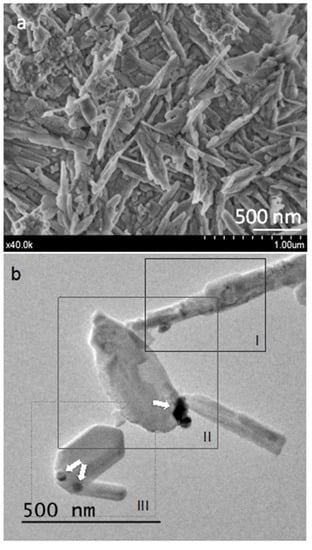

Figure 1

MDPI and ACS Style

Jiménez-Sánchez, M.C.; Segura-Egea, J.J.; Díaz-Cuenca, A. A Microstructure Insight of MTA Repair HP of Rapid Setting Capacity and Bioactive Response. Materials 2020, 13, 1641.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
