Article

Study of Si and Ge Atoms Termination Using H-Dilution in SiGe:H Alloys Deposited by Radio Frequency (13.56 MHz) Plasma Discharge at Low Temperature

1
Instituto Nacional de Astrofísica, Óptica y Electrónica (INAOE), Luis Enrique Erro # 1, Tonantzintla, Puebla 72840, Mexico
2
Consejo Nacional de Ciencia y Tecnología—INAOE, Luis Enrique Erro # 1, Tonantzintla, Puebla 72840, Mexico
3
Centro de Investigación y Estudios Avanzados (CINVESTAV), Departamento de Ingeniería Eléctrica, Cinvestav IPN, Ciudad de Mexico 07360, Mexico
*
Author to whom correspondence should be addressed.
Materials 2020, 13(5), 1045; https://doi.org/10.3390/ma13051045
Received: 23 November 2019 / Revised: 7 January 2020 / Accepted: 20 January 2020 / Published: 26 February 2020
(This article belongs to the Special Issue Properties of Amorphous Materials and Nanomaterials)

Abstract

:
In this work, we present the study of the atomic composition in amorphous SiXGeY:HZ films deposited by radio frequency (RF—13.56 MHz) plasma discharge at low deposition temperature. A study and control of Si and Ge atoms termination using H-dilution in SiGe:H alloys deposited by RF plasma discharge was conducted and we made a comparison with low-frequency plasma discharge studies. Solid contents of the main elements and contaminants were determined by SIMS technique. It was found that for low dilution rates from RH = 9 to 30, the germanium content in the solid phase strongly depends on the hydrogen dilution and varies from Y = 0.49 to 0.68. On the other hand, with a higher presence of hydrogen in the mixture, the germanium content does not change and remains close to the value of Y = 0.69. The coefficient of Ge preferential incorporation depended on RH and varied from PGe = 0.8 to 4.3. Also, the termination of Si and Ge atoms with hydrogen was studied using FTIR spectroscopy. Preferential termination of Si atoms was observed in the films deposited with low RH < 20, while preferential termination of Ge atoms was found in the films deposited with high RH > 40. In the range of 20 < RH < 40, hydrogen created chemical bonds with both Si and Ge atoms without preference.

1. Introduction

Silicon-germanium thin films (SiXGeY:HZ) deposited by Plasma Enhanced Chemical Vapor Deposition (PECVD) have been studied over the last decades regarding solar cell applications due to their reduced band-gap and their absorption in the infrared spectrum (IR) [1]. In recent years, silicon-germanium alloys have also demonstrated potential applications in new device concepts such as 3D structured devices [2,3,4], un-cooled micro-bolometers [5], microelectromechanical systems (MEMS) [6], and biomedical applications [7]. However, the increase of Ge content in these alloys is reported to deteriorate the electronic properties and the device characteristics. Then, better performance and stability requires much effort to improve the film quality.
One promising technique to improve the film quality of SiXGeY:HZ alloys deposited by PECVD is the hydrogen dilution method [8,9]. Many groups have reported results obtained by this technique and have discussed the role of hydrogen dilution for a relatively low hydrogen dilution ratio RH in the range of less than RH = 20 (RH = QH2/QSiH4, where QH2 is the hydrogen flow rate, and QSiH4 is the silane flow rate) at substrate temperatures above 200 °C [10]. Most of the papers deal, however, with relatively low Ge concentration (Y < 0.5) and high deposition temperatures (Td > 200 °C) because these parameters provide films with optoelectronic properties acceptable for application in the device structures.
The investigation of SiXGeY:HZ films over the entire range 0 < Y < 1 was systematically studied by our group for low frequency (LF) and high deposition temperature, and the results were reported in [9]. Good quality SiGe films were reported also for LF PECVD in references. [11,12,13]. On the other hand, the effect of dilution gas at low deposition temperatures (Td < 200 °C) on both, film growth and electronic properties has not been systematically studied for standard radio frequency (13.56 MHz) conditions. However, nowadays thin films deposited at low temperatures (Td < 200 °C) are a requirement for novel device applications such as hybrid inorganic-polymer structures [14,15] and flexible substrates [16].
It should be noted that the problem of optimization of conditions for PECVD fabrication of semiconductor materials consisting of more than one semiconductor atom e.g., SiXGeY:HZ is more complex than that for one semiconductor atom, e.g., Si:H. The deposition of hydrogenated alloys has two important aspects: (a) Incorporation of semiconductor atoms from the gas phase (typically preferential incorporation of one atom is observed with the preferential factor depending on the deposition conditions), and (b) hydrogen termination of both atoms, let us say Ge–H and Si–H; hydrogen termination is also realized with the preference of one atom for hydrogen termination. The latter has not been studied and therefore the optimal (from point of view electronic properties) hydrogen distribution between two atoms is unknown. Hydrogen dilution of the gas mixture used for semiconductor deposition has demonstrated a significant effect on deposition rate, atom incorporation from the gas phase into a solid-state, and as expected on hydrogen termination of both atoms.
This paper reports the composition and Si and Ge atoms termination in SiXGeY:HZ films using hydrogen dilution in deposition under standard RF (13.56 MHz) PECVD at low deposition temperature (Td = 160 °C) compatible with polymer semiconductor and flexible plastic substrates [17]. The effect of hydrogen dilution on growth, composition, and Si–H and Ge–H hydrogen bonding of high Ge content SiXGeY:HZ (Y > 0.5) was studied.

2. Materials and Methods

The samples were fabricated using a cluster tool system from “MVSystem. Inc. (Denver, CO, USA)” in a standard capacitive PECVD chamber (see Appendix A, Figure A1). The R.F. electrode assembly consists of a dark shield, cathode- anode electrode configuration with a distance of 1.9 cm, and automatic matching. The gas injector contains multiple small holes and the location provides a uniform flow of gasses across the plasma region with a substrate area of 15.6 × 15.6 cm2. SiGe:H films were deposited in the chamber after cleaning and passivation of the walls by the growth of intrinsic film, the background vacuum level was lower than 5 × 10−7 Torr and a leakage rate was Rleak = 4.5 × 10−4 sccm. Intrinsic SiGe:H films were deposited from (50% SiH4 + 50% GeH4) + H2 mixture, all the gases used were semiconductor purity and were pre-mixed before introducing them to the chamber. The hydrogen dilution ratio was defined as RH = CH/(CSi + CGe) where CH is the concentration of hydrogen atoms, CSi and CGe are the concentrations of Si and Ge atoms in the gas phase, respectively. Thus, RH was varied from 9 to 80 by increasing the H2 flow from QH2 = 9 to 80 sccm at constant pressure P = 0.55 Torr. Deposition temperature was fixed at Td = 160 °C and deposition time was set at td = 2000 s. RF discharge was excited at frequency f = 13.56 MHz with power W = 5 W (22 mW/cm2). The substrates used were p+-doped c-Si wafers for SIMS analysis. The experimental films were characterized by the measurements as follows: deposition rate, Vd, was obtained from step profile measurements of the silicon–germanium films with a “DektakXT profiler” (Bruker, Billerica, MA, USA). The deposition rate was calculated assuming that the film thickness is a linear function of time: Vd = d/td, where d is the film thickness and td is the deposition time.
Solid-phase atomic content in SiGe:H films was determined by Secondary Ion Mass Spectroscopy (SIMS) Technique. For this purpose, a time of flight TOF-SIMS-5 instrument from “ION TOF GmbH” (Muster, Germany) was used. The depth profiling was realized with a double beam regime: A pulsing Bi+ ions beam was used for analysis, and low energy Cs+ ions beam for a delicate sputtering. Both negative secondary ions and positive CsM+ cluster ions (where M is the element of interest) were monitored in parallel measurements for dopants, contaminants (C, O, N, F), and the main components (Si, Ge, H) characterization. Quantification of intensity in experimental data was performed using the implanted standards and by measurements of reference SiGe compounds with a known composition.
H-termination characterization was performed, the infrared (IR) absorption spectra of the films were measured with an FTIR spectrometer from “Brucker Optics” (model “Vector-22”, Ettingen, Germany) over the range 350–4000 cm−1. The measured absorbance spectra were normalized to the absorbance spectrum of a crystalline silicon substrate, and the spectral absorption spectra were calculated. The spectra were analyzed systematically after baseline subtraction and computer deconvolution.

3. Results

3.1. Film Growth

After fabrication, the thickness of the films was measured by the profiler to calculate the deposition rate Vd. The deposition rate of film thickness is depicted in Figure 1 in comparison with that obtained from the measurements of the crater generated by SIMS measurements. Vd(RH) shows a reduction from Vd = 1.2 to 0.5 A/s with a change in RH from RH = 9 to 40 and only a small change (practically negligible) in the range RH = 40 to 80. Comparing these Vd values with those reported in reference [9] for SiGe:H films deposited by low frequency (LF) PECVD and high temperature we noticed similar Vd values for low Ge content (about 0.1 in the gas phase) to those for RF PECVD films. On the other hand, values of the deposition rate of Vd = 0.9 ± 0.1 Å/s are found in reference [18] for film growth with 0.5 Ge content in the gas phase. It is important to note that Vd behavior depends on the selection of experimental variables, here the hydrogen dilution provides lower deposition rates when it is raised. However, opposite behavior is found when the germanium content in gas phase CG is taken as the variable e.g., the deposition rate increases from 1.5 to 3.7 Å/s for LF discharge [9] and from 4 to 11 Å/s for RF discharge when CGe is raised, for hydrogen dilution ratios of RH = 0.4 and RH = 20, respectively.

3.2. Composition of the Films

A typical SIMS profile is shown in Figure 2 corresponding to a SiXGeY:HZ film deposited at hydrogen dilution RH = 30. The main contaminant element is seen to be oxygen. However, the SIMS signal also contains a contribution from residuals in the analytical chamber of the SIMS instrument. The contents of Oxygen (O), Carbon (C), and Nitrogen (N) atoms in the solid films are around the level of 2.8 ± 0.9 × 1020, 4 ± 1 × 1019, and 1.40 ± 0.05 × 1019 atoms/cm3, respectively. The reasons for relatively high contaminations are not clear at present and could be caused by both, deposition processes and/or vacuum conditions in the SIMS measurements.
The relative contents of X, Y and Z elements as a function of RH in SiXGeY:HZ are presented in Figure 3. Hydrogen content Z in the solid-state in the films decreases from Z = 0.24 to 0.15 when the dilution ratio increases from RH = 9 to 30. Further H-dilution slightly changes the hydrogen content from Z = 0.15 to 0.175. This behavior together with almost constant values of X and Y in this region suggests that there is no change in hydrogen termination of both Si and Ge atoms in the films. Germanium content increases from Y = 0.485 to 0.70 as the dilution ratio increases from RH = 9 to 30. In the range of RH = 30 to 80, the germanium solid content is constant Y = 0.69 ± 0.01. Such behavior and the Y value differ from those in the films grown from LF discharge, in which Y has a constant value of 0.965 ± 0.005 in the entire reported range of RH = 20 to 80. As it is depicted in Figure 3 higher dilution provides higher germanium and lower hydrogen content in comparison with that at low dilution, a similar result is reported in reference [10]. Silicon content decreases from X = 0.27 to 0.13 with RH increase from RH = 9 to RH = 40 and then it remains at a constant value X = 0.137 ± 0.008 from RH = 40 to 80.
Normalized solid component values of SiXGeY:HZ films and deposition rates as a function of hydrogen dilution are shown in Figure 4. The deposition rate Vd(RH) has similar behavior to that of the solid content of silicon, meaning that the deposition of the films is controlled by Si atom incorporation. If we compare X(RH) and Y(RH) with hydrogen behavior Z(RH) there would be a reason to suggest that hydrogen mostly terminates Si atoms in the entire studied RH range. In other words, Ge atoms could be not sufficiently passivated by hydrogen which results in deterioration of the electronic properties. However, this suggestion is not supported by FTIR data. We continue the discussion of H-termination in the section related to FTIR data analysis. This aspect has not been systematically reported and analyzed as yet in the literature.
Incorporation of Ge atoms in Si–Ge:H film from the gas phase can be characterized by the coefficient of preferential incorporation (see e.g., [19]) defined as PGe = (relative Ge content in solid phase)/(relative content of Ge atoms in gas phase) and PSi = (relative Si content in solid phase)/(relative content of Si atoms in gas phase). In the alloys, the relationship PGe = 1/PSi is evident. The coefficients of preferential incorporation, PSi, and PGe, are shown in Figure 5. For PGe calculation the germanium content in the gas phase was A = GeH4/GeH4 + SiH4 and solid content is represented by the Si1−BGeB:H formula. This coefficient is conventionally obtained as the best fit parameter in experimental data processing for variation of composition within the entire range. Interestingly, many authors reported the best fit of their experimental data (obtained in very different conditions) with only one parameter (PGe) within the entire range of composition. Concrete PGe values were different depending on deposition conditions. In this work, we calculated PGe, and PSi for Ge–Si:H films deposited with different H-dilution in RF discharge.
Preferential incorporation strongly depends on hydrogen dilution in the range of RH = 9 to 20 for silicon and RH = 9 to 50 for germanium. For RH = 20, PGe has a lower value of PGe = 1.73 in comparison with that reported for LF discharge (PGe = 6.44) [9]. For RH = 9, PGe has a lower value of PGe = 0.78 in comparison with that reported for RF discharge (PGe = 6.1 and 4.6) [18]. The difference in PGe values could be attributed to differences in fabrication parameters. For example, power density in our experiments was w = 22 mW/cm2 in comparison with w = 5 and 80 mW/cm2 reported in [18] which provided PGe = 6.1 and 4.6, respectively. The latter PGe value is different from PGe = 12 found for SiGe:H films deposited at relatively high-power density (110 mW/cm2) but low flow rate (7 sccm) and low dilution ratio (0.4) reported in [19]. Higher power densities provide the higher germanium content in the solid phase as shown in reference [10] for undiluted SiH4 + GeH4 mixtures; opposite behavior is observed for diluted mixtures. This data agrees with the high PGe > 1 value. From RH = 60 to 80, PGe has a weak dependence on hydrogen dilution providing a value around PGe = 4.1 which is close to that discussed previously for RF discharge. In the case of other parameters such as deposition temperature or Ge content, there is no evidence of influence on PGe in the studied range [18].

3.3. H-Termination of Si and Ge Atoms

Hydrogen bonding with Si and Ge atoms was studied with FTIR spectroscopy. The general view of the FTIR spectrum is presented in Figure 6. Three groups of modes can be distinguished in the Figure: (1) Stretching mode for Si–H, Ge–H bonds (k = 1800–2200 cm−1, (2) deformation modes for Si–H and Ge–H bonds (k = 500–700 cm−1) and (3) Si–O and Ge–O bonds (k = 1000–1200 cm−1, and k = 900–1000 cm−1, respectively). We shall focus on the regions of stretching modes for Si–H and Ge–H bonds. For illustration, a fragment of the FTIR spectrum corresponding to Si–H and Ge–H modes is shown in Figure 7.
Both, the experimental data and results of the deconvolution are presented in this figure. In this, three peaks are observed around k ≈ 1880 cm−1, k ≈ 2000 cm−1, and k ≈ 2100 cm−1 assigned to Ge–H, Si–H, and Si–H2 stretching modes, respectively. In Table A1, the peaks, contour width, and area are summarized. It is possible to observe in Table A1 that the hydrogen dilution changes remarkably these characteristics. Figure 8 shows the plot of the H-termination preference coefficients for Si–H and Ge–H bonds for different H-dilution, where PGe–H = (relative Ge–H bonds content in solid phase)/(relative content of Ge atoms in gas phase) and PSi–H = (relative Si–H bonds content in solid phase)/(relative content of Si atoms in gas phase); the relative contents were determinate from the IR stretching Ge–H (1880 cm−1) and the Si–H (2000 cm−1) absorption band integrated areas. The definition and explanation of PGeH y PSiH concepts are similar to PGe and PSi gave in reference [19]. For low RH ≤ 20 the PSiH decreases from 2.42 to 1.16 and PGeH slightly increases from 0.42–0.57. In the range of 20 ≤ RH ≤ 40 the values are PGeH = PSiH = 1 (both values calculated from stretching modes), this means that the H termination for Si and Ge atoms is similar.
In the range RH ≥ 40, PGeH increases to its maximum value PGeH = 4.3 at RH = 75 while PSiH reduces to PSiH ≈ 0.22. It means that all Ge atoms have been mostly terminated by hydrogen in contrast to Si atoms. Thus we can clearly distinguish three regions: low RH ≤ 20, where Si atoms are preferentially terminated with hydrogen while Ge atoms have shortage of hydrogen, medium region 20 ≤ RH ≤ 40 where H-termination starts to change (PSiH reduces and PGeH slightly increases), and finally the region of high dilution RH ≥ 40, where Ge atoms are mostly terminated by hydrogen but Si atoms do not have sufficient hydrogen. It would be reasonable to expect that for such “anti-correlation” between hydrogen terminations of Si and Ge atoms, for the low RH region the defects expected would be due to Ge atoms not passivated by hydrogen. For a high level of H-dilution RH ≥ 40, Ge atoms are completely terminated with hydrogen, while Si atoms have not enough hydrogen passivation and therefore would reveal themselves as defects (e.g., dangling bonds).
This next section is divided by subheadings. It provides a concise and precise description of the experimental results, their interpretation, as well as the experimental conclusions that can be drawn.

4. Discussion

4.1. Incorporation of Si, Ge in RF Versus LF PECVD

It is interesting to compare the growth rate of the films deposited with H-dilution. In reference [9] an increase in the growth rate is correlated with Ge content in both the gas phase and solid phase for Si-Ge films deposited with fixed H-dilution (RH = 20). The films studied in [9] were deposited by low-frequency PECVD at fixed RH = 10 with different Ge content in the gas. In this work, the films were grown by RF PECVD at low deposition temperature. The Ge relative content was equal to that of Si in the gas phase and both were fixed at the value 0.5 while RH was varied. Thus, the conditions were different in this work and the reference [9]. If we compare the deposition rate observed in this work and that reported in [9] at “similar” RH = 20, and relative Ge, Si content in gas phase 0.5, one can see that Vd = 0.9 A/s in this work (RF discharge) is less than Vd = 2.3 A/s (LF discharge) reported in [9]. However, this comparison does not allow the conclusion that the deposition rate in RF discharge is less than that in LF discharge due to the discharge power density in [9] where the LF discharge was remarkably higher (W = 120 mW/cm2) than that in RF discharge (W = 22 mW/cm2 in RF discharge). Additionally, the deposition temperature in [9] was higher (Td = 300 °C) than the temperature used in this work (Td = 160 °C). The deposition pressure is similar in both LF (P = 0.60 Torr) and RF (P = 0.55 Torr) experiments.
Preferential incorporation of Ge atoms was observed for film growth at RH = 20 where the preferential factor for Ge was PGe = 6.44 even though the concentration of Ge and Si atoms was kept equal in the gas mixture. In this work, we observed also Ge preferential incorporation for RH > 15 but the preferential factor changed with RH from PGe = 1.2 at RH = 15 to maximum PGe = 4.2 at RH = 75. It is worth noting that despite the Ge preferential incorporation in the range of 15 < RH < 80, the growth rate (following the trend of the Si incorporation) and hydrogen content (determined by SIMS) suggest that the growth rate is determined by Si atoms incorporation.
Hydrogen content vs H dilution: If we compare hydrogen content versus H-dilution determined by SIMS presented in Figure 3, it shows a decrease from [H]sims = 0.25 at RH = 10 to [H]sims ≈ 0.15 at RH = 30 and further, it stays constant with Si–H and Ge–H concentrations as a function of RH. We can also see another trend: increasing of H bonded content with RH with a maximum at RH = 70. Taking into account that the SIMS signal is determined by both chemically bonded hydrogen and hydrogen absorbed (in pores and on surface) rather than only for chemically bonded hydrogen as is the case of FTIR measurements it is reasonable to suggest that with an increase of RH, the total hydrogen content is reduced and the relative part of hydrogen-related to chemically bonded hydrogen is increased.
Let us compare our results on chemically bonded hydrogen distribution between Ge and Si atoms with those reported in the literature. In reference [9] the authors observed PGeH = 0.45, 0.61, and 0.29 in the films deposited with hydrogen (RH = 20), argon dilution and without dilution in LF PECVD, respectively. Data obtained in this work in the range of 10 ≤ RH ≤ 40 in RF discharge PGeH ≈ 0.5 are in good agreement with those reported in [9]. However, we studied also the films deposited with higher values of RH from 40 to 80 and we observed an increase of PGeH to 3.2 at RH = 75–80. Thus we demonstrated that it is possible to control both Ge content in the solid film (from [Ge]sol = 0.5 to 0.7) and hydrogen termination of Si and Ge atoms (from PGeH = 0.5 to PGeH = 3.2) by varying hydrogen dilution RH from 10 to 80.

4.2. Reduction of Vd and Preferential Solid Incorporation of Ge Atoms

Because the PECVD deposition of thin films is a complex process, the final characteristics of the films vary from system to system and growth conditions have interdependence from parameters such as power density, substrate temperature, chamber pressure, etc. In this section, we discuss only the results based on three general processes: (i) Gas/plasma phase process, (ii) species transport process to the surface and (iii) solid growth process on the surface. In (i), increasing RH, while pressure and RF power are kept constant, means dilution of the silicon and germanium precursors decreasing the number of radicals available to be transported to the surface. Thus, Vd decreases with increase of RH (Figure 4). On the other hand, the amount of hydrogen radicals is increased altering the reaction in the plasma. It is important to note that the binding energy of Ge–H (2.97 eV/bond) is lower than that of Si–H (3.2 eV/bond) [20], then, it is expected that decomposition of GeH4 will be faster than SiH4 and the Ge radicals will become an important factor for growth when both, silicon and germanium radicals are scarce. This explains the preferential solid incorporation of Ge atoms to the film when RH is increased. In (ii), the sheath region of the glow discharge is responsible for transporting the species from plasma bulk to the film surface and this also results in ion bombardment. In consequence, the increase of RH is expected to increase the number of H radicals for diffusion, sticking, and etching in (iii) [21], then the possible effects of hydrogen dilution include: (a) Etching of weak bonds with preferential etching of silicon over germanium atoms [22], (b) more hydrogen atoms sticking to superficial bonds decreasing the reactivity of the surface and (c) hydrogen atom diffusion into the bulk causing restructuration of the alloy network (for example, increasing the H termination). In this case, etching and sticking will contribute to the reduction of Vd and explain the preferential solid incorporation of Ge atoms in the solid phase (Figure 4 and Figure 5).

4.3. Preferential Ge–H Termination

According to Section 4.1, the increase of hydrogen dilution enhances hydrogen termination on the surface but also increases the implantation of hydrogen atoms due to ion bombardment [21]. In this case, hydrogen radicals provide additional energy to activate the reaction of hydrogen with silicon and germanium atoms on the surface. This factor is mainly important if the deposition process is at low deposition temperatures (Td < 200 °C). On the other hand, the increase of preferential termination of Ge atoms with the increase of hydrogen dilution is explained by a Ge-dominated surface where the reactions of hydrogen activation are concentrated. This Ge-dominated surface is the result of an increase of germanium in the solid/gas phase and preferential etching of silicon atoms [22]. The high rate of Ge–H termination in silicon-germanium thin films has a strong correlation to stability against light exposure. It is important to note, then, that an increase of H dilution increases the amount of Ge atoms terminated by hydrogen (Figure 8), but reduces the amount of hydrogen in the solid phases (Figure 4). This may due to the extra energy provided by ion bombardment of H radicals on the surface that also stimulates the local desorption of hydrogen.

5. Conclusions

The effect of H-dilution in the range of RH = 10 to 80 on the composition and hydrogen termination of Si and Ge atoms in SiXGeY:HZ films deposited by RF PECVD at low deposition temperature (Td = 160 °C) was investigated. Incorporation of Si and Ge atoms from the gas phase into the solid films depended strongly on H-dilution: reducing for Si and increasing for Ge atoms with an increase of RH from 10 to 30. Preferential incorporation increased for Ge atoms (PGe) and reduced for Si atoms (PSi) with an increase of RH. Maximum PGe = 4.2 is obtained in the films deposited at RH = 70 while the maximum PSi was PSi = 1.3 at RH = 10. This means that hydrogen dilution results in a significant increase of Ge atom incorporation.
H-termination of Si and Ge atoms studied by FTIR spectroscopy revealed that at low H-dilution (RH = 10), hydrogen preferentially terminated Si atoms with a PSiH = 3.2. Then in the range of 20 < RH < 40, PSiH decreases to the value PSiH = 1.7. Further increase of H-dilution from RH = 40 to 50 PSiH results in a PSiH = 0.5, staying without change up to RH = 80. The H-termination of Ge atoms was practically not changed from the value RGeH = 0.5 in the range of 10 < RH < 40. Further increase of RH from RH = 40 to 80 resulted in an increase of PGeH from 0.5 to 4.3 providing substantial preferential incorporation for Ge atoms (PGeH = 4.3) in the films deposited at high hydrogen dilution (RH = 80). From these observations and data analysis under the studied conditions we can draw the following conclusions:
(1)
Dilution by hydrogen decreases the deposition rate due to factors such as the dilution of silicon and germanium precursors, etching of the silicon atoms, and reduction of the reactivity of the surface.
(2)
For all films, preferential incorporation of Ge atoms (PGe) is observed. This may be associated with the lower binding energy of Ge–H (2.97 eV/bond) than that of Si–H (3.2 eV/bond) which results in more germanium precursors in the plasma. The lower preferential incorporation coefficient of silicon atoms can be explained by the preferential etching of silicon atoms due to an increase of hydrogen radicals.
(3)
Hydrogen preferentially terminates Ge atoms with an increase of the hydrogen dilution as a consequence of an increase of Ge atoms in the solid phase on the surface and an increase of surface energy provided by the hydrogen radicals.

Author Contributions

Conceptualization: I.C. and A.K.; Investigation: S.Z.-G., I.C., A.K., H.E.M., S.M., Y.K.; Writing—Original Draft, I.C. and A.K.; Writing—Review and Editing, I.C.; Supervision, I.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by CONACyT project No.2734.

Acknowledgments

The authors acknowledge Adrian Itzmoyotl and Victor Aca from INAOE microelectronics laboratory for the assistance in the fabrication process.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

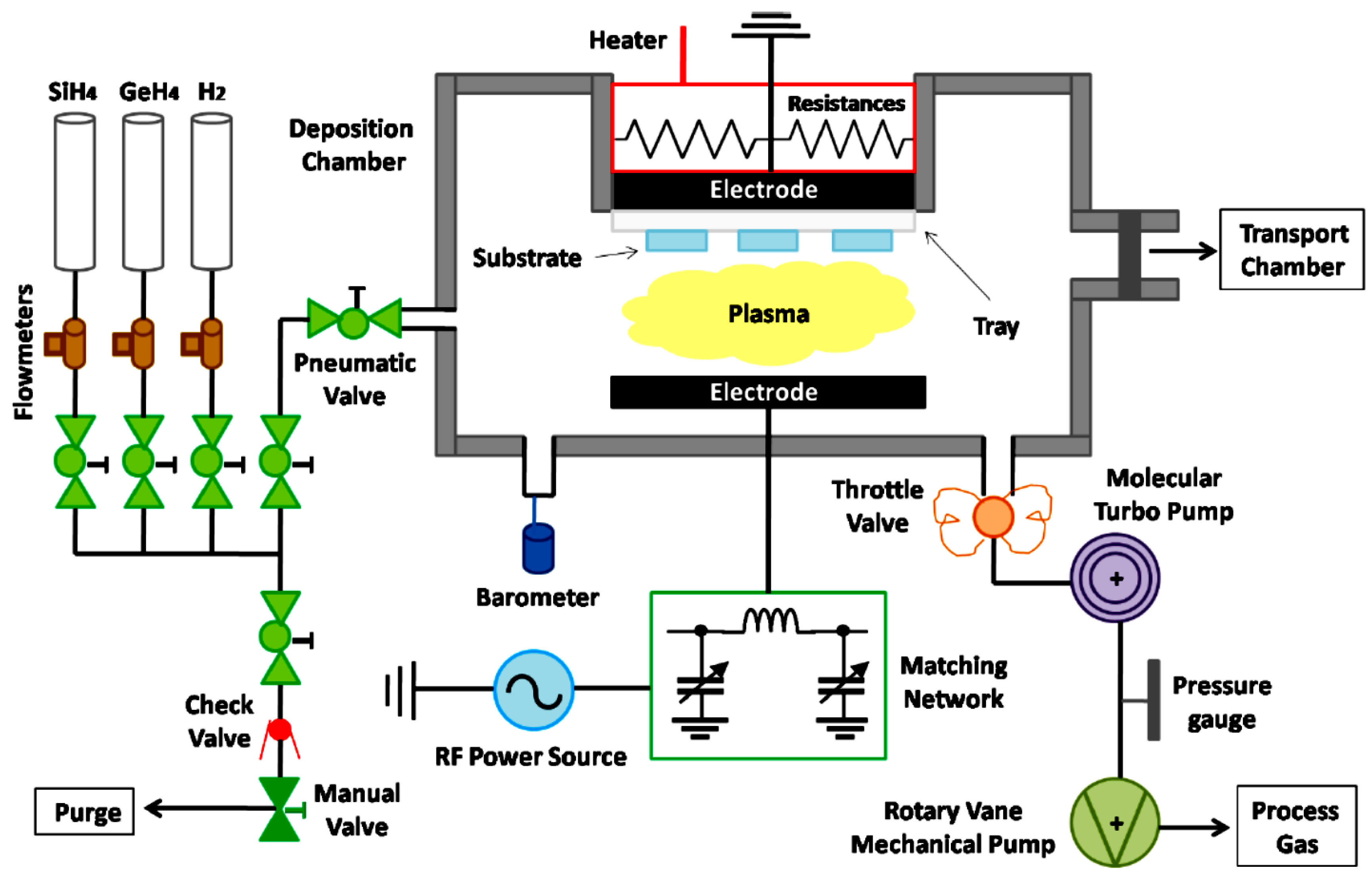

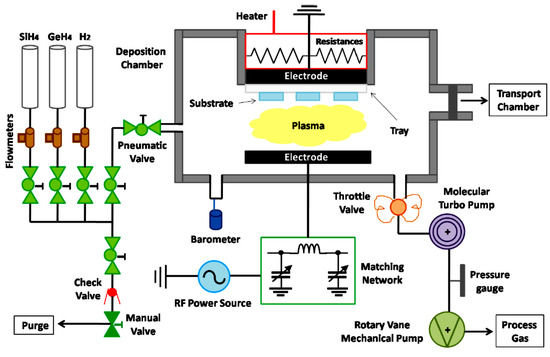

Figure A1. MVSystem Plasma Enhanced Chemical Vapor Deposition (PECVD) chamber configuration.
Figure A1. MVSystem Plasma Enhanced Chemical Vapor Deposition (PECVD) chamber configuration.
Materials 13 01045 g0a1

Appendix B

Table A1. Peak assignments in FTIR spectra of the films studied.
Table A1. Peak assignments in FTIR spectra of the films studied.
SampleK [cm−1]W [cm−1]S [cm−2]Bonding (cm−1) Ref. [23]
RH = 09608.2 ± 0.5111 ± 1(1.50 ± 0.03) × 105Ge–H (570) and Si–H (630) bending
1883.2 ± 0.981 ± 3(1.9 ± 0.1) × 104Ge–H (1880) stretching
2015 ± 1101 ± 3(4.6 ± 0.2) × 104Si–H (2000) stretching
2098 ± 269 ± 4(1.5 ± 0.2) × 104SiH2 (2090–2140) stretching
RH = 20570 ± 573 ± 6(4.9 ± 0.8) × 104Ge–H (570) bending
616 ± 147 ± 5(3.5 ± 0.9) × 104Si–H (630) bending
664 ± 141 ± 1(3.1 ± 0.2) × 104Si–H2 (670) wagging or Si–C stretching
1883.2 ± 0.886 ± 4(2.5 ± 0.2) × 104Ge–H (1880) stretching
2013 ± 377 ± 4(2.9 ± 0.2) × 104Si–H (2000) stretching
2089 ± 685 ± 13(1.5 ± 0.4) × 104SiH2 (2090–2140) stretching
RH = 30559 ± 140 ± 2(1.9 ± 0.3) × 104Ge–H (570) bending
608.2 ± 0.961 ± 5(5.3 ± 0.4) × 104Ge–H (570) and Si–H (630) bending
666.9 ± 0.845 ± 1(3.8 ± 0.2) × 104Si–H2 (670) wagging or Si–C stretching
1878 ± 265 ± 3(3.9 ± 0.3) × 104Ge–H (1880) stretching
2015 ± 167 ± 5(3.9 ± 0.5) × 104Si–H (2000) stretching
2093 ± 593 ± 8(2.8 ± 0.3) × 104SiH2 (2090–2140) stretching or SiH–O
RH = 40571 ± 568 ± 5(4.7 ± 0.9) × 104Ge–H (570) bending
618 ± 254 ± 6(4 ± 1) × 104Ge–H (570) and Si–H (630) bending
1873 ± 269 ± 7(4.5 ± 0.8) × 104Ge–H (1880) stretching
2008 ± 164 ± 3(4.4 ± 0.4) × 104Si–H (2000) stretching
2096 ± 291 ± 8(3.8 ± 0.6) × 104SiH2 (2090–2140) stretching or SiH–O
RH = 50579.2 ± 0.571 ± 1(4.5 ± 0.1973) × 104Ge–H (570) bending
667.3 ± 0.353.2 ± 0.9(5.6 ± 0.1) × 104Si–H2 (670) wagging or Si–C
1876.0 ± 0.218.2 ± 0.5(5.0 ± 0.2) × 103Ge–H (1880) stretching
2002.1 ± 0.322.0 ± 0.8(3.5 ± 0.1) × 103Si–H (2000) stretching
2030.2 ± 0.723 ± 1(1.8 ± 0.1) × 103GeH3 (2050–2060) stretching
RH = 60578.1 ± 0.992 ± 3(3.0 ± 0.2) × 104Ge–H (570) bending
1875.2 ± 0.538 ± 1(1.45 ± 0.05) × 104Ge–H (1880) stretching
2009 ± 133 ± 2(5.7 ± 0.6) × 103Si–H (2000) stretching
2031.9 ± 0.717 ± 1(1.7 ± 0.3) × 103GeH3 (2050–2060) stretching
2066.1 ± 0.623 ± 2(1.5 ± 0.2) × 103GeH3 (2050–2060) stretching
SiGe:H
RH = 70
565.5 ± 0.943 ± 1(2.8 ± 0.1) × 104Ge–H (570) bending
611.8 ± 0.540 ± 1(3.4 ± 0.1) × 104Si–H (630) bending
667.6 ± 0.243.6 ± 0.6(6.3 ± 0.1) × 104Si–H2 (670) wagging or Si–C stretching
1877.6 ± 0.434 ± 2(1.9 ± 0.1) × 104Ge–H (1880) stretching
2032.6 ± 0.555 ± 1(1.78 ± 0.09) × 104Si–H y GeH3Stretching
2130.3 ± 0.772 ± 2(2.2 ± 0.1) × 104SiH3 (2120–2140)Bending
2178 ± 115 ± 3(1.0 ± 0.2) × 103SiH-O2 (2160) cluster
SiGe:H
RH = 75
559 ± 146 ± 3(3.1 ± 0.2) × 104Ge–H (570) bending
610 ± 0.844 ± 2(4.0 ± 0.2) × 104Si–H (630) bending
666 ± 0.441 ± 1(4.9 ± 0.1) × 104Si–H2 (670) wagging or Si–C stretching
1879 ± 0.341.1 ± 0.9(2.17 ± 0.05) × 104Ge–H (1880) stretching
2002.1 ± 0.623 ± 1(4.8 ± 0.4) × 103Si–H (2000) stretching
2036.9 ± 0.533 ± 1(9.2 ± 0.5) × 103GeH3 (2050–2060) stretching
2089 ± 139 ± 5(4.0 ± 0.7) × 103SiH2 (2090–2140) stretching
2143 ± 142 ± 6(5.7 ± 0.8) × 103SiH3 (2120−2140)Bending
2179 ± 120 ± 3(2.0 ± 0.5) × 103SiH–O2 (2160) cluster
SiGe:H
RH = 80
560.9 ± 0.442 ± 1(2.9 ± 0.1) × 104Ge–H (570) bending
611.4 ± 0.340.3 ± 0.9(3.8 ± 0.1) × 104Si–H (630) bending
667.4 ± 0.336 ± 1(1.8 ± 1.2) × 104Si–H2 (670) wagging or Si–C stretching
1880.4 ± 0.441 ± 1(1.61 ± 0.04) × 104Ge–H (1880) stretching
2000.2 ± 0.925 ± 2(4.1 ± 0.8) × 103Si–H (2000) stretching
2037.7 ± 0.736 ± 3(8.7 ± 0.7) × 103GeH3 (2050–2060) stretching
2079 ± 126 ± 3(3.1 ± 0.7) × 103SiH2 (2090–2140) stretching

References

  1. Park, J.; Dao, V.A.; Kim, S.; Pham, D.P.; Kim, S.; Le, A.H.T.; Kang, J.; Yi, J. High Efficiency Inorganic/Inorganic Amorphous Silicon/Heterojunction Silicon Tandem Solar Cells. Sci. Rep. 2018, 8, 1–11. [Google Scholar] [CrossRef] [PubMed]
  2. Ţălu, S. Micro and Nanoscale Characterization of Three Dimensional Surfaces. Basics and Applications, 2015th ed.; Napoca Star Publishing House: Cluj-Napoca, Romania, 2015. [Google Scholar]
  3. Yu, Z.; Zhang, X.; Zhang, H.; Huang, Y.; Li, Y.; Zhang, X.; Gan, Z. Improved power conversion efficiency in radial junction thin film solar cells based on amorphous silicon germanium alloys. J. Alloys Compd. 2019, 803, 260–264. [Google Scholar] [CrossRef]
  4. Ji, X.; Cheng, H.Y.; Grede, A.J.; Molina, A.; Talreja, D.; Mohney, S.E.; Giebink, N.C.; Badding, J.V.; Gopalan, V. Conformal coating of amorphous silicon and germanium by high pressure chemical vapor deposition for photovoltaic fabrics. APL Mater. 2018, 6, 046105. [Google Scholar] [CrossRef][Green Version]
  5. Jiménez, R.; Moreno, M.; Torres, A.; Rosales, P.; Sanz, M.T.; Ambrosio, R. Performance Characterization of Infrared Detectors Based on Polymorphous Silicon-Germanium (pm-Si x Ge 1−x:H) Thin Films Deposited at Low Temperature. Phys. Status Solidi 2018, 215, 1700736. [Google Scholar] [CrossRef]
  6. Wang, Q.; Vogt, H. With PECVD Deposited Poly-SiGe and Poly-Ge Forming Contacts Between MEMS and Electronics. J. Electron. Mater. 2019, 48, 7360–7365. [Google Scholar] [CrossRef]
  7. Huerta, F.L.; García, R.M.W.; González, L.G.; May, A.L.H.; Arriaga, W.C.; Vega, R.; Soto, E. Biocompatibility and surface properties of hydrogenated amorphous silicon-germanium thin films prepared by LF-PECVD. IOP Conf. Ser. Mater. Sci. Eng. 2019, 628, 012003. [Google Scholar] [CrossRef]
  8. Shima, M.; Isomura, M.; Maruyama, E.; Okamoto, S.; Haku, H.; Wakisaka, K.; Kiyama, S.; Tsuda, S. Investigation of hydrogenated amorphous silicon germanium fabricated under high hydrogen dilution and low deposition temperature conditions for stable solar cells. Jpn. J. Appl. Phys. Part 1 Regul. Pap. Short Notes Rev. Pap. 1998, 37, 6322–6327. [Google Scholar] [CrossRef]
  9. Kosarev, A.; Torres, A.; Hernandez, Y.; Ambrosio, R.; Zuniga, C.; Felter, T.E.; Asomoza, R.; Kudriavtsev, Y.; Silva-Gonzalez, R.; Gomez-Barojas, E.; et al. Abramov, Silicon-germanium films deposited by low-frequency plasma-enhanced chemical vapor deposition: Effect of H 2 and Ar dilution. J. Mater. Res. 2006, 21, 88–104. [Google Scholar] [CrossRef]
  10. Shima, M.; Terakawa, A.; Isomura, M.; Haku, H.; Tanaka, M.; Wakisaka, K.; Kiyama, S.; Tsuda, S. Effects of very high hydrogen dilution at low temperature on hydrogenated amorphous silicon germanium. J. Non Cryst. Solids 1998, 227, 442–446. [Google Scholar] [CrossRef]
  11. MacKenzie, K.D.; Eggert, J.R.; Leopold, D.J.; Li, Y.M.; Lin, S.; Paul, W. Structural, electrical, and optical properties of a-Si1-xGex:H and an inferred electronic band structure. Phys. Rev. B 1985, 31, 2198–2212. [Google Scholar] [CrossRef] [PubMed]
  12. Liu, Y.; Dalal, V.L. Properties of amorphous silicon-germanium films and devices deposited at higher growth rates. MRS Proc. 2002, 715, A18.3. [Google Scholar] [CrossRef]
  13. Wickboldt, P.; Pang, D.; Paul, W.; Chen, J.H.; Zhong, F.; Chen, C.-C.; Cohen, J.D.; Williamson, D.L. High performance glow discharge a-Si1−xGex:H of large x. J. Appl. Phys. 1997, 81, 6252–6267. [Google Scholar] [CrossRef]
  14. Sahli, F.; Werner, J.; Kamino, B.A.; Bräuninger, M.; Monnard, R.; Paviet-Salomon, B.; Barraud, L.; Ding, L.; Leon, J.J.D.; Sacchetto, D.; et al. Fully textured monolithic perovskite/silicon tandem solar cells with 25.2% power conversion efficiency. Nat. Mater. 2018, 17, 820–826. [Google Scholar] [CrossRef] [PubMed]
  15. Cosme, I.; Kosarev, A.; Mansurova, S.; Olivares, A.J.; Martinez, H.E.; Itzmoyotl, A. Hybrid photovoltaic structures based on amorphous silicon and P3HT: PCBM/PEDOT:PSS polymer semiconductors. Org. Electron. Phys. Mater. Appl. 2016, 38, 271–277. [Google Scholar] [CrossRef]
  16. Madaka, R.; Kanneboina, V.; Agarwal, P. Low-Temperature Growth of Amorphous Silicon Films and Direct Fabrication of Solar Cells on Flexible Polyimide and Photo-Paper Substrates. J. Electron. Mater. 2018, 47, 4710–4720. [Google Scholar] [CrossRef]
  17. Mansurova, S.; Cosme, I.; Kosarev, A.; Olivares, A.J.; Ospina, C.; Martinez, H.E. AZO/PEDOT: PSS Polymer Frontal Interface Deposited on Flexible Substrates for a-Si:H Photovoltaic Applications. Polymers 2018, 10, 1068. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. Stutzmann, M.; Street, R.A.; Tsai, C.C.; Boyce, J.B.; Ready, S.E. Structural, optical, and spin properties of hydrogenated amorphous silicon-germanium alloys. J. Appl. Phys. 1989, 66, 569–592. [Google Scholar] [CrossRef]
  19. Chou, Y.-P.; Lee, S.-C. Structural, optical, and electrical properties of hydrogenated amorphous silicon germanium alloys. J. Appl. Phys. 1998, 83, 4111–4123. [Google Scholar] [CrossRef]
  20. Shah, A.V. Thin-Film Silicon Solar Cells, 1st ed.; EPFL Press: New York, NY, USA, 2010. [Google Scholar] [CrossRef]
  21. Martirosyan, V. Atomistic Simulations of H2 and He Plasmas Modification of Thin-Films Materials for Advanced Etch., Université Grenoble Alpes. Available online: https://tel.archives-ouvertes.fr/tel01803013/document (accessed on 15 January 2020).
  22. Kim, S.; Park, C.; Lee, J.-C.; Cho, J.-S.; Kim, Y. Preferential etching of Si–Si bond in the microcrystalline silicon germanium. Curr. Appl. Phys. 2013, 13, 457–460. [Google Scholar] [CrossRef]
  23. Collins, R.W. Hydrogenated amorphous silicon alloy deposition processes. J. Non Cryst. Solids 1994, 170, 210–213. [Google Scholar] [CrossRef]

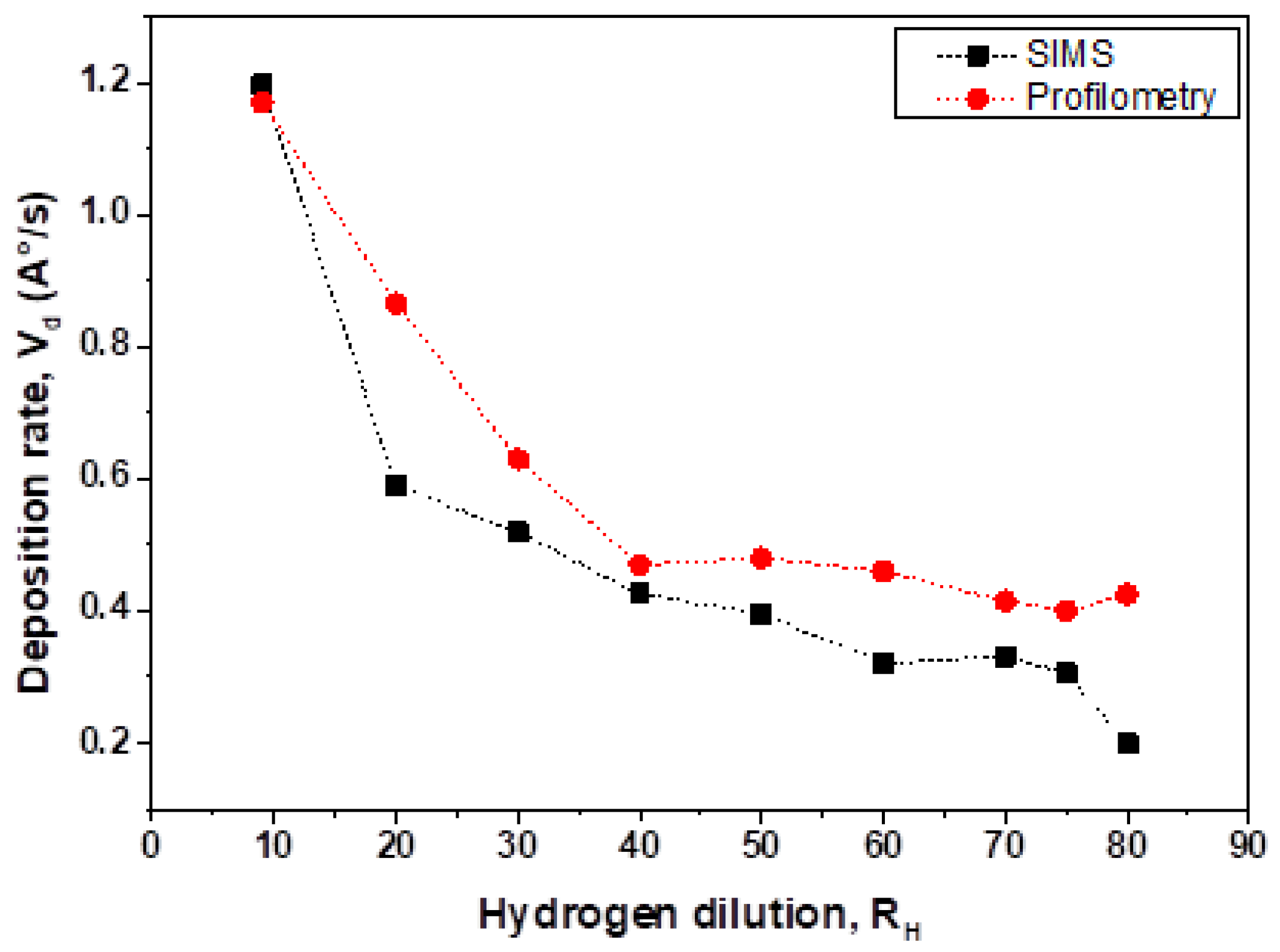

Figure 1. Deposition rate as a function of hydrogen dilution ratio Vd(RH) calculated from step measurements and estimation of depth from measurements of the crater created by SIMS.
Figure 1. Deposition rate as a function of hydrogen dilution ratio Vd(RH) calculated from step measurements and estimation of depth from measurements of the crater created by SIMS.
Materials 13 01045 g001

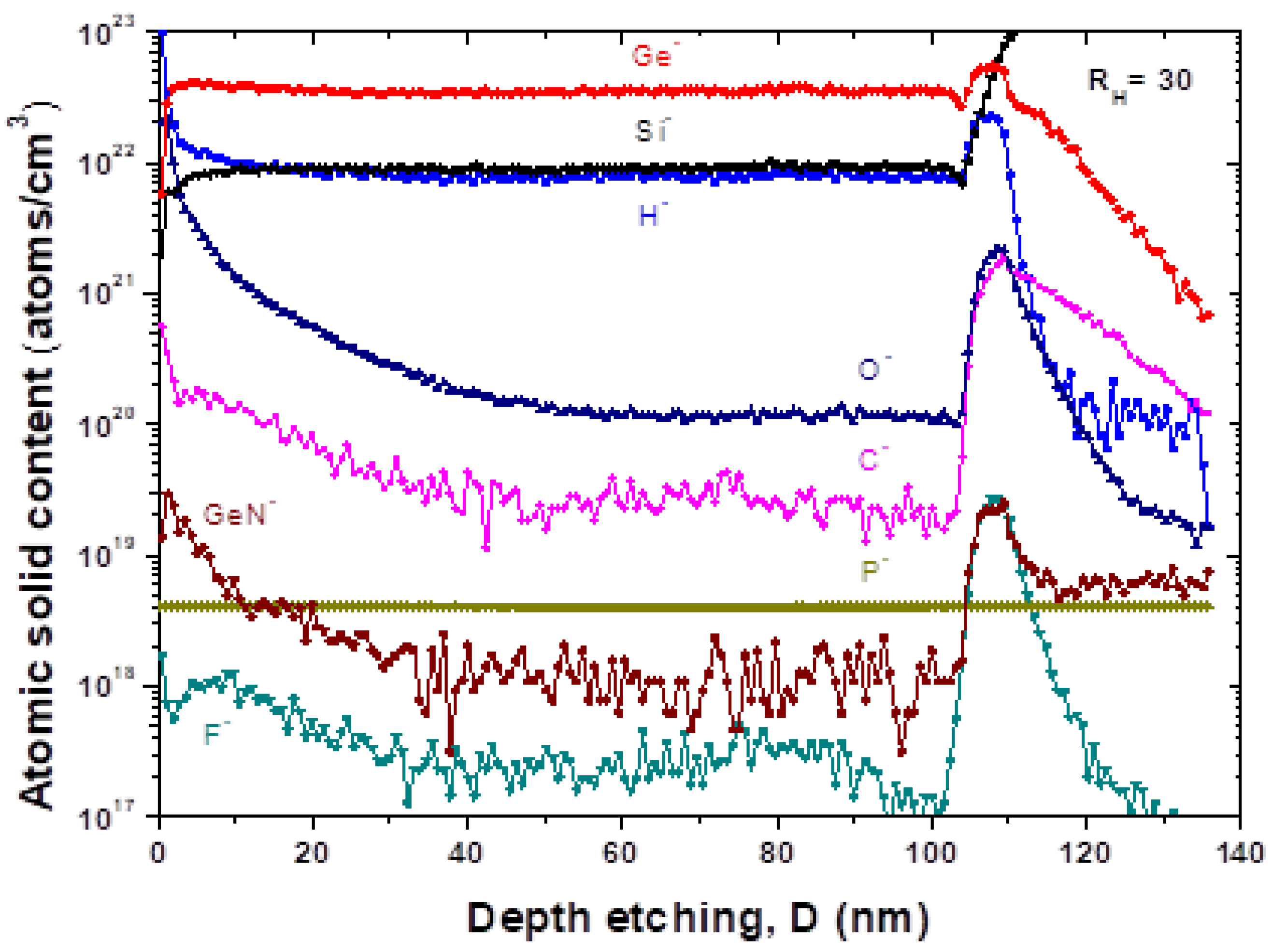

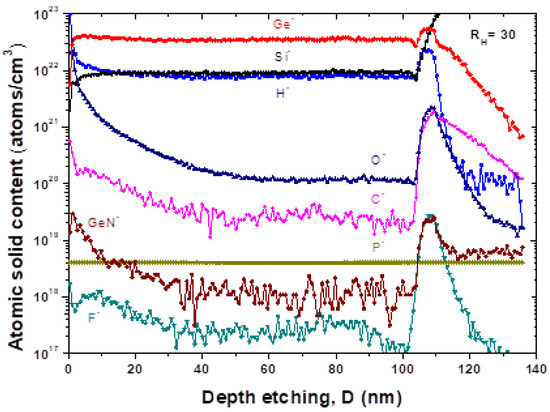

Figure 2. SIMS depth profile of H-, C-, O-, F-, Si-, P-, Ge-, GeN- elements in silicon–germanium film (RH = 30) grown on p+-doped c-Si wafer.
Figure 2. SIMS depth profile of H-, C-, O-, F-, Si-, P-, Ge-, GeN- elements in silicon–germanium film (RH = 30) grown on p+-doped c-Si wafer.
Materials 13 01045 g002

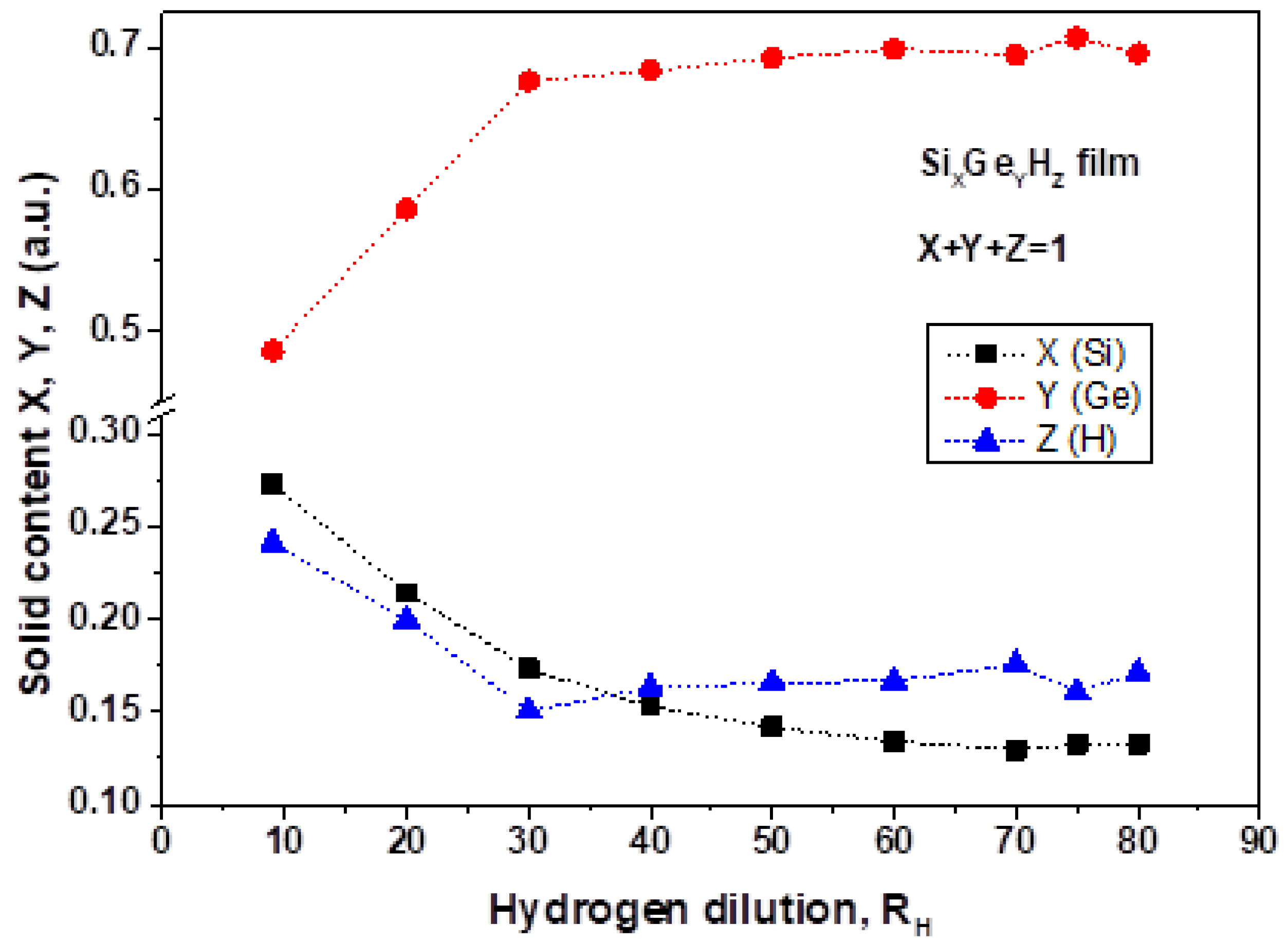

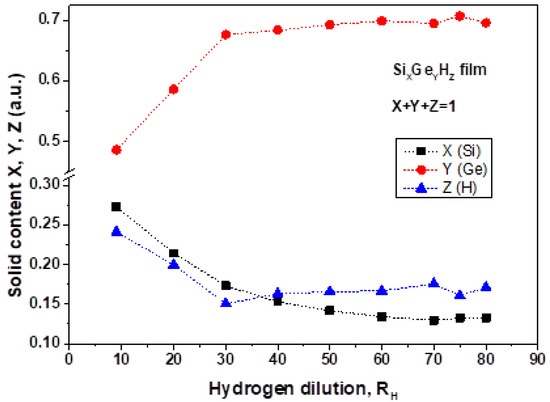

Figure 3. Solid content composition for SiXGeY:HZ films as a function of the hydrogen dilution rate.
Figure 3. Solid content composition for SiXGeY:HZ films as a function of the hydrogen dilution rate.
Materials 13 01045 g003

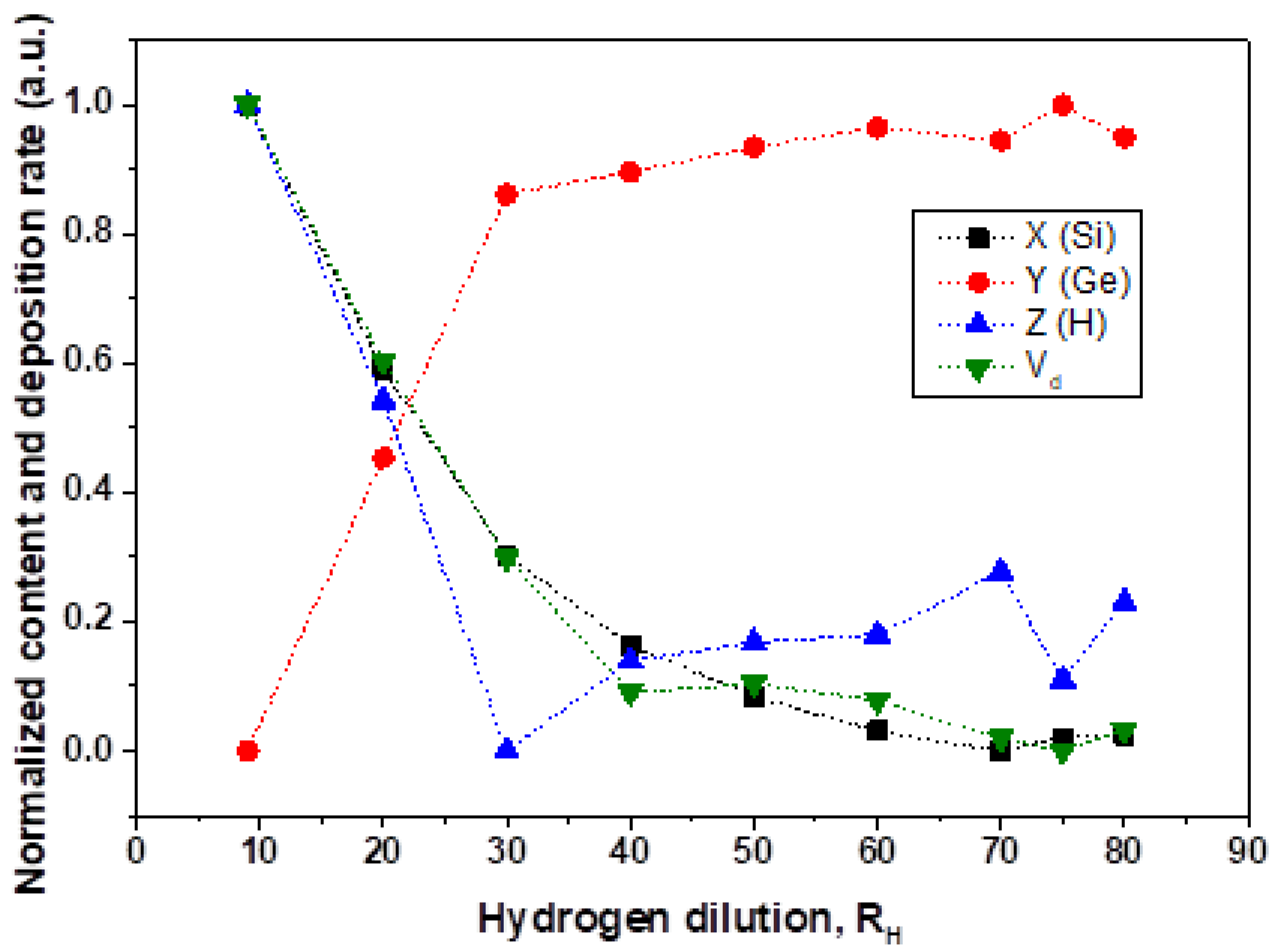

Figure 4. Normalized values for solid silicon, germanium, and hydrogen content and deposition rate of SiXGeY:HZ films as a function of hydrogen dilution ratio.
Figure 4. Normalized values for solid silicon, germanium, and hydrogen content and deposition rate of SiXGeY:HZ films as a function of hydrogen dilution ratio.
Materials 13 01045 g004

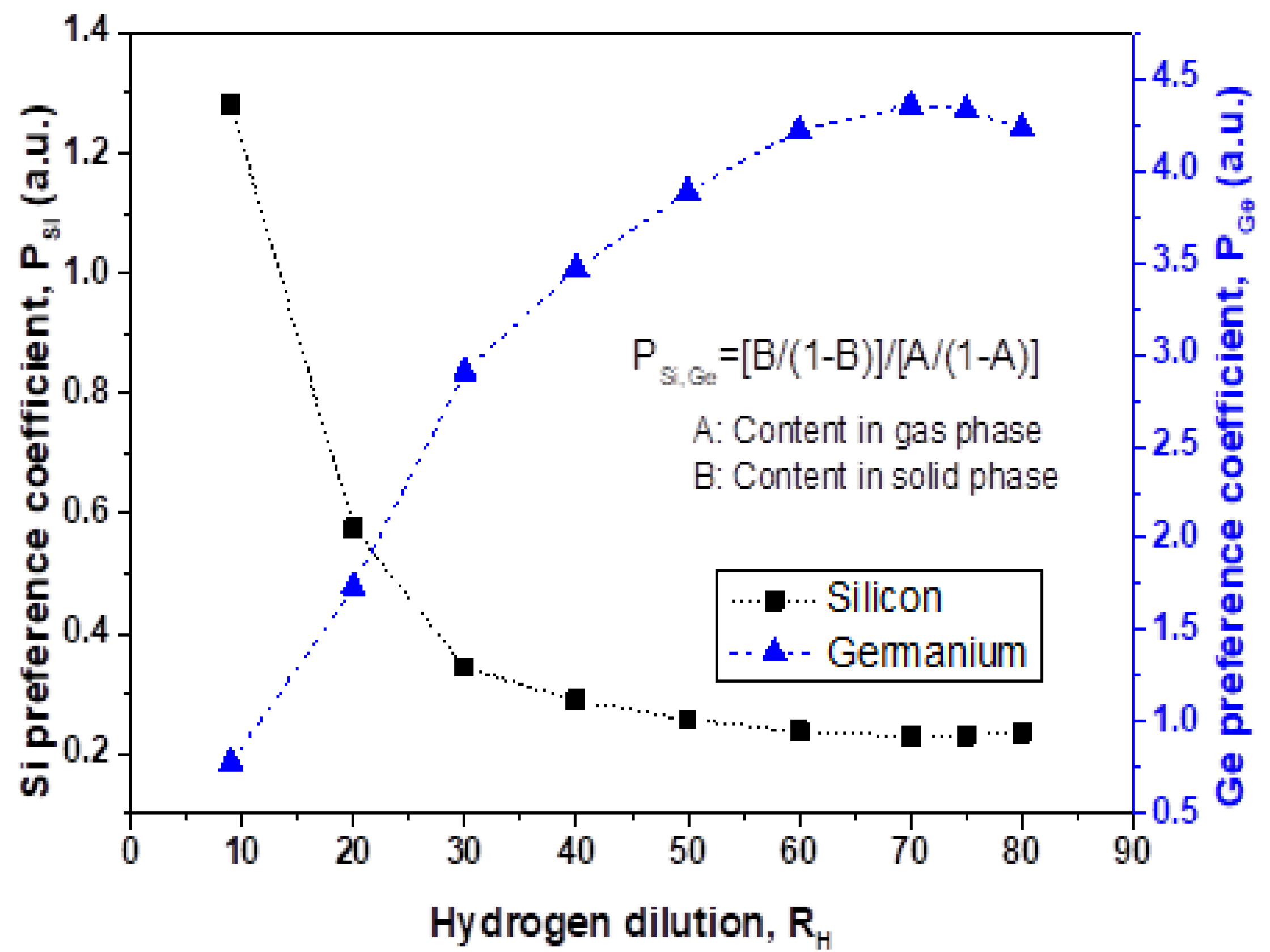

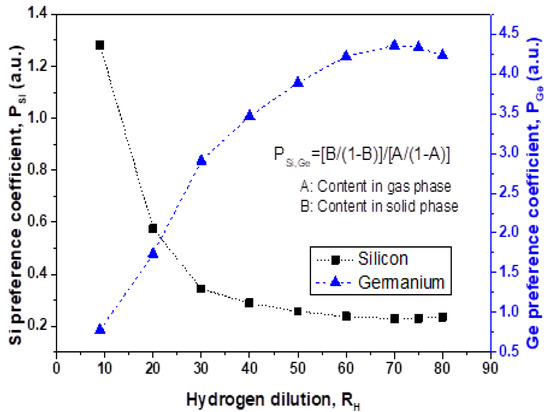

Figure 5. Coefficients of preferential incorporation of Si and Ge atoms, PSi and PGe, as a function of hydrogen dilution.
Figure 5. Coefficients of preferential incorporation of Si and Ge atoms, PSi and PGe, as a function of hydrogen dilution.
Materials 13 01045 g005

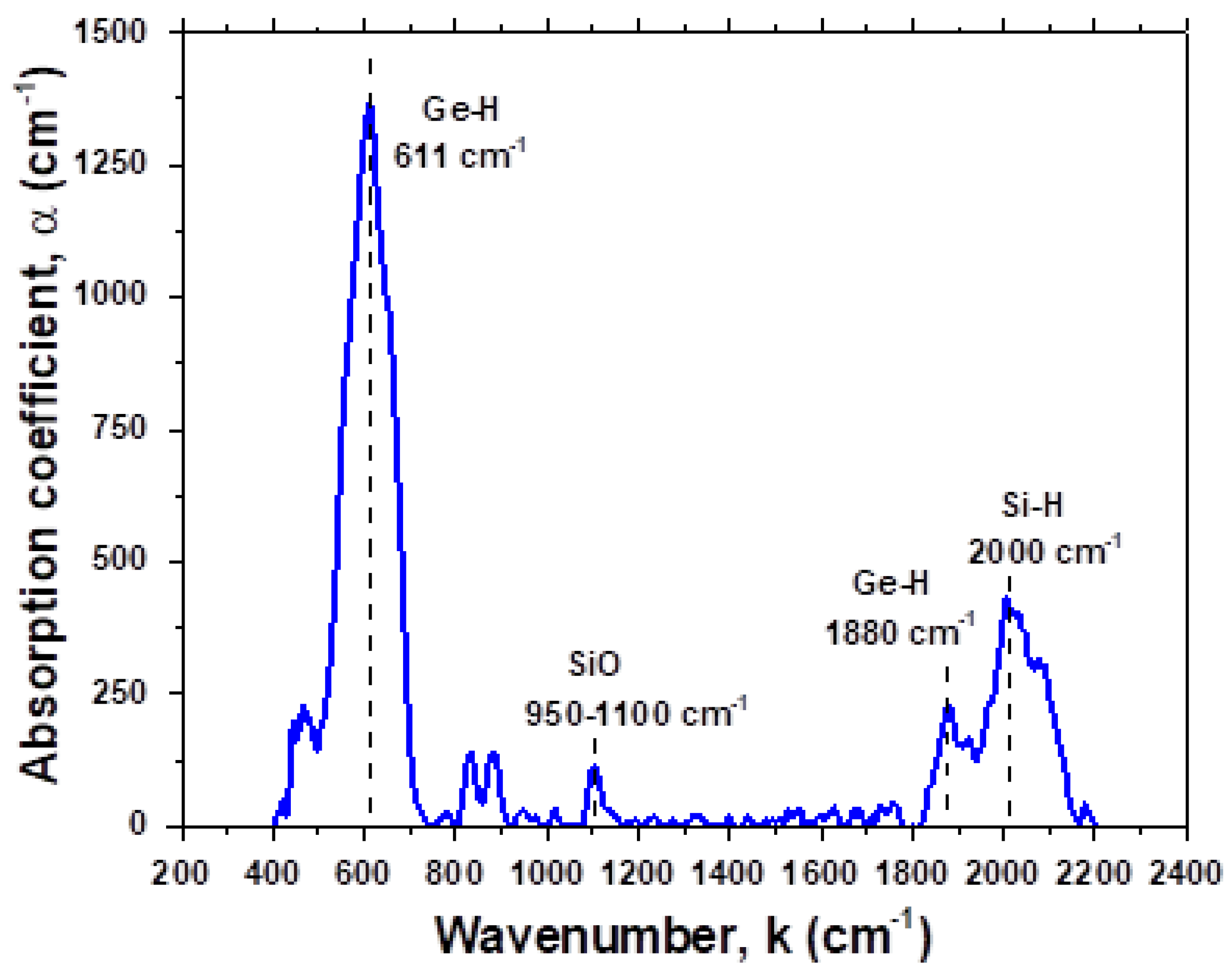

Figure 6. General view of IR spectra in the Si–Ge:H samples deposited at RH = 0.9.
Figure 6. General view of IR spectra in the Si–Ge:H samples deposited at RH = 0.9.
Materials 13 01045 g006

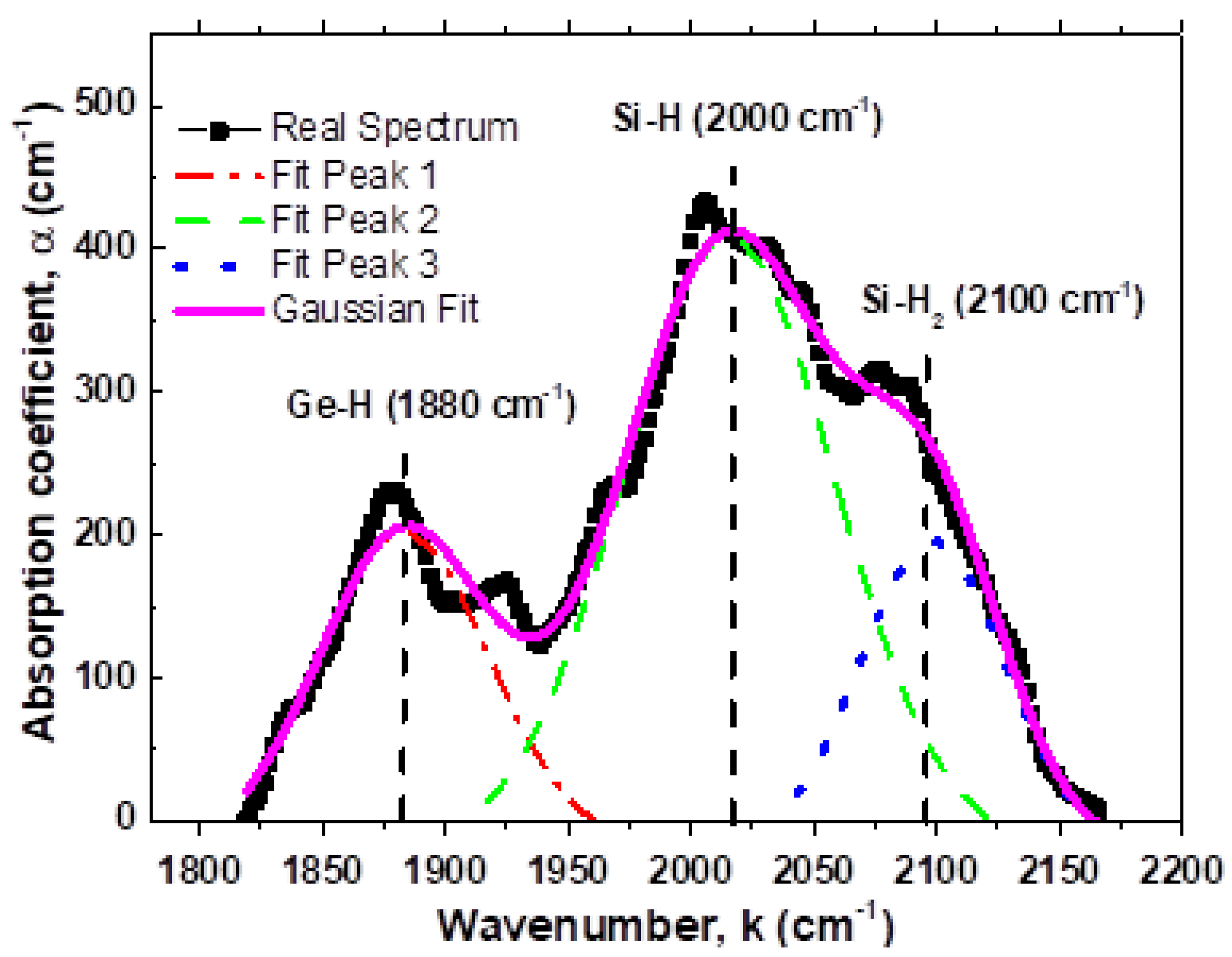

Figure 7. Experimental IR spectrum of stretching vibration modes and deconvolution of Ge–H and Si–H for the SiGe:H films deposited at RH = 09.
Figure 7. Experimental IR spectrum of stretching vibration modes and deconvolution of Ge–H and Si–H for the SiGe:H films deposited at RH = 09.
Materials 13 01045 g007

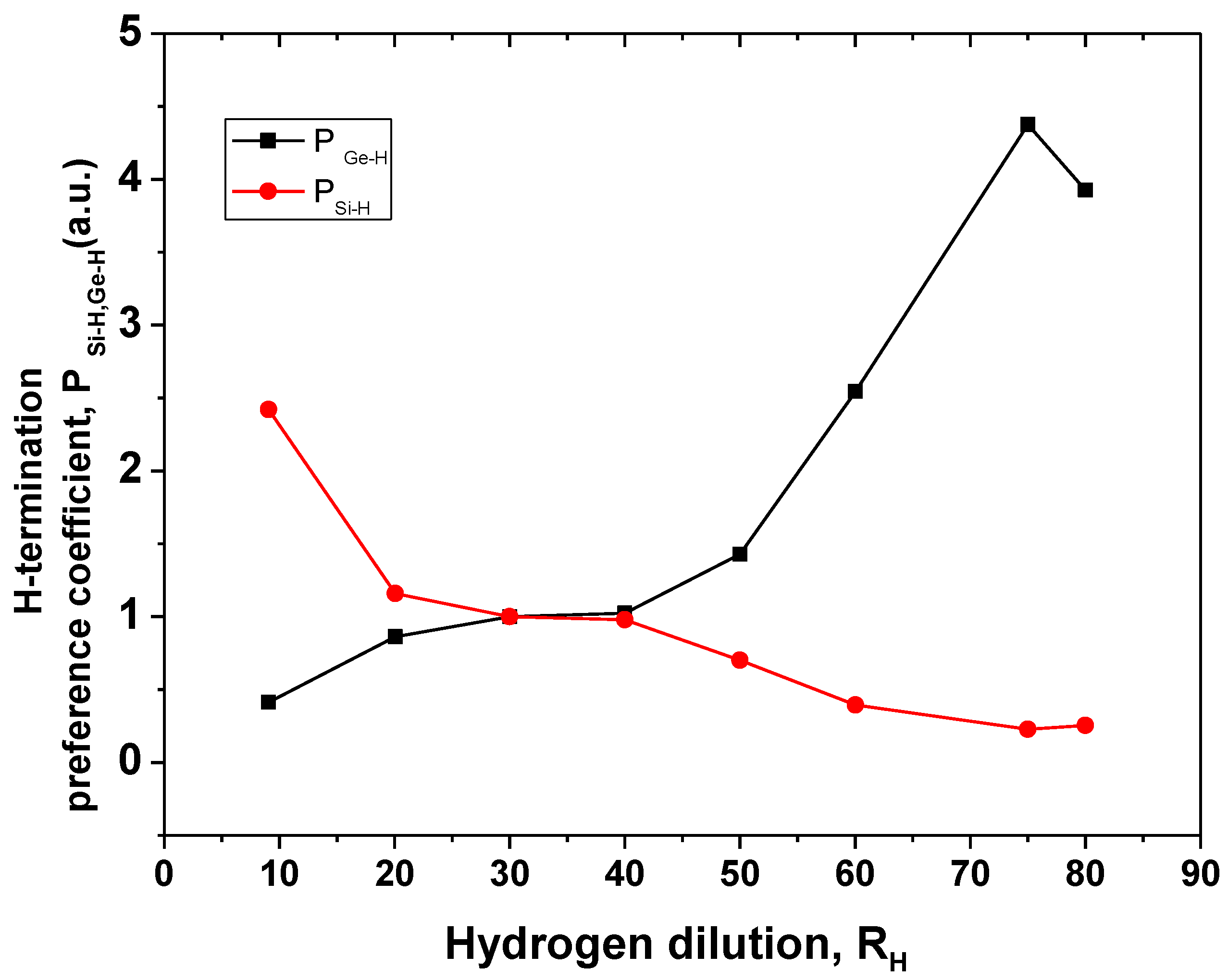

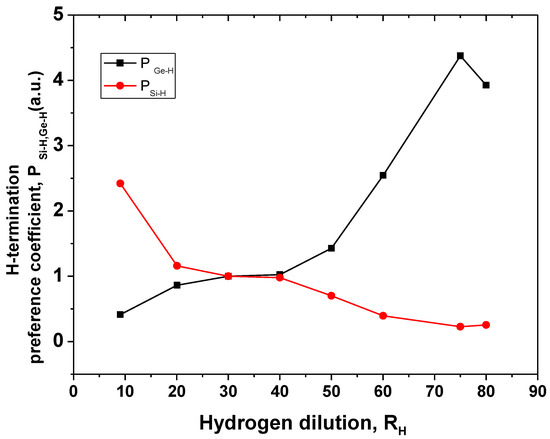

Figure 8. Factor of preferential H- termination for Si–H and Ge–H bonds in the Si–Ge:H films deposited with different H-dilution.
Figure 8. Factor of preferential H- termination for Si–H and Ge–H bonds in the Si–Ge:H films deposited with different H-dilution.
Materials 13 01045 g008
