Preparation of Continuous Alumina Fiber with Nano Grains by the Addition of Iron Sol

Abstract

Continuous alumina fiber exhibits excellent mechanical properties owing to its dense microstructure with fine grains. In this study, alumina fiber was prepared by the sol–gel method using iron sol as a nucleating agent. It was proposed that the α-Al₂O₃ grain size be adjusted based on the modification of colloidal particle size. The effect of holding temperature and reaction material ratio on the iron colloidal particle size was studied. The microstructure of alumina fiber was characterized by scanning electron microscopy (SEM). The experiment results indicated that iron colloidal particle size increases with the holding temperature and the NH₄HCO₃/Fe(NO₃)₃·9H₂O ratio. The alumina fiber with uniform nano α-Al₂O₃ grains was obtained by calcination at 1400 °C for 5 min. The mean grain size tends to rise with the mean colloidal particle size. Using the iron sol as a nucleating agent, the fiber with a mean grain size of 22.5 nm could be formed. The tensile strength of fibers increased with the decrease of grain size.

1. Introduction

Continuous alumina fiber has been widely applied in various fields such as aerospace, military industry and automobile, owing to its high strength, high modulus and exceptional oxidation resistance [1,2,3,4,5,6]. The excellent mechanical properties of alumina fiber mainly depend on the dense nanocrystalline structure. For example, Nextel^TM 610 fiber and FP fiber are typical alumina fibers with high purity of α-Al₂O₃ (>99 wt.%). The Nextel^TM 610 fiber, having a grain size of ~100 nm, exhibits high tensile strength of greater than 3.1 GPa [3], while the tensile strength of FP fiber is only about 1.4 GPa due to its larger grains (>500 nm) [5]. Hay et al. [6] found that the tensile strength of Nextel^TM 610 fiber was reduced with the growth of α-Al₂O₃ grains. Thus, controlling the grain size is essentially important in order to prepare high performance alumina fiber.

Generally, alumina fiber is prepared by the sol-gel method [7,8,9,10,11,12]. In this method, complex phase transformations of Al₂O₃ take place. The fiber transfers from amorphous to metastable phases (η, δ, γ, etc.) and then transforms into α-Al₂O₃. Since the transformation temperature of metastable phases to α-Al₂O₃ is about 1200 °C, it is challenging to avoid α-Al₂O₃ grain from coarsening during the transformation and densification processes. In order to obtain fiber with fine grains, nano α-Al₂O₃, α-Fe₂O₃ and α-Cr₂O₃ serving as seeds are added in alumina fiber, which induce the heterogeneous nucleation of α-Al₂O₃ at a lower temperature [13,14,15,16,17,18]. Yamamura et al. [14] found that the alumina gel added with 5 wt.% α-Al₂O₃ particles partially crystallized to α-Al₂O₃ by annealing at temperature as low as 600 °C. Li et al. [19] revealed that the addition of 3 wt.% α-Al₂O₃ seeds lowered the γ-to-α transformation temperature by 175 °C. As a result, the primary α-Al₂O₃ grain size decreased from 56 to 30 nm. Kumagai et al. [20] found that the introduction of nano α-Al₂O₃ seeds resulted in a dense microstructure with α-Al₂O₃ grain size of 100–400 nm at 1200 °C. In addition, Nextel^TM 610 fiber, the most representative alumina fiber, was also successfully produced by adding 0.7 wt.% Fe₂O₃. The addition of Fe₂O₃ provided the benefits of forming fine α-Al₂O₃ grains with the uniform size of 100 nm. In theory, increasing nucleation sites leads to the formation of more α-Al₂O₃ grains, subsequently contributing to refine grains. Li et al. [19] found that the grain size of the alumina fiber sintered at 1100 °C decreases from 86.7 to 74.3 nm, when the weight percent of α-Al₂O₃ seeds rises from 1% to 3%. However, the content of nucleating agent cannot be added indefinitely in order to obtain continuous high purity alumina fiber.

Theoretically, reducing the seed size is an effective way to increase the amount of nucleation sites when the content of the nucleating agent is constant. Xie et al. [21] compared the effect of α-Al₂O₃-seed size on the transformation from κ to α phase. Employing the same content of nucleating agent, the sample added with finer α-Al₂O₃ powder exhibits a smaller average particle size with a narrow distribution. However, the size of α-Al₂O₃, Fe₂O₃ and α-Cr₂O₃ powders is limited by the production technologies, which is usually lager than 10 nm. Considering the agglomeration of nanoparticles, the nucleation seed size is almost larger than the particle size of powders. Thus, employing powders as nucleating agents, the seed size is difficult to further decrease. Wilson et al. [22] prepared a dense α-Al₂O₃ fiber with finer grains (200–300 nm) through the addition of iron sol. It was confirmed that the iron sol could be transformed into α-Fe₂O₃ before the formation of α-Al₂O₃ and accelerating the transformation from metastable phases to α-Al₂O₃. Compared with powders, the size of colloidal particles can be controlled in the range of 1–100 nm. In addition, the iron colloidal particles can be uniformly distributed in the aluminum sol. However, these factors affecting iron colloidal particle size are unclear. The influence of iron colloidal particle sizes on the transformation of Al₂O₃ and the morphology of α-Al₂O₃ grains has not been reported.

In this paper, it was proposed to prepare alumina fiber with ultra-fine grains by adjusting the iron colloidal particle size. Fe(NO₃)₃·9H₂O and NH₄HCO₃ were employed to prepare the iron sol. The effect of the material ratio and reaction temperature on the microstructure of iron colloidal particles was investigated. Alumina fiber with the nano grain size was prepared using iron sol as a nucleating agent. The relationship between the iron colloidal particle size and the grain size of α-Al₂O₃ fiber was discovered. The effect of iron sol on the microstructure of alumina fiber was discussed.

2. Materials and Methods

2.1. Iron Sol Preparation

Analytical pure Fe(NO₃)₃·9H₂O and NH₄HCO₃ provided by Aladdin (Shanghai, China) were used to prepare the iron sol. Firstly, Fe(NO₃)₃·9H₂O and NH₄HCO₃ were dissolved in a proper amount of water at room temperature. The weight ratios of Fe(NO₃)₃·9H₂O/H₂O and NH₄HCO₃/H₂O were set to be at 1:23.5 and 1:10, respectively. Then, a certain amount of NH₄HCO₃ solution was slowly added (3 drops/s) into the rapidly stirred Fe(NO₃)₃ solution, which was placed in a 500 mL conical flask and stirred by a magnetic stirrer. The molar ratios of NH₄HCO₃ to Fe(NO₃)₃·9H₂O were set to be at 1.5, 1.75, 2.0, 2.25 and 2.5. Finally, the mixed solution was held at a certain temperature for 1 h. The holding temperature varied from 25 to 80 °C.

2.2. Preparation of Alumina Fibers

In this study, alumina fiber was prepared by the sol-gel method, which includes the preparation of alumina precursor sol, concentration of the precursor sol and the spinning and sintering processes [23,24]. In this study, alumina powder (>99.5 wt.%, 1–3 μm), formic acid (99 wt.%), acetic acid (99.5 wt.%), nitric acid (65 wt.%) and deionized water (lab made) were employed to prepare the alumina precursor sol. The alumina powder, formic acid, acetic acid and nitric acid were all provided by Aladdin (Shanghai, China). The molar ratio of starting materials was set to be at 1:0.67:0.6:0.36:28. The alumina precursor sol was prepared at 85 °C in a single-layer glass reactor. The iron sol was added into the alumina precursor sol prior to the concentration process. The additional amount of iron sol was set in order to obtain a high-purity alumina fiber with 0.65 wt.% Fe₂O₃. The mixed solution was concentrated at 30–60 °C using a rotary evaporator (Shanghai Xiande Experimental Instrument Co., LTD, Shanghai, China) to obtain sols with a suitable viscosity (50–200 Pa∙s) for spinning. The precursor fiber was prepared using a lab-made dry spinning apparatus and collected by a bobbin winder. The precursor fiber was first preheated at 500 °C and then calcined at 1400 °C for 5 min using a tube furnace (BTF-1600C-IV-SL, BEQ, Hefei, China).

2.3. Characterization

The morphology of iron colloidal particles was observed by a high-resolution transmission electron microscopy (TEM, JEM-2100F, JEOL, Tokyo, Japan). The colloidal particle size and Zeta potential of iron sol were measured by a particle size analyzer (Zetasizer Nano ZS, Malvern, Malvern, England). The thermal decomposition behavior of iron sol was analyzed using a simultaneous thermal analyzer (STA-449C, Netzsch, Selb, Germany). The microstructure of calcined alumina fiber was characterized by a scanning electron microscopy (SEM, Nova Nano, FEI, Hillsboro, Oregon, USA). The fiber mean grain size was calculated by measuring the grain sizes using the image analysis software Images J (V1.51, National Institutes of Health, Bethesda, Maryland, America). More than 800 grains were randomly selected from the cross-section image and measured for each fiber. The tensile strength of the fiber was measured by a fiber strength tester (XS(08)XT-3, XuSai, Shanghai, China) at room temperatures. The gauge length of the tested fiber was set to be at 15 mm. The cross-sectional area of the fiber was measured by SEM. In this study, thirty samples were tested for each kind of fiber in order to acquire its strength values.

3. Results and Discussion

3.1. Effect of Preparation Conditions on the Size of Iron Colloidal Particles

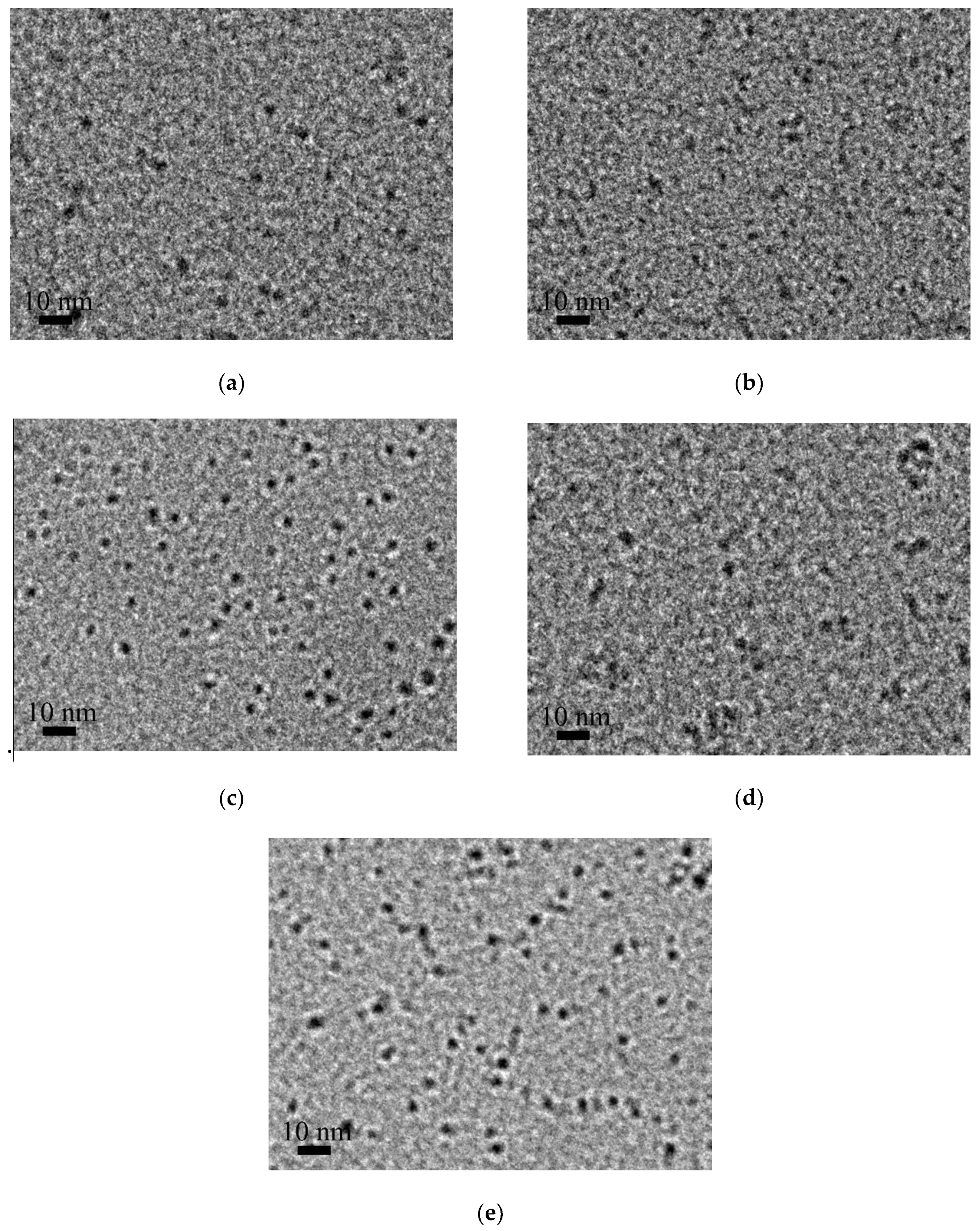

In this study, iron sol was successfully prepared, which could be characterized by the color of dark red-brown. When a laser beam penetrated the sol, the Tyndall effect could be clearly observed. The morphology of iron colloidal particles obtained at different holding temperature is shown in Figure 1. In these cases, the molar ratio of NH₄HCO₃ to Fe(NO₃)₃·9H₂O was set to be at 2.5. In Figure 1, the black dots correspond to iron colloidal particles. It can be seen that the colloidal particles are approximately spherical with a particle size of less than 10 nm. When the holding temperature rises, the colloidal particles tend to be larger.

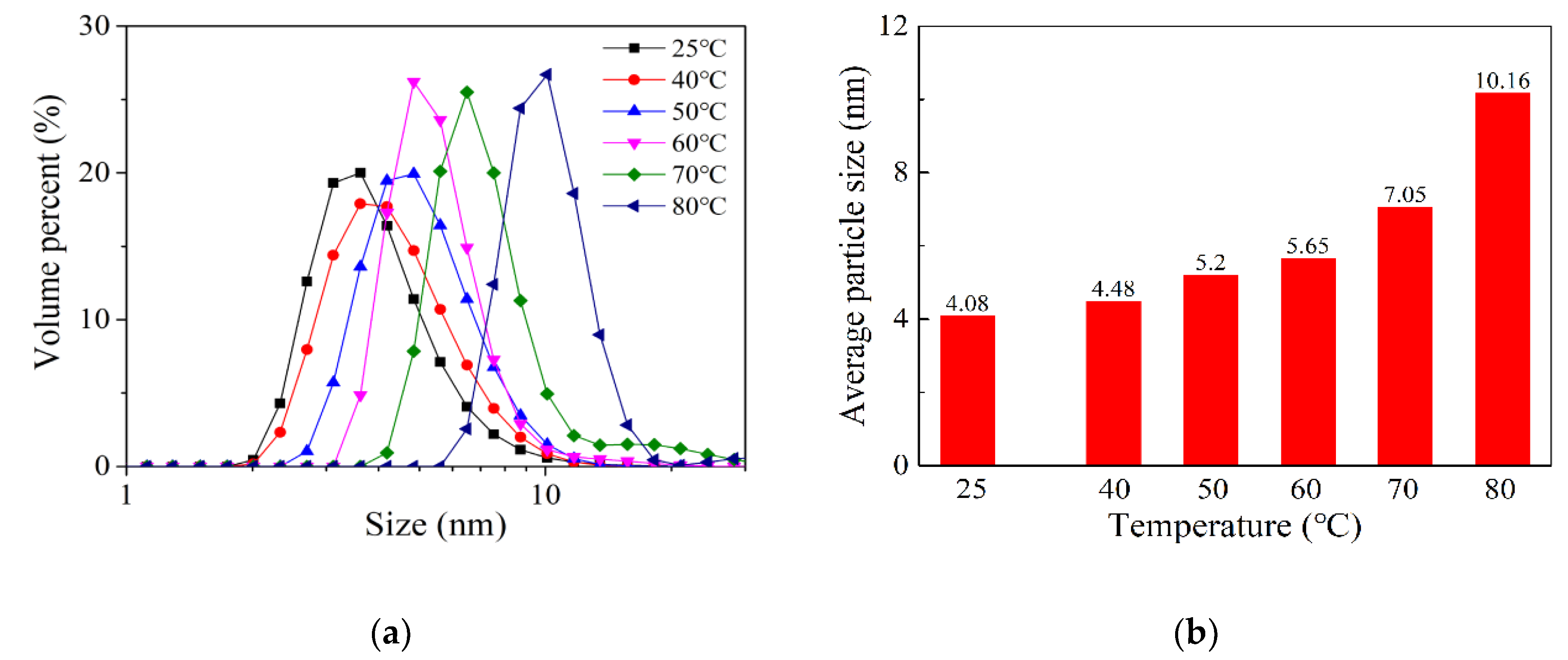

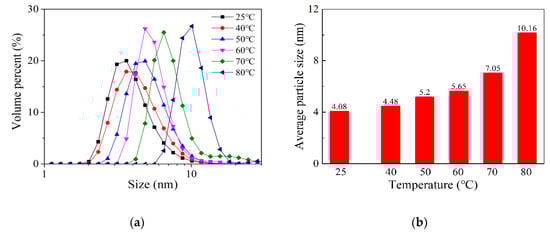

The colloidal particle size of iron sol was measured by a particle size analyzer. As shown in Figure 2a, the colloidal particle size follows the lognormal distribution. The sol that was prepared at temperatures ranging from 25 to 70 °C, its colloidal particle size mainly distributed in the range of 2–10 nm. With the increase of holding temperature, the distribution curve of colloidal particle size shifted to the right, which means that large colloidal particles tend to be formed at a higher temperature. When the holding temperature increased to 80 °C, the colloidal particle size varied from 5 to 20 nm, which is much larger than others. Figure 2b shows the average size of iron colloidal particles. It was also found that the average size sharply increases from 7.06 to 10.16 nm, when the holding temperature rose from 70 to 80 °C. Compared with the TEM results, the colloidal particle size obtained by the particle size analyzer is a little larger. This is because water in iron colloidal particles was lost during the preparation of the TEM sample. As a result, the size of iron colloidal particles decreased. Based on the above results, it is confirmed that increasing holding temperature contributes to larger iron colloidal particles being formed.

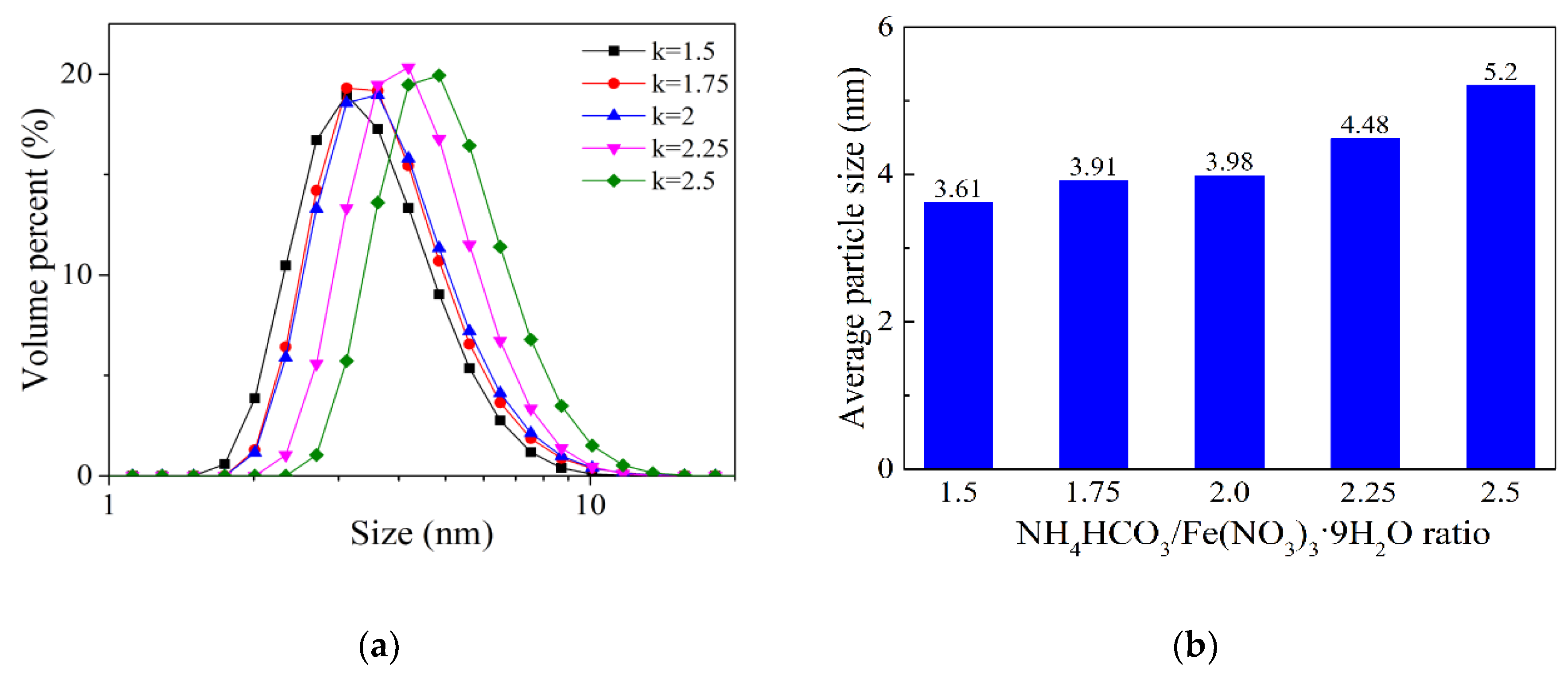

Figure 3a presents the effect of NH₄HCO₃/Fe(NO₃)₃·9H₂O ratio on the size distribution of the iron colloidal particles prepared at 50 °C. As shown in this figure, iron colloidal particle size mainly distributes in the range of 2–10 nm. The distribution curves of colloidal particle size are similar to the iron sols prepared under different conditions. When the ratio rises from 1.5 to 2.5, the distribution curve shifts to the right a little. Figure 3b shows the relationship between the average colloidal particle size and the NH₄HCO₃/Fe(NO₃)₃·9H₂O molar ratio. It can be seen that the average size of iron colloidal particles is only 3.61 nm when the NH₄HCO₃/Fe(NO₃)₃·9H₂O ratio is set to be at 1.5. With the increase of the material ratio, the average colloidal particle size slightly increases from 3.61 to 5.2 nm.

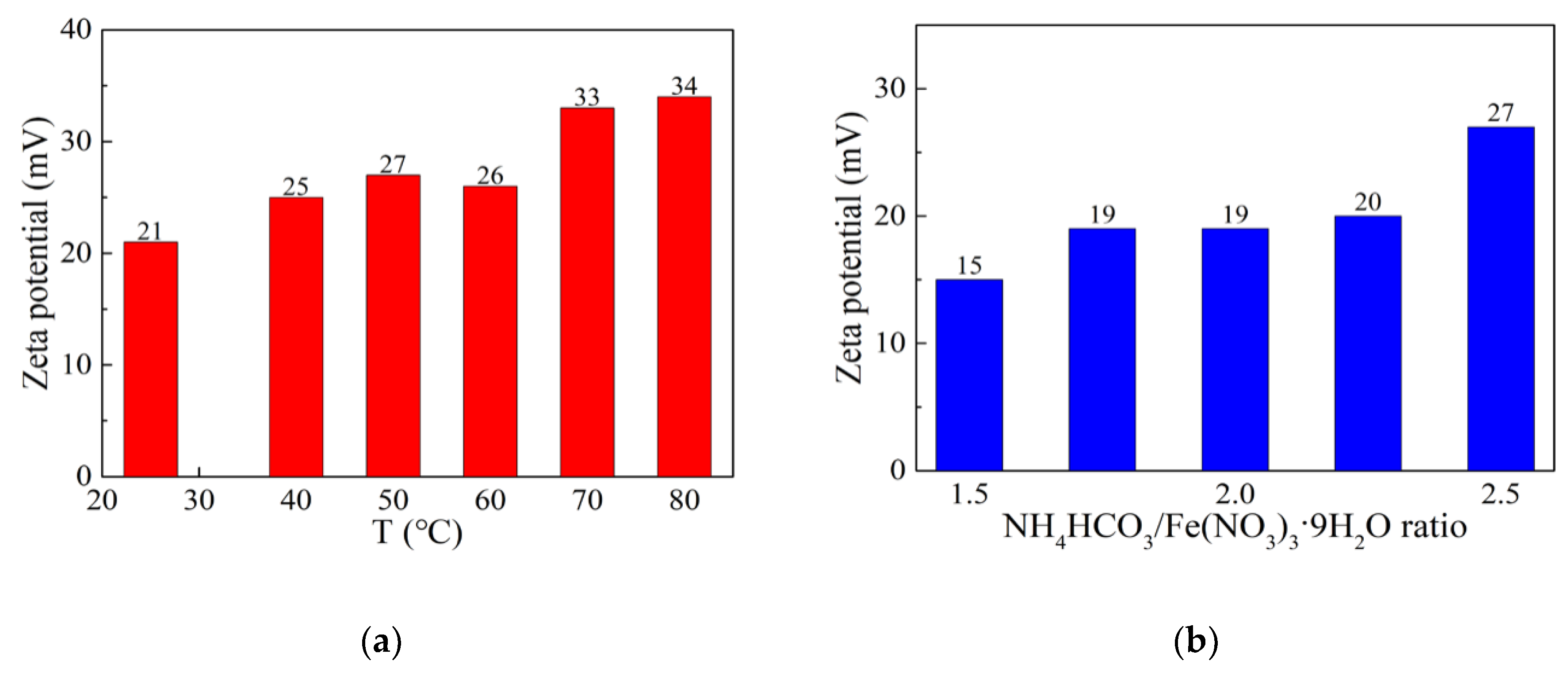

The stability of iron sol was studied by measuring the Zeta potential. As shown in Figure 4, the iron colloidal particles are positively charged, which is the same as alumina precursor colloidal particles. The zeta potential of iron sol ranges from 15 to 34 mV, indicating that all the sols are stable. Thus, the iron sol and alumina precursor sol can be mixed evenly without colloid coagulation. Among all sols, the one prepared at 50 °C with the NH₄HCO₃/Fe(NO₃)₃·9H₂O ratio of 1.5 has the smallest zeta potential. This is probably related to its small colloidal particle size.

During the preparation process of iron sol, many complicated chemical reactions took place, such as the hydrolysis reaction and the polymerization reaction. It was discovered that hydrous iron polymers have the following formula [25],

[FeO_q(OH)_x(H₂O)_p^{[3-(x + 2q)]+}]_n[counterion^s−]_[3 − _{(x + 2q)]n/s}

(1)

where s is the charge of the counterion having a value of 1, 2 or 3 and n can be larger than 500. The counterion can be any water-solubilizing anion, such as Cl⁻, NO³⁻ and COOH⁻. These complicated reactions can be simply described in the following equations:

$${\mathrm{Fe}}^{3+} + {\mathrm{H}}_2\mathrm{O} \rightleftharpoons {\mathrm{Fe}\left(\mathrm{OH}\right)}^{2+} + {\mathrm{H}}^{+}$$

(2)

$${\mathrm{Fe}\left(\mathrm{OH}\right)}^{2+} + {\mathrm{H}}_2\mathrm{O} \rightleftharpoons {\mathrm{Fe}{\left(\mathrm{OH}\right)}_2}^{+} + {\mathrm{H}}^{+}$$

(3)

$$\mathrm{Fe}(\mathrm{OH}{{)}_2}^{+} + {\mathrm{H}}_2\mathrm{O} \rightleftharpoons \mathrm{Fe}(\mathrm{OH}{)}_3 + {\mathrm{H}}^{+}$$

(4)

$${{\mathrm{NH}}_4}^{+} + {\mathrm{H}}_2\mathrm{O} \rightleftharpoons {\mathrm{NH}}_4\left(\mathrm{OH}\right) + {\mathrm{H}}^{+}$$

(5)

$${{\mathrm{HCO}}_3}^{\text{–}} + {\mathrm{H}}_2\mathrm{O} \rightleftharpoons {\mathrm{H}}_2{\mathrm{CO}}_3 + {\mathrm{HO}}^{\text{–}}$$

(6)

$${{\mathrm{HCO}}_3}^{\text{–}} + {\mathrm{H}}^{+} \rightleftharpoons {\mathrm{H}}_2\mathrm{O} + {\mathrm{CO}}_2$$

(7)

$${\mathrm{nFe}(\mathrm{OH}{)}_{\mathrm{z}}}^{(3 \text{–} \mathrm{z})+} + {\mathrm{H}}_2\mathrm{O} \rightleftharpoons [{\mathrm{FeO}}_{\mathrm{q}}(\mathrm{OH}{)}_{\mathrm{x}}{({\mathrm{H}}_2\mathrm{O}{)}_{\mathrm{p}}}^{[3-(\mathrm{x} + 2\mathrm{q})]+}{]}_{\mathrm{n}}$$

(8)

In this study, adding more NH₄HCO₃ solution in the Fe(NO₃)₃ solution will consume more H⁺ and accelerate the hydrolysis reaction of Fe³⁺. Since the Fe³⁺ hydrolysis reaction is an endothermic reaction, the increasing temperature also promotes the hydrolysis reaction. As a result, the value of x increases with the increase of holding temperature or NH₄HCO₃/Fe(NO₃)₃·9H₂O ratio. In the hydrous iron polymer, OH^– can work as a bridge joining the two Fe³⁺ together. When the value of x increases, the colloid particles become larger. Although the polymerization reaction is an exothermic reaction, a large energy barrier should be overcome during the polymerization process [26]. Thus, large colloidal particles tend to be formed at higher holding temperatures.

3.2. Thermal Analysis of Iron Sol

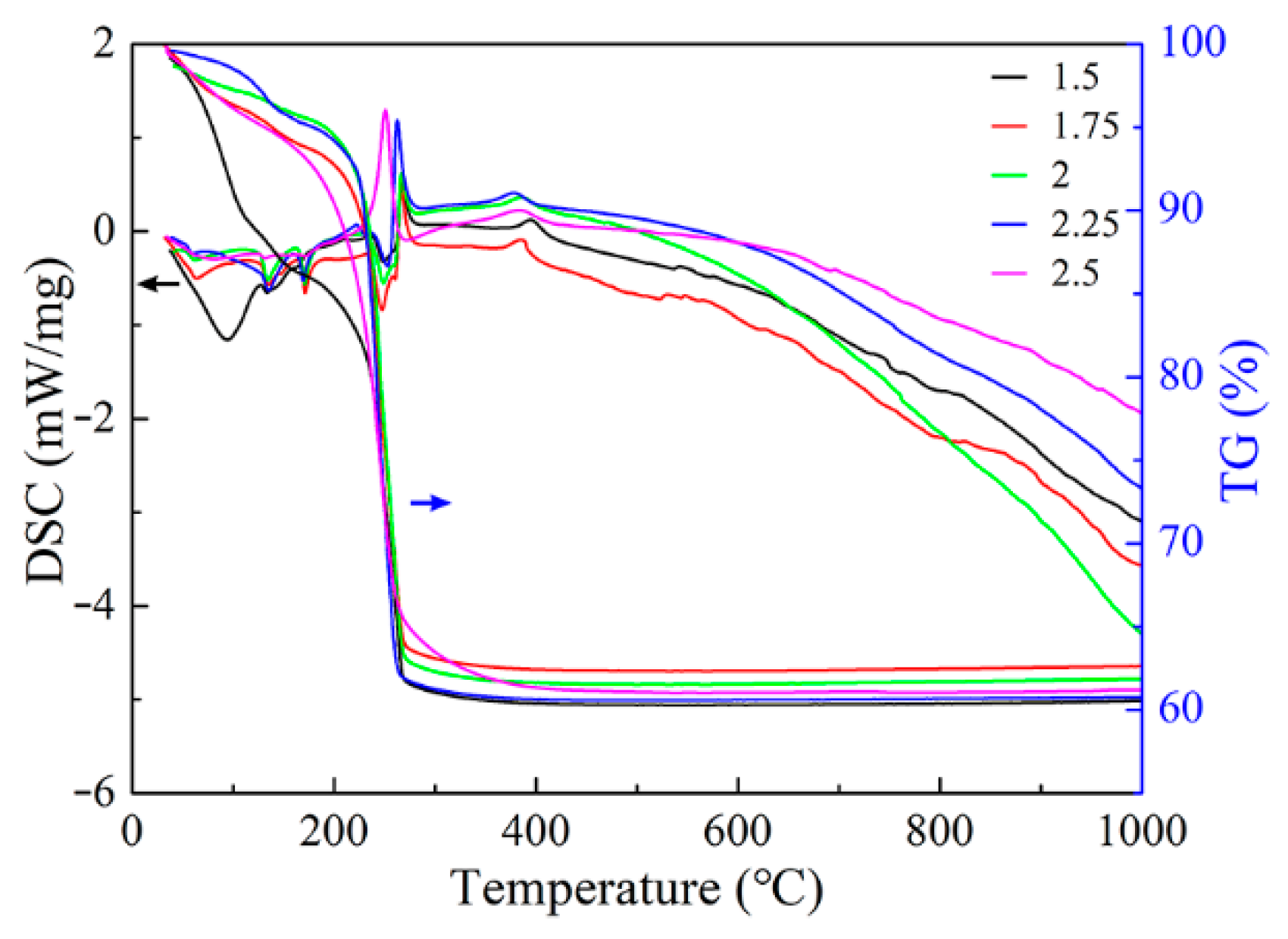

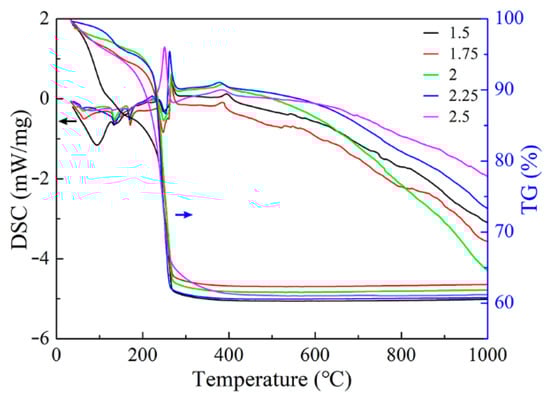

Figure 5 shows the TG–DSC curves of iron sols prepared with different NH₄HCO₃/Fe(NO₃)₃·9H₂O ratios. It can be seen that these TG–DSC curves are similar for different samples. Thus, the iron sol prepared at 70 °C with the NH₄HCO₃/Fe(NO₃)₃·9H₂O ratio of 2.5 was taken as an example to study its thermal decomposition behavior. These TG–DSC curves of iron sol obtained at a heating rate of 10 °C/min in air atmosphere are presented in Figure 5. The TG curve reveals that the mass loss of iron sol occurs from room temperature to about 400 °C, which can be divided into three stages. In the first stage, from room temperature to about 190 °C, the mass decreases slowly and the weight loss is about 7%. The second stage is from 190 °C to 270 °C. In this stage, the mass sharply declines from 93% to 64%. In the third stage (270–400 °C), the mass decreases gradually and the weight loss is only 3%. After that, the mass of iron sol keeps in constant. During the thermal decomposition process, the total weight loss is approximately 39%. As shown in Figure 5, there are three small endothermic peaks and two exothermic peaks in the DSC curve. All endothermic peaks distribute in the first stage. The two exothermic peaks are at 251 and 380 °C, respectively. Among all peaks, the one at 251 °C is the sharpest, which corresponds to the sharp decline in mass. According to the TG–DSC curves, it was inferred that the first stage of thermal decomposition is related to the removal of free water, bound water and ammonia gas. In the second stage, the dehydration and condensation of hydroxyl and the decomposition of Nitrate take place. In the third stage, the weight loss is probably caused by the removal of residual hydroxyl and Nitrate.

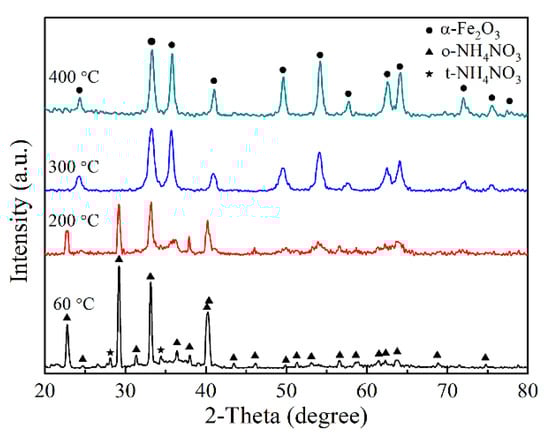

The exothermic peak at 380 °C is related to the transformation from iron sol to α-Fe₂O₃. It can be seen that α-Fe₂O₃ starts to form at about 350 °C. Figure 6 shows the XRD patterns of the iron sols. The iron sol dried at 60 °C for 12 h consists of orthorhombic NH₄NO₃ (o-NH₄NO₃), the amorphous phase and a small amount of tetragonal NH₄NO₃ (t-NH₄NO₃). The amorphous phase corresponds to the hydrous iron polymers. When the iron sol was annealed at 200 °C for 1 h, the thermal decomposition of iron sol occurred. As a result, the intensity of these peaks related to o-NH₄NO₃ and t-NH₄NO₃ decreases. When the sol was calcined at 300 or 400 °C for 1 h, the iron sol completely transformed into α-Fe₂O₃. Since the formation temperature of α-Fe₂O₃ is much lower than that of α-Al₂O₃, the iron sol can be served as a nucleating agent for alumina fiber.

3.3. The Effect of Iron Sol on the Microstructure of Calcined Alumina Fibers

In this study, the iron sols prepared with the NH₄HCO₃/Fe(NO₃)₃·9H₂O ratio of 1.5, 2.0 and 2.5 at 50 °C and the sols obtained with the NH₄HCO₃/Fe(NO₃)₃·9H₂O ratio of 2.5 at the temperature of 40, 50, 60, 70 and 80 °C were chosen as nucleating agents to be added in alumina fibers. For simplicity, the iron sol was labeled as T-x and K-y, where T represents the one being prepared at different temperatures with the NH₄HCO₃/Fe(NO₃)₃·9H₂O ratio of 2.5, K corresponds to the sol obtained with different material ratio at 50 °C and x and y are the holding temperature and the NH₄HCO₃/Fe(NO₃)₃·9H₂O ratio, respectively. The Al₂O₃ fibers prepared in this study are listed in

Table 1. Samples prepared in this study.

Fiber Sample	Iron Sol	Iron Sol Preparation Condition
		Holding Temperature	NH4HCO3/Fe(NO3)3·9H2O Ratio
A1	T40	40 °C	2.5
A2	T50	50 °C	2.5
A3	T60	60 °C	2.5
A4	T70	70 °C	2.5
A5	T80	80 °C	2.5
B1	K1.5	50 °C	1.5
B2	K2.0	50 °C	2.0

.

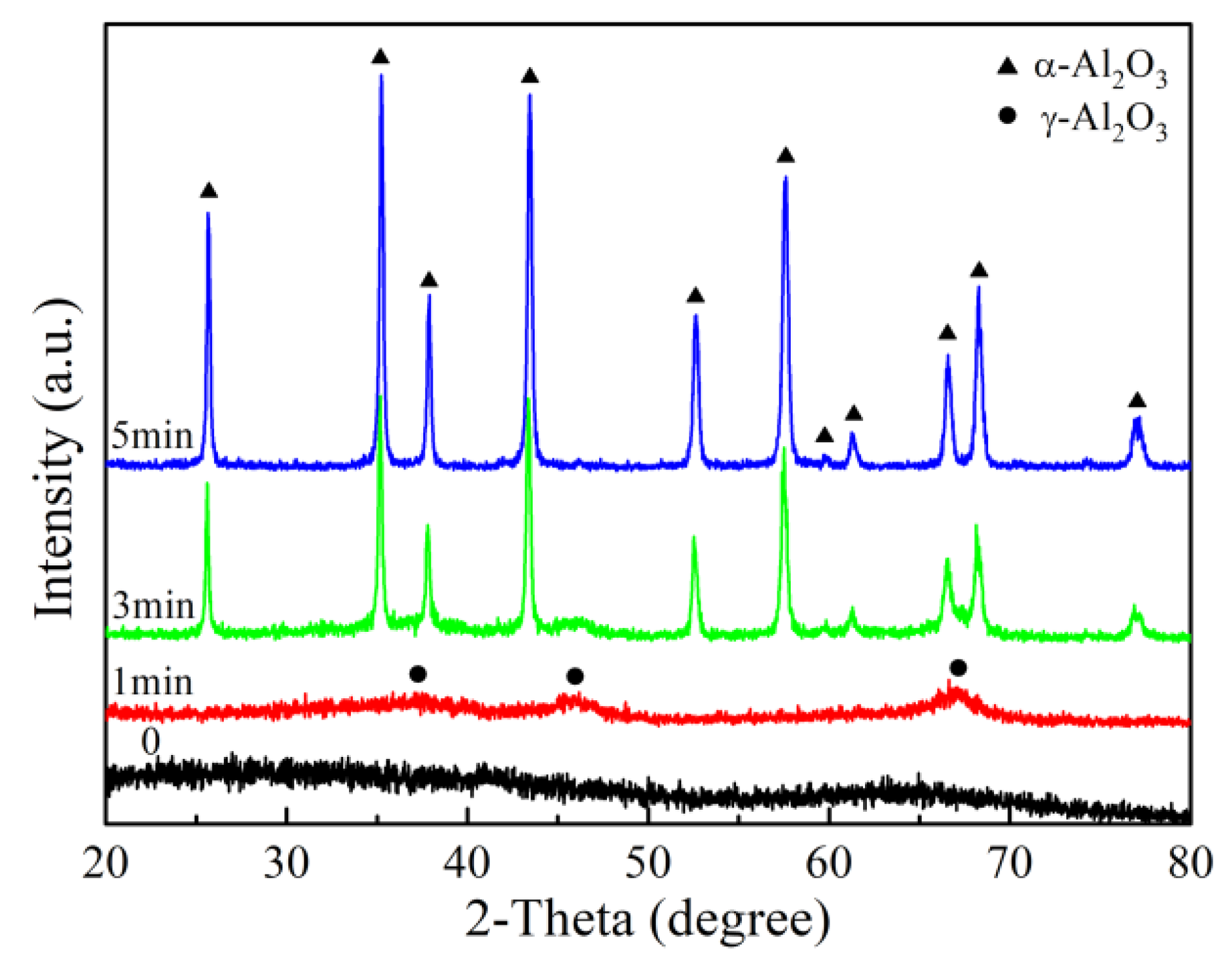

The Fe content in the calcined Al₂O₃ fibers was measured by inductively coupled plasma optical emission spectrometer (ICP-OES). The calculated Fe₂O₃ content based on the Fe content varied from 0.63% to 0.66%, which is in agreement with the setting value. The sample A4 was taken as an example to study the phase transformation of alumina fiber. Figure 7 shows the XRD patterns of this fiber. It can be seen that the amorphous phase exists only in the fiber preheated at 500 °C. When the fiber was calcined at 1400 °C for 1 min, the amorphous Al₂O₃ partially crystallized to γ-Al₂O₃. With the holding time prolonged, α-Al₂O₃ became the main phase. The fiber completely transformed into α-Al₂O₃ phase, when it was calcined for 5 min. Thus, all the alumina fibers were calcined at 1400 °C for 5 min.

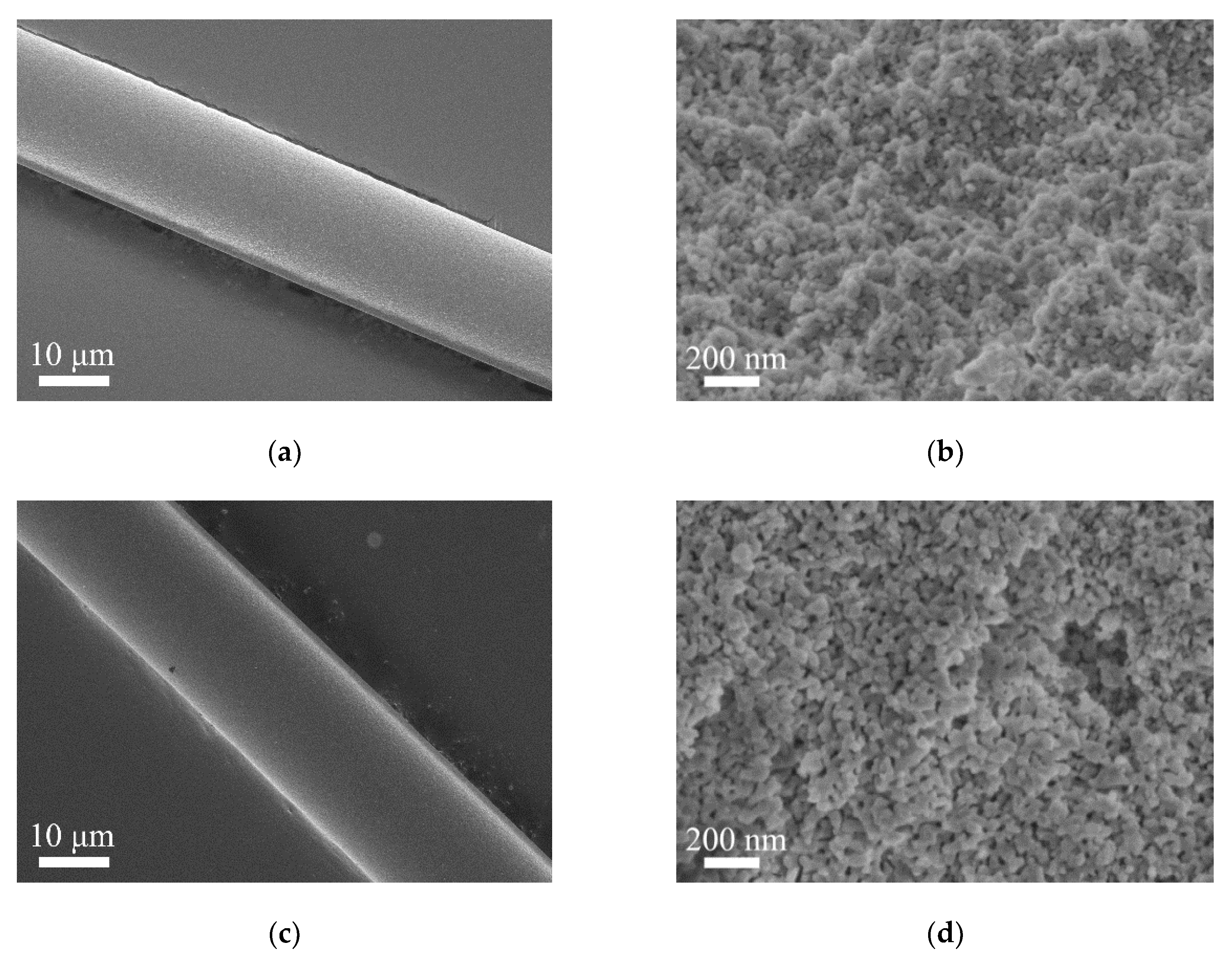

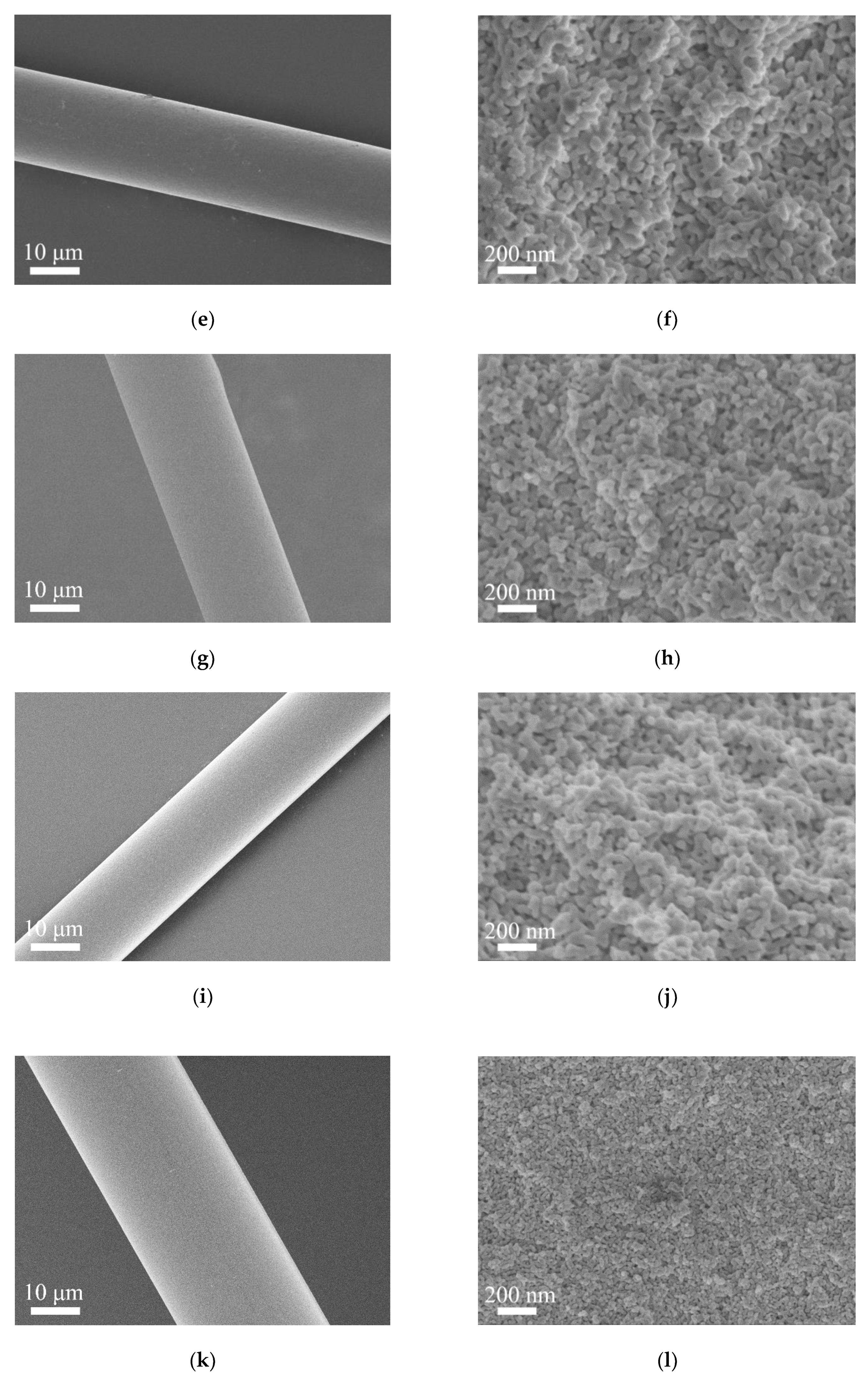

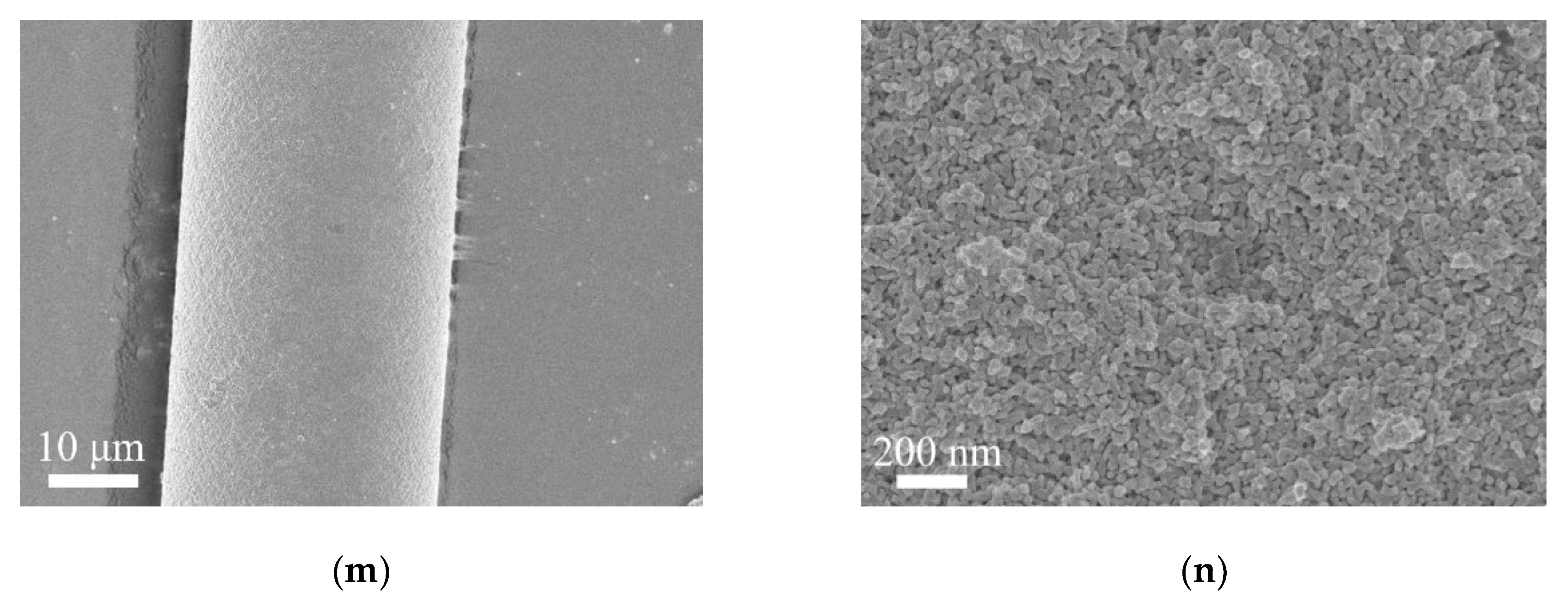

The morphology and cross-section microstructure of calcined Al₂O₃ fibers are shown in Figure 8. It can be seen that all the fibers are continuous with a diameter ranging from 15 to 18 µm. The fiber surface is smooth without obvious cracks, pores and other defects. The cross-section microstructure of alumina fiber is uniform and consists of nano-scale equiaxed grains. For different fibers, these microsturctures are similar except for their grain size. Among all fibers, the sample A1, B1 and B2 have a significantly smaller grain size. From sample A1 to A5, the α-Al₂O₃ grain size increases gradually.

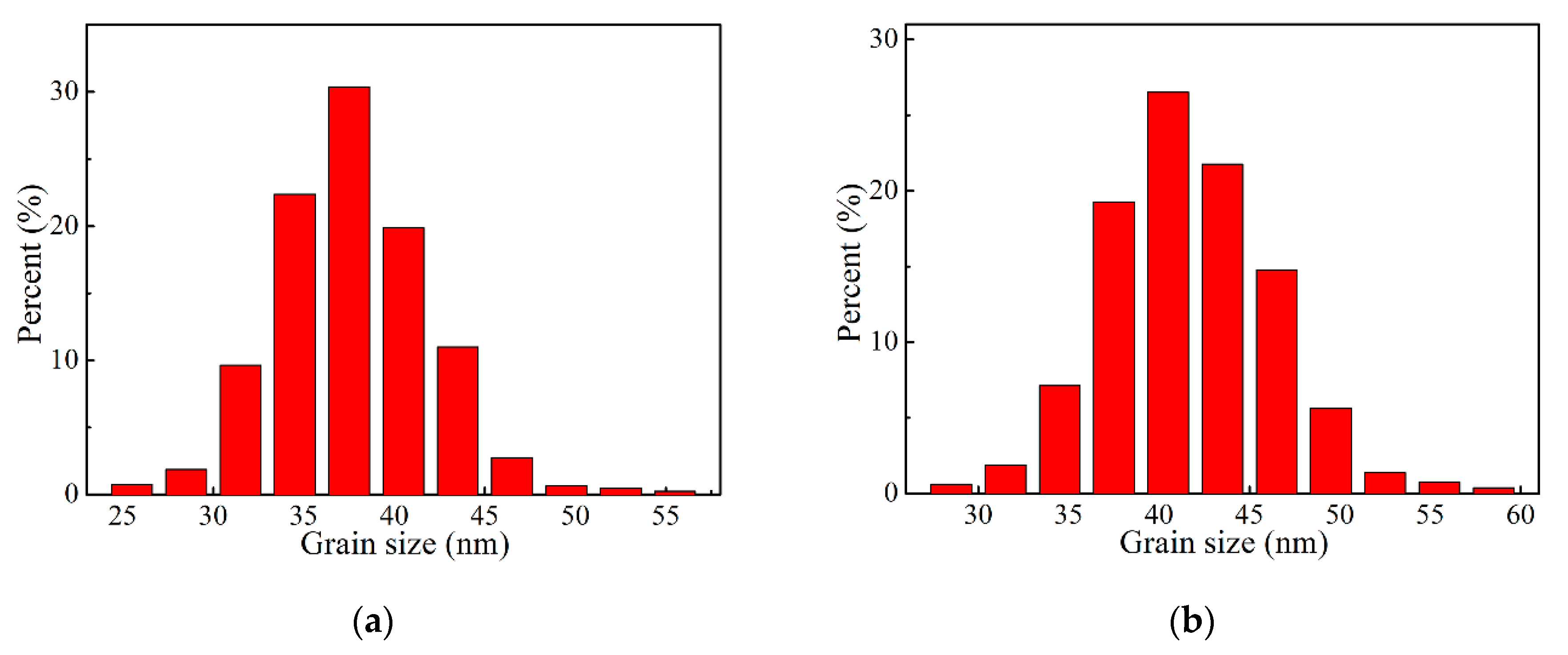

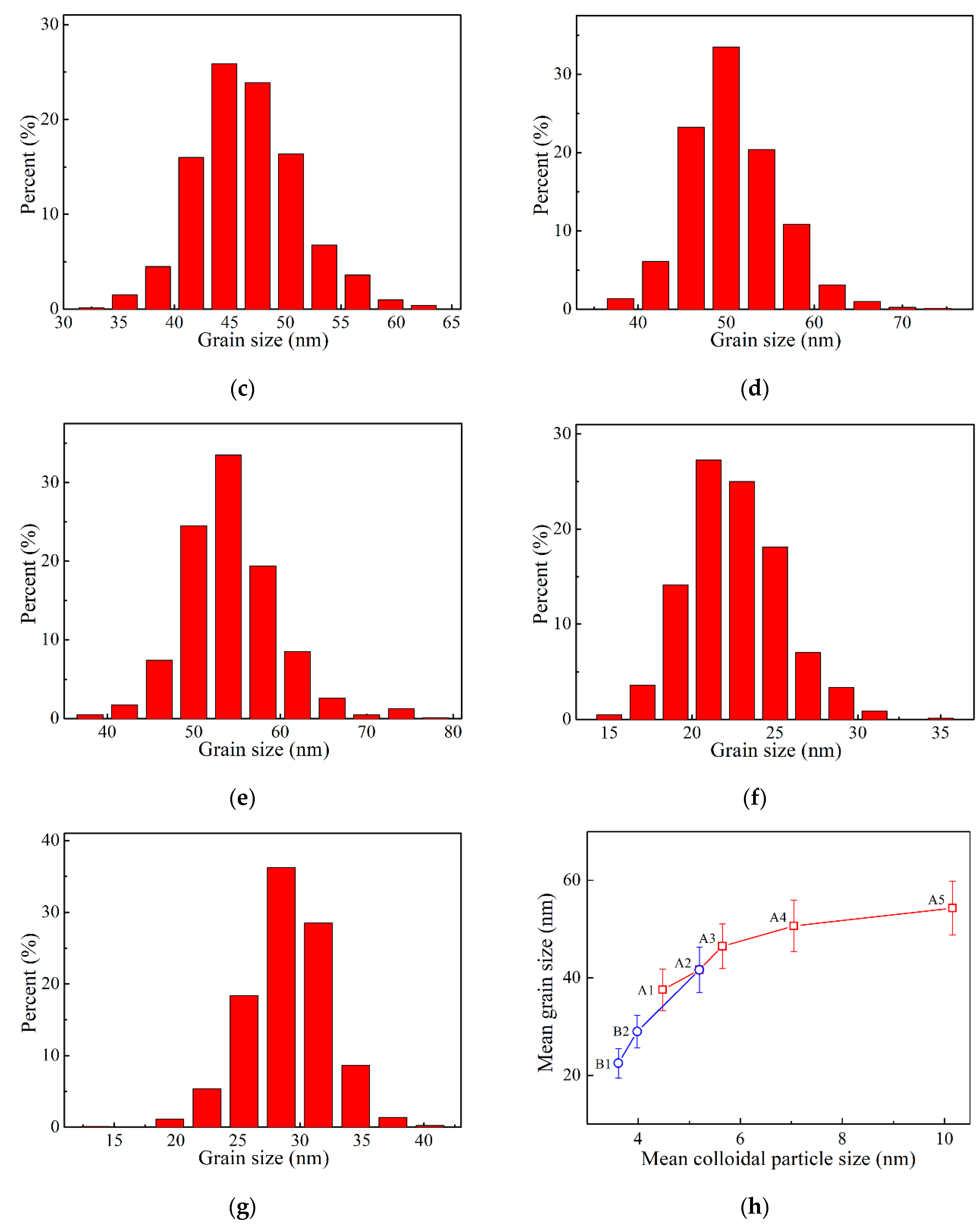

The distribution of fiber grain size is shown in Figure 9. It can be seen that the grain size of each kind of fiber follows the normal distribution. From sample A1 to A5, the peak value increases from 37.5 to 54.0 nm. The sample B1 and B2 exhibit finer grains, which distribute in the range of 14–35 nm and 12–42 nm, respectively. The relationship between the fiber grain size and the iron colloidal particle size is shown in Figure 9h. It was revealed that the maximum mean grain size of fiber (sample A5) was only 54.3 nm. When the mean colloidal particle size decreased from 10.16 to 5.65 nm, the mean grain size also gradually declined from 54.3 to 46.5 nm. With the further decrease of mean colloidal particle size from 5.65 to 3.61 nm, the mean grain size quickly decreased to 22.5 nm. Generally, the grain size of alumina fiber is equal or larger than 100 nm. In this study, the addition of iron sol with small colloidal particle size contributed to forming alumina fiber with nano grains.

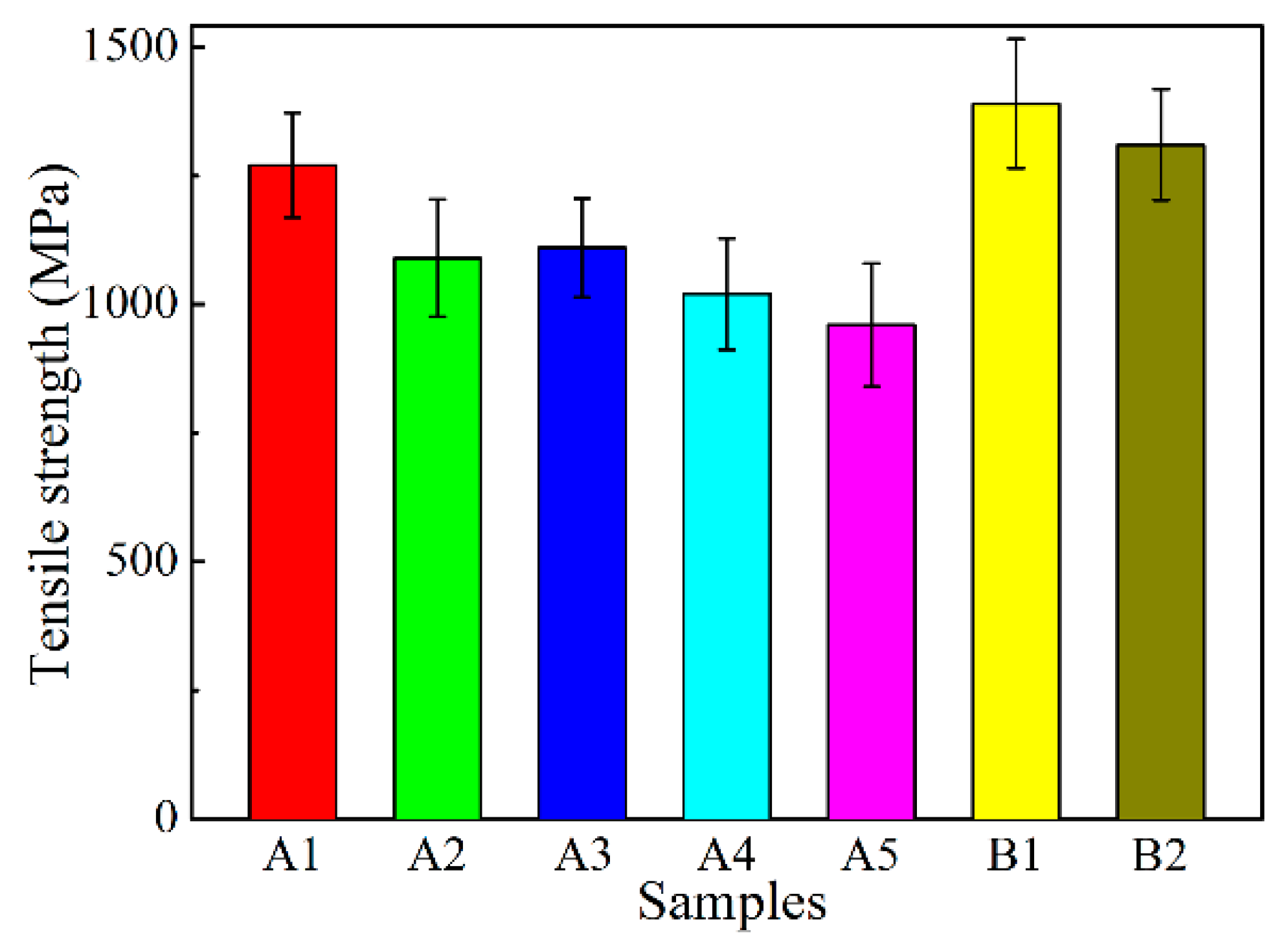

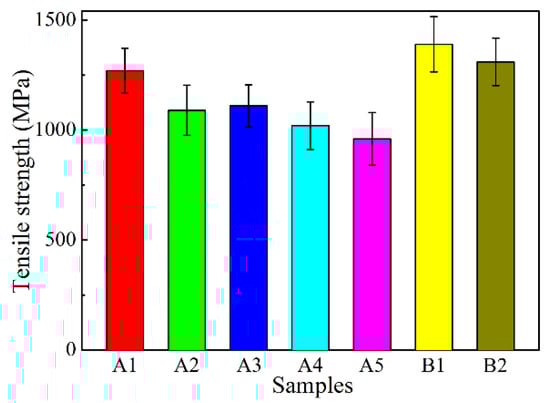

Figure 10 shows the tensile strength of alumina fibers. The sample B1 exhibits the highest tensile strength, up to ~1400 MPa, which is related to the smallest grain size. From sample A1 to A5, the tensile grain size decreases, corresponding to the increase of the grain size. Thus, decreasing fiber grain size contributes to higher tensile strength being acquired.

The formation of α-Al₂O₃ includes the nucleation and grain growth processes. Based on the above results, all the iron sols can be employed as nucleating agents to promote the formation of α-Al₂O₃. In the nucleation process, the nucleation density of α-Al₂O₃ is proportional to the number of iron colloidal particles added in unit volume. When the additional amount is consistent, the reduction of colloidal particle size is effective to increase the colloidal particle number and the nucleation density. Thus, decreasing the colloidal particle size contributes to forming more α-Al₂O₃ grains in smaller size. In theory, the initial grain size of α-Al₂O₃ increases linearly with the colloidal particle size. However, the α-Al₂O₃ grain size rises slightly when the colloidal particle size is larger than 5.65 nm. This probably results from the grain growth of α-Al₂O₃. As shown in Figure 7, most of α-Al₂O₃ can be formed before 3 min, while the phase transformation completes at 5 min. During this process, the initial α-Al₂O₃ grains will grow up and merge into lager grains. Since the growth rate decreases with the increase of Al₂O₃ grain size, as a result, the grain size of the samples added with large iron colloidal particles tends to be constant.

4. Conclusions

In this study, stable iron sols were prepared with NH₄HCO₃ and Fe(NO₃)₃·9H₂O. The mean colloidal particle size ranges from 3.61 to 10.16 nm, which increases with the holding temperature and the NH₄HCO₃/Fe(NO₃)₃·9H₂O molar ratio. Sintered at 300 °C for 1 h, the iron sol completely transformed into α-Fe₂O₃. Adding iron sol to alumina fiber contributes to forming alumina fiber with uniform nano-scale grains. The minimum mean grain size of fiber is only 22.5 nm, when the iron sol with the mean colloidal particle size of 3.61 nm was used as a nucleating agent. With the increase of colloidal particle size, the grain size tends to rise from 22.5 to 54.3 nm. The fiber with the smallest grain size exhibits the highest tensile strength, up to ~1400 MPa.
