Reversible Redox Property of Co(III) in Amorphous Co-doped SiO2/γ-Al2O3 Layered Composites
Abstract
:1. Introduction
2. Experimental Procedures
2.1. Sample Synthesis
2.1.1. Co-Doped SiO2/γ-Al2O3 Layered Composite Sample
2.1.2. Co-Doped SiO2/γ-Al2O3 Composite Powder Sample
2.1.3. Homogeneous Co-Doped Aluminosilicate Powder Sample
2.1.4. γ-Al2O3/Co-Doped SiO2/γ-Al2O3 Layered Composite Membrane Sample
2.2. Characterizations
2.2.1. Characterization Techniques

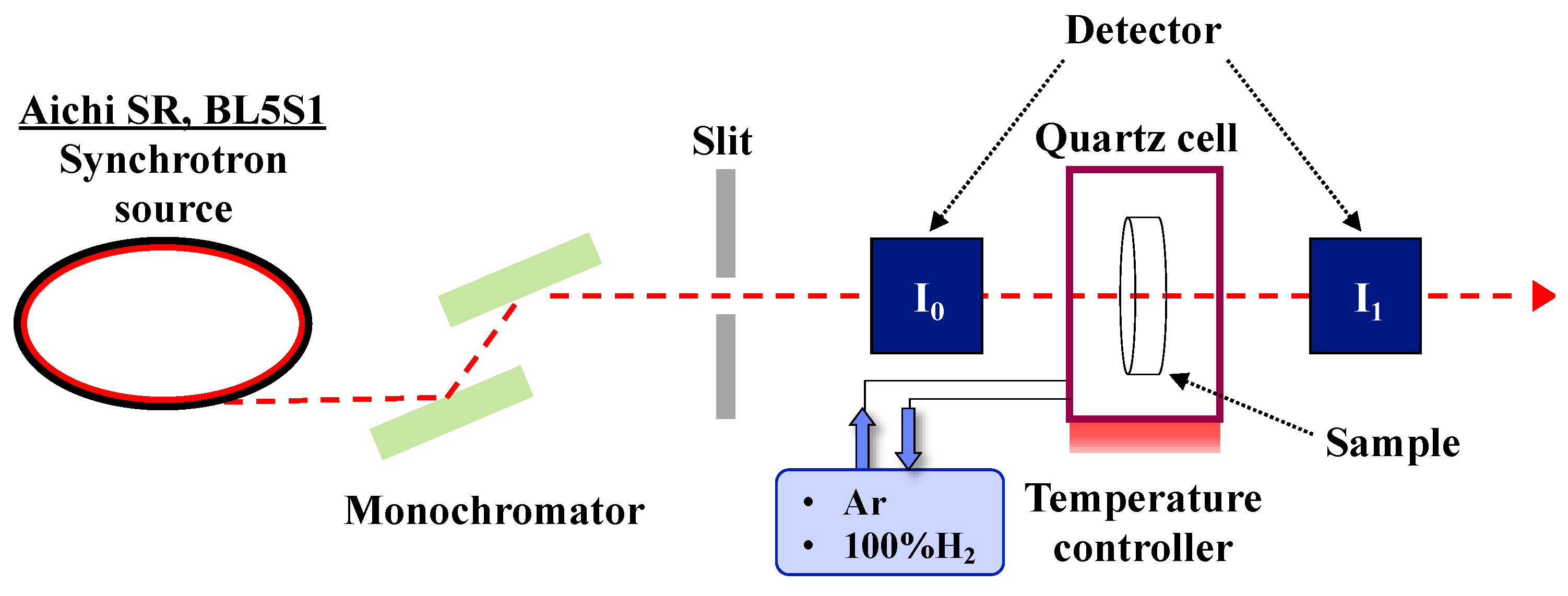

2.2.2. In Situ Characterizations
- heat-treatment to remove adsorbed water at 500 °C for 8 h under a flow of Ar (4 mL·min−1).
- subsequent heat treatment at 500 °C for 0.5 h under a flow of H2 (4 mL·min−1).
- final heat treatment at 500 °C for 8 h under a flow of Ar (4 mL·min−1).
3. Results and Discussion
3.1. Distribution of Co Cations within the Co-Doped SiO2/γ-Al2O3 Layered Composite Sample
3.2. Properties of Co-Doped SiO2/γ-Al2O3 Composites
3.3. Redox Behavior of Co Species
- The reduction-oxidation of Co cation species in the CoSiOAlpow sample is associated with the formation-deformation of OH groups.
- The redox reactions begin to proceed at relatively low temperatures around 250–350 °C.
- The redox reactions are reversible and governed by the H2 partial pressure at T ≥ 250 °C.
3.4. Gas Permeation Properties of γ-Al2O3/Co-doped SiO2/γ-Al2O3 Layered Composite Membrane
4. Conclusions

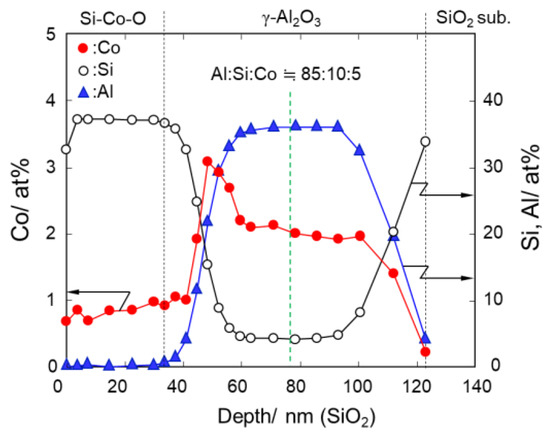

- XPS depth profile analyses for the Co-doped SiO2/mesoporous γ-Al2O3 layered composite sample revealed preferential Co diffusion from the SiO2 top-layer matrix to the γ-Al2O3 surface, and the equilibrium chemical composition of the Al, Si, and Co within the mesoporous γ-Al2O3 layer was determined as Al:Si:Co = 85:10:5.

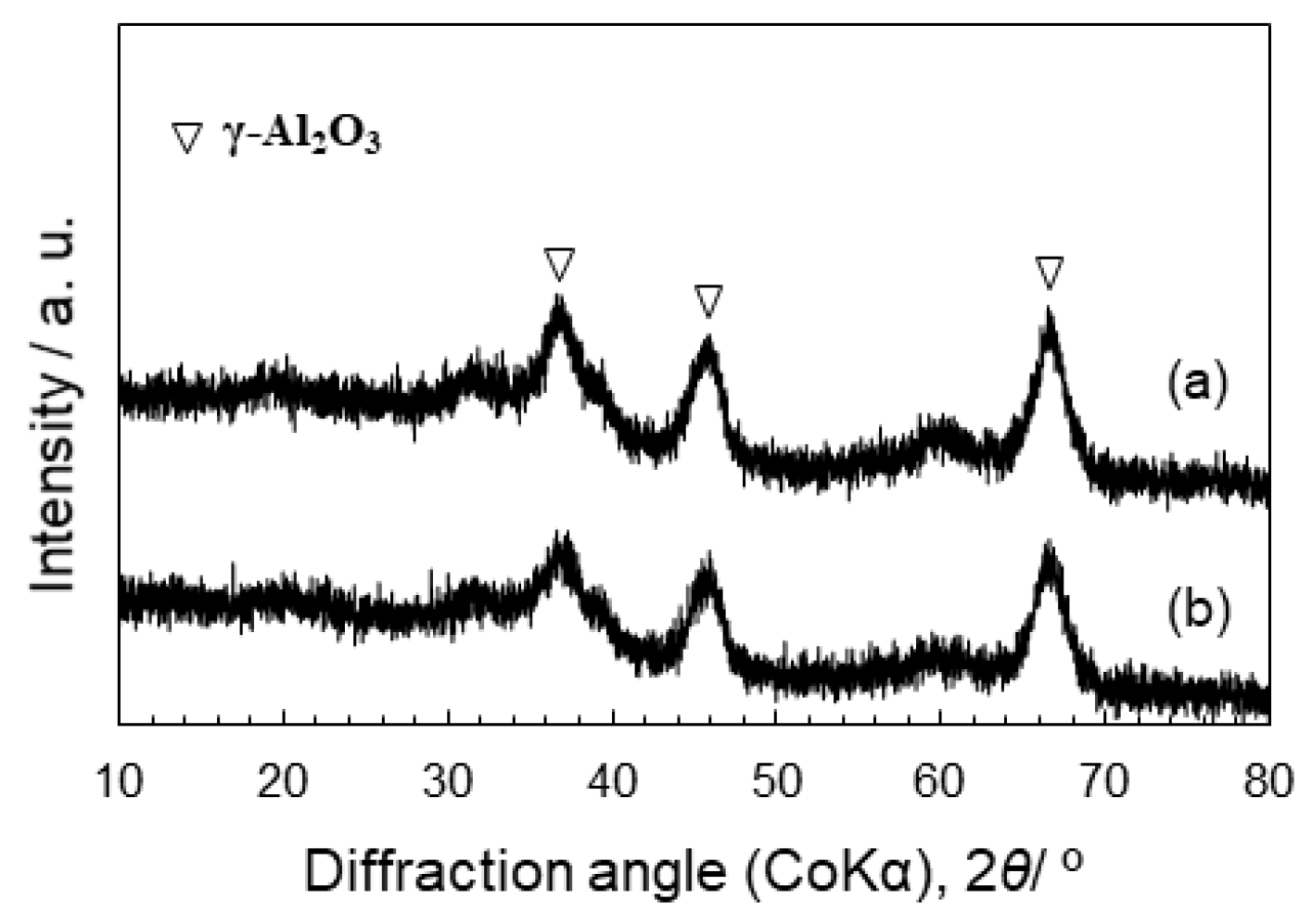

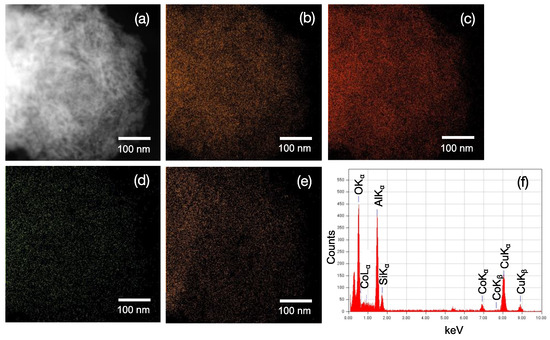

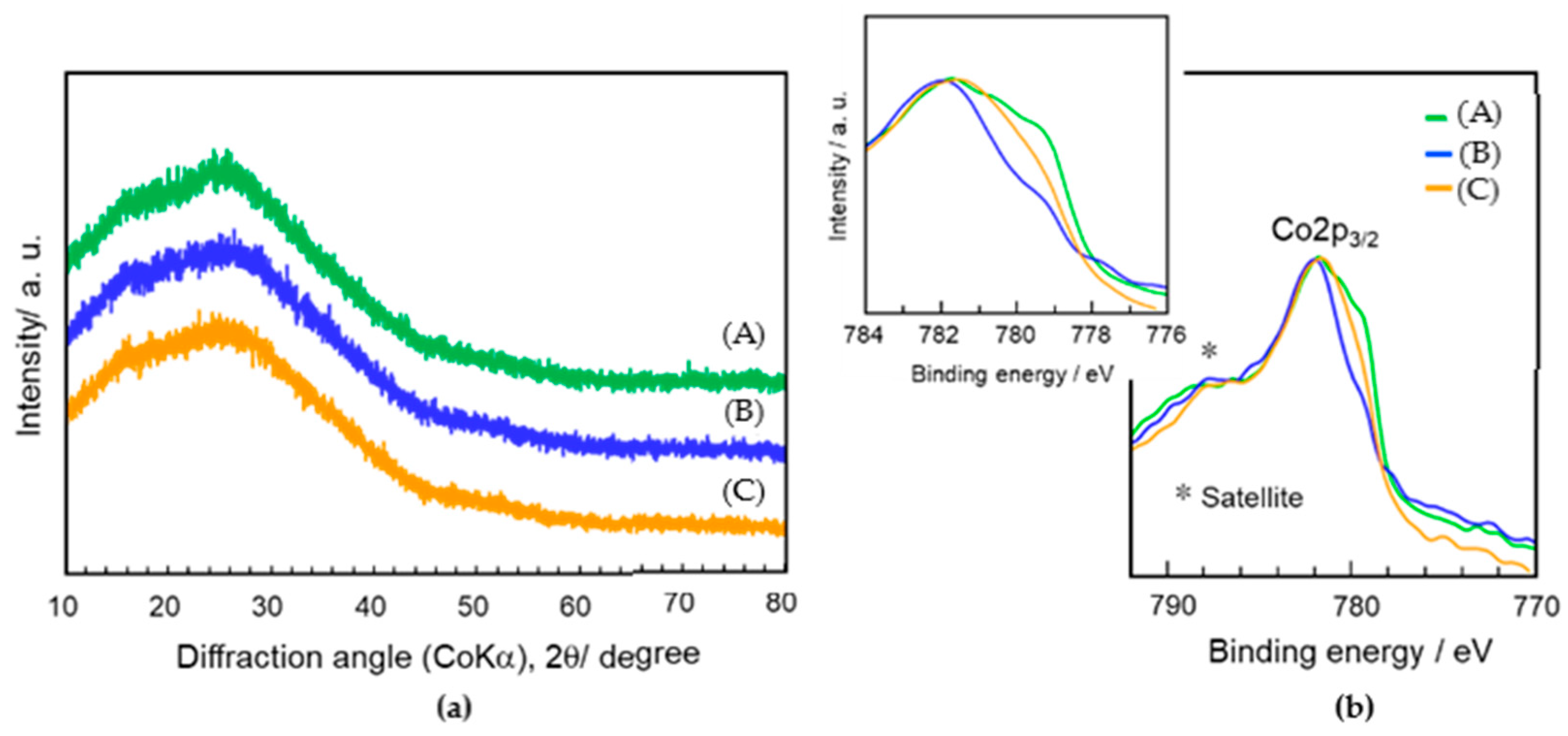

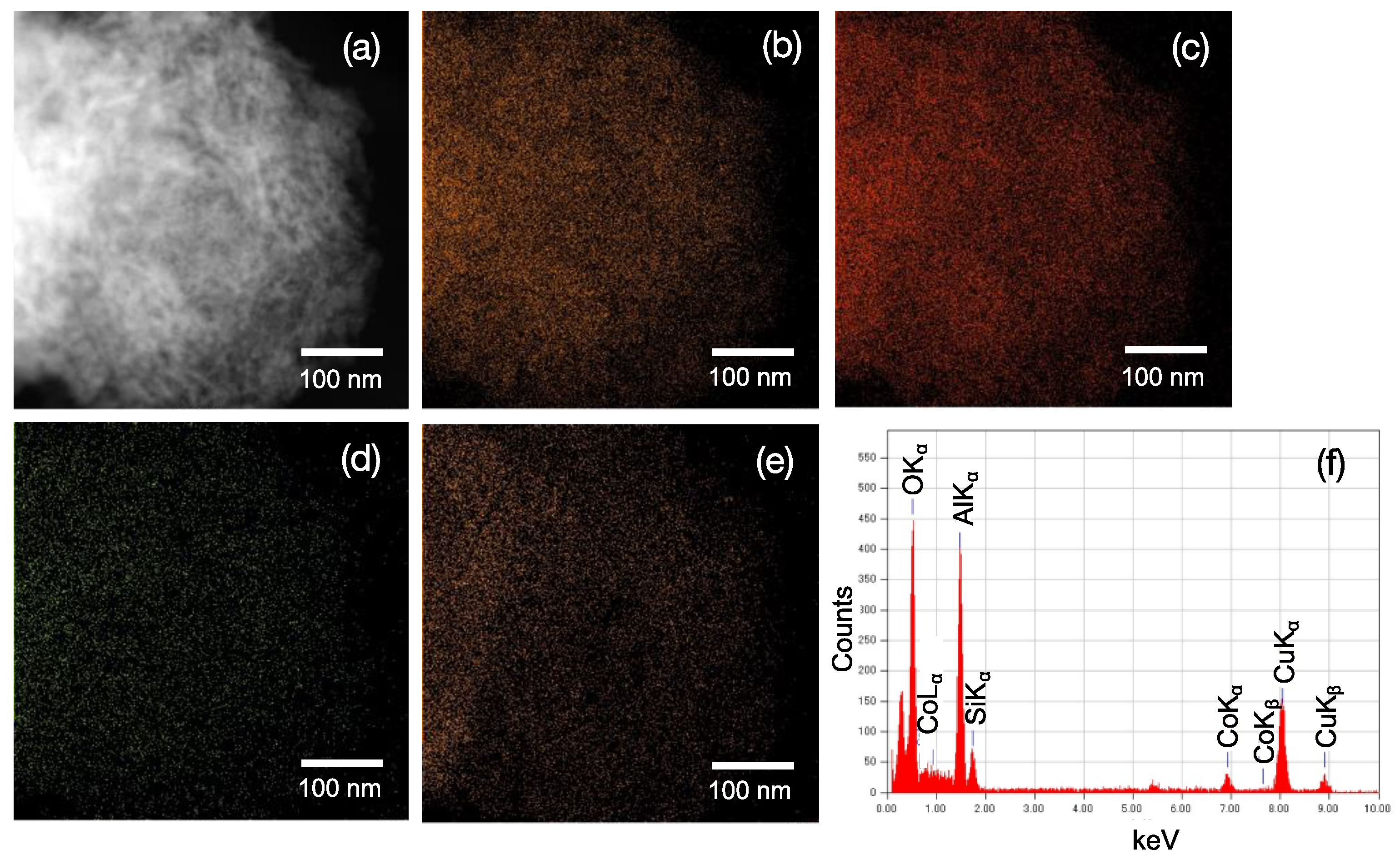

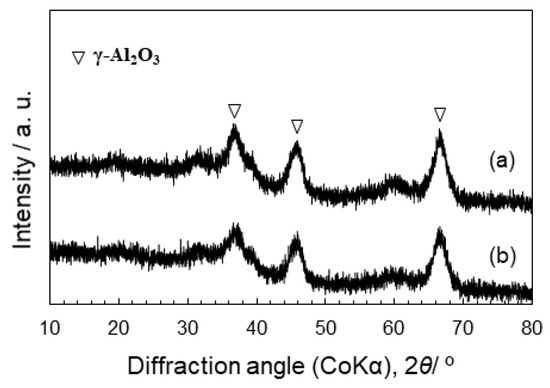

- XRD, HRTEM, and HAADF-STEM analyses revealed that the Co-doped SiO2/γ-Al2O3 composite powder sample with the equilibrium composition of Al:Si:Co = 85:10:5 kept its amorphous state without crystallization of Co oxides after H2 treatment at 500 °C.

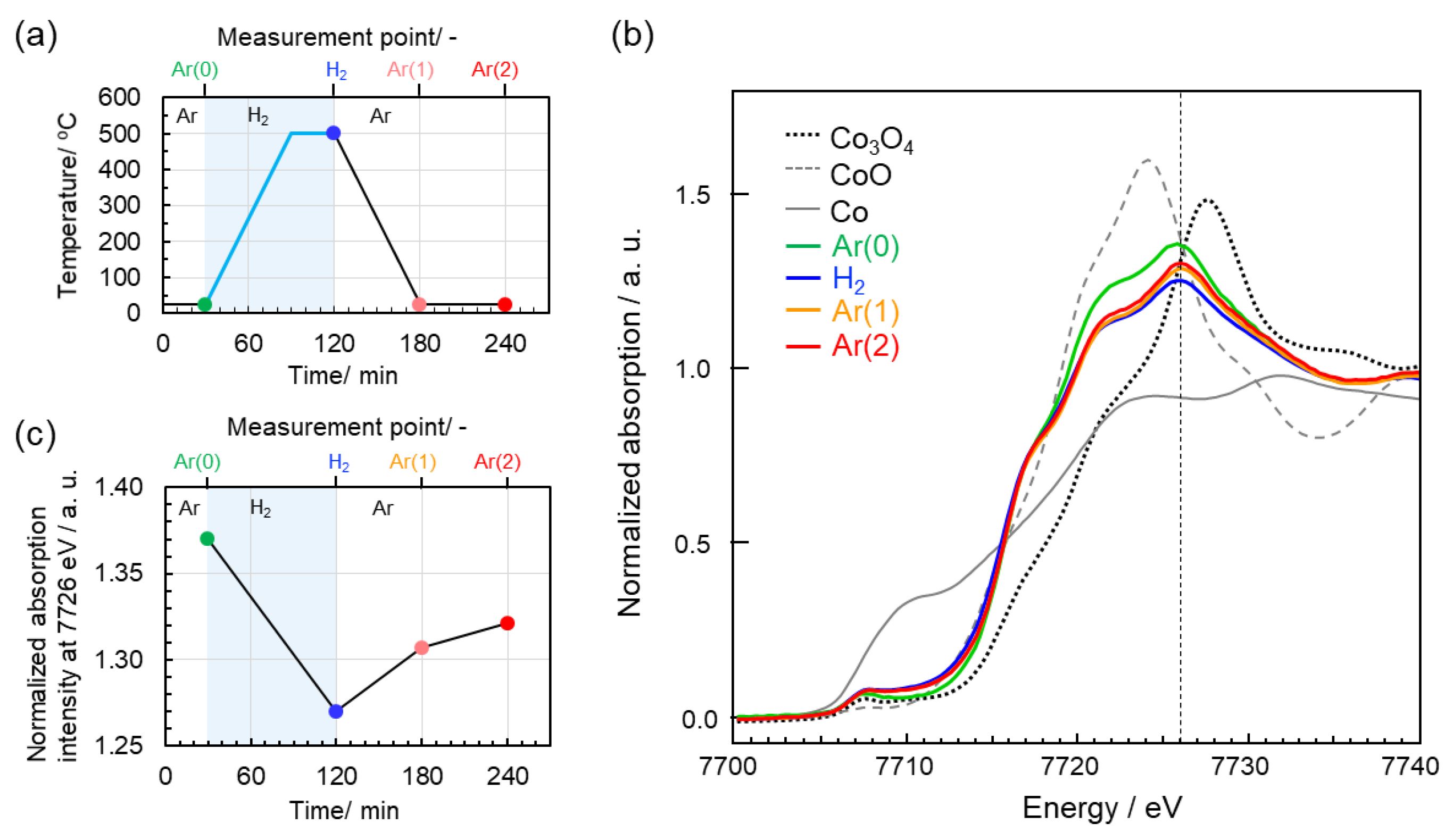

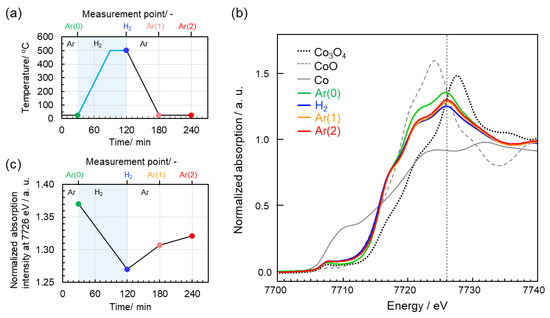

- In situ XANES spectroscopic analyses during the 500 °C heat treatment under H2 flow and subsequent cooling to RT under Ar flow exhibited reversible redox properties of Co cations in the Co-doped SiO2/γ-Al2O3 composite powder sample.
- XPS and DRIFT spectroscopic analyses and cyclic TPR/TPD measurements concluded the reversible Co(III)/Co(II) redox reactions were associated with OH formation (hydrogenation)-deformation (dehydrogenation) within amorphous aluminosilicate, which was governed by the H2 partial pressure at 250–500 °C.
- The Co(III) cations in the present composite samples formed via the Fenton reaction in the presence of H2O2 during the sample syntheses.

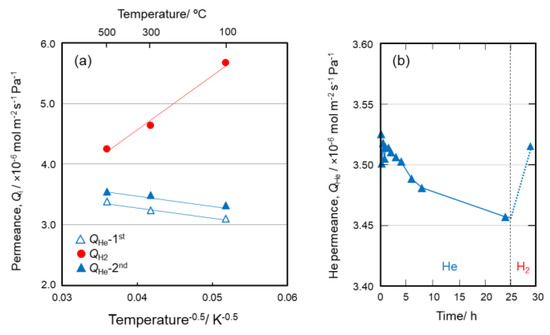

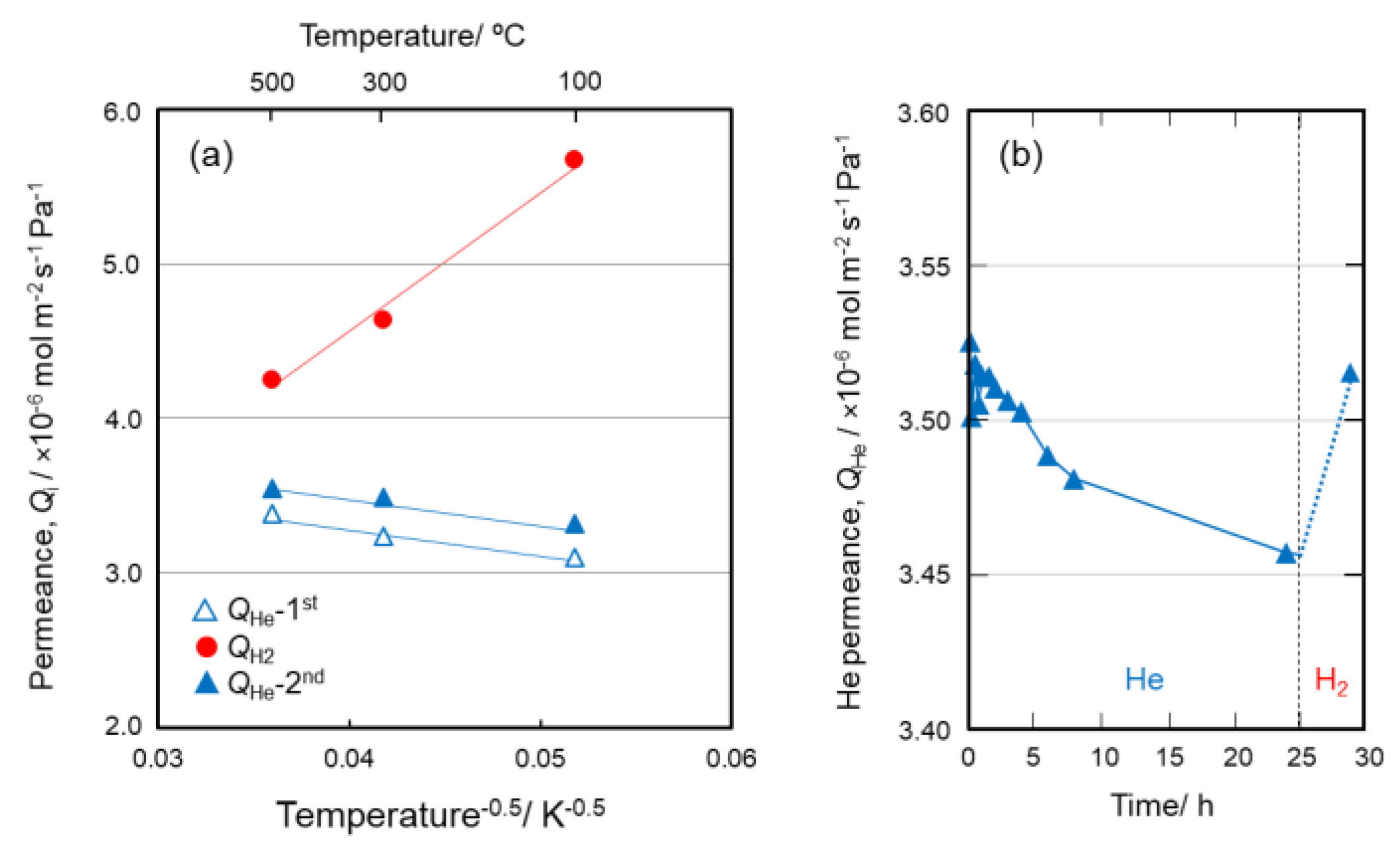

- Gas permeation measurements for the γ-Al2O3/Co-doped SiO2/γ-Al2O3 layered composite membrane under the cyclic He–H2–He flow suggested that H2 triggered a chemical valve property: micropores under He flow (closure) and mesopores under H2 flow (open), which could be explained by the reversible redox reactions of Co(III)/(II) associated with bond cleavage (hydrogenation)-regeneration (dehydrogenation) of the Si–O–Al amorphous network formed in situ at the hetero interface of the Co-doped SiO2/γ-Al2O3.
