Article

Simulation of Bullet Fragmentation and Penetration in Granular Media

by
Froylan Alonso Soriano-Moranchel
1,
Juan Manuel Sandoval-Pineda
1,
Guadalupe Juliana Gutiérrez-Paredes
1,
Usiel Sandino Silva-Rivera
2 and
Luis Armando Flores-Herrera
1,*
1
Postgraduate Studies and Research Section, Instituto Politecnico Nacional, Higher School of Mechanical and Electrical Engineering, U. Azcapotzalco, Av. Granjas 682, Mexico City 02250, Mexico
2
SEDENA, D.G.E.M., Rectory of the Army and Air Force University, Escuela Militar de Ingenieros, Av. Industria Militar 261, Naucalpan de Juarez 53960, Estado de Mexico, Mexico
*
Author to whom correspondence should be addressed.
Materials 2020, 13(22), 5243; https://doi.org/10.3390/ma13225243
Submission received: 30 October 2020 / Revised: 17 November 2020 / Accepted: 18 November 2020 / Published: 20 November 2020
(This article belongs to the Special Issue Computer-Aided Design and Modeling of Materials at Different Scales)
Browse Figures
Versions Notes

Abstract

The aim of this work is to simulate the fragmentation of bullets impacted through granular media, in this case, sand. In order to validate the simulation, a group of experiments were conducted with the sand contained in two different box prototypes. The walls of the first box were constructed with fiberglass and the second with plywood. The prototypes were subjected to the impact force of bullets fired 15 m away from the box. After the shots, X-ray photographs were taken to observe the penetration depth. Transient numerical analyses were conducted to simulate these physical phenomena by using the smooth particle hydrodynamics (SPH) module of ANSYS® 2019 AUTODYN software. Advantageously, this module considers the granular media as a group of uniform particles capable of transferring kinetic energy during the elastic collision component of an impact. The experimental results demonstrated a reduction in the maximum bullet kinetic energy of 2750 J to 100 J in 0.8 ms. The numerical results compared with the X-ray photographs showed similar results demonstrating the capability of sand to dissipate kinetic energy and the fragmentation of the bullet caused at the moment of impact.

1. Introduction

The analysis of bullet penetration through different materials is an important issue to achieve adequate safety conditions during the design of containers, pressure vessels, vehicles, armor and other similar products, especially barricades, to protect security forces. These studies have been performed in previous works considering steels and aluminum alloys [1,2,3]. Børvik carried out several tests with 6082-T651 and 6082-T4 aluminum plates with changes in the angle of impact and plate characteristics [4,5]. In specific defense situations, the behavior of the material supporting bullet impacts is analyzed depending on the crater formation, for example, in continuous media [6]. However, granular media is another option to reduce the kinetic energy of a bullet over short distances [7,8], especially when such media are used in the form of ballistic blocks. The granular nature of sand, its recycling capability combined with its complex interaction dynamics creates unique physical capabilities. The mixture of sand with other construction materials for example, creates important characteristics suitable for several mechanical and construction applications [9,10,11,12,13,14,15,16,17,18,19,20,21,22,23]. This phenomenon has been studied here as an alternative to achieve the goal of bullet fragmentation. Several containers constructed with fiberglass and considering different geometries have been used as an alternative to constructing ballistic walls [24,25,26,27,28,29,30]. Based on these works, samples of ballistic walls were constructed in this research to observe the behavior of a bullet when entering a coupled system. This system is formed by continuous media as the initial impact material and sand as the granular media. The purpose of the present study is to measure the penetration distance of a bullet impacting the materials considered in the continuous system, which are plywood and fiberglass shells. The numerical and experimental results obtained with the combination of materials used for the construction of continuous and granular media are the main contributions of this study. A numerical analysis was carried out using ANSYS® 2019R1-AUTODYN to simulate the behavior of the bullet when impacting the samples and to obtain the magnitudes of the kinetic energy absorbed by the coupled system [31]. The dynamic behavior of the granular media as a group of uniform particles transferring the kinetic energy when receiving the 7.62 mm projectile was simulated using the smooth particle hydrodynamics (SPH) model, together with the compaction equations of state (EOS) and the model option MO granular. This transient analysis includes the interaction of the particles inside the coupled system when receiving the impact; in some cases, the bullet deviates with respect to the original trajectory, and in other cases, the bullet is destroyed because of the instantaneous heat and mechanical friction [32].

2. Materials and Methods

2.1. Ballistic Blocks

Two types of block prototype were built for the experiment, one that forms the plywood-sand-plywood (PSP) system and another that forms the fiberglass-sand-fiberglass (FSF) system. The construction criteria for the block walls considered the minimum commercial thickness walls required to support 10 kg of sand per block, but also allowing stacking up to 7 blocks to form a 2.1 m high ballistic wall without presenting structural instabilities. As a result of the tests, the resulting wall for the PSP system was 12 mm and for the FSF system it was 6 mm. Finally, a total of 6 blocks were built for each system. The final dimensions of the blocks were 300 × 300 × 300 mm in length, width and height, respectively. The experiment considered beach-type sand which was first passed through a sieve to eliminate the presence of stones, garbage and other solid objects and it was left to dry in the sun for 10 days, moved with a shovel and covered at night for the purpose of removing traces of moisture. It is very important to remove moisture before the experiments to maintain uniform distribution of the granular media and to avoid a lubricating effect during the friction between the sand and the bullet.

2.2. Ballistic Workbench

Figure 1 shows the components of the experimental setup. Two types of bullets were used for the experiments, the Full Metal Jacket (FMJ) and the Armor Piercing (AP). An Oehler ballistic chronograph with optical barriers was used to obtain pressure, energy and velocity values. In the figure, the Marlin XL7 rifle is shown on the left side and the ballistic block is located 15 m away on the right side (distance A). Between the rifle and the ballistic block, a pair of infrared frames were located to measure the velocity of the bullet. The first infrared fame which was the start trigger was located 12 m away from the rifle (distance B). The second infrared frame was the stop trigger and it was located 1.5 m from the first one. The rifle was mounted on an adjustable rifle bench rest located 15 m away from the target. This distance reduced the possibility of nutation, yaw or precession of the bullet before the impact. The rifle bench rest was adjusted and used in a fixed position for every shot. Behind the ballistic block, a layer of 0.2 mm of aluminum foil was located to verify the presence of any remaining fragment after the shots. X-ray photographs were taken on the ballistic blocks after the shots with a Vertex II equipment (VJ Technologies, Inc., Suffolk County, NY, USA), with capacity of 160 kV.
Figure 2 shows a close view of the perforations produced by the impacts in each system. The circular shape of the craters show that the bullet has penetrated without inclination, this means the longitudinal axle of the bullet enters perpendicular with respect to the wall surface. It can be seen in (a) the brittle fracture of the FSF system and in (b) the ductile hole growth of the PSP system.
Table 1 shows the obtained velocities measured as indicated in “Cartridge, 7.62 mm: NATO, Ball-M80MIL-DTL-46931” standards for FMJ M80 bullets and “MIL-C-60617A” for armor-piercing bullets.

2.3. Numerical Simulation

3D-CAD models were constructed for the numerical analysis simulation to observe the penetration depth of the bullet through the constructed systems and compare the resulting values with the experimental test. Figure 3 shows the corresponding diagram for each system. Two sidewalls represent the continuous media, and a region between the walls represents the granular media. Figure 3a shows the FSF system, and Figure 3b shows the PSP system. The bullet is located with the longitudinal axis perpendicular to the surface of the wall, and effects of nutation, yaw or precession are not included.
The AP (M61) and FMJ (M80) bullets contain an external jacket of brass. The left side of each block shows the location of the bullet with initial velocities of 845 m/s and 843 m/s for the lead and steel cores, respectively. The material properties considered for the simulation are shown in Table 2.
With respect to the boundary conditions, the ballistic block models were subjected to the same restricted conditions; the horizontal displacement of the external faces of the continuous media was restricted in the form of fixed support along the Z-axis but not for the remaining perpendicular directions (X and Y). The creation of the resulting mesh for each model was also the result of improved trials to achieve suitable values for the orthogonal and skew qualities. To improve in the simulation time, the bullet was located 1 mm away from the contact face, with one small timestep simulated before the impact. The simulation scenarios were divided into 4 different cases, as shown in Table 3: two for an initial velocity of 843 m/s and two for 845 m/s.
Figure 4 shows the simulation process flowchart as a result of the previous research conducted for the construction of the models. The behavior of continuous media considers all the material particles interconnected and working as a single piece in comparison with granular media in which the mechanical property of the particle interacts and reorganizes during the dynamic process.
This configuration is a combination of selected parameters that involve the material models available in the software (ANSYS® 2019R1, Canonsburg, PA, USA), and the constants were taken from the AUTODYN library. The Smoothed Particle Hydrodynamics Lagrangian particle method (SPH) of ANSYS® AUTODYN 2019R1 was selected for this simulation, the continuous media is considered as a uniform set of particles interacting with the energies created during the evolution of the impact. Multilinear isotropic hardening behavior was also selected to establish the plastic behavior of this material [33,34,35,36,37,38].
In the simulation, the effect caused by the angular velocity of the bullet is not considered, and because of that, it was expected that there would be differences between the experimental and numerical simulation results. The mechanical behavior of the lead and steel, which are the core materials, were included by considering the Steinberg–Guinan strength formulation. The fiberglass was modeled with the Johnson–Holmquist continuous-strength formulation and the plywood was modeled considering the polynomial Equation of State (EOS) formulation. The behavior of the granular media was modeled as MO Granular Failure Model together with tensile pressure failure and the walls were configured with the shock EOS linear formulation [39,40,41,42,43]. This combination allows the granular media to transfer the load vectors and reorganize the media during the displacement of the bullet. The Grüneisen parameter is conventionally written as a dimensionless combination of the expansion coefficient, bulk modulus, density and specific heat and can also be presented in terms of elastic moduli and their pressure derivatives, providing a quantitative link between thermal and mechanical parameters [44]. The material properties and constant values considered for the simulation are shown in Table 4 [25,32,45,46].
This combination of parameters, as shown below, allowed us to observe the fragmentation of the bullet caused by the initial contact with the walls which is of special importance in terminal ballistics and military medicine [47,48,49].

3. Results and Discussion

Figure 5 shows (a) the results of the numerical simulation compared with (b) the experimental X-ray photography. This figure corresponds to the FSF AP M61 block (case 1). The numerical simulation predicted a penetration distance of 237 mm and the appearance of compaction waves along the penetration trajectory showing fragmentation of the brass after 204 mm. In the simulation and the X-ray photograph, an expanded distribution of the compacting wave is observed [50]. Even when the final penetration distances are not the same, both circumstances show brass jacket fragmentation before the steel core stops. The steel core showed an additional advance of at least 30 mm ahead. In the X-ray photography, a maximum fragmentation of the brass was 148 mm, and an additional advance of the steel core of 49 mm which gives a total depth of 197.76 mm. In both analyses, the final position of the bullet rotated with respect to the initial entry orientation.
The results of the fragmentation and penetration distance reached by the 7.62 mm AP projectile for the PSP AP M61 block are shown in Figure 6 (case 2). In (a) the numerical simulation and (b) the X-ray photography, the maximum penetration distance is 183.47 and 200.22 mm, respectively. The X-ray photography shows more concentrated compacting wave in the upward direction following the bullet trajectory and the final location of the fragments are very close to the core.
Figure 7 shows the results of (a) the numerical simulation and (b) X-ray photography for the 7.62 mm FMJ M80 projectile impacting the FSF block (case 3). In the simulation, a penetration distance of 116.59 mm was obtained, and in the X-ray photography, a measured distance of 126.56 mm was obtained. A wide compaction wave is located ahead the core and the expanded fragments showing a reduced penetration distance with respect to the previous cases.
Figure 8 shows the results of case 4 in which an FMJ M80 bullet impacts the PSP box. The penetration distances obtained in (a) the numerical simulation and (b) the X-ray photography were 115.47 and 126.07 mm, respectively. A unique zone of extreme fragmentation was not identified but was the most extended instead.
Figure 9a shows the numerical results of the penetration depth with respect to the velocity starting from the penetration velocity for each of the four cases, and Figure 9b shows the penetration depth with respect to time.
Figure 10 shows the dependence of the bullet’s velocity inside the blocks with respect to time. In all cases, the velocity is zero after 0.8 ms. Although the spinning effect of the bullet in the simulation is not considered, the hardness and ordering of each wall material has an important effect on penetration. In the case of fiberglass, the fibers do not have a unique arrangement and the energy absorption dissipates in random directions at each instant. As the bullet advances through the fiberglass, it encounters new fibers every layer reacting together with the neighboring fibers. In the plywood, the fibers are arranged in the same direction and they are all compressed together at the same time, deforming and deflecting the energy in a single direction. This also causes an opening of the fibers due to the spinning effect and allowing the bullet to advance with greater force than in the case of the fiberglass wall.
Table 5 shows the numerical values obtained in the numerical analyses compared with the experimental results, the shortest stopping distance was found for case 4. This minimum value was obtained in the numerical simulation as well as in the experimental measurements.

4. Conclusions

During the impact, the bullet entered first into a continuous medium of wood with a thickness of 12 mm and the penetration depth was reduced up to 50.48% compared to the distance obtained without the shells. A variation of 7.53 m/s between the experimental results and numerical results was found. The numerical and experimental results showed similar fragmentation distribution of the bullets with 95.34% similarity in the penetration distance of the FMJ projectile and 88.63% for the AP projectile. The impact surface areas were 100 mm2 and 300 mm2 with a depth of 300 mm. The numerical analysis was solved with the SPH module of ANSYS® Autodyn. It was determined that the initial impact of this type of projectile through a continuous medium, such as the 12 mm wood plate, reduces the penetration capacity by up to 48.62%. The presented fragmentation and contention of the bullet material can represent a tactical advantage since the impact of the 7.62 mm AP projectile reaches a maximum penetration distance of 52 mm compared with 100 mm obtained without the thick initial continuous medium. The use of the fibrous materials provides the advantage that they are cheap, eco-friendly and easy to repair compared to other ballistic blocks based on ceramics and plastics which once fractured cannot be repaired and, in some cases, they must be discarded.

Author Contributions

Conceptualization, L.A.F.-H., methodology and validation, U.S.S.-R. and J.M.S.-P., numerical and experimental analysis, F.A.S.-M. and U.S.S.-R., literature review, F.A.S.-M. and J.M.S.-P., validation, G.J.G.-P. and U.S.S.-R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Instituto Politécnico Nacional—Secretaría de Investigación y Posgrado through the grant numbers 20200530 and 20200529 of the SIP projects.

Acknowledgments

Authors acknowledge the Instituto Politécnico Nacional and the Consejo Nacional de Ciencia y Tecnología (CONACYT).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Keneubuehl, B.P.; Coupland, R.M.; Rothschild, M.A. Wound Ballistics: Basic and Application; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2011. [Google Scholar]
  2. Andreotti, B.; Forterre, Y.; Pouliquen, O. Granular Media: Between Fluid and Solid; Cambridge University Press: Cambridge, UK, 2013. [Google Scholar]
  3. Gillis, C.S. Ballistics-Resistant Fabrications. U.S. Patent US20120167754A1, 5 July 2012. [Google Scholar]
  4. Holmen, J.K.; Johnsen, J.; Jupp, S.; Hopperstad, O.S.; Børvik, T. Effects of Heat Treatment on the Ballistic Properties of AA6070 Aluminium Alloy. Int. J. Impact Eng. 2013, 57, 119–133. [Google Scholar] [CrossRef]
  5. Børvik, T.; Dey, S.; Olovsson, L. Penetration of Granular Materials by Small-Arms Bullets. Int. J. Impact Eng. 2015, 75, 123–139. [Google Scholar] [CrossRef]
  6. Gomez, J.T.; Shukla, A. Multiple Impact Penetration of Semi-Infinite Concrete. Int. J. Impact Eng. 2001, 25, 965–979. [Google Scholar] [CrossRef]
  7. Kılıç, N.; Bedir, S.; Erdik, A.; Ekici, B.; Taşdemirci, A.; Güden, M. Ballistic Behavior of High Hardness Perforated Armor Plates against 7.62mm Armor Piercing Projectile. Mater. Des. 2014, 63, 427–438. [Google Scholar] [CrossRef]
  8. Manes, A.; Serpellini, F.; Pagani, M.; Saponara, M.; Giglio, M. Perforation and Penetration of Aluminium Target Plates by Armour Piercing Bullets. Int. J. Impact Eng. 2014, 69, 39–54. [Google Scholar] [CrossRef]
  9. Cole, R.P. Ballistic Penetration of a Sandbagged Redoubt Using Silica Sand and Pulverized Rubber of Various Grain Sizes; Proquest, Umi Dissertation Publishing: Charleston, SC, USA, 2011. [Google Scholar]
  10. Lohse, D.; Bergmann, R.; Mikkelsen, R.; Zeilstra, C.; van der Meer, D.; Versluis, M.; van der Weele, K.; van der Hoef, M.; Kuipers, H. Impact on Soft Sand: Void Collapse and Jet Formation. Phys. Rev. Lett. 2004, 93, 198003. [Google Scholar] [CrossRef]
  11. Ding, T.; Xiao, J.; Zou, S.; Wang, Y. Hardened Properties of Layered 3D Printed Concrete with Recycled Sand. Cem. Concr. Compos. 2020, 113, 103724. [Google Scholar] [CrossRef]
  12. Sldozian, R.J.; Tkachev, A.G.; Burakova, I.V.; Mikhaleva, Z.A. Improve the Mechanical Properties of Lightweight Foamed Concrete by Using Nanomodified Sand. J. Build. Eng. 2020, 101923. [Google Scholar] [CrossRef]
  13. Pilegis, M.; Gardner, D.; Lark, R. An Investigation into the Use of Manufactured Sand as a 100% Replacement for Fine Aggregate in Concrete. Materials 2016, 9, 440. [Google Scholar] [CrossRef]
  14. Natarajan, S.; Pillai, N.N.; Murugan, S. Experimental Investigations on the Properties of Epoxy-Resin-Bonded Cement Concrete Containing Sea Sand for Use in Unreinforced Concrete Applications. Materials 2019, 12, 645. [Google Scholar] [CrossRef]
  15. Ling, Y.-F.; Zhang, P.; Wang, J.; Shi, Y. Effect of Sand Size on Mechanical Performance of Cement-Based Composite Containing PVA Fibers and Nano-SiO2. Materials 2020, 13, 325. [Google Scholar] [CrossRef] [PubMed]
  16. Moxnes, J.F.; Frøyland, Ø.; Skriudalen, S.; Prytz, A.K.; Teland, J.A.; Friis, E.; Ødegårdstuen, G. On the Study of Ricochet and Penetration in Sand, Water and Gelatin by Spheres, 7.62 Mm APM2, and 25 Mm Projectiles. Def. Technol. 2016, 12, 159–170. [Google Scholar] [CrossRef]
  17. Savvateev, A.F.; Budin, A.V.; Kolikov, V.A.; Rutberg, P.G. High-Speed Penetration into Sand. Int. J. Impact Eng. 2001, 26, 675–681. [Google Scholar] [CrossRef]
  18. Van Vooren, A.; Borg, J.; Sandusky, H.; Felts, J. Sand Penetration: A Near Nose Investigation of a Sand Penetration Event. Procedia Eng. 2013, 58, 601–607. [Google Scholar] [CrossRef]
  19. Ishfaq, K.; Ali, M.A.; Ahmad, N.; Zahoor, S.; Al-Ahmari, A.M.; Hafeez, F. Modelling the Mechanical Attributes (Roughness, Strength, and Hardness) of Al-Alloy A356 during Sand Casting. Materials 2020, 13, 598. [Google Scholar] [CrossRef]
  20. Khan, R.; Ya, H.H.; Pao, W.; Majid, M.A.A.; Ahmed, T.; Ahmad, A.; Alam, M.A.; Azeem, M.; Iftikhar, H. Effect of Sand Fines Concentration on the Erosion-Corrosion Mechanism of Carbon Steel 90° Elbow Pipe in Slug Flow. Materials 2020, 13, 4601. [Google Scholar] [CrossRef]
  21. Li, J.; Cui, J.; Shan, Y.; Li, Y.; Ju, B. Dynamic Shear Modulus and Damping Ratio of Sand–Rubber Mixtures under Large Strain Range. Materials 2020, 13, 4017. [Google Scholar] [CrossRef]
  22. Borek, K.; Czapik, P.; Dachowski, R. Recycled Glass as a Substitute for Quartz Sand in Silicate Products. Materials 2020, 13, 1030. [Google Scholar] [CrossRef]
  23. Guan, W.; Qi, Q.; Zhang, Z.; Nan, S. Effect of Sand Particle Size on Microstructure and Mechanical Properties of Gypsum-Cemented Similar Materials. Materials 2020, 13, 765. [Google Scholar] [CrossRef]
  24. Alshahrani, R.F.; Merah, N.; Khan, S.M.A.; Al-Nassar, Y. On the Impact-Induced Damage in Glass Fiber Reinforced Epoxy Pipes. Int. J. Impact Eng. 2016, 97, 57–65. [Google Scholar] [CrossRef]
  25. Bless, S.J.; Berry, D.T.; Pedersen, B.; Lawhorn, W.; Elert, M.; Furnish, M.D.; Anderson, W.W.; Proud, W.G.; Butler, W.T. Sand Penetration by High-Speed Projectiles; American Institute of Physics: College Park, MD, USA, 2009; pp. 1361–1364. [Google Scholar] [CrossRef]
  26. De Economía, S. Seguridad al Usuario-Chalecos Antibalas-Especificaciones y Métodos de Prueba NOM-166-SCFI-2005. Available online: http://www.economia-noms.gob.mx/normas/noms/2005/nom166scfi.pdf (accessed on 1 June 2020).
  27. Li, J.; Hunt, J.F.; Gong, S.; Cai, Z. High Strength Wood-based Sandwich Panels Reinforced with Fiberglass and Foam. Bioresources 2014, 9, 1898–1913. [Google Scholar] [CrossRef]
  28. Nolte, R.A.; Selke, D.L. Armored Building Modules and Panels—Installation and Removal. U.S. Patent 7,802,414 B1, 28 September 2009. [Google Scholar]
  29. Schaeffer, W.; Warren, D.H. Methods and Apparatus for Providing Ballistic Protection. U.S. Patent No. 7,954,415, 7 June 2011. [Google Scholar]
  30. Telander, W. Basalt Particle-Containing Articles for Ballistic Shield Mats/Tiles/Protective Building Components. U.S. Patent Application 11/176,872, 27 September 2007. [Google Scholar]
  31. Chen, X.; Liu, Y. Finite Element Modeling and Simulation with ANSYS Workbench, 1st ed.; CRC Press: Boca Raton, FL, USA, 2015. [Google Scholar]
  32. Rosenberg, Z.; Dekel, E. Terminal Ballistics, 2nd ed.; Springer: Singapore, 2016. [Google Scholar] [CrossRef]
  33. Liu, M.B.; Liu, G.R.; Lam, K.Y. Constructing Smoothing Functions in Smoothed Particle Hydrodynamics with Applications. J. Comput. Appl. Math. 2003, 155, 263–284. [Google Scholar] [CrossRef]
  34. Lind, S.J.; Xu, R.; Stansby, P.K.; Rogers, B.D. Incompressible Smoothed Particle Hydrodynamics for Free-Surface Flows: A Generalised Diffusion-Based Algorithm for Stability and Validations for Impulsive Flows and Propagating Waves. J. Comput. Phys. 2012, 231, 1499–1523. [Google Scholar] [CrossRef]
  35. Liu, M.B.; Liu, G.R.; Zong, Z.; Lam, K.Y. Computer Simulation of High Explosive Explosion Using Smoothed Particle Hydrodynamics Methodology. Comput. Fluids 2003, 32, 305–322. [Google Scholar] [CrossRef]
  36. Shadloo, M.S.; Zainali, A.; Sadek, S.H.; Yildiz, M. Improved Incompressible Smoothed Particle Hydrodynamics Method for Simulating Flow around Bluff Bodies. Comput. Methods Appl. Mech. Eng. 2011, 200, 1008–1020. [Google Scholar] [CrossRef]
  37. Monaghan, J.J. A Turbulence Model for Smoothed Particle Hydrodynamics. Eur. J. Mech. B Fluids 2011, 30, 360–370. [Google Scholar] [CrossRef]
  38. Adami, S.; Hu, X.Y.; Adams, N.A. A Generalized Wall Boundary Condition for Smoothed Particle Hydrodynamics. J. Comput. Phys. 2012, 231, 7057–7075. [Google Scholar] [CrossRef]
  39. Liu, M.B.; Liu, G.R.; Lam, K.Y. Adaptive Smoothed Particle Hydrodynamics for High Strain Hydrodynamics with Material Strength. Shock. Waves 2006, 15, 21–29. [Google Scholar] [CrossRef]
  40. Libersky, L.D.; Petschek, A.G.; Carney, T.C.; Hipp, J.R.; Allahdadi, F.A. High Strain Lagrangian Hydrodynamics: A Three-Dimensional SPH Code for Dynamic Material Response. J. Comput. Phys. 1993, 109, 67–75. [Google Scholar] [CrossRef]
  41. Johnson, G.R.; Petersen, E.H.; Stryk, R.A. Incorporation of an SPH Option into the EPIC Code for a Wide Range of High Velocity Impact Computations. Int. J. Impact Eng. 1993, 14, 385–394. [Google Scholar] [CrossRef]
  42. Plimpton, S.; Attaway, S.; Hendrickson, B.; Swegle, J.; Vaughan, C.; Gardner, D. Parallel Transient Dynamics Simulations: Algorithms for Contact Detection and Smoothed Particle Hydrodynamics. J. Parallel Distrib. Comput. 1998, 50, 104–122. [Google Scholar] [CrossRef][Green Version]
  43. Brown, K.; Attaway, S.; Plimpton, S.; Hendrickson, B. Parallel Strategies for Crash and Impact Simulations. Comput. Methods Appl. Mech. Eng. 2000, 184, 375–390. [Google Scholar] [CrossRef][Green Version]
  44. Stacey, F.D.; Hodgkinson, J.H. Thermodynamics with the Grüneisen Parameter: Fundamentals and Applications to High Pressure Physics and Geophysics. Phys. Earth Planet. Inter. 2019, 286, 42–68. [Google Scholar] [CrossRef]
  45. Allen, W.A.; Mayfield, E.B.; Morrison, H.L. Dynamics of a Projectile Penetrating Sand. J. Appl. Phys. 1957, 28, 370–376. [Google Scholar] [CrossRef]
  46. Ahmed, M.; AlQadhi, S.; Mallick, J.; Desmukh, M.N.; Hang, H.T. Advances in Projectile Penetration Mechanism in Soil Media. Appl. Sci. 2020, 10, 6810. [Google Scholar] [CrossRef]
  47. Uzar, A.İ.; Dakak, M.; Saǧlam, M.; Özer, T.; Ögunç, G.; İde, T.; Öner, K.; Sen, D. The Magazine: A Major Cause of Bullet Fragmentation. Mil. Med. 2003, 168, 969–974. [Google Scholar] [CrossRef] [PubMed][Green Version]
  48. Knudsen, P.J.; Theilade, P. Terminal Ballistics of the 7.62 Mm NATO Bullet. Autopsy Findings. Int. J. Leg. Med. 1993, 106, 61–67. [Google Scholar] [CrossRef]
  49. Fackler, M.L.; Surinchak, J.S.; Malinowski, J.A.; Bowen, R.E. Bullet Fragmentation: A Major Cause of Tissue Disruption. J. Trauma 1984, 24, 35–39. [Google Scholar] [CrossRef]
  50. Borg, J.P.; Sable, P.; Sandusky, H.; Felts, J. In Situ Characterization of Projectile Penetration into Sand Targets. In AIP Conference Proceedings; AIP Publishing LLC.: Melville, NY, USA, 2017; Volume 1793, p. 120014. [Google Scholar] [CrossRef]
Materials 13 05243 g001

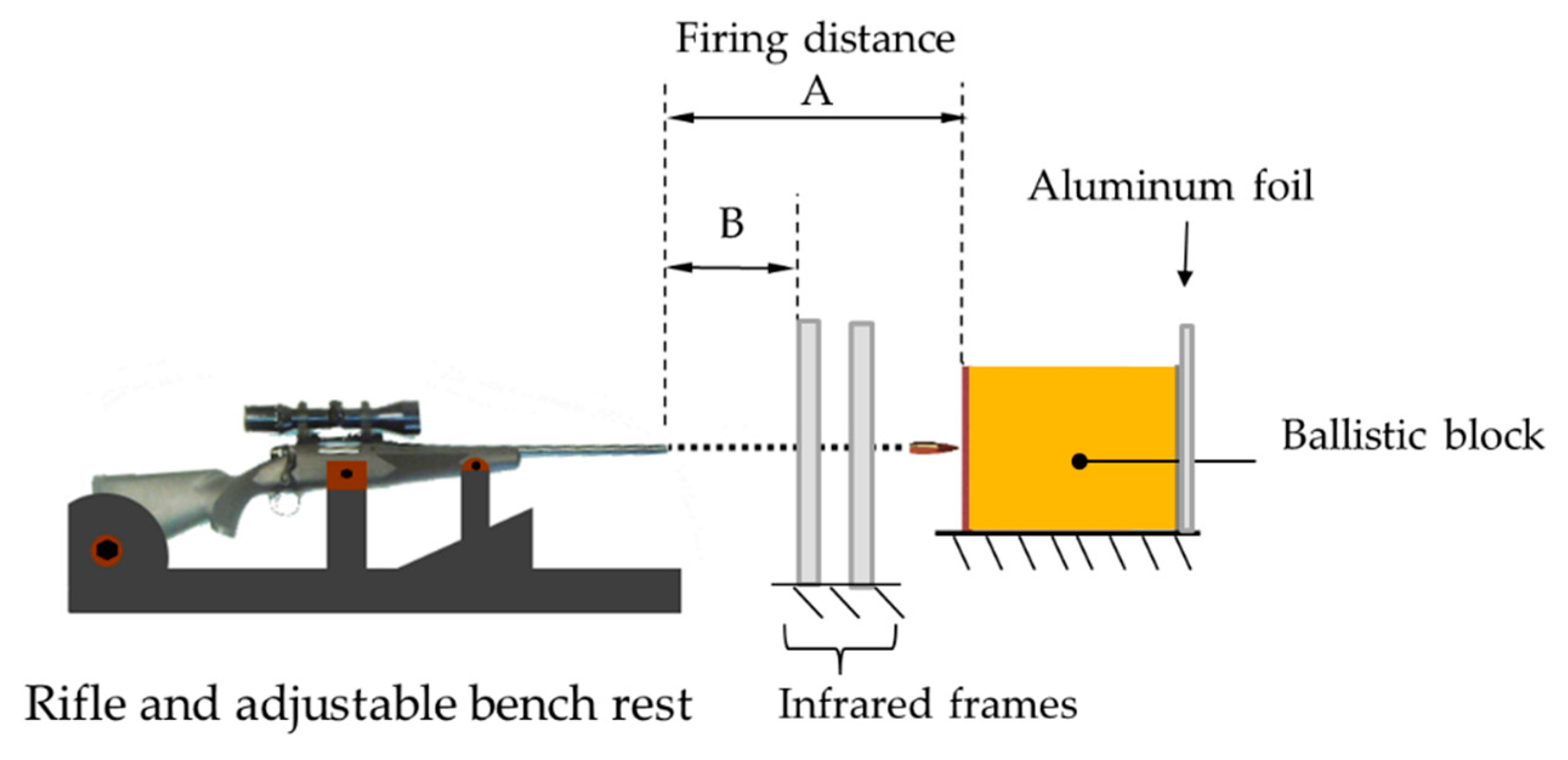

Figure 1. Configuration of the ballistic workbench.
Figure 1. Configuration of the ballistic workbench.
Materials 13 05243 g001
Materials 13 05243 g002

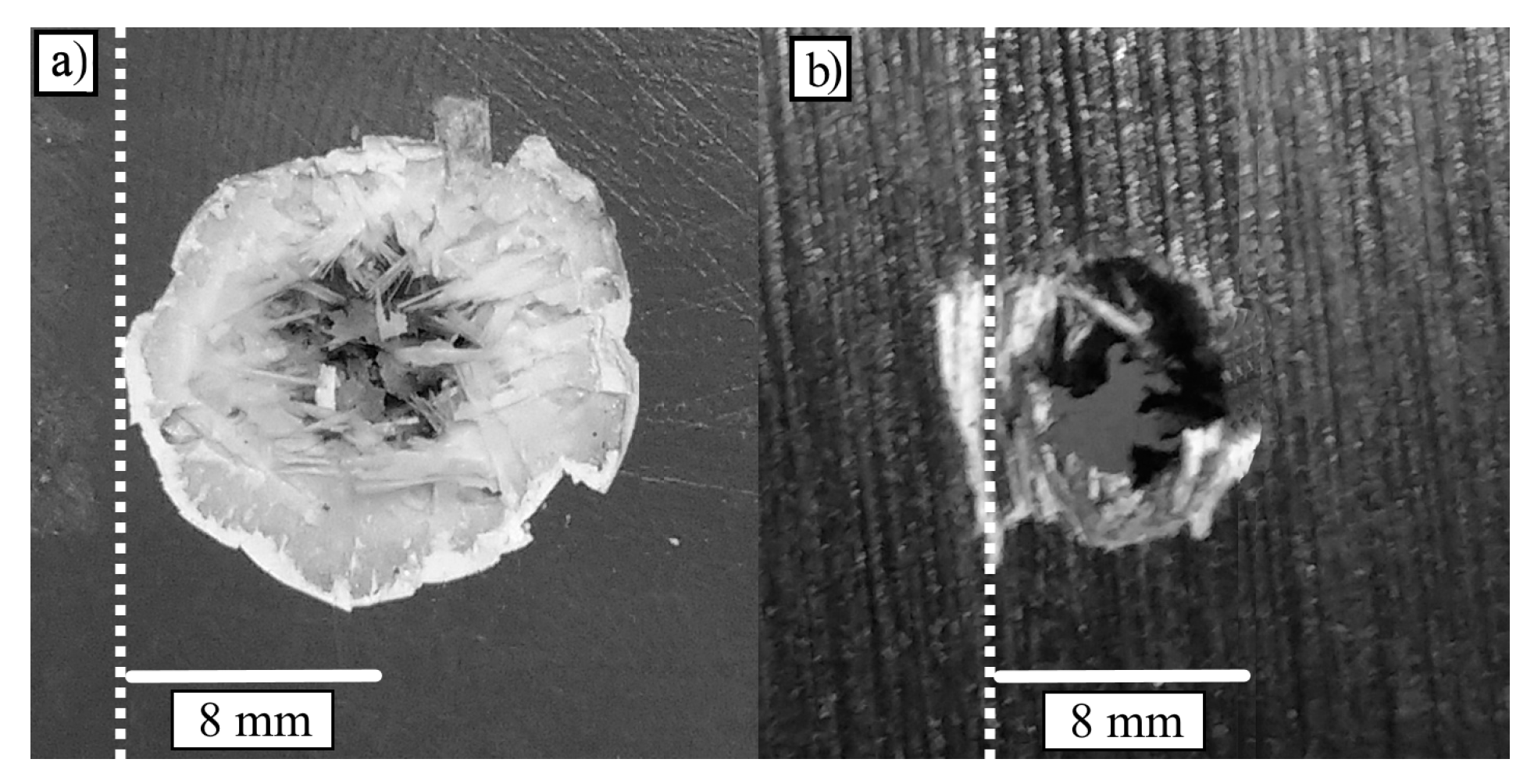

Figure 2. Resulting crater of the 7.62 mm FMJ (Full Metal Jacket) bullet impacted in (a) the fiberglass-sand-fiberglass (FSF) system and (b) the plywood-sand-plywood (PSP) system.
Figure 2. Resulting crater of the 7.62 mm FMJ (Full Metal Jacket) bullet impacted in (a) the fiberglass-sand-fiberglass (FSF) system and (b) the plywood-sand-plywood (PSP) system.
Materials 13 05243 g002
Materials 13 05243 g003

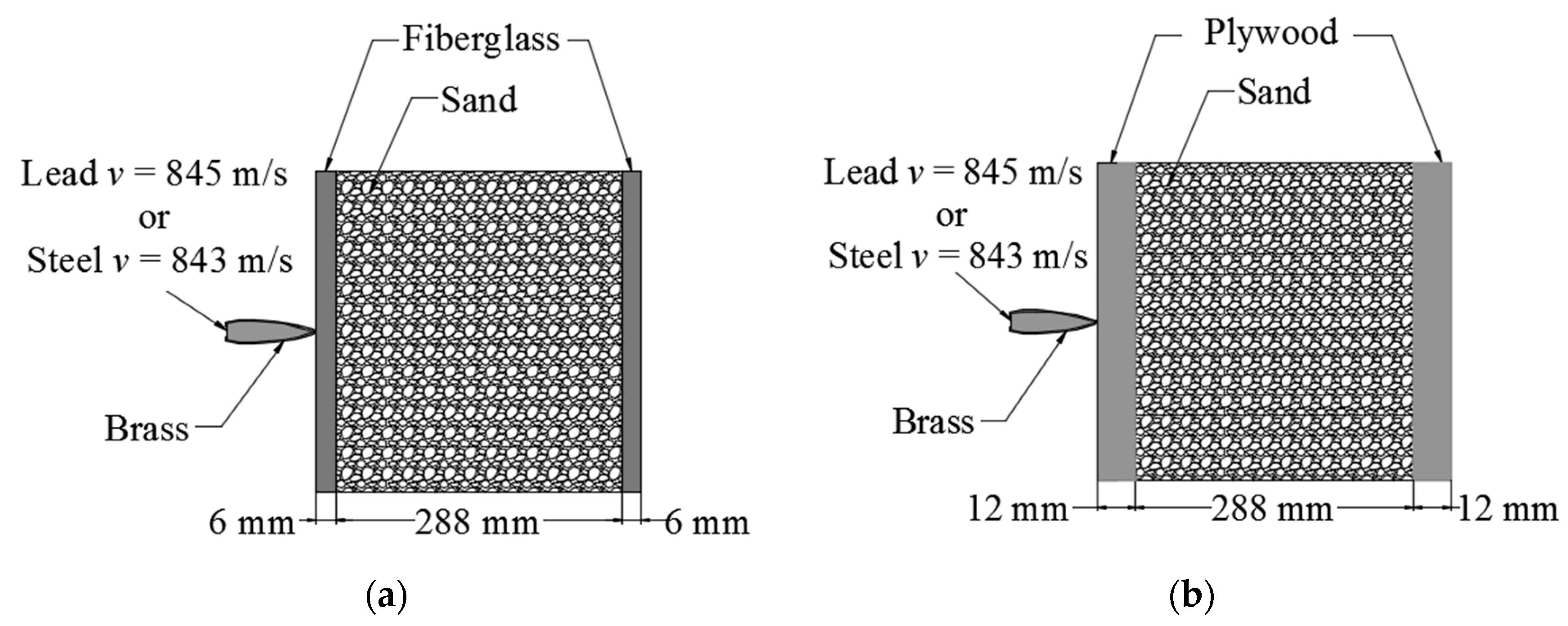

Figure 3. Components of the ballistic blocks in (a) the FSF system and (b) the PSP system.
Figure 3. Components of the ballistic blocks in (a) the FSF system and (b) the PSP system.
Materials 13 05243 g003
Materials 13 05243 g004

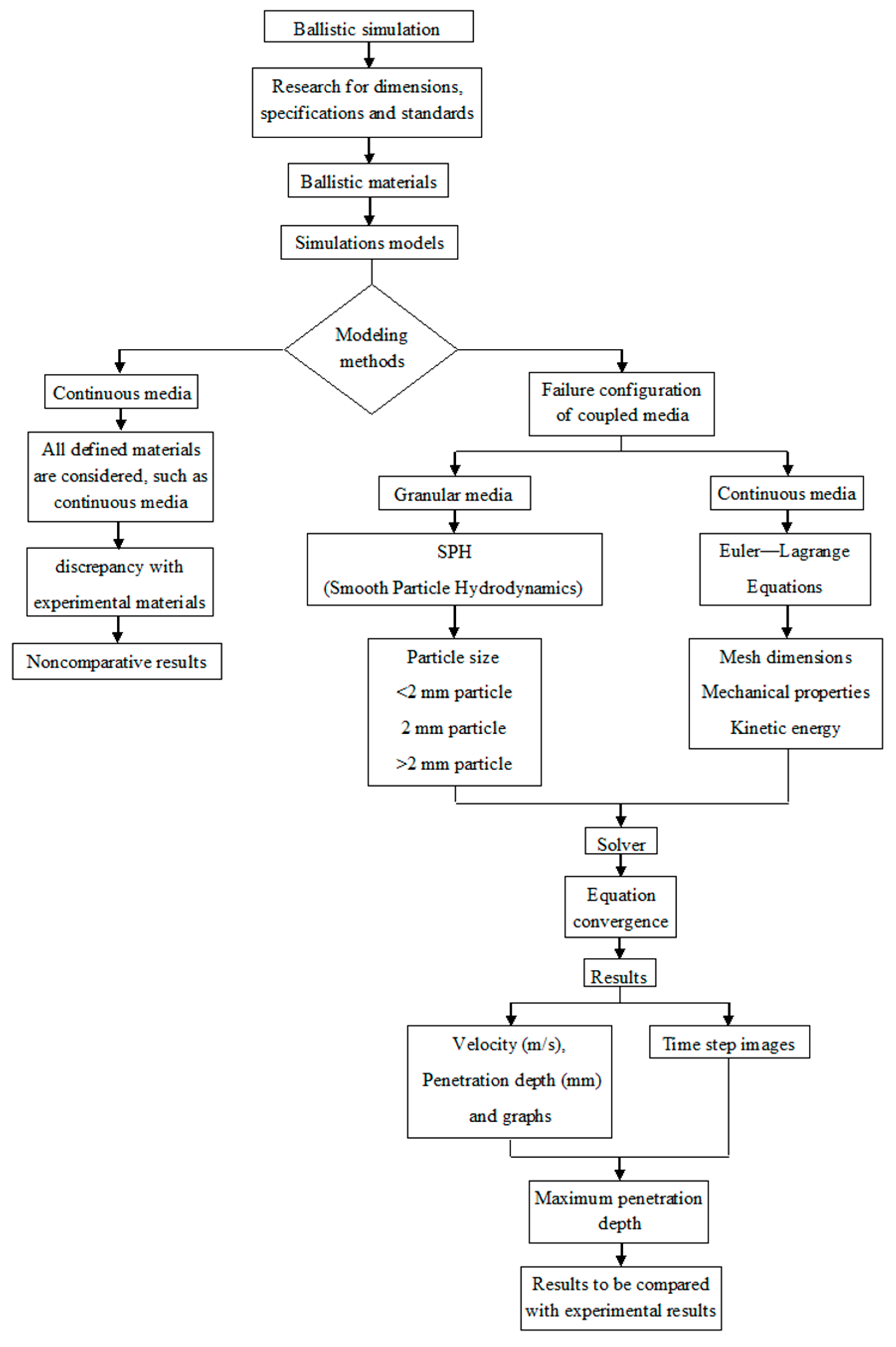

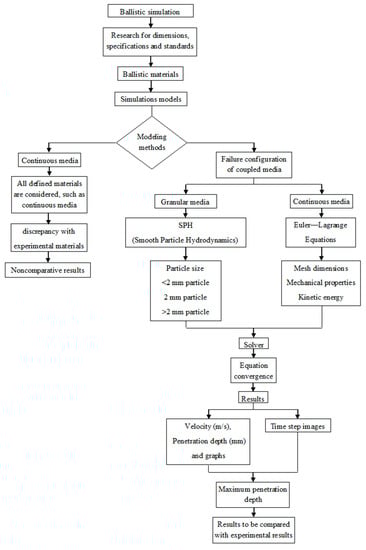

Figure 4. Simulation process flowchart.
Figure 4. Simulation process flowchart.
Materials 13 05243 g004
Materials 13 05243 g005

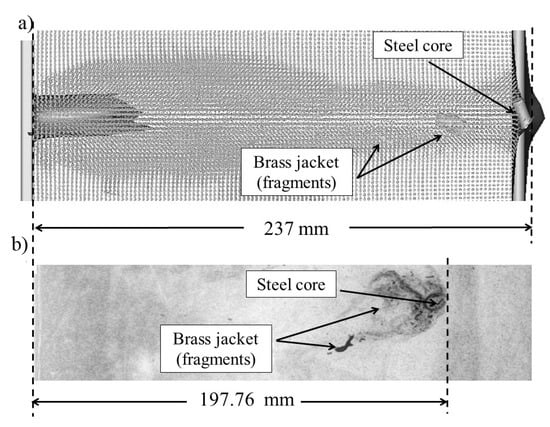

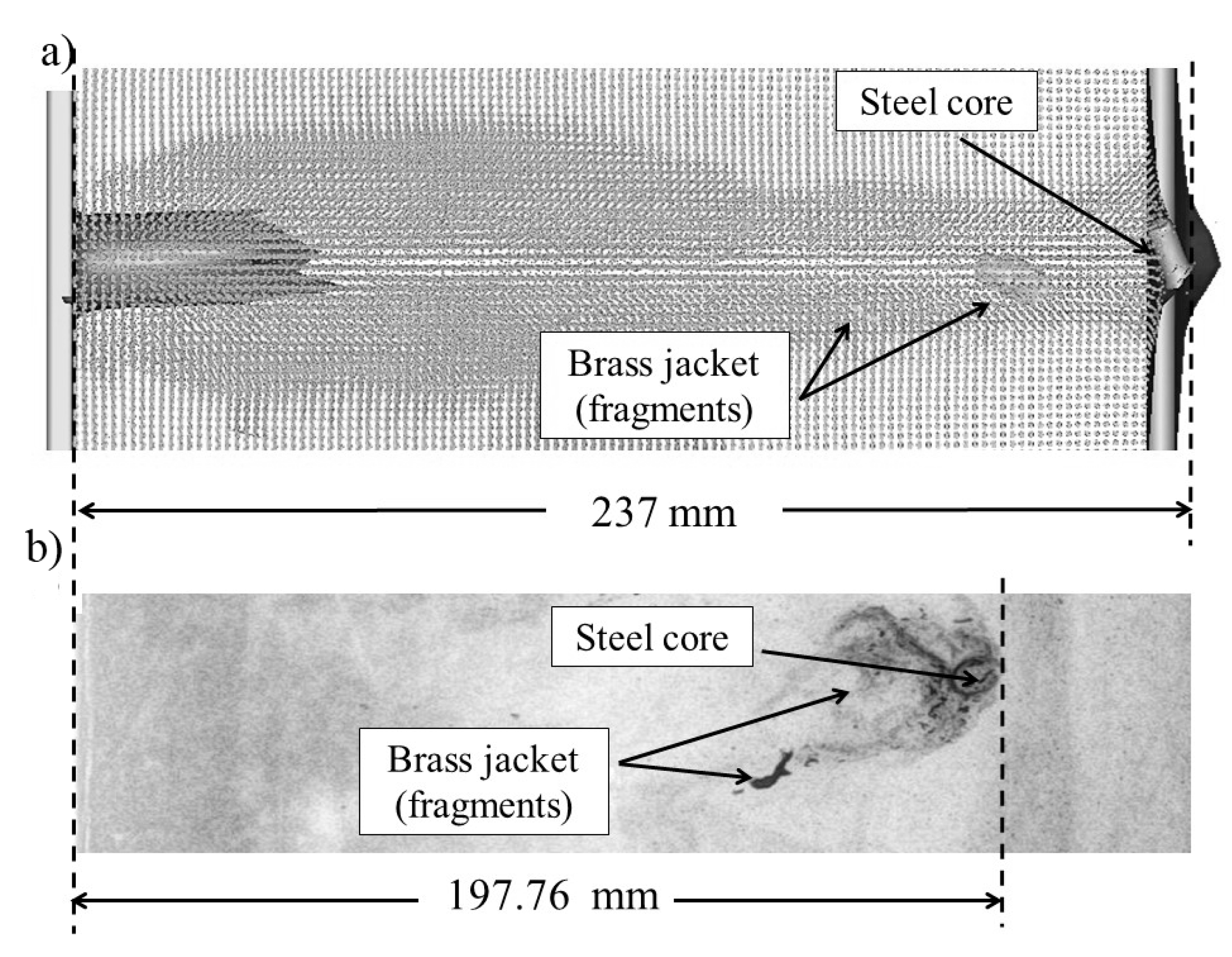

Figure 5. Comparison of fragmentation and penetration depths for the 7.62 mm AP bullet in the FSF block from (a) numerical simulation and (b) X-ray photography.
Figure 5. Comparison of fragmentation and penetration depths for the 7.62 mm AP bullet in the FSF block from (a) numerical simulation and (b) X-ray photography.
Materials 13 05243 g005
Materials 13 05243 g006

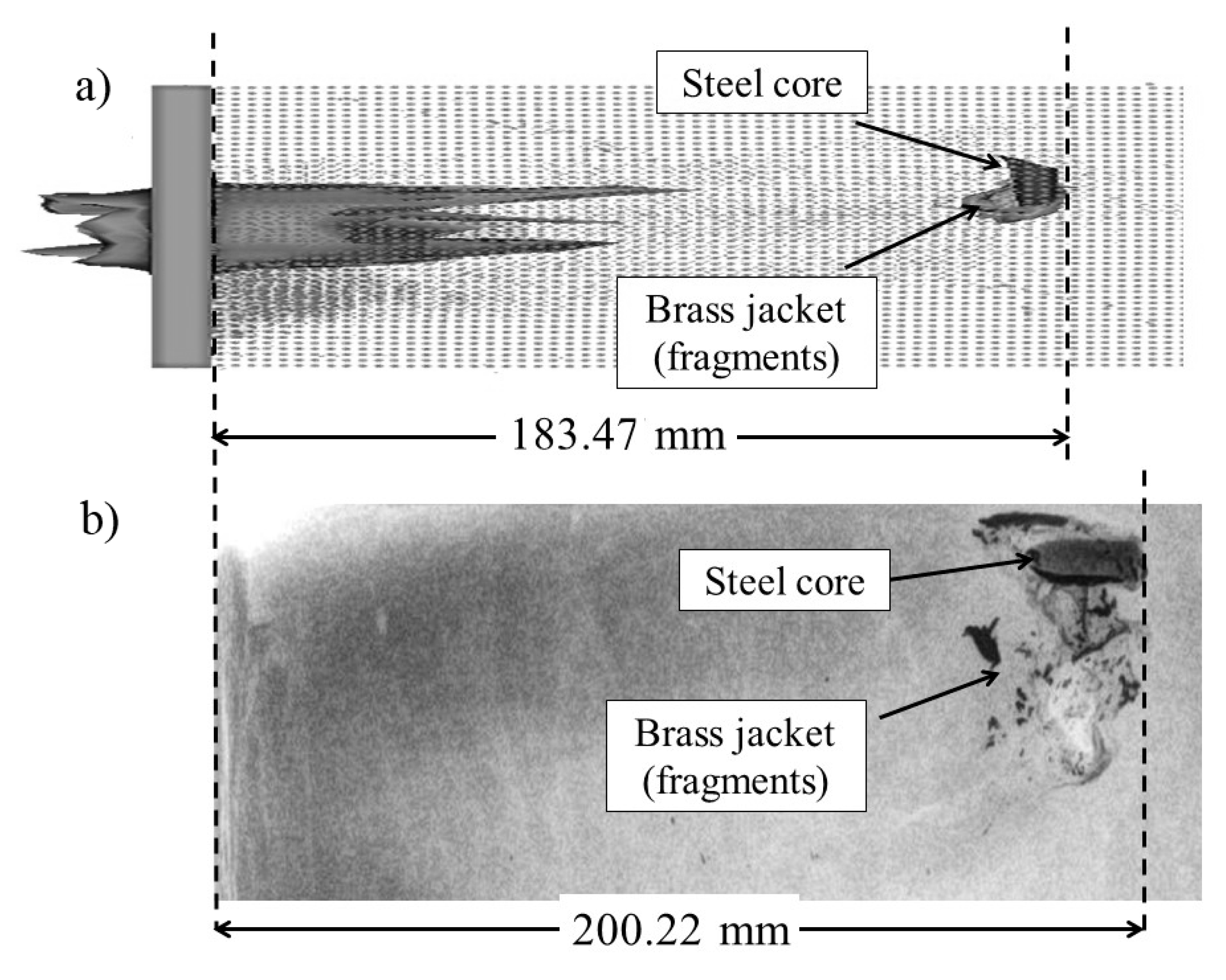

Figure 6. Comparison of fragmentation and penetration depths of the 7.62 mm AP bullet in the PSP block from (a) numerical simulation and (b) X-ray photography.
Figure 6. Comparison of fragmentation and penetration depths of the 7.62 mm AP bullet in the PSP block from (a) numerical simulation and (b) X-ray photography.
Materials 13 05243 g006
Materials 13 05243 g007

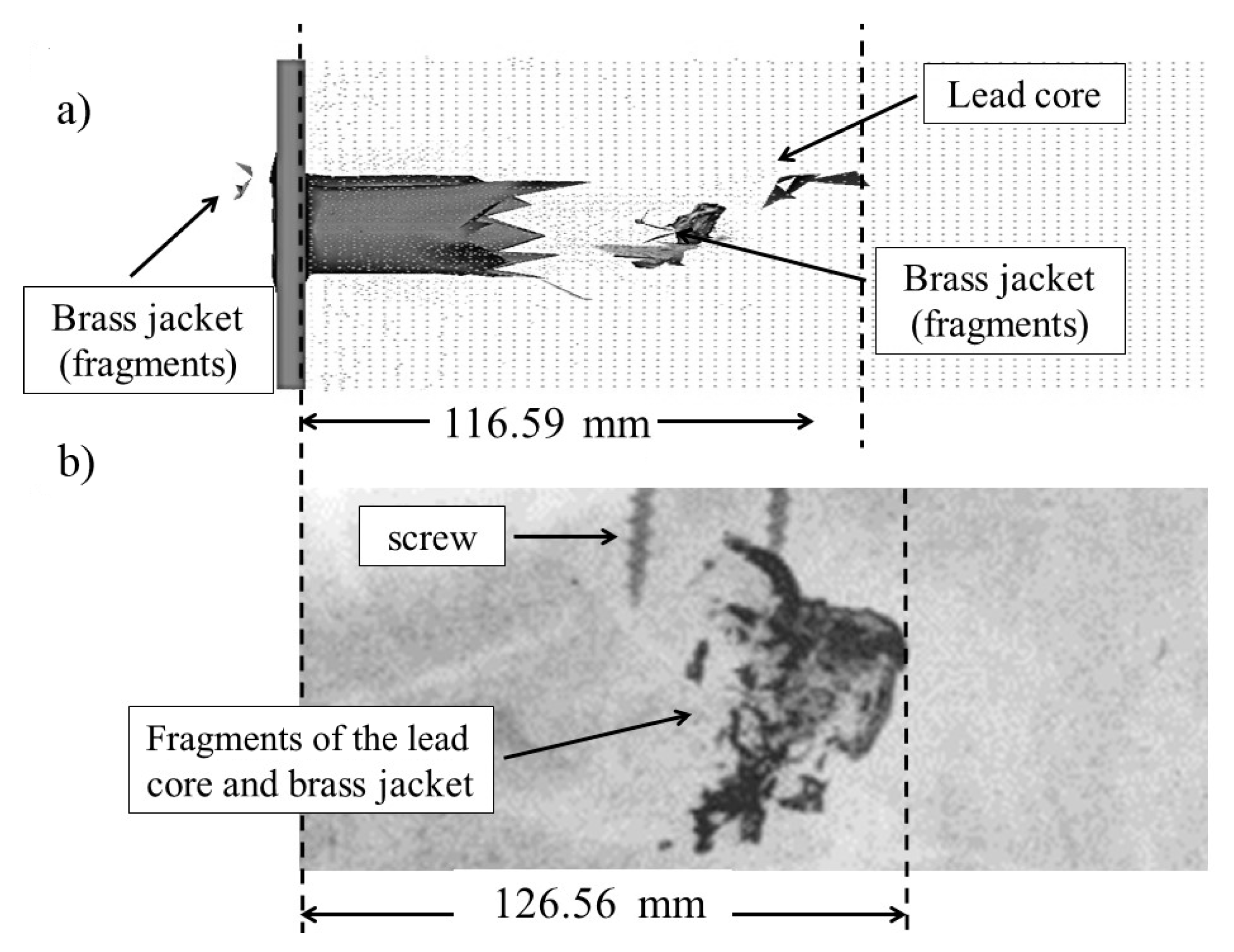

Figure 7. Comparison of fragmentation and penetration depths of the 7.62 mm FMJ bullet in the FSF block from (a) numerical simulation and (b) X-ray photography.
Figure 7. Comparison of fragmentation and penetration depths of the 7.62 mm FMJ bullet in the FSF block from (a) numerical simulation and (b) X-ray photography.
Materials 13 05243 g007
Materials 13 05243 g008

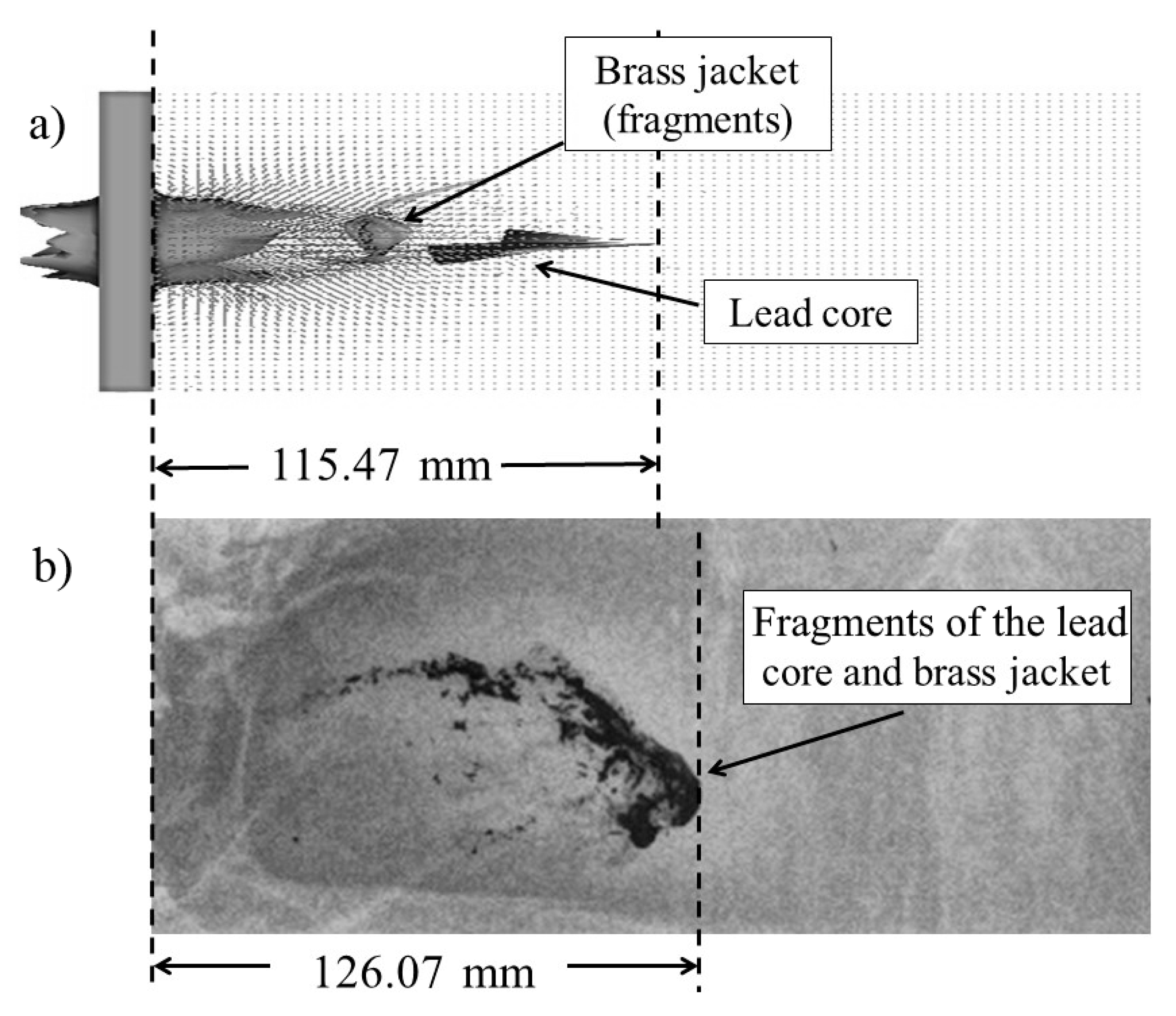

Figure 8. Comparison of fragmentation and penetration depths of the 7.62 mm FMJ bullet in the PSP block from (a) numerical simulation and (b) X-ray photography.
Figure 8. Comparison of fragmentation and penetration depths of the 7.62 mm FMJ bullet in the PSP block from (a) numerical simulation and (b) X-ray photography.
Materials 13 05243 g008
Materials 13 05243 g009

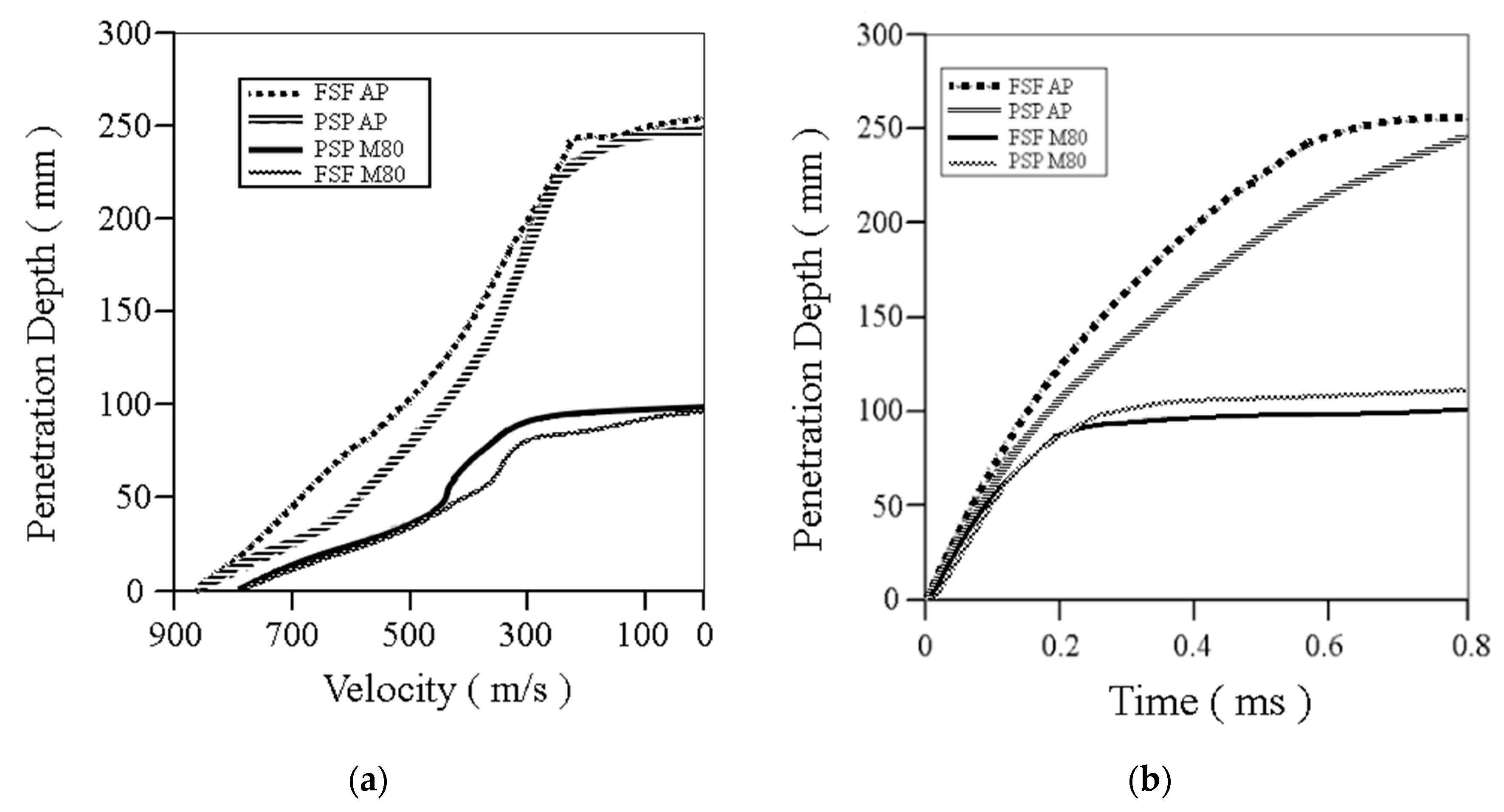

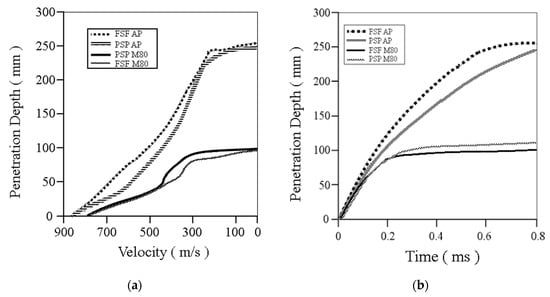

Figure 9. Penetration depth with respect to (a) velocity and (b) time.
Figure 9. Penetration depth with respect to (a) velocity and (b) time.
Materials 13 05243 g009
Materials 13 05243 g010

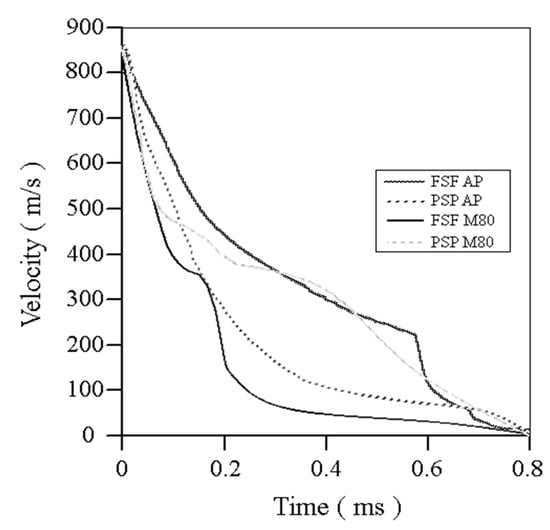

Figure 10. Numerical velocity results with respect to time obtained in the numerical simulations.

Figure 10. Numerical velocity results with respect to time obtained in the numerical simulations.
Materials 13 05243 g010
Table 1. Bullet velocities obtained in the experimental shots.
Table 1. Bullet velocities obtained in the experimental shots.
Bullet TypeWeight (±0.01 g)Energy at 15 mVelocity at 0 mVelocity at 15 mVelocity at 23.77 m
AP M619.75 g3 481 J852 m/s843 m/s835 m/s
FMJ M809.65 g3 445 J855 m/s845 m/s839 m/s
Table 2. Mechanical properties required in the simulation.
Table 2. Mechanical properties required in the simulation.
MaterialMediaMaterialDensity (kg/m3)Shear Modulus (GPa)
BrassContinuousOrthotropic845035.9
LeadContinuousOrthotropic11,3504
SteelContinuousOrthotropic789681.8
SandGranularAnisotropic264176.9
PlywoodContinuousAnisotropic6800.75
FiberglassContinuousAnisotropic13100.82
Table 3. Bullet velocities considered for each case of analysis.
Table 3. Bullet velocities considered for each case of analysis.
CaseModel Type–ProjectileVelocity (m/s)
1FSF–AP (M61)843
2PSP–AP (M61)843
3FSF–FMJ (M80)845
4PSP–FMJ (M80)845
Table 4. Configuration parameters for the simulation.
Table 4. Configuration parameters for the simulation.
LeadBrassSteelSandFiberglassPlywood
Shock EOS Linear---X-X
Grüneisen Coefficient2.742.042.17X1.18X
C1 (m/s)200637264569X2746X
S11.4291.4341.49X1.319X
Quadratic S2 (s/m)0 00X0X
Specific Heat (J/kg C)124 X447 XXX
Steinberg Giunan Strength-X-XXX
MO GranularXXX-XX
offsetXXX0XX
Tensile Pressure FailureXXX-XX
Max. Tensile Pressure (Pa)XXX1000 XX
Compaction EOS LinearXXX-XX
Solid Density (kg/m3)XXX2641 XX
Compaction PathXXX-XX
Linear UnloadingXXX-XX
Johnson-Holmquist Strength XXXXX-
Failure typeXXXXXGradual
Hugoniot Elastic Limit XXXXX5.92 × 109 Pa
Intact Strength Constant AXXXXX0.93
Intact Strength Exponent NXXXXX0.77
Strain Rate Constant CXXXXX0.003
Fracture Strength Constant BXXXXX0.088
Fracture Strength Exponent mXXXXX0.35
Max. fracture strength Ratio XXXXX0.5
Damage constant D1XXXXX0.053
Damage constant D2XXXXX0.85
Bulking constant BXXXXX1
Hydrodynamic Tensile LimitXXXXX−0.15 × 109 Pa
Bulk ModulusXXXXX45.4 × 109 Pa
Shear ModulusXXXXX15,000 MPa
Polynomial EOSXXXXX-
Table 5. Comparison of numerical and experimental results for each case.
Table 5. Comparison of numerical and experimental results for each case.
CaseModel Type–ProjectileVelocity (m/s)Penetration Depth (mm)Time (ms)
NumericalExperimental
1FSF–AP (FMJ)843237.12197.760.8
2PSP–AP (FMJ)843207.41200.220.8
3FSF–FMJ (M80)845116.59126.560.8
4PSP–FMJ (M80)845115.35126.070.8
