Microstructure and Tensile Properties of Graphene-Oxide-Reinforced High-Temperature Titanium-Alloy-Matrix Composites
1
National Center of Novel Materials for International Research, Tsinghua University, Beijing 100084, China
2
Aviation Key Laboratory of Science and Technology on Advanced Titanium Alloys, AECC Beijing Institute of Aeronautical Materials, Beijing 100095, China
3
Beijing Engineering Research Center of Graphene and Application, Beijing 100095, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Materials 2020, 13(15), 3358; https://doi.org/10.3390/ma13153358
Received: 26 June 2020
/
Revised: 25 July 2020
/
Accepted: 27 July 2020
/
Published: 29 July 2020
(This article belongs to the Special Issue Design, Properties and Processing of Novel Composites)

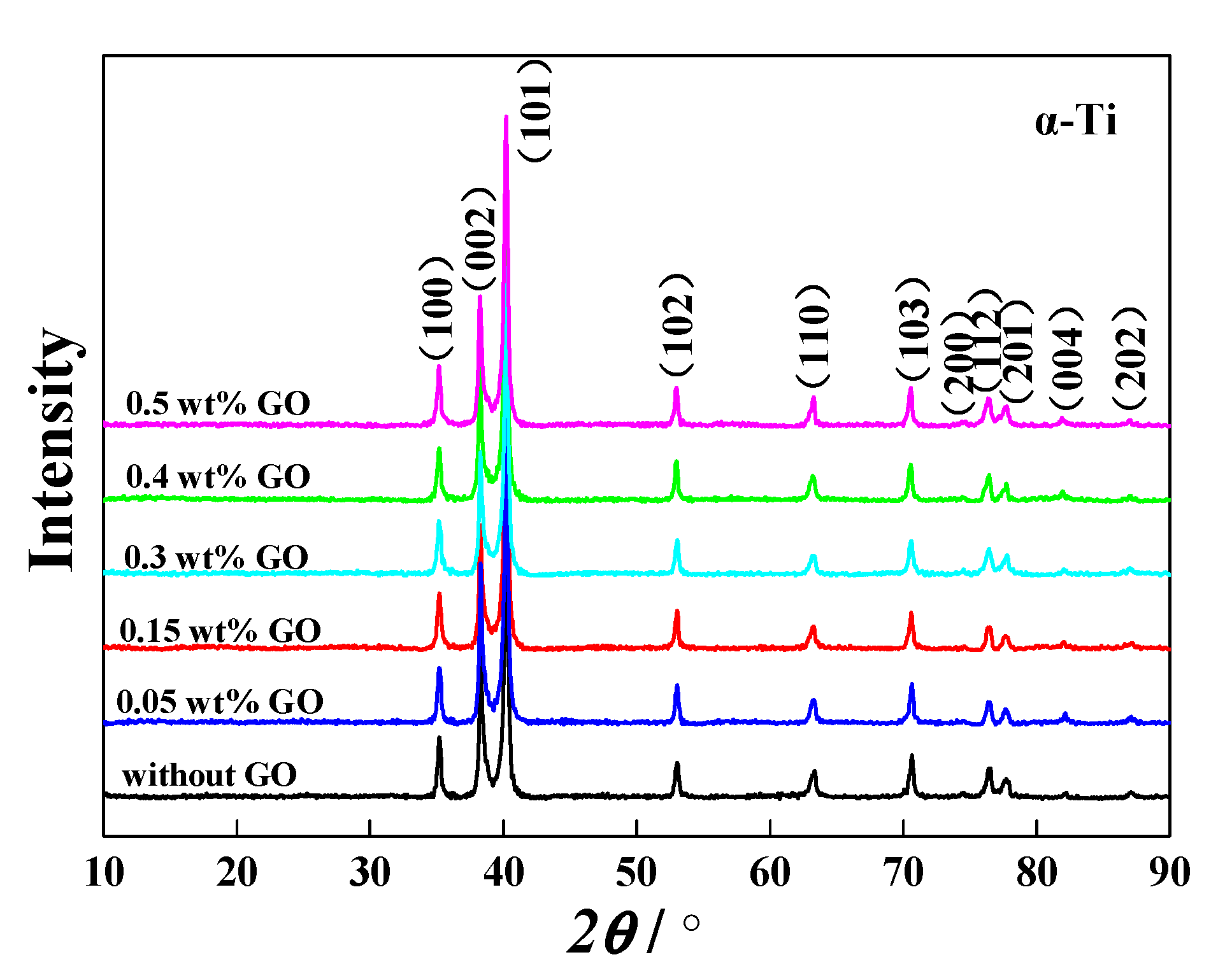

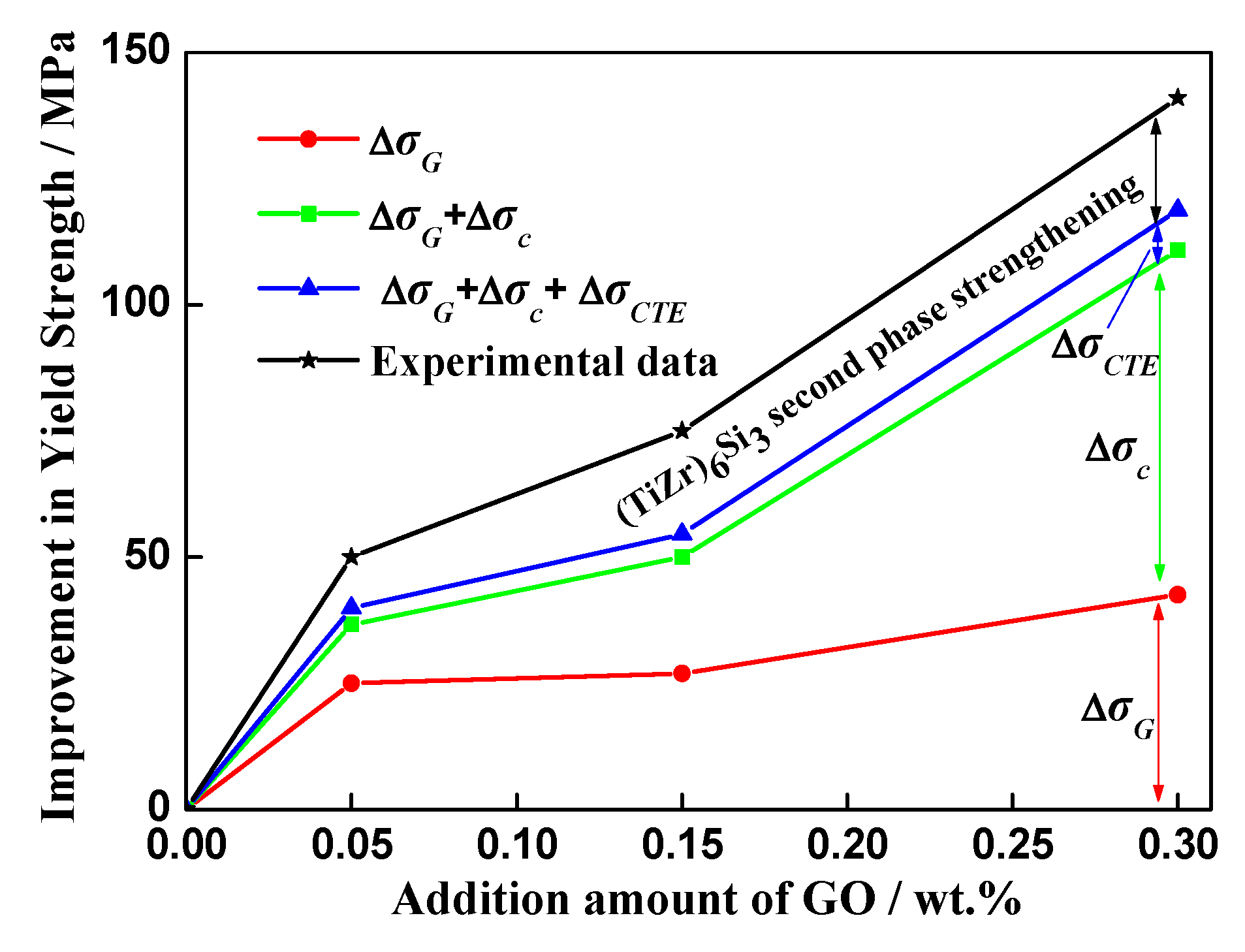

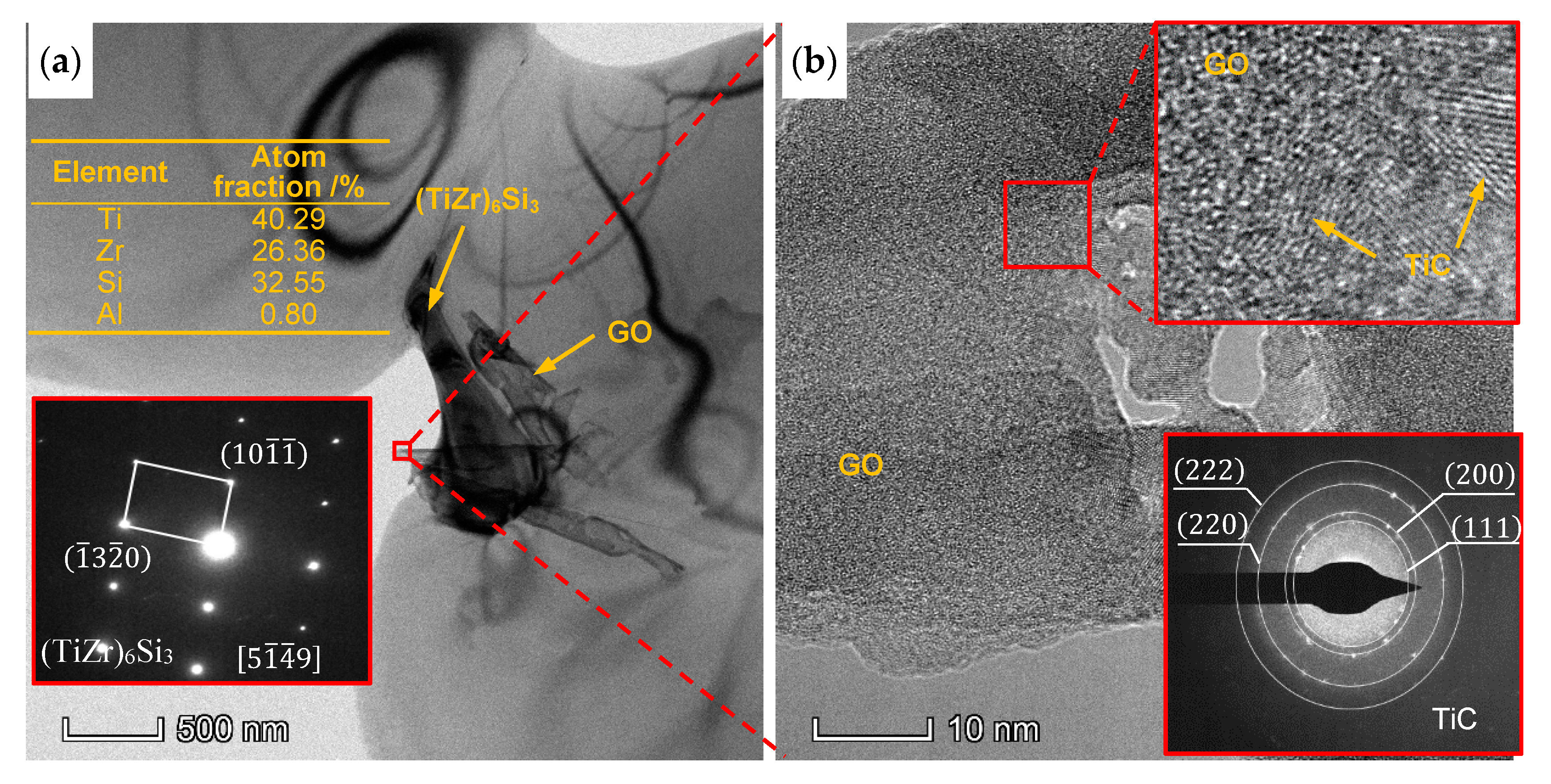

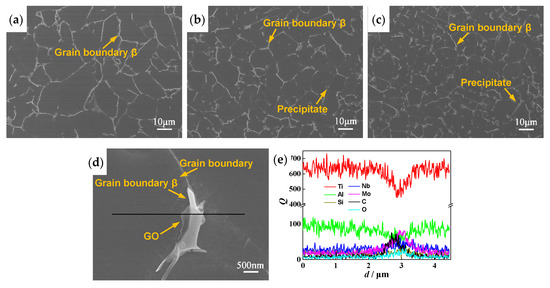

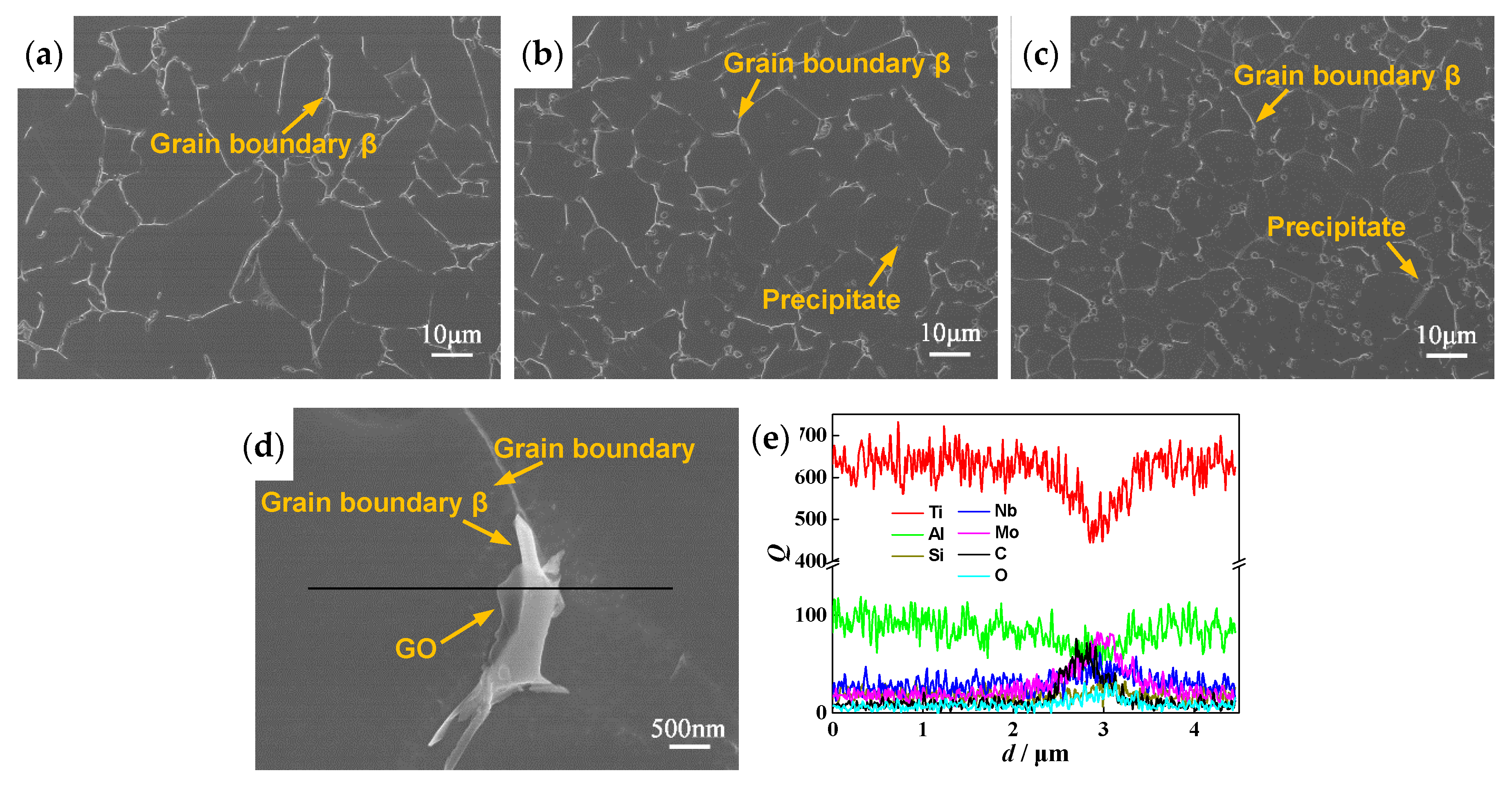

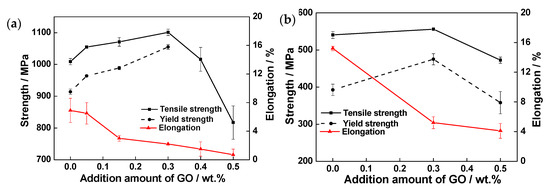

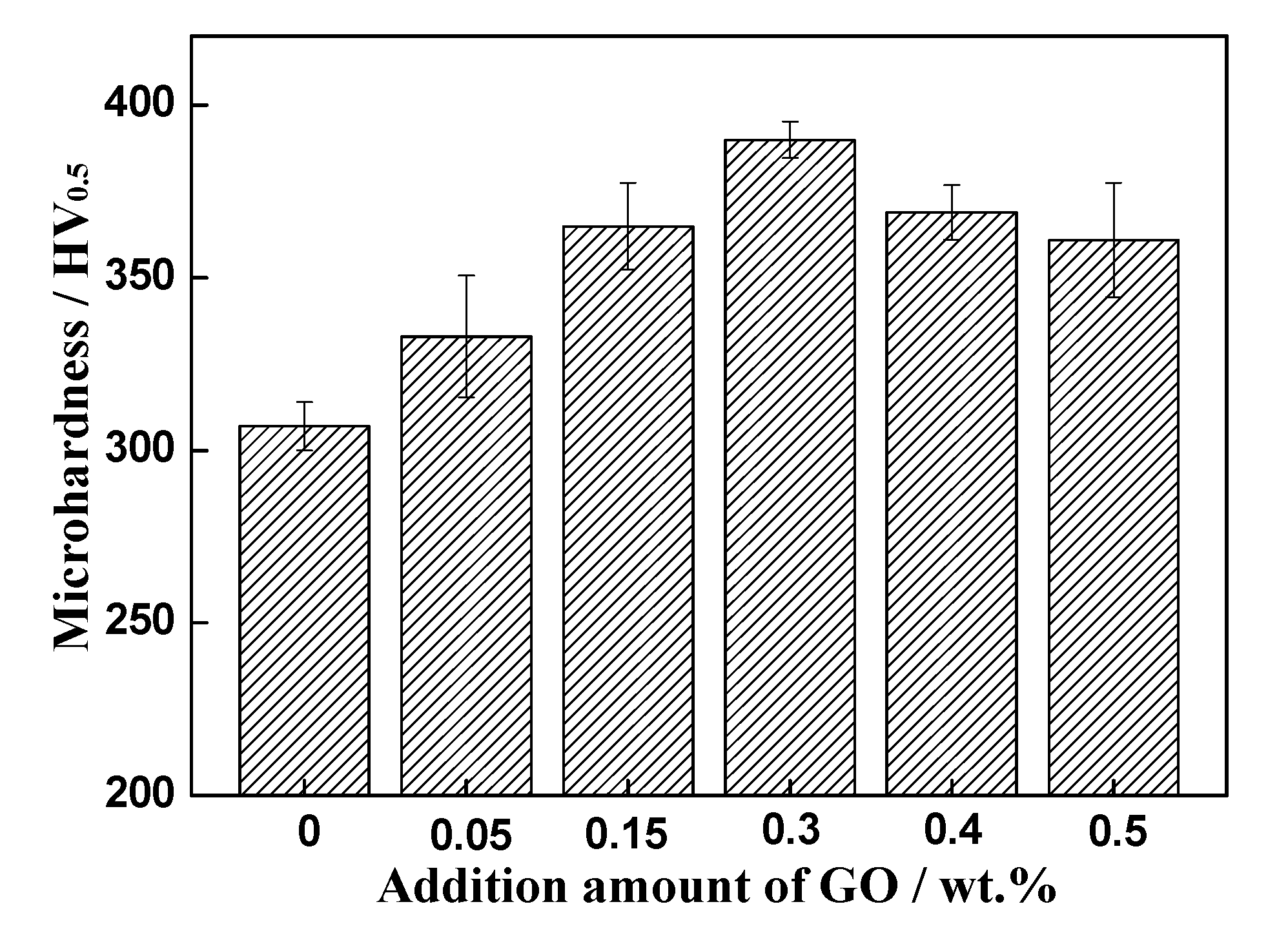

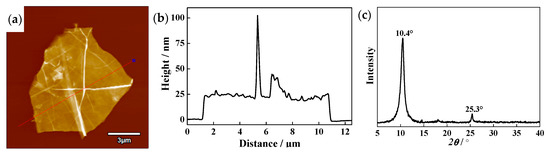

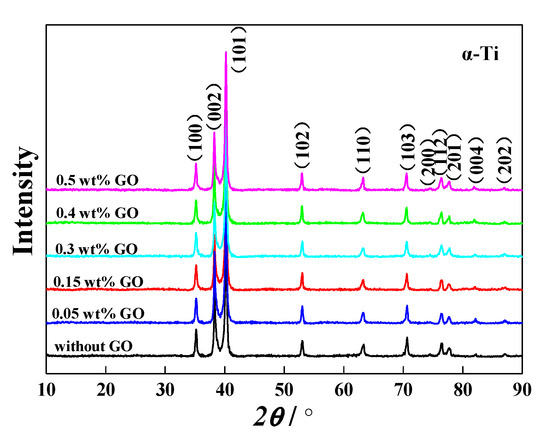

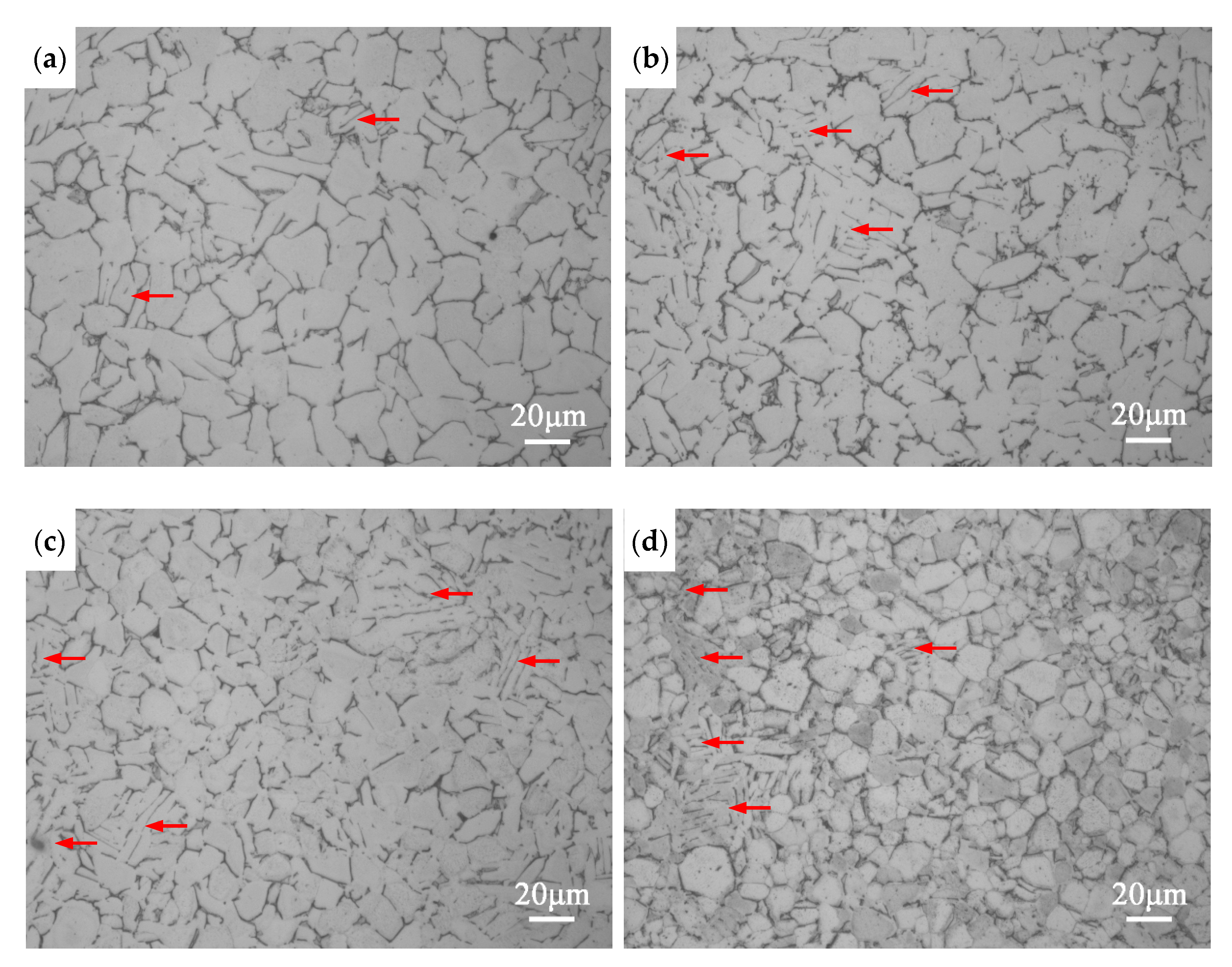

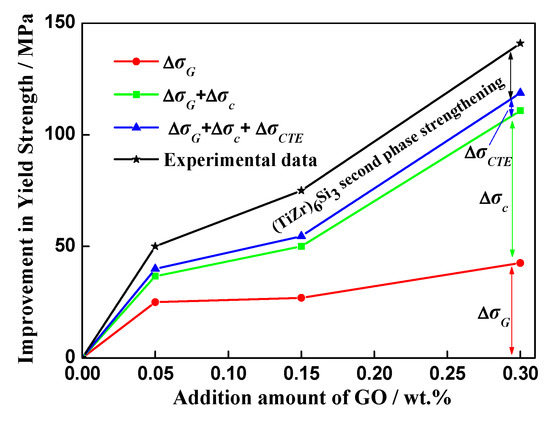

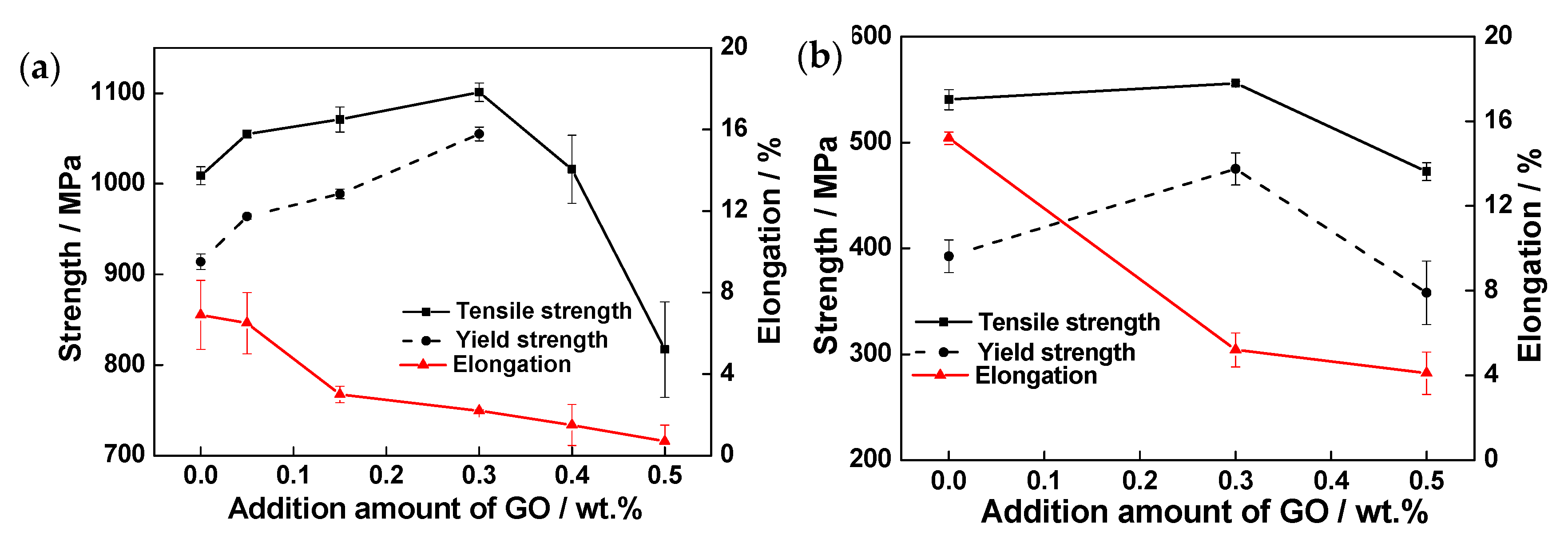

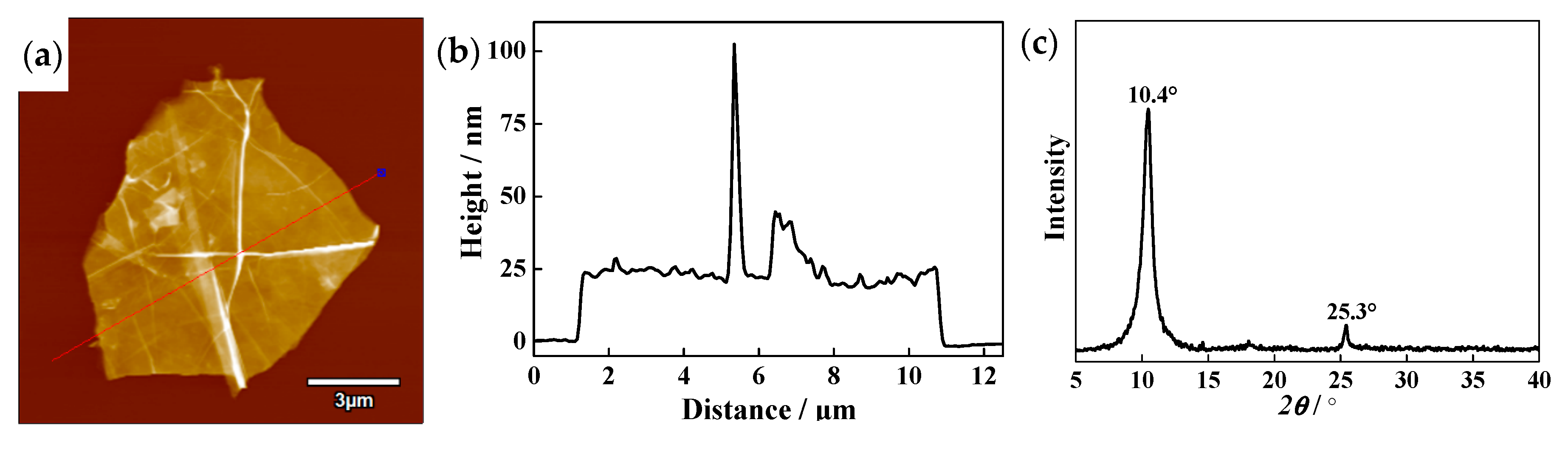

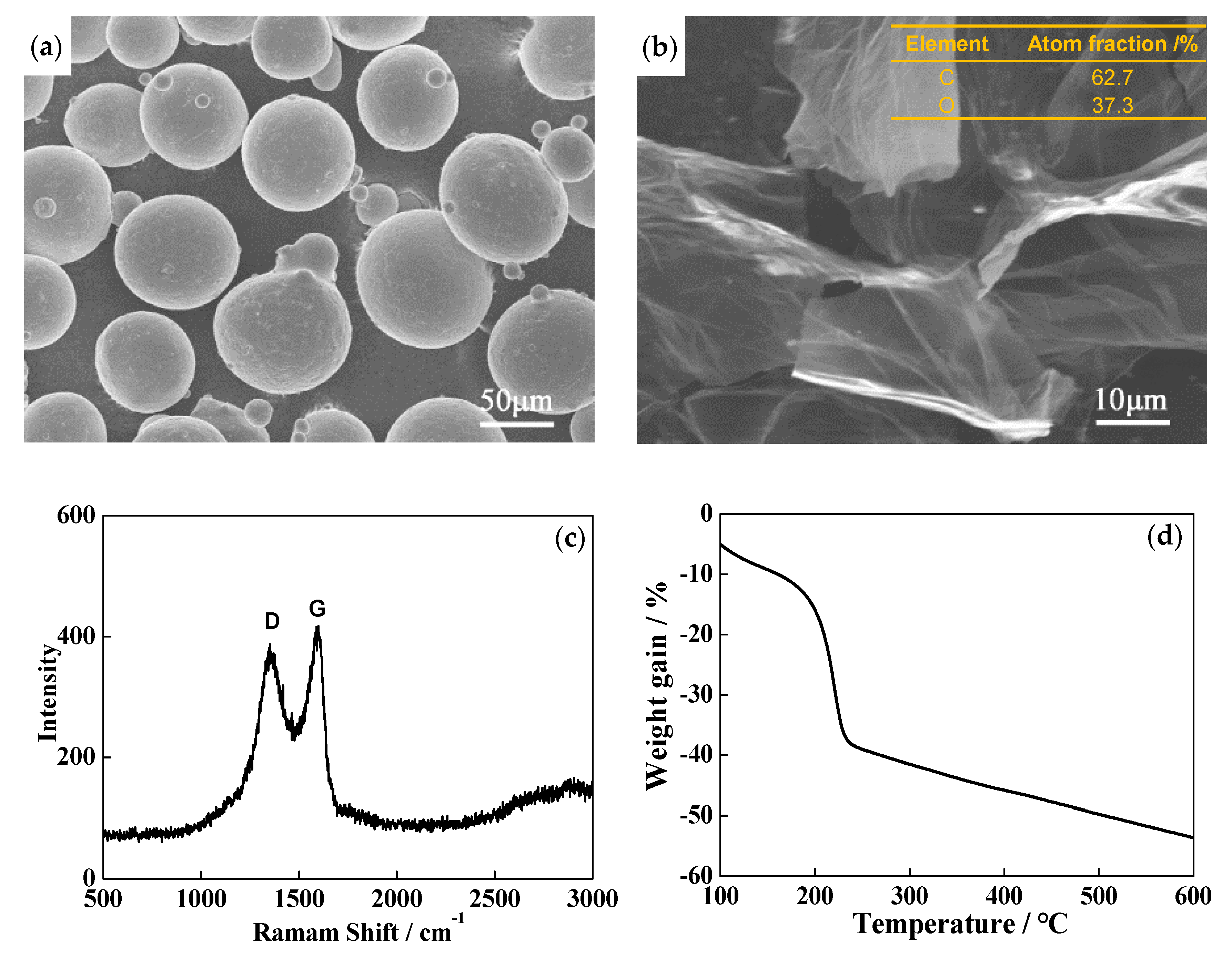

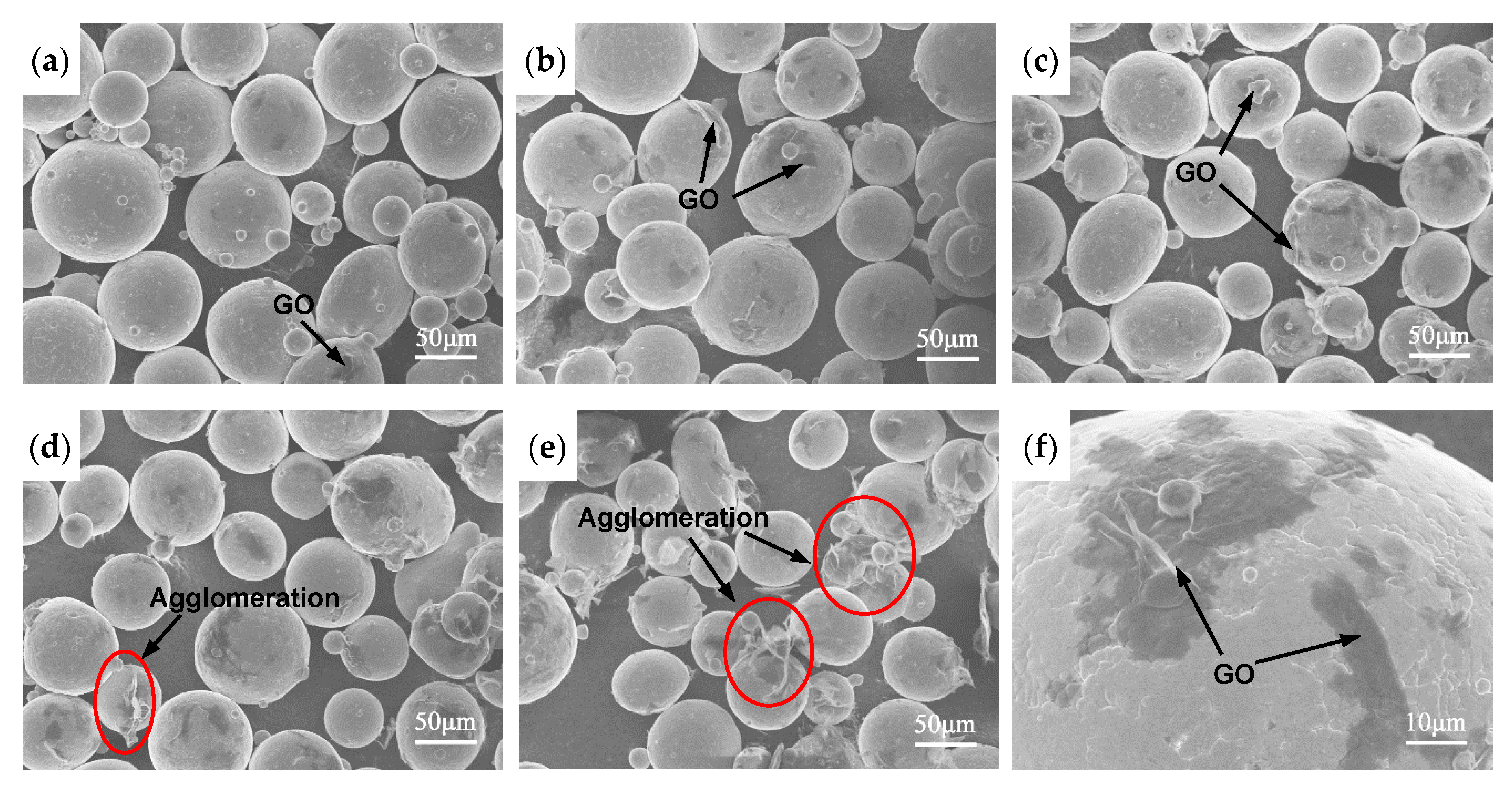

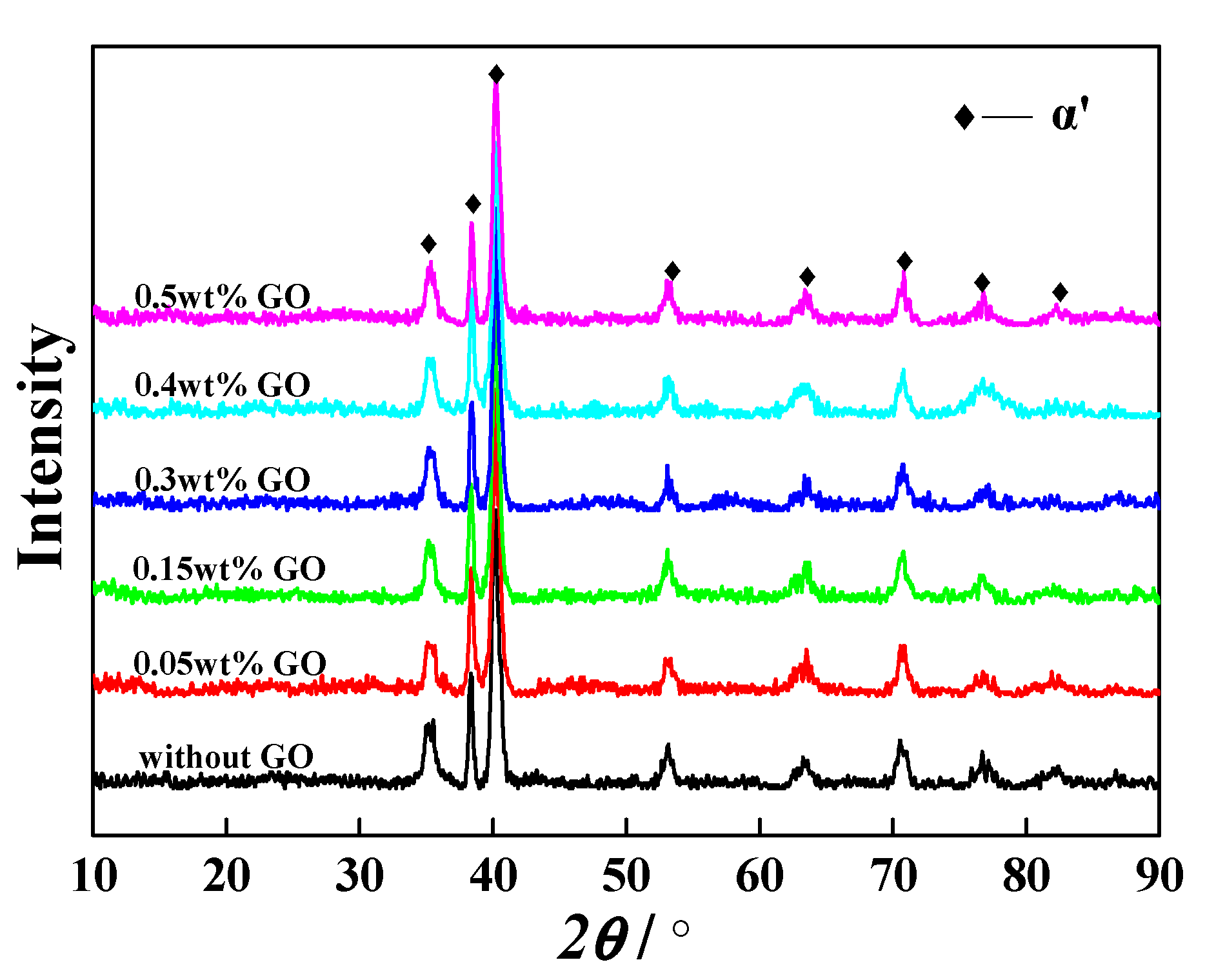

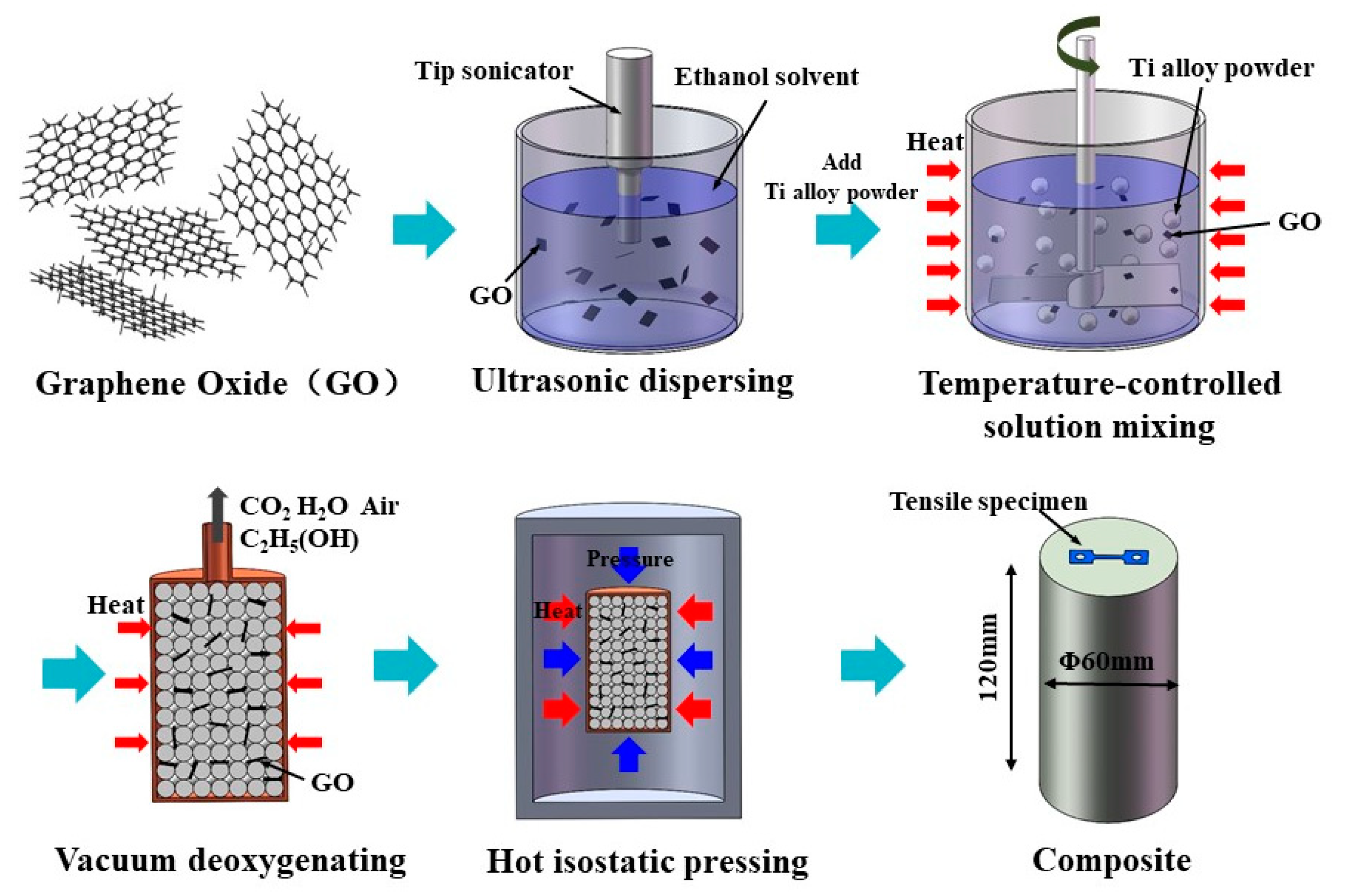

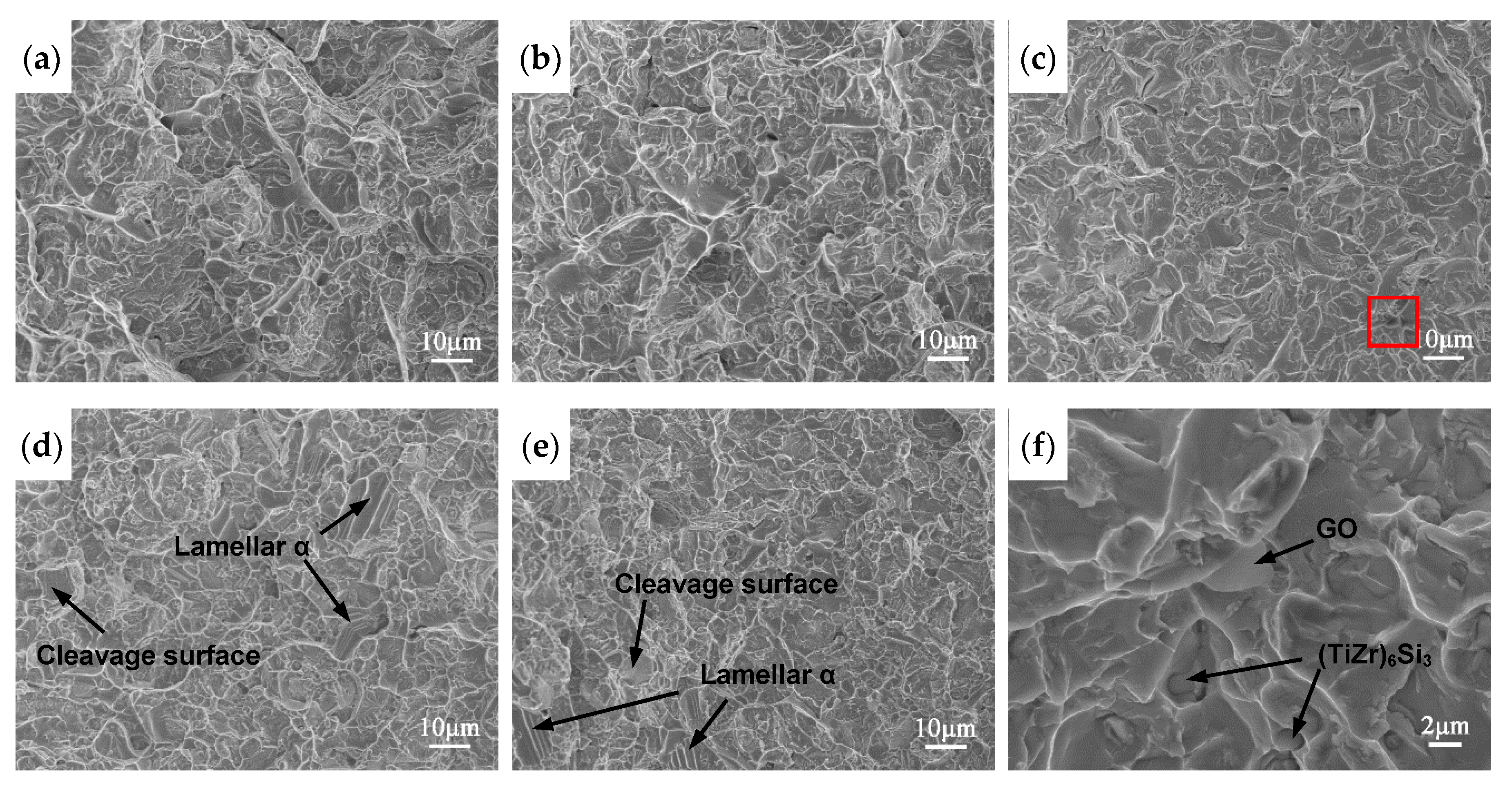

In this study, graphene-oxide (GO)-reinforced Ti–Al–Sn–Zr–Mo–Nb–Si high-temperature titanium-alloy-matrix composites were fabricated by powder metallurgy. The mixed powders with well-dispersed GO sheets were obtained by temperature-controlled solution mixing, in which GO sheets adsorb on the surface of titanium alloy particles. Vacuum deoxygenating was applied to remove the oxygen-containing groups in GO, in order to reduce the introduction of oxygen. The compact composites with refined equiaxed and lamellar α phase structures were prepared by hot isostatic pressing (HIP). The results show that in-situ TiC layers form on the surface of GO and GO promotes the precipitation of hexagonal (TiZr)6Si3 particles. The composites exhibit significant improvement in strength and microhardness. The room-temperature tensile strength, yield strength and microhardness of the composite added with 0.3 wt% GO are 9%, 15% and 27% higher than the matrix titanium alloy without GO, respectively, and the tensile strength and yield strength at 600 °C are 3% and 21% higher than the matrix alloy. The quantitative analysis indicates that the main strengthening mechanisms are load transfer strengthening, grain refinement and (TiZr)6Si3 second phase strengthening, which accounted for 48%, 30% and 16% of the improvement of room-temperature yield strength, respectively.
View Full-Text
Keywords:
titanium-matrix composite; graphene oxide; high-temperature titanium alloy; microstructure; tensile properties; silicide
▼
Show Figures
Graphical abstract
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Chen, H.; Mi, G.; Li, P.; Huang, X.; Cao, C. Microstructure and Tensile Properties of Graphene-Oxide-Reinforced High-Temperature Titanium-Alloy-Matrix Composites. Materials 2020, 13, 3358. https://doi.org/10.3390/ma13153358
AMA Style
Chen H, Mi G, Li P, Huang X, Cao C. Microstructure and Tensile Properties of Graphene-Oxide-Reinforced High-Temperature Titanium-Alloy-Matrix Composites. Materials. 2020; 13(15):3358. https://doi.org/10.3390/ma13153358
Chicago/Turabian StyleChen, Hang, Guangbao Mi, Peijie Li, Xu Huang, and Chunxiao Cao. 2020. "Microstructure and Tensile Properties of Graphene-Oxide-Reinforced High-Temperature Titanium-Alloy-Matrix Composites" Materials 13, no. 15: 3358. https://doi.org/10.3390/ma13153358
Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
