Design of Zeolite-Covalent Organic Frameworks for Methane Storage

Institute for Computational Science and Technology (ICST), Quang Trung Software City, Ho Chi Minh City 700000, Vietnam
School of Chemical Engineering and Materials Science, Chung-Ang University, 84 Heukseok-ro, Dongjak-gu, Seoul 06974, Korea
Department of Materials Science and Engineering, Korea University, 145 Anam-ro Seongbuk-gu, Seoul 02841, Korea
Institute of Research and Development, Duy Tan University, Da Nang 550000, Vietnam
Faculty of Chemistry, University of Science, VNU-HCM, Ho Chi Minh City 700000, Vietnam
Authors to whom correspondence should be addressed.
Materials 2020, 13(15), 3322;
Submission received: 26 June 2020 / Revised: 15 July 2020 / Accepted: 24 July 2020 / Published: 26 July 2020


A new type of zeolite-based covalent organic frameworks (ZCOFs) was designed under different topologies and linkers. In this study, the silicon atoms in zeolite structures were replaced by carbon atoms in thiophene, furan, and pyrrole linkers. Through the adoption of this strategy, 300 ZCOFs structures were constructed and simulated. Overall, the specific surface area of ZCOFs is in the range of 300–3500 m2/g, whereas the pore size is distributed from 3 to 27 Å. Furthermore, the pore volume exhibits a wide range between 0.01 and 1.5 cm3/g. Screening 300 ZCOFs with the criteria towards methane storage, 11 preliminary structures were selected. In addition, the Grand Canonical Monte Carlo technique was utilized to evaluate the CH4 adsorption ability of ZCOFs in a pressure ranging from 1 to 85 bar at a temperature of 298 K. The result reveals that two ZCOF structures: JST-S 183 v/v (65–5.8 bar) and NPT-S 177 v/v (35–1 bar) are considered as potential adsorbents for methane storage. Furthermore, the thermodynamic stability of representative structures is also checked base on quantum mechanical calculations.

Graphical Abstract

1. Introduction

Methane is known as the fundamental ingredient of natural gas which is found with oil fields in Earth’s crust. Currently, methane is also exploited from methane hydrate, recognized as a promising resource to provide energy in the future. However, efficiency and safety are two critical criteria for methane storage that need to be addressed in practical applications. Therefore, a large number of studies have focused on methane storage with porous materials such as covalent organic frameworks (COFs), zeolitic imidazole frameworks, hydrogen-bonded organic frameworks, and metal-organic frameworks (MOFs) [1,2,3,4,5,6]. In 2006, ZIFs were firstly reported with various topologies such as sod, rho, and mer [7]. This study opened a new window for the synthesis of porous material as well as their applications. In addition, zeolite-like MOFs (ZMOFs) were also simulated and prepared with different zeolite frameworks [8,9]. For example, two anionic ZMOFs, including rho-ZMOF and sod-ZMOF were fabricated successfully by Liu et al. [8]. These materials have a high surface area which can provide exceptional gas adsorption such as H2, CH4, and CO2. Therefore, ZCOFs are evaluated as potential porous materials for gas storage.
Over the past decade, COFs have become interesting materials in the porous material group due to their outstanding specific surface area. Similar to MOF, COFs have crystal structures with controllable pore sizes [10]. However, COFs have a definite advantage that they only contain non-metal elements such as C, Si, B, O, and H. These elements were linked together by a vast number of covalent bonds to form COFs structures. In 2005, the first COF materials were synthesized by Yaghi et al., using the solvothermal method [10]. Later, many researchers tried to expand the ability to synthesize COFs in different ways [11]. Similar to MOFs, COFs have been scrutinized in a wide range of utilizations such as gas storage [12,13,14,15,16], catalysis [17,18], and sensors [19,20] due to their feature properties such as high thermal durability, large surface area, and low density [15]. For example, COF-108 displayed a very low density of 0.17 g·cm−3 which is lower than any reported materials [21,22,23]. COF-105 gave a high surface area of over 6000 m2·g−1 [21]. The US Department of Energy (DOE) proposed a standard of the CH4 adsorption ability for porous materials to be 180 V(STP)/V, (where STP is the standard temperature and pressure) [24]. On the theoretical study side, Goddard et al. successfully designed two materials with appropriate functional groups to enhance the methane storage properties of some COF materials [25]. That was, COF-103-Eth-trans and COF-102-Ant with methane adsorption capacity exceeding the target set by the DOE (Figure S1). Another group, Jing Hao Hu et al., modified COF-102 with a double halogen substitution [26]. Their simulation result shows that the methane adsorption capacity of COF-102-1,4-2I is 181 V (STP)/V. In addition, a few porous materials have been fabricated experimentally which surpassed the DOE standard, such as Ni-MOF-74 [27] (190 v(STP)/v) and PCN-14 [28] (220 v(STP)/v).
Recently, a new DOE target has been provided for methane storage to be 315 cm3/cm3 (at (35–1 bar) or (65–5.8 bar)) for the single crystal material [29,30]. To date, there was not any experimental COFs, which can overcome the DOE target. Therefore, several efforts related to the porous materials were conducted to find outstanding candidates for methane storage. For instance, Zhao et al. used the various functional groups involving –CF3, –CH3, -CN, -OCH3, -CN, -Cl, Br, I, and NH2 to improve the methane adsorption ability of three-dimensional COFs [31]. The result indicated that COF-102-I exhibited the highest CH4 uptake among the modified materials. Martin et al. generated a large number of porous polymer networks (~18,000 structures) for CH4 adsorption. However, only three structures achieved the CH4 adsorption of 180 cm3/cm3 [32]. This result implied that finding excellent materials for methane storage is a great challenge for scientists. Herein, under the support of computer tools, we proposed a strategy design of COF materials with different zeolite frameworks to find potential COF materials that are capable of methane storage reaching the DOE target. We also demonstrate the survival of selected COFs from rational design, which provides useful information for experimental studies.

2. Design Strategy and Methodologies

Figure 1 illustrates the designed strategy of the covalent organic framework from the zeolite frameworks. Replacing the silicon atom in 100 selected zeolite framework types by carbon from thiophene (Figure S2), furan, and pyrrole linkers, 300 ZCOF structures were constructed. Since the topology of ZCOFs is inherited by the zeolite framework types, we named the newly designed materials, such as YYY-S, YYY-O, and YYY-N. Therein, YYY stands for the framework type code of the zeolite, -S, -O, -N stand for thiophene, furan, and pyrrole, respectively.
The ZCOF structures are built and optimized through the universal force field via forcite tools [33]. The pore diameter (Dpore), accessible surface area (Sacc), and pore volume (Vpore) are calculated by the ZeO++ code. A spherical model with a radius of 1.8405 Å was used to simulate the N2 molecule [34,35].
All grand canonical Monte Carlo (GCMC) computations were conducted by utilizing the MUSIC code [36]. The potential energy between the COF-CH4 and CH4-CH4 was obtained from van der Waals interactions since CH4 is the poor polar molecule. The CH4 molecule is simulated as a sphere with a kinetic diameter of 3.8 Å [37]. Lennard-Jones potential was used with the parameters acquired from the transferable force fields (TraPPE) [38] for CH4 and Universal Force field for the atoms in the ZCOFs [33]. The distances are more considerable than 12.8 Å, not considered in this model. The parameters for interactions between the atoms of ZCOFs and CH4 molecules were estimated through the Lorentz-Berthelot rule [39]. In the simulation, a supercell 2 × 2 × 2 of COF was kept rigid, CH4 was considered a ‘spherical molecule’. For each pressure point, 15 × 106 Monte Carlo trial moves were performed. This technique has been successfully applied for adsorption studies, reported in the previous works [40]. The variables of force field for ZCOFs and CH4 are provided in Table 1. The detailed parameters and structures of ZCOF were shown in Table S1 in the supplementary information.
Implementing the density functional theory (DFT) for periodic systems in CRYSTAL17 was used for the study of the structural stability of new ZCOFs [41,42]. Specifically, the calculations were executed with the exchange-correlation functional of Perdew-Burke-Ernzerhof (PBE), and a basic set of 6-31G functions for atoms in the ZCOF structures. The values of 0.00030 and 0.00045 are indications of the convergence criteria of force for a root-mean-square and maximum component of the gradient, respectively, whereas, the condition was set to 10−7 Hatrees during the geometry optimization for self-consistent total energy calculations (NPT-S, JST-S code).

3. Results and Discussion

3.1. Screening ZCOFs for Methane Storage

Figure 2 provides information about Dpore, Sacc, and Vpore of 300 ZCOF structures. The pore sizes of these ZCOFs cover a range from 3 to 27 Å, and most ZCOFs have a pore size of about 8–14 Å, whereas the distribution of the surface area revealed that most ZCOFs exhibited the high surface area between 1000 and 2000 m2/g and extended to nearly 3500 m2/g. This is well because the Sacc of zeolite is often lower than 900 m2/g. Notably, RWY-N displayed the largest surface area of 3437 m2/g among 300 ZCOF materials. However, the pore volume of ZCOF is not much higher than that of zeolite and most are less than 1 cm3/g.
Using the screening parameters for methane storage materials in the work of Martin et al. [32], such as Dpore > 10 Å, Sacc > 2000 m2/g, and Vpore > 0.4 cm3/g, a total of 11 ZCOF candidates were selected through 300 designed ZCOFs. The parameters of 11 ZCOF structures are provided in Table 2.

3.2. Adsorption of CH4

The CH4 adsorption capacity at 298 K for the 11 selected ZCOFs was illustrated in Figure 3. We realize that the adsorption isotherm of the selected ZCOFs is quite close together. Methane adsorption of most of the ZCOFs rapid growth in the range of 0–20 bar then increases slowly and reaches equilibrium at a pressure of about 60 bar. However, three ZCOF crystal structures: RWY-O, RWY-N, and RWY-S with an increasing pore diameter (as shown in Figure 4, Figure S3), have shown lower methane uptake compared to the other ZCOFs. This can be explained via their pore size, the ZCOF with a large pore size increases the distance of methane and active sites, leading to the weak interactions. Thus, the too-large pore diameter was not favorable in the methane storage application.
In 11 selected ZCOF structures, JSR-N has the highest adsorption capacity at 35 bar with 197 and 231 (v/v) at 65 bar and followed by BOZ-S, OBW-S, JSR-O, and OBW-N. In addition, the bulk density of methane was also illustrated by a black dotted line for comparison purposes. It is clearly shown that ZCOFs are effective adsorbents for methane storage applications.

3.3. Methane Delivery Capacity

The methane delivery capacity of the ZCOF selected structures is calculated as follows [32]:
DC (35–1) = the CH4 adsorption at 35 bar − the CH4 adsorption at 1 bar
DC (65–5.8) = the CH4 adsorption at 65 bar − the CH4 adsorption at 5.8 bar
Table 2 presents the delivery capacity of 11 ZCOF structures, which exhibited excellent performances for methane storage. In total, NPS-S and JST-S give the best methane uptake, as shown in Figure 5a. In particular, Figure 5b indicated that NPT-S gave the largest DC (35–1) of 177 cm3STP (CH4)/cm3, while the largest DC (65–5.8) reached was 183 cm3STP (CH4)/cm3, for the JST-S structure. The results are comparable with the previous studies and DOE 2000 target for methane storage (180 cm3STP/cm3), as displayed in Table 3 [43]. This finding was attributed to the appropriate porous parameters for methane storage, as reported in Martin’s study [32]. Notably, JST-S has a pore size of 10.7 Å, whereas NPT-S gave a pore diameter of 19.5 Å, as illustrated in Figure 6.

3.4. CH4 Adsorption Sites

To date, only several studies provide the mechanism for CH4 adsorption in porous materials. For instance, Mendoza-Cortes et al. indicated that the various 3D-COFs, including COF-105, COF-103, and COF-102, contains the adsorption centers on the surface of the benzene ring [5]. In this work, we propose that the CH4 adsorption sites can be on the face of the thiophene, furane, and pyrrole rings, as illustrated in Figure 7.

3.5. The Formation Energy of JST-S and NPT-S

The heat of formation is a powerful means to predict the thermodynamic stability of any structures. The enthalpy of formation with a negative value indicates that the considered compound is stable in terms of thermodynamic. In this research, the reaction enthalpy for JST-S and NPT-S generation was determined from the change in the total enthalpy between the products and reactants. They were calculated from reaction (3) and (4):
18 Cgraphite + 4 H2 + 1/2 S8 → C18H8S4 (JST-S)
54 Cgraphite + 12 H2 + 3/2 S8 → C54H24S12 (NPT-S)
The reactants selected to be the best stable state in nature, include graphite, hydrogen gas, and sulfur (rhombic). Therefore, their standard enthalpy of formations is zero. The negative quantities exhibited in Table 4, implied that JST-S and NPT-S could be synthesized in the experiment.

4. Conclusions

In summary, we have shown the design strategy of a new covalent organic framework by using carbon to replace silicon in zeolite through thiophene, furan, and pyrrole linkers, named so we can obtain 300 ZCOF structures with 100 topologies of zeolite. The typical porous parameters, including the accessible surface area, pore size, and pore volume were analyzed to evaluate the quality of ZCOFs material through the Zeo++ software. The results reveal that the surface area of ZCOFs is larger than that of zeolites, which is favorable for methane storage. Notably, RWY-N displayed the largest accessible surface area of 3437 m2/g, proposed for the promising material in gas storage applications. Among 300 ZCOFs materials, eleven optimal structures involving BOZ-S, JSR-N, JSR-O, JSR-S, JST-S, NPT-S, OBW-N, OBW-S, RWY-N, RWY-O, and RWY-S exhibited good methane adsorption ability. In particular, NPT-S displayed the largest DC (35–1) of 177 cm3STP (CH4)/cm3, whereas JST-S exhibited the best DC (65–5.8) of 183 cm3STP (CH4)/cm3. This finding can be comparable to the old DOE standard. In addition, the calculation of enthalpy of NPT-S and JST-S was also implemented by the DFT method, showing negative values. This result implied that these structures could be prepared in the experimental study.

Supplementary Materials

The following are available online at, Figure S1: Design strategy of ZCOFs with thiophene linker. The spheres in black, pink, yellow denote C, H, and S atoms, respectively, Figure S2: Isotherms of total volumetric CH4 uptake at 298 K from 0 to 85 bar of (a) RWY-X, and (b) JRN-X (X = N, O, S), Figure S3: (a) ctn and bor topologies, (b) the building blocks for designing new COFs, (c) the reactions from various reactants to created new COFs, Table S1: The parameter of 300 Z-COF structures, Computer Code: NPT-S, JST-S.

Author Contributions

H.H.D. performed the design of ZCOFs materials and most of the theoretical simulation; S.Y.K. and N.-N.P.-T. supervised the design and computational results; Q.V.L. developed the idea and prepared the manuscripts. All authors were concerned with drafting the manuscript. All authors have read and agreed to the published version of the manuscript.


This research was funded by The Institute for Computational Science and Technology (ICST), Ho Chi Minh City.


We gratefully acknowledge the Center for Computational Materials Science, Institute for Materials Research, Tohoku University for the use of MASAMUNE-IMR (project number: 19S0503), and The Institute for Computational Science and Technology (ICST), Ho Chi Minh City for research funding.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Cote, A.P.; El-Kaderi, H.M.; Furukawa, H.; Hunt, J.R.; Yaghi, O.M. Reticular synthesis of microporous and mesoporous 2D covalent organic frameworks. J. Am. Chem. Soc. 2007, 129, 12914–12915. [Google Scholar] [CrossRef] [PubMed]
  2. Li, H.; Eddaoudi, M.; O’Keeffe, M.; Yaghi, O.M. Design and synthesis of an exceptionally stable and highly porous metal-organic framework. Nature 1999, 402, 276–279. [Google Scholar] [CrossRef] [Green Version]
  3. Eddaoudi, M.; Kim, J.; Rosi, N.; Vodak, D.; Wachter, J.; O’Keeffe, M.; Yaghi, O.M. Systematic design of pore size and functionality in isoreticular MOFs and their application in methane storage. Science 2002, 295, 469–472. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Düren, T.; Sarkisov, L.; Yaghi, O.M.; Snurr, R.Q. Design of new materials for methane storage. Langmuir 2004, 20, 2683–2689. [Google Scholar] [CrossRef]
  5. Mendoza-Cortés, J.L.; Han, S.S.; Furukawa, H.; Yaghi, O.M.; Goddard III, W.A. Adsorption mechanism and uptake of methane in covalent organic frameworks: Theory and experiment. J. Phys. Chem. A 2010, 114, 10824–10833. [Google Scholar] [CrossRef] [Green Version]
  6. Lin, R.-B.; He, Y.; Li, P.; Wang, H.; Zhou, W.; Chen, B. Multifunctional porous hydrogen-bonded organic framework materials. Chem. Soc. Rev. 2019, 48, 1362–1389. [Google Scholar] [CrossRef]
  7. Park, K.S.; Ni, Z.; Côté, A.P.; Choi, J.Y.; Huang, R.; Uribe-Romo, F.J.; Chae, H.K.; O’Keeffe, M.; Yaghi, O.M. Exceptional chemical and thermal stability of zeolitic imidazolate frameworks. Proc. Natl. Acad. Sci. USA 2006, 103, 10186–10191. [Google Scholar] [CrossRef] [Green Version]
  8. Liu, Y.; Kravtsov, V.C.; Larsen, R.; Eddaoudi, M. Molecular building blocks approach to the assembly of zeolite-like metal–organic frameworks (ZMOFs) with extra-large cavities. Chem. Commun. 2006, 1488–1490. [Google Scholar] [CrossRef]
  9. Eddaoudi, M.; Sava, D.F.; Eubank, J.F.; Adil, K.; Guillerm, V. Zeolite-like metal–organic frameworks (ZMOFs): Design, synthesis, and properties. Chem. Soc. Rev. 2015, 44, 228–249. [Google Scholar] [CrossRef] [Green Version]
  10. Cote, A.P.; Benin, A.I.; Ockwig, N.W.; O’Keeffe, M.; Matzger, A.J.; Yaghi, O.M. Porous, crystalline, covalent organic frameworks. Science 2005, 310, 1166–1170. [Google Scholar] [CrossRef] [Green Version]
  11. Dogru, M.; Sonnauer, A.; Gavryushin, A.; Knochel, P.; Bein, T. A covalent organic framework with 4 nm open pores. Chem. Commun. 2011, 47, 1707–1709. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Wu, J.; Zhou, J.; Wang, W.; Wang, H. Progress in Synthesis and Application of Covalent Organic Frameworks. Ekoloji 2019, 28, 4369–4378. [Google Scholar]
  13. Guan, X.; Chen, F.; Fang, Q.; Qiu, S. Design and applications of three dimensional covalent organic frameworks. Chem. Soc. Rev. 2020, 49, 1357–1384. [Google Scholar] [CrossRef] [PubMed]
  14. Cao, S.; Li, B.; Zhu, R.; Pang, H. Design and synthesis of covalent organic frameworks towards energy and environment fields. Chem. Eng. J. 2019, 355, 602–623. [Google Scholar] [CrossRef]
  15. Song, Y.; Sun, Q.; Aguila, B.; Ma, S. Opportunities of covalent organic frameworks for advanced applications. Adv. Sci. 2019, 6, 1801410. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Tong, M.; Lan, Y.; Qin, Z.; Zhong, C. Computation-ready, experimental covalent organic framework for methane delivery: Screening and material design. J. Phys. Chem. C 2018, 122, 13009–13016. [Google Scholar] [CrossRef]
  17. Sharma, R.K.; Yadav, P.; Yadav, M.; Gupta, R.; Rana, P.; Srivastava, A.; Zbořil, R.; Varma, R.S.; Antonietti, M.; Gawande, M.B. Recent development of covalent organic frameworks (COFs): Synthesis and catalytic (organic-electro-photo) applications. Mater. Horiz. 2020, 7, 411–454. [Google Scholar] [CrossRef]
  18. Liu, J.; Wang, N.; Ma, L. Recent Advances in Covalent Organic Frameworks for Catalysis. Chem. Asian J. 2019, 15, 338–351. [Google Scholar] [CrossRef]
  19. Ascherl, L.; Evans, E.W.; Gorman, J.; Orsborne, S.; Bessinger, D.; Bein, T.; Friend, R.H.; Auras, F. Perylene-Based Covalent Organic Frameworks for Acid Vapor Sensing. J. Am. Chem. Soc. 2019, 141, 15693–15699. [Google Scholar] [CrossRef]
  20. Gao, Q.; Li, X.; Ning, G.-H.; Leng, K.; Tian, B.; Liu, C.; Tang, W.; Xu, H.-S.; Loh, K.P. Highly photoluminescent two-dimensional imine-based covalent organic frameworks for chemical sensing. Chem. Commun. 2018, 54, 2349–2352. [Google Scholar] [CrossRef]
  21. El-Kaderi, H.M.; Hunt, J.R.; Mendoza-Cortés, J.L.; Côté, A.P.; Taylor, R.E.; O’Keeffe, M.; Yaghi, O.M. Designed synthesis of 3D covalent organic frameworks. Science 2007, 316, 268–272. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Hunt, J.R.; Doonan, C.J.; LeVangie, J.D.; Côté, A.P.; Yaghi, O.M. Reticular synthesis of covalent organic borosilicate frameworks. J. Am. Chem. Soc. 2008, 130, 11872–11873. [Google Scholar] [CrossRef] [PubMed]
  23. Furukawa, H.; Ko, N.; Go, Y.B.; Aratani, N.; Choi, S.B.; Choi, E.; Yazaydin, A.Ö.; Snurr, R.Q.; O’Keeffe, M.; Kim, J. Ultrahigh porosity in metal-organic frameworks. Science 2010, 329, 424–428. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Burchell, T.; Rogers, M. Low pressure storage of natural gas for vehicular applications. SAE Trans. 2000, 109, 2242–2246. [Google Scholar]
  25. Mendoza-Cortes, J.L.; Pascal, T.A.; Goddard III, W.A. Design of covalent organic frameworks for methane storage. J. Phys. Chem. A 2011, 115, 13852–13857. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Hu, J.; Zhao, J.; Yan, T. Methane uptakes in covalent organic frameworks with double halogen substitution. J. Phys. Chem. C 2015, 119, 2010–2014. [Google Scholar] [CrossRef]
  27. Wu, H.; Zhou, W.; Yildirim, T. High-capacity methane storage in metal−organic frameworks M2 (dhtp): The important role of open metal sites. J. Am. Chem. Soc. 2009, 131, 4995–5000. [Google Scholar] [CrossRef]
  28. Ma, S.; Sun, D.; Simmons, J.M.; Collier, C.D.; Yuan, D.; Zhou, H.-C. Metal-organic framework from an anthracene derivative containing nanoscopic cages exhibiting high methane uptake. J. Am. Chem. Soc. 2008, 130, 1012–1016. [Google Scholar] [CrossRef]
  29. Konstas, K.; Osl, T.; Yang, Y.; Batten, M.; Burke, N.; Hill, A.J.; Hill, M.R. Methane storage in metal organic frameworks. J. Mater. Chem 2012, 22, 16698–16708. [Google Scholar] [CrossRef]
  30. Schoedel, A.; Ji, Z.; Yaghi, O.M. The role of metal–organic frameworks in a carbon-neutral energy cycle. Nat. Energy 2016, 1, 1–13. [Google Scholar] [CrossRef]
  31. Zhao, J.; Yan, T. Effects of substituent groups on methane adsorption in covalent organic frameworks. RSC Adv. 2014, 4, 15542–15551. [Google Scholar] [CrossRef]
  32. Martin, R.L.; Simon, C.M.; Smit, B.; Haranczyk, M. In silico design of porous polymer networks: High-throughput screening for methane storage materials. J. Am. Chem. Soc. 2014, 136, 5006–5022. [Google Scholar] [CrossRef]
  33. Rappé, A.K.; Casewit, C.J.; Colwell, K.; Goddard III, W.A.; Skiff, W.M. UFF, a full periodic table force field for molecular mechanics and molecular dynamics simulations. J. Am. Chem. Soc. 1992, 114, 10024–10035. [Google Scholar] [CrossRef]
  34. Willems, T.F.; Rycroft, C.H.; Kazi, M.; Meza, J.C.; Haranczyk, M. Algorithms and tools for high-throughput geometry-based analysis of crystalline porous materials. Microporous Mesoporous Mater. 2012, 149, 134–141. [Google Scholar] [CrossRef]
  35. Düren, T.; Millange, F.; Férey, G.; Walton, K.S.; Snurr, R.Q. Calculating geometric surface areas as a characterization tool for metal− organic frameworks. J. Phys. Chem. C 2007, 111, 15350–15356. [Google Scholar] [CrossRef]
  36. Gupta, A.; Chempath, S.; Sanborn, M.J.; Clark, L.A.; Snurr, R.Q. Object-oriented programming paradigms for molecular modeling. Mol. Simul 2003, 29, 29–46. [Google Scholar] [CrossRef] [Green Version]
  37. Yu, S.; Bo, J.; Wu, L. Molecular simulation of CH 4/CO 2/H 2 O competitive adsorption on low rank coal vitrinite. Phys. Chem. Chem. Phys. 2017, 19, 17773–17788. [Google Scholar] [CrossRef]
  38. Martin, M.G.; Siepmann, J.I. Transferable potentials for phase equilibria. 1. United-atom description of n-alkanes. J. Phys. Chem. B 1998, 102, 2569–2577. [Google Scholar]
  39. Zarkova, L.; Hohm, U.; Damyanova, M. Comparison of Lorentz–Berthelot and Tang–Toennies Mixing Rules Using an Isotropic Temperature-Dependent Potential Applied to the Thermophysical Properties of Binary Gas Mixtures of CH4, CF4, SF6, and C(CH3)4 with Ar, Kr, and Xe. Int. J. Thermophys. 2004, 25, 1775–1798. [Google Scholar] [CrossRef]
  40. Düren, T.; Bae, Y.-S.; Snurr, R.Q. Using molecular simulation to characterise metal–organic frameworks for adsorption applications. Chem. Soc. Rev. 2009, 38, 1237–1247. [Google Scholar] [CrossRef]
  41. Pascale, F.; Zicovich-Wilson, C.M.; Orlando, R.; Roetti, C.; Ugliengo, P.; Dovesi, R. Vibration frequencies of Mg3Al2Si3O12 pyrope. An ab initio study with the CRYSTAL code. J. Phys. Chem. B 2005, 109, 6146–6152. [Google Scholar] [PubMed]
  42. Pham, H.Q.; Mai, T.; Pham-Tran, N.-N.; Kawazoe, Y.; Mizuseki, H.; Nguyen-Manh, D. Engineering of band gap in metal–organic frameworks by functionalizing organic linker: A systematic density functional theory investigation. J. Phys. Chem. C 2014, 118, 4567–4577. [Google Scholar] [CrossRef]
  43. Li, B.; Wen, H.-M.; Zhou, W.; Xu, J.Q.; Chen, B. Porous metal-organic frameworks: Promising materials for methane storage. Chem 2016, 1, 557–580. [Google Scholar] [CrossRef] [Green Version]
  44. Furukawa, H.; Yaghi, O.M. Storage of hydrogen, methane, and carbon dioxide in highly porous covalent organic frameworks for clean energy applications. J. Am. Chem. Soc. 2009, 131, 8875–8883. [Google Scholar] [CrossRef]

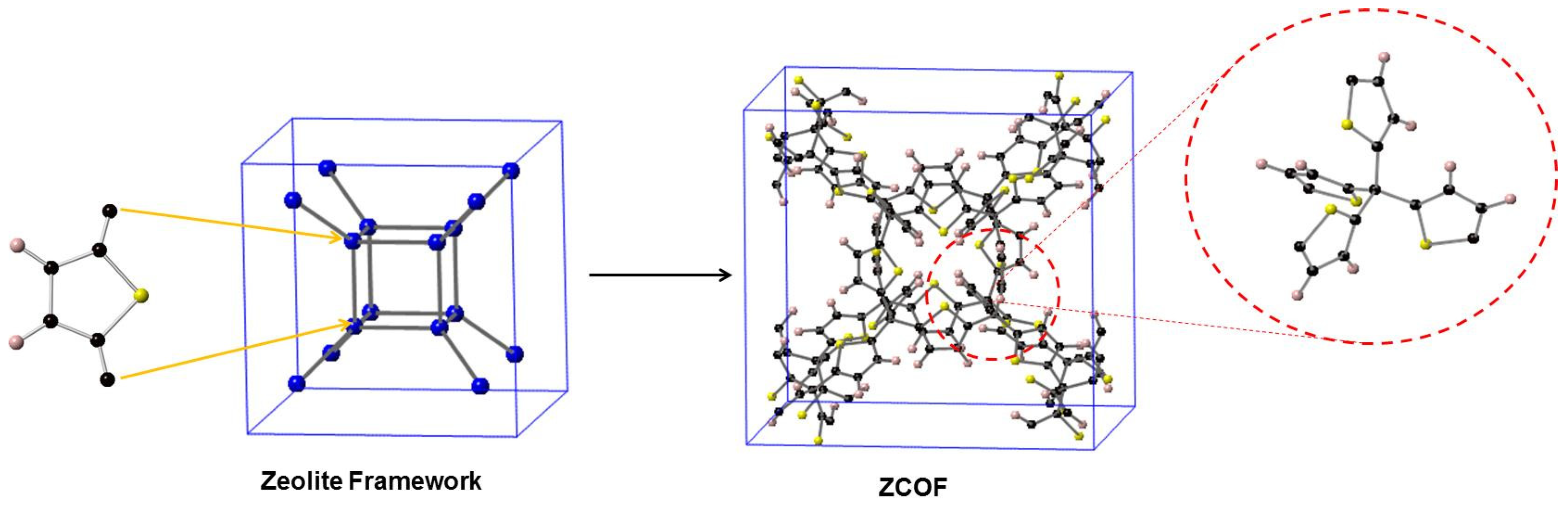

Figure 1. Graphical illustration of the design strategy for zeolite-based covalent organic frameworks (ZCOFs) materials. The spheres in black, pink, and yellow denote C, H, and S (or O, N-H) atoms, respectively.
Figure 1. Graphical illustration of the design strategy for zeolite-based covalent organic frameworks (ZCOFs) materials. The spheres in black, pink, and yellow denote C, H, and S (or O, N-H) atoms, respectively.
Materials 13 03322 g001

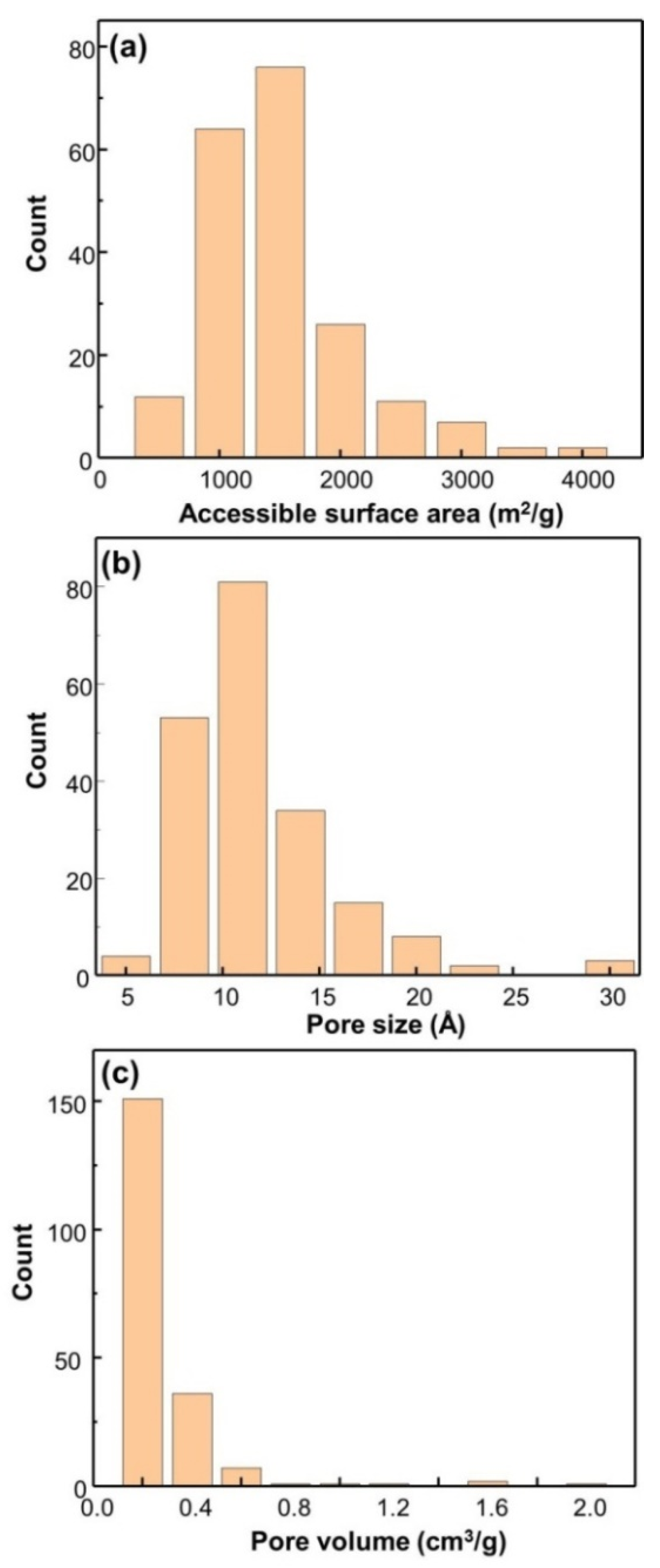

Figure 2. Statistical analysis of all 300 ZCOFs constructed: (a) Accessible surface area; (b) pore size; (c) pore volume.
Figure 2. Statistical analysis of all 300 ZCOFs constructed: (a) Accessible surface area; (b) pore size; (c) pore volume.
Materials 13 03322 g002

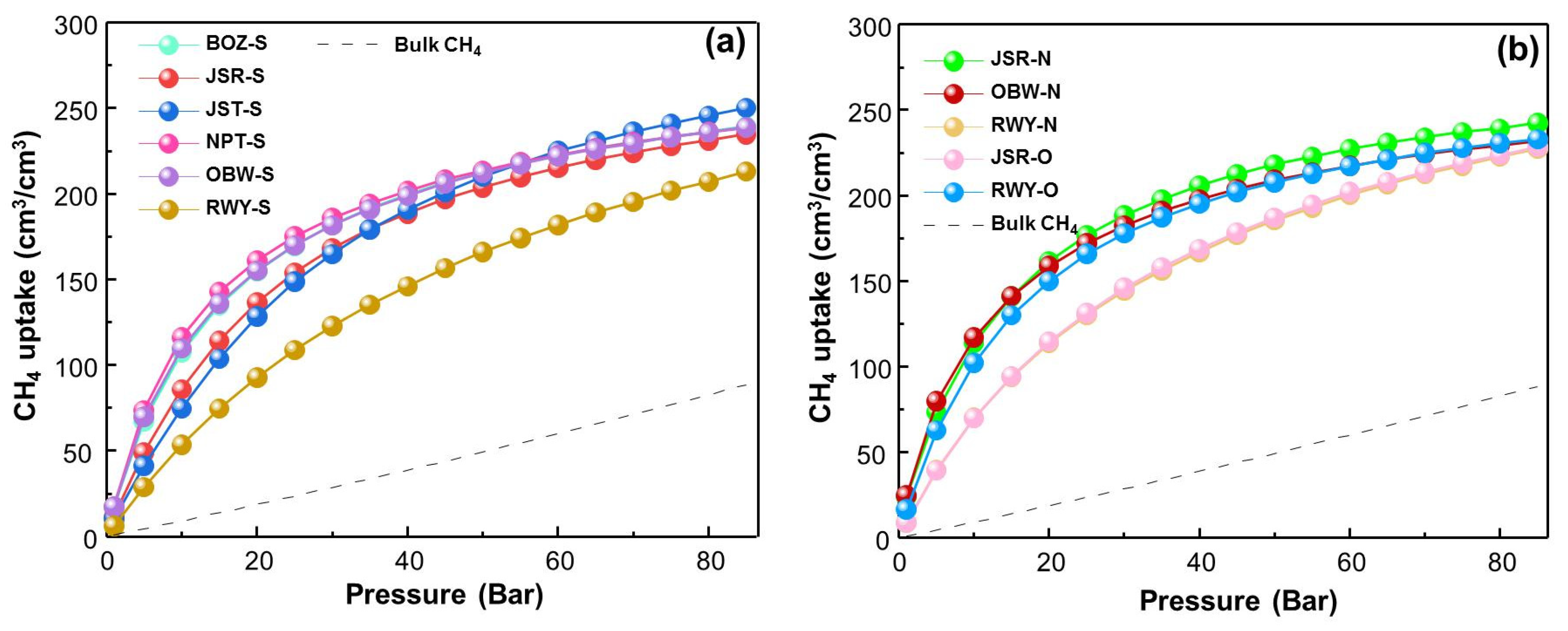

Figure 3. Isotherms of total CH4 adsorption in a pressure ranging from 1 to 85 bar at a temperature of 298 K of 11 ZCOFs. (a) XXX-S; (b) XXX-O and XXX-N.
Figure 3. Isotherms of total CH4 adsorption in a pressure ranging from 1 to 85 bar at a temperature of 298 K of 11 ZCOFs. (a) XXX-S; (b) XXX-O and XXX-N.
Materials 13 03322 g003

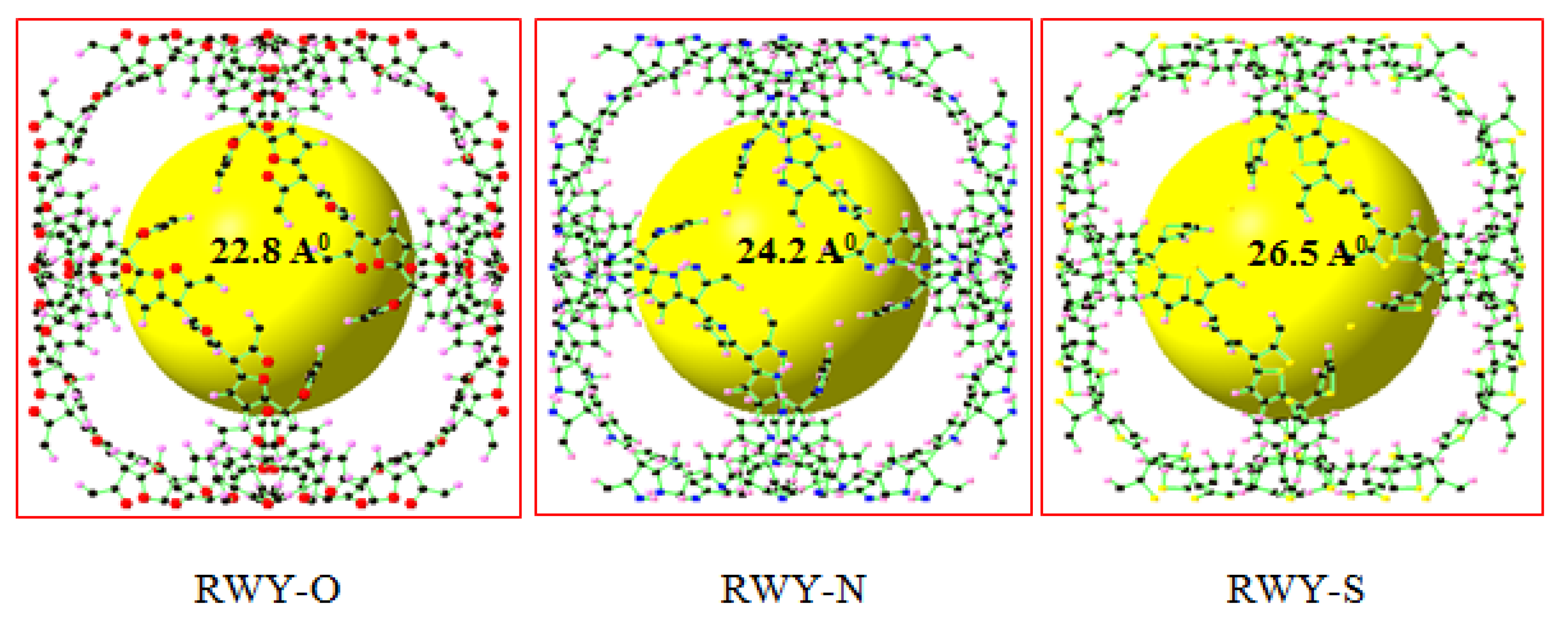

Figure 4. ZCOF crystal structures of RWY-O, RWY-N, and RWY-S. The spheres in black, pink, red, blue, and orange denote C, H, O, N, and S atoms, respectively. The yellow balls represent the pore size.
Figure 4. ZCOF crystal structures of RWY-O, RWY-N, and RWY-S. The spheres in black, pink, red, blue, and orange denote C, H, O, N, and S atoms, respectively. The yellow balls represent the pore size.
Materials 13 03322 g004

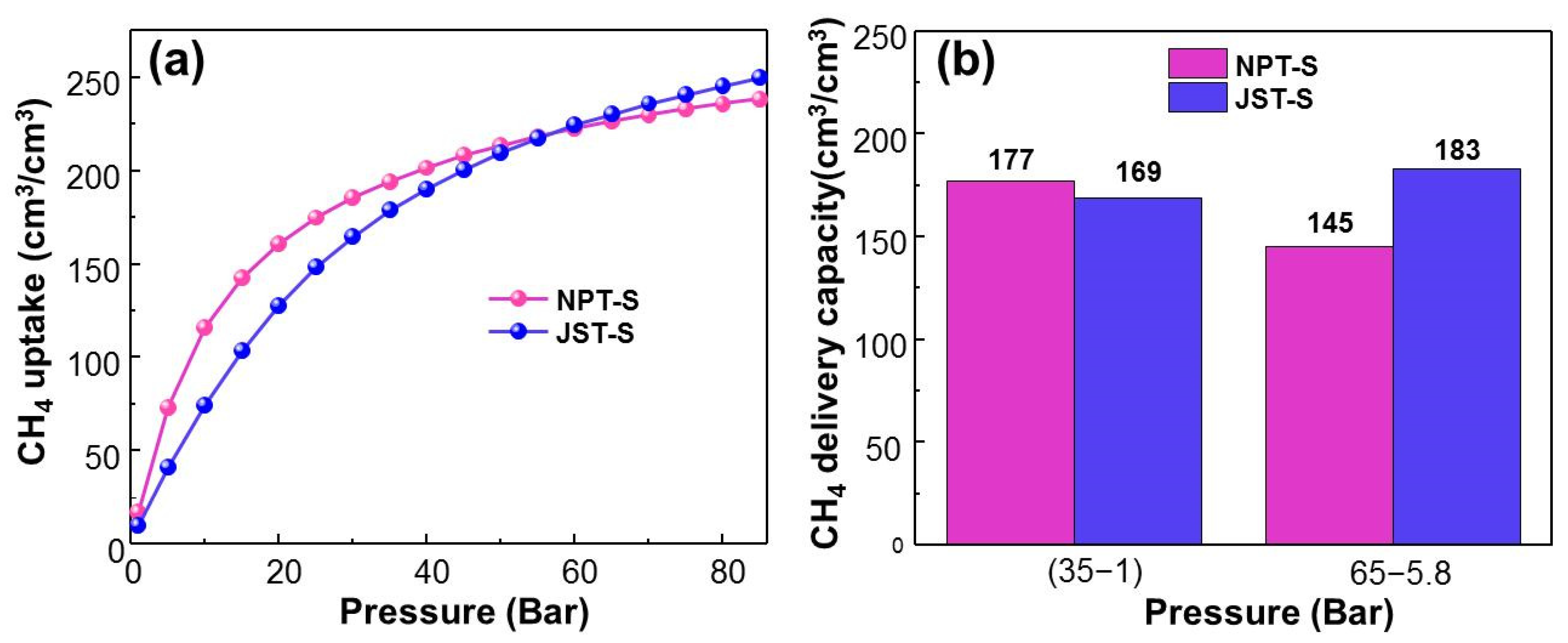

Figure 5. (a) Isotherms of total volumetric CH4 uptake at 298 K from 0 to 85 bar, and (b) CH4 delivery capacity of NPT-S and JST-S.
Figure 5. (a) Isotherms of total volumetric CH4 uptake at 298 K from 0 to 85 bar, and (b) CH4 delivery capacity of NPT-S and JST-S.
Materials 13 03322 g005

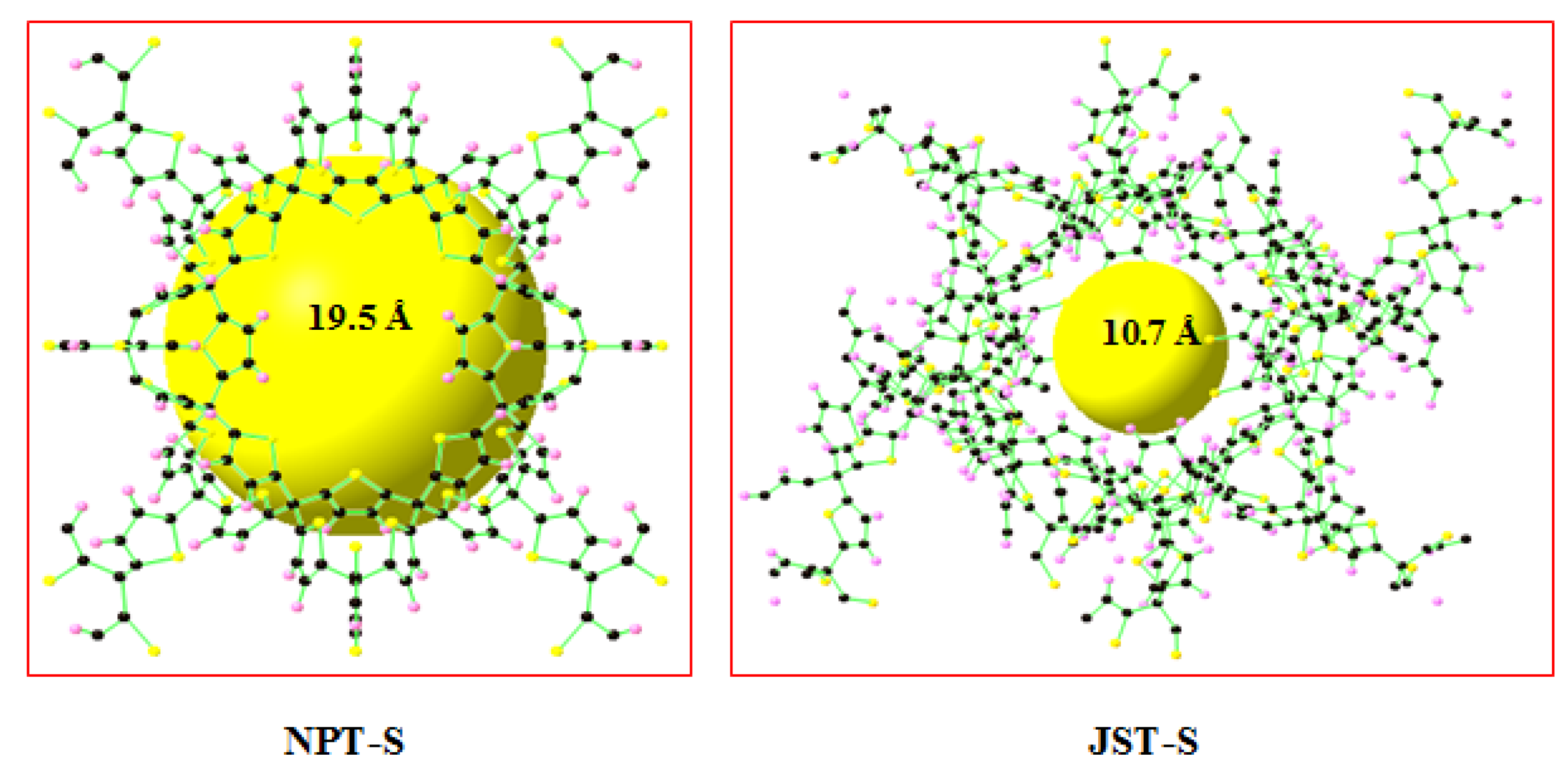

Figure 6. Two ZCOF structures: NPT-S and JST-S. The spheres in black, pink, and orange denote C, H, and S atoms, respectively. The yellow balls represent the pore size.
Figure 6. Two ZCOF structures: NPT-S and JST-S. The spheres in black, pink, and orange denote C, H, and S atoms, respectively. The yellow balls represent the pore size.
Materials 13 03322 g006

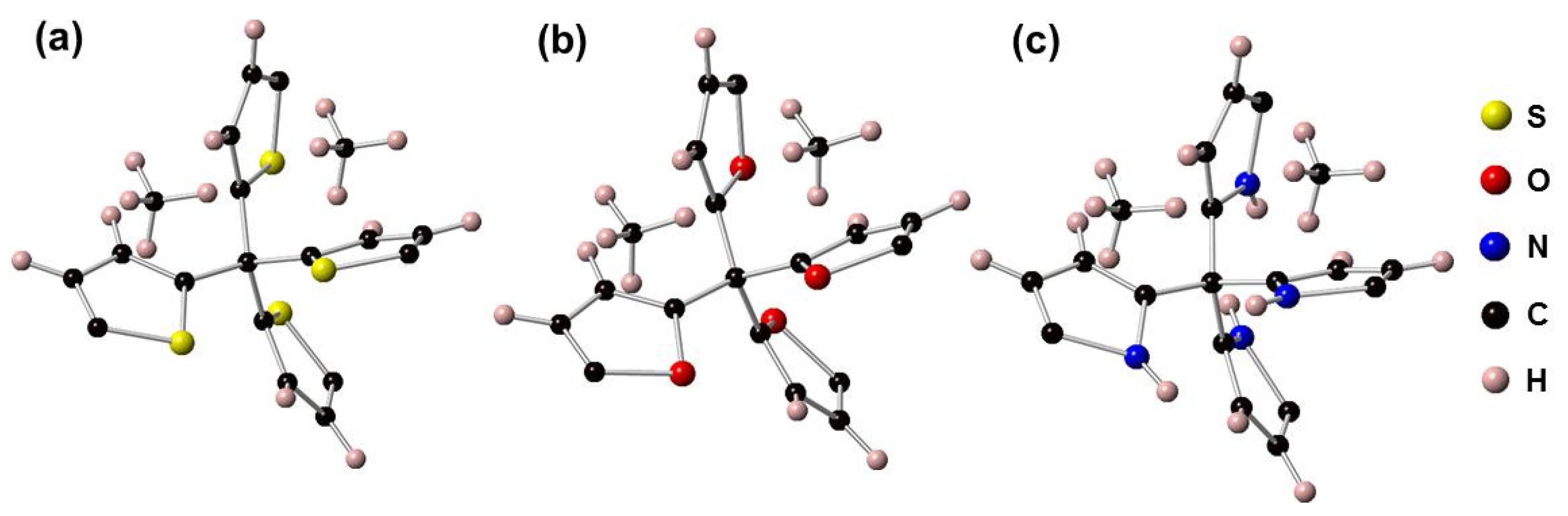

Figure 7. The adsorption of CH4 on the surface of thiophene (a), furane (b), and pyrrole rings (c) for YYY-S, YYY-O, and YYY-N, respectively.
Figure 7. The adsorption of CH4 on the surface of thiophene (a), furane (b), and pyrrole rings (c) for YYY-S, YYY-O, and YYY-N, respectively.
Materials 13 03322 g007
Table 1. The parameters of force field for ZCOF and CH4.
Table 1. The parameters of force field for ZCOF and CH4.
MoleculeAtomε/kb (K)σ (Å)ref
Table 2. The porous properties, total methane uptake, and delivery capacity of the 11 selected ZCOF structures.
Table 2. The porous properties, total methane uptake, and delivery capacity of the 11 selected ZCOF structures.
ZCOFsSacc (m2/g)Dpore (Å)Vpore (cm3/g)Total Uptake
at 35 bar (cm3/cm3)
Delivery Capacity
35–1 bar
Total Uptake
at 65 bar
Delivery Capacity
65–5.8 bar
Bulk CH4---34336661
Table 3. Comparison of the methane uptake of NPT-S and the other COFs at 35 bar and 298 K.
Table 3. Comparison of the methane uptake of NPT-S and the other COFs at 35 bar and 298 K.
CH4 Uptake (cm3/cm3)CH4 Delivery (cm3/cm3)Ref
NPT-S254819.50.502194177This work
Table 4. Optimized crystal structure lattice parameters.
Table 4. Optimized crystal structure lattice parameters.
ZCOFSymmetryAtom/CellLattice Parameter (Å)∆H (kJ/mol)
JST-SPa-372027.3204−34,823 × 103
NPT-SPm-354025.0125−8705 × 103
