Next Article in Journal
Properties of Cu-xFe3O4 Nanocomposites for Electrical Application
Next Article in Special Issue
Experimental Investigation and ANFIS-Based Modelling During Machining of EN31 Alloy Steel
Previous Article in Journal
Potential Implantable Nanofibrous Biomaterials Combined with Stem Cells for Subchondral Bone Regeneration
Previous Article in Special Issue
Memetic Cuckoo-Search-Based Optimization in Machining Galvanized Iron
Open AccessArticle

Investigation of the Effect of End Mill-Geometry on Roughness and Surface Strain-Hardening of Aluminum Alloy AA6082

Munich University of Applied Sciences, 80335 Munich, Germany
Department of Earth- and Environmental Science, Ludwig Maximilian University Munich, 80333 Munich, Germany
Faculty of Mechatronics and Medical Engineering, Ulm University of Applied Sciences, 89075 Ulm, Germany
Rohde & Schwarz GmbH & Co. KG, Teisnach Plant, 94244 Teisnach, Germany
Author to whom correspondence should be addressed.
Materials 2020, 13(14), 3078;
Received: 26 May 2020 / Revised: 24 June 2020 / Accepted: 29 June 2020 / Published: 10 July 2020
(This article belongs to the Special Issue Machining and Manufacturing of Alloys and Steels)

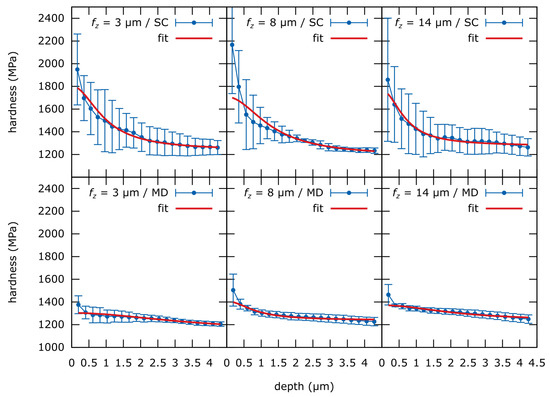

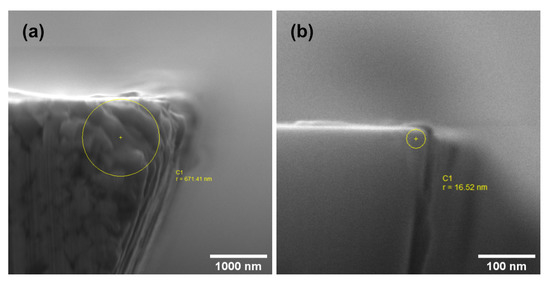

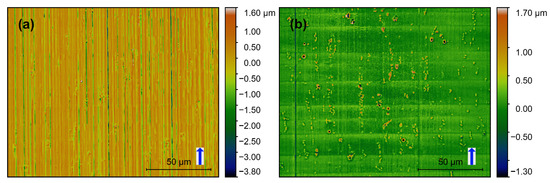

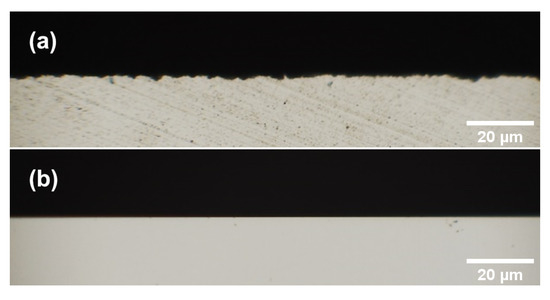

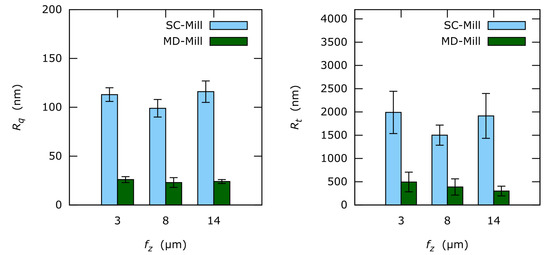

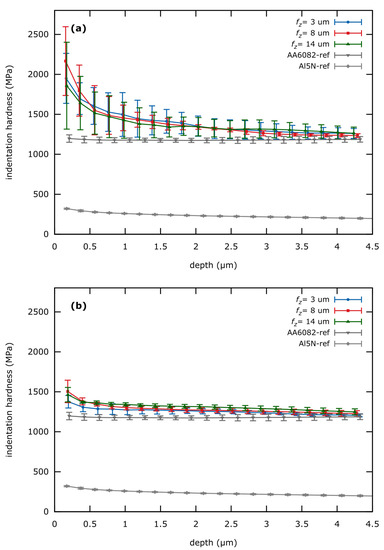

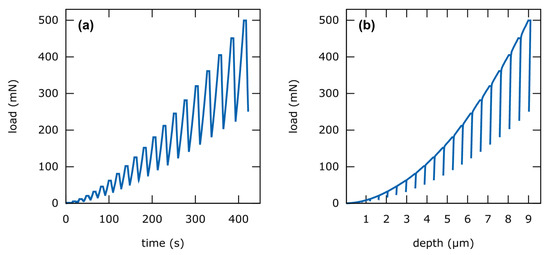

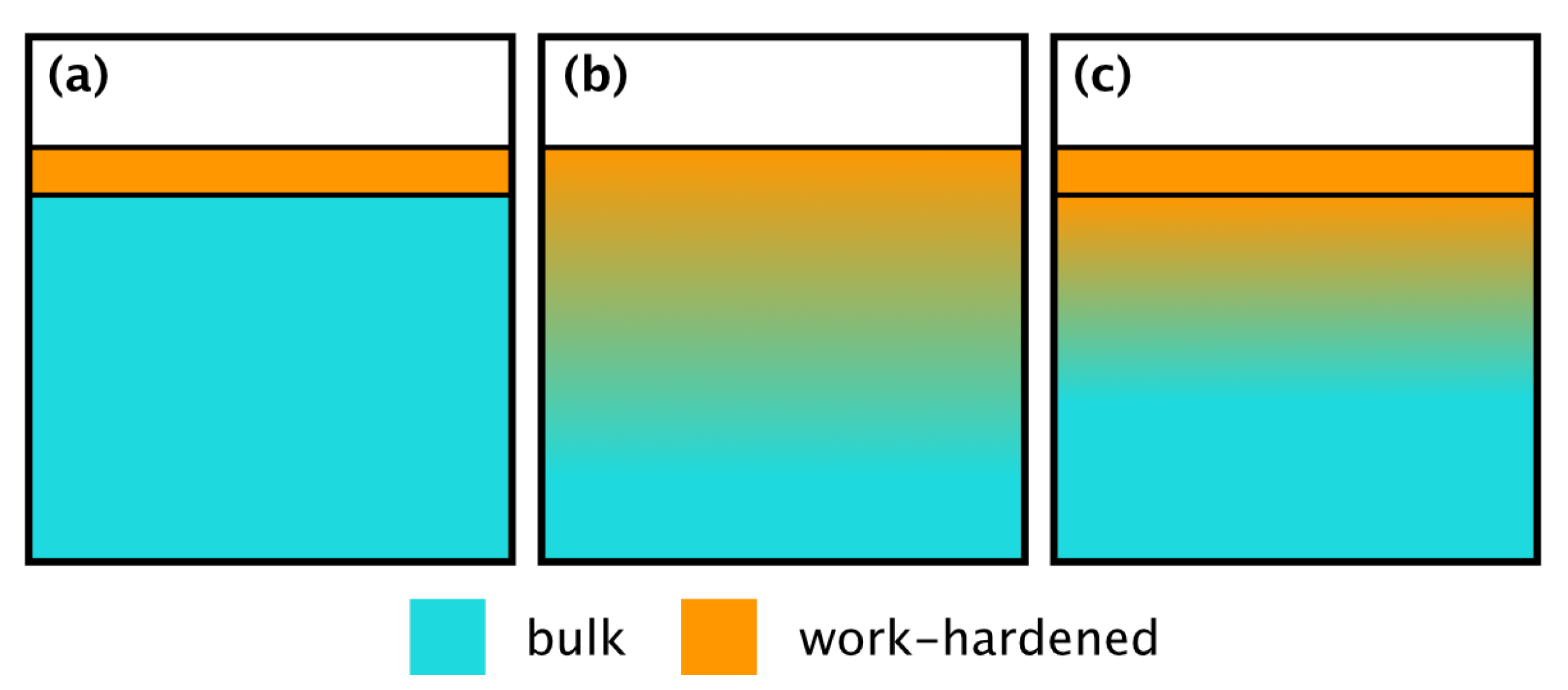

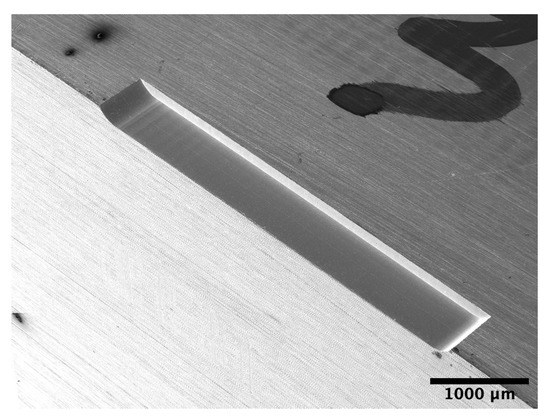

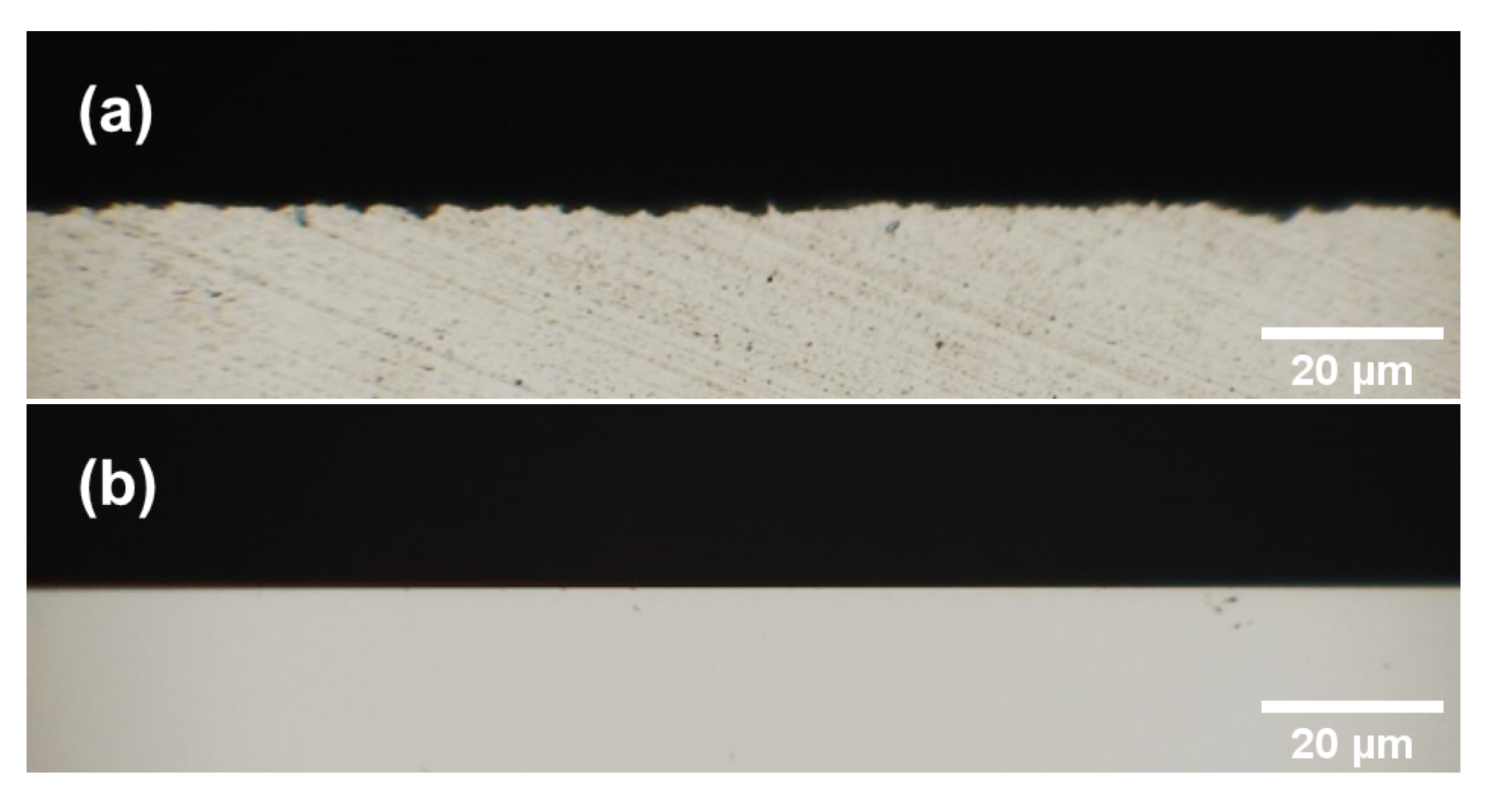

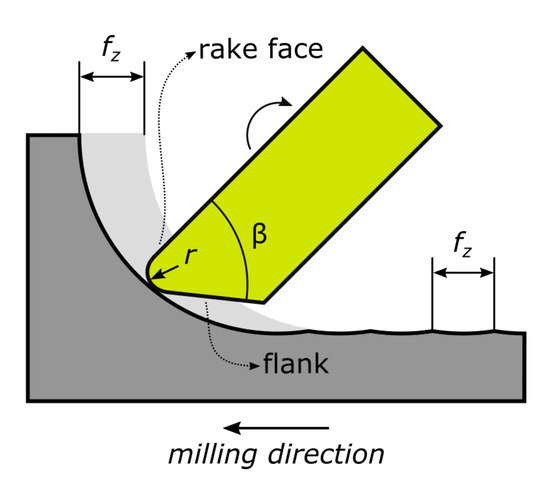

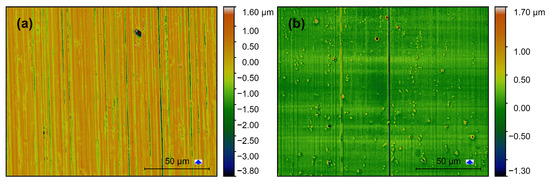

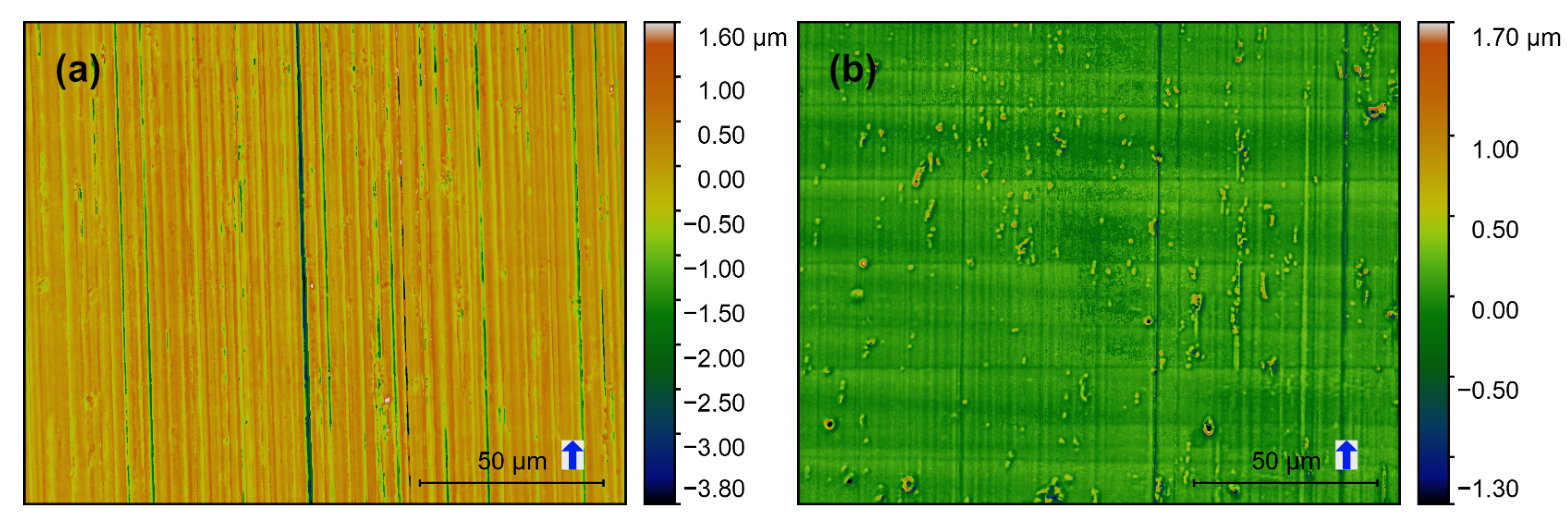

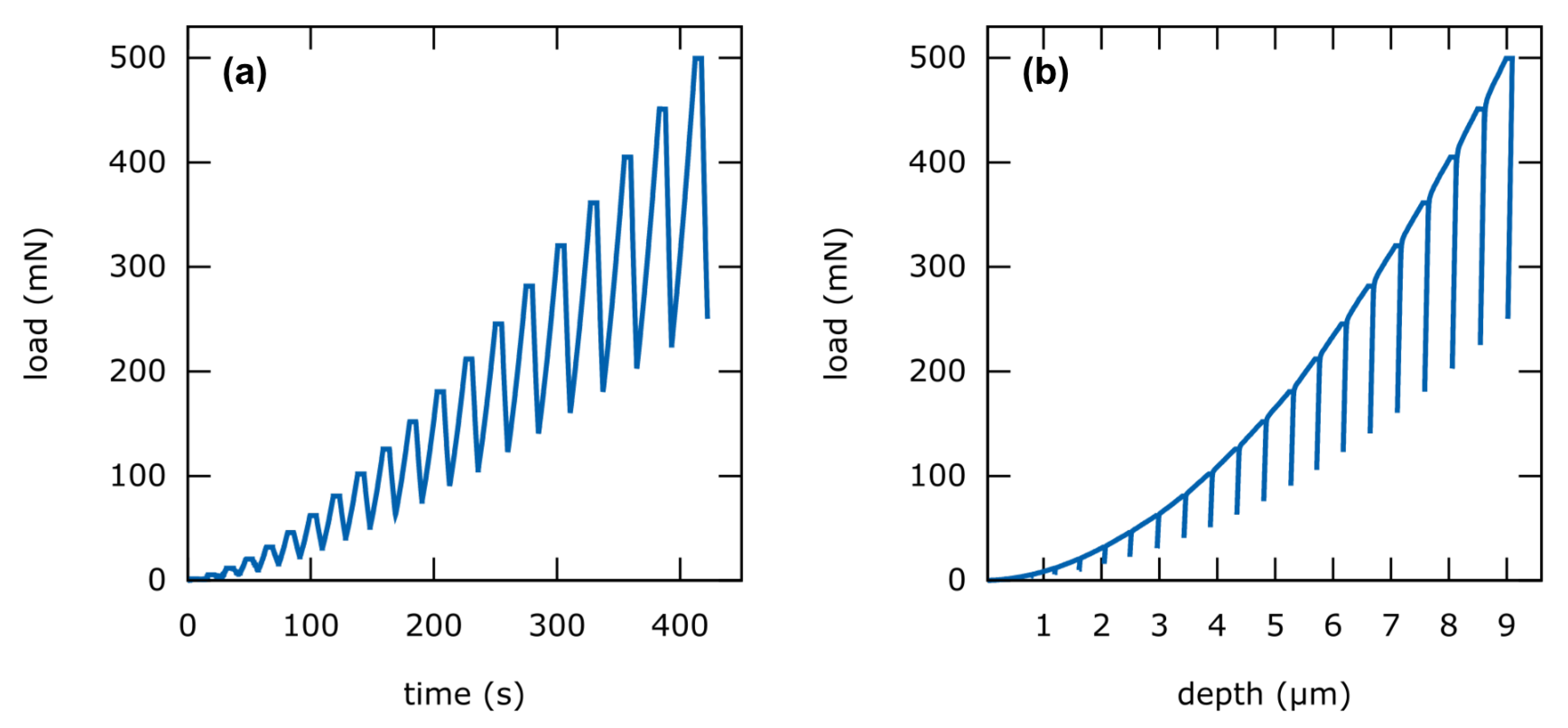

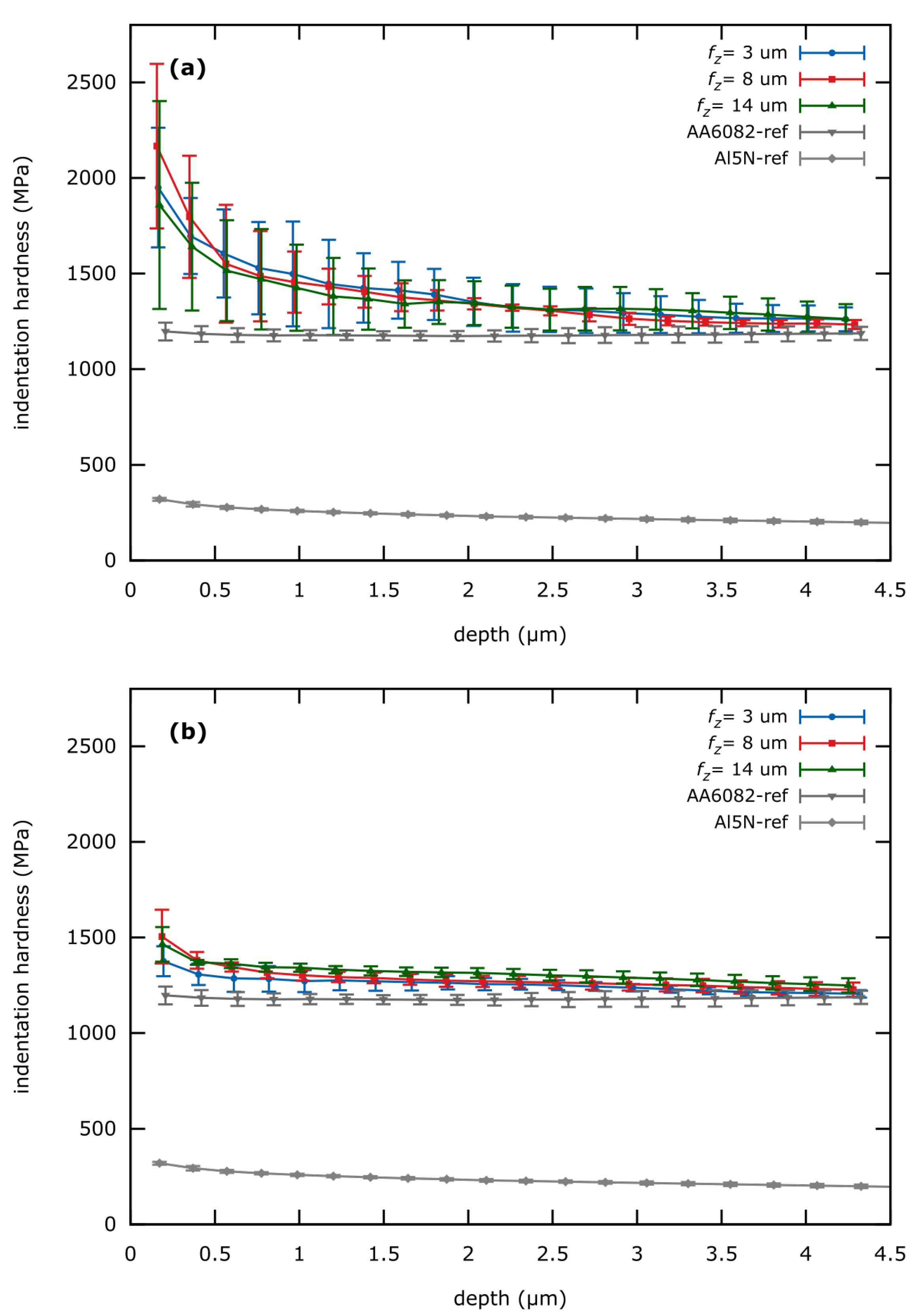

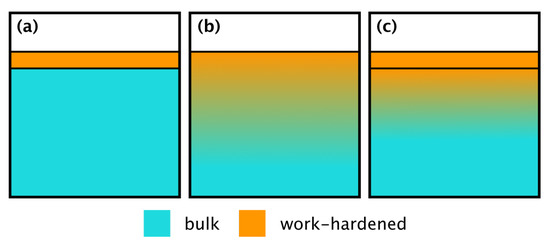

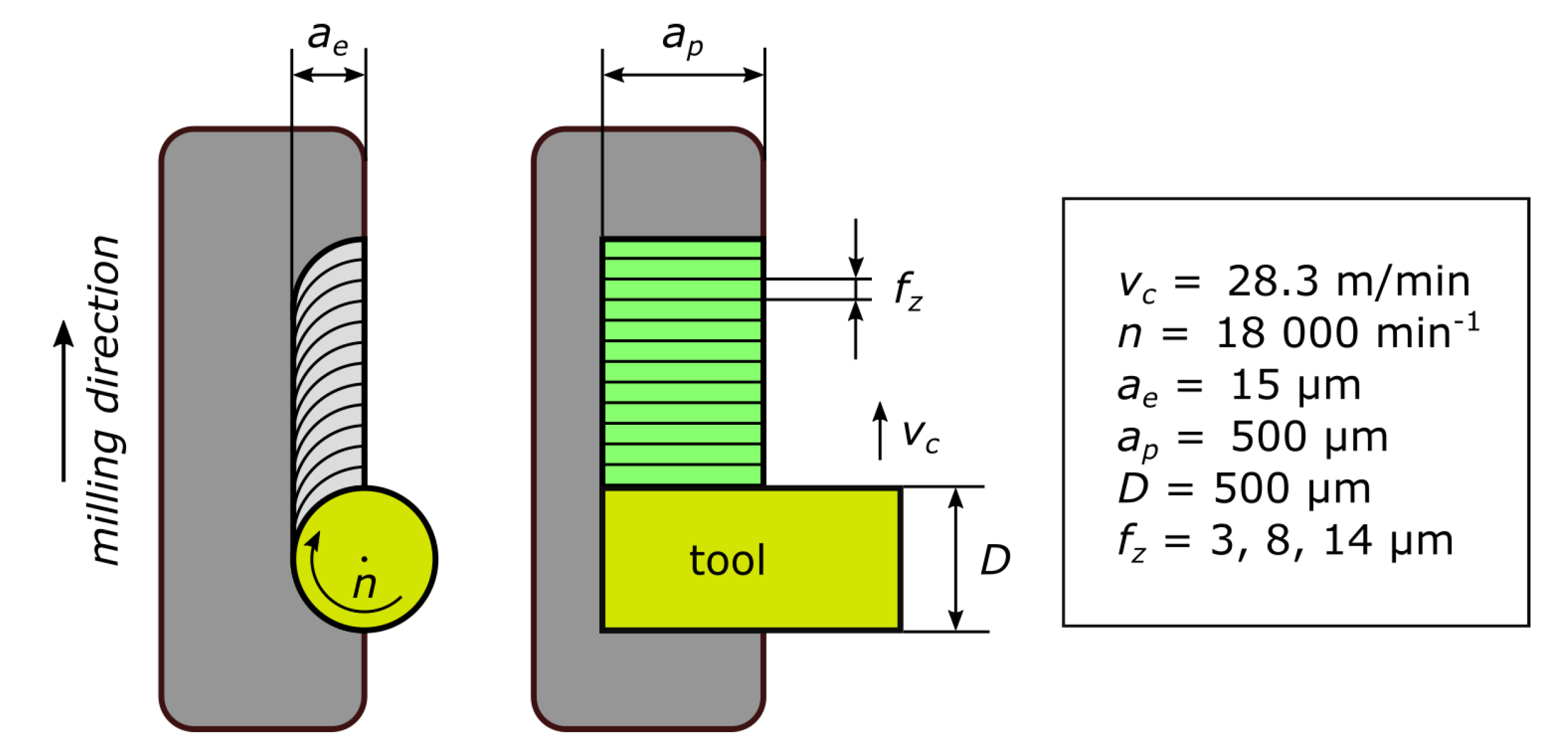

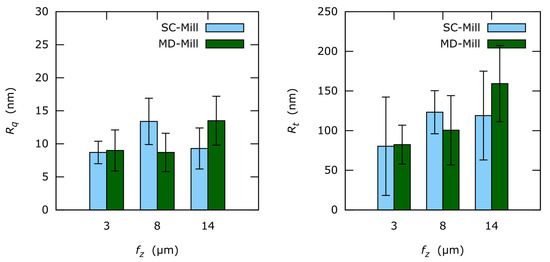

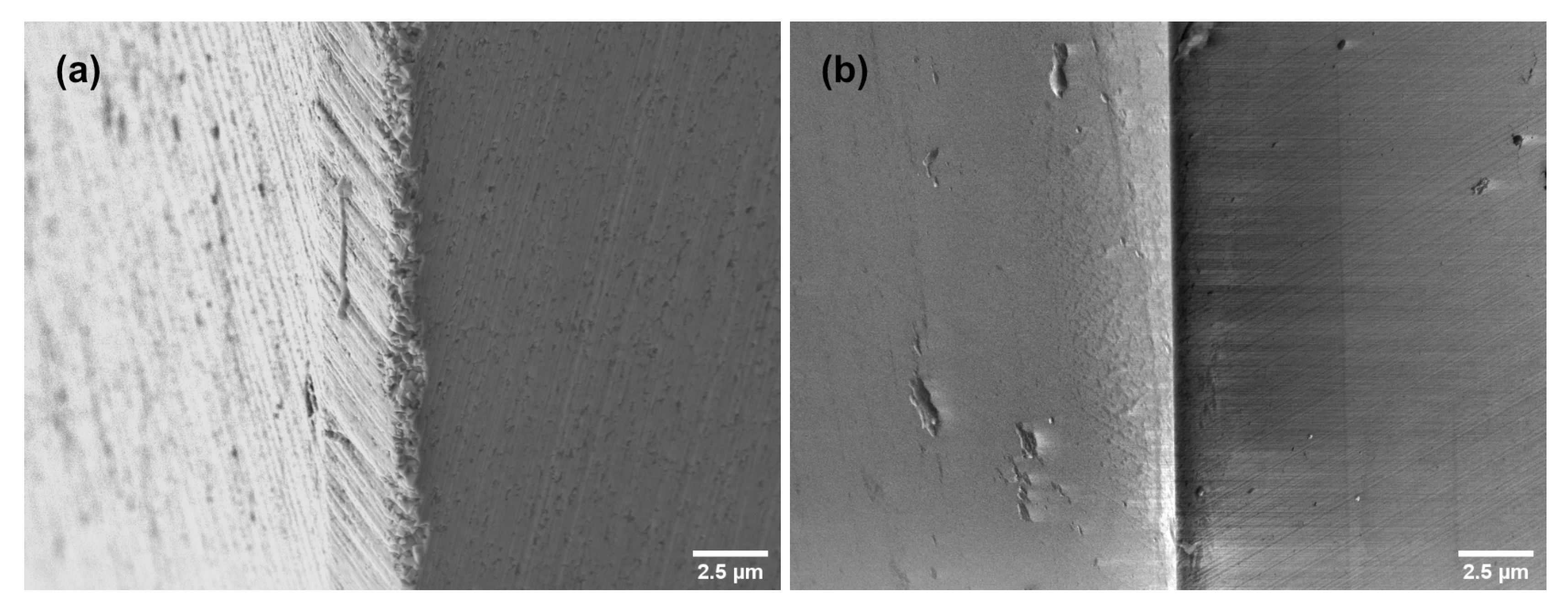

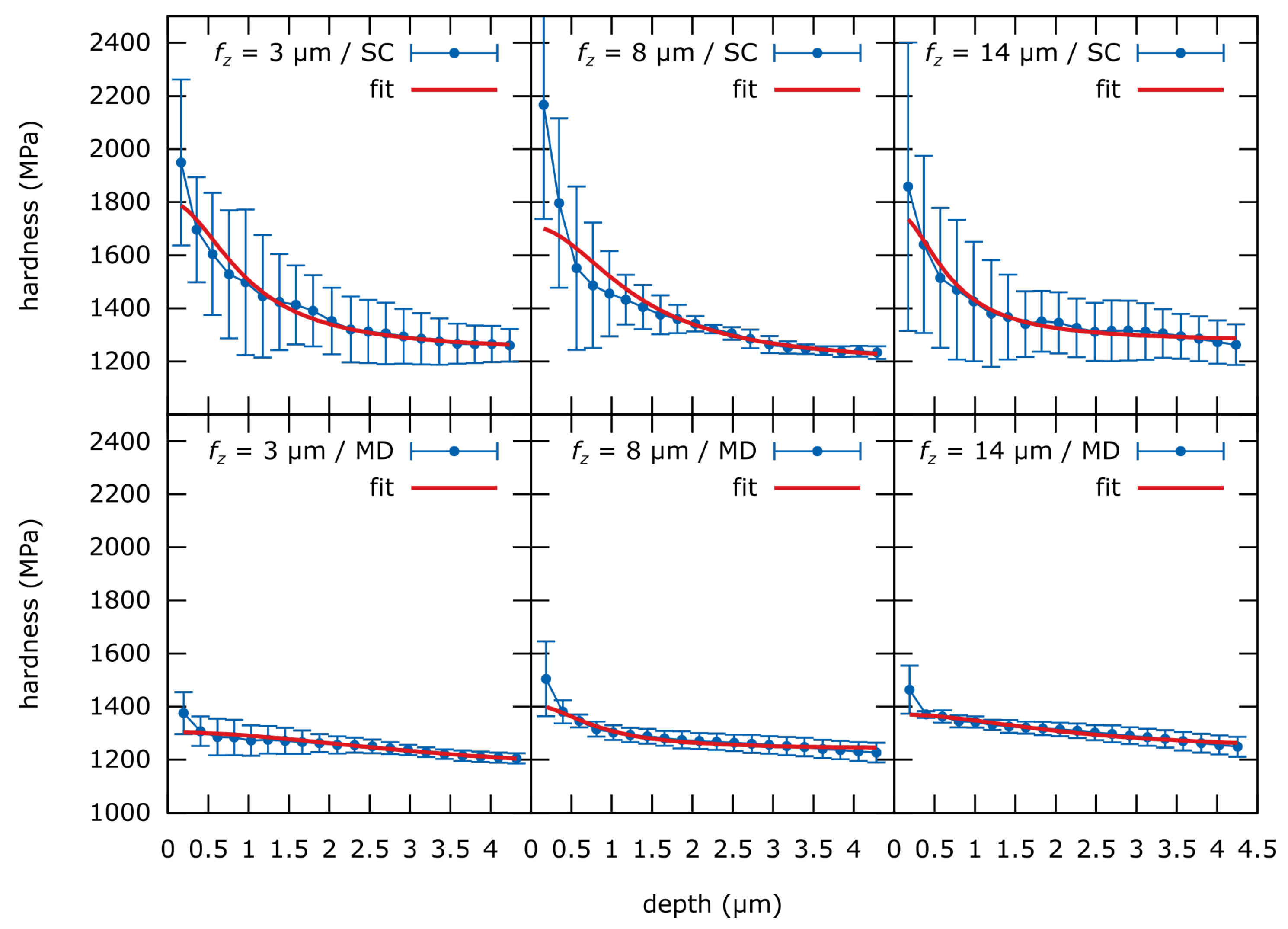

Micro-milling is a promising technology for micro-manufacturing of high-tech components. A deep understanding of the micro-milling process is necessary since a simple downscaling from conventional milling is impossible. In this study, the effect of the mill geometry and feed per tooth on roughness and indentation hardness of micro-machined AA6082 surfaces is analyzed. A solid carbide (SC) single-tooth end-mill (cutting edge radius 670 nm) is compared to a monocrystalline diamond (MD) end-mill (cutting edge radius 17 nm). Feed per tooth was varied by 3 μm, 8 μm and 14 μm. The machined surface roughness was analyzed microscopically, while surface strain-hardening was determined using an indentation procedure with multiple partial unload cycles. No significant feed per tooth influence on surface roughness or mechanical properties was observed within the chosen range. Tools’ cutting edge roughness is demonstrated to be the main factor influencing the surface roughness. The SC-tool machined surfaces had an average Rq = 119 nm, while the MD-tool machined surfaces reached Rq = 26 nm. Surface strain-hardening is influenced mainly by the cutting edge radius (size-effect). For surfaces produced with the SC-tool, depth of the strain-hardened zone is higher than 200 nm and the hardness increases up to 160% compared to bulk. MD-tool produced a thinner strain-hardened zone of max. 60 nm while the hardness increased up to 125% at the surface. These findings are especially important for the high-precision manufacturing of measurement technology modules for the terahertz range. View Full-Text
Keywords: micromechanics; indentation; hardness; surface work hardening; aluminum micromechanics; indentation; hardness; surface work hardening; aluminum
Show Figures

Figure 1

MDPI and ACS Style

Filippov, P.; Kaufeld, M.; Ebner, M.; Koch, U. Investigation of the Effect of End Mill-Geometry on Roughness and Surface Strain-Hardening of Aluminum Alloy AA6082. Materials 2020, 13, 3078.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Search more from Scilit
Back to TopTop
