# An SPH Approach for Non-Spherical Particles Immersed in Newtonian Fluids

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theory of Solid Particle Motion in Single-Phase Newtonian Fluid

#### 2.1. Balance Equations for Single-Phase Fluid Flow

#### 2.2. Introduction to Motion of Solid Particles Immersed in a Fluid

## 3. Numerical Modeling of Fluid Flow with Suspended Particles Using SPH

#### 3.1. SPH for Single-Phase Fluid (Case A and B)

#### 3.2. SPH for Suspension Flow (Case C)

#### 3.3. Solid–Solid Interactions in SPH (Case D)

## 4. Validation of Flow with Suspended Particles

#### 4.1. Details of the Implementation

#### 4.2. Validation of Immersed Particle Flow

**c**. Thus, the rotation of the spheroid over its angular velocity is plotted in Figure 7. As displayed there, the measurement of the rotation in our simulation starts at a point with an angle of $\phi =\pi /2$ and then rotates towards $\phi =0$ which equals $\phi =2\phantom{\rule{0.166667em}{0ex}}\pi $. After that, the particle continues to rotate to an angle of $\phi =\pi $. Even in one single period, the simulation results are in good agreement with the theoretical solution. Differences, especially in the first quarter of rotation ($0<\phi <\pi $), are expected with regard to transient, i.e., instationary phenomena, and due to the fact that the solid particle does not only rotate but also moves translatoric due to solid–fluid interaction at the beginning of the process. Moreover, considering the factor of time (indicated by black arrows), the simulation starts at $\phi =\pi /2$ and the particle is accelerated first until it reaches the theoretically rotation velocity.

**a**and

**b**we observe a rotational motion as well (see Figure 8). Since Jeffery’s approach does not map particle rotation, when the rotation axis of the object is perpendicular to the shear direction ($\theta =0$), a different representation of the rotation was used. Thus, the evolution of the coordinate in ${\mathbf{e}}_{z}$-direction (z) of a surface point normalized by the channel height h was plotted over the time t. As solid particles were not placed right in the center of the channel, the particles move translatoric as well. Figure 8 shows not only the (harmonic) motion of the material point at the surface of the particle, but also the (subtracted) translatoric motion of the center of mass. It could be clearly observed, that there is a stable periodic motion for spheroids with different aspect ratios where the initial state sets the a-axis parallel to the ${\mathbf{e}}_{y}$-axis ($\theta =0$). In addition to (stationary) Jeffery orbits, the numerical simulations predict also transient effects if moderate Reynolds number have been chosen and the reference configuration of the center of mass of the immersed particle is not in the vertical symmetry plane.

**c**). A detailed investigation of the Reynolds number-dependent motion of particles would be computationally challenging for Re < 1 regarding to the explicit nature of the presented SPH code.

## 5. Numerical Analysis of Solid Particles Immersed in a Fluid

## 6. Discussion of Relevant Model Parameters

## 7. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Metzner, A.B. Rheology of Suspensions in Polymeric Liquids. J. Rheol.
**1985**, 29, 739–775. [Google Scholar] [CrossRef] - Drew, J.; Passman, S.L. Theory of Multicomponent Fluids; Springer: Berlin/Heidelberg, Germany, 1998. [Google Scholar] [CrossRef]
- Kanehl, P.; Stark, H. Hydrodynamic segregation in a bidisperse colloidal suspension in microchannel flow: A theoretical study. J. Chem. Phys.
**2015**, 142. [Google Scholar] [CrossRef] [PubMed] - Bian, X.; Litvinov, S.; Ellero, M.; Wagner, N.J. Hydrodynamic shear thickening of particulate suspension under confinement. J. Nonnewton. Fluid Mech.
**2014**, 213, 39–49. [Google Scholar] [CrossRef] - Vázquez-Quesada, A.; Bian, X.; Ellero, M. Three-dimensional simulations of dilute and concentrated suspensions using smoothed particle hydrodynamics. Comput. Part. Mech.
**2015**, 3, 167–178. [Google Scholar] [CrossRef] - Chun, B.; Kwon, I.; Jung, H.W.; Hyun, J.C. Lattice Boltzmann simulation of shear-induced particle migration in plane Couette-Poiseuille flow: Local ordering of suspension. Phys. Fluids
**2017**, 29. [Google Scholar] [CrossRef] - Shauly, A.; Wachs, A.; Nir, A. Shear-induced particle migration in a polydisperse concentrated suspension. J. Rheol.
**1998**, 42, 1329–1348. [Google Scholar] [CrossRef] - Fataei, S.; Secrieru, E.; Mechtcherine, V. Experimental Insights into Concrete Flow-Regimes Subject to Shear-Induced Particle Migration (SIPM) during Pumping. Materials
**2020**, 13, 1233. [Google Scholar] [CrossRef] [Green Version] - Jeffery, G. The motion of ellipsoidal particles immersed in a viscous fluid. Proc. R. Soc. Lond. A
**1922**, 102, 161–179. [Google Scholar] [CrossRef] [Green Version] - Jeffery, G. The identical relations in Einstein’s theory. Philos. Mag.
**1922**, 43, 600–603. [Google Scholar] [CrossRef] - Jeffery, G. The rotation of two circular cylinders in a viscous fluid. Proc. R. Soc. Lond. A
**1922**, 101, 169–174. [Google Scholar] [CrossRef] - Guazzelli, É.; Morris, J. A Physical Introduction to Suspension Dynamics; Cambridge University Press: Cambridge, MA, USA, 2012. [Google Scholar] [CrossRef] [Green Version]
- Wang, M.; Feng, Y.T.; Owen, D.R.; Qu, T.M. A novel algorithm of immersed moving boundary scheme for fluid–particle interactions in DEM–LBM. Comput. Methods Appl. Mech. Eng.
**2019**, 346, 109–125. [Google Scholar] [CrossRef] - Markauskas, D.; Kruggel-Emden, H.; Sivanesapillai, R.; Steeb, H. Comparative study on mesh-based and mesh-less coupled CFD-DEM methods to model particle-laden flow. Powder Technol.
**2016**, 305, 78–88. [Google Scholar] [CrossRef] [Green Version] - Breinlinger, T.; Kraft, T. Coupled discrete element and smoothed particle hydrodynamics simulations of the die filling process. Comput. Part. Mech.
**2016**, 3, 505–511. [Google Scholar] [CrossRef] - Fragassa, C.; Topalovic, M.; Pavlovic, A.; Vulovic, S. Dealing with the Effect of Air in Fluid Structure Interaction by Coupled SPH-FEM Methods. Materials
**2019**, 12, 1162. [Google Scholar] [CrossRef] [Green Version] - Celigueta, M.A.; Deshpande, K.M.; Latorre, S.; Oñate, E. A FEM-DEM technique for studying the motion of particles in non-Newtonian fluids. Application to the transport of drill cuttings in wellbores. Comput. Part. Mech.
**2016**, 3, 263–276. [Google Scholar] [CrossRef] [Green Version] - Casagrande, M.V.; Alves, J.L.; Silva, C.E.; Alves, F.T.; Elias, R.N.; Coutinho, A.L. A hybrid FEM-DEM approach to the simulation of fluid flow laden with many particles. Comput. Part. Mech.
**2017**, 4, 213–227. [Google Scholar] [CrossRef] - Bravo, R.; Ortiz, P.; Idelsohn, S.; Becker, P. Sediment transport problems by the particle finite element method (PFEM). Comput. Part. Mech.
**2019**. [Google Scholar] [CrossRef] - Morris, J.P.; Fox, P.J.; Zhu, Y. Modeling low Reynolds number incompressible flows using SPH. J. Comput. Phys.
**1997**, 136, 214–226. [Google Scholar] [CrossRef] - Anderson, J.A.; Lorenz, C.D.; Travesset, A. General purpose molecular dynamics simulations fully implemented on graphics processing units. J. Comput. Phys.
**2008**, 227, 5342–5359. [Google Scholar] [CrossRef] - Glaser, J.; Nguyen, T.D.; Anderson, J.A.; Lui, P.; Spiga, F.; Millan, J.A.; Morse, D.C.; Glotzer, S.C. Strong scaling of general-purpose molecular dynamics simulations on {GPUs}. Comput. Phys. Commun.
**2015**, 192, 97–107. [Google Scholar] [CrossRef] [Green Version] - Osorno, M.; Schirwon, M.; Kijanski, N.; Sivanesapillai, R.; Steeb, H. A cross-platform, high-performance SPH implementation of flow in micro-CT imaged porous media for digital rock physics. Comput. Phys. Commun.
**2019**. submitted. [Google Scholar] - Vázquez-Quesada, A.; Tanner, R.; Ellero, M. Shear Thinning of Noncolloidal Suspensions. Phys. Rev. Lett.
**2016**, 117, 1–5. [Google Scholar] [CrossRef] - Vázquez-Quesada, A.; Español, P.; Tanner, R.; Ellero, M. Shear thickening of a non-colloidal suspension with a viscoelastic matrix. J. Fluid Mech.
**2019**, 880, 1070–1094. [Google Scholar] [CrossRef] [Green Version] - Tanner, R.I. Non-colloidal suspensions: Relations between theory and experiment in shearing flows. J. Nonnewton. Fluid Mech.
**2015**, 222, 18–23. [Google Scholar] [CrossRef] - Hofmann, T. Die welt der vernachlässigten dimensionen: Kolloide. Chem. Unserer Zeit
**2004**, 38, 24–35. [Google Scholar] [CrossRef] - Tanner, R.I. Review: Rheology of noncolloidal suspensions with non-Newtonian matrices. J. Rheol.
**2019**, 63, 705–717. [Google Scholar] [CrossRef] - Mueller, S.; Llewellin, E.; Mader, H. The rheology of suspensions of solid particles. Proc. R. Soc. Lond. A
**2010**, 466, 1201–1228. [Google Scholar] [CrossRef] [Green Version] - Monaghan, J.J. Smoothed Particle Hydrodynamics and its diverse applications. Annu. Rev. Fluid Mech.
**2012**, 44, 323–346. [Google Scholar] [CrossRef] - MacDonald, J.R. Some simple isothermal equations of state. Rev. Mod. Phys.
**1966**, 38, 669–679. [Google Scholar] [CrossRef] - Bian, X.; Ellero, M. A splitting integration scheme for the SPH simulation of concentrated particle suspensions. Comput. Phys. Commun.
**2014**, 185, 53–62. [Google Scholar] [CrossRef] - Gingold, R.A.; Monaghan, J.J. Smoothed particle hydrodynamics—Theory and application to non-spherical stars. Mon. Not. R. Astron. Soc.
**1977**, 181, 375–389. [Google Scholar] [CrossRef] - Lucy, L.B. A numerical approach to the testing of the fission hypothesis. Astron. J.
**1977**, 82, 1013–1024. [Google Scholar] [CrossRef] - Sivanesapillai, R.; Steeb, H.; Hartmaier, A. Transition of effective hydraulic properties from low to high Reynolds number flow in porous media. Geophys. Res. Lett.
**2014**, 41, 4920–4928. [Google Scholar] [CrossRef] - Sivanesapillai, R.; Falkner, N.; Hartmaier, A.; Steeb, H. A CSF-SPH method for simulating drainage and imbibition at pore-scale resolution while tracking interfacial areas. Adv. Water Resour.
**2015**, 95, 212–234. [Google Scholar] [CrossRef] - Sivanesapillai, R.; Steeb, H. Fluid interfaces during viscous-dominated primary drainage in 2D micromodels using pore-scale SPH simulations. Geofluids
**2018**, 2018. [Google Scholar] [CrossRef] - Adami, S.; Hu, X.Y.; Adams, N.A. A generalized wall boundary condition for smoothed particle hydrodynamics. J. Comput. Phys.
**2012**, 231, 7057–7075. [Google Scholar] [CrossRef] - Monaghan, J.J. Smoothed particle hydrodynamics. Rep. Prog. Phys.
**2005**. [Google Scholar] [CrossRef] - Liu, G.R.; Liu, M.B. Smoothed Particle Hydrodynamics; World Scientific: Singapore, 2003. [Google Scholar] [CrossRef]
- Sivanesapillai, R. Pore-Scale Study of Non-Darcian Fluid Flow through Porous Media Using Smoothed Particle Hydrodynamics. Ph.D. Thesis, Ruhr-University, Bochum, Germany, 2016. [Google Scholar]
- Adami, S.; Hu, X.Y.; Adams, N.A. A conservative SPH method for surfactant dynamics. J. Comput. Phys.
**2010**, 229, 1909–1926. [Google Scholar] [CrossRef] - Hu, X.Y.; Adams, N.A. A multi-phase SPH method for macroscopic and mesoscopic flows. J. Comput. Phys.
**2006**. [Google Scholar] [CrossRef] - Wendland, H. Piecewise polynomial, positive definite and compactly supported radial functions of minimal degree. Adv. Comput. Math.
**1995**, 4, 389–396. [Google Scholar] [CrossRef] - Swope, W.C.; Andersen, H.C.; Berens, P.H.; Wilson, K.R. A computer simulation method for the calculation of equilibrium constants for the formation of physical clusters of molecules: Application to small water clusters. J. Chem. Phys.
**1982**, 76, 637–649. [Google Scholar] [CrossRef] - Brenner, H. Rheology of a dilute suspension of axisymmetric Brownian particles. Int. J. Multiphas Flow
**1974**, 1, 195–341. [Google Scholar] [CrossRef] - Husband, D.M.; Mondy, L.A.; Ganani, E.; Graham, A.L. Direct measurements of shear-induced particle migration in suspensions of bimodal spheres. Rheol. Acta
**1994**, 33, 185–192. [Google Scholar] [CrossRef] - Ivanova, I.; Mechtcherine, V. Effects of Volume Fraction and Surface Area of Aggregates on the Static Yield Stress and Structural Build-Up of Fresh Concrete. Materials
**2020**, 13, 1551. [Google Scholar] [CrossRef] [Green Version]

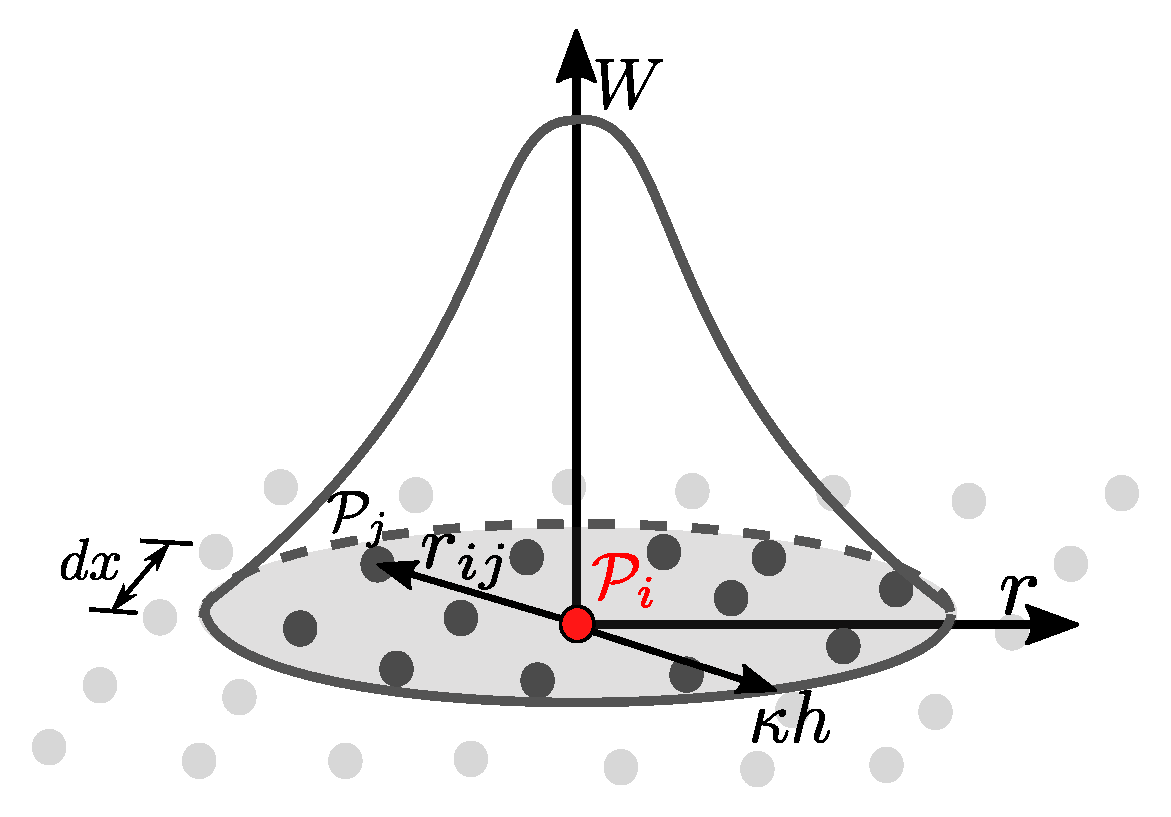

**Figure 1.**Representation of the kernel function W with compact support $\kappa h$ and dependent on particle distance ${r}_{ij}$.

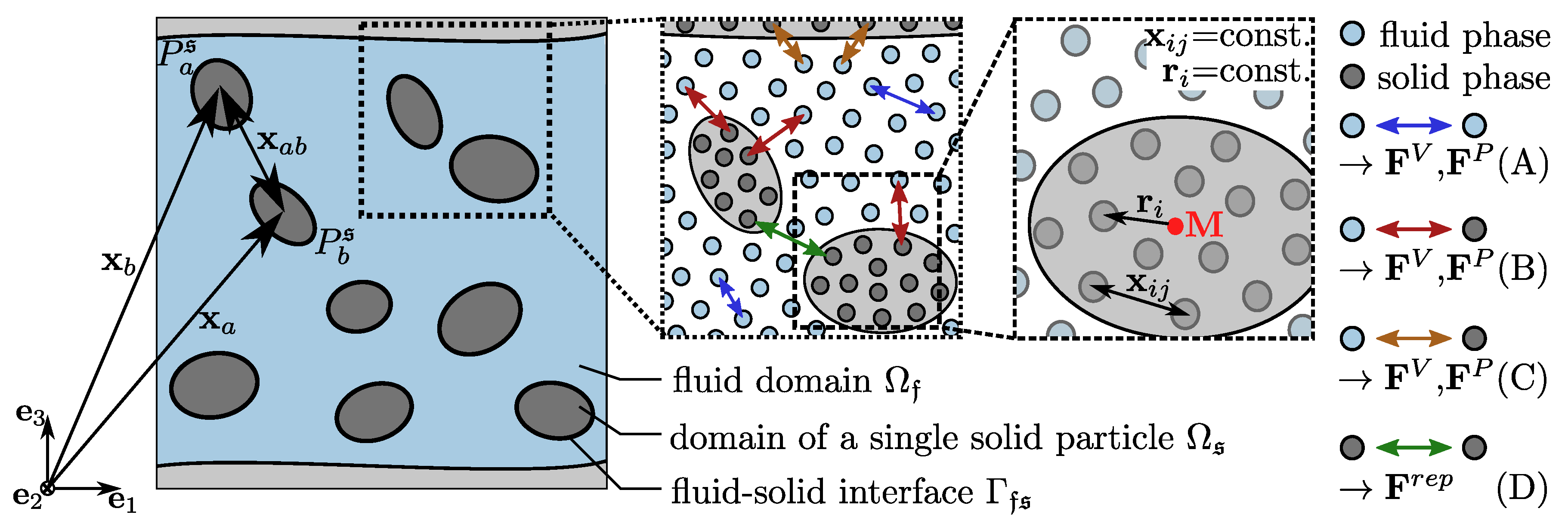

**Figure 2.**Discretization of the fluid (blue) and solid (dark grey) phase using Smoothed Particle Hydrodynamic (SPH) particles and occurring short-range particle interaction forces related to the four introduced cases (A–D).

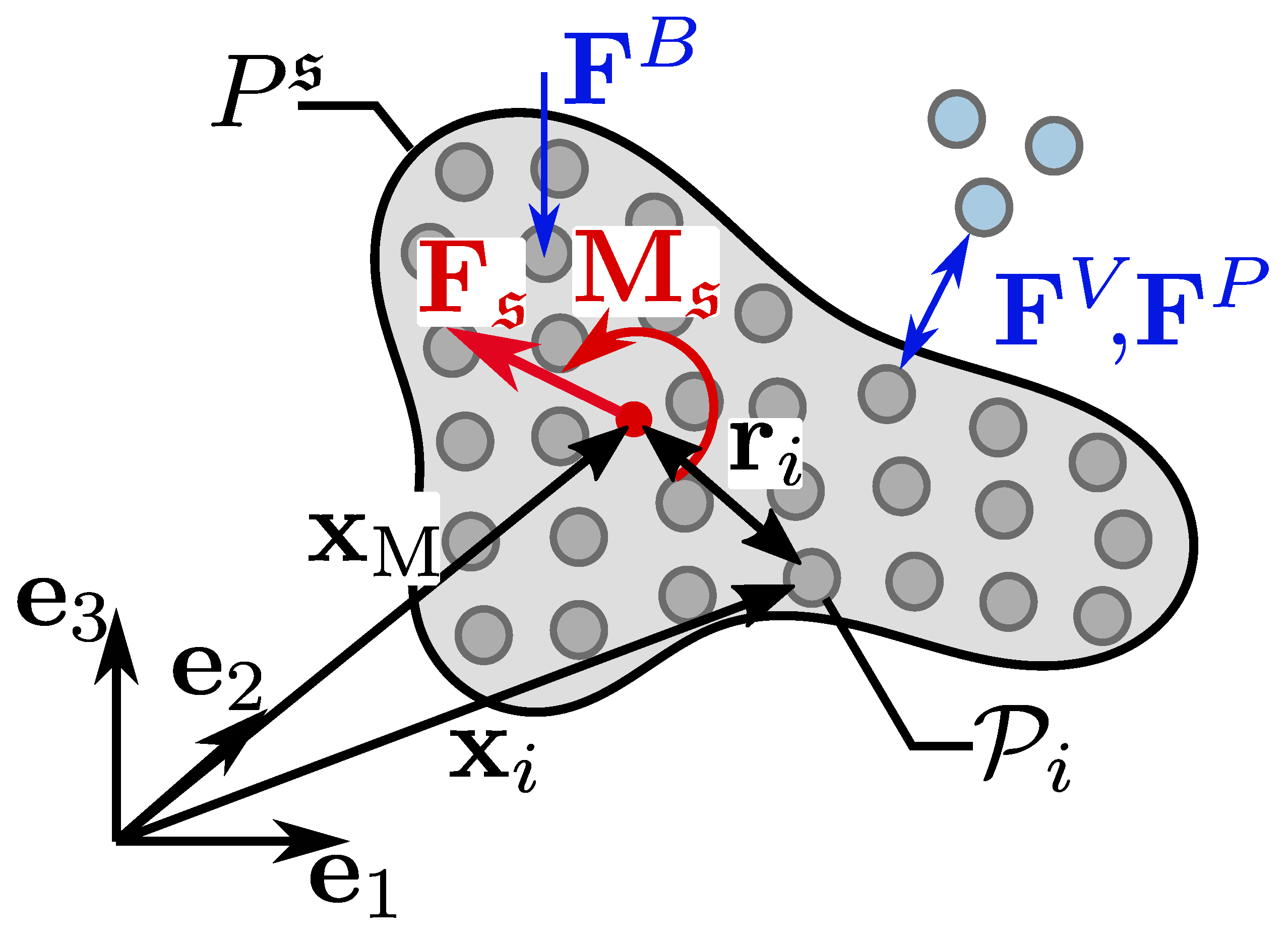

**Figure 3.**Forces acting on solid body ${P}^{\mathfrak{s}}$ and resulting force ${\mathbf{F}}_{\mathfrak{s}}$ and moment ${\mathbf{M}}_{\mathfrak{s}}$.

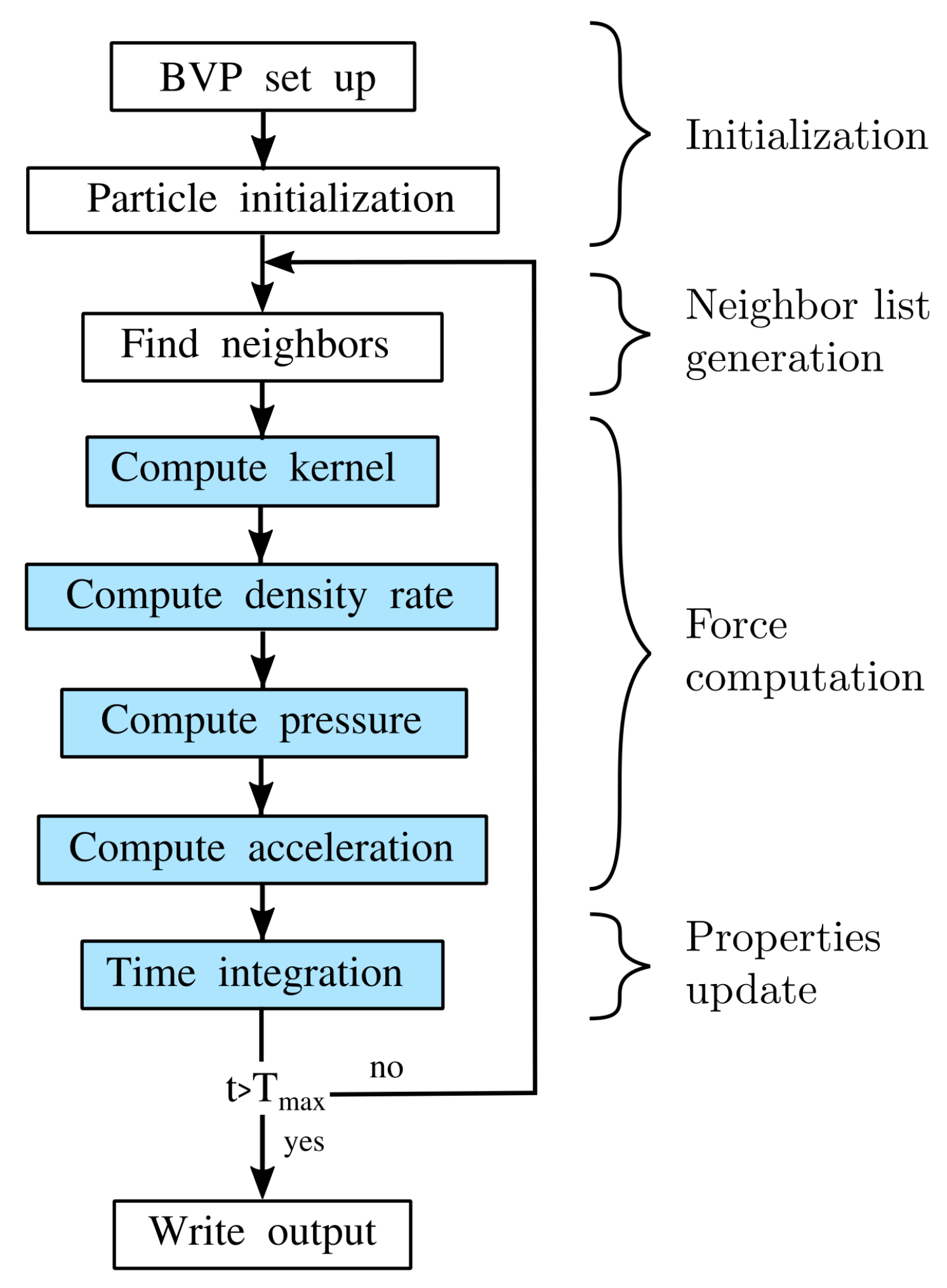

**Figure 4.**Workflow of SPH implementation. Blue background indicates own implementation within the HOOMD-blue library [23].

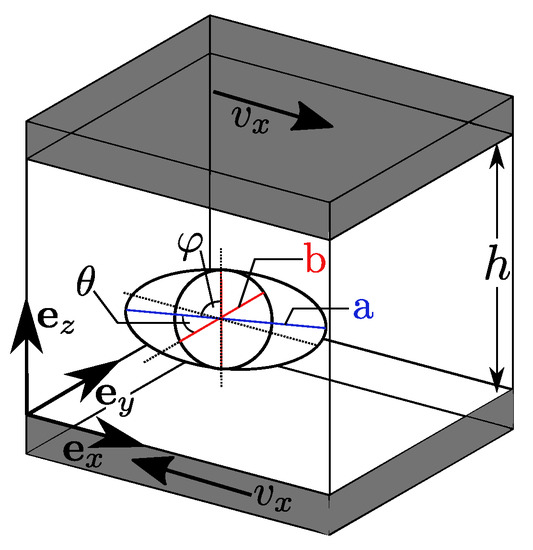

**Figure 5.**Sketch of validation test case with definition of half-axis and rotation angles as presented by Mueller [29].

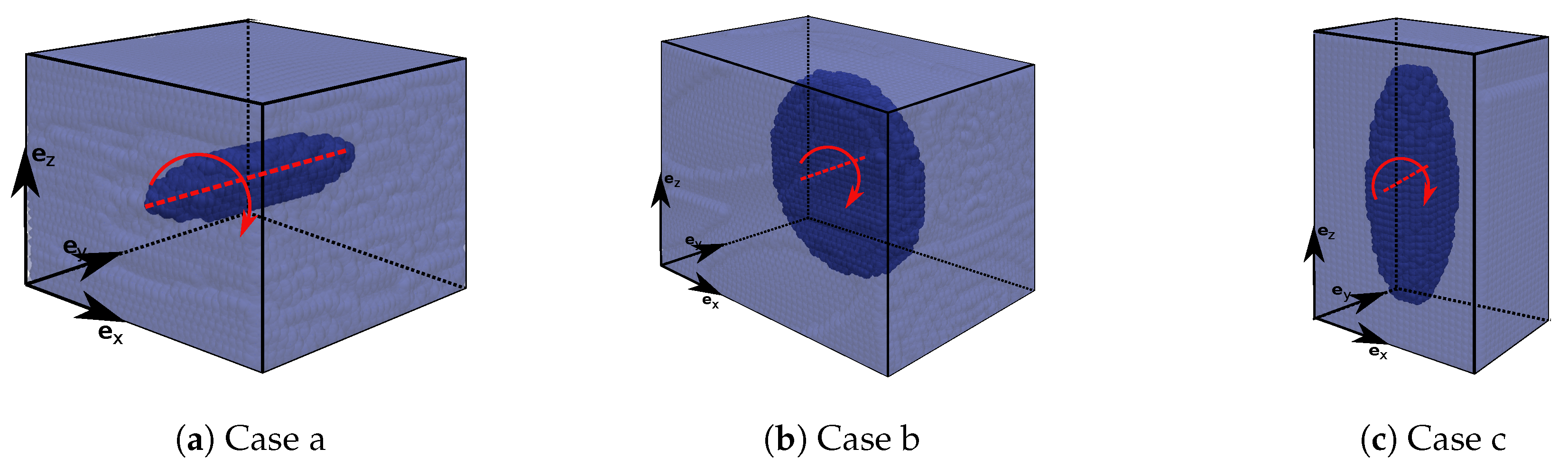

**Figure 6.**Initial configurations and rotation axis and direction of the three considered cases (

**a**–

**c**).

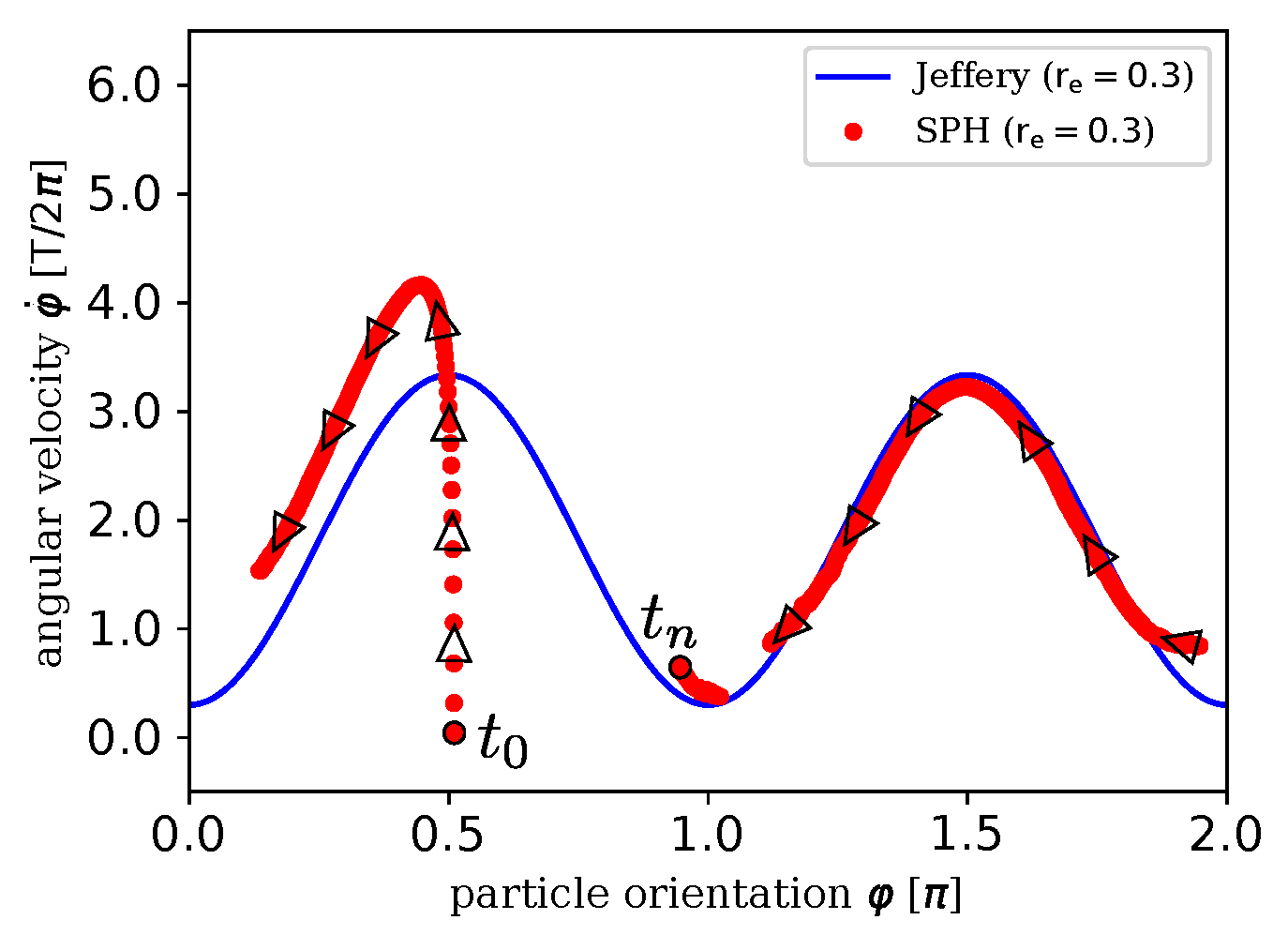

**Figure 7.**Normalized angular velocity $\dot{\phi}$ over rotation angle $\phi $. Comparison of SPH results (simulation

**c**) with analytical solution by Jeffery [9] for ${r}_{e}=0.3$. Black arrows additionally show the parameter of time from the start of the simulation at ${t}_{0}$ to the end ${t}_{n}$.

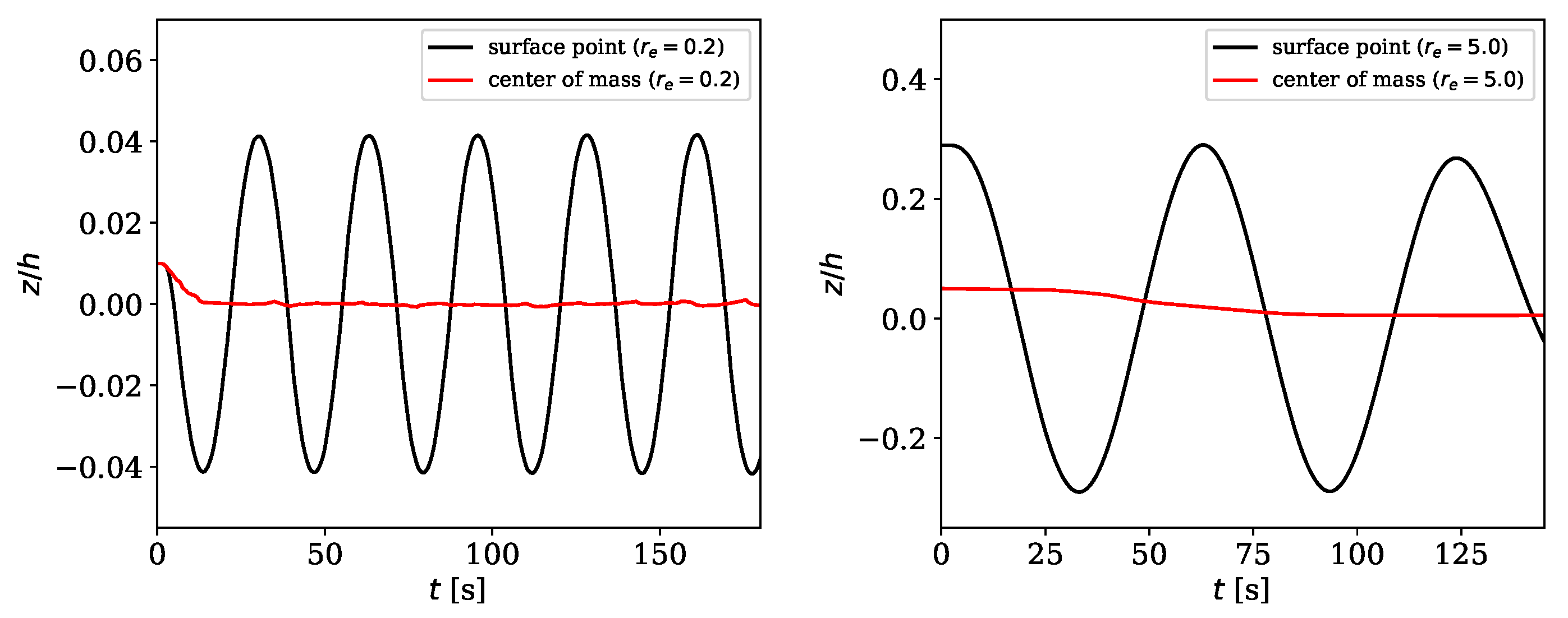

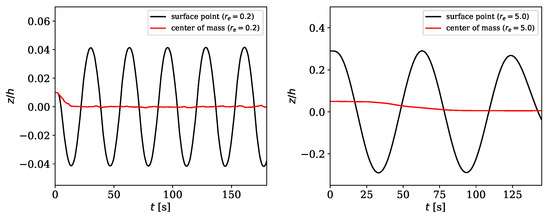

**Figure 8.**Motion of ${\mathbf{e}}_{z}$-coordinate over time t for two different aspect ratios (case

**a**: ${r}_{e}=0.2$, case

**b**: ${r}_{e}=5.0$).

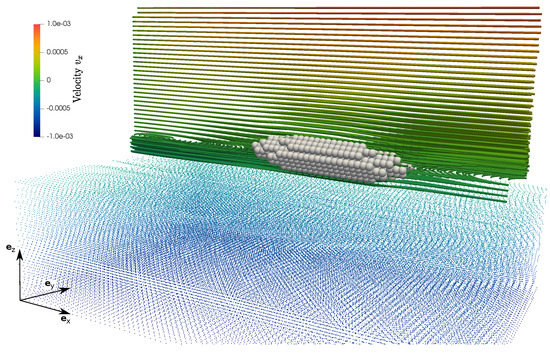

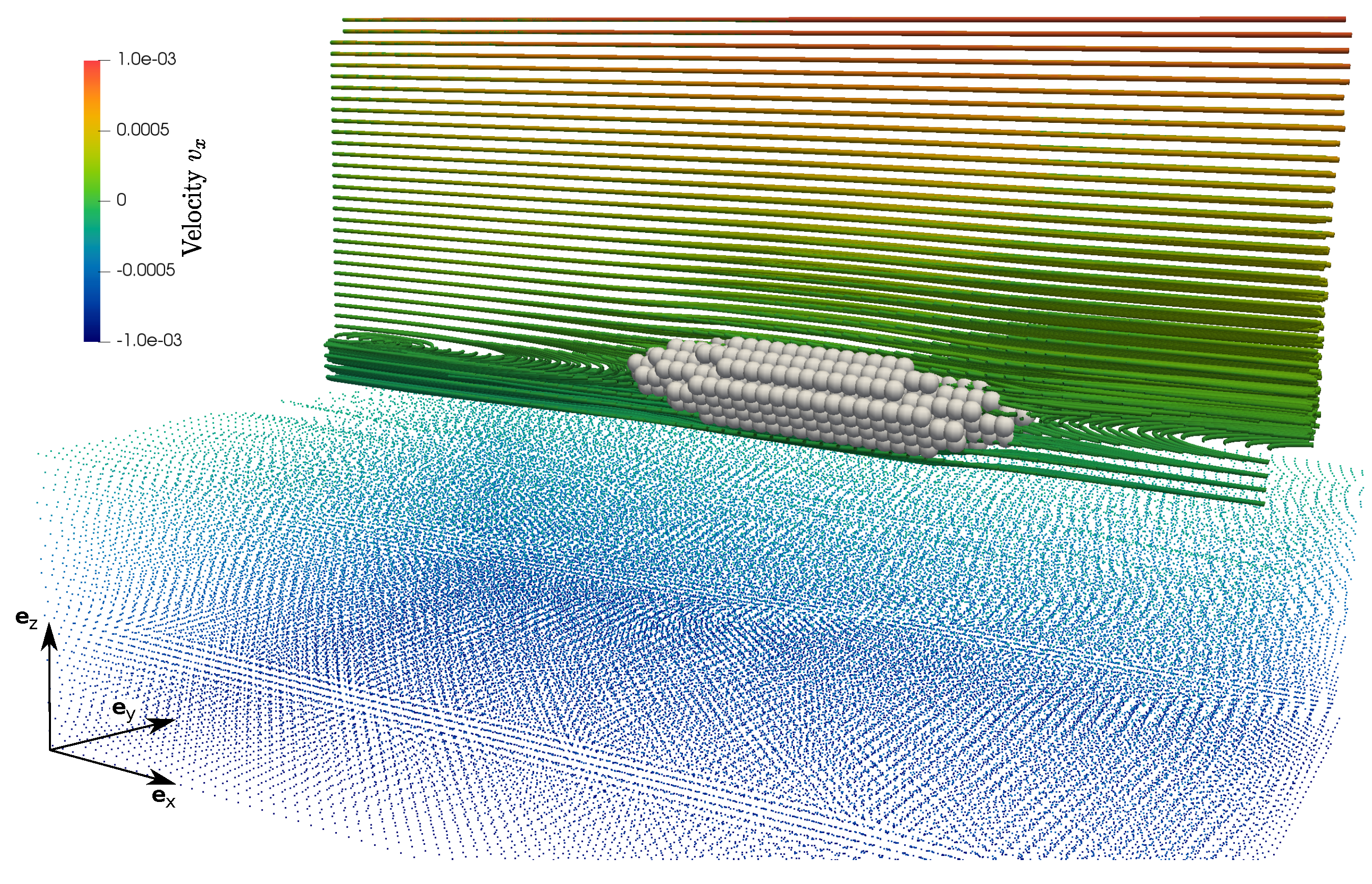

**Figure 9.**3-dimensional view of the simulation results showing streamlines of the velocity ${v}_{x}$ in the channel. Prolate spheroid is aligned with ${\mathbf{e}}_{x}$-axis and does not perform any rotation for a Reynolds number of Re = 10.

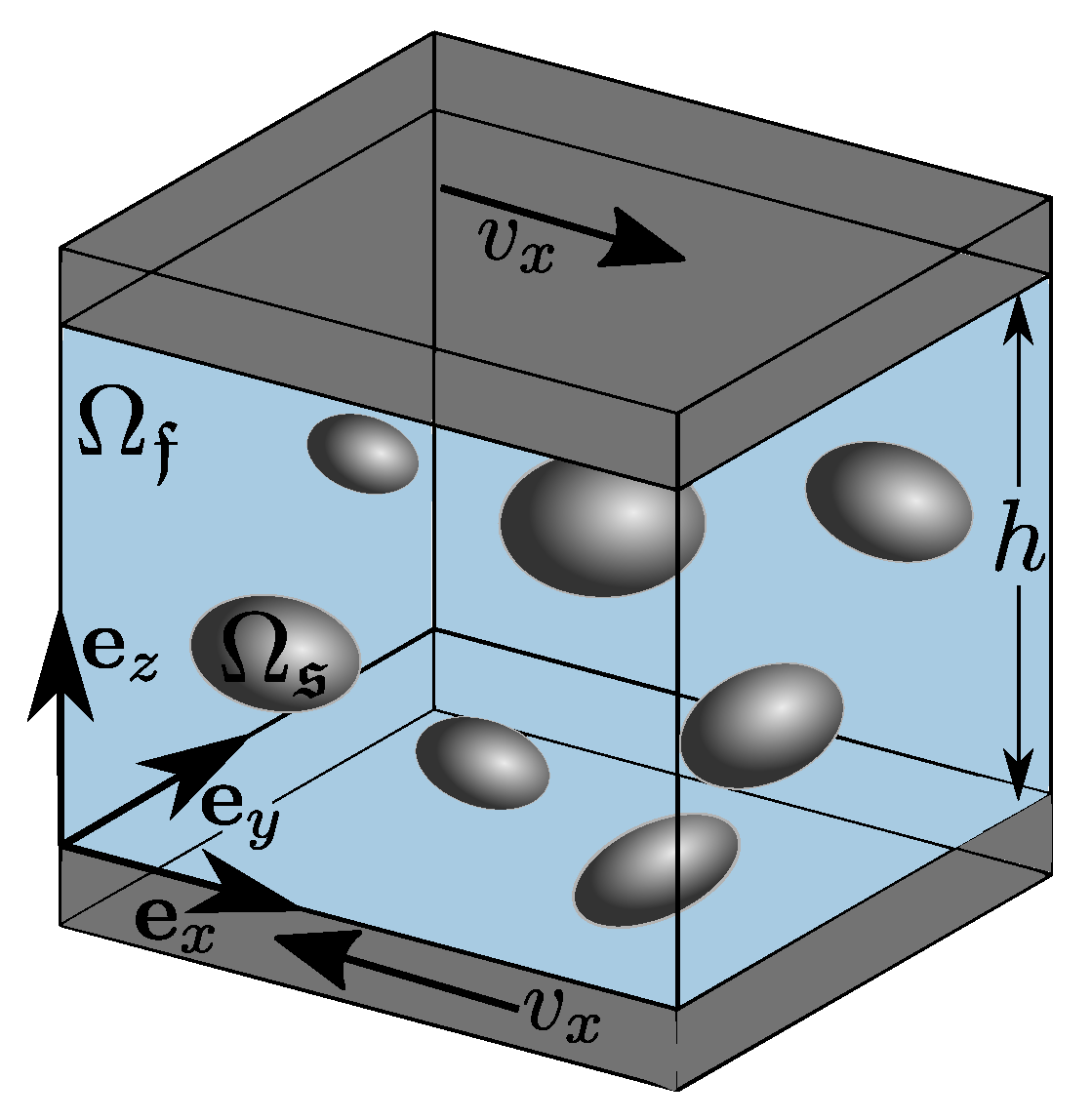

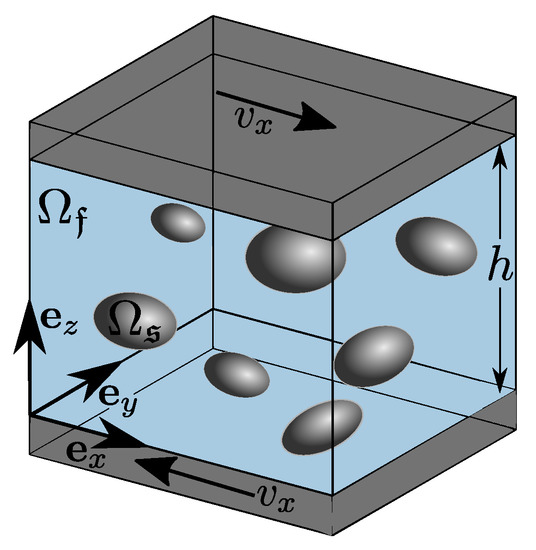

**Figure 10.**Sketch of simulated boundary value problem (BVP) of shear induced suspension flow in a channel of height h in ${\mathbf{e}}_{z}$-direction. The simulation domain contains periodic boundary conditions in direction of ${\mathbf{e}}_{x}$ and ${\mathbf{e}}_{y}$. Upper and lower wall particles are moved with a constant velocity ${v}_{x}=0.005\phantom{\rule{0.166667em}{0ex}}\mathrm{m}/\mathrm{s}$ corresponding to an input shear rate of $\dot{\gamma}=2\left|{v}_{w}\right|/h=0.5\phantom{\rule{0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{\mathrm{s}}^{-1}$.

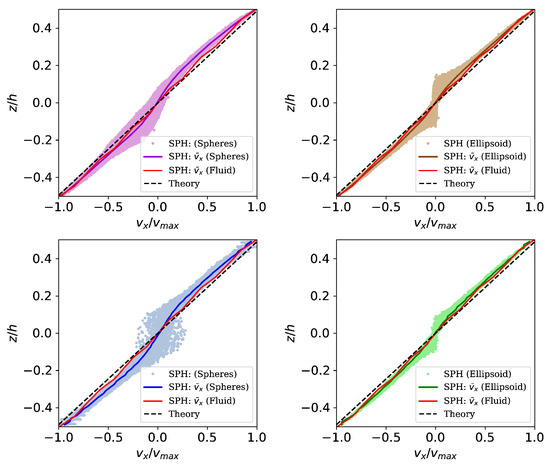

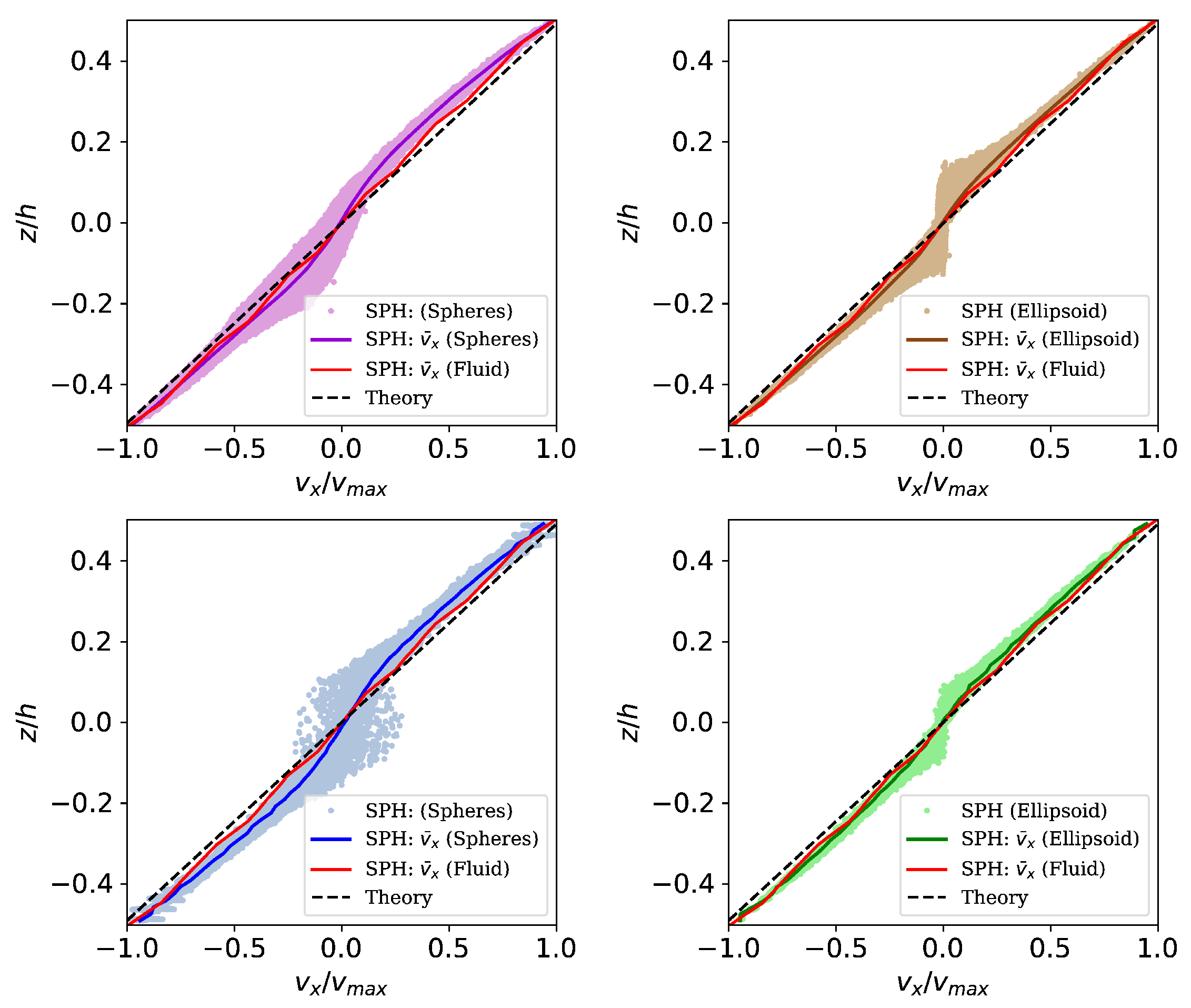

**Figure 11.**Resulting profile of velocity in ${\mathbf{e}}_{x}$-direction over coordinate ${\mathbf{e}}_{z}$ for spherical solids (

**left**) and ellipsoidal solids (

**right**). While the black line represents the analytical solution for simple shear flow of a Newtonian fluid, the red line represents the mean velocity of a simulation of shear flow without solid aggregates (only fluid). Colored markers and and the same colored line represent SPH particle velocities and mean particle velocity, respectively. Investigated cases are shear flow with two spherical (pink,

**top left**), two ellipsoidal (brown,

**top right**), four spherical (blue,

**bottom left**) and four ellipsoidal (green,

**bottom right**) solid bodies.

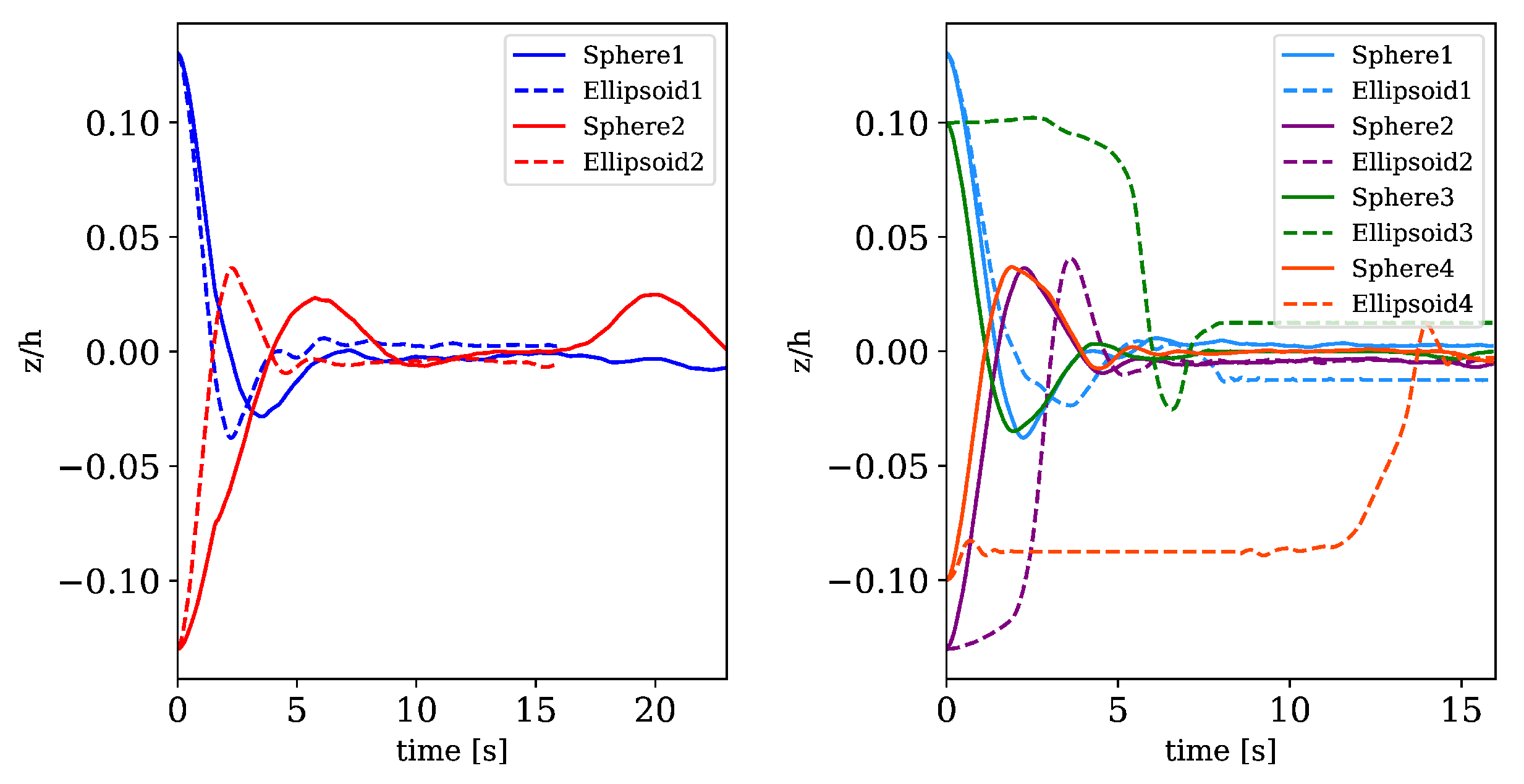

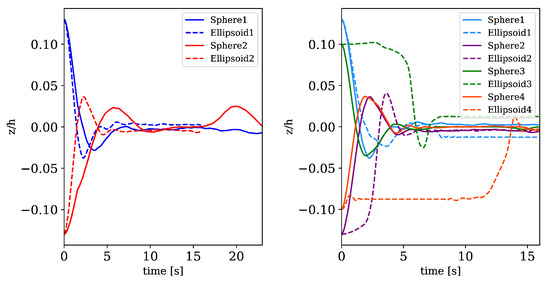

**Figure 12.**Motion of the center of masses over time for simulations containing two and four solid particles. Solid and dashed lines represent spherical particles and non-spherical particles, respectively.

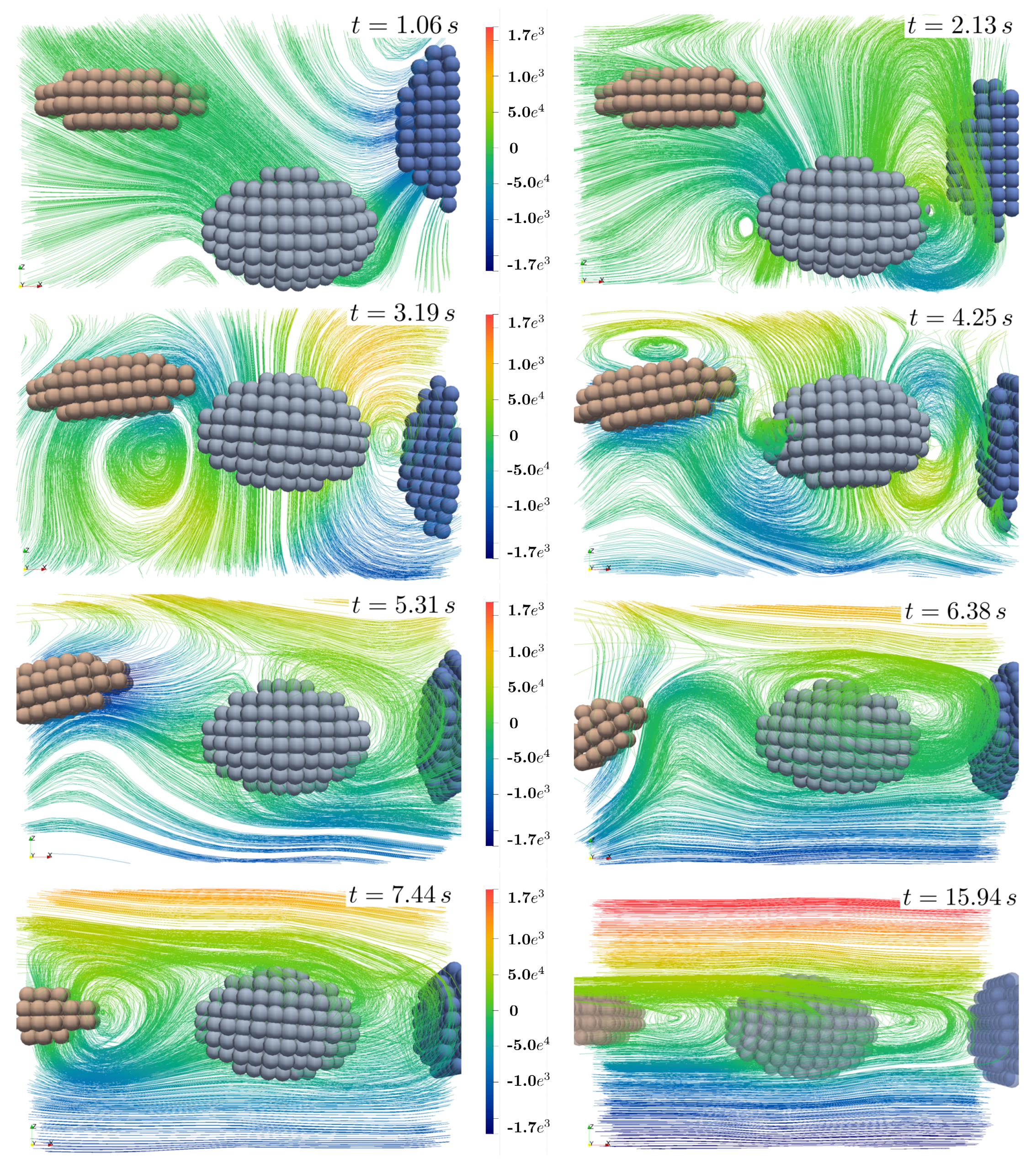

**Figure 13.**Streamlines of the velocity ${v}_{x}$-direction at various time steps considering the ${\mathbf{e}}_{x}$-${\mathbf{e}}_{x}$-plane for simulation containing four ellipsoidal solid particles.

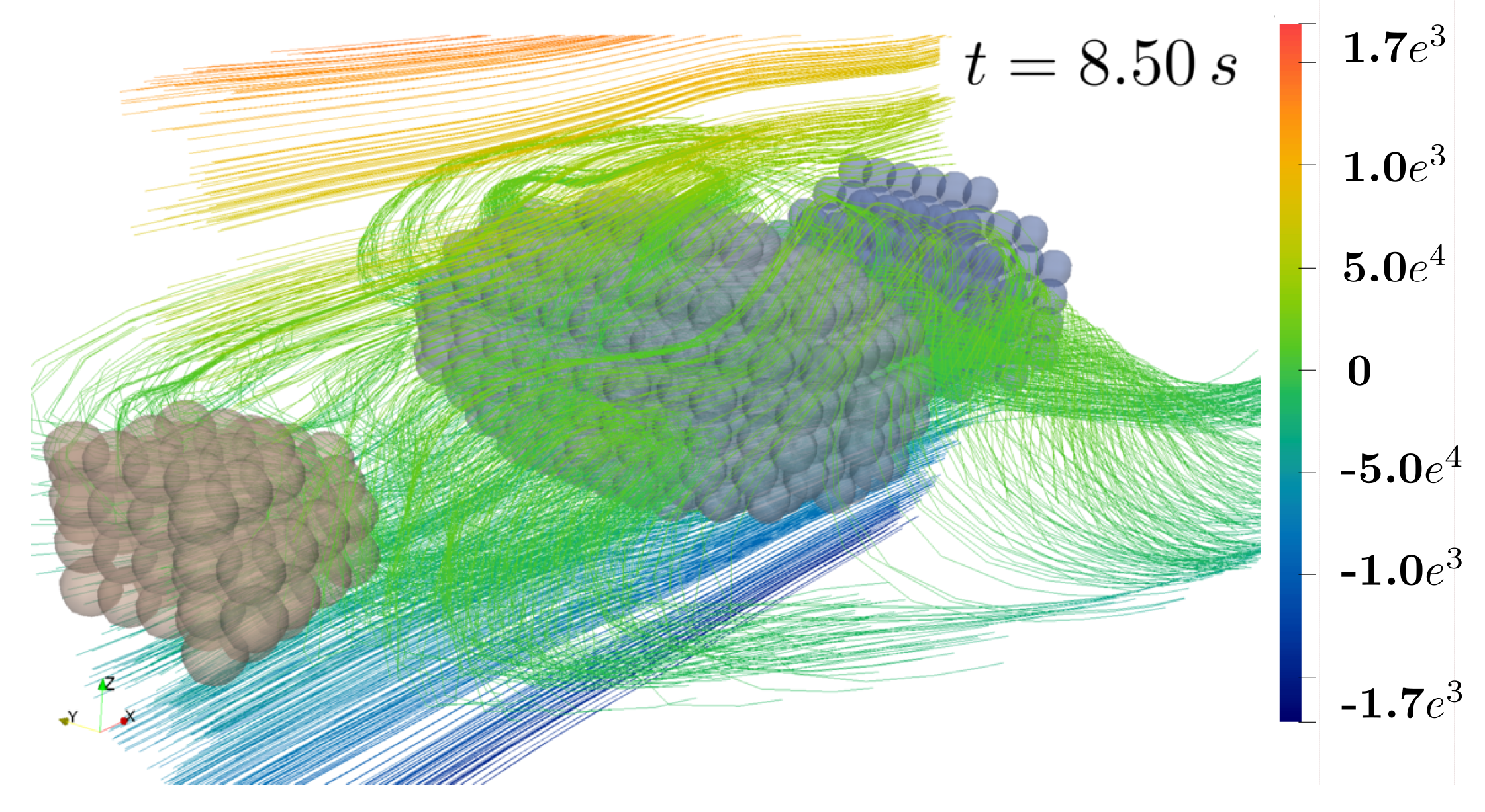

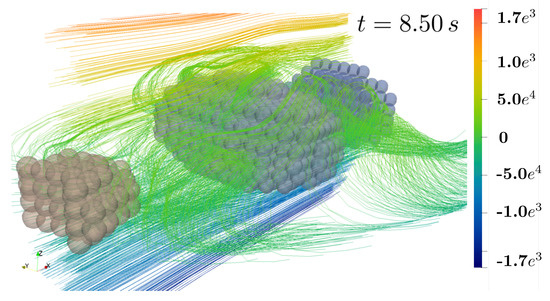

**Figure 14.**3-dimensional view of streamlines at timestep $t=8.5\phantom{\rule{0.166667em}{0ex}}\mathrm{s}$.

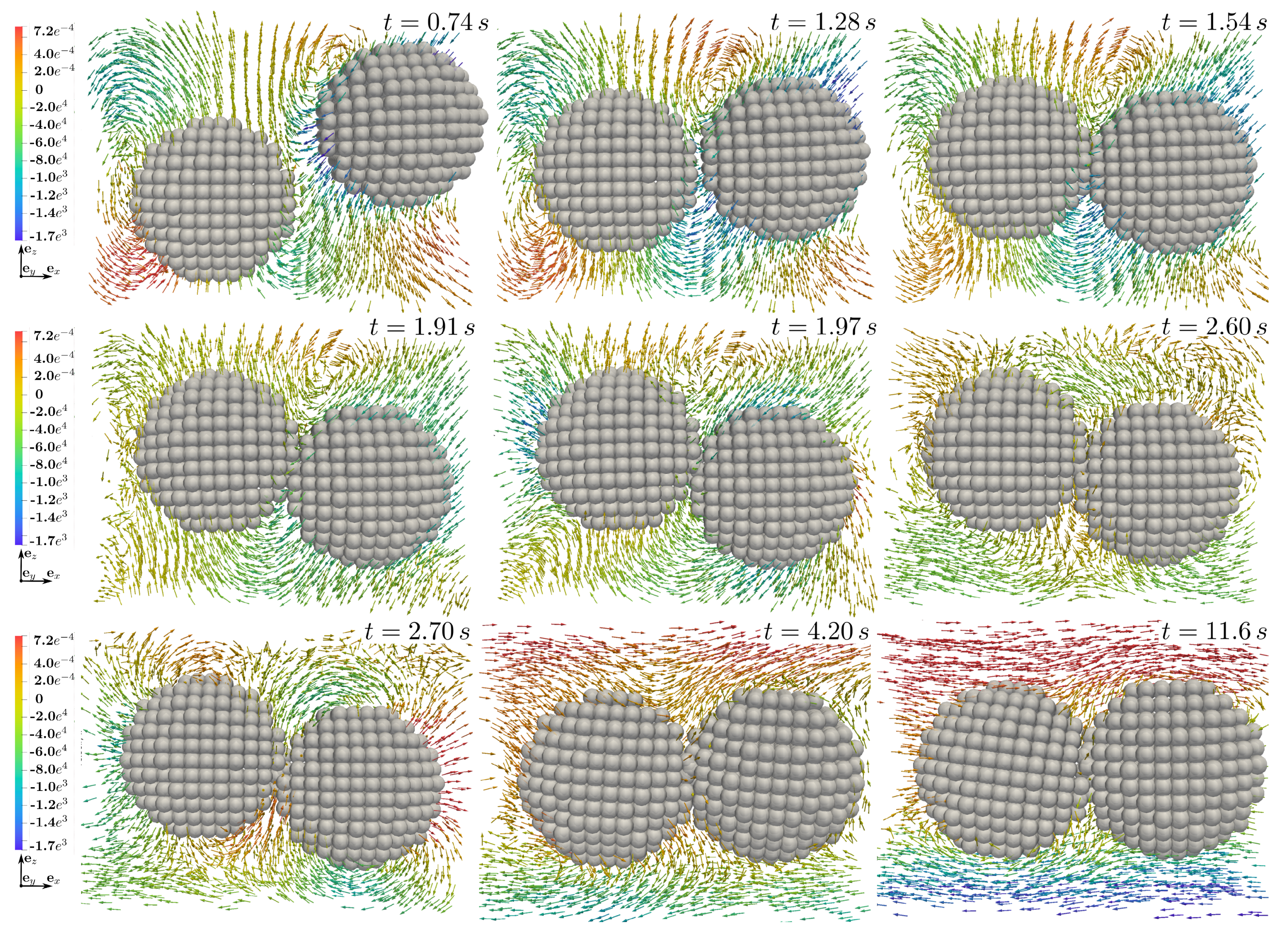

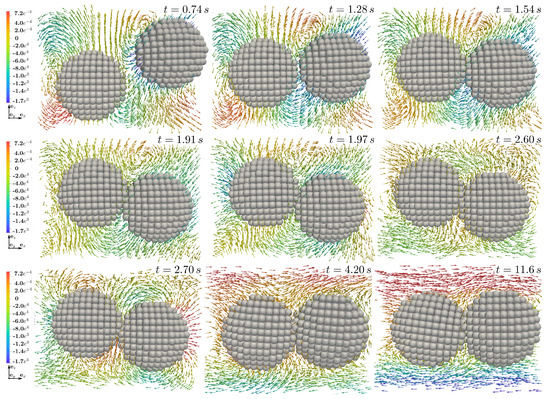

**Figure 15.**Velocity trajectories of ${v}_{x}$ for the evolution of contact between two solid particles over time (top left to bottom right). Contact occurs at $t=1.91\phantom{\rule{0.166667em}{0ex}}\mathrm{s}$ and again at $t=2.60\phantom{\rule{0.166667em}{0ex}}\mathrm{s}$. Due to hydromechanical and hydrodynamical forces, particles stay close to each other even after contact.

${\mathit{r}}_{\mathit{e}}$ | Re | ${\mathit{\theta}}_{0}$ | ${\mathit{\phi}}_{0}$ | |
---|---|---|---|---|

a | 0.2 | 10.0 | 0 | undefined |

b | 5.0 | 10.0 | 0 | undefined |

c | 0.3 | 1.0 | $\pi /2$ | 0 |

**Table 2.**Summary of parameters of solid aggregates for the four different simulation scenarios. Spherical solids are defined by their radius r while ellipsoidal solids are defined by their half-axes a, b and c (dimension in ${\mathbf{e}}_{x}$-, ${\mathbf{e}}_{y}$- and ${\mathbf{e}}_{z}$-direction, respectively).

Simulation with | Parameter of Aggregates [mm] | |||
---|---|---|---|---|

2 spherical solids | r = 3.0 | r = 4.0 | ||

2 elliptical solids | a = 3.0 b = 2.0 c = 1.0 | a = 2.2 b = 4.0 c = 3.0 | ||

4 spherical solids | r = 2.6 | r = 2.6 | r = 3.0 | r = 3.0 |

4 elliptical solids | a = 2.0 b = 1.0 c = 3.0 | a = 3.0 b = 4.0 c = 2.0 | a = 3.0 b = 2.0 c = 1.0 | a = 2.0 b = 1.0 c = 3.8 |
