The Intergranular Corrosion Susceptibility of Metastable Austenitic Cr–Mn–Ni–N–Cu High-Strength Stainless Steel under Various Heat Treatments

by
Guangming Liu
,
Yuanyuan Liu
*,
Yawen Cheng
,
Jin Li
and
Yiming Jiang
*
Department of Materials Science, Fudan University, Shanghai 200433, China
*
Authors to whom correspondence should be addressed.
Materials 2019, 12(9), 1385; https://doi.org/10.3390/ma12091385
Submission received: 8 April 2019 / Revised: 24 April 2019 / Accepted: 26 April 2019 / Published: 29 April 2019
(This article belongs to the Section Corrosion)
Browse Figures
Versions Notes

Abstract

:
The intergranular corrosion (IGC) behavior of a new metastable austenitic Cr–Mn–Ni–N–Cu high-strength stainless steel under various heat treatments was studied. The samples were solution treated at 1050 °C for 30 min and then aged at 600 to 900 °C for 10 to 300 min, respectively. The IGC susceptibility of aged samples was investigated using a double-loop electrochemical potentiokinetic reactivation (DL-EPR) test in a solution of 0.1 M H2SO4 and 0.002 M KSCN and the 10% oxalic acid etch. The surface morphologies of samples were characterized using optical microscopy and the scanning electron microscopy after electrochemical tests. Two time-temperature-sensitization diagrams were plotted based on the DL-EPR test and oxalic acid etching. No IGC and precipitate were observed for samples aged at 600 °C and 900 °C. For samples aged at 650 °C to 750 °C, the IGC susceptibility and the amount of precipitate both increased with the extended aging time. For samples aged at 800 °C and 850 °C, the amount of precipitate increased as the aging time was prolonged. However, only the sample aged at 800 °C for 60 min showed slight intergranular corrosion in the DL-EPR test. The IGC of the Cr–Mn–Ni–N–Cu austenitic stainless steel originated from the precipitation of Cr23C6 and Cr2N at the grain boundaries. The chromium-depleted zones near grain boundaries stood as the corrosion nucleation sites, but the dissolution of the weak area followed a consistent crystallographic orientation along each grain boundary.

1. Introduction

With the rapid development of the automotive industry, the usage of materials for automotive structures is increasing year by year. Recently, the designed service life of the electric vehicles has been significantly extended due to the introduction of replaceable batteries [1], leading to new demands for crash safety and fuel economy of the automobiles. The automotive structural materials require a combination of properties including high strength, high ductility, high corrosion resistance and lightweight to ensure the fuel economy and the extended service life [2]. Numerous studies have been concentrated on the development of promising automotive materials, including high-strength carbon steels [3], high-strength stainless steels [4,5,6], light-weight aluminum and magnesium alloys [7,8,9], and the fiber-reinforced polymers [10]. However, high-strength carbon steels and the light-weight aluminum and magnesium alloys require protective coatings to ensure corrosion resistance. The use of fiber-reinforced polymers as automotive structures is uneconomic at present [11]. New-generation high-strength stainless steel, which possesses a high product of strength and elongation (Rm × A, over 30 GPa%) [12], good corrosion resistance and low cost, is very promising for future automotive structures.
Austenitic stainless steels have been widely used in many areas, including the petrochemical industry, architecture, aerospace and automobile manufacturing because of their excellent properties such as high strength, good ductility, excellent formability and good corrosion resistance [13,14,15,16]. Austenitic stainless steels such as 304 and 310 are attractive for use as frame materials in automobiles [17]. However, the high cost results from the high Ni content which has limited the automotive application of these austenitic stainless steels. New attempts have been focused on developing a metastable austenitic stainless steel with mechanical properties equivalent to the traditional austenitic stainless steels at a much lower cost [18]. The expensive Ni has been replaced with low-cost Mn. Furthermore, N and Cu are simultaneously added to stabilize the austenitic phase. Nitrogen alloying can also promote the strength of stainless steel by nitrogen solution hardening [19,20]. Copper additions can reduce the needed nitrogen content and improve plasticity [21].
Recently, Baosteel Co., Ltd. in China has developed a new grade of high-strength stainless steel (13.6Cr–10.1Mn–1.19Ni–0.15N–0.85Cu) with a tensile strength greater than 1000 MPa. The martensite transformation behavior and mechanical properties of this stainless steel after cold rolling have been discussed [12]. The increase of the martensite volume fraction leads to the increase of tensile strength, and a higher volume fraction of austenite results in a larger elongation. However, the corrosion performance is the key factor to determine whether the high-strength stainless steel can meet the long-life demand of automotive applications. Austenitic stainless steels are prone to intergranular corrosion (IGC) since sensitization can easily occur after welding and heat treatments [22,23,24]. The formation of chromium-rich precipitates at grain boundaries can result in chromium-depleted zones adjacent to grain boundaries which are prone to IGC in a corrosive medium [25,26,27]. Figure 1 gives the equilibrium phase diagram obtained by thermodynamic calculation for the as-mentioned Cr–Mn–Ni–N–Cu austenitic stainless steel. At temperatures between 950 °C to 1300 °C, a pure austenite phase can be obtained. Whereas below 950 °C, chromium carbides and nitrides (e.g., M23C6, M2N) will precipitate and may deteriorate the corrosion resistance of steel. However, the precipitation of chromium carbides and nitrides is also controlled by the diffusion kinetics of Cr, C, and N atoms in the austenite phase [28]. The chromium depleted zone near the chromium-rich precipitates can also be repaired by the chromium atoms diffused from the inner grain at higher temperatures or for longer aging times [29,30]. The IGC susceptibility of the as-mentioned Cr–Mn–Ni–N–Cu austenitic stainless steel needs to be clarified to guide the thermomechanical and welding processes.
In this paper, the solution-treated Cr–Mn–Ni–N–Cu austenitic stainless steel samples were aged at various temperatures (600 °C to 900 °C) for different times. The microstructure evolution and IGC susceptibility were studied by morphology characterization, a double-loop electrochemical potentiokinetic reactivation (DL-EPR) test and oxalic acid etching. The IGC behavior and mechanism of the Cr–Mn–Ni–N–Cu austenitic stainless steel after various heat treatments are clarified.

2. Materials and Methods

2.1. Materials and Heat Treatments

The Cr–Mn–Ni–N–Cu metastable austenitic stainless steel studied in the present paper were provided by Baosteel Co., Ltd. (Shanghai, China) with a chemical composition shown in Table 1.
The as-received plate was cut into small samples with sizes of 12 mm × 12 mm × 2.5 mm. Then, the samples were solution-treated at 1050 °C for 30 min and water quenched to obtain a uniform dispersion of the elements. After the solution treatment, the samples were aged at 600 °C to 900 °C for 10 to 300 min, respectively. All the heat treatments were performed in a pure nitrogen atmosphere, and the detailed procedures are shown in Figure 2. Then, the samples were sealed in a mixture of epoxy and polyamide resins, grounded with SiC papers from 180 to 2000 grit, polished with the diamond paste of 2.5 μm, cleaned with ethanol, and dried in compressed air, successively. Before the electrochemical tests, the polished samples were covered by 3M tape (3MTM 1600 Vinyl Electrical Tape, 3M, Saint Paul, MN, USA), leaving an exposed surface of 1 cm2.

2.2. Electrochemical Tests

The double-loop electrochemical potentiokinetic reactivation (DL-EPR) test, which comprises the cathodic polarization, monitoring of open circuit potential and the cyclic potentiodynamic polarization processes, is a fast electrochemical method for evaluating the intergranular corrosion susceptibility of stainless steels. The peak activation current density during the anodic scan (ia) stands for the dissolution of the whole sample surface, and the peak activation current density during the reverse scan (ir) represents the dissolution of weak areas like the chromium-depleted areas at the grain boundaries. Ra = ir/ia × 100% was defined to evaluate the degree of IGC susceptibility of stainless steel, and a higher Ra value suggests the higher IGC susceptibility [31,32,33,34].
In the present work, the DL-EPR test is conducted in a solution of 0.1 M H2SO4 and 0.002 M KSCN at 30 °C using a potentiostat of CHI660e with a three-electrode cell. The treated Cr–Mn–Ni–N–Cu stainless steel sample was used as the working electrode, and a saturated calomel electrode and a platinum electrode were used as the reference electrode and the counter electrode, respectively. First, the working electrode was cathodically polarized at −0.7 VSCE for 120 s to improve the reproducibility of the tests. Then, the open circuit potential was monitored for 600 s, after that the working electrode was polarized from −0.6 VSCE to 0.3 VSCE and back to −0.6 VSCE at a scan rate of 0.1 V/min. The DL-EPR tests were repeated at least two times for each sample to ensure the data accuracy. In addition, the heat-treated samples were also etched in the 10% oxalic acid solution at 1 A/cm2 for 90 s [35,36,37], and the sample surfaces after etching were classified as step, dual and ditch structures according to ASTM A262-15 practice A [38].

2.3. Characterizations

After the DL-EPR test and the oxalic acid etching, the sample surface was cleaned with ethanol and dried in compressed air. In order to observe the precipitates, the sample aged at 700 °C for 300 min was etched in the mixture of concentrated HCl/HNO3 (3:1 volume fraction) for 30 s at room temperature. The surface morphologies of the samples were observed by the optical microscope (CAIKON 4XCE, CAIKON, Shanghai, China) and the scanning electron microscope (Philips, XL-30FEG, Eindhoven, The Netherlands).

3. Results and Discussion

3.1. IGC Susceptibility of Cr–Mn–Ni–N–Cu Metastable Austenitic Stainless Steel in the DL-EPR Test

Figure 3 shows the cyclic potentiodynamic polarization curves of the Cr–Mn–Ni–N–Cu austenitic stainless steel after different heat treatments in a solution of 0.1 M H2SO4 and 0.002 M KSCN. It is worth noting that Figure 3 only displays the current densities for potentials ranged from −0.6 VSCE to 0.2 VSCE to better distinguish the current density peaks; although the DL-EPR test was conducted from −0.6 VSCE to 0.3 VSCE and back to −0.6 VSCE. The polarization curves of samples aged at temperatures from 600 °C to 900 °C were displayed in Figure 3a–g, respectively. For all the aging temperatures, the anodic polarization curves present similar shapes. First, the current density increased gradually with the scanning potential, and a peak current density (ia) of around 15 mA/cm2 was present near −0.2 VSCE during the anodic scan, indicating the active dissolution of the whole alloy surface [39]. The current density decreased sharply to around 0 A/cm2 with the further increased potential, representing the growth of passive film on the sample surface. The anodic scan continued to 0.3 VSCE to let the passive film grow. Then, the potential was scanned back from 0.3 VSCE in the cathodic direction. The current density peak in the reverse scan was only present for samples treated at 650 °C, 700 °C, 750 °C and 800 °C, and the current density peak expanded as the aging time increased from 10 min to 300 min for samples treated at the same temperature (except 800 °C). The current density peak in the reverse scan can be associated with the dissolution of weak areas on the sensitized sample surface like the chromium-depleted zones at grain boundaries [31,40]. The absence of a current density peak in the reverse scan suggests that the samples treated at 600 °C, 850 °C and 900 °C are immune to intergranular corrosion.
In order to quantitatively evaluate the IGC sensibility of the Cr–Mn–Ni–N–Cu austenitic stainless steel samples, the Ra values were calculated by ir/ia × 100% based on the polarization curves. The Ra values were summarized in Table 2 as average values ± standard deviations derived from repeated tests. Although a higher Ra value suggests higher IGC sensibility, it is known that the inner-grain dissolution can also contribute to the current density peak in the reverse scan, leading to higher Ra values in the DL-EPR test [35,39]. It is necessary to evaluate the surface morphology of samples after the DL-EPR test to verify the reliability of Ra values and clarify the Ra value range that can represent different degrees of intergranular corrosion. Figure 4 shows the optical micrographs of the aged Cr–Mn–Ni–N–Cu stainless steel samples after the DL-EPR test. Despite the polishing lines, no corrosion could be observed inside the grains, suggesting that all the current density peaks in the reverse scan originated from the dissolution of grain boundaries. The derived Ra values can represent the IGC susceptibility of the aged Cr–Mn–Ni–N–Cu stainless steel samples. The change of corroded grain boundaries effectively matches with the trend of the derived Ra values.
From Table 2 and Figure 4, it could be found that the Ra values were all less than 2% and no IGC was observed in the optical images for samples aged at 600 °C, 850 °C and 900 °C, suggesting good IGC resistance of these samples. For samples aged at 650 °C, 700 °C and 750 °C, the Ra values of samples aged at the same temperature all increased with the prolonged aging time, accompanied by the gradually expanded ditches of corroded grain boundaries. When Ra reached the biggest value of 39.97% for the sample aged at 700 °C for 300 min, the most serious IGC morphology was observed on the sample surface, representing the highest susceptibility of IGC.
For the samples aged at 800 °C, the average Ra value increased to 3.55% as the aging time increased to 60 min and decreased with the extended aging time. This may suggest the repair of the chromium-depleted area near the grain boundary after 60 min. It is worth noting that the Ra values of samples aged for 10 and 30 min both increased with the increase of aging temperature from 600 °C to 750 °C, and then decreased with the further increase of aging temperature to 900 °C, resulting in the highest Ra values present at 750 °C. For samples aged for 60, 120 and 300 min, the highest Ra values were present at 700 °C rather than 750 °C. This agrees well with the thermodynamic calculation shown in Figure 1 that more chromium-rich phases can precipitate at 700 °C compared to 750 °C. However, it requires a longer time for the Cr, C, and N atoms to reach the grain boundary at a lower temperature [29,41].
In order to clarify the evolution of intergranular corrosion with various heat treatments for the Cr–Mn–Ni–N–Cu austenitic stainless steel, the amplified morphologies of grain boundaries were characterized. Figure 5 shows the corroded grain boundaries after the DL-EPR test of samples aged at 750 °C for various times. As can be seen from Figure 5, discrete etch pits were observed at grain boundaries for samples aged at 750 °C for 10 and 30 min. It is worth noting that the etch pits display consistent crystallographic orientations along each grain boundary. As the aging time increased, the crystallographic etch pits grew up to continuous ditches.
Figure 6 presents the surface morphology of samples aged for 300 min at various temperatures after the DL-EPR test. The most serious IGC was observed for the sample aged at 700 °C for 300 min. No IGC occurred for the sample aged at 800 °C for 300 min. For the sample aged at 600 °C for 300 min, discrete corrosion sites with specific crystallographic orientations were also present. In order to clarify whether the crystallographic corrosion is determined by the shape of precipitates or alloy matrix, the sample aged at 700 °C for 300 min was immersed in the mixture of concentrated HCl/HNO3 (3:1 in volume fraction) for 30 s to etch the austenite phase matrix and expose the precipitates. From Figure 7, it can be seen that precipitates without a specific shape were nucleated and grew at the grain boundary. The crystallographic corrosion sites should be associated with the austenitic matrix near the grain boundary. A schematic diagram for the initiation and growth of precipitates and intergranular corrosion by heat treatment is shown in Figure 8 for the aged Cr–Mn–Ni–N–Cu austenitic stainless steel sample. The chromium-deficient zones near the grain boundary made the corrosion attack nucleate at the grain boundary for a shorter aging time, while the growth of these corrosion sites with the extended aging time was controlled by the crystallographic orientation. This crystallographic corrosion behavior is also common in the anodic polarization of metals and alloys, such as aluminum foil [42] and β-tin [43].

3.2. IGC Susceptibility of Cr–Mn–Ni–N–Cu Metastable Austenitic Stainless Steel in Oxalic Acid Etching

The optical micrographs of Cr–Mn–Ni–N–Cu stainless steel samples aged under different heat-treatment conditions after 10% oxalic acid etch are given in Figure 9. Coincident with the DL-EPR results, only step structures were observed for samples aged at 600 °C and 900 °C, indicating that these samples are immune to the precipitation of chromium-rich compounds and intergranular corrosion. For samples aged at 650 °C to 850 °C, only step or dual structures were present for short aging times, while ditch structures were observed for extended aging times. The IGC degree increased with the extension of aging time for samples treated at the same temperature. The most sensitive aging temperature was around 700 °C and 750 °C, which induced the most serious corrosion of grain boundaries for samples treated for the same length of time. However, it is worth noting that the observed intergranular corrosion was much more severe after oxalic acid etching compared to after the DL-EPR test for samples aged at 800 °C and 850 °C. This may be associated with the fact that the chromium-rich carbides and nitrides were dissolved with the chromium-depleted zone in the 10% oxalic acid etch, while only the chromium-depleted zone was etched in the reverse polarization of DL-EPR test [44]. At a higher aging temperature such as 800 °C and 850 °C. Although the chromium carbides or Cr2N can precipitate at the grain boundary and consume the nearby Cr atoms, the deficient Cr atoms could be easily replenished by the Cr atoms diffused from the inner-grain to the grain boundary [44].

3.3. The Time-Temperature-Sensitization (TTS) Diagram for Cr–Mn–Ni–N–Cu Metastable Austenitic Stainless Steel

Considering both the Ra values in Table 2 and the corroded surface morphologies in Figure 4, it is obvious that Ra values less than 2% suggest no IGC sensibility, and only steps between grains (step structure) are present on the sample surface after the DL-EPR test. For the aged samples with a Ra value ranged between 2% and 15%, some ditches are observed at grain boundaries, but no single grain is completely surrounded by ditches (dual structure). For the aged samples with an Ra value larger than 19%, more than one grain was completely surrounded by ditches (ditch structure). In Figure 10, the results of the DL-EPR test and oxalic acid etch are marked as red inverted triangles and black circles, respectively. The hollow, half empty and solid markers are corresponding to the step, dual and ditch structures, respectively. Two time-temperature-sensitization (TTS) diagrams were drawn based on the results of the DL-EPR test and oxalic acid etch. An evident small C curve was derived from the DL-EPR test. The samples aged at 650°C to 750 °C have a high tendency to intergranular corrosion, and the nose temperatures of the two C curves were about 700 °C to 750 °C.

4. Conclusions

In this paper, the IGC of the Cr–Mn–Ni–N–Cu austenitic stainless steel aged at 600 °C to 900 °C for 10 to 300 min was investigated using DL-EPR test and oxalic acid etch. The main conclusions are listed as follows:
(1)
The results of DL-EPR test and oxalic acid etch for the aged Cr–Mn–Ni–N–Cu austenitic stainless steel indicated that IGC would occur for samples aged at about 650 °C to 750 °C, and the IGC susceptibility became more severe as the aging time increased. For samples aged at 800 °C, the IGC susceptibility increased first and then decreased with the increased aging time, suggesting the quick repair of chromium-depleted zones after longer aging at 800 °C.
(2)
The nose sensitization-temperature of the Cr–Mn–Ni–N–Cu austenitic stainless steel was about 700°C to 750 °C, suggesting that the IGC could occur in a short time at about 700 °C to 750 °C.
(3)
The precipitates stood as nucleation sites for the intergranular corrosion attack of the Cr–Mn–Ni–N–Cu austenitic stainless steel. However, the growth of these corrosion sites with the extended aging time obeyed consistent crystallographic orientation along the grain boundary.

Author Contributions

Conceptualization, Y.L., J.L. and Y.J.; Funding acquisition, J.L. and Y.J.; Investigation, G.L.; Supervision, Y.L., J.L. and Y.J.; Visualization, Y.C.; Writing–original draft, G.L.; Writing–review & editing, Y.L. and Y.J.

Funding

This work was financially supported by the National Key Research and Development Program of China (No. 2018YFB0704400) and the National Natural Science Foundation of China (No. 51801028, No. 51871061 and No. 51671059).

Acknowledgments

The authors gratefully acknowledge the helpful collaboration, technical assistance and the original samples provided by Hongyun Bi and Haigang Xu from Baosteel Co., Ltd.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lajunen, A. Lifecycle costs and charging requirements of electric buses with different charging methods. J. Clean. Prod. 2018, 172, 56–67. [Google Scholar] [CrossRef]
  2. Ermolaeva, N.S.; Castro, M.B.G.; Kandachar, P.V. Materials selection for an automotive structure by integrating structural optimization with environmental impact assessment. Mater. Design 2004, 25, 689–698. [Google Scholar] [CrossRef]
  3. Naderi, M.; Ketabchi, M.; Abbasi, M.; Bleck, W. Analysis of microstructure and mechanical properties of different high strength carbon steels after hot stamping. J. Mater. Process. Tech. 2011, 211, 1117–1125. [Google Scholar] [CrossRef]
  4. Eskandari, M.; Najafizadeh, A.; Kermanpur, A.; Karimi, M. Potential application of nanocrystalline 301 austenitic stainless steel in lightweight vehicle structures. Mater. Design 2009, 30, 3869–3872. [Google Scholar] [CrossRef]
  5. Bleck, W.; Schael, I. Determination of crash-relevant material parameters by dynamic tensile tests. Steel Res. 2000, 71, 173–178. [Google Scholar] [CrossRef]
  6. Niu, G.; Wu, H.; Zhang, D.; Gong, N.; Tang, D. Heterogeneous nano/ultrafine-grained medium Mn austenitic stainless steel with high strength and ductility. Mat. Sci. Eng. A-Struct. 2018, 725, 187–195. [Google Scholar] [CrossRef]
  7. Hirsch, J. Recent development in aluminium for automotive applications. T. Nonferr. Metal. Soc. 2014, 24, 1995–2002. [Google Scholar] [CrossRef]
  8. Tisza, M.; Czinege, I. Comparative study of the application of steels and aluminium in lightweight production of automotive parts. Int. J. Lightweight Mater. Manuf. 2018, 1, 229–238. [Google Scholar] [CrossRef]
  9. Hirsch, J.; Al-Samman, T. Superior light metals by texture engineering: Optimized aluminum and magnesium alloys for automotive applications. Acta. Mater. 2013, 61, 818–843. [Google Scholar] [CrossRef]
  10. Friedrich, K.; Almajid, A.A. Manufacturing aspects of advanced polymer composites for automotive applications. Appl. Compos. Mater. 2013, 20, 107–128. [Google Scholar] [CrossRef]
  11. Dhand, V.; Mittal, G.; Rhee, K.Y.; Park, S.; Hui, D. A short review on basalt fiber reinforced polymer composites. Compos. Part B-Eng. 2015, 73, 166–180. [Google Scholar] [CrossRef]
  12. Zhang, Y.; Li, M.; Bi, H.; Gu, J.; Chen, D.; Chang, E.; Zhang, W. Martensite transformation behavior and mechanical properties of cold-rolled metastable Cr-Mn-Ni-N austenitic stainless steels. Mat. Sci. Eng. A-Struct. 2018, 724, 411–420. [Google Scholar] [CrossRef]
  13. Xin, J.; Song, Y.; Fang, C.; Wei, J.; Huang, C.; Wang, S. Evaluation of inter-granular corrosion susceptibility in 316LN austenitic stainless steel weldments. Fusion Eng. Des. 2018, 133, 70–76. [Google Scholar] [CrossRef]
  14. Zhang, S.; Jiang, Z.; Li, H.; Feng, H.; Zhang, B. Detection of susceptibility to intergranular corrosion of aged super austenitic stainless steel S32654 by a modified electrochemical potentiokinetic reactivation method. J. Alloy Compd. 2017, 695, 3083–3093. [Google Scholar] [CrossRef]
  15. Bai, G.; Lu, S.; Li, D.; Li, Y. Intergranular corrosion behavior associated with delta-ferrite transformation of Ti-modified Super304H austenitic stainless steel. Corros. Sci. 2015, 90, 347–358. [Google Scholar] [CrossRef]
  16. Kisko, A.; Misra, R.D.K.; Talonen, J.; Karjalainen, L.P. The influence of grain size on the strain-induced martensite formation in tensile straining of an austenitic 15Cr–9Mn–Ni–Cu stainless steel. Mat. Sci. Eng. A-Struct. 2013, 578, 408–416. [Google Scholar] [CrossRef]
  17. Toor, I.; Hyun, P.J.; Kwon, H.S. Development of high Mn–N duplex stainless steel for automobile structural components. Corros. Sci. 2008, 50, 404–410. [Google Scholar] [CrossRef]
  18. Charles, J. The new 200-series: An alternative answer to Ni surcharge? Risks of opportunities? Rev. Metall-Paris 2007, 104, 308–317. [Google Scholar] [CrossRef]
  19. Kim, Y.H.; Kim, K.Y.; Lee, Y.D. Nitrogen-Alloyed, Metastable austenitic stainless steel for automotive structural applications. Mater. Manuf. Process 2004, 19, 51–59. [Google Scholar] [CrossRef]
  20. Talha, M.; Behera, C.K.; Sinha, O.P. Effect of nitrogen and cold working on structural and mechanical behavior of Ni-free nitrogen containing austenitic stainless steels for biomedical applications. Mat. Sci. Eng. C-Mater. 2015, 47, 196–203. [Google Scholar] [CrossRef]
  21. Xi, T.; Shahzad, M.B.; Xu, D.; Sun, Z.; Zhao, J.; Yang, C.; Qi, M.; Yang, K. Effect of copper addition on mechanical properties, corrosion resistance and antibacterial property of 316L stainless steel. Mat. Sci. Eng. C-Mater. 2017, 71, 1079–1085. [Google Scholar] [CrossRef] [PubMed]
  22. Qian, J.; Chen, C.; Yu, H.; Liu, F.; Yang, H.; Zhang, Z. The influence and the mechanism of the precipitate/austenite interfacial C-enrichment on the intergranular corrosion sensitivity in 310 S stainless steel. Corros. Sci. 2016, 111, 352–361. [Google Scholar] [CrossRef]
  23. Barla, N.A.; Ghosh, P.K.; Das, S.; Kumar, V. Simulated stress-induced sensitization study for the heat-affected zone of the 304LN stainless steel weld using a thermomechanical simulator. Metall. Mater. Trans. A 2019, 50, 1283–1293. [Google Scholar] [CrossRef]
  24. Fujii, T.; Tohgo, K.; Mori, Y.; Shimamura, Y. Crystallography of intergranular corrosion in sensitized austenitic stainless steel. Mater. Charact. 2018, 144, 219–226. [Google Scholar] [CrossRef]
  25. Sahlaoui, H.; Sidhom, H.; Philibert, J. Prediction of chromium depleted-zone evolution during aging of Ni–Cr–Fe alloys. Acta. Mater. 2002, 50, 1383–1392. [Google Scholar] [CrossRef]
  26. Kaneko, K.; Fukunaga, T.; Yamada, K.; Nakada, N.; Kikuchi, M.; Saghi, Z.; Barnard, J.S.; Midgley, P.A. Formation of M23C6-type precipitates and chromium-depleted zones in austenite stainless steel. Scripta. Mater. 2011, 65, 509–512. [Google Scholar] [CrossRef]
  27. Sahlaoui, H.; Makhlouf, K.; Sidhom, H.; Philibert, J. Effects of ageing conditions on the precipitates evolution, chromium depletion and intergranular corrosion susceptibility of AISI 316L: Experimental and modeling results. Mat. Sci. Eng. A-Struct. 2004, 372, 98–108. [Google Scholar] [CrossRef]
  28. Shi, F.; Wang, L.; Cui, W.; Liu, C. Precipitation kinetics of Cr2N in high nitrogen austenitic stainless steel. J. Iron Steel Res. Int. 2008, 15, 72–77. [Google Scholar] [CrossRef]
  29. Wang, R.; Zheng, Z.; Zhou, Q.; Gao, Y. Effect of surface nanocrystallization on the sensitization and desensitization behavior of Super304H stainless steel. Corros. Sci. 2016, 111, 728–741. [Google Scholar] [CrossRef]
  30. Hong, J.; Han, D.; Tan, H.; Li, J.; Jiang, Y. Evaluation of aged duplex stainless steel UNS S32750 susceptibility to intergranular corrosion by optimized double loop electrochemical potentiokinetic reactivation method. Corros. Sci. 2013, 68, 249–255. [Google Scholar] [CrossRef]
  31. Sun, M.; Yang, Y.; Luo, M.; Jiang, L.; Jiang, Y.; Li, J. Investigation of susceptibility to intergranular corrosion of tin-added austenitic stainless steel. Acta Metall. Sin-Engl. 2015, 28, 1183–1189. [Google Scholar] [CrossRef]
  32. Gong, J.; Jiang, Y.M.; Deng, B.; Xu, J.L.; Hu, J.P.; Li, J. Evaluation of intergranular corrosion susceptibility of UNS S31803 duplex stainless steel with an optimized double loop electrochemical potentiokinetic reactivation method. Electrochim. Acta 2010, 55, 5077–5083. [Google Scholar] [CrossRef]
  33. Majidi, A.P.; Streicher, M.A. The double loop reactivation method for detecting sensitization in AISI-304 stainless-steels. Corrosion 1984, 40, 584–593. [Google Scholar] [CrossRef]
  34. Kwok, C.T.; Lo, K.H.; Chan, W.K.; Cheng, F.T.; Man, H.C. Effect of laser surface melting on intergranular corrosion behaviour of aged austenitic and duplex stainless steels. Corros. Sci. 2011, 53, 1581–1591. [Google Scholar] [CrossRef]
  35. U. Kamachi Mudali, R.K.D.J. Influence of thermal aging on the intergranular corrosion resistance of types 304LN and 316LN stainless steels. Metall. Mater. Trans. A 1996, 27A, 2881–2887. [Google Scholar] [CrossRef]
  36. Lopez, N.; Cid, M.; Puiggali, M.; Azkarate, I.; Pelayo, A. Application of double loop electrochemical potentiodynamic reactivation test to austenitic and duplex stainless steels. Mat. Sci. Eng. A-Struct. 1997, 229, 123–128. [Google Scholar] [CrossRef]
  37. Muri, P.; Sousa, F.V.V.; Assis, K.S.; Rocha, A.C.; Mattos, O.R.; Margarit-Mattos, I.C.P. Experimental procedures and sensitization diagnostics of AISI304 Steel by double loop electrochemical potentiodynamic reactivation method. Electrochim. Acta 2014, 124, 183–189. [Google Scholar] [CrossRef]
  38. ASTM A262-15. Standard Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels; ASTM International: West Conshohocken, PA, USA, 2015. [Google Scholar]
  39. Sun, J.; Sun, L.; Dai, N.; Li, J.; Jiang, Y. Investigation on ultra-pure ferritic stainless steel 436L susceptibility to intergranular corrosion using optimised double loop electrochemical potentiokinetic reactivation method. Corros. Eng. Sci. Tech. 2018, 53, 574–581. [Google Scholar] [CrossRef]
  40. Sourmail, T.; Too, C.H.; Bhadeshia, H.K.D.H. Sensitisation and evolution of chromium-depleted zones in Fe-Cr-Ni-C Systems. ISIJ Int. 2003, 43, 1814–1820. [Google Scholar] [CrossRef]
  41. James, A.W.; Shepherd, C.M. Some effects of heat-treatment on grain-boundary chemistry and precipitation in type-316 steel. Mater. Sci. Tech-Lond 1989, 5, 333–345. [Google Scholar] [CrossRef]
  42. Seo, J.H.; Ryu, J.; Lee, D.N. Formation of crystallographic etch pits during AC etching of aluminum. J. Electrochem. Soc. 2003, 150, B433. [Google Scholar] [CrossRef]
  43. Guo, R.; Weinberg, F.; Tromans, D. Pitting corrosion of passivated zinc monocrystals. Corrosion 1995, 51, 356–366. [Google Scholar] [CrossRef]
  44. Cihal, V. The Role of grain boundaries in connection with intergranular corrosion. In Intergranular Corrosion of Steels and Alloys, Laird, C., Ed.; Publisher of Technical Literature: Praha, Czechoslovakia, 1984; pp. 98–99. [Google Scholar]
Materials 12 01385 g001 550
Figure 1. (a) Mass fraction of equilibrium phases for the Cr–Mn–Ni–N–Cu austenitic stainless steel determined by thermodynamic calculation; (b) is the partially amplified plot of (a). This calculation was conducted by Baosteel Co., Ltd. using Thermo-Calc with a TCFE4 database.
Figure 1. (a) Mass fraction of equilibrium phases for the Cr–Mn–Ni–N–Cu austenitic stainless steel determined by thermodynamic calculation; (b) is the partially amplified plot of (a). This calculation was conducted by Baosteel Co., Ltd. using Thermo-Calc with a TCFE4 database.
Materials 12 01385 g001
Materials 12 01385 g002 550
Figure 2. The heat treatment process of Cr–Mn–Ni–N–Cu austenitic stainless steel.
Figure 2. The heat treatment process of Cr–Mn–Ni–N–Cu austenitic stainless steel.
Materials 12 01385 g002
Materials 12 01385 g003a 550Materials 12 01385 g003b 550

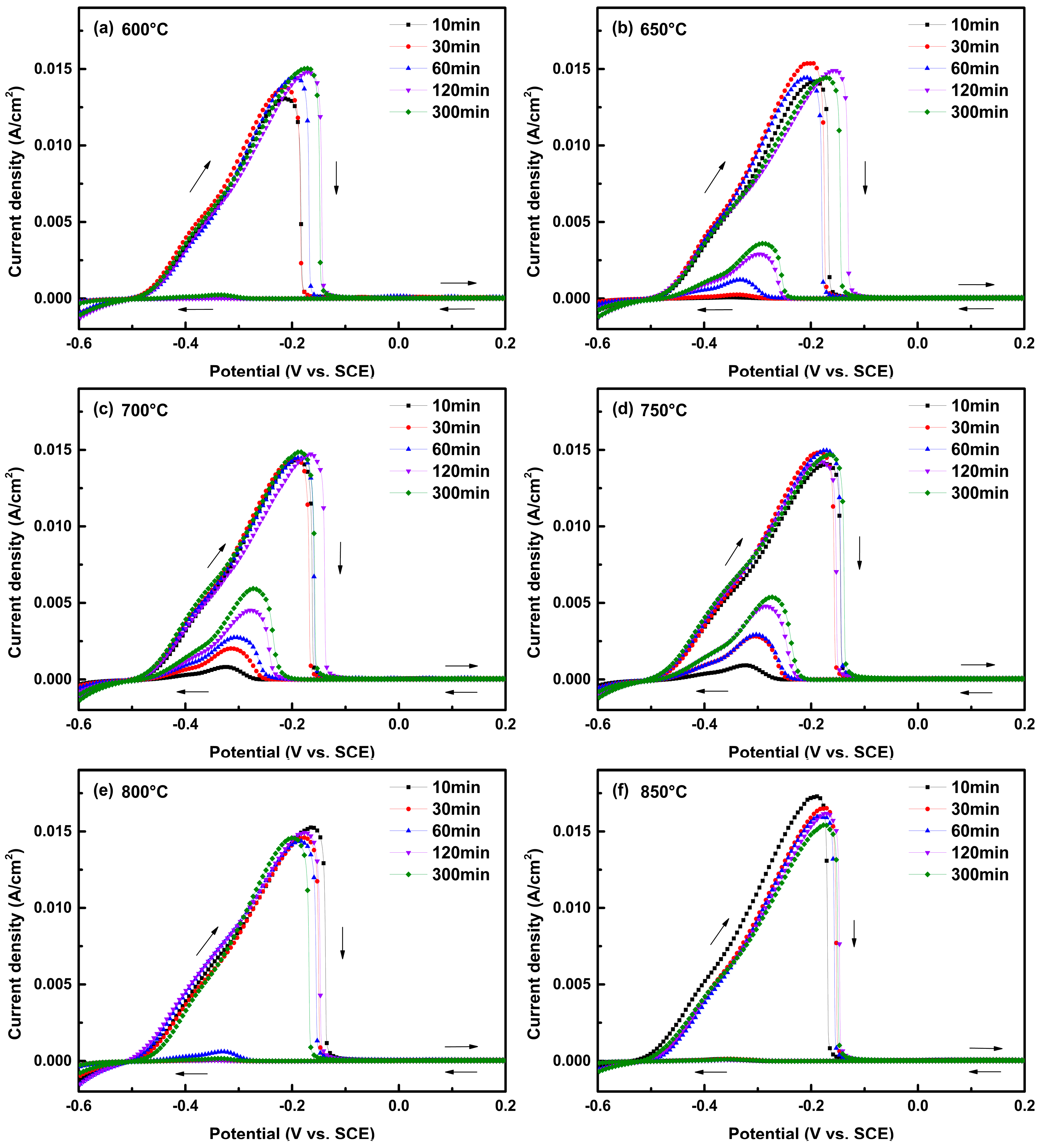

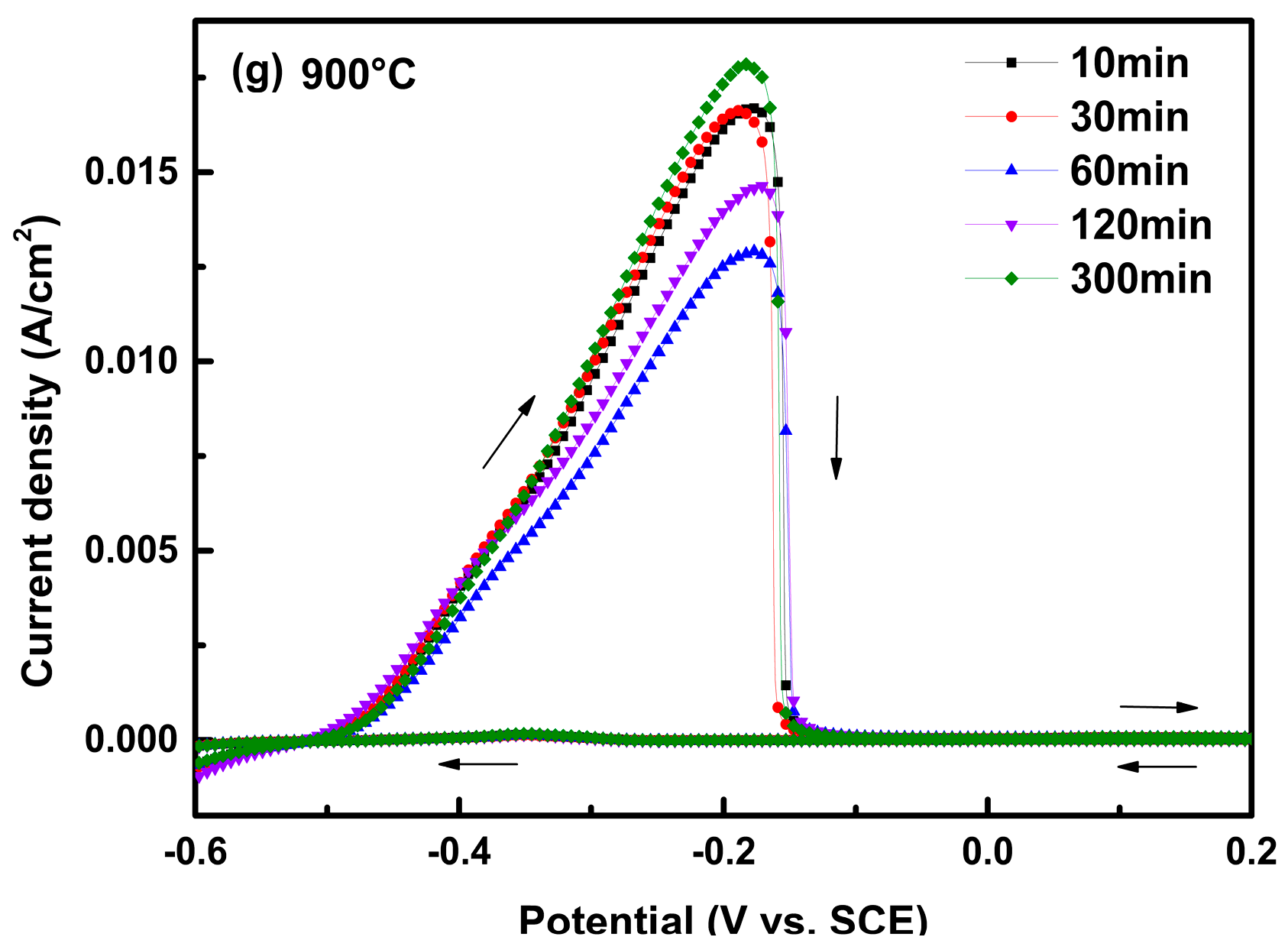

Figure 3. Double-loop electrochemical potentiokinetic reactivation (DL-EPR) test curves in a solution of 0.1 M H2SO4 and 0.002 M KSCN for the Cr–Mn–Ni–N–Cu austenitic stainless steel samples aged at different temperatures for various times: (a) 600 °C; (b) 650 °C; (c) 700 °C; (d) 750 °C; (e) 800 °C; (f) 850 °C; (g) 900 °C.
Figure 3. Double-loop electrochemical potentiokinetic reactivation (DL-EPR) test curves in a solution of 0.1 M H2SO4 and 0.002 M KSCN for the Cr–Mn–Ni–N–Cu austenitic stainless steel samples aged at different temperatures for various times: (a) 600 °C; (b) 650 °C; (c) 700 °C; (d) 750 °C; (e) 800 °C; (f) 850 °C; (g) 900 °C.
Materials 12 01385 g003aMaterials 12 01385 g003b
Materials 12 01385 g004 550
Figure 4. Optical micrographs of the Cr–Mn–Ni–N–Cu austenitic stainless steel samples aged under different heat treatment conditions after the DL-EPR test.
Figure 4. Optical micrographs of the Cr–Mn–Ni–N–Cu austenitic stainless steel samples aged under different heat treatment conditions after the DL-EPR test.
Materials 12 01385 g004
Materials 12 01385 g005 550
Figure 5. The SEM figures of Cr–Mn–Ni–N–Cu austenitic stainless steel samples treated at 750 °C for different times after the DL-EPR test: (a) 10 min; (b) 30min; (c) 60 min; (d) 120 min; (e) 300 min.
Figure 5. The SEM figures of Cr–Mn–Ni–N–Cu austenitic stainless steel samples treated at 750 °C for different times after the DL-EPR test: (a) 10 min; (b) 30min; (c) 60 min; (d) 120 min; (e) 300 min.
Materials 12 01385 g005
Materials 12 01385 g006 550
Figure 6. The SEM figures of Cr–Mn–Ni–N–Cu austenitic stainless steel samples treated at different temperatures for 300 min after the DL-EPR test: (a) 600 °C; (b) 650 °C; (c) 700 °C; (d) 750 °C; (e) 800 °C.
Figure 6. The SEM figures of Cr–Mn–Ni–N–Cu austenitic stainless steel samples treated at different temperatures for 300 min after the DL-EPR test: (a) 600 °C; (b) 650 °C; (c) 700 °C; (d) 750 °C; (e) 800 °C.
Materials 12 01385 g006
Materials 12 01385 g007 550
Figure 7. The SEM micrograph of the Cr–Mn–Ni–N–Cu austenitic stainless steel sample aged at 700 °C for 300 min after etching in the mixture of concentrated HCl/HNO3 (3:1 in volume fraction) for 30 s.
Figure 7. The SEM micrograph of the Cr–Mn–Ni–N–Cu austenitic stainless steel sample aged at 700 °C for 300 min after etching in the mixture of concentrated HCl/HNO3 (3:1 in volume fraction) for 30 s.
Materials 12 01385 g007
Materials 12 01385 g008 550

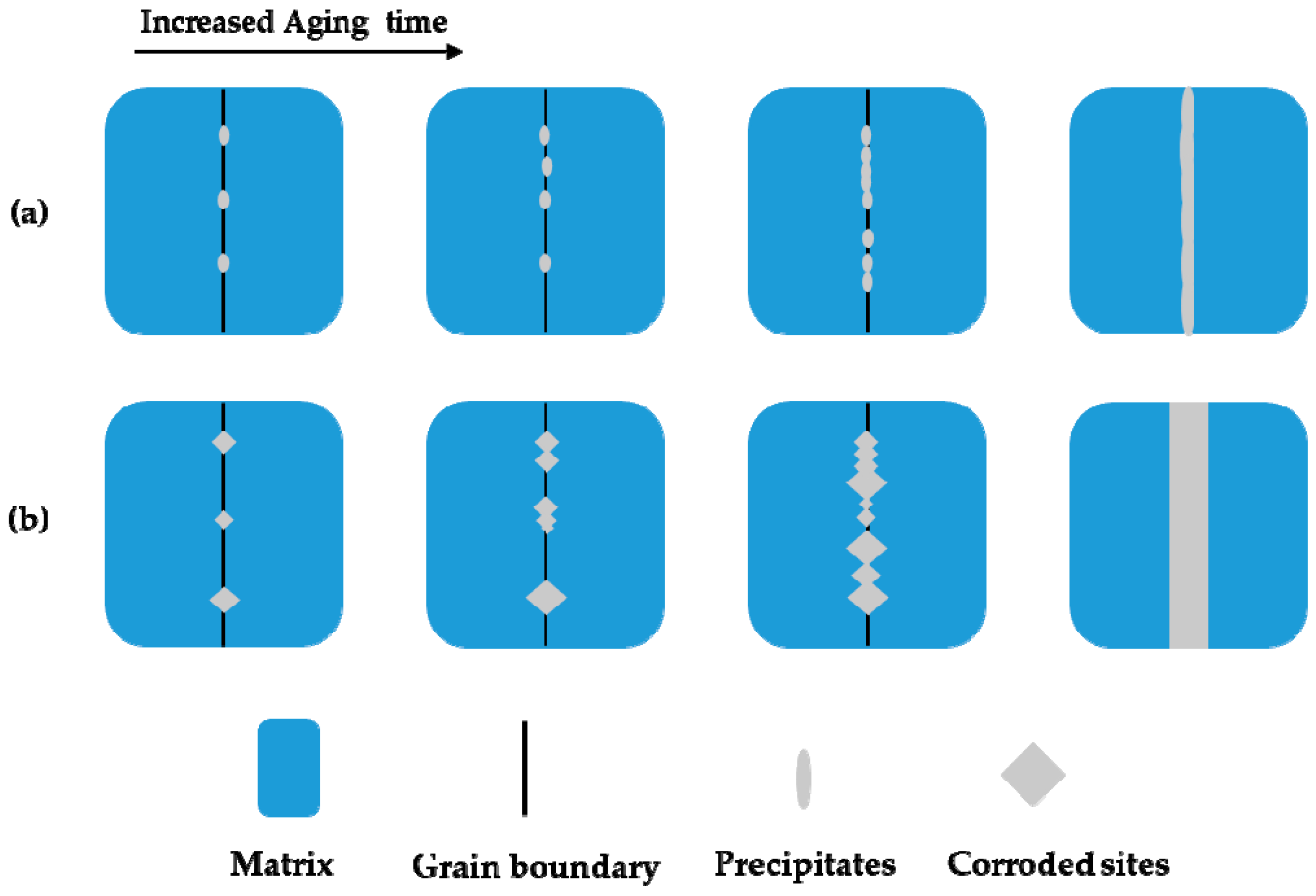

Figure 8. A schematic diagram for the initiation and growth of precipitates and intergranular corrosion with the extended aging time for the aged Cr–Mn–Ni–N–Cu austenitic stainless steel sample: (a) The growth of precipitates; (b) the growth of crystallographic intergranular corrosion.
Figure 8. A schematic diagram for the initiation and growth of precipitates and intergranular corrosion with the extended aging time for the aged Cr–Mn–Ni–N–Cu austenitic stainless steel sample: (a) The growth of precipitates; (b) the growth of crystallographic intergranular corrosion.
Materials 12 01385 g008
Materials 12 01385 g009 550
Figure 9. Optical micrographs of the Cr–Mn–Ni–N–Cu austenitic stainless steel samples aged under different heat treatment conditions after the 10% oxalic acid etch.
Figure 9. Optical micrographs of the Cr–Mn–Ni–N–Cu austenitic stainless steel samples aged under different heat treatment conditions after the 10% oxalic acid etch.
Materials 12 01385 g009
Materials 12 01385 g010 550

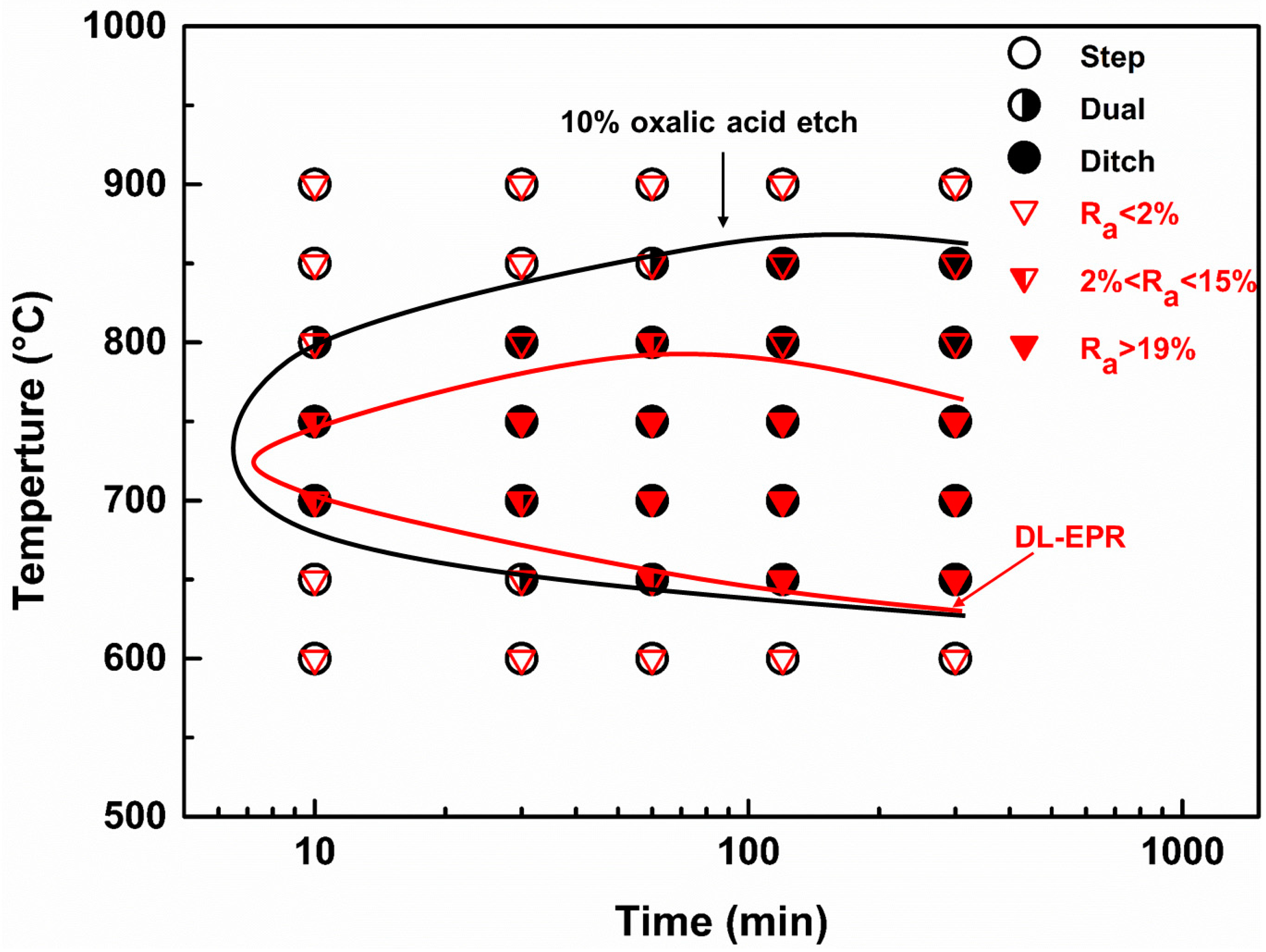

Figure 10. Time-temperature-sensitization (TTS) curves of the Cr–Mn–Ni–N–Cu austenitic stainless steel based on the 10% oxalic acid etch and the DL-EPR test. The red inverted triangles and black circles represent the results of DL-EPR test and oxalic acid etch, respectively.
Figure 10. Time-temperature-sensitization (TTS) curves of the Cr–Mn–Ni–N–Cu austenitic stainless steel based on the 10% oxalic acid etch and the DL-EPR test. The red inverted triangles and black circles represent the results of DL-EPR test and oxalic acid etch, respectively.
Materials 12 01385 g010
Table
Table 1. The chemical composition (wt %) of Cr–Mn–Ni–N–Cu austenitic stainless steel.
Table 1. The chemical composition (wt %) of Cr–Mn–Ni–N–Cu austenitic stainless steel.
ElementCNSSiMnPCrNiCuFe
wt %0.080.150.0020.3010.120.0413.621.190.85Bal.
Table
Table 2. Ra values (%) of the Cr–Mn–Ni–N–Cu austenitic stainless steel samples under different heat treatment conditions after the DL-EPR test.
Table 2. Ra values (%) of the Cr–Mn–Ni–N–Cu austenitic stainless steel samples under different heat treatment conditions after the DL-EPR test.
Temperature (°C)Ra value (%)
10 min30 min60 min120 min300 min
9000.70 ± 0.110.61 ± 0.140.80 ± 0.240.85 ± 0.170.75 ± 0.14
8500.70 ± 0.010.76 ± 0.070.56 ± 0.100.33 ± 0.140.61 ± 0.12
8000.47 ± 0.050.75 ± 0.173.55 ± 0.630.39 ± 0.081.90 ± 0.82
7506.48 ± 0.0519.87 ± 0.9419.36 ± 0.1131.30 ± 2.1434.89 ± 1.64
7005.97 ± 0.3214.98 ± 0.9520.00 ± 1.1033.12 ± 2.3739.97 ± 0.10
6500.39 ± 0.131.68 ± 0.058.74 ± 0.2719.48 ± 0.0225.40 ± 0.47
6000.42 ± 0.110.22 ± 0.050.22 ± 0.050.13 ± 0.041.73 ± 0.19
