Optimum Particle Size of Treated Calcites for CO2 Capture in a Power Plant

by
Luís Quesada Carballo
1,
María del Rosario Perez Perez
2,
David Cantador Fernández
3,
Alvaro Caballero Amores
2 and
José María Fernández Rodríguez
2,3,*
1
Department of Energy and Fuels, Higher Technical School of Mining and Energy Engineers of Madrid, Polytechnic University of Madrid, 14014 Madrid, Spain
2
Department of Inorganic Chemistry and Chemical Engineering, Faculty of Sciences, University of Córdoba, 14014 Córdoba, Spain
3
Department of Inorganic Chemistry and Chemical Engineering, School of Engineering Science of Belmez, University of Córdoba, 14014 Córdoba, Spain
*
Author to whom correspondence should be addressed.
Materials 2019, 12(8), 1284; https://doi.org/10.3390/ma12081284
Submission received: 15 March 2019 / Revised: 10 April 2019 / Accepted: 16 April 2019 / Published: 18 April 2019
Browse Figures
Versions Notes

Abstract

:
This work has analyzed the influence of the particle size of a calcite from a quarry, whether original, calcined, or rehydrated, on the efficiency of CO2 capture of the gases emitted in a coal-fired power plant. Three different particle sizes 0.5 mm, 0.1 mm, and 0.045 mm have been studied. The calcination had a minimal effect on the particle size of the smaller samples A1045 and A1M1 (<30 μm). The N2 isotherms and the CO2 adsorption isotherms at 0 °C showed a very significant increase in the surface of the calcined and rehydrated samples (A15CH, A1045CH, and A1M1CH) with respect to the calcined or original samples. The results obtained showed that the capture of CO2 for the sample A1M1, with a smaller average particle size (<30 μm, is the most effective. For the sample A1M1 calcined and completely rehydrated (Ca(OH)2), the chemical adsorption of CO2 to form CaCO3 is practically total, under the experimental conditions used (550 °C and CO2 flow of 20 mL min−1). The weight increase was 34.11% and the adsorption capacity was 577.00 mg g−1. The experiment was repeated 10 times with the same sample A1M1 calcined and rehydrated. No appreciable loss of adsorption capacity was observed.

Graphical Abstract

1. Introduction

Up to 55% of greenhouse gas emissions corresponds to CO2. Nowadays there is a growing concern in several countries regarding the impact caused by emissions of greenhouse gases such as CO2.
The International Energy Agency (IEA) [1] forecasts that demand for energy will increase 40% by 2030, an average annual increase of 1.5% with over 50% of the increase in demand coming from China and India. The analysis, by the Intergovernmental Panel on Climate Change (IPCC) [2], has indicated that the capture and storage of CO2 would contribute between 15 and 55% to the global cumulative mitigation effort until 2100, thus presenting itself as a transition technology that will contribute to mitigating climate change.
Various methods for reducing the amount of CO2 in the atmosphere have been discussed, such as reducing the amount of energy used and improved efficiency of energy generating processes, use of non-fossil fuels (renewable energy), CO2 capture, and sequestration.
The capture of CO2 is part of the set of technologies that try to separate CO2 from large emission sources (thermal power plants, cement plants, steel mills, ceramics, etc.) and prevent their emission into the atmosphere. The first solutions for the capture of CO2 implied the need to inseparably link the catch with transport and geological storage (capture, transport and geological storage technologies (CCS) [3]), the latest research on these technologies is directed towards the generation of a transportation network and geological storage of CO2. This network would unite different geographical points of geological storage with enough capacity and would allow decoupling the capture of CO2 from transport and geological storage.
Bui et al. (2018) [4] have reviewed the current status of CO2 capture, transport, utilization, and storage from a multi-scale perspective. Deployment of large-scale CCS projects has been slow. Reiner 2016 [5] indicated that the implementation of CCS technologies worldwide will require a portfolio of large-scale demonstration projects. Of the 37 major large-scale CCS projects, 17 of these are in operation, four in construction and the remainder are in varying stages of development [4,6]. In addition, Bui et al. (2018) [4] have contextualized CCS technologies in integrated evaluation models (IAM). In order to limit global warming, negative emission (NET) technologies consisting of combining CCS with low-carbon or carbon-free Bioenergy (BECCS) [4,7] are considered key. BECCS has the double benefit of mitigating emissions and generating energy, which makes it attractive from the perspective of cost optimization of an IAM.
Moreover, the knowledge of thermodynamic and transport properties of CO2-mixtures is important for designing and operating different processes in carbon capture and storage systems (Tan et al. (2016) [8]).
Other capture technologies consist of giving use to captured CO2, these are the so-called carbon capture and utilization (CCU) technologies [9]. One of the advantages of CCU over CCS is that utilization of CO2 is normally a profitable activity as products can be sold. In addition, storage potential may be limited or away from CO2 sources and public resistance to geological storage of CO2 has been noted [10]. Baena-Moreno et al. (2015) [11] presented a list of technologies for Carbon Capture and Utilization (CCU) from laboratory scale to commercially established CO2 applications, such as raw materials for the manufacture of fuels, polymers, Chemicals, or as recovery agents in techniques such as Enhanced Oil Recovery (EOR) and Enhanced Coal Bed Methane (ECBM). These technologies not only seek to reduce the volume of CO2 emissions into the atmosphere, but also obtain a benefit using CO2 in different types of industrial processes replacing conventional raw materials and reducing the consumption of fossil fuels.
Another form of CCU would be biological carbon mitigation (BCM), which consists of the capture of CO2 by photosynthetic organisms to convert it into organic carbon using solar energy and producing a significant amount of biomass. BCM is a way to sequester CO2 while producing biofuels and valuable by-products. Microalgae serve as a promising agent for carbon sequestration [12,13].
Among the capture systems proposed by the report of the Intergovernmental Panel on Climate Change (IPCC) published in 2005 [3], the most mature and widely used post-combustion capture technology is chemical absorption with monoethanolamine (MEA), which however is an important contributor to CO2 emissions and global warming. Therefore, one of the proposed solutions would be the search for more environmentally sustainable adsorbents (Cuellar et al. (2015) [9]). Bui et al. (2018) [4] highlight three aspects of the post-combustion capture of the calcination/carbonation cycles with calcite compared to other technologies: one, that the carbonator / calciner can serve as a heat source for a steam cycle to produce energy additional, another, that the absorber used, calcite, is available in industrial quantities and is a non-hazardous chemical, and finally, that there is the possibility of using spent absorbent in industrial processes such as cement manufacturing, with the consequent decarbonisation partial of this industry or can even achieve near zero emissions by incorporating this technology into its manufacturing process. Calcium looping (CaL) technology has also been progressed to pilot scale. There are two major demonstration projects, one at the University of Darmstadt, Germany [14], and one in La Pereda, Spain [15].
CO2 is normally accompanied, in the gas stream produced from the combustion of coal, by SO2, NOx, and O2. The use of the carbonation reaction of CaO to CaCO3 as a possible separation reversible process of CO2, is adequate, although CaO will also react with SO2 to form CaSO4 [3]. Calcination, to regenerate the adsorbent, takes place at high temperatures, at around 900–950 °C. In carbonation, a flow of CO2 gas is in contact with CaO, at temperatures above 600 °C, with the carbonation reaction being carried out to form CaCO3. [16]. The maximum carbonation capacity of CaO decays with the number of carbonation/calcination cycles down to 20% [17,18]; it is necessary to indicate that these authors used particle sizes greater than 100 μm.
Reactions of CaO with SO2 could be a problem in the calcination/carbonation cycles since CaSO4 does not decompose at the calcination temperature [19]. This implies an accumulation of CaSO4 in the cycles, which reduces the efficiency of carbonation [20]. The separation of CaSO4 is only possible through a purge with a consequent loss of sorbent [19]. Consequently, SO2 should be removed from the gas stream prior to the incorporation of the gas stream into the calcination/carbonation cycles. This is now usual in coal-fired power plants, since by regulation (DEI, 2010) [21], they have to incorporate a desulphurization system. Consequently, if the SO2 concentration is very low, the residence time is short, and the temperature remains below 640 °C [22], the carbonation reaction will take place with the sulphation reaction being unlikely.
Different studies about reversibility show the carbonation is far from being reversible [11,12]. After a very fast, and chemically controlled initial reaction, there is a much slower second phase controlled by diffusion into CaCO3 layers [23,24,25]. Several papers [20,23,26,27,28] show a decrease in the carbonation maximum of lime with the number of cycles and this has been related to sintering within the material.
Several authors [29,30,31,32] have shown that the formation of a dense, non-porous layer of carbonate minerals takes place around the reagent particles, so that total carbonation efficiency cannot be attained, except for cases of high relative humidity and small particle sizes (nanometric scale). This protective layer causes a decrease in porosity when the materials are partially carbonated [31,32,33]. This is in agreement with the poor results obtained by Escosa et al. [19] regarding the reaction between CaO and CO2 that requires the introduction of much more CaO than is necessary stoichiometrically.
Carbonation can be improved under the action of water at moderate temperature and low CO2 pressure [34]. The hydration of CaO with water vapor is typically used to reactivate its performance as a sorbent [35]. In this sense, Maretic, et al. [36], indicated that carbonation was much greater when Ca(OH)2 is directly carbonated at high temperatures compared to carbonation of CaO. The carbonation reaction of nanoparticles [35] that takes place is:
Ca(OH)2(s) + CO2(g) = CaCO3(s) + H2O(g)
The molecular water produced in the reaction is not stable at the hydroxide-carbonate interface [35]. This assumption is only valid for small Ca(OH)2 particles (<30 μm) [37]. Consequently, the results show that the simultaneous expulsion of the molecular water, produced during the carbonation of Ca(OH)2, could significantly improve the transfer of CO2 from the gas phase to the surface of the unreacted Ca(OH)2. If CaO is reacted with CO2 at the very moment of the decomposition of Ca(OH)2, with particle size less than 30 μm, the adsorption is at a maximum [35].
In order to develop good CO2 adsorbents at high temperature several aspects need to be investigated: understanding the mechanism of CO2 adsorption on different kinds of adsorbents, finding the best adsorbent for modifying chemical reagent to improve the adsorption capacity; study of the adsorption and desorption kinetics of CO2 in the adsorbent and the choice of optimal conditions for the industry [38].
The present work deals exclusively with the capture phase, leaving open any of the following possibilities of action with the captured CO2, from its transportation and geological storage, to which it no longer has to be linked in an inseparable way, since it can be part of a transport network towards different possibilities of confinement or it can be used with good performance in any of the possible alternatives described by Baena-Moreno et al. (2015) [11].
This paper is intended to address CO2 capture using natural limestone (CaCO3) of different granulometries, calcined limestone (lime (CaO)) and calcined and rehydrated limestone (portlandite (Ca(OH)2)). Among other aspects, the particle size variation in several adsorption-desorption cycles and how this affects the adsorption-desorption temperature and the amount of CO2 adsorbed is discussed. Finally, the stability of the adsorbent samples after a large number of adsorption-calcination cycles is considered.

2. Materials and Methods

Nine samples were analysed. The first three A15, A1045, A1M1, are from 0–6000 µm size fraction of crushed limestone from the quarry “Horcallana” owned by Endesa (Teruel, Spain) (sample A1). The sample A15 corresponds to less than 500 µm size fraction of sample A1. A1045 sample corresponds to the particle size less than 45 µm from the sample A1. The A1M1 sample corresponds to the size fraction below the 100 µm A1 sample. The samples were subjected to grinding in a laboratory mill with porcelain balls (45 balls of 30 mm in diameter and each weighing 28 g) for 4 h.
Three uncalcined samples were calcined at 900 °C for 1 h. Samples were identified by adding a “C” to the name of the uncalcined sample (A15C, A1045C, A1M1C). Then, three samples were partially rehydrated in an atmosphere rich in water. Samples were identified by adding an "H" to the name of the calcined sample (A15CH, A1045CH, and A1M1CH). In Scheme 1, the nomenclature and processes of the samples are summarized.
PXRD patters were recorded in a Siemens D-5000 instrument (Billerica, MA, USA), using CuKα radiation (λ = 1.5418 Å) working at a voltage of 40 kV and a current 30 mA. The detector is a scintillation counter with a slit of 1 mm, employing a scan rate of 2° min−1 using a step of 0.2° every 0.6 s and sweeping angles between 10 and 80° in units of 2θ.
Particle size data were obtained in a particle size analyser by laser diffraction technology 2000F Mastersizer (Malvern, UK) with one dry dispersion unit Venturi Scirocco 2000 of Malvern Instruments (Malvern, UK).
The thermogravimetric analysis was carried out in a Setaram Setsys Evolution 16/18 apparatus (Caluire, France), at a heating rate of 5 °C min−1 in air.
N2 isotherms were determined on an Autosorb iQ (Quantachrome) (Boynton Beach, FL, USA), with samples being degassed at 150 °C under vacuum for 2 h prior to this. The surface was calculated by applying the BET (Brunauer, Emmett and Teller) method in the range of relative equilibrium pressure 0.05 ≤ P/P0 ≤ 0.20 [39]. The porosity distribution was determined by a density functional theory (DFT) method using a cylindrical model for N2 on an oxide surface.
Microstructural characterisation of the materials was carried out using JEOL 1400 TEM (Jeol, Tokyo, Japan).
The CO2 adsorption studies were carried out in a Setaram Setsys Evolution 16/18 apparatus (Caluire, France). 40.00 mg of sample was introduced into the equipment and it was evacuated before a CO2 flow of 20 mL min−1 was passed for one hour, with the thermogravimetric analysis being carried out up to a temperature of 1000 °C.
Finally, CO2 adsorption isotherms were recorded on a Micromeritics ASAP 2020 apparatus (Norcross, GA, USA). Commonly used to obtain the BET isotherms of N2, which has the possibility of using CO2 adsorbate gas in its software, using samples previously outgassed at 150 °C under vacuum for 2 h. The CO2 adsorption isotherms were carried out at 0 °C between the values of 0–0.035 of P/P0.
The study of CO2 adsorption in the different samples was carried out by means of four different procedures (Scheme 2). In the first, the CO2 adsorption isotherms were performed in a Micromeritics ASAP 2020 apparatus, commonly used to obtain the BET isotherms of N2, which has the possibility of using CO2 adsorbate gas in its software. In the second, the samples were subjected to a CO2 flow of 20 mL min−1 for 1 h in a thermogravimetric analysis equipment (ATD-TG) (Caluire, France) and later a thermogravimetric analysis (ATD-TG) was carried out in an air atmosphere up to 1000 °C. In the third, successive adsorptions of CO2 were carried out to determine the fall of the adsorption capacity after a certain number of cycles. For this procedure the sample, calcined in a previous step, was placed inside in the TG/DTA apparatus and then the sample was treated with a CO2 flow of 20 mL min−1 for one hour and finally, thermal analysis up to 1000 °C was conducted. The fourth procedure consisted of the simultaneous heating of two samples, one calcined and one totally hydrated, in a tubular oven in a CO2 atmosphere produced by a CO2 flow of 20 mL min−1 during the whole calcination process (1/2 h) at a temperature of 550 °C.

3. Results and Discussion

3.1. Characterization of Samples

The X-ray diffraction diagrams of the original samples without calcining (Figure 1A), shows the presence of calcite (JCPDS: 05-0586) [40] as a main phase, with a negligible amount of impurities of SiO2 (JCPDS: 46−1045) [40]. In the samples calcined at 900 °C for 1 h (Figure 1B), CaO was the main phase detected (JCPDS: 37−1497) [40] with negligible amounts of SiO2 (JCPDS: 46−1045) [40] and Ca2SiO4 (JCPDS: 33-0303) [40].
Figure 2 shows the particle size distribution curves of the original and calcined samples. In the sample A15, it can be seen that the calcination leads to a considerable decrease in the particle size, with the maximum of the particle size distribution decreasing from around 158 to around 89 μm. The calcination had a minimal effect on the sample size A1045 (maximum at around 22 μm). The sample A1M1, subjected to double-milling, has a bimodal distribution of the particle size, with its average size being the lowest of all (19 μm). Calcining gives rise to an increase in the proportion of smaller particle size, although the average distribution shows little change, around 18 μm. In this case, as well, the distribution peak of larger particle size is around 28 μm.
Figure 3 (left) shows the N2 adsorption isotherms of the three original samples (CaCO3), calcined (CaO) and rehydrated to Ca(OH)2. Their isotherms were of type IV with a sharp increase in adsorption at P/P0 between 0.05 and 0.45 due to capillary condensation, typical of materials with a narrow distribution in the mesopore range (Figure 3 (right)). For the three calcined and rehydrated samples, a sharp capillary condensation step at P/P0 = 0.45 was observed. All samples present a hysteresis loop of type H3 or H4, which does not exhibit any limiting adsorption at high P/P0, related to aggregates of plate-like particles. The three calcined and rehydrated samples present a hysteresis loop of type H3 with slit-shaped pores. The rest of the samples present a hysteresis loop of type H4 often associated with narrow slit-like pores. This is in accordance with the pore size distributions (Figure 3 (right)). The main physical properties of the three adsorbents are summarized in Table 1. The specific surfaces obtained were 2.7, 4.7, and 3.1 m2 g−1 for the samples A15, A1045 and A1M1 respectively, and 4.4, 4.5 and 3.9 m2 g−1 for the calcined samples A15C, A1045C, and A1M1C, respectively. While the surface area of the three calcined samples is very similar, the largest initial average size increase was for the A15 sample, the one that has the largest initial size. A very significant increase is observed in the calcined and rehydrated samples A15CH, A1045CH and A1M1CH, of 21.3, 13.8 and 18.9 m2 g−1, respectively. This results in a significant increase in pore volume of 8.84×10−2, 5.70×10−2 and 5.87×10−2 cm3 g−1, respectively (Table 1 and Figure 3 (left)). The average pore diameter was calculated between 2.77–3.97 nm (Table 1 and Figure 3 (right)). It is important to note that in the two calcinated and hydrated samples of smaller size, the same average pore diameter value (3.97 nm) is observed. A negligible micropore content can also be observed for the calcined samples and for the calcined and rehydrated ones (Figure 3 (right)).

3.2. CO2 Adsorption Studies

In order to delve further into the possibilities of adsorption of original, calcined or hydrated calcites, in line with its possible use for capturing CO2 in a power plant, four tests were carried out that allow us to elucidate which is the optimum particle size, as well as the conditions of adsorption. In the first test, the CO2 adsorption isotherms were conducted at 0 °C between the values of 0–0.035 of P/P0. In all the calcined samples (A15C, A1045C, and A1M1C) an increase of the equivalent surface area is observed, with respect to the samples without calcining (A15, A1045, and A1M1), and especially in the partially calcined and rehydrated samples (A15CH, A1045CH and A1M1CH) (Table 1). These results show a greater capacity of CO2 adsorption of the A1M1CH sample (5.3 mg of CO2 g−1 of adsorbent) (Figure 4), which is in accordance with the highest value of equivalent surface (19.1 m2 g−1) (Table 1). The results obtained show that the capture of CO2 for the sample with a smaller average particle size, A1M1, is more effective. To complete these results, an additional experiment was carried out at room temperature and high CO2 pressure, which introduced 50.00 gr of freshly calcined A1M1 sample (at 900 °C for 2 h in an air atmosphere) in a three-litre volume, metal bottle, for 24 h at room temperature and at a pressure of 23 bars of CO2. Subsequently, the solid was extracted and an increase of 0.375 g (0.75%) was noted. In short, 7.9 mg of CO2 g−1 of adsorbent was adsorbed, which is consistent with the results obtained by other authors, e.g., Yong et al. [38]. XRD diagrams (not shown) confirmed that the only phase present before and after the experience was CaO, which it is in accordance with the physical nature of the adsorption.
In tests 2 and 3 we analyzed the effect of high temperature and the effect of adsorption-calcination cycles on the capacity of CO2 adsorption.
The results of the second test are shown in Figure 5 and in Table 2. In calcite samples that were not subjected to a flow of CO2, an endothermic effect is observed, which is associated with the transformation of calcite (CaCO3) in lime (CaO), centred around 840–857 °C. A slight decrease in the decomposition temperature is observed as the average size of the particles decreases (Figure 2). In all the samples subjected to a current of CO2, a stabilization of the calcite is observed since it slightly increases the temperature of the endothermic effect, 874–907 °C., being larger in samples of larger particle size. This is related to the equilibrium between the CO2 in the atmosphere surrounding the particulates and the mineralized CO2 on the surface thereof. The reaction will only proceed if the partial pressure of CO2, in the gas above the solid surface, is less than the decomposition pressure of the CaCO3 [41,42].
For the calcined samples (A15C, A1045C, and A1M1C) exposed to a current of CO2, a continuous weight gain in a single stage is observed which correlates with the formation of CaCO3. In the calcined and partially rehydrated samples (A15CH, A1045CH, and A1M1CH) a weight increases in two stages, related to the formation of CaCO3 is seen. The final mass is lower than the starting mass and the difference in weight correlates with the water loss from Ca(OH)2 in its transformation to CaO.
The results obtained for the calcined samples (A15C, A1045C and A1M1C) are in agreement with those obtained for non-isothermal conditions by Montes-Hernandez et al. [35], although lower than those obtained for these authors. This is because the experimental work conditions used were different, Montes-Hernandez, et al. [35] maintained a CO2 flow of 50 mL min−1 throughout the experiment. Total carbonation is achieved at temperatures above 850 °C. In the present case, the greatest increase in weight, due to Equation (2), was somewhat less than half the theoretical maximum amount according to Equation (2). In other words, 42.11% of the total CaO was carbonated. The total adsorption of CO2 was greater in the A1M1C sample and corresponds to a value of 330.5 mg of CO2 g−1 of adsorbent.
CaO(s) +CO2(g) → CaCO3(s)
Regarding the calcined and partially rehydrated samples (A15CH, A1045CH, and A1M1CH), the difference between the total weight increase and the total weight loss enables the calculation of the amount of water corresponding to Ca(OH)2 and therefore, the amount of Ca(OH)2 and CaO present in the samples. The increase in weight in the first stage corresponds to Equation (1), with the largest increase occurring in the sample of smaller average particle size A1M1CH, 17.57%. In the A15CH and A1045CH samples, the increase was 14.56 and 14.59, respectively.
This reaction assumes the simultaneous release of molecular water from Ca(OH)2, and the incorporation of CO2 into the particles with the subsequent carbonation, mainly for small particles of Ca(OH)2 (<30 μm), Blamey et al. [37]. In the present work, this process occurs even for sizes up to 89 μm (sample A15C), although the adsorption of CO2 is somewhat lower. This behavior seems to be in accordance with that established by Marsh and Ulrichson [22] that indicates that the hydration of CaO to Ca(OH)2 and subsequent calcination to CaO, gives rise to a much more porous adsorbent.
The second weight increase corresponds to the carbonation reaction of CaO (Equation (2)). The total weight increase was greater in the A1M1CH sample (28.39%). Subsequently, the decomposition of the formed calcite (CaCO3), occurs at a temperature slightly lower than that of the original samples. These results are in agreement with the studies carried out by Montes et al. [35] that showed that the carbonation of CaO occurs in a wide range of temperatures (100–900 °C) and that of Ca(OH)2 occurs in a single narrow range of temperatures (500–600 °C). The adsorption was lower than those obtained by Montes-Hernandez et al. [35]. This is because the experimental work conditions used by these authors were different, maintaining a CO2 flow of 50 mL min−1 throughout the experiment. The total adsorption of CO2 was greater in the A1M1CH sample and corresponds to a value of 368.44 mg of CO2 g−1 of adsorbent showing that approximately, 32% of the total CaO has reacted. The presence of CaO partially hydrated (A1M1CH) favors the adsorption of CO2, compared to the unhydrated sample (A1M1C) for which a value of 330.5 mg of CO2 g−1 of adsorbent was obtained. Further, that is in accordance with the surface increase (SBET) and of pore volume (Vp) (Figure 1) that occurs when hydrating of the sample A1M1C. That concurs with the results commented by Marsh and Ulrichson [22].
The mechanism of carbonation has been proposed by different authors (Barker [23], Bhatia [24], Mess [25], and Abanades [16]). After a very rapid, chemically controlled, initial reaction period a much slower second stage is followed, controlled by diffusion in the CaCO3 layers. It is for this reason that the smaller the particles, the faster the diffusion stage and the deeper the carbonation, reaching, in some cases, the total carbonation of the particles.
The third test to be analyzed was the loss of adsorption capacity after several cycles adsorption-calcination in an ATD-ATG apparatus. The samples with larger and smaller particle sizes, A15 and A1M1, were chosen for analysis to see if particle size would play an important role in the adsorption process. Figure 6 include the ATD-TG diagrams of the A15 and A1M1 samples after 5 and 30 cycles. After the calcination process of each cycle, the only phase present was CaO (X-ray diffraction diagrams not shown). According to the ATG curves, there is a considerable reduction in the temperature at which the elimination of CO2 takes place, from 857 °C to 644 °C (Figure 6 left) and from 840 °C to 682 °C (Figure 6 right), compared to the original samples after 5 cycles, and to 644 °C (Figure 6 left) and 702 °C (Figure 6 right) after 30 cycles. Likewise, the results show that repeated calcination at 900 °C, without previous hydration steps, reduced the capacity of CO2 adsorption considerably. This effect is less pronounced (Figure 6 right) when the particle size is smaller (Figure 2). In this case, the A1M1C sample, after 30 cycles, retains an adsorption capacity of 3.83% (30 mg of CO2 g−1 of adsorbent), higher than that of sample A15C, which is only 0.55% (4.3 mg of CO2 g−1 of adsorbent). This agrees with the transmission microphotographs (Figure 7) of A15C and A1M1C samples after 5 and 30 cycles. In all cases, homogeneous layered particles with hexagonal habits were observed, with low porosity and slightly larger grain size for A15C sample. These results are in agreement with the studies carried out by Abanades [16], Abanades and Alvarez [17], Grasa, et al. [18], and Blamey et al. [43] who observed that the initial capacity of limestone adsorption/desorption after multiple cycles fell to an asymptotic value as a consequence of sintering processes. Furthermore, the lower the temperature is, and the less time spent in the calciner, the less the sintering occurs. These results seem to indicate that, after the first adsorption-calcination cycle, the calcination temperature decreased to around 700 °C, which reduces the risk of sintering.
The fourth test consisted of a study of CO2 adsorption in a tubular oven using the calcined A1M1 sample (A1M1C) and calcinated and rehydrated (A1M1CH). The diffractograms (Figure 8) show the presence of CaO in the first and Ca(OH)2 (JCPDS: 04-0733) [28] in the second. Once placed in the tubular oven (10 g), a CO2 atmosphere was established for which a flow of CO2 was passed through the tubular furnace during the whole experiment (1/2 h), and the temperature was raised to 550 °C (non-isothermal conditions), trying to simulate what would happen in an industrial process if the adsorbent is put in contact with a stream of CO2. After 30 min, as reflected in the X-ray diffraction patterns (Figure 8), only in the calcined and rehydrated sample was the carbonation process total, since all the X-ray reflections correspond to the calcite phase (CaCO3). The carbonation reaction includes two simultaneous processes, elimination of water to originate CaO and the adsorption of CO2 in the newly created CaO surface (Equation (1)).
In the experimental conditions used, the activation energy is not sufficient to cause the total carbonation of CaO, since higher temperatures are needed [35], and instead are only sufficient to carbonate the Ca(OH)2 at the same moment it decomposes to CaO (481 °C). This is in agreement with the studies of Materic, et al. [36] who indicated that solid-gas carbonation was much greater when Ca(OH)2 was directly carbonated at intermediate temperatures, compared to carbonation of CaO. On the other hand, when the reaction occurs at lower temperatures, the risk of sintering is very low [43], with the subsequent recyclability of the adsorbent for further cycles.
The weight increases for sample A1M1CH, treated in a tubular oven, was 34.11%, very close to the theoretical capacity of 35.11% and the adsorption capacity was 577.00 mg g−1 close to the theoretical maximum of 593.95 mg g−1. This result is in agreement with those reported by Montes-Hernández, et al. [35], proposing a temperature greater than 300 °C for the carbonation reaction. These authors point out that at temperatures lower than 600 °C under isothermal conditions they never reach total carbonation levels using Ca(OH)2 nanoparticles and attribute it to the formation of dense, non-porous sheets of mineral carbonate around the particles of Ca(OH)2. Under non-isothermal conditions they achieve total carbonation at temperatures close to 600 °C, as already mentioned in relation to the simultaneous exit of H2O and carbonate formation (Blamey et al. [37]).
The experiment was repeated 10 times with the same sample A1M1, calcined and rehydrated. The calcite phase (CaCO3) is the only phase present after each carbonation cycle. No appreciable losses of adsorption capacity were observed. This is in agreement with Nikulshina et al. [44] who reported that after five cycles of carbonation-calcination, the loss of adsorption capacity was 0.1%. The carbonation was carried out at 365–400 °C and the calcination at 800–875 °C and virtually no sintering occurs.
In summary, it can be concluded that limestone samples of average particle size <30 µm are the ones that have the most favourable size for CO2 capture. The previous hydration of the oxides formed, and the temperature of 550 °C, favours the CO2 capture process.

4. Conclusions

This work has analyzed the influence of particle size of a calcite from a quarry on the efficiency of CO2 capture. The final objective is its application in the elimination of CO2 from gases emitted by coal-fired power plants. Three different size fractions of particle <500 µm, <100 µm, and <45 µm have been studied. Calcite, calcined calcite and calcined and rehydrated calcite were used and were characterised by means of X-ray diffraction, N2 adsorption isotherms, thermogravimetric analysis, transmission electron microscopy and particle size by laser diffraction. The calcination process had little effect on the particle size of the smaller samples A1045 and A1M1 (<30 μm). The N2 and CO2 isotherms showed a very important increase in the surface of the calcined and rehydrated samples (A15CH, A1045CH, and A1M1CH) with respect to the calcinated or pristine samples. Likewise, the same value of average pore diameter (3.97 nm) was observed in the samples A045CH and A1M1CH.
The results of the CO2 isotherms show that the capacity of physical adsorption of CO2 using calcite, calcined calcite or calcined and rehydrated calcite is very low, although the particle size was small (<30 μm). The best results were obtained for the sample A1M1CH (5.3 mg of CO2 g−1 of adsorbent). Even when the pressure is increased to 23 bars of CO2, the capture is low, the sample A1M1C adsorbed 7.9 mg of CO2 g−1 of adsorbent. This same sample at the pressure of 1 bar only captured 2.3 mg of CO2 g−1 of adsorbent. By contrast, chemical capture at high temperature was more efficient. Regarding calcined samples exposed to a current of CO2, the largest adsorption of CO2 was for the sample with the smallest particle size A1M1C (330.5 mg of CO2 g−1 of adsorbent). In calcined and partially rehydrated calcites the adsorption improves, the total adsorption of CO2 was greater in the sample A1M1CH (368.44 mg of CO2 g−1 of adsorbent). The repeated calcination at 900 °C, without previous hydration steps, reduces the capacity of CO2 adsorption considerably. This effect was less pronounced when the particle size was smaller, where the sample A1M1C, after 30 cycles, retained an adsorption capacity of 30 mg of CO2 g−1 of adsorbent, higher than that of sample A15C, which was only 4.3 mg of CO2 g−1 of adsorbent. Finally, when the adsorption of CO2 was carried out in a tubular furnace at 550 °C, just at the moment when the Ca(OH)2 was decomposed, the adsorption was practically total (577 mg of CO2 g−1 of adsorbent). When the calcined sample is completely rehydrated after each cycle, the loss of adsorption capacity is practically negligible, thus improving the recyclability of the adsorbent for subsequent cycles.

Author Contributions

J.M.F.R. conceived and designed the experiments; L.Q.C., M.d.R.P.P. and D.C.F. performed the experiments; L.Q.C., M.d.R.P.P., D.C.F., A.C.A. and J.M.F.R. analyzed the data; L.Q.C., A.C.A and J.M.F.R. wrote the paper.

Funding

This research was funded by the XXI Research Plan of the University of Córdoba (2016) and the Andalusian Regional Government (Research Groups FQM-391 Materials and Applications and FQM−175 Inorganic Chemistry).

Acknowledgments

The authors would like to express their thanks to the staff of the Central Research Support Service (SCAI) and Fine Chemistry Institute of the University of Córdoba, for their technical support and assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. The International Energy Agency (IEA). Available online: https://www.iea.org/about/ (accessed on 20 February 2019).
  2. The Intergovernmental Panel on Climate Change. Available online: https://www.ipcc.ch/about/ (accessed on 20 February 2019).
  3. Intergovernmental Panel on Climate Change. IPCC Special Report on Carbon Dioxide Capture and Storage; Prepared by Working Group III of the IPCC; Cambridge University Press: Cambridge, UK; New York, NY, USA; Available online: https://www.ipcc.ch/site/assets/uploads/2018/03/srccs_wholereport-1.pdf (accessed on 17 April 2019).
  4. Bui, M.; Adjiman, C.S.; Bardow, A.; Anthony, E.J.; Boston, A.; Brown, S.; Fennell, P.S.; Fuss, S.; Galindo, A.; Hackett, L.A.; et al. Carbon capture and storage (CCS): the way forward. Energy Environ. Sci. 2018, 11, 1062. [Google Scholar] [CrossRef]
  5. Reiner, D.M. Learning through a portfolio of carbon capture and storage demonstration projects. Nat. Energy 2016, 1, 15011. [Google Scholar] [CrossRef] [Green Version]
  6. GCCSI, Large-scale CCS Projects, Global CCS Institute. Available online: https://www.globalccsinstitute.com/wp-content/uploads/2019/04/TL-Report-Policy-prorities-to-incentivise-the-large-scale-deployment-of-CCS-digital-final-2019.pdf (accessed on 17 April 2019).
  7. Fuss, S.; Canadell, J.G.; Peters, G.P.; Tavoni, M.; Andrew, R.M.; Ciais, P.; Jackson, R.B.; Jones, C.D.; Kraxner, F.; Nakicenovic, N.; et al. Betting on negative emissions. Nat. Clim. Change 2014, 4, 850–853. [Google Scholar] [CrossRef] [Green Version]
  8. Tan, Y.; Nookuea, W.; Li, H.; Thorin, E.; Yan, J. Property impacts on Carbon Capture and Storage (CCS) processes: a review. Energy Convers. Manag. 2016, 118, 204–222. [Google Scholar] [CrossRef]
  9. Cuéllar-Franca, R.M.; Azapagic, A. Carbon capture, storage and utilization technologies: a critical analysis and comparison of their life cycle environmental impacts. J. CO2 Utilization 2015, 9, 82–102. [Google Scholar]
  10. Styring, P.; Jansen, D.; de Coninck, H.; Reith, H.; Armstrong, K. Carbon capture and utilization in the green economy. Centre for low carbon futures. 2011. Available online: http://co2chem.co.uk/wp-content/uploads/2012/06/CCU%20in%20the%20green%20economy%20report.pdf (accessed on 17 April 2019).
  11. Baena-Moreno, F.M.; Rodríguez-Galán, M.; Vega, F.; Alonso-Fariñas, B.; Vilches Arenas, L.F.; Navarrete, B. Carbon capture and utilization technologies: A literature review and recent advances. Energy Sources Part A Recovery Utilization Environ. Eff. 2019, 41, 1403–1433. [Google Scholar] [CrossRef]
  12. Cheah, W.Y.; Ling, T.C.; Juan, J.C.; Lee, D.-J.; Chang, J.-S.; Show, P.L. Biorefineries of carbon dioxide: from carbon capture and storage (CCS) to bioenergies production. Bioresource Technol. 2016, 215, 346–356. [Google Scholar] [CrossRef]
  13. Alaswad, A.; Dassisti, M.; Prescott, T.; Olabi, A. Technologies and developments of third generation biofuel production. Renew. Sustain. Energy Rev. 2015, 51, 1446–1460. [Google Scholar] [CrossRef]
  14. Ströhle, J.; Junk, M.; Kremer, J.; Galloy, A.; Epple, B. Carbonate looping experiments in a 1 MWth pilot plant and modelvalidation. Fuel 2014, 127, 13–22. [Google Scholar] [CrossRef]
  15. Arias, B.; Diego, M.E.; Abanades, J.C.; Lorenzo, M.; Diaz, L.; Martínez, D.; Alvarez, J.; Sánchez-Biezma, A. Demonstration of steady state CO2 capture in a 1.7 MWth calcium looping pilot. Int. J. Greenhouse Gas Control 2013, 18, 237–245. [Google Scholar] [CrossRef]
  16. Abanades, J.C. The maximum capture efficiency of CO2 using a carbonation/calcinations cycle of CaO/CaCO3. Chem. Eng. J. 2002, 90, 303–306. [Google Scholar] [CrossRef]
  17. Abanades, J.C.; Alvarez, D. Conversion limits in the reaction of CO2 with lime. Energy Fuels 2003, 17, 308–315. [Google Scholar] [CrossRef]
  18. Grasa, G.S.; Abanades, J.C.; Alonso, M.; González, B. Reactivity of highly cycled particles of CaO in a carbonation/calcination loop. Chem. Eng. J. 2008, 137, 561–567. [Google Scholar] [CrossRef]
  19. Escosa, J.M.; Cortés, C.; Romeo, L.M. Repowering of the fossil fuel power plants and reversible carbonation/calcination cycle for CO2 abatement. Proceedings of ASME International Mechanical Engineering Congress and Exposition (IMECE2005), Orlando, FL, USA, 5–11 November 2005. [Google Scholar]
  20. Luo, C.; Zheng, Y.; Guo, J.; Feng, B. Effect of sulfation on CO2 capture of CaO-based sorbents during calcium looping cycle. Fuel 2014, 127, 124–130. [Google Scholar] [CrossRef]
  21. Directive 2010/75/EU of the European Parliament and of the Council of 24 November 2010 on industrial emissions (integrated pollution prevention and control) (Recast). Available online: https://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2010:334:0017:0119:en:PDF (accessed on 17 April 2019).
  22. Marsh, D.W.; Ulrichson, D.L. Rate and diffusional study of the reaction of calcium oxide with sulfur dioxide. Chem. Eng. Sci. 1985, 40, 423–433. [Google Scholar] [CrossRef]
  23. Barker, R. The reversibility of the reaction CaCO3 = CaO + CO2. J. Appl. Chem. Biotechnol. 1973, 23, 733–742. [Google Scholar] [CrossRef]
  24. Bhatia, S.K.; Perlmutter, D.D. Effect of the product layer on the kinetics of the CO2-lime reaction. AlChE J. 1983, 29, 79–86. [Google Scholar] [CrossRef]
  25. Mess, D.; Sarofim, A.F.; Longwell, J.P. Product layer diffusion during the reaction of calcium oxide with carbon dioxide. Energy Fuels 1999, 13, 999–1005. [Google Scholar] [CrossRef]
  26. Shimizu, T.; Hirama, T.; Hosoda, H.; Kitano, K.; Inagaki, M.; Tejima, K. A twin fluid-bed reactor for removal of CO2 from combustion processes. Trans. IChemE 1999, 77 Pt A, 62–68. [Google Scholar] [CrossRef]
  27. Silaban, A.; Narcida, M.; Harrison, D.P. Charactertics of the reversible reaction between CO2(g) and calcined dolomite. Chem. Eng. Commun. 1996, 146, 149–162. [Google Scholar] [CrossRef]
  28. Aihara, M.; Nagai, T.; Matsushita, J.; Negishi, Y.; Ohya, H. Development of porous solid reactant for thermal-energy storage and temperature upgrade using carbonation/decarbonation reaction. Appl. Energy 2001, 69, 225–238. [Google Scholar] [CrossRef]
  29. Prigiobbe, V.; Palettini, A.; Baciocchi, R. Gas-solid carbonation kinetics of Air Pollution Control residues for CO2 storage. Chem. Eng. J. 2009, 148, 270–278. [Google Scholar] [CrossRef]
  30. Stendardo, S.; Foscolo, P.V. Carbon dioxide capture with dolomite: A model for gas-solid reaction within the grains of a particulate sorbent. Chem. Eng. Sci. 2009, 64, 2343–2352. [Google Scholar] [CrossRef]
  31. Sun, P.; Grace, J.R.; Lin, C.J.; Anthony, E.J. Adiscrete-pore-size-distribution-based gas–solid model and its application to the CaO + CO2 reaction. Chem. Eng. Sci. 2008, 63, 57–70. [Google Scholar] [CrossRef]
  32. Fernandez Bertos, M.; Simons, S.J.R.; Hills, C.D.; Corey, P.J. A review of accelerated carbonation technology in the treatment of cement-based materials and sequestration of CO2. J. Hazard. Mater. 2004, B112, 193–205. [Google Scholar] [CrossRef] [PubMed]
  33. Chen, M.; Wang, N.; Yn, J.; Yamgnchy, A. Effect of porosity on carbonation and hydration resistance of CaO materials. J. Eur. Ceram. Soc. 2007, 27, 1953–1959. [Google Scholar] [CrossRef]
  34. Beruto, D.T.; Botter, R. Liquid-like H2O adsorption layers to catalyze the Ca(OH)2/CO2 solid-gas reaction and to form a non-protective solid product layer at 20 °C. J. Eur. Ceram. Soc. 2000, 20, 497–503. [Google Scholar] [CrossRef]
  35. Montes-Hernández, G.; Chiriac, R.; Toche, F.; Renard, F. Gas-Solid carbonation of Ca(OH)2 and CaO particles under non-isothermal and isothermal conditions by using a thermogravimetric analyzer: implications for CO2 capture. Int. J. Greenhouse Gas Control 2012, 11, 172–180. [Google Scholar] [CrossRef]
  36. Materic, V.; Smedley, S.I. High Temperature Carbonation of Ca(OH)2. Ind. Eng. Chem. Res. 2011, 50, 5927–5932. [Google Scholar] [CrossRef]
  37. Blamey, J.; Lu, D.Y.; Fenell, P.S.; Anthony, E. Reactivation of CaO-Based Sorbents for CO2 capture: mechanism for the carbonation of Ca(OH)2. Ind. Eng. Chem. Res. 2011, 50, 10329–10334. [Google Scholar] [CrossRef]
  38. Yong, Z.; Mata, V.; Rodrigues, A.E. Adsorption of carbon dioxide at high temperature-a review. Sep. Purif. Technol. 2002, 26, 195–205. [Google Scholar] [CrossRef]
  39. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  40. The Powder Diffraction; International Centre for Diffraction Data (ICDD): Newtown Square, PA, USA, 2003.
  41. Silcox, G.D.; Kramlich, J.C.; Pershing, D.W. A mathematical model for the flash calcination of dispersed CaCO3 and Ca(OH)2 particles. Ind. Eng. Chem. Res. 1989, 28, 155–160. [Google Scholar] [CrossRef]
  42. García-Labiano, F.; Abad, A.; Diego, L.F.; Gayán, P.; Adánez, J. Calcination of calcium-based sorbents at pressure in a broad range of CO2 concentrations. Chem. Eng. Sci. 2002, 57, 2381–2393. [Google Scholar]
  43. Blamey, J.; Anthony, E.J.; Wang, J.; Fennell, P.S. The calcium looping cycle for large-scale CO2 capture. Prog. Energy Combust. Sci. 2010, 36, 260–279. [Google Scholar] [CrossRef]
  44. Nikulshina, V.; Gebald, C.; Steinfeld, A. CO2 capture from atmospheric air via consecutive CaO-carbonation and CaCO3-calcination cycles in a fluidized-bed solar reactor. Chem. Eng. J. 2009, 146, 244–248. [Google Scholar] [CrossRef]
Materials 12 01284 sch001 550

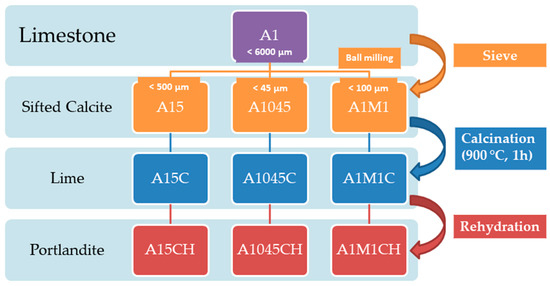

Scheme 1. Nomenclature and processes of the samples.
Scheme 1. Nomenclature and processes of the samples.
Materials 12 01284 sch001
Materials 12 01284 sch002 550

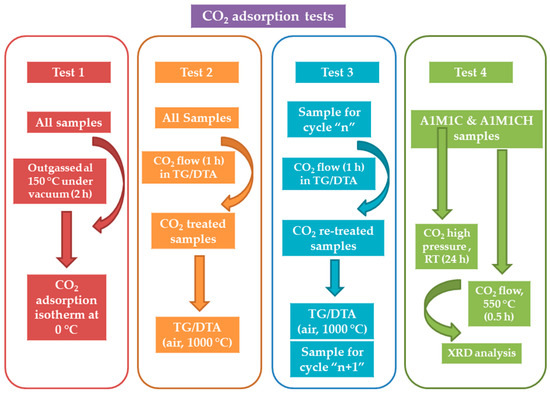

Scheme 2. Procedures for the study of CO2 adsorption in different samples.
Scheme 2. Procedures for the study of CO2 adsorption in different samples.
Materials 12 01284 sch002
Materials 12 01284 g001 550

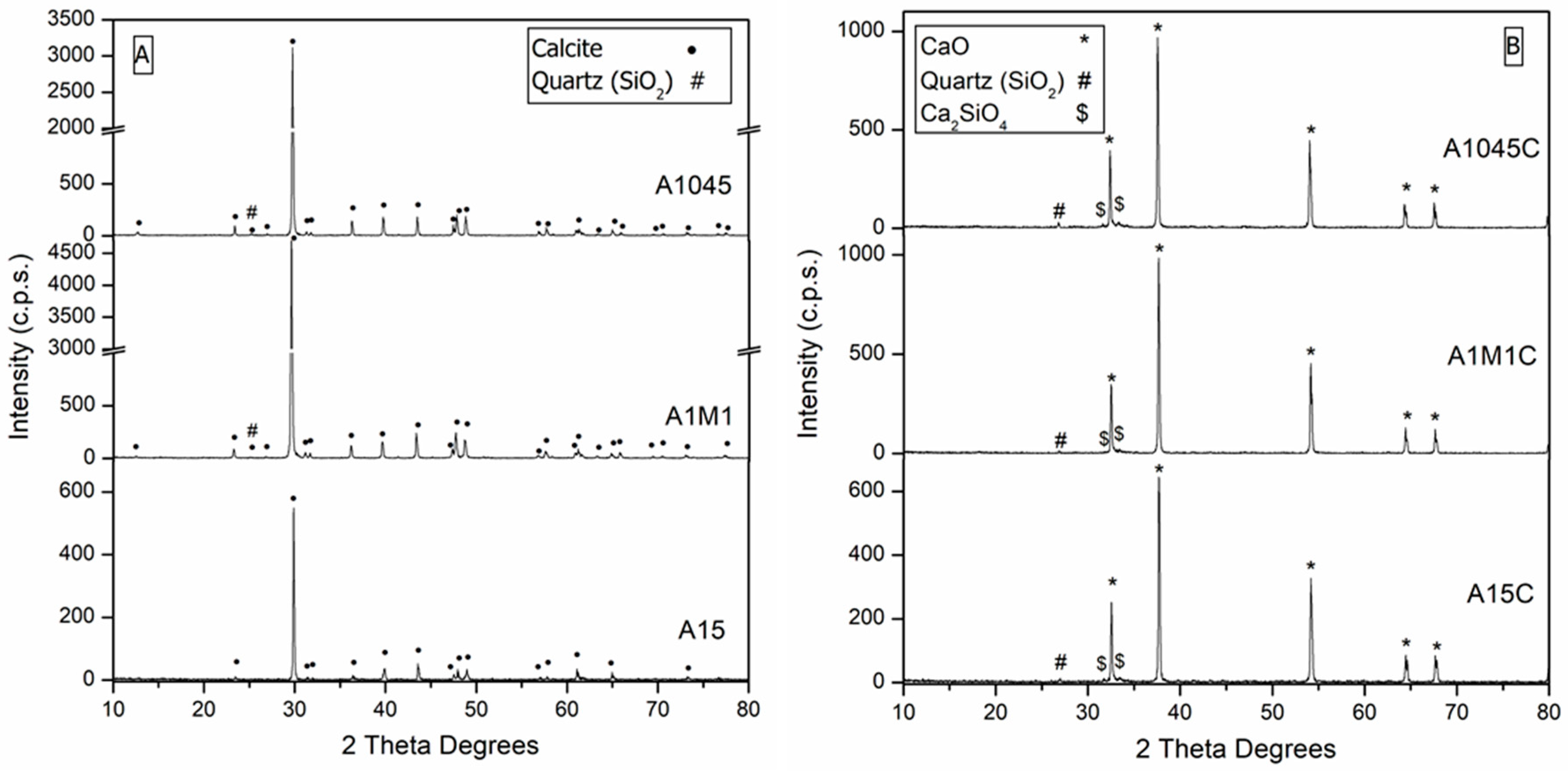

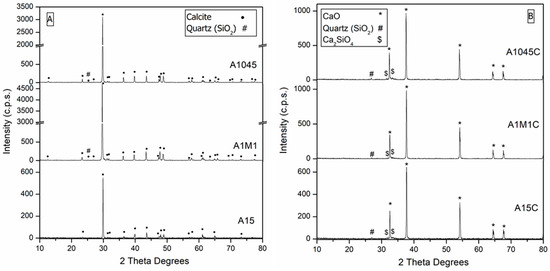

Figure 1. X-ray diffraction (XRD) patterns. (A) calcites: A1045, A1M1, and A15; (B) calcites calcined: A1045C, A1M1C, and A15C.
Figure 1. X-ray diffraction (XRD) patterns. (A) calcites: A1045, A1M1, and A15; (B) calcites calcined: A1045C, A1M1C, and A15C.
Materials 12 01284 g001
Materials 12 01284 g002 550

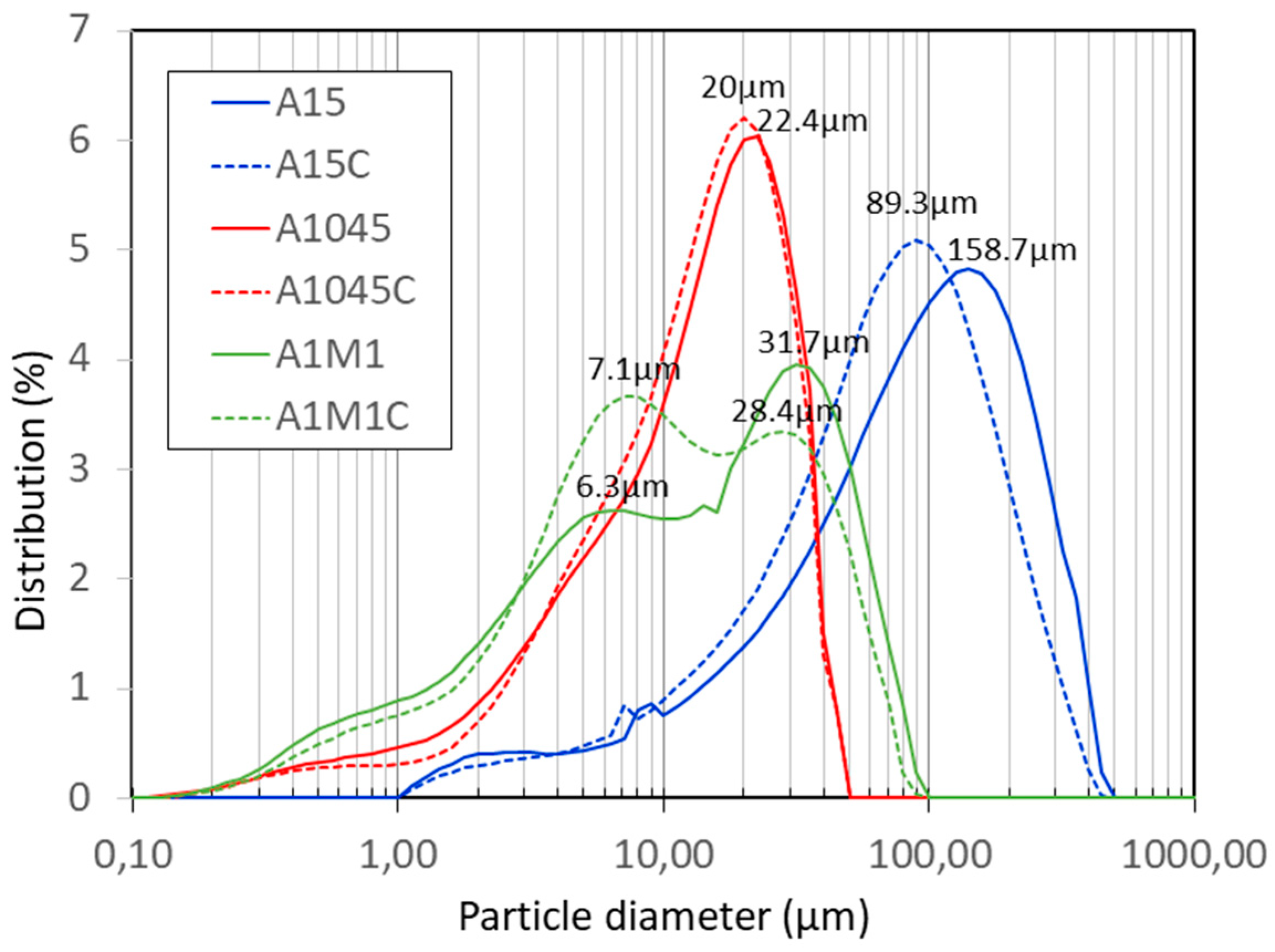

Figure 2. Grain-size distribution of calcites: A1045, A1M1, A15 and calcites calcined: A1045C, A1M1C, and A15C.
Figure 2. Grain-size distribution of calcites: A1045, A1M1, A15 and calcites calcined: A1045C, A1M1C, and A15C.
Materials 12 01284 g002
Materials 12 01284 g003 550

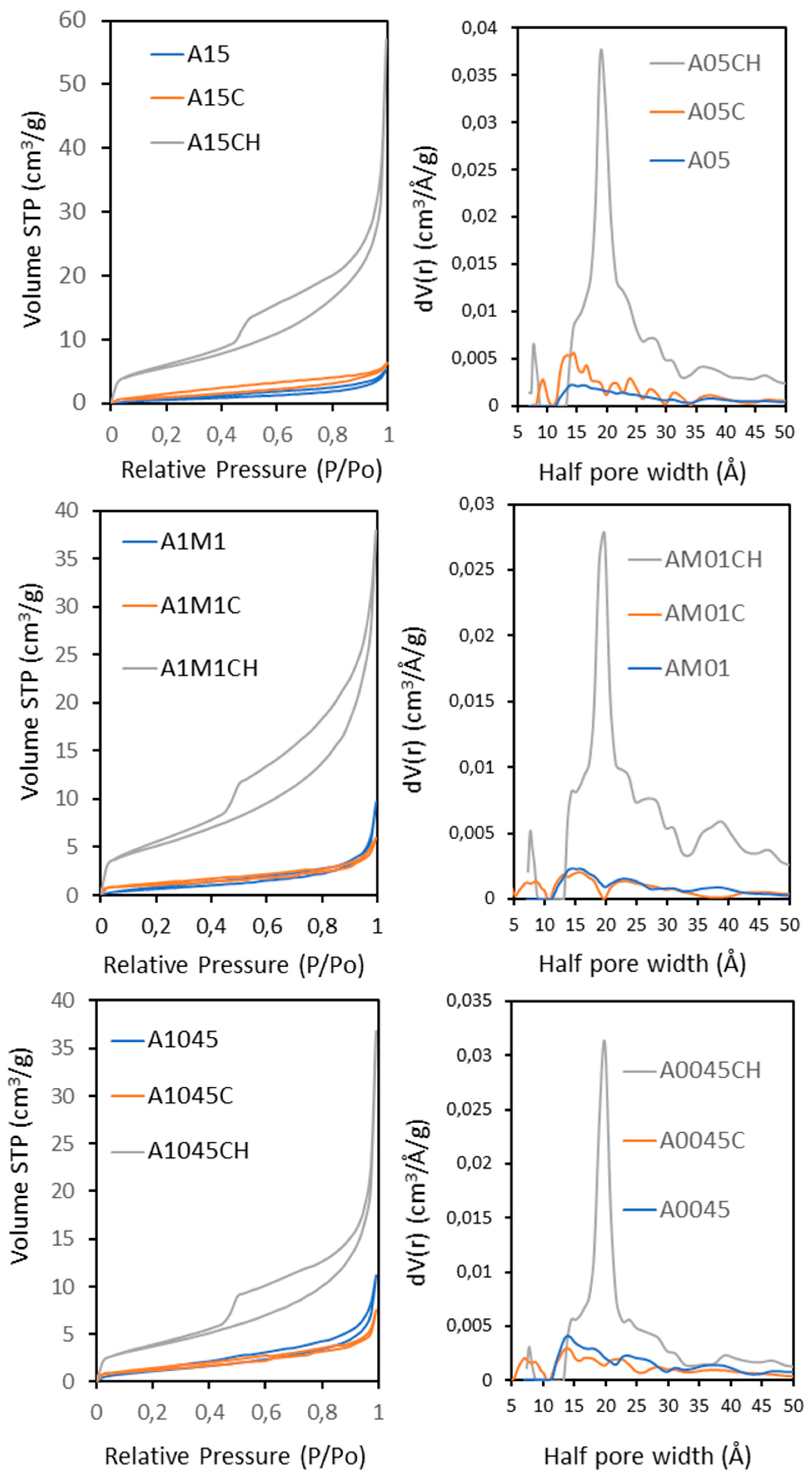

Figure 3. (Left) Nitrogen adsorption–desorption isotherms for calcites: A1045, A1M1, and A15; calcites calcined: A1045C, A1M1C, A15C and calcites calcined and rehydrated: A1045CH, A1M1CH, and A15CH. (Right) Pore size distributions for calcites: A1045, A1M1, and A15; calcites calcined: A1045C, A1M1C, A15C, and calcites calcined and rehydrated: A1045CH, A1M1CH, and A15CH.
Figure 3. (Left) Nitrogen adsorption–desorption isotherms for calcites: A1045, A1M1, and A15; calcites calcined: A1045C, A1M1C, A15C and calcites calcined and rehydrated: A1045CH, A1M1CH, and A15CH. (Right) Pore size distributions for calcites: A1045, A1M1, and A15; calcites calcined: A1045C, A1M1C, A15C, and calcites calcined and rehydrated: A1045CH, A1M1CH, and A15CH.
Materials 12 01284 g003
Materials 12 01284 g004 550

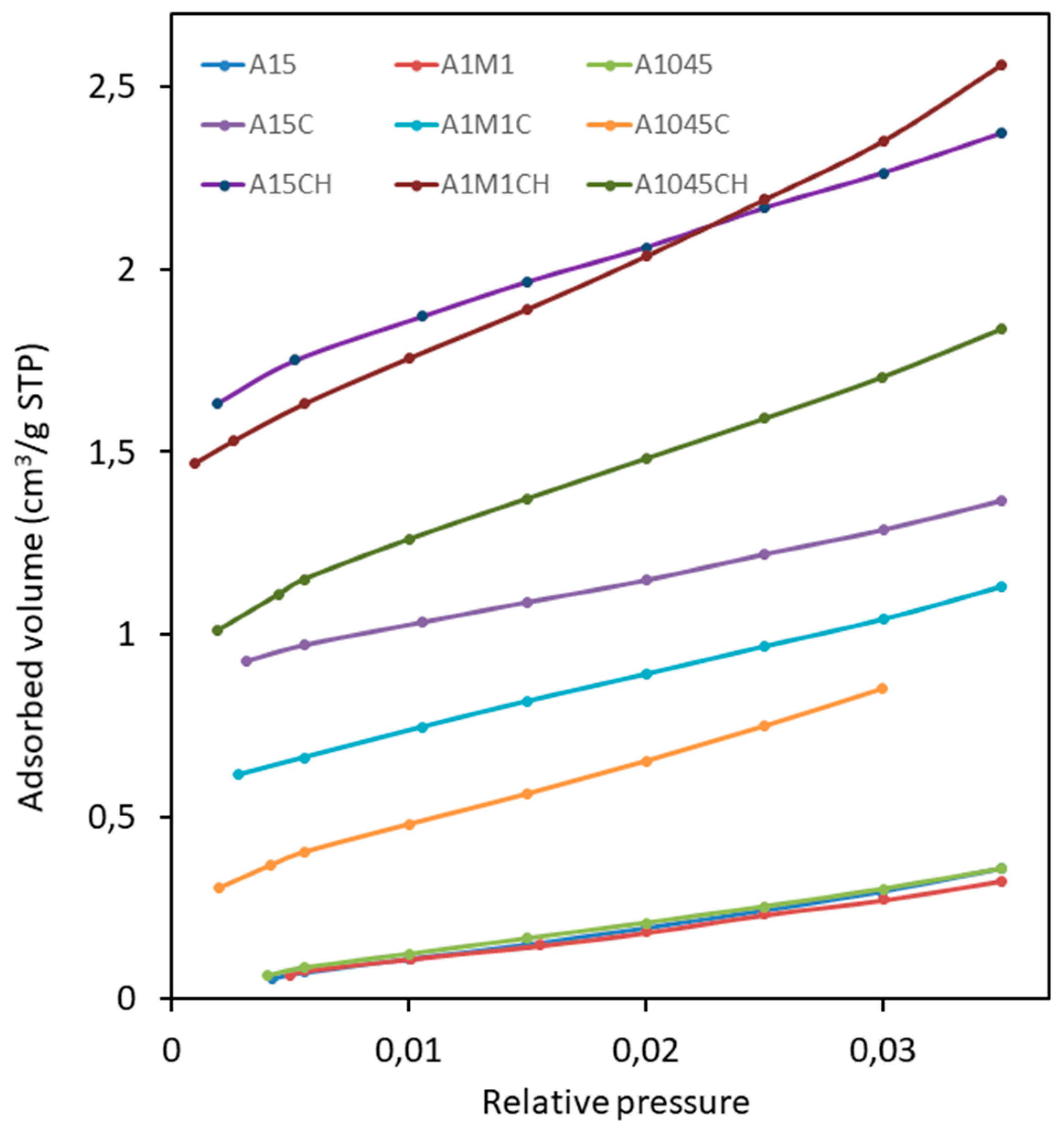

Figure 4. CO2 adsorption–desorption isotherms for calcites: A1045, A1M1, and A15; calcites calcined: A1045C, A1M1C, A15C, and calcites calcined and rehydrated: A1045CH, A1M1CH, and A15CH.
Figure 4. CO2 adsorption–desorption isotherms for calcites: A1045, A1M1, and A15; calcites calcined: A1045C, A1M1C, A15C, and calcites calcined and rehydrated: A1045CH, A1M1CH, and A15CH.
Materials 12 01284 g004
Materials 12 01284 g005 550

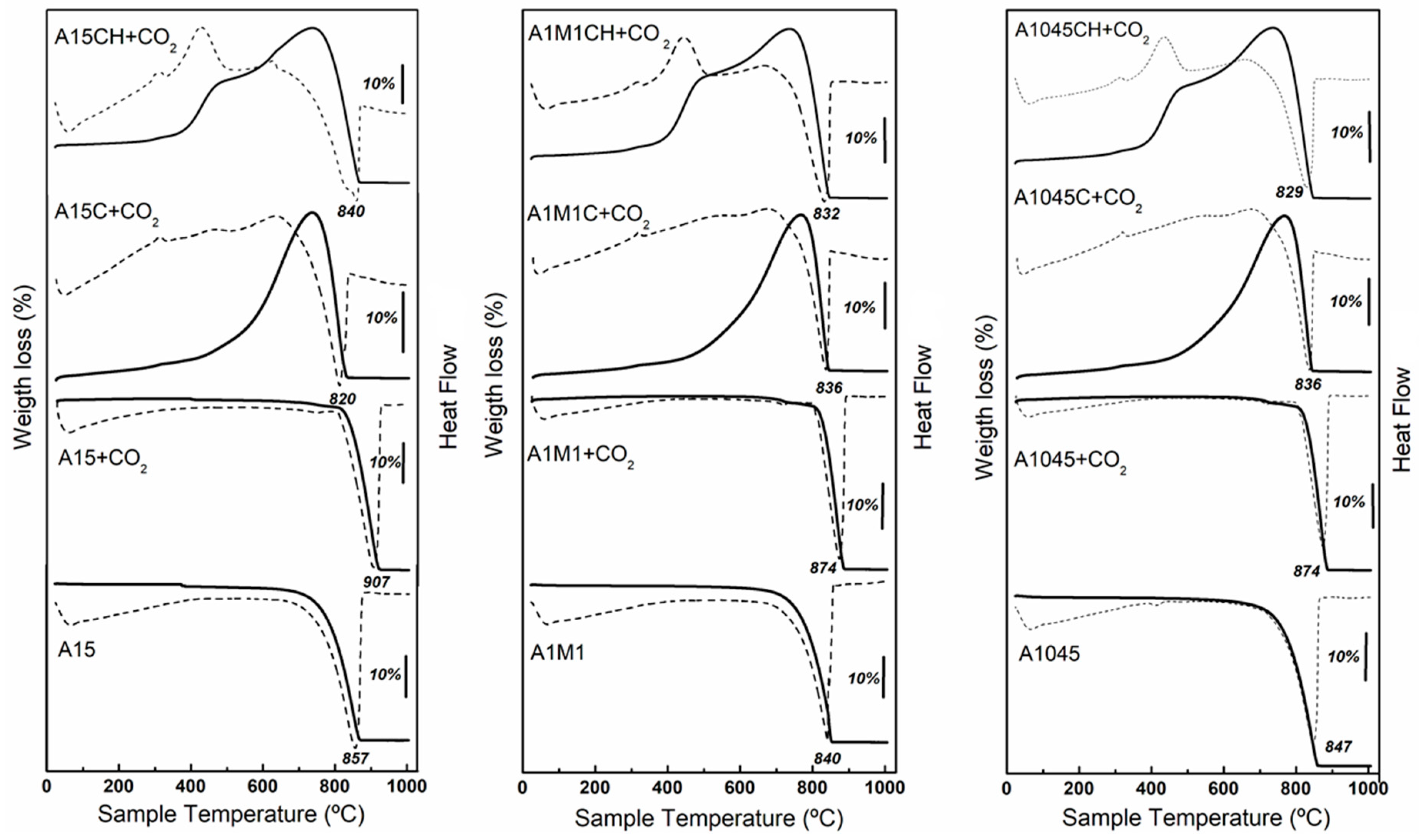

Figure 5. TG (solid lines) and DTA (dotted line) curves: for calcite A15, calcite A15 + CO2, calcite calcined A15C + CO2 and calcite calcined and rehydrated A15CH + CO2; for calcite A1045, calcite A1045 + CO2, calcite calcined A1045C + CO2 and calcite calcined and rehydrated A1045CH + CO2; for calcite A1M1, calcite A1M1 + CO2, calcite calcined A1M1C + CO2 and calcite calcined and rehydrated A1M1CH + CO2.
Figure 5. TG (solid lines) and DTA (dotted line) curves: for calcite A15, calcite A15 + CO2, calcite calcined A15C + CO2 and calcite calcined and rehydrated A15CH + CO2; for calcite A1045, calcite A1045 + CO2, calcite calcined A1045C + CO2 and calcite calcined and rehydrated A1045CH + CO2; for calcite A1M1, calcite A1M1 + CO2, calcite calcined A1M1C + CO2 and calcite calcined and rehydrated A1M1CH + CO2.
Materials 12 01284 g005
Materials 12 01284 g006 550

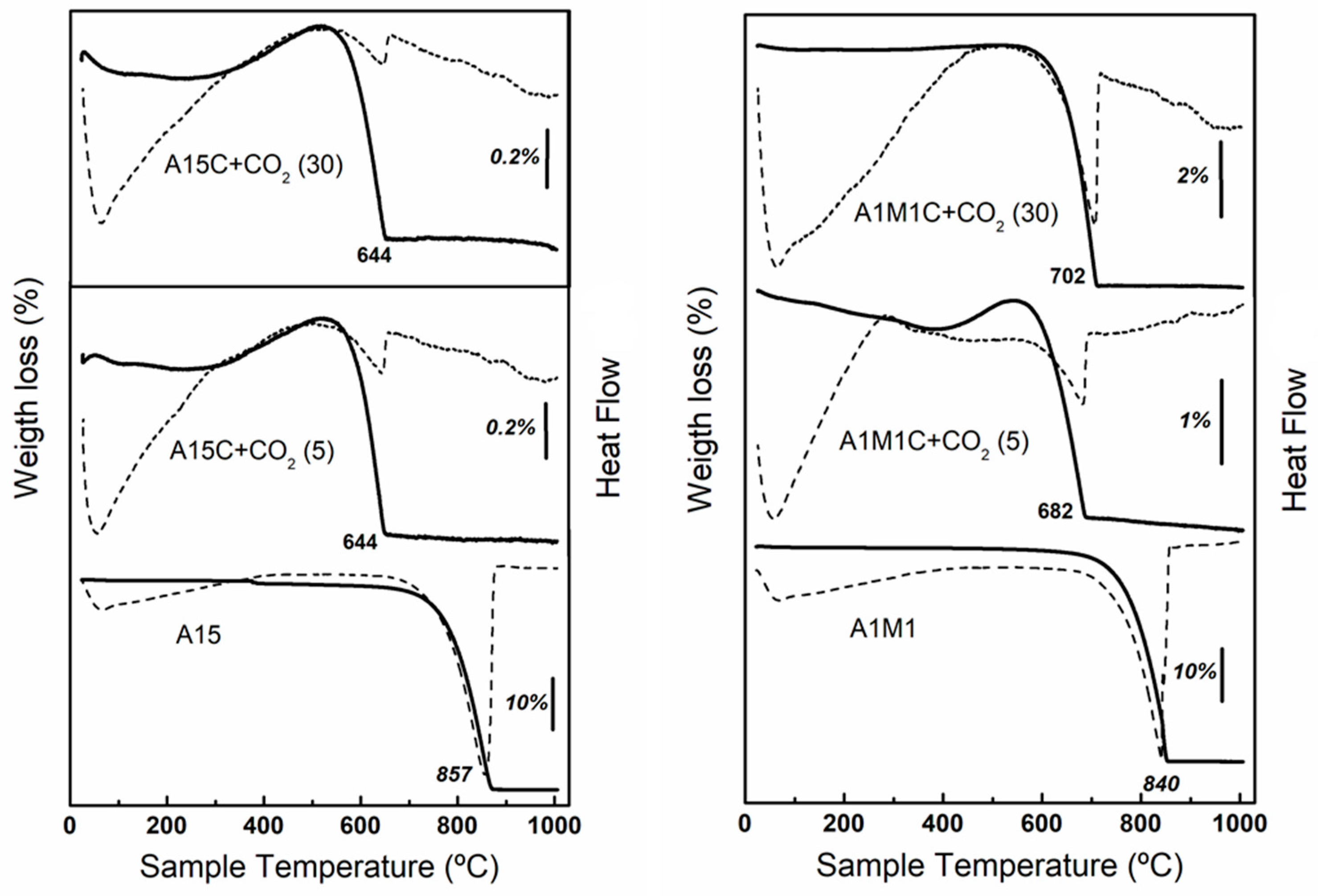

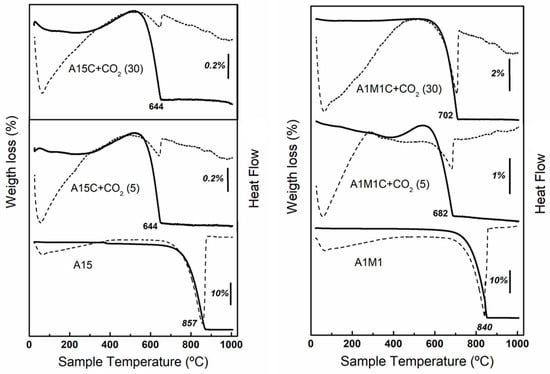

Figure 6. TG (solid lines) and DTA (dotted line): (left) curves for calcite A15, calcite A15 after 5 cycles and calcite A15 after 30 cycles of calcination—CO2 flow of 20 mL min−1 (1 h)—calcination in air a 900 °C; (right) curves for calcite A1M1, calcite A1M1 after 5 cycles and calcite A1M1 after 30 cycles of calcination—CO2 flow of 20 mL min−1 (1 h)—calcination in air a 900 °C.
Figure 6. TG (solid lines) and DTA (dotted line): (left) curves for calcite A15, calcite A15 after 5 cycles and calcite A15 after 30 cycles of calcination—CO2 flow of 20 mL min−1 (1 h)—calcination in air a 900 °C; (right) curves for calcite A1M1, calcite A1M1 after 5 cycles and calcite A1M1 after 30 cycles of calcination—CO2 flow of 20 mL min−1 (1 h)—calcination in air a 900 °C.
Materials 12 01284 g006
Materials 12 01284 g007 550
Figure 7. TEM images for calcites A15 and A1M1 after 5 and 30 cycles of calcination—CO2 flow of 20 mL min−1 (1 h)—calcination in air a 900 °C.
Figure 7. TEM images for calcites A15 and A1M1 after 5 and 30 cycles of calcination—CO2 flow of 20 mL min−1 (1 h)—calcination in air a 900 °C.
Materials 12 01284 g007
Materials 12 01284 g008 550

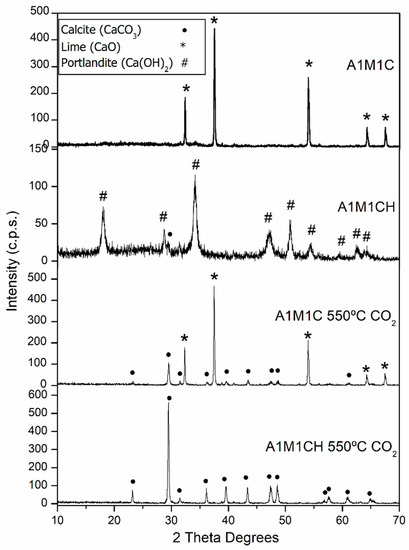

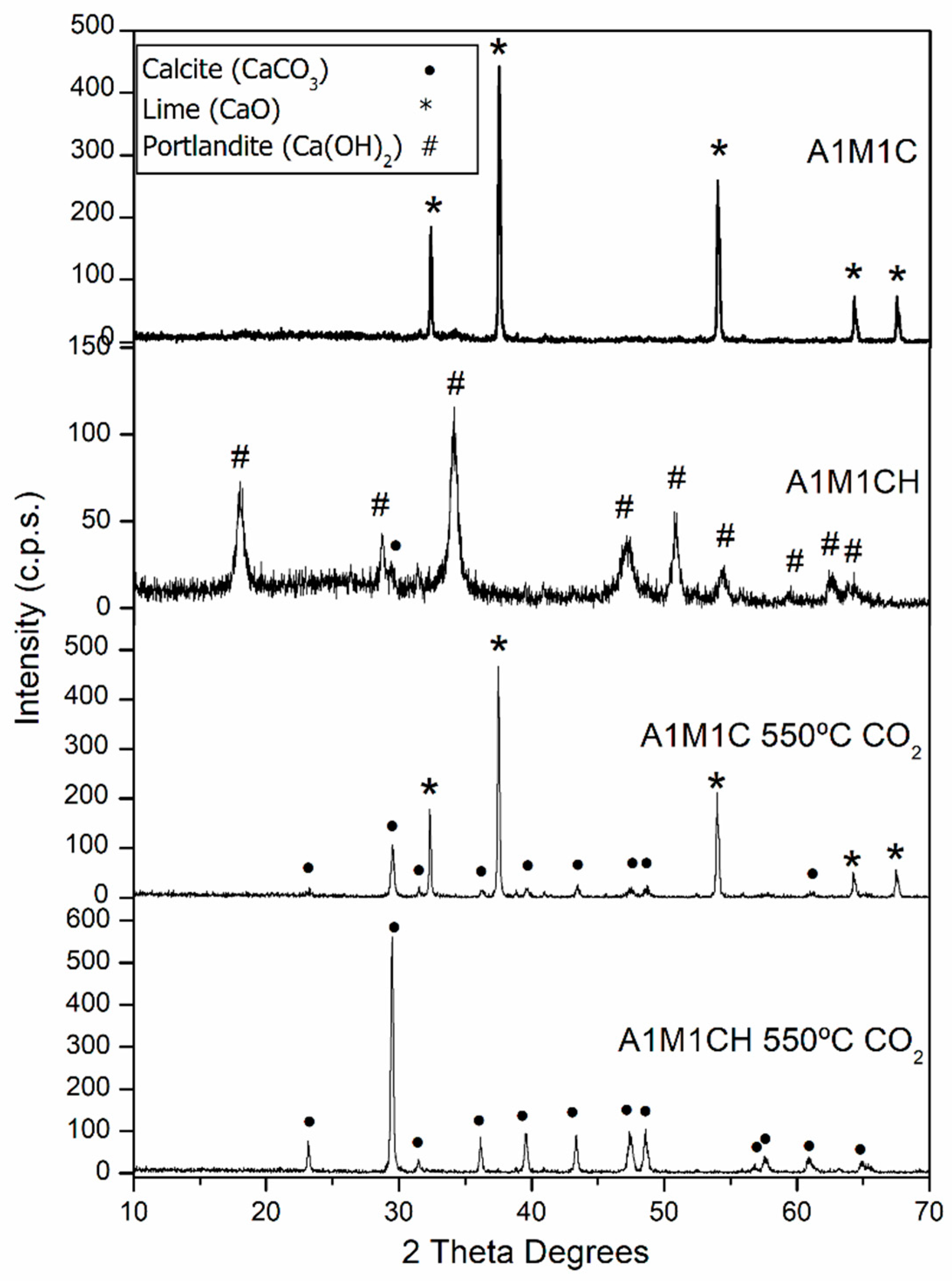

Figure 8. X-ray diffraction (XRD) patterns of the samples A1M1C and A1M1CH and the samples A1M1C and A1M1AC heated at 550 °C in a tubular oven with a CO2 flow of 20 mL min−1.
Figure 8. X-ray diffraction (XRD) patterns of the samples A1M1C and A1M1CH and the samples A1M1C and A1M1AC heated at 550 °C in a tubular oven with a CO2 flow of 20 mL min−1.
Materials 12 01284 g008
Table
Table 1. Physicochemical properties of pristine calcites, calcined and rehydrated.
Table 1. Physicochemical properties of pristine calcites, calcined and rehydrated.
MaterialSBET a (m2 g−1)Smp b (m2 g−1)Vp c (10−2 cm3 g−1)Dp d (nm)Seq e (m2 g−1)
A152.700.822.8910.8
A15C4.400.99 2.8912.9
A15CH21.308.84 3.7918.4
A10454.701.722.7710.9
A1045C4.501.162.7711.9
A1045CH13.805.703.9715.4
A1M13.100.882.8910.4
A1M1C3.900.923.1712.1
A1M1CH18.905.873.9719.1
a BET specific surface area determined in the range of relative pressures from 0.05 to 0.2; b Micropore area, calculated by t-Plot method. c Single-point pore volume; d Diameter pore average size, calculated from the adsorption branch according to the BJH method; e Calculated from CO2 isotherm.
Table
Table 2. Gas-solid carbonatation of different samples under non-isothermal conditions at the same heating rate (5 °C min−1).
Table 2. Gas-solid carbonatation of different samples under non-isothermal conditions at the same heating rate (5 °C min−1).
SampleΔweight (%)Δweight a
(%)		Total Loss of Water
(%)		Total loss
(%)		Ca(OH)2
(%)		CaO b
(%)		CaO c
(%)
A15−41.81−44.00-−41.81- -
A15C+26.66+78.48-−26.66-100.0033.97
A15CH+26.07+64.68−7.72−33.7931.8068.2027.85
A1045−41.12−44.00-−41.12- -
A1045C+32.98+78.48-−32.98-100.0033.51
A1045CH+25.64+66.88−6.50−32.1426.7573.2528.28
A1M1−41.86−44.00-−41.86- -
A1M1C+33.05+78.48-−33.05-100.0042.11
A1M1CH+28.39+63.39−8.45−36.8434.8065.2031.61
a Theoretical value; b CaO total; c CaO reacted from total of CaO.

Share and Cite

MDPI and ACS Style

Quesada Carballo, L.; Perez Perez, M.d.R.; Cantador Fernández, D.; Caballero Amores, A.; Fernández Rodríguez, J.M. Optimum Particle Size of Treated Calcites for CO2 Capture in a Power Plant. Materials 2019, 12, 1284. https://doi.org/10.3390/ma12081284

AMA Style

Quesada Carballo L, Perez Perez MdR, Cantador Fernández D, Caballero Amores A, Fernández Rodríguez JM. Optimum Particle Size of Treated Calcites for CO2 Capture in a Power Plant. Materials. 2019; 12(8):1284. https://doi.org/10.3390/ma12081284

Chicago/Turabian Style

Quesada Carballo, Luís, María del Rosario Perez Perez, David Cantador Fernández, Alvaro Caballero Amores, and José María Fernández Rodríguez. 2019. "Optimum Particle Size of Treated Calcites for CO2 Capture in a Power Plant" Materials 12, no. 8: 1284. https://doi.org/10.3390/ma12081284

APA Style

Quesada Carballo, L., Perez Perez, M. d. R., Cantador Fernández, D., Caballero Amores, A., & Fernández Rodríguez, J. M. (2019). Optimum Particle Size of Treated Calcites for CO2 Capture in a Power Plant. Materials, 12(8), 1284. https://doi.org/10.3390/ma12081284

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
