Next Article in Journal
Effect of Stress Wave between Adjacent Asperities Interaction on Subsurface Damage of Optical Glass in Precision Grinding
Next Article in Special Issue
Insights and Aspects to the Modeling of the Molten Core Method for Optical Fiber Fabrication
Previous Article in Journal
High-Quality Perovskite CH3NH3PbI3 Thin Films for Solar Cells Prepared by Single-Source Thermal Evaporation Combined with Solvent Treatment
Article

Study of Mid-Infrared Emission and Structural Properties of Heavy Metal Oxide Glass and Optical Fibre Co-Doped with Ho3+/Yb3+ Ions

1
Faculty of Mechanical Engineering, Bialystok University of Technology, Wiejska 45c, 15-351 Bialystok, Poland
2
Faculty of Electrical Engineering, Bialystok University of Technology, Wiejska 45d, 15-351 Bialystok, Poland
3
Faculty of Materials Science and Ceramics, AGH University of Science and Technology, Mickiewicza 30, 30-059 Krakow, Poland
*
Author to whom correspondence should be addressed.
Materials 2019, 12(8), 1238; https://doi.org/10.3390/ma12081238
Received: 20 March 2019 / Revised: 8 April 2019 / Accepted: 11 April 2019 / Published: 15 April 2019

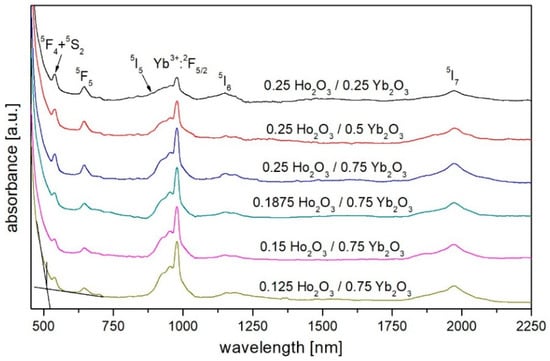

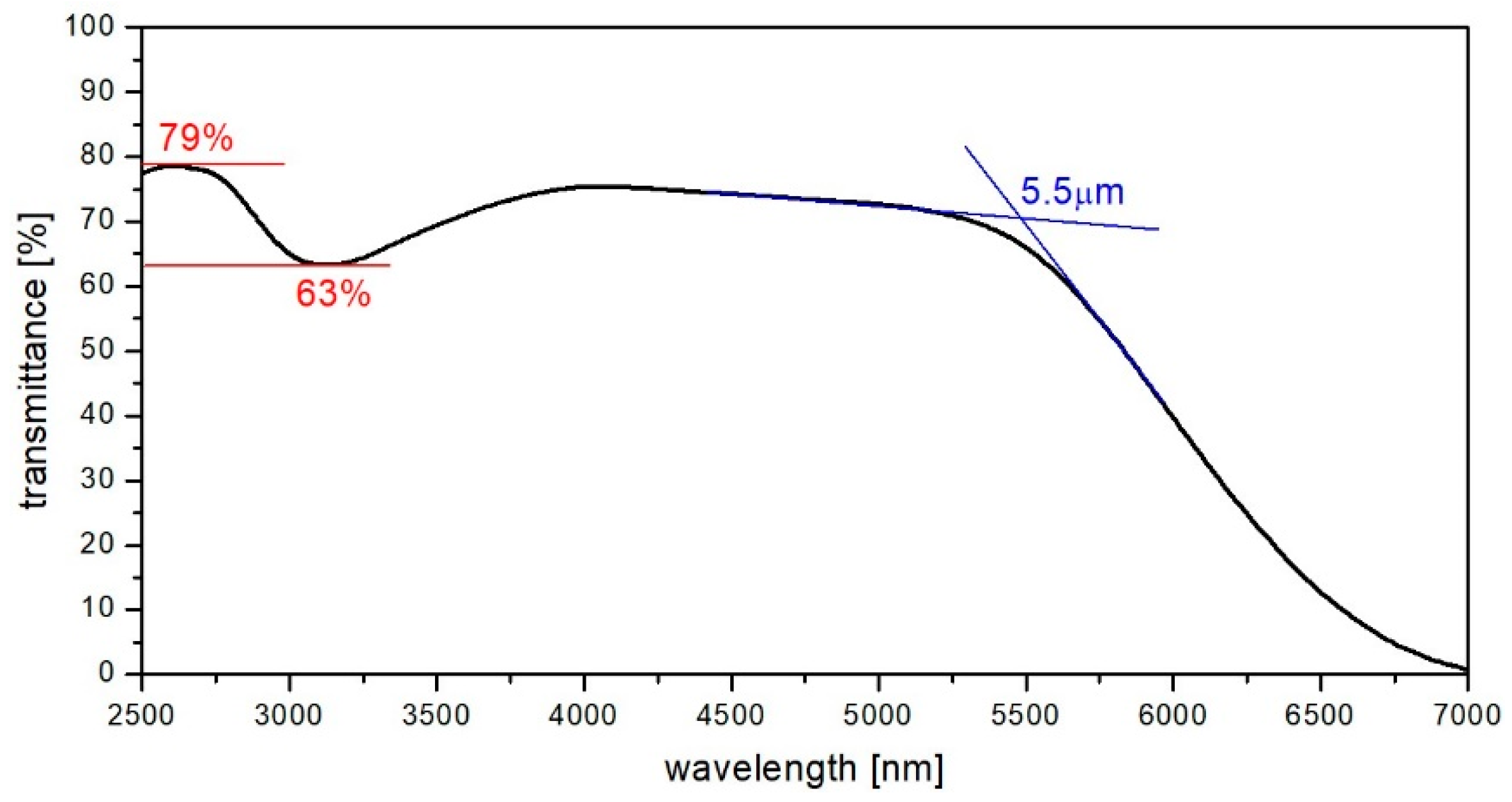

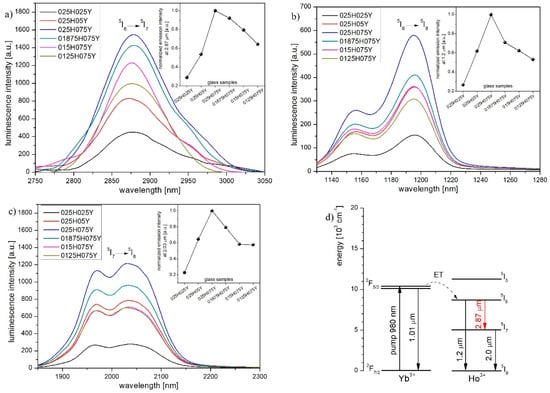

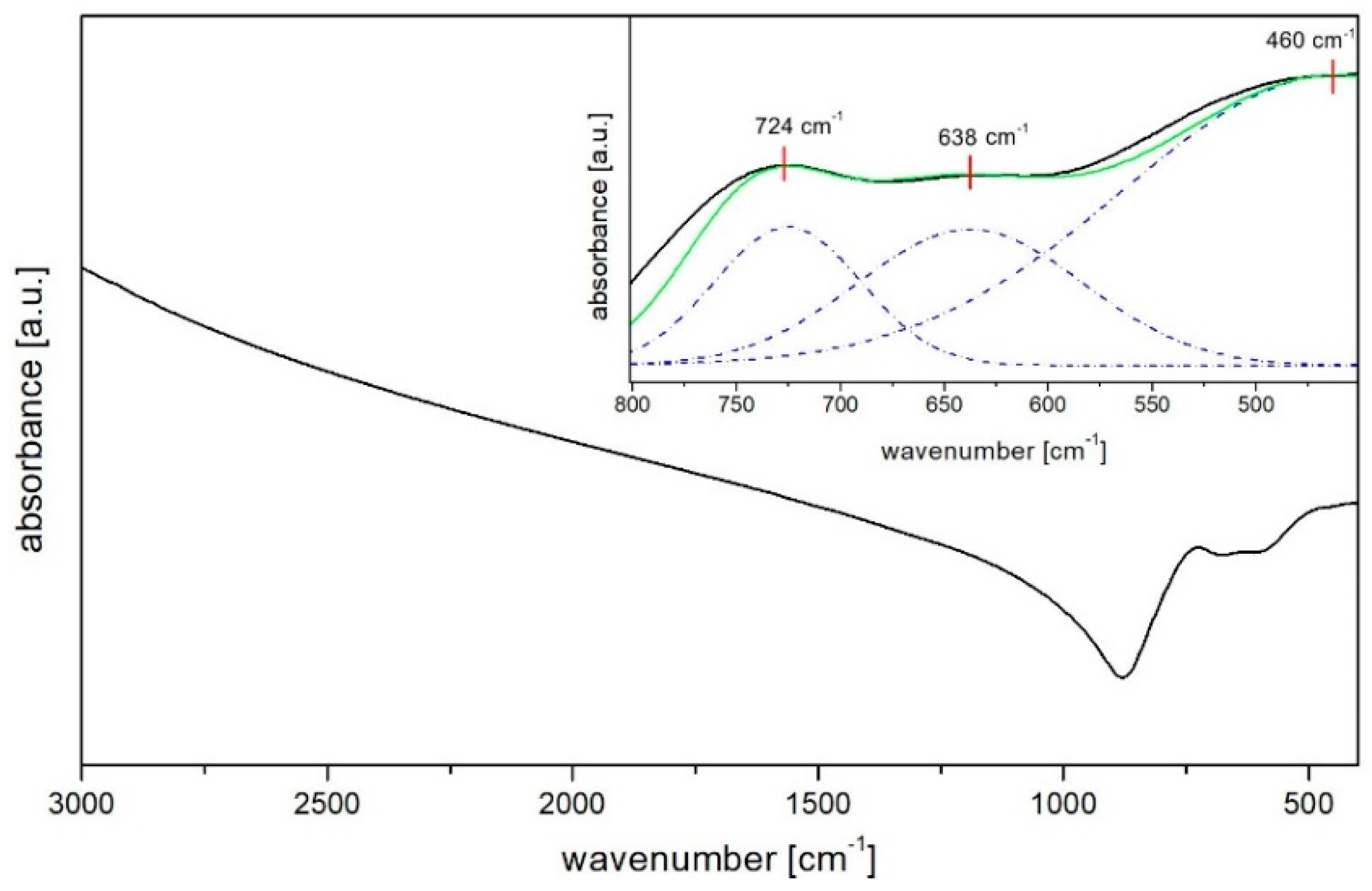

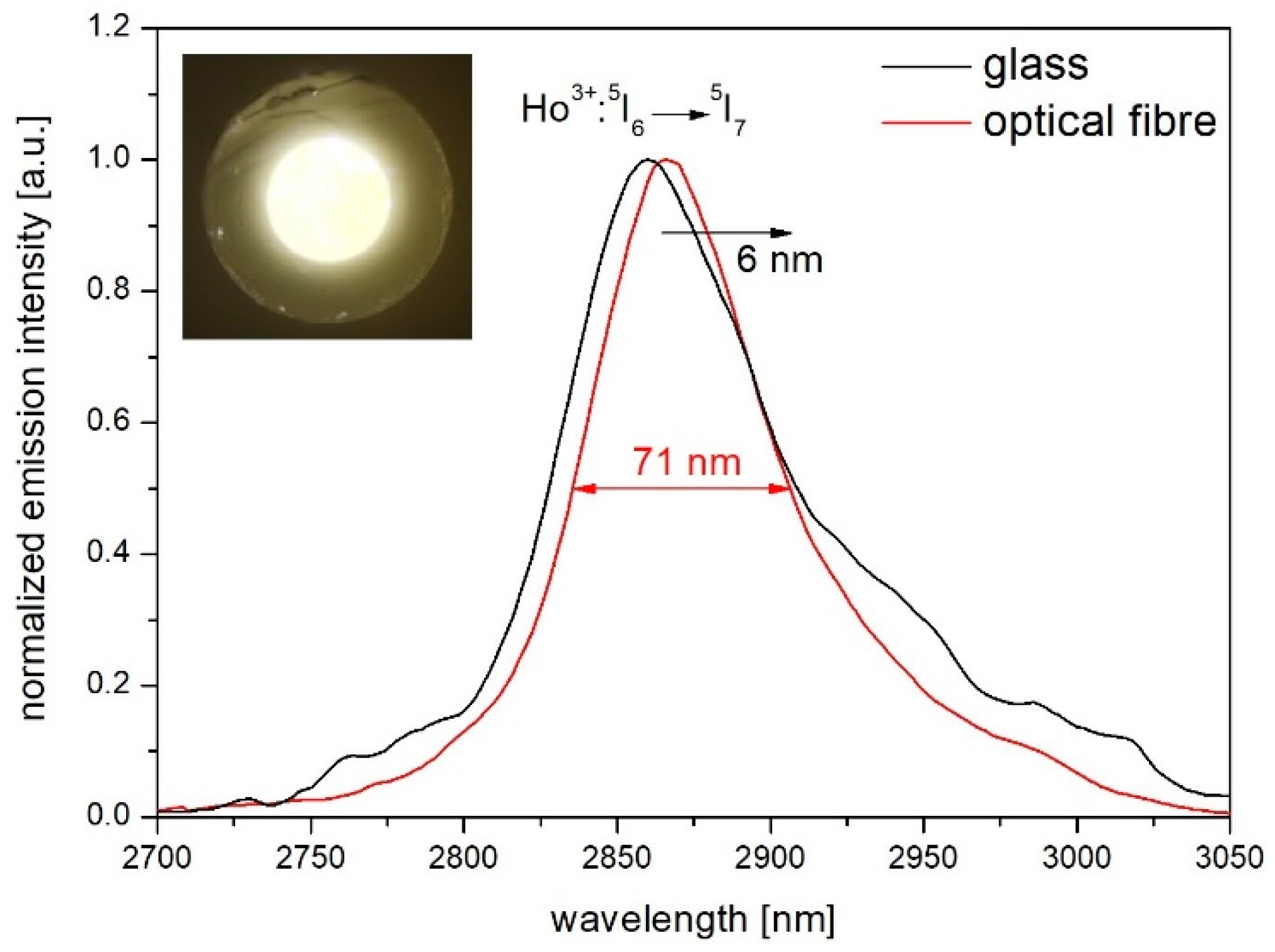

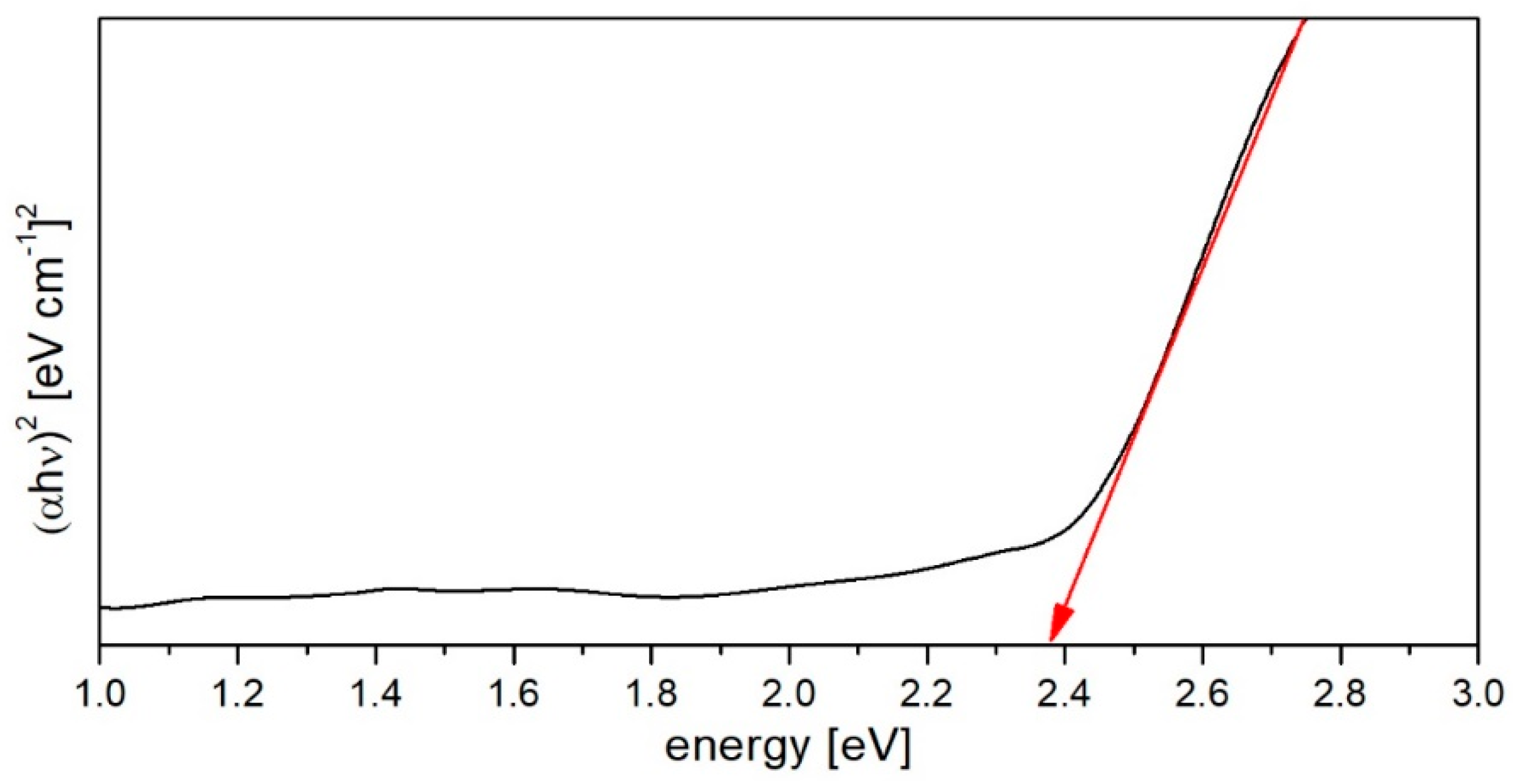

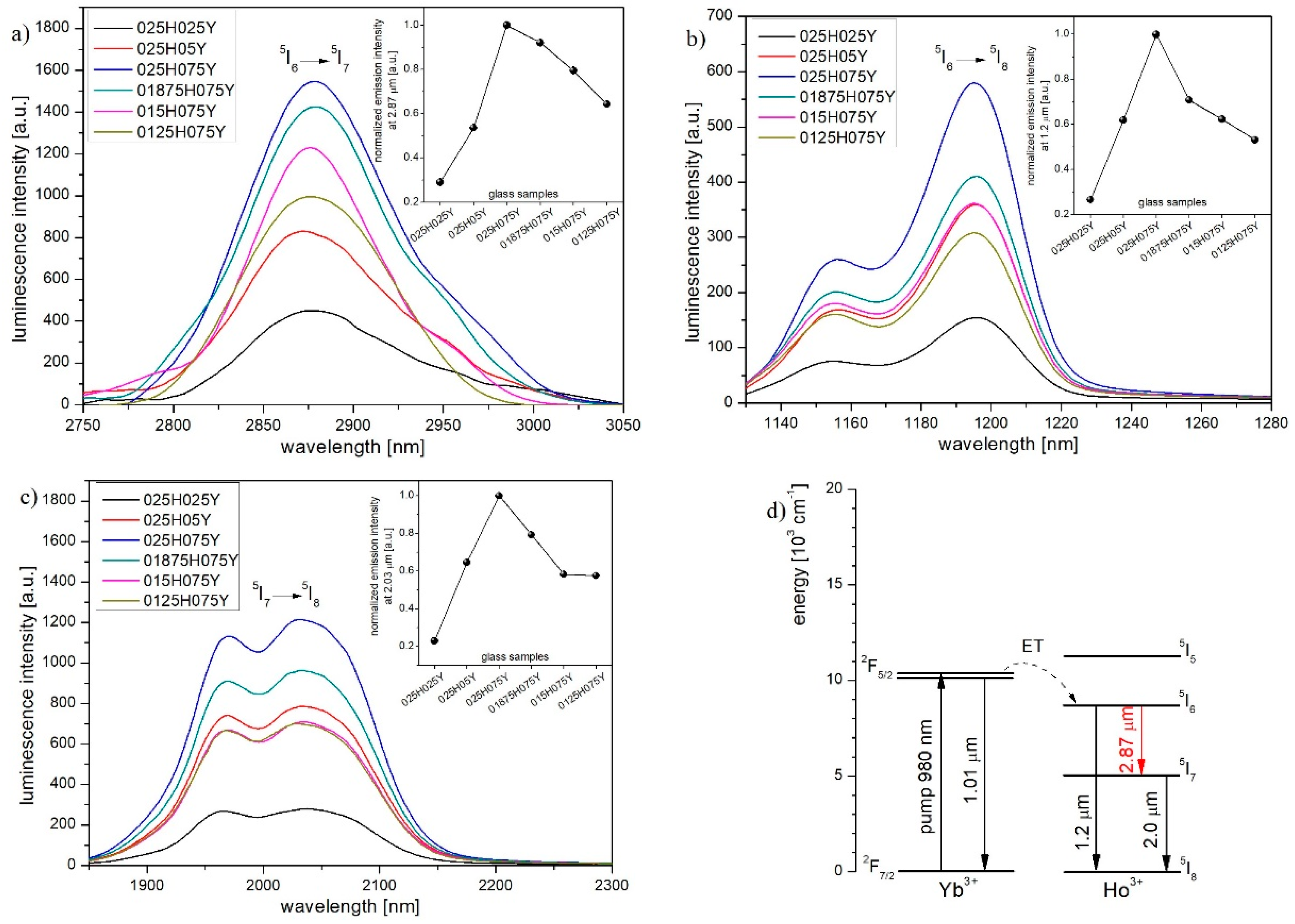

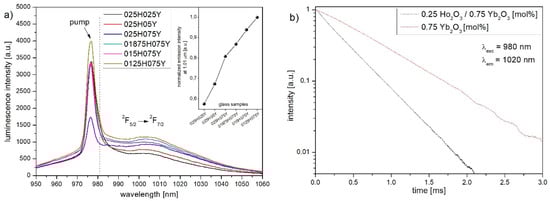

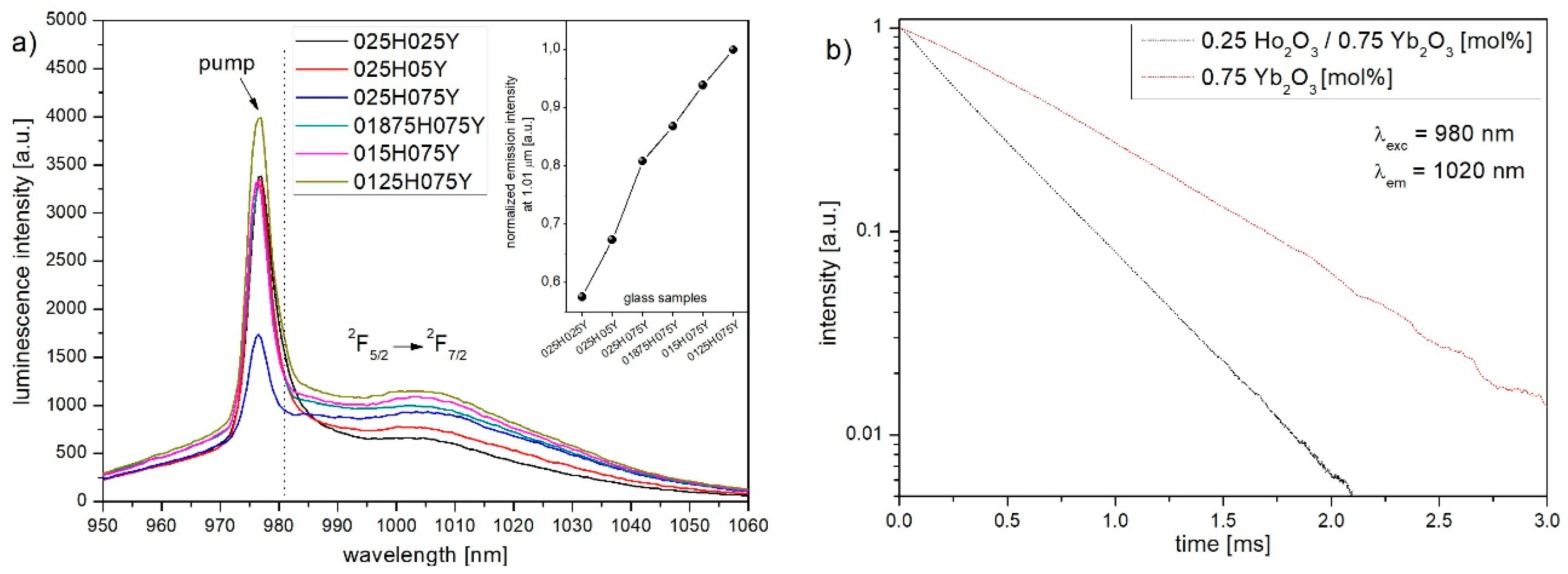

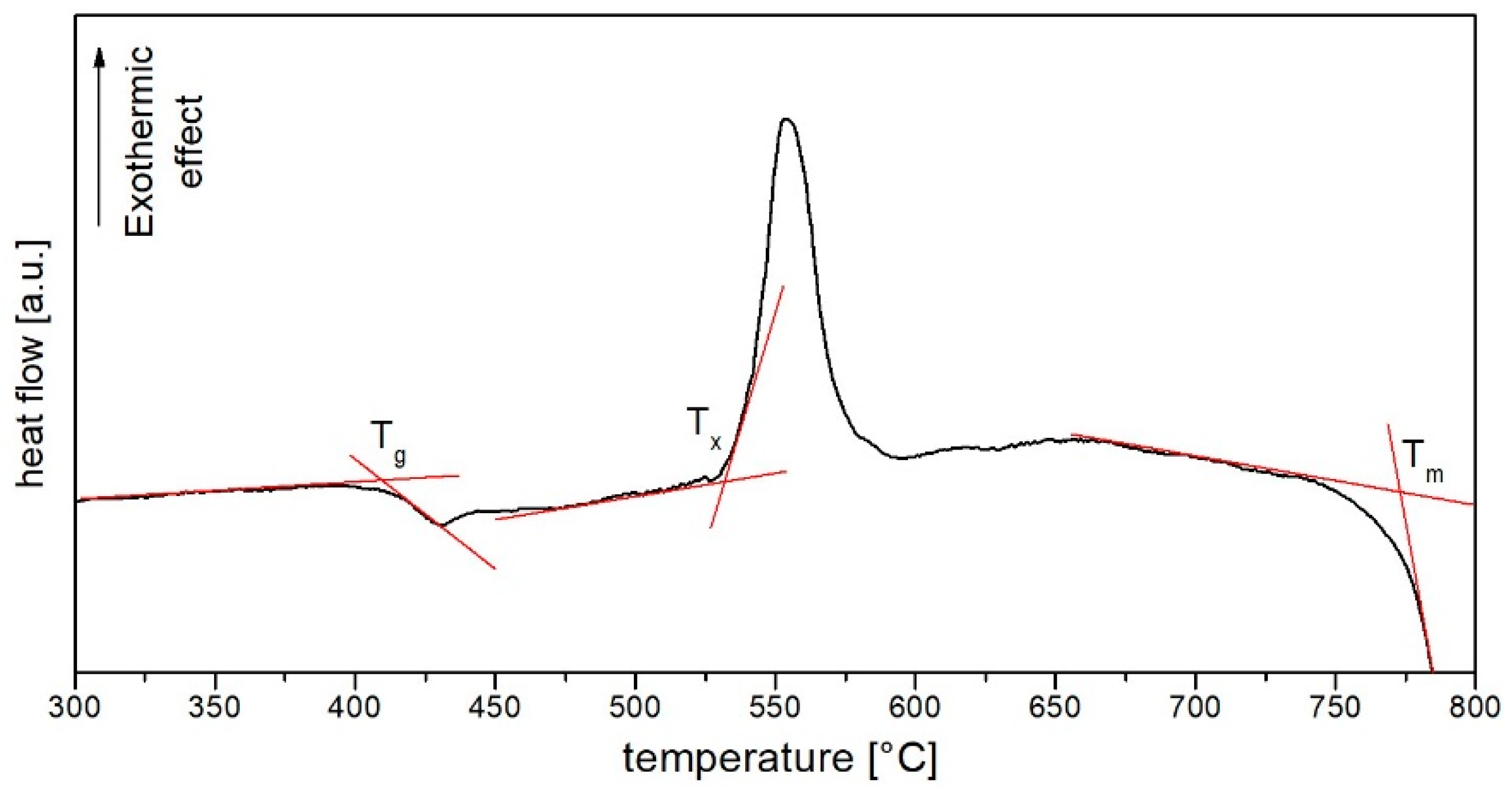

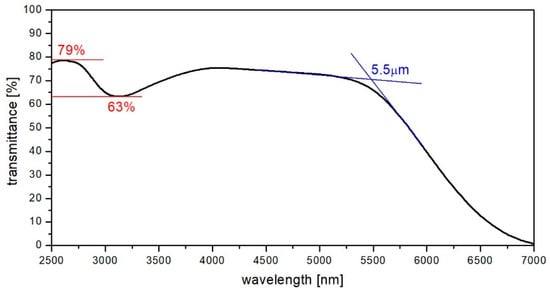

Bismuth-germanate glasses with low hydroxide content co-doped with Ho3+/Yb3+ ions have been investigated in terms of structural and spectroscopic properties. To reduce OH- ions content and improve transmittance value at the wavelength of 3.1 µm, the glass synthesis has been carried out in low vacuum conditions (45–65 mBar). The composition of the host glass based on heavy metal oxides affects the maximum phonon energy (hωmax = 724 cm−1), which low value has a positive impact on the mid-infrared emission parameters. Emission band at the wavelength of 2.87 µm was observed in glass co-doped with mol% 0.25 Ho2O3/0.75 Yb2O3 under 980 nm high power laser diode wavelength excitation. Lifetime measurements of the Yb3+:2F5/2 quantum level indicate efficient Yb3+ → Ho3+ energy transfer (η = 61%). The developed active bismuth-germanate glass was used as the core of optical fibre operating in the mid-infrared region. View Full-Text
Keywords: mid-infrared emission; bismuth-germanate glass; heavy metal oxide; 2.87 µm luminescence; Ho3+/Yb3+; optical active fibre mid-infrared emission; bismuth-germanate glass; heavy metal oxide; 2.87 µm luminescence; Ho3+/Yb3+; optical active fibre
Show Figures

Figure 1

MDPI and ACS Style

Ragin, T.; Baranowska, A.; Kochanowicz, M.; Zmojda, J.; Miluski, P.; Dorosz, D. Study of Mid-Infrared Emission and Structural Properties of Heavy Metal Oxide Glass and Optical Fibre Co-Doped with Ho3+/Yb3+ Ions. Materials 2019, 12, 1238. https://doi.org/10.3390/ma12081238

AMA Style

Ragin T, Baranowska A, Kochanowicz M, Zmojda J, Miluski P, Dorosz D. Study of Mid-Infrared Emission and Structural Properties of Heavy Metal Oxide Glass and Optical Fibre Co-Doped with Ho3+/Yb3+ Ions. Materials. 2019; 12(8):1238. https://doi.org/10.3390/ma12081238

Chicago/Turabian Style

Ragin, Tomasz; Baranowska, Agata; Kochanowicz, Marcin; Zmojda, Jacek; Miluski, Piotr; Dorosz, Dominik. 2019. "Study of Mid-Infrared Emission and Structural Properties of Heavy Metal Oxide Glass and Optical Fibre Co-Doped with Ho3+/Yb3+ Ions" Materials 12, no. 8: 1238. https://doi.org/10.3390/ma12081238

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
