Solution Synthesis of Co-Ni-W-Based ODS Alloy Powder

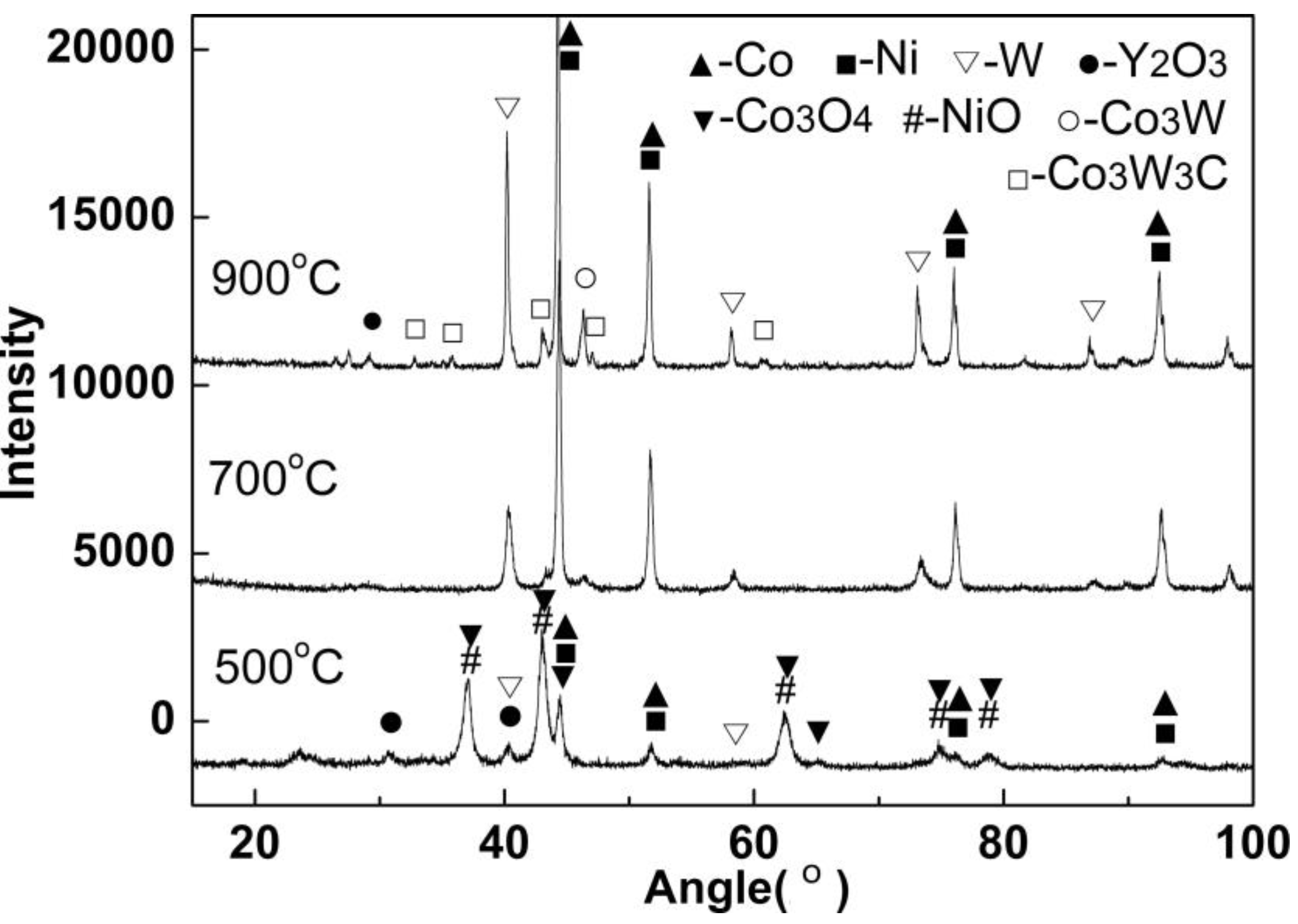

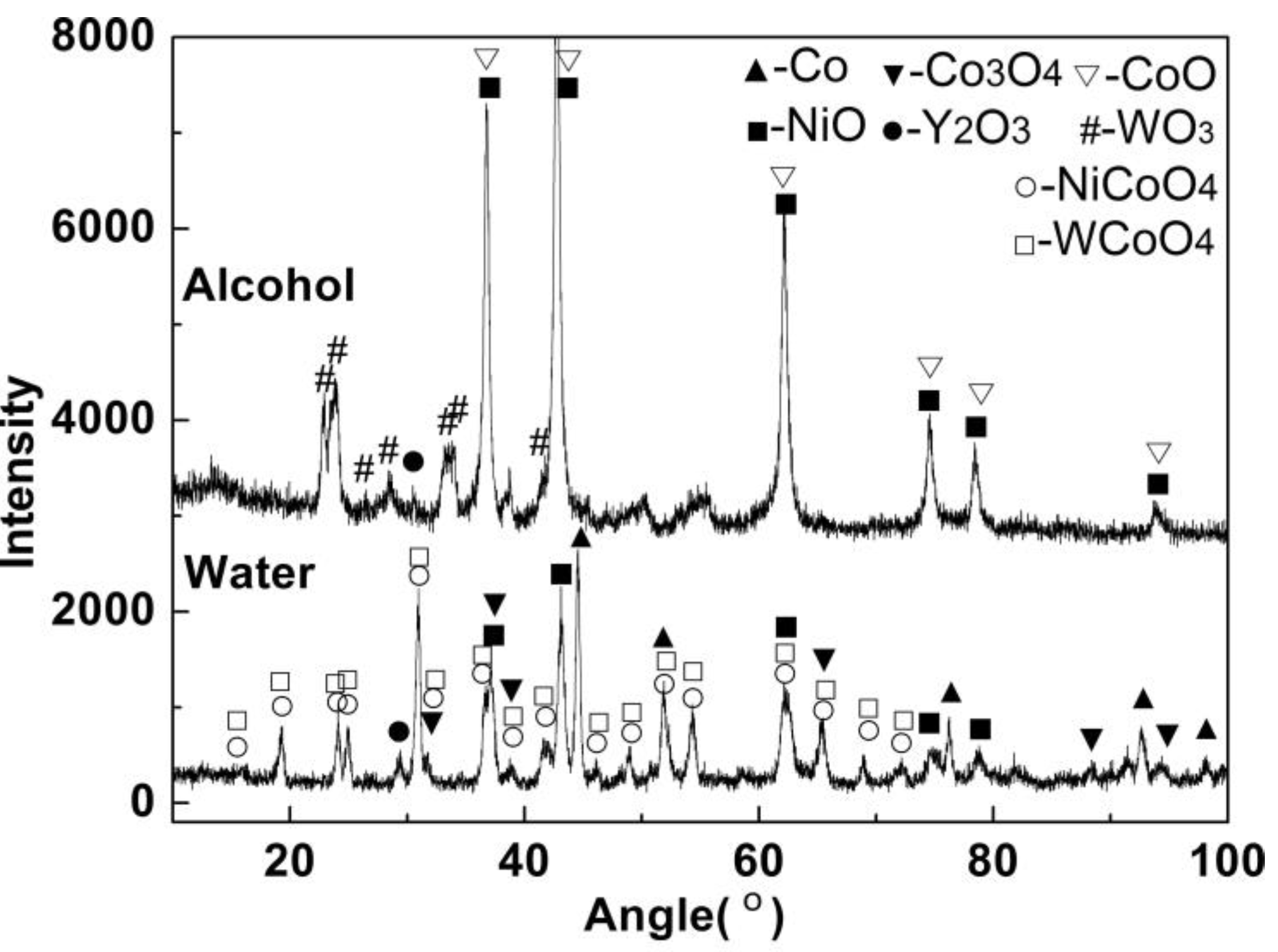

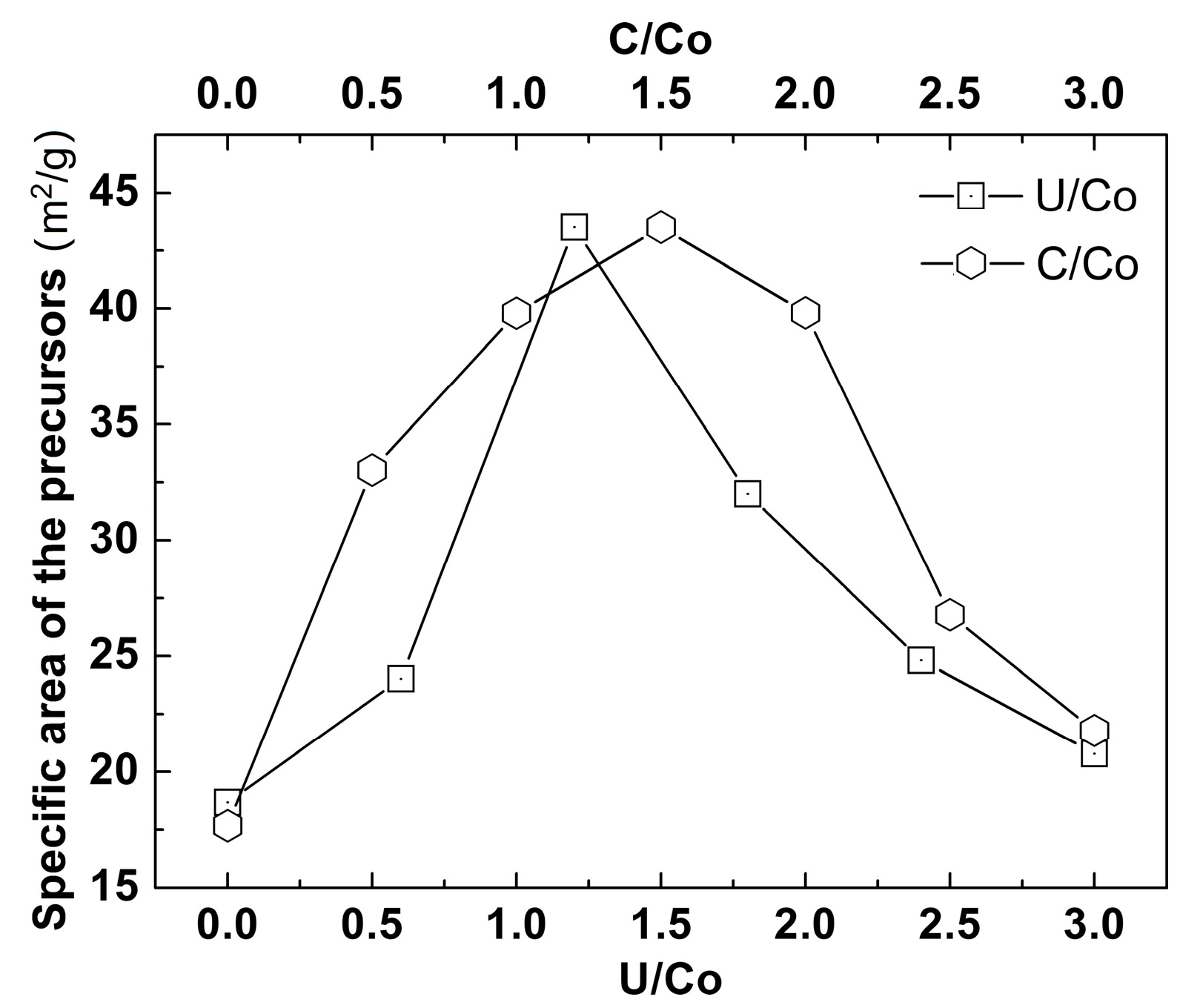

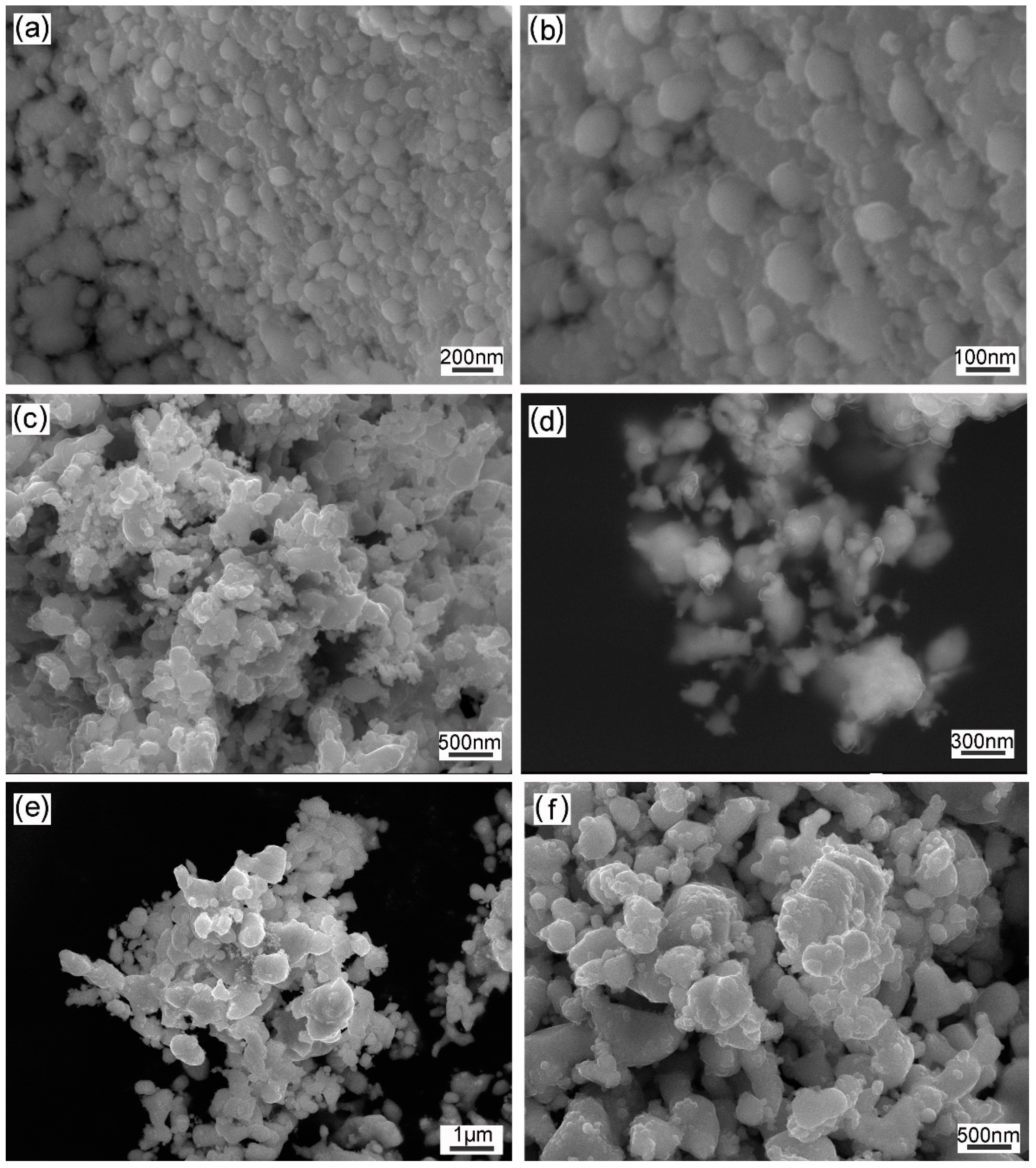

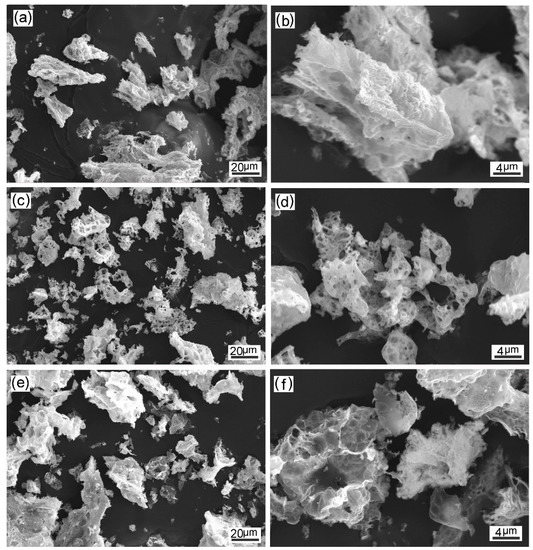

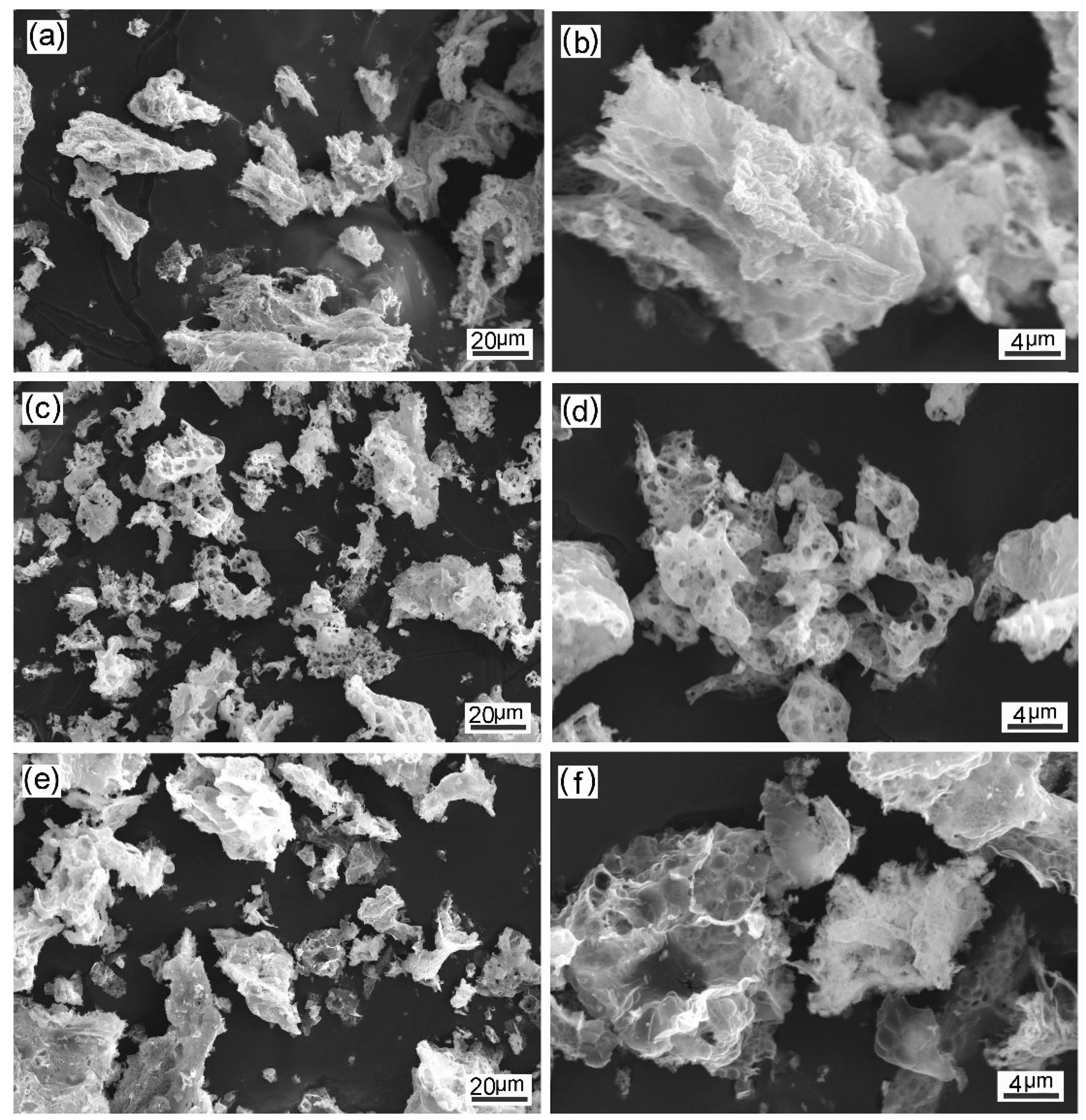

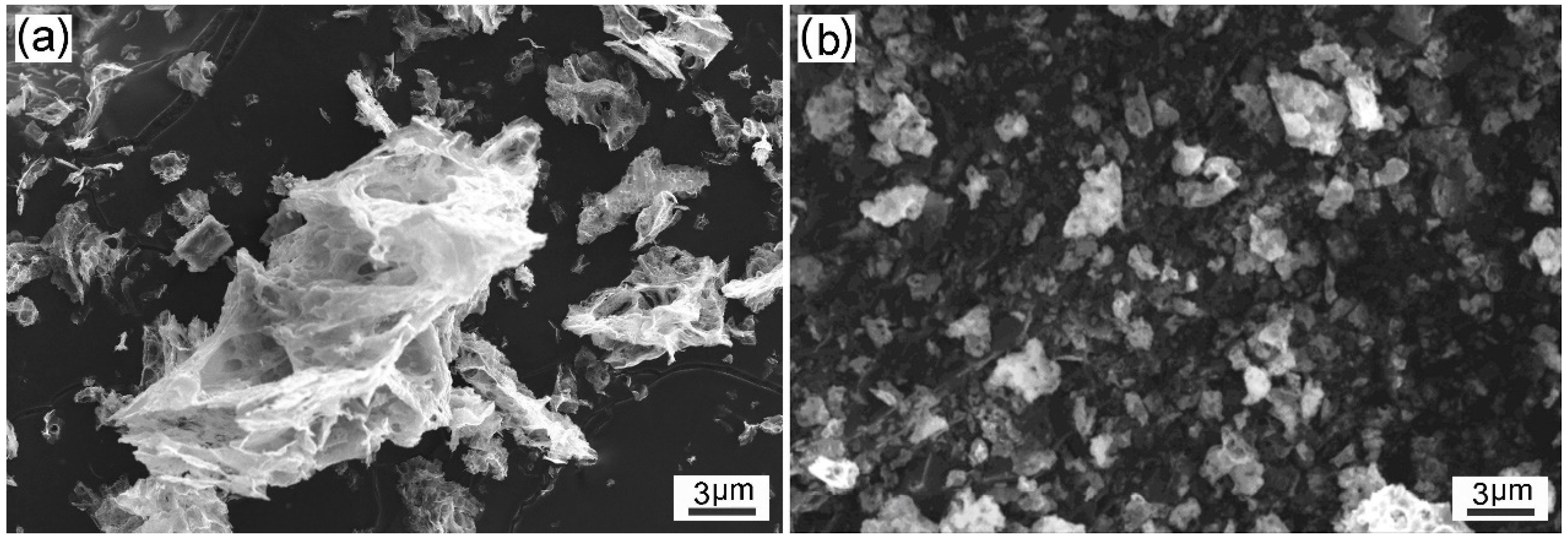

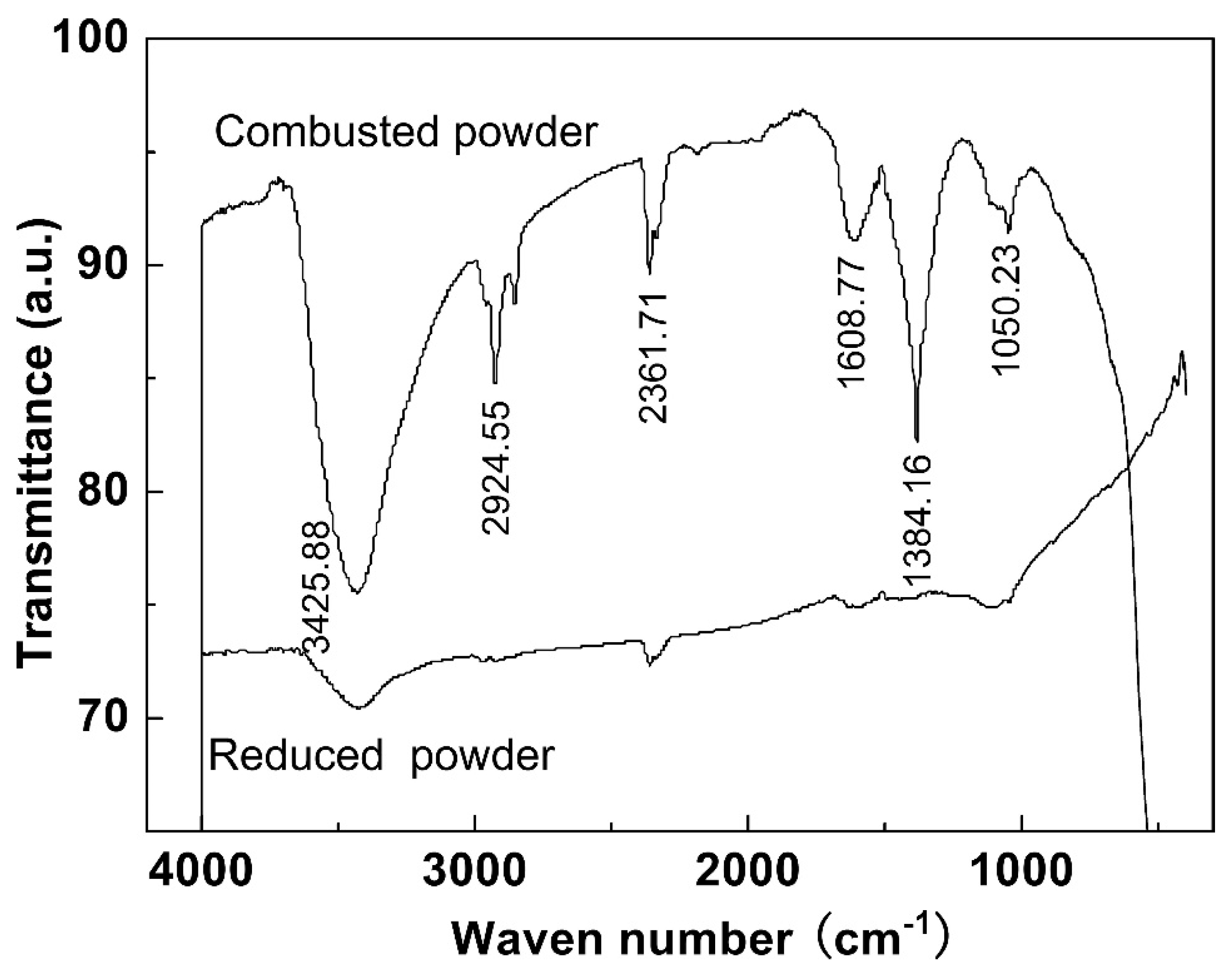

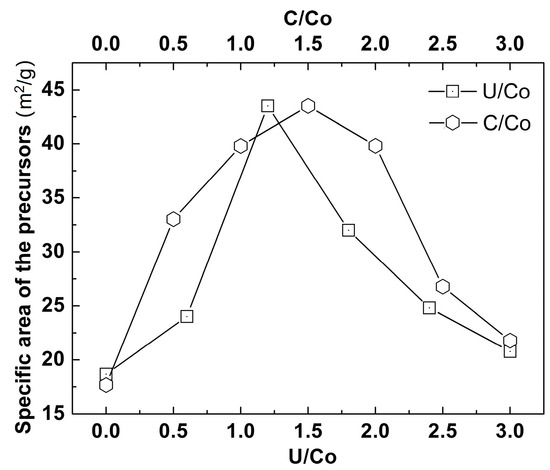

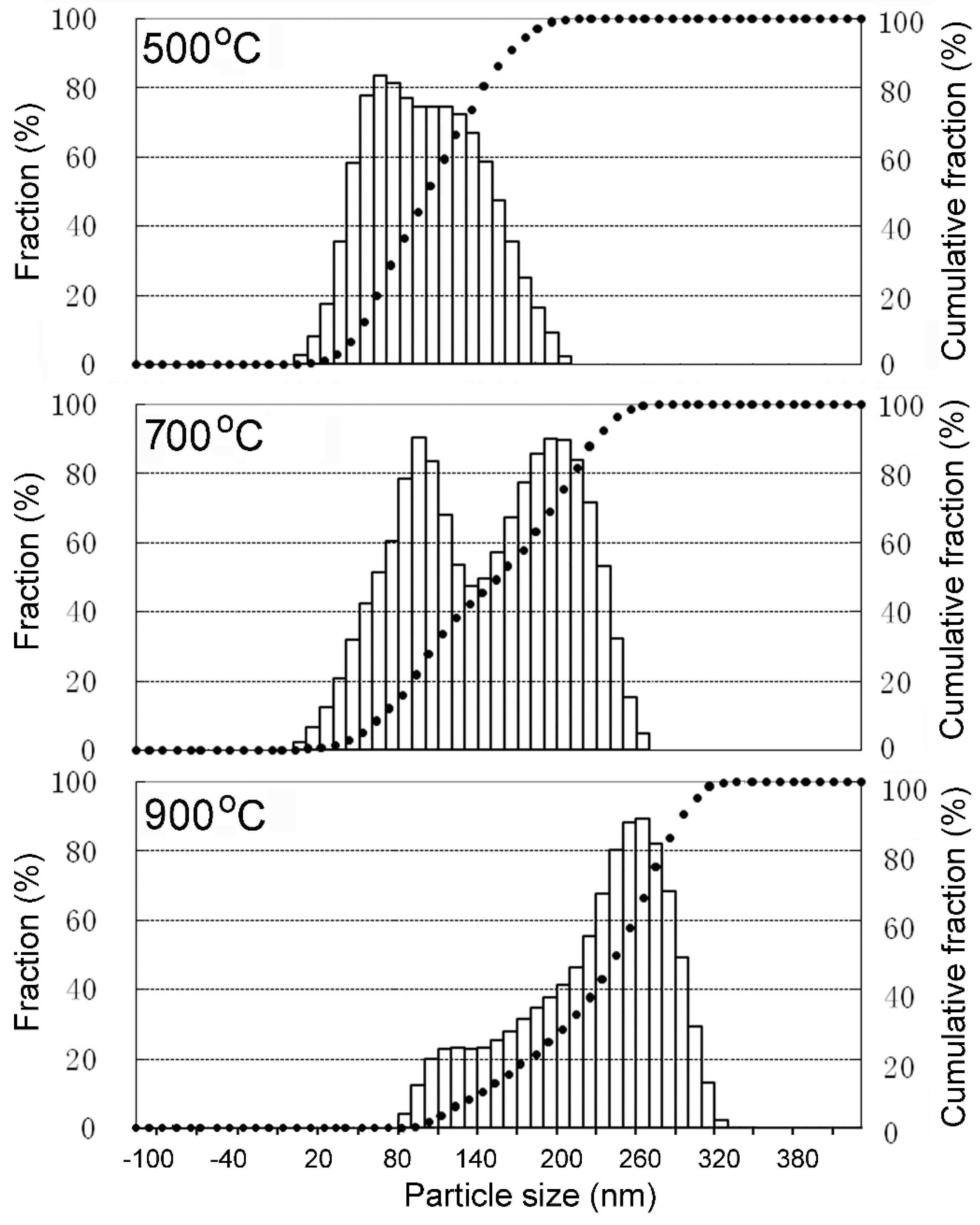

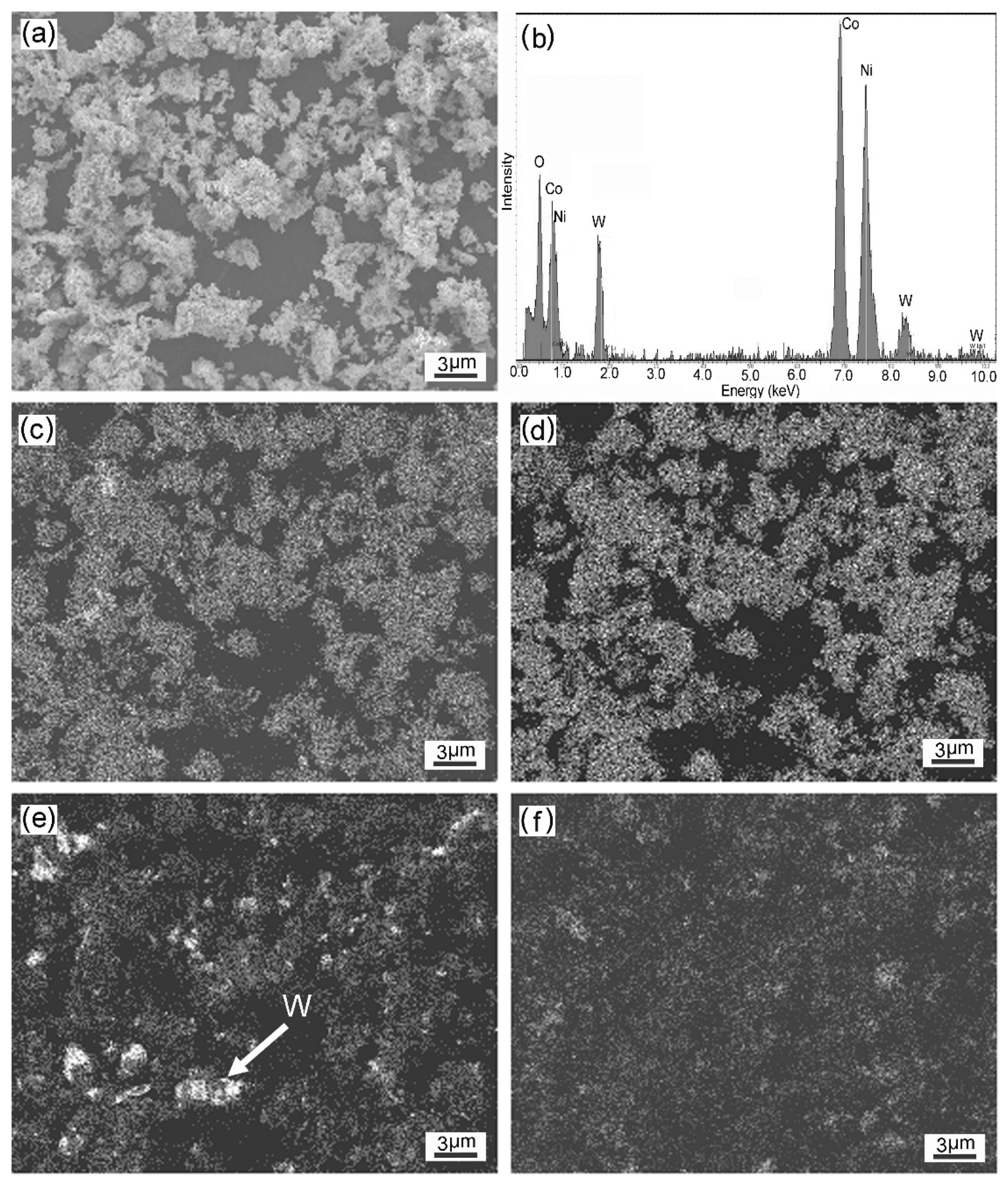

AbstractLow-temperature combustion synthesis was utilized to prepare Co-Ni-W-based oxide dispersion strengthened (ODS) alloy powder. The influence of the U/Co and C/Co ratios on the morphology and specific surface area of the combusted powder was investigated. Particle size, phase constituents, and element distribution of the resulting Co-Ni-W-based ODS alloy powder were characterized. The results indicate that insufficient urea induced no autocombustion reaction, while excess urea and glucose inhibited the combustion reaction. The optimized contents of urea and glucose were around U/Co = 1.2 and C/Co = 1.5, and the specific surface area of the powder reached 43.5 m2/g. The lamellar Co-Ni-W-based ODS alloy powder with particle sizes of 1–21 μm was the soft agglomeration of a high population of nanosized (65 nm) particles. These nanoparticles grew from 65 to 260 nm in the reduction temperature range of 700–900 °C. Homogeneous distribution of Co, Ni, W, and Y in the Co-Ni-W-based ODS alloy powder was achieved. View Full-Text
Share & Cite This Article
Zhang, L.; Liu, Y.; Chen, X.; Chen, Y.; Wang, S.; Qin, M.; Qu, X. Solution Synthesis of Co-Ni-W-Based ODS Alloy Powder. Materials 2019, 12, 1231.
Zhang L, Liu Y, Chen X, Chen Y, Wang S, Qin M, Qu X. Solution Synthesis of Co-Ni-W-Based ODS Alloy Powder. Materials. 2019; 12(8):1231.Chicago/Turabian Style
Zhang, Lin; Liu, Ye; Chen, Xiaowei; Chen, Yan; Wang, Shengxi; Qin, Mingli; Qu, Xuanhui. 2019. "Solution Synthesis of Co-Ni-W-Based ODS Alloy Powder." Materials 12, no. 8: 1231.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
