Next Article in Journal
A Pragmatic Bilayer Selective Emitter for Efficient Radiative Cooling under Direct Sunlight
Previous Article in Journal
The Directional Solidification, Microstructural Characterization and Deformation Behavior of β-Solidifying TiAl Alloy
Previous Article in Special Issue
Electroanalytical Performance of Nitrogen-Doped Graphene Films Processed in One Step by Pulsed Laser Deposition Directly Coupled with Thermal Annealing
Article Menu
Issue 8 (April-2) cover image

Export Article

Open AccessArticle
Materials 2019, 12(8), 1207; https://doi.org/10.3390/ma12081207

Enhanced CO2 Adsorption on Nitrogen-Doped Carbon Materials by Salt and Base Co-Activation Method

1,2, 1,2 and 1,*
1
State Key Laboratory for Oxo Synthesis and Selective Oxidation, Lanzhou Institute of Chemical Physics, Chinese Academy of Sciences, No.18, Tianshui Middle Road, Lanzhou 730000, China
2
University of Chinese Academy of Sciences, No. 19A, Yuquan Road, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Received: 20 February 2019 / Revised: 9 April 2019 / Accepted: 9 April 2019 / Published: 12 April 2019
(This article belongs to the Special Issue Element-Doped Functional Carbon-based Materials)
  |
PDF [3606 KB, uploaded 12 April 2019]
  |

Abstract

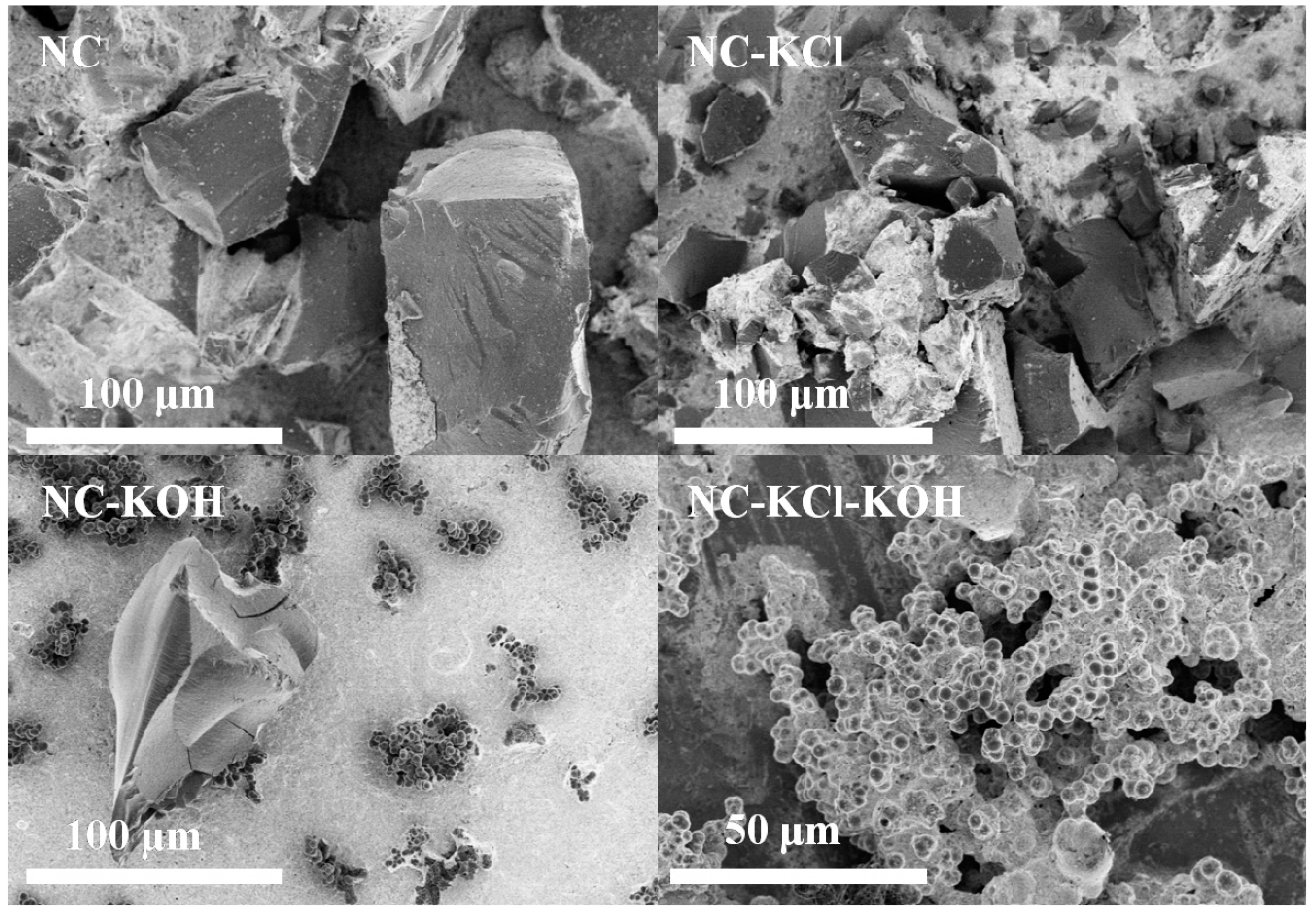

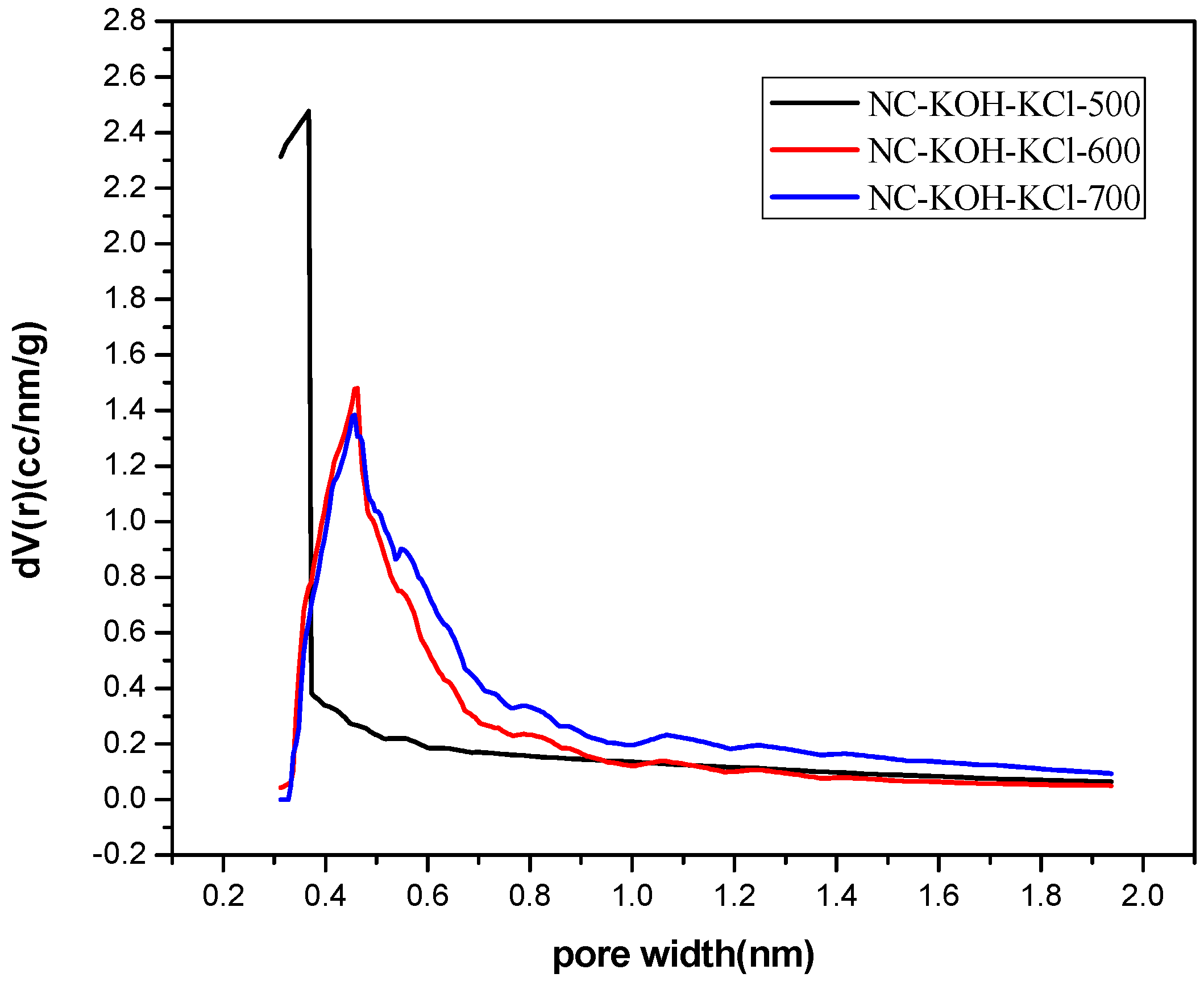

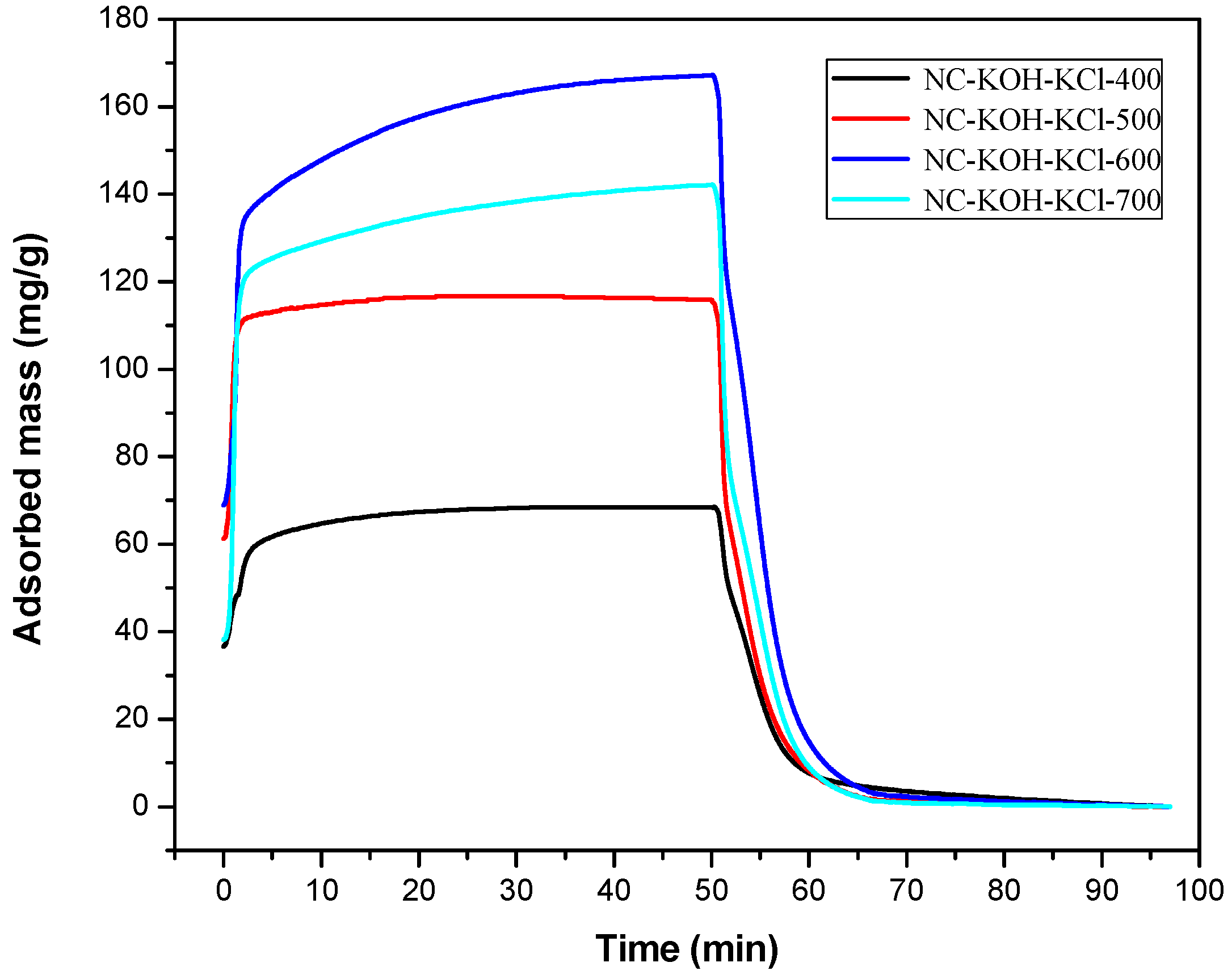

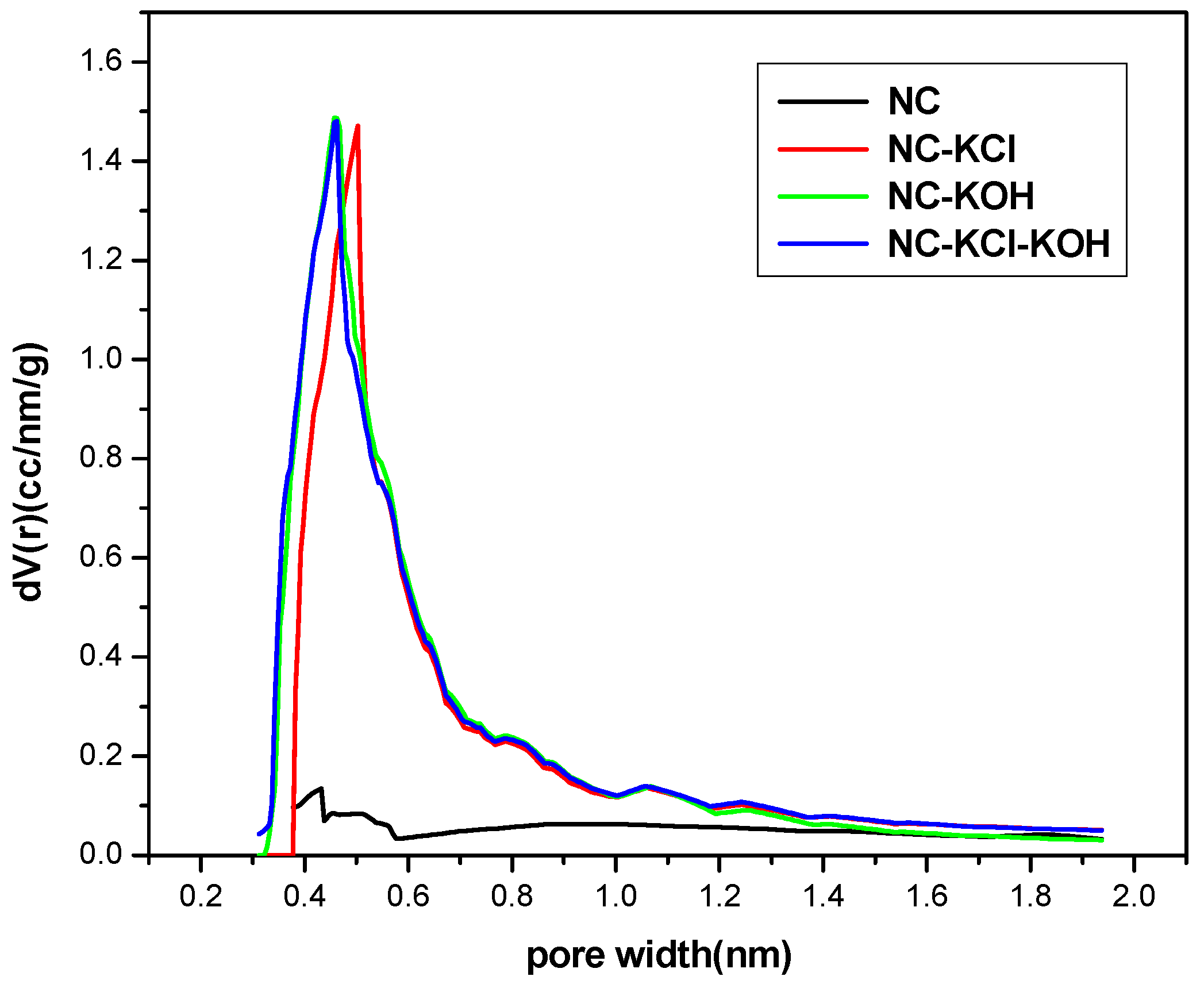

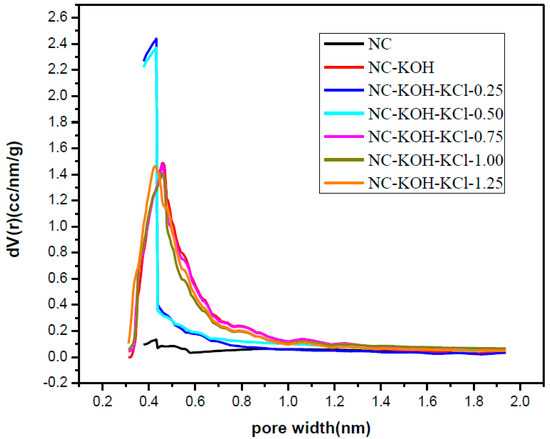

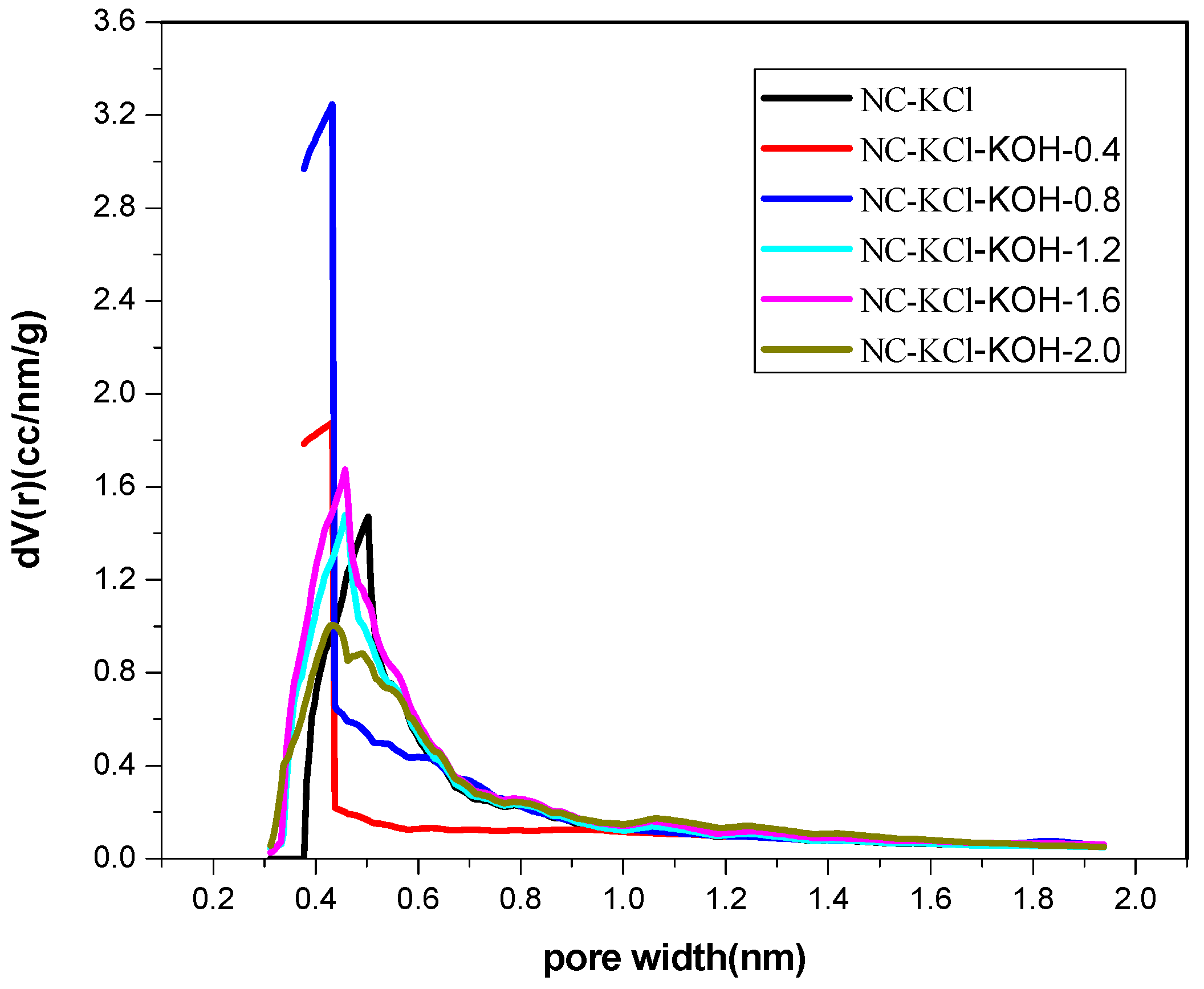

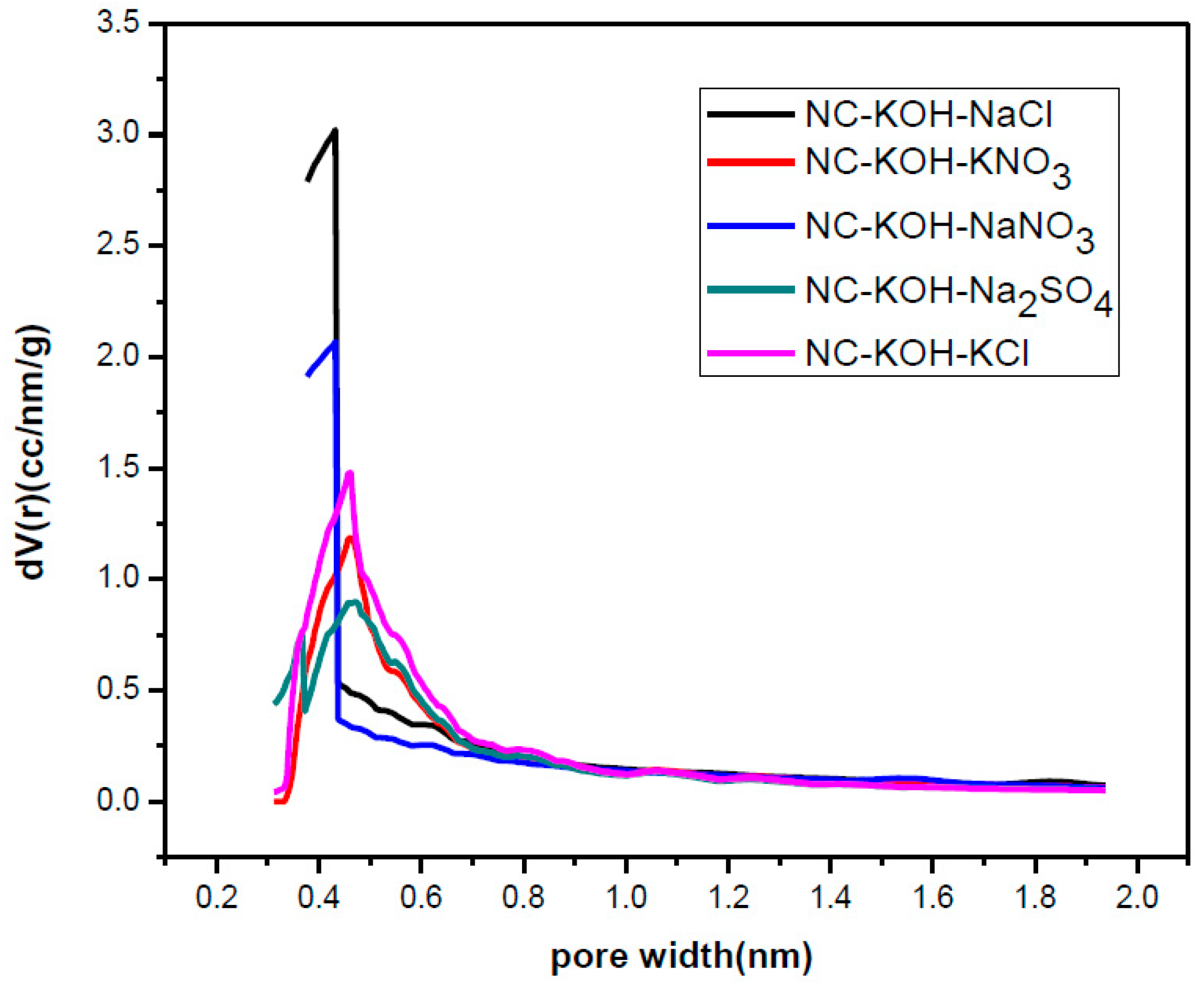

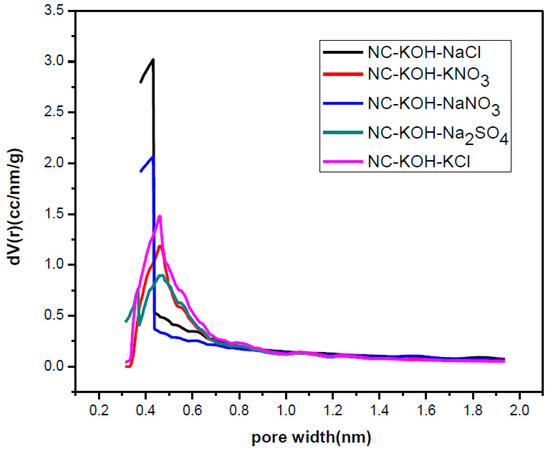

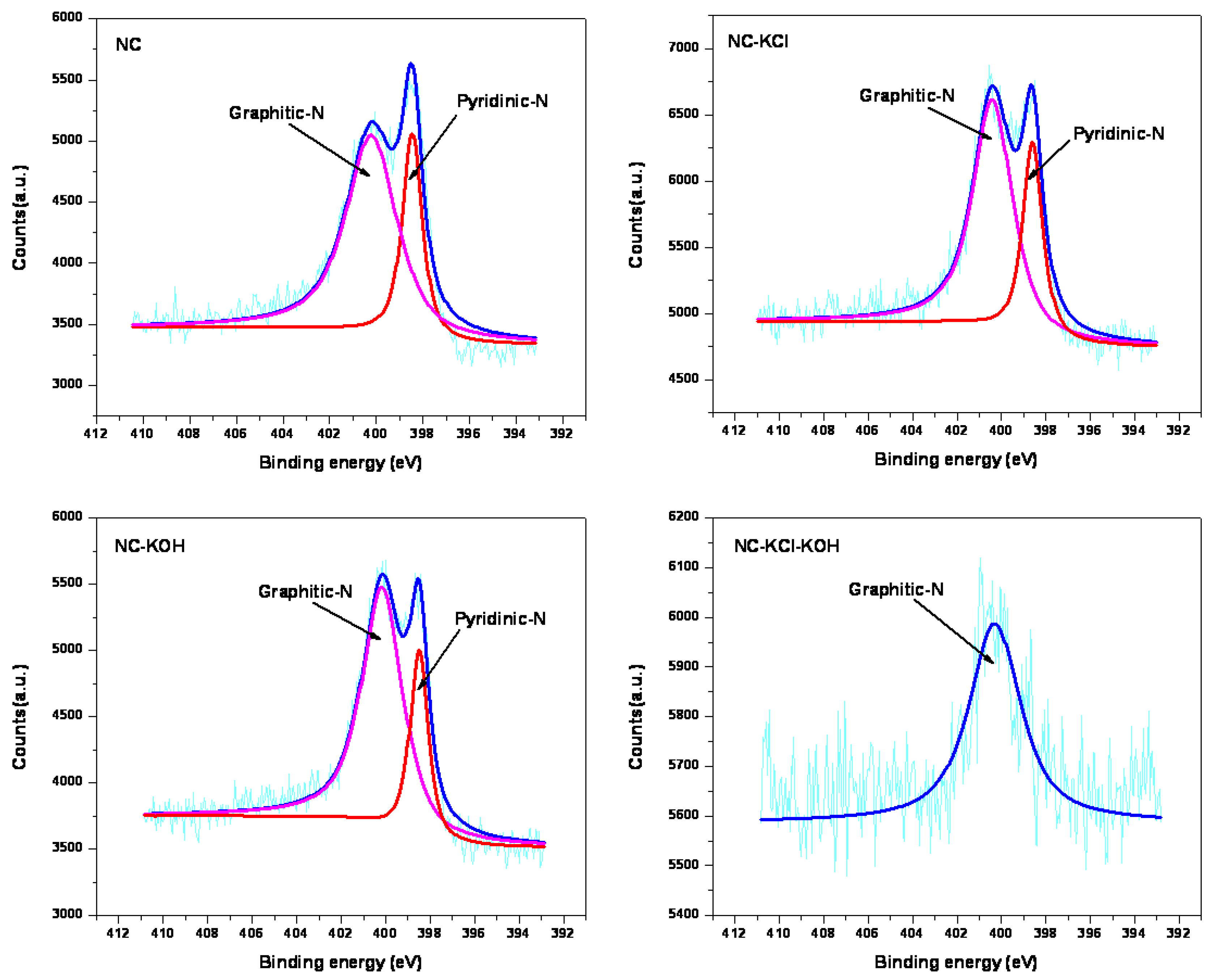

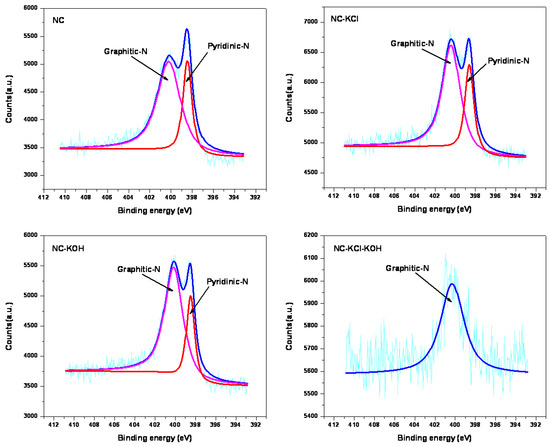

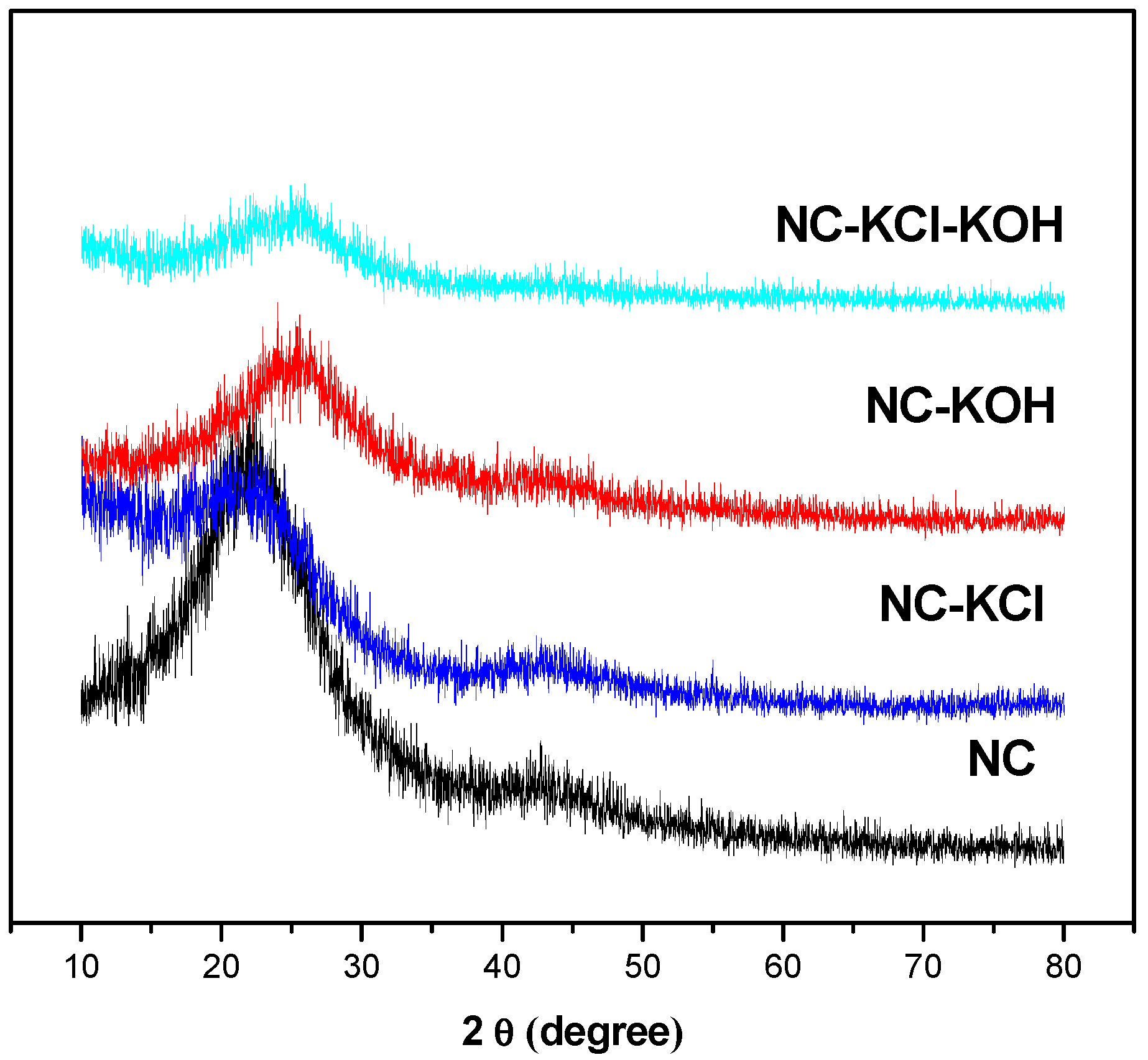

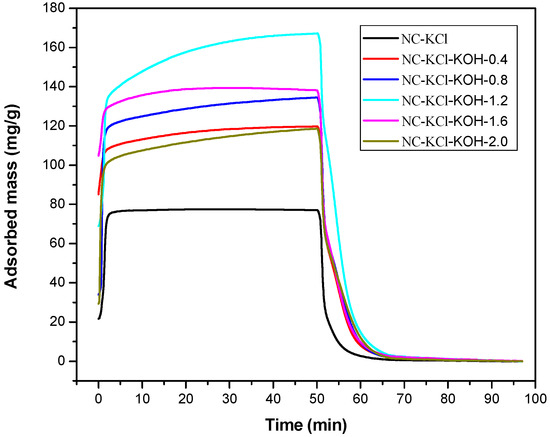

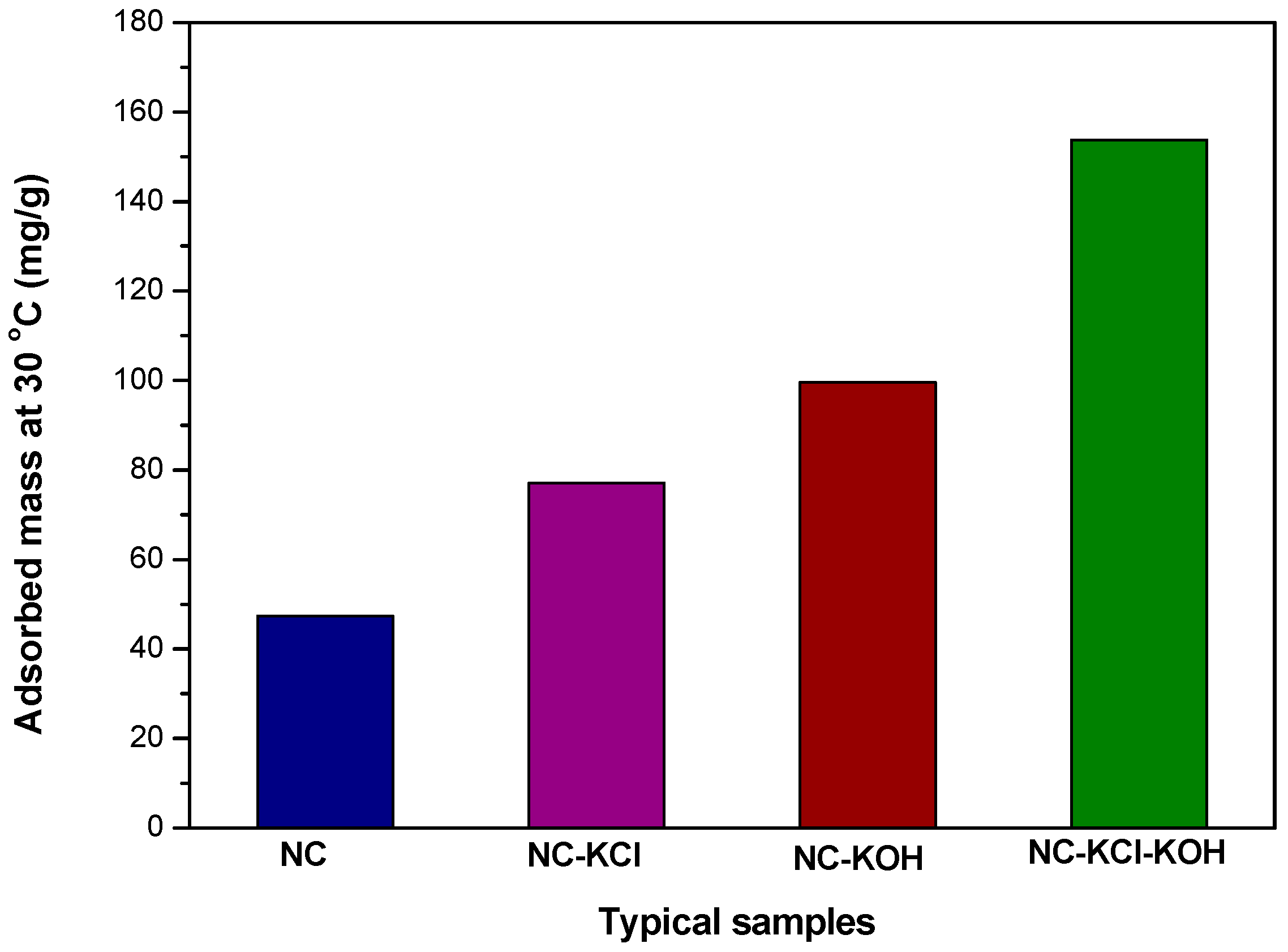

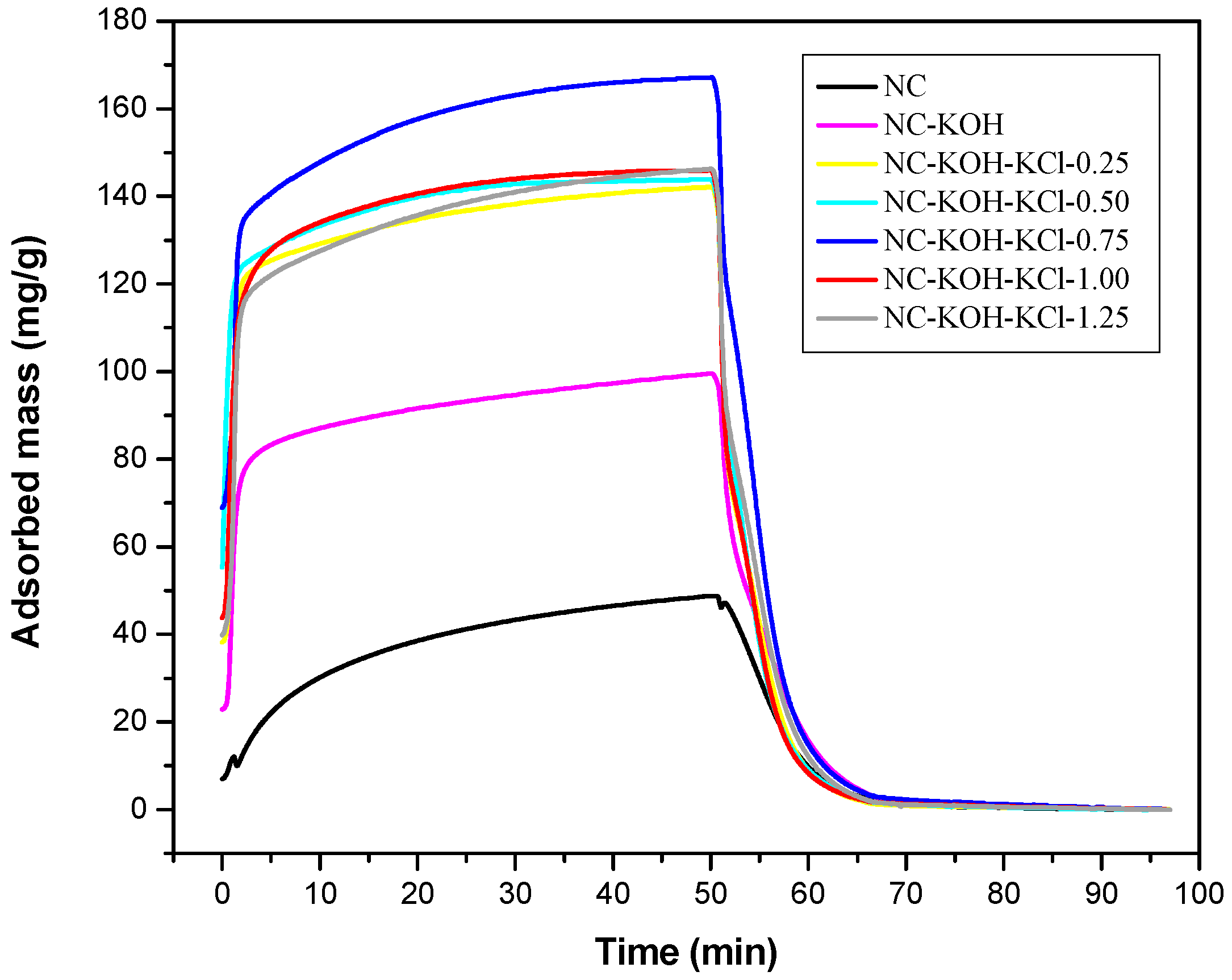

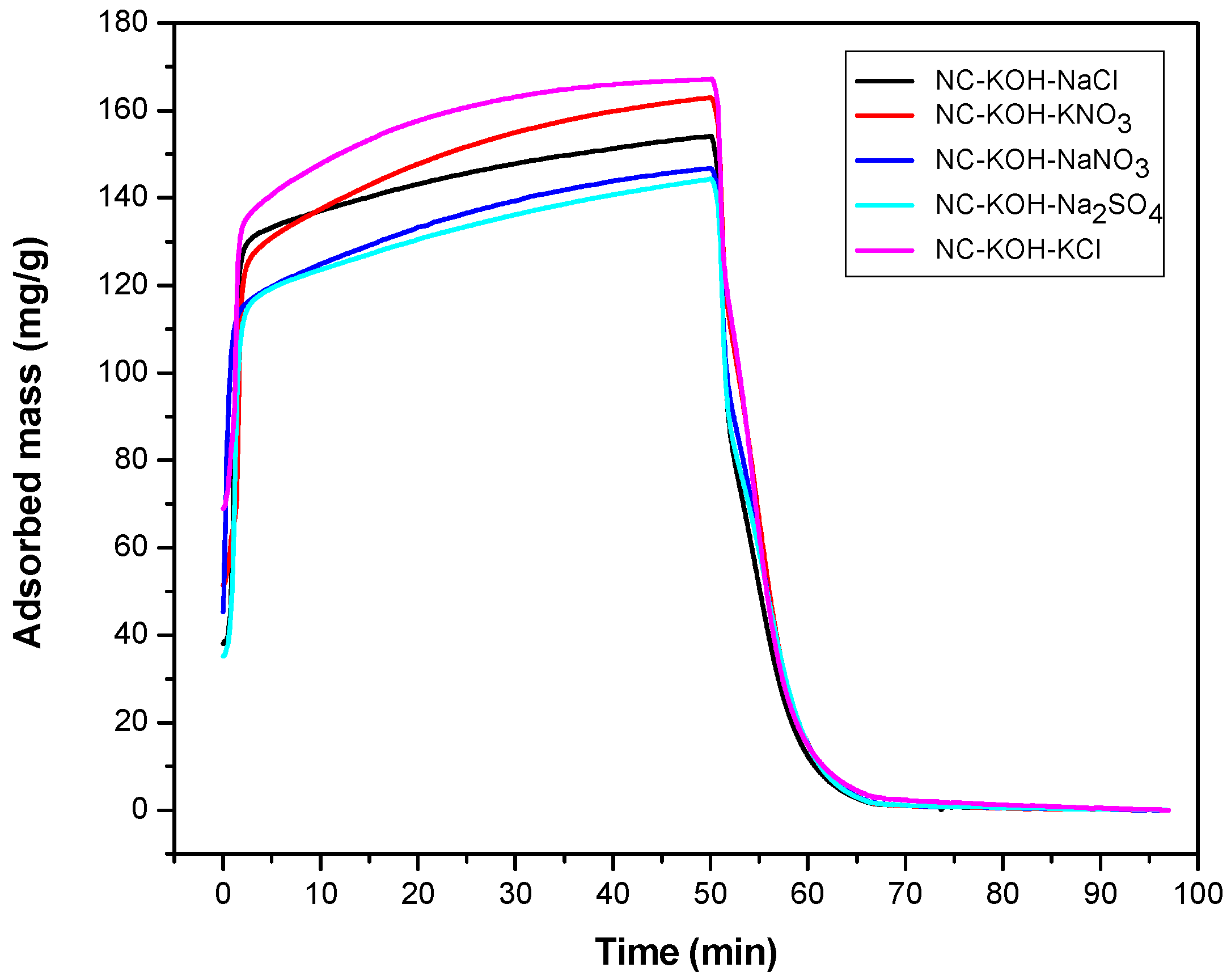

Nitrogen-doped carbon materials with enhanced CO2 adsorption were prepared by the salt and base co-activation method. First, resorcinol-formaldehyde resin was synthesized with a certain salt as an additive and used as a precursor. Next, the resulting precursor was mixed with KOH and subsequently carbonized under ammonia flow to finally obtain the nitrogen-doped carbon materials. A series of samples, with and without the addition of different salts, were prepared, characterized by XRD (X-ray powder diffraction), elemental analysis, BET (N2-adsorption-desorption analysis), XPS (X-ray photoelectron spectroscopy) and SEM (Scanning electron microscopy) and tested for CO2 adsorption. The results showed that the salt and base co-activation method has a remarkable enhancing effect on the CO2 capture capacity. The combination of KCl and KOH was proved to be the best combination, and 167.15 mg CO2 could be adsorbed with 1 g nitrogen-doped carbon at 30 °C under 1 atm pressure. The materials characterizations revealed that the introduction of the base and salt could greatly increase the content of doped nitrogen, the surface area and the amount of formed micropore, which led to enhanced CO2 absorption of the carbon materials. View Full-Text
Keywords: nitrogen-doped carbon materials; carbon dioxide adsorption; salt and base; co-activation method nitrogen-doped carbon materials; carbon dioxide adsorption; salt and base; co-activation method
Figures

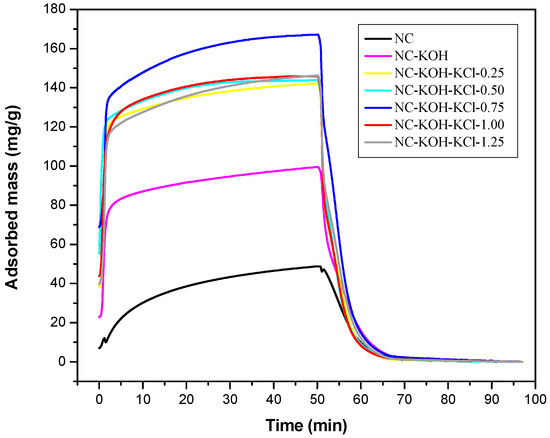

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wei, R.; Dai, X.; Shi, F. Enhanced CO2 Adsorption on Nitrogen-Doped Carbon Materials by Salt and Base Co-Activation Method. Materials 2019, 12, 1207.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
