Next Article in Journal
Progressive Failure Simulation of Notched Tensile Specimen for Triaxially-Braided Composites
Previous Article in Journal
Charge and Peptide Concentration as Determinants of the Hydrogel Internal Aqueous Environment
Previous Article in Special Issue
Tough and Elastic α-Tricalcium Phosphate Cement Composites with Degradable PEG-Based Cross-Linker
Article Menu
Issue 5 (March-1) cover image

Export Article

Open AccessArticle
Materials 2019, 12(5), 834;

Prefabricated and Self-Setting Cement Laminates

Department for Functional Materials in Medicine and Dentistry, University Hospital Würzburg, Pleicherwall 2, 97070 Würzburg, Germany
Department of Oral & Maxillofacial Plastic Surgery, University Hospital Würzburg, Pleicherwall 2, 97070 Würzburg, Germany
INNOTERE GmbH, Meissner Strasse 191, 01445 Radebeul, Germany
Author to whom correspondence should be addressed.
Received: 9 January 2019 / Revised: 19 February 2019 / Accepted: 8 March 2019 / Published: 12 March 2019
(This article belongs to the Special Issue Mineral Bone Cements: Current Status and Future Prospects)
Full-Text   |   PDF [28100 KB, uploaded 12 March 2019]   |

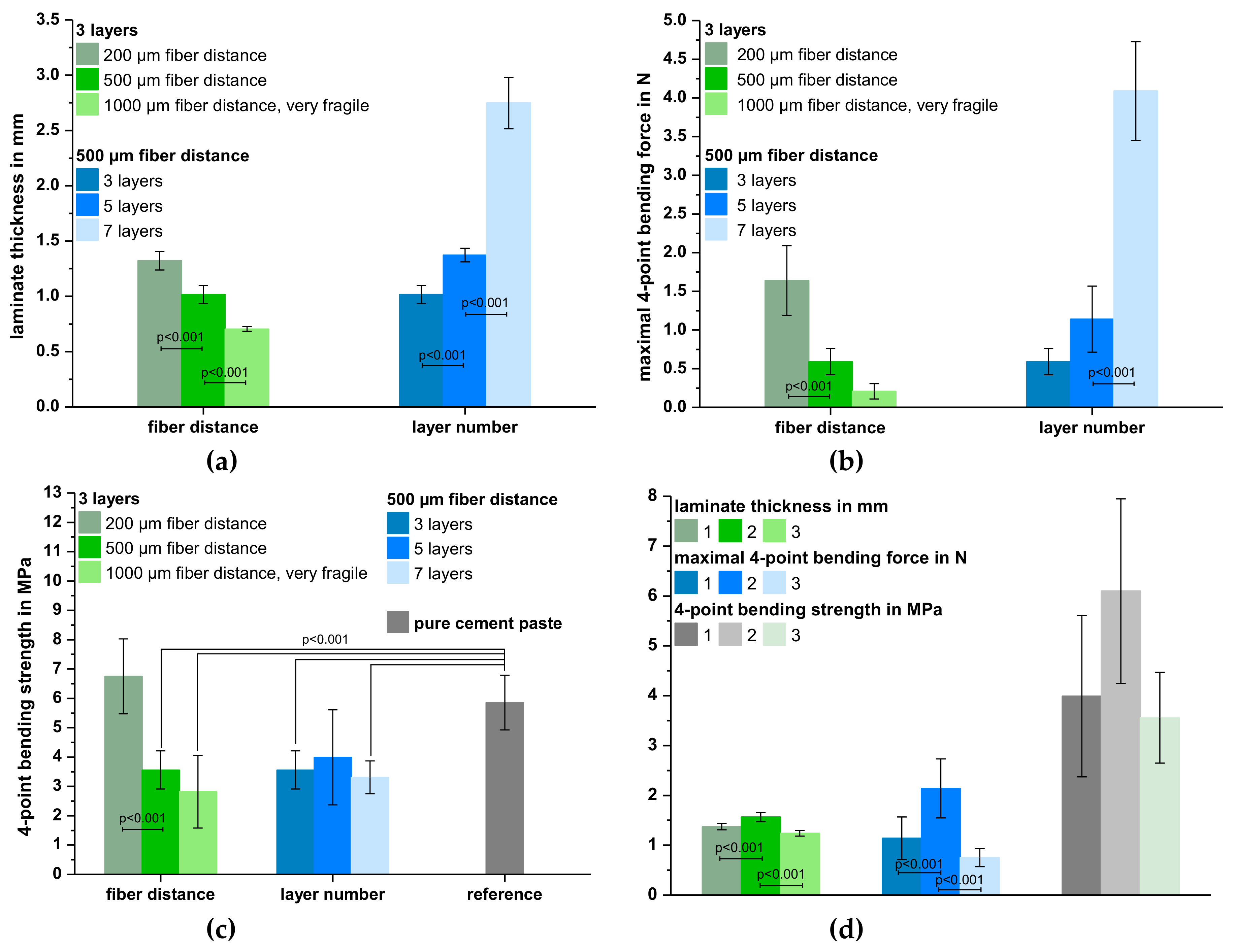

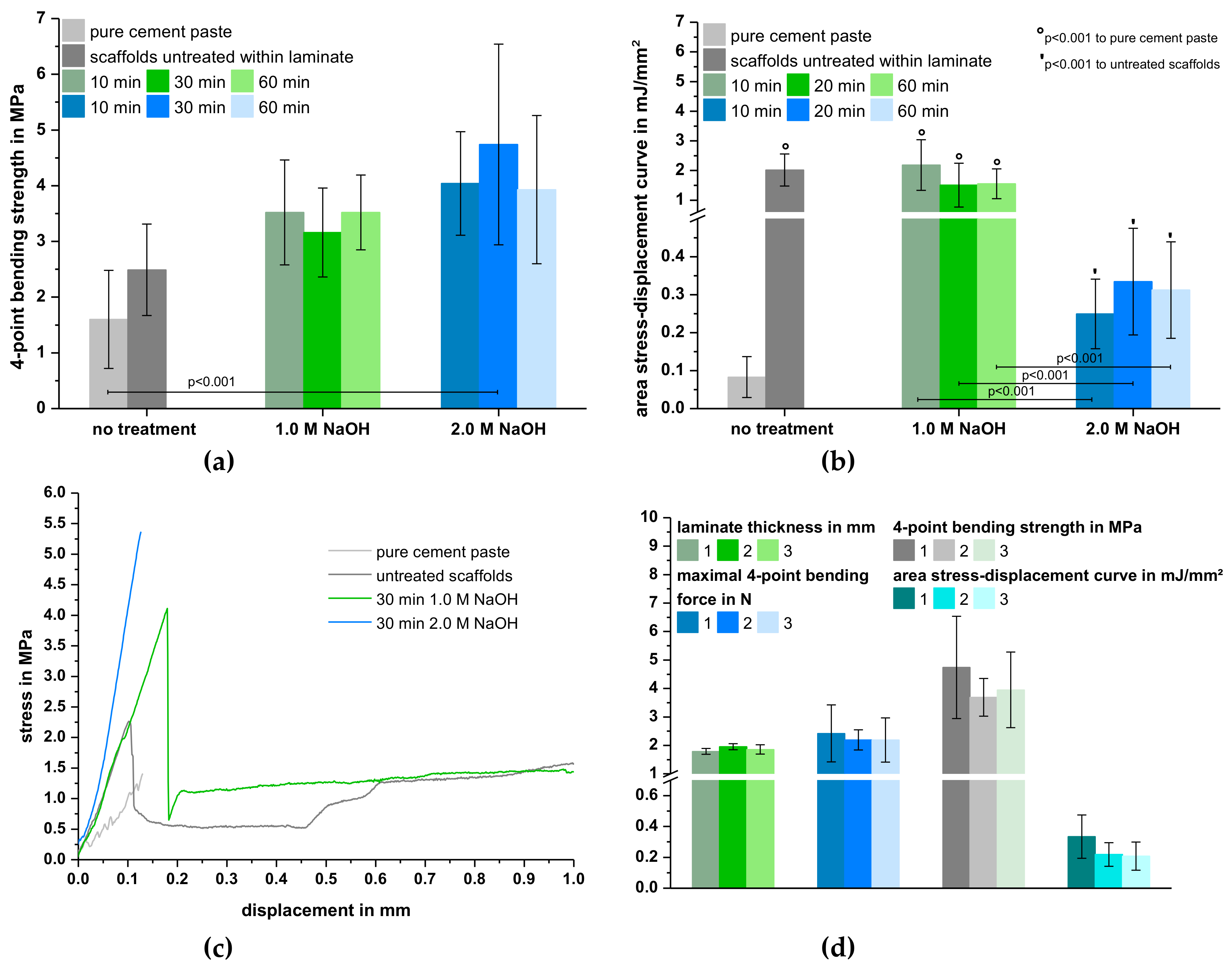

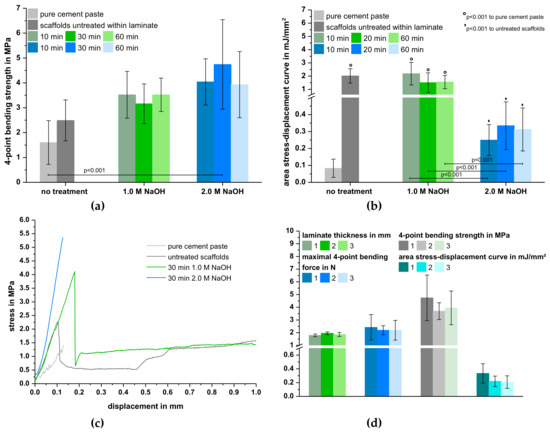

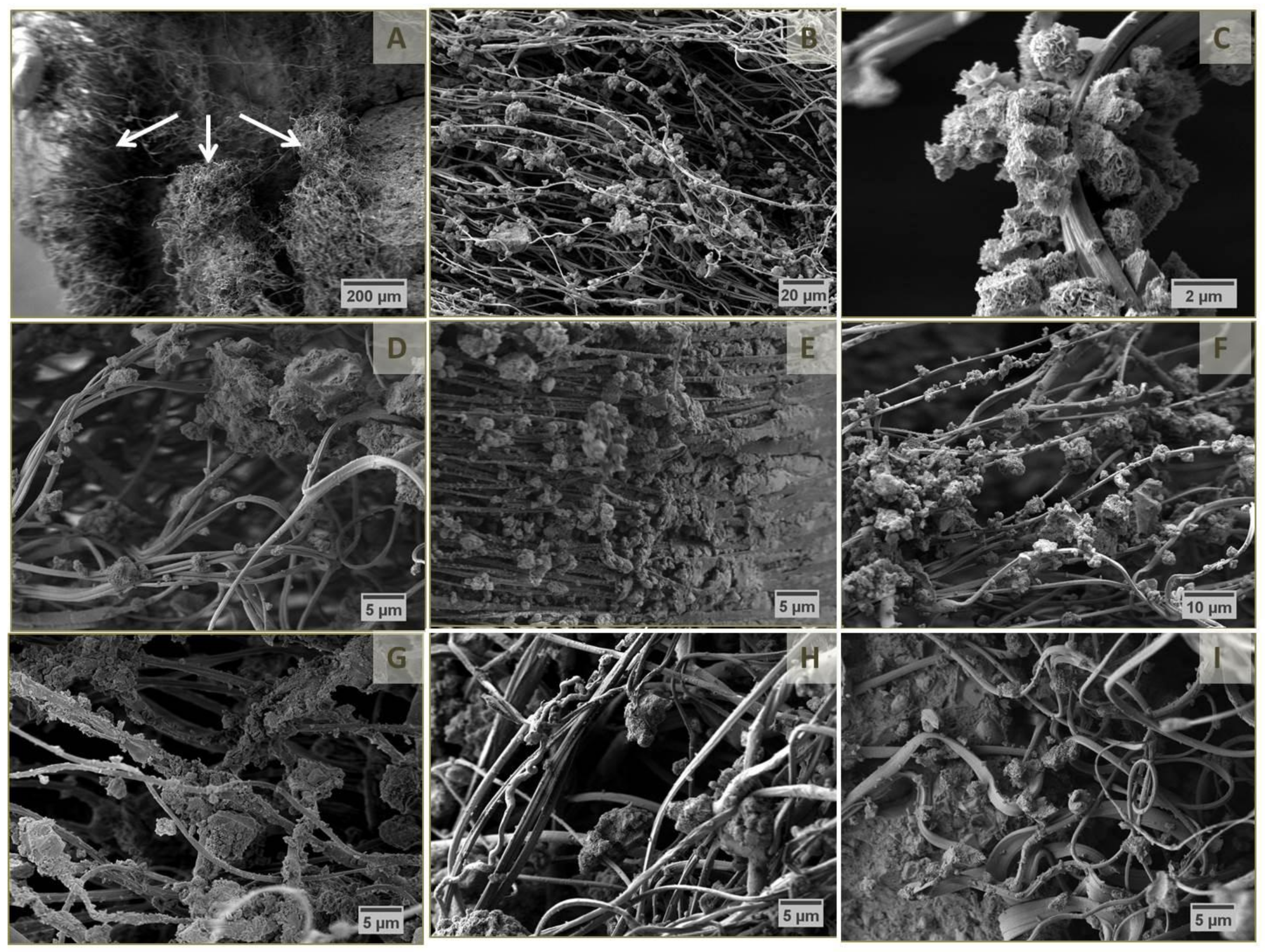

Polycaprolactone (PCL) fiber mats with defined pore architecture were shown to provide sufficient support for a premixed calcium phosphate cement (CPC) paste to serve as a flat and flexible composite material for the potential application in 2-dimensional, curved cranial defects. Fiber mats were fabricated by either melt electrospinning writing (MEW) or solution electrospinning (SES) with a patterned collector. While MEW processed fiber mats led to a deterioration of the cement bending strength by approximately 50%, due to a low fiber volume content in conjunction with a weak fiber-matrix interface, fiber mats obtained by solution electrospinning resulted in a mechanical reinforcement of the cement matrix in terms of both bending strength and absorbed fracture energy. This was attributed to a higher fiber volume content and a large contact area between nanosized fibers and cement matrix. Hydrophilization of the PCL scaffolds prior to lamination further improved composite strength and preserved the comparably higher fracture energy of 1.5 to 2.0 mJ/mm2. The laminate composite approach from this study was successful in demonstrating the limitations and design options of such novel composite materials. However, fiber-cement compatibility remains an issue to be addressed, since a high degree of hydrophilicity does not necessarily provoke a stronger interface. View Full-Text
Keywords: calcium phosphate cement; prefabricated paste; electrospinning, laminate calcium phosphate cement; prefabricated paste; electrospinning, laminate

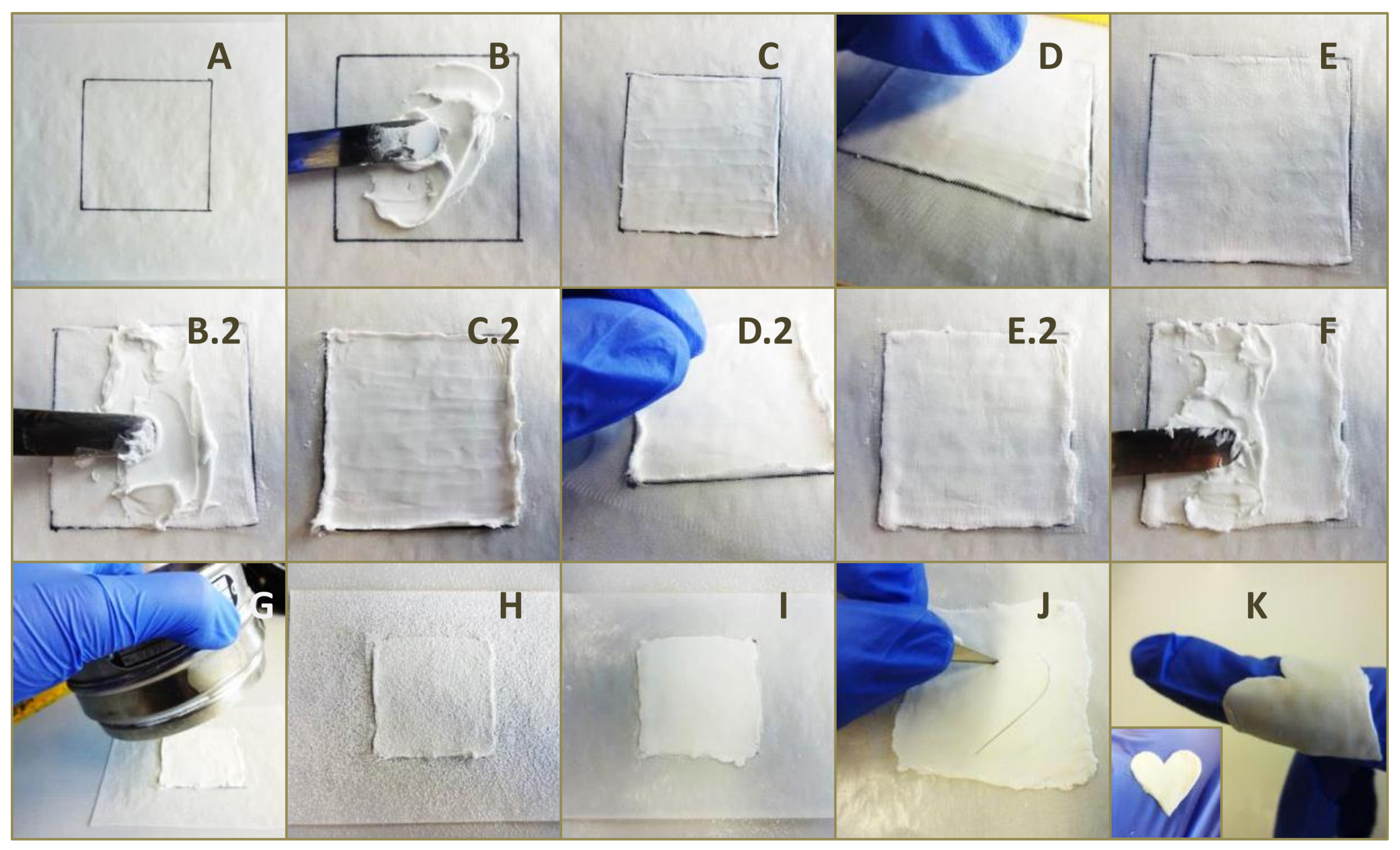

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Brückner, T.; Fuchs, A.; Wistlich, L.; Hoess, A.; Nies, B.; Gbureck, U. Prefabricated and Self-Setting Cement Laminates. Materials 2019, 12, 834.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
