Smart Control of Nitroxide-Mediated Polymerization Initiators’ Reactivity by pH, Complexation with Metals, and Chemical Transformations

by
Mariya Edeleva
1,2,
Gerard Audran
3,
Sylvain Marque
3 and
Elena Bagryanskaya
1,2,*
1
N. N. Vorozhtsov Institute of Organic Chemistry SB RAS, Pr. Lavrentjeva 9, Novosibirsk 630090, Russia
2
National Research University—Novosibirsk State University, Novosibirsk 630090, Russia
3
Aix Marseille Univ, CNRS, ICR, UMR 7273, case 551, Avenue Escadrille Normandie-Niemen, 13397 Marseille CEDEX 20, France
*
Author to whom correspondence should be addressed.
Materials 2019, 12(5), 688; https://doi.org/10.3390/ma12050688
Submission received: 24 January 2019 / Revised: 15 February 2019 / Accepted: 20 February 2019 / Published: 26 February 2019
(This article belongs to the Special Issue Novel Materials and Applicaitons by Controlled Radical Polymerization)
Browse Figures
Versions Notes

Abstract

:
Because alkoxyamines are employed in a number of important applications, such as nitroxide-mediated polymerization, radical chemistry, redox chemistry, and catalysis, research into their reactivity is especially important. Typically, the rate of alkoxyamine homolysis is strongly dependent on temperature. Nonetheless, thermal regulation of such reactions is not always optimal. This review describes various ways to reversibly change the rate of C–ON bond homolysis of alkoxyamines at constant temperature. The major methods influencing C–ON bond homolysis without alteration of temperature are protonation of functional groups in an alkoxyamine, formation of metal–alkoxyamine complexes, and chemical transformation of alkoxyamines. Depending on the structure of an alkoxyamine, these approaches can have a significant effect on the homolysis rate constant, by a factor of up to 30, and can shorten the half-lifetime from days to seconds. These methods open new prospects for the application of alkoxyamines in biology and increase the safety of (and control over) the nitroxide-mediated polymerization method.

Graphical Abstract

1. Introduction

Nitroxide-Mediated Polymerization. The General Concept of “Smart Alkoxyamines”

Alkoxyamines are adducts of stable nitroxides with C-centered radicals. Invented as an initiator for nitroxide-mediated polymerization (NMP), [1,2] nowadays alkoxyamines find a wide range of applications including tin-free organic radical chemistry, [3] as initiators for radical cyclization, [4] radical addition reactions, [5,6] creation of self-healing polymers, [7] optoelectronic materials, [8] and encoding systems, [9] and in biomedicine, as theranostic agents. [10] The majority of applications involve the ability of alkoxyamines to undergo C–ON bond homolysis after heating, thus releasing nitroxide and an alkyl radical. Therefore, factors affecting stability of the C–ON bond are important. An example of such significance is given by Chauvin et al., [11] who studied the influence of the initiation rate on the regime of NMP. As they demonstrated, a fast initiation rate guarantees rapid achievement of the controlled mode of polymerization.
The principal application of alkoxyamines is initiation of NMP because the equilibrium between unimolecular and macromolecular alkoxyamines and nitroxides and C-centered radicals is the main process in this type of polymerization. The mechanism of NMP is based on the phenomenon known as the “persistent radical effect” discovered by Fischer and Fukuda. Due to this effect, at the very first steps of polymerization, a small excess of nitroxides over C-centered radicals is formed. This makes the reaction of the nitroxide and polymer radical recombination predominant and reduces the impact of the cross-coupling reaction. As a result, the majority of polymer chains contain the alkoxyamine function as an end group, thus making the reinitiation reaction possible so that the polymer chains become “living”. Another important feature of NMP is a direct linear relation between monomer conversion and the molecular weight of the polymer obtained. Along with low toxicity of nitroxides, the two abovementioned key properties make NMP attractive for the synthesis of polymers with complex structures and composition. The detailed description of the mechanism and kinetics of controlled radical polymerization is well described in the following papers and reviews: [12,13,14,15,16].

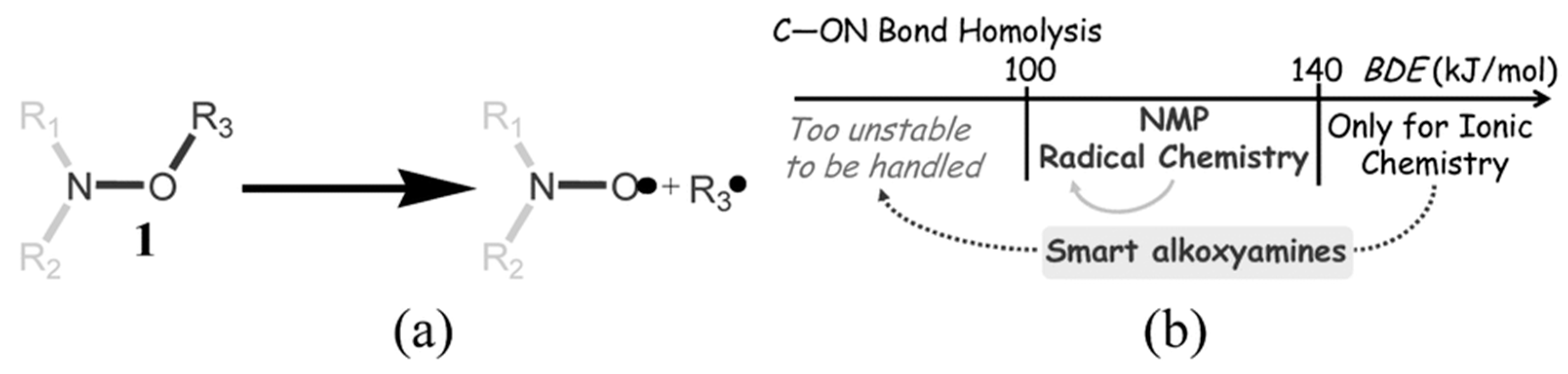

The reaction of C–ON bond homolysis is unimolecular (Figure 1a); thus, for the sake of simplicity, it is customary to compare the activation energies of this reaction among different types of alkoxyamines. The vibration factor was determined and turned out to be 2.4 × 1014 s−1 [17] Depending on the structure, alkoxyamines can be either very labile with Ea below 100 kJ/mol and half-lifetime in the range of minutes or stable with Ea more than 140 kJ/mol, in which case, alkoxyamines can hardly undergo homolysis even at elevated temperatures. The optimal range of activation energies for alkoxyamines suitable for NMP is between 100 and 140 kJ/mol [10]
Because alkoxyamines are employed as an initiator for polymerization, they should fulfill all the safety requirements for this type of compounds [19]. On the other hand, “fast” alkoxyamines perform better in NMP. Consequently, an “ideal” alkoxyamine must possess two antagonistic properties, that is be safe to handle and decompose fast when it is needed as a polymerization initiator. This review describes the concept of so-called smart alkoxyamines, which can change their reactivity after an external trigger by converting from “stable and safe” to “fast and effective” (Figure 1b) [18].

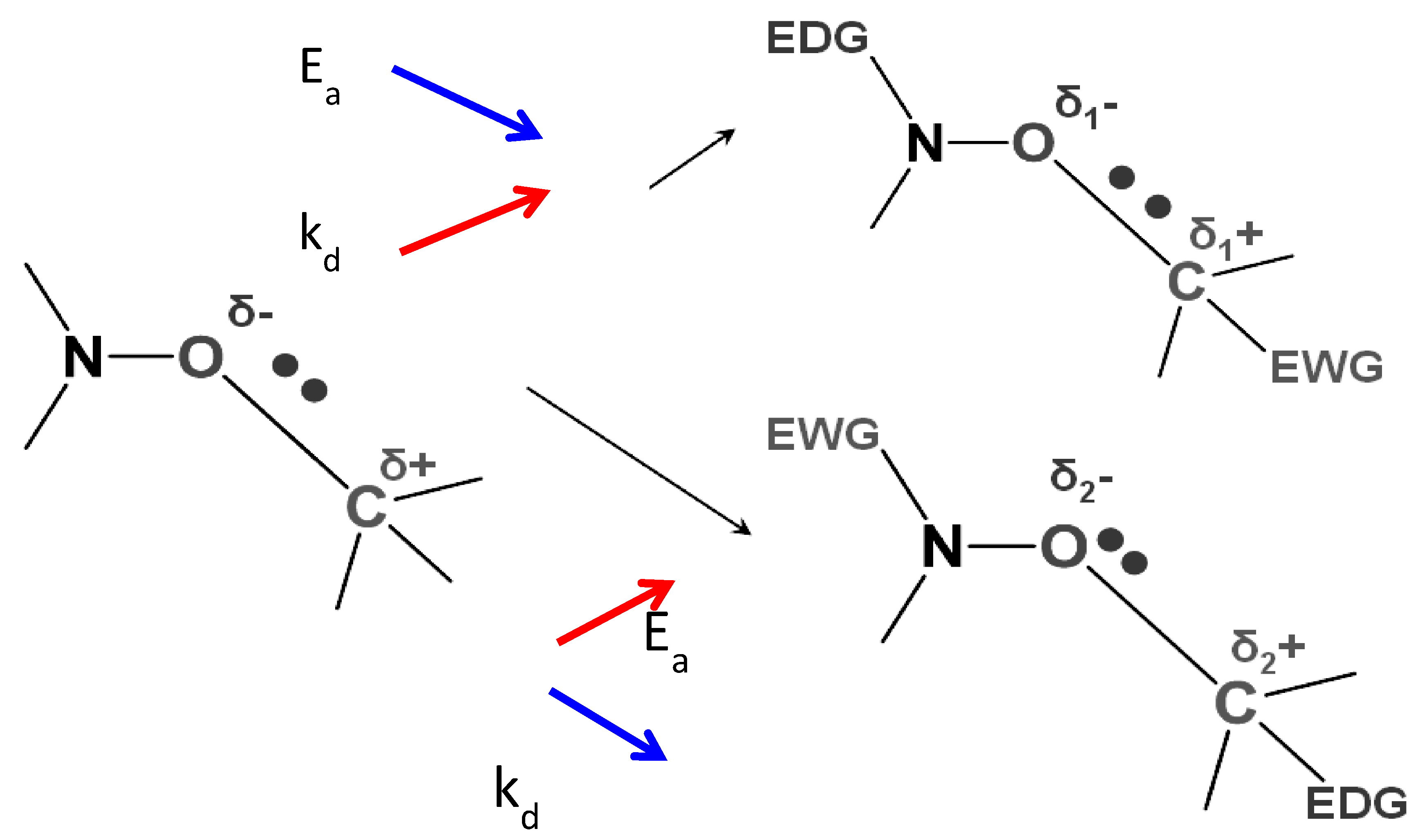

There are several factors that influence reactivity of alkoxyamines. Among them, electron-withdrawing and electron-donating properties of substituents are of special importance in terms of the influence on reactivity of the C–ON bond. Because it is polar with δ− located on the oxygen atom, all electronic effects that reduce polarity of the bond should favor homolysis (Figure 2). That is, if an electron-withdrawing substituent is introduced into the alkyl part, one can expect the decay of homolysis activation energy and vice versa.
In this subsection, we review possible scenarios related to reversible switching of electron-donating properties of substituents described in the literature. The factors that induce changes in polarity without affecting alkoxyamine substituents are described as well.

2. Chemical Activation of C–ON Bond Homolysis

Chemical activation did not attract much interest during the first decade despite the unexpected efficiency of NMP of vinylpyridine under acidic conditions as reported by Fischer et al. in 1999. [20] A decade later, Marx et al. [21] and Mazarin et al. [22] reported a possible occurrence of chemical activation but did not provide experimental evidence.
Simultaneously, a new concept of pH-switchable agents for reversible addition−fragmentation chain transfer (RAFT) polymerization was introduced (Structure 2 in Figure 3) [23,24]. It was shown that the activation and deactivation parameters of RAFT agents can vary after protonation of functional groups in dithiocarbamates serving as control agents. By means of this effect, the polymerization of so-called more activated monomers and less activated monomers can be performed in a controlled manner with the same initiator or controlling agent. This strategy offers a facile route to the preparation of block-copolymers. A similar concept can be applied to control the reactivity of alkoxyamines.
In this subsection, we will consider the experimental and theoretical evidence of the effect of protonation on C–ON bond homolysis in alkoxyamines. Given that alkoxyamines consist of two parts, there are two opportunities for protonation or deprotonation, which have opposite effects of C–ON bond homolysis, such as the protonation of the alkyl and nitroxyl part. In the text below, we will go through each of these options and consider different influences on reactivity that are promoted after protonation.

2.1. Activation by Protonation or Deprotonation

2.1.1. Protonation of the Alkyl Moiety

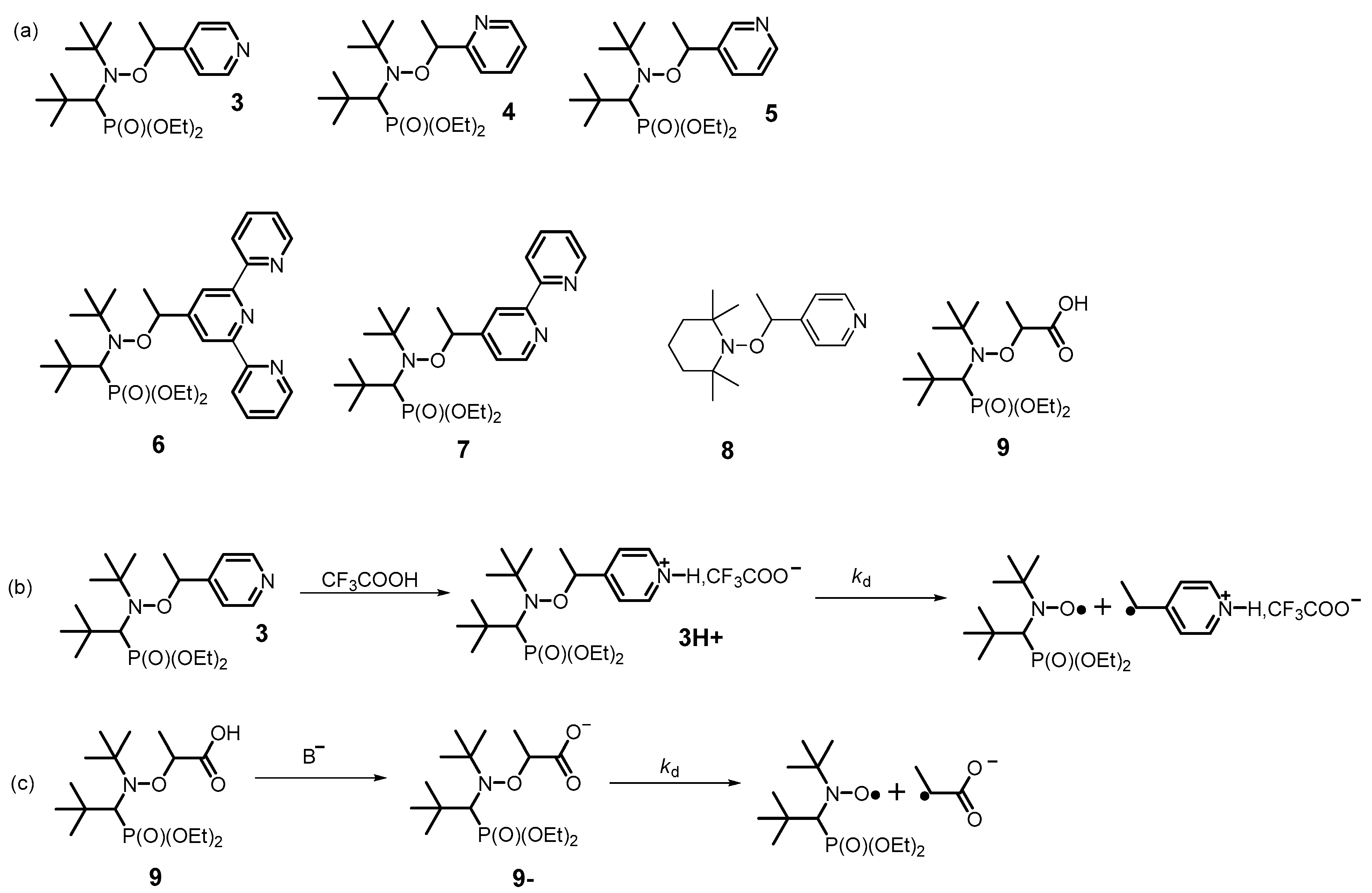

The very first experimental report on the activation of C–ON bond homolysis by protonation of the alkyl moiety (Figure 4) was published by Brémond and Marque [25] in 2011, where they compared activation energies of nonactivated alkoxyamine 3 (Ea = 123.0 kJ/mol) and its protonated form 3H+ (Ea = 115.0 kJ/mol). As a result, they observed a 10-fold increase in kd after the protonation of 3 (Figure 4).
The same has been observed during protonation of ortho-isomer 4 [26] and meta-isomer 5 [27] though the latter has manifested a smaller effect, as expected (vide infra). It should be noted that when terpyridine or bipyridine is the substituent of alkyl fragments (as in 6 and 7), the effect of protonation also enhances kd. Furthermore, protonation has been investigated for alkoxyamine 8, which is composed of TEMPO as a nitroxyl moiety and ethylpyridine as an alkyl part. The deprotonated alkoxyamine has a threefold lower kd than the protonated one does [28].
The effect of the alkyl moiety deprotonation was first investigated with alkoxyamine 9, [29] which contains an alkyl moiety carrying a carboxylic function. The differences in Ea between carboxylic alkoxyamine 9 and its deprotonated forms carboxylate alkoxyamines 9− are not significant: less than 2 kJ/mol (Figure 4).

2.1.2. Protonation of the Nitroxyl Part

As mentioned above, the protonation of alkyl and nitroxyl parts has different effects on C–ON bond homolysis. In this subsection, we consider the influence of nitroxyl moiety protonation on Ea of homolysis.

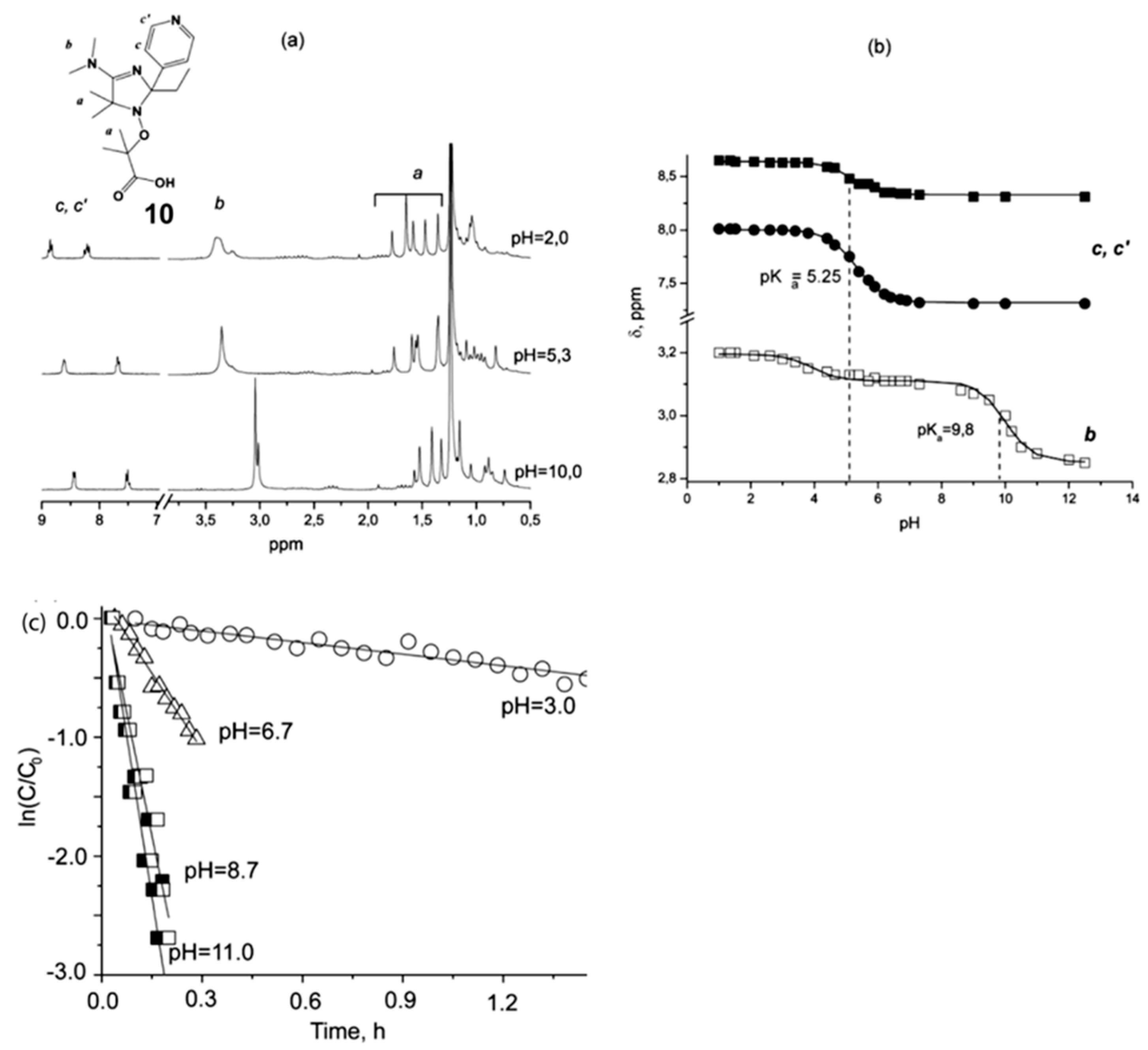

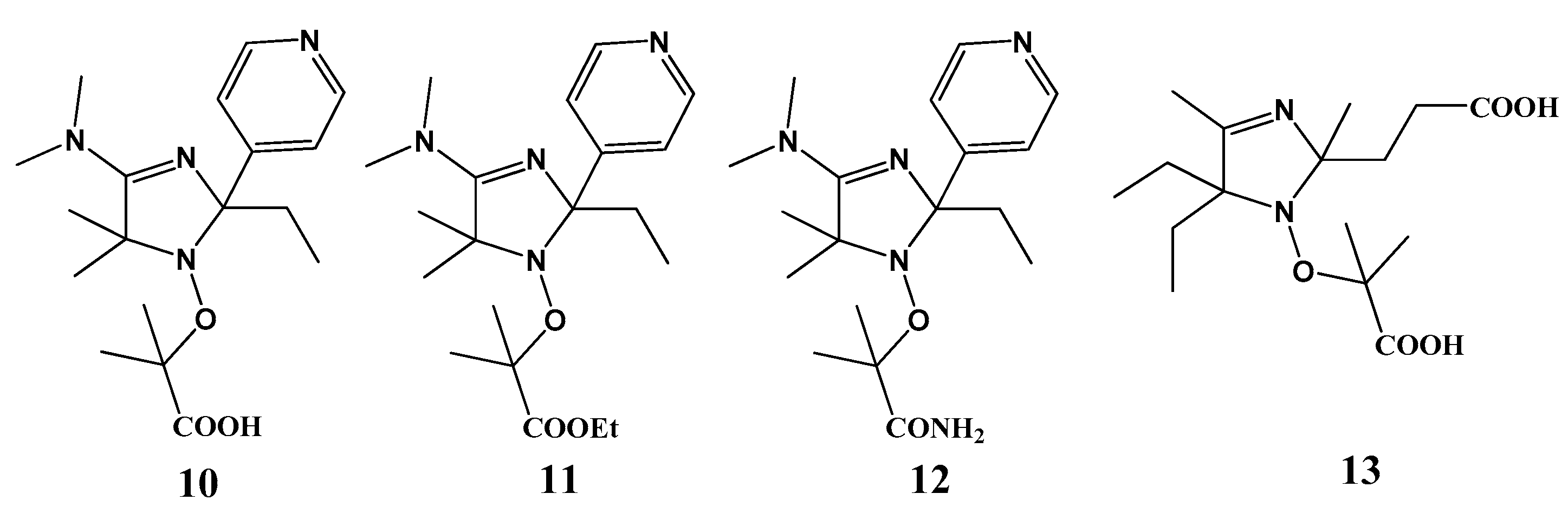

The study by Edeleva et al. [30] extends the concept of pH-switchable mediators to NMP by employing nitroxides with basic or acidic groups as controlling agents. The nitroxides described there belong to the imidazoline family and are known to be pH sensitive, meaning that the hyperfine-coupling constant depends on protonation of the imidazoline nitrogen. This phenomenon implies that protonation affects electron density on the nitrogen atom. Therefore, the authors expected that protonation would influence electronic properties of the C–ON bond as well.
In the abovementioned article, the first study on the effect of pH on rate constants kd and kc was conducted by NMR and EPR spectroscopy. The homolysis rate constants for alkoxyamines 10–13 and rate constants kc for recombination of the respective nitroxides with different alkyl radicals were measured at different pH levels. As the first evidence, NMR spectra of alkoxyamines 10–13 in D2O revealed pH dependence (see Figure 5 for an example of alkoxyamine 10). Due to a fast exchange of protonated/deprotonated forms, which results in narrow NMR lines, the authors were able to monitor pH-associated changes for each isomer separately. Using this pH dependence of NMR resonance, the authors could build titration curves for protonable groups (Figure 5b). For alkoxyamine 10 (see Figure 5), kd at acidic pH was found to be 15-fold lower than that in a basic medium; this phenomenon is likely due to a synergetic effect of the protonation of both the alkyl and nitroxide moiety. For different diastereomers, the difference in kd values was within the margin of experimental error. It should be noted that the addition of an acid does not affect kd for TEMPO-based alkoxyamines in organic media.
The influence of protonation on recombination rate constants kc has been investigated by laser flash photolysis in the abovementioned article. The observed impact of protonation on kc is not large and is opposite to the influence on kd.
Later, Le Du et al. [31] have used a 2,2,5-tri-methyl-4-phenyl-3-azahexane-3-nitroxide type of nitroxide with a pyridyl substituent to investigate the influence of protonation on noncyclic nitroxides. As in the work of Edeleva et al., after protonation, they observed a ~1.9-fold decrease in kd at 100 °C.

2.1.3. Theoretical Research

To get a deeper insight into the effect of protonation on alkoxyamine homolysis, Parkhomenko et al. [32]. have performed density functional theory (DFT) calculation of Gibbs free energy of the homolysis reaction for alkoxyamines 10–13 (Figure 6). In this case, the reactivity was mainly determined by destabilization of the radical products of C−ON bond scission reactions. Those authors observed linear correlations between radical stabilization energies of products of homolysis and calculated Δr0G.

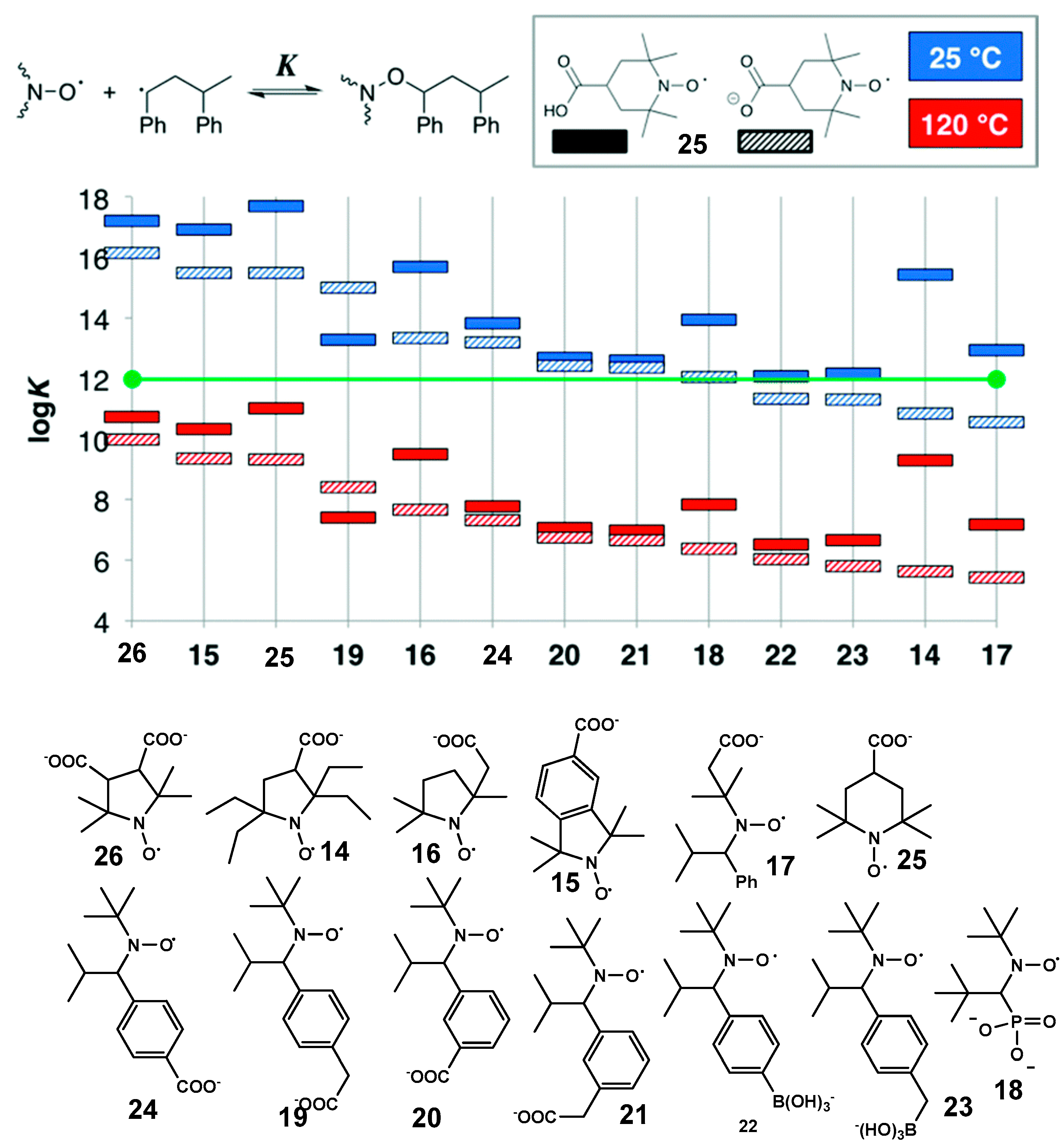

Later, Gryn’ova et al. [33] theoretically evaluated several known and novel nitroxides with protonable groups as possible mediators of NMP of styrene at room temperature (Figure 7). As a parameter, they calculated equilibrium constant K of the alkoxyamine decomposition reaction at room temperature and at 120 °C for protonated and deprotonated species. It is well known that TEMPO successfully mediates styrene polymerization at 120 °C; hence, homolysis equilibrium constant K for the corresponding alkoxyamine TEMPO–STY was used as a reference. Systems with a lower K are expected to succeed, whereas species with log K > 12 may be too stable to release the propagating radicals at a sufficient rate. They found that nitroxides 14–26 possess suitable homolysis parameters when deprotonated but remain stable when neutral. An acidic derivative of nitroxide SG1 18 was predicted to be suitable for the NMP of styrene at 60 °C.
It must be noted that at a high temperature, along with the polymerization, the process of depolymerization also becomes well pronounced. The impact of the depolymerization process is described in the review by Tang et al. [34].

2.1.4. Nmp Using Initiators with Reactivity Activated by pH

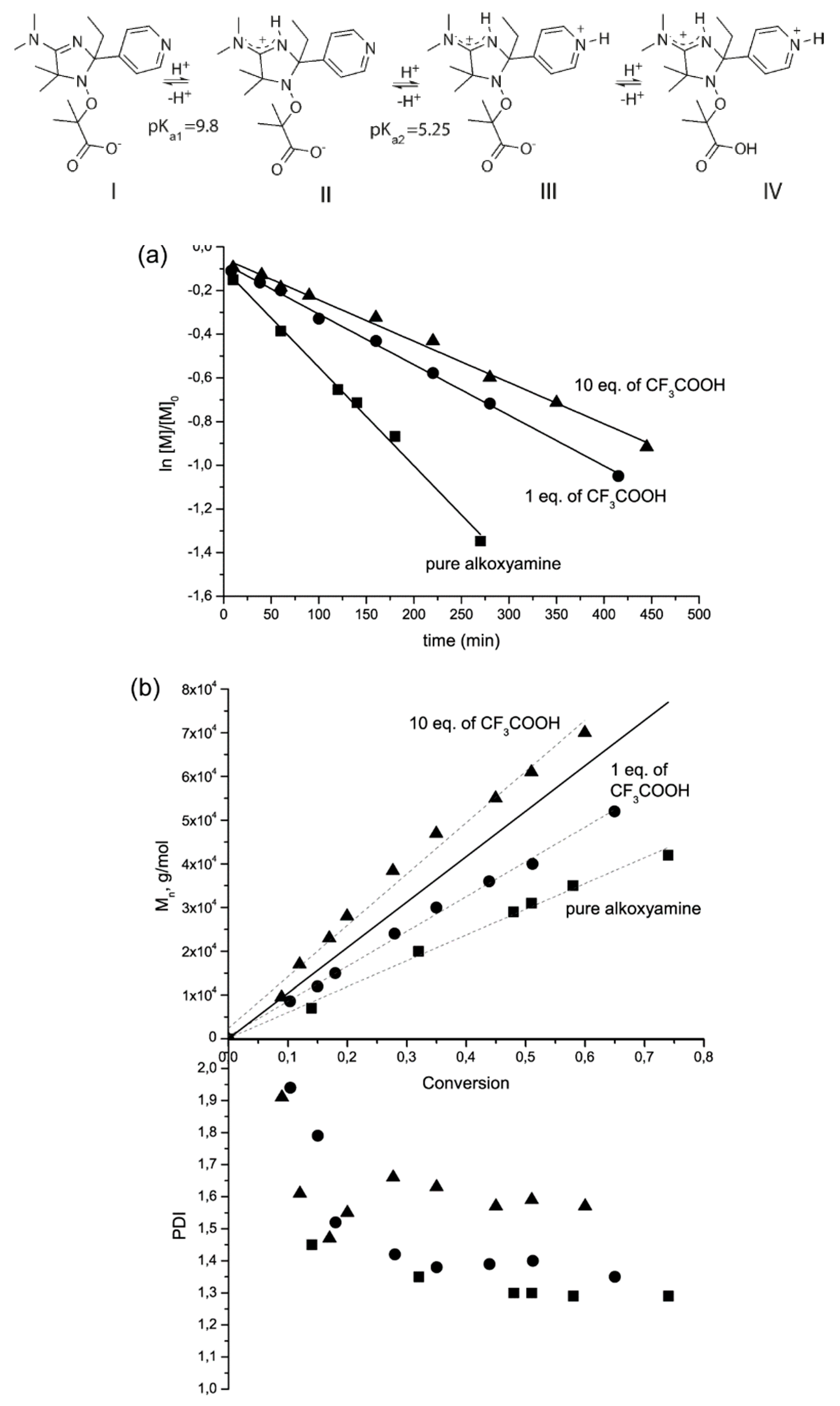

The influence of protonation on the type of NMP was first demonstrated by application of imidazoline-based alkoxyamines for the initiation of polymerization of styrene and some water-soluble monomers, such as acrylamide and styrene sulfonate at temperatures below 100 °C. As the first step, those authors performed Fischer’s diagram [35] analysis for polymerization of styrene at 140 °C and acrylamide at 90 °C (Figure 8). This analysis indicates that one can expect controlled polymerization of styrene mediated by deprotonated and monoprotonated forms of alkoxyamine 10, whereas for acrylamide polymerization, the alkoxyamine should be in a fully protonated form. NMP of styrene initiated by all the forms of the alkoxyamine revealed that the deprotonated form affords a polymer with the polydispersity index (PDI) higher than 1.5. A controlled regime was achieved too for acrylamide polymerization. The livingness of the polymer was verified in reinitiation experiments. In all cases, the increase in molecular weight and the absence of macroinitiator traces were observed by gel permeation chromatography indicating the living character of the polymerization. The importance of this work is also exemplified by the expansion of applications of imidazoline-based nitroxides to aqueous monomers because this type of nitroxides is effective at polymerization of acrylates, styrene, [15,36,37,38,39,40] and even methacrylate. [41,42]
The potential usefulness of protonated or deprotonated forms of SG1-based alkoxyamines in NMP has been tested via polymerization of styrene and styrene sulfonate at 110 and 90 °C. [43] NMP of styrene at 110 °C was successful for both 3 and 3H+ (see Figure 4 for structures) judging by linear kinetics, a linear increase in molar masses Mn with conversion, and a decrease in the PDI with conversion. NMP of styrene initiated by 3H+ (1000 min, 30% conversion, PDI = 1.20) was as good as that initiated by BlocBuilderTM (3900 min, 58% conversion, PDI = 1.23) [11], although due to the decay of the nitroxide under acidic conditions, the polymer’s molecular mass did not change above 30% conversion. For aqueous polymerization of sodium styrene sulfonate, good results were obtained for the deprotonated form of the alkoxyamine despite unfavorable kd: 70% conversion in 400 min, linear evolution of Mn, and PDI = 1.4; these characteristics are comparable to those of BlocBuilderTM [43].
Le Du et al. [31] have utilized pH-switchable alkoxyamines based on 2,2,5-tri-methyl-4-phenyl-3-azahexane-3-nitroxide (TIPNO) to control the polymerization of styrene and butyl acrylate. For both monomers, a controlled regime of polymerization was observed with narrow polydispersity of the resultant polymer. Meanwhile, for deprotonated forms, the kinetics of monomer conversion were faster than those for the deprotonated ones.
Of note, when an alkoxyamine bears a protonable unit in the alkyl part, the influence of protonation is limited to the initiation step. Therefore, in such cases, protonation is a good way to influence the initiation rate. In the case of protonation of the nitroxyl part, the overall kinetics of polymerization are affected.

2.2. Activation by Formation of Metal–Alkoxyamine Complexes

2.2.1. Formation of Metal–Alkoxyamine Complexes: Alkoxyamines with Cu(hfac)2, Zn(hfac)2, or Tb(hfac)3. Structure and Influence on kd

Aside from protonation, formation of a metal–alkoxyamine complex is another way to alter the C–ON bond reactivity: by changing the polarity of the bond. A recent series of articles describes the synthesis of such complexes, research into the influence of complexation on C–ON bond homolysis, and application to the NMP of styrene and n-butyl acrylate [44,45,46].
Coordinately unsaturated copper (II) hexafluoroacetylacetonate [Cu(hfac)2], zinc hexafluoroacetylacetonate, and terbium hexafluoroacetylacetonate are the most suitable compounds for the synthesis of such complexes because these salts are strong Lewis acids and yield well-crystallizing coordination compounds. Nevertheless, the interaction of these salts with ligands can form different types of complexes depending on the conditions [47]. This notion has been validated by careful evaluation of the crystal structure of the complexes obtained from the salts and alkoxyamines 3–5 based on nitroxide SG1 (Figure 9). The complexes can be intramolecular (M-RS/SR-4), ring-type (M-RSSR-3), or chain-type (M-(RR/SS)-3) when coordinated to Cu or Zn. The structure of Tb-based complexes is completely different. X-ray diffraction analysis has uncovered formation of complexes in which only the nitroxyl part of alkoxyamines is coordinated. These compounds are the first example of coordination between the center cation and the nitroxyl moiety only. The stability of these complexes in solution was checked by NMR spectroscopy. For Cu-based complexes, the 31P NMR resonance is strongly shifted relative to the NMR line of a pure alkoxyamine and broadened by a paramagnetic copper ion. Given that Zn is diamagnetic, stability of the complex is indicated only by a downfield shift of the signal. In both cases, pyridine was chosen to decompose the complexes owing to a higher complexation constant with metals. Indeed, for Cu(II) complexes, pyridine has a valuable property in that it reacts quickly (and often irreversibly) [48,49] with the Cu(II) ion to displace weakly bonded ligands. When the concentration of pyridine increased, 31P resonance shifted toward the value of the pure alkoxyamine (Figure 10a).

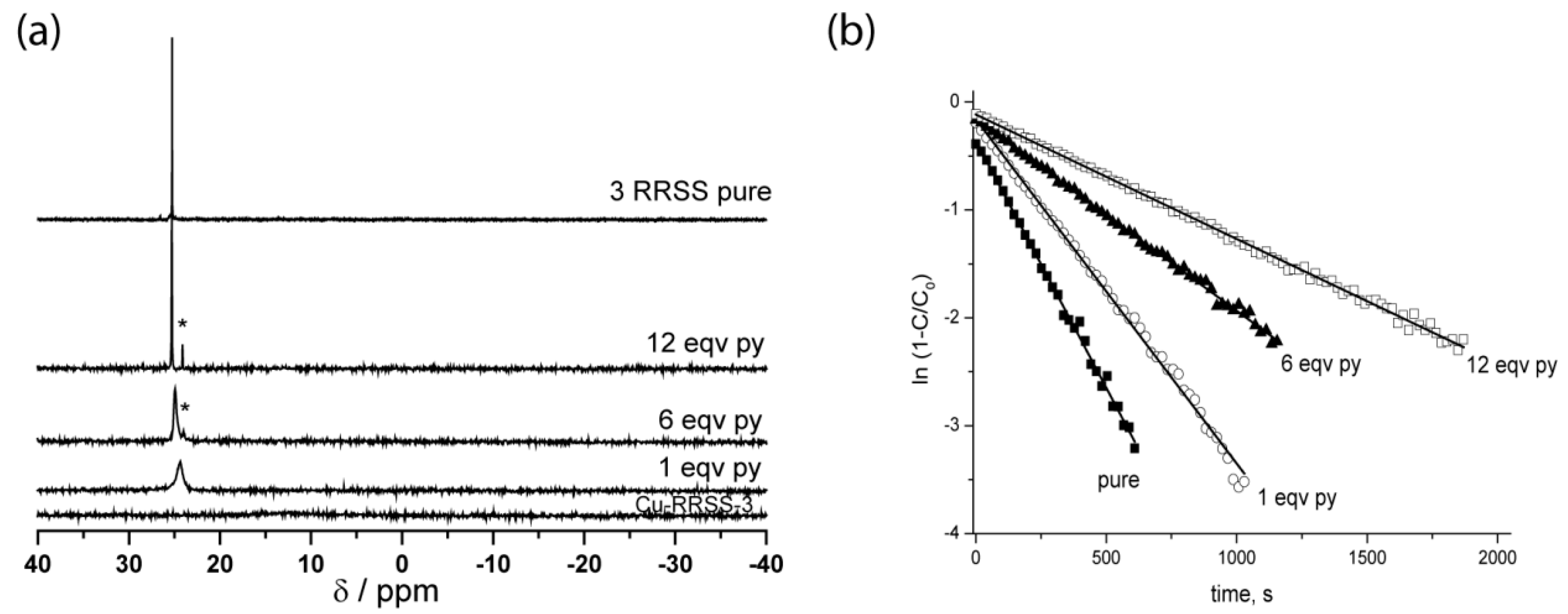

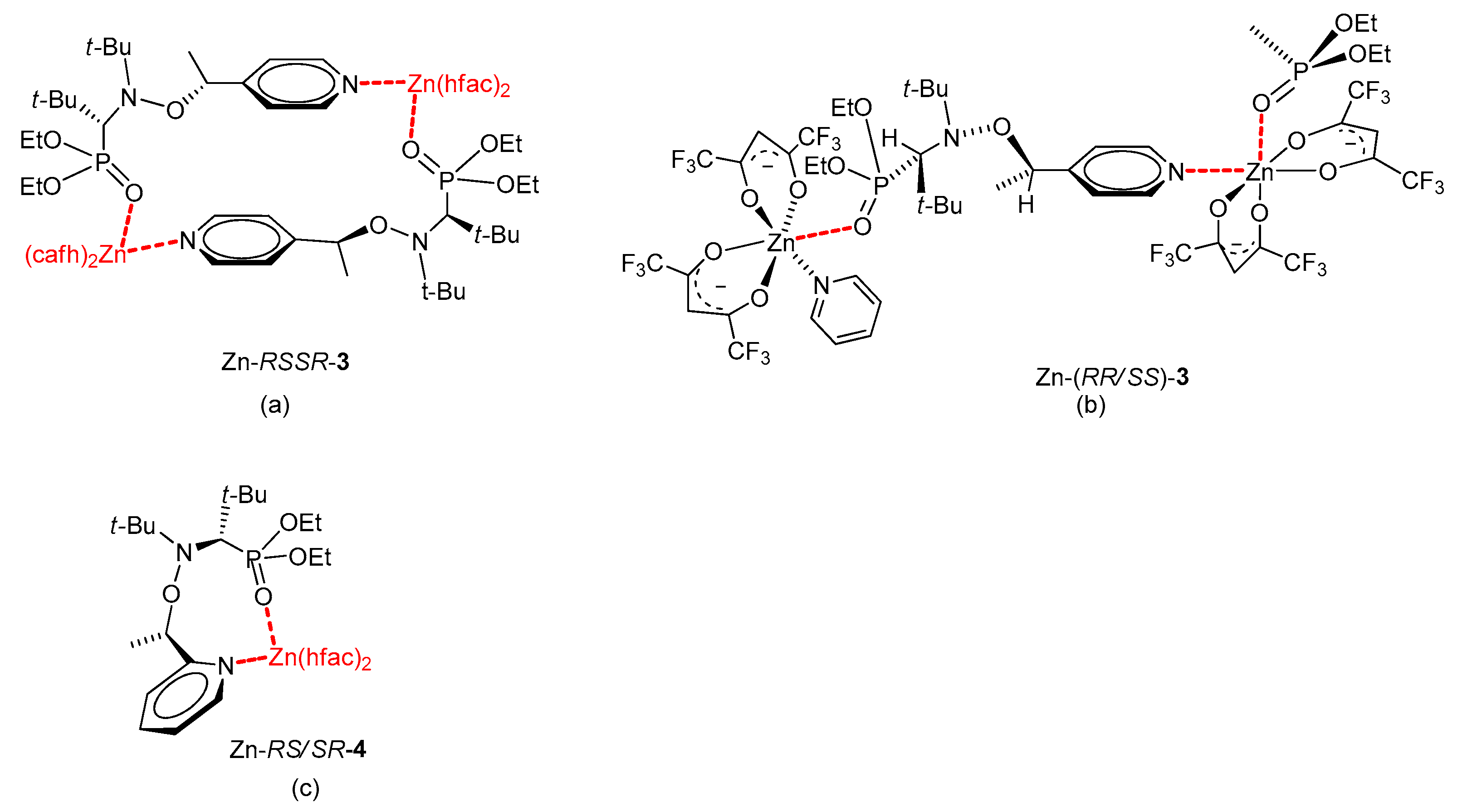

After careful evaluation of the structure of the complexes in solutions, the influence of complexation on homolysis rate constants was studied. It should be pointed out that the structure of the complex determines whether complexation raises or lowers kd. As an example, for the complex Cu-RSSR-3, the authors observed a 10 kJ/mol decrease in Ea. After the addition of various amounts of pyridine, a gradual decrease in kd was registered (Figure 10b).
In comparison with protonation, complexation allows for step-by-step alteration of homolysis rate constants; this approach can help to achieve a controlled regime for different monomers.
When Tb-based complexes were studied by 1H and 31P NMR spectroscopy, the authors observed a strong paramagnetic shift and broadening of signals because of the paramagnetic properties of the Tb(III) cation. After the addition of various competitors, the equilibrium between the complexed and free form of alkoxyamine shifts toward the latter, and the recovery of the NMR signal in spectra can be seen. The addition of pyridine had almost no effect on the shift of the equilibrium because no revival of the signal was observed up to 1000 eq. of the competitor added. When 300 eq. of tetramethylethylenediamine (TMEDA) or bipyridine was added, a broad 31P NMR signal was detected. Thus, bipyridine was found to be effective in decomplexation of an alkoxyamine.

2.2.2. NMP of Various Monomers with Initiators in the Form of a Metal–Alkoxyamine Complex

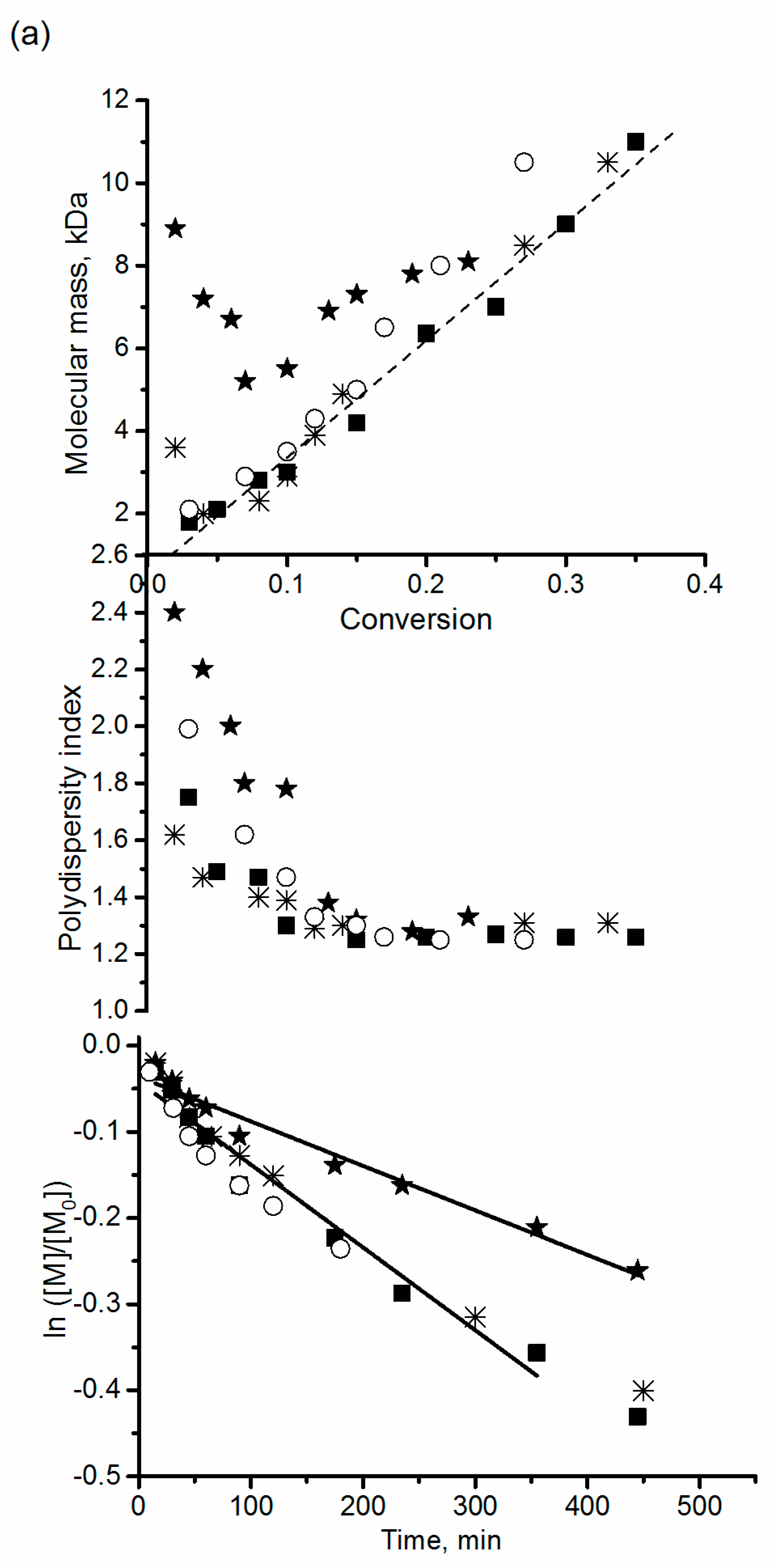

Polymers doped with metals have found a wide variety of applications. NMP with metal–alkoxyamine initiators means introduction of a straightforward method for preparation of such compounds. The application of alkoxyamine complexes with zinc hexafluoroacetyl acetonate for polymerization of styrene and n-Bu-acrylate has been demonstrated by Edeleva et al. [50]. They observed a poorly controlled regime when a free form of alkoxyamine was applied to the NMP of styrene. By contrast, when a presynthesized or in situ–generated complex served as the initiator, a controlled regime was rapidly established. It should be mentioned that NMP initiated by alkoxyamine complexes of a metal cation has all the features of conventional NMP, that is, good control of molar masses, PDI below 1.5, and livingness. Moreover, NMP performed using in situ–generated complexes has the same features as those of the NMP initiated by complexes prepared beforehand, even with a large excess of the metal cation (Figure 11).

2.3. Activation via Chemical Transformations

Thus far, we have considered protonation and formation of complexes as a way to alter the reactivity of alkoxyamines. Other approaches, in particular chemical transformation, can be proposed too. They include reactions with Lewis acids, quaternization of nitrogen, oxidation, and formation of complexes with metal-containing enzymes. In the text below, we present the influence of the abovementioned factors on homolysis rate constants of a series of alkoxyamines.

2.3.1. Lewis Acid and Quaternization

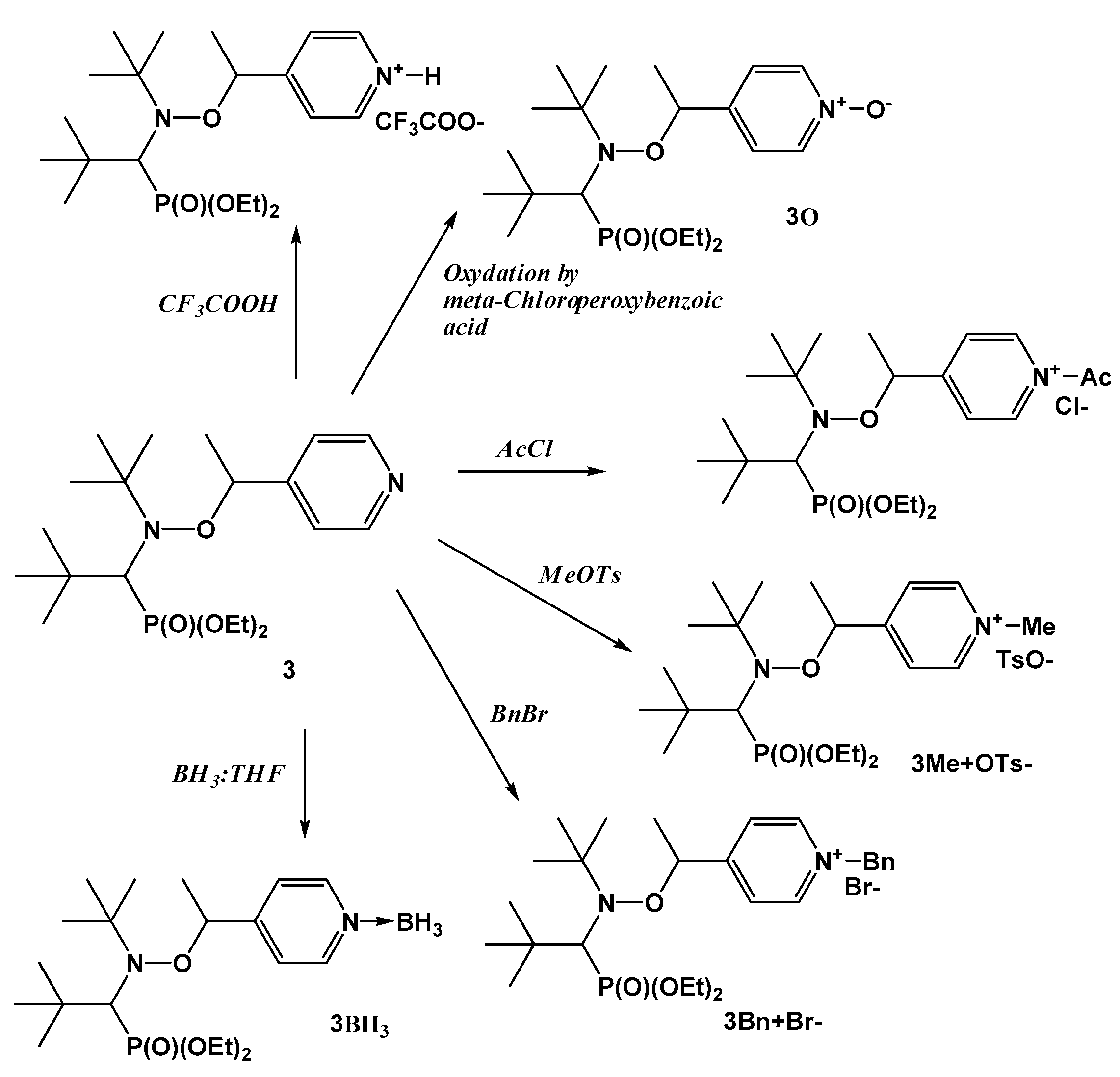

The effect of coordination of alkoxyamine 3 was investigated with a Lewis acid to afford 3BH3 (Figure 12) [51]. The effect on kd was similar to that observed for protonation, that is a 7 kJ/mol difference in activation energies between active and inactive forms.
Alkoxyamine 3 was also activated by methylation (alkylation), benzylation, and acetylation, with all of them yielding salts with positive charges on the nitrogen atom of the pyridyl ring and the associated counteranion. The differences in Ea were up to 17 kJ/mol.
The findings reported in the aforementioned articles show the importance of polarity of the alkyl moiety for kd. Because such modifications change the homolysis activation energy up to 20 kJ/mol, they also generate a substantial gap in half-lifetimes, for example 700 days for the nonactivated form to 5 h for activated ones. Such a difference is important for NMP applications.

2.3.2. Activation by Oxidation

Oxidation of functional groups of an alkoxyamine is another way to alter the polarity. The difference between oxidation and activation by acids or metals is that oxidation is irreversible because it forms neither a salt nor a coordination/dative bond. Furthermore, despite the presence of a positive charge on the nitrogen atom and of the negative charge on the oxygen atom, changes in kd are determined by stabilization of the released alkyl radical in sharp contrast to the other types of activation. In the study by Bremond et al. [51], the influence of oxidation was investigated for alkoxyamine 3. Upon oxidation, it was found to form pyridine-N-oxide derivative 3O (Figure 12). Ea is 9 kJ/mol smaller for the latter than for nonoxidized pyridine-based alkoxyamine 3.

2.3.3. Biological Activation

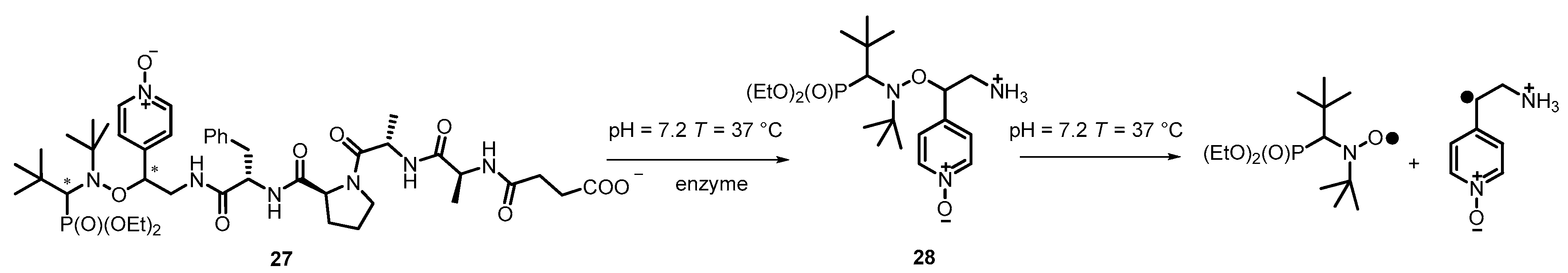

This mode of activation was recently developed by Marque and colleagues for therapeutic applications of alkoxyamines. Thus, alkoxyamine 28 is attached to a peptide to form alkoxyamine 27, which is specific for chymotrypsin and subtilisin A as enzymes (Figure 13). It was demonstrated that in the presence of one of these enzymes, kd of 28 is very similar to kd of 28H+, whereas in the presence of porcine pancreatic elastase and of bovine trypsin, the kd values are the same as those of pure 27 (Figure 13). Accordingly, alkoxyamine 27 is hydrolyzed by the targeted enzymes into 28, which is instantaneously protonated into 28H+ (pKa = 7.97) at pH 7.2. The latter is cleaved faster than the nonenzymatically activated alkoxyamine. As far as we know, this is the first report concerning homolysis of alkoxyamines activated by enzymes even though homolysis is still too slow for biological applications.

2.3.4. Activation of Alkoxyamine Homolysis by 1,3-Dipolar Cycloaddition

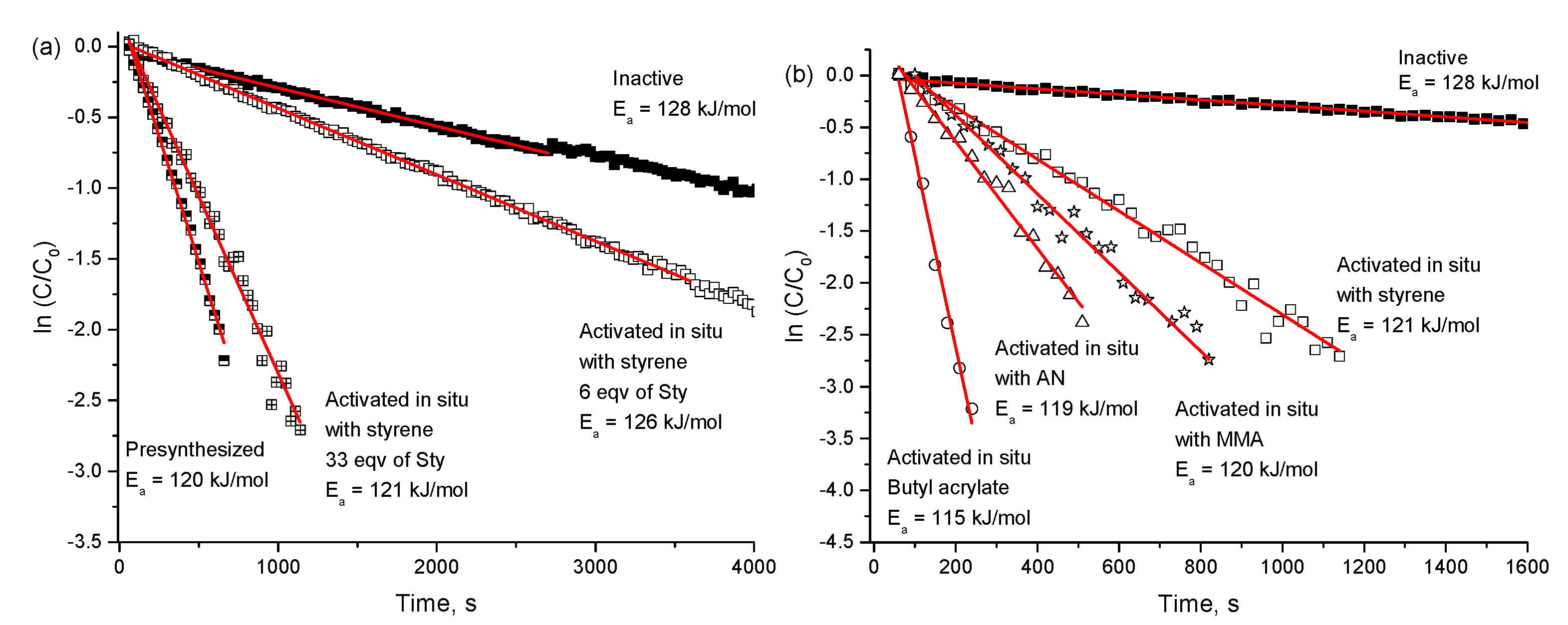

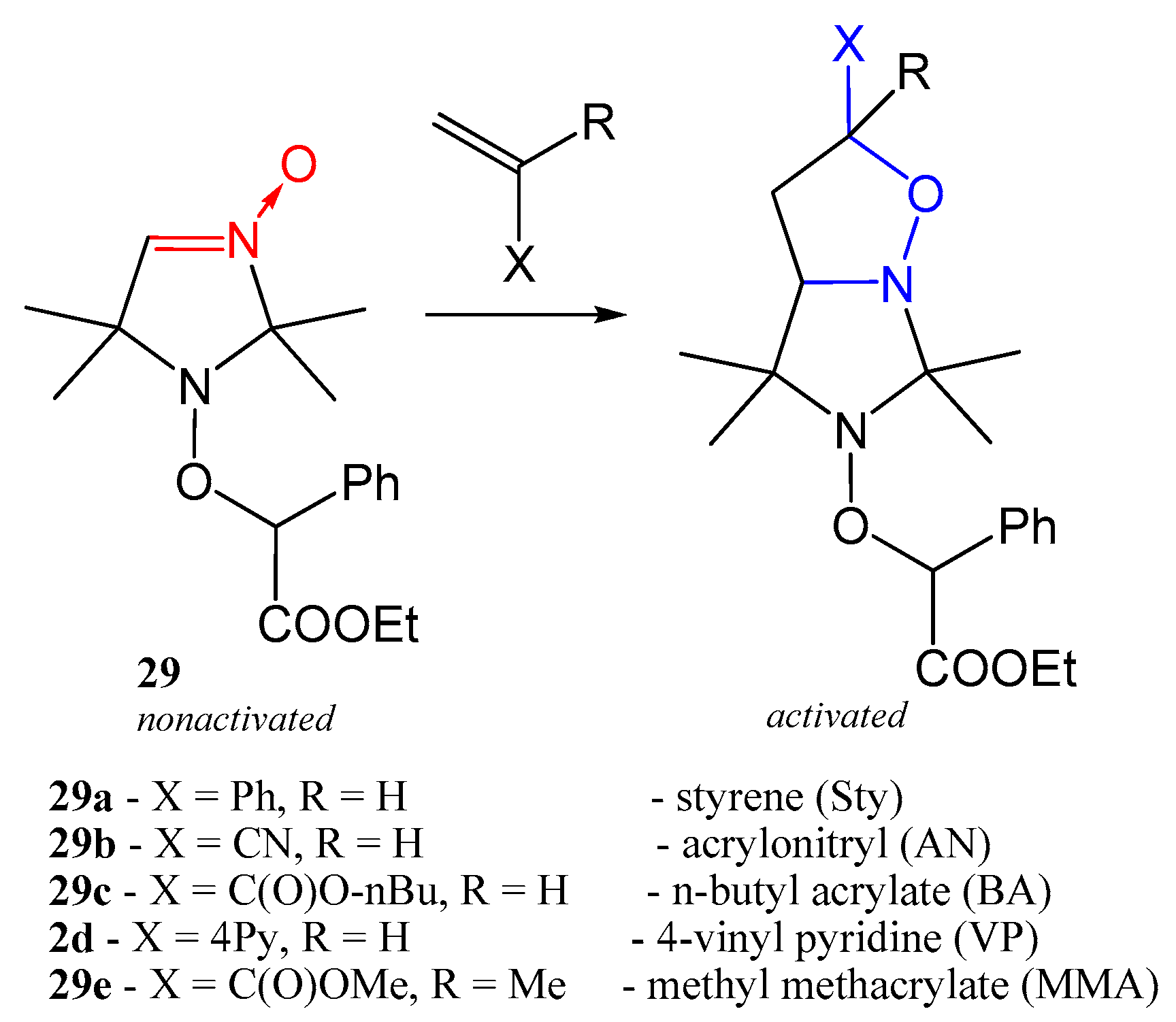

An important drawback of the pH control and approaches based on complexation with metals is the necessity to use extraneous additives, which may affect polymer properties. Recently, Edeleva et al. [52] presented a new concept of in situ activation of alkoxyamine homolysis by a 1,3-dipolar cycloaddition reaction with olefins. This concept is rooted in the well-known fact that vinyl monomers involved in NMP usually show high reactivity in cycloaddition reactions. The authors demonstrated the possibility of 1,3-dipolar cycloaddition performed on aldonitrone-containing alkoxyamine 29. At room temperature, this alkoxyamine is relatively stable due to the electron-withdrawing effect of the nitrone group and is ineffective as an NMP initiator. Under NMP conditions, if the substituent at the fourth position on the imidazoline ring is hydrogen, then it easily reacts with styrene, acrylonitrile, or acrylates to form tricyclic adducts, which have a much higher propensity for C–ON bond homolysis (Figure 14). Figure 15 illustrates the experimental kinetics of nonactivated alkoxyamine 29 decomposition under different conditions and various concentrations of the monomer. The difference between the activation energy of alkoxyamine hemolysis in the nonactivated and activated state is ~9 kJ/mol for styrene and 13 kJ/mol for butyl acrylate.

2.4. Other Factors that Alter Alkoxyamine Reactivity. The Solvent Effect and Intramolecular Hydrogen Bonds

Among other factors that alter alkoxyamine reactivity is the medium. Polarity of the solvent and its ability to favor or suppress formation of hydrogen bonds can have a major influence on kd. In this subsection, we review the influence of the solvent and formation of IHBs on the homolysis of alkoxyamines. By themselves, they cannot be regarded as factors that alter kd, but one should keep them in mind when planning NMP and synthetic experiments owing to their huge influence.
The effects of the solvent on a homolysis reaction can be classified into the following types: (1) a basic solvent effect, which is mediated by polarity of the solvent and its ability to form H-bonds; (2) the solvent effect related to dissociation of a salt; and (3) the solvent effect related to its ability to cleave H-bonds.

2.4.1. The Basic Solvent Effect

Solvent effects on alkoxyamines have been investigated during the last three decades [53,54], and it is widely accepted that these effects on alkoxyamines are weak [54], even for activated alkoxyamines [26,55,56,57]. Nonetheless, very recently [28], a 1500-fold increase in kd was observed for alkoxyamine 30 after a change of the solvent from t-BuPh to a mixture of water and methanol (Figure 16).

2.4.2. The Influence of the Counteranion

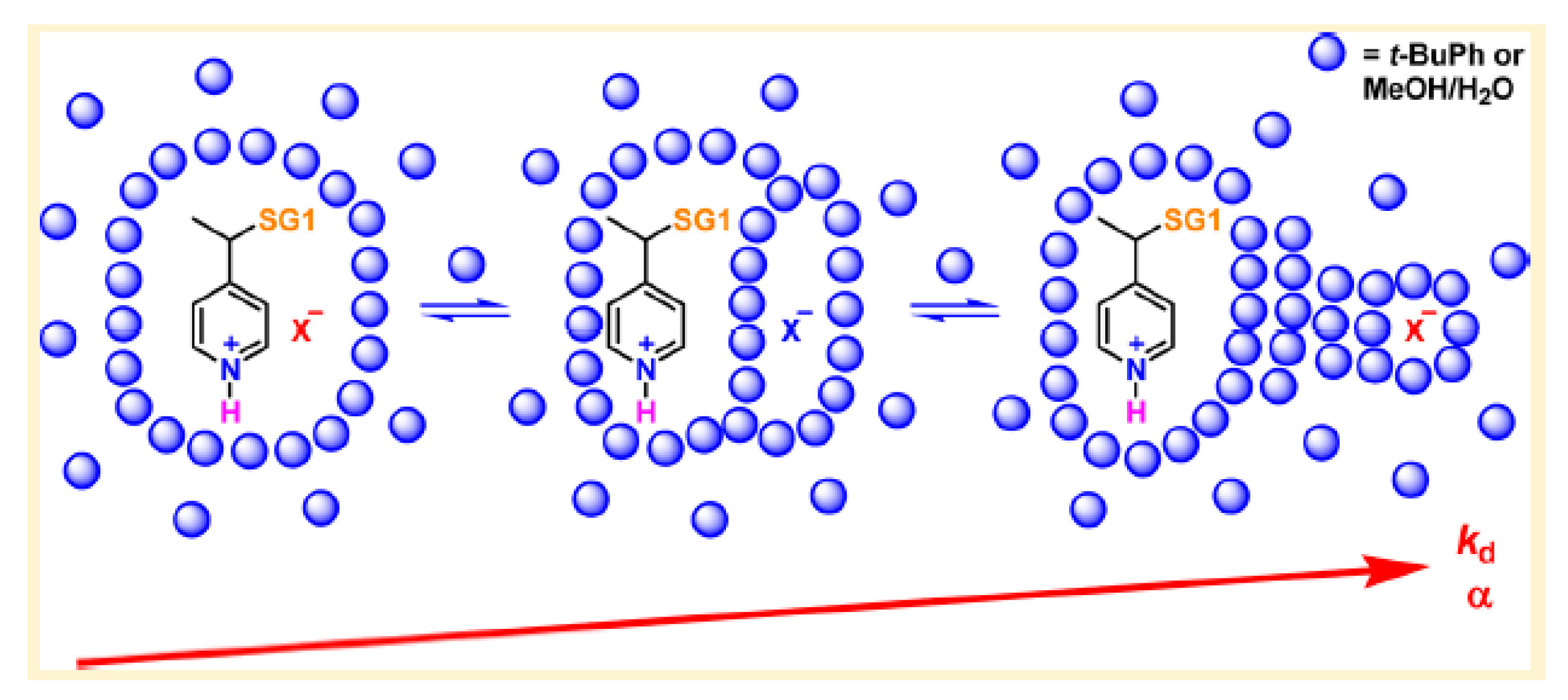

Bremond et al. [51] have observed a clear-cut difference in activation between 3Me+TsO− and 3Bn+Br− even though the methyl and benzyl groups are both alkylating agents (Figure 17). Nonetheless, their respective counteranions are tosylate and bromide, respectively. Therefore, by means of alkoxyamine 3, protonation by different acids was investigated in t-BuPh and in water–MeOH as a solvent. It was proved that kd depends on the counteranions, for example, there is a fourfold increase in kd from CF3COOH to camphorsulfonic acid in t-BuPh, whereas a twofold diminution is observed in water–MeOH [26]. This difference is ascribed to the presence of an intimate ion pair (low kd) and a solvent-separated ion pair (high kd) depending on the ability of the solvent to stabilize the anion; this ability roughly correlates with the H-bond donor properties of the solvent α, that is kd increases with α. Here, α is an Abraham’s parameter that estimates H-bond donor properties of a solvent [58].

2.4.3. IHBs

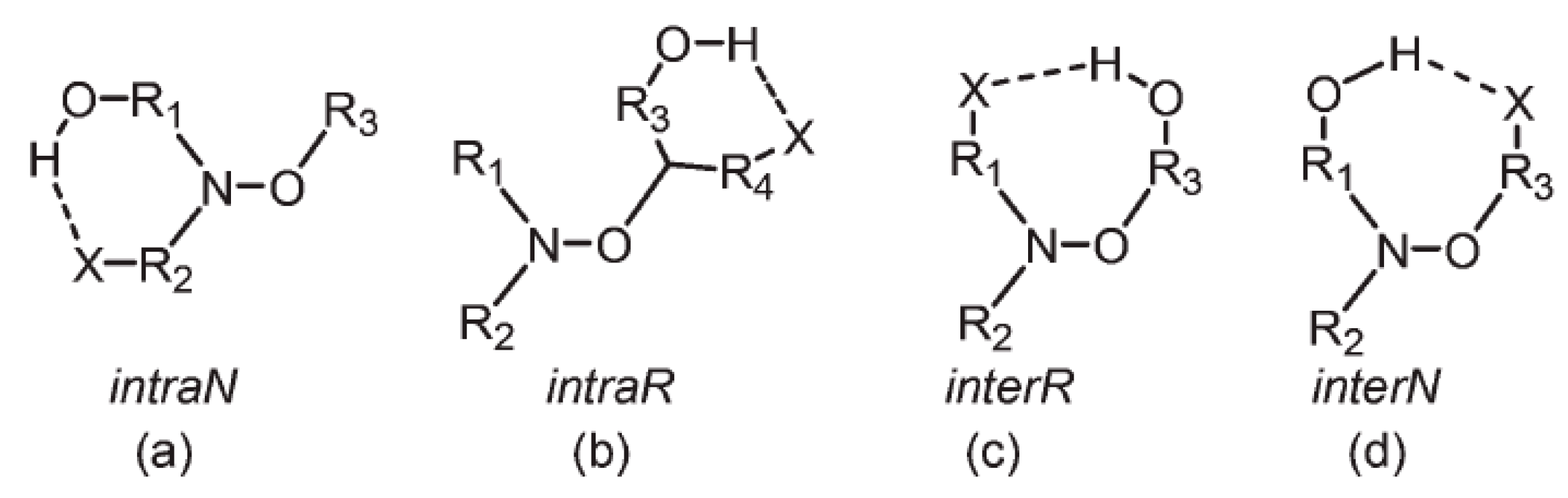

Despite the weakness of a hydrogen-bonding interaction, it can influence the homolysis of alkoxyamines. If we take into account the structure of alkoxyamines, then four types of IHB are possible (Figure 18): [59] (a) intraN for IHB in a nitroxyl moiety, (b) intraR for IHB in an alkyl part, (c) interR for IHB between nitroxyl and alkyl moieties, the latter carrying the H-donor group, and (d) interN for IHB between alkyl and nitroxyl parts, the latter carrying the H-donor group. The solvent effect reported in such cases is not always substantial because several factors are involved and sometimes play antagonistic roles, in particular: (i) stabilization of a transition state vs. starting materials by the solvent, (ii) conformational changes suppressing IHB, or (iii) changes in steric hindrance suppressing IHB. In general, suppression of intraN IHB by changing the solvent from t-BuPh to a water–MeOH mixture slightly decreases kd as seen with 31. On the other hand, suppressing interN or interR IHB as observed with 32 and 33, respectively, affords a two- to fivefold increase in kd for their RS/SR diastereoisomers.

2.5. Photochemical Activation of Alkoxyamine Homolysis

Along with thermal homolysis, UV/Vis irradiation can have a large effect on the rate of alkoxyamine C–ON bond cleavage. Photopolymerization represents a rapidly growing field of research because it enables fast polymerization in thin films and raises energy efficiency of the process. A number of papers and reviews describe this important field [60,61,62,63,64,65,66,67]. We will provide only a brief introduction into this field.
The type of NMP that includes photochemical initiation, that is NMP2, involves a chromophoric group directly linked to the aminoxyl function of a nitroxide. As proved by Guillaneuf at al. [61], this type of alkoxyamines undergoes singlet state cleavage and (to a minor extent) possible triplet state cleavage. The abovementioned authors used TEMPO-based alkoxyamines and nitroxide to control the polymerization of n-butyl acrylate and observed linear growth of the molecular weight of the polymer.
Another advance in this field is presented in the work of Morris et al. [62], where they studied application of chromophoric-substituted alkoxyamines as a dual initiator in UV-initiated and thermally initiated polymerization for preparation of block-copolymers. Huix-Rotllant et al. [63] performed quantum-chemical calculation to identify the factors that affect the excitation energy transferred from the chromophore to the alkoxyamine moiety. It must be emphasized that photochemical initiation is being developed not only for alkoxyamines but also for other types of polymerization. A number of reviews, papers, and books give a good overview of this field [60,64,65,66,67].

3. Conclusions

This review describes the ways to influence the reactivity of alkoxyamines by external chemical stimuli. The rate of C–ON bond homolysis in alkoxyamines is a critical parameter, because for NMP, this parameter can help to achieve a controlled regime of polymerization, whereas for theranostics, rapid homolysis at a low temperature is the key requirement. The factors that change the C–ON bond homolysis rate are temperature, stability of an alkyl and nitroxyl radical released, and polarity of the C–ON bond. The first factor is the most important but also alters the rates of monomer addition and chain termination in NMP. Furthermore, for theranostics, temperature cannot be increased above 37 °C. Radical stabilization is determined by both steric hindrance of the radical center and delocalization of electron density, which are the properties of substituents. The electron-withdrawing or electron-donating characteristics of the latter also affect the polarity of the C–ON bond and thereby control the homolysis rate constant. Consequently, changing these factors can enhance the C–ON bond homolysis rate. Protonation of alkoxyamines and formation of alkoxyamines with metal complexes are new and promising approaches to changing the rate of alkoxyamine homolysis via alteration of electronic properties of the substituents. Protonation of the alkyl part of an alkoxyamine and deprotonation of the nitroxyl part increase the homolysis rate and vice versa. Complexation with metals exerts a similar action.
The possibility of in situ activation is the greatest advantage of both methods. In the case of too slow alkoxyamine homolysis for NMP with a deactivated form of an alkoxyamine, it can be activated by simple addition of an acid or base prior to polymerization. Furthermore, activation by protonation is reversible. If slow initiation is necessary, it can be attained via a change in the acidity of the medium.
Activation with metal ions has many advantages as well. First, it offers additional flexibility in the alteration of kinetic parameters to achieve a controlled regime. Second, this approach does not require additional synthesis because the complex could be obtained in situ. Furthermore, it opens an easy route to metal-polymer complexes that have many valuable properties. Additionally, metal complexes of alkoxyamines can act as orthogonal initiators thus facilitating the synthesis of block-copolymers by different mechanisms.
Nevertheless, various types of activation of alkoxyamines can have some negative effects on the polymerization. Activation by complexation leads to contamination of the polymer with metals, whereas acidity in some cases can affect the stability of nitroxides. Therefore, in each specific case, one should consider both positive and negative consequences of the activation methods.
In our opinion, the most fascinating approach to enhancement of the homolysis rate of an alkoxyamine is the one that involves a 1,3-dipolar cycloaddition reaction of an aldonitrone-substituted alkoxyamine with a monomer. It has been demonstrated that due to this reaction, the half-lifetime of an alkoxyamine shortens from days to minutes. Furthermore, this procedure does not necessitate any additives because only an alkoxyamine and the monomer react, and therefore the final polymer is not contaminated. We consider this approach the most attractive for the industry.
Activation methods lead to both greater versatility in the synthesis of block-copolymers and an increase in NMP energy efficiency, making them more appealing to the industry and academia.

Author Contributions

M.E., G.A., S.M. and E.B. contributed eaully to writing of this review.

Funding

The authors would like to acknowledge financial support by the Ministry of Education and Science of the Russian Federation (state contract No. 14.W03.31.0034) and RSF (grant No. 17-73-10101).

Acknowledgments

The English language was corrected and certified by shevchuk-editing.com. We would like to thank Polina Kaletina for drawing the TOC image.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Solomon, D.; Rizzardo, E.; Cacioli, P. Eur Pat Appl EP135280 (1985). Chem. Abstr. 1985, 102, 221335q. [Google Scholar]
  2. Blinco, J.P.; Bottle, S.E.; Fairfull-Smith, K.E.; Simpson, E.; Thomas, K. Synthesis of nitroxides and alkoxyamines. In Nitroxide Mediated Polymerization; From Fundamentals to Applications in Materials Science; Gigmes, D., Ed.; Royal Society of Chemistry Publishing: Cambridge, UK, 2015; pp. 114–152. [Google Scholar]
  3. Tebben, L.; Studer, A. Nitroxides: Applications in synthesis and in polymer chemistry. Angew. Chem. Int. Ed. 2011, 50, 5034–5068. [Google Scholar] [CrossRef] [PubMed]
  4. Xu, J.; Caro-Diaz, E.J.; Trzoss, L.; Theodorakis, E.A. Nature-inspired total synthesis of (−)-fusarisetin A. J. Am. Chem. Soc. 2012, 134, 5072–5075. [Google Scholar] [CrossRef] [PubMed]
  5. Studer, A. Tin-free radical chemistry using the persistent radical effect: Alkoxyamine isomerization, addition reactions and polymerizations. Chem. Soc. Rev. 2004, 33, 267–273. [Google Scholar] [CrossRef] [PubMed]
  6. Wetter, C.; Jantos, K.; Woithe, K.; Studer, A. Intermolecular radical addition and addition/cyclization reactions of alkoxyamines onto nonactivated alkenes. Organ. Lett. 2003, 5, 2899–2902. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, M.Q.; Rong, M.Z. Intrinsic self-healing of covalent polymers through bond reconnection towards strength restoration. Polym. Chem. 2013, 4, 4878–4884. [Google Scholar] [CrossRef]
  8. Schulte, B.; Tsotsalas, M.; Becker, M.; Studer, A.; De Cola, L. Dynamic microcrystal assembly by nitroxide exchange reactions. Angew. Chem. Int. Ed. 2010, 49, 6881–6884. [Google Scholar] [CrossRef] [PubMed]
  9. Roy, R.K.; Meszynska, A.; Laure, C.; Charles, L.; Verchin, C.; Lutz, J.-F. Design and synthesis of digitally encoded polymers that can be decoded and erased. Nat. Commun. 2015, 6, 7237. [Google Scholar] [CrossRef] [PubMed]
  10. Audran, G.; Brémond, P.; Franconi, J.-M.; Marque, S.R.; Massot, P.; Mellet, P.; Parzy, E.; Thiaudière, E. Alkoxyamines: A new family of pro-drugs against cancer. Concept for theranostics. Org. Biomol. Chem. 2014, 12, 719–723. [Google Scholar] [CrossRef] [PubMed]
  11. Chauvin, F.; Dufils, P.-E.; Gigmes, D.; Guillaneuf, Y.; Marque, S.R.; Tordo, P.; Bertin, D. Nitroxide-mediated polymerization: The pivotal role of the kd value of the initiating alkoxyamine and the importance of the experimental conditions. Macromolecules 2006, 39, 5238–5250. [Google Scholar] [CrossRef]
  12. Hawker, C.J.; Bosman, A.W.; Harth, E. New polymer synthesis by nitroxide mediated living radical polymerizations. Chem. Rev. 2001, 101, 3661–3688. [Google Scholar] [CrossRef] [PubMed]
  13. Nicolas, J.; Guillaneuf, Y.; Lefay, C.; Bertin, D.; Gigmes, D.; Charleux, B. Nitroxide-mediated polymerization. Prog. Polym. Sci. 2013, 38, 63–235. [Google Scholar] [CrossRef]
  14. Grubbs, R.B. Nitroxide-mediated radical polymerization: Limitations and versatility. Polym. Rev. 2011, 51, 104–137. [Google Scholar] [CrossRef]
  15. Edeleva, M.V.; Marque, S.R.; Bagryanskaya, E.G. Imidazoline and imidazolidine nitroxides as controlling agents in nitroxide-mediated pseudoliving radical polymerization. Russ. Chem. Rev. 2018, 87, 328. [Google Scholar] [CrossRef]
  16. Bertin, D.; Gigmes, D.; Marque, S.R.; Tordo, P. Kinetic subtleties of nitroxide mediated polymerization. Chem. Soc. Rev. 2011, 40, 2189–2198. [Google Scholar] [CrossRef] [PubMed]
  17. Bagryanskaya, E.G.; Marque, S.R.A. RSC polymer chemistry series, n = 19. In Nitroxide Mediated Polymerization: From Fundamentals to Applications in Materials Sciences; Gigmes, D., Ed.; Royal Society of Chemistry: Cambridge, UK, 2016. [Google Scholar]
  18. Audran, G.; Brémond, P.; Marque, S.R. Labile alkoxyamines: Past, present, and future. Chem. Commun. 2014, 50, 7921–7928. [Google Scholar] [CrossRef] [PubMed]
  19. Klein, J.A.; Mros, G.R. Characterization and safe handling of reactive initiator solutions. Process Saf. Prog. 2006, 25, 303–310. [Google Scholar] [CrossRef]
  20. Fischer, A.; Brembilla, A.; Lochon, P. Nitroxide-mediated radical polymerization of 4-vinylpyridine: Study of the pseudo-living character of the reaction and influence of temperature and nitroxide concentration. Macromolecules 1999, 32, 6069–6072. [Google Scholar] [CrossRef]
  21. Marx, L.; Hemery, P. Synthesis and evaluation of a new polar, TIPNO type nitroxide for “living” free radical polymerization. Polymer 2009, 50, 2752–2761. [Google Scholar] [CrossRef]
  22. Mazarin, M.; Girod, M.; Viel, S.; Phan, T.N.; Marque, S.R.; Humbel, S.; Charles, L. Role of the adducted cation in the release of nitroxide end group of controlled polymer in mass spectrometry. Macromolecules 2009, 42, 1849–1859. [Google Scholar] [CrossRef]
  23. Benaglia, M.; Chiefari, J.; Chong, Y.K.; Moad, G.; Rizzardo, E.; Thang, S.H. Universal (switchable) RAFT agents. J. Am. Chem. Soc. 2009, 131, 6914–6915. [Google Scholar] [CrossRef] [PubMed]
  24. Benaglia, M.; Chen, M.; Chong, Y.K.; Moad, G.; Rizzardo, E.; Thang, S.H. Polystyrene-block-poly (vinyl acetate) through the use of a switchable RAFT agent. Macromolecules 2009, 42, 9384–9386. [Google Scholar] [CrossRef]
  25. Brémond, P.; Marque, S.R. First proton triggered C–ON bond homolysis in alkoxyamines. Chem. Commun. 2011, 47, 4291–4293. [Google Scholar] [CrossRef] [PubMed]
  26. Audran, G.; Bosco, L.; Brémond, P.; Marque, S.R.; Roubaud, V.; Siri, D. Chemically triggered C–ON bond homolysis of alkoxyamines. 8. Quaternization and steric effects. J. Org. Chem. 2013, 78, 9914–9920. [Google Scholar] [CrossRef] [PubMed]
  27. Audran, G.; Brémond, P.; Ibanou, M.B.B.; Marque, S.R.; Roubaud, V.; Siri, D. Chemically triggered C–ON bond homolysis in alkoxyamines: Regioselectivity and chemoselectivity. Org. Biomol. Chem. 2013, 11, 7738–7750. [Google Scholar] [CrossRef] [PubMed]
  28. Nkolo, P.; Audran, G.; Bikanga, R.; Brémond, P.; Marque, S.R.; Roubaud, V. C–ON bond homolysis of alkoxyamines: When too high polarity is detrimental. Org. Biomol. Chem. 2017, 15, 6167–6176. [Google Scholar] [CrossRef] [PubMed]
  29. Bertin, D.; Gigmes, D.; Marque, S.R.; Siri, D.; Tordo, P.; Trappo, G. Effect of the carboxylate salt on the C–ON bond homolysis of SG1-based alkoxyamines. Chem. Phys. Chem. 2008, 9, 272–281. [Google Scholar] [CrossRef] [PubMed]
  30. Edeleva, M.V.; Kirilyuk, I.A.; Zhurko, I.F.; Parkhomenko, D.A.; Tsentalovich, Y.P.; Bagryanskaya, E.G. pH-Sensitive C–ON bond homolysis of alkoxyamines of imidazoline series with multiple ionizable groups as an approach for control of Nitroxide mediated polymerization. J. Org. Chem. 2011, 76, 5558–5573. [Google Scholar] [CrossRef] [PubMed]
  31. Le Du, Y.; Binet, L.; Hémery, P.; Marx, L. Proton-controlled nitroxide mediated radical polymerization of styrene. J. Polym. Sci. Part A Polym. Chem. 2012, 50, 2871–2877. [Google Scholar] [CrossRef]
  32. Parkhomenko, D.A.; Edeleva, M.V.; Kiselev, V.G.; Bagryanskaya, E.G. pH-sensitive C–ON bond homolysis of alkoxyamines of imidazoline series: A theoretical study. J. Phys. Chem. B 2014, 118, 5542–5550. [Google Scholar] [CrossRef] [PubMed]
  33. Gryn’ova, G.; Smith, L.M.; Coote, M.L. Computational design of pH-switchable control agents for nitroxide mediated polymerization. Phys. Chem. Chem. Phys. 2017, 19, 22678–22683. [Google Scholar] [CrossRef] [PubMed]
  34. Tang, H.; Luan, Y.; Yang, L.; Sun, H. A Perspective on reversibility in controlled polymerization systems: Recent progress and new opportunities. Molecules 2018, 23, 2870. [Google Scholar] [CrossRef] [PubMed]
  35. Souaille, M.; Fischer, H. Kinetic conditions for living and controlled free radical polymerizations mediated by reversible combination of transient propagating and persistent radicals: The ideal mechanism. Macromolecules 2000, 33, 7378–7394. [Google Scholar] [CrossRef]
  36. Pavlovskaya, M.; Kirilyuk, I.; Shchepalov, A.; Grigoriev, I.; Grishin, D. Polymerization of styrene and methyl methacrylate in the presence of 2, 2-diethyl-4, 5, 5-trimethyl-2, 5-dihydroimidazol-1-oxyl. Polym. Sci. Ser. B 2008, 50, 356–361. [Google Scholar] [CrossRef]
  37. Lazarev, M.; Kirilyuk, I.; Grigor’ev, I.; Grishin, D. Polymerization of styrene in the presence of nitroxide radicals of the dihydroimidazole series. Polym. Sci. Ser. B 2007, 49, 224–228. [Google Scholar] [CrossRef]
  38. Zubenko, D.; Kirilyuk, I.; Roshchupkina, G.; Zhurko, I.; Reznikov, V.; Marque, S.R.; Bagryanskaya, E. 2,5-Dihydro-1H-imidazole-based nitroxides as prospective mediators in living radical polymerization. Helv. Chim. Acta 2006, 89, 2341–2353. [Google Scholar] [CrossRef]
  39. Bagryanskaya, E.; Bertin, D.; Gigmes, D.; Kirilyuk, I.; Marque, S.R.; Reznikov, V.; Roshchupkina, G.; Zhurko, I.; Zubenko, D. Can the first addition of alkyl radicals play a role in the fate of NMP? Macromol. Chem. Phys. 2008, 209, 1345–1357. [Google Scholar] [CrossRef]
  40. Li, J.; Zhu, X.; Zhu, J.; Cheng, Z. Imidazoline Nitroxide-mediated radical polymerization of styrene. J. Macromol. Sci. Part A Pure Appl. Chem. 2007, 44, 41–46. [Google Scholar] [CrossRef]
  41. Edeleva, M.V.; Kirilyuk, I.A.; Zubenko, D.P.; Zhurko, I.F.; Marque, S.R.; Gigmes, D.; Guillaneuf, Y.; Bagryanskaya, E.G. Kinetic study of H-atom transfer in imidazoline-, imidazolidine-, and pyrrolidine-based alkoxyamines: Consequences for nitroxide-mediated polymerization. J. Polym. Sci. Part A Polym. Chem. 2009, 47, 6579–6595. [Google Scholar] [CrossRef]
  42. Edeleva, M.V.; Parkhomenko, D.A.; Morozov, D.A.; Dobrynin, S.A.; Trofimov, D.G.; Kanagatov, B.; Kirilyuk, I.A.; Bagryanskaya, E.G. Controlled/living polymerization of methyl methacrylate using new sterically hindered imidazoline nitroxides prepared via intramolecular 1, 3-dipolar cycloaddition reaction. J. Polym. Sci. Part A Polym. Chem. 2014, 52, 929–943. [Google Scholar] [CrossRef]
  43. Bagryanskaya, E.; Brémond, P.; Edeleva, M.; Marque, S.R.; Parkhomenko, D.; Roubaud, V.; Siri, D. Chemically triggered C–ON Bond homolysis in alkoxyamines. Part 2: DFT Investigation and application of the pH Effect on NMP. Macromol. Rapid Commun. 2012, 33, 152–157. [Google Scholar] [CrossRef] [PubMed]
  44. Audran, G.; Bagryanskaya, E.; Bagryanskaya, I.; Brémond, P.; Edeleva, M.; Marque, S.R.; Parkhomenko, D.; Tretyakov, E.; Zhivetyeva, S. C–ON bond homolysis of alkoxyamines triggered by paramagnetic copper (ii) salts. Inorg. Chem. Front. 2016, 3, 1464–1472. [Google Scholar] [CrossRef]
  45. Audran, G.; Bagryanskaya, E.; Bagryanskaya, I.; Edeleva, M.; Marque, S.R.; Parkhomenko, D.; Tretyakov, E.; Zhivetyeva, S. Zinc (II) Hexafluoroacetylacetonate complexes of alkoxyamines: NMR and Kinetic investigations. first step for a new way to prepare hybrid materials. Chem. Sel. 2017, 2, 3584–3593. [Google Scholar] [CrossRef]
  46. Audran, G.; Bagryanskaya, E.G.; Bagryanskaya, I.Y.; Edeleva, M.; Kaletina, P.; Marque, S.R.; Parkhomenko, D.; Tretyakov, E.V.; Zhivetyeva, S.I. The effect of the oxophilic Tb (III) cation on CON bond homolysis in alkoxyamines. Inorg. Chem. Commun. 2018, 91, 5–7. [Google Scholar] [CrossRef]
  47. Fokin, S.; Ovcharenko, V.; Romanenko, G.; Ikorskii, V. Problem of a wide variety of products in the Cu (hfac) 2-nitroxide system. Inorg. Chem. 2004, 43, 969–977. [Google Scholar] [CrossRef] [PubMed]
  48. Partenheimer, W.; Drago, R.S. Preparation and thermodynamic data for adducts of bases with some copper (II). beta.-diketonates. Inorg. Chem. 1970, 9, 47–52. [Google Scholar] [CrossRef]
  49. Pradilla-Sorzano, J.; Fackler Jr, J.P. Base adducts of. beta.-ketoenolates. V. Crystal and molecular structure of cis-bis (1, 1, 1, 6, 6, 6-hexafluoro-2, 4-pentanedionato) bis (pyridine) zinc (II) and copper (II). Inorg. Chem. 1973, 12, 1174–1182. [Google Scholar] [CrossRef]
  50. Audran, G.; Bagryanskaya, E.; Edeleva, M.; Marque, S.R.; Parkhomenko, D.; Tretyakov, E.; Zhivetyeva, S. Coordination-Initiated nitroxide-mediated polymerization (CI-NMP). Aust. J. Chem. 2018, 71, 334–340. [Google Scholar] [CrossRef]
  51. Brémond, P.; Koїta, A.; Marque, S.R.; Pesce, V.; Roubaud, V.; Siri, D. Chemically triggered C–ON bond homolysis of alkoxyamines. Quaternization of the alkyl fragment. Org. Let. 2011, 14, 358–361. [Google Scholar] [CrossRef] [PubMed]
  52. Edeleva, M.; Morozov, D.; Parkhomenko, D.; Polienko, Y.; Iurchenkova, A.; Kirilyuk, I.; Bagryanskaya, E. Versatile approach to activation of alkoxyamine homolysis by 1, 3-dipolar cycloaddition for efficient and safe nitroxide mediated polymerization. Chem. Commun. 2019, 55, 190–193. [Google Scholar] [CrossRef] [PubMed]
  53. Moad, G.; Rizzardo, E. Alkoxyamine-initiated living radical polymerization: Factors affecting alkoxyamine homolysis rates. Macromolecules 1995, 28, 8722–8728. [Google Scholar] [CrossRef]
  54. Guerret, O.; Couturier, J.; Chauvin, F.; El-Bouazzy, H.; Bertin, D.; Gigmes, D.; Marque, S.; Fischer, H.; Tordo, P. Influence of solvent and polymer chain length on the homolysis of SG1-based alkoxyamines. In Proceedings of ACS Symposium Series; American Chemical Society: Washington, DC, USA, 1999; pp. 412–423. [Google Scholar]
  55. Audran, G.; Brémond, P.; Marque, S.R.; Obame, G. Chemically triggered C–ON bond homolysis of alkoxyamines. Part 4: Solvent effect. Polym. Chem. 2012, 3, 2901–2908. [Google Scholar] [CrossRef]
  56. Audran, G.; Brémond, P.; Marque, S.R.; Obame, G. Chemically triggered C–ON bond homolysis of alkoxyamines. 5. Cybotactic effect. J. Org. Chem. 2012, 77, 9634–9640. [Google Scholar] [CrossRef] [PubMed]
  57. Audran, G.; Brémond, P.; Marque, S.R.; Obame, G. Chemically triggered C–ON Bond homolysis in alkoxyamines. 6. Effect of the counteranion. J. Org. Chem. 2013, 78, 7754–7757. [Google Scholar] [CrossRef] [PubMed]
  58. Abraham, M.H.; Grellier, P.L.; Prior, D.V.; Duce, P.P.; Morris, J.J.; Taylor, P.J. Hydrogen bonding. Part 7. A scale of solute hydrogen-bond acidity based on log K values for complexation in tetrachloromethane. J. Chem. Soc. Perkin Trans. 1989, 2, 699–711. [Google Scholar] [CrossRef]
  59. Audran, G.; Bikanga, R.; Brémond, P.; Edeleva, M.; Joly, J.-P.; Marque, S.R.; Nkolo, P.; Roubaud, V. How intramolecular hydrogen bonding (IHB) controls the C–ON bond homolysis in alkoxyamines. Org. Biomol. Chem. 2017, 15, 8425–8439. [Google Scholar] [CrossRef] [PubMed]
  60. Yagci, Y.; Jockusch, S.; Turro, N.J. Photoinitiated polymerization: advances, challenges, and opportunities. Macromolecules 2010, 43, 6245–6260. [Google Scholar] [CrossRef]
  61. Guillaneuf, Y.; Bertin, D.; Gigmes, D.; Versace, D.-L.; Lalevee, J.; Fouassier, J.-P. Toward nitroxide-mediated photopolymerization. Macromolecules 2010, 43, 2204–2212. [Google Scholar] [CrossRef]
  62. Morris, J.; Telitel, S.; Fairfull-Smith, K.E.; Bottle, S.E.; Lalevée, J.; Clément, J.-L.; Guillaneuf, Y.; Gigmes, D. Novel polymer synthesis methodologies using combinations of thermally-and photochemically-induced nitroxide mediated polymerization. Polym.Chem. 2015, 6, 754–763. [Google Scholar] [CrossRef]
  63. Huix-Rotllant, M.; Ferré, N. Theoretical Study of the photochemical initiation in nitroxide-mediated photopolymerization. J. Phys. Chem. A 2014, 118, 4464–4470. [Google Scholar] [CrossRef] [PubMed]
  64. Beinhoff, M.; Frommer, J.; Carter, K.R. Photochemical attachment of reactive cross-linked polymer films to Si/SiO2 surfaces and subsequent polymer brush growth. Chem. Mater. 2006, 18, 3425–3431. [Google Scholar] [CrossRef]
  65. Yoshida, E. Effect of azoinitiators on nitroxide-mediated photo-living radical polymerization of methyl methacrylate. Colloid Polym. Sci. 2010, 288, 341–345. [Google Scholar] [CrossRef]
  66. Su, J.; Liu, X.; Hu, J.; You, Q.; Cui, Y.; Chen, Y. Photo-induced controlled radical polymerization of methyl methacrylate mediated by photosensitive nitroxides. Polym. Int. 2015, 64, 867–874. [Google Scholar] [CrossRef]
  67. Yoshida, E. Photo-controlled/living radical polymerization of tert-butyl methacrylate in the presence of a photo-acid generator using a nitroxide mediator. Colloid Polym. Sci. 2012, 290, 661–665. [Google Scholar] [CrossRef]
Materials 12 00688 g001 550
Figure 1. (a) The scheme of alkoxyamine hemolysis; (b) An outline of a smart alkoxyamine. Reproduced/Adapted from Ref. [18] with permission from The Royal Society of Chemistry.
Figure 1. (a) The scheme of alkoxyamine hemolysis; (b) An outline of a smart alkoxyamine. Reproduced/Adapted from Ref. [18] with permission from The Royal Society of Chemistry.
Materials 12 00688 g001
Materials 12 00688 g002 550
Figure 2. The influence of introduction of electron-withdrawing groups and electron-donating groups into the alkyl and nitroxyl part of an alkoxyamine on the polarity of the C–ON bond and thus the rate of homolysis.
Figure 2. The influence of introduction of electron-withdrawing groups and electron-donating groups into the alkyl and nitroxyl part of an alkoxyamine on the polarity of the C–ON bond and thus the rate of homolysis.
Materials 12 00688 g002
Materials 12 00688 g003 550
Figure 3. Structure of alkoxyamine 1 and RAFT agent 2 first used for pH-switchable controlled radical polymerization.
Figure 3. Structure of alkoxyamine 1 and RAFT agent 2 first used for pH-switchable controlled radical polymerization.
Materials 12 00688 g003
Materials 12 00688 g004 550
Figure 4. (a) Structures of alkoxyamines 3–9; (b) Protonation of 3 and (c) deprotonation of 9.
Figure 4. (a) Structures of alkoxyamines 3–9; (b) Protonation of 3 and (c) deprotonation of 9.
Materials 12 00688 g004
Materials 12 00688 g005 550
Figure 5. (a) 1H NMR spectra of 10 (in D2O) recorded at solution pH levels 10.0, 5.3, and 2.0 with signal attribution as indicated in the structure; (b) Titration curves obtained from signals b (□) and c,c’ (■, ●) (see signal attribution) with a fit, and the values of pKa for pyridine and amidine functions; (c) Kinetics of homolysis of alkoxyamine 10 (0.02 M solution) at 368 K as determined by 1H NMR in the presence of 40 eq. of ascorbic acid or ascorbate at different pH levels. Adapted with permission from Ref. [30]. Copyright 2011 American Chemical Society.
Figure 5. (a) 1H NMR spectra of 10 (in D2O) recorded at solution pH levels 10.0, 5.3, and 2.0 with signal attribution as indicated in the structure; (b) Titration curves obtained from signals b (□) and c,c’ (■, ●) (see signal attribution) with a fit, and the values of pKa for pyridine and amidine functions; (c) Kinetics of homolysis of alkoxyamine 10 (0.02 M solution) at 368 K as determined by 1H NMR in the presence of 40 eq. of ascorbic acid or ascorbate at different pH levels. Adapted with permission from Ref. [30]. Copyright 2011 American Chemical Society.
Materials 12 00688 g005
Materials 12 00688 g006 550
Figure 6. Structures of alkoxyamines 10–13.
Figure 6. Structures of alkoxyamines 10–13.
Materials 12 00688 g006
Materials 12 00688 g007 550
Figure 7. Logarithms of equilibrium constants for NO–C bond homolysis (a combination is defined as the forward reaction, and decomposition as the reverse one) obtained from the bond dissociation free energies for the tested nitroxides with a styryl dimer as a propagating radical, calculated for a bulk styrene solution at 25 and 120 °C. The green line corresponds to log K = 12 (corresponds to the TEMPO-Sty alkoxyamine used as a reference). Structures of only the anionic forms are depicted. Adapted from Ref. [33] with permission from the PCCP Owner Societies.
Figure 7. Logarithms of equilibrium constants for NO–C bond homolysis (a combination is defined as the forward reaction, and decomposition as the reverse one) obtained from the bond dissociation free energies for the tested nitroxides with a styryl dimer as a propagating radical, calculated for a bulk styrene solution at 25 and 120 °C. The green line corresponds to log K = 12 (corresponds to the TEMPO-Sty alkoxyamine used as a reference). Structures of only the anionic forms are depicted. Adapted from Ref. [33] with permission from the PCCP Owner Societies.
Materials 12 00688 g007
Materials 12 00688 g008 550
Figure 8. Protonated forms of alkoxyamine 10. Polymerization of styrene at 140 °C initiated by protonated or deprotonated forms of alkoxyamine 10. The monomer-to-initiator ratio is 1000/1. (a) A kinetics plot for polymerization; lines: a linear fit of the experimental data points; (b) Evolution of molecular weight and dispersity. ■: pure alkoxyamine, form II; ●: alkoxyamine in the presence of 1 eq. of CF3COOH, form III; ▲: alkoxyamine in the presence of 10 eq. of CF3COOH, form IV. The solid line denotes the theoretical Mn, dashed lines: a linear fit of the experimental data points. Adapted with permission from Ref. [30]. Copyright 2011 American Chemical Society.
Figure 8. Protonated forms of alkoxyamine 10. Polymerization of styrene at 140 °C initiated by protonated or deprotonated forms of alkoxyamine 10. The monomer-to-initiator ratio is 1000/1. (a) A kinetics plot for polymerization; lines: a linear fit of the experimental data points; (b) Evolution of molecular weight and dispersity. ■: pure alkoxyamine, form II; ●: alkoxyamine in the presence of 1 eq. of CF3COOH, form III; ▲: alkoxyamine in the presence of 10 eq. of CF3COOH, form IV. The solid line denotes the theoretical Mn, dashed lines: a linear fit of the experimental data points. Adapted with permission from Ref. [30]. Copyright 2011 American Chemical Society.
Materials 12 00688 g008
Materials 12 00688 g009 550
Figure 9. Structures of bis(hexafluoroacetylacetonate) zinc complexes with alkoxyamines 3 and 4 according to X-ray diffraction data: (a) the ring-type complex, (b) chain-type complex, and (c) intramolecular complex. The structure of the complex depends strongly on the diastereomeric configuration of the alkoxyamine.
Figure 9. Structures of bis(hexafluoroacetylacetonate) zinc complexes with alkoxyamines 3 and 4 according to X-ray diffraction data: (a) the ring-type complex, (b) chain-type complex, and (c) intramolecular complex. The structure of the complex depends strongly on the diastereomeric configuration of the alkoxyamine.
Materials 12 00688 g009
Materials 12 00688 g010 550
Figure 10. (a) Room temperature data on 31P NMR spectroscopy at 0, 1, 6, and 12 equivalents of pyridine (from the bottom up) added to Cu-RSSR-3 in C6D6 (the asterisk denotes free (RS/SR)-3 as an impurity) and data on pure 3-RRSS; (b) Kinetics of Cu-RSSR-3 decomposition in the presence of 3 eq. of TEMPO after gradual addition of pyridine (py) as a competitor. Adapted from Ref. [44] with permission from The Royal Society of Chemistry.
Figure 10. (a) Room temperature data on 31P NMR spectroscopy at 0, 1, 6, and 12 equivalents of pyridine (from the bottom up) added to Cu-RSSR-3 in C6D6 (the asterisk denotes free (RS/SR)-3 as an impurity) and data on pure 3-RRSS; (b) Kinetics of Cu-RSSR-3 decomposition in the presence of 3 eq. of TEMPO after gradual addition of pyridine (py) as a competitor. Adapted from Ref. [44] with permission from The Royal Society of Chemistry.
Materials 12 00688 g010
Materials 12 00688 g011 550
Figure 11. Mn versus conversion, PDI vs. conversion, and ln([M]/[M]0) vs. time plots for (a) the polymerization of styrene at 90 °C initiated with RS/SR-3 (★), Zn-RSSR-3 (■), Zn-RSSR-3’ (RS/SR-3 + 0.5 eq. Zn(hfac)2) (*), or 3 + 10 eq. Zn(hfac)2 (○); the monomer to initiator ratio is 250:1.
Figure 11. Mn versus conversion, PDI vs. conversion, and ln([M]/[M]0) vs. time plots for (a) the polymerization of styrene at 90 °C initiated with RS/SR-3 (★), Zn-RSSR-3 (■), Zn-RSSR-3’ (RS/SR-3 + 0.5 eq. Zn(hfac)2) (*), or 3 + 10 eq. Zn(hfac)2 (○); the monomer to initiator ratio is 250:1.
Materials 12 00688 g011
Materials 12 00688 g012 550
Figure 12. Structures of alkoxyamine 3 derivatives. Adapted with permission from Ref. [51]. Copyright 2012 American Chemical Society.
Figure 12. Structures of alkoxyamine 3 derivatives. Adapted with permission from Ref. [51]. Copyright 2012 American Chemical Society.
Materials 12 00688 g012
Materials 12 00688 g013 550
Figure 13. Enzymatic hydrolysis of 27 into 28H, protonated as 28H+ at pH 7.2, and its subsequent spontaneous homolysis into an alkyl radical and nitroxide.
Figure 13. Enzymatic hydrolysis of 27 into 28H, protonated as 28H+ at pH 7.2, and its subsequent spontaneous homolysis into an alkyl radical and nitroxide.
Materials 12 00688 g013
Materials 12 00688 g014 550
Figure 14. The reaction of 1,3-dipolar cycloaddition of olefin that takes place simultaneously during the initiation of nitroxide-mediated polymerization (NMP).
Figure 14. The reaction of 1,3-dipolar cycloaddition of olefin that takes place simultaneously during the initiation of nitroxide-mediated polymerization (NMP).
Materials 12 00688 g014
Materials 12 00688 g015 550
Figure 15. Kinetics of inactive alkoxyamine decomposition under various conditions. (a) Black squares: pure inactive alkoxyamine 29, white squares: 6 eq. of styrene, crossed squares: 33 eq. of styrene, half-colored squares: presynthesized with styrene alkoxyamine. (b) Black squares: pure inactive alkoxyamine, white squares: 33 eq. of styrene, white stars: 30 eq. of MMA, white triangles: 30 eq. of acrylonitrile, white circles: 35 eq. of butyl acrylate. Red lines: a linear fit of experimental data points. The temperature in all experiments is 373 K. The solvent is C6D4Cl2. Adapted from Ref. [52] with permission from The Royal Society of Chemistry.
Figure 15. Kinetics of inactive alkoxyamine decomposition under various conditions. (a) Black squares: pure inactive alkoxyamine 29, white squares: 6 eq. of styrene, crossed squares: 33 eq. of styrene, half-colored squares: presynthesized with styrene alkoxyamine. (b) Black squares: pure inactive alkoxyamine, white squares: 33 eq. of styrene, white stars: 30 eq. of MMA, white triangles: 30 eq. of acrylonitrile, white circles: 35 eq. of butyl acrylate. Red lines: a linear fit of experimental data points. The temperature in all experiments is 373 K. The solvent is C6D4Cl2. Adapted from Ref. [52] with permission from The Royal Society of Chemistry.
Materials 12 00688 g015
Materials 12 00688 g016 550

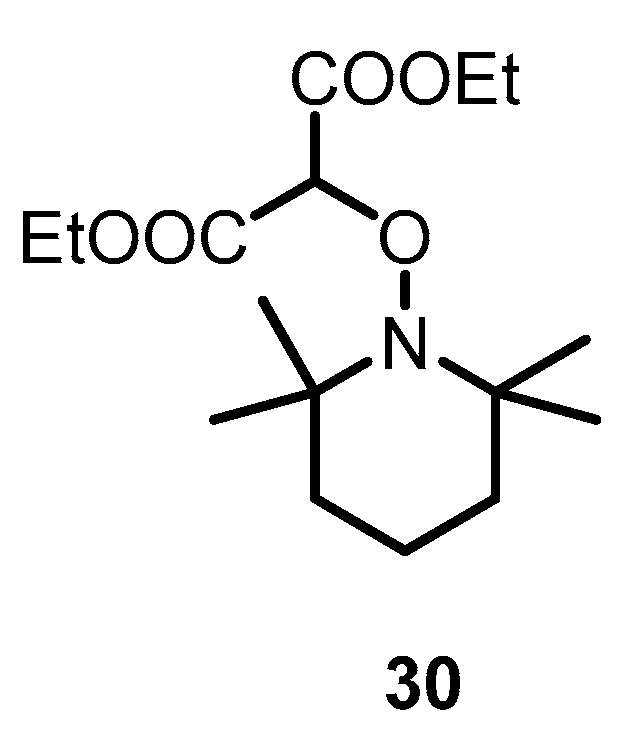

Figure 16. Structure of alkoxyamine 30.
Figure 16. Structure of alkoxyamine 30.
Materials 12 00688 g016
Materials 12 00688 g017 550
Figure 17. Cartoon representation of the impact of a solvent on an intimate ion pair. Reprinted with permission from Ref. [51]. Copyright 2013 American Chemical Society.
Figure 17. Cartoon representation of the impact of a solvent on an intimate ion pair. Reprinted with permission from Ref. [51]. Copyright 2013 American Chemical Society.
Materials 12 00688 g017
Materials 12 00688 g018a 550Materials 12 00688 g018b 550

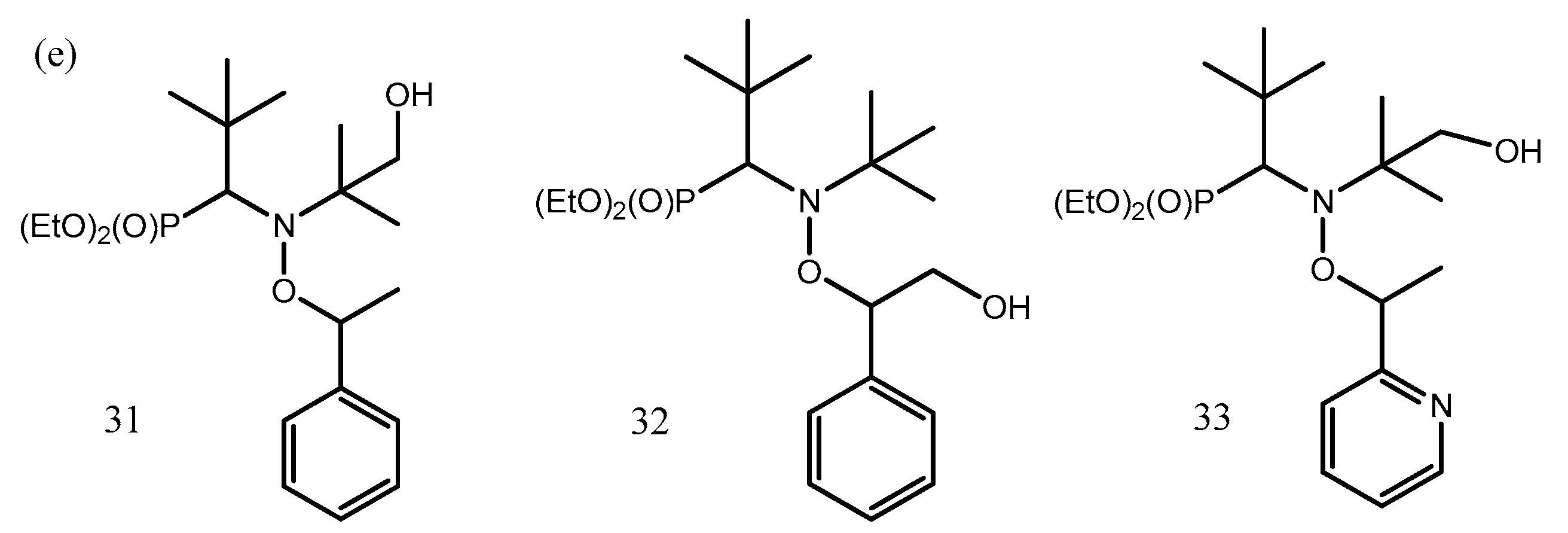

Figure 18. Various types of intramolecular hydrogen bonds (IHBs): (a) within the nitroxyl moiety (intraN); (b) within the alkyl part (intraR); (c) from an alkyl to nitroxyl part (interR); and (d) from a nitroxyl to alkyl part (interN). Dotted lines represent an IHB. (e) Structures of alkoxyamines 31–33.
Figure 18. Various types of intramolecular hydrogen bonds (IHBs): (a) within the nitroxyl moiety (intraN); (b) within the alkyl part (intraR); (c) from an alkyl to nitroxyl part (interR); and (d) from a nitroxyl to alkyl part (interN). Dotted lines represent an IHB. (e) Structures of alkoxyamines 31–33.
Materials 12 00688 g018aMaterials 12 00688 g018b

Share and Cite

MDPI and ACS Style

Edeleva, M.; Audran, G.; Marque, S.; Bagryanskaya, E. Smart Control of Nitroxide-Mediated Polymerization Initiators’ Reactivity by pH, Complexation with Metals, and Chemical Transformations. Materials 2019, 12, 688. https://doi.org/10.3390/ma12050688

AMA Style

Edeleva M, Audran G, Marque S, Bagryanskaya E. Smart Control of Nitroxide-Mediated Polymerization Initiators’ Reactivity by pH, Complexation with Metals, and Chemical Transformations. Materials. 2019; 12(5):688. https://doi.org/10.3390/ma12050688

Chicago/Turabian Style

Edeleva, Mariya, Gerard Audran, Sylvain Marque, and Elena Bagryanskaya. 2019. "Smart Control of Nitroxide-Mediated Polymerization Initiators’ Reactivity by pH, Complexation with Metals, and Chemical Transformations" Materials 12, no. 5: 688. https://doi.org/10.3390/ma12050688

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
