Comparison of the Characteristics of Fly Ash Generated from Bio and Municipal Waste: Fluidized Bed Incinerators

Institute of Chemical, Environmental and Bioscience Engineering, TU WIEN, Getreidemarkt 9, 1060 Vienna, Austria
Institute of Chemical Engineering & Technology, University of the Punjab, Lahore 54000, Pakistan
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian 116024, China
Institute for Chemical Technology and Analytics, TU Wien, Getreidemarkt 9, 1060 Vienna, Austria
Author to whom correspondence should be addressed.
Materials 2019, 12(17), 2664;
Submission received: 15 July 2019 / Revised: 13 August 2019 / Accepted: 16 August 2019 / Published: 21 August 2019
(This article belongs to the Section Energy Materials)


European solid waste incinerator plants still primarily use grate furnace technology, although circulating fluidized bed (CFB) technology is steadily expanding. Therefore, few investigations have reported on the environmental assessment of fly ash from fluidized incinerators. This research project aims to integrate information on fly ash derived from the combustion of municipal solid waste (FA1) and biomass (FA2) in fluidized bed incinerator facilities. Fly ash samples were comparatively analyzed by X-ray diffraction (XRD), X-ray fluorescence spectroscopy (XRF), scanning electron microscopy (SEM), and inductively coupled plasma optical emission spectroscopy (ICP-OES) to study the mineralogy, morphology, total heavy metal content, and leaching behavior, respectively. The analysis revealed that the two types of fly ash differ in their characteristics and leaching behavior. The concentration of most of the heavy metals in both is low compared to the literature values, but higher than the regulatory limits for use as a soil conditioner, whereas the high contents of Fe, Cu, and Al suggest good potential for metal recovery. The leaching ability of most elements is within the inert waste category, except for Hg, which is slightly above the non-hazardous waste limit.

1. Introduction

In recent years, the increase in population and living standards has resulted in an increasing output of municipal solid waste (MSW), which poses a great threat to the environment [1]. The incineration of MSW with energy recovery is an integral part of an environmentally sustainable waste management strategy [2,3]. As most MSW is derived from biomass like waste paper, kitchen garbage, trees and branches, textiles, and leather [4], the extraction of energy via incineration is regarded as a type of renewable energy by the U.S. Department of Energy [5]. An awareness of global environmental issues and the increasing energy demand have been major driving forces in the quest to increase renewable energy sources in Europe’s energy portfolio [6]. The status of fossil fuels and their polluting nature demonstrate the need for new energy technologies that are more efficient and cause minimal environmental damage. The proportion of biomass energy in the world’s total energy consumption is increasing due to the impact of CO2 emissions [7]. As a renewable energy source, the combustion of biomass is considered CO2-neutral. The CO2 produced as a result of combustion is nearly compensated for by the CO2 absorbed in the biomass while it grows [8].
In Europe, the emphasis of research is on developing technologies for obtaining renewable energy from biomass to meet the demands of the electricity, heating, cooling, and transportation sectors. These research projects aim to increase the overall efficiency of conversion processes such as combustion, co-firing, and gasification by keeping an eye on cost reduction, environmental impact, and flexibility of technologies to operate under different regional conditions [6,9]. Among these processes, biomass and municipal solid waste combustion by fluidized bed incinerators and grate furnace incinerators are proven technologies for heat and power generation [10]. Fluidized bed incinerators provide good mixing, temperature distribution, high conversion efficiency, fuel flexibility, and low pollutant emissions, but demand higher investment than the primarily used grate furnace technology [9].
Both combustion technologies generate huge amounts of fly ash. The fly ash is problematic for incinerator operation and can cause slagging and fouling in addition to environmental issues. Fly ash contains heavy metals, a high content of easily soluble salts, and, in some cases, polychlorinated dioxins and furans [11,12,13]. Waste management strategies currently recommend disposal in underground deposits or non-hazardous landfill (after stabilization processes) for fly ash. The increase in the cost of development of new landfill sites is of major concern for all energy-generation incinerators, and alternative management of fly ash is being investigated elsewhere [6,9,14].
The quantity, quality, and characteristics of fly ash derived from MSW and biomass depends on many factors, such as the composition of feed, type of incinerator, operating parameters, and pollution control techniques. In Europe, 90% of the incinerators are grate furnaces. The characterization and possible utilization of the bottom and fly ash from grate furnaces have been widely studied, whereas comparative studies of fly ash from fluidized bed incinerators with different feeds are rare [14,15].
This study aims to collect detailed information on the physical and chemical characterization, particle size distribution, mineralogy, morphology, heavy metal content, and leaching behavior of the fly ash generated by two different fluidized bed incinerators, originating from the input feed of municipal solid waste and biomass. This research is part of a major project in which fly ash from different type of incinerators (grate furnace, fluidized bed, and rotary kiln) is being investigated to identify possible utilization opportunities for the fly ash in order to achieve less dependence on landfill [16].

2. Experimental

2.1. Sampling

The fly ash derived from biomass and municipal solid waste was collected for investigation purposes from two fluidized incinerator facilities. The source feed for biomass incinerator includes forestry residue (wood residue, sawdust, bark, and branches) and agriculture waste. In the case of MSW incineration technology, the feed consists of 85–90% municipal solid waste and 10–15% sewage sludge waste. These plants primarily provide district heating to cities, in addition to power generation. The operating temperature values for MSW and biomass incinerators in beds and freeboard zones ranges between 800 and 900 °C and 1000 and 1100 °C, respectively. In order to get representative samples for lab analysis, fly ash from a cyclone separator and precipitators was collected over a period of two weeks. After grinding and good mixing, the coning and quartering method was repeatedly applied to get suitably sized samples for the different laboratory analyses.

2.2. Ash Characterization

Determination of pH and electrical conductivity of the samples was conducted according to European standard SFS-EN 13037 at a solid to liquid (ultrapure water) ratio of 1:5. Determination of the dry matter content of fly ash samples was carried out according to European standard SFS-EN 12880, and fly ash samples were dried overnight to a constant mass in an oven at 105 °C. To determine the organic matter content, measurement of loss on ignition (LOI) was carried out according to European standard SFS-EN 12879. For this, oven-dried (105 °C) samples were heated overnight in a muffle furnace at 550 °C.
Determination of the chemical composition of the fly ash and its fractions was carried out by X-ray fluorescence (XRF) (Panalytical Axios, the Netherlands). The preparation of samples for XRF was done by using 6 g of lithium tetra borate for each 0.5 g of ash, obtained at 1000 °C from the fly ash. The beads were prepared in a platinum crucible under heating and stirring in a Philips Model Perl X3 (PANalytical B.V, the Netherlands). Elemental analysis was performed under standard conditions in a SIEMENS SRS 3000 spectrometer fitted with an Rh target tube.
Powder X-ray diffraction (XRD) (Panalytical, the Netherlands)measurements for mineralogical composition were carried out on a Panalytical Xpert-Pro diffractometer (CuKα, 45 kV, 40 mA, continuous scan, Soller slits 0.04 rad, Bragg-Brentano HD mirror, X’Celerator detector, 2θ range 5°–70°, 200 s/step measurement time). Representative samples were ground manually in an agate mortar for 5–10 min and mounted onto a zero-background sample holder with minute amounts of grease. The evaluation and phase identification were carried out using the search and match routine of the Panalytical HighScore Plus Program Suite [17] on the ICDD database (ICDD, 2017). This was followed by Rietveld refinement with Topas [18] using CIF files from the ICSD database [19]. A Malvern Master sizer 2000 particle size analyzer was used to measure particle size distribution (PSD), with compressed air as the dispersant. Scanning electron microscopy (SEM) analysis was performed on FEI Quanta 200 FEG SEM (FEI, USA), which is equipped with a Schottky emitter in the operating range of 30 to 200 V, supported by an Everhart-Thornley detector for secondary electron in action. In order to decrease the charging fact of the samples to get better results, samples were gold-coated prior to conducting SEM analysis.
For the determination of minor elemental concentration in the fly ash, dried samples were subjected to digestion in aqua regia according to the EN 13657 (2002) standard. Further analysis was done according to the EN 11885 (2009) standard by a PerkinElmer Optima 8300 ICP-OES (inductively coupled plasma optical emission spectroscopy), which was equipped with a SC-2 DX FAST sample preparation system. The analytes were determined via axial view and with three replicates, followed by an arithmetic average. For the calibration, a customized single element (Merck, Roth) standard was adopted. Similarly, leachates were prepared by using a liquid-to-solid ratio of 10 L/kg according to EN 12457-4 (2002). Fly ash with a particle size below 10 mm was used to prepare the leachates in deionized water with continuous tumbler agitation for 24 h. After 10 min of agitation, leachates were subjected to a filtration process (0.45 μm) and subsequent analysis was carried out using the same ICP-OES.

3. Results and Discussion

The physical properties of fly ash are given in Table 1. Low values of LOI of fly ash, even for a shorter residence time as compared to bottom ash, indicate efficient combustion of organic matter in both fluidized bed incinerators. This is due to the temperature range of 820–850 °C in the incinerator bed and 1100–1200 °C in the upper free zone of the incinerator. The electric conductivity of sample FA1 is quite low compared to FA2, showing higher ionic concentration in sample FA2. This means contribution of soluble salts from fly ash samples to conductivity may be taken into consideration for evaluating pozzolanic properties of fly ash samples [20]. The pH of an ash may vary from slightly acidic to highly alkaline, depending on the sulfur content [21]. The pH results show strong alkaline behavior in both samples. An alkaline pH indicates the presence of metal in the ash such as basic metal salts, carbonates, oxides, or hydroxides [22], which is supported by the XRD results. The mineralogical analyses help us understand the coalescent status of the elements in the ash. The toxicity of incinerators solid residues is not only dependent on the concentration of polluting elements, but also on the nature of the host phases [23].
The X-ray diffraction analysis of crystalline mineral material in fly ash samples is shown in Figure 1 and linked in Table 2. Quartz and calcite are the predominant phases in both samples. Most of the SiO2 in sample FA1 is present as quartz, compared to lower amounts in sample FA2. This is explained by the carryover of bed particles of the fluidized incinerator [24] and partially by sand and soil particles in the case of forest residues during harvesting, transport, and handling [25]. Furthermore, there is incineration of plant-tissue-derived Si-based minerals during decomposition, e.g., phytolith (SiO2 X nH2O), is mostly made up of plant tissue, deposited within and between the plant cells [9]. SiO2 is also present in the form of glassy material and other silicate compounds. Another of the major components of forest biomass is Ca [26]. In sample FA2, the calcium concentration is the highest and mainly occurs in the form of calcite and free lime, while in FA1, calcite, anhydrite, and gehlenite are the predominant Ca phases. While most of the sulfate is present as Ca-sulfate in FA1, the high alkali content of FA2 is confirmed by a high content of alkali chlorides (KCl, NaCl), but sulfate is also present, mainly in the form of alkali sulfates (arkanite, thenardite, and aphthitalite). Mg is present as periclase (MgO) in both samples and the results agree with the XRF results. This complex mineralogy is the outcome of many unit operations like melting, vaporization, condensation, crystallization, vitrification, and precipitation, which occur during incineration operation and flue gas treatment [27].
The particle size distribution of fly ash plays a vital role in assessing and evaluating the potential utilization and environmental impact, as it directly influences the fly ash characteristics [28]. A particle size analysis of fly ash is shown in Figure 2. Sample FA1 is coarser than FA2. According to particle size distribution studies of fly ash, the size may range between 2 and 1000 μm [29]. The D90 of FA1 and FA2 is below 500 and 350 μm, respectively, and D50 is below 100 and 30 μm, respectively, so the PSDs are quite different. In fluidized bed incinerators, high fluidizing velocity is usually maintained to allow the separation of particles in the cyclone segment. Larger particles from cyclone separator are recycled to the main incinerator and fine particles are transported to bag filters. These large recycled particles have a longer residence time in the incinerator, resulting in heavy metal enrichment on the surface of the particles at proper thermal conditions compared to fly ash with fine particles and a short residence time [7,30].
The leaching behavior of fly ash depends on the particle properties. For example, the presence of a dense particle interior and porous or non-porous outer surface may affect the rate of leaching of heavy metals [30]. This makes morphology studies of fly ash important. Figure 3 gives SEM photographs of the two samples. The photograph of fly ash FA1 shows large, irregular, and agglomerated particles, which are high-temperature sintering products [27]. Fly ash FA2 photograph shows a fine, homogenous, and partially vesicular structure, which is the result of the volatilization process [31]. It is evident that the surface structure is very different.
According to studies comparing the chemical composition of fly ash, the levels of SiO2, CaO, Al2O3, Fe2O3, and MgO in fly ash from fluidized incinerators are higher than those from grate furnace and rotary kiln incinerators. Therefore, the chemical composition of fly ash is greatly influenced by the type of incinerator, input waste, and injection of additives into air pollution control devices (APCD) [29,32]. The major chemical composition of fly ash expressed in the form of oxides, obtained by XRF, is presented in Table 3 and fits well with others’ research results on fluidized bed incinerators using municipal solid waste and biomass as feed [9,29]. SiO2 and CaO are the predominant oxides in fly ash [33], making up more than 55% of the total oxide content in both samples. The other main oxides are Al2O3, MgO, K2O, and SO3. SiO2 and CaO mainly occur as quartz, calcite, and free lime. The CaCO3 concentration is a secondary product, as CaCO3 will decompose into CaO at the firing temperature. Its presence in a fresh sample could be used to control the firing temperature. Fe2O3 is present as the mineral hematite in low amounts. The concentration of CaO in biomass fly ash is usually higher compared to bottom ash. This might be due to calcite, which is easily grindable, resulting in a higher CaO content in filter ashes [34]. Moreover, biomass fuel contains calcareous minerals, which also contribute to the CaO content in ash. CaO may also be produced due to thermal decomposition and the subsequent transformation of CaCO3 into secondary calcite [35]. This high content of CaO is one of the major reasons for alkaline ash and self-desulfurization in these incinerators [7]. Both the fly ash contained pozzolanic material such as Fe2O3, SiO2, and Al2O3. For their use in cement industry, the observed low quantity of these materials and presence of chlorides and sulphates in samples can reduce durability of cementitious materials [6].
The enrichment of heavy metals is not only dependent on the concentration of the heavy metals in the fuel. Many other factors, like the presence of heavy metals in bed material and the bed’s age, combustion temperature, ash characteristics, fuel density, and chlorine and sulfur content may contribute as well [36,37]. For example, at 700 °C, bed sand captures the maximum amount of lead (~72%) [38]. It is worth noting that, during the incineration process, physical and chemical properties such as saturated vapor pressure and boiling point are of great importance regarding the volatilization process of heavy metals. The concentration of heavy metals is greatly influenced by the operating temperature of the incinerators. The fluidized bed incinerators’ temperature of 800–1200 °C is high enough to vaporize elements, but the retention time of elements in the fly ash due to other processes like condensation, physical adsorption, and chemical absorption determines the final aspect of volatilization regarding specific elements [39]. Most of these elements condense on the surface of fine particles during flue gas treatment, resulting in the enrichment of some heavy metal elements in the fly ash. Due to this process, the bottom ash mostly consists of non-volatile components with sintered and melted particles.
One notable element is cadmium with a boiling point of 767 °C, which is prone to partial evaporation and condensation on fly ash particles, followed by partial carryover in the gaseous phase to the atmosphere during the incineration process [40]. The use of solid residue from incinerators as a soil conditioner in forestry is ecologically beneficial, as it will improve the level of primary resources. This practice will result in the sustainable utilization of ash from incinerators. However, the sensitivity of physical and chemical characteristic of fly ash with respect to different factors like plant species, growing rate, size and age of trees, collection, storage, incineration technology, operating temperature, and flue gas treatment make it different every time for use as a soil conditioner [41]. Therefore, caution should be employed concerning the use of fly ash in the natural environment and the exact process conditions of the fly ash must be known [42]. The heavy metal contents of the samples are given in Table 4. This shows that both types of fly ash can be deposited in normal landfills. Both samples contain a high level of Cd with respect to their use as a soil conditioner, as mentioned in the Landfill Ordinance [43], but the level is still low compared to the literature data on different fluidized incinerators [44,45]. The phenomena of chemical absorption should be taken into account for the formation of in-volatile Cd compounds on the particle surface [46]. It is worth noting that, in addition to Cd, the concentration of metals like Mo, Cr, Sn, and Sb is notably low, whereas the concentration of Ni, Al, Cu, Zn, and Fe is high with respect to the reported literature data. This shows the good potential for metal recovery for the fly ash. Similarly, the concentration of other metals like Pb, Ba, and Hg, which are essential to monitor before their use as a soil conditioner, is higher compared to the maximum allowable regulatory limits. At present, various methods such as pyrometallurgical, hydrometallurgical, and bio-hydrometallurgical are in use for the recovery of heavy metals. The pyrometallurgical recovery consists of thermal treatment such as roasting, calcining, or smelting, whereas hydrometallurgical recovery mainly consists of a leaching process. Furthermore, the extension of the leaching process (acidic) of fly ash is known as the FLUREC process, which allows for the extraction of Zn, Cd, Cu, and Pb. However, at current Zn prices, this process is only economically viable with fly ash containing Zn content above 50,000 mg/Mg [14]. Metals like Zn, Pb, Cu, and Cd can also be easily recovered during the thermal treatment of fly ash [47]. The use of a microbiological leaching process for metal recovery is a promising bio-hydrometallurgical concept, and could play a major role in the metal recovery system. After recovery, these metals can be utilized as a secondary raw material in the metal industry [48,49,50].
The MSW and solid residue (ash) from incinerators are exposed to different weather conditions and natural processes during storage, utilization, or disposal. This may result in the contamination of different water sources, especially ground and surface water, due to leaching processes. To evaluate the contamination potential of the solid residues given the surrounding environment, different leaching tests are available. These tests have different liquid to solid ratios and methods of pH control. The liquid to solid ratio directly influences the concentration of heavy metals, whereas the leaching character of heavy metals is strongly pH-dependent. Generally, a low pH favors the leaching process of heavy metals. The results of leaching tests based on different pH values or liquid to solid ratios therefore cannot be directly compared, and different standards have been developed for simulating different leaching environments. These tests measure the mobility of heavy metals and provide good insight about the possibilities of their use and treatment before disposal according to the regulatory limits [7,51,52,53].
Table 5 gives the results of leaching tests for both samples with respect to Landfill Ordinance. The limit values are the lower and (in brackets) highest limits for non-hazardous waste landfill as set by the Landfill Ordinance value for solid waste [43]. The results indicate no serious leaching of heavy metals during leaching tests. It is worth noting that the leaching contents of metals like Pb, Cd, Ni, Cu, Zn, Sb, Mo, Sn, Co, and As in both types of fly ash are well under the non-hazardous waste category limit. The leaching level of metals like Cr and Ba in the biomass sample is quite high in comparison to the municipal solid waste sample, but still below the non-hazardous waste limit value. The leaching level of Hg in MSW is slightly higher than the limit for non-hazardous waste, whereas for the biomass sample it is well within the inert waste limits.

4. Conclusions

This work studied the detailed characterization of fly ash derived from the fluidized combustion of municipal solid waste (FA1) and biomass (FA2). The particle size distribution, chemical composition, morphology, mineralogy, and leaching behavior of heavy metals from samples of fly ash from two fluidized beds were assessed for comparative characterization studies and led to the following conclusions.
  • Fly ash FA1 (100–500 μm) at D90 and D50 is coarser than FA2 (30–350 μm) and SEM analysis clearly found that the two types of fly ash have different surface structures. This means both fly ash samples will execute different filling, surface, and water affinity or lubrication role for their potential applications.
  • XRD analysis demonstrates a complex mineralogy in which quartz and calcite are the major components. The high amounts of alkalis are present in the form of chlorides (sylvite) and sulfates (arkanite, thenardite, and aphthitalite) in FA2, while the sulfate is concentrated as anhydrite in FA1. Mg is mostly present as periclase and merwinite. The amorphous phase content seems to be low (<20%); therefore, the pozzolanic activity is estimated to be low.
  • XRF analysis shows higher amounts of SiO2, Al2O3, and Fe2O3 in FA1, while the levels of CaO, K2O, and MgO are higher in FA2.
  • Inductive couple plasma (ICP) analysis clearly showed that the heavy metal concentration for most of the metals is within the literature values. The heavy metal concentration for both types of fly ash is higher than the regulatory limits for their use as a soil conditioner. However, the high levels of Fe, Cu, Al, and Ni indicate their potential for the metal recovery process.
  • The leaching test showed no serious leaching for both types of fly ash. Leaching levels for most of the metals are good within the inert waste category, except for Hg in FA1, which is slightly above the non-hazardous waste category. The leaching levels of Cr and Ba in FA2 are higher than FA1 but below the non-hazardous waste category.

Author Contributions

Conceptualization, M.A. and S.S.J.; Methodology, M.A. and F.W. (Florian Wesenauer); Software, K.S.; Validation, M.A., S.S.J. and W.R.; Formal Analysis, M.A.; Investigation, S.S.J. and K.S.; Resources, F.W. (Franz Winter); Data Curation, M.A. and S.S.J.; Writing-Original Draft Preparation, M.A.; Writing-Review & Editing, M.A., S.S.J. and W.R.; Visualization, M.A.; Supervision, F.W. (Franz Winter); Project Administration, F.W. (Franz Winter) and, S.S.J.; Funding Acquisition, F.W. (Franz Winter), S.S.J.


This research was funded by Austrian Research Promotion Agency (FFG) grant number (No. 865100).


The authors thank the Austrian Research Promotion Agency (FFG) for its financial support of the project WASTE2STORAGE (No.865100). Some of the data and experiments presented in this paper are part of a large-scale research initiative on anthropogenic resources (Christian Doppler Laboratory for Anthropogenic Resources). The financial support of this research initiative by the Federal Ministry of Digital, Business, and Enterprise and the National Foundation for Research, Technology, and Development is gratefully acknowledged. The industry partners cofinancing the research center on anthropogenic resources are Altstoff Recycling Austria AG, Borealis AG, Voestalpine AG, Wien Energie GmbH, Wiener Kommunal-Umweltschutzprojektgesellschaft (WKU) GmbH, and Wiener Linien GmbH & Co. KG. In particular, the authors would like to express their gratitude to Municipal Department 48 of the City of Vienna not only for cofinancing this project via its subsidiary WKU but also for its essential contributions to the experiments in the form of facilities and staff. The authors also acknowledge the TU-Wien University Library for financial support through its Open Access Funding Program.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Suksankraisorn, K.; Patumsawad, S.; Vallikul, P.; Fungtammasan, B.; Accary, A. Co-combustion of municipal solid waste and Thai lignite in a fluidized bed. Energy Convers. Manag. 2004, 45, 947–962. [Google Scholar] [CrossRef]
  2. Brunner, P.H.; Rechberger, H. Waste to energy–key element for sustainable waste management. Waste Manag. 2015, 37, 3–12. [Google Scholar] [CrossRef] [PubMed]
  3. Baran, B.; Mamis, M.S.; Alagoz, B.B. Utilization of energy from waste potential in Turkey as distributed secondary renewable energy source. Renew. Energy 2016, 90, 493–500. [Google Scholar] [CrossRef]
  4. Hu, S.; Ma, X.; Lin, Y.; Yu, Z.; Fang, S. Thermogravimetric analysis of the co-combustion of paper mill sludge and municipal solid waste. Energy Convers. Manag. 2015, 99, 112–118. [Google Scholar] [CrossRef]
  5. Cherubini, F.; Bargigli, S.; Ulgiati, S. Life cycle assessment (LCA) of waste management strategies: Landfilling, sorting plant and incineration. Energy 2009, 34, 2116–2123. [Google Scholar] [CrossRef]
  6. Rajamma, R.; Ball, R.J.; Tarelho, L.A.; Allen, G.C.; Labrincha, J.A.; Ferreira, V.M. Characterisation and use of biomass fly ash in cement-based materials. J. Hazard Mater. 2009, 172, 1049–1060. [Google Scholar] [CrossRef] [PubMed]
  7. Li, L.; Yu, C.; Bai, J.; Wang, Q.; Luo, Z. Heavy metal characterization of circulating fluidized bed derived biomass ash. J. Hazard Mater. 2012, 233, 41–47. [Google Scholar] [CrossRef] [PubMed]
  8. Lanzerstorfer, C. Chemical composition and physical properties of filter fly ashes from eight grate-fired biomass combustion plants. J. Environ. Sci. (China) 2015, 30, 191–197. [Google Scholar] [CrossRef] [PubMed]
  9. Giron, R.P.; Ruiz, B.; Fuente, E.; Gil, R.; Ruiz, I.S. Properties of fly ash from forest biomass combustion. Fuel 2012, 114, 71–77. [Google Scholar] [CrossRef]
  10. Liao, C.; Wu, C.; Yan, Y. The characteristics of inorganic elements in ashes from a 1 MW CFB biomass gasification power generation plant. Fuel Process. Technol. 2007, 88, 149–156. [Google Scholar] [CrossRef]
  11. Zhan, M.; Chen, T.; Lin, X.; Fu, J.; Li, X.; Yan, J.; Buekens, A. Suppression of dioxins after the post-combustion zone of MSWIs. Waste Manag. 2016, 54, 153–161. [Google Scholar] [CrossRef] [PubMed]
  12. Purgar, A.; Winter, F.; Blasenbauer, D.; Hartmann, S.; Fellner, J.; Lederer, J.; Rechberger, H. Main drivers for integrating zinc recovery from fly ashes into the Viennese waste incineration cluster. Fuel Process. Technol. 2016, 141, 243–248. [Google Scholar] [CrossRef]
  13. Jiao, F.; Zhang, L.; Dong, Z.; Namioka, T.; Yamada, N.; Ninomiya, Y. Study on the species of heavy metals in MSW incineration fly ash and their leaching behavior. Fuel Process. Technol. 2016, 152, 108–115. [Google Scholar] [CrossRef]
  14. Fellner, J.; Lederer, J.; Purgar, A.; Winterstetter, A.; Rechberger, H.; Winter, F.; Laner, D. Evaluation of resource recovery from waste incineration residues—The case of zinc. Waste Manag. 2015, 37, 95–103. [Google Scholar] [CrossRef] [PubMed]
  15. Van der Sloot, H.A.; Kosson, D.S.; Hjelmarc, O. Characteristics, treatment and utilization of residues from municipal waste incineration. Waste Manag. 2001, 21, 753–765. [Google Scholar] [CrossRef]
  16. Setoodeh Jahromy, S.; Jordan, C.; Azam, M.; Werner, A.; Harasek, M.; Winter, F. Fly ash from municipal solid waste incineration as a potential thermochemical energy storage. Energy Fuels 2019, 33, 5810–5819. [Google Scholar] [CrossRef]
  17. Degen, T.T.; Sadki, M.; Bron, E.; König, U.; Nénert, G. The HighScore suite. Powder Diffr. 2014, 29, 13–18. [Google Scholar] [CrossRef]
  18. Bruker-AXS. TOPAS V4.2 General profile and structure analysis software for powder diffraction data.—User’s Manual, 4.2 ed.; Bruker AXS: Karlsruhe, Germany, 2009; Volume 4.2. [Google Scholar]
  19. Belsky, A.; Hellenbrandt, M.; Karen, V.L.; Luksch, P. New developments in the Inorganic Crystal Structure database (ICSD): accessibility in support of materials and design. Acta Cryst. 2002, B58, 364–369. [Google Scholar] [CrossRef] [PubMed]
  20. Paya, J.; Borrachero, M.; Monzo, J.; Peris-Mora, E.; Amahjour, F. Enhanced conductivity measurement techniques for evaluation of fly ash pozzolanic activity. Cem. Concr. Res. 2001, 31, 41–49. [Google Scholar] [CrossRef]
  21. Page, A.L.; Elseewi, A.A.; Straughan, I.R. Physical and Chemical Properties of Fly Ash from Coal-Fired Power Plants with Reference to Environmental Impacts; Springer: New York, NY, USA, 1979; pp. 83–120. [Google Scholar]
  22. Herck, P.V.; Vandecasteele, C. Evaluation of the use of a sequential extraction procedure for the characterization and treatment of metal containing solid waste. Waste Manag. 2001, 21, 685–694. [Google Scholar] [CrossRef]
  23. Le Forestier, L.; Libourel, G. Characterization of flue gas residues from municipal solid waste combustors. Environ. Sci. Technol. 1998, 32, 2250–2256. [Google Scholar] [CrossRef]
  24. Vassilev, S.V.; Baxter, D.; Andersen, L.K.; Vassileva, C.G.; Morgan, T.J. An overview of the organic and inorganic phase composition of biomass. Fuel 2012, 94, 1–233. [Google Scholar] [CrossRef]
  25. Steenari, B.M.; Schelander, S.; Lindqvist, O. Chemical and leaching characteristics of ash from combustion of coal, peat and wood in a 12 MW CFB – a comparative study. Fuel 1999, 78, 249–258. [Google Scholar] [CrossRef]
  26. Steenari, B.M.; Lindqvist, O. Stabilisation of biofuel ashes for recycling to forest soil. Biomass Bioenergy 1997, 13, 39–50. [Google Scholar] [CrossRef]
  27. Li, M.; Xiang, J.; Hu, S.; Sun, L.-S.; Su, S.; Li, P.-S.; Sun, X.-X. Characterization of solid residues from municipal solid waste incinerator. Fuel 2004, 83, 1397–1405. [Google Scholar] [CrossRef]
  28. Osan, J.; Alfodly, B.; Torok, S.; Grieken, R.V. Characterisation of wood combustion particles using electron probe microanalysis. Atmos. Environ. 2002, 36, 2207–2214. [Google Scholar] [CrossRef]
  29. Chang, F.Y.; Wey, M.Y. Comparison of the characteristics of bottom and fly ashes generated from various incineration processes. J. Hazard Mater. 2006, 138, 594–603. [Google Scholar] [CrossRef] [PubMed]
  30. Ramesh, A.; Koziński, J.A. Investigations of ash topography/morphology and their relationship with heavy metals leachability. Environ. Pollut. 2001, 111, 255–262. [Google Scholar] [CrossRef]
  31. Payá, J.; Monzó, J.; Borrachero, M.V.; Perris, E.; Amahjour, F. Thermogravimetric method for dertermining carbon content in fly ashes. Cem. Concr. Res. 1998, 28, 675–686. [Google Scholar] [CrossRef]
  32. Song, G.-J.; Kim, K.-H.; Seo, Y.-C.; Kim, S.-C. Characteristics of ashes from different locations at the MSW incinerator equipped with various air pollution control devices. Waste Manag. 2004, 24, 99–106. [Google Scholar] [CrossRef]
  33. Girón, R.P.; Suárez-Ruiz, I.; Ruiz, B.; Fuente, E.; Gil, R.R. Fly Ash from the Combustion of Forest Biomass (Eucalyptus globulus Bark): Composition and Physicochemical Properties. Energy Fuels 2012, 26, 1540–1556. [Google Scholar] [CrossRef]
  34. Grigorios Itskos, S.I. Nikolaos Koukouzas, Size fraction characterization of highly-calcareous fly ash. Fuel Process. Technol. 2010, 91, 1558–1563. [Google Scholar] [CrossRef]
  35. Itskos, G.; Koukouzas, N.; Vasilatos, C.; Megremi, I.; Moutsatsou, A. Comparative uptake study of toxic elements from aqueous media by the different particle-size-fractions of fly ash. J. Hazard. Mater. 2010, 183, 787–792. [Google Scholar] [CrossRef] [PubMed]
  36. Petri Kouvo, R.B. Estimation of trace element release and accumulation in the sand bed during bubbling fluidised bed co-combustion of biomass, peat, and refuse-derived fuels. Fuel 2003, 82, 741–753. [Google Scholar] [CrossRef]
  37. Koukouzas, N.; Ketikidis, C.; Itskos, G. Heavy metal characterization of CFB-derived coal fly ash. Fuel Process. Technol. 2011, 92, 441–446. [Google Scholar] [CrossRef]
  38. Ho, T.; Chuang, T.; Chelluri, S.; Lee, Y.; Hopper, J. Simultaneous capture of metal, sulfur and chlorine by sorbents during fluidized bed incineration. Waste Manag. 2001, 21, 435–441. [Google Scholar] [CrossRef]
  39. Alvarez-Ayuso, E.; Querol, X.; Tomas, A. Environmental impact of a coal combustion-desulphurisation plant: abatement capacity of desulphurisation process and environmental characterisation of combustion by-products. Chemosphere 2006, 65, 2009–2017. [Google Scholar] [CrossRef] [PubMed]
  40. Narodoslawsky, M.; Obernberger, I. From waste to raw material-the route from biomass to wood ash for cadmium and other heavy metals. J. Hazard. Mater. 1996, 50, 157–168. [Google Scholar] [CrossRef]
  41. Demeyer, A.; Nkana, J.V.; Verloo, M. Characteristics of wood ash and influence on soil properties and nutrient uptake: an overview. Bioresour. Technol. 2001, 77, 287–295. [Google Scholar] [CrossRef]
  42. Aronsson, K.A.; Ekelund, N.G. Biological effects of wood ash application to forest and aquatic ecosystems. J. Environ. Qual. 2004, 33, 1595–1605. [Google Scholar] [CrossRef]
  43. Ordinance by the Federal Minister for the Environment on Waste Disposal Sites; ECOLEX: Wien, Austria, 1996; 164,49.
  44. Lima, A.; Ottosen, L.; Damoe, A.; Ribeiro, A. Characterization of fly ash from bio and municipal waste. Biomass Bioenergy 2008, 32, 277–282. [Google Scholar] [CrossRef]
  45. Huber, F.; Herzel, H.; Adam, C.; Mallow, O.; Blasenbauer, D.; Fellner, J. Combined disc pelletisation and thermal treatment of MSWI fly ash. Waste Manag. 2018, 73, 381–391. [Google Scholar] [CrossRef]
  46. Sutherland, R.A. Lead in grain size fractions of road-deposited sediment. Environ. Pollut. 2003, 121, 229–237. [Google Scholar] [CrossRef]
  47. Kuboňová, L.; Langová, Š.; Nowak, B.; Winter, F. Thermal and hydrometallurgical recovery methods of heavy metals from municipal solid waste fly ash. Waste Manag. 2013, 33, 2322–2327. [Google Scholar] [CrossRef]
  48. Bunge, R. Recovery of Metals from Waste Incinerator Bottom Ash. Hochschule für Technik Rapperswil: Rapperswil. Available online: (accessed on 16 May 2019).
  49. Holm, O.; Simon, F.-G. Innovative treatment trains of bottom ash (BA) from municipal solid waste incineration (MSWI) in Germany. Waste Manag. 2017, 59, 229–236. [Google Scholar] [CrossRef] [PubMed]
  50. Jadhav, U.; Hocheng, H. A review of recovery of metals from industrial waste. J. Achiev. Mater. Manuf. Eng. 2012, 54, 159–167. [Google Scholar]
  51. Lopes, H.; Trindade, T.; Gulyurtlu, I.; Cabrita, I. Characterisation of FBC ashes from co-combustion of coal with oily residues. Fuel 2001, 80, 785–793. [Google Scholar] [CrossRef]
  52. Ibáñez, R.; Andres, A.; Viguri, J.; Ortiz, I.; Irabien, J. Characterisation and management of incinerator wastes. J. Hazard. Mater. 2000, 79, 215–227. [Google Scholar] [CrossRef]
  53. Armesto, L.; Merino, J. Characterization of some coal combustion solid residues. Fuel 1999, 78, 613–618. [Google Scholar] [CrossRef]

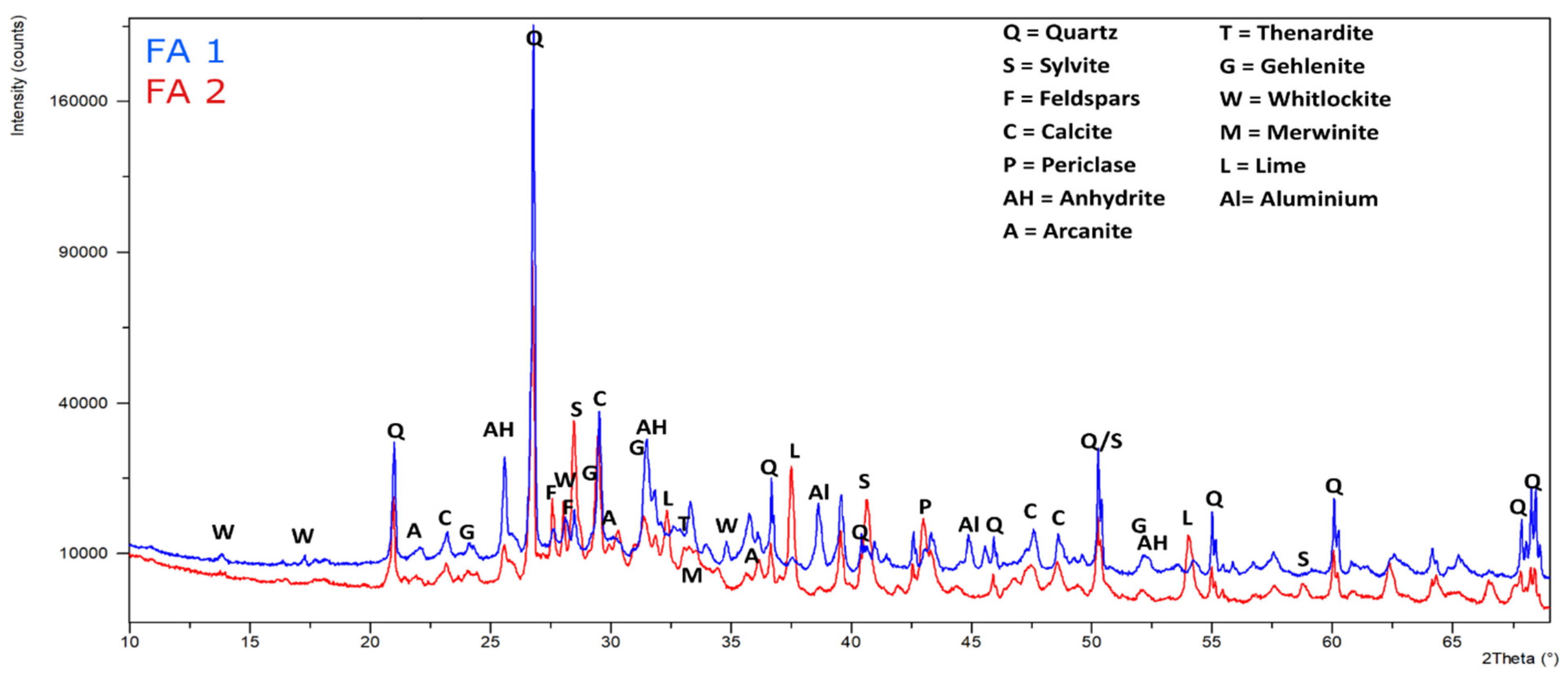

Figure 1. X-ray diffraction (XRD) patterns for fly ash FA1 and FA2.
Figure 1. X-ray diffraction (XRD) patterns for fly ash FA1 and FA2.
Materials 12 02664 g001

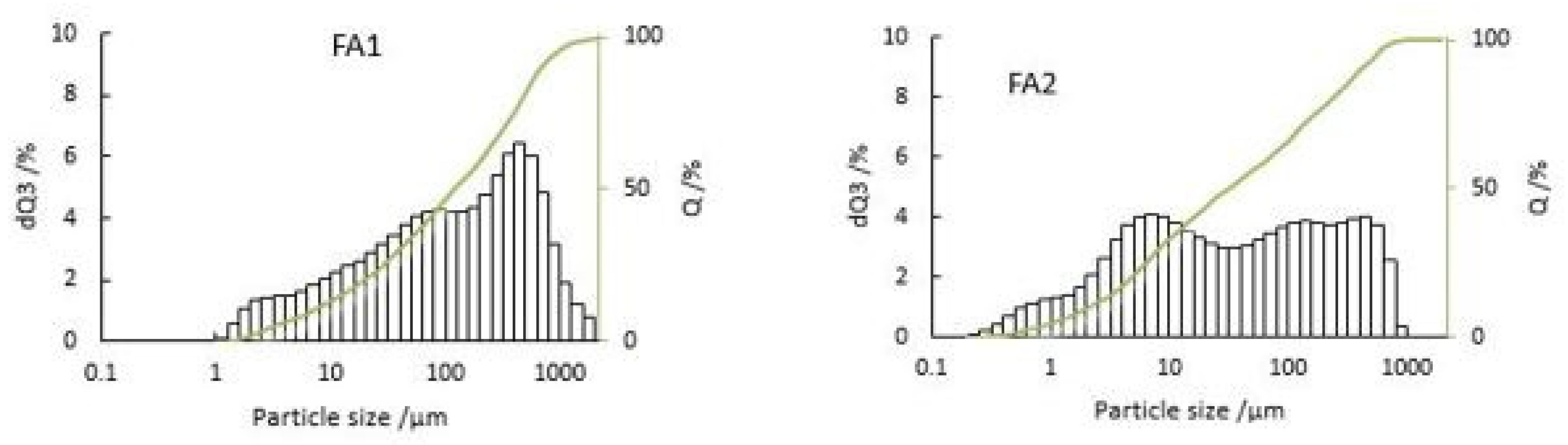

Figure 2. Particle size distribution of fly ash FA1 and FA2.
Figure 2. Particle size distribution of fly ash FA1 and FA2.
Materials 12 02664 g002

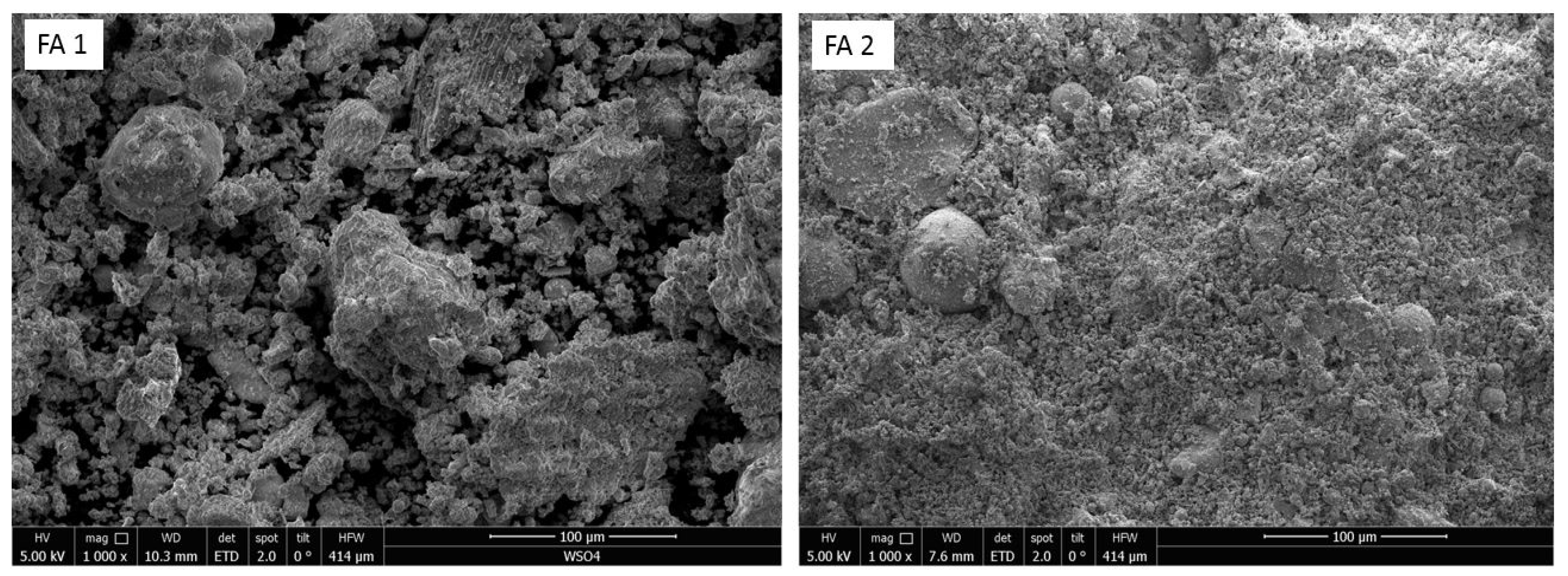

Figure 3. Scanning electron microscopy (SEM) photographs of fly ash samples at 1000× magnification.
