The Effects of Sintering Temperature and Addition of TiH2 on the Sintering Process of Cu

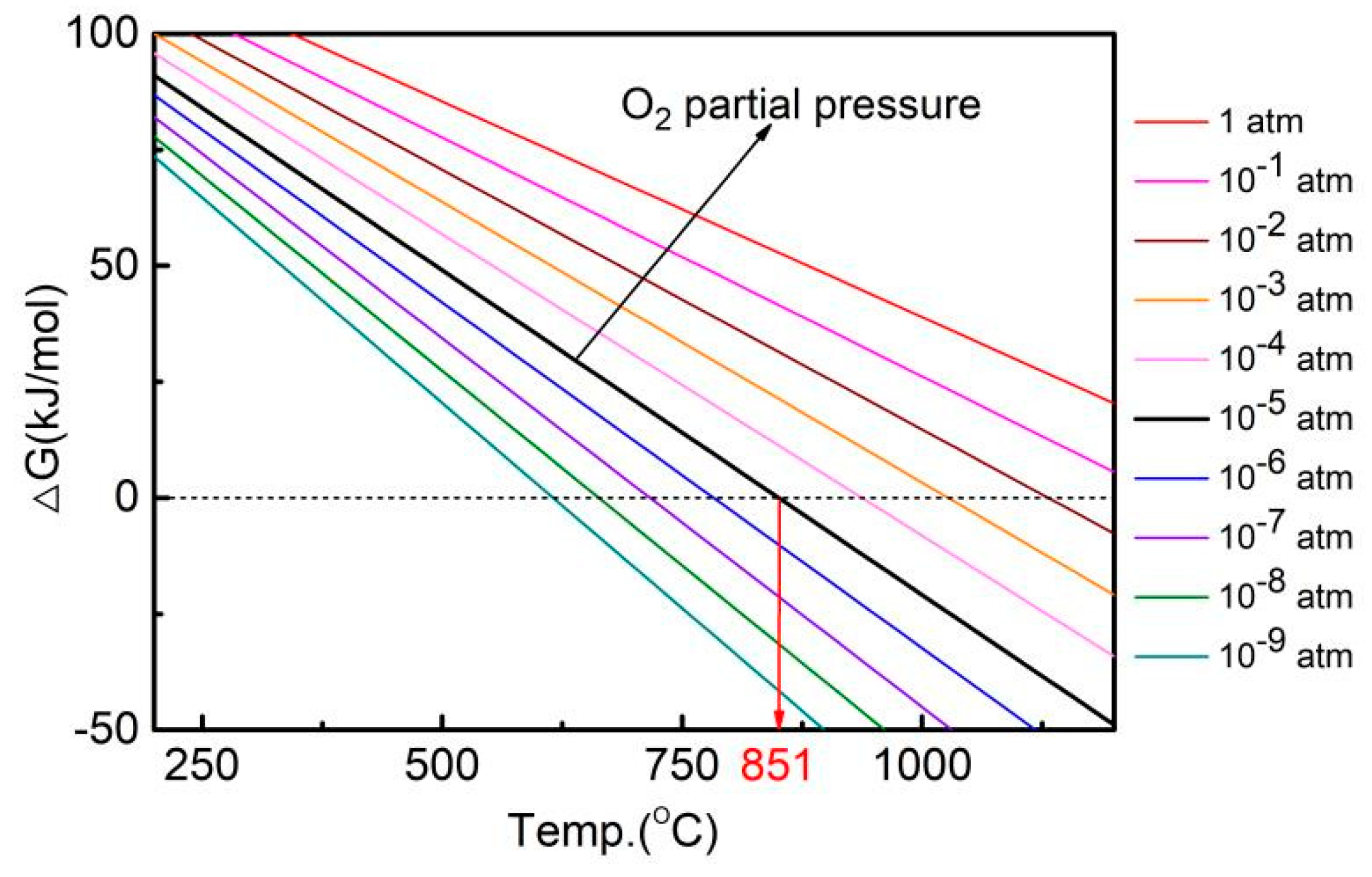

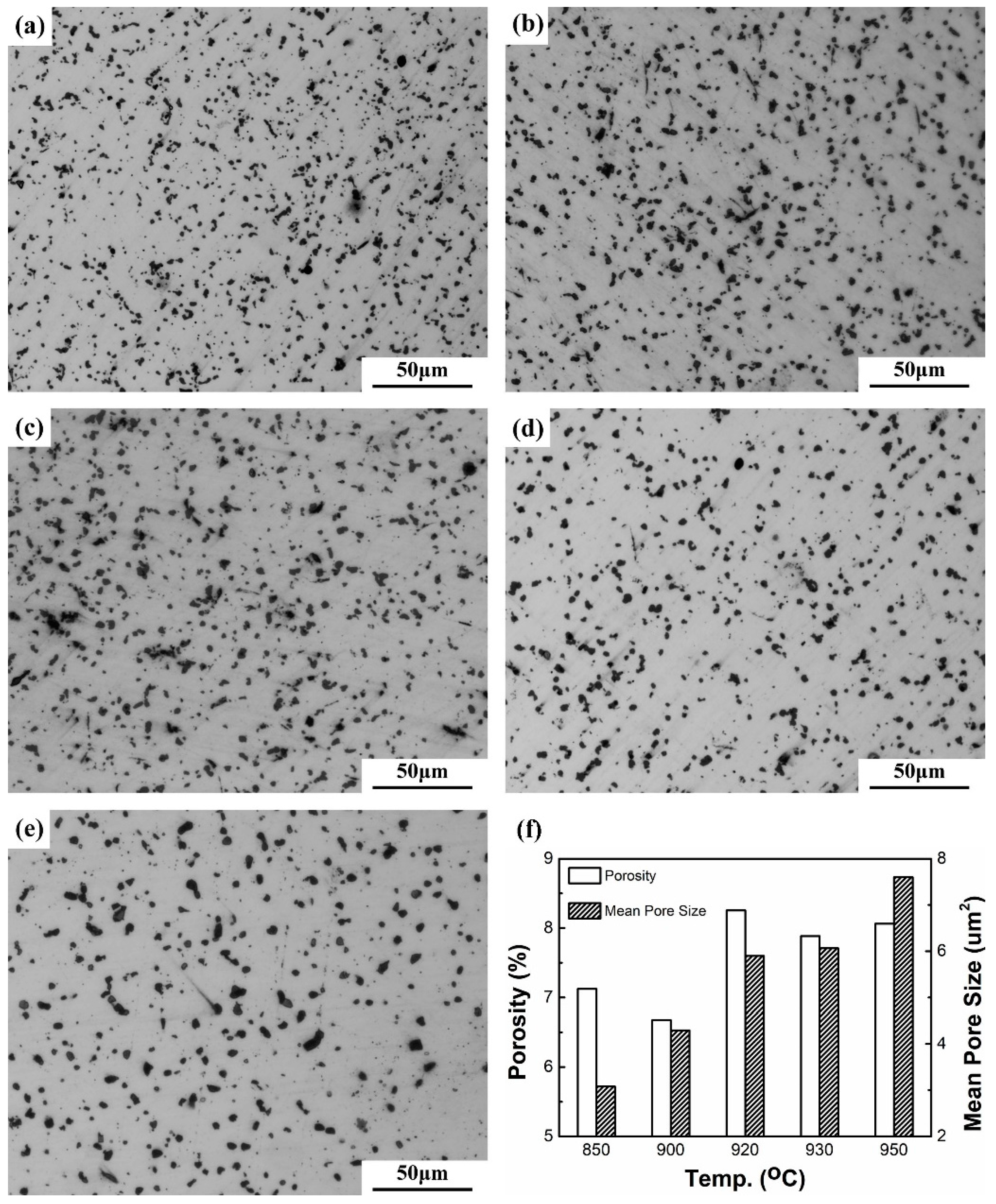

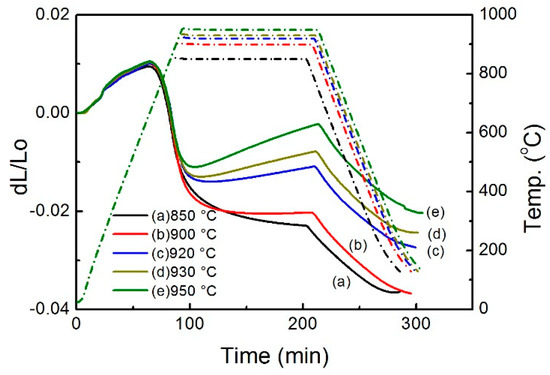

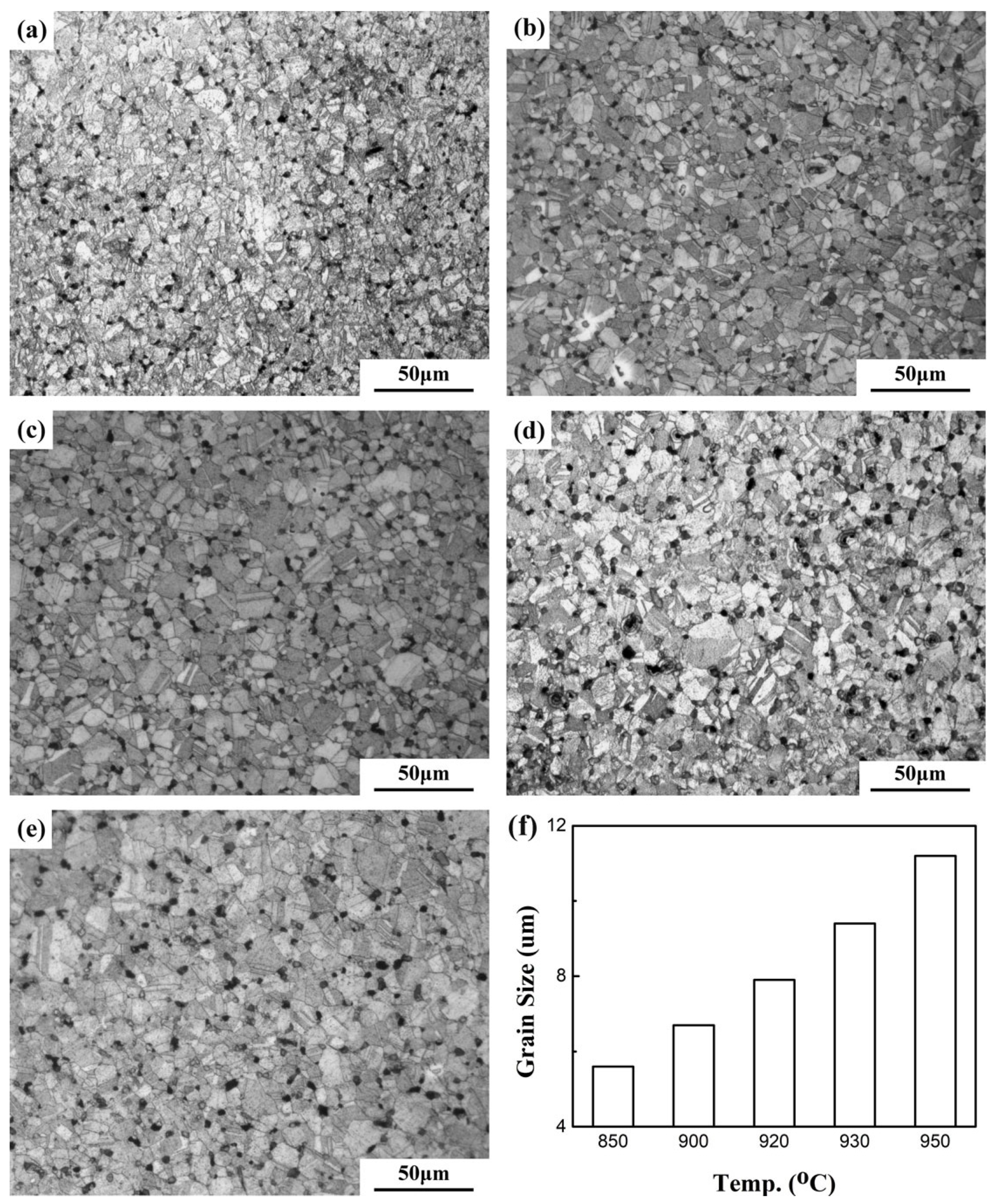

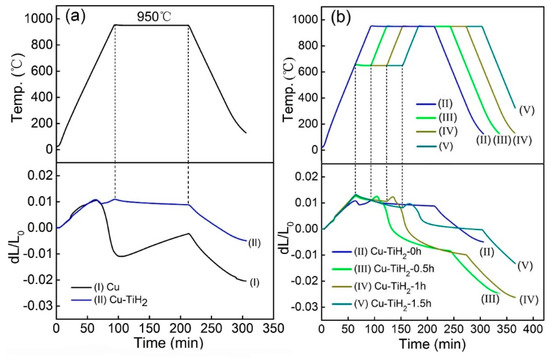

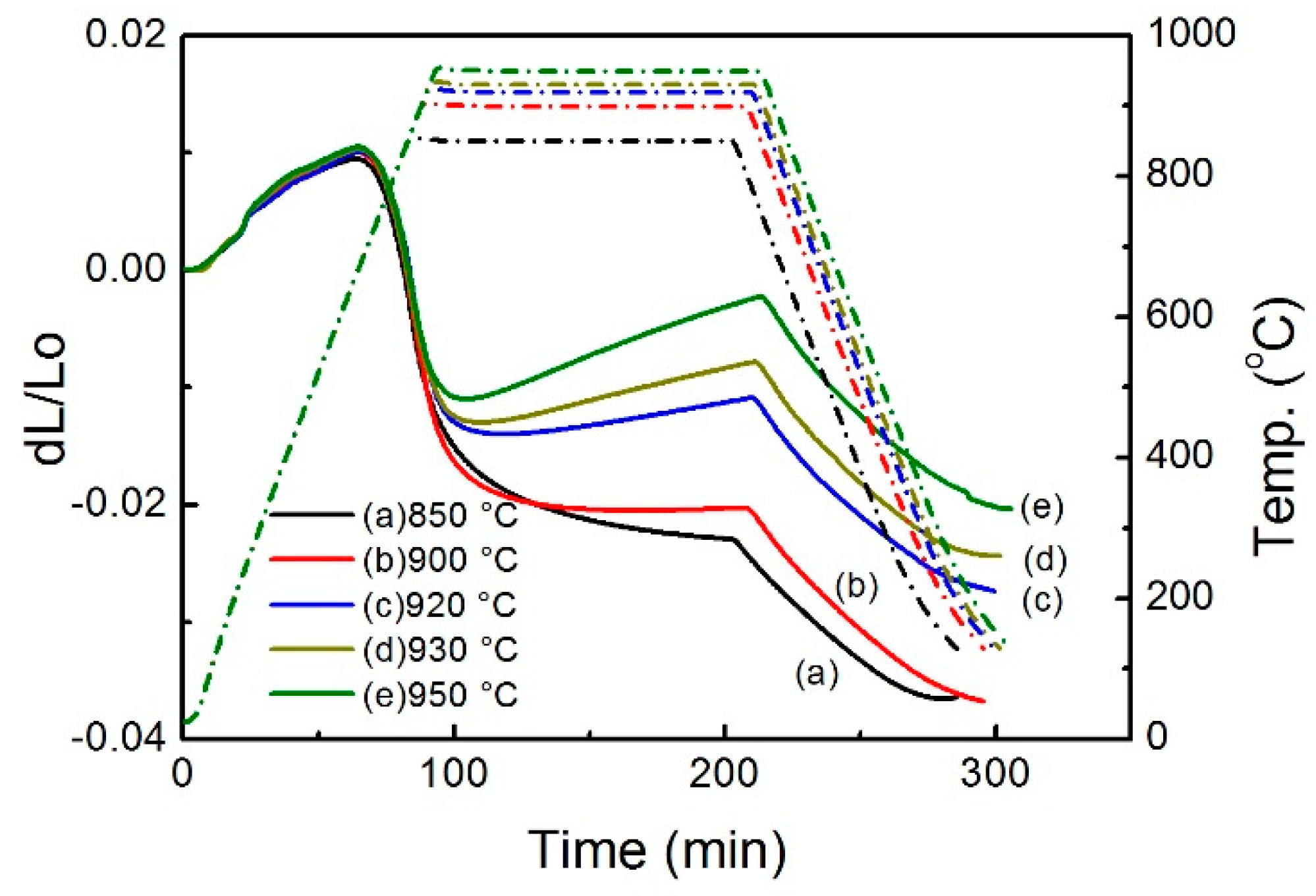

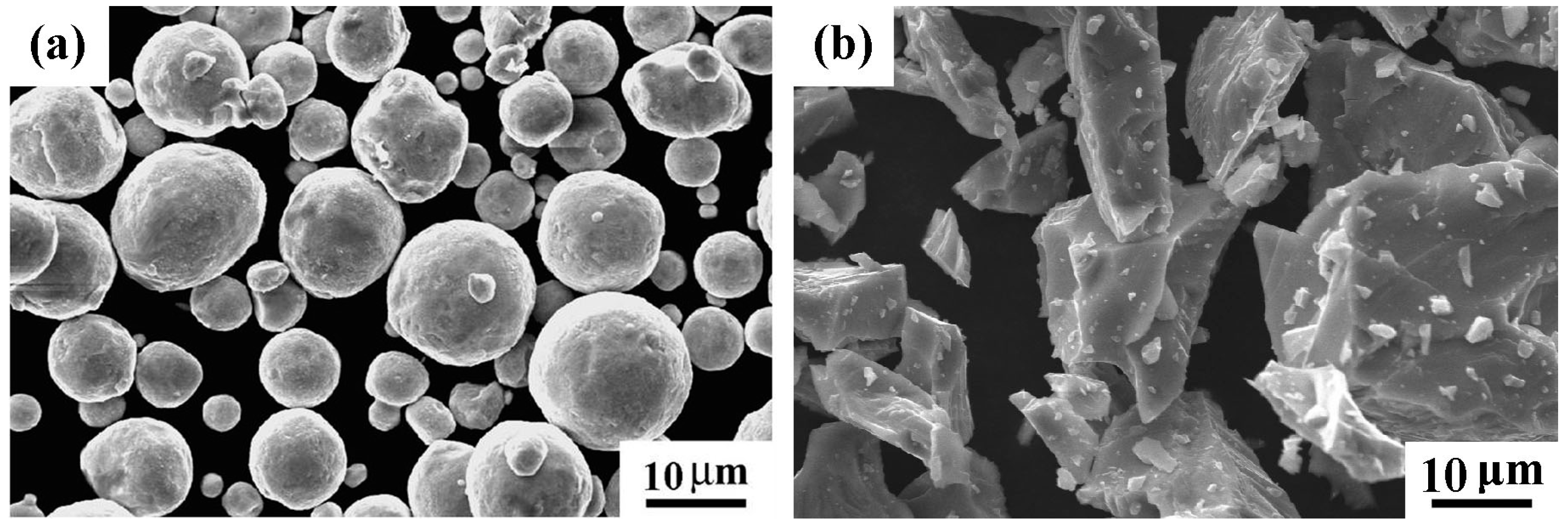

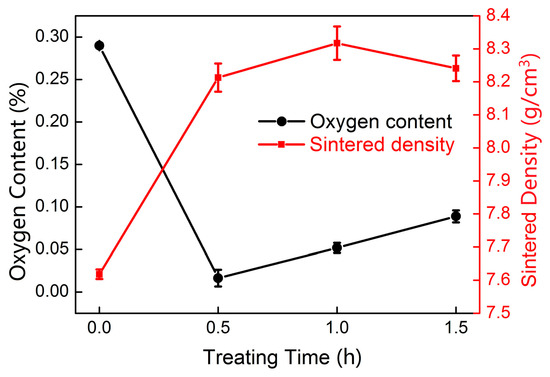

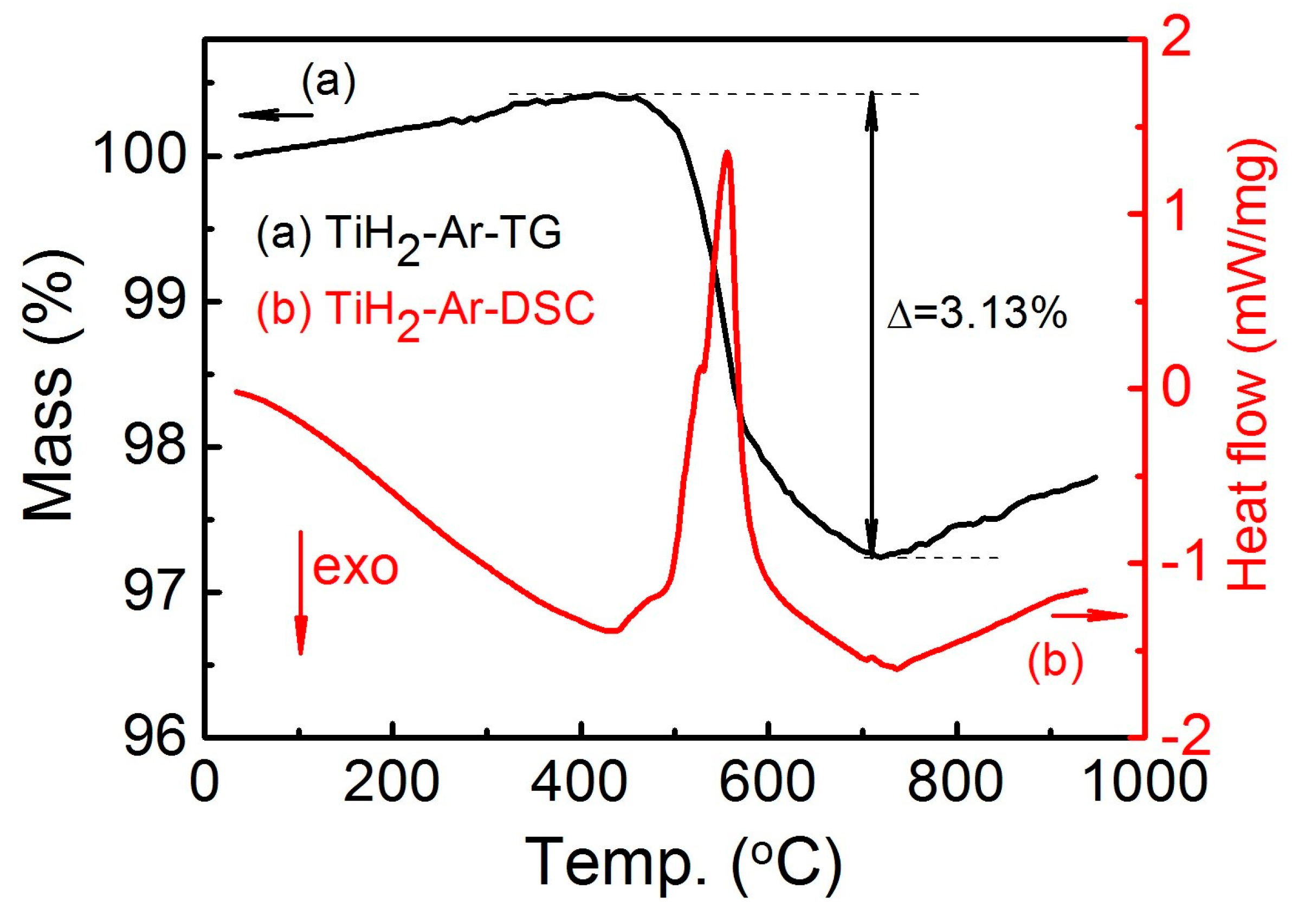

AbstractIn this study, effects of sintering temperature and TiH2 on the sintering process of Cu are investigated. During sintering, the oxide in Cu decomposes and generates oxygen, which can become trapped in the material forming closed pores. Therefore, this results in low sintered density. Sintering behavior of Cu can be significantly improved by adding 0.5 wt.% TiH2 which decomposes during sintering, producing hydrogen and effectively reducing the oxide in Cu. Although gas products of the reduction reaction may still be trapped inside the close pores formed near the TiH2 particles and handicap the sintering of Cu, an isothermal treatment at 650 °C can avoid forming close pores. This allows reaction products to dissipate freely from the sample, subsequently increasing its sintered density. View Full-Text
Share & Cite This Article
Hao, H.; Wang, Y.; Jafari Nodooshan, H.R.; Zhang, Y.; Ye, S.; Lv, Y.; Yu, P. The Effects of Sintering Temperature and Addition of TiH2 on the Sintering Process of Cu. Materials 2019, 12, 2594.
Hao H, Wang Y, Jafari Nodooshan HR, Zhang Y, Ye S, Lv Y, Yu P. The Effects of Sintering Temperature and Addition of TiH2 on the Sintering Process of Cu. Materials. 2019; 12(16):2594.Chicago/Turabian Style
Hao, Huali; Wang, Yanjing; Jafari Nodooshan, Hamid R.; Zhang, Yongyun; Ye, Shulong; Lv, Yonghu; Yu, Peng. 2019. "The Effects of Sintering Temperature and Addition of TiH2 on the Sintering Process of Cu." Materials 12, no. 16: 2594.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
