Next Article in Journal
A Co-Rotational Based Anisotropic Elasto–Plastic Model for Geometrically Non-Linear Analysis of Fibre Reinforced Polymer Composites: Formulation and Finite Element Implementation
Next Article in Special Issue
Study on Mix Proportion Optimization of Manufactured Sand RPC and Design Method of Steel Fiber Content under Different Curing Methods
Previous Article in Journal
Crystal Chemistry and Antibacterial Properties of Cupriferous Hydroxyapatite
Previous Article in Special Issue
Physical Properties of Concrete Containing Graphene Oxide Nanosheets
Article Menu
Issue 11 (June-1) cover image

Export Article

Open AccessArticle

Internal Curing Effect and Compressive Strength Calculation of Recycled Clay Brick Aggregate Concrete

1
College of Civil and Transportation Engineering, Hohai University, Nanjing 210024, China
2
Department of Civil and Environmental Engineering, National University of Singapore, Singapore 117576, Singapore
*
Author to whom correspondence should be addressed.
Materials 2019, 12(11), 1815; https://doi.org/10.3390/ma12111815
Received: 14 May 2019 / Revised: 1 June 2019 / Accepted: 3 June 2019 / Published: 4 June 2019
(This article belongs to the Special Issue Concrete and Construction Materials)
  |
PDF [10906 KB, uploaded 4 June 2019]
  |     |

Abstract

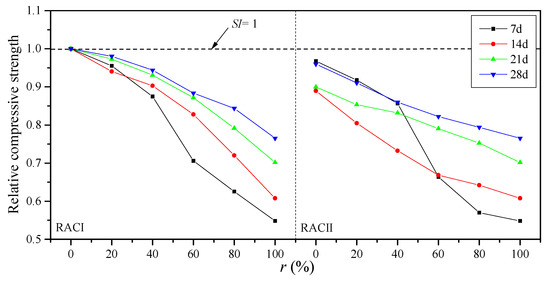

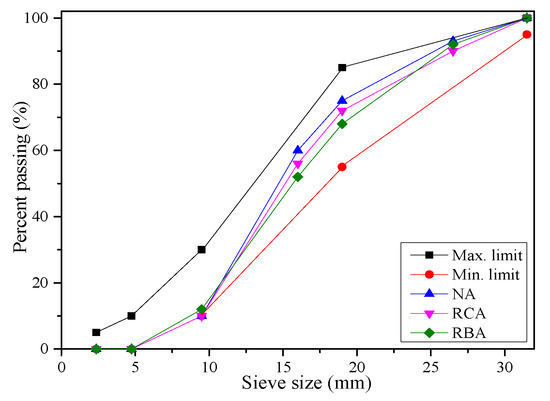

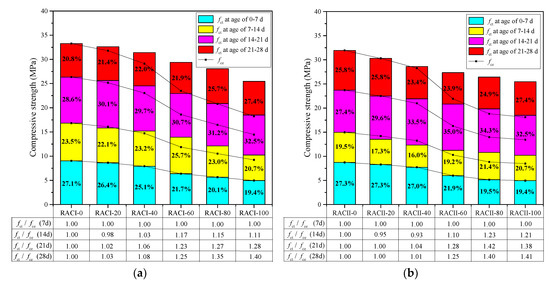

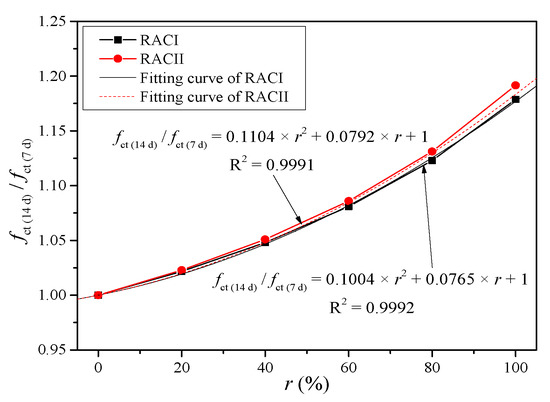

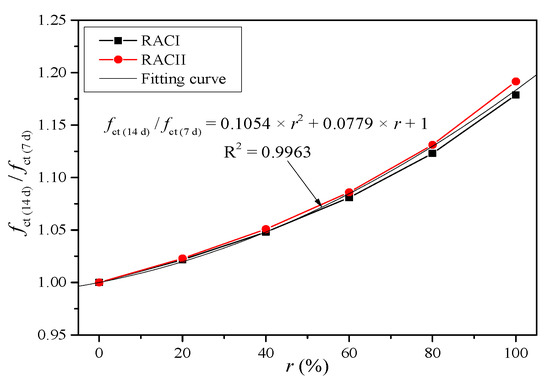

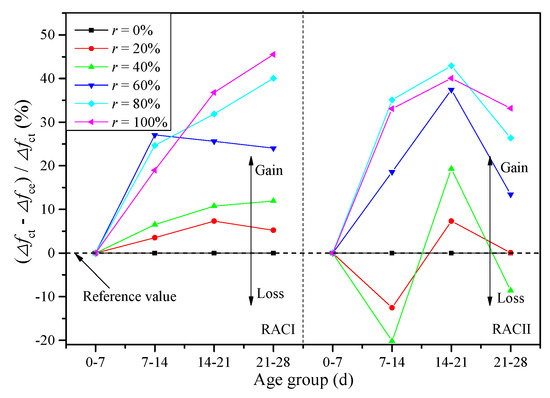

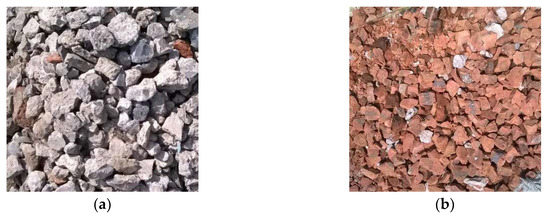

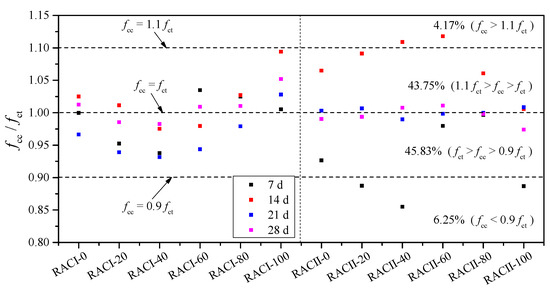

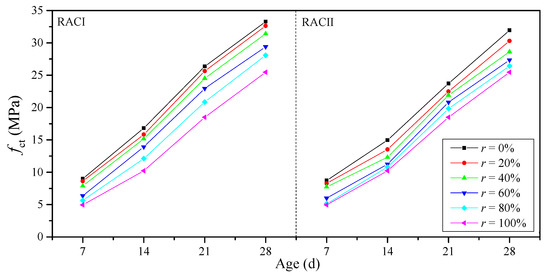

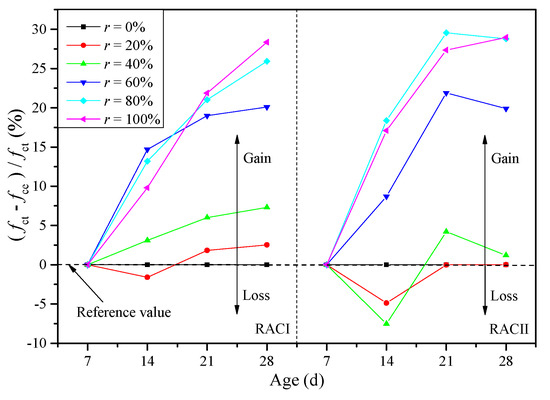

In order to investigate the internal curing effect of recycled brick aggregate (RBA) in recycled aggregate concrete (RAC) and calculate its contribution to the final compressive strength, two RAC groups with different recycled aggregates and 6 replacement ratios (r) under 4 curing ages were tested. Results show that the compressive strengths of RACI and RACII decrease steadily with the increase of r when below 40%, and that there is a significant drop once the r is higher than 60%. The internal curing effect for RAC with a low RBA ratio is mainly reflected during the curing age of 14–21 days, while for RAC with a high RBA ratio, this internal curing effect appears earlier, during 7–14 days, and becomes very obvious after 14 days. In addition, the actual tested compressive strength of RAC replaced by 100% RBA exceeds around 40% of the expected compressive strength at the age of 28 days. When the age of RAC entirely with RBA is 28 days, the compressive strength caused by the internal curing effect accounts for around 28% of the actual tested compressive strength. The most appropriate r of RBA for RAC production is between 40% to 60%. Finally, the equations for calculating the compressive strength of RAC are presented considering the curing ages, the replacement ratios and the internal curing effect of RBA. Further, a unified equation is suggested for convenience in calculation. View Full-Text
Keywords: recycled clay brick aggregate concrete; mixed recycled aggregate; replacement ratio; compressive strength; internal curing effect recycled clay brick aggregate concrete; mixed recycled aggregate; replacement ratio; compressive strength; internal curing effect

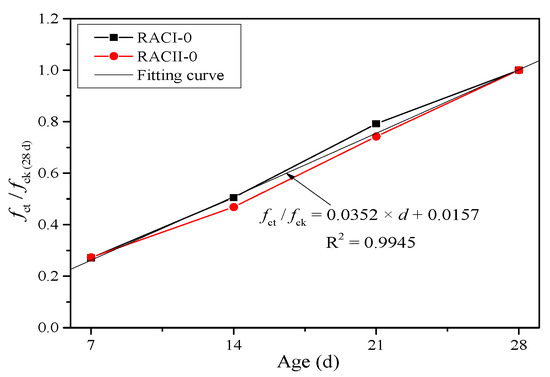

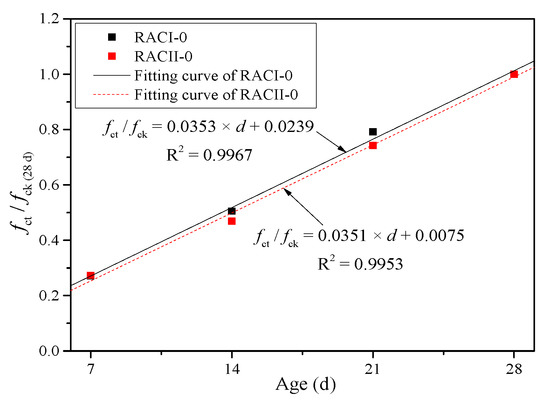

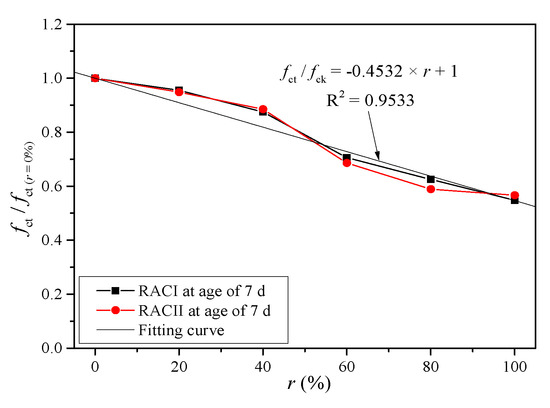

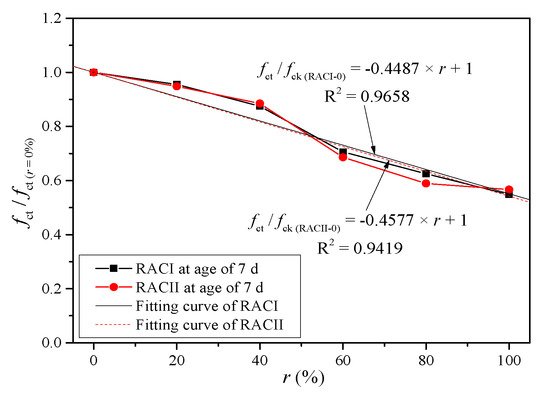

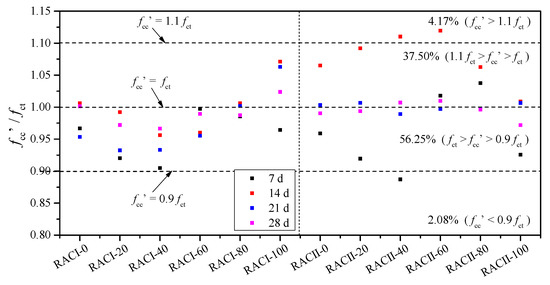

Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Chen, F.; Wu, K.; Ren, L.; Xu, J.; Zheng, H. Internal Curing Effect and Compressive Strength Calculation of Recycled Clay Brick Aggregate Concrete. Materials 2019, 12, 1815.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
