Next Article in Journal
Conical Nanoindentation Allows Azimuthally Independent Hardness Determination in Geological and Biogenic Minerals
Next Article in Special Issue
Hybrid Artificial Intelligence Approaches for Predicting Buckling Damage of Steel Columns Under Axial Compression
Previous Article in Journal
Fabrication and Characterization of Low Methoxyl Pectin/Gelatin/Carboxymethyl Cellulose Absorbent Hydrogel Film for Wound Dressing Applications
Previous Article in Special Issue
Mode I Interlaminar Fracture of Glass/Epoxy Unidirectional Laminates. Part I: Experimental Studies
Article Menu
Issue 10 (May-2) cover image

Export Article

Open AccessArticle

Temperature Effects during Impact Testing of a Two-Phase Metal-Ceramic Composite Material

Institute of Fundamental Technological Research, Polish Academy of Sciences, PL-02-106 Warsaw, Poland
Lublin University of Technology, PL-20-618 Lublin, Poland
Author to whom correspondence should be addressed.
Materials 2019, 12(10), 1629;
Received: 16 April 2019 / Revised: 13 May 2019 / Accepted: 15 May 2019 / Published: 17 May 2019
(This article belongs to the Special Issue Behavior of Metallic and Composite Structures)
PDF [5051 KB, uploaded 23 May 2019]
  |     |

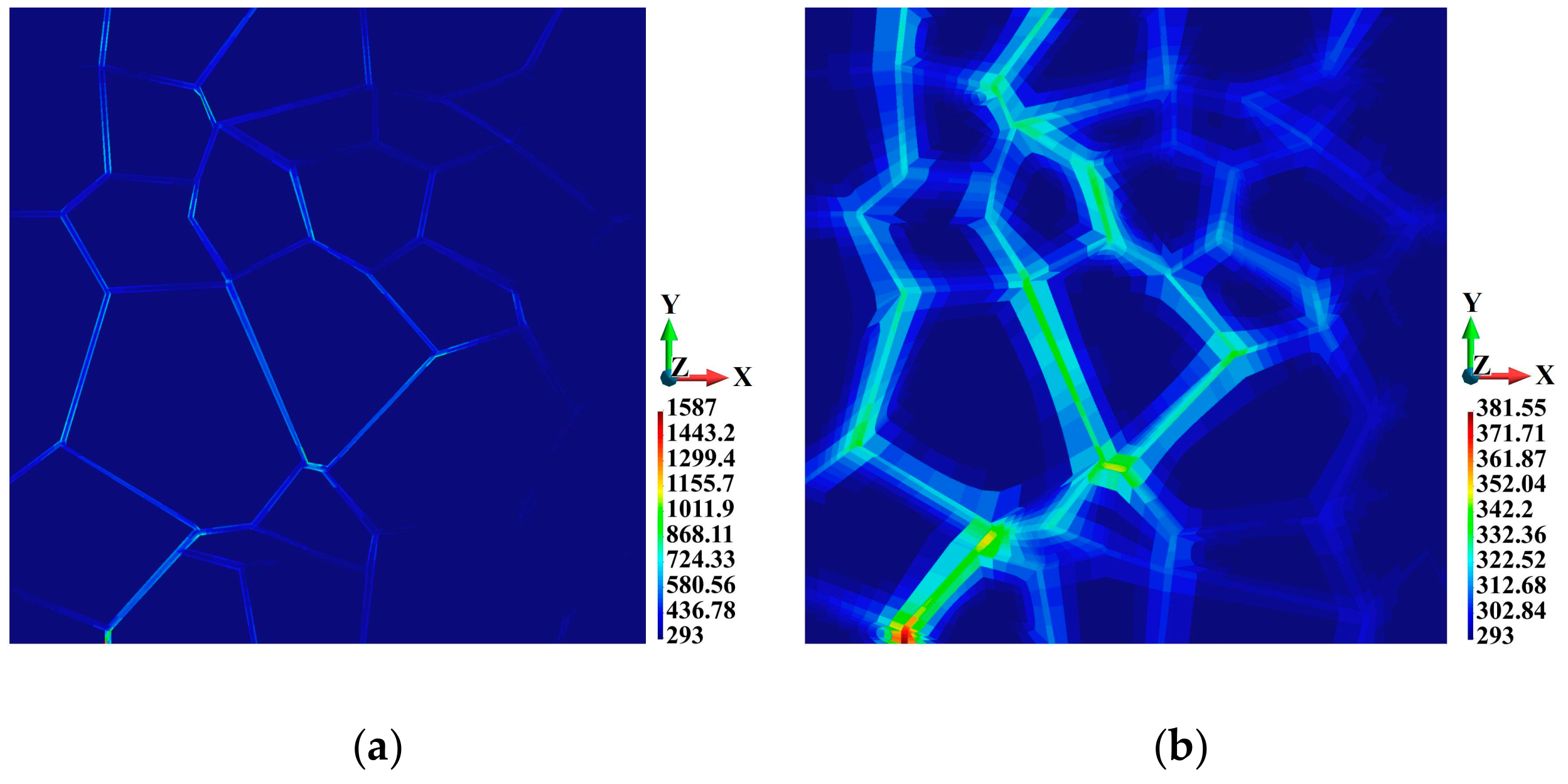

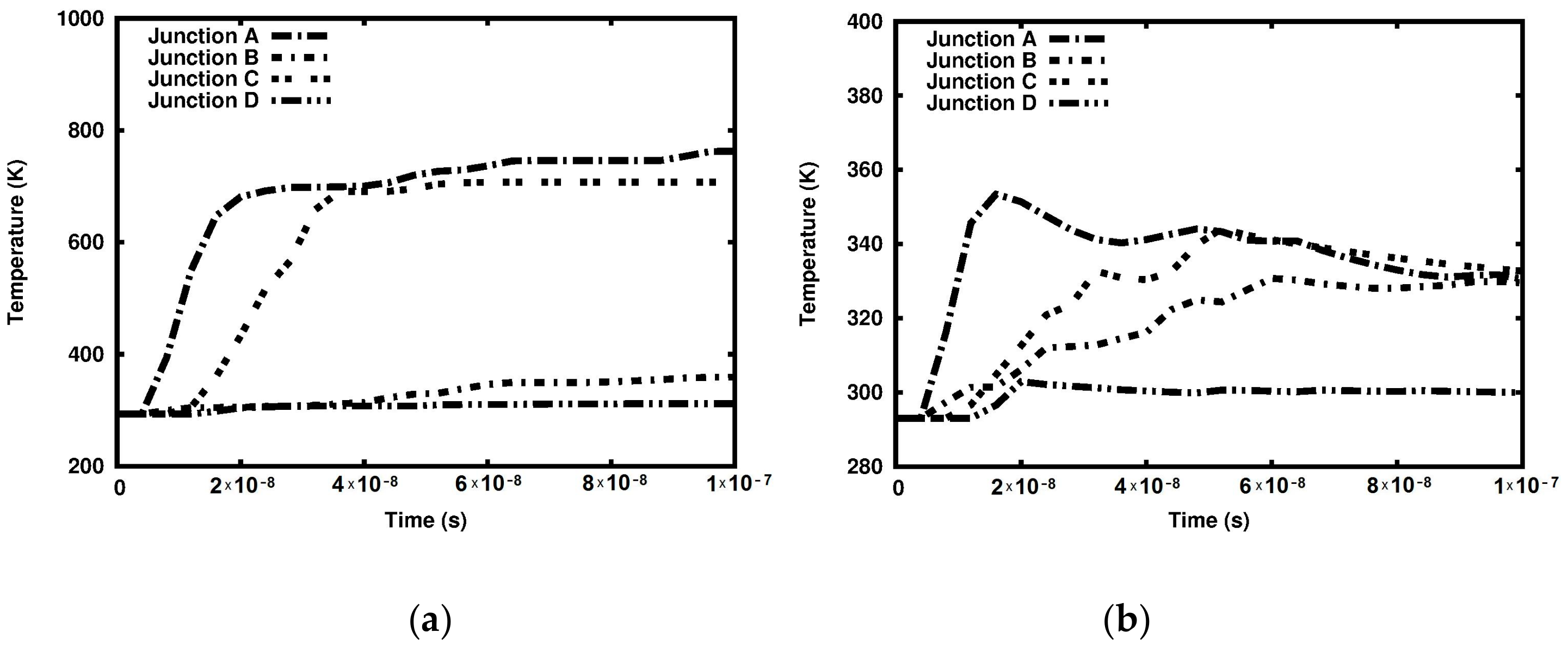

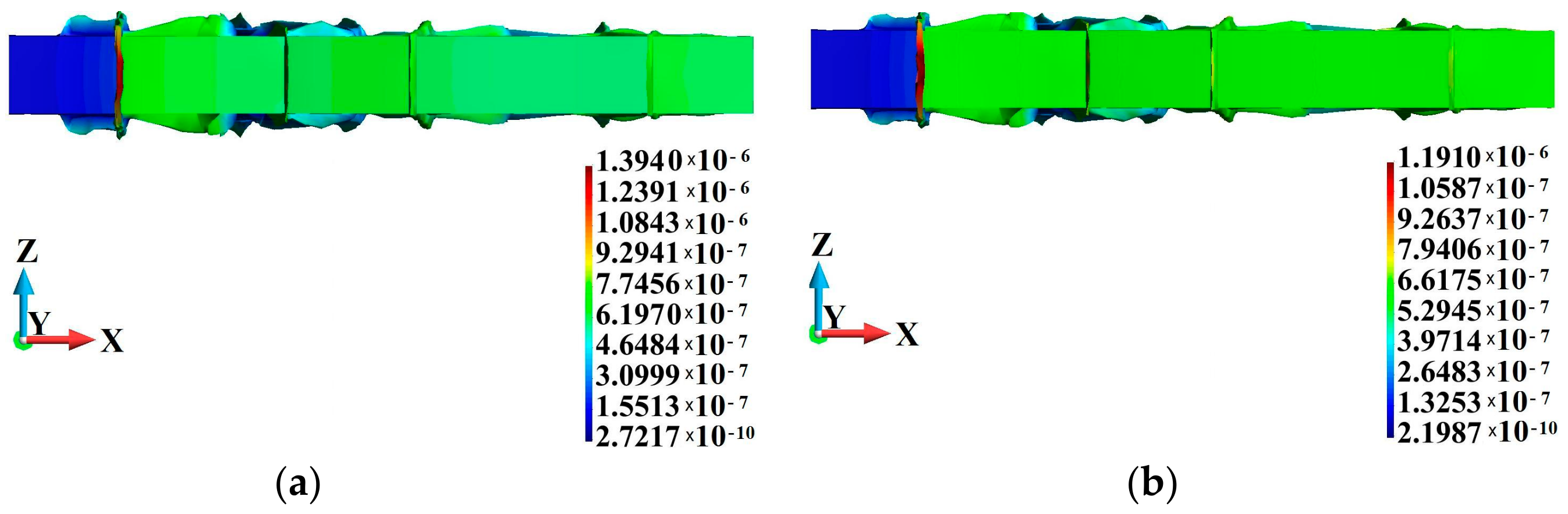

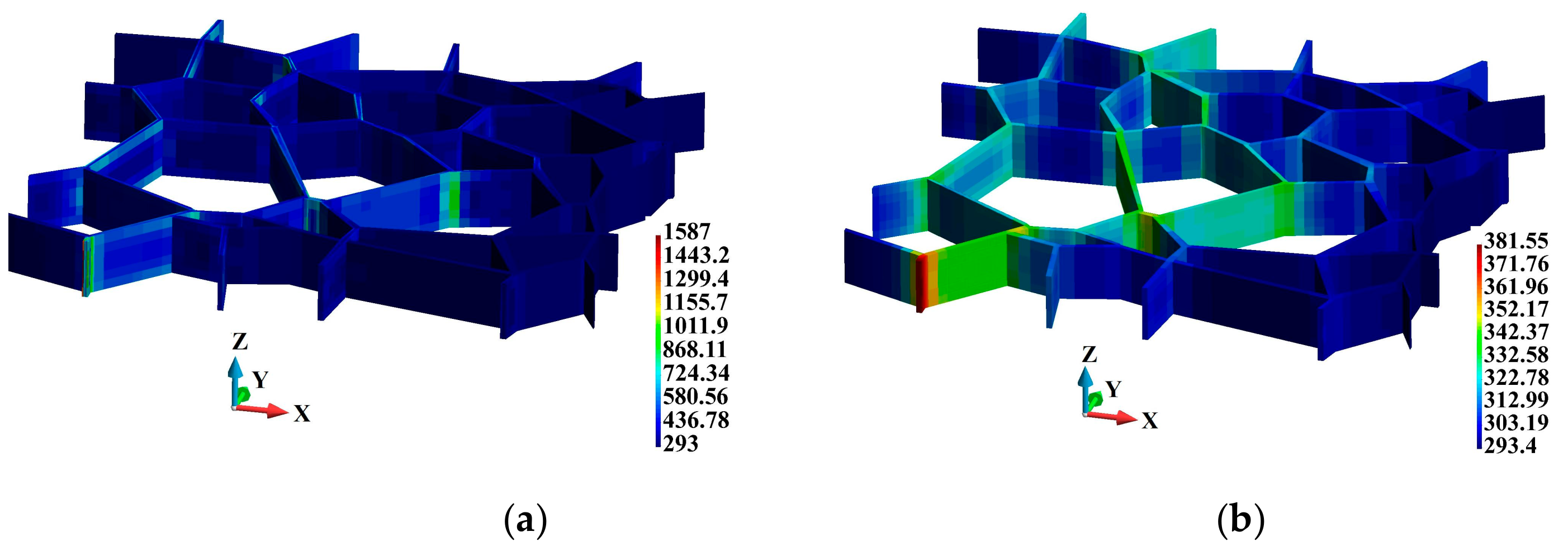

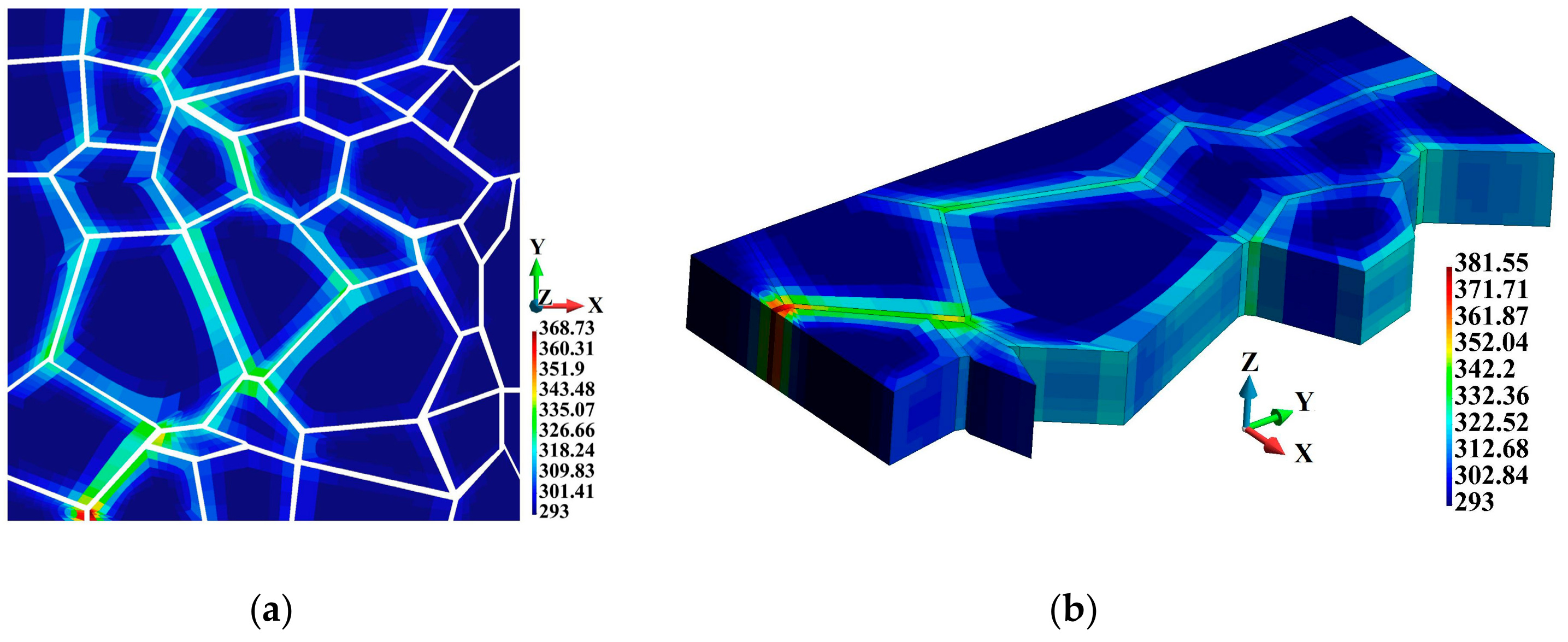

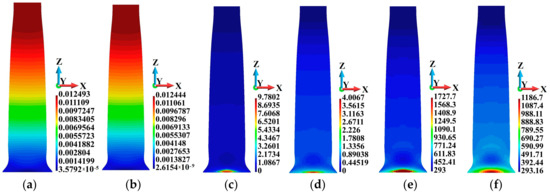

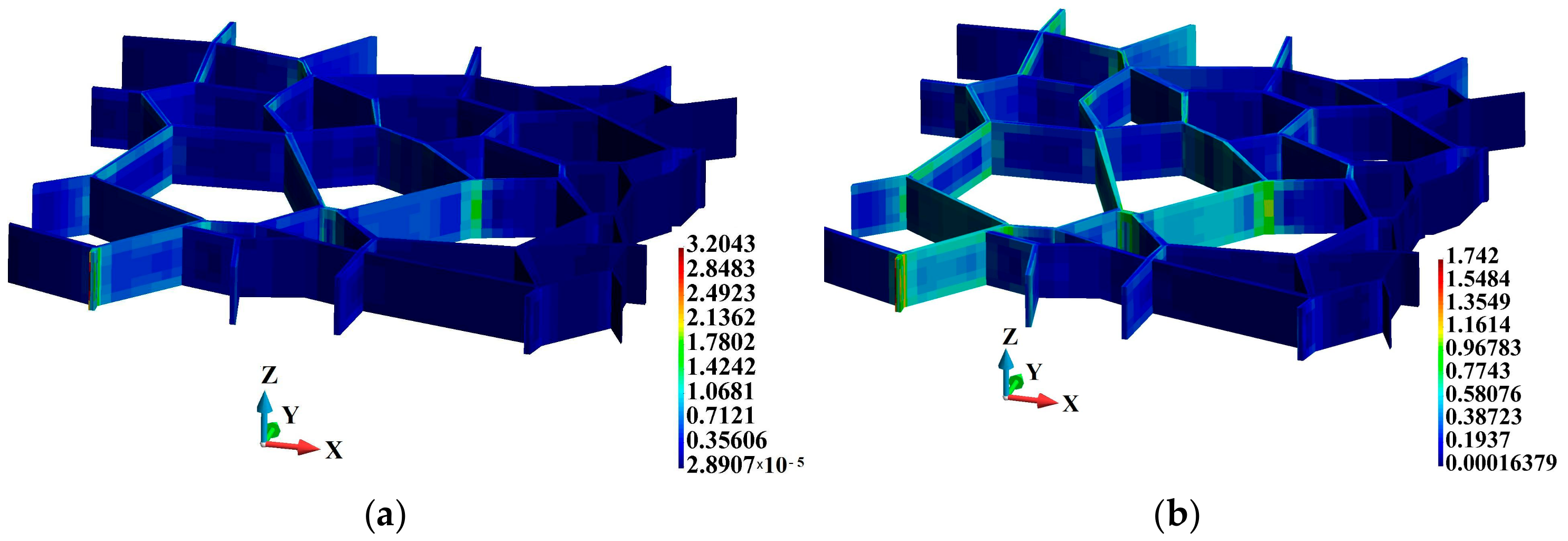

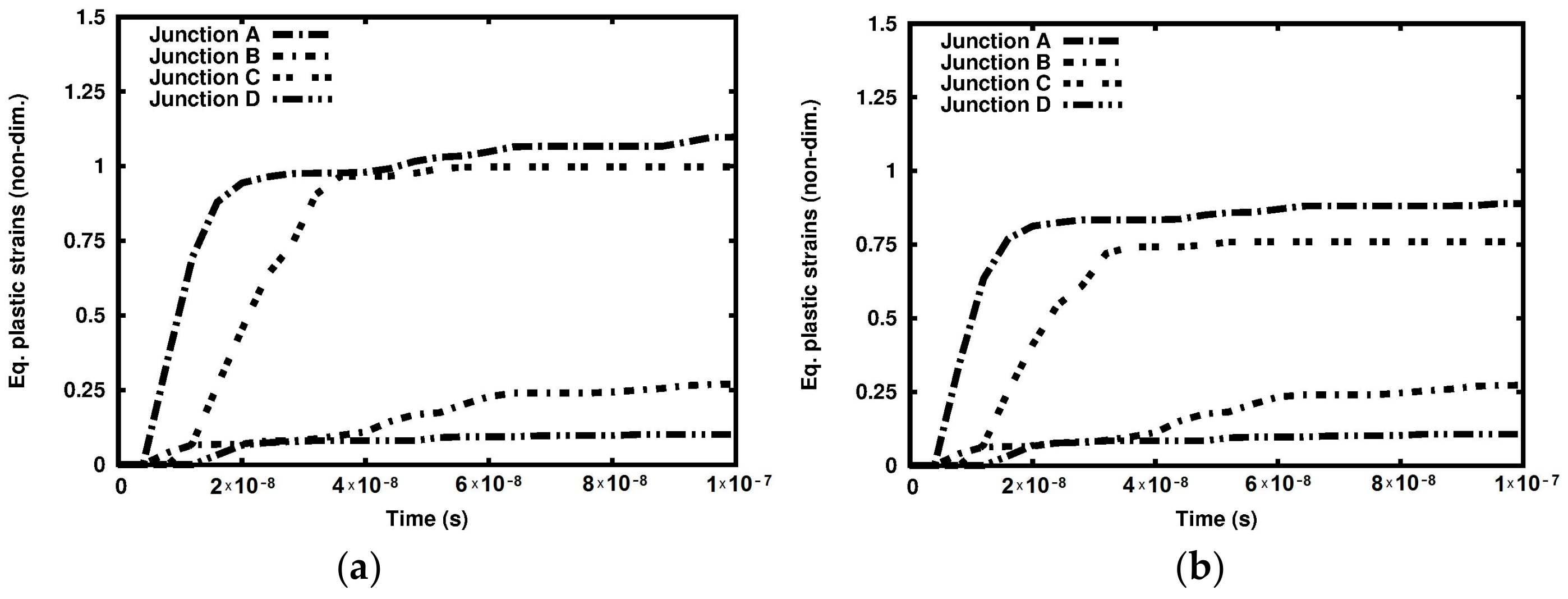

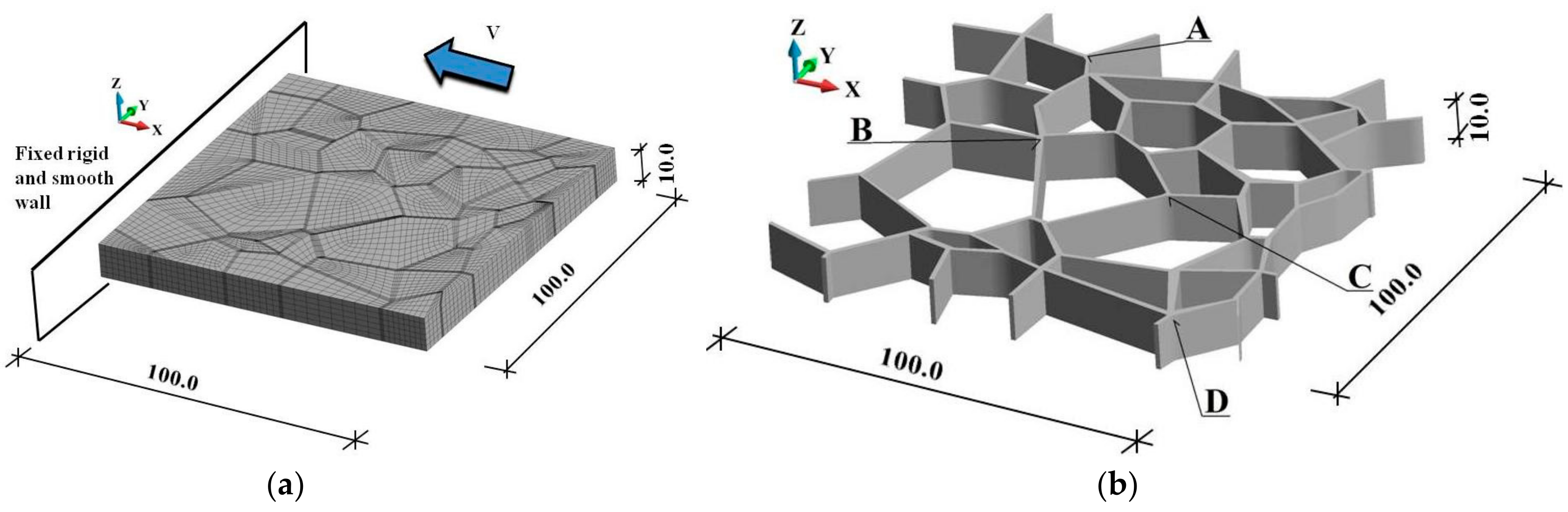

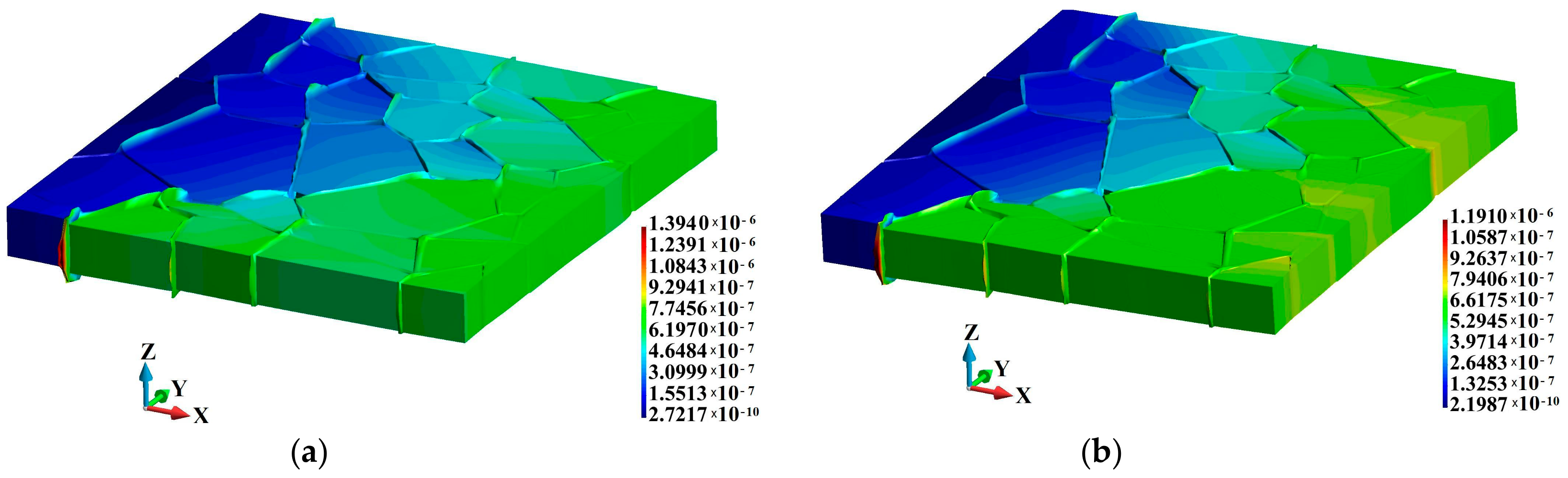

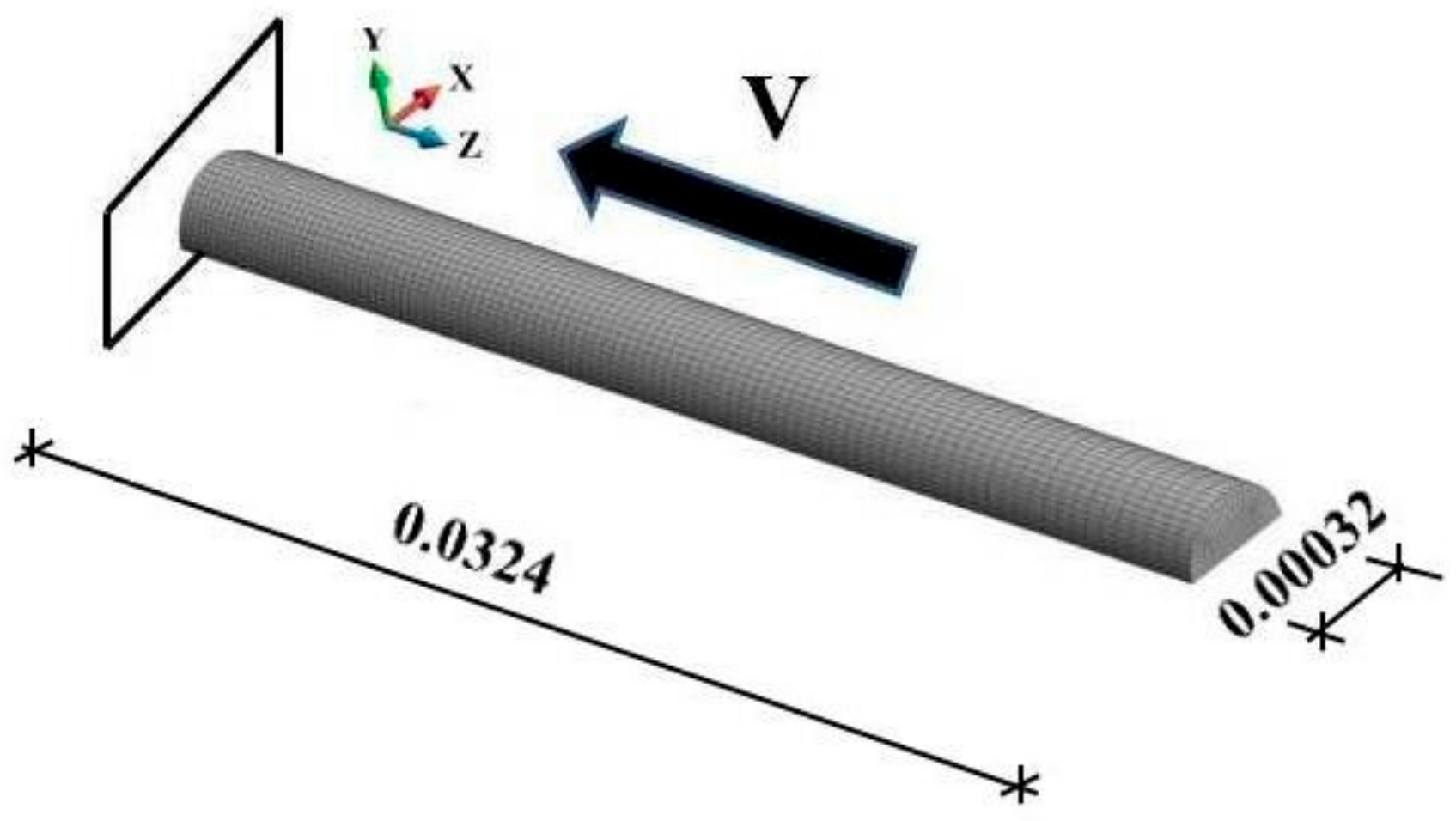

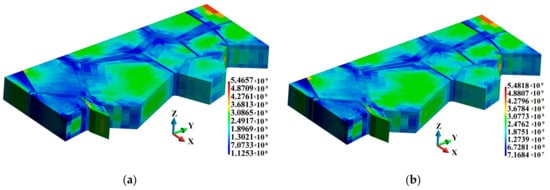

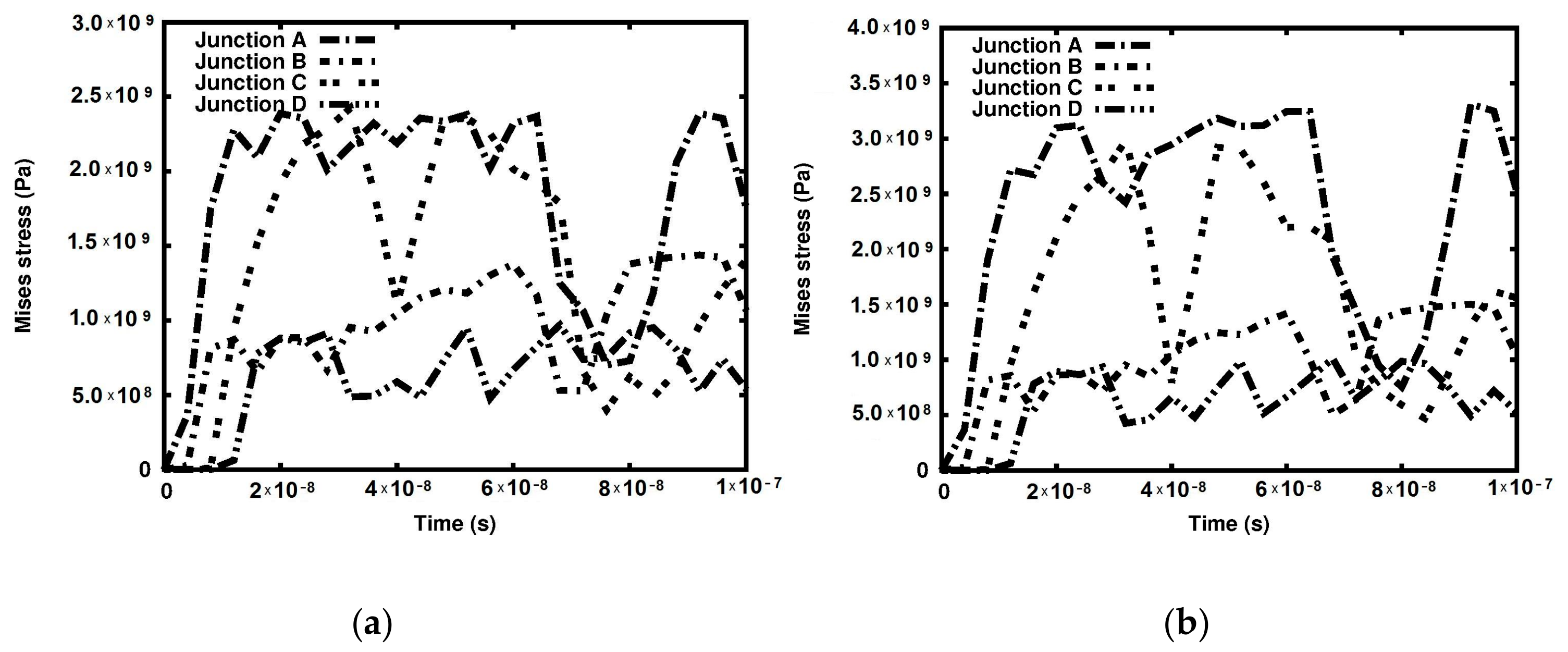

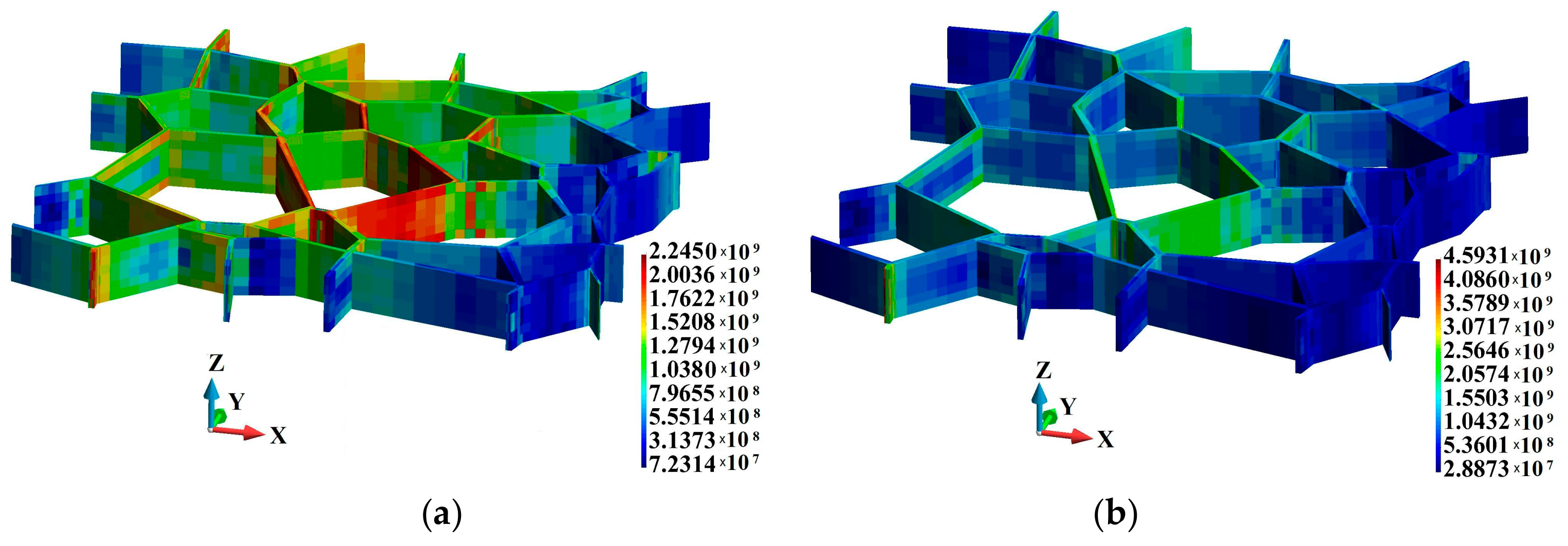

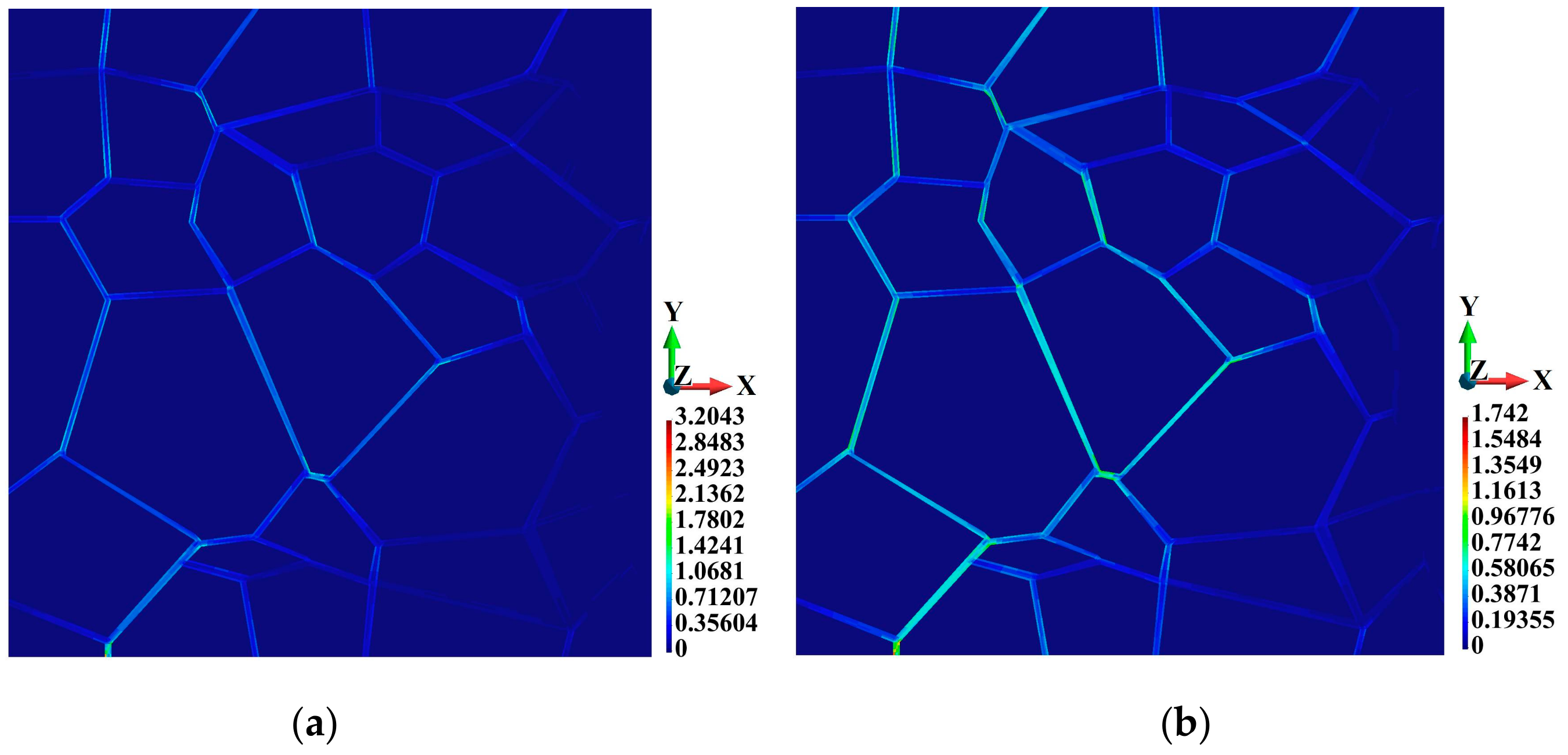

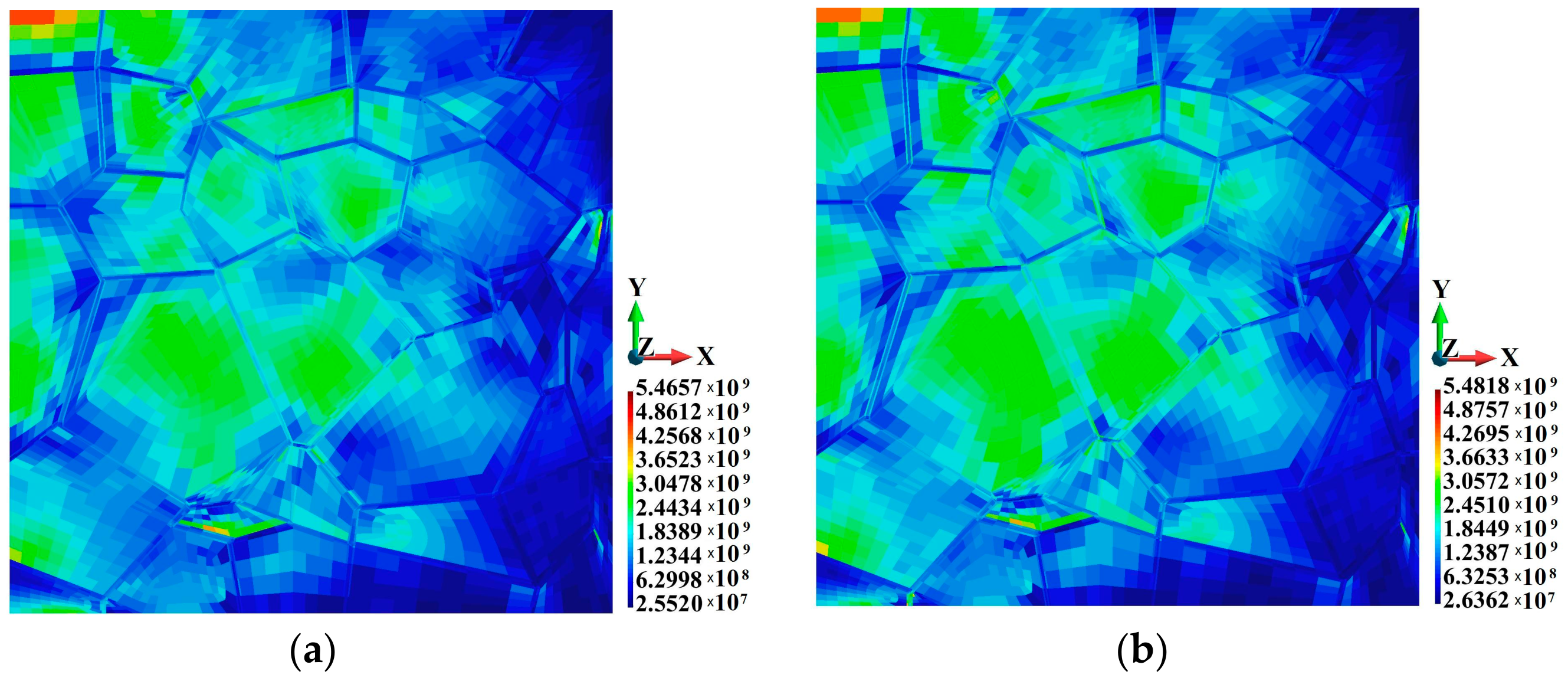

Metal-ceramic composite (MCC) materials can be used for manufacturing high-responsibility structures such as jet engines or cutting tools. One example of these materials is a two-phase wolfram carbide (WC) and cobalt (Co) composite. This MCC is a combination of hard WC grains with a Co metallic ductile binder. The resulting microstructure is a combination of two phases with significantly different mechanical behaviors. In this study, we investigate impact conditions, starting with an illustrative example of the Taylor impact bar where—although the process is very rapid—the equivalent plastic strain and temperature are higher in the adiabatic solution than those in the coupled solution. On exposing the WC/Co composite with a metallic binder to impact loading, heat is generated by plastic deformation. If the process is fast enough, the problem can be treated as adiabatic. However, a more common situation is that the process is slower, and the heat is generated in the ductile metallic binders. As a result, the associated grains are heated due to the conduction effect. Consequently, the process should be treated as coupled. When the impact is applied over a short time period, maximum temperatures are significantly lower if the process is analyzed as coupled rather than as adiabatic. The grains are immediately affected by temperature increase in the binders. Therefore, the heat conduction effect should not be omitted. View Full-Text
Keywords: metal-ceramic composite; impact; coupled problem; thermomechanics metal-ceramic composite; impact; coupled problem; thermomechanics

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Postek, E.; Sadowski, T. Temperature Effects during Impact Testing of a Two-Phase Metal-Ceramic Composite Material. Materials 2019, 12, 1629.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
