Article

Efficient Catalytic Production of Biodiesel with Acid-Base Bifunctional Rod-Like Ca-B Oxides by the Sol-Gel Approach

by
Anping Wang
1,2,
Hu Li
1,*,
Heng Zhang
1,
Hu Pan
1 and
Song Yang
1,*
1
State Key Laboratory Breeding Base of Green Pesticide & Agricultural Bioengineering, Key Laboratory of Green Pesticide & Agricultural Bioengineering, Ministry of Education, State-Local Joint Laboratory for Comprehensive Utilization of Biomass, Center for Research & Development of Fine Chemicals, Guizhou University, Guiyang, Guizhou 550025, China
2
Key Laboratory for Information System of Mountainous Area and Protection of Ecological Environment of Guizhou Province, Guizhou Normal University, Guiyang, Guizhou 550025, China
*
Authors to whom correspondence should be addressed.
Materials 2019, 12(1), 83; https://doi.org/10.3390/ma12010083
Submission received: 18 November 2018 / Revised: 20 December 2018 / Accepted: 23 December 2018 / Published: 27 December 2018
(This article belongs to the Special Issue Supported Metal and Metal Oxide Catalysts by Sol-Gel Chemistry: Synthesis and Applications)
Browse Figures
Versions Notes

Abstract

:
The search for acid-base bifunctional catalysts has become a hot topic in the preparation of biofuels from renewable resources. In the present work, a series of novel acid-base bifunctional metal-boron catalysts were successfully prepared by a sol-gel method and characterized by XRD, IR, SEM, TEM, TGA, BET, and TPD. Among those bifunctional solid materials, the Ca-B(700) catalyst had the highest density of both acid and base sites and showed excellent catalytic performance in the production of biodiesel from nonedible oils with high acid value. Under the optimal reaction conditions of 20/1 methanol/oil mole ratio and 4 wt % catalyst dosage at 105 °C for 2 h, a high biodiesel yield of 96.0% could be obtained from Jatropha curcas oil in one-pot. In addition, Ca-B(700) was also applicable to producing biodiesel from Firmiana platanifolia L.f. oil in a relatively low acid value, with an almost quantitative yield (98.5%) at 65 °C after 2 h. The Ca-B(700) catalyst had good stability and reusability, which is a promising acid-base bifunctional catalytic material for the preparation of biodiesel.

Graphical Abstract

1. Introduction

In recent years, with the gradual reduction of fossil fuels, people began to pay more and more attention to the use of alternative renewable energy derived from biomass [1,2]. Among the developed biofuels, biodiesel is considered as an excellent substitute for fossil diesel, which can reduce greenhouse gas and pollutant emissions [3]. The main component of biodiesel is fatty acid methyl esters (FAME) or ethyl esters (FAEE), which are a green, eco-friendly, bio-degradable clean energy [4]. The main raw materials of biodiesel are vegetable oils, animal fat, and waste oils [5,6]. Cheaper raw materials have a great promotional effect on controlling the price of biodiesel. A variety of nonedible oils, such as Jatropha curcas, Euphorbia lathyris [5], Firmiana platanifolia [7], Xanthium sibiricum [8], and Koelreuteria integrifoliola [9], have been developed as raw materials to prepare biodiesel. Unfortunately, many oils have high acid values, which requires high-performance and robust catalysts. Biodiesel is typically obtained by esterification and transesterification of raw materials in the presence of acid or base catalysts. Particularly, heterogeneous catalysts, which are environmentally friendly and noncorrosive to production equipment, show more promising applications in the production of biodiesel and are being replaced traditional homogeneous catalysts [10,11].
Due to the existence of free fatty acids (FFAs), most of the raw materials have high acid values, which require the use of acidic catalysts to mediate the reaction processes. However, acidic catalysts need higher temperatures and/or longer times, which will increase the cost of industrial production. Therefore, it is desirable to avoid using acid catalysts as much as possible in the production of biodiesel from the raw materials with high acid values [12]. In turn, alkali catalysts seem to be more suitable candidates, while the problem of saponification in the (trans)esterification of raw materials with high acid values has not been well solved. In this regard, acid-base bifunctional catalysts, such as Zn8@Fe-C400 nanoparticles [3], K-ITQ-6 [13], and CaO-La2O3 [14], began to be developed for producing biodiesel. Nevertheless, these reaction systems still need high reaction temperatures or high catalyst dosages. Based on the above discussions, the exploration of acid-base bifunctional catalysts to produce biodiesel under mild conditions exhibits great potential for industrial application.
The sol-gel method is one of most widely used and effective synthesis methods in the preparation of acid-base bifunctional metal oxide catalysts [15,16]. The preparation of metal oxide catalysts by the sol-gel method has the advantages of simple synthesis procedure, good stability, uniformity of adulteration, and low temperature plasticity [17,18], which appears more conducive to the pronounced catalytic performance of solid functional materials.
In the process of preparing biodiesel from high acid value raw materials, a small amount of water will be produced due to esterification reaction. Therefore, the catalyst has a certain hydrophobicity which makes it more excellent on catalytic performance [6]. According to previous reports [19,20], the metal oxide itself has a certain hydrophobicity, which protects the catalyst from deactivation in the reaction process. Therefore, on the basis of ensuring the catalytic performance, it is necessary to study the hydrophobic properties of catalytic materials. At the same time, the modification of catalysts to obtain materials with better hydrophobic function is the focus of our follow-up research.
In this study, a series of metal-boron oxide materials were prepared by the gel-sol method and were found to have regular morphology and good stability. Among these acid-base bifunctional oxides, the smooth rod-like Ca-B catalysts exhibited superior catalytic performance in the production of biodiesel from Jatropha curcas oil with high acid values. The reaction parameters were systematically investigated and optimized, and the optimal Ca-B(700) was found to be robust and stable for biodiesel production from the nonedible oils with either high or low acid value.

2. Materials and Methods

2.1. Materials

Ca(NO3)2·4H2O (99%), Mg(NO3)2·6H2O (99%), Zn(NO3)2·6H2O (99%), and boric acid (H3BO3, ≥99.5%) were purchased from Shanghai Aladdin Reagent Co., Ltd. ZrOCl2·8H2O (≥98%), AlCl3·6H2O (99%), and polyethylene-polypropylene glycol (F68) were obtained from Beijing J&K Scientific Ltd. MeOH (≥99.5%), potassium hydroxide (KOH, ≥85.0%), ethanol (≥99.7%), and petroleum ether (60–90 °C) were purchased from Chuandong Chemical Reagent Co., Ltd. The crude oils of Jatropha curcas L. and Firmiana platanifolia L.f. were prepared by our group [5,7]. The acid values of obtained oils were evaluated by titration according to the national standard with 0.1 M ethanol solution of potassium hydroxide.

2.2. Catalyst Preparation

The metal-boron acid-base bifunctional catalysts were prepared by the sol-gel method, according to the reported procedures with slight modification [21,22]. In a typical synthetic procedure, 1.0 g polyethylene-polypropylene glycol (F68) was dissolved into 20 mL absolute ethanol, and kept stirred for 1 h at 40 °C, followed by addition of 10 mmol metal salt (i.e., Ca(NO3)2·4H2O, AlCl3·6H2O, Mg(NO3)2·6H2O, Zn(NO3)2·6H2O, and ZrOCl2·8H2O). After stirring at 40 °C for 1 h, 10 mmol H3BO3 was added into the resulting solution and stirred for another 1 h. Upon ultrasonic treatment for 0.5 h, the resulting transparent solution was transferred into a surface dish and placed in an oven (45 °C), where the solvent was slowly evaporated for 24 h and then dried in an 80 °C for another 24 h. Finally, the solid product was subjected to calcination at 700 °C (heating ramp: 5 °C/min) for 6 h in air to give solid powder.
According to the kind of metal salts (i.e., Ca(NO3)2·4H2O, AlCl3·6H2O, Mg(NO3)2·6H2O, Zn(NO3)2·6H2O, and ZrOCl2·8H2O), the resulting catalysts were denoted as Ca-B(700), Al-B(700), Mg-B(700), Zn-B(700), and Zr-B(700), respectively. For comparison, the selected Ca-B catalysts were calcined at different temperatures of 550, 600, 700, and 800 °C, which were designated as Ca-B(550), Ca-B(600), Ca-B(700), and Ca-B(800), respectively.

2.3. Catalyst Characterization

X-ray diffraction (XRD) patterns were recorded with Tongda TD-3500 X-ray diffractometer (Cu Kα radiation λ = 0.154056 nm)) to characterize the crystal form of the samples (2θ angle recorded from 5 to 80°). IR spectra were obtained by using KBr 360 Nicolet FT-IR apparatus infrared spectrometer. The mass loss was measured by thermogravimetric analysis (TGA) with temperature of from 25 °C–800 °C in N2 atmosphere (Mettler TGA/DSC1). Acidity and alkalinity of the materials were evaluated by TPD (Micromeritics Auto Chem II 2920 apparatus), He was used as carrier gas, the maximum temperature is 700 °C, and the NH3/CO2 gas flow rate is 20 mL/min. The morphology and internal structure of the catalysts were observed by SEM (JSM-6700F, 5 KV) and HR-TEM (JEM-2000FX, 200 kV). The physical properties (specific surface area, pore volume and pore size) of the catalyst were measured at 77K by N2 adsorption-desorption device (Micromeritics Co., Ltd., ASAP 2460). The acid type of the catalyst was determined FT-IR of pyridine adsorption (Nicolet iS50 Thermo sepectrometer). The water contact angle was measured by device of Dataphysics Corporation (OCA15EC, Germany).

2.4. Biodiesel Production from Jatropha Oil with High Acid Values

In a general procedure, Jatropha crude oil (1.0 g), absolute methanol (0.65 g), and metal-B catalyst (0.04 g) were added into a glass pressure bottle (15 mL, Beijing Synthware Co., Ltd., Beijing, China). The reaction conditions for catalyst selection were performed with 20/1 methanol/oil mole ratio and 4 wt % catalyst dosage at 85 °C for 6 h, while the subsequent reaction conditions were performed under the optimized conditions of 20/1 methanol/oil mole ratio and 4 wt % catalyst dosage at 105 °C for 2 h. The magnetic stirring speed was 600 rpm in the reaction.
After reaching the specific reaction time, the liquid products were obtained after centrifugation (10,000 rpm) for 5 min to remove the catalyst. Then petroleum ether was added to the liquid, while the upper layer liquid was separated by vacuum distillation to remove excess methanol. Experiments were repeated for three times, and the results were shown in average values. The yields of biodiesel were detected by nuclear magnetic resonance (NMR, 500 M, JEOL) using tetramethylsilane (TMS) as internal reference.

2.5. Catalyst Reusability

In order to study the catalyst reusability, the solid catalyst was recycled under optimized reaction conditions (20/1 methanol/oil mole ratio and 4 wt % catalyst dosage at 105 °C for 2 h), followed by washing with methanol and petroleum ether to remove any impurities. The scrubbed catalyst was calcined at 700 °C for 6 h, then used for the next cycle.

3. Results and Discussions

3.1. Catalyst Characterization

As shown in Figure 1A, the XRD diffraction lines 22.1°, 66.2° a and B belong to Al2O3 [20,21]. The diffraction lines of MgO are at 42.9°, 62.3° [22], and 28.2°, 30.4°, 34.8°, 50.4°, and 60.3° are attributed to the characteristic diffraction lines of ZrO2 [23]. The characteristic diffraction lines of ZnO appear in 31.8°, 34.6°, 36.4°, 47.7°, 56.7°, 63.0°, 68.1° [24], and B2O3 diffraction lines were at 14.2°, 27.6° [22]. This result proves that the successful preparation of those catalysts (Al-B(700), Mg-B(700), Zn-B(700), Zr-B(700). The wide XRD diffraction lines of Al-B catalysts illustrate that these materials are more likely to exist in the form of amorphous powders, which can expose active sites and provide more active sites, as proven by the high acid density of Al-B in Table S1.
Regarding the Ca-B catalysts calcined at different temperatures, the materials calcined at 550 and 660 °C, as well as those at 700 and 800 °C, had similar structures (Figure 1B). The XRD characteristic diffraction lines of CaO are 32.3°, 37.4°, and 54.1° in the Ca-B catalyst, indicating that the catalyst alkalinity may come from CaO [25,26,27,28,29]. The diffraction lines at 18.2° and 34.2° indicate the existence of Ca(OH)2 in a certain amount, which could be due to the water absorption of CaO. The characteristic diffraction lines of CaCO3 appeared in 23.4°, 36.2°, and 39.3°, which may be formed by the reaction of CaO and CO2 during calcination [30]. The diffraction line at 27.9° showed the presence of B2O3 [23].
The absorption bands of CaO, Ca(OH)2 and CaCO3 were observed in FT-IR spectra (Figure 1C). The absorption bands 869 and 1442 cm−1 belong to CaCO3, while 3640 cm−1 is the characteristic absorption band of OH group for Ca(OH)2. The Ca-B catalysts calcined at 700 and 800 °C were weaker, showing the small amount of these species, which could be supported by a previous report [30,31,32]. In addition, the absorption band at 527 cm−1 confirmed the existence of CaO, which is consistent with the characterization result of XRD.
Thermogravimetric (TG) analysis showed that the Ca-B(700) catalyst had good stability (Figure 1D). The mass loss was only 4.6% when the temperature was lower than 383 °C, which is possibly due to the removal of water adsorbed in the sample and the decomposition of a small amount of residual organic matters. In addition, owing to the strong hygroscopicity of B2O3, the removal of crystalline water will also result in the mass loss [30,33]. When the temperature was in the range of 383 to 677 °C, the mass loss of 11.8% was observed, which is mainly caused by the decomposition of Ca(OH)2 [31].
N2 adsorption-desorption tests show that the specific surface area and pore volume of Ca-B materials increase with the increase of calcination temperature (Table 1), which may be conducive to the (trans)esterification reaction. The specific surface area was found to increase with the increase of the calcination temperature, and the specific surface area of Ca-B(700) was 4.72 m2/g. The pore size increased, then decreased, with the increase of calcination temperature, all of which were larger than 3.5 nm, which is beneficial to the mass transfer of triglyceride [34,35]. These results can be explained by the complete removal of organic template to generate additional pores and the enhanced stability in the presence of B at the relatively high calcination temperatures. The acid and base densities of the Ca-B catalysts calcined at different temperatures were determined by NH3/CO2-TPD, respectively. The Ca-B(700) catalyst exhibited the highest acid (2.68 mmol/g) and base (1.89 mmol/g) capacity. Ca-B(700) seems to be a promising catalyst for the production of biodiesel.
As can be seen from the SEM image (Figure 2A), the morphology of Ca-B(700) presents a smooth and uniform rod-like structure. The average length of the rod catalyst was estimated to be about 150 nm. The smooth morphology of the rod-like catalyst makes the active sites to be more dispersed, ensuring better contact with the substrate to speed up the reaction rate. The image of TEM shows that Ca-B(700) material has mesoporous structure (Figure 2B), which facilitates not only the entry of substrate into the pores, but also the product departure. In addition, the elemental mapping diagram shows that Ca, O, and B elements are uniformly distributed in the catalyst (Figure 2C), indicating that the preparation of the catalyst was successful, which is mainly attributed to the homogeneous doping of the catalyst at the micro-level by the gel-sol method. Furthermore, high resolution (HR)-TEM image further reveals the presence of CaO crystal planes in Ca-B(700) (Figure 2D), which is in agreement with the previous result [36].
Compared with other catalysts (Figures S1 and S2, Table 1 and Table 2), Ca-B(700) has smaller average particle size and is more dispersed without agglomeration. Moreover, Ca-B(700) has more regular rod-like morphology, suitable mesoporous diameter, and higher acid/base density. In this respect, Ca-B(700) exhibits the great potential as acid-base bifunctional catalyst with excellent performance in biodiesel production.
The acidity of Ca-B(700) was examined by the pyridine-adsorbed FT-IR at 200 °C (Figure S3). The absorption band at 1446 cm−1 is attributed to the presence of Lewis (L) acid sites, while the absorption band at 1487 cm−1 should be Brønsted (B) acid and Lewis (L) acid sites. In addition, the absorption band at 1597 cm−1 is assigned to the adsorption of pyridine [23,40,41]. In addition, the contact angle of the Ca-B(700) catalyst was tested and found to be 71.1° (Figure S4), showing expectable hydrophobicity. This contact angle can basically meet the hydrophobic requirements of catalysts in biodiesel preparation.
Figure S5 shows that there is no obvious correlation between the specific surface area, pore volume, pore size, and biodiesel yield of different catalysts. In turn, acid-base properties of the catalysts are the main factors affecting the catalytic performance. Moreover, the average sizes of microcrystals have been evaluated using the XRD method by Scherrer Equation (1), and the obtained average sizes of microcrystals plotted with biodiesel yield are shown in Figure S6. It was found that the yield of biodiesel increased gradually with the decrease of crystal size of Ca-B catalyst, and a maximum biodiesel yield was obtained in the case of Ca-B(700). However, further decease in crystal size resulted in the decline of biodiesel yield for Ca-B(800). These results indicate that the catalyst crystal size affects the biodiesel yield, to a certain extent.

3.2. Biodiesel Yield Analysis

NMR technology is a convenient and effective method to detect the yields of biodiesel [42,43,44]. In the process of NMR detection, CDCl3 is usually used as solvent with TMS as internal standard. The calculation is mainly based on the difference in the displacement of hydrogen peaks in the substrate/product before and after transesterification. Specifically, there is no peak at 3.66 ppm before the reaction, while a new single peak turns out at 3.66 ppm upon completion of the reaction (Figure 3), which belongs to the methoxy species obtained by transesterification of methanol. The proton peak belonging to α-CH2 appears at 2.30 ppm, showing a perfect three-fold peak. The glycerol peak in 4.0–4.2 ppm disappeared after the reaction. This is undoubtedly quantitative for biodiesel.
C = 100 × (2AMe/3ACH2)
AMe indicates the integral area of methoxy hydrogen at 3.66 ppm, while ACH2 refers to the protons integral area of α-CH2 at 2.30 ppm.

3.3. Biodiesel Production from Jatropha Oil with High Acid Value

The catalytic activity of different materials for biodiesel production is shown in Figure 4A. It can be seen that there was almost no reaction without catalyst, and the biodiesel yields of various metal-B catalysts (Al-B, Mg-B, Zr-B, Zn-B) calcined at 700 °C were all less than 20% at 85 °C for 6 h. In contrast, the Ca-B catalyst had excellent catalytic activity, with a high biodiesel yield of 94% under identical reaction conditions. These results indicate that the alkalinity of the catalyst plays a promotional role in the superior biodiesel yield at a relatively mild reaction temperature of 85 °C.
The effect of calcined Ca-B catalysts at different temperatures on the biodiesel yield of the reaction was further explored. It can be seen from Figure 4B, the catalytic activity increased with the increase of calcination temperature from 550–700 °C, but began to decrease as the calcination temperature reached 800 °C. These results further illustrate the crucial role of the catalyst acidity and basicity, where Ca-B(700) with the highest acidity and basicity afforded the best biodiesel yield.

3.4. Optimization of Reaction Parameters

Reaction conditions have a great influence on the production cost in industrial applications. Therefore, optimizing reaction conditions is very important in the preparation of biodiesel. The reaction temperature (85–125 °C), reaction time (1–5 h), amount of catalyst (1–5 wt %), and molar ratio of MeOH to oil (5:1–25:1) were optimized by single factor experiments.

3.4.1. Reaction Temperature

The temperature is the most important factor affecting the reaction, so the temperature was first optimized with 20/1 methanol/oil molar ratio and 4 wt % Ca-B(700) after 2 h. It can be seen from Figure 5A that as the temperature increased, the yield of biodiesel increased accordingly. The biodiesel yield was found to be 80.1% and 99.3% at 85 °C and 125 °C, respectively, while a good yield of 95.3% could be obtained at 105 °C. Therefore, the temperature of 105 °C is selected as the suitable temperature for the production of biodiesel with high acid value raw materials.

3.4.2. Reaction Time

Since the esterification and transesterification of the one-pot process for biodiesel production are reversible reactions, the choice of short reaction time is very advantageous for decreasing the production cost. The yields of biodiesel were 78.3% and 96.7% after 1 and 2 h, respectively (Figure 5B). Then, the yield decreased slightly with prolonging the reaction time, and a slight decline in biodiesel yield of 94.0% was observed as the reaction time was 5 h. Therefore, it is suitable to use 2 h as the optimal reaction time to get the best biodiesel yield.

3.4.3. Methanol/Oil Molar Ratio

The molar ratio of MeOH to oil is also an important parameter in biodiesel production, which determines the used amount of methanol and thus affects the production cost. As shown in Figure 5C, when the molar ratio of MeOH to oil was 5:1, the yield of biodiesel was 76.0%. With the molar ratio of alcohol to oil increasing to 20:1, the yield rose to 95.3%. As the molar ratio of alcohol to oil was further increased to 25:1, the yield was 97.3%. From above discussions, 20:1 alcohol-oil ratio is a better choice, which not only achieves the expected yield, but also well controls the production cost.

3.4.4. Catalyst Dosage

Use of a catalyst can accelerate the reaction rate, and the ideal state is to achieve the best catalytic effect with a minimum of the catalyst. The effect of the catalyst amount from 1% to 5%, relative to the weight of the substrate (Jatropha oil) on the biodiesel yield, was investigated under the reaction conditions of 105 °C, 4 h, and the molar ratio of alcohol to oil is 20:1. It can be observed (Figure 5D) that the yield sharply increased from 24.1 to 96.0% as the catalyst amount increased from 1 to 4 wt %, while the yield slightly increased from 95.3 to 96.0% as the catalyst dosage was arisen from 4 to 5 wt %. Therefore, a catalyst amount of 4% by weight is optimal for the reaction.

3.5. Catalyst Reusability

The multiple reuse of a catalyst can reduce the production cost, which is very favorable for industrial production of biodiesel. Therefore, the reusability of the catalyst was tested under the optimized conditions of methanol/oil molar ratio 20/1, 4 wt % Ca-B(700), 105 °C for 2 h. After each cycle of the reaction, the centrifuged catalyst was washed with petroleum ether. By comparing the XRD patterns of Ca-B(700) catalyst before and after the reaction (Figure 6A), it was observed that the main diffraction lines did not evidently change, indicating that the catalyst was stable and its crystal morphology remained during the consecutive reaction cycles. However, it was shown that the adhering biodiesel and triglyceride could not be washed cleanly from the catalyst, which made the active sites of the catalyst covered (Figure 6B). The infrared spectra of the catalysts after the reaction that the absorption bands of 2846 and 2920 cm−1 indicate the existence of a long chain alkyl groups. After calcination of the recovered catalyst at 700 °C for 6 h to remove the residue attached to the surface, the yield of biodiesel was still more than 90% in five consecutive reaction cycles (Figure 6C), indicating that the catalyst had good reusability and stability. Thermal filtration experiment is an important method to test whether the solid catalyst exhibits homogeneous or heterogeneous behavior [45,46]. The Ca-B(700) catalyst proved to be a heterogeneously recyclable catalyst for biodiesel production by thermal filtration experiment (Figure 6D). These results indicate that Ca-B(700) with robust structure and good stability is a promising catalyst for biodiesel production.
It can be seen from Table 3 that Ca-B(700) is an excellent catalyst. It has relatively mild reaction temperature, good stability, and reusability. At the same time, it has excellent catalytic performance for the synthesis of biodiesel from raw materials with high acid values.

3.6. Biodiesel Production from Firmiana Platanifolia L.f. Oil with Low Acid Value

Delighted by the fact that Ca-B(700) can efficiently catalyze the production of biodiesel from Jatropha oil, the biodiesel production from Firmiana platanifolia L.f. with a low acid value (0.8 KOH mg/g) oil was also tested under the reaction conditions of 4 wt % catalyst dosage, 20:1 molar ratio of MeOH to oil, and reaction temperature of 65–105 °C for reaction time of 2 h. As can be seen from Figure 7, the yield of 98.5% was able to be obtained at a relatively low reaction temperature of 65 °C, which is very beneficial to the production cost control in the practical process. The results show that Ca-B(700) has a good catalytic performance in the preparation of biodiesel from nonedible oils with either high or low acid value.

4. Conclusions

In summary, a novel and robust acid-base bifunctional Ca-B(700) catalytic material was successfully prepared by the sol-gel method. Ca-B(700) was found to show smooth rod-like structure, suitable surface area, uniform pore size, and high acid-base density (acid capacity 2.68 mmol/g, base capacity 1.89 mmol/g). Under optimized reaction conditions of 20/1 methanol/oil mole ratio and 4 wt % catalyst dosage at 105 °C for 2 h, the yield of biodiesel produced from Jatropha oil with high acid value was as high as 96%. Furthermore, the yield of biodiesel obtained from Firmiana platanifolia L.f. oil was up to 98.5% at 65 °C after 2 h. In addition, the Ca-B(700) catalyst had good stability and reusability, which could be recycled for at least five times with little decrease in its activity.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/12/1/83/s1, Figure S1: SEM images of (A) Al-B(700), (B) Mg-B(700), (C) Zn-B(700), and (D) Zr-B(700); Figure S2: SEM images of (A) Ca-B(550), (B) Ca-B(600), and (C) Ca-B(800); Figure S3: Pyridine-adsorbed IR spectrum of Ca-B(700) catalyst; Figure S4: Hydrophobicity of the catalyst surface of Ca-B(700); Figure S5: Influence of specific surface area (A), pore volume (B), pore size (C) to biodiesel yield of different catalysts; Figure S6: Influence of mean size with different Ca-B catalysts on the production of biodiesel, Table S1: Textural properties of different Materials.

Author Contributions

Conceptualization, H.L.; Methodology, A.W. and H.L.; Investigation, A.W., H.Z. and H.P.; Writing—Original Draft Preparation, A.W.; Writing—Review and Editing, H.L. and S.Y; Supervision, S.Y.; Project Administration, H.L. and S.Y; Funding Acquisition, H.L. and S.Y.

Funding

This study was financially supported by the National Natural Science Foundation of China (21576059 & 21666008), Fok Ying-Tong Education Foundation (161030), Key Technologies R&D Program of China (2014BAD23B01), and Guizhou Science & Technology Foundation ([2018]1037 & [2017]5788).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Luque, R.; Lovett, J.C.; Datta, B.; Clancy, J.; Campelo, J.M.; Romero, A.A. Biodiesel as feasible petrol fuel replacement: A multidisciplinary overview. Energy Environ. Sci. 2010, 3, 1706–1721. [Google Scholar] [CrossRef]
  2. Li, H.; Yang, T.; Fang, Z. Biomass-derived mesoporous Hf-containing hybrid for efficient Meerwein-Ponndorf-Verley reduction at low temperatures. Appl. Catal. B Environ. 2018, 227, 79–89. [Google Scholar] [CrossRef]
  3. Wang, Y.T.; Fang, Z.; Yang, X.X.; Yang, Y.T.; Luo, J.; Xu, K.; Bao, G.R. One-step production of biodiesel from Jatropha oils with high acid value at low temperature by magnetic acid-base amphoteric nanoparticles. Chem. Eng. J. 2018, 348, 929–939. [Google Scholar] [CrossRef]
  4. Lin, C.Y.; Lin, H.; Hung, L.B. Fuel structure and properties of biodiesel produced by the peroxidation process. Fuel 2006, 85, 1743–1749. [Google Scholar] [CrossRef]
  5. Wang, R.; Hanna, M.A.; Zhou, W.W.; Bhadury, P.S.; Chen, Q.; Song, B.A.; Yang, S. Production and selected fuel properties of biodiesel from promising non-edible oils: Euphorbia lathyris L., Sapiumsebiferum L. and Jatropha curcas L. Bioresour. Technol. 2011, 102, 1194–1199. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, H.; Li, H.; Pan, H.; Wang, A.P.; Souzanchi, S.; Xu, C.C.; Yang, S. Magnetically recyclable acidic polymeric ionic liquids decorated with hydrophobic regulators as highly efficient and stable catalysts for biodiesel production. Appl. Energy 2018, 223, 416–429. [Google Scholar] [CrossRef]
  7. Zhang, H.; Zhou, Q.; Chang, F.; Pan, H.; Liu, X.F.; Li, H.; Hu, D.Y.; Yang, S. Production and fuel properties of biodiesel from Firmiana platanifolia L.f. as a potential non-food oil source. Ind. Crop. Prod. 2015, 76, 768–771. [Google Scholar] [CrossRef]
  8. Chang, F.; Hanna, M.A.; Zhang, D.J.; Li, H.; Zhou, Q.; Song, B.A.; Yang, S. Production of biodiesel from non-edible herbaceous vegetable oil: Xanthium sibiricum Patr. Bioresour. Technol. 2013, 140, 435–438. [Google Scholar] [CrossRef]
  9. Zhang, H.; Li, H.; Pan, H.; Liu, X.; Yang, K.; Huang, S.; Yang, S. Efficient production of biodiesel with promising fuel properties from Koelreuteria integrifoliola oil using a magnetically recyclable acidic ionic liquid. Energy Convers. Manag. 2017, 138, 45–53. [Google Scholar] [CrossRef]
  10. Wang, A.P.; Li, H.; Pan, H.; Zhang, H.; Xu, F.; Yu, Z.; Yang, S. Efficient and green production of biodiesel catalyzed by recyclable biomass-derived magnetic acids. Fuel Process. Technol. 2018, 181, 259–267. [Google Scholar] [CrossRef]
  11. Ma, G.; Dai, L.; Liu, D.; Du, W. A robust two-step process for the efficient conversion of acidic soybean oil for biodiesel production. Catalysts 2018, 8, 527. [Google Scholar] [CrossRef]
  12. Huang, M.; Luo, J.; Fang, Z.; Li, H. Biodiesel production catalyzed by highly acidic carbonaceous catalysts synthesized via carbonizing lignin in sub- and super-critical ethanol. Appl. Catal. B Environ. 2016, 190, 103–114. [Google Scholar] [CrossRef]
  13. Macario, A.; Giordano, G.; Onida, B.; Cocina, D.; Tagarelli, A.; Giuffrè, A.M. Biodiesel production process by homogeneous/heterogeneous catalytic system using an acid–base catalyst. Appl. Catal. A Gen. 2010, 378, 160–168. [Google Scholar] [CrossRef]
  14. Lee, H.V.; Juan, J.C.; Taufiq-Yap, Y.H. Preparation and application of binary acid-base CaO-La2O3 catalyst for biodiesel production. Renew. Energy 2015, 74, 124–132. [Google Scholar] [CrossRef]
  15. Zhou, Q.; Zhang, H.; Chang, F.; Li, H.; Pan, H.; Xue, W.; Hu, D.Y.; Yang, S. Nano La2O3 as a heterogeneous catalyst for biodiesel synthesis by transesterification of Jatropha curcas L. oil. J. Ind. Eng. Chem. 2015, 31, 385–392. [Google Scholar] [CrossRef]
  16. Li, H.; Fang, Z.; He, J.; Yang, S. Orderly layered Zr-benzylphosphonate nanohybrids for efficient acid/base-mediated bifunctional/cascade catalysis. ChemSusChem 2017, 10, 681–686. [Google Scholar] [CrossRef]
  17. Jo, J.W.; Kim, J.; Kim, K.T.; Kang, J.G.; Kim, M.G.; Kim, K.H.; Ko, H.; Kim, Y.H.; Park, S.K. Highly stable and imperceptible electronics utilizing photoactivated heterogeneous sol-gel metal-oxide dielectrics and semiconductors. Adv. Mater. 2015, 27, 1182–1188. [Google Scholar] [CrossRef]
  18. Hosseinpour-Mashkani, S.M.; Ramezani, M.; Sobhani-Nasab, A.; Esmaeili-Zare, M. Synthesis, characterization, and morphological control of CaCu3Ti4O12 through modify sol-gel method. J. Mater. Sci. Mater. Electron. 2015, 26, 6086–6091. [Google Scholar] [CrossRef]
  19. Osman, A.I.; Abu-Dahrieh, J.K.; Abdelkader, A.; Hassan, N.M.; Laffir, F.; McLaren, M.; Rooney, D. Silver-Modified η-Al2O3 Catalyst for DME Production. J. Phys. Chem. C 2017, 121, 25018–25032. [Google Scholar] [CrossRef]
  20. Osman, A.I.; Abu-Dahrieh, J.K.; Rooney, D.W.; Thompson, J.; Halawy, S.A.; Mohamed, M.A. Surface hydrophobicity and acidity effecton alumina catalyst in catalytic methanoldehydration reaction. J. Chem. Technol. Biotechnol. 2017, 92, 2952–2962. [Google Scholar] [CrossRef]
  21. Silva, P.D.; Sagoe-Crenstil, K.; Sirivivatnanon, V. Kinetics of geopolymerization: Role of Al2O3 and SiO2. Cem. Concr. Res. 2007, 37, 512–518. [Google Scholar] [CrossRef]
  22. Aramendía, M.A.; Boráu, V.; Jiménez, C.; Marinas, J.M.; Porras, A.; Urbano, F.J. Synthesis and characterization of MgO-B2O3 mixed oxides prepared by coprecipitation; selective dehydrogenation of propan-2-ol. J. Mater. Chem. 1999, 9, 819–825. [Google Scholar] [CrossRef]
  23. He, J.; Li, H.; Liu, Y.; Zhao, W.; Yang, T.; Xue, W.; Yang, S. Catalytic transfer hydrogenation of ethyl levulinate into γ-valerolactone over mesoporous Zr/B mixed oxides. J. Ind. Eng. Chem. 2016, 43, 133–141. [Google Scholar] [CrossRef]
  24. Soltani, S.; Rashid, U.; Al-Resayes, S.I.; Nehdi, I.A. Sulfonated mesoporous ZnO catalyst for methyl esters production. J. Clean. Prod. 2017, 144, 482–491. [Google Scholar] [CrossRef]
  25. Kaur, M.; Ali, A. Lithium ion impregnated calcium oxide as nano catalyst for the biodiesel production from karanja and jatropha oils. Renew. Energy 2011, 36, 2866–2871. [Google Scholar] [CrossRef]
  26. Mazaheri, H.; Ong, H.C.; Masjuki, H.H.; Amini, Z.; Harrison, M.D.; Wang, C.T.; Kusumo, F.; Alwi, A. Rice bran oil based biodiesel production using calcium oxide catalyst derived from Chicoreus brunneus shell. Energy 2018, 144, 10–19. [Google Scholar] [CrossRef]
  27. Ye, X.; Wang, W.; Zhao, X.; Wen, T.; Li, Y.; Ma, Z.; Wen, L.; Ye, J.; Wang, Y. The role of the KCaF3 crystalline phase on the activity of KF/CaO biodiesel synthesis catalyst. Catal. Commun. 2018, 116, 72–75. [Google Scholar] [CrossRef]
  28. Gupta, A.R.; Rathod, V.K. Calcium diglyceroxide catalyzed biodiesel production from waste cooking oil in the presence of microwave: Optimization and kinetic studies. Renew. Energy 2018, 121, 757–767. [Google Scholar] [CrossRef]
  29. Li, J.; Wei, J.; Feng, Y.; Li, X. Effect of CaO on phase composition and properties of aluminates for barium tungsten cathode. Materials 2018, 11, 1380. [Google Scholar] [CrossRef]
  30. Fadhil, A.B.; Al-Tikrity, E.T.B.; Khalaf, A.M. Transesterification of non-edible oils over potassium acetate impregnated CaO solid base catalyst. Fuel 2018, 234, 81–93. [Google Scholar] [CrossRef]
  31. Roschat, W.; Phewphong, S.; Thangthong, A.; Moonsin, P.; Yoosuk, B.; Kaewpuang, T.; Promarak, V. Catalytic performance enhancement of CaO by hydration-dehydration process for biodiesel production at room temperature. Energy Convers. Manag. 2018, 165, 1–7. [Google Scholar] [CrossRef]
  32. Suryaputra, W.; Winata, I.; Indraswati, N.; Ismadji, S. Waste capiz (Amusium cristatum) shell as a new heterogeneous catalystfor biodiesel production. Renew. Energy 2013, 50, 795–799. [Google Scholar] [CrossRef]
  33. Lee, S.L.; Wong, Y.C.; Tan, Y.P.; Yew, S.Y. Transesterification of palm oil to biodiesel by using waste obtuse hornshell-derived CaO catalyst. Energy Convers. Manag. 2015, 93, 282–288. [Google Scholar] [CrossRef]
  34. Mardhiah, H.H.; Ong, M.H.C.; Masjuki, H.H.; Lim, S.; Pang, Y.L. Investigation of carbon-based solid acid catalyst from Jatropha curcas biomass in biodiesel production. Energy Convers. Manag. 2017, 144, 10–17. [Google Scholar] [CrossRef]
  35. Granados, M.L.; Poves, M.D.Z.; Alonso, D.M.; Mariscal, R.; Galisteo, F.C.; Moreno-Tost, R.; Santamaría, J.; Fierro, J.L.G. Biodiesel from sunflower oil by using activated calcium oxide. Appl. Catal. B Environ. 2007, 73, 317–326. [Google Scholar] [CrossRef]
  36. Shi, M.; Zhang, P.; Fan, M.; Jiang, P.; Dong, Y. Influence of crystal of Fe2O3 in magnetism and activity of nanoparticle CaO@Fe2O3 for biodiesel production. Fuel 2017, 197, 343–347. [Google Scholar] [CrossRef]
  37. Tan, Y.H.; Abdullah, M.O.; Nolasco-Hipolito, C.; Taufiq-Yap, Y.H. Waste ostrich- and chicken-eggshells as heterogeneous base catalyst for biodiesel production from used cooking oil: Catalyst characterization and biodiesel yield performance. Appl. Energy 2015, 160, 58–70. [Google Scholar] [CrossRef] [Green Version]
  38. Roschat, W.; Siritanon, T.; Yoosuk, B.; Promarak, V. Biodiesel production from palm oil using hydrated lime-derived CaO as a low-cost basic heterogeneous catalyst. Energy Convers. Manag. 2016, 108, 459–467. [Google Scholar] [CrossRef]
  39. Yan, B.; Zhang, Y.; Chen, G.; Shan, R.; Ma, W.; Liu, C. The utilization of hydroxyapatite-supported CaO-CeO2 catalyst for biodiesel production. Energy Convers. Manag. 2016, 130, 156–164. [Google Scholar] [CrossRef]
  40. Osman, A.I.; Meudal, J.; Laffir, F.; Thompson, J.; Rooney, D. Enhanced catalytic activity of Ni on η-Al2O3 and ZSM-5 on addition ofceria zirconia for the partial oxidation of methane. Appl. Catal. B Environ. 2017, 212, 68–79. [Google Scholar] [CrossRef]
  41. Pan, H.; Li, H.; Zhang, H.; Wang, A.; Jin, D.; Yang, S. Effective production of biodiesel from non-edible oil using facile synthesis of imidazolium salts-based Brønsted-Lewis solid acid and co-solvent. Energy Convers. Manag. 2018, 166, 534–544. [Google Scholar] [CrossRef]
  42. Pathak, G.; Das, D.; Rajkumari, K.; Rokhum, L. Exploiting waste: towards a sustainable production of biodiesel using Musa acuminata peel ash as a heterogeneous catalyst. Green Chem. 2018, 20, 2365–2373. [Google Scholar] [CrossRef]
  43. Nongbe, M.C.; Ekou, T.; Ekou, L.; Yao, K.B.; Grognec, E.L.; Felpin, F.X. Biodiesel production from palm oil using sulfonated graphene catalyst. Renew. Energy 2017, 106, 135–141. [Google Scholar] [CrossRef]
  44. Monteiro, M.R.; Ambrozin, A.R.P.; Lião, L.M.; Ferreira, A.G. Determination of biodiesel blend levels in different diesel samples by 1H NMR. Fuel 2009, 88, 691–696. [Google Scholar] [CrossRef]
  45. Hammond, C.; Conrad, S.; Hermans, I. Simple and scalable preparation of highly active Lewis acidic Sn-β. Angew. Chem. Int. Ed. 2012, 51, 11736–11739. [Google Scholar] [CrossRef] [PubMed]
  46. Cano, R.; Schmidt, A.F.; McGlacken, G.P. Direct arylation and heterogeneous catalysis: Ever the twain shall meet. Chem. Sci. 2015, 6, 5338–5346. [Google Scholar] [CrossRef] [PubMed]
Materials 12 00083 g001 550

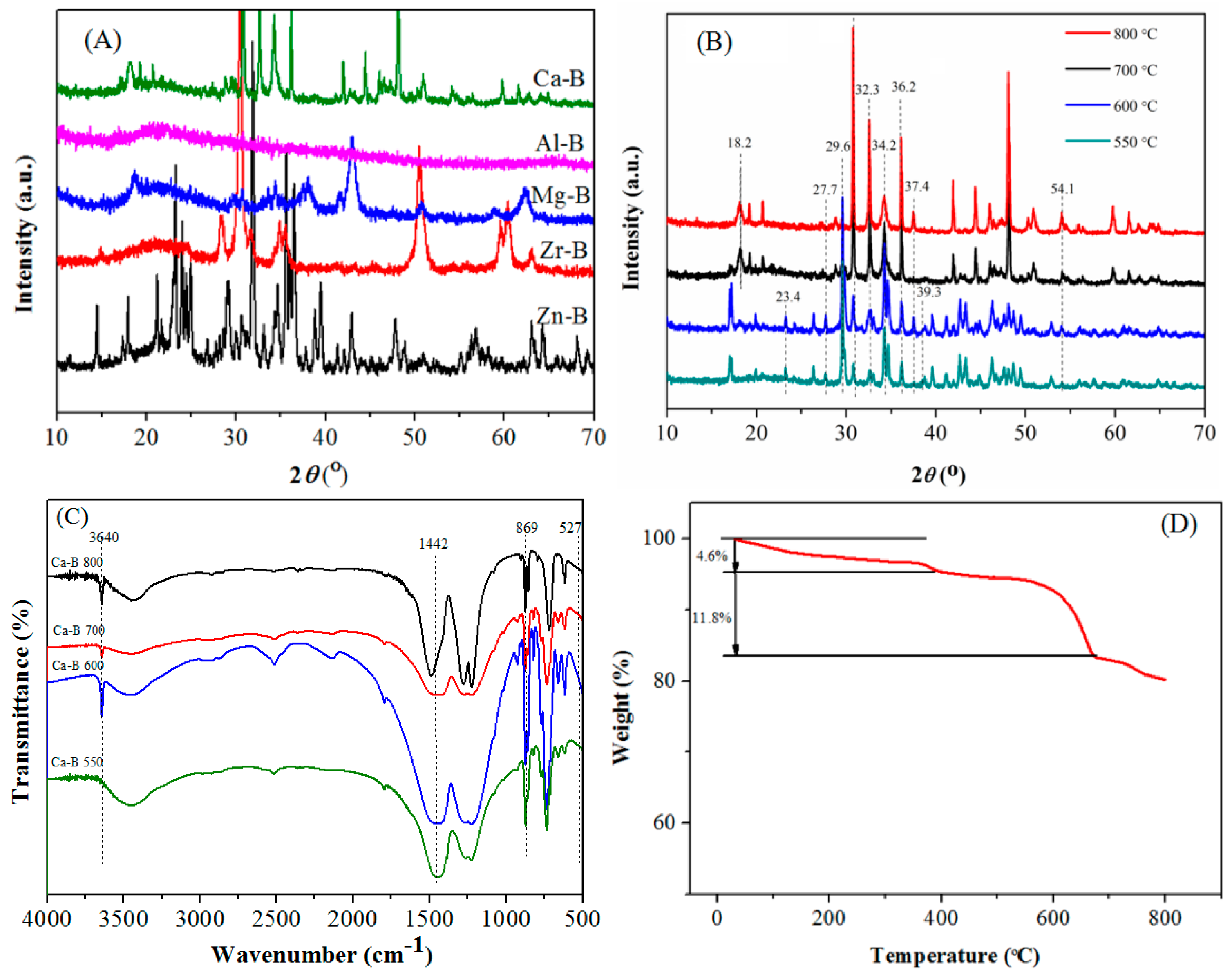

Figure 1. (A) XRD patterns of different catalysts (CaO, Al2O3, MgO, ZnO, ZrO2, and B2O3); (B) XRD patterns of Ca-B catalysts calcined at 550-800 °C; (C) FT-IR spectra of Ca-B catalysts calcined at 550–800 °C; (D) Thermogravimetric (TG) curve of Ca-B(700) catalyst.
Figure 1. (A) XRD patterns of different catalysts (CaO, Al2O3, MgO, ZnO, ZrO2, and B2O3); (B) XRD patterns of Ca-B catalysts calcined at 550-800 °C; (C) FT-IR spectra of Ca-B catalysts calcined at 550–800 °C; (D) Thermogravimetric (TG) curve of Ca-B(700) catalyst.
Materials 12 00083 g001
Materials 12 00083 g002 550

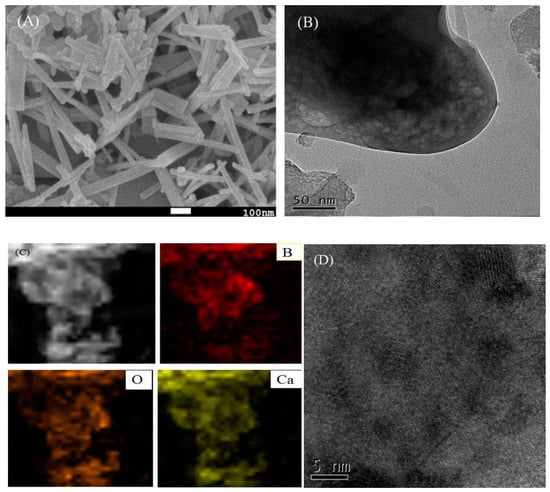

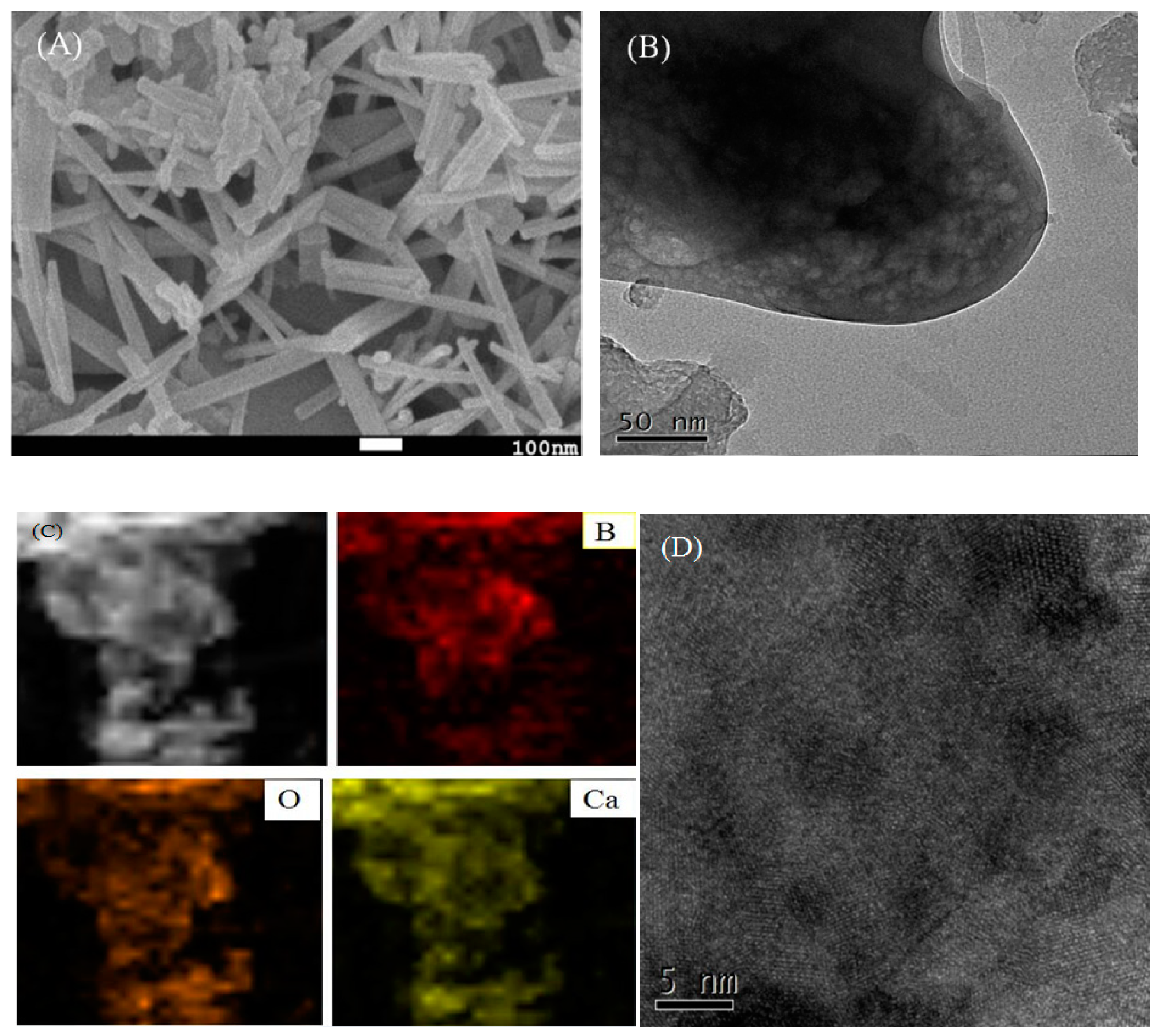

Figure 2. (A) SEM image, (B) TEM image, (C) Elemental mapping, and (D) HR-TEM image of Ca-B(700).
Figure 2. (A) SEM image, (B) TEM image, (C) Elemental mapping, and (D) HR-TEM image of Ca-B(700).
Materials 12 00083 g002
Materials 12 00083 g003 550

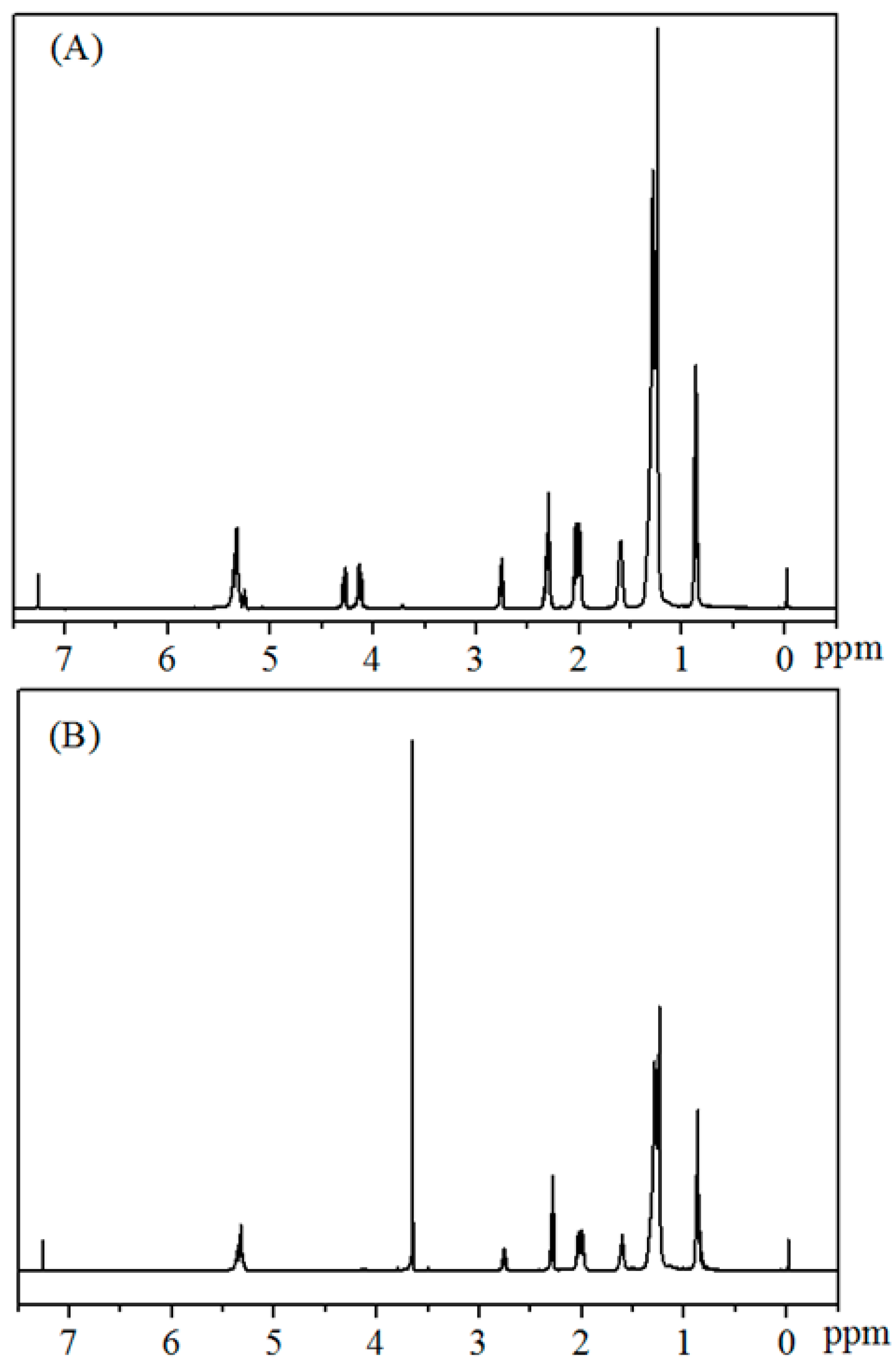

Figure 3. 1H NMR spectra of the reaction mixtures for biodiesel production from (A) Jatropha oil, and (B) biodiesel.
Figure 3. 1H NMR spectra of the reaction mixtures for biodiesel production from (A) Jatropha oil, and (B) biodiesel.
Materials 12 00083 g003
Materials 12 00083 g004 550

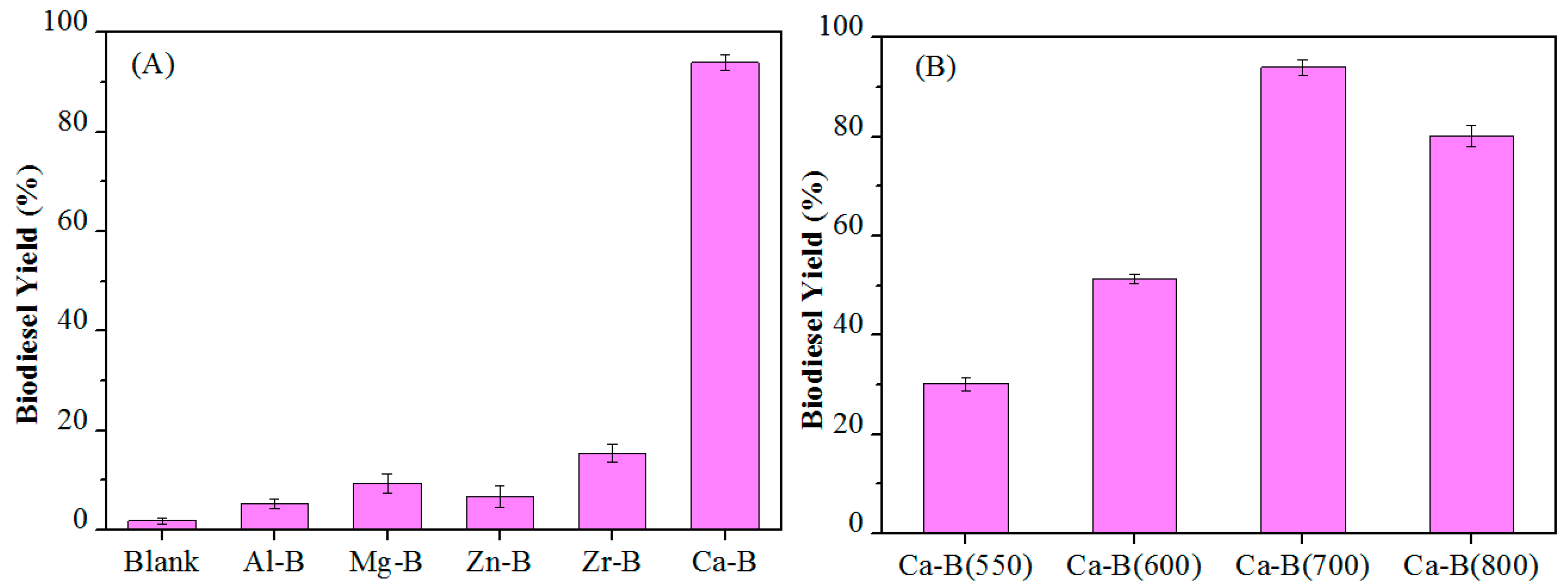

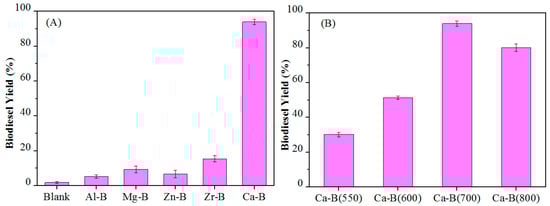

Figure 4. (A) Activity of different metal-B catalysts calcined at 700 °C in biodiesel production, and (B) Effect of calcination temperature for Ca-B catalysts on the biodiesel production. Reaction conditions: 2.0 g oil, 1.30 g methanol, 0.12 g catalyst, T = 85 °C, t = 6 h.
Figure 4. (A) Activity of different metal-B catalysts calcined at 700 °C in biodiesel production, and (B) Effect of calcination temperature for Ca-B catalysts on the biodiesel production. Reaction conditions: 2.0 g oil, 1.30 g methanol, 0.12 g catalyst, T = 85 °C, t = 6 h.
Materials 12 00083 g004
Materials 12 00083 g005 550

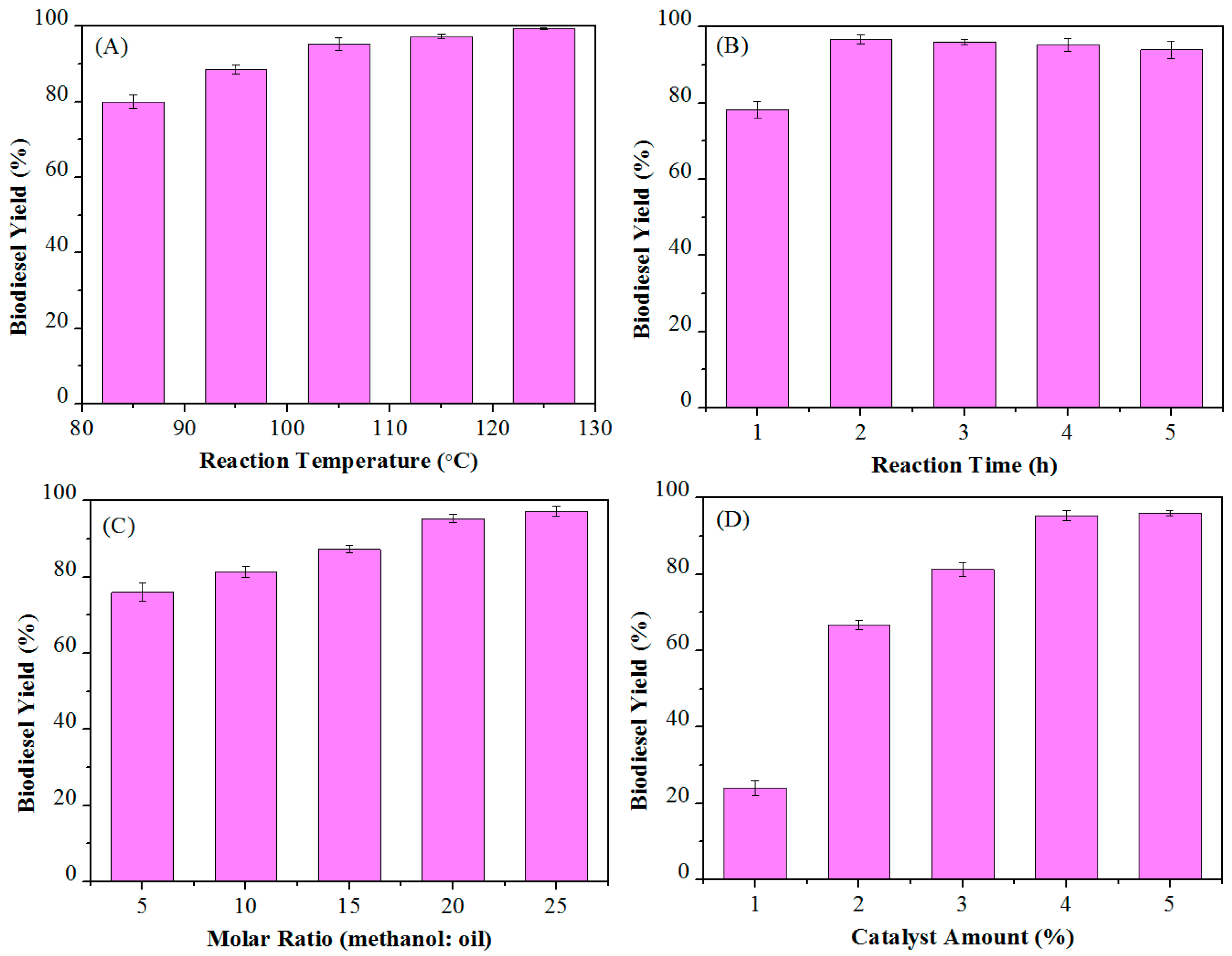

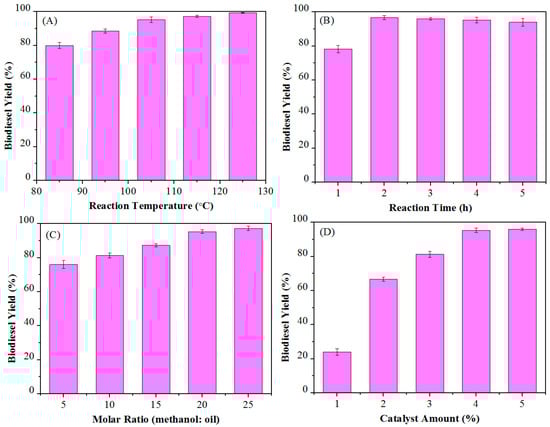

Figure 5. Single-factor optimization of biodiesel production from Jatropha oil (acid value: 6.75 mg KOH/g) catalyzed by the Ca-B(700) catalyst: (A) reaction temperature, (B) reaction time, (C) methanol/oil molar ratio, and (D) catalyst dosage.
Figure 5. Single-factor optimization of biodiesel production from Jatropha oil (acid value: 6.75 mg KOH/g) catalyzed by the Ca-B(700) catalyst: (A) reaction temperature, (B) reaction time, (C) methanol/oil molar ratio, and (D) catalyst dosage.
Materials 12 00083 g005
Materials 12 00083 g006 550

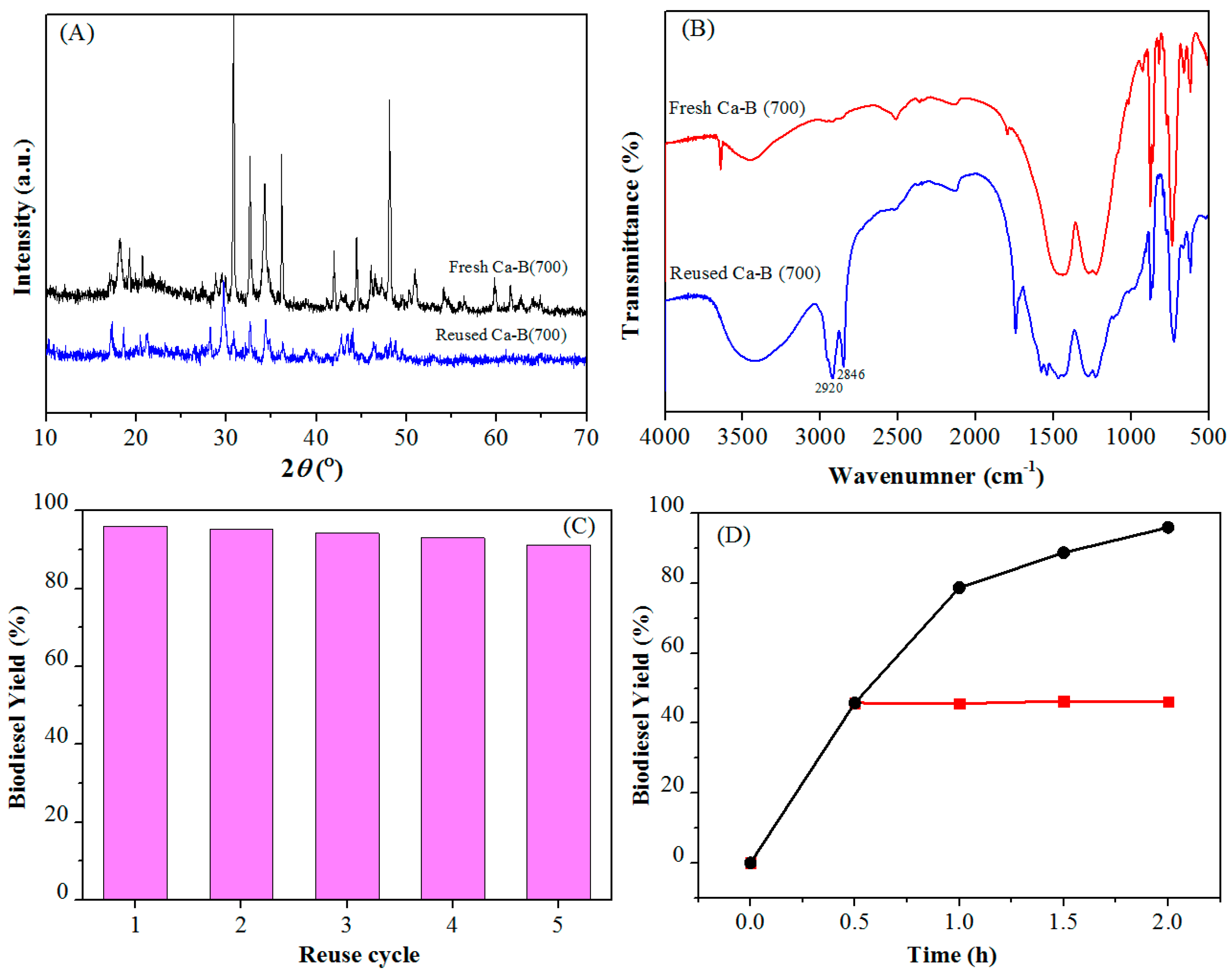

Figure 6. (A) XRD, (B) FT-IR spectra of Ca-B(700) before and after the reaction, (C) Reusability of the Ca-B(700) catalyst in biodiesel production. Reaction conditions: ethanol/oil molar ratio 20/1, 4 wt % Ca-B(700), 105 °C for 2 h, (D) Hot filtration test of Ca-B(700) at 105 °C.
Figure 6. (A) XRD, (B) FT-IR spectra of Ca-B(700) before and after the reaction, (C) Reusability of the Ca-B(700) catalyst in biodiesel production. Reaction conditions: ethanol/oil molar ratio 20/1, 4 wt % Ca-B(700), 105 °C for 2 h, (D) Hot filtration test of Ca-B(700) at 105 °C.
Materials 12 00083 g006
Materials 12 00083 g007 550

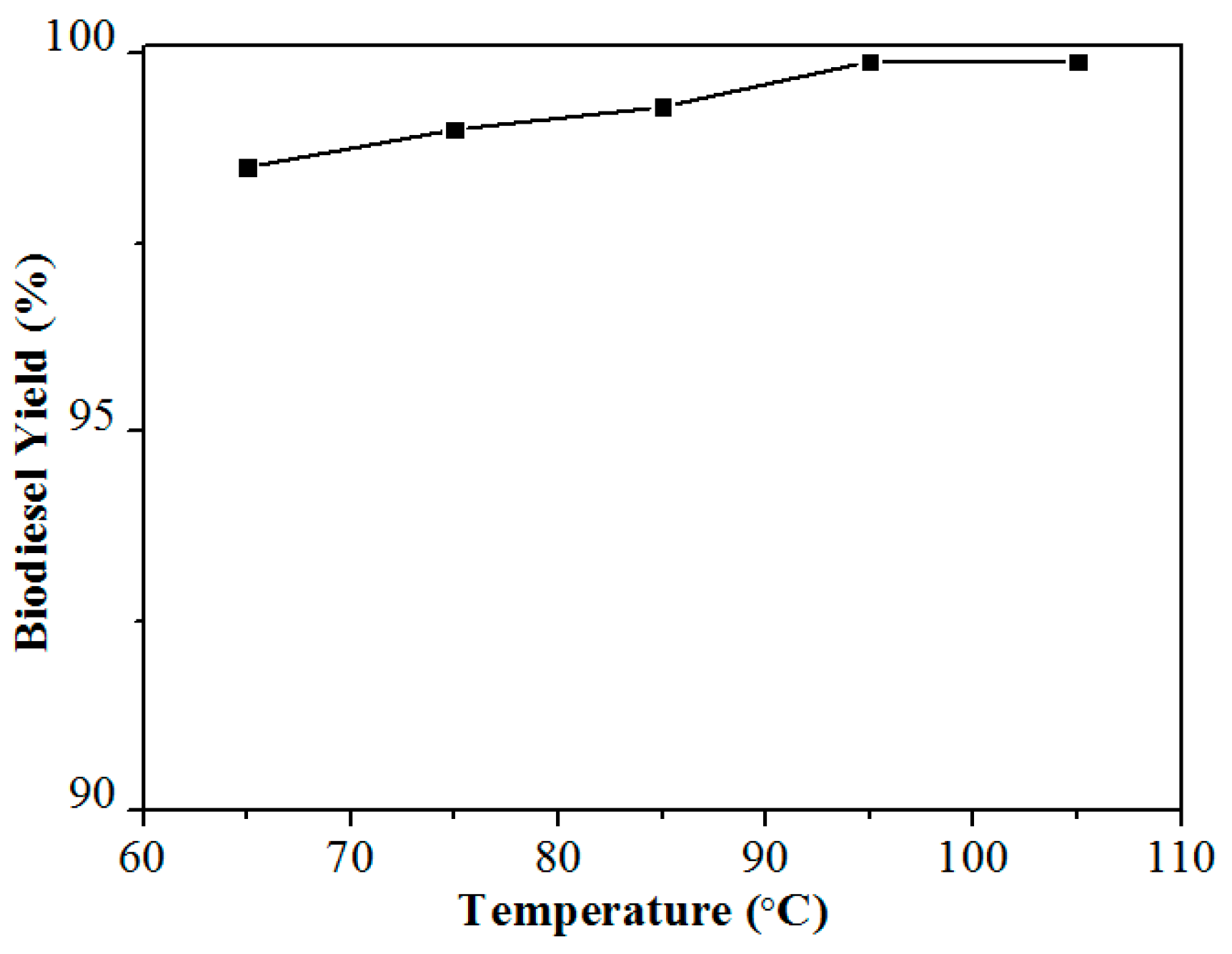

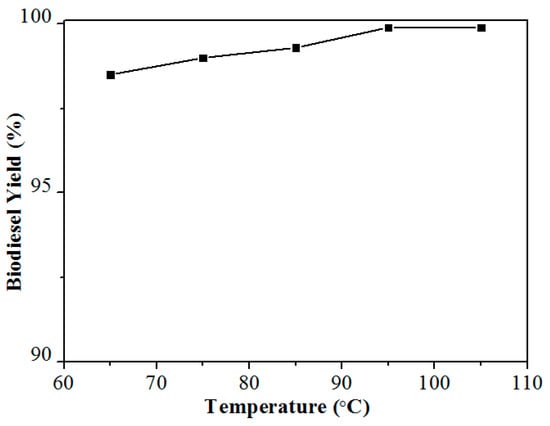

Figure 7. Biodiesel yields obtained from Firmiana platanifolia L.f. oil catalyzed by Ca-B(700) at different temperatures of 65–105 °C. Reaction conditions: Catalyst dosage 4 wt %, the molar ratio of alcohol to oil 20:1, and the reaction time of 2 h.
Figure 7. Biodiesel yields obtained from Firmiana platanifolia L.f. oil catalyzed by Ca-B(700) at different temperatures of 65–105 °C. Reaction conditions: Catalyst dosage 4 wt %, the molar ratio of alcohol to oil 20:1, and the reaction time of 2 h.
Materials 12 00083 g007
Table
Table 1. Textural properties of different Ca-B materials.
Table 1. Textural properties of different Ca-B materials.
SampleSBET (m2/g)Pore Volume (cm3/g)Pore Diameter (nm)Acid Density
(mmol·g−1)		Base Density
(mmol·g−1)
Ca-B (550)2.020.008116.00.210.17
Ca-B (600)2.010.01121.40.630.41
Ca-B (700)4.720.02219.02.681.89
Ca-B (800)5.860.02416.62.671.69
Table
Table 2. Comparison of structural characteristics of different catalysts.
Table 2. Comparison of structural characteristics of different catalysts.
SampleSBET (m2/g)Pore Volume
(cm3/g)		Pore Diameter
(nm)		Acid Density (mmol·g−1)Base Density
(mmol·g−1)		MorphologyRef.
CaO-La2O37.73––0.283.20Agglomeration[14]
Chicken-eggshell54.60.0150.54–0.21Irregular[37]
Hydrated-lime15.00.21––0.33Aggregation[38]
30%CaO-CeO2/HAP-65013.50.019––0.45Regular blocks[39]
Ca-B(700)4.720.02219.02.681.89Rod-likeThis work
Table
Table 3. Comparison of the performance of different heterogeneous catalysts.
Table 3. Comparison of the performance of different heterogeneous catalysts.
NO.CatalystFeedstockReaction ConditionsBiodiesel Yield (Conversion) (%)Ref.
1Zn 8 @Fe-C 400Jatropha oilT = 160 °C, CA = 7 wt %, M/O = 40:1, t = 4 h100[3]
2FS-B-L-ILK. integrifoliola oilT = 160 °C, CA = 10 wt %, M/O = 20:1, t = 3 h93.7[6]
3K-ITQ-6triglycerides FFAs content 5.58%T = 180 °C, CA = 5 wt %, M/O = 20:1, t = 24 h97[13]
4CaO-La2O3Jatropha oilT = 160 °C, CA = 3 wt %, M/O = 25:1, t = 3 h98.76[14]
5Ca-B(700)Firmiana platanifolia oilT = 65 °C, CA = 4 wt %, M/O = 20:1, t = 2 h98.5This study
6Ca-B(700)Jatropha oilT = 105 °C, CA = 4 wt %, M/O = 20:1, t = 2 h96.0This study
CA—catalyst amount; T—reaction temperature; M/O—methanol to oil molar ratio; t—reaction time.

Share and Cite

MDPI and ACS Style

Wang, A.; Li, H.; Zhang, H.; Pan, H.; Yang, S. Efficient Catalytic Production of Biodiesel with Acid-Base Bifunctional Rod-Like Ca-B Oxides by the Sol-Gel Approach. Materials 2019, 12, 83. https://doi.org/10.3390/ma12010083

AMA Style

Wang A, Li H, Zhang H, Pan H, Yang S. Efficient Catalytic Production of Biodiesel with Acid-Base Bifunctional Rod-Like Ca-B Oxides by the Sol-Gel Approach. Materials. 2019; 12(1):83. https://doi.org/10.3390/ma12010083

Chicago/Turabian Style

Wang, Anping, Hu Li, Heng Zhang, Hu Pan, and Song Yang. 2019. "Efficient Catalytic Production of Biodiesel with Acid-Base Bifunctional Rod-Like Ca-B Oxides by the Sol-Gel Approach" Materials 12, no. 1: 83. https://doi.org/10.3390/ma12010083

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
