Next Article in Journal
A Three-Phase Model Characterizing the Low-Velocity Impact Response of SMA-Reinforced Composites under a Vibrating Boundary Condition
Next Article in Special Issue
The Development of a Surface Finisher of Car Park Slab Using Waterborne Silicon Acrylic with Polyamide [Part II: Safety Tests]
Previous Article in Journal
Effect of Particles Size on Dielectric Properties of Nano-ZnO/LDPE Composites
Previous Article in Special Issue
Crack Restraining Methods and their Effects on the Microstructures and Properties of Laser Cladded WC/Fe Coatings
Article Menu
Issue 1 (January-1) cover image

Export Article

Open AccessArticle

Feasibility and Characterization Mortar Blended with High-Amount Basic Oxygen Furnace Slag

1
Department of Civil Engineering, National Ilan University, No. 1, Sec. 1, Shennong Rd., I-Lan 260, Taiwan
2
ARDEX Taiwan Inc., 10F.-2, No. 120, Qiaohe Rd., Zhonghe Dist., New Taipei City 235, Taiwan
3
Department of Civil Engineering, University of Shanghai for Science and Technology, 516 Jun Gong Road, Shanghai 200093, China
*
Author to whom correspondence should be addressed.
Materials 2019, 12(1), 6; https://doi.org/10.3390/ma12010006
Received: 22 September 2018 / Revised: 17 December 2018 / Accepted: 18 December 2018 / Published: 20 December 2018
(This article belongs to the Special Issue Selected Papers from IMETI2018)
  |
PDF [5795 KB, uploaded 20 December 2018]
  |

Abstract

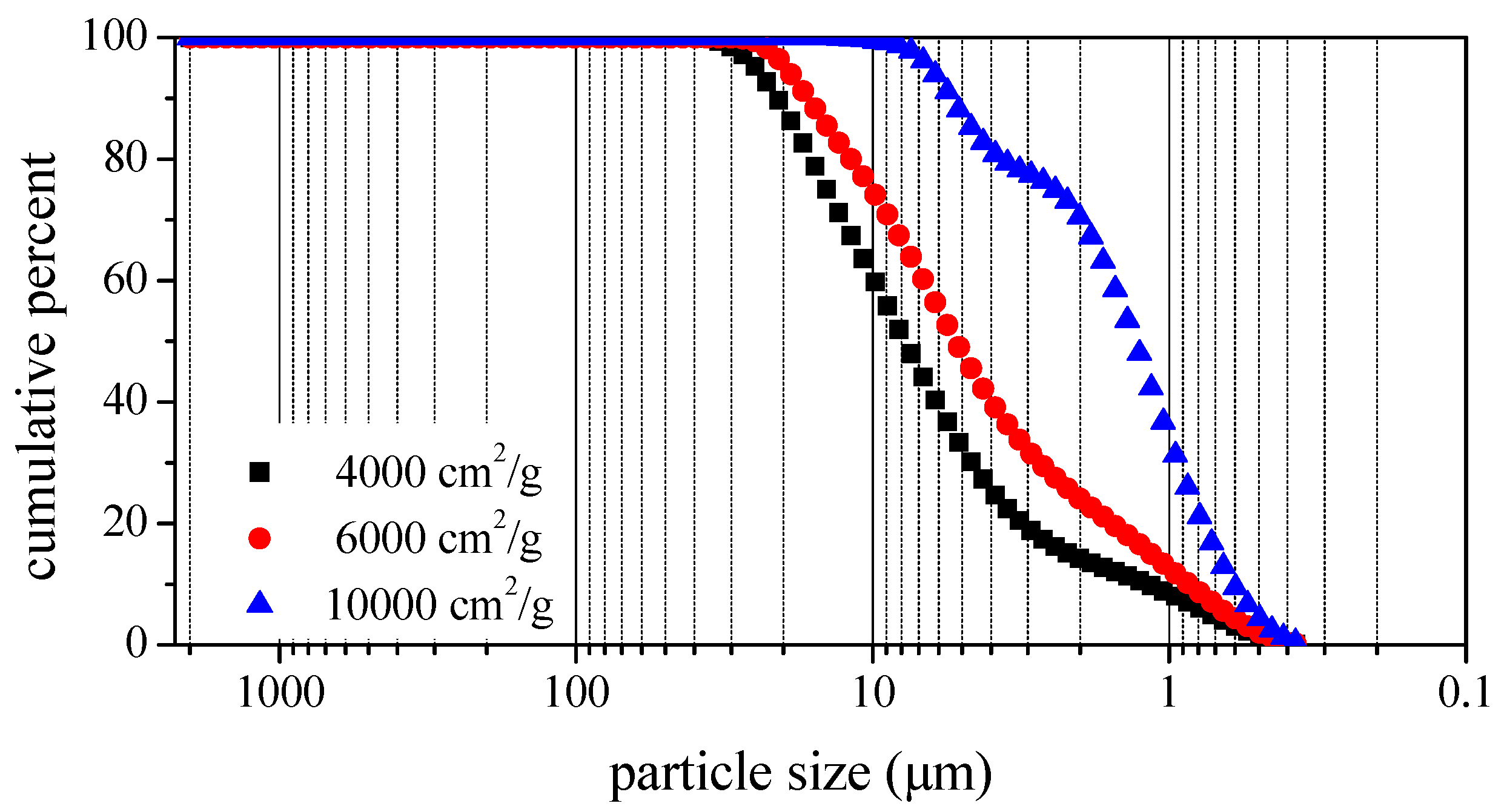

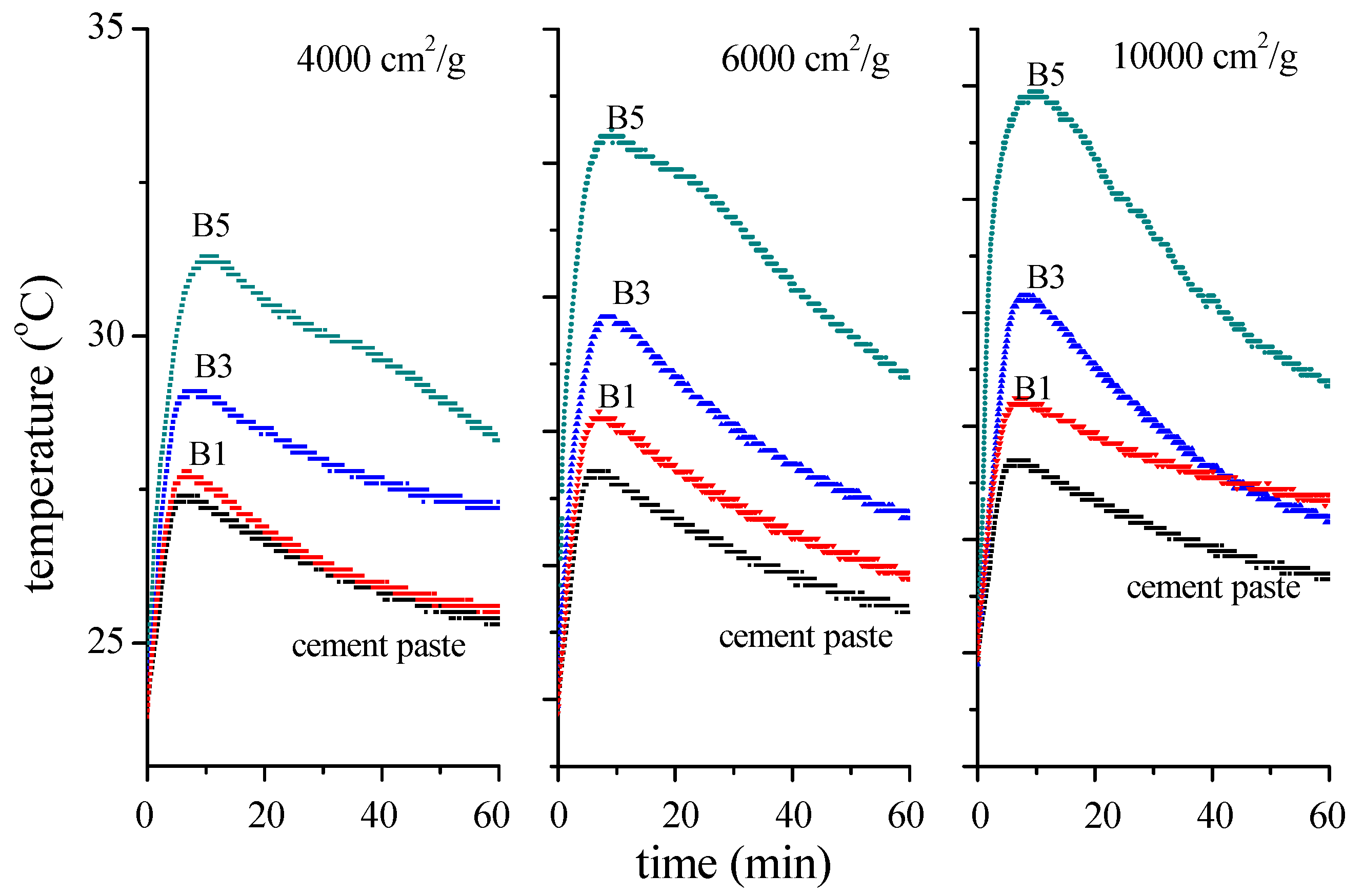

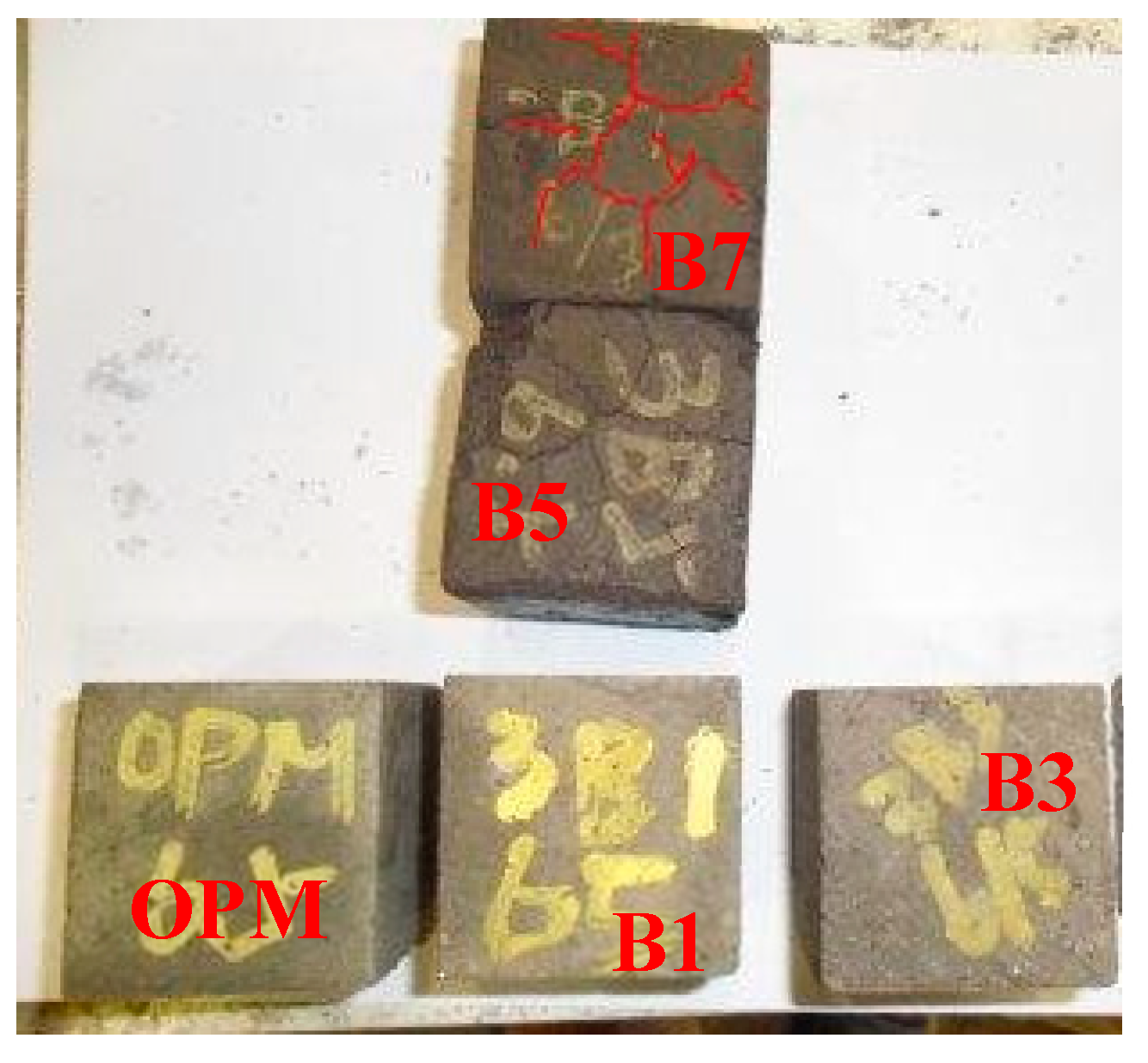

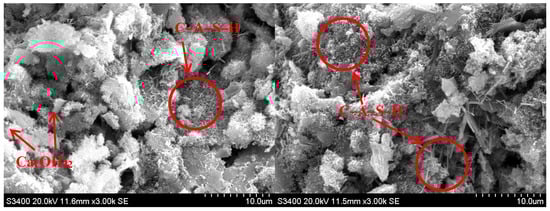

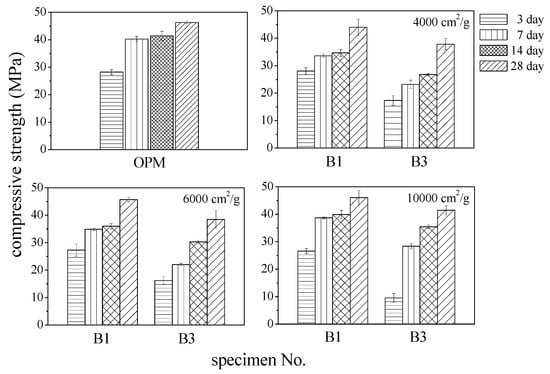

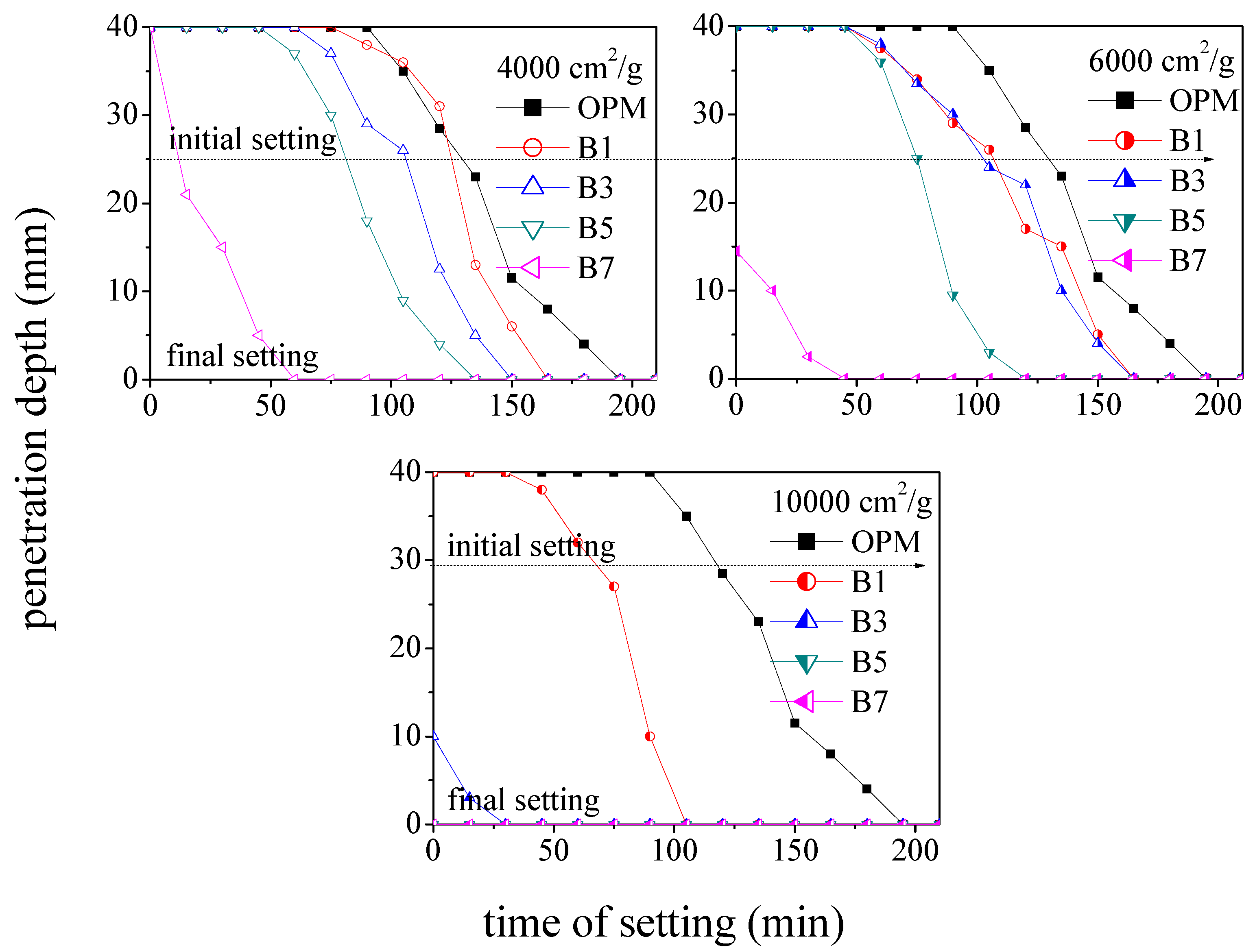

Basic oxygen furnace slag (BOFS) was ground to three levels of fineness as a replacement for cement at weight proportions of 10, 30, 50, and 70 wt.%. Fineness and weight proportion were shown to have significant effects on the flowability and setting time of the mortars. The expansion of BOFS mortars increased with an increase in the proportion of cement replaced, thereby exacerbating the effects of cracking. Optimal mechanical properties were achieved when 10 wt.% of the cement was replaced using BOFS with fineness of 10,000 cm2/g. The compressive strength of BOFS mortar is similar to that of ordinary Portland mortar, which makes BOFS suitable for the partial replacement of cement as a supplementary cementitious material. Scanning electron microscopy results revealed that the reaction of CaO with H2O results in the formation of C–S–H colloids, whereas the reaction of SiO2 with Al2O3 produces C–A–S–H colloids. The use of BOFS as a partial replacement for Portland cement could make a tremendous contribution to the steel industry and help to lower CO2 emissions. View Full-Text
Keywords: basic oxygen furnace slag; supplementary cementitious materials; cementitious material; blended materials basic oxygen furnace slag; supplementary cementitious materials; cementitious material; blended materials
Figures

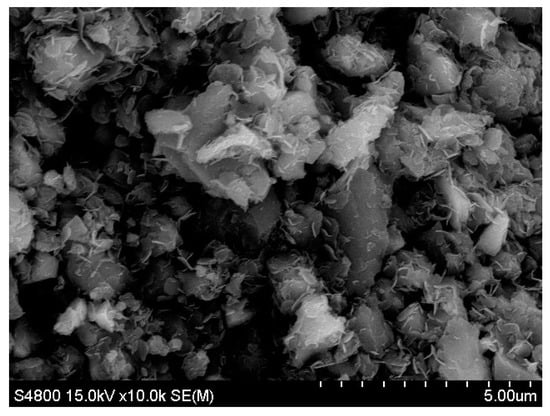

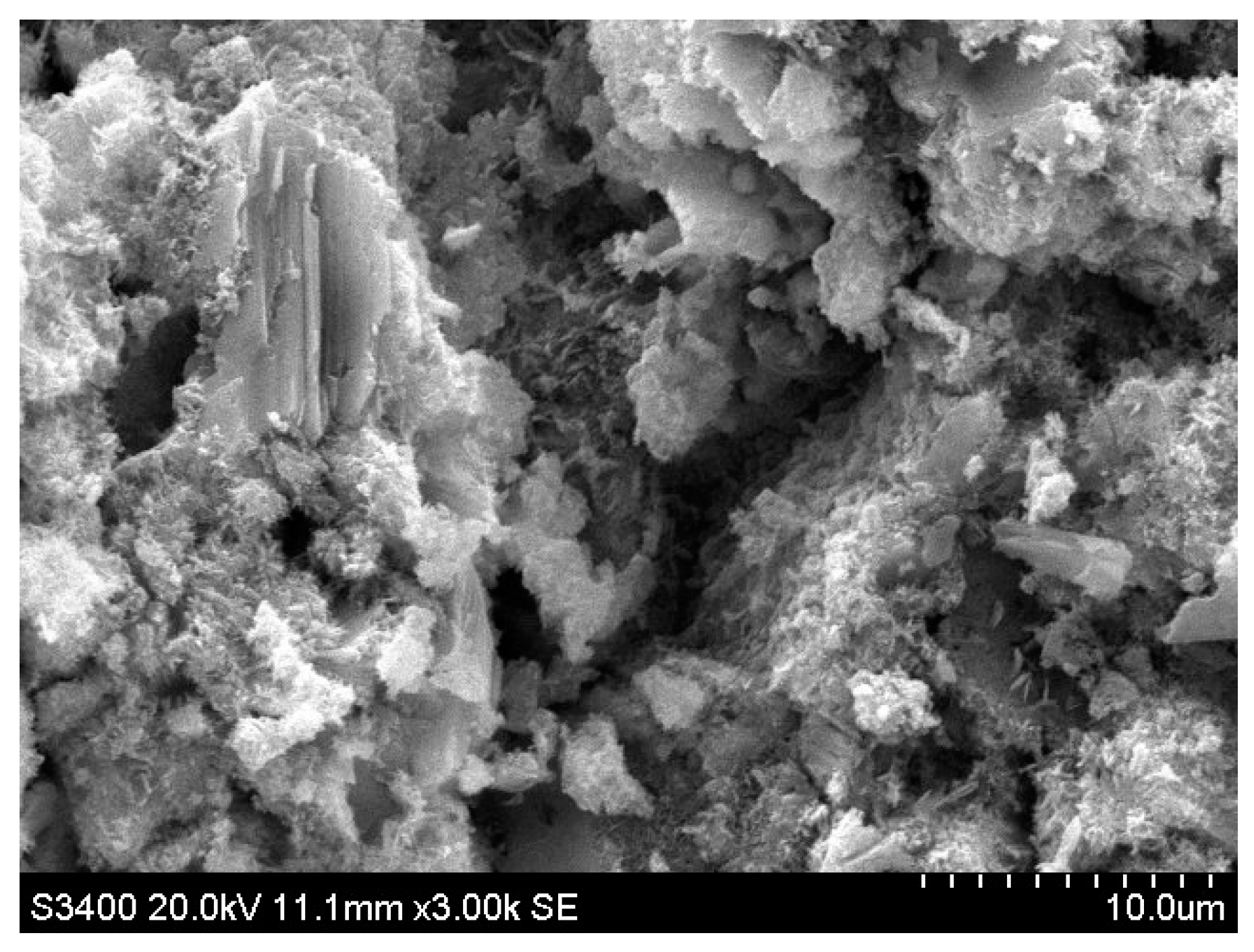

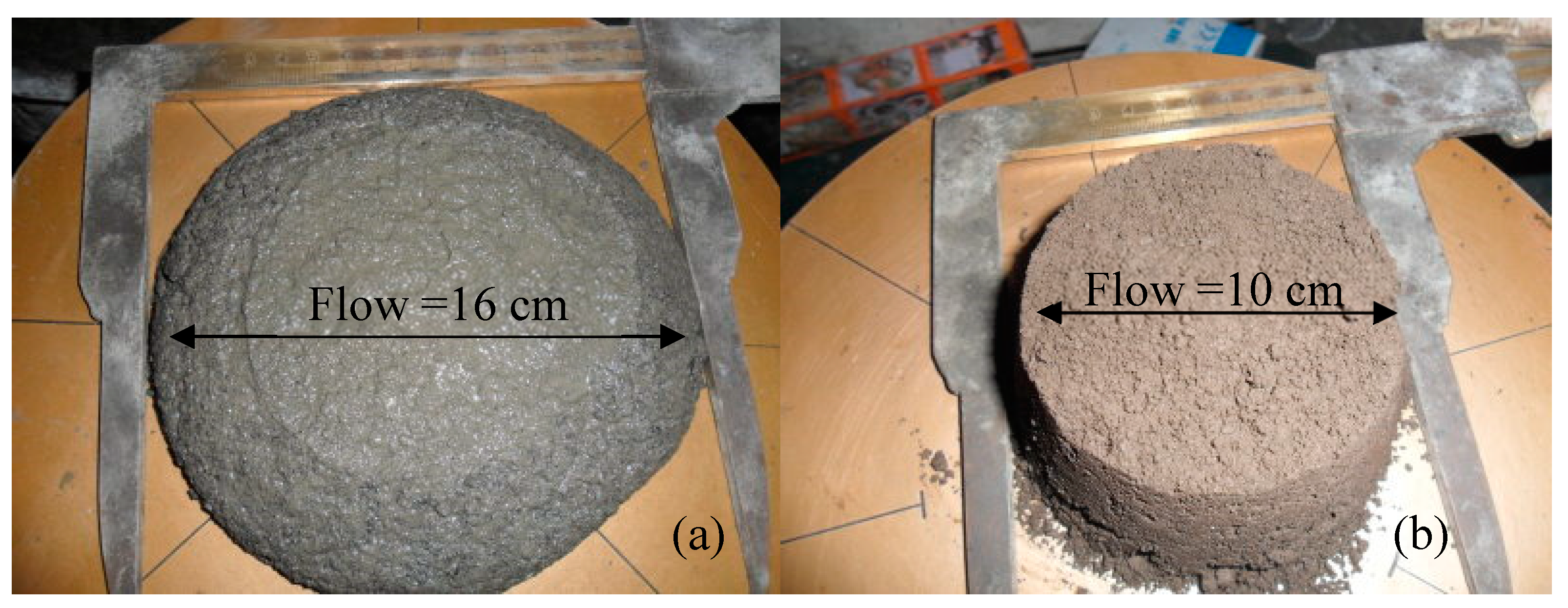

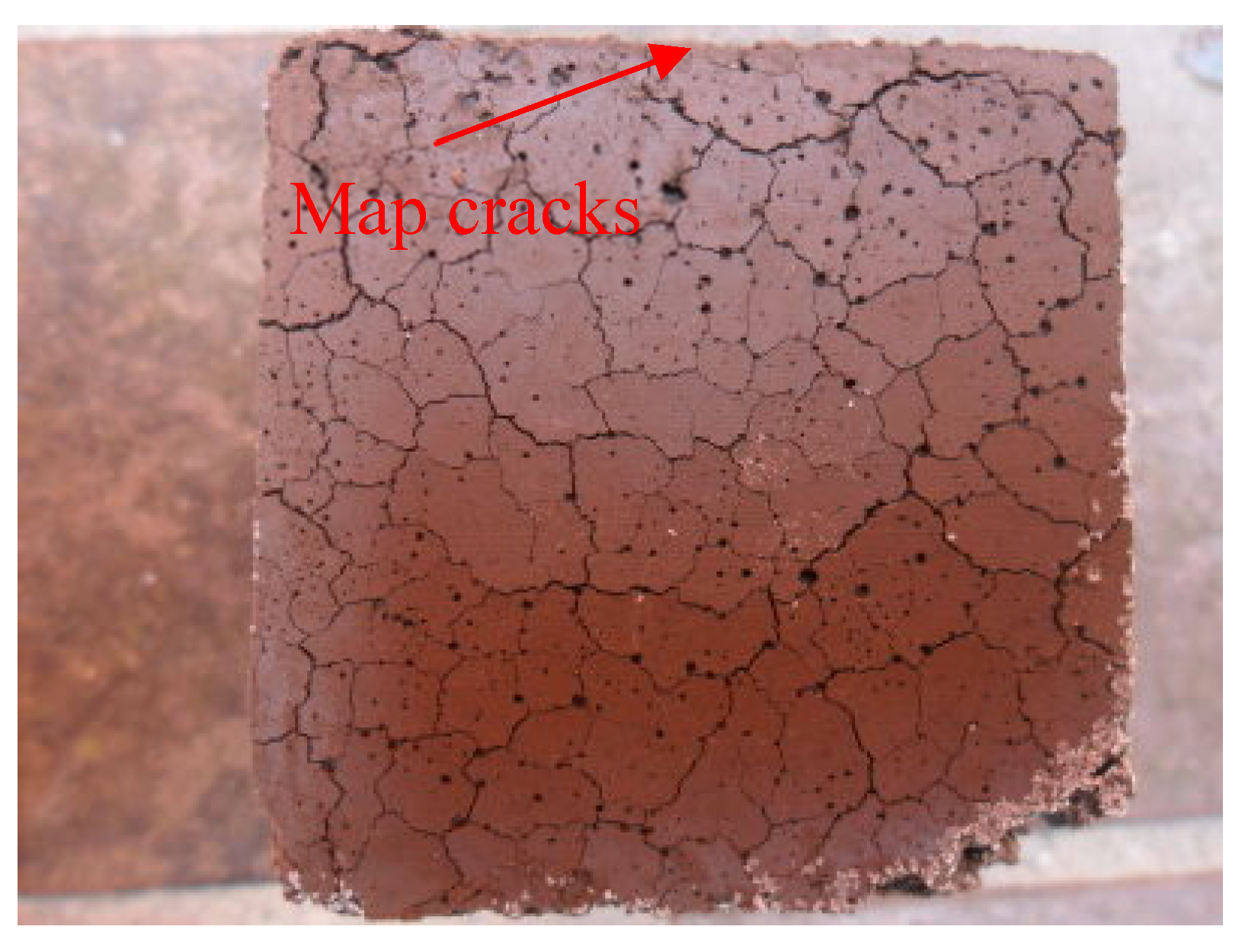

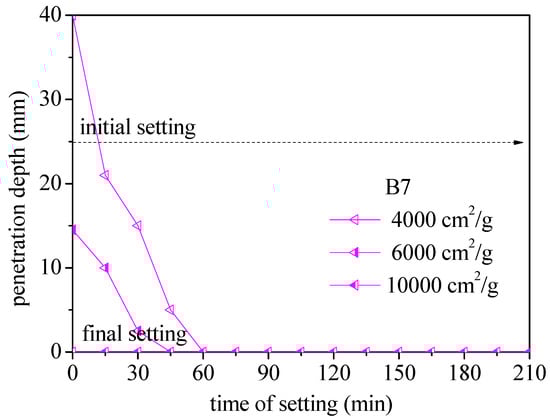

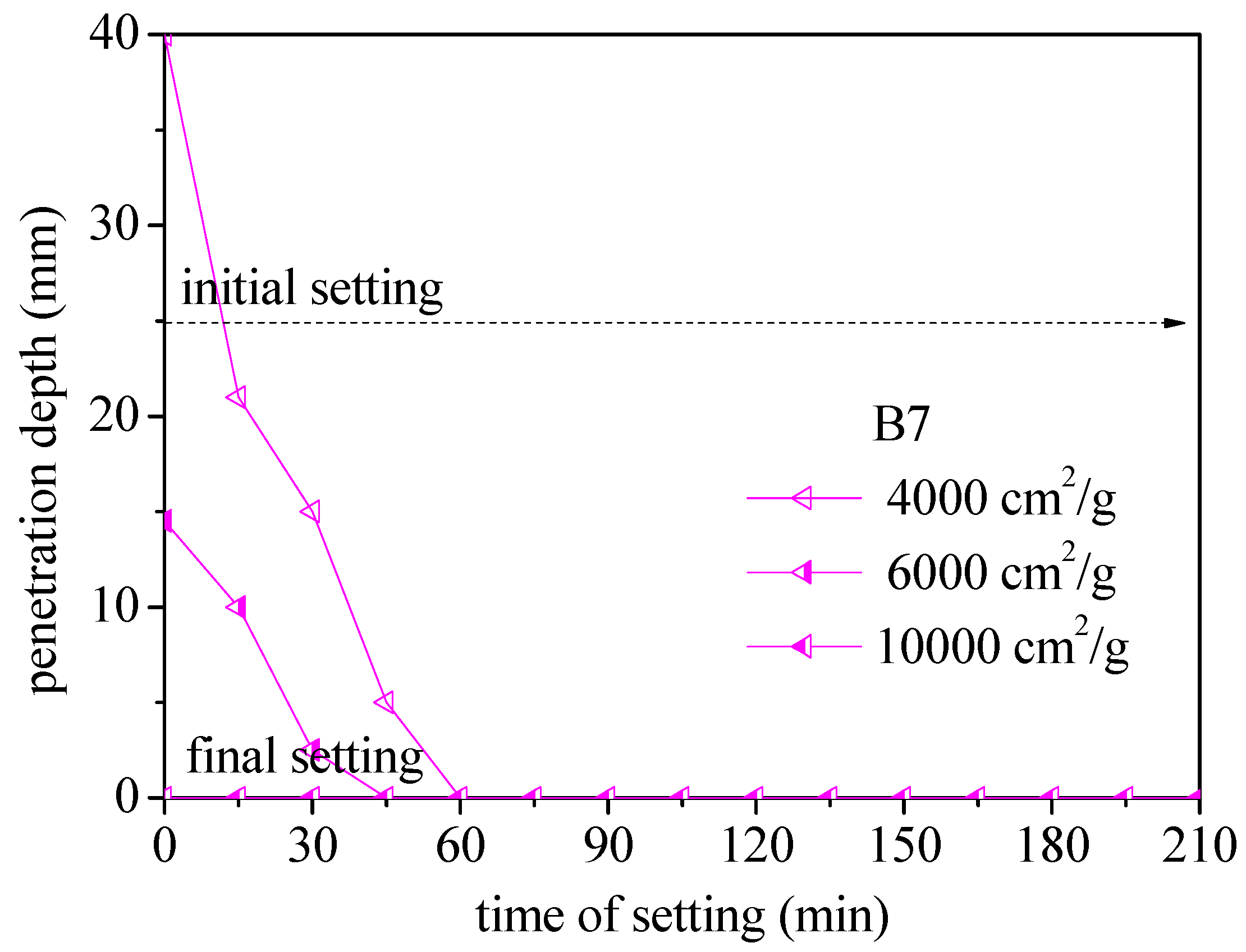

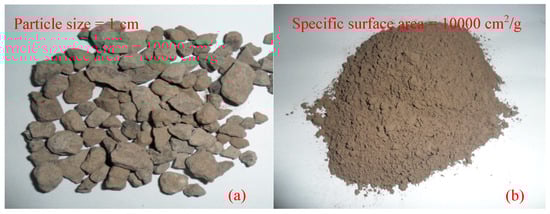

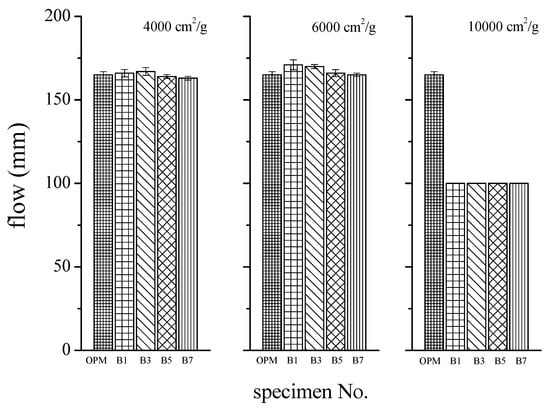

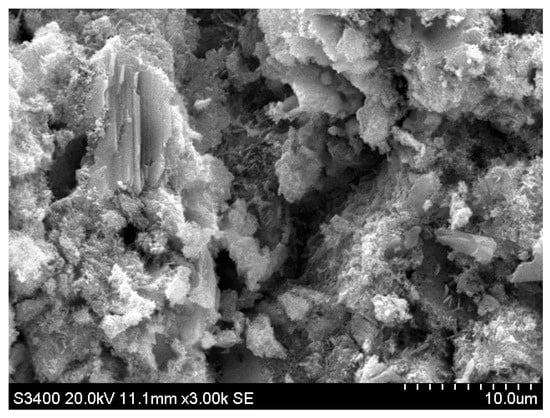

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Lin, W.-T.; Tsai, C.-J.; Chen, J.; Liu, W. Feasibility and Characterization Mortar Blended with High-Amount Basic Oxygen Furnace Slag. Materials 2019, 12, 6.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
