Next Article in Journal
Effect of Different Additives in Diets on Secondary Structure, Thermal and Mechanical Properties of Silkworm Silk
Next Article in Special Issue
Bending Properties of Zigzag-Shaped 3D Woven Spacer Composites: Experiment and FEM Simulation
Previous Article in Journal
The Effect of Selective Laser Melting Process Parameters on the Microstructure and Mechanical Properties of Al6061 and AlSi10Mg Alloys
Previous Article in Special Issue
An Improved Analytical Solution for Process-Induced Residual Stresses and Deformations in Flat Composite Laminates Considering Thermo-Viscoelastic Effects
Article Menu
Issue 1 (January-1) cover image

Export Article

Open AccessArticle

Preparation of High-Performance Carbon Fiber-Reinforced Epoxy Composites by Compression Resin Transfer Molding

1,2, 3,*, 1, 4, 1, 1,2, 1,2 and 1,2,*
State Key Laboratory for Modification of Chemical Fibers and Polymer Materials, Donghua University, Shanghai 201620, China
Key Laboratory of Shanghai City for Lightweight Composites, Donghua University, Shanghai 201620, China
Research Center for Analysis and Measurement, Donghua University, Shanghai 201620, China
Shanghai Engineering Research Center of Advanced Automotive Body Manufacturing, Donghua University, Shanghai 200092, China
Authors to whom correspondence should be addressed.
Materials 2019, 12(1), 13;
Received: 23 November 2018 / Revised: 18 December 2018 / Accepted: 18 December 2018 / Published: 20 December 2018
(This article belongs to the Special Issue Carbon Fiber Reinforced Polymers)
PDF [5304 KB, uploaded 21 December 2018]

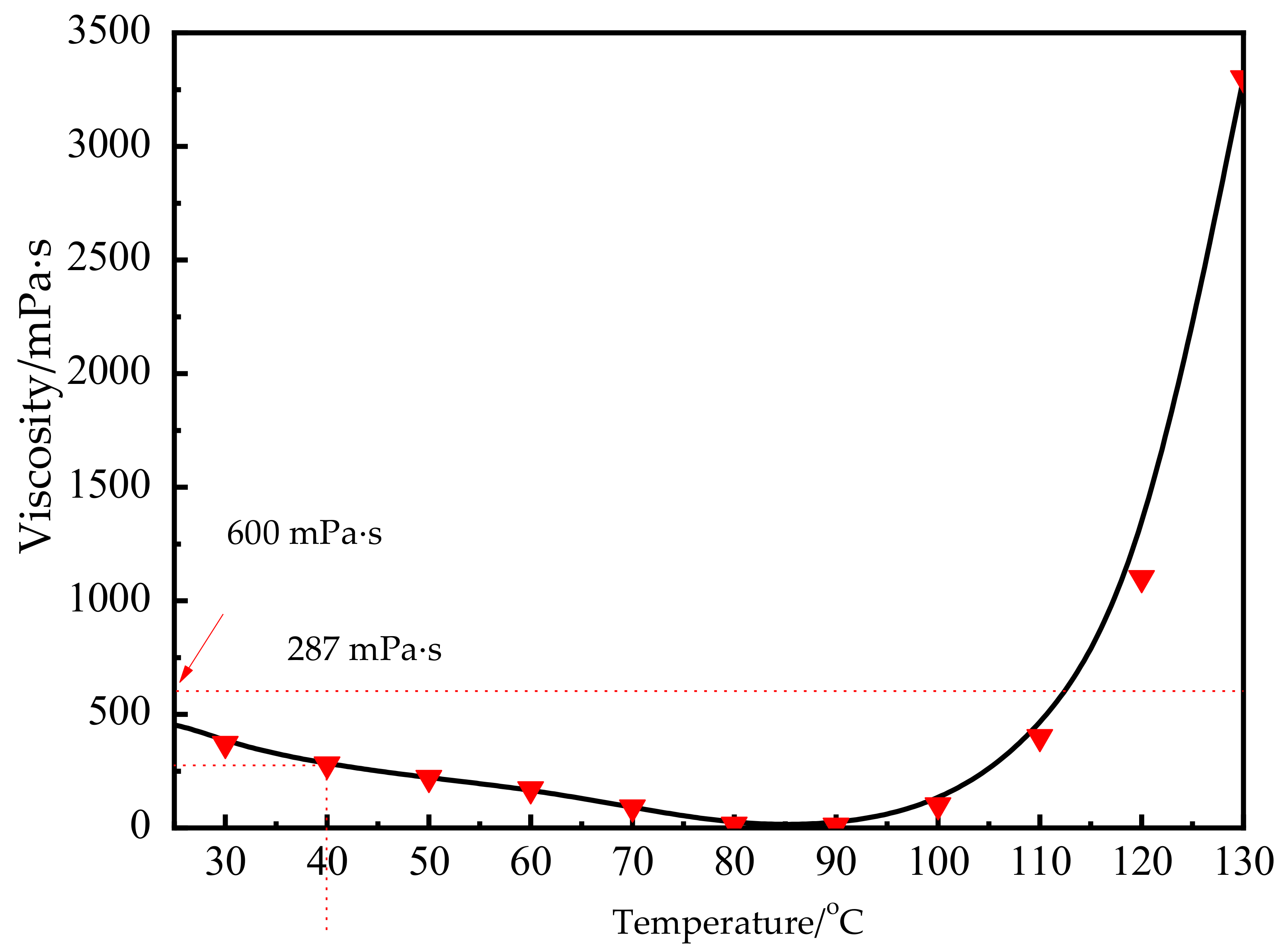

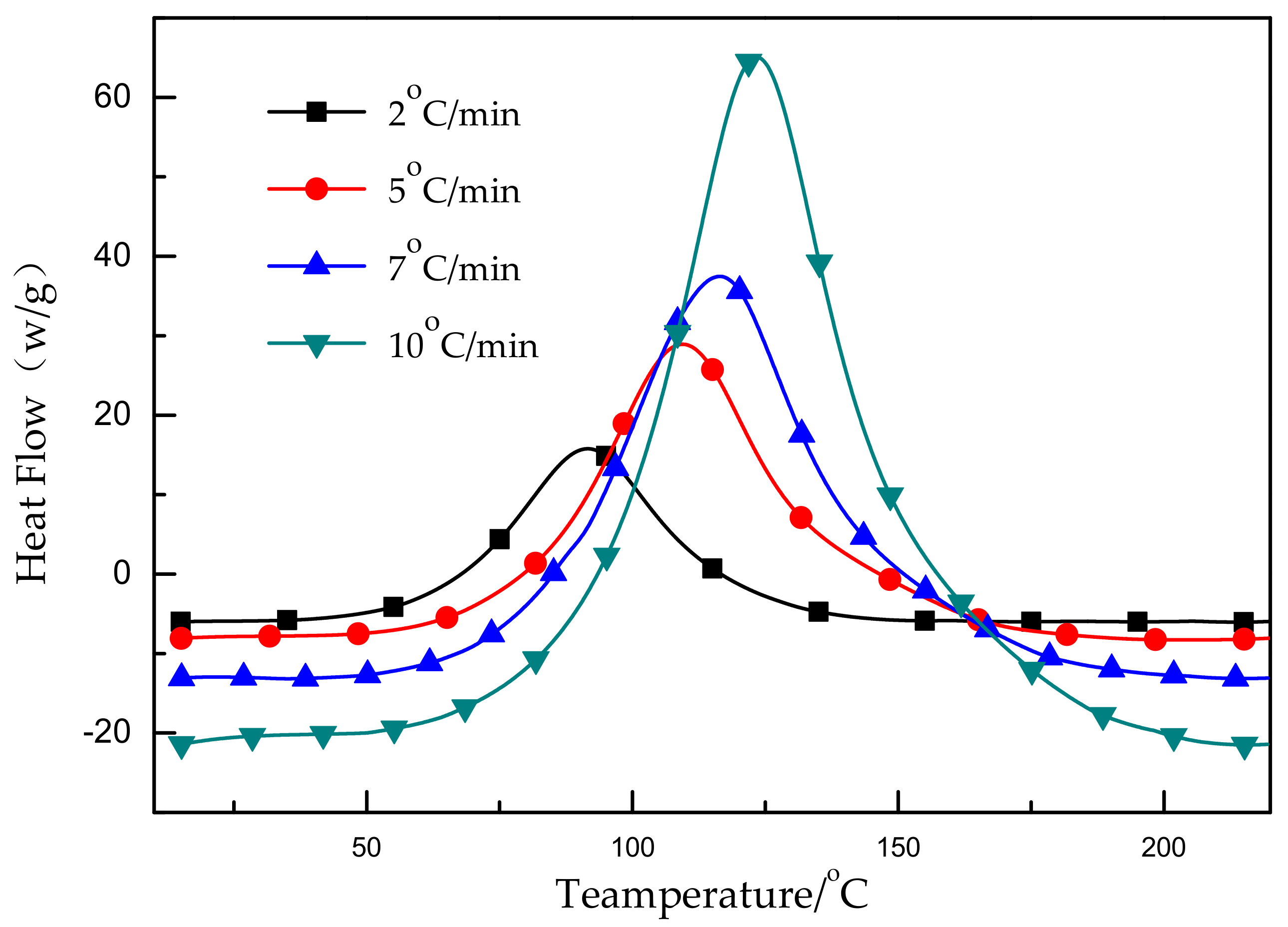

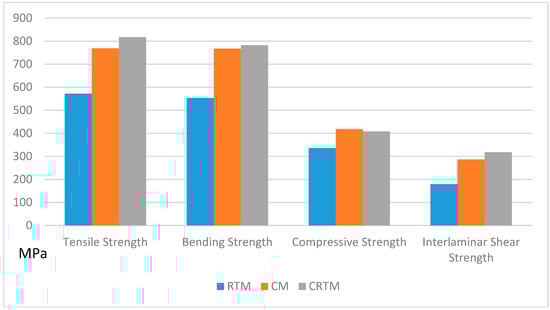

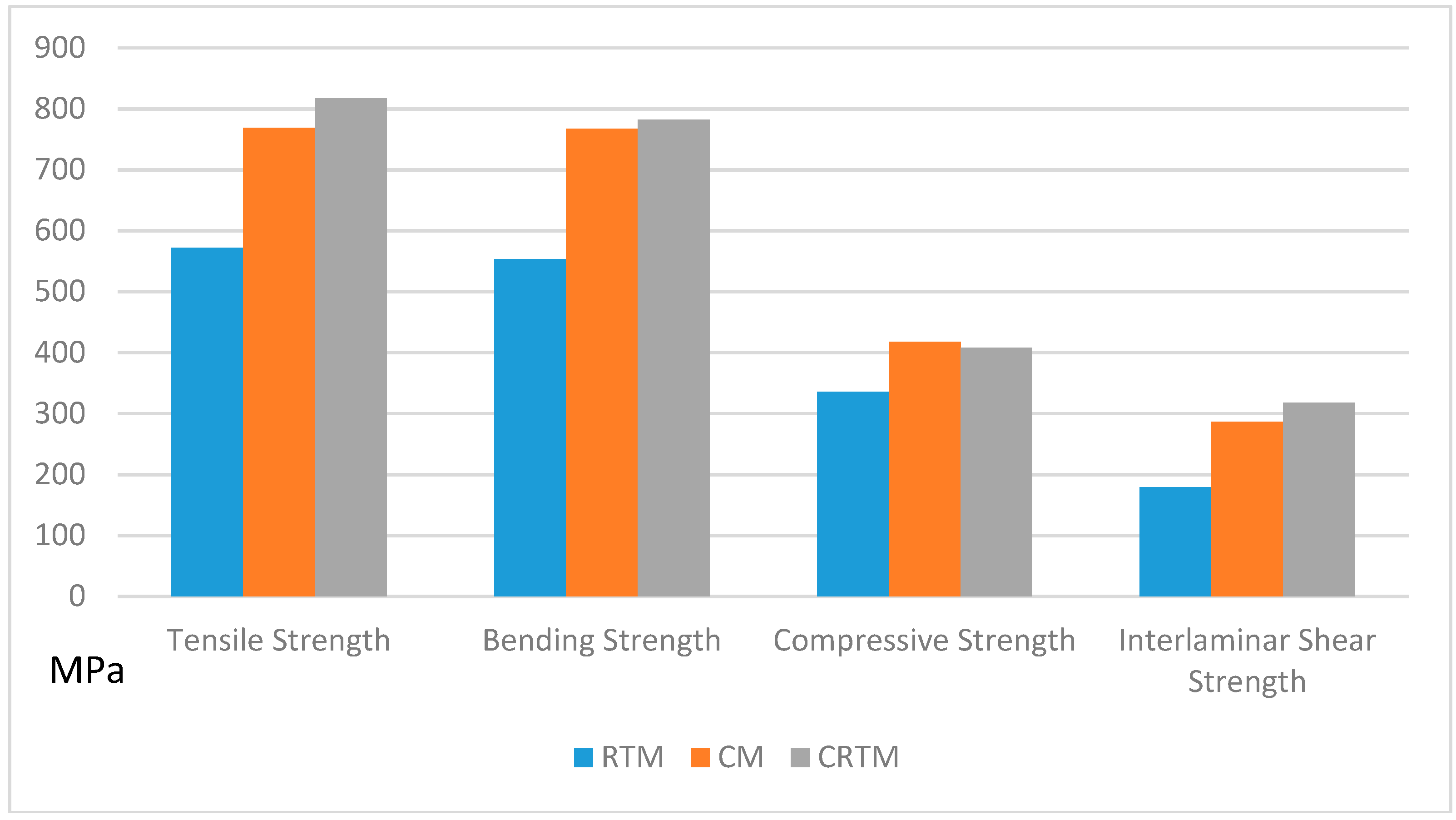

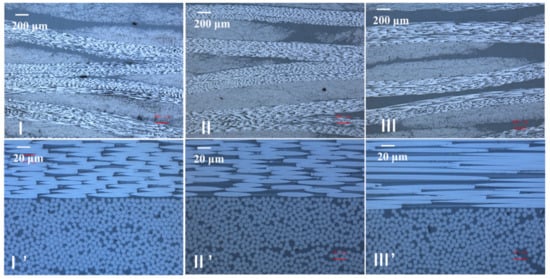

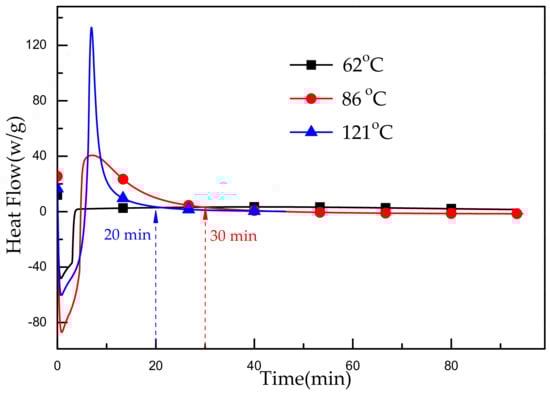

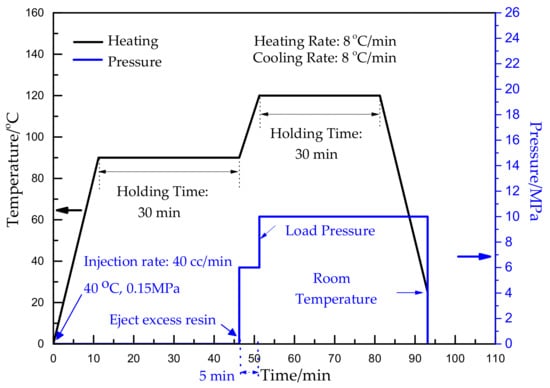

To satisfy the light weight requirements of vehicles owing to the aggravation of environmental pollution, carbon-fiber (CF)-reinforced epoxy composites have been chosen as a substitute for traditional metal counterparts. Since the current processing methods such as resin transfer molding (RTM) and compression molding (CM) have many limitations, an integrated and optimal molding method needs to be developed. Herein, we prepared high-performance composites by an optimized molding method, namely compression resin transfer molding (CRTM), which combines the traditional RTM and CM selectively and comprehensively. Differential scanning calorimetry (DSC) and rotational rheometry were performed to optimize the molding parameters of CRTM. In addition, metallurgical microscopy test and mechanical tests were performed to evaluate the applicability of CRTM. The experimental results showed that the composites prepared by CRTM displayed superior mechanical properties than those of the composites prepared by RTM and CM. The composite prepared by CRTM showed up to 42.9%, 41.2%, 77.3%, and 5.3% increases in tensile strength, bending strength, interlaminar shear strength, and volume fraction, respectively, of the composites prepared by RTM. Meanwhile, the porosity decreased by 45.2 %. View Full-Text
Keywords: RTM; CM; CRTM; carbon-fiber reinforced epoxy composite; lightweight RTM; CM; CRTM; carbon-fiber reinforced epoxy composite; lightweight

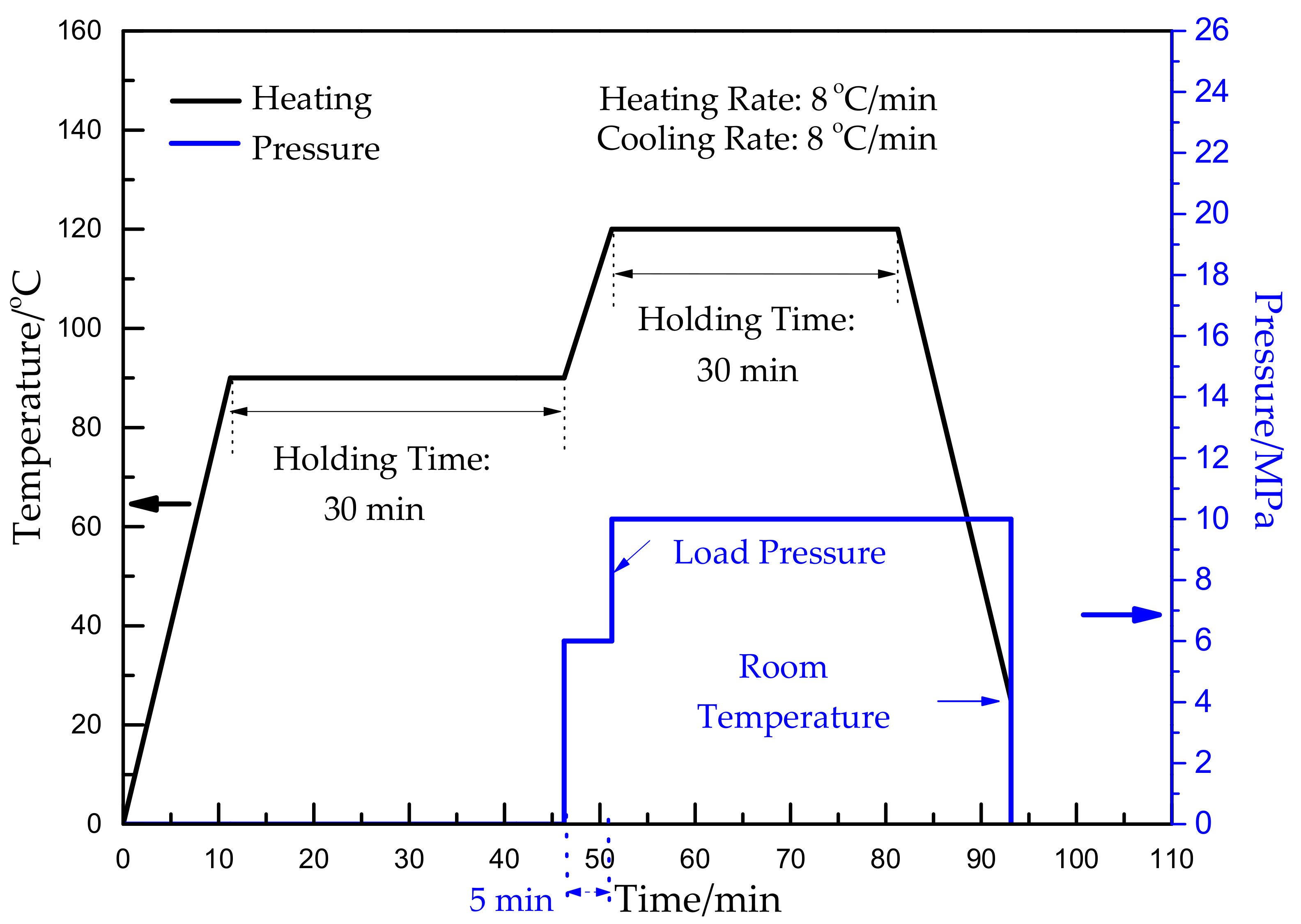

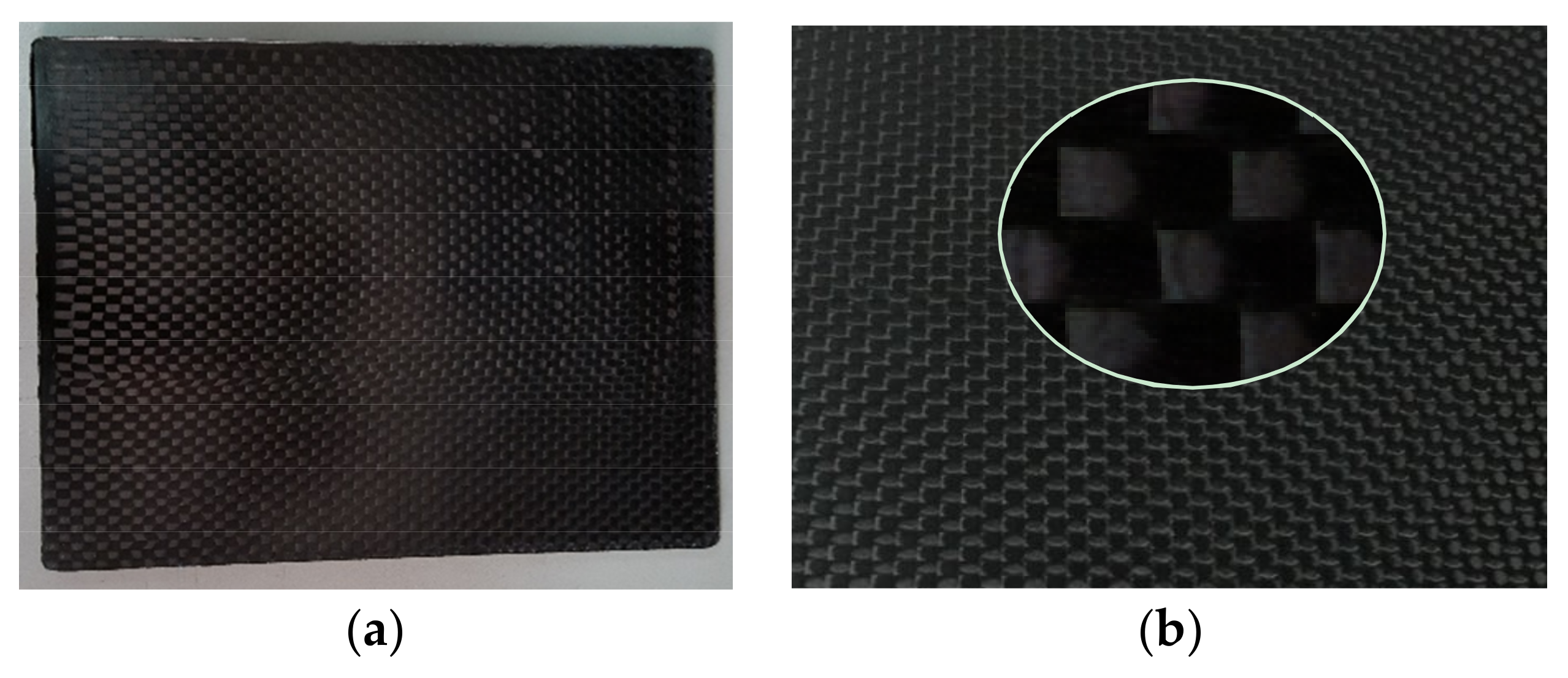

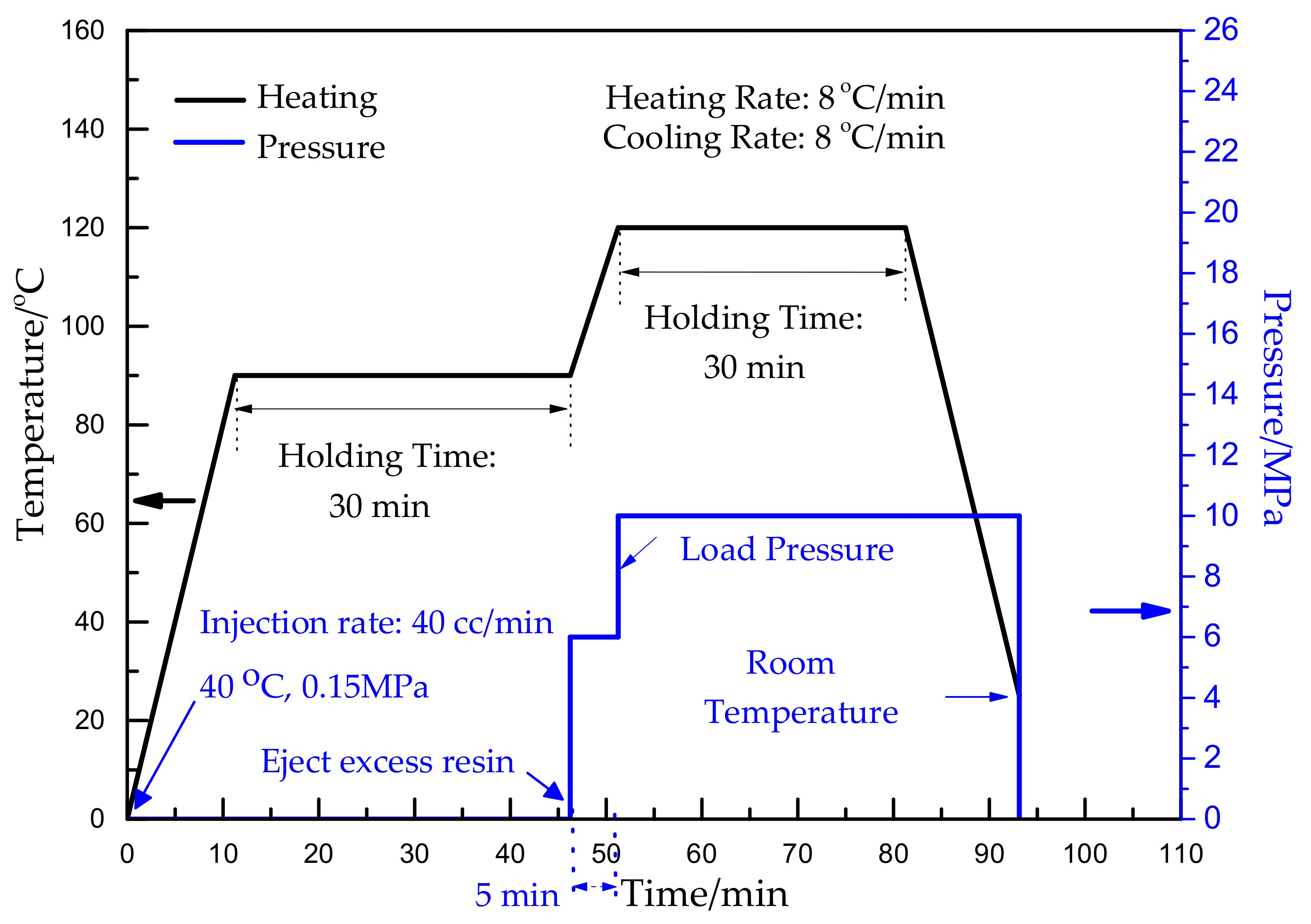

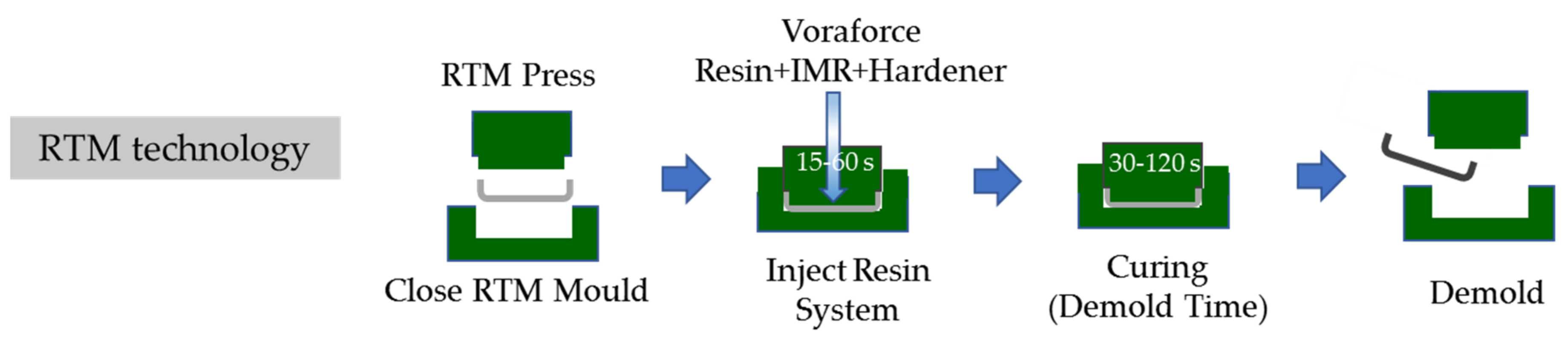

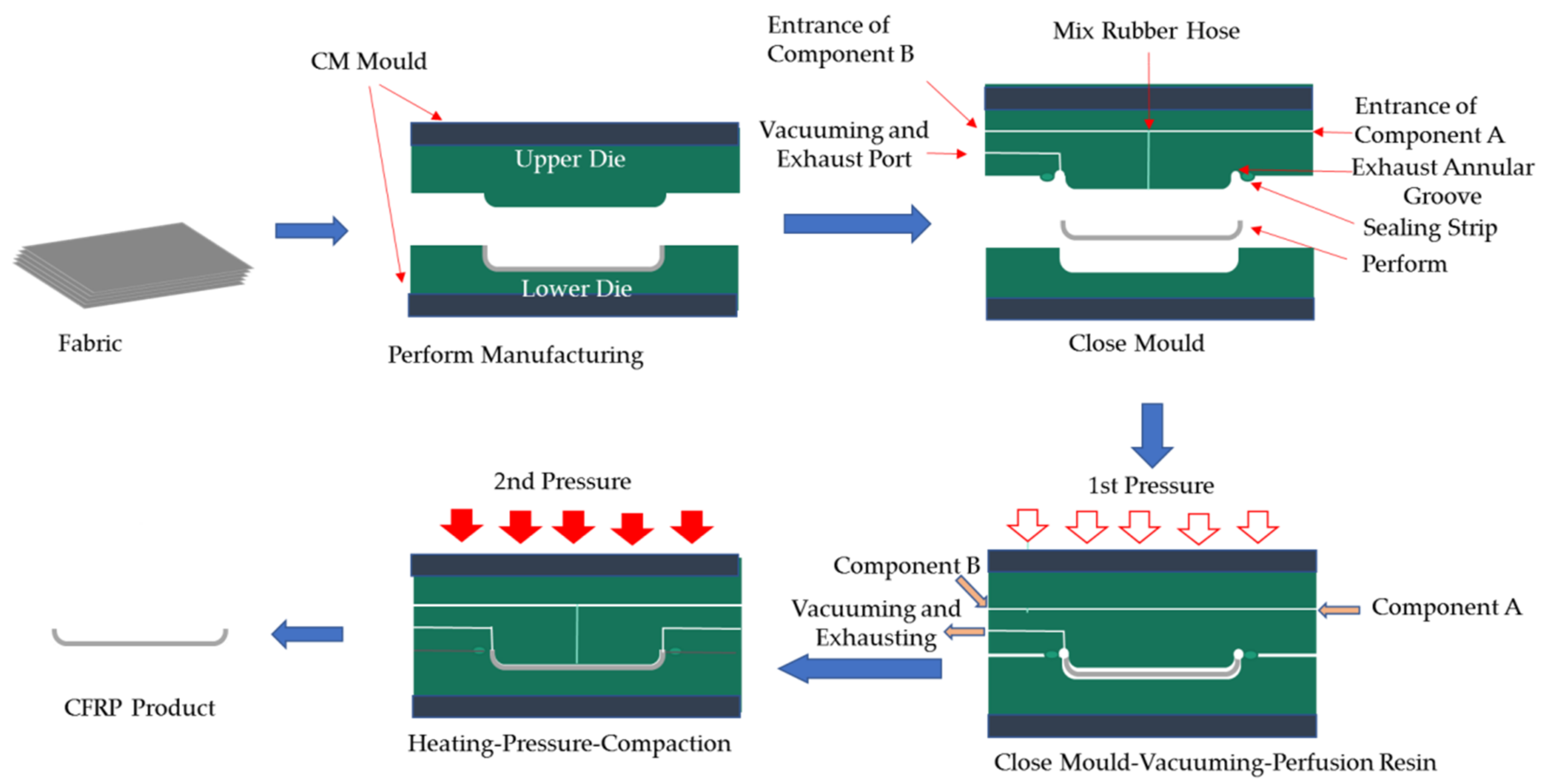

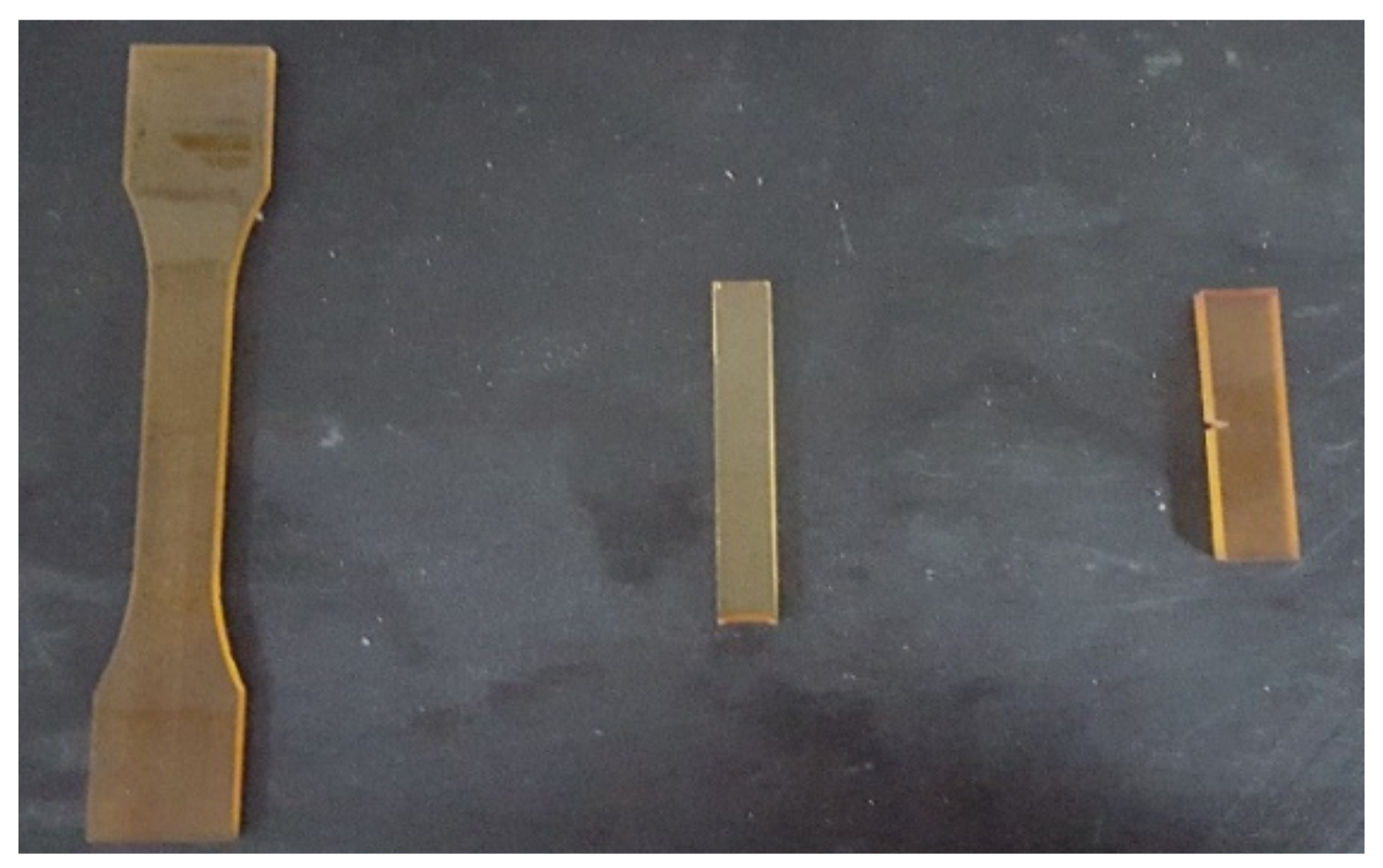

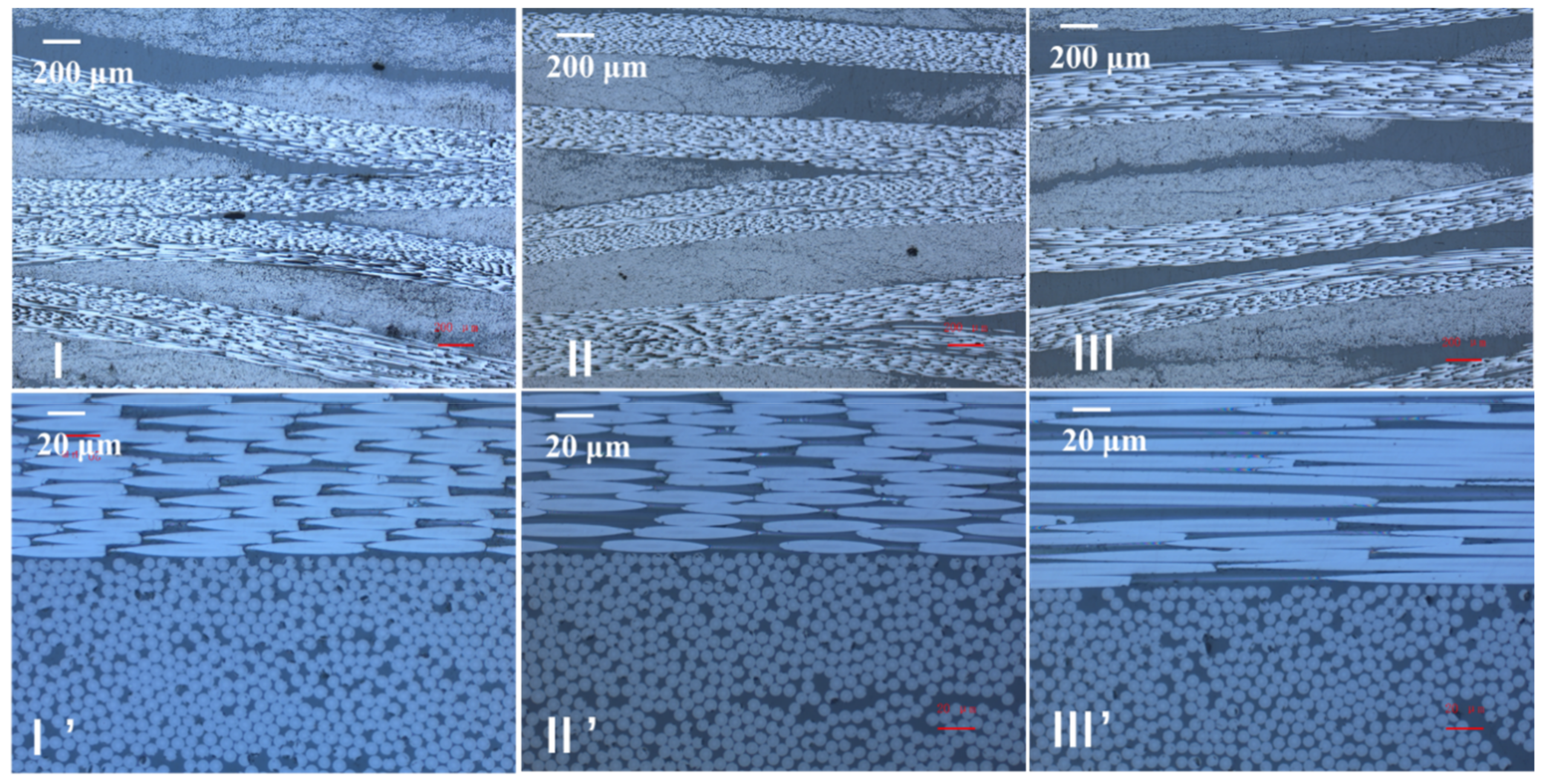

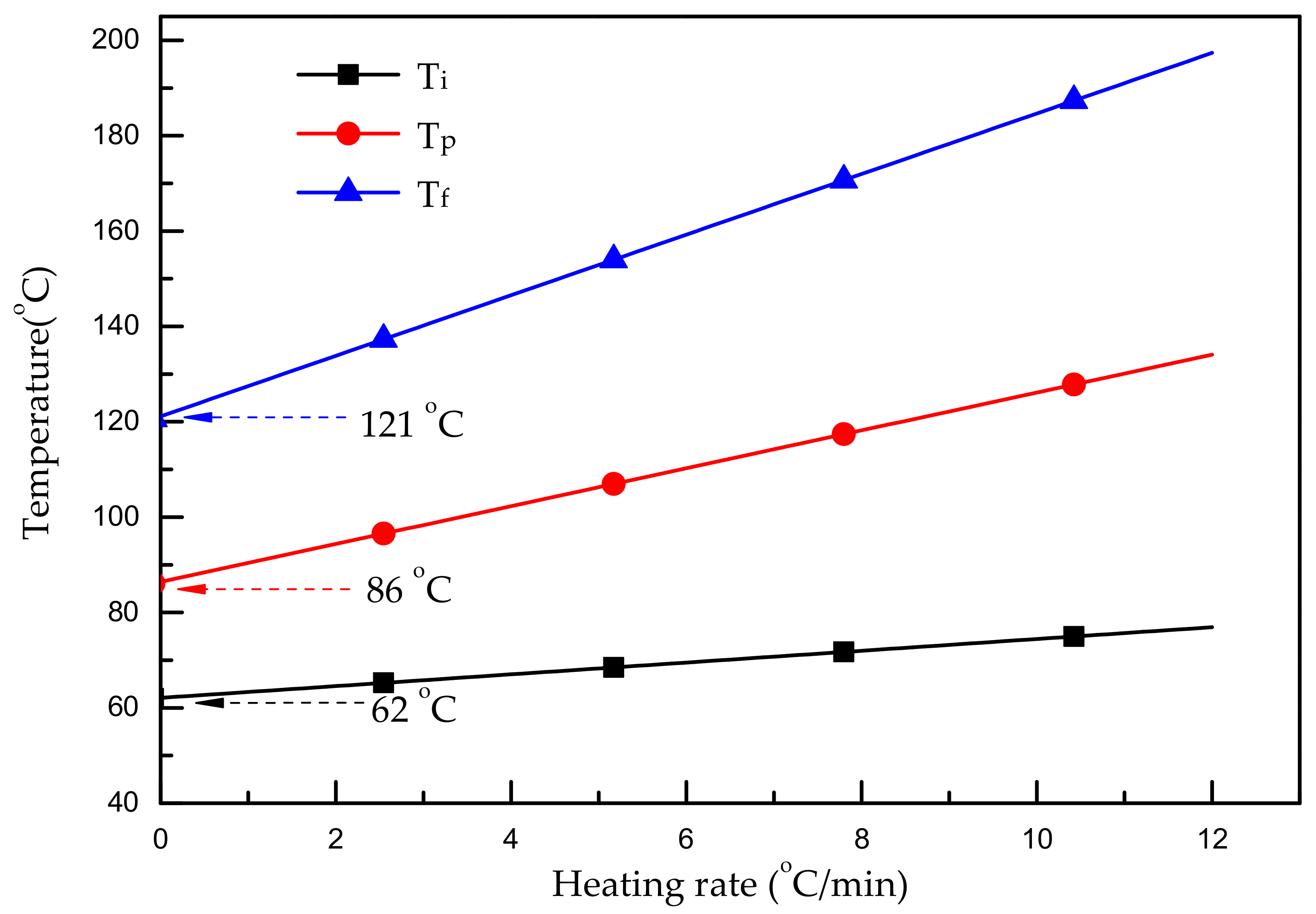

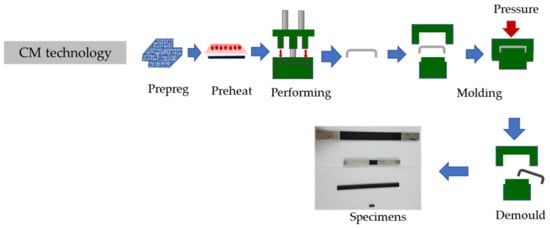

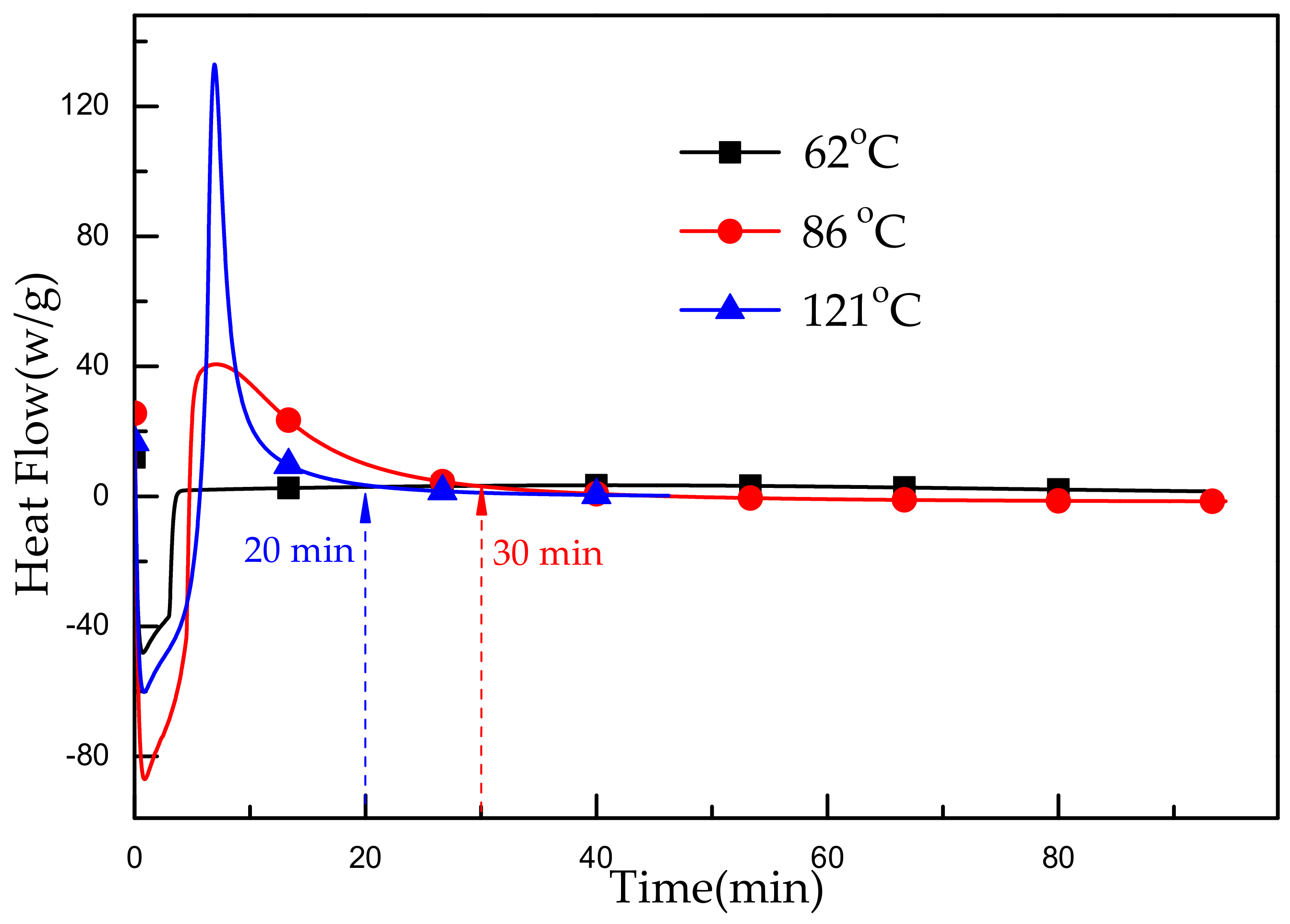

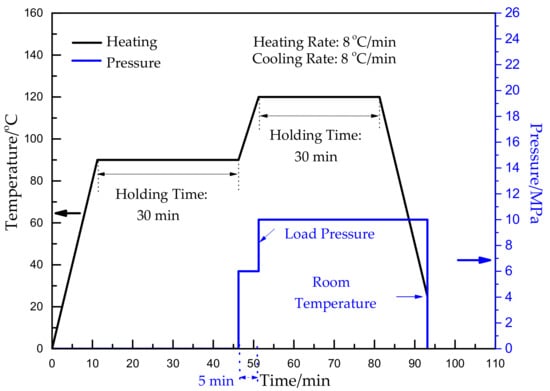

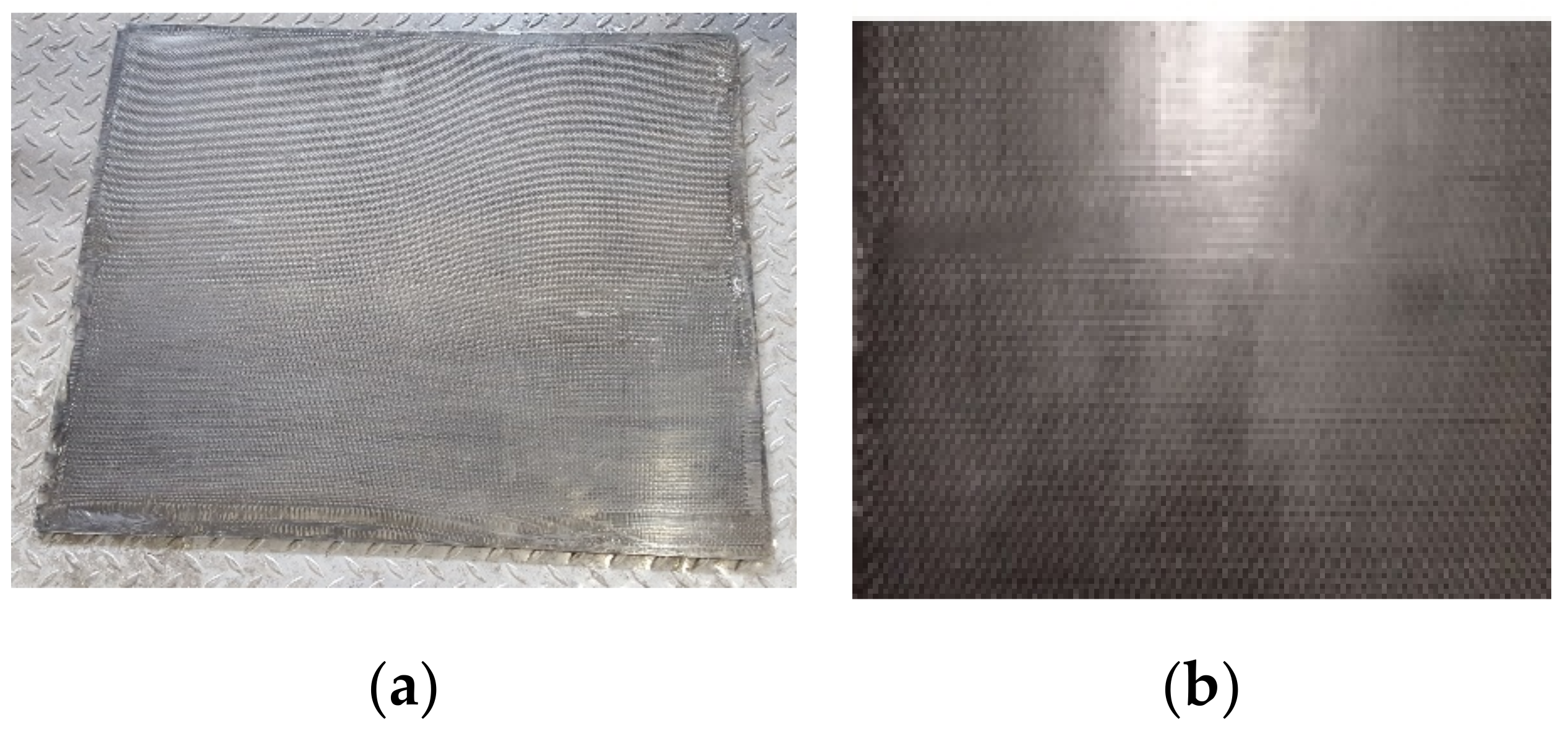

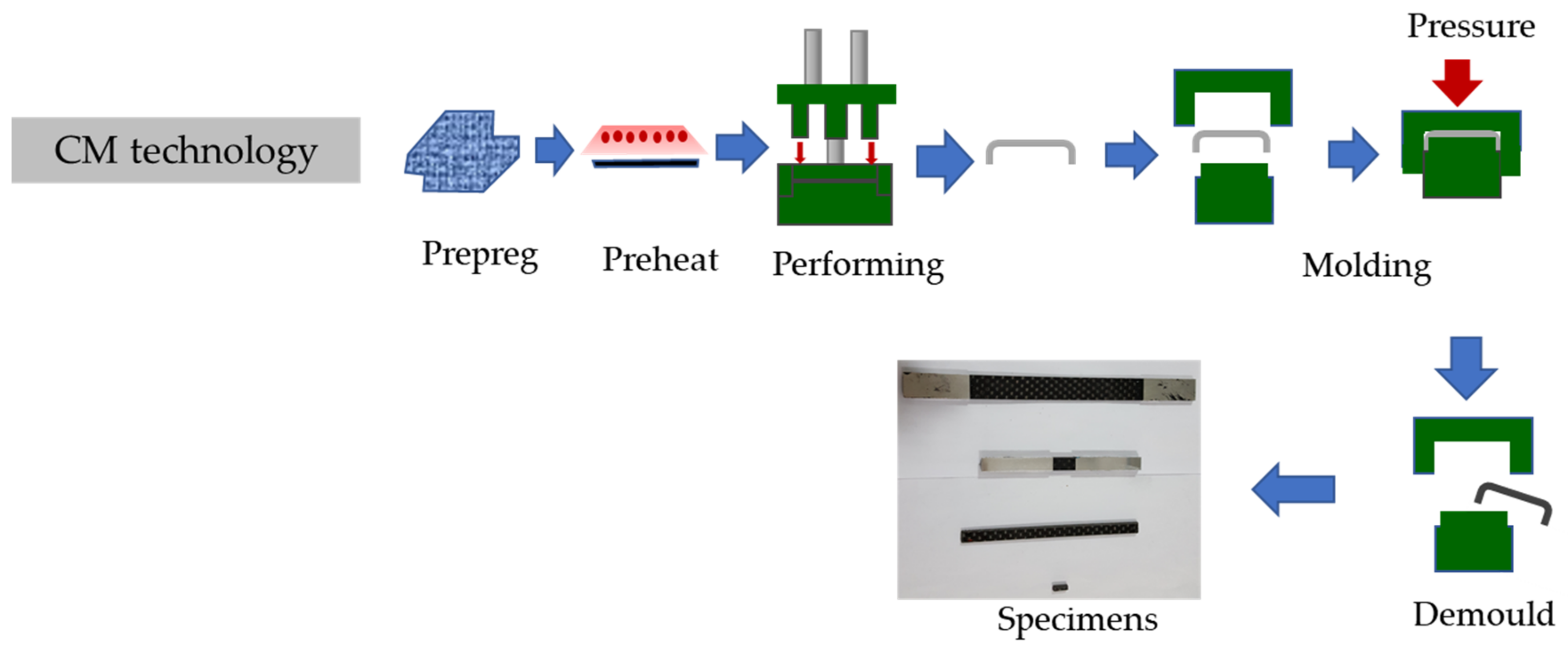

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Sun, Z.; Xiao, J.; Tao, L.; Wei, Y.; Wang, S.; Zhang, H.; Zhu, S.; Yu, M. Preparation of High-Performance Carbon Fiber-Reinforced Epoxy Composites by Compression Resin Transfer Molding. Materials 2019, 12, 13.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
