Effect of Defects on Spontaneous Polarization in Pure and Doped LiNbO3: First-Principles Calculations
1
School of Physics, Nankai University, Tianjin 300071, China
2
The MOE Key Laboratory of Weak-Light Nonlinear Photonics and TEDA institute of Applied Physics, Nankai University, Tianjin 300457, China
*
Authors to whom correspondence should be addressed.
Received: 7 December 2018 / Accepted: 24 December 2018 / Published: 29 December 2018

Abstract

:
Numerous studies have indicated that intrinsic defects in lithium niobate (LN) dominate its physical properties. In an Nb-rich environment, the structure that consists of a niobium anti-site with four lithium vacancies is considered the most stable structure. Based on the density functional theory (DFT), the specific configuration of the four lithium vacancies of LN were explored. The results indicated the most stable structure consisted of two lithium vacancies as the first neighbors and the other two as the second nearest neighbors of Nb anti-site in pure LN, and a similar stable structure was found in the doped LN. We found that the defects dipole moment has no direct contribution to the crystal polarization. Spontaneous polarization is more likely due to the lattice distortion of the crystal. This was verified in the defects structure of Mg2+, Sc3+, and Zr4+ doped LN. The conclusion provides a new understanding about the relationship between defect clusters and crystal polarization.
Keywords:
lithium niobate; spontaneous polarization; dipole moment; defects

1. Introduction

As an important functional material, lithium niobate (LiNbO3, LN) possesses a range of excellent properties, such as acousto-optic, ferroelectric, and photorefractive properties and it has been widely used in a series of nonlinear optical devices [1,2]. In these applications, defects play an important role, so the defect structure is a significant part of LN research. In order to explore the relationship between defects and crystal properties, there were many defect models presented in history. From literature and experimental data, the Li-vacancy model consists of niobium anti-site and Li vacancies are energetically more favorable [3,4,5]. For a Li-vacancy model, Kim et al. [6] proposed that a niobium anti-site should be surrounded by the three nearest-neighbor (NN) lithium vacancies and one additional lithium vacancy shifted along the z direction. The arrangements with the crystal bulk provide a defect dipole moment responsible for changing the ferroelectric polarization. Afterwards, Xu et al. [7] pointed out the configuration that four lithium vacancies all located at the NN sites possess the lowest energy. The non-uniaxial dipole moments associated with the defect clusters could affect the properties of the system locally. However, theoretical calculations and analysis revealed that the location of Li vacancies around the Nb anti-site has many other possibilities. Yet, there is no generally accepted geometry structure of the defect complex models.
In addition, the local environments around the dopants in LN have always been concerning. Various experimental techniques and theoretical calculations were applied to investigate the defect structure and explore the defect influence on crystal properties, such as the photorefraction, spontaneous polarization, and the optical and nonlinear optical properties [8,9,10,11,12]. Although some experimental results reflect the site selection of dopant ions, it is still difficult to display the relationship between defects and spontaneous polarization. As a ferroelectric material, spontaneous polarization is a key characteristic of LN that shows the potential of ferroelectric ceramics [13]. Exploring the effect of a defect structure on spontaneous polarization can help us better control the spontaneous polarization of crystals, and, thus, suppress additional light scattering, i.e., Barkhausen noise, and other adverse effects, to achieve quasi-phase matching and further expand the application band range of nonlinear crystals [14,15].
As we know, the defects deforming the surrounding lattice by capturing or losing electrons would affect the normal site of Li and Nb ions. A dipole moment will be formed because of the positive and negative defect pair, which would influence the crystal polarization in the LN crystal. In this work, we concentrated on the defect dipole moment and explored its role in crystal polarization. Based on the first-principle, we adopted the density functional theory (DFT) to explore the configurations of the defect complex and the dipole moment formed by defects in pure and doped LN. Then we found the relationship of defects and spontaneous polarization through the direction and contribution analysis of the dipole moment in the crystal.

2. Methods

Our calculation was performed using the Vienna ab initio Simulation Package (VASP) code [16,17] with the projector-augment-wave (PAW) pseudopotentials [18,19]. The structures were modeled on the basis of the general gradient approximation (GGA) [20]. Due to the standard PAW potentials, the Li 2s2 Nb 4p64d25s1, O 2s22p4 states were treated as valence electrons. Electronic wave functions were expanded in a plane wave basis set with an energy cutoff of 400 eV [21]. A hexagonal supercell containing 540 atoms for calculating intrinsic defects and 240 atoms for calculating extrinsic defects with a 2 × 2 × 1 k-points mesh over the Brillouin zone scheme are used for the perfect crystal and defect calculations [22]. The structure is obtained from the full optimization of the original cell reference to the experimental lattice parameters, and the error in the repeat optimization process is less than one-thousandth. In addition, the structural relaxation was performed using 0.01 eV/Å as the force convergence criterion.
It is known that the total internal energies obtained from DFT calculations correspond to the Helmholtz free energy at a zero temperature. Considering the temperature difference between the VASP work environment and the real condition, we had to think about the zero-point vibrations in free energy. However, experimental and theoretical aspects indicated that, at the room temperature of 300 K, the entropies of point defects fall about 0 to 0.26 eV. It seems too small to consider compared with the formation energy of crystals [23,24,25]. Nonetheless, strain effects can be considered negligible in large cell. The electrostatic interactions between periodic images mirror real interactions between the defect clusters in samples, which are caused by the periodic boundary conditions [23,26,27]. We obtained the total energy and defect formation energies (DFEs) from a DFT calculation. Generally, DFEs of a defect or defects X with charge q can be calculated using the equation below [28,29].
Δ E f ( X q ) = E t o t a l ( X q ) E t o t a l ( perfect ) + i n i u i + q ( E F + E v + Δ V )
where Etotal(Xq) is the total energy of the supercell with defects. Etotal(perfect) is the total energy of the perfect supercell with no defects. ni is the number of atoms of species i that have been added or removed when the defects are created, and μi indicates the corresponding chemical potential. Eν is the bulk valence band maximum (VBM), and EF is the Fermi level with regard to the VBM. ΔV aligns the reference potential in the defect supercell with that in the bulk [28].
According to the thermodynamic considerations to maintain the stability of LN, we have plotted the thermodynamically stable region of the LiNbO3 constituents to limit the possible range of μi in Figure 1. The chemical potential of its components changed within a certain range in accordance with a different reference phase. As shown in Figure 1, the region enclosed between points A, C, E, and G corresponds to one of the extremes of LN, which is in equilibrium with niobium oxide while the triangle BDF satisfies the other extreme limit condition from the equilibrium equation of lithium oxide. The red region is an area that meets all restrictions, and line CE represents the Nb-rich condition. The line BF indicates the Li-rich condition. In our calculation, we employ the Nb2O5 reference to simulate the environment in LN. Thus, the chemical potentials of Li and Nb used here are −3.715 and −20.605 eV.

3. Results and Discussion

3.1. Intrinsic Defects in LN

So far, the most convincing intrinsic defect model for LN is the Li vacancy model, where the lithium vacancies (VLi) are located around the niobium anti-site (NbLi4+). In order to analyze the specific configuration of lithium vacancies, we initially need to consider their distribution. In Figure 2, the vicinity analysis of the lithium sub-lattice is shown. The red ball indicates the NbLi4+, and its first neighbors (1NNs) of six atoms were represented by blue balls, which were marked with N11, N12, N13, N14, N15, and N16. The second nearest neighbors (2NNs), the third nearest neighbors (3NNs), and the fourth nearest neighbors (4NNs) are shown by the purple, green, and yellow balls, respectively. They are distinguished with the same method as the 1NNs. The top view of the vicinity analysis is shown in Figure 2b to display the positional relationship of these neighbors.
According to the neighborhood analysis, there are many possibilities for the four lithium vacancies around the NbLi4+, and considering all possible arrangements is an arduous task. It can be seen from Figure 2 that the distance between the NbLi4+ and its 4NNs is already 6.38 Å. The 5NNs are far from a reasonable distance. Taking into account the role of Coulomb force and the limit of the supercell, four lithium vacancies acting as 4NNs or 5NNs is beyond our consideration. Therefore, in our 540-atom supercell, lithium vacancies can be randomly distributed at the Nb inversion of 1NN, 2NN, 3NN, and 4NN. To simplify calculations and demonstrations, clusters are divided into the following six types.
  • four lithium vacancies as 1NNs;
  • four lithium vacancies as 2NNs;
  • four lithium vacancies as 3NNs;
  • three lithium vacancies as 1NNs and one other NN;
  • three lithium vacancies as 2NNs and one other NN;
  • two lithium vacancies as 1NNs and two other NNs;
We take the (I) situation as an example to describe the specific calculation and analysis process. It can be seen from Figure 2 that there are six 1NNs around the Nb anti-site and they are not equivalent. This non-equivalent position results in at least 15 different configurations of the four lithium vacancies, and each type exists different degrees of degeneracy. From the literature before, it is difficult to find a clear relationship between the polarization and DFE [7]. Therefore, the cohesive energy and formation energy of defect clusters can be regarded as the main judgment for the most stable structure.
Similarly, we considered all II–VI situations and possible degeneracy conditions of the NbLi4+ + 4VLi model to judge the most stable model in different situations. In each case, the difference in the formation energy of the different models is within 0.5 eV, and this small difference determines the stability of the model. The formation of the most stable NbLi4+ + 4 VLi model in different situations ranged from I to VI and are listed in Table 1. The models of Kim [6] and Xu [7] based on our unit cell are listed for comparison. The polarization change of the special models are shown in the table too. In Table 1, we found that the model VI possesses the lowest formation energy. It is not an accidental result. In the IV situation, three lithium vacancies as 1NNs and one other NN. When the other NN is 2NN, the model has lower formation energy. For model VI, three lithium vacancies as 2NNs and one other NN in the model 2NN + 2NN + 2NN + 1NN is more stable. The configuration of these two models is similar to the most stable model 1NN + 1NN + 2NN + 2NN. This shows the rationality of the most stable structure.
Changes in the crystal structure introduced by the defects will affect the properties of the crystal, and the charged point defects will form an electric dipole moment inside of the crystal too. The positive charge center of the dipole moment is the Nb antisite. The negative charge center is determined by the position of the lithium vacancy and the direction of the dipole moment may cause a change in the polarization. We explored the specific structural information of the most stable model and the second most stable model, as shown in Figure 3. The red balls represent the site of positive charge center of the dipole moment. The negative charge centers are more complicated. In the most stable structure (Figure 3a), if a line is drawn from the Nb anti-site along the opposite direction of the b axis, then the two 2NNs are symmetric about this line. The intersection of the line with the connections of the two 1NN is the midpoint of the two 1NNs. The distribution of lithium vacancies has a high symmetry and the midpoint is the negative charge centers. The direction of the electric dipole moment usually points from the negative charge towards the positive charge. As such, the direction of the dipole moment along the b axis in the most stable model (see the green arrow in Figure 3a). The polarization change caused by the defect clusters is about 2.8 μC·cm−2. It is in well agreement with the data in Xu’s paper compared to the polarization of the LN system [7]. In the second most stable structure (Figure 3b), one of the 1NN is located symmetrically with b at the Nb anti-site with another 1NN. The two 2NNs are lying in the same sites with the most stable structure. In addition, the direction of the dipole moment due to intrinsic defects is also along the direction of the b axis, which is consistent with the most stable structure. The direction of these two defect dipole moments are both perpendicular in the direction of spontaneous polarization of the crystal (c axis). Since the non-polarized polarization caused by the dipole moment can be expected to cancel out in an ideal environment [7], the entire cluster of defects does not directly contribute toward the spontaneous polarization.
The spontaneous polarization along the c-axis direction appears in the LN crystal due to the Nb ions leaving the center of the oxygen octahedron and the Li atoms leaving the oxygen planes. The spontaneous polarization of CLN is different from that of the pure LN, which indicates that spontaneous polarization is influenced by the defects situation. However, the above results indicate that the direction of the dipole moment of intrinsic defect clusters is along the b direction and can be canceled out ideally. It has no direct effect on bulk polarization. It is in agreement with the experiment that there is no polarization component in the a or b axis. In addition, the polarization component in the c axis may be related to lattice distortion. The results provided a new understanding of the relationship between the polarization direction and defect models.

3.2. Divalent, Trivalent, and Tetravalent Ions Doped LN

From the above discussion, we can get that the intrinsic defects dipole moment have no direct contribution to the spontaneous polarization in pure LN. The spontaneous polarizations of the doped LN are different from the pure LN, Mg2+, Sc3+, and Zr4+ doped LN (LN:Mg, LN:Sc, and LN:Zr) as representations of divalent, trivalent, and tetravalent dopant ions are explored. Based on the previous experimental exploration and theoretical calculation, in Nb2O5-rich conditions, most dopants sit on the Li site in their highest charge state and the charge is compensated by lithium vacancies in a lower concentration [30,31,32,33]. Hence, one, two, and three lithium vacancies compensate MgLi+, ScLi2+, and ZrLi3+, respectively. The specific configurations of the defect pairs formed by divalent, trivalent, and tetravalent ions will be discussed in this part.
The situations of MgLi+ + VLi are simple. The only lithium vacancy can be the 1NN, 2NN, or 3NN. In addition, the classifications for ScLi2+ + 2VLi are not complicated. The combination of the two lithium vacancies are 1NN + 1NN, 1NN + 2NN, and 2NN + 2NN, as shown in Table 2. For tetravalent ions ZrLi3+ + 3VLi, due to the limit of the supercell, the possible defect clusters will be divided into the following categories.
  • three lithium vacancies as 1NNs;
  • two lithium vacancies as 1NNs and one other;
  • two lithium vacancies as 2NN and one other;
  • three lithium vacancies as 2NNs;
The most stable structure and its formation energy of each condition are listed in Table 2. In the most stable defect structures of Mg2+ and Sc3+, doped LN and lithium vacancies also prefer 2NNs. It is similar to the conclusions obtained in the pure LN. For ZrLi3+ + 3VLi, not all lithium vacancies are located at 2NN and there are two. The slight difference in defect configuration of high-valence and lower valence ions doped LN indicates the difference in defect polarization and we will discuss it further below.
The most stable structure and dipole moment analysis of LN:Mg, LN:Sc, and LN:Zr are shown in Figure 4. It can be seen from Figure 4a, in MgLi+ + VLi, lithium vacancy is the 2NN site. It lies in the direction of the a-axis. Therefore, the direction of the defect dipole moment is along the opposite direction of the a-axis and perpendicular to the c-axis. It does not contribute to the spontaneous polarization of the crystal. As shown in Figure 4b, in the defect structure of LN:Sc, the direction of the defect dipole moment corresponds to the combination of the a-axis and the b-axis. It is orthogonal to the c-axis. The two models are in line with the intrinsic defect clusters we discussed above. The direction of the dipole moment are in a plane that is perpendicular to the c-axis, which can be expected to cancel out ideally. However, the defect cluster of ZrLi3+ + 3VLi is an exception. Seen from Figure 4c,d, the structure of LN:Zr consists of two second nearest neighbors in the same layer as the ZrLi3+ and one nearest neighbor in the lower layer. The dipole moment of the defect cluster is not parallel to the a, b plane but has a small angle to the plane, which is about 21 degrees. The dipole moment contributes to both the horizontal plane and the c-axis direction. The contribution in the horizontal plane along the black dotted line in Figure 4d, which can be canceled out in an ideal environment. Less contribution in the vertical direction along the c-axis coincides with the spontaneous polarization direction of the crystal. The polarization change caused by the defect clusters along the c-axis is about 1.41 μC·cm−2, which is pretty small compared to the polarization of congruent LN at about 71 μC·cm−2 [34]. The particularity of LN:Zr is that Zr is a high charge state ion, which may occupy the Nb position in the LN. The influence on Nb is intensified, which makes the relationship between defects and polarization complicated. From the current results, the dipole moment of the defects is not directly related to the polarization.
To summarize the stable defect structure models of MgLi+ + VLi, ScLi2+ + 2VLi, ZrLi3+ + 3VLi, we found that lithium vacancies prefer to be 2NN rather than the nearest neighbors, which is similar to the structure of the intrinsic defect above. Neighborhood analysis enriches the structural type of the defect. In addition, polarization analysis shows that the direction of the dipole moment formed by the dopants is generally perpendicular to the direction of spontaneous polarization. High charge state dopants Zr show little influence on polarization. Considering that the valence and size of high charge state ions are closer to the Nb ions in the crystal, the influence of Zr on Nb ions will increase. This paper mainly considers the influence of Zr and lithium vacancies on polarization. The more complex mechanisms are for further study.

4. Conclusions

Based on the DFT calculation, the specific configuration of intrinsic defect clusters in pure and doped LN have been investigated. For pure LN, the energetically preferable cluster consisting of two 1NN lithium vacancies and two 2NN lithium vacancies of the Nb anti-site was selected among all possible defect cluster combinations. In the most stable model, the polarization direction of the defect cluster dipole moment was perpendicular to the bulk polarization direction (c axis), which indicated that the defects dipole moment had no direct contribution to the crystal polarization. We found that the lithium vacancy of LN:Mg, LN:Sc, and LN:Zr lies in 2NN rather than the 1NN, and the defect dipole moment almost had no direct contribution to the crystal polarization. We proposed that the crystal polarization difference does not originate from the dipole moment of dopants, but may be the lattice distortion of the crystals. All the results would give us a new understanding of intrinsic defect clusters, and would provide a new approach for the exploration of the relationship between dopants and properties.

Author Contributions

Conceptualization, D.Z. and Y.K. Data curation, W.W. and H.L. Formal analysis, W.W. Funding acquisition, D.Z., Y.K., and J.X. Investigation, W.W. Project administration, Y.K. Software, L.Z. Writing—original draft, W.W. Writing—review & editing, D.Z., M.H., S.S., H.L., and L.Z.

Funding

This research was funded by the National Natural Science Foundation of China with grant number [11674179] and [61705116] and the Program for Changjiang Scholars and Innovative Research Team in University with grant number [IRT_13R29].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Weis, R.S.; Gaylord, T.K. Lithium niobate Summary of physical properties and crystal structure. Appl. Phys. A 1985, 37, 191–203. [Google Scholar] [CrossRef]
  2. Boyd, G.D.; Miller, R.C.; Nassau, K.; Bond, W.L.; Savage, A. LiNbO3: An Efficient Phase Matchable Nonlinear Optical Material. Appl. Phys. Lett. 1964, 5, 234–236. [Google Scholar] [CrossRef]
  3. Iyi, N.; Kitamura, K.; Izumi, F.; Yamamoto, J.K.; Hayashi, T.; Asano, H.; Kimura, S. Comparative study of defect structures in lithium niobate with different compositions. J. Solid State Chem. 1992, 101, 340–352. [Google Scholar] [CrossRef]
  4. Donnerberg, H.; Tomlinson, S.M.; Catlow, C.R.A.; Schirmer, O.F. Computer-simulation studies of intrinsic defects in LiNbO3 crystals. Phys. Rev. B 1989, 40, 11909–11916. [Google Scholar] [CrossRef]
  5. Xu, H.; Lee, D.; He, J.; Sinnott, S.B.; Gopalan, V.; Dierolf, V.; Phillpot, S.R. Stability of intrinsic defects and defect clusters in LiNbO3 from density functional theory calculations. Phys. Rev. B 2008, 78. [Google Scholar] [CrossRef]
  6. Kim, S.; Gopalan, V.; Kitamura, K.; Furukawa, Y. Domain reversal and nonstoichiometry in lithium tantalate. J. Appl. Phys. 2001, 90, 2949–2963. [Google Scholar] [CrossRef]
  7. Xu, H.; Lee, D.; Sinnott, S.B.; Dierolf, V.; Gopalan, V.; Phillpot, S.R. Structure and diffusion of intrinsic defect complexes in LiNbO3 from density functional theory calculations. J. Phys. Condens. Matter 2010, 22, 135002. [Google Scholar] [CrossRef]
  8. Bridges, F.; Castillo-Torres, J.; Car, B.; Medling, S.; Kozina, M. EXAFS evidence for a primary ZnLi dopant in LiNbO3. Phys. Rev. B 2012, 85. [Google Scholar] [CrossRef]
  9. Suche, H.; Wessel, R.; Westenhofer, S.; Sohler, W.; Bosso, S.; Carmannini, C.; Corsin, R. Harmonically mode-locked Ti:Er:LiNbO3 waveguide laser. Opt. Lett. 1995, 20, 596–598. [Google Scholar] [CrossRef]
  10. Spaeth, H.; Spaeth, J.-M. The site and local environment of Fe3+ in LiNbO3 investigated with ENDOR. J. Phys. Condens. Matter 1992, 4, 9901–9908. [Google Scholar] [CrossRef]
  11. Kityk, I.V.; Makowska-Janusik, M.; Fontana, M.D.; Aillerie, M.; Abdi, F. Nonstoichiometric Defects and Optical Properties in LiNbO3. J. Phys. Chem. B 2001, 105, 12242–12248. [Google Scholar] [CrossRef]
  12. Li, Y.; Li, L.; Cheng, X.; Zhao, X. Microscopic properties of Mg in Li and Nb sites of LiNbO3 by first-principle hybrid functional: Formation and related optical properties. J. Phys. Chem. C 2017, 121, 8968–8975. [Google Scholar] [CrossRef]
  13. Nassau, K.; Levinstein, H.J.; Loiacomo, G.M. The domain structure and etching of ferroelecteic lithium biobate. Appl. Phys. Lett. 1965, 6, 228. [Google Scholar] [CrossRef]
  14. Zheng, S.J.; Kong, Y.F.; Liu, H.D.; Chen, S.L.; Zhang, L.; Liu, S.G.; Xu, J.J. Pyroelectric effect in green light-assisted domain reversal of Mg-doped LiNbO3 crystals. Opt. Express 2012, 20, 29131–29136. [Google Scholar] [CrossRef] [PubMed]
  15. Thaniyavaran, S.; Findakly, T.; Boother, D.; Moen, J. Domain inversion effects in Ti-LiNbO3 integrated optical devices. Appl. Phys. Lett. 1985, 46, 933. [Google Scholar] [CrossRef]
  16. Kresse, G.; Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane wave basis set. Phys. Rev. B 1996, 54, 11169–11186. [Google Scholar] [CrossRef]
  17. Kresse, G.; Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comp. Mater. Sci. 1996, 6, 15–50. [Google Scholar] [CrossRef]
  18. Blöchl, P.E. Projector augmented-wave method. Phys. Rev. B 1994, 50, 17953–17979. [Google Scholar] [CrossRef][Green Version]
  19. Kresse, G.; Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 1998, 59, 1758–1775. [Google Scholar] [CrossRef]
  20. Smith, R.G.; Fraser, D.B.; Denton, R.T.; Rich, T.C. Correlation of Reduction in Optically Induced Refractive-Index Inhomogeneity with OH Content in LiTaO3 and LiNbO3. J. Appl. Phys. 1968, 39, 4600–4602. [Google Scholar] [CrossRef]
  21. Monkhorst, H.J.; Pack, J.D. Special points for Brillouin-zone integrations. Phys. Rev. B 1976, 13, 5188–5192. [Google Scholar] [CrossRef]
  22. Redfield, D.; Burke, W.J. Optical absorption edge of LiNbO3. J. Appl. Phys. 1974, 45, 4566–4571. [Google Scholar] [CrossRef]
  23. Li, Y.; Schmidt, W.G.; Sanna, S. Defect complexes in congruent LiNbO3 and their optical signatures. Phys. Rev. B 2015, 91, 174106. [Google Scholar] [CrossRef]
  24. Kohan, A.F.; Ceder, G.; Morgan, D.; Van de Walle, C.G. First-principles study of native point defects in ZnO. Phys. Rev. B 2000, 61, 15019–15027. [Google Scholar] [CrossRef]
  25. He, J.; Behera, R.K.; Finnis, M.W.; Li, X.; Dickey, E.C.; Phillpot, S.R.; Sinnott, S.B. Prediction of high-temperature point defect formation in TiO2 from combined ab initio and thermodynamic calculations. Acta Mater. 2007, 55, 4325–4337. [Google Scholar] [CrossRef]
  26. Komsa, H.P.; Rantala, T.T.; Pasquarello, A. Finite-size supercell correction schemes for charged defect calculations. Phys. Rev. B 2012, 86, 045112. [Google Scholar] [CrossRef]
  27. Leslie, M.; Gillan, N.J. The energy and elastic dipole tensor of defects in ionic crystals calculated by the supercell method. J. Phys. C Solid State Phys. 1985, 18, 973–982. [Google Scholar] [CrossRef]
  28. Van de Walle, C.G.; Neugebauer, J. First-principles calculations for defects and impurities: Applications to III-nitrides. J. Appl. Phys. 2004, 95, 3851–3879. [Google Scholar] [CrossRef]
  29. Lany, S.; Zunger, A. Assessment of correction methods for the band-gap problem and for finite-size effects in supercell defect calculations: Case studies for ZnO and GaAs. Phys. Rev. B 2008, 78. [Google Scholar] [CrossRef]
  30. Xu, H.; Lee, D.; Sinnott, S.B.; Gopalan, V.; Dierolf, V.; Phillpot, S.R. Structure and energetics of Er defects in LiNbO3 from first-principles and thermodynamic calculations. Phys. Rev. B 2009, 80, 144104. [Google Scholar] [CrossRef]
  31. Li, L.; Li, Y.; Zhao, X. Hybrid density functional theory insight into the stability and microscopic properties of Bi-doped LiNbO3: Lone electron pair effect. Phys. Rev. B 2017, 96. [Google Scholar] [CrossRef]
  32. Xu, H.; Chernatynskiy, A.; Lee, D.; Sinnott, S.B.; Gopalan, V.; Dierolf, V.; Phillpot, S.R. Stability and charge transfer levels of extrinsic defects in LiNbO3. Phys. Rev. B 2010, 82. [Google Scholar] [CrossRef]
  33. Li, L.; Li, Y.; Zhao, X. Doping stability of nonphotorefractive ions in stoichiometric and congruent LiNbO3. Phys. Chem. Chem. Phys. 2018, 20, 17477–17486. [Google Scholar] [CrossRef] [PubMed]
  34. Byer, R.L. Quasi-Phasematched Nonlinear Interactions and Devices. J. Nonlinear Opt. Phys. Mater. 1997, 6, 549–592. [Google Scholar] [CrossRef]

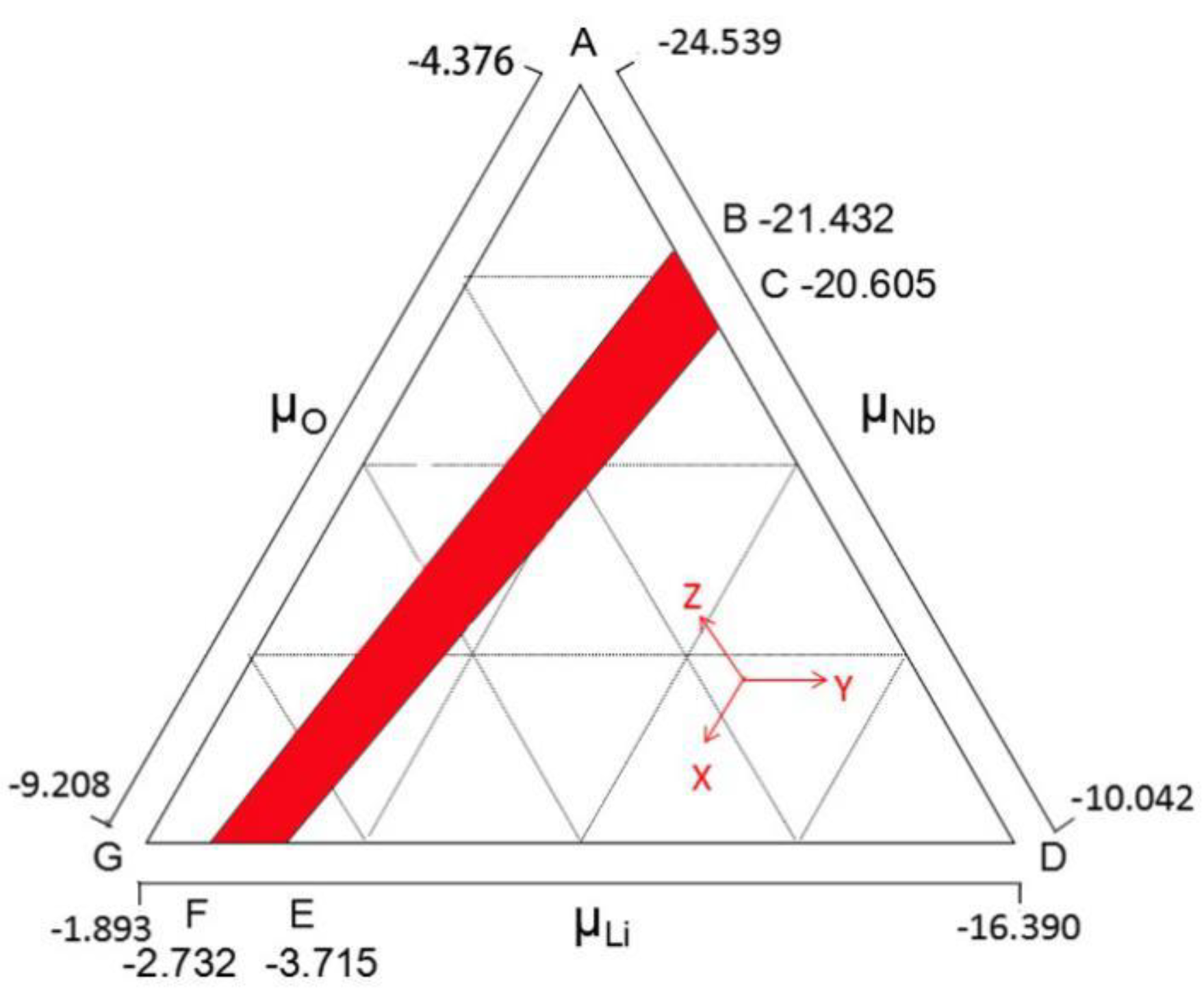

Figure 1. Stability range of chemical potentials of the elements in LiNbO3. The chemical potential in the red region satisfy all the limit conditions, and the line BF, CE represent the reference state Li2O and Nb2O5, respectively.
Figure 1. Stability range of chemical potentials of the elements in LiNbO3. The chemical potential in the red region satisfy all the limit conditions, and the line BF, CE represent the reference state Li2O and Nb2O5, respectively.
Materials 12 00100 g001

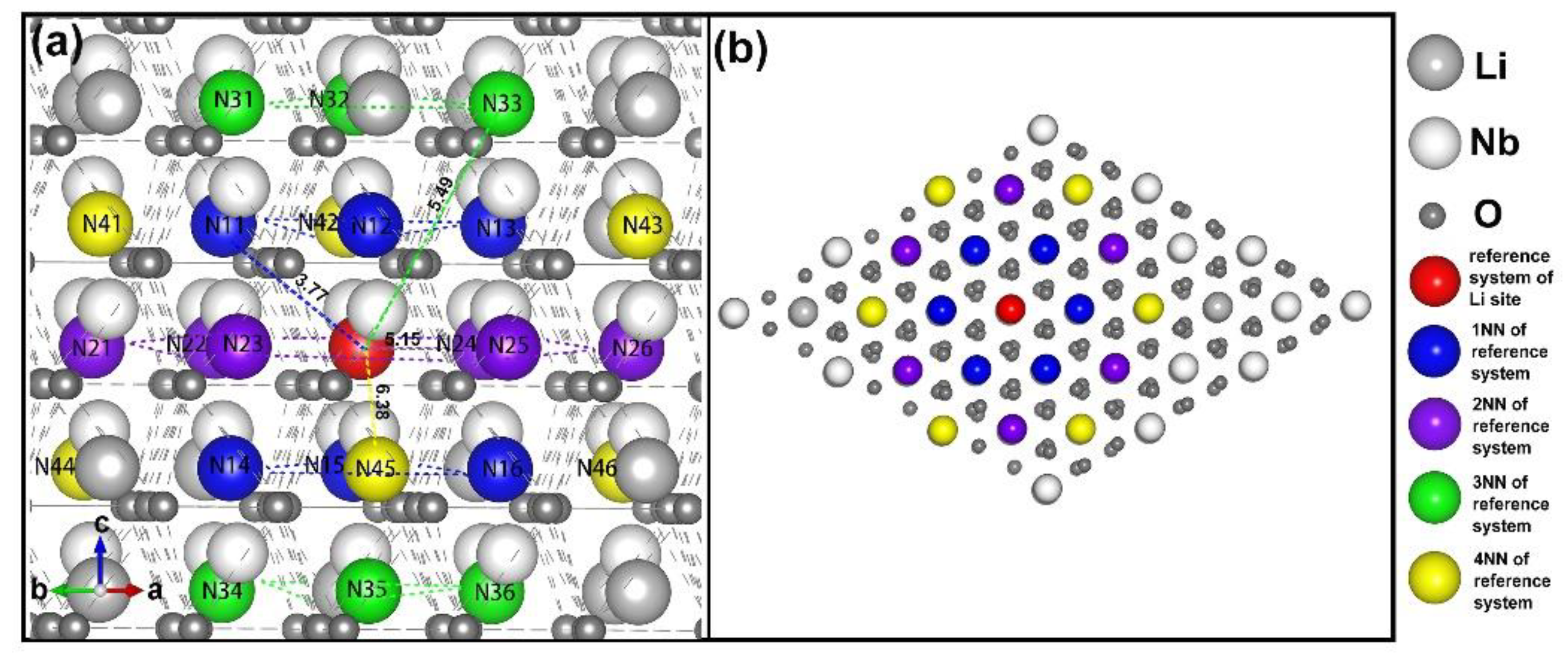

Figure 2. The vicinity analysis of the lithium (Li) sub-lattice. (a) The red ball present dopant in a Li sub-lattice. In addition, blue, purple, green, and yellow balls indicate the INN, 2NN, 3NN, and 4NN sites from the dopant site. The distance between the dopant site and the nearest neighbor sites are given. Its unit is Å. (b) is the top view of (a) along the opposite direction of the c axis.
Figure 2. The vicinity analysis of the lithium (Li) sub-lattice. (a) The red ball present dopant in a Li sub-lattice. In addition, blue, purple, green, and yellow balls indicate the INN, 2NN, 3NN, and 4NN sites from the dopant site. The distance between the dopant site and the nearest neighbor sites are given. Its unit is Å. (b) is the top view of (a) along the opposite direction of the c axis.
Materials 12 00100 g002

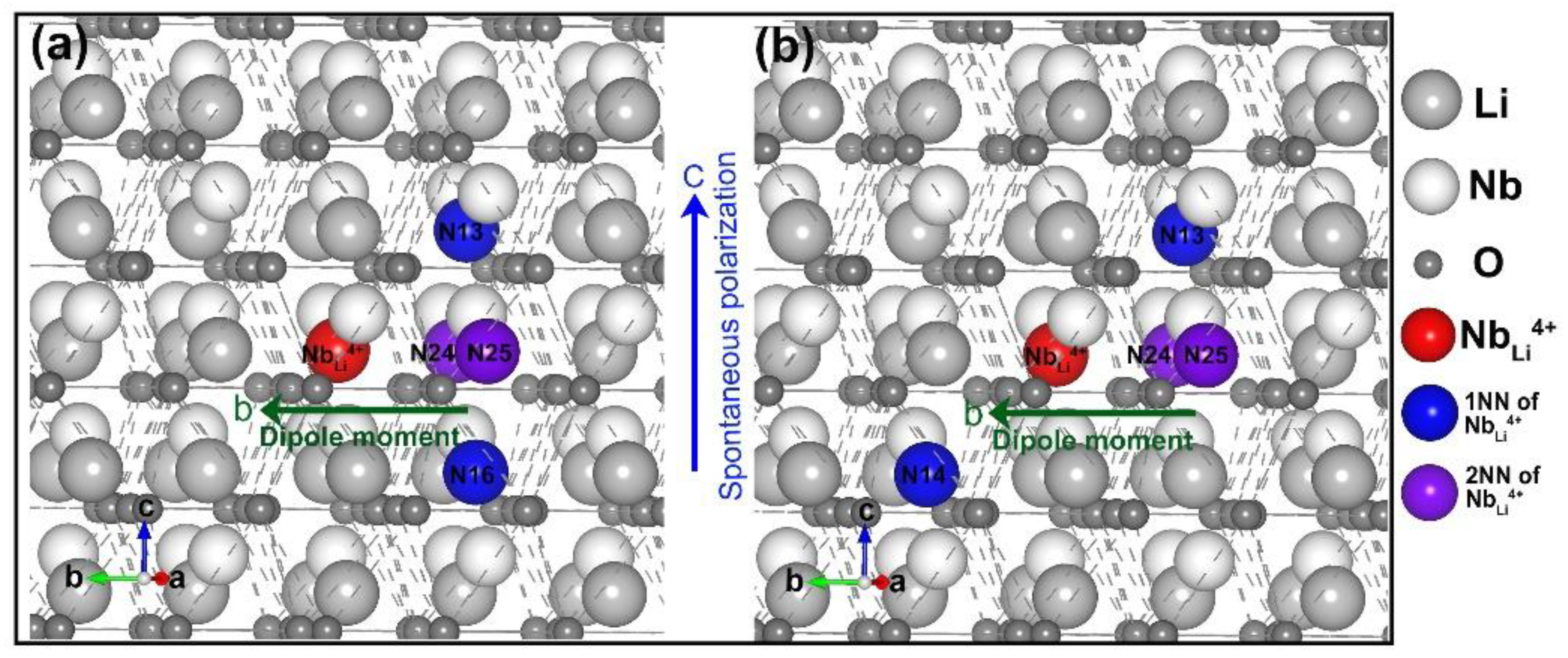

Figure 3. (a) The most stable model and (b) the second stable model of LN. The red balls present the Nb antisite. Blue and purple balls represent the lithium vacancies in 1NN and 2NN sites of Nb antisite, respectively. In addition, the blue arrow shows the direction of spontaneous polarization of the crystal, while the green arrow indicates the direction of the dipole moment.
Figure 3. (a) The most stable model and (b) the second stable model of LN. The red balls present the Nb antisite. Blue and purple balls represent the lithium vacancies in 1NN and 2NN sites of Nb antisite, respectively. In addition, the blue arrow shows the direction of spontaneous polarization of the crystal, while the green arrow indicates the direction of the dipole moment.
Materials 12 00100 g003

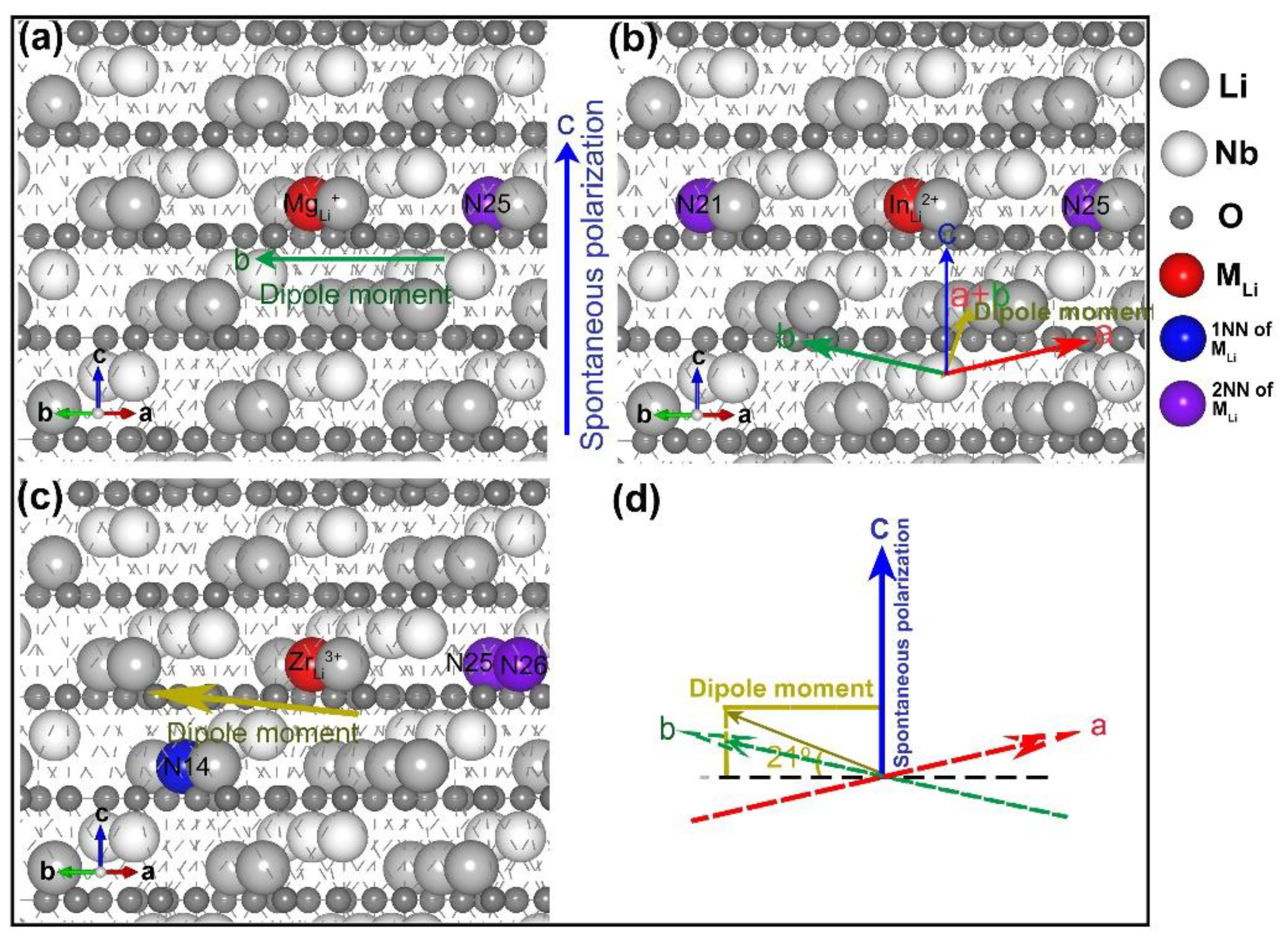

Figure 4. The most stable model of LN:Mg (a), LN:Sc, (b) and LN:Zr (c). The dopants ions Mg2+, Sc3+, and Zr4+ are represented by red balls in the figure, respectively. Blue and purple balls are lithium vacancies in 1NN and 2NN site of dopant ions. In addition, the blue arrow shows the direction of spontaneous polarization of crystal, while green arrows and yellow arrows indicate the direction of the dipole moment in (ac). (d) is the amplification structure of the dipole moment. The red, green, and blue arrows represent the direction of the a, b and c axis in the crystal, and the yellow arrow shows the direction of the dipole moment.
Figure 4. The most stable model of LN:Mg (a), LN:Sc, (b) and LN:Zr (c). The dopants ions Mg2+, Sc3+, and Zr4+ are represented by red balls in the figure, respectively. Blue and purple balls are lithium vacancies in 1NN and 2NN site of dopant ions. In addition, the blue arrow shows the direction of spontaneous polarization of crystal, while green arrows and yellow arrows indicate the direction of the dipole moment in (ac). (d) is the amplification structure of the dipole moment. The red, green, and blue arrows represent the direction of the a, b and c axis in the crystal, and the yellow arrow shows the direction of the dipole moment.
Materials 12 00100 g004
Table 1. The most stable NbLi4+ + 4VLi model in different situations (I–VI) with the formation energy and specific configuration.
Table 1. The most stable NbLi4+ + 4VLi model in different situations (I–VI) with the formation energy and specific configuration.
SituationsDFE (eV)Configuration of 4 Lithium VacanciesPolarization Change (μC·cm−2)
I four lithium vacancies as 1NNs;13.2801NN + 1NN + 1NN + 1NN
II four lithium vacancies as 2NNs;13.2042NN + 2NN + 2NN + 2NN
III four lithium vacancies as 3NNs;13.3573NN + 3NN + 3NN + 3NN
IV three lithium vacancies as 1NNs and one other NN;13.2461NN + 1NN + 1NN + 2NN
V three lithium vacancies as 2NNs and one other NN;13.2222NN + 2NN + 2NN + 1NN
VI two lithium vacancies as 1NNs and two other NNs;13.1661NN + 1NN + 2NN + 2NN2.8
Kim’s Model13.3891NN + 1NN + 1NN + one in the direction of polarization3.2 [7]
Xu’s Model13.3071NN + 1NN + 1NN + 1NN0.8 [7]
Table 2. Formation energies of specific configurations of MgLi+ + VLi, ScLi2+ + 2VLi, and ZrLi3+ + 3VLi.
Table 2. Formation energies of specific configurations of MgLi+ + VLi, ScLi2+ + 2VLi, and ZrLi3+ + 3VLi.
MgLi+ + VLiScLi2+ + 2VLiZrLi3+ + 3VLi
Specific ConfigurationDFE (eV)Specific ConfigurationDFE (eV)Specific ConfigurationDFE (eV)
1NN0.9241NN + 1NN6.5751NN + 1NN + 1NN9.343
2NN0.8621NN + 2NN6.5081NN + 1NN + 2NN9.338
3NN0.9672NN + 2NN6.4661NN + 2NN + 2NN9.111
2NN + 2NN + 2NN9.133
