Synthesis of Macroporous Magnetic Fe₃O₄ Microparticles Via a Novel Organic Matter Assisted Open-Cell Hollow Sphere Assembly Method

Abstract

Macroporous magnetic Fe₃O₄ microparticles, which might act as both drug carriers and magnetocaloric media, were expected to have broad application prospects on magnetocaloric-responsively controlled drug release systems. A kind of macroporous magnetic Fe₃O₄ microparticle was prepared by an organic matter assisted open-cell hollow sphere (hollow sphere with holes on shell) assembly method in this study. 1-vinyl-2-pyrrolidinone (NVP) and 2-acrylamido-2-methyl propane sulfonic acid (AMPS) were selected as the template and the binder, respectively. Ferrous ions were specifically bound to carbonyl groups on NVP and were then reduced by NaBH₄. The reduced irons underwent heterogeneous nucleation and grain growth to form Fe⁰/Fe₃O₄ microspheres consisting of a lot of nano-Fe⁰ grains, and were then assembled into Fe⁰/Fe₃O₄ microparticles wrapped by AMPS. Results indicate that NVP binding with ferrous ions can promote a self-polymerization process and the formation of Fe⁰/Fe₃O₄ microspheres, while AMPS enwrapping around the resultant microspheres can facilitate their assembly into larger aggregates. As a result, macroporous Fe₃O₄ microparticles composed of several open-cell hollow Fe₃O₄ microspheres can be obtained under a Kirkendall-controlled oxidation. Moreover, these as-prepared macroporous Fe₃O₄ microparticles possess a narrow particle size distribution and exhibit ferromagnetism (Ms = 66.14 emu/g, Mr = 6.33 emu/g, and Hc = 105.32 Oe). Our work, described here, would open up a novel synthesis method to assemble macroporous magnetic Fe₃O₄ microparticles for potential application in magnetocaloric-responsively controlled drug release systems.

1. Introduction

Nowadays, the nanoscale/microscale porous particles of transition metal oxides have attracted great attention due to their specific optical, electrical, and magnetic performances derived from the d-layer orbitals with unfilled valence, as well as their unique absorptivity, penetrability, and chemical activity—resulting from their porous structure [1,2,3,4]. Among them, the porous magnetite (ferroferric oxide, Fe₃O₄, one of the transition metal oxides) has been widely applied in catalysis, electrode, microwave absorption, and separation, owing to its low cytotoxicity, adjustable magnetism, high loading capacity, and long circulation [5,6,7,8].

Depending on the pore size, porous materials can be classified into microporous (pore diameter < 2 nm), mesoporous (2–50 nm), and macroporous materials (>50 nm). Microporous material notes were easy to get and are not the focus of our attention. Mesoporous materials have emerged as the most widely studied porous materials in recent years, and various methods for preparing mesoporous materials have been reported [9,10,11,12,13]. However, there are few studies on macroporous materials, which have larger pore diameters and possess a wider application prospect than mesoporous materials in the field of loading and the transport of large-sized particles, especially organic nanoparticles. For instance, macroporous Fe₃O₄ micro/nanoparticles are able to act as carriers for loading and transporting drug-loaded temperature-sensitive micelles in magnetocaloric-responsively controlled drug release systems. On the one hand, macroporous Fe₃O₄ micro/nanoparticles would improve the drawbacks of drug loss in micelles, and on the other hand, they would also provide a heat source for the control of temperature-sensitive materials. Hence, the development of macroporous Fe₃O₄ micro/nanoparticles is of importance to achieve an effective and controlled release of drugs [14]. At present, the preparations of macroporous materials mostly rely on adopting the colloidal crystal template method. However, the colloidal crystal template is usually obtained by the self-assembly of organic microspheres, and the size of the template is far exceeded by the micron scale, thus leading to the colloidal crystal template method being just as suitable for the preparation of the macroporous bulk materials—rather than the macroporous microparticles [15,16,17]. Therefore, there is, so far, still a lack of an efficient synthesis approach to prepare macroporous transition metal oxides-based microparticles.

In recent years, various hollow nanospheres have been reported in succession [18,19,20], and some nano or submicron scale hollow Fe₃O₄ spheres have been prepared through the template method [21], the hydrothermal method [22], the self-assembly method [23], and the controlled oxidation method [24]. Among these hollow spheres synthesis methods, the controlled oxidation method, based on the nanoscale Kirkendall effect (NKE), has attracted widespread attention because of its controllability in outer and inner diameters of hollow spheres. The Kirkendall controlled oxidation method is involved in two main processes. The first process is the synthesis of Fe⁰/Fe₃O₄ particles, in which the Fe⁰ particles are first synthesized and then the Fe⁰/Fe₃O₄ core-shell particles are formed after the surficial oxidation is finished. The second process is the oxidation and cavitation of Fe⁰/Fe₃O₄ particles, in which case the Fe atoms in the core preferentially diffuse to the surface at the elevated temperature under the action of NKE, thus resulting in a hollowing Fe₃O₄ structure [25,26,27]. The morphology and size of the Fe⁰/Fe₃O₄ core-shell particles, formed in the first step, determine the size and pore diameter of the final hollow Fe₃O₄ spheres. As the spheres are gradually hollowed during the oxidation process, some holes might appear on the shell to form the open-cell hollow sphere (hollow sphere with holes on the shell).

Based on the open-cell hollow nanospheres, a potential strategy of assembling the open-cell hollow microspheres/nanospheres into macroporous microparticles (the aggregate of open-cell hollow microspheres/nanospheres in micron/submicron scale) is proposed in our research. There are two paths to assemble hollow spheres into macroporous aggregates, including the hollowing-first method and the assembling-first method. Some troubles might exist in the direct assembly of the open-cell hollow Fe₃O₄ microspheres into macroporous aggregates because the holes on the shell is probably sealed up by the binder, and the aggregation of open-cell hollow Fe₃O₄ microspheres is difficult to maintain once the binder is removed through calcination. In contrast, it would be practicable that the Fe⁰/Fe₃O₄ microspheres are pre-assembled into aggregates and then oxidized and hollowed in consideration of the local fusion of adjacent microspheres, which are the result of the grain growth during the oxidation process that is propitious to the maintenance of macroporous aggregates.

In this study, a kind of macroporous magnetic Fe₃O₄ microparticles, composed of Fe₃O₄ open-cell hollow microspheres with sizes ranging from several hundred nanometers to several microns, were prepared by a novel organic matter assisted open-cell hollow sphere assembly method, in which 1-vinyl-2-pyrrolidinone (NVP) and 2-acrylamido-2-methyl propane sulfonic acid (AMPS) were selected as the template and the binder, respectively. The effects of NVP and AMPS additions on the composition and morphology of the Fe⁰/Fe₃O₄ microspheres and the corresponding aggregates were explored in detail. Moreover, the regulatory mechanisms of NVP and AMPS on the formation and assembly of Fe⁰/Fe₃O₄ microspheres were preliminary discussed. In addition, the morphology, pore structure, and magnetic performance of macroporous Fe₃O₄ aggregates upon the Kirkendall controlled oxidation were also investigated. The results show that the macroporous Fe₃O₄ microparticles, in the micron scale, were prepared by the assembly of the Fe₃O₄ open-cell hollow microspheres—in the assembling-first way—whilst the organic monomers of NVP and AMPS played a crucial role in the formation of the Fe⁰/Fe₃O₄ microspheres and their assembly into Fe⁰/Fe₃O₄ microparticles.

2. Materials and Methods

2.1. Raw Materials and Reagents

Two kinds of organic monomers, 1-vinyl-2-pyrrolidinone (C₆H₉NO, NVP) with 99.5% purity that is stabilized with 4-Methoxyphenol (MEHQ), and 2-acrylamido-2-methyl propane sulfonic acid (C₇H₁₃NO₄S, AMPS) with 98% purity, were purchased from J & K Scientific Ltd., Beijing, China. Trimethylamine N-oxide (C₃H₉NO, TMAO) with 98% purity was the oxygen transfer agent used in the solvothermal reaction and was purchased from Sigma Aldrich Trading Ltd., Burlington, MA, USA. Iron chloride tetrahydrate (FeCl₂·4H₂O) and sodium borohydride (NaBH₄), as well as other conventional reagents were analytical reagents without further purification and were purchased from Kelong Chemicals, Chengdu, China. All reagents were used without further purification.

2.2. Synthesis of Fe⁰/Fe₃O₄ Microparticles

In a typical synthesis, 0.05 g AMPS, 25 μL NVP, and 1.243 g iron chloride tetrahydrate (FeCl₂·4H₂O) was dissolved in 50 mL aqueous under mechanical stirring, followed by 30 min ultrasonic oscillation for complete dissolution. 20 mL 0.54 mol/L NaBH₄ aqueous solution was slowly dripped into the FeCl₂ solution under vigorously mechanical agitation. After the completion of the dripping, agitation was continued for 30 min. The precipitate was washed with deionized water and ethanol several times, and then vacuum dried at room temperature for 8 h to obtain the Fe⁰/Fe₃O₄ microparticles marked as P^0.05₂₅. The superscript indicated the quality of AMPS in grams and the subscripts indicated the volume of NVP in microliters. A series of experiments based on the control variable method were conducted to investigate the effects of the two organic matters on the formation of the Fe⁰/Fe₃O₄ microparticles. In the first group, the AMPS addition was fixed at 0.05 g, and the NVP additions were determined as 0, 12.5, 25, 50, and 100 μL, respectively. While in the second group, the NVP addition was fixed at 25 μL, and the AMPS additions were selected as 0, 0.01, 0.05, 0.5, and 1 g, respectively.

2.3. Synthesis of Macroporous Fe₃O₄ Microparticles

0.16 g of Fe⁰/Fe₃O₄ microparticles P^0.05₂₅ was dispersed in a mixed solution of 55 mL of hexane and 5 mL of ethanol dissolved with 0.06 g of TMAO. Then, the mixed slurry was decanted into a 100-mL Teflon lined stainless steel autoclave, sealed, and preserved at 180 °C for 4 h. After cooling to room temperature, the precipitate was washed by deionized water and ethanol and dried in a vacuum oven for 8 h (marked as I^0.05₂₅). After calcination at 400 °C for 3 h in a nitrogen atmosphere, the macroporous Fe₃O₄ microparticles were obtained (marked as F^0.05₂₅).

2.4. Characterization

The phase composition of prepared powders was determined by X-ray diffractometer (XRD6100, Shimadzu, Kyoto, Japan) with Cu Kα radiation (λ = 0.154 nm) at a scanning rate of 5°/min for 2θ ranging from 10° to 80° and X-ray photoelectron spectroscope (XPS, Escalab 250Xi, Thermo Fisher Scientific, Waltham, MA, USA). The existence forms of the two organic matters were analyzed by the Fourier transform infrared spectroscopy (FTIR, Nicolet 6700, Bruker Optics, Ettlingen, Germany) using the KBr method. Morphological observation was carried out by scanning electron microscopy (SEM, JSM-7500F, JEOL Ltd., Tokyo, Japan) at a voltage of 15 kV and a low-resolution/high-resolution transmission electron microscopy (TEM/HRTEM, Zeiss Libra 200FE, Carl Zeiss, Jena, Germany) at voltage of 200 kV, respectively. Element distribution was characterized by an energy dispersive X-ray spectroscope (EDXS, Super-X, EDAX Inc., San Diego, CA, USA) attached to a transmission electron microscopy (TEM, Zeiss Libra 200FE, Carl Zeiss, Jena, Germany). The particle size was measured by a laser particle size analyzer (LPSA, Mastersizer 3000E, Malvern Instruments Ltd., Malvern, UK) using water as the dispersant. Nitrogen adsorption-desorption isotherms were obtained with a high performance micropore analyzer (Kubo-X1000, Beijing Biaode Electronic Techology Co. Ltd., Beijing, China) at 77 K. Hysteresis loop was obtained by vibrating sample magnetometer (VSM, Lakeshore 7410, Lake Shore Cryotronics Inc., Columbus, OH, USA) at room temperature.

3. Results and Discussion

3.1. Composition and Morphology of Fe⁰/Fe₃O₄ Microparticles

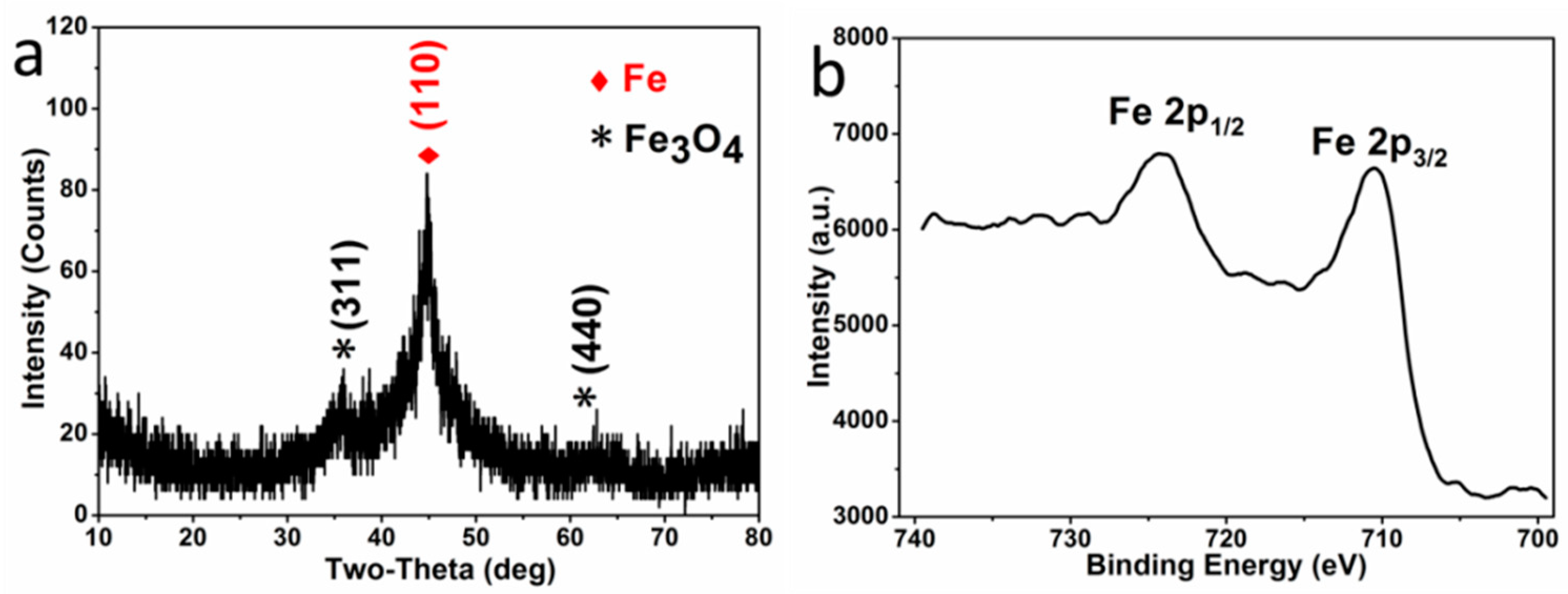

The crystal phase composition of the microparticles P^0.05₂₅, obtained by reduction, was investigated by XRD and XPS. In the XRD pattern (Figure 1a), the diffraction peaks centered at 44.7° is indexed to the characteristic peaks (110) of Fe⁰ (JCPDS NO. 06-0696), while the peaks centered at 35.5° and 62.6° are indexed to the characteristic peaks (311) and (440) of Fe₃O₄ (JCPDS NO. 88-0866), respectively. The characteristic peaks of Fe₂O₃ are absent in the XRD pattern, and there are no specific satellite structures of ferric oxide in the high resolution Fe 2p XPS spectroscopy (Figure 1b)—verifying the absence of γ-Fe₂O₃ or α-Fe₂O₃ [28,29]. Therefore, the oxide in the sample is pure Fe₃O₄. Moreover, the characteristic peaks of Fe⁰ are much higher than that of Fe₃O₄, indicating that the microparticles are mainly composed of a large amount of Fe⁰ and a small amount of Fe₃O₄, resulting from the surficial oxidation in the atmosphere (expressed with Fe⁰/Fe₃O₄ microparticles).

The morphology and microstructure of P^0.05₂₅ were explored by SEM, TEM, and LPSA. The SEM photograph (Figure 2a) reveals that the microparticles are obtained by the aggregation of the submicron spheres with a rough surface. Moreover, a TEM photograph (Figure 2b) shows that the single submicron sphere is wrapped in the floccules that could be organic AMPS, according to the later analysis. With the element distribution from EDXS element mapping images, shown in Figure 2c, we can see that the submicron spheres have a distinct core-shell structure, in which the interior of the sphere is rich in the Fe element, while the surface has more O elements. We believe that the core material of the core-shell structure is mainly Fe⁰, while the shell material is composed of Fe₃O₄ and organic matter. Simultaneously, a HRTEM image (Figure 2d) of the materials surface, taken from the black square area in Figure 2b, further shows that the surface of the submicron sphere is amorphous (the area indicated by the red arrow), whilst interspersed with a large number of Fe₃O₄ nanocrystals (the area indicated by the blue arrow). The interplanar crystal spacing of the nanocrystals is determined to be 0.48 nm, belonging to (111) Planes of Fe₃O₄. Furthermore, the LPSA analysis results (Figure 2e) also shows that there are two particle size distributions concentrated at 0.17 ± 0.05 μm and 1.50 ± 0.50 μm, respectively. Combining with the results of the SEM and TEM observations, it is confirmed that the small amount of submicron particles (about 0.17 μm) are the unaggregated Fe⁰/Fe₃O₄ microspheres, while the dominant micron particles (about 1.5 μm) are the aggregates of microspheres. All these results demonstrate that some submicron Fe⁰/Fe₃O₄ microspheres could assemble into the micron aggregates (i.e., Fe⁰/Fe₃O₄ microparticles) under the assistance of organic matters.

3.2. Effects of Organic Matters on Fe⁰/Fe₃O₄ Microparticles

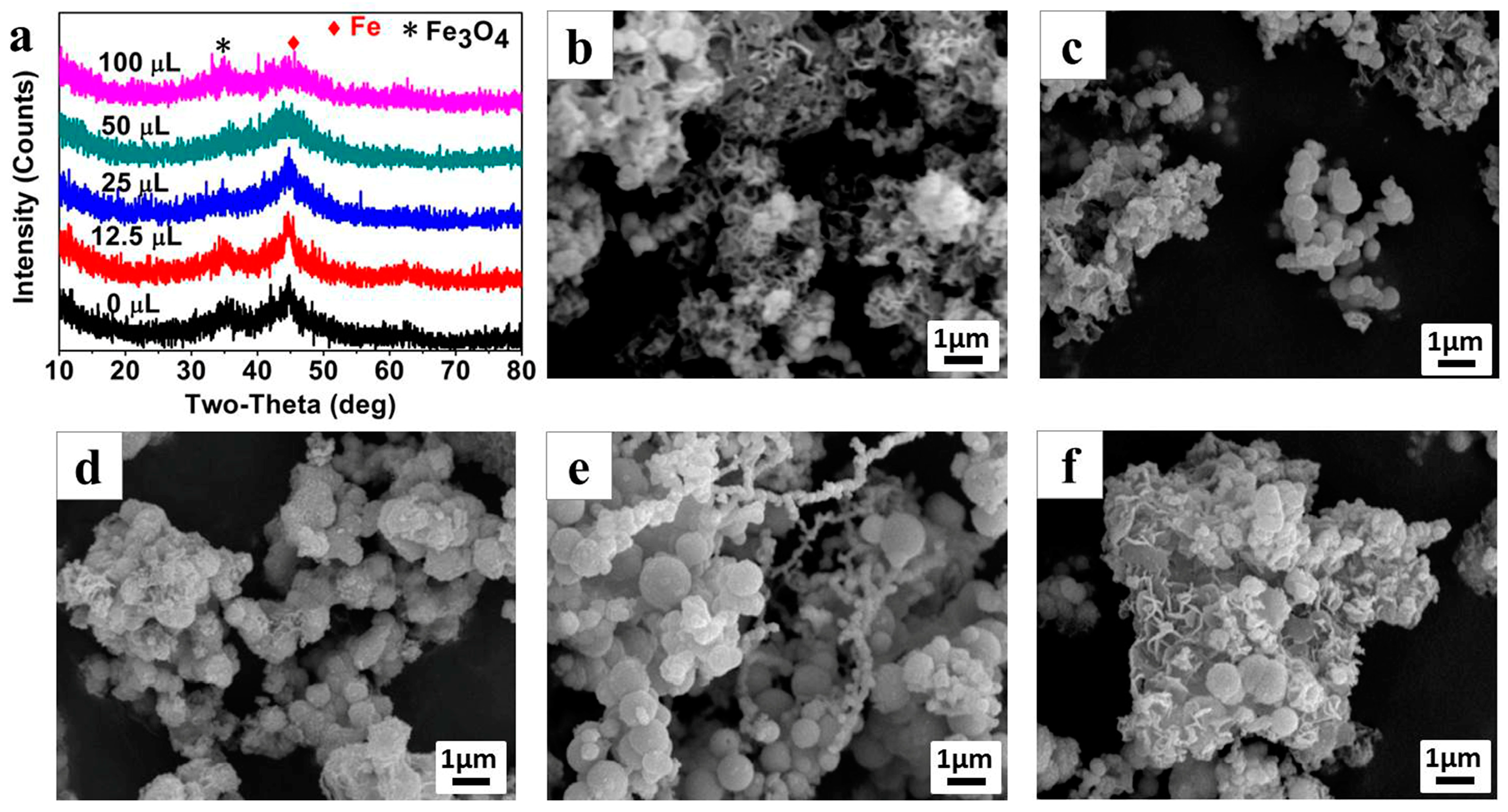

A series of experiments based on the control variable method were conducted to investigate the effects of the NVP and AMPS organic matters on the formation of the Fe⁰/Fe₃O₄ microparticle. The crystal compositions of the Fe⁰/Fe₃O₄ microparticles (P^0.05₀, P^0.05_12.5, P^0.05₂₅, P^0.05₅₀, and P^0.05₁₀₀) which were synthesized under different NVP additions, but with the addition of AMPS fixed at 50 mg, were determined by XRD. According to the XRD patterns (Figure 3a), similar to P^0.05₂₅, the crystal phase of other samples can all be indexed to Fe⁰ and Fe₃O₄. With the increase of NVP addition, the intensity of the diffraction peaks gradually decrease and the Fe⁰ phase diffraction peaks, especially at 44.7°, became wider, indicating that the growth of crystalline grains could be inhibited by NVP so that the crystallinity of the Fe⁰/Fe₃O₄ microparticle decreases with the increase of NVP addition.

The morphologies of Fe⁰/Fe₃O₄ microparticles, synthesized under different NVP additions, were observed by SEM as shown in Figure 3b–f. The Fe⁰/Fe₃O₄ microparticles prepared without NVP addition mainly exists in the form of floccules, and can only be observed with a few particles (Figure 3b). After introducing 12.5 μL NVP (Figure 3c), a large amount of submicron spheres, with an average diameter of about 300 nm appear, and these submicron spheres assemble into larger micron aggregates wrapped by some floccules of the polymerized AMPS. With the increase of NVP addition, the size of microspheres gradually increases, and in particular, it enlarges even to 1 μm when the NVP addition increases to 50 μL (Figure 3d,e). Thereafter, the size of the microspheres has no change even if the NVP addition is as high as 100 μL, however, a large amount of irregular sheets appeared in the aggregates, which can be inferred to be the excess NVP (Figure 3f).

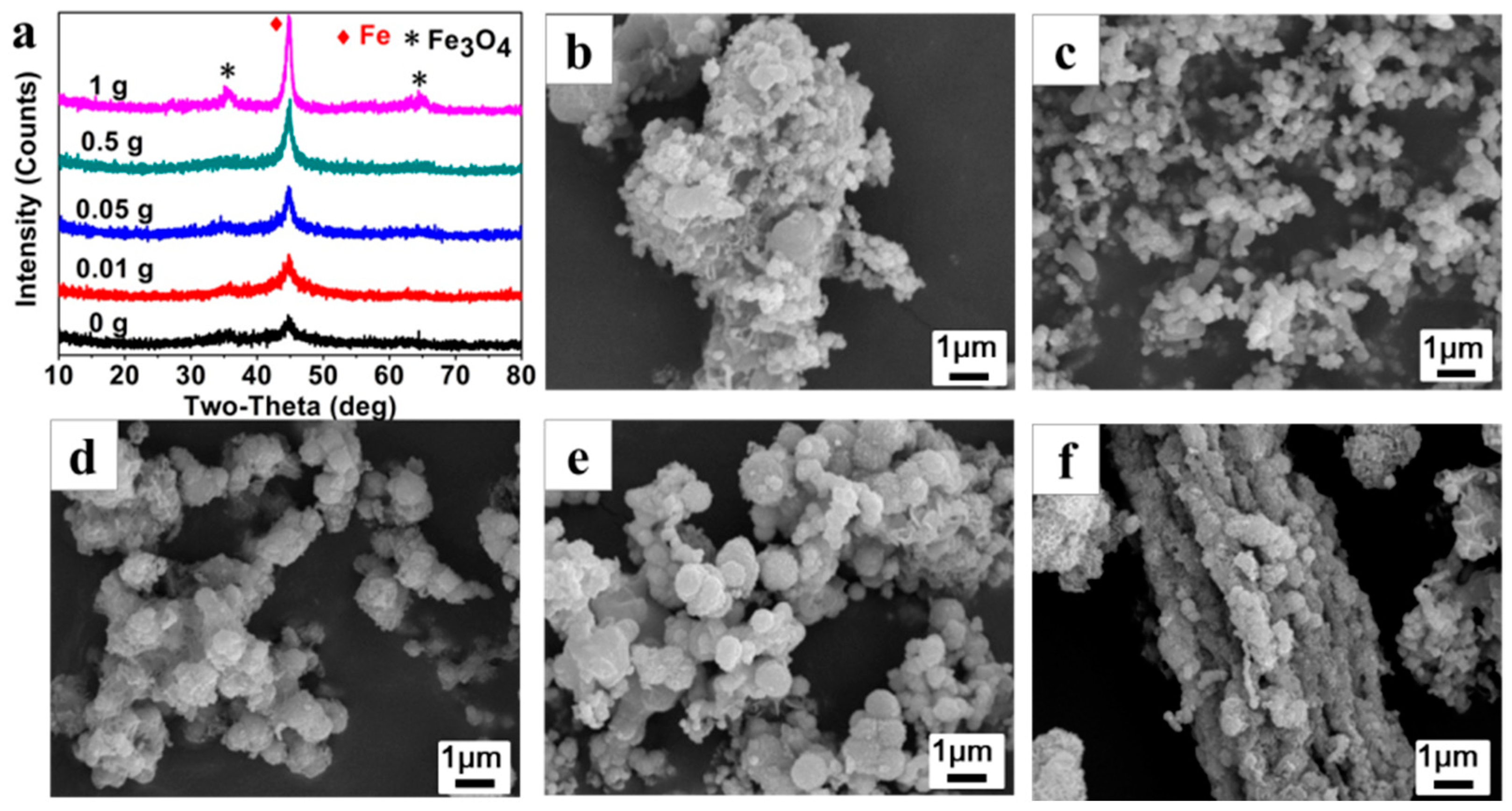

Figure 4a shows the XRD patterns of the Fe⁰/Fe₃O₄ microparticles (P⁰₂₅, P^0.01₂₅, P^0.05₂₅, P^0.5₂₅, P¹₂₅) synthesized under different AMPS additions while the NVP addition is fixed at 25 μL. As can be clearly seen, the crystal phase of the Fe⁰/Fe₃O₄ microparticles can be indexed to Fe⁰ and Fe₃O₄, but the crystallinity of Fe⁰/Fe₃O₄ microparticles is gradually enhanced along with the increase of AMPS additions, implying that the existence of AMPS is conducive to the assembly of the Fe⁰/Fe₃O₄ microspheres.

Figure 4b–f presents the SEM images of Fe⁰/Fe₃O₄ microparticles (P⁰₂₅, P^0.01₂₅, P^0.05₂₅, P^0.5₂₅, P¹₂₅). In the absence of AMPS, the prepared precipitates are stacked loosely by blocky components of about 100 nm in size (Figure 4b). Then, some irregular aggregates composed of microspheres with a size of about 100 nm appear after adding 0.01 g of AMPS, (Figure 4c). With the increase of AMPS additions, the microsphere gradually increases to 500 nm in size and is wrapped by some floccules, meanwhile, the aggregate gradually becomes denser and larger (Figure 4d,e). Under the AMPS addition of 1 g, the microspheres are aggregated more seriously and even the rod-like aggregates that are more than 10 μm in size can be observed (Figure 4f).

The above experimental results indicate that the two organic monomers played different roles in regulating the formation of the Fe⁰/Fe₃O₄ microparticles, that is, the NVP is conducive to the formation of the Fe⁰/Fe₃O₄ microsphere, while the AMPS facilitates the assembly of the Fe⁰/Fe₃O₄ microsphere into aggregates (Fe⁰/Fe₃O₄ microparticles).

3.3. Regulatory Mechanism of NVP and AMPS on Fe⁰/Fe₃O₄ Microparticles

As mentioned above, the organic monomers NVP and AMPS play crucial roles in the formation of the Fe⁰/Fe₃O₄ microspheres and the assembly of the Fe⁰/Fe₃O₄ microspheres into Fe⁰/Fe₃O₄ microparticles.

NVP is a water-soluble vinyl monomer and is prone to polymerization to polyvinylpyrrolidone (PVP). The highly charged O on the carbonyl of NVP and its polymer PVP molecules can chemically bind to the metal ions in the solution [30]. Also, as a water-soluble vinyl monomer, AMPS is easily polymerized in aqueous media, and the polymeric product exhibits high temperature endurance and hydrolysis resistance. While there also exists a carbonyl group in chemical structures, the AMPS molecule is hard to bind to metal ions due to the strong salt resistance resulting from the salt-insensitive sulfonic acid group [31].

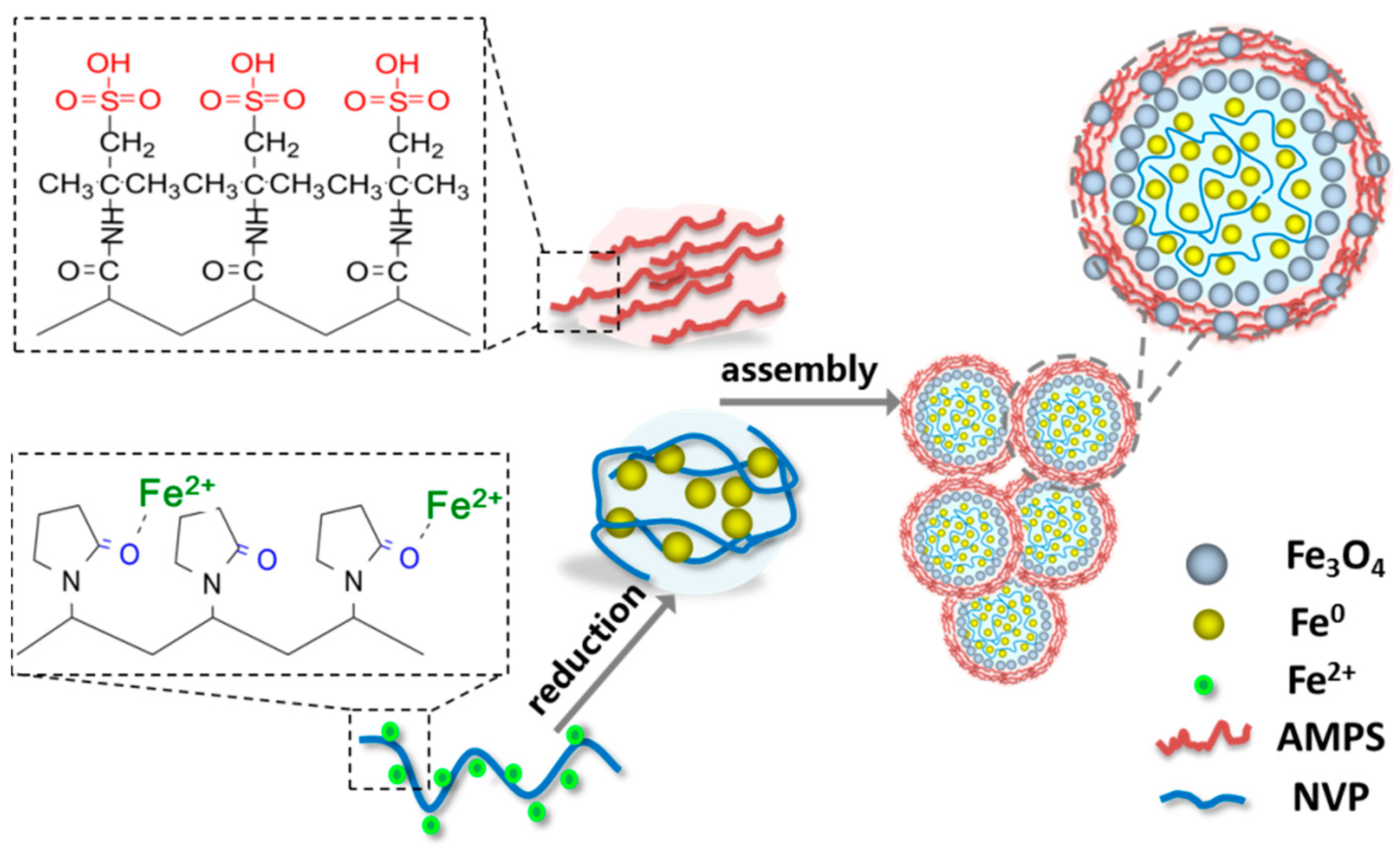

When the iron chloride tetrahydrate, NVP, and AMPS were dissolved together in aqueous solution, the ferrous ions were preferentially coordinated with the carbonyl (C=O) on NVP, meanwhile the NVP molecules were gradually polymerized. Subsequently, the coordinated ferrous ions were reduced by sodium borohydride, leading to the heterogeneous nucleation and the growth of the Fe⁰ grain. Because of the binding effect of NVP molecules, the Fe⁰ grain growth was greatly restrained. Upon the polymerization of NVP, a lot of nano-Fe⁰ grains, bound to NVP, could be aggregated together into submicron Fe⁰ microspheres mingled with a NVP polymer. On the other hand, the gradually polymerized AMPS were wrapped outside the Fe⁰ microspheres, and a number of the submicron Fe⁰ microspheres could be assembled into the Fe⁰ microparticles in the micron scale during the further polymerization of AMPS. In addition, the slight oxidation might take place on the surface of the formed Fe⁰ microspheres in the atmosphere so as to obtain Fe⁰/Fe₃O₄ microparticles. This regulatory mechanism is consistent with the experimental results about the effects of NVP and AMPS on Fe⁰/Fe₃O₄ microparticles. Therefore, the proposed regulatory mechanism of NVP and AMPS on the formation of Fe⁰/Fe₃O₄ microparticles is illustrated in Figure 5.

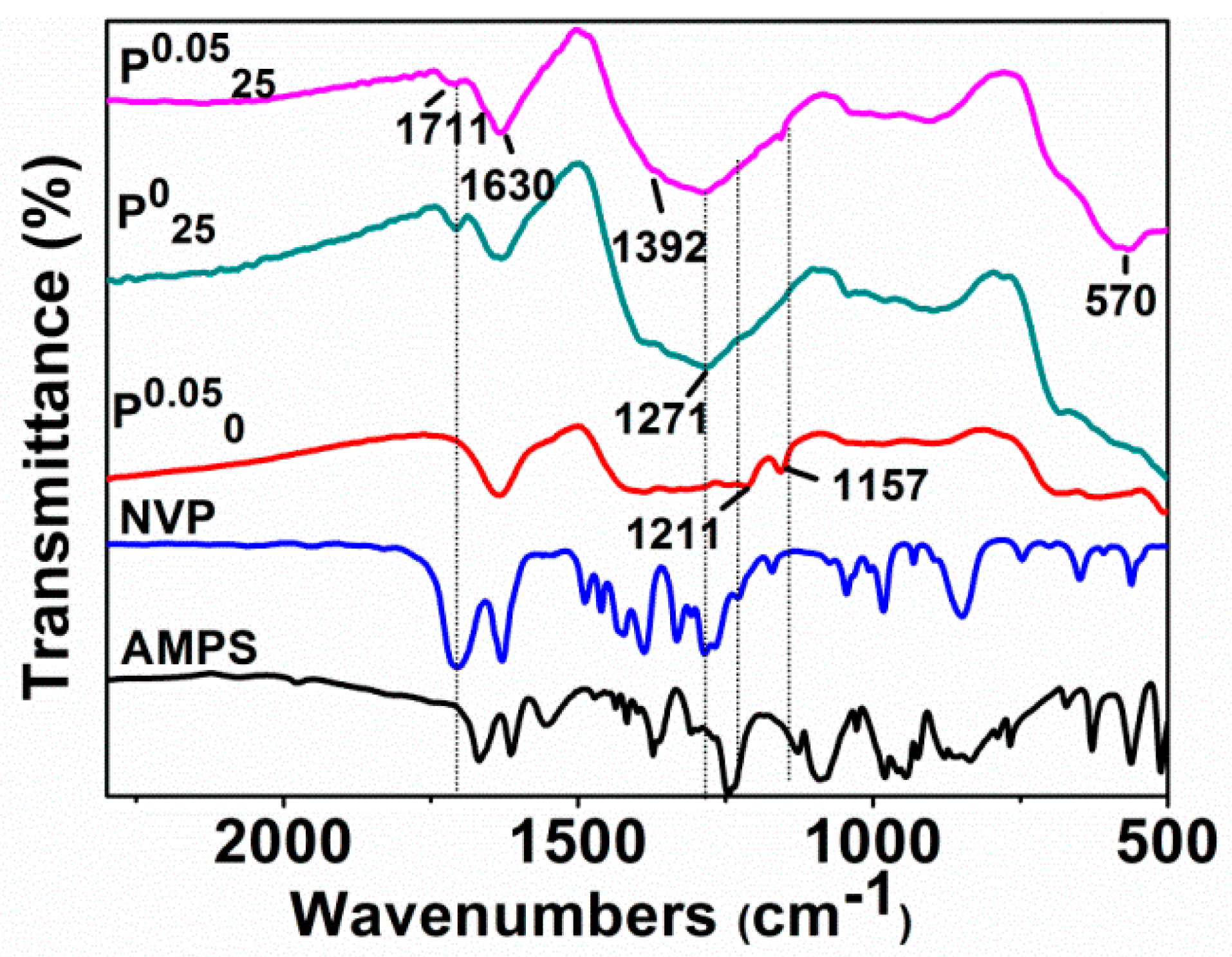

Figure 6 shows the infrared absorption spectra of AMPS, NVP, and Fe⁰/Fe₃O₄ microparticles including P^0.05₀, P⁰₂₅, and P^0.05₂₅ synthesized under different additions of NVP and AMPS. Clearly, the C–N absorption band of NVP at 1285 cm⁻¹, which is absent in the spectrum of P^0.05₀, but appears in P⁰₂₅ and P^0.05₂₅. Similarly, the characteristic bands of AMPS, such as S=O symmetric stretching vibration band and C–N stretching vibration band at 1211 cm⁻¹ and 1157 cm⁻¹, are not observed in the spectrum of P⁰₂₅, but appear in P^0.05₀ and P^0.05₂₅. These results agree with the experiments, whether the NVP and AMPS were added in or not.

It is worth noting that the absorption band at about 1711 cm⁻¹, belonging to C=O, disappears in the spectrum of P^0.05₀ (AMPS added only), but appears with a relatively weak intensity in the spectra of P⁰₂₅ (NVP added only) and P^0.05₂₅ (both NVP and AMPS added). It is well known that the reductant NaBH₄ used in our synthesis exhibits the characteristic of selectively reducing ketones. The unprotected carbonyl groups on AMPS and NVP were likely to be reduced to hydroxyl groups in the preparation of the Fe⁰/Fe₃O₄ microparticles. Actually, the coordinated ferrous ions can protect these carbonyl groups from reduction. The carbonyl groups in AMPS were completely reduced by NaBH₄, while the carbonyl groups in NVP bound to Fe²⁺ had avoided the reduction. However, the absorption band belonging to C=O is also weakened due to its coordination with ferrous ions. These results also prove that NVP is able to directly regulate the formation of the Fe⁰/Fe₃O₄ microspheres by binding to ferrous ions, and AMPS is involved in the regulatory aggregation of the Fe⁰/Fe₃O₄ microparticles.

3.4. Morphology and Magnetism of Macroporous Fe₃O₄ Microparticles

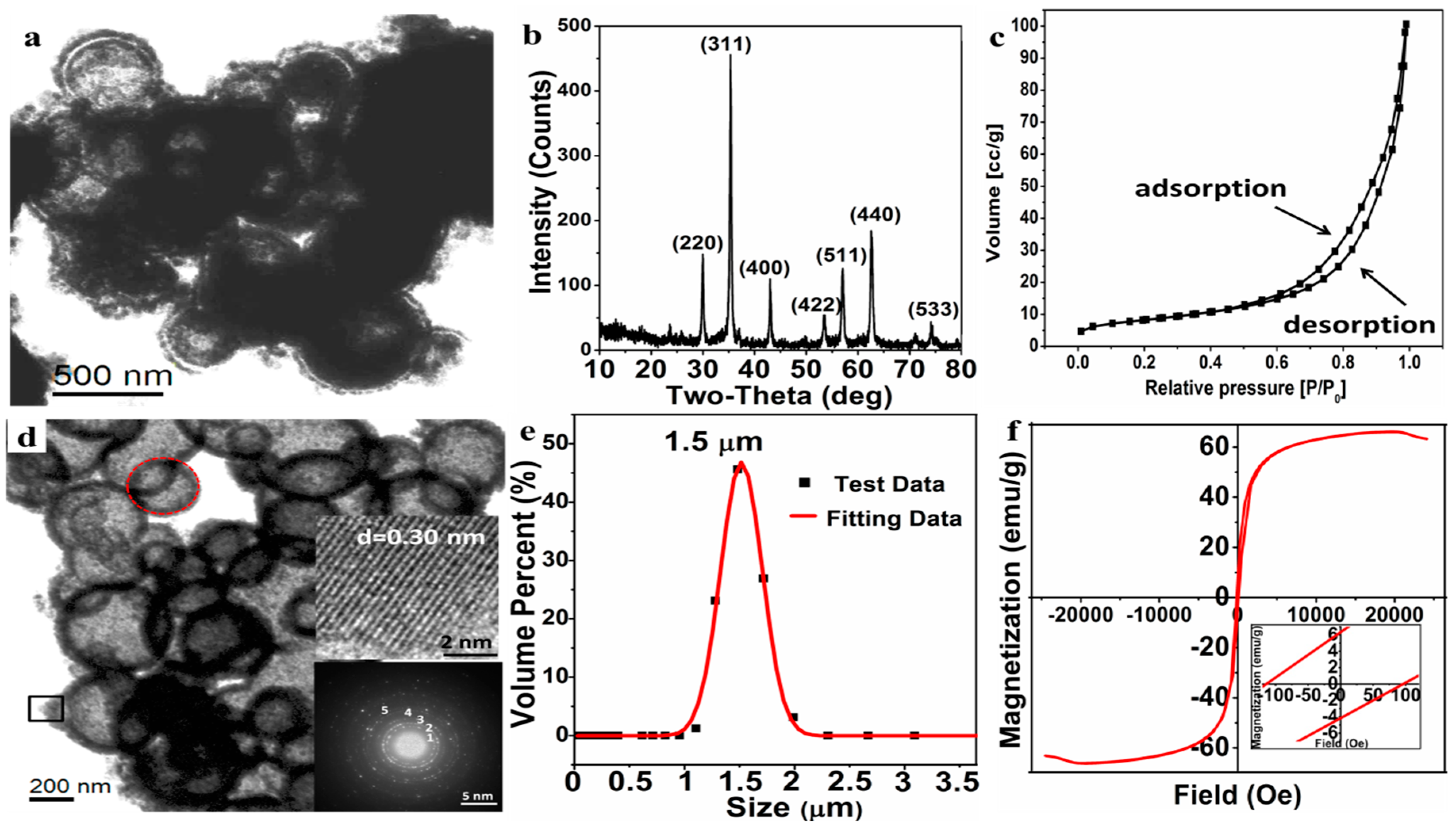

After undergoing the solvothermal reaction, the Fe⁰/Fe₃O₄ microparticles were converted to the Fe₃O₄ microparticles wrapped by organic matters (Figure 7a). It can be seen that the hollow structure of microsphere is basically formed and the microspheres are still wrapped by a floccule layer of organic matters.

The macroporous Fe₃O₄ microparticles were obtained after calcination to remove the organic matters under a protective atmosphere. The phase composition and morphology of the macroporous Fe₃O₄ microparticles were characterized by XRD, TEM, and LPSA. According to the XRD pattern (Figure 7b), the well-resolved diffraction peaks are well indexed to Fe₃O₄ (JCPDS NO. 88-0866), and the crystal exhibits a high crystallinity. Nitrogen adsorption-desorption curves (Figure 7c), a type IV isotherm, show that the Fe₃O₄ has a stacked pore structure and the multi-point BET specific surface area is estimated to 29.23 m²/g, and the BJH cumulative total pore volume (d > 2 nm) is 0.16 cc/g. As for the specific porous structure, it can be further and clearly seen from the TEM image (Figure 7d), in which the macroporous Fe₃O₄ microparticle is assembled from a number of open-cell hollow microspheres. The pore size of the Fe₃O₄ microparticle is mainly distributed in 300–500 nm, while the porosity of the Fe₃O₄ microparticle can be reasonably attributed to both the open-cell hollow of microspheres and the gaps between the microspheres, as shown in Figure 7d. The HRTEM image of Fe₃O₄ nanoparticles (the right middle insert in Figure 7d), from the shell of open-cell hollow sphere by the black square area, shows that the interplanar crystal spacing is about 0.30 nm, corresponding to the (220) plane of Fe₃O₄. In addition, the main polycrystalline diffraction rings (marked as 1, 2, 3, 4, 5), which correspond to the (220), (311), (400), (511), and (440) crystal planes of the Fe₃O₄, respectively, can be clearly observed in the selected area electron diffraction pattern (the right bottom insert in Figure 7d) from the red round area—this is consistent with the XRD results. The particle size distribution by LPSA (Figure 7e) reveals that the average size of the Fe₃O₄ microparticles is about 1.50 ± 0.50 μm with a PDI 0.218, indicating that the prepared macroporous Fe₃O₄ microparticles have a good dispersibility in the aqueous phase and less agglomeration in application.

The magnetic hysteresis loop by VSM (Figure 7f) verifies that the prepared macroporous Fe₃O₄ microparticles exhibits ferromagnetism with a high saturation magnetization (Ms = 66.14 emu/g), remnant magnetization (Mr = 6.33 emu/g), and coercivity (Hc = 105.32 Oe). Such a ferromagnetic macroporous material is expected to be applied as a drug-loaded material and to provide a heat source for the temperature-sensitive material by applying an alternating magnetic field.

Similar to F^0.05₂₅, after subsequent NKE controlled oxidation, Fe⁰/Fe₃O₄ microparticles with different diameters of spheres will be converted into macroporous Fe₃O₄ particles with different pore sizes and particle sizes. The macroporous Fe₃O₄ particles with such a large pore structure and ferromagnetic properties may provide a good carrier and heat source for the magnetocaloric-responsively controlled drug release system.

3.5. A Preliminary Discussion on Holing Mechanism of Open-Cell Hollow Microsphere

More interestingly, many open-cell hollow microspheres appeared after undergoing the solvothermal reaction and calcination (F^0.05₂₅). This phenomenon would be of great significance to the controllable synthesis of various hollow microspheres. On the basis of a comprehensive analysis on the synthesis process, probable holing mechanisms of open-cell hollow microspheres would be preliminarily suggested.

One of the probable holing mechanisms could be related to the thermal stress effect. In the Kirkendall controlled oxidation process, the contacted microspheres would be locally fused together due to the sustained grain growth in the adjacent region to form the dumbbell-like or bead-like hollow microspheres (shown in Figure 8a). The neck of the dumbbell-like or bead-like hollow microsphere was prone to fracture due to the thermal stress on the interface under an elevated temperature, and a hole was left on the shell. This holing process might occur during either the solvothermal reaction or the calcination process.

Another probable holing mechanism could be the surface tension mechanism. As mentioned earlier, a large amount of NVP was mingled in the obtained Fe⁰/Fe₃O₄ microspheres, and remained in the cavity during the cavitation process. At a high temperature, the vaporized NVP could escape out of the microsphere through the looser part of the shell, leaving behind an initial hole there. Due to the high surface energy resulting from the small radius of curvature at the edge of the initial hole, the surficial atoms could continuously diffuse inward, the shell driven by the surface tension, and thus the hole could be gradually enlarged. This holing way mainly occurred in the calcination process. Some probable holes being enlarged are shown in Figure 8b, and a typical open-cell hollow microsphere is shown in Figure 8c. All these images in Figure 8 are taken from sample F^0.05₂₅.

Certainly, the above suggestions should be supported by sufficient experimental results, and further theoretical calculations and experimental verifications are still ongoing in our laboratory.

4. Conclusions

In this study, a kind of macroporous magnetic Fe₃O₄ microparticles composed of the aggregates of Fe₃O₄ open-cell hollow microspheres was successfully prepared by a novel organic matter assisted open-cell hollow sphere assembly method. With the help of the specific affinity of ferrous ions to carbonyl groups on NVP and the polymerization of organic monomers, the reduced irons underwent heterogeneous nucleation and grain growth to form the Fe⁰/Fe₃O₄ microspheres consisting of a lot of nano-Fe⁰ grains. Then, they were assembled into Fe⁰/Fe₃O₄ microparticles wrapped by organic matters. The NVP can promote the formation of the Fe⁰/Fe₃O₄ microsphere via bonding to ferrous ions and self-polymerizing, while the AMPS can facilitate the assembly of the Fe⁰/Fe₃O₄ microsphere into larger aggregates (Fe⁰/Fe₃O₄ microparticles) via enwrapping around the microsphere during the polymerization. After the Kirkendall controlled oxidation had finished, the Fe⁰/Fe₃O₄ microparticles were converted to the macroporous Fe₃O₄ microparticles (the aggregates of a number of the hollow/open-cell hollow Fe₃O₄ microsphere). The unique porous structure of the macroporous Fe₃O₄ microparticle is mainly derived from both the open-cell hollow of microspheres and the gaps between the microspheres. While the research on open-cell hollow microspheres was very preliminary and the holing mechanism should also be further studied, the strategy to assemble the open-cell hollow Fe₃O₄ microspheres into the macroporous microparticles has been verified as feasible. Additionally, the prepared macroporous magnetic Fe₃O₄ microparticles were expected to have broad application prospects on magnetocaloric-responsively controlled drug release systems.
