Next Article in Journal
Drug Delivery Nanosystems for the Localized Treatment of Glioblastoma Multiforme
Next Article in Special Issue
POSS Nanofiller-Induced Enhancement of the Thermomechanical Properties in a Fluoroelastomer Terpolymer
Previous Article in Journal
Influence of AlN(0001) Surface Reconstructions on the Wettability of an Al/AlN System: A First-Principle Study
Previous Article in Special Issue
Comparison of Ultem 9085 Used in Fused Deposition Modelling (FDM) with Polytherimide Blends
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle
Materials 2018, 11(5), 776; https://doi.org/10.3390/ma11050776

Morphology and Mechanical Properties of Polyamide 6/Polystyrene Blends Prepared by Diffusion and Subsequent Polymerization of Styrene in Polyamide 6 Pellets

Key Laboratory of Advanced Materials (MOE), Department of Chemical Engineering, Tsinghua University, Beijing 100084, China
*
Authors to whom correspondence should be addressed.
Received: 20 April 2018 / Revised: 8 May 2018 / Accepted: 9 May 2018 / Published: 11 May 2018
(This article belongs to the Special Issue Polymer Blends and Compatibilization 2018)
Full-Text   |   PDF [1507 KB, uploaded 11 May 2018]   |

Abstract

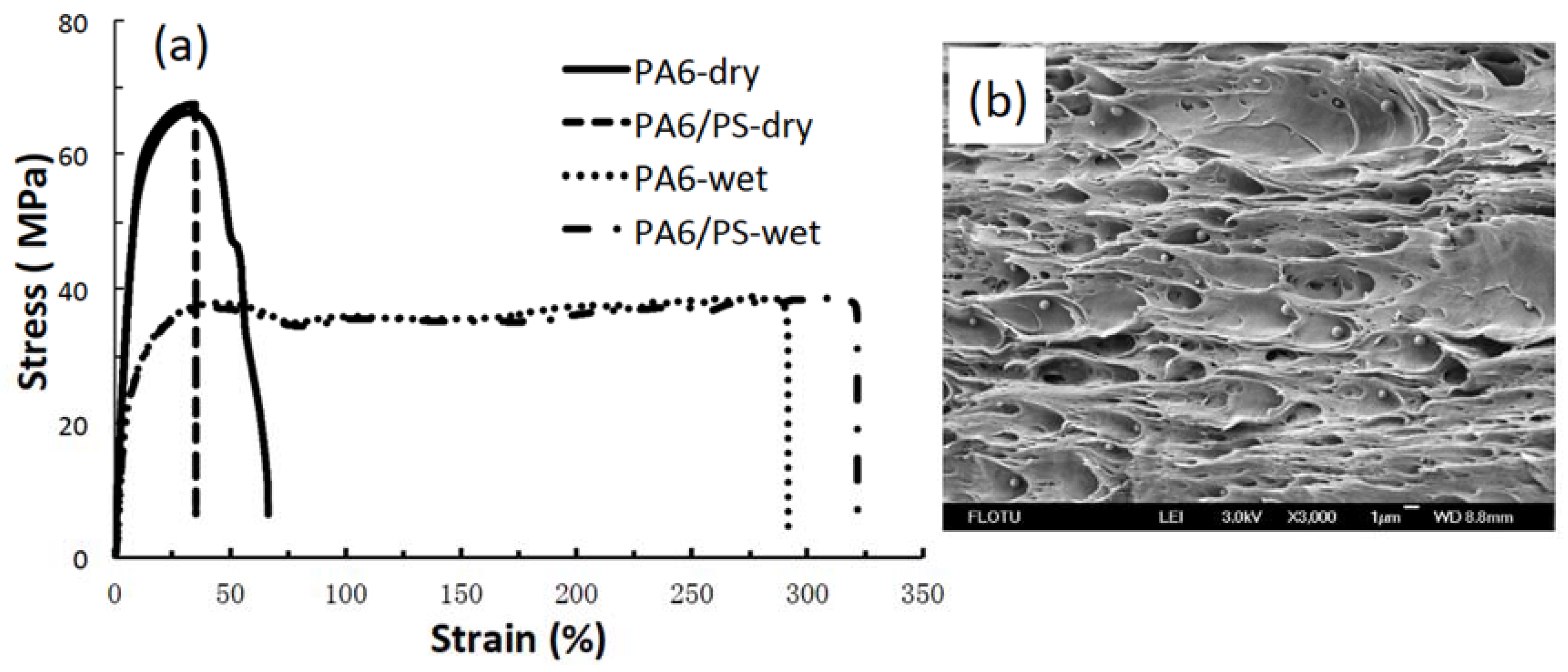

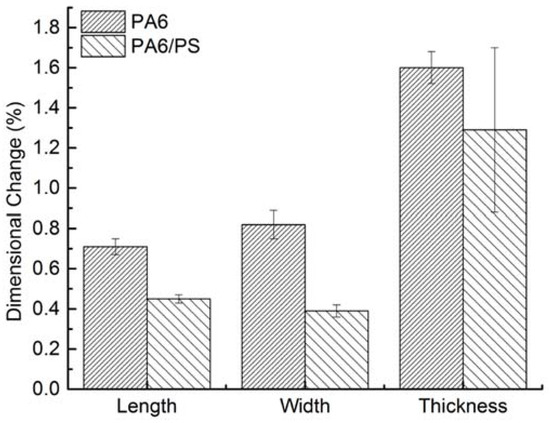

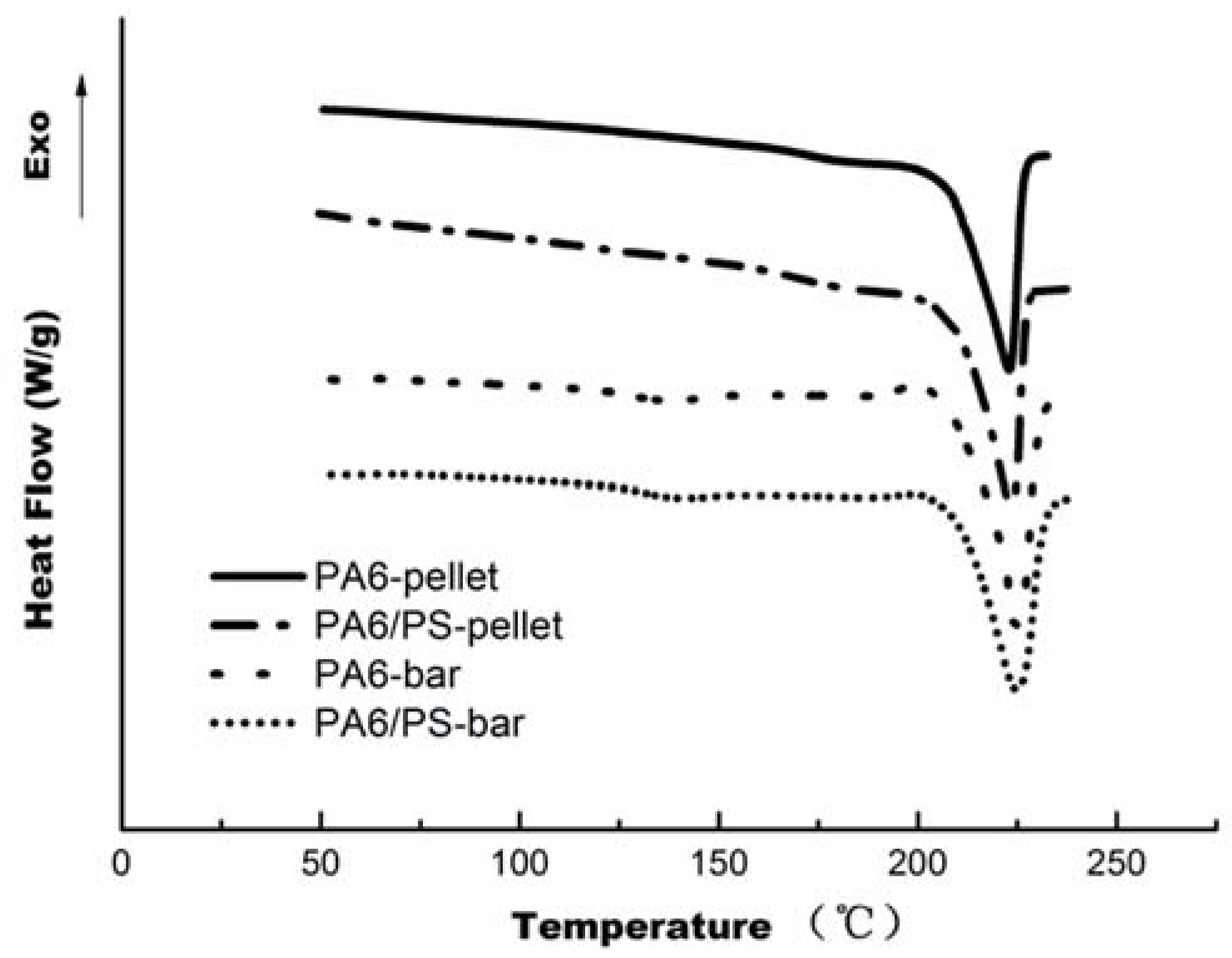

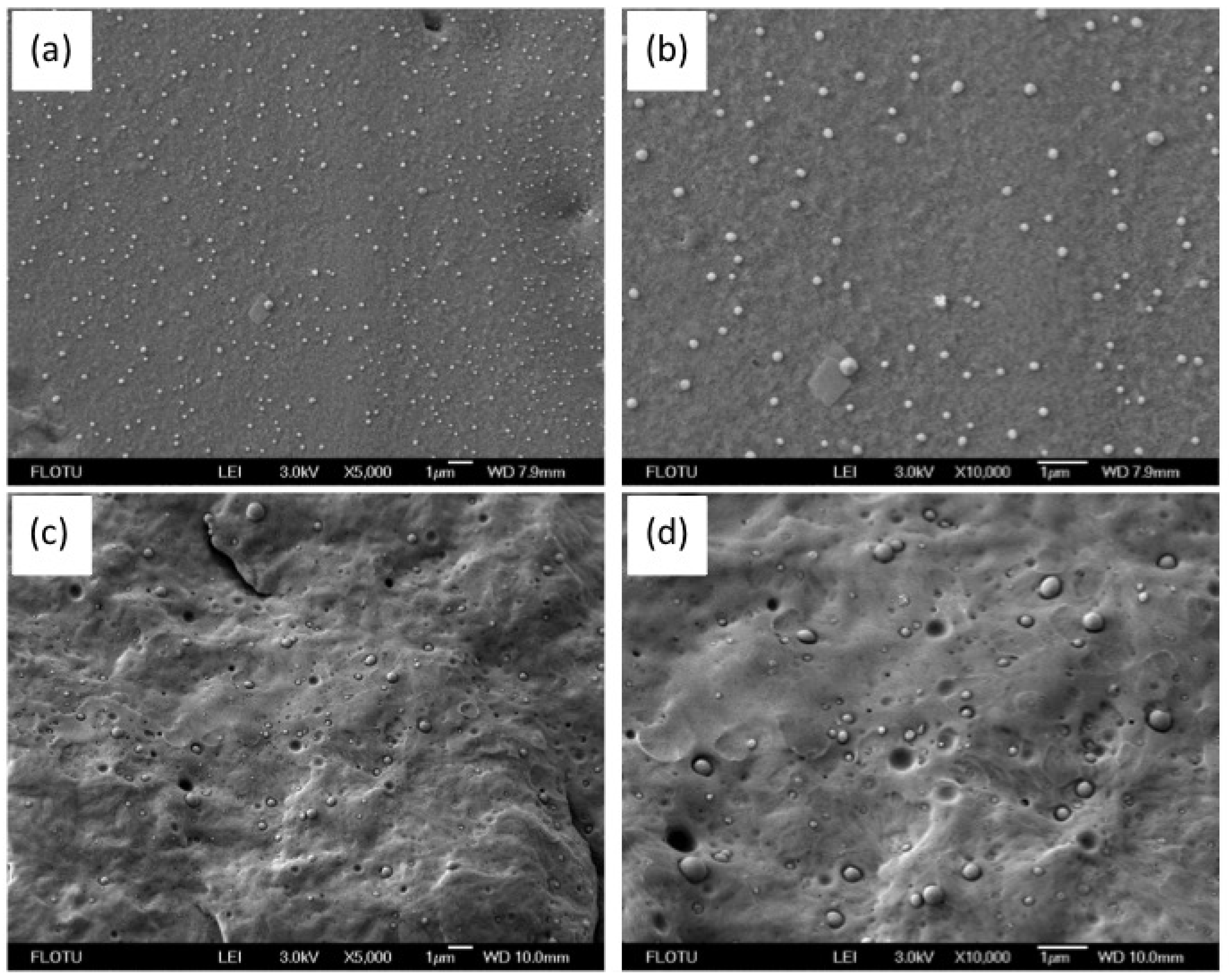

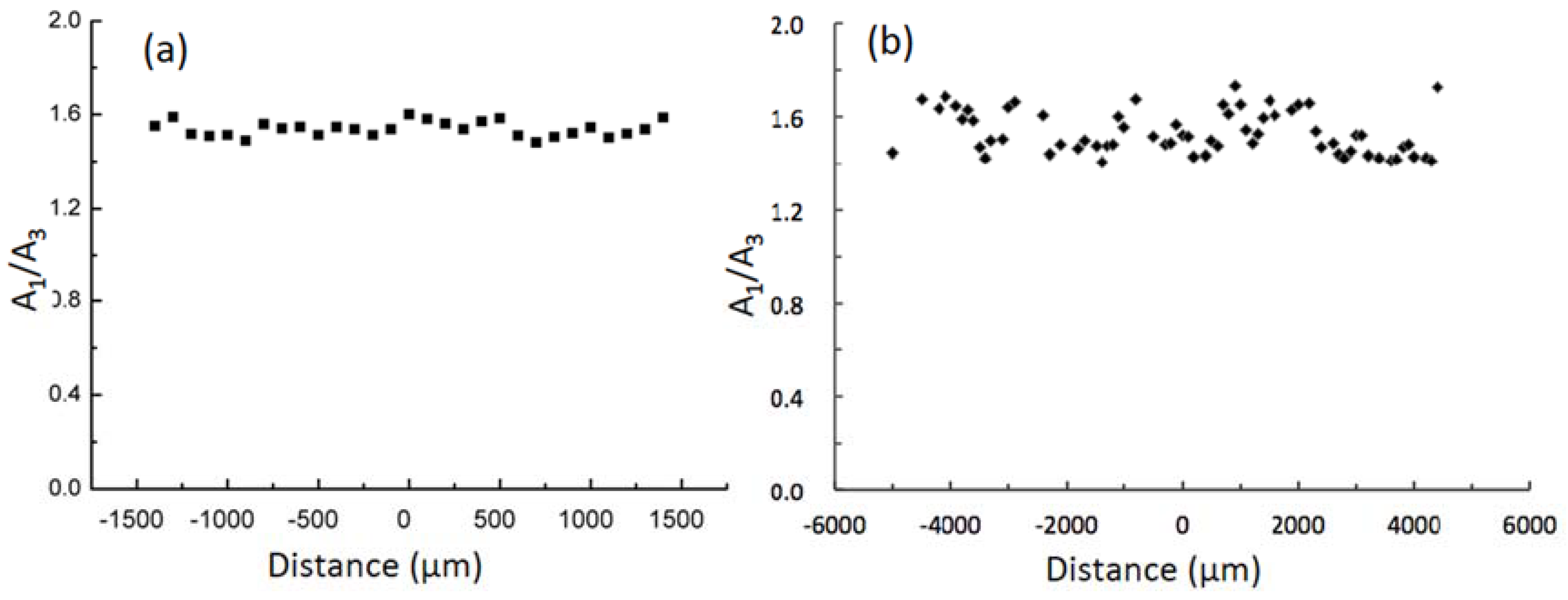

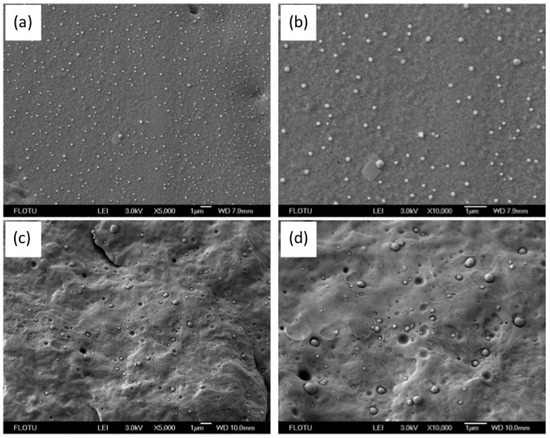

Polyamide 6 (PA6)/polystyrene (PS) blend pellets were prepared by diffusion and subsequent polymerization of styrene in commercial PA6 pellets and processed into cuboid-shaped bars by injection molding. The average PS particle size in the bars was 240 nm, slightly higher than that in the blend pellets (120 nm), showing that only limited coalescence occurs during injection molding. The mechanical properties of PA6/PS bars were investigated by tensile, flexural, and notched impact tests. A 41% increase in notched impact strength was found without decreasing the modulus, tensile, and flexural strengths and elongation to break, when compared with those of neat PA6 bars. These good mechanical properties were attributed to the small PS particle sizes, and the good interfacial adhesion between PS particles and the PA6 matrix resulted from the occurrence of PS grafting onto PA6 during the preparation of the blend pellets and injection molding. The water sorption and water-induced dimensional changes in PA6/PS bars were significantly less than those of neat PA6 bars because of the presence of the hydrophobic PS phase. This work reveals that the PA6/PS quasi-nanoblend pellets are useful stock for plastic production. View Full-Text
Keywords: nylon 6; polystyrene; polymer blends; mechanical properties; injection molding nylon 6; polystyrene; polymer blends; mechanical properties; injection molding
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Tan, Y.-L.; Huang, C.-H.; Guo, Z.-X.; Yu, J. Morphology and Mechanical Properties of Polyamide 6/Polystyrene Blends Prepared by Diffusion and Subsequent Polymerization of Styrene in Polyamide 6 Pellets. Materials 2018, 11, 776.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
