Article

Growth and Brilliant Photo-Emission of Crystalline Hexagonal Column of Alq3 Microwires

1
Department of Applied Organic Materials Engineering, Inha University, Incheon 22212, Korea
2
Department of Chemical Engineering, Inha University, Incheon 22212, Korea
*
Author to whom correspondence should be addressed.
These authors contributed equally.
Materials 2018, 11(4), 472; https://doi.org/10.3390/ma11040472
Submission received: 28 February 2018 / Revised: 16 March 2018 / Accepted: 19 March 2018 / Published: 22 March 2018
(This article belongs to the Special Issue Novel Photoactive Materials)

Abstract

:
We report the growth and nanoscale luminescence characteristics of 8-hydroxyquinolinato aluminum (Alq3) with a crystalline hexagonal column morphology. Pristine Alq3 nanoparticles (NPs) were prepared using a conventional reprecipitation method. Crystal hexagonal columns of Alq3 were grown by using a surfactant-assisted self-assembly technique as an adjunct to the aforementioned reprecipitation method. The formation and structural properties of the crystalline and non-crystalline Alq3 NPs were analyzed with scanning electron microscopy and X-ray diffraction. The nanoscale photoluminescence (PL) characteristics and the luminescence color of the Alq3 single NPs and their crystal microwires (MWs) were evaluated from color charge-coupled device images acquired using a high-resolution laser confocal microscope. In comparison with the Alq3 NPs, the crystalline MWs exhibited a very bright and sharp emission. This enhanced and sharp emission from the crystalline Alq3 single MWs originated from effective π-π stacking of the Alq3 molecules due to strong interactions in the crystalline structure.

1. Introduction

Organic semiconductors have emerged as a major class of plausible candidates for achieving low-cost, flexible and high-efficiency electronic devices [1,2]. Intensive research is currently carried out worldwide using crystalline organic semiconductors as active materials for optoelectronic devices because of the semiconducting characteristics and the excellent photo-induced charge creation of these molecules [3]. Single-crystalline organic small molecules are among the best recognized materials, as there are no grain boundaries and few charge trapping sites [4,5]. Among the various organic small molecules, organometallics have attracted much attention in recent years owing to their unique optical and electrical properties and their various applications [6,7]. Organometallic molecules are composed of a central metal surrounded by an organic conjugated structure. These combinations of metals and organic compounds generally furnish optoelectronic properties. These properties can be controlled by altering structural features such as the crystallinity and molecular aggregation, or by chemical processes (e.g., doping or substitution). One interesting phenomenon of organometallic molecules is their light-induced or electrically-driven luminescence. Many efforts have been made to improve luminous efficiency, including the use of fluorophores.
The best known of these fluorophores—8-hydroxyquinolinato aluminum (Alq3)—exhibits excellent optical properties that can be exploited in optoelectronic devices, such as its use as the active light emissive layer of organic light emitting diodes (OLEDs) [8,9]. Generally, Alq3 dissolved in an organic solvent emits bright yellow-green under ultraviolet (UV) irradiation. However, in the solid-state, amorphous Alq3 exhibits very low brightness under the same UV irradiation conditions due to random stacking in the molecules. Growth of this architecture for application to a variety of optoelectronic devices can thus be problematic. Recent studies have reported various methods for the growth of regular and crystalline Alq3 morphologies, such as hexagonal columns, using vapor deposition or solvent treatment. These approaches lead to enhanced optical properties due to enhanced crystallinity or molecular orientation [10,11].
In recent years, organic small molecule crystals have attracted increasing research interest due to their potential use in optoelectronics and photonics. Much research effort has been devoted to molecule design and crystal growth to achieve the desired function [12,13]. The electronic and optical properties of organometallics are fundamentally different from those of inorganic metals and semiconductors due to the weak intermolecular van der Waals forces. Therefore, understanding and controlling the arrangement of molecules in the solid-state are fundamental issues for obtaining the desired chemical and physical properties. These non-covalent intermolecular interactions, such as hydrogen bonding and π-π stacking, can strongly influence the final packing structure [14,15]. Moreover, there are relatively few reports on the optical characteristics of single units in the solid-state. Thus, this study focuses on the nanoscale photoluminescence (PL) characteristics of Alq3 crystals in the solid-state in an attempt to examine the changes in the structural and optical properties upon crystallization [16,17].
Herein, we report the growth and nanoscale luminescence characteristics of single-crystalline Alq3 microwires (MWs) as shown in Figure 1. Crystalline Alq3 MWs with a hexagonal column arrangement can be grown via surfactant-assisted self-assembly using sodium dodecyl sulfate (SDS) [18]. The surfactant induces the formation of micelles in deionized (D.I.) water and the Alq3 molecules penetrate the micelle and initiate the nucleation reaction. Because organometallic molecules are not amenable to water due to their inherent polarity, they penetrate the micelle to reduce surface energy. After nucleation, the Alq3 molecules act as seeds for growth of the hexagonal 1D MWs. We demonstrate that hexagonal column crystal Alq3 has a much brighter emission profile than randomly oriented Alq3 nanoparticles in a single unit.

2. Materials and Methods

Sample preparation: Alq3 (C27H18AlN3O3, purity 99.995%) and SDS (CH3(CH2)11OSO3Na, purity 99.0%) were purchased from Sigma Aldrich (St. Louis, MI, USA). Alq3 was dissolved in tetrahydrofuran (THF) to give a concentration of 4 mg·mL−1. The Alq3 solution was heated to 50 °C and homogenized using a magnetic stirrer for complete dissolution; SDS (4 mg·mL−1) was prepared in D.I. water.
The SDS solution was poured into a 20-mL vial and vigorously magnetically stirred on the hot-plate. The Alq3 solution was added and forcefully ejected into the SDS solution using a micro-pipette. The vial was capped and stirring was continued at a high rpm for 15 min. The mixture was kept in an oven at 50 °C for 40 h. Another solution was prepared with the same formulation used above, without the addition of SDS.
Measurement: The surface morphology of the Alq3 MWs was analyzed using a field-emission scanning electron microscope (SEM; Hitachi, Tokyo, Japan, SU-8010) at an acceleration voltage of 15 kV. The powder X-ray diffraction (XRD; X’Pert Powder Diffractometer, PANalytical) patterns were captured at a voltage of 40 kV and a current of 40 mA using Cu-Kα radiation (λ = 1.540 Å). The scan rate was 0.02°·s−1 and the 2θ range was from 2° to 60°. The luminescence color charge-coupled device (CCD) images of Alq3 were acquired with an AVT Marlin F-033C (λex = 435 nm) instrument. To compare the brightness (i.e., luminescence intensity) of the CCD images of the particles and crystals of Alq3, the irradiation time was fixed at 0.1 s. Laser confocal microscope (LCM) PL spectra were acquired with a homemade LCM instrument [19,20,21,22]. The 405 nm line of an unpolarized diode laser was used for the LCM PL excitation. The organic crystals were placed on a glass substrate, which was mounted on the xy-stage of the confocal microscope. An oil-immersion objective lens (N.A. of 1.4) was used to focus the unpolarized laser light on the crystal. The spot size of the focused laser beam on the sample was approximately 200 nm. The scattered light was collected with the same objective lens and the excitation laser light was filtered out with a long-pass edge-filter (Semrock, Rochester, NY, USA). The red-shifted PL signal was focused onto a multimode fiber (core size = 100 μm) that acted as a pinhole for the confocal detection. The other end of the multimode fiber was connected to the photomultiplier tube for acquisition of the PL image, or the input slit of a 0.3 m long monochromator equipped with a cooled charge coupled device for acquisition of the PL spectra. Solid-state PL measurements could therefore be performed at the nanometer scale. The laser power incident on the sample and the acquisition time for each LCM PL spectrum were fixed at 500 μW and 1 s, respectively, for all confocal PL measurements.

3. Results

3.1. Morphological Analysis

The formation of the Alq3 NPs and the crystal hexagonal column of Alq3 MWs was visually observed through SEM imaging, as shown in Figure 2a,b,. The mean diameter of the Alq3 NPs was estimated to be 150 (±50) nm, as shown in Figure 2a. The NPs grew randomly into sphere-like plates or particles because the Alq3 molecules aggregated randomly in the solvent. Thus, there was no specific shape or direction. When a surfactant was employed along with the reprecipitation process, crystalline hexagonal columns were formed with growth in only one specific direction. This is because the SDS (as a surfactant) micelles assist the nucleation of Alq3 during reprecipitation. The Alq3 nuclei can act as seeds for growth of the hexagonal column. We found that the cross-section of the Alq3 single crystal was hexagonal, based on the tilted SEM image, with a length of 5–30 μm depending on the growth conditions, such as the time, solvent temperature and concentration—as shown in Figure 2b. These results suggest that the SDS surfactant transformed the amorphous non-crystalline Alq3 NPs into a crystalline phase with growth in a 1D manner, resulting in the hexagonal column MWs. The side-view and top-view high-magnification SEM images clearly confirm the formation of highly ordered crystalline hexagonal columns of Alq3 MWs with a mean length and diameter of 5 μm and 1 μm as shown in Figure 2c,d, respectively.

3.2. Optical Properties

Figure 3a,b show the CCD images used for direct observation of the luminescence color of the Alq3 NPs and crystal hexagonal columns of Alq3 MWs, respectively. The color CCD image of the crystal hexagonal column of Alq3 MWs showed much brighter luminescence than that of the Alq3 NPs. A weak green emission was observed for the Alq3 NPs because of their amorphous nature, as shown in Figure 3a. The crystal hexagonal column of Alq3 MWs emitted bright green, as shown in Figure 3b. Figure 3c shows the two-dimensional (2D) LCM PL images for an isolated Alq3 NP and crystal hexagonal column of Alq3 MW, respectively. Under identical LCM PL imaging conditions (i.e., simultaneous comparison), a much brighter emission was observed for the crystal hexagonal column of Alq3 MWs than for the Alq3 single NP. The measured voltages of the photomultiplier tube output from the z-axis representing the PL intensity of the single strand of the crystal hexagonal column of Alq3 MWs was 25–31 V, which is about 150–200 times higher than that (0.12–0.15 V) of the amorphous Alq3 single NP, as shown in Figure 3c.
Figure 4 shows the variation in the PL spectra of Alq3 depending on its crystallinity and structure. A homemade laser confocal microscope system was used for nanoscale measurement of the PL for a single unit. Solution-state PL spectra were also acquired using a polymer cuvette. For the solvated crystalline Alq3, the PL intensity was 1.6 times higher than that of amorphous Alq3 due to auxiliary interactions between the incident light and solution, such as scattering, diffraction and reflectance. On the other hand, for nanoscale solid-state Alq3 immobilized on a substrate, the individual crystals were separated and there were no auxiliary interactions. For all spectra, the main peak was positioned around 530 nm. However, the LCM PL intensity for the single unit of Alq3 MWs was significantly higher due to the crystalline structure. The PL signal for a single unit of the crystal hexagonal column of Alq3 MWs was 159 times more intense than that of amorphous Alq3. The highly enhanced luminescence characteristics of the crystalline Alq3 materials originates from the strong π-π interactions of the Alq3 molecules, given that energy transfer is efficient in the Alq3 crystals and there is less defect emission.

3.3. Structural Properties

To confirm the relationship between the crystallinity and PL efficiency of Alq3, X-ray diffraction data were obtained for the samples prepared, with or without SDS as a surfactant. Figure 5 displays the XRD patterns for the two types of Alq3. The XRD peaks indicate the degree of crystallinity according to Bragg’s law. The peak corresponding to the (001) crystal lattice plane was observed at 6.47° for crystalline Alq3. Peaks were also observed at 11.55° and 17.45° for both cases, respectively, corresponding to the (011) and (021) planes. However, other major peaks at 7.1°, 7.38°—related to the (010) and (011) planes respectively—were only observed for the crystalline structure. We can also identify the crystal phase of Alq3 using XRD data. In Figure 5, the XRD pattern of Alq3 MRs showed 6.47°, 7.1° and 11.55° as related to typical α-phase peaks, in addition to δ-phase peaks at 6.78° and 7.38° [23,24]. The XRD results indicate that strong π-π interactions are operative along the b-axis (b = 6.47 Å) of the Alq3 molecules in the hexagonal column of Alq3 MWs, which contributes to the very bright emission [25,26]. However, relatively weak XRD peaks were observed for the Alq3 NPs, which have the same molar concentration as Alq3 MWs—as shown in Figure 5—indicating the poor crystalline structure of the Alq3 NPs. This led to a weak and broad PL spectrum for the Alq3 NPs. The Alq3 crystals prepared with SDS grew preferentially in a specific direction and were more crystalline than the congener prepared without SDS, based on the data shown in Figure 5.

4. Conclusions

Single-crystalline hexagonal columns of Alq3 MWs were fabricated through a surfactant-assisted reprecipitation method. The crystalline hexagonal Alq3 single MWs exhibited very bright emission with sharp peaks, as observed in the color CCD images and LCM PL images and spectra. The main PL peak at 530 nm for the crystalline Alq3 single MW had a relatively narrow full-width-at-half-maximum. The intensity of the LCM PL peak at 530 nm for the single hexagonal column of Alq3 MWs was approximately 160 times higher than that of the Alq3 NPs, representing a dramatic increase. The highly enhanced luminescence characteristics of the crystalline Alq3 materials originates from the strong π-π interactions of the Alq3 molecules along the b-axis in the single crystalline form. Also, the surfactant present in crystals of π-π stacking has an effect on the active enhanced fluorescence and reduces the vibrational losses of the molecular structure to achieve strong fluorescence emission.

Acknowledgments

This work was supported by INHA UNIVERSITY Research Grant 55774.

Author Contributions

Seokho Kim and Dong Hyuk Park conceived and designed the experiments; Hojin Lee, Do Hyoung Kim, Jungwoon Park, Jinho Choi and Seokho Kim performed the experiments; Sun-young Kim, Seokho Kim and Dong Hyuk Park analyzed the data; Seokho Kim and Dong Hyuk Park wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Park, D.H.; Kim, M.S.; Joo, J. Hybrid nanostructures using π-conjugated polymers and nanoscale metals: Synthesis, characteristics, and optoelectronic applications. Chem. Soc. Rev. 2010, 39, 2439. [Google Scholar] [CrossRef] [PubMed]
  2. Heeger, A.J. Semiconducting polymers: The Third Generation. Chem. Soc. Rev. 2010, 39, 2354. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, Q.; Ma, D. Management of charges and excitons for high-performance white organic light-emitting diodes. Chem. Soc. Rev. 2010, 39, 2387. [Google Scholar] [CrossRef] [PubMed]
  4. Brooks, J.S. Organic crystals: Properties, devices, functionalization and bridges to bio-molecules. Chem. Soc. Rev. 2010. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, W.; Zhao, Y.S. Organic nanophotonic materials: The relationship between excited-state processes and photonic performances. Chem. Commun. 2016, 52, 8906–8917. [Google Scholar] [CrossRef] [PubMed]
  6. Kim, B.H.; Kim, D.C.; Jang, M.H.; Baek, J.; Park, D.; Kang, I.S.; Park, Y.C.; Ahn, S.; Cho, Y.H.; Kim, J.; et al. Extraordinary Strong Fluorescence Evolution in Phosphor on Graphene. Adv. Mater. 2016, 28, 1657–1662. [Google Scholar] [CrossRef] [PubMed]
  7. Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal halide perovskites as visible-light sensitizers for photovoltaic cells. J. Am. Chem. Soc. 2009, 131, 6050–6051. [Google Scholar] [CrossRef] [PubMed]
  8. Tang, C.W.; Vanslyke, S.A. Organic electroluminescent diodes. Appl. Phys. Lett. 1987, 51, 913–915. [Google Scholar] [CrossRef]
  9. D’Andrade, B.W.; Forrest, S.R. White organic light-emitting devices for solid-state lighting. Adv. Mater. 2004, 16, 1585–1595. [Google Scholar] [CrossRef]
  10. Huang, L.; Liao, Q.; Shi, Q.; Fu, H.; Ma, J.; Yao, J. Rubrene micro-crystals from solution routes: Their crystallography, morphology and optical properties. J. Mater. Chem. 2010, 20, 159–166. [Google Scholar] [CrossRef]
  11. Garreau, A.; Duvail, J.L. Recent advances in optically active polymer-based nanowires and nanotubes. Adv. Opt. Mater. 2014, 2, 1122–1140. [Google Scholar] [CrossRef]
  12. Lee, T.; Lin, M.S. Sublimation point depression of tris(8-hydroxyquinoline)aluminum(III) (Alq3) by crystal engineering. Cryst. Growth Des. 2007, 7, 1803–1810. [Google Scholar] [CrossRef]
  13. Xie, W.; Fan, J.; Song, H.; Jiang, F.; Yuan, H.; Wei, Z.; Ji, Z.; Pang, Z.; Han, S. Controllable synthesis of rice-shape Alq3nanoparticles with single crystal structure. Phys. E Low-Dimens. Syst. Nanostruct. 2016, 84, 519–523. [Google Scholar] [CrossRef]
  14. Cölle, M.; Brütting, W. Thermal, structural and photophysical properties of the organic semiconductor Alq3. Phys. Status Solidi 2004, 201, 1095–1115. [Google Scholar] [CrossRef]
  15. Cölle, M.; Dinnebier, R.E.; Brütting, W. The structure of the blue luminescent delta-phase of tris(8-hydroxyquinoline)aluminium(III) (Alq3). Chem. Commun. 2002, 49, 2908–2909. [Google Scholar] [CrossRef]
  16. Rajeswaran, M.; Blanton, T.N. Single-crystal structure determination of a new polymorph (ε-Alq3) of the electroluminescence OLED (organic light-emitting diode) material, tris(8-hydroxyquinoline)aluminum (Alq3). J. Chem. Crystallogr. 2005, 35, 71–76. [Google Scholar] [CrossRef]
  17. Bi, H.; Zhang, H.; Zhang, Y.; Gao, H.; Su, Z.; Wang, Y. Fac-Alq3and Mer-Alq3nano/microcrystals with different emission and charge-transporting properties. Adv. Mater. 2010, 22, 1631–1634. [Google Scholar] [CrossRef] [PubMed]
  18. Cui, C.; Park, D.H.; Kim, J.; Joo, J.; Ahn, D.J. Oligonucleotide assisted light-emitting Alq3 microrods: Energy transfer effect with fluorescent dyes. Chem. Commun. 2013, 49, 5360. [Google Scholar] [CrossRef] [PubMed]
  19. Park, D.H.; Kim, H.S.; Jeong, M.Y.; Lee, Y.B.; Kim, H.J.; Kim, D.C.; Kim, J.; Joo, J. Significantly enhanced photoluminescence of doped polymer-metal hybrid nanotubes. Adv. Funct. Mater. 2008, 18, 2526–2534. [Google Scholar] [CrossRef]
  20. Joo, J.; Park, D.H.; Jeong, M.Y.; Lee, Y.B.; Kim, H.S.; Choi, W.J.; Park, Q.H.; Kim, H.J.; Kim, D.C.; Kim, J. Bright light emission of a single polythiophene nanotube strand with a nanometer-scale metal coating. Adv. Mater. 2007, 19, 2824–2829. [Google Scholar] [CrossRef]
  21. Park, D.H.; Kim, N.; Cui, C.; Hong, Y.K.; Kim, M.S.; Yang, D.-H.; Kim, D.-C.; Lee, H.; Kim, J.; Ahn, D.J.; et al. DNA detection using a light-emitting polymer single nanowire. Chem. Commun. 2011, 47, 7944–7946. [Google Scholar] [CrossRef] [PubMed]
  22. Park, D.H.; Kim, B.H.; Jang, M.K.; Bae, K.Y.; Lee, S.J.; Joo, J. Synthesis and characterization of polythiophene and poly (3-methylthiophene) nanotubes and nanowires. Synth. Met. 2005, 153, 341–344. [Google Scholar] [CrossRef]
  23. Brinkmann, M.; Gadret, G.; Muccini, M.; Taliani, C.; Masciocchi, N.; Sironi, A. Correlation between Molecular Packing and Optical Properties in Different Crystalline Polymorphs and Amorphous Thin Films of mer-Tris(8-hydroxyquinoline)aluminum(III). J. Am. Chem. Soc. 2000, 122, 5147–5157. [Google Scholar] [CrossRef]
  24. Rajeswaran, M.; Blanton, T.N.; Tang, C.W.; Lenhart, W.C.; Switalski, S.C.; Giesen, D.J.; Antalek, B.J.; Pawlik, T.D.; Kondakov, D.Y.; Zumbulyadis, N.; et al. Structural, thermal, and spectral characterization of the different crystalline forms of Alq3, tris(quinolin-8-olato)aluminum(III), an electroluminescent material in OLED technology. Polyhedron 2009, 28, 835–843. [Google Scholar] [CrossRef]
  25. Back, S.H.; Park, J.H.; Cui, C.; Ahn, D.J. Bio-recognitive photonics of a DNA-guided organic semiconductor. Nat. Commun. 2016, 7. [Google Scholar] [CrossRef] [PubMed]
  26. Park, D.H.; Jo, S.G.; Hong, Y.K.; Cui, C.; Lee, H.; Ahn, D.J.; Kim, J.; Joo, J. Highly bright and sharp light emission of a single nanoparticle of crystalline rubrene. J. Mater. Chem. 2011, 21, 8002. [Google Scholar] [CrossRef]

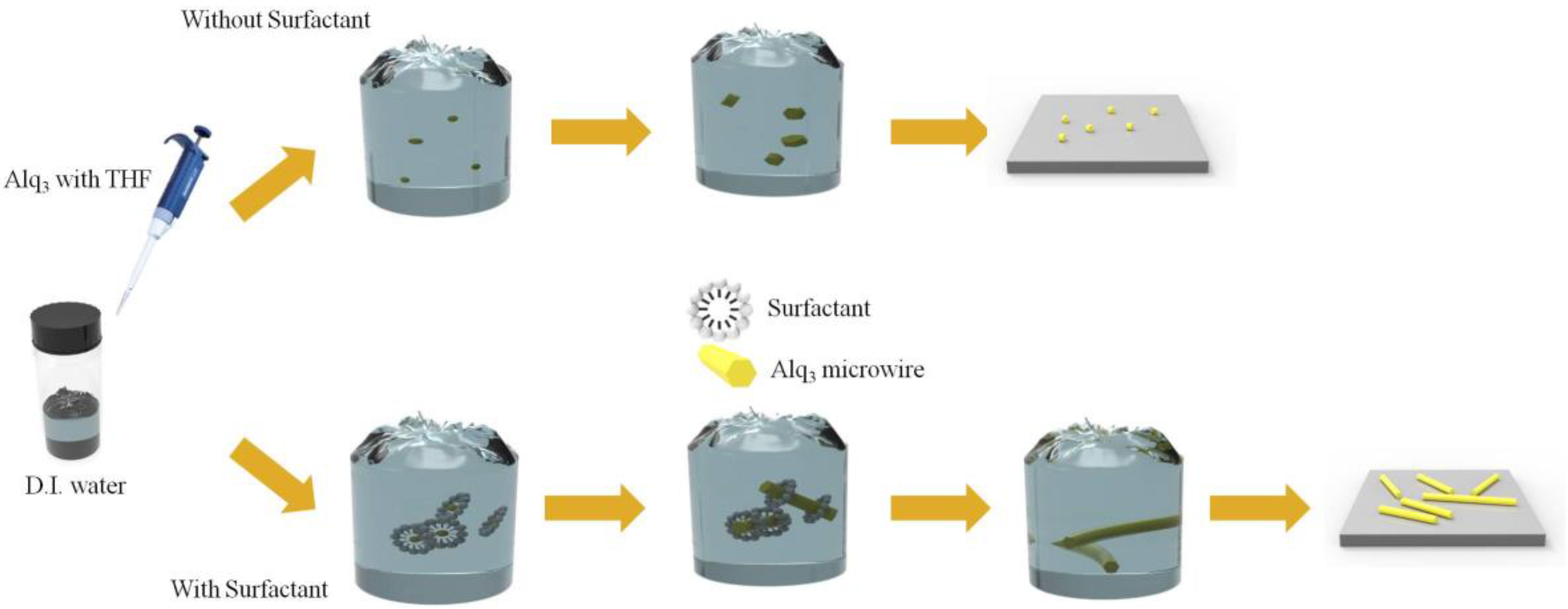

Figure 1. Schematic illustration of surfactant-assisted organic crystal growth using reprecipitation method.
Figure 1. Schematic illustration of surfactant-assisted organic crystal growth using reprecipitation method.
Materials 11 00472 g001
Figure 2. Scanning electron microscopy (SEM) images of (a) Alq3 NPs and (b) crystalline hexagonal columns of Alq3. High-magnification SEM images of (c) side view and (d) top-view of crystal hexagonal columns of Alq3.
Figure 2. Scanning electron microscopy (SEM) images of (a) Alq3 NPs and (b) crystalline hexagonal columns of Alq3. High-magnification SEM images of (c) side view and (d) top-view of crystal hexagonal columns of Alq3.
Materials 11 00472 g002

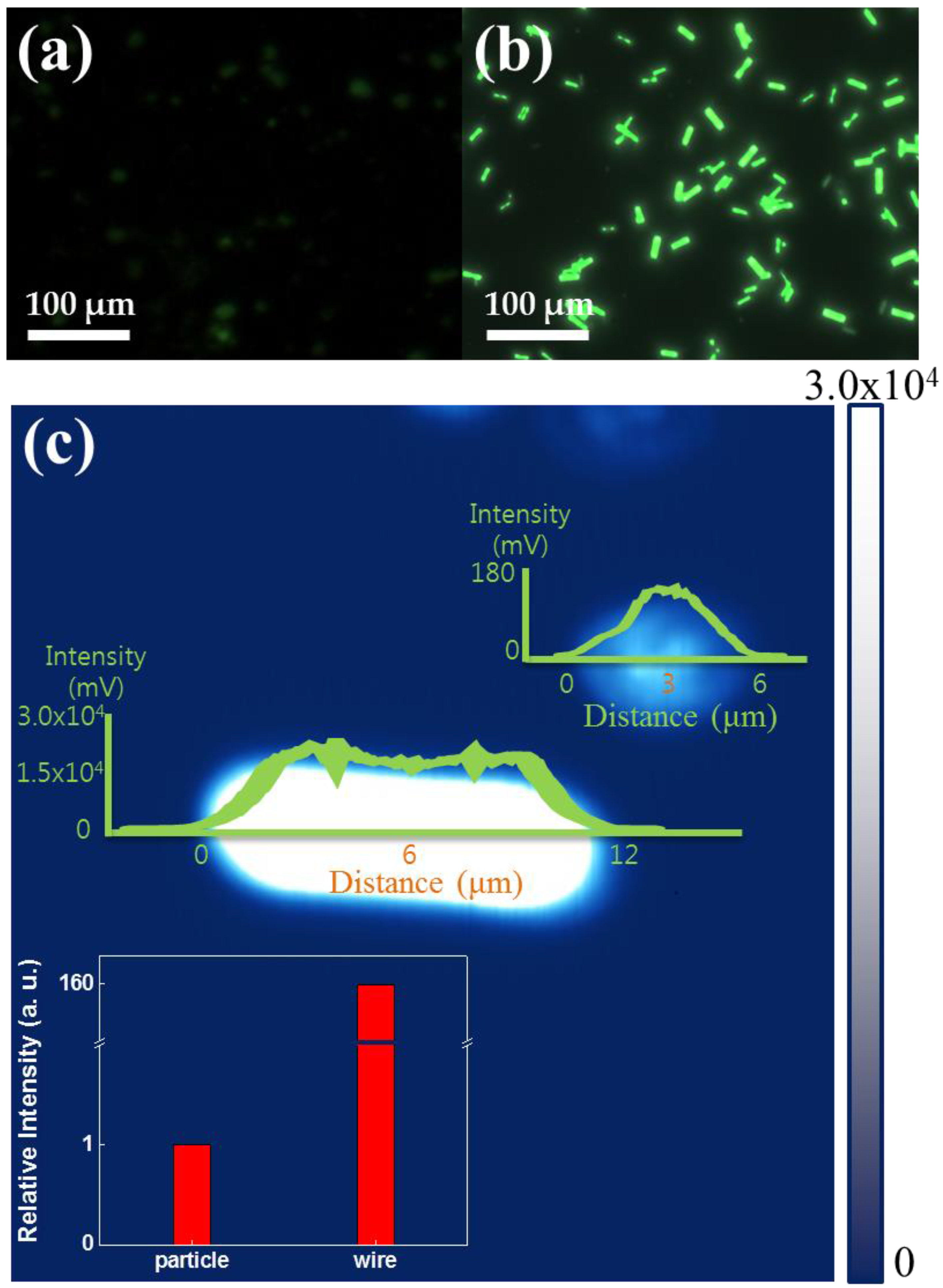

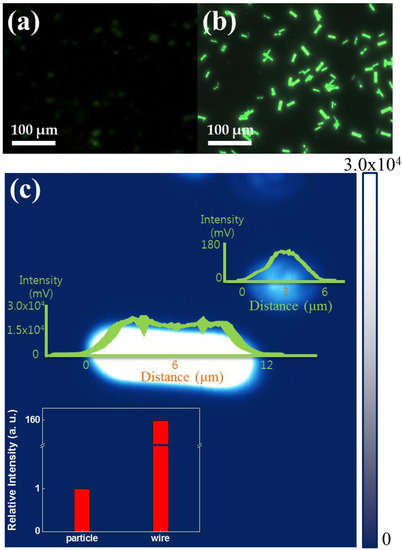

Figure 3. Color charge-couple device (CCD) images of (a) Alq3 NPs and (b) crystal hexagonal column of Alq3 MWs. (c) Photoluminescence image of both crystal Alq3 MW and amorphous Alq3 particle. (inset shows relative luminescence intensity of particle and wire).
Figure 3. Color charge-couple device (CCD) images of (a) Alq3 NPs and (b) crystal hexagonal column of Alq3 MWs. (c) Photoluminescence image of both crystal Alq3 MW and amorphous Alq3 particle. (inset shows relative luminescence intensity of particle and wire).
Materials 11 00472 g003

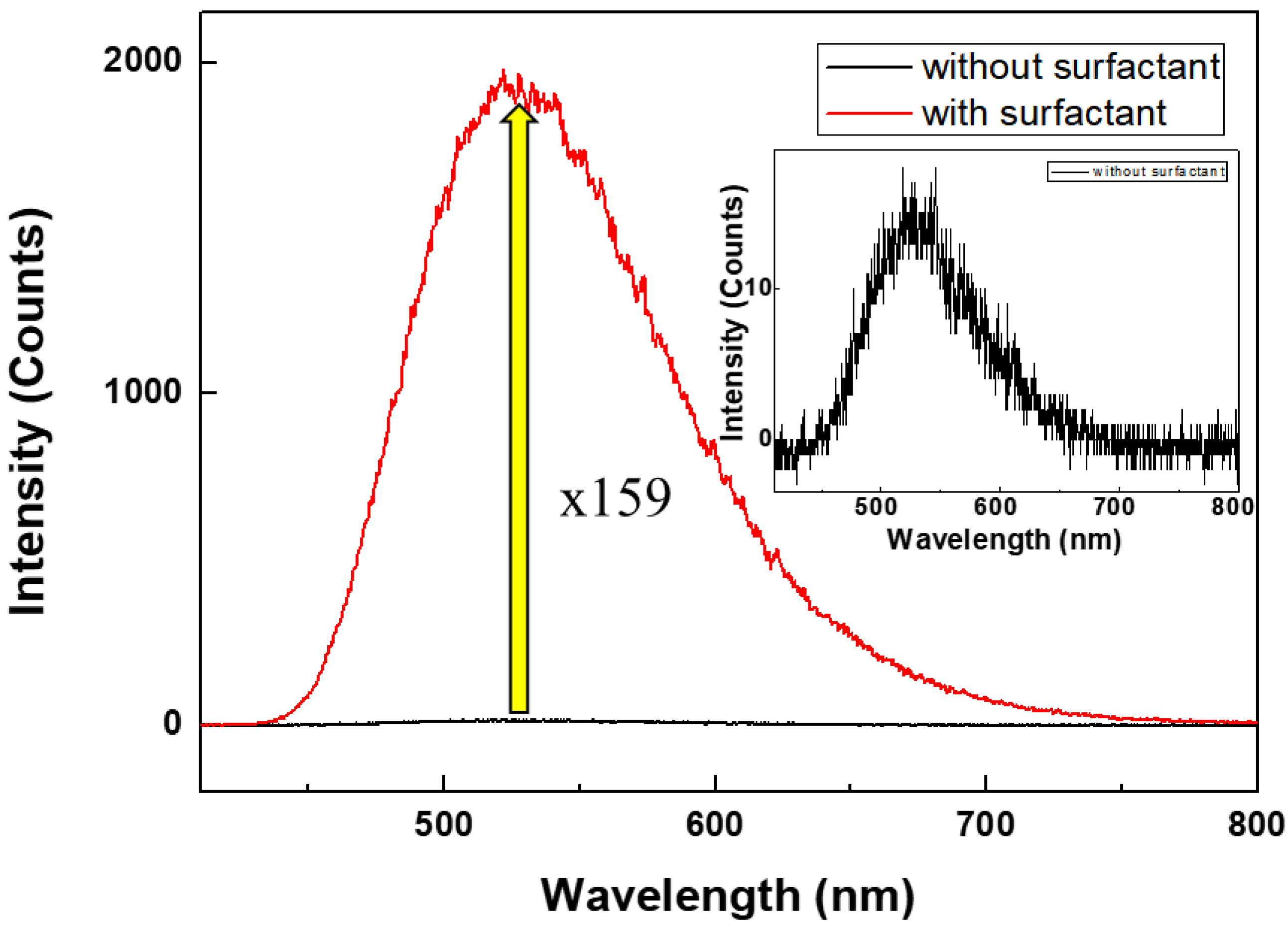

Figure 4. Comparison of solid-state laser confocal microscope (LCM) photoluminescence (PL) spectra of nanoscale crystal and amorphous Alq3 (inset shows solid-state spectrum for amorphous Alq3).
Figure 4. Comparison of solid-state laser confocal microscope (LCM) photoluminescence (PL) spectra of nanoscale crystal and amorphous Alq3 (inset shows solid-state spectrum for amorphous Alq3).
Materials 11 00472 g004

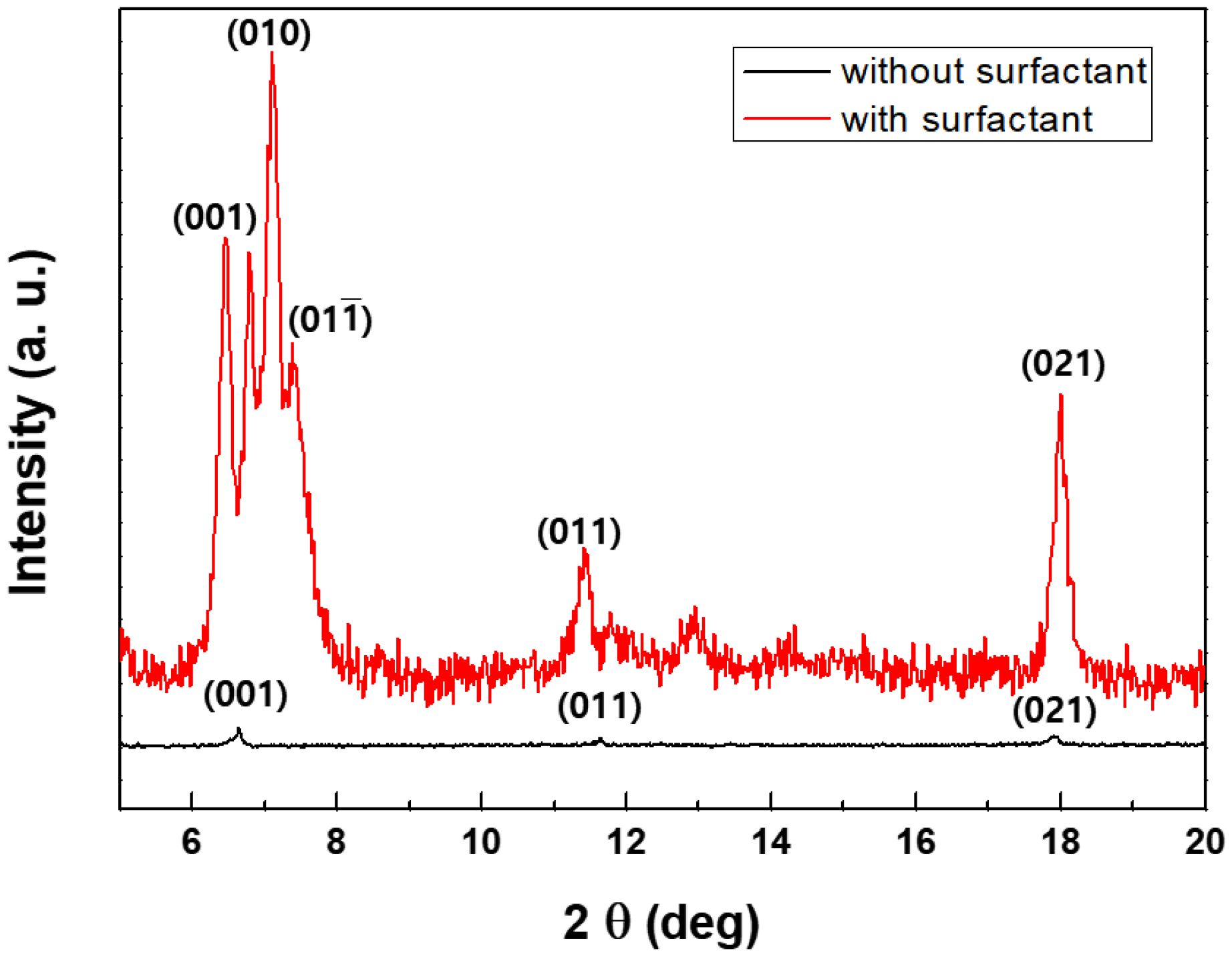

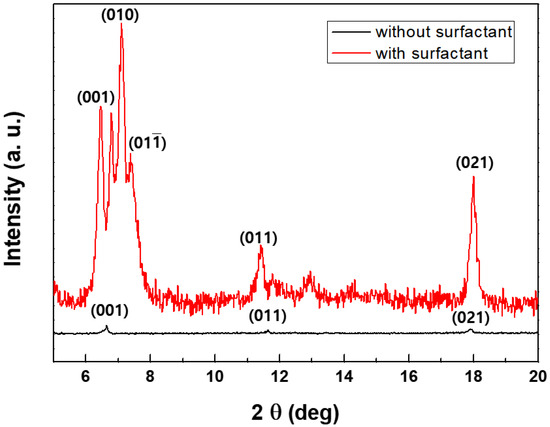

Figure 5. Comparison of X-Ray Diffraction (XRD) spectra of Alq3 (upper line corresponds to crystal hexagonal column microwires (MWs), lower line indicates amorphous nanoparticles (NPs)).
Figure 5. Comparison of X-Ray Diffraction (XRD) spectra of Alq3 (upper line corresponds to crystal hexagonal column microwires (MWs), lower line indicates amorphous nanoparticles (NPs)).
Materials 11 00472 g005
