Article

Investigation on Selective Laser Melting AlSi10Mg Cellular Lattice Strut: Molten Pool Morphology, Surface Roughness and Dimensional Accuracy

by
Xuesong Han
1,
Haihong Zhu
1,*,
Xiaojia Nie
1,
Guoqing Wang
2 and
Xiaoyan Zeng
1
1
Wuhan National Laboratory for Optoelectronics, Huazhong University of Science and Technology, Wuhan 430074, China
2
China Academy of Launch Vehicle Technology, Beijing 100076, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(3), 392; https://doi.org/10.3390/ma11030392
Received: 10 February 2018 / Revised: 2 March 2018 / Accepted: 5 March 2018 / Published: 7 March 2018
View Full-Text Download PDF
Browse Figures

Abstract

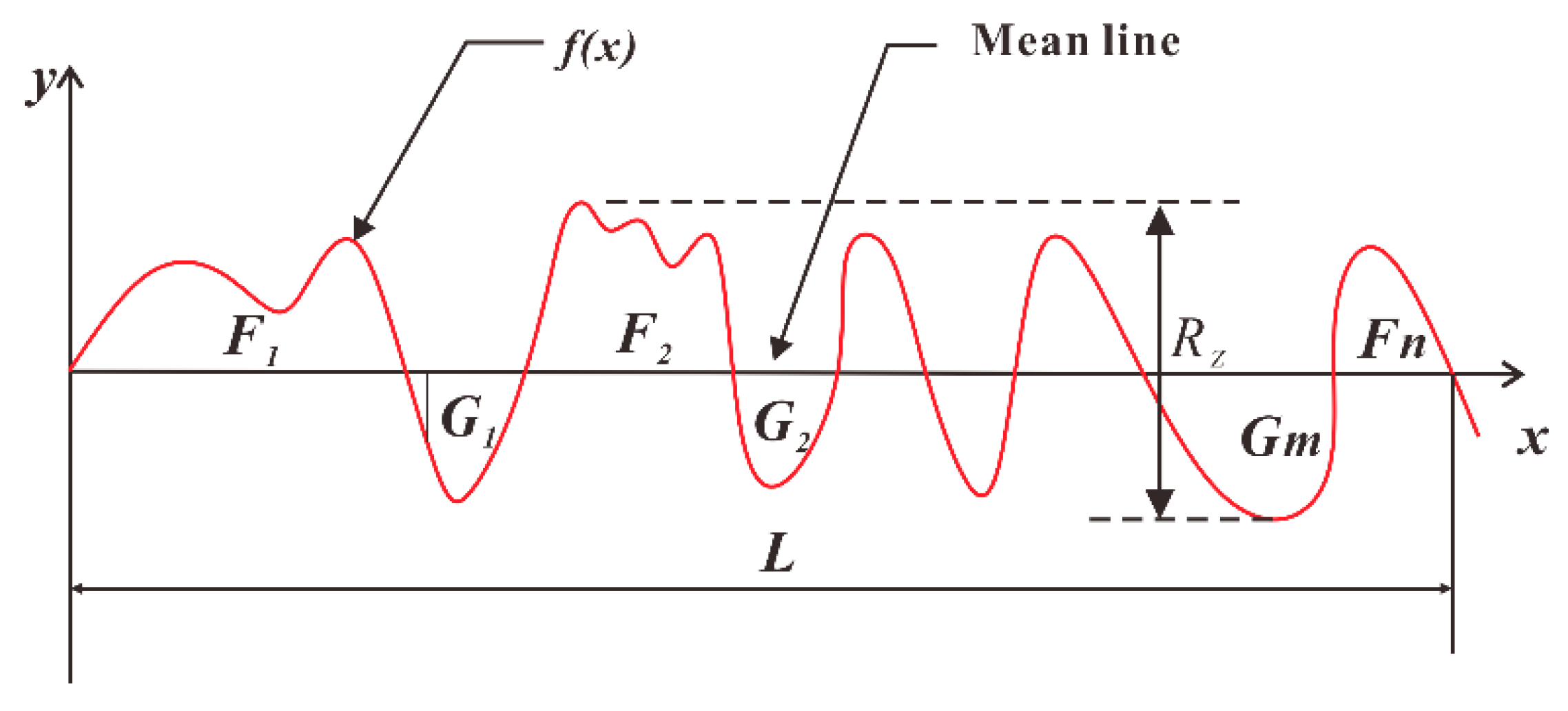

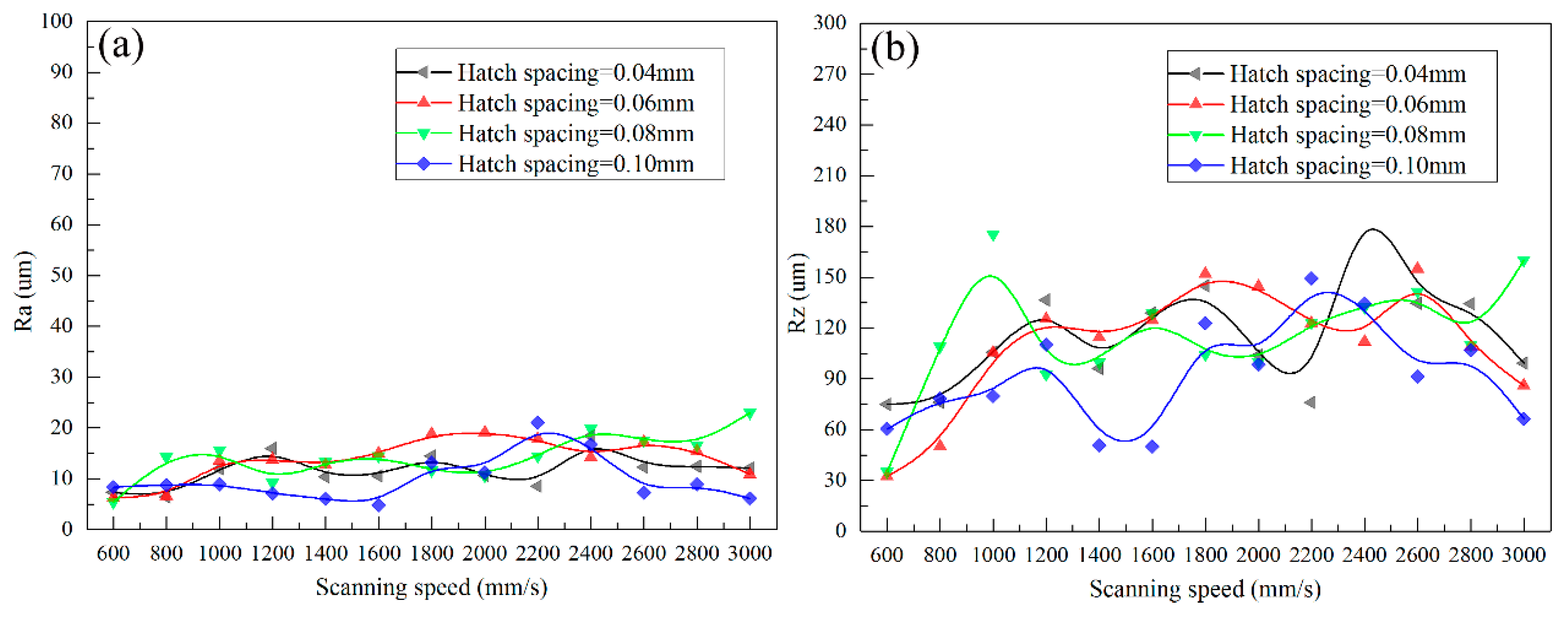

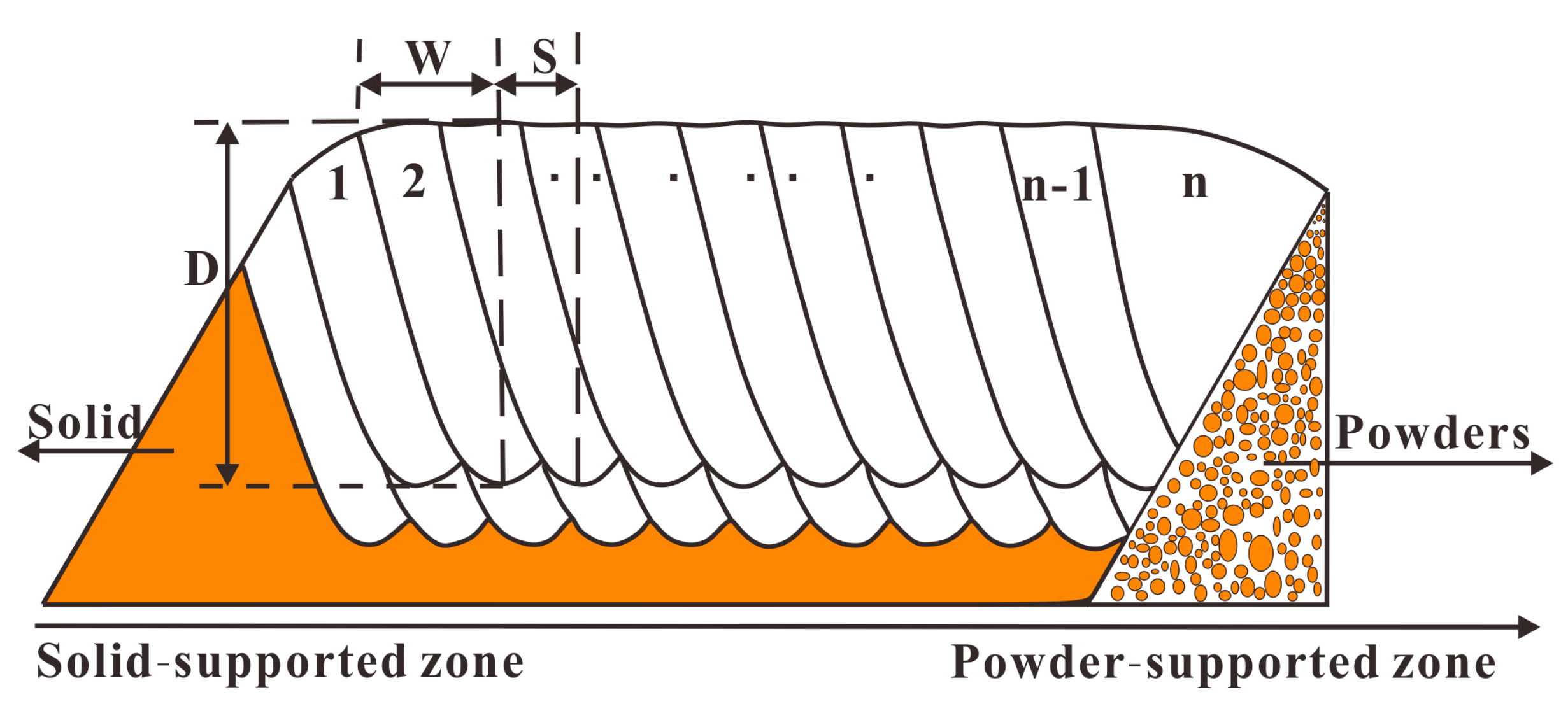

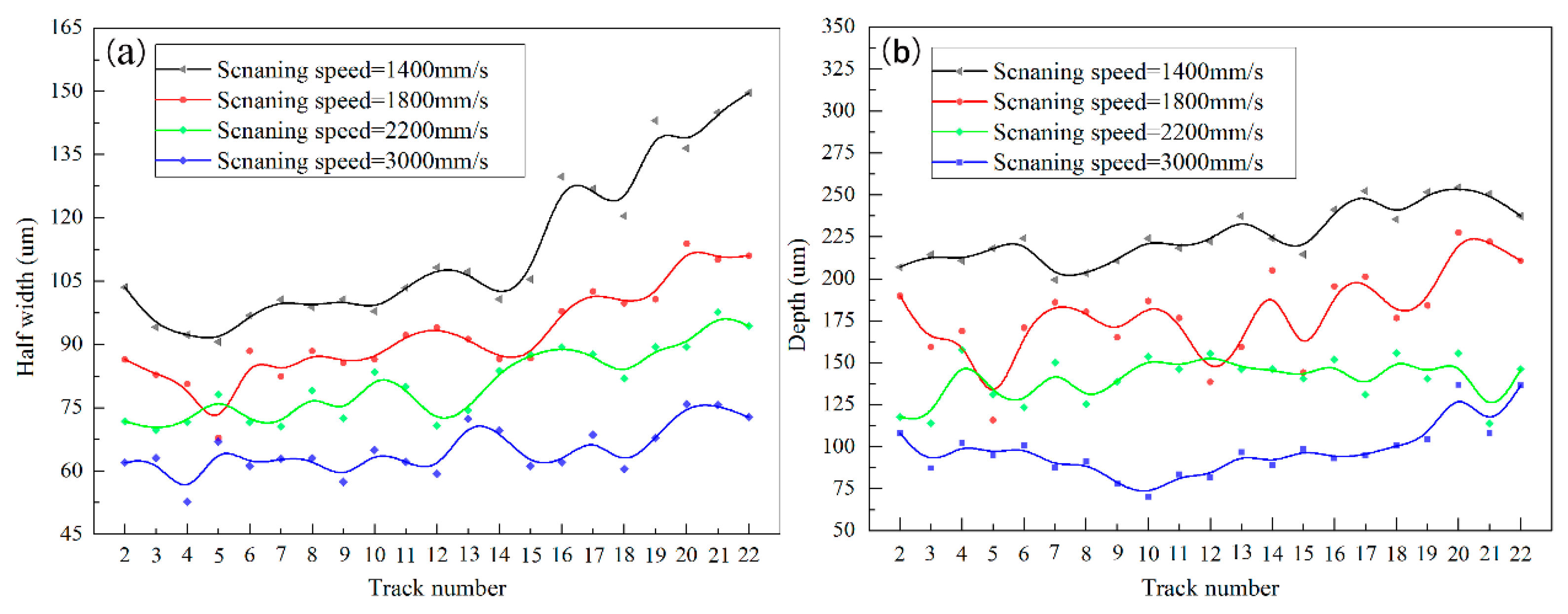

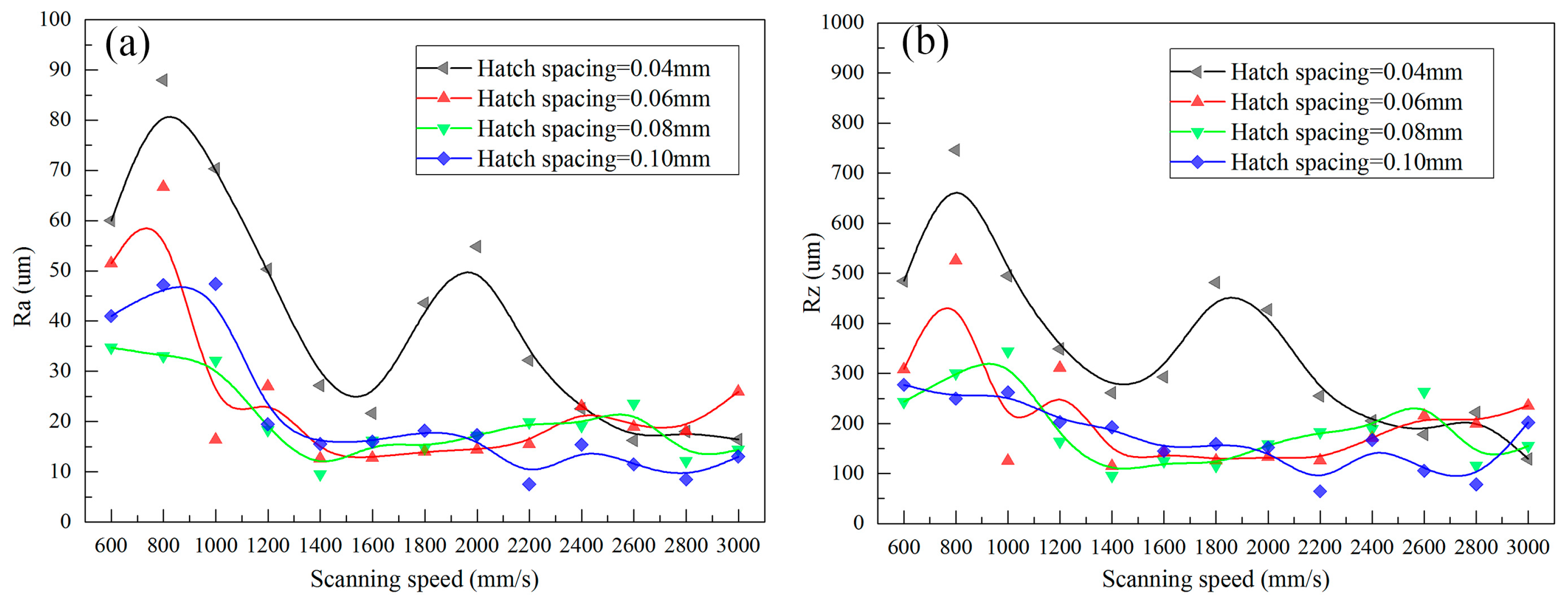

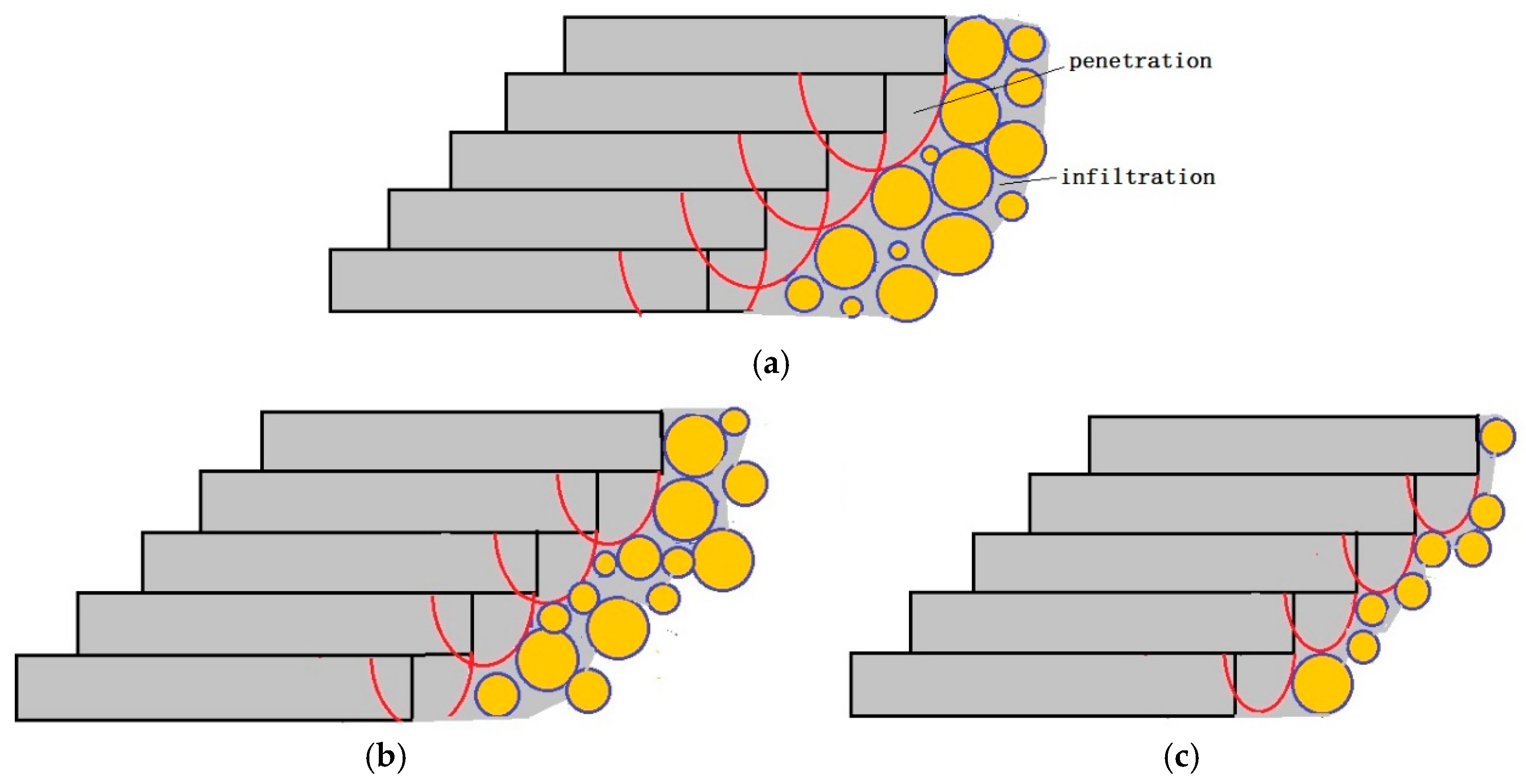

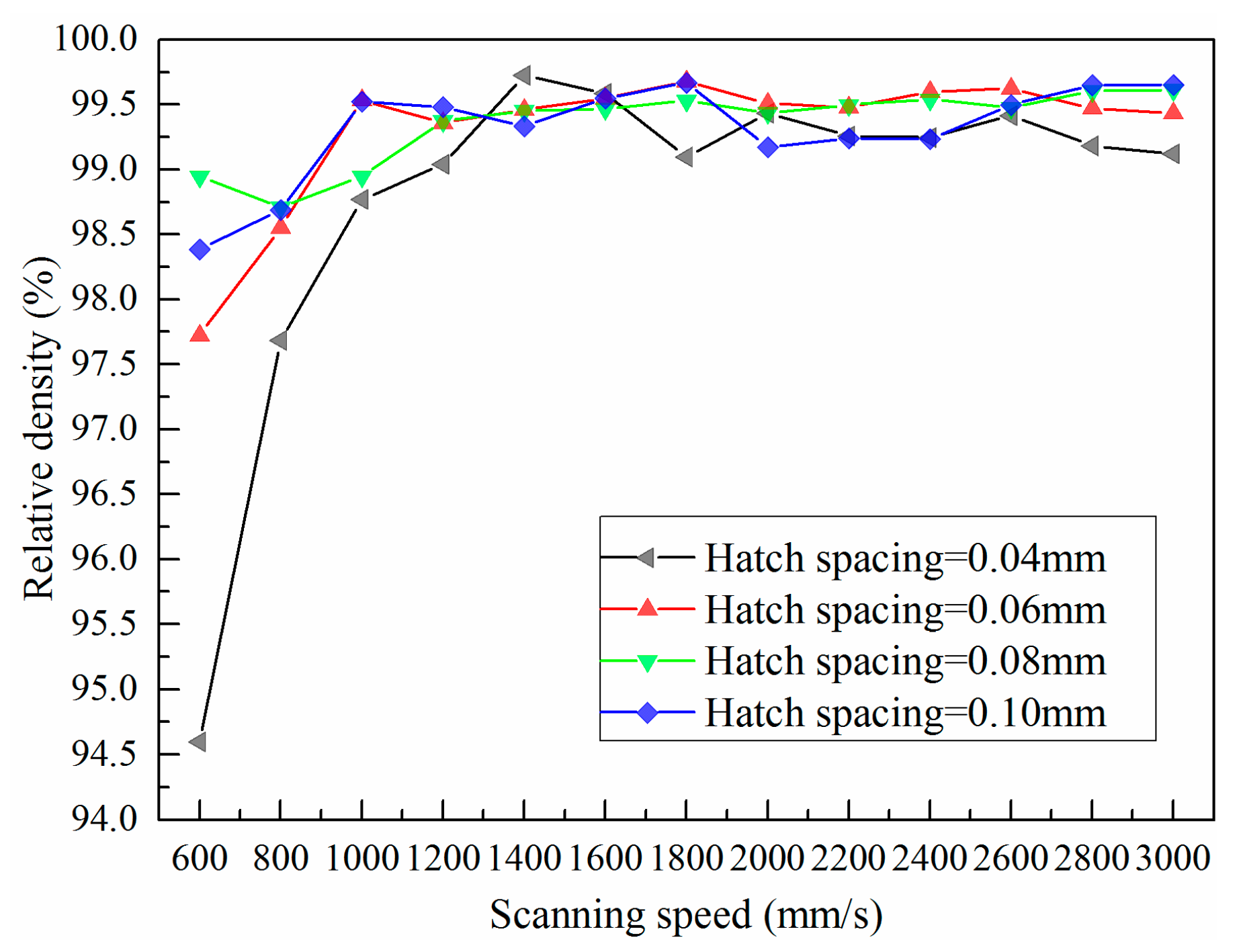

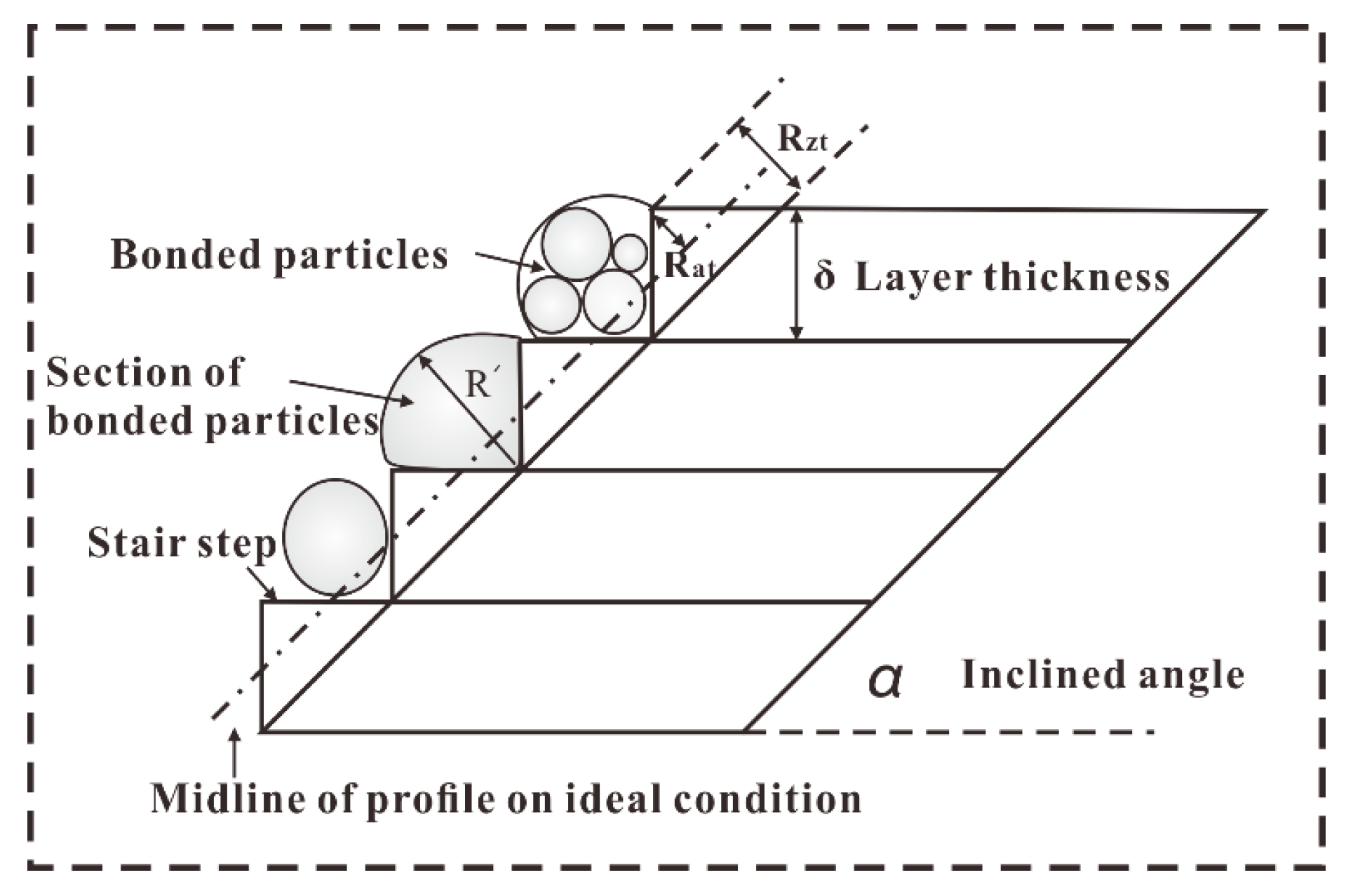

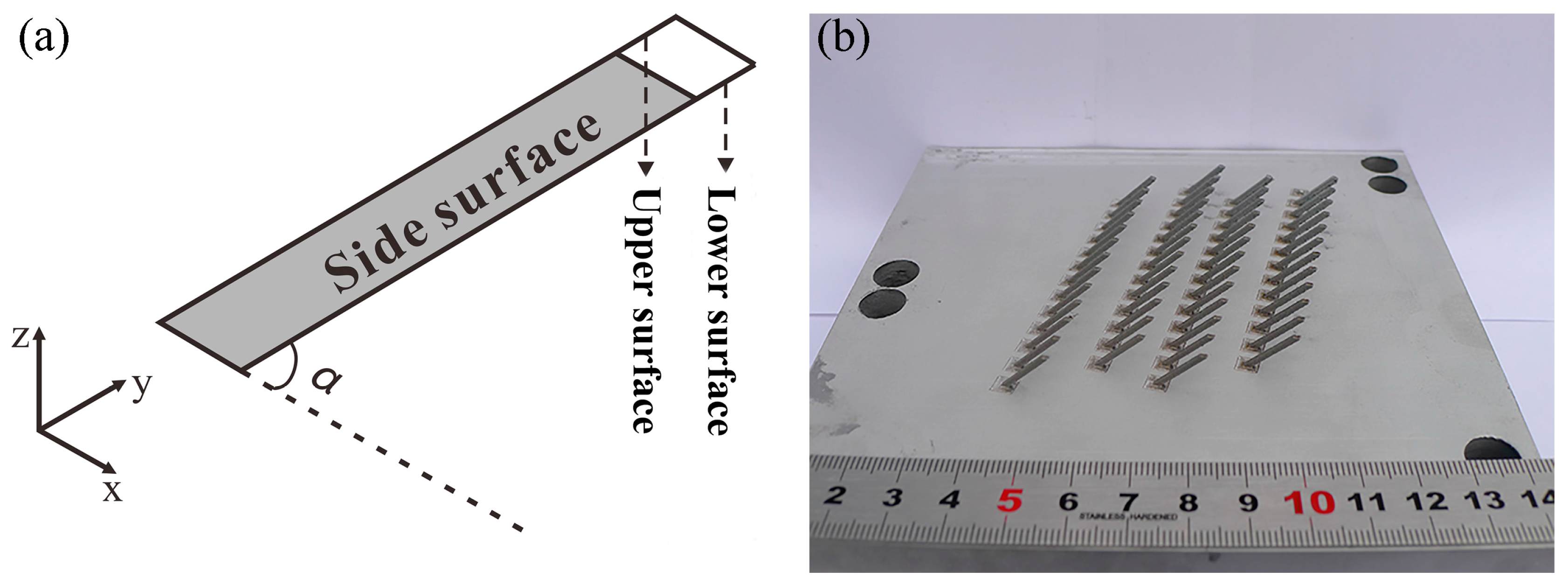

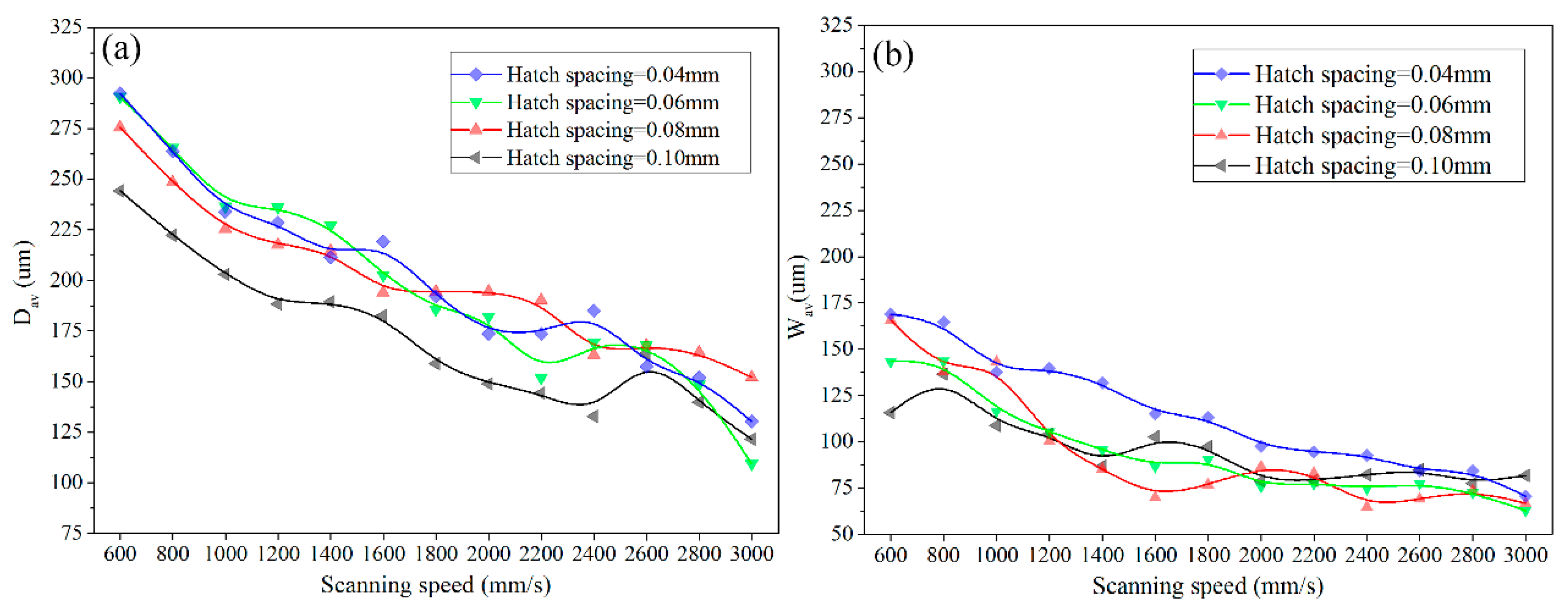

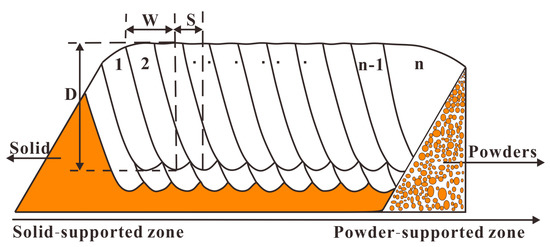

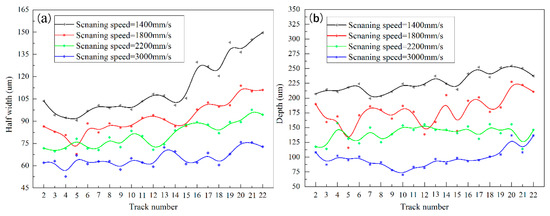

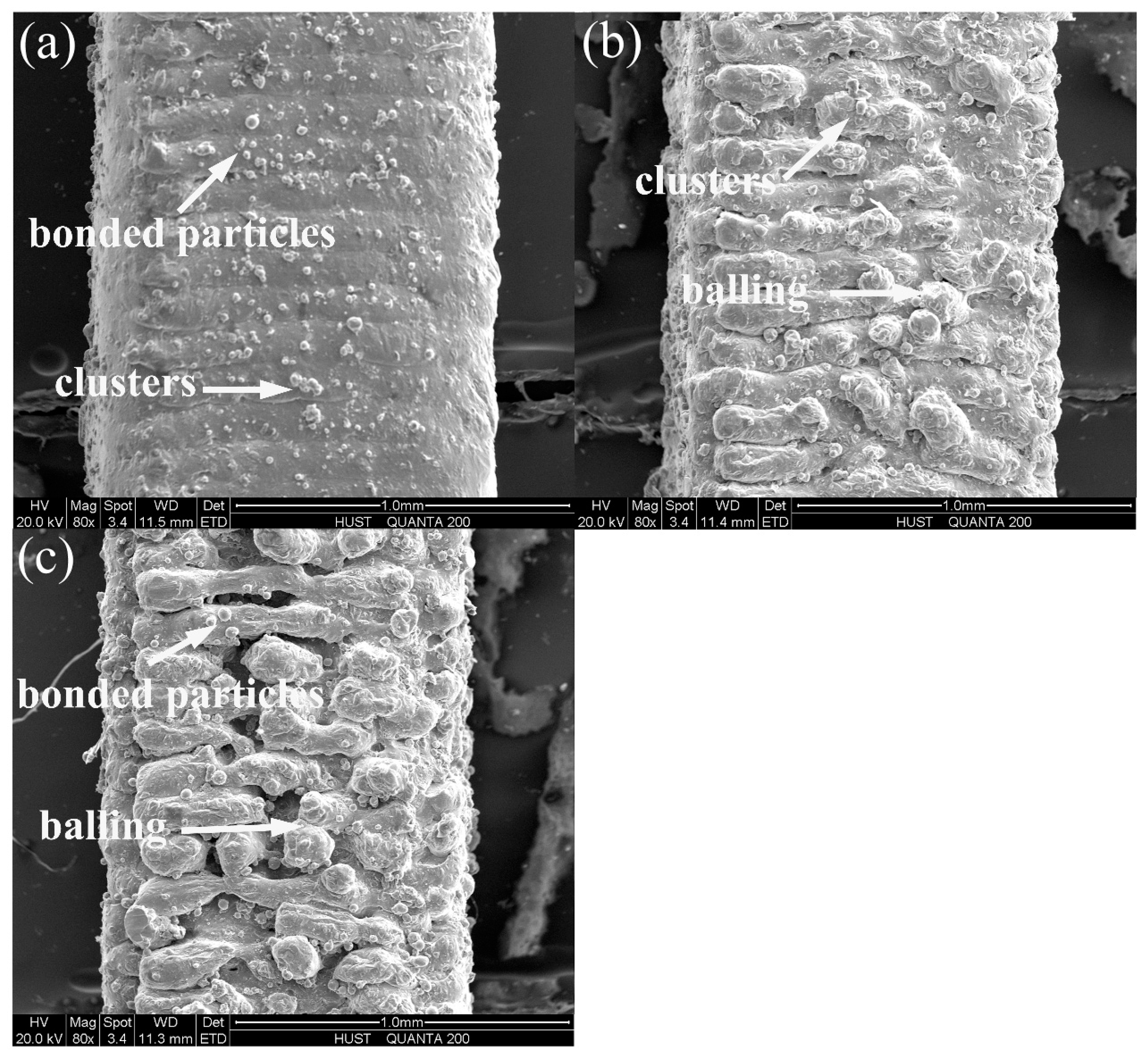

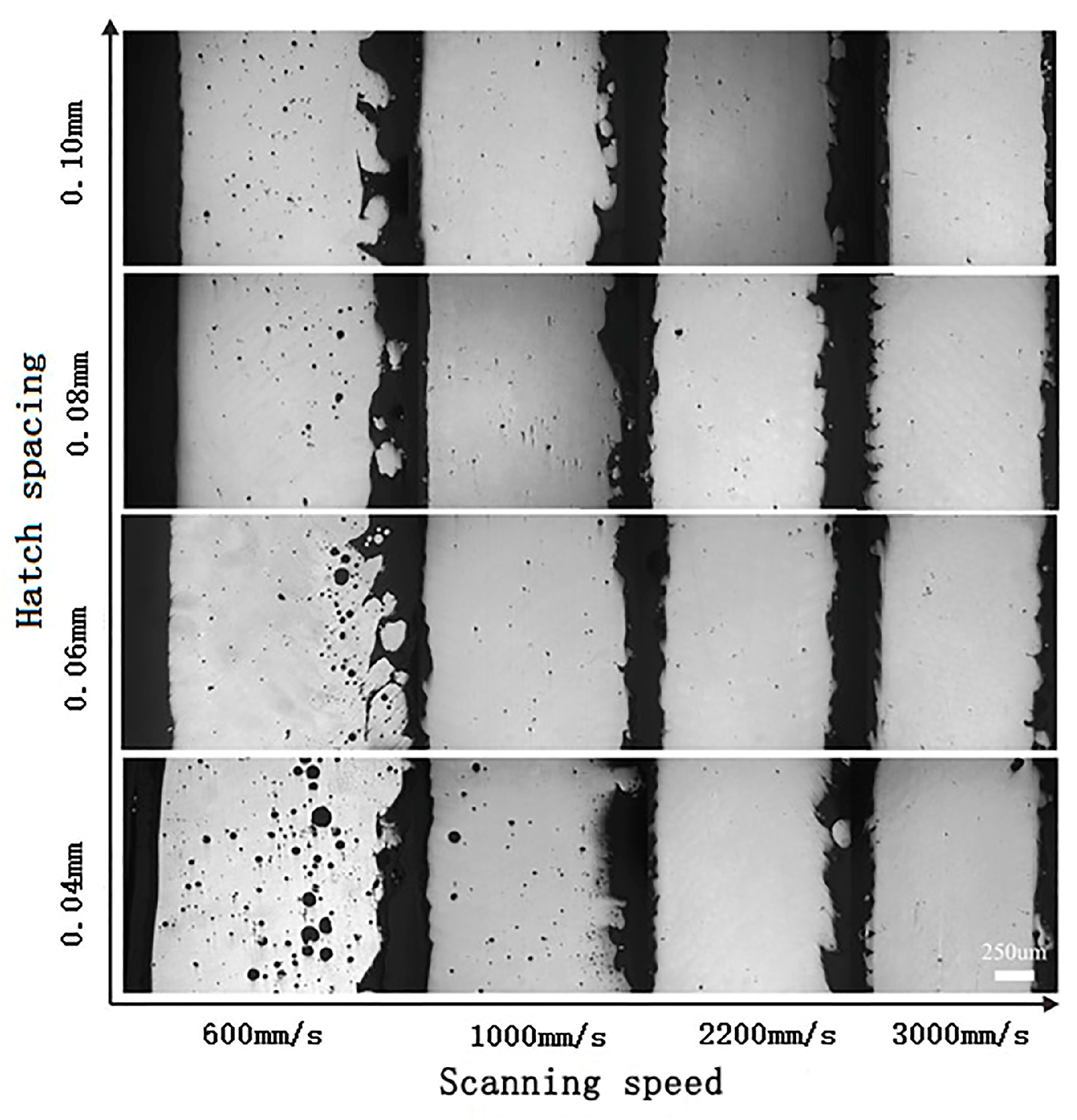

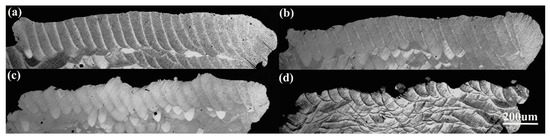

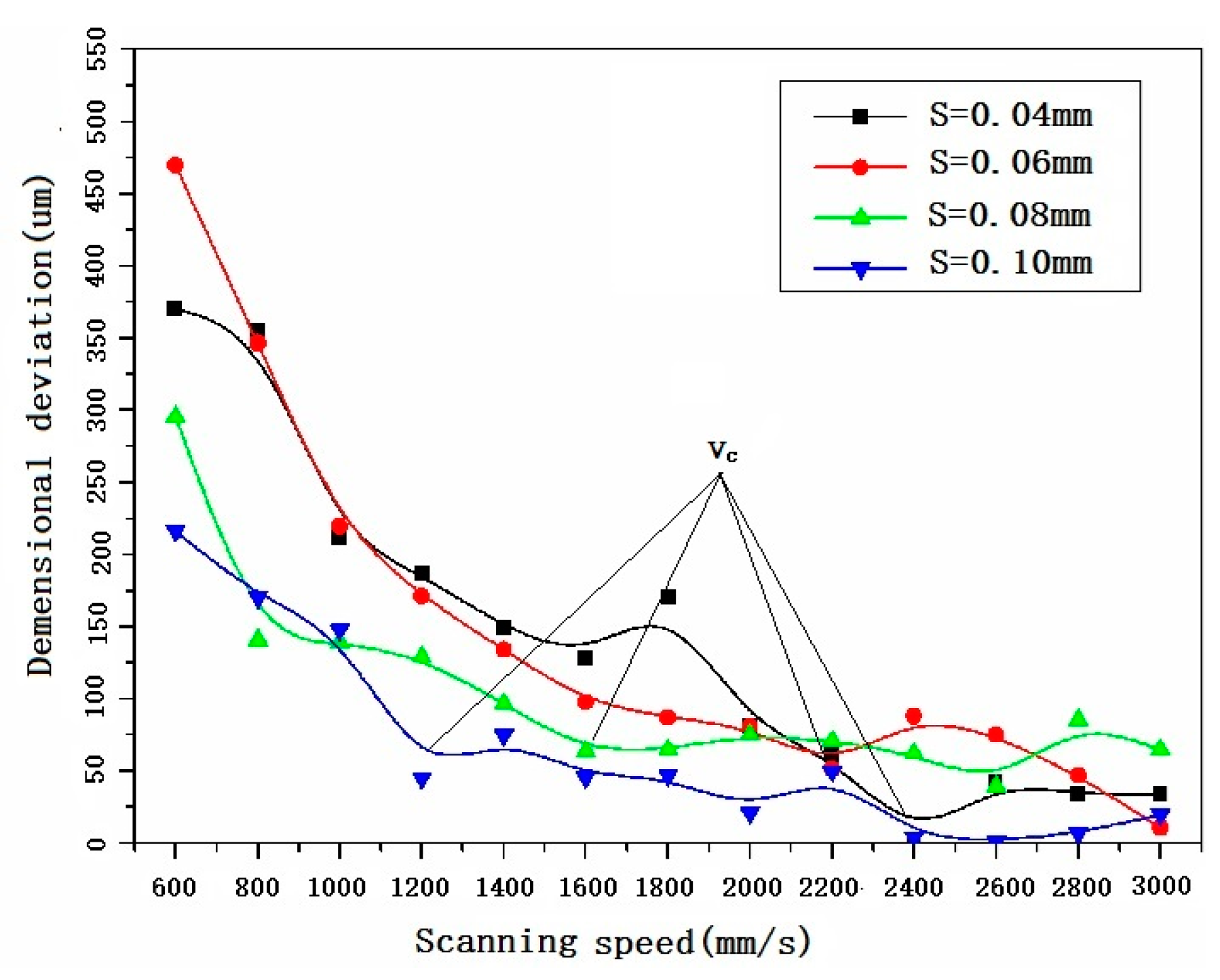

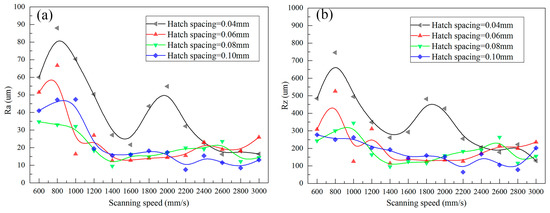

AlSi10Mg inclined struts with angle of 45° were fabricated by selective laser melting (SLM) using different scanning speed and hatch spacing to gain insight into the evolution of the molten pool morphology, surface roughness, and dimensional accuracy. The results show that the average width and depth of the molten pool, the lower surface roughness and dimensional deviation decrease with the increase of scanning speed and hatch spacing. The upper surface roughness is found to be almost constant under different processing parameters. The width and depth of the molten pool on powder-supported zone are larger than that of the molten pool on the solid-supported zone, while the width changes more significantly than that of depth. However, if the scanning speed is high enough, the width and depth of the molten pool and the lower surface roughness almost keep constant as the density is still high. Therefore, high dimensional accuracy and density as well as good surface quality can be achieved simultaneously by using high scanning speed during SLMed cellular lattice strut. View Full-Text
Keywords: selective laser melting; cellular lattice structure strut; molten pool morphology; surface roughness; powder-supported zone selective laser melting; cellular lattice structure strut; molten pool morphology; surface roughness; powder-supported zone
►▼ Show Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
