Next Article in Journal
Multi-Scale Modeling for Predicting the Stiffness and Strength of Hollow-Structured Metal Foams with Structural Hierarchy
Previous Article in Journal
Enhancement of Inverted Polymer Solar Cells Performances Using Cetyltrimethylammonium-Bromide Modified ZnO
Open AccessArticle

Improving Mechanical Properties of PVPPA Welded Joints of 7075 Aluminum Alloy by PWHT

School of Materials Science and Engineering, Inner Mongolia University of Technology, Hohhot 010051, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(3), 379; https://doi.org/10.3390/ma11030379
Received: 3 February 2018 / Revised: 27 February 2018 / Accepted: 28 February 2018 / Published: 5 March 2018
(This article belongs to the Section Manufacturing Processes and Systems)

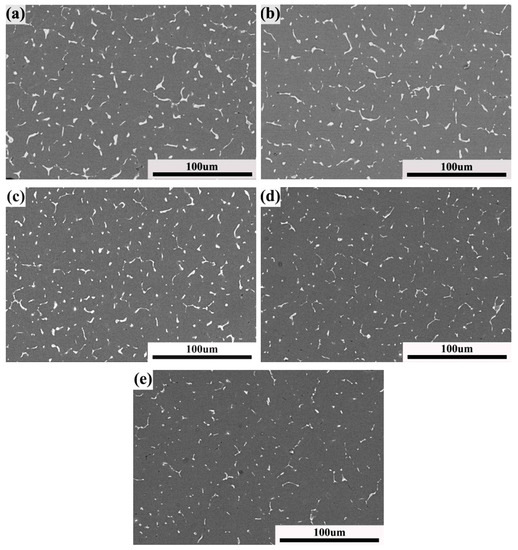

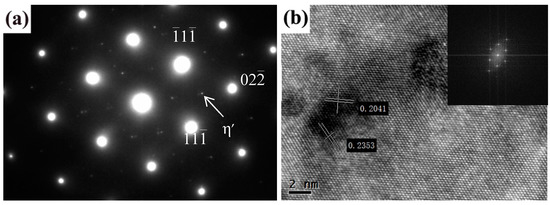

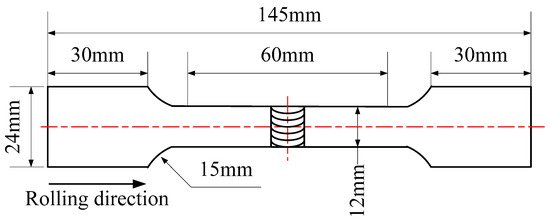

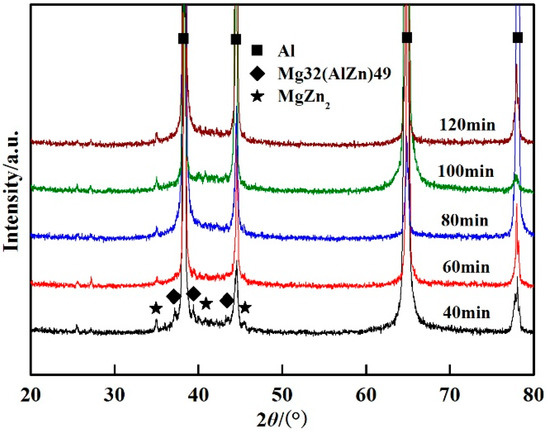

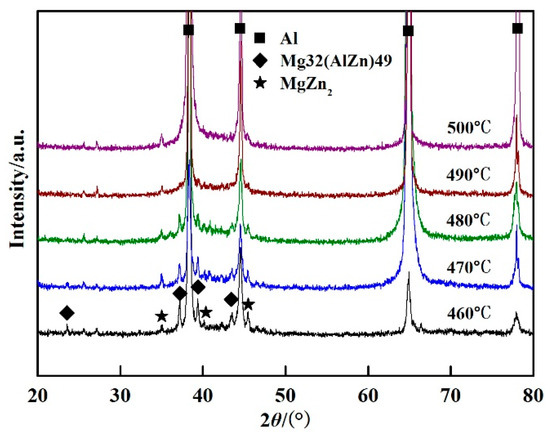

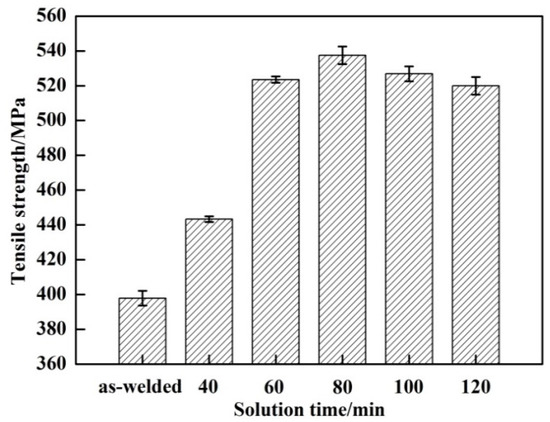

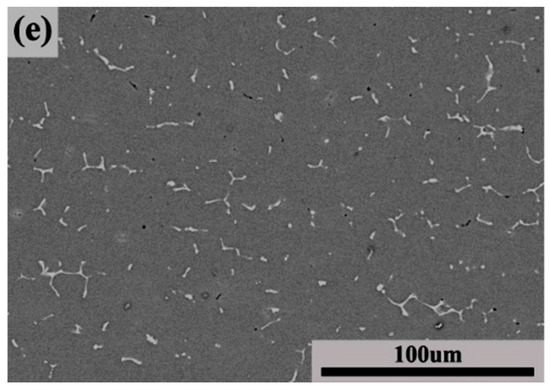

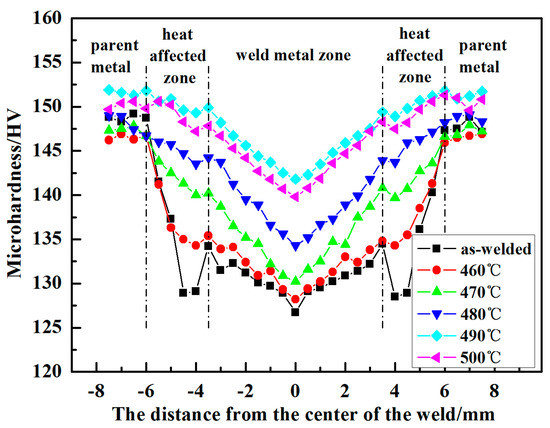

In this study, 7075 aluminum alloy with a thickness of 10 mm was successfully welded with no obvious defects by pulsed variable polarity plasma arc (PVPPA) welding. The mechanical properties of PVPPA welded joints have been researched by post weld heat treatment (PWHT). The results indicate that the heat treatment strongly affects the mechanical properties of the welded joints. The tensile strength and the microhardness of the welded joints gradually improved with the increase of the solution temperature. With the increase of the solution time, the tensile strength, and microhardness first dramatically increased and then decreased slightly. The best tensile strength of 537.5 MPa and the microhardness of 143.7 HV were obtained after 490 °C × 80 min + 120 °C × 24 h, and the strength was nearly 91.2% of that of the parent metal, and increased about 35% compared with as-welded. The improvement of strength and microhardness was mainly due to the precipitation of η′ phase. View Full-Text
Keywords: PVPPA welding; heat treatment; 7075 aluminum alloy; microstructure; mechanical properties PVPPA welding; heat treatment; 7075 aluminum alloy; microstructure; mechanical properties
Show Figures

Figure 1

MDPI and ACS Style

Li, G.; Chen, F.; Han, Y.; Liang, Y. Improving Mechanical Properties of PVPPA Welded Joints of 7075 Aluminum Alloy by PWHT. Materials 2018, 11, 379.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
