Open AccessArticle
Materials 2018, 11(2), 182; https://doi.org/10.3390/ma11020182

Dielectric, Piezoelectric, and Vibration Properties of the LiF-Doped (Ba0.95Ca0.05)(Ti0.93Sn0.07)O3 Lead-Free Piezoceramic Sheets

1
Department of Electronic Engineering, Southern Taiwan University of Science and Technology, Tainan 71005, Taiwan
2
Department of Digital Game and Animation Design, Tung-Fang Design University, Kaohsiung 82941, Taiwan
3
Department of Electro-Optical Engineering, Southern Taiwan University of Science and Technology, No. 1, Nan-Tai Street, Yungkang District, Tainan 710, Taiwan
*
Author to whom correspondence should be addressed.
Received: 31 October 2017 / Revised: 5 January 2018 / Accepted: 22 January 2018 / Published: 24 January 2018
(This article belongs to the Special Issue Energetic Materials and Processes)
Full-Text   |   PDF [2729 KB, uploaded 24 January 2018]   |

Abstract

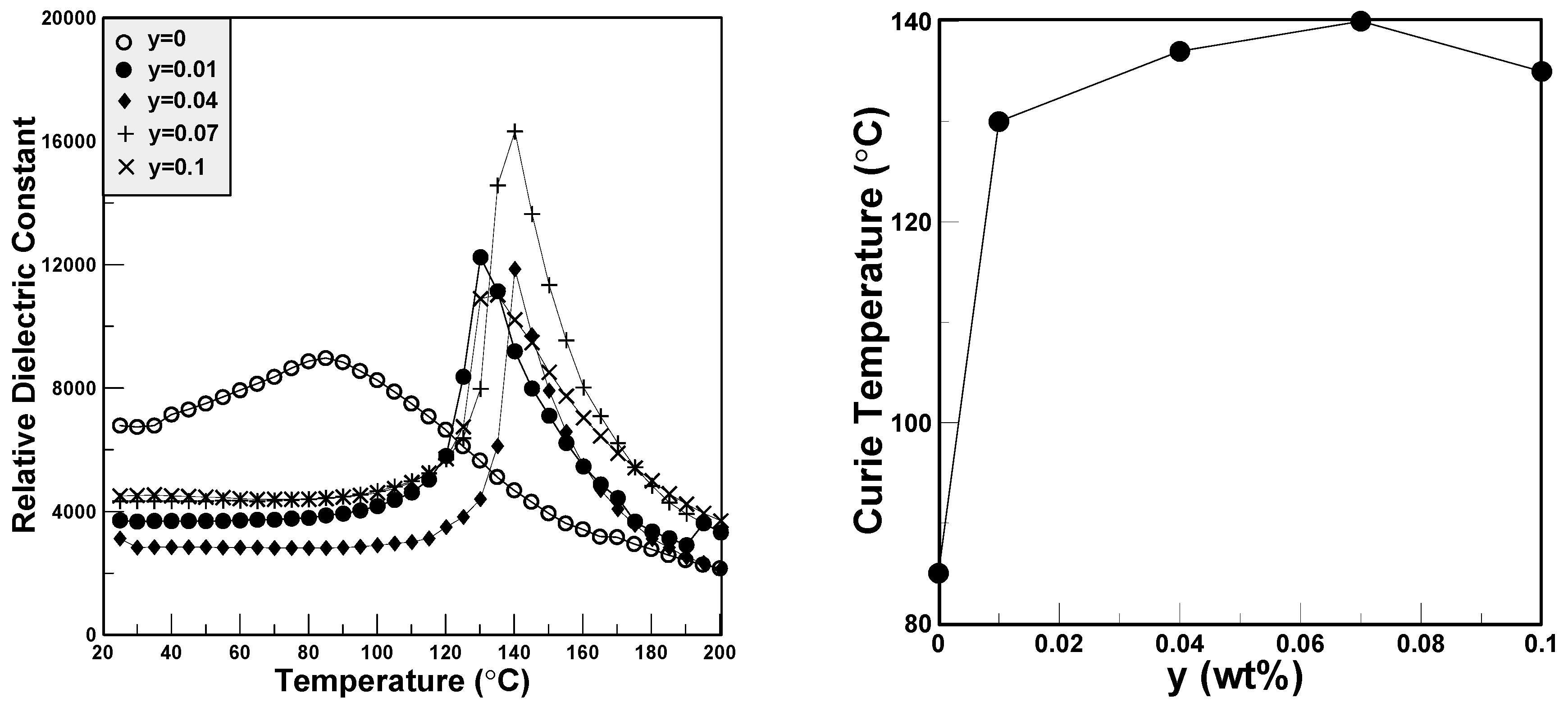

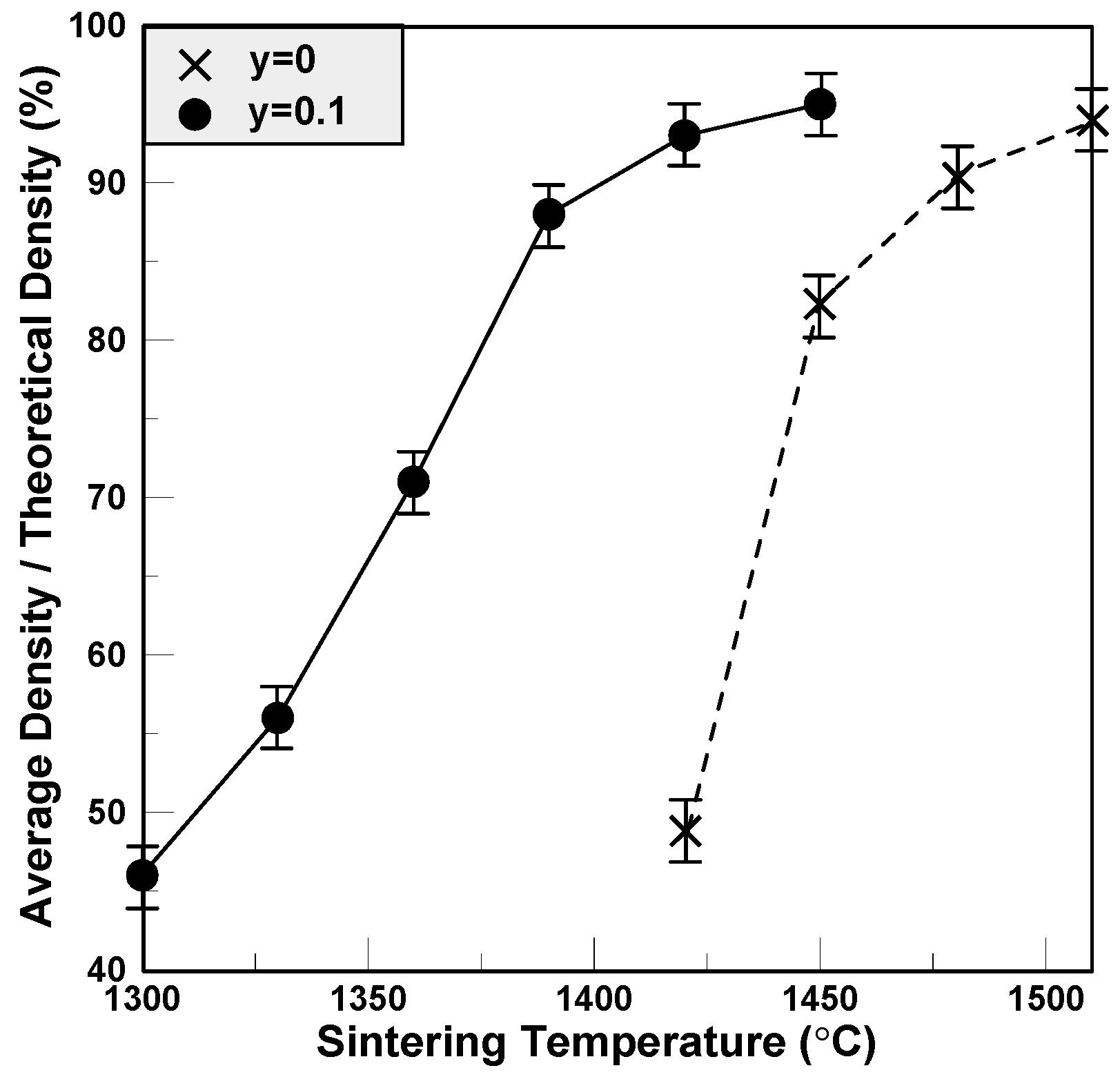

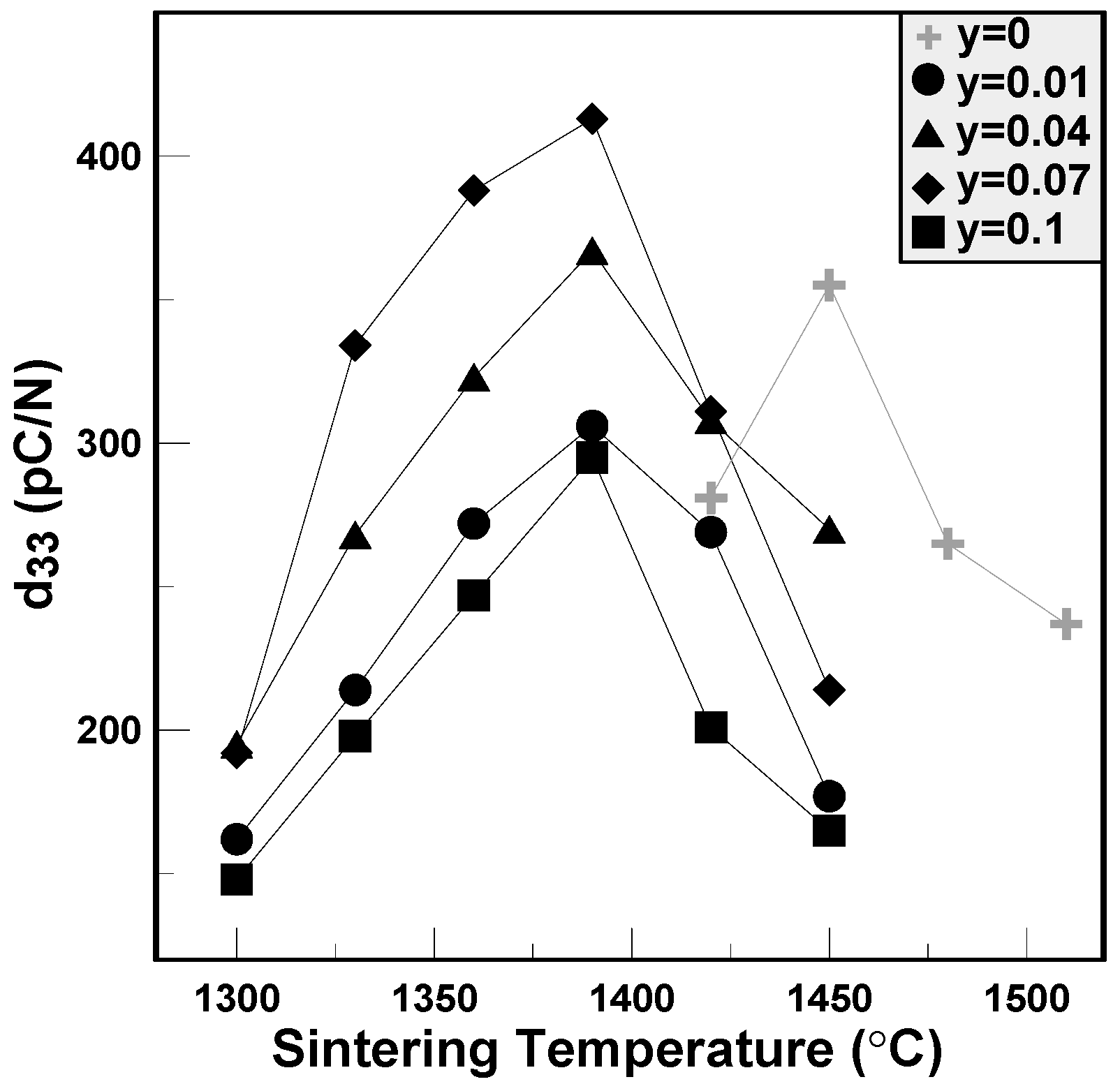

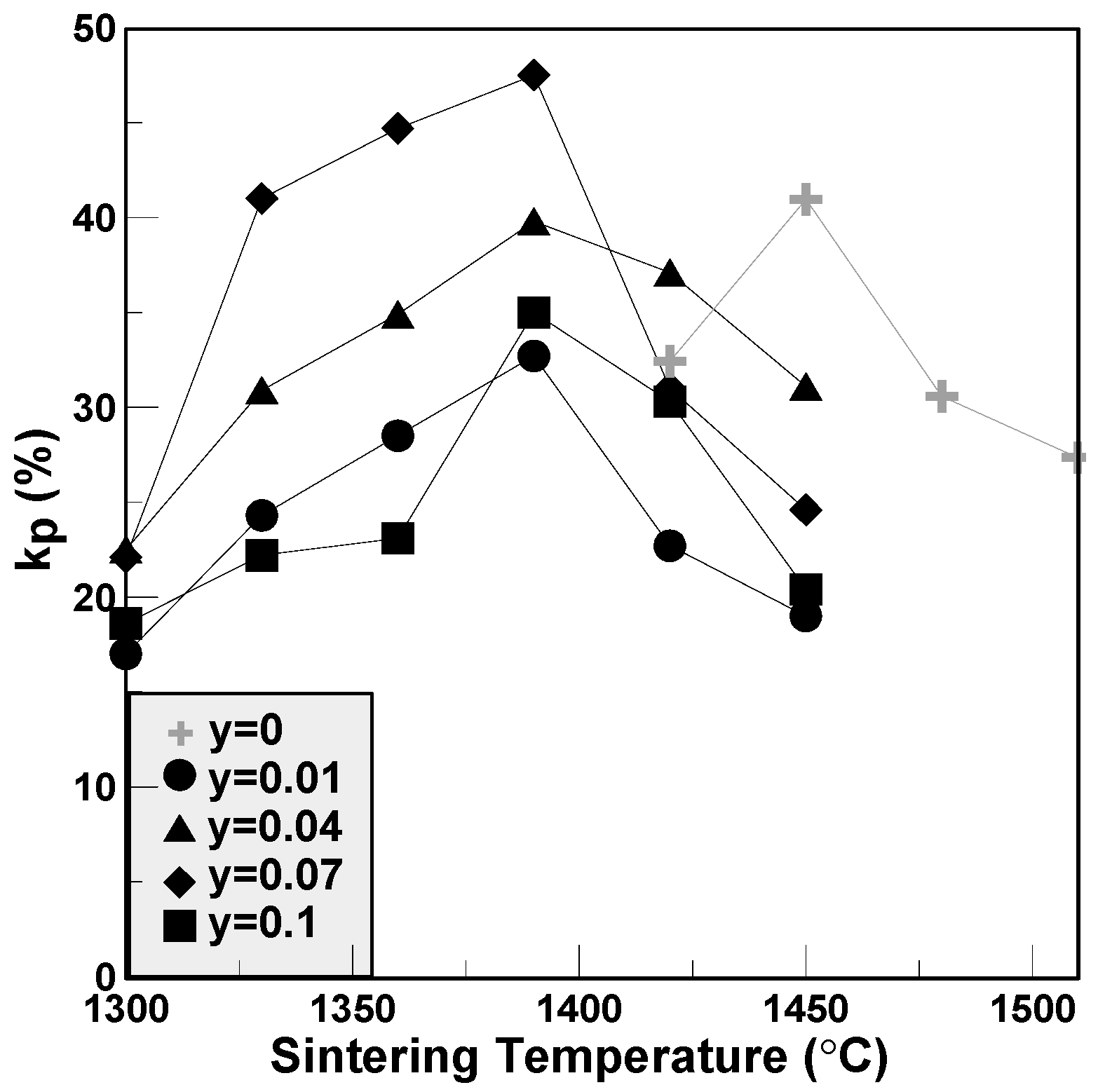

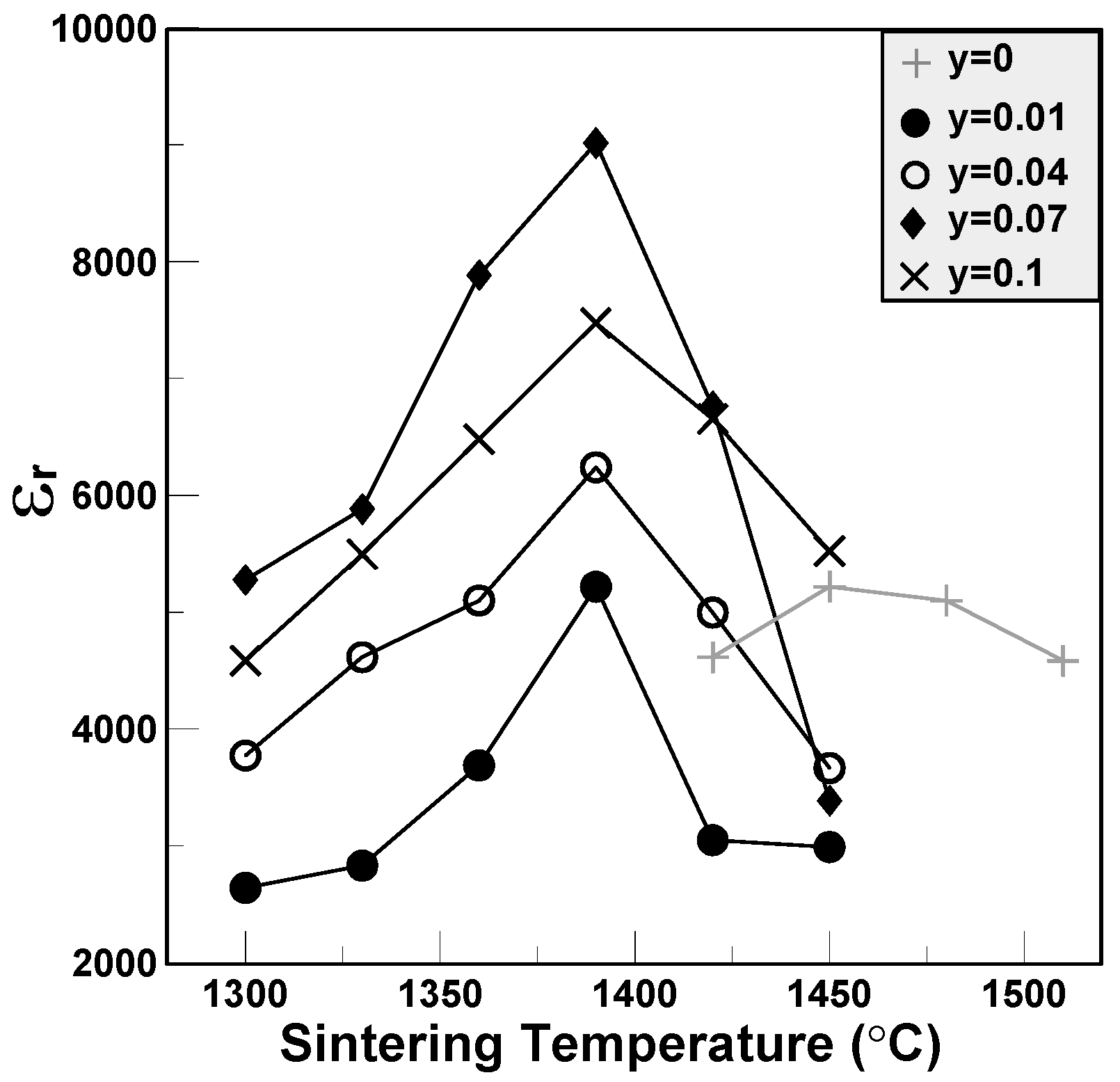

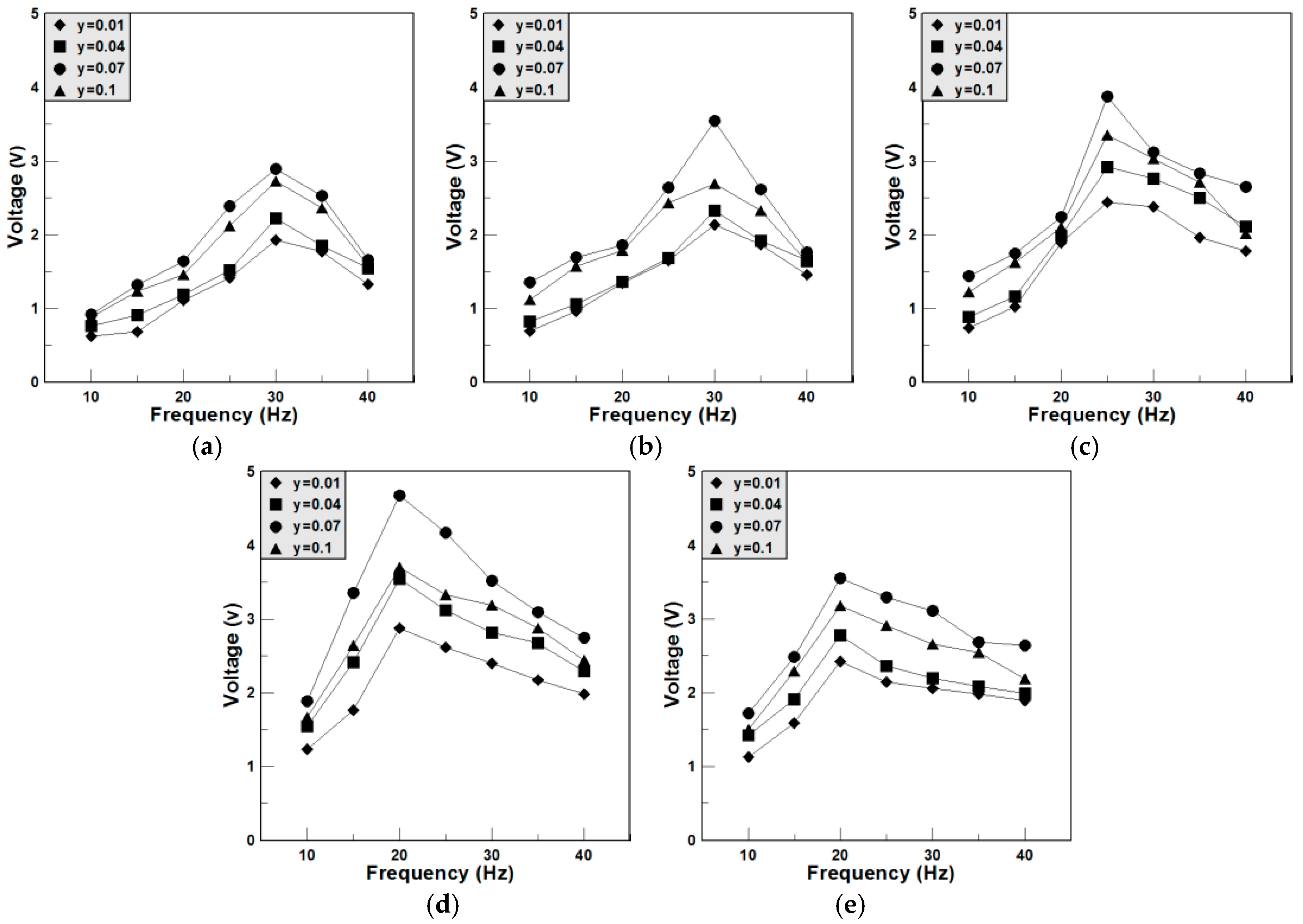

By the conventional solid state reaction method, a small amount of lithium fluoride (LiF) was used as the sintering promoter to improve the sintering and piezoelectric characteristics of (Ba0.95Ca0.05)(Ti0.93Sn0.07)O3 (BCTS) lead-free piezoceramic sheets. Using X-ray diffraction (XRD) and a scanning electron microscope (SEM), the inferences of the crystalline and surface microstructures were obtained and analyzed. Then, the impedance analyzer and d33-meter were used to measure the dielectric and piezoelectric characteristics. In this study, the optimum sintering temperature of the BCTS sheets decreased from 1450 °C to 1390 °C due to LiF doping. For the 0.07 wt % LiF-doped BCTS sheets sintered at 1390 °C, the piezoelectric constant (d33) is 413 pC/N, the electric–mechanical coupling coefficient (kp) is 47.5%, the dielectric loss (tan δ) is 3.9%, and the dielectric constant (εr) is 8100, which are all close to or even better than that of the pure undoped BCTS ceramics. The Curie temperature also improved, from 85 °C for pure BCTS to 140 °C for BCTS–0.07 LiF sheets. Furthermore, by using the vibration system and fixing 1.5 g tip mass at the end of the sheets, as the vibration frequency is 20 Hz, the proposed piezoelectric ceramic sheets also reveal a good energy harvesting performance at the maximum output peak voltage of 4.6 V, which is large enough and can be applied in modern low-power electronic products. View Full-Text
Keywords: lead-free; piezoceramic sheet; sintering temperature; vibration lead-free; piezoceramic sheet; sintering temperature; vibration
Figures

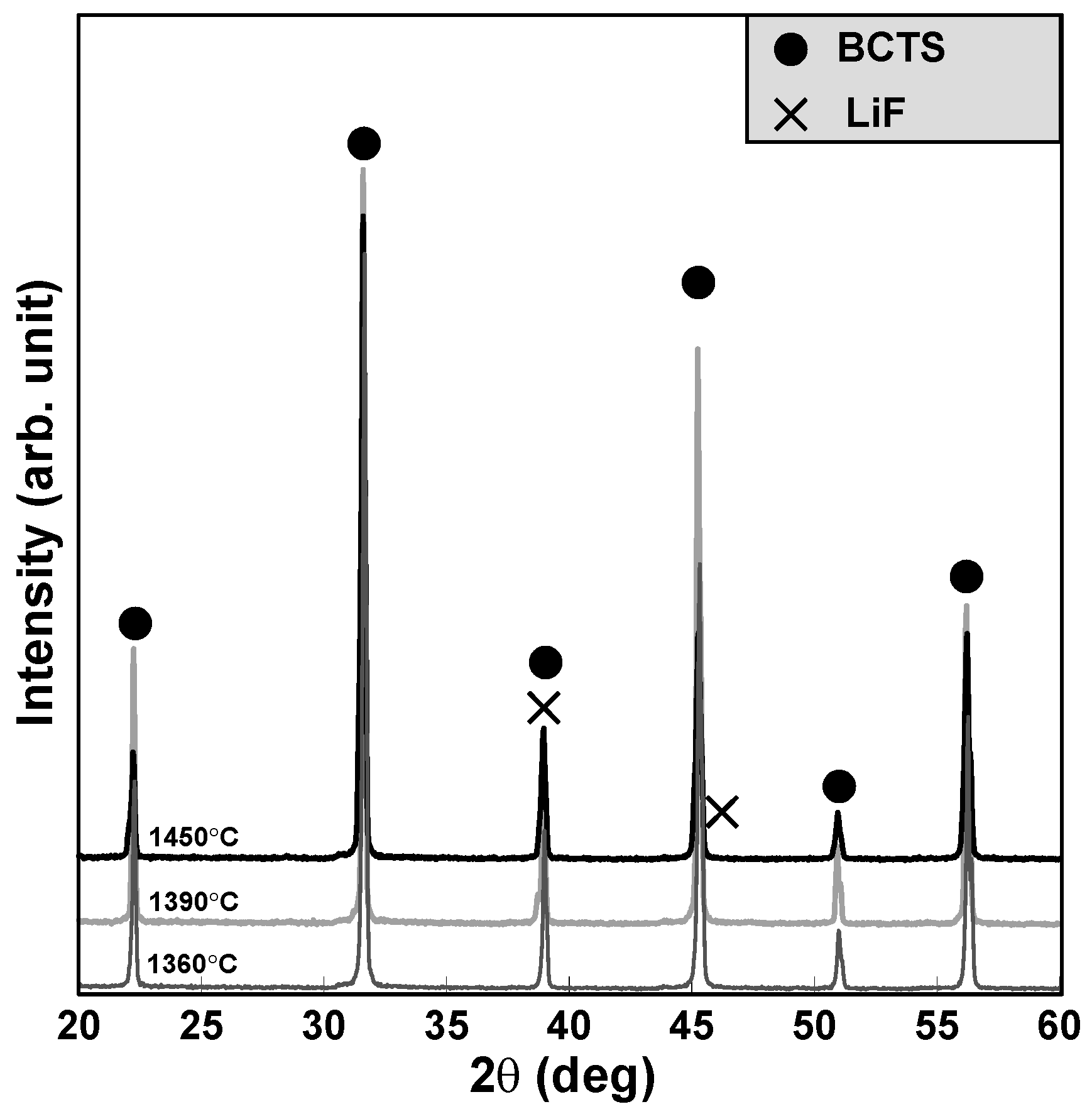

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Cheng, C.-M.; Chen, K.-H.; Lee, D.-H.; Jong, F.-C.; Chen, M.-L.; Chang, J.-K. Dielectric, Piezoelectric, and Vibration Properties of the LiF-Doped (Ba0.95Ca0.05)(Ti0.93Sn0.07)O3 Lead-Free Piezoceramic Sheets. Materials 2018, 11, 182.
