Next Article in Journal
Development of Laser-Based Powder Bed Fusion Process Parameters and Scanning Strategy for New Metal Alloy Grades: A Holistic Method Formulation
Next Article in Special Issue
Quantifying Joule Heating and Mass Transport in Metal Nanowires during Controlled Electromigration
Previous Article in Journal
Performance Consistency of AlSi10Mg Alloy Manufactured by Simulating Multi Laser Beam Selective Laser Melting (SLM): Microstructures and Mechanical Properties
Previous Article in Special Issue
Annealing Behaviour of Pt and PtNi Nanowires for Proton Exchange Membrane Fuel Cells
Open AccessArticle

Determination of Activation Overpotential during the Nucleation of Hcp-Cobalt Nanowires Synthesized by Potentio-Static Electrochemical Reduction

1
Graduate School of Engineering, Nagasaki University, Bunkyo-machi 1-14, Nagasaki 852-8521, Japan
2
Faculty of Engineering, Nagasaki University, Bunkyo-machi 1-14, Nagasaki 852-8521, Japan
*
Author to whom correspondence should be addressed.
Materials 2018, 11(12), 2355; https://doi.org/10.3390/ma11122355
Received: 24 October 2018 / Revised: 16 November 2018 / Accepted: 20 November 2018 / Published: 22 November 2018
(This article belongs to the Special Issue Metallic Nanowires and Their Applications)

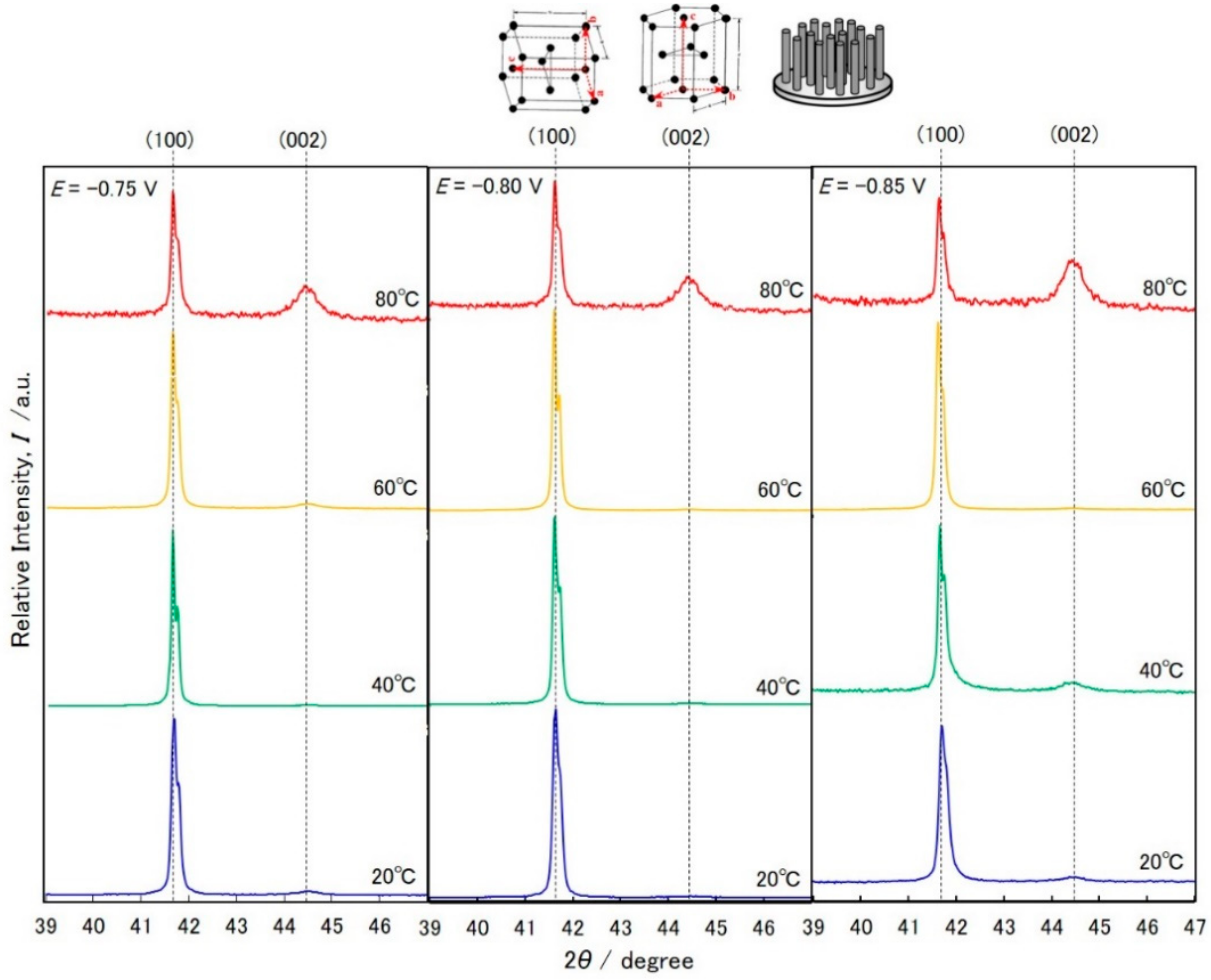

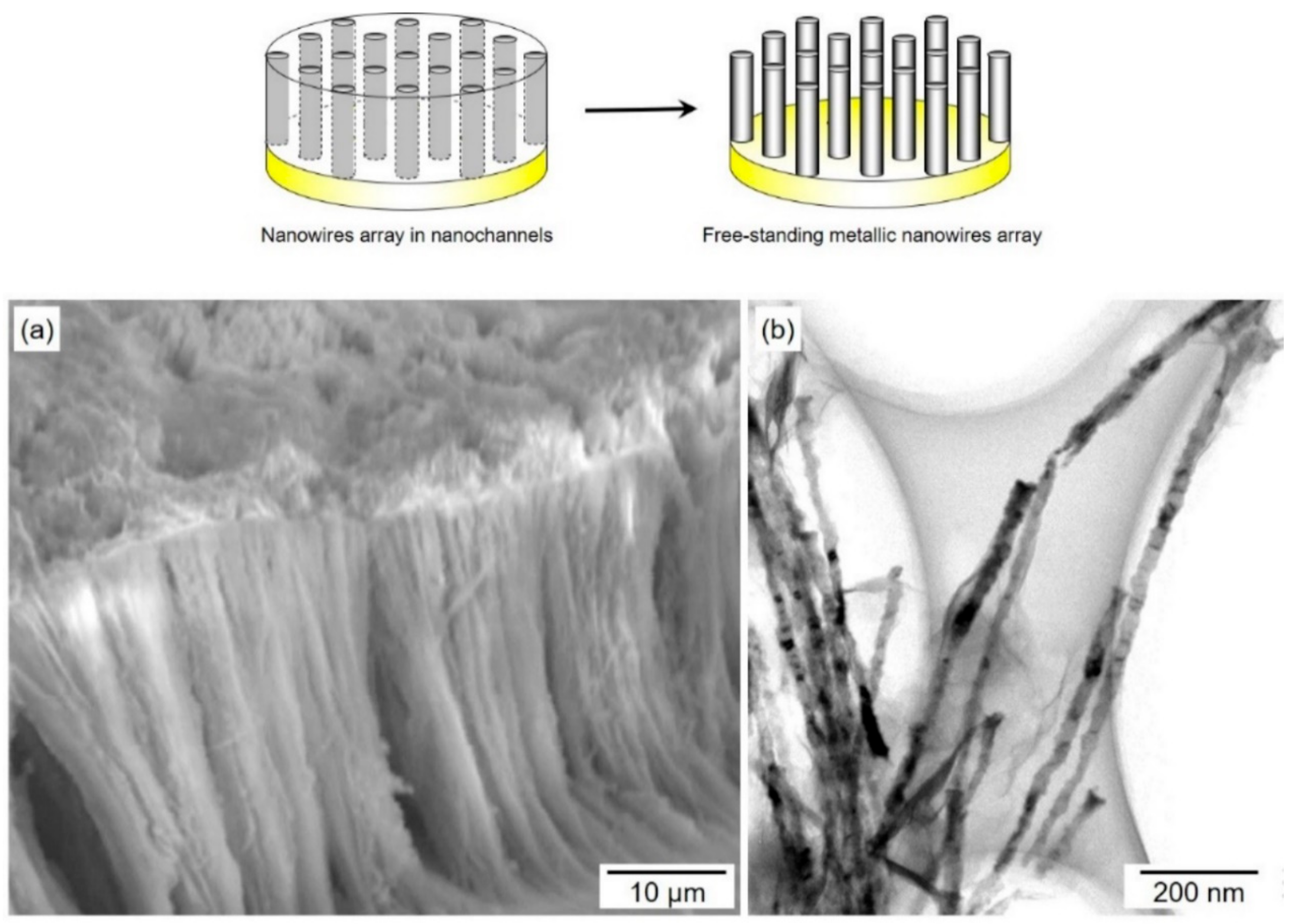

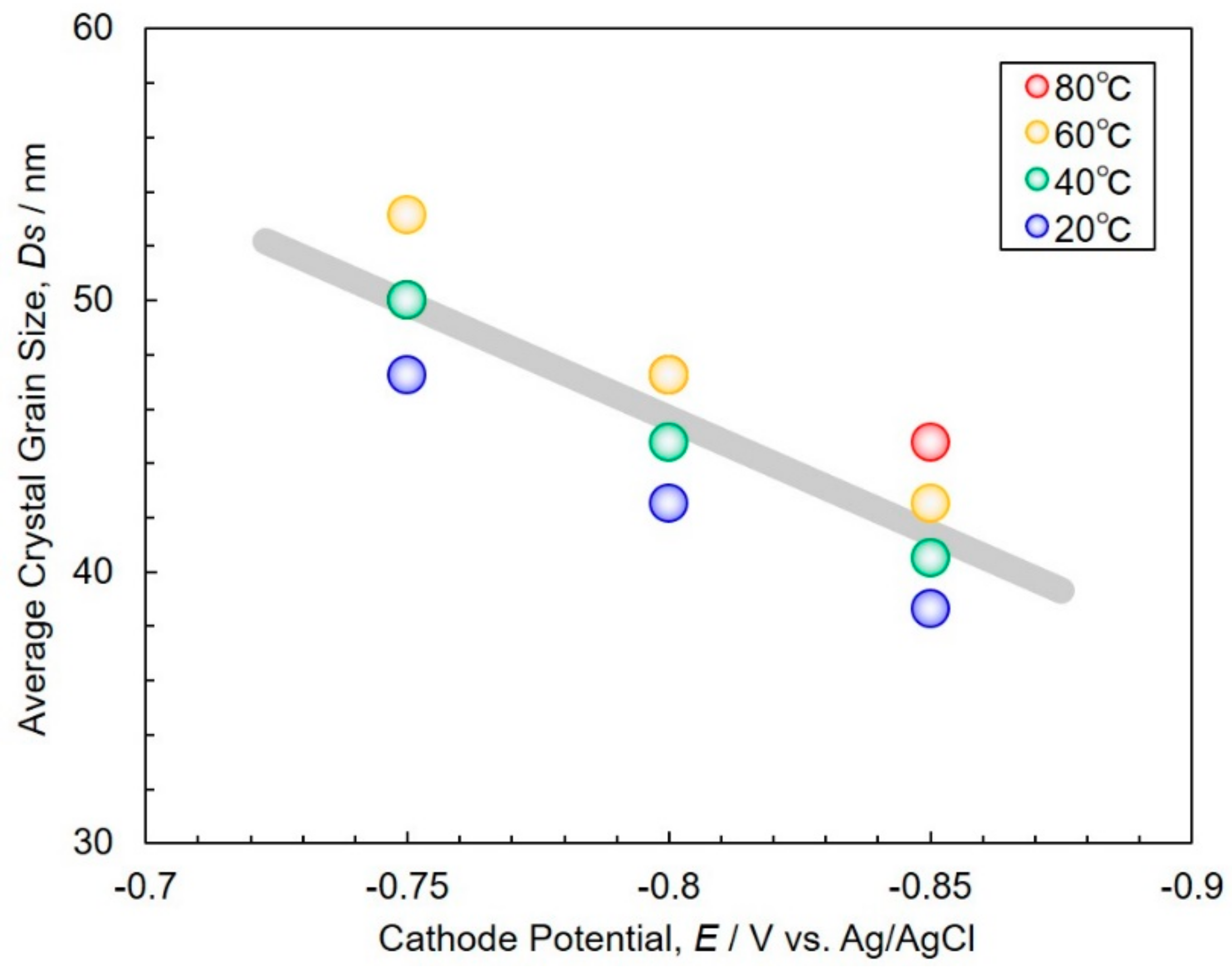

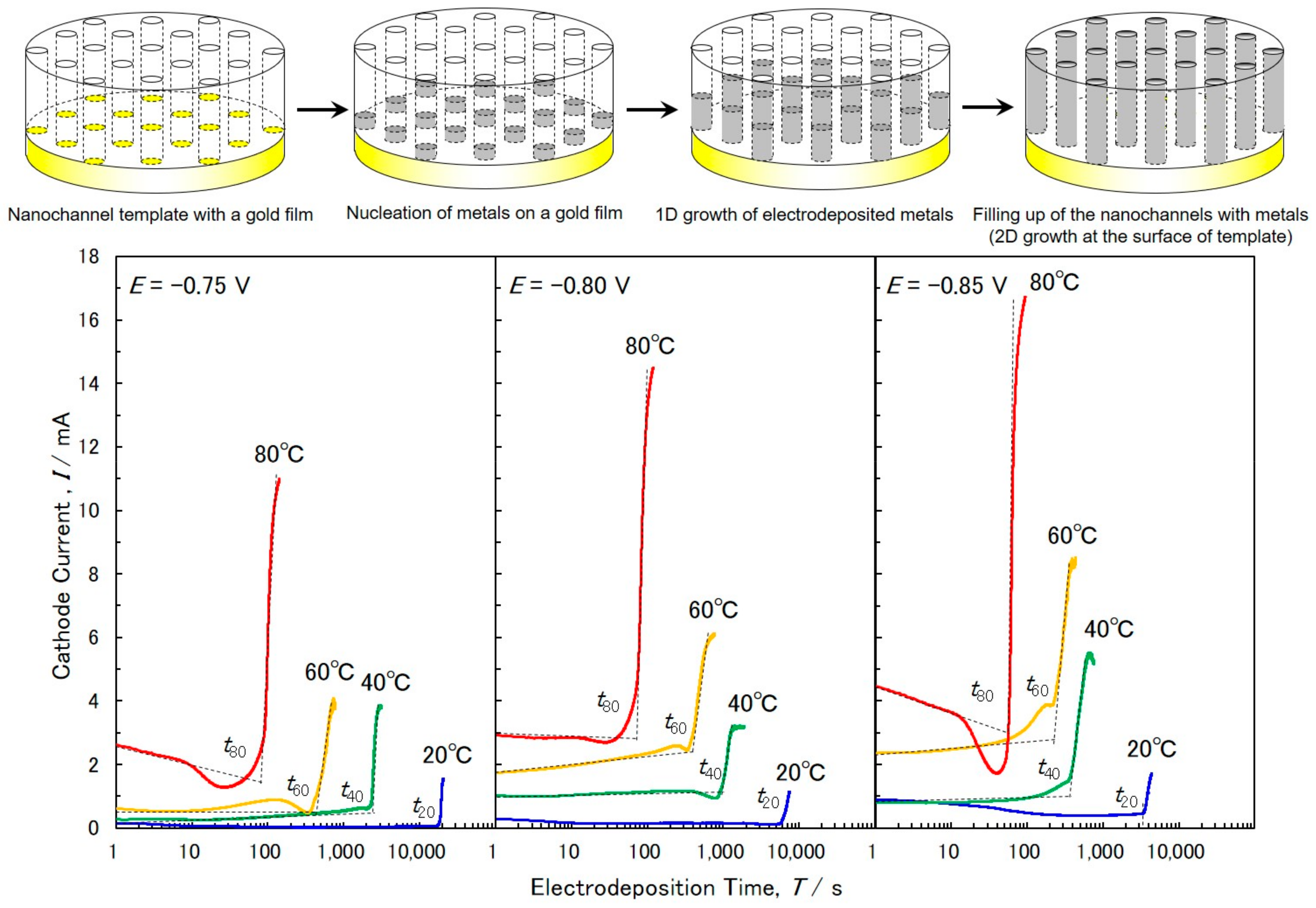

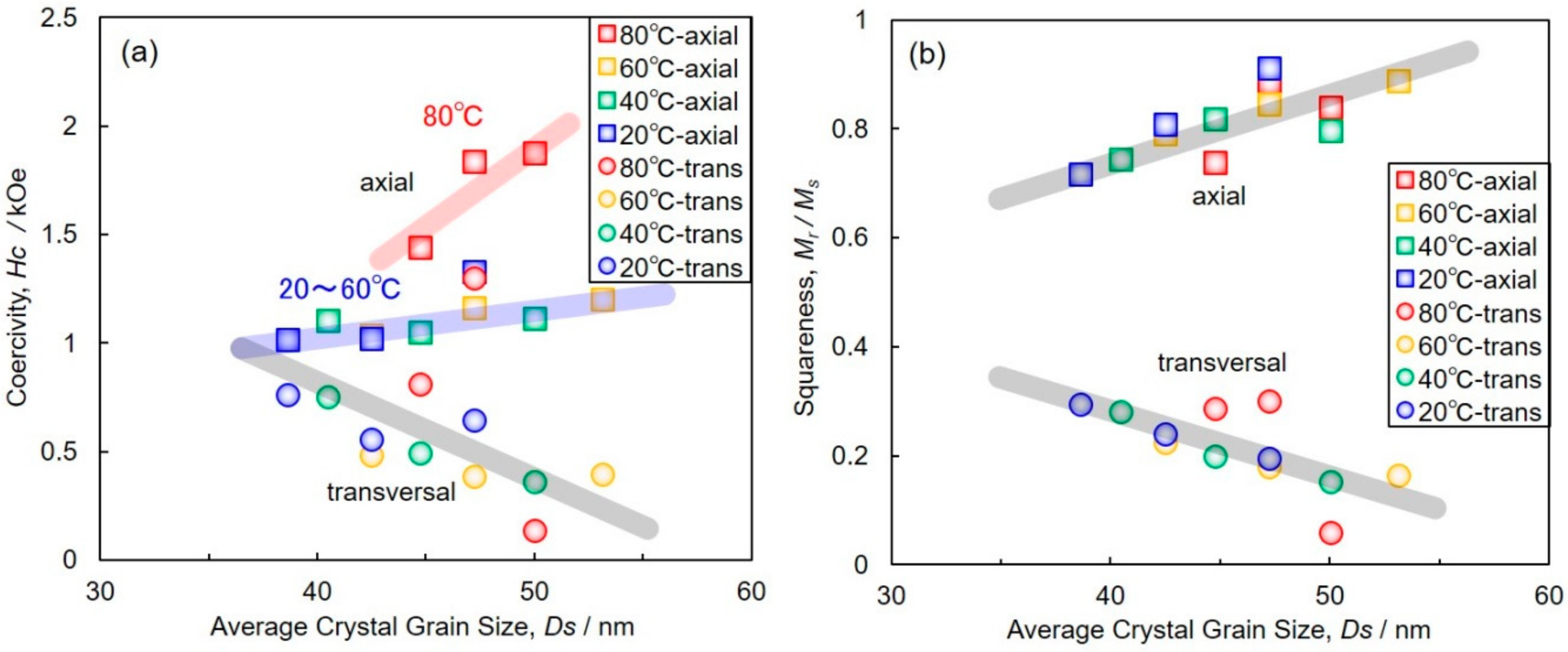

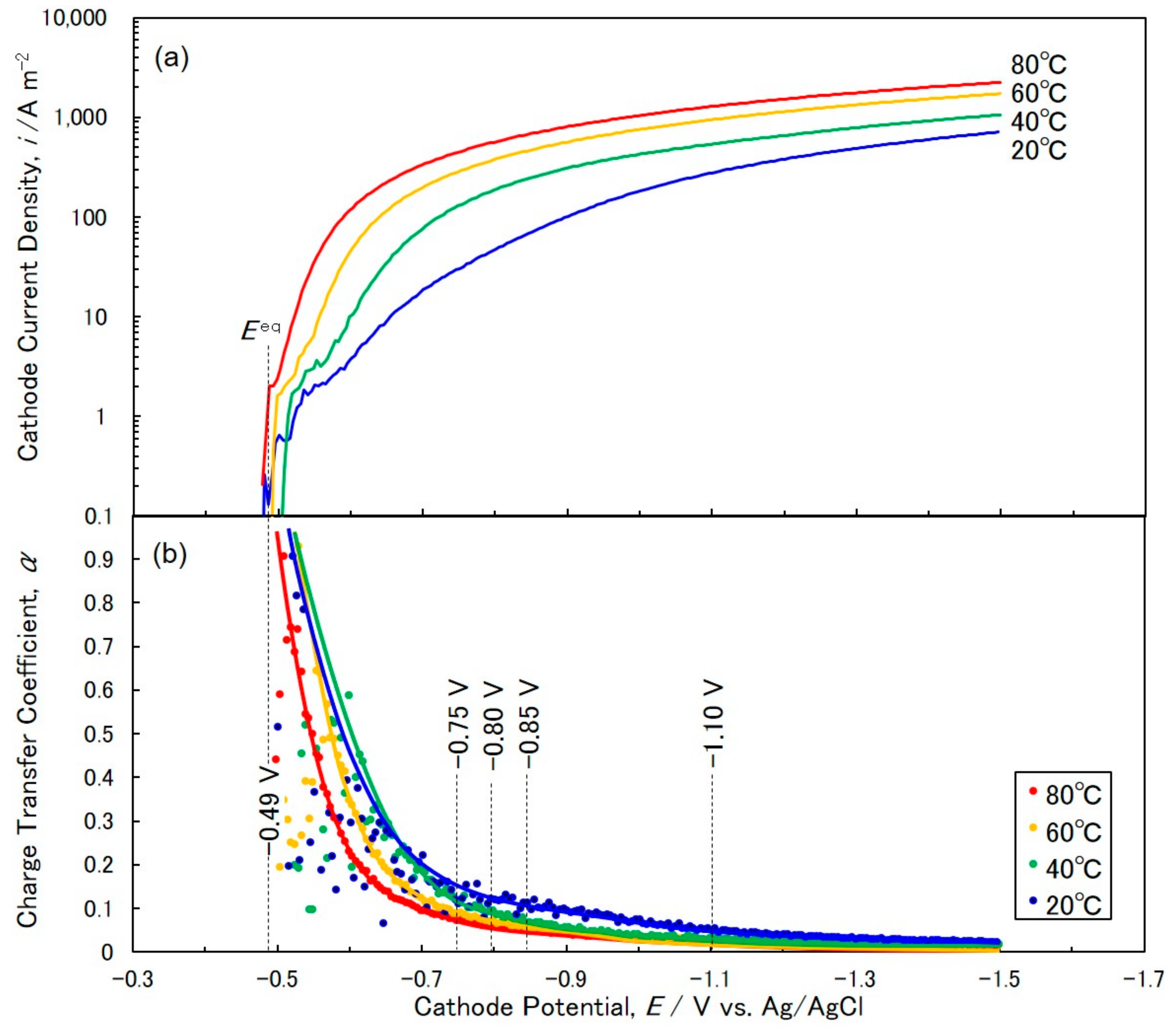

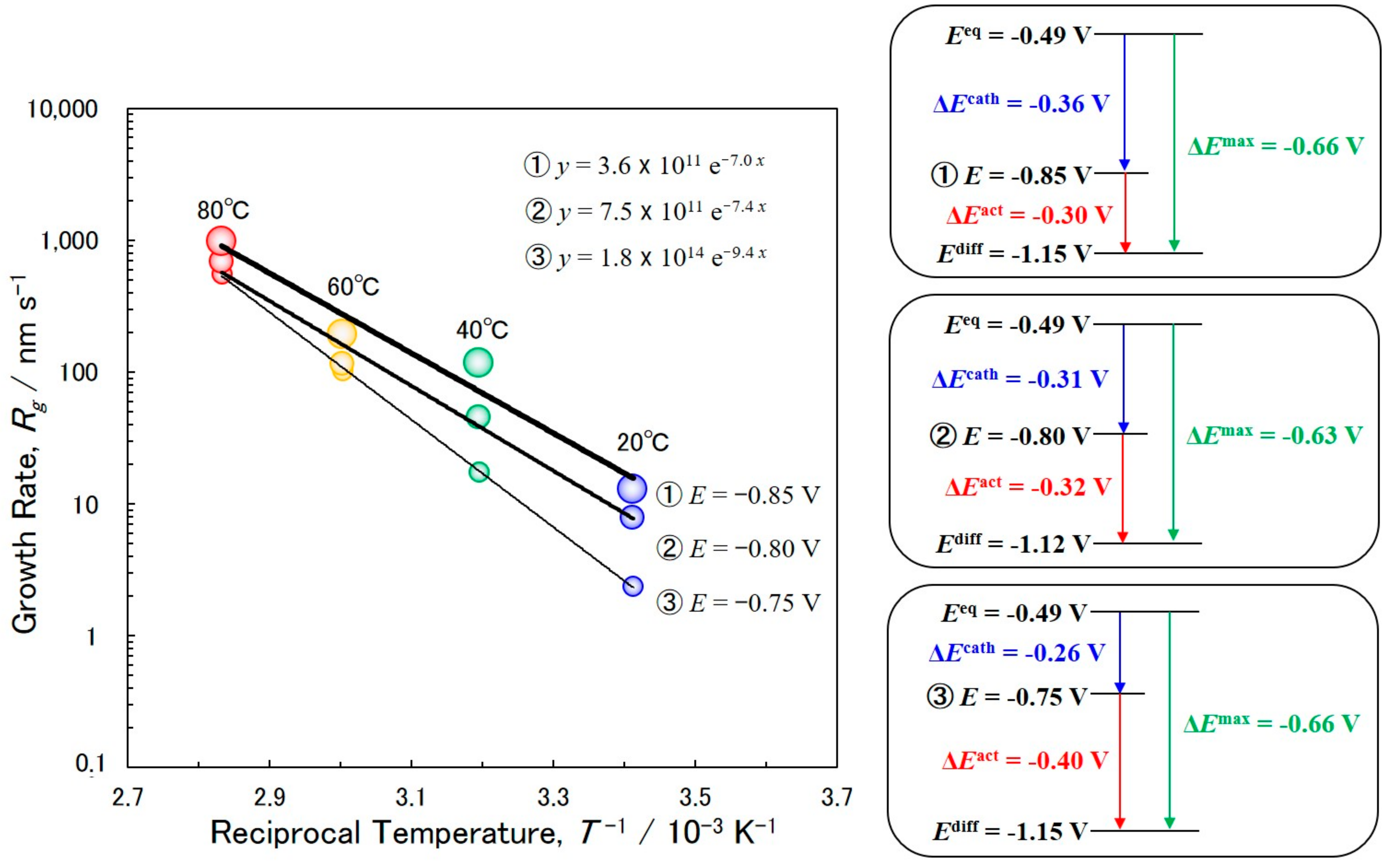

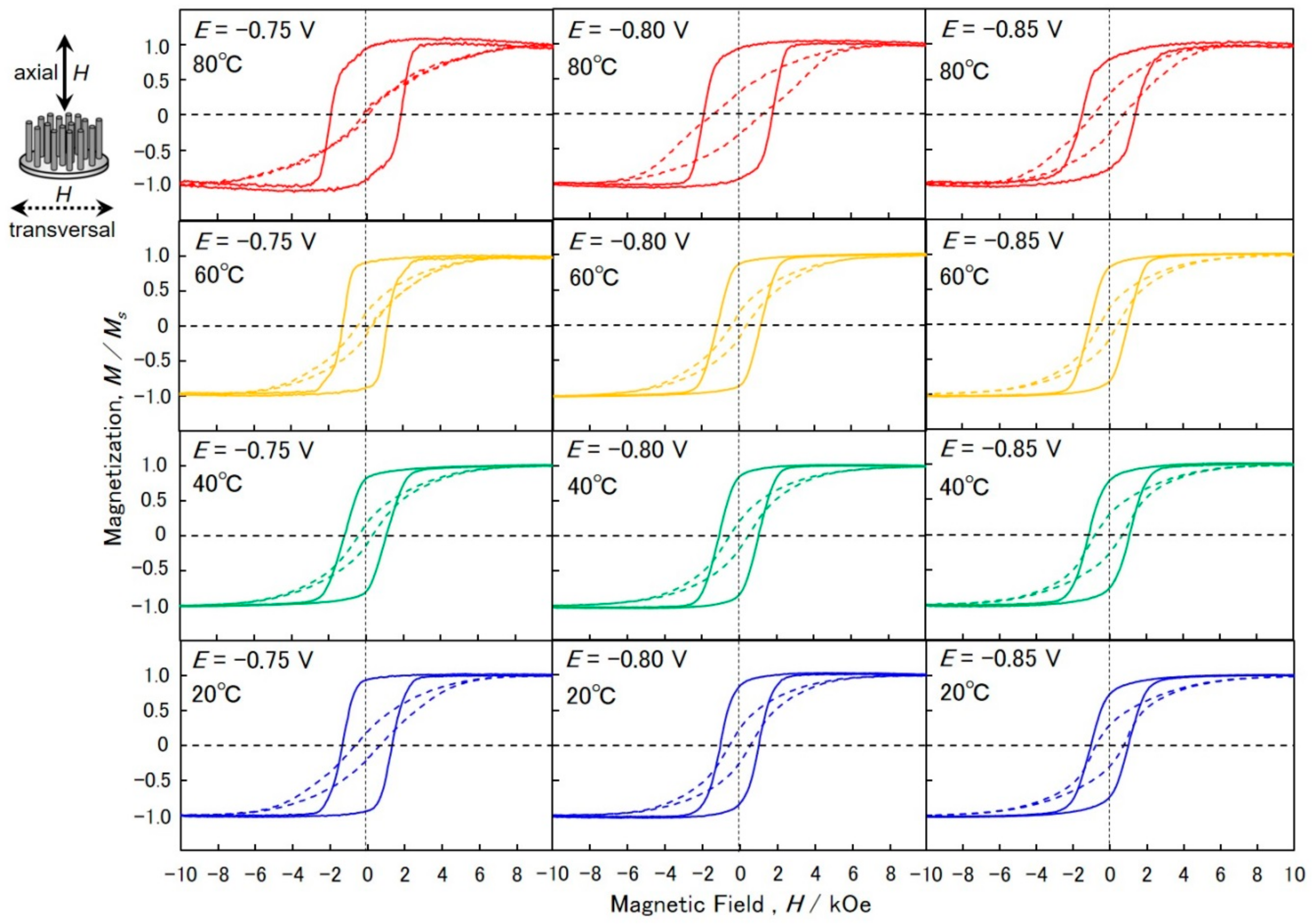

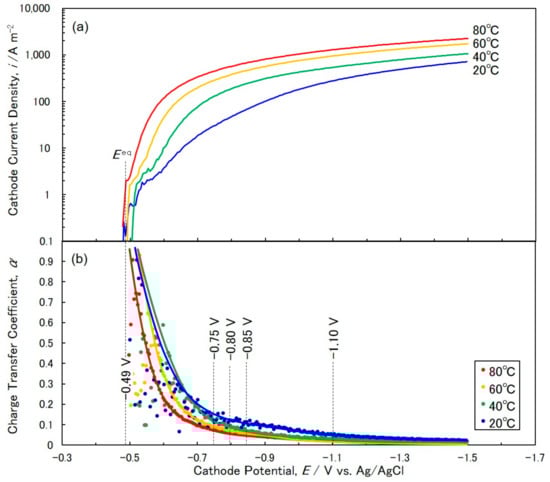

The crystal growth process and ferromagnetic properties of electrodeposited cobalt nanowires were investigated by controlling the bath temperature and cathodic overpotential. The cathodic overpotential during electrodeposition of cobalt nanowire arrays, ΔEcath, was theoretically estimated by the difference between the cathode potential, Ecath, and the equilibrium potential, Eeq, calculated by the Nernst equation. On the other hand, the activation overpotential, ΔEact, was experimentally determined by the Arrhenius plot on the growth rate of cobalt nanowire arrays, Rg, versus (vs.) reciprocal temperature, 1/T. The ferromagnetic cobalt nanowire arrays with a diameter of circa (ca.) 25 nm had the preferred crystal orientation of (100) and the aspect ratio reached up to ca. 1800. The average crystal grain size, Ds, of (100) peaks was estimated by X-ray diffraction patterns and was increased by decreasing the cathodic overpotential for cobalt electrodeposition by shifting the cathode potential in the noble direction. Axial magnetization performance was observed in the cobalt nanowire arrays. With increasing Ds, coercivity of the film increased and reached up to ca. 1.88 kOe. View Full-Text
Keywords: nanowire; cobalt; electrodeposition; overpotential; nucleation; magnetization nanowire; cobalt; electrodeposition; overpotential; nucleation; magnetization
Show Figures

Graphical abstract

MDPI and ACS Style

Saeki, R.; Ohgai, T. Determination of Activation Overpotential during the Nucleation of Hcp-Cobalt Nanowires Synthesized by Potentio-Static Electrochemical Reduction. Materials 2018, 11, 2355.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
