Investigation on the Reaction Energy, Dynamic Mechanical Behaviors, and Impact-Induced Reaction Characteristics of PTFE/Al with Different TiH2 Percentages

1
College of Field Engineering, PLA Army Engineering University, Nanjing 210007, China
2
School of Chemical Engineering, Nanjing University of Science & Technology, Nanjing 210094, China
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(10), 2008; https://doi.org/10.3390/ma11102008
Submission received: 11 September 2018 / Revised: 9 October 2018 / Accepted: 15 October 2018 / Published: 17 October 2018

Abstract

:
As a novel energetic material with quite a high energy density, titanium hydride (TiH2) was introduced into a polytetrafluoroethylene/aluminum (PTFE/Al) reactive material system for the first time. The effects of TiH2 on the reaction energy, dynamic mechanical responses, and reaction properties of the composites were investigated through adiabatic bomb calorimeter, split-Hopkinson pressure bar, and drop-weight experiments. The results show that the reaction heat of the composites improved significantly as the content of TiH2 increased. Under dynamic compression, these composites show obvious strain hardening and strain rate hardening effects. Besides, a certain amount of TiH2 granules helps to improve the material’s compressive strength, and the maximum would even reach 173.2 MPa with 5% TiH2 percentage, 10.1% higher than that of PTFE/Al. Mesoscale images of the samples after dynamic compression indicate that interface debonding between the particles and PTFE matrix and the fracture of the PTFE matrix are the two major mechanisms resulting in the material’s failure. In addition, the drop-weight experiments indicate that the material’s impact sensitivities are sensitive to the content of TiH2, which would be increased to within 20% of the content of TiH2 compared with PTFE/Al, and the reaction degree is also improved to within 10% of the content of TiH2. The retrieved reaction residues after drop-weight experiments imply that the reaction is initiated at the edges of the samples, indicating a shear-induced initiation mechanism of this kind of reactive material.

Graphical Abstract

1. Introduction

Metal/fluoropolymer composites are normally considered to be inert and not sensitive to friction, heat, light, or shockwaves. However, when subjected to high-speed impact loading, these types of materials generate a violent exothermic reaction and release a tremendous amount of energy, which is even more than some high explosives such as trinitrotoluene (TNT) and cyclotrimethylenetrinitramine (RDX) [1]. Generally, compared with traditional energetic materials, metal/fluoropolymer composites have relative high mechanical strength after cold-pressing and sinter-hardening treatments. Due to the mechanical and energy characteristics, metal/fluoropolymer composites have been widely applied in both military and civilian application domains; for instance, they can be made into structural materials such as shaped charge liners and energetic fragments, or added into propellants/explosives as high-energy additives [2,3].
A polytetrafluoroethylene (PTFE) and aluminum (Al) mixture is one of the typical granular reactive materials, which undergo a violent exothermic reaction between Al and fluorine released from PTFE upon high impact loading. When the stoichiometric mass fraction of PTFE/Al is set at 73.5/26.5 for a complete reaction, the two components will react according to the following chemical equation [4]:
4Al + 3(–C2F4–) → 4AlF3 + 6C + 8.67 MJ/kg
As is shown in Equation (1), a reaction heat of up to 8.67 MJ is released by a unit mass of the composites, which is twice as much as that of TNT (4.18 MJ/kg), and the adiabatic reaction temperature can even reach 3580 K [5].
In recent years, notable progress has been made on the mechanical and reaction properties of PTFE/Al composites. Feng et al. [6] conducted numerous quasi-static compression experiments to research the mechanical properties of PTFE/Al composites, and observed a violent reaction phenomenon for the first time. Then, they investigated the influences of sintering temperature, component ratio, and Al particle size on the mechanical and reactive properties of PTFE/Al through quasi-static compressive tests, and proposed a crack-induced initiation mechanism [7]. Casem performed both quasi-static and dynamic compressive tests of PTFE/Al with a servo-hydraulic universal testing machine and split-Hopkinson pressure bar (SHPB) system, and obtained the stress-strain data, which was used to determine the parameters of the Johnson–Cook model for the material [8]. Ames [9], McGregor [10], and Ge et al. [11] studied the energy-release characteristics of the PTFE/Al mixtures under high speed impact conditions. In addition, researchers also added tungsten (W) to the PTFE/Al composites to improve the material’s strength and density. Up until now, many related studies have been conducted to investigate the material preparation technology [12], mechanical properties [13,14,15,16], and reaction and energy-release properties [17,18] of PTFE/Al/W composites. Moreover, many experimental methods, such as drop-weight apparatus [16,19], scanning electron microscopy (SEM) [7,20,21], X-ray diffraction (XRD) [20,22], and differential scanning calorimetry (DSC) [23,24], have been employed by researchers to conduct further studies.
As is known, titanium hydride (TiH2) is a novel potential energetic material with a large storage capacity for hydrogen. When heated to a certain temperature, hydrogen will be rapidly released from TiH2. Since hydrogen has an extremely high energy density, a remarkable amount of heat can be produced if TiH2 fully released its energy during the reaction. As was reported in reference [25], TiH2 possessed a high heat value of 21.5 MJ/kg with 3.9 wt % content of hydrogen, which was far outweighs that of TNT (4.18 MJ/kg) and PTFE/Al (8.67 MJ/kg). Meanwhile, it is stable enough to coexist with potassium perchlorate for 20 years with almost no decomposition [26]. All of these advantages make TiH2 a promising high-energy additive to energetic materials. Xue et al. [27] and Cheng et al. [28] introduced TiH2 into explosives and found the explosive/TiH2 mixtures have a better performance on the explosive parameters; the positive time, the peak overpressure, and the specific impulse of the shock wave were all obviously improved. Li [25] introduced TiH2 to the propellant, and found that TiH2 would contribute to accelerate the combustion rate of the propellant.
Recently, our research group has added TiH2 to the PTFE/Al composite for the first time and conducted a series of quasi-static compression experiments [29]. The results show that TiH2 particles help to improve the material’s strength within a certain amount, and they could be activated by the heat produced by the reaction between PTFE and Al, releasing hydrogen and generating titanium carbide (TiC), which makes TiH2 completely release its energy. However, there are no reports concerning the mechanical and reaction characteristics of the novel PTFE/Al/TiH2 composites under dynamic compression, which is of great importance for the further application of these materials.
In this work, PTFE/Al/TiH2 reactive materials with different contents of TiH2 are prepared. The reaction energy of the materials is measured by an adiabatic bomb calorimeter, and the reaction processes are analyzed based on the XRD patterns of the reaction products. SHPB tests are then conducted to explore the effects of TiH2 content on the dynamic mechanical properties of the composites, and the microstructure of the samples before and after the SHPB tests are observed by SEM. Finally, drop-weight tests are performed to study the impact sensitivity and reaction characteristics of the composites, during which the reaction processes are recorded by a high-speed photography system.

2. Materials and Experiments

2.1. Material Fabrication

In this study, five kinds of PTFE/Al/TiH2 composites were fabricated through a process including powder mixing, cold pressing, and vacuum sintering. The relative mass ratio of PTFE to Al for all composites was determined through zero-oxygen-balance, fixing the mass ratio at 73.5/26.5, and different content of TiH2 particles were added as high-energy additives. Table 1 shows the mass fraction of the five composites, along with the theoretical material density (TMD), the corresponding actual density, and relative density.
The fabrication process was based on Nielson et al.’s [12] patent, but followed a different sintering history. Firstly, the original powders of PTFE (25 μm, 3M, Shanghai, China), Al (1–2 μm, JT-4, Changsha, China) and TiH2 (4–6 μm, ZN, Zhuzhou, China) were added to an anhydrous ethanol solution and mixed by a motor-driven blender for approximately 30 min, followed by a drying process at 60 °C for 48 h in a DZG-6050 vacuum drier (SX, Shanghai, China). Then, the dried mixtures were put into a cylindrical mold and cold uniaxial pressed at the pressure of 240 MPa for 2 min, through which the cylindrical specimens were made with the dimension of ϕ10 mm × 5 mm and ϕ10 mm × 3 mm for SHPB and drop-weight tests, respectively. Finally, the cylindrical specimens were vacuum sintered at a temperature of 360 °C. Figure 1 depicted the time history of the sintering cycle. Briefly speaking, it included a heating process of the samples with a rate of 50 °C/h to a final temperature of 360 °C, holding for 4 h, and then cooling to room temperature at the rate of 50 °C/h. The sintered specimens are shown in Figure 2.
In order to evaluate the mixing uniformity of the three components, the original microstructures of the prepared mixtures were observed using an FEI Versa 3D Scanning Electron Microscope (Hillsboro, OR, USA) before the experiments, as is shown in Figure 3. Figure 3a shows the micrograph of pure TiH2 particles as received, indicating that the TiH2 granules had irregular shapes and sharp edges with the average sizes of 4–6 μm. In this part, the backscattered scanning electron microscopy (BSE) image of PTFE/Al/TiH2 (66.2/23.8/10) composite is depicted as an example, as is shown in Figure 3b, in which TiH2 granules were relatively bright for the higher atomic number of Ti element, followed by the brightness of Al particles. It is likely that the three components were uniformly mixed, Al and TiH2 granules were uniformly distributed in the continuous matrix formed by PTFE. Figure 3c–f shows the distribution of C, F, Al, and Ti elements corresponding to Figure 3b, which further illustrates the homogeneity of the materials.

2.2. Measurement of Reaction Energy

An adiabatic bomb calorimeter (Parr 6300, Parr Inc., Moline, IL, USA) was used to measure the reaction energy of PTFE/Al/TiH2 under an oxygen atmosphere. Before the measurement, the heat capacity of the calorimeter was calibrated by burning benzoic acid in an oxygen environment with the pressure set at 3 MPa. Then the reaction mechanism was explored based on the XRD (D8 Advance, Bruker AXS Inc., Dresden, Germany) patterns of the reaction products.

2.3. Dynamic Compression Tests

A split-Hopkinson pressure bar system (ϕ-20 SHPB, AOC, Hefei, China) was adopted to determine the dynamic mechanical performance of the five composites, which included the striker bar, the incident bar, and the transmitted bar, as illustrated schematically in Figure 4. In this work, the lengths of the three bars were 600 mm, 6000 mm, and 3500 mm, respectively, with the same diameter of 20 mm. Normally, the three bars were made of 6061-T6 aluminum or 440-HT stainless steel. Considering the low impedance of the PTFE/Al/TiH2 composites, the lower-modulus aluminum bars were adopted to achieve a stronger transmission signal. In addition, in order to achieve an early uniform uniaxial stress state in the samples, a slowly rising incident wave pulse was required, which was realized by using a pulse shaping technique. In this work, rubber shims with a diameter of 8 mm and a thickness of 1 mm were placed at the front end of the incident bar during impact, the incident wave pulse with a longer rising edge time could be obtained, which may facilitate the state of dynamic stress equilibrium in the specimens [16]. Tests were performed at the temperature of 12 °C, and the ends of the specimens were slightly lubricated with petroleum jelly to minimize the influence of friction restraint.

2.4. Drop-Weight Tests

The impact sensitivities and impact-induced reaction properties of the materials were studied by using a drop-weight machine (HGZ-1, TD, Xiangfan, China). The apparatus had a drop hammer with a mass of 10 kg, and it permitted variance of the drop-weight from 0 to 156 cm in 0.5 cm increments. The impact sensitivity of the five PTFE/Al/TiH2 composites was determined by the drop height that would trigger the reaction with a 50 percent probability (H50), and the standard Bruceton test method was adopted to obtain the 50 percent point [30]. During the tests, the samples were directly impacted by the drop mass falling from different heights, and a Phantom V710 high-speed camera with a frame rate of up to 20,000 frames/s (Vision Research, Inc., Wayne, NJ, USA) was employed to capture the reaction phenomena of the samples.
In this work, 26 samples were fabricated for each type. Among them, 25 samples were tested to determine the H50 of the materials, and the remaining samples were tested at the same drop height to compare the reaction degree. All tests were conducted at an ambient temperature of 25 °C.

3. Results and Discussion

3.1. Reaction Energy

Table 2 lists the reaction energy per unit mass of the five types of PTFE/Al/TiH2 composites under an oxygen atmosphere. From Table 2, it can be observed that the reaction energy of the five composites increased along with the increase of TiH2 content, indicating a positive effect of TiH2 on the total energy of the reaction system. The reaction heat of the type E composite was determined experimentally to be 16.15 MJ/kg, 3.7 times bigger than that of TNT, which is reported to be 4.32 MJ/kg. Besides, the theoretical reaction heat of PTFE/Al in a vacuum is 8.67 MJ/kg [4], which is much lower than that of the experimental value of type A composite (13.81 MJ/kg) in oxygen, implying the participation of oxygen in the reaction of the PTFE/Al/TiH2 composites.
In addition, the recovered reaction residues of a type B composite in oxygen was analyzed by X-ray diffraction to explore the chemical reaction mechanism, as is shown in Figure 5. The results indicate that the reaction products were proven to be AlF3, TiO2 and Al2O3. Among them, AlF3 was the main product, which was produced by the reaction between Al and gaseous C2F4 releasing from the decomposition of PTFE, accompanied by the production of C (carbon black) (Equations (2) and (3)). However, the color of the recovered reaction residues was white, demonstrating that C had reacted with oxygen to generate CO2 or CO in the presence of oxygen (Equations (4) and (5)). A small amount of Al2O3 was also formed from the oxidation of Al by oxygen (Equation (6)). Meanwhile, TiH2 was decomposed when subjected to reaction heat, generating Ti and H2 (Equation (7)), which could be oxidized by oxygen to produce TiO2 and water vapor (H2O) (Equations (8) and (9)), respectively. Furthermore, it is probable for TiF4 to be generated from the fluorination of titanium (Equation (10)), but the corresponding diffraction peak could not be detected in the XRD patterns, due to its volatilization [23]. According to the analysis above, the main reaction processes of the PTFE/Al/TiH2 composites at oxygen atmosphere can be described by the following equations:
(–C2F4–) → C2F4 (g)
4Al + 3C2F4 → 4AlF3 + 6C
C + O2 → CO2
C + O2 → 2CO
4Al + 3O2 → 2Al2O3
TiH2 → Ti + H2
Ti + O2 → TiO2
2H2 + O2 → 2H2O (g)
Ti + C2F4 →TiF4 (g) + 2C

3.2. Dynamic Compression Properties

The dynamic mechanical responses of the five kinds of PTFE/Al/TiH2 were obtained through dynamic compression tests, as is shown in Figure 6. From Figure 6a–e, it can be found that all the five composites showed significant strain hardening and strain rate hardening effects, and with the increase of loading strain rates, the yield compressive strength and the hardening modulus showed an increasing tendency. Figure 6f depicts the comparison of the mechanical performance of the five materials at the same strain rate of about 3200 s−1, and Table 3 lists the corresponding mechanical parameters. As is shown in Table 3, the yield strength of the materials showed an increasing trend as the content of TiH2 increased, and both the hardening modulus and the failure strain were firstly increased and then decreased, indicating that the amount of TiH2 had a significant influence on the materials’ mechanical properties. In addition, a certain amount of TiH2 helped to increase the material’s compressive strength due to the irregular shapes of the TiH2 particles, and the maximum could even reach 173.2 MPa with 5% TiH2, which was 10.1% higher than that of PTFE/Al. However, as the content of TiH2 reached 30%, the material strength was lower than the PTFE/Al composite. The analysis holds that excessive TiH2 granules may destroy the continuity of the PTFE matrix, thus leading to the decrease of the material’s ultimate strength.
Figure 7 shows the recovered type B specimens after dynamic compression tests at varying strain rates. As is shown in Figure 7a, when the strain rate was relatively low (786 s−1), only plastic deformation took place in the specimens, but no fractures appeared in both the surface and interior of the specimens. As the strain rate increased to 1995 s−1, many little cracks arose in the outer surfaces, but not in the interior of the specimens (Figure 7b). With further raising of the strain rates, fractures occurred in the tested specimens at a strain rate of 2767 s−1 (Figure 7c), and flames could even be observed during the dynamic compression process, at a strain rate of 3323 s−1 (Figure 7d), indicating that the reaction happened under a high impact loading rate.
Figure 8 shows SEM images of the interior structure of the type B samples before and after the SHPB tests. From Figure 8a, it can be observed that the combination between the aluminum granules and the PTFE matrix was quite close before the SHPB tests, and some discontinuous thick PTFE fibers were also found to enhance the connection. However, after the SHPB tests, Al and TiH2 particles were separated from the PTFE matrix, and cracks could also be observed in the PTFE matrix, as shown in Figure 8b,c. Meanwhile, as the PTFE matrix was stretched, many fibers were generated along the stretching direction, and they interwove with each other to form a network structure, which would provide resistance against the propagation of the crack. Figure 8d depicts an enlarged view of these fibers, implying that the fibers are as narrow as 50–200 nm in diameter. Analysis shows that the material failure was mainly caused by the fracture of the PTFE matrix, as well as interface debonding between the reinforcing particles and the PTFE matrix, which is also proposed by other researchers [13,31].

3.3. Impact Sensitivity and Reaction Properties

In this research, the standard Bruceton test method, which also called the “up-and-down technique” [30], was adopted to determine the impact sensitivities of the five composites. The characteristic drop height of impact sensitivity (H50) can be obtained by the Equation (11):
H 50 = A + B [ i C i D 1 2 ]
where A is the lowest height in the test, B is the increment of height, D is the total number of reaction events in the test, i is the order of the drop height beginning from 0, and Ci is the number of reaction events at a certain height.
Based on the standard Bruceton test method, each drop-height tests data point for the five kinds of PTFE/Al/TiH2 is depicted in Figure 9, the corresponding characteristic drop height is tabulated in Table 4. As can be seen from the results, compared with PTFE/Al, the impact sensitivity of the materials is increased as the mass ratio of TiH2 increased from 5% to 20%, the reason may be that the irregular shapes of TiH2 particles make it easier for the generation of “hot spots” in the PTFE/Al reactive material system. However, when the content of TiH2 exceeds 30%, the characteristic drop height of the material increases dramatically, with the H50 value reaching 66.6 cm, which is 20.2 cm higher than that of the PTFE/Al composites without TiH2. As is reported in our previous work [29], the reaction is firstly triggered by the ignition of PTFE and Al in the PTFE/Al/TiH2 reactive system, then TiH2 is activated by the heat released from the initial reactant. Therefore, excessive TiH2 means there is a decreased quantity of the initial reactant and a lower chance of PTFE being located next to Al particles, thus resulting in the enhancement of material insensitivity.
In order to compare the reaction degrees of the five kinds of composites, drop-weight tests were conducted at a certain height of 90 cm. Figure 10 shows video sequences of the reaction phenomena and the corresponding sample residues after the tests. The results indicate that the reaction degree of the composites was significantly affected by the content of TiH2. Compared with PTFE/Al, the degree of reaction was improved with the content of TiH2 ranging from 5% to 10%, indicating that a proper amount of TiH2 contributed to promoting the reaction of PTFE/Al reactive material. When the addition of TiH2 was 20%, the reaction degree was similar to that of the PTFE/Al composites. However, as the mass fraction of TiH2 reached 30%, the degree of reaction was decreased dramatically, due to the reduced amount of PTFE and Al. Besides, discontinuous and scattering sparks were jetted from the reaction region of the four composites with TiH2, but not from the PTFE/Al reaction region. Furthermore, from the recovered sample residues in Figure 10, the reactions of the composites were more and more incomplete with the increase in TiH2 mass fraction, and all the reactions were initiated at the open crack near the edge of the samples. As is known, the largest shear stress was mainly localized in the outer edge of the cylindrical specimens during the deformation process [32]; thus, we can speculate that the shear failure in the outer surface of the samples contributed to the initiation of the materials, indicating the applicability of the shear-induced initiation mechanism in these types of materials [1,9].

4. Conclusions

In this paper, TiH2 is introduced into PTFE/Al reactive materials for the first time, and its effects on the reaction energy, impact sensitivity, mechanical, and reaction properties of the five types of PTFE/Al/TiH2 composites are investigated. The conclusions can be drawn as follows:
(1)
With an increase of TiH2 content, the reaction energy of PTFE/Al/TiH2 under an oxygen atmosphere obviously increases. Especially, the reaction heat of type E composites reaches up to 16.15 MJ/kg, which is 3.7 times than that of TNT.
(2)
All the five types of composites show strain hardening and strain rate hardening effects; the yield strength and hardening modulus increases with the increase of strain rates. A relatively low mass ratio of TiH2 granules help to improve the materials’ compressive strength, and the maximum even reaches 173.2 MPa with a 5% TiH2 percentage, which is 10.1% higher than that of PTFE/Al. Excessive TiH2 granules would lead to a decrease of the material’s strength. SEM images of the recovered samples indicate that the fracture of the PTFE matrix, and interface debonding between the reinforcing granules and PTFE matrix are the main mechanisms for material failure.
(3)
With the increase of TiH2 content from 5% up to 30%, the material’s impact sensitivity shows a decreasing trend. Compared with PTFE/Al, the addition of TiH2 (less than 20%) would enhance the impact sensitivity of the materials, while excessive TiH2 (more than 30%) would significantly reduce the material’s sensitivity.
(4)
The material’s reaction degree is sensitive to the mass ratio of TiH2. At a certain drop height of 90cm, the reaction degree of the materials becomes stronger first and then weaker with an increase of TiH2 content, which would be the most violent at a 5% content of TiH2. In addition, special sparks fly off from the reaction zone of the four composites with the TiH2 particles, but not from the PTFE/Al reaction zone. The recovered sample residues indicate that the reaction proceeds more and more incompletely with an increased TiH2 mass fraction, and a shear-induced initiation mechanism is applicable to these types of reactive materials.

Author Contributions

X.F. and Y.L. conceived and designed the experiments; Z.Y., J.R., and J.Z. performed the experiments; Z.Y., S.W., and L.C. analyzed the data analyzed the data; Z.Y. wrote the paper; M.Y., M.Z., and J.W. revised the paper.

Funding

This work was supported by National Natural Science Foundation of China (No. 51673213) and the National Science Fund for Distinguished Young Scholars (No. 51704302), and the author would like to thank these foundations for financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, R.J.; Mock, W.J.; Carney, J.; Holt, W.H.; Pangilinan, G.I.; Gamache, R.M.; Boteler, J.M.; Bohl, D.G.; Drotar, J.; Lawrence, G.W. Reactive Materials Studies. Shock Compression Condens. Matter 2005, 845, 169–174. [Google Scholar]
  2. Wang, H.; Zheng, Y.; Yu, Q.; Liu, Z.W.; Yu, W. Impact-induced initiation and energy release behavior of reactive materials. J. Appl. Phys. 2011, 110, 074904. [Google Scholar]
  3. Glavier, L.; Taton, G.; Ducéré, J.M.; Baijot, V.; Pinon, S.; Calais, T.; Estève, A.; Rouhani, M.D.; Rossi, C. Nanoenergetics as pressure generator for nontoxic impact primers: Comparison of Al/Bi2O3, Al/CuO, Al/MoO3 nanothermites and Al/PTFE. Combust. Flame 2015, 162, 1813–1820. [Google Scholar] [CrossRef]
  4. Dolgoborodov, A.Y.; Makhov, M.N.; Kolbanev, I.V.; Streletskii, A.N.; Fortov, V.E. Detonation in an aluminum-Teflon mixture. JETP Lett. 2005, 81, 311–314. [Google Scholar] [CrossRef]
  5. Hobosyan, M.A.; Martirosyan, K.S. Consolidation of lunar regolith simulant by Activated thermite reactions. J. Aerosp. Eng. 2014, 28, 04014105. [Google Scholar] [CrossRef]
  6. Feng, B.; Fang, X.; Li, Y.C.; Wang, H.X.; Mao, Y.M.; Wu, S.Z. An initiation phenomenon of Al-PTFE under quasi-static compression. Chem. Phys. Lett. 2015, 637, 38–41. [Google Scholar] [CrossRef]
  7. Feng, B.; Li, Y.C.; Wu, S.Z.; Wang, H.X.; Tao, Z.M.; Fang, X. A crack-induced initiation mechanism of Al-PTFE under quasi-static compression and the investigation of influencing factors. Mater. Des. 2016, 108, 411–417. [Google Scholar] [CrossRef]
  8. Casem, D.T. Mechanical Response of an Al-PTFE Composite to Uniaxial Compression over a Range of Strain Rates and Temperatures; Army Research Lab.: Aderdeen, MD, USA, 2008. [Google Scholar]
  9. Ames, R.G. Energy Release Characteristics of Impact-Initiated Energetic Materials; Materials Research Society: Triangle Park, NC, USA, 2006. [Google Scholar]
  10. Mcgregor, N.M.; Sutherland, G.T. Plate Impact Experiments on a Porous Teflon-Aluminum Mixture. Shock Compress. Condens. Matter 2003, 706, 1001–1004. [Google Scholar]
  11. Ge, C.; Dong, Y.X.; Maimaitituersun, W.; Ren, Y.M.; Feng, S.S. Experimental Study on impact-induced initiation thresholds of polytetrafluoroethylene/aluminum composite. Propellants Explos. Pyrotech. 2017, 42, 514–522. [Google Scholar] [CrossRef]
  12. Nielson, D.B.; Tanner, R.L.; Lund, G.K. High Strength Reactive Materials and Methods of Making. U.S. Patent 2007/7307117 B2, 11 December 2007. [Google Scholar]
  13. Cai, J.; Walley, S.M.; Hunt, R.J.A.; Proud, W.G.; Nesterenko, V.F.; Meyers, M.A. High-strain, high-strain-rate flow and failure in PTFE/Al/W granular composites. Mater. Sci. Eng. A 2008, 472, 308–315. [Google Scholar] [CrossRef]
  14. Zhang, X.F.; Zhang, J.; Qiao, L.; Shi, A.S.; Zhang, Y.G.; He, Y.; Guan, Z.W. Experimental study of the compression properties of Al/W/PTFE granular composites under elevated strain rates. Mater. Sci. Eng. A 2013, 581, 48–55. [Google Scholar] [CrossRef]
  15. Xu, S.L.; Yang, S.Q.; Zhang, W. The mechanical behaviors of polytetrafluorethylene/Al/W energetic composites. J. Phys. Condens. Matter 2009, 21, 285401. [Google Scholar] [CrossRef] [PubMed]
  16. Ge, C.; Maimaitituersun, W.; Dong, Y.X.; Chao, T. A study on the mechanical properties and impact-induced initiation characteristics of brittle PTFE/Al/W reactive materials. Materials 2017, 10, 452. [Google Scholar]
  17. Xu, F.Y.; Zheng, Y.F.; Yu, Q.B.; Zhang, X.P.; Wang, H.F. Damage effects of aluminum plate by reactive material projectile impact. Int. J. Impact Eng. 2017, 104, 38–44. [Google Scholar] [CrossRef]
  18. Zhang, S.; Liu, J.X.; Yang, M.; Wang, L.; Lan, J.; Li, S.K.; He, C.; Xue, X.Y. Effects of multi-component co-addition on reaction characteristics and impact damage properties of reactive material. Mater. Des. 2018. [Google Scholar] [CrossRef]
  19. Walley, S.M.; Field, J.E.; Biers, R.A.; Proud, W.G.; Williamson, D.M.; Jardine, A.P. The use of glass anvils in drop-weight studies of energetic materials. Propellants Explos. Pyrotech. 2015, 40, 351–365. [Google Scholar] [CrossRef]
  20. Wang, L.; Liu, J.X.; Li, S.K.; Zhang, X.B. Investigation on reaction energy, mechanical behavior and impact insensitivity of W/PTFE/Al composites with different W percentage. Mater. Des. 2016, 92, 397–404. [Google Scholar] [CrossRef]
  21. Yang, B.; Zhang, Y.C.; Xuan, F.Z.; Xiao, B.; He, L.; Gao, Y. Improved adhesion between nickel-titanium SMA and polymer matrix via acid treatment and nano-silica particles coating. Adv. Compos. Mater. 2018, 27, 331–348. [Google Scholar] [CrossRef]
  22. Feng, B.; Fang, X.; Wang, H.X.; Dong, W.; Li, Y.C. The effect of crystallinity on compressive properties of Al-PTFE. Polymers 2016, 8, 356. [Google Scholar] [CrossRef]
  23. Li, Y.; Wang, Z.C.; Jiang, C.L.; Niu, H.H. Experimental study on impact-induced reaction characteristics of PTFE/Ti composites enhanced by W particles. Materials 2017, 10, 175. [Google Scholar] [CrossRef] [PubMed]
  24. Yang, B.; Zhang, J.F.; Zhou, L.M.; Wang, Z.Q.; Liang, W.Y. Effect of fiber surface modification on the lifetime of glass fiber reinforced polymerized cyclic butylene terephthalate composites in hygrothermal conditions. Mater. Des. 2015, 85, 14–23. [Google Scholar] [CrossRef]
  25. Li, C.F. Research of raise solid propellant burning rate by using titanium hydride. Winged Missiles J. 1997, 6, 34–37. [Google Scholar]
  26. Sorensen, D.; Quebral, A.; Baroody, E.; Sanborn, W. Investigation of the thermal degradation of the aged pyrotechnic titanium hydride/potassium perchlorate. J. Therm. Anal. Calorim. 2006, 85, 151–156. [Google Scholar] [CrossRef]
  27. Xue, B.; Ma, H.H.; Shen, Z.W. Air Explosion Characteristics of a Novel TiH2/RDX Composite Explosive. Combust. Explos. Shock Waves 2015, 51, 488–494. [Google Scholar] [CrossRef]
  28. Cheng, Y.F.; Meng, X.R.; Feng, C.T.; Wang, Q.; Wu, S.S.; Ma, H.H.; Shen, Z.W. The effect of the hydrogen containing material TiH2 on the detonation characteristics of emulsion explosives. Propellants Explos. Pyrotech. 2017, 42, 585–592. [Google Scholar] [CrossRef]
  29. Yu, Z.S.; Fang, X.; Gao, Z.R.; Wang, H.X.; Huang, J.Y.; Yao, M.; Li, Y.C. Mechanical and reaction properties of Al/TiH2/PTFE under quasi-static compression. Adv. Eng. Mater. 2018, 20, 1800019. [Google Scholar] [CrossRef]
  30. Blackstone, W.R.; Baber, B.B.; Ku, P.M. New test techniques for evaluating the compatibility of materials with liquid oxygen under impact. Tribol. Trans. 1968, 11, 216–227. [Google Scholar] [CrossRef]
  31. Cai, J. Properties of Heterogeneous Energetic Materials under High Strain, High Strain Rate Deformation. Ph.D. Thesis, University of California, San Diego, CA, USA, 2007; pp. 59–109. [Google Scholar]
  32. Feng, B.; Fang, X.; Li, Y.C.; Wu, S.Z.; Mao, Y.M.; Wang, H.X. Reactions of Al-PTFE under impact and quasi-static compression. Adv. Mater. Sci. Eng. 2015, 2015, 1–6. [Google Scholar] [CrossRef]
Figure 1. The temperature history of the sintering cycle.
Figure 1. The temperature history of the sintering cycle.
Materials 11 02008 g001

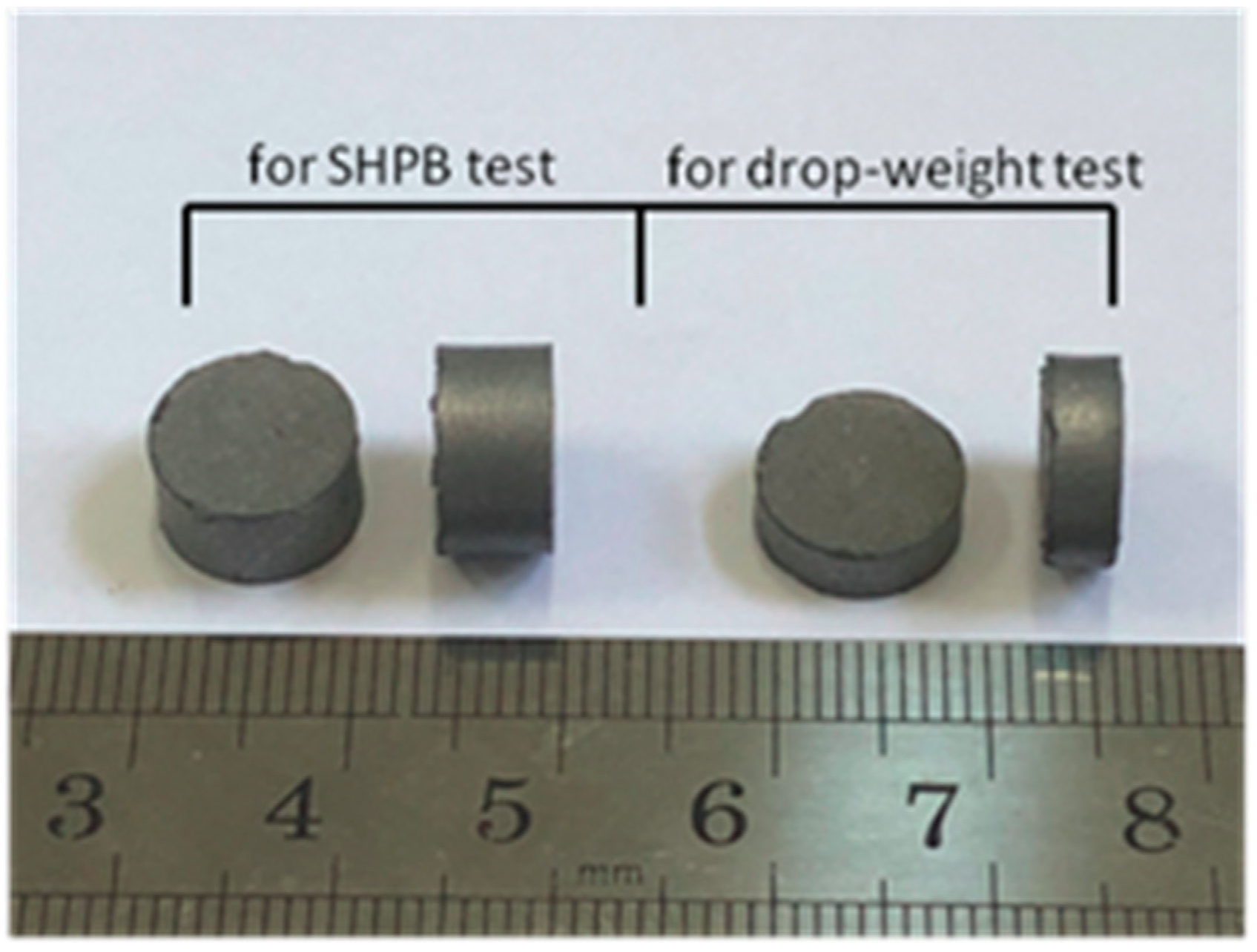

Figure 2. The cylindrical samples after sintered.
Figure 2. The cylindrical samples after sintered.
Materials 11 02008 g002
Figure 3. Microstructure and element distributions of the materials. (a) Scanning electron microscopy (SEM) image of pure TiH2 powder; (b) backscattered SEM (BSE) image of PTFE/Al/TiH2 (66.2/23.8/10); (c) C element; (d) F element; (e) Al element; and (f) Ti element.
Figure 3. Microstructure and element distributions of the materials. (a) Scanning electron microscopy (SEM) image of pure TiH2 powder; (b) backscattered SEM (BSE) image of PTFE/Al/TiH2 (66.2/23.8/10); (c) C element; (d) F element; (e) Al element; and (f) Ti element.
Materials 11 02008 g003

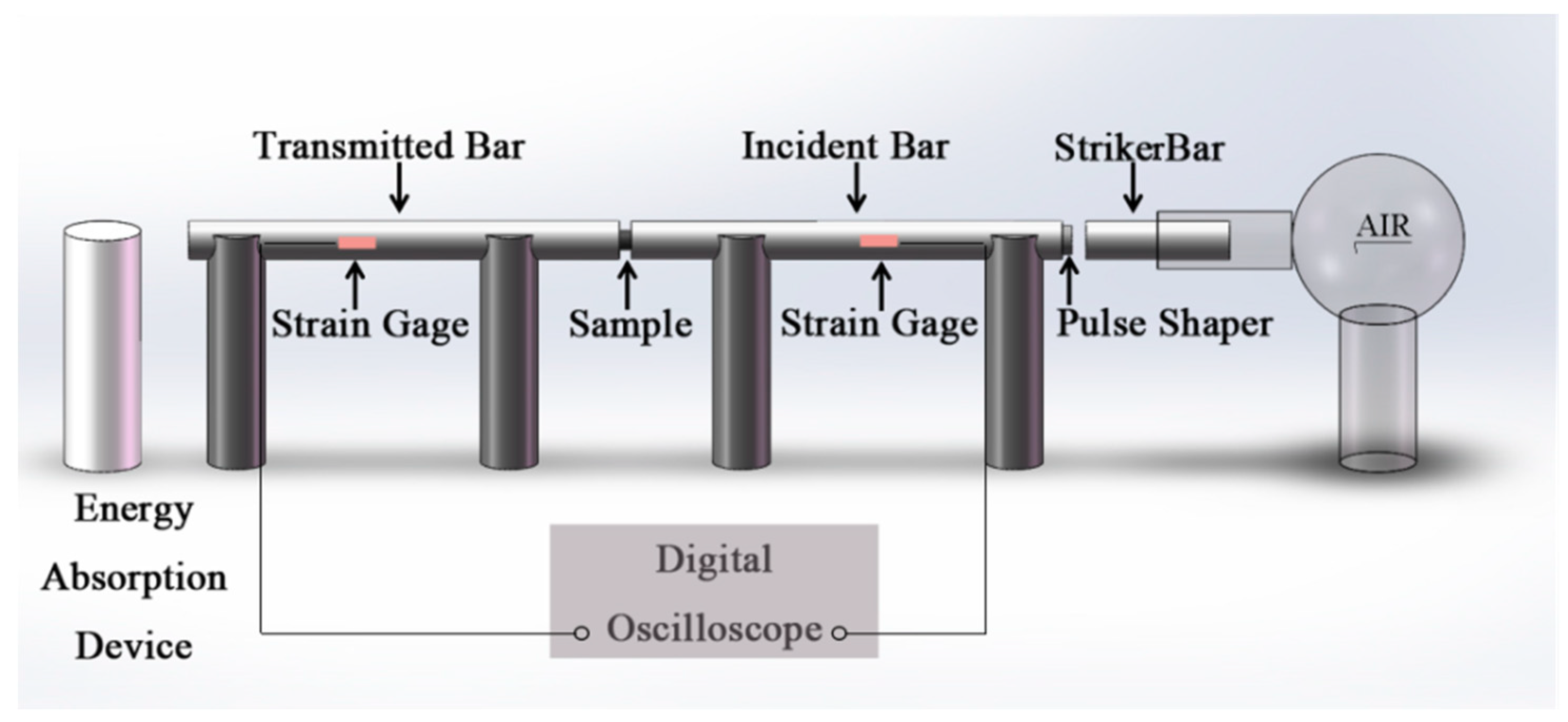

Figure 4. Schematic illustration of the split-Hopkinson pressure bar (SHPB) facility.
Figure 4. Schematic illustration of the split-Hopkinson pressure bar (SHPB) facility.
Materials 11 02008 g004
Figure 5. X-ray diffraction (XRD) pattern of the reaction residues in oxygen of type B composite.
Figure 5. X-ray diffraction (XRD) pattern of the reaction residues in oxygen of type B composite.
Materials 11 02008 g005

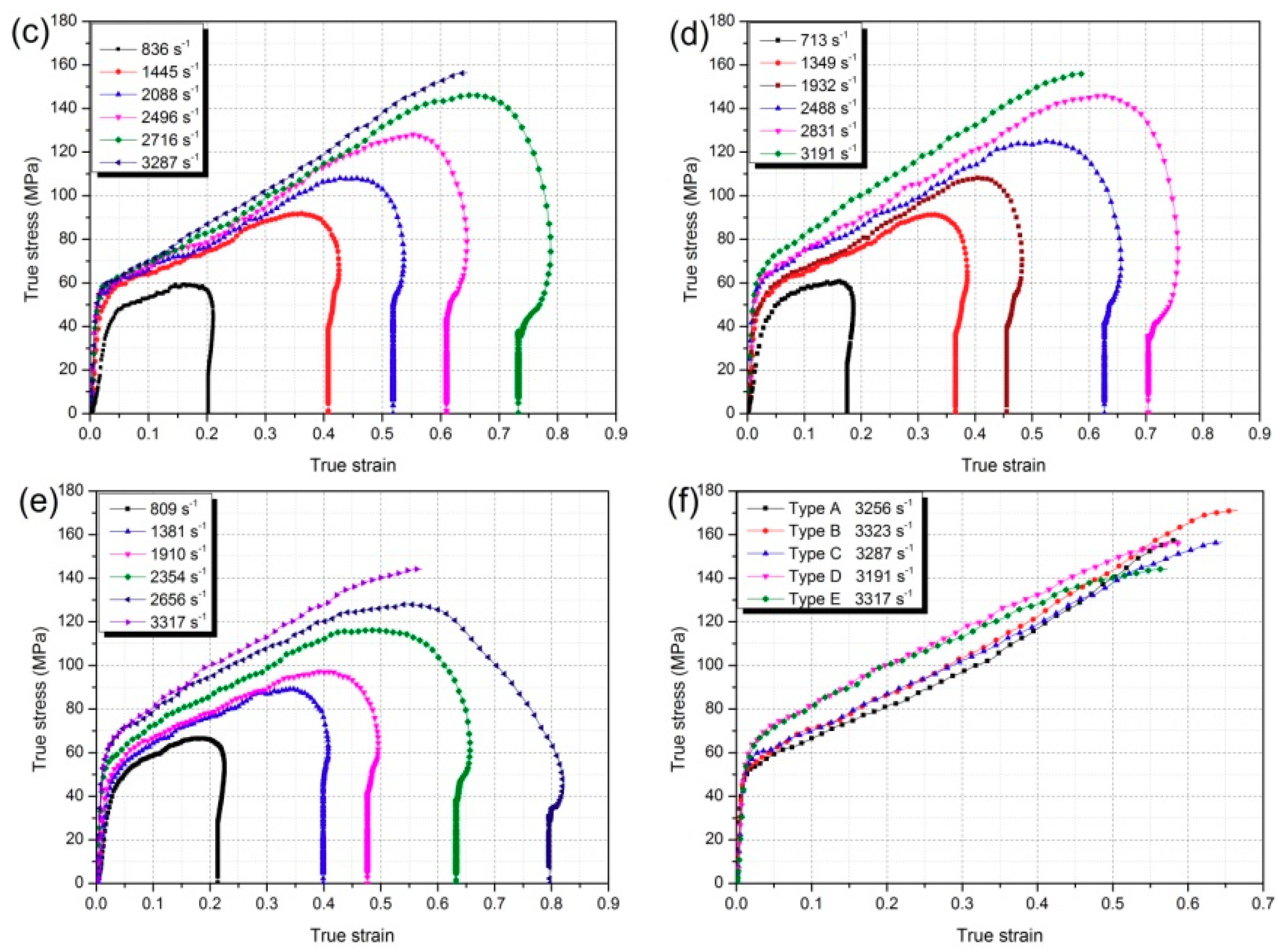

Figure 6. True stress-strain curves of (a) type A; (b) type B; (c) type C; (d) type D; (e) type E composites at different strain rates, and (f) the comparison of the five materials’ mechanical properties at the same strain rate of about 3200 s−1.
Figure 6. True stress-strain curves of (a) type A; (b) type B; (c) type C; (d) type D; (e) type E composites at different strain rates, and (f) the comparison of the five materials’ mechanical properties at the same strain rate of about 3200 s−1.
Materials 11 02008 g006aMaterials 11 02008 g006b
Figure 7. Recovered type B samples after dynamic compression tests at different strain rates: (a) 786 s−1; (b) 1995 s−1; (c) 2767 s−1; (d) 3323 s−1.
Figure 7. Recovered type B samples after dynamic compression tests at different strain rates: (a) 786 s−1; (b) 1995 s−1; (c) 2767 s−1; (d) 3323 s−1.
Materials 11 02008 g007

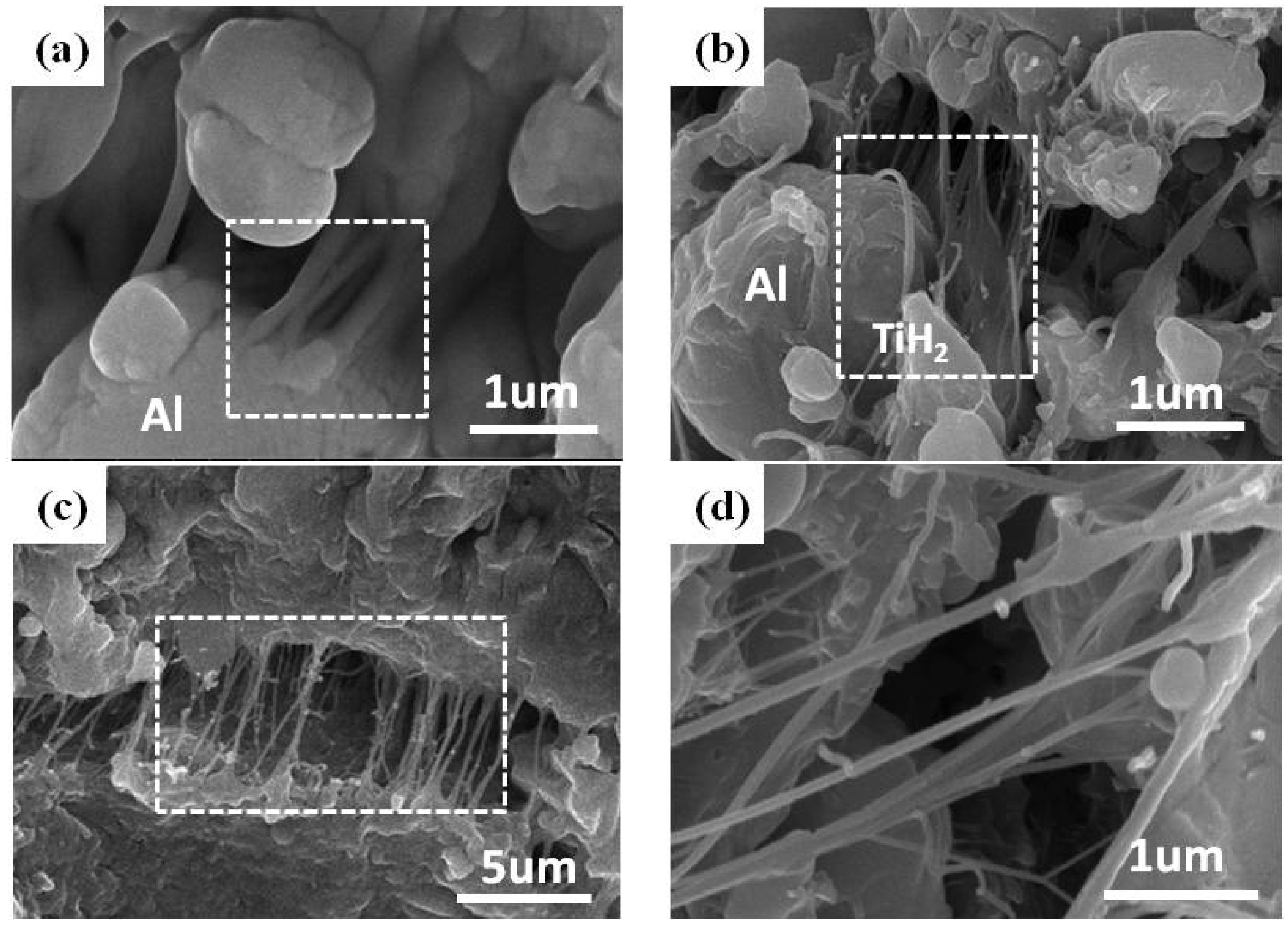

Figure 8. SEM micrographs of type B samples: (a) the interior structure before SHPB tests; (b) the separation of Al/TiH2 particles from the PTFE matrix after SHPB tests; (c) fracture of the PTFE matrix after the impact; (d) network of PTFE nano-fibers.
Figure 8. SEM micrographs of type B samples: (a) the interior structure before SHPB tests; (b) the separation of Al/TiH2 particles from the PTFE matrix after SHPB tests; (c) fracture of the PTFE matrix after the impact; (d) network of PTFE nano-fibers.
Materials 11 02008 g008
Figure 9. The drop-weight tests data points of the five types of PTFE/Al/TiH2 composites: (a) type A; (b) type B; (c) type C; (d) type D; (e) type E.
Figure 9. The drop-weight tests data points of the five types of PTFE/Al/TiH2 composites: (a) type A; (b) type B; (c) type C; (d) type D; (e) type E.
Materials 11 02008 g009
Figure 10. Video sequences of the five PTFE/Al/TiH2 composites under drop-weight impact at a height of 90 cm, and corresponding sample residues after the tests: (a) type A specimens; (b) type B specimens; (c) type C specimens; (d) type D specimens; and (e) type E specimens.
Figure 10. Video sequences of the five PTFE/Al/TiH2 composites under drop-weight impact at a height of 90 cm, and corresponding sample residues after the tests: (a) type A specimens; (b) type B specimens; (c) type C specimens; (d) type D specimens; and (e) type E specimens.
Materials 11 02008 g010
Table 1. Components and theoretical material density (TMD) of the polytetrafluoroethylene (PTFE)/Al/TiH2 granular composites.
Table 1. Components and theoretical material density (TMD) of the polytetrafluoroethylene (PTFE)/Al/TiH2 granular composites.
TypeMass Fraction (wt %)TMD (g cm−3)Density (g cm−3)Relative Density
PTFEAlTiH2
A73.526.502.312.2095.2%
B69.825.252.362.2494.9%
C66.223.8102.412.3396.7%
D58.821.2202.522.4296.0%
E51.518.5302.632.5195.4%
Table 2. Reaction energy of the PTFE/Al/TiH2 composites in an oxygen atmosphere.
Table 2. Reaction energy of the PTFE/Al/TiH2 composites in an oxygen atmosphere.
TypeReaction Energy (MJ/kg)
A13.81
B14.39
C14.88
D15.53
E16.15
Table 3. Mechanical parameters of PTFE/Al/TiH2 composites under dynamic compression loading.
Table 3. Mechanical parameters of PTFE/Al/TiH2 composites under dynamic compression loading.
TypeYield Strength (MPa)Hardening Modulus (MPa)Ultimate Strength (MPa)Critical Failure Strain
A49.6189.3157.30.58
B52.3192.4173.20.66
C58.8172.1156.50.65
D63.3164.3156.10.59
E65.7144.7142.80.57
Table 4. The characteristic drop height of impact sensitivity (H50) for the five types of PTFE/Al/TiH2 composites.
Table 4. The characteristic drop height of impact sensitivity (H50) for the five types of PTFE/Al/TiH2 composites.
TypeCharacteristic Drop Height (cm)
A46.4
B36.6
C40.7
D45.0
E66.6
