Open AccessArticle
Materials 2018, 11(1), 79;

Insulin Inclusion into a Tragacanth Hydrogel: An Oral Delivery System for Insulin

Advanced Food Systems Research Unit, College of Health and Biomedicine, Victoria University, PO Box 14428, Melbourne 8001, Australia
Department of Agricultural Product Technology, Faculty of Agricultural Technology, Brawijaya University, Jl. Veteran, Malang 65145, Indonesia
Author to whom correspondence should be addressed.
Received: 6 December 2017 / Revised: 29 December 2017 / Accepted: 3 January 2018 / Published: 5 January 2018
(This article belongs to the Special Issue Polymeric Materials for Medical Applications)
Full-Text   |   PDF [5699 KB, uploaded 5 January 2018]   |

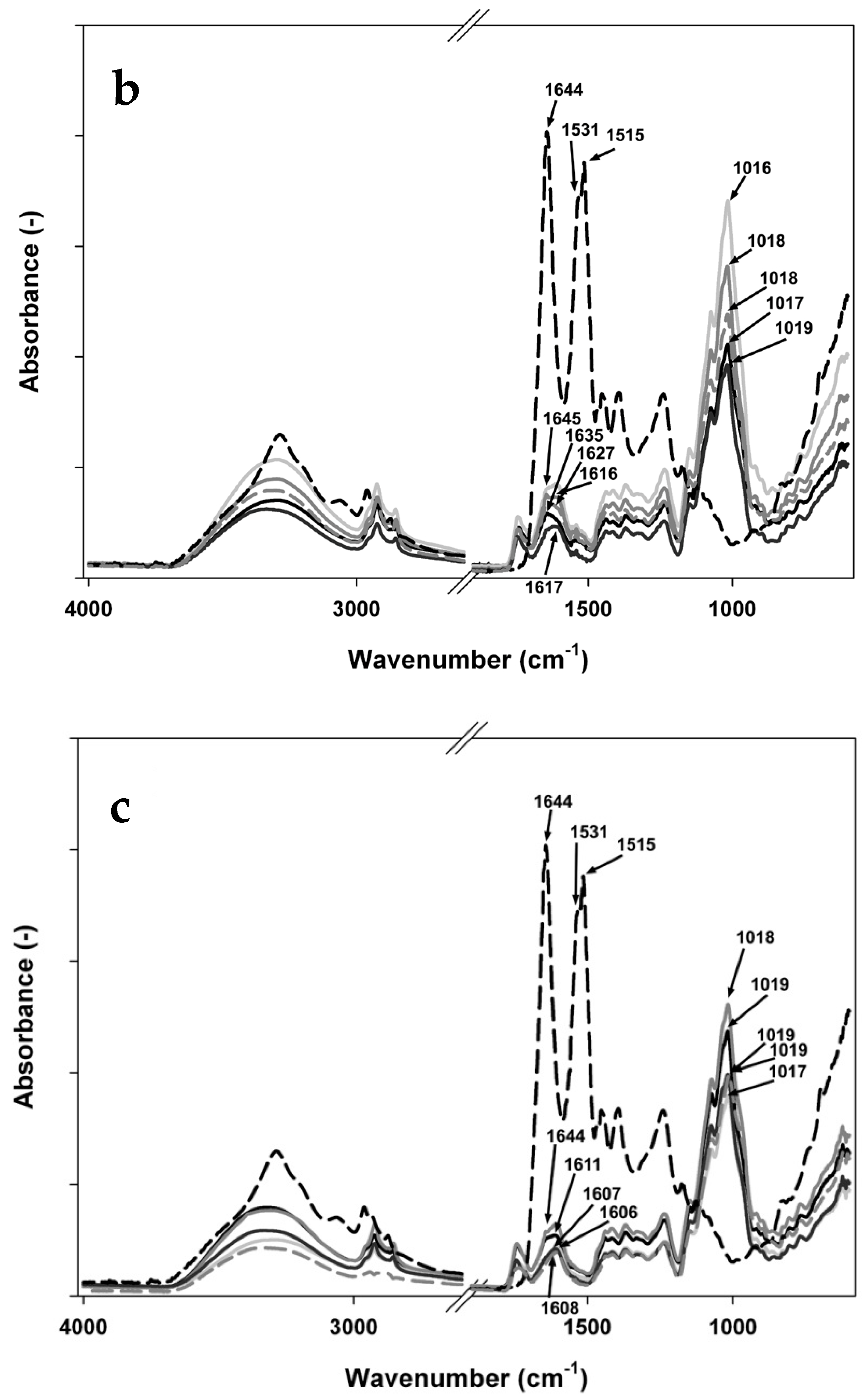

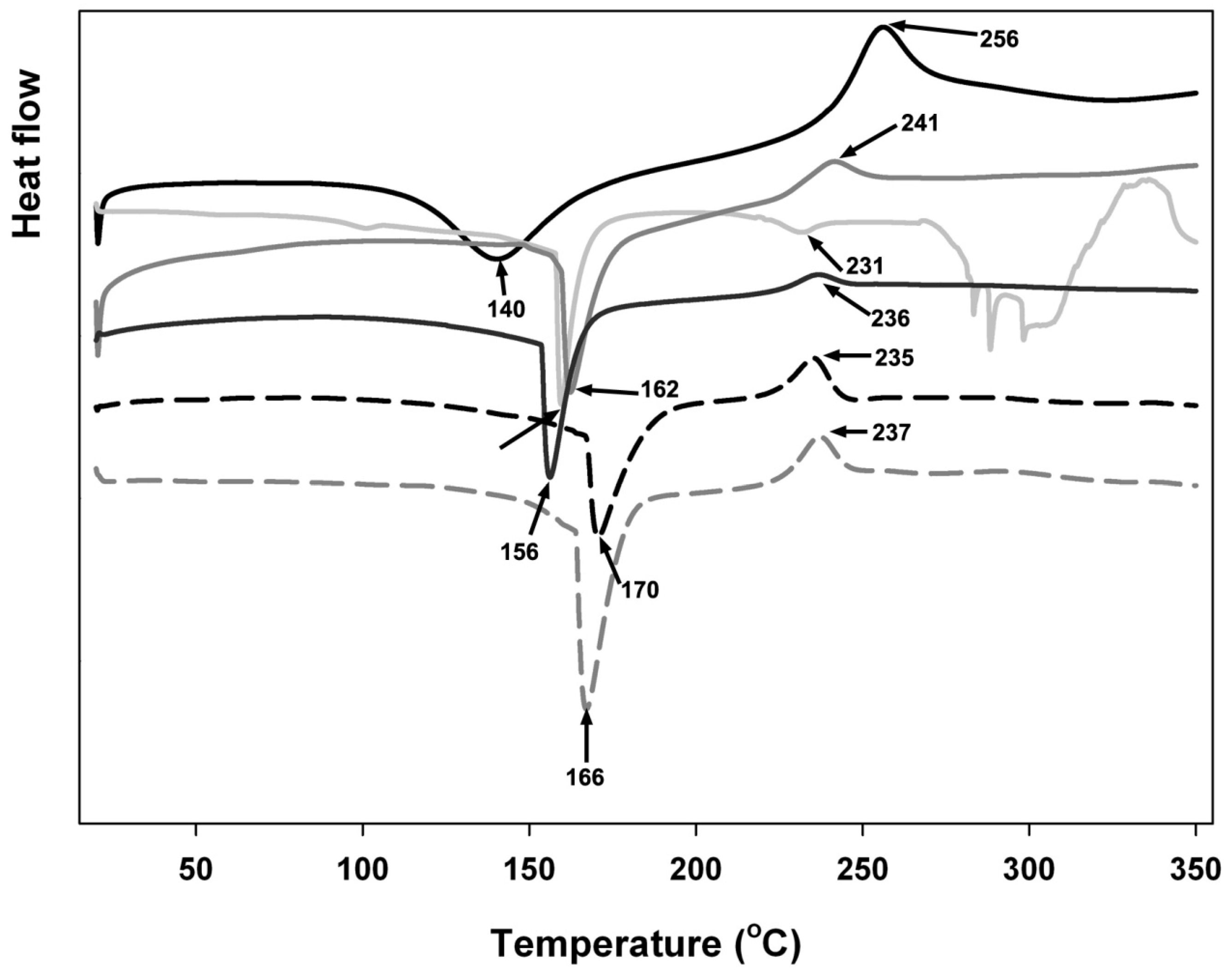

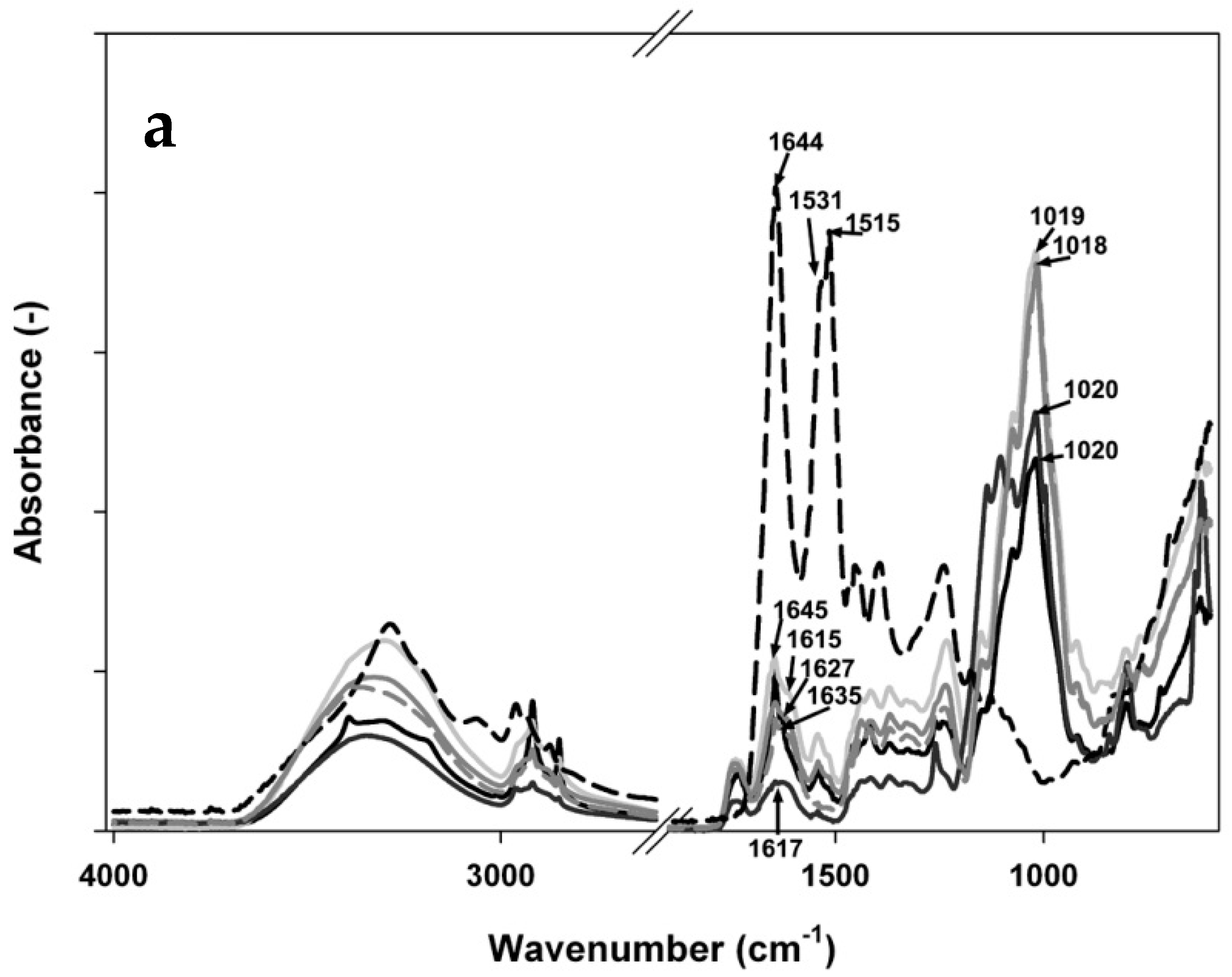

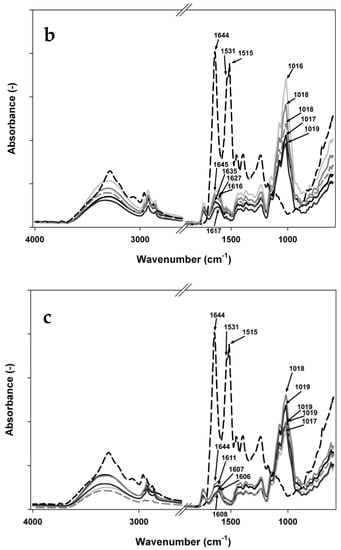

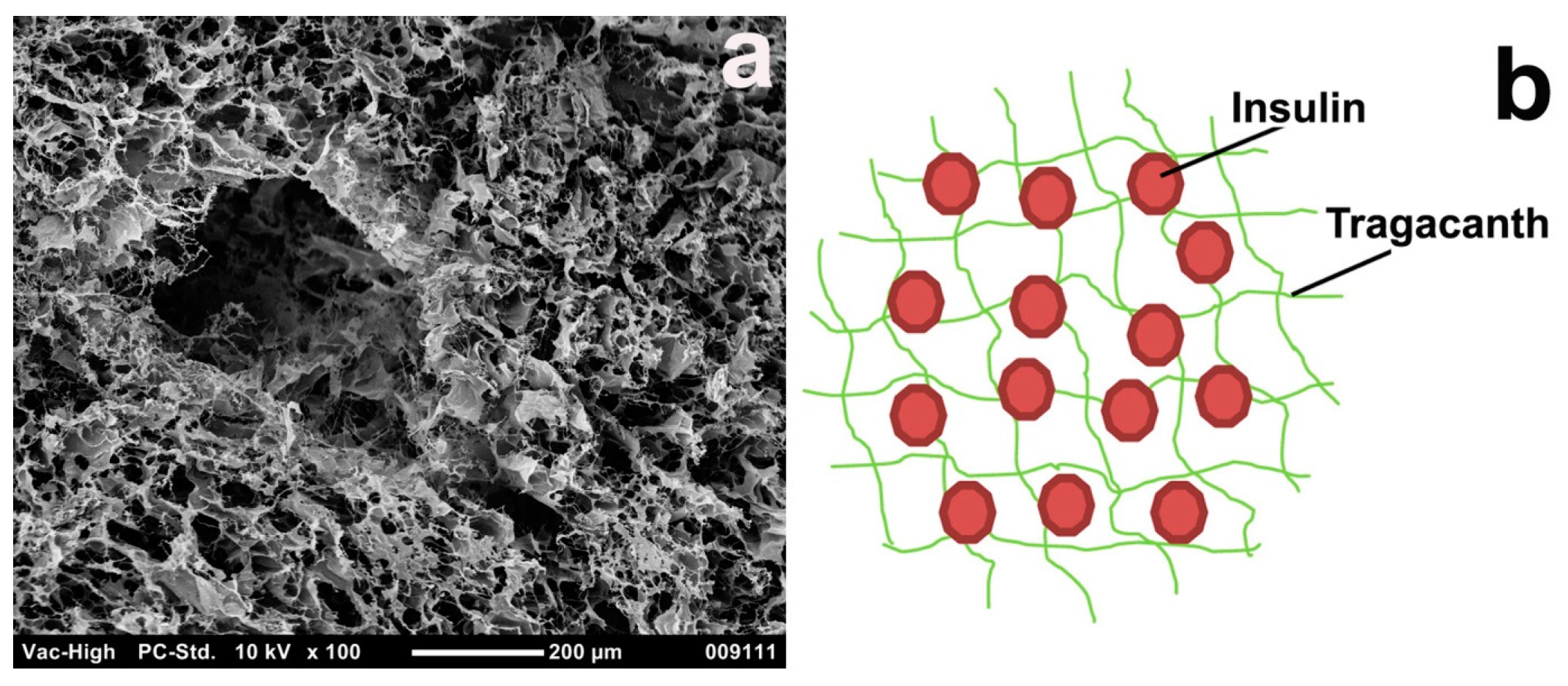

Nanoparticles or microparticles created by physical complexation between two polyelectrolytes may have a prospective use as an excipient for oral insulin administration. Natural polymers such as tragacanth, alginate, dextran, pullulan, hyaluronic acid, gelatin and chitosan can be potential candidates for this purpose. In this research, insulin particles were prepared by the inclusion of insulin into a tragacanth hydrogel. The effect of the pH and concentration relationship involving polyelectrolytes offering individual particle size and zeta potential was assessed by zetasizer and scanning electron microscopy (SEM). Insulin–tragacanth interactions at varying pH (3.7, 4.3, 4.6, or 6), and concentration (0.1%, 0.5%, or 1% w/w) were evaluated by differential scanning calorimetry (DSC) and ATR Fourier transform infrared (ATR-FTIR) analysis. Individual and smaller particles, approximately 800 nm, were acquired at pH 4.6 with 0.5% of tragacanth. The acid gelation test indicated that insulin could be entrapped in the physical hydrogel of tragacanth. DSC thermograms of insulin–tragacanth showed shifts on the same unloaded tragacanth peaks and suggested polyelectrolyte–protein interactions at a pH close to 4.3–4.6. FTIR spectra of tragacanth–insulin complexes exhibited amide absorption bands featuring in the protein spectra and revealed the creation of a new chemical substance. View Full-Text
Keywords: insulin; protein; peptides; PEC; hydrogels; gum tragacanth; insulin carrier; rheology; drug delivery; biopolymers insulin; protein; peptides; PEC; hydrogels; gum tragacanth; insulin carrier; rheology; drug delivery; biopolymers

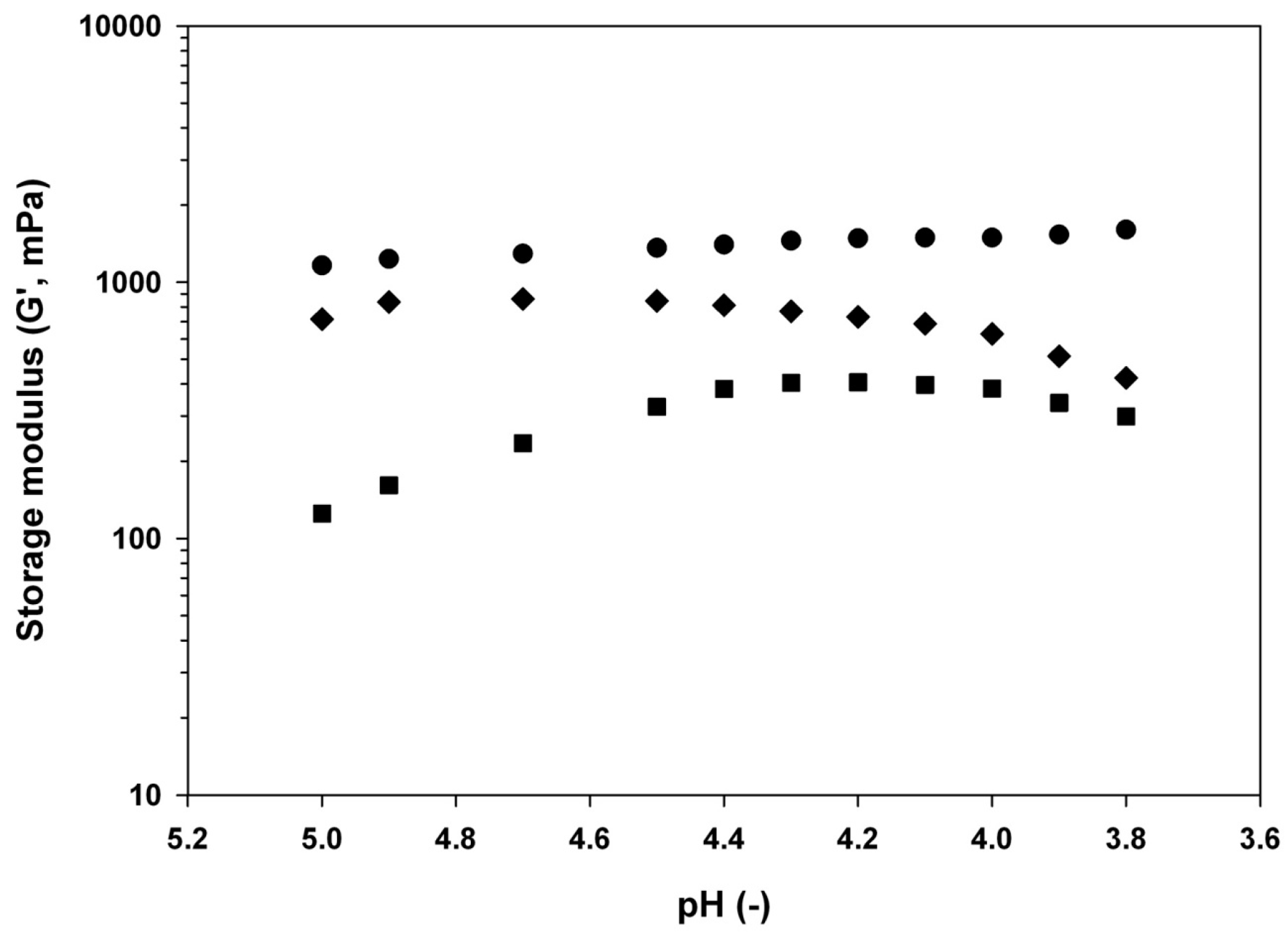

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
