Removal of Hexavalent Chromium in Portland Cement Using Ground Granulated Blast-Furnace Slag Powder

by
Sungchul Bae
1,*,
Fumino Hikaru
2,
Manabu Kanematsu
2,
Chiaki Yoshizawa
3,
Takafumi Noguchi
4,
Youngsang Yu
5 and
Juyoung Ha
6
1
Department of Architectural Engineering, Hanyang University, Seoul 04763, Korea
2
Faculty of Science and Technology, Tokyo University of Science, 2641 Yamazaki, Noda, Chiba 278-8510, Japan
3
Research Institute of Science and Technology, Nihon University College of Science and Technology, Chiyoda, Tokyo 101-8308, Japan
4
Department of Architecture, Graduate school of Engineering, The University of Tokyo, Bunkyo, Tokyo 113-8654, Japan
5
Advanced Light Source, Lawrence Berkeley National Laboratory, Berkeley, CA 94720, USA
6
School of Environmental and Sustainability Sciences, Kean University, Union County, NJ 07083, USA
*
Author to whom correspondence should be addressed.
Materials 2018, 11(1), 11; https://doi.org/10.3390/ma11010011
Submission received: 23 October 2017 / Revised: 11 December 2017 / Accepted: 20 December 2017 / Published: 22 December 2017
(This article belongs to the Section Advanced Materials Characterization)
Browse Figures
Versions Notes

Abstract

:
Using ground granulated blast-furnace slag (GGBS) under different alkaline conditions, we studied the mechanisms and extents of Cr(VI) reduction and sorption and compared them to reactions with Portland cement (PC). We also investigated the effects of mixing PC/GGBS ratios on Cr(VI) dissolution after carbonating the substrates. We observed a complete sorption and reduction of Cr(VI) to Cr(III) in a GGBS-in-Ca(OH)2 solution (pH > ~12.5) after 10 h, whereas in distilled water (pH = ~11.5) GGBS exhibited only marginal sorption and reduction (20%). Cr reactions with dissolved ions in supernatants derived from GGBS indicated that the anions dissolved from GGBS act as a reducing agent for Cr(VI) in a Ca(OH)2 solution. Soft X-ray absorption microscopy identified a partial reduction of Cr(VI) to Cr(III) on the GGBS surface. The carbonation of pure PC paste substantially increased the amount of dissolved Cr(VI) in a solution phase whereas a 5 wt % replacement of PC with GGBS significantly reduced the amount of dissolved Cr(VI). We concluded that in the mixed paste during the early curing stage GGBS reduced a significant fraction of Cr(VI) to Cr(III) and that the Cr(III) adsorbed in the GGBS-PC mixture’s hydration products does not readily dissolve, even under carbonation conditions.

1. Introduction

Hexavalent chromium [Cr(VI)] is found in concrete as chromate, which results from the oxidation process of trivalent chromium [Cr(III)] during Portland cement (PC) clinker production [1,2]. Chromium (Cr) can exist in several different oxidative states and its physical and chemical properties, such as solubility, toxicity, and sorption affinity, vary with environmental conditions. For example, Cr(III) is likely to precipitate in alkaline solutions, whereas Cr(VI) is amphoteric with a concentration-dependent solubility [3]. Cr(VI) is highly mobile but very toxic under aerobic conditions [1,4,5]. Cr(III) has a strong affinity to soils and other substrates; while it is less soluble and toxic than Cr(VI), its potential for oxidation to Cr(VI) should be carefully examined in order to fully understand Cr transport and distribution in the environment. Therefore, examining Cr(VI) dissolution, sorption, and reduction in PC clinker is of the utmost important for environmental concerns and for the long-term sustainability of PC materials in construction materials [3,6].
In the past, stabilization and solidification (s/s) have been practiced on immobilized PC-associated Cr(VI) [7,8,9]. Stabilization involves a reductive transformation of Cr(VI) to Cr(III) and a subsequent chemical transformation into a highly insoluble compound, such as calcium chromate [10,11]. Solidification involves the co-precipitation of Cr(VI) with dissolved PC hydration products during hydration reactions [10]. Calcium silicate hydrate (C-S-H), which is the primary hydration and binding product in PC-based materials, contains most of the microporosity, resulting in a large specific surface area that provides physical sorption and co-precipitation sites for heavy metal ions like Cr(VI). It should also be noted that Zamorani et al. [12] observed co-precipitated phase of CaCrO4 when Cr(VI) reacted with C-S-H, suggesting that molecular-level surface reactions are important in determining the reaction rates and pathways when hydrated products of PC-based materials react with Cr(VI) [3]. Ettringite (3CaO·Al2O3·3CaSO4·32H2O) has also been identified as one of PC’s hydration products and, with its highly reactive and needle-like column structure, has been proposed as a surface site for Cr(VI) immobilization via anion substitution, where CrO42− is exchanged for SO42− [13,14]. Another study identified that reductive reactions occur during the curing phases and that the resulting Cr(III) also replaces Al(III) in the ettringite crystalline structure [15]. Ionic substitutions in ettringite were also observed to be Cr(VI)–ettringite and Cr(III)–ettringite phases that further limit the mobility of Cr [8,16]. Cr(VI) can be substituted for SO42− in the interlayer of calcium aluminate monosulfate (hereafter referred to as monosulfate, 3CaO·Al2O3·CaSO4·12H2O) [16]. However, the pH stability range of reactions for Cr(VI)–ettringite and Cr(VI)-hydration products of PC is very narrow and varies significantly [16,17].
The alkalinity of the PC-based matrix is important for decreasing the dissolution of Cr ions [3,11]. However, the carbonation process neutralizes the alkaline conditions and increases the Cr(VI) solubility for PC pastes [18]. A decrease in the pH conditions due to carbonation causes the decomposition of Cr(VI)-bearing hydration products in cementitious materials, which leads to more dissolved aqueous Cr(VI) [19].
Ground granulated blast-furnace slag (GGBS) is a well-known by-product of the pig-iron manufacturing process, and up to 60–70% of GGBS is often incorporated into concrete in order to recycle industrial waste materials [20]. GGBS is capable of immobilizing Cr(VI) via a reductive process: dissolved S2− ions from GGBS transform Cr(VI) into Cr(III) [3]. On the contrary, Macias et al. [18] observed an increased dissolution of Cr(VI) in GGBS-PC pastes due to the Cr(VI) that was released into the cement materials’ pore solution. The effect of GGBS on Cr(VI) reduction and immobilization has not yet been quantitatively studied, and the exact mechanism of GGBS remains unclear.
The aim of this study is to elucidate the mechanism of GGBS on Cr(VI) speciation under different alkaline levels. Ca(OH)2 was utilized in order to maintain a high alkaline condition for the activation of GGBS. We also studied GGBS’s capacity to reduce and immobilize Cr(VI), comparing it to that of pure PC. We performed quantitative determinations of the Cr(VI) using a UV-visible spectrophotometer. The dissolved cations and anions in Cr(VI)’s reductive transformation in the solution phase were quantified under different alkaline conditions using ion chromatography. The phases for each sample that was made to react with different Cr(VI) concentrations were identified using X-ray diffraction (XRD). Synchrotron-based X-ray microscopy and spectroscopy were used to identify the detailed chemical speciation of Cr that had reacted with the Ca(OH)2-activated GGBS particles. Finally, an accelerated carbonation test was performed to examine the effects of carbonation on Cr(VI) leaching from a GGBS-PC paste.

2. Experimental Methods

2.1. Material and Sample Descriptions

The chemical compositions of PC and GGBS were determined using X-ray fluorescence (XRF, Bruker, Karlsruhe, Germany) (Table 1). Research-grade PC was used instead of commercial PC to minimize any possible impurities and their subsequent interference with our experimental results.
Table 2 shows the mix proportions and experimental measurements for the different samples. Four different series of experimental samples were prepared, and they are denoted as S1, S2, S3, and S4. In the S1 samples, we examined Cr(VI) reduction and immobilization using PC or GGBS. A Cr(VI) solution (0.5 mg/L) was prepared by dissolving potassium dichromate (K2Cr2O7) in distilled water. The GGBS or PC powder (40 g) was added into the Cr(VI) solutions, and the suspensions were agitated at 20 °C in 60% relative humidity (RH) conditions. The supernatant of the S1 samples was filtered, and the concentration of the Cr(VI) remaining in the filtered solution was determined. The changes in pH of the S1 suspensions were measured via a hand-held pH meter (D-52, Horiba, Tokyo, Japan).
S2 samples were prepared in order to verify what effects the dissolved ions from PC or GGBS had on Cr(VI) reduction in the solution phase. The PC or GGBS powder (48 g) was mixed with distilled water (2.4 L), and the substrates were equilibrated in distilled water for 24 h to ensure the dissolution of the substrates. After 24 h, the supernatant was filtered, and 1.2 mg of K2Cr2O7 was added to the filtered solutions containing the dissolved ions from the paste samples. Changes to the initial Cr(VI) concentration (0.5 mg/L) was measured at 0, 1, 3, 6, 12, and 24 h in the reacted solutions to identify the extent of the reductive reaction that was due to the dissolved ions from the substrates in the solutions.
The S3 experiments series aimed to determine the Cr(VI) sorption capacity of GGBS. Different amounts of Cr(VI) ranging from 0.5 to 100 mg/L were added to a GGBS suspension. After agitating the suspension, the remaining Cr(VI) concentration was determined at 120 and 150 h. Lastly, the S4 series was used to determine the different chemical species of the dissolved free ions from the GGBS samples under different alkaline condition. Ion chromatography (Dionex ICS-2000, Sunnyvale, CA, USA), using suppressed conductivity detection, was performed to quantify the ions that were dissolved in S4 samples. The Cr(VI) concentration in S4 samples was measured using a UV-visible spectrophotometer (DR 5000™, Hach, London, ON, Canada) and the EPA 7196A method with 1,5-diphenylcarbazide (Cr(VI) Detection limit, Max: 1.0 mg/L, Min: 0.03 mg/L). All the solutions were filtered through a 0.45-μm membrane filter, and the alkaline conditions of the solutions were maintained using pure Ca(OH)2.

2.2. Accelerated Carbonation and Tank Leaching Test

GGBS-PC pastes (ø50 × 100 mm) were made at GGBS replacement ratios of 0, 5, 10, and 50 wt %. The water to total solid (GGBS + PC) ratio (w/s) of the pastes was maintained at 0.6 for all the samples. The total initial Cr(VI) concentration was at 0.5 mg/L per 100 g of paste. During the first 24 h of curing, plastic sheets covered the exposed surfaces of the specimen in the mold. The specimens were demolded after 24 h and were cured for an additional 28 days at 20 °C in 60% RH conditions. For accelerated carbonation, the final sample was finely grounded and placed in a carbonation chamber at 20 °C with 5% CO2 and 60% RH for 28 days. After the carbonation period was completed, the specimens were kept in an ethanol suspension and stored in a vacuum drying chamber until further analysis. The hydration products were identified both before and after 28 days of carbonation. After carbonation, the remaining Cr(VI) concentration in the samples was measured according to Regulation No. 49 (The Ministry of Land, Infrastructure and Transport, Japan).

2.3. Phase Identification

The raw material phases, the hydration products in the filtered solids derived from the S1 and S3 suspensions, and the accelerated carbonation test specimens before and after carbonation were all identified via powder XRD using monochromatized CuKα radiation (λ = 1.54 Å, at a voltage of 30 kV, a current of 10 mA, in the range of 2θ = 5°–75°, D2 Phaser, Bruker, Karlsruhe, Germany). The residues collected after filtering were dried and used for the XRD analysis. Prior to the sample preparation, both the carbonation of the raw materials and the purity of Ca(OH)2, which was used as a reference compound, were checked using XRD. Although great care was taken to avoid carbonation of the pure Ca(OH)2, very small peaks of CaCO3 were seen in the XRD pattern, and the amount of CaCO3 was quantified as ~2 wt % via Rietveld refinement using the Topas software (version 4.3, Bruker, Karlsruhe, Germany). This result may be due to the unavoidable carbonation of pure Ca(OH)2 during the XRD measurements.

2.4. Scanning Transmission X-ray Microscopy (STXM)

Spatial correlations between the chemical compositions and their oxidation states were mapped by a combination of scanning transmission X-ray microscopy (STXM) and X-ray absorption spectroscopy (XAS) across Cr L2,3-edges (560–600 eV) and the O K-edge (525–560 eV), which allows us to image distributions of the chemical species with spectral sensitivity from very small spots (~35 nm). STXM measurements were performed at the bending magnet beamline (5.3.2.1) at the Advanced Light Source (ALS) in the Lawrence Berkeley National Laboratory, Berkeley, CA, USA [21]. To obtain transparency in the soft X-ray region, the diluted mixtures (dried leachate of GGBS-CH-S3 and 10 mg/L of added Cr(VI)) were drop-casted with isopropanol onto a 50-nm-thick Si3N4 membrane (Silson Inc., Warwickshire, England). STXM measurements utilized a 25-nm outer-width Fresnel zone plate for focusing the X-ray. A raster scanned onto 8 × 8 μm2 field-of-views with a square scan grid of 35 nm steps. Image spectra (i.e., repeated images at different energies), whose finest energy step was 0.1 eV near the absorption resonance, were recorded by a phosphor photomultiplier tube (PMT). The intensity transmitted through the samples (I) was converted into the optical density (OD) by taking the log ratio of the incident (I0) and transmitted (I) intensities (Equation (1)):
OD = − ln ( I I 0 ) = σ · t = μ · ρ · t ,
where I0: incident X-ray photon intensity, t: specimen thickness, μ: mass absorption coefficient, and ρ: density of the specimen.
To overcome spectral distortions resulting from the acquisition time gap between the I0 and I measurements, the incident beam intensity was simultaneously measured through an open area of the sample. After image registration by a phase-correlation algorithm, the XAS spectra of each pixel as a function of energy were corrected. All data processing was carried out using the Axis2000 software (version 8.3, McMaster Univ., Hamilton, ON, Canada) [22]. Further details regarding applications of STXM to the study of cementitious systems can be found elsewhere [23,24,25,26].

3. Results and Discussion

3.1. Cr(VI) Removal Using PC and GGBS-PC Samples

Figure 1a shows the time profiles of the pH values for the suspensions retrieved from the S1 samples over 120 h. The pH value for PC-S1 increased from 12.7 to 13.2 in 12 h and decreased to 12.5. This is in good agreement with PC paste, which has a water to binder ratio (W/B) of 0.3 [27]. No significant changes in pH were observed afterwards. On the other hand, the pH value for GGBS-S1 increased from 11.1 to 11.7 in 24 h and remained in the 11.6–11.8 range until 120 h had passed. When compared to PC-S1 and GGBS-S1, GGBS-CH-S1, to which Ca(OH)2 was added, exhibited comparatively small changes in pH within the first 20 h. It had a constant value of 12.7 until 120 h had passed. Past studies indicate that GGBS’s activation is strongly dependent on pH values [28,29]. Higher pHs lead to improved GGBS activation, with a value higher than 11.5 leading to an effective activation [30]. Therefore, alkaline conditions for GGBS activation can be maintained by adding Ca(OH)2 (GGBS-CH-S1). The effect of alkalinity on GGBS activation was further confirmed in the XRD results (see Section 3.4).
Figure 1b depicts the Cr(VI) concentration of the supernatants ([Cr(VI)]supernatants) retrieved from the S1 samples as a function of time. Within 1 h, [Cr(VI)]supernatants increased from 0.50 to 0.70 mg/L for PC samples. Following this, [Cr(VI)]supernatants gradually decreased over 120 h to below the detection limit (0.03 mg/L). The initial increase in the Cr(VI) concentration is likely due to the initial dissolution of the cement clinkers in the PC samples. In the GGBS-S1 without Ca(OH)2, the [Cr(VI)]supernatants decreased from 0.5 to 0.4 mg/L within 5 h and remained relatively constant at 0.40 mg/L over 120 h. In contrast, a rapid decrease was observed for the GGBS-CH-S1 in Ca(OH)2 solution, with its the [Cr(VI)]supernatants reaching 0 mg/L within 24 h. This is an interesting observation because increasing the pH condition is expected to increase [Cr(VI)]supernatants. Instead, we observed a [Cr(VI)]supernatants decrease in the presence of the GGBS paste. Our results suggest that GGBS has an impact on Cr(VI) reaction pathways in Ca(OH)2 conditions and that alkali-activated GGBS can remove and immobilize Cr(VI) more than the untreated GGBS in distilled water can.

3.2. Cr(VI) Reduction via Dissolved Ions from GGBS

Figure 2 shows the evolution of the Cr(VI) concentration in the filtered solutions ([Cr(VI)]aqueous) of the S2 samples as a function of time. [Cr(VI)]aqueous decreases when it reacts with dissolved ions from PC and GGBS. Water-S2, the control sample, is a mixture composed of distilled water and K2Cr2O7 mixed with a pre-determined Cr(VI) concentration of 0.5 mg/L, brought to reaction. The initial [Cr(VI)]aqueous for all the samples was 0.5 mg/L. During the first hour, a slight increase in [Cr(VI)]aqueous for the PC-S2 sample (~0.52 mg/L), when compared to Water-S2 (~0.47 mg/L), was likely due to Cr(VI) dissolving from the cement clinker, which we also observed in Figure 1b because PC inherently contains a small amount of trace Cr(VI).
The [Cr(VI)]aqueous in GGBS-S2 decreased to 0.38 within 1 h before reaching a constant concentration. On the contrary, due to the presence of Ca(OH)2, GGBS-CH-S2 showed a significant and continuous Cr(VI) reduction over 6 h before finally reaching 0.05 mg/L at 24 h, which suggests an almost a complete removal of Cr(VI) from the solution. Based on the results, we attributed the reduced amount of Cr(VI) in the solution to the solution chemistry between the dissolved ions in the GGBS-CH-S2 sample with Cr(VI). In contrast, our experimental data indicated that the dissolved ions from the PC did not reduce the Cr(VI). Our results suggested that the significant Cr(VI) concentration decrease for the GGBS in Ca(OH)2 solution was primarily due to the reducing reaction between the dissolved ions from the GGBS and Cr(VI).
Figure 3 shows the evolution of the concentrations of the dissolved ions from the GGBS in water (GGBS-S4) and GGBS in Ca(OH)2 solution (GGBS-CH-S4) within 25 h. In both GGBS-S4 and GGBS-CH-S4 samples, the concentrations of Al[III] were relatively lower (lower than 1 mg/L) than those recorded for the other cations. For GGBS-S4, the three cations (Al[III], Si[IV], and Ca2+) showed similar dissolution trends. We presumed that the concentration changes in those cations resulted from the slow dissolution of GGBS in water. The Si[IV] concentration in GGBS-CH-S4 was very low due to the rapid consumption of Si in GGBS’s alkali-activation process.
The initial Ca2+ concentration in GGBS-CH-S4 (~200 mg/L) was much higher than for GGBS-S4 (~12 mg/L) because of the added Ca(OH)2. After 1 h, the Ca2+ concentration in GGBS-CH-S4 increased significantly to ~650 mg/L but then decreased to 400 mg/L at 3 h. After this, we recorded no changes in the Ca2+ concentration in GGBS-CH-S4. The initial rapid increase and the subsequent decrease of the Ca2+ concentration represent, respectively, the dissolution of Ca2+ from the GGBS and the ion’s consumption via the formation of alkali-activation products. The constant Ca2+ concentration that we recorded after 3 h resulted from the balance between the GGBS dissolution process on the one hand and the Ca2+ consumption via the precipitation of alkali-activation products on the other.
The S2O32− and SO42− concentrations were measured to represent the anions’ dissolution form the GGBS-S4 and GGBS-CH-S4 samples. In GGBS-S4, a relatively small amount of anions were dissolved from GGBS, and this amount was constant for 25 h. Conversely, in the GGBS-CH-S4 sample, the S2O32− and SO42− dissolution rapidly increased after 7 h. Most importantly, in contrast to the S2O32− (0~0.5 mg/L) and SO42− (1~2 mg/L) concentrations, we observed that a significantly greater amount of total sulfur (S) (7~13 mg/L) was dissolved within 5 h (the rapid Cr(VI) removal duration for GGBS-CH-S2, in Figure 2) in GGBS-CH-S4 samples than in GGBS-S4. Previous XAS study found that the S in GGBS exists mostly in the form of S2− with a minor amount of SO42− [31]. Our results therefore suggested that GGBS samples in Ca(OH)2 solution the significant Cr(VI)-concentration decrease in the solution phase was primarily caused by the fact that the reducing reaction between the dissolved ions (S2−) acted as a reducing agent for the Cr(VI) in the solution, as has previously been found by others [3,11]. We concluded that the dissolved ions from the GGBS activated in Ca(OH)2 solution play a critical role in the reductive transformation of Cr(VI) into Cr(III) in solution.

3.3. Cr(VI) Adsorption onto GGBS-PC Samples

We measured the changes in the Cr(VI) concentration for the S3 samples at 0, 120, and 150 h in order to further evaluate the capacity of GGBS to immobilize Cr(VI) in a Ca(OH)2 solution (Figure 4). For each specimen, the initial Cr(VI) concentrations varied from 0.5 to 100 mg/L. After 120 h of agitation, we observed no trace of Cr(VI) in GGBS-CH-S3 that had a Cr(VI) concentration of up to 10 mg/L, which indicated the complete removal of Cr(VI) from that solution. The GGBS specimen containing 50 mg/L of Cr(VI) had approximately 0.7 mg/L of Cr(VI) after 120 h. The Cr(VI) concentration in the specimen containing 100 mg/L of Cr(VI) was reduced to 8.6 mg/L. Furthermore, for all samples, we observed no further change in the Cr(VI) concentrations even after 150 h. It is possible that all GGBS’s sorption sites for Cr(VI) are saturated at this concentration, which would explain why no further removal of Cr(VI) from the solution was observed. It is also possible that the saturation of GGBS’s surface sites hinders any further reduction of Cr(VI) to Cr(III). Based on there being no further changes in the Cr concentrations after over 150 h, a pseudo-equilibrium condition was attained under our experimental condition. We do not have the experimental data to measure activated complexes at the transition state for the overall Cr transformation reaction mechanisms, and as a consequence of this we cannot calculate the pseudo-equilibrium constant for the reactions. Further detailed work is needed to confirm the exact mechanism at play during surface site saturation, along with its impact on Cr(VI) uptake and reduction by GGBS. Additionally, GGBS in distilled water (GGBS-S1) exhibited a limited capacity for Cr(VI) removal within 120 h: 0.025 mg/L per gram of GGBS. Related to this result is the fact that GGBS’s capacity to immobilize and stabilize Cr(VI) in Ca(OH)2 solution was particularly large: approximately 2.3 mg/L per gram of GGBS. This result indicates that the alkaline conditions improve the dissolution of GGBS. This results in the enhancement of the GGBS’s capacity to remove Cr(VI), in addition to its potential to do so in distilled water conditions. All the reaction products of the experimental samples were further analyzed using XRD in order to examine the possible surface precipitate phase.

3.4. XRD Characterization of the Reacted Phases

Figure 5 shows the diffraction patterns of raw materials and of the S1 samples, measured using XRD. We recorded no diffraction peaks for K2Cr2O7 in S1 specimens, indicating the complete dissolution of K2Cr2O7. PC-S1 exhibited very strong crystalline peaks for the Ca(OH)2 formed from the PC hydration, but such crystalline peaks were absent in GGBS-S1’s XRD pattern, indicating that here GGBS was mostly amorphous and had not been effectively activated under a pH of circa −11.5 (Figure 1a). In the XRD patterns of PC-S1 and GGBS-CH-S1 samples, we observed a formation of calcium aluminate hemicarbonate (hereafter referred to as hemicarbonate, 2Ca4[Al(OH)6]2(CO3)0.5OH·5.5H2O) and calcium aluminate monocarbonate (hereafter referred to as monocarbonate, 3CaO·Al2O3·CaCO3·10.68H2O) while only the PC-S1 sample formed ettringite.
Figure 6a shows the XRD patterns for GGBS-CH-S3 with Cr(VI) concentrations ranging between 0.5 and 100 mg/L. Regardless of the initial Cr(VI) concentration, all the specimens exhibited very strong crystalline peaks due to the Ca(OH)2. In specimens with a Cr(VI) concentration of 0.5 mg/L (Figure 6b), hemicarbonate and monocarbonate formed, as observed in GGBS-CH-S1. No ettringite or monosulfate phases were found in any of the S3 specimens. In contrast, in the GGBS-CH with 50 and 100 mg/L of Cr(VI), the hemi- or monocarbonate XRD peak intensity was very low. The addition of 100 mg/L of Cr(VI) encouraged the formation of calcium aluminum Cr oxide hydrates ((Ca4Al2O3(CrO4)·9H2O), CAC-9), which suggests that the amount of Cr(VI) influences the formation of GGBS products under Ca(OH)2 activation. Previous studies have shown that Cr(VI) can be immobilized by pure PC hydrates, such as ettringite, mono-, and hemicarbonate [11,18]. Additionally, high-surface area hydration by-products, such as C-S-H from PC hydration reactions, can remove Cr(VI) from solutions via physical adsorption [3]. Based on our findings, i.e., the rapid Cr(VI) reduction and immobilization through GGBS under alkaline conditions maintained by Ca(OH)2, we conclude that the by-products produced by the alkali-activated GGBS can contribute to both the immobilization of Cr(VI) ions via the complexation with dissolved anions resulting from the GGBS hydration reaction, and the Cr(VI) reduction to Cr(III).

3.5. Chromium Speciation via STXM

In exhibiting different Cr oxidation states, Cr(III) and Cr(VI) can be readily resolved by comparing the sample spectra with suitable reference spectra that are taken at the Cr L2,3-edge. This is because near edge X-ray absorption fine structure (NEXAFS) is highly sensitive to both the oxidation states and the geometry of Cr’s first coordination shell [32].
Figure 7 presents the X-ray absorption image of the GGBS-CH-S3 sample taken below Cr L3-edge at a photon energy of 560 eV, and the image contrast maps of Cr and O. Cr appeared to be localized at the edge of the GGBS particles, whereas O was equally distributed in the GGBS. In the Cr image contrast map, Area 1, as illustrated in Figure 8a, was selected for the Cr L2,3-edge NEXAFS analysis. We chose pure K2Cr2O7 as a reference for Cr(VI) spectra and used a series of Gaussian peaks to fit the spectra. In Figure 8b, K2Cr2O7 exhibits four distinct X-ray absorption features in the Cr L2,3-edge spectra, indicated as a2 (~578.5 eV), a3 (~580.9 eV), b2 (~587.7 eV), and b3 (~589.5 eV), where the peaks defined as a3 and b2 are induced, respectively, by the Cr L3, and L2 absorptions. The additional peaks a2 and b2 result from the crystal field produced by the ligands with different electronegativities, which are non-linearly related to the magnitude of the crystal-field parameter (10Dq) [33,34]. Since the absorption shoulder features of Cr(VI) on the low energy side are very close to Cr(III)’s main absorption [32], the absorption peaks of a2 and b2 are overlapping contributions from both Cr(VI) and Cr(III). The low energy side features a1 and b1 (the arrows in Figure 8b) solely correspond to the octahedrally coordinated Cr(III), which is in excellent agreement with the chromite (FeCr2O4) spectrum and Cr2O3 [32,35,36]. The coexistence of Cr as both Cr(VI) and Cr(III) is presumably due to the superposition of the partially-reduced Cr(VI) and the physically adsorbed Cr(VI) onto the Ca(OH)2-activated GGBS. The remaining areas illustrated in Figure 8a show the same trends as Area 1, i.e., the coexistence of Cr(III) and Cr(VI). However, due to the lower Cr concentration, the areas have lower X-ray absorption intensities and a higher background noise.
The O K-edge NEXAFS analysis provided further evidence for the coexistence of Cr(VI) and Cr(III) on the Ca(OH)2-activated GGBS (GGBS-CH-S3), as shown in Figure 9. The O K-edge NEXAFS spectrum of the K2Cr2O7 exhibited intense pre-edge X-ray absorption peaks at 529.2 and 531.2 eV, and these can be attributed to the electronic excitation from the O 1s core level into the unoccupied t2g and eg molecular orbitals, respectively [37]. The O K-edge NEXAFS spectrum of pure Ca(OH)2 differs from the absorption features of CrO42− [24]; in this study, the presence of crystalline Ca(OH)2 was not observed in the entire area of the specimen. Area 1 and Area 2 appeared to contain two pre-edge, low-intensity absorption peaks arising from CrO42−. In addition to the peaks, the features indicated by arrows at ~533 eV in the Area 1 and Area 2 spectra correspond to the O K-edge absorption peak of Cr(III)-oxyhydroxide, which has previously been observed in the spectrum of pyrite (FeS2) reacting with Cr(VI) [35]. Area 3 did not exhibit any CrO42− or Cr(III)-oxyhydroxide features because of the absence of any Cr in an oxidation state, as observed in Figure 7b.

3.6. Cr(VI) Dissolution and the Effects of Accelerated Carbonation

A comparison of the dissolved Cr(VI) concentration from the specimens before and after accelerated carbonation is shown in Figure 10. At 56 days, all the specimens that had not been exposed to atmospheric CO2 showed that relatively minimal amounts of Cr(VI) (i.e., less than the detection limit of 0.03 mg/L) were released from the GGBS-PC paste, regardless of the replacement ratio. Conversely, in the accelerated carbonation samples the dissolution of Cr(VI) depended strongly on the GGBS replacement ratio for PC. In pure PC, 0.7 mg/L of Cr(VI) was leached, whereas only 0.1 mg/L of Cr(VI) was leached from the GGBS-PC paste with a 5 wt % GGBS replacement. The Cr(VI) leached from the PC paste was the sum of the pre-added Cr(VI) (0.5 mg/L) and additional Cr(VI) (~0.2 mg/L) contained in the PC clinker, as already observed in the dissolution experiment (Figure 1b). For a sample with 50% of GGBS-replaced PC paste, we measure a very small amount of Cr(VI) below the detection limit of 0.03 mg/L. Pore solutions extracted from PC paste generally possess a pH in the range of 12.4 to 13.5 [38]. Our work revealed that the alkalinity resulting from the naturally formed Ca(OH)2 in PC hydration was sufficient for GGBS activation and enhanced GGBS’s capacity to reduce and immobilize Cr(VI), as observed in the solution samples (Figure 1b and Figure 2). Consequently, in a realistic PC paste, replacing PC with a minimal amount of GGBS had a significant impact on Cr(VI) reduction and immobilization, even with a 5 wt % replacement.
Figure 11 shows the XRD patterns for the GGBS-PC paste, with different GGBS replacement ratios and either with or without carbonation. Peaks arising from monosulfate, Ca(OH)2, and C-S-H were detected for all GGBS-PC pastes without carbonation. For the 50 wt % GGBS-PC paste, we noted very weak peaks due to the presence of hydrotalcite (Mg6Al2(CO3(OH)16·4H2O)) and vaterite. This result indicated that replacing GGBS in PC increases the hydration products’ susceptibility to carbonation due to the reaction with atmospheric CO2. Previous studies have also confirmed that carbonation can change the PC paste’s porosity and that this can also affect the hardened specimen’s CO2 permeability [39,40].
Monosulfate diffraction patterns were not detected in all samples with carbonation, which suggests that complete monosulfate decomposition occurred in the carbonated samples. In addition, we detected the presence of CaCO3 polymorphs such as vaterite, aragonite, and calcite; these were the main, crystalline, accelerated carbonation products for all the specimens. In particular, as the carbonation progressed, the peak intensities of the CaCO3 polymorphs became stronger, as has been previously found [41]. Presumably, the formation of aragonite is linked to the carbonated C-S-H formed during PC clinker hydration, as has been observed in the young post-carbonation tricalcium silicate paste [42]. In general, Ca(OH)2 and C-S-H are the main hydration products involved in the carbonation of PC-based systems [43]; the carbonation occurs preferentially on Ca(OH)2, and precipitating CaCO3 polymorphs in the system [44,45]. However, carbonation in PC systems that contain 75% amounts of GGBS mainly occurs on the C-S-H phases, which results in vaterite formation [46]. C-S-H formed in GGBS-PC systems has a generally low Ca/Si ratio because of the Ca(OH)2 consumption compared to that of pure PC systems [47,48,49,50]. When C-S-H with a low Ca/Si ratio is exposed to CO2, both vaterite and aragonite, which are CaCO3 polymorphs, preferentially precipitate [51]. In the present study, after carbonation, C-S-H exhibited a peak intensity in GGBS50C that was lower (2θ = ~29°) than for those contained less GGBS. Furthermore, we observed that the more GGBS there was, the higher was the vaterite-related peak, which formed due to the carbonation of C-S-H with a low Ca/Si ratio.
Figure 12 shows the XRD peak intensity of the 001 basal reflection from Ca(OH)2 for the GGBS-PC pastes before and after carbonation. We observed a very intense peak for crystalline Ca(OH)2 in the pre-carbonation pure PC paste (GGBS0). Like anticipated, as GGBS’s replacement ratio in PC increased, Ca(OH)2’s peak intensity decreased due to the dilution of PC and to the consumption of Ca(OH)2 by GGBS. After carbonation, more Ca(OH)2 decreased in the pure PC paste (GGBS0) than Ca(OH)2 in the GGBS-PC paste. As a result, all the specimens exhibited similar Ca(OH)2 peak intensities, which supported the findings that C-S-H is more readily carbonated than Ca(OH)2 in GGBS-PC paste because the carbonation of C-S-H depends on the initial Ca(OH)2 amount present prior to carbonation [46]. Moreover, it can be demonstrated that the sufficient Ca(OH)2 in pure PC paste can buffer C-S-H carbonation. Presumably, the lower Cr(VI) dissolution in the carbonated GGBS-PC resulted from a pre-carbonation reductive process caused by dissolved anions such as S2− (which are continuously released from GGBS during hydration) because S2− can inhibit the oxidization of Cr(III) to Cr(VI) [18]. It should be noted that we do not have the direct evidence we need to identify the exact surface-promoted reductive transformation of Cr(VI) to Cr(III). It is likely that S2− released during the hydration reaction is responsible for the reducing reactions in solution and that the reduced Cr species are physisorbed to hydrated materials. Equally, we cannot rule out the possibility that physisorbed S2− located on hydrated-materials surfaces act as reducing agents for Cr reductive transformations. Further detailed studies are needed to distinguish the two different reaction pathways. Moreover, C-S-H formed in the GGBS-substituted PC system, which has a longer mean chain length [52], resulting in a larger surface area that can offer better surface adsorption, inclusion, and physical entrapment of Cr(VI). Based on the XRD and Cr(VI) dissolution results before and after carbonation, we concluded that partially replacing PC with GGBS can greatly reduce and immobilize Cr(VI) via dissolved anions into the pore solutions and via physical adsorption onto C-S-H. Even though C-S-H and hydration products are more susceptible to carbonation in the GGBS-PC system than in the pure PC system, Cr(VI) was not readily leached from the GGBS-PC paste after carbonation.

4. Conclusions

We found that without alkali activation GGBS is limited in its capacity to reduce Cr(VI). In contrast, the Ca(OH)2-activated GGBS demonstrated a considerably greater capacity for reducing and immobilizing Cr(VI). Therefore, we conclude that alkalinity is one of the dominating factors in determining the extent and mechanisms of reductive Cr(VI) dissolution and uptake reactions for GGBS. Furthermore, we found experimental evidence that Cr(VI) removal from the solution was due to its reactions with the dissolved anions, such as S2−, resulting from GGBS being under high alkaline conditions. X-ray absorption spectroscopy data identified the coexistence of Cr(III) and Cr(VI) on the Ca(OH)2-activated GGBS. This partial reduction of Cr(VI) to Cr(III) on the surface of GGBS suggests the presence of a surface-site-activated reductive mechanism. The Cr(VI) we observed on GGBS like results from physically adsorbed Cr(VI) on hydration products.
Our accelerated-carbonation experimental data indicate that the hydration products formed in the GGBS-PC paste, such as C-S-H, possessed a greater resistance to Cr(VI) leaching than those formed in pure PC. Our study suggests that even the used of 5% weight-based partial GGBS replacement for PC-based materials would be a suitable method for reducing and immobilizing Cr(VI) without violating the mechanical and physical integrity of PC [53]. We hypothesize that Ca(OH)2 generated during the early stage of PC hydration reactions promotes the dissolution and activation of GGBS, which results in an enhanced Cr(VI) reduction. It should be noted that observing S2− concentrations in the dissolved solution will provide useful insights for determining and identifying further detailed reaction pathways. Future studies that use additional information to research similar experimental conditions are necessary to identify Cr(VI)’s exact reductive transformation pathways in hydrated cementitious materials. In addition, in order to understand the Cr(VI) reductive mechanism in GGBS, further detailed mechanistic and molecular research is needed to identify the exact state of physisorbed Cr(VI) on GGBS’s hydration products, how different types and amounts of GGBS alkaline activators influence Cr(VI) reduction and immobilization, and the factors that control Cr(VI) reduction pathways in carbonated GGBS-PC materials.

Acknowledgments

This research was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Science, ICT & Future Planning (NRF-2016R1C1B1014179).

Author Contributions

Sungchul Bae designed the experiments and wrote most of the paper; Juyoung Ha contributed to the analysis of the entire experiments and writing of the paper; Fumino Hikaru contributed to the preparation the experiments and the analysis of the data of Cr reduction and XRD; Manabu Kanematsu, Chiaki Yoshizawa, and Takafumi Noguchi contributed to the analysis of the data and the writing of the paper; Youngsang Yu contributed the analysis of the STXM data and the writing of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Frías, M.; de Rojas, M.I.S.; García, N.; Luxán, M.P. Contribution of toxic elements: Hexavalent chromium in materials used in the manufacture of cement. Cem. Concr. Res. 1994, 24, 533–541. [Google Scholar] [CrossRef]
  2. Klemm, W.A. Hexavalent Chromium in Portland-Cement. Cem. Concr. Aggreg. 1994, 16, 43–47. [Google Scholar]
  3. Macphee, D.E.; Glasser, F.P. Immobilization Science of Cement Systems. MRS Bull. 1993, 18, 66–71. [Google Scholar] [CrossRef]
  4. Costa, M. Potential hazards of hexavalent chromate in our drinking water. Toxicol. Appl. Pharmacol. 2003, 188, 1–5. [Google Scholar] [CrossRef]
  5. Kjuus, H.; Lenvik, K.; Kjærheim, K.; Austad, J. Epidemiological Assessment of the Occurrence of Allergic Dermatitis in Workers in the Construction Industry Related to the Content of Cr (VI) in Cement; National Institute of Occupational Health: Ahmedabad, India, 2003. [Google Scholar]
  6. Dresel, P.E.; Qafoku, N.; McKinley, J.P.; Fruchter, J.S.; Ainsworth, C.C.; Liu, C.; Ilton, E.; Phillips, J. Geochemical Characterization of Chromate Contamination in the 100 Area Vadose Zone at the Hanford Site; The US Department of Energy: Washington, DC, USA, 2008.
  7. Chen, Q.Y.; Tyrer, M.; Hills, C.D.; Yang, X.M.; Carey, P. Immobilisation of heavy metal in cement-based solidification/stabilisation: A review. Waste Manag. 2009, 29, 390–403. [Google Scholar] [CrossRef] [PubMed]
  8. Rose, J.; Benard, A.; Susini, J.; Borschneck, D.; Hazemann, J.L.; Cheylan, P.; Vichot, A.; Bottero, J.Y. First insights of Cr speciation in leached Portland cement using X-ray spectromicroscopy. Environ. Sci. Technol. 2003, 37, 4864–4870. [Google Scholar] [CrossRef] [PubMed]
  9. Malviya, R.; Chaudhary, R. Factors affecting hazardous waste solidification/stabilization: A review. J. Hazard. Mater. 2006, 137, 267–276. [Google Scholar] [CrossRef] [PubMed]
  10. Pera, J.; Thevenin, G.; Chabannet, M. Design of a novel system allowing the selection of an adequate binder for solidification/stabilization of wastes. Cem. Concr. Res. 1997, 27, 1533–1542. [Google Scholar] [CrossRef]
  11. Glasser, F.P. Fundamental aspects of cement solidification and stabilisation. J. Hazard. Mater. 1997, 52, 151–170. [Google Scholar] [CrossRef]
  12. Zamorani, E.; Sheikh, I.A.; Serrini, G. Physical properties measurements and leaching behavior of chromium compounds solidified in a cement matrix. Nucl. Chem. Waste Manag. 1988, 8, 239–245. [Google Scholar] [CrossRef]
  13. Poellmann, H.; Auer, S.; Kuzel, H.J.; Wenda, R. Solid solution of ettringites. Cem. Concr. Res. 1993, 23, 422–430. [Google Scholar] [CrossRef]
  14. Gougar, M.L.D.; Scheetz, B.E.; Roy, D.M. Ettringite and C-S-H Portland cement phases for waste ion immobilization: A review. Waste Manag. 1996, 16, 295–303. [Google Scholar] [CrossRef]
  15. Wieczorek-Ciurowa, K.; Fela, K.; Kozak, A.J. Chromium(III)-ettringite formation and its thermal stability. J. Therm. Anal. Calorim. 2001, 65, 655–660. [Google Scholar] [CrossRef]
  16. Chrysochoou, M.; Dermatas, D. Evaluation of ettringite and hydrocalumite formation for heavy metal immobilization: Literature review and experimental study. J. Hazard. Mater. 2006, 136, 20–33. [Google Scholar] [CrossRef] [PubMed]
  17. Perkins, R.B.; Palmer, C.D. Solubility of Ca-6[Al(OH)6]2(CrO4)3 center dot 26H2O, the chromate analog of ettringite; 5–75 °C. Appl. Geochem. 2000, 15, 1203–1218. [Google Scholar] [CrossRef]
  18. Macias, A.; Kindness, A.; Glasser, F.P. Impact of carbon dioxide on the immobilization potential of cemented wastes: Chromium. Cem. Concr. Res. 1997, 27, 215–225. [Google Scholar] [CrossRef]
  19. Wazne, M.; Jagupilla, S.C.; Moon, D.H.; Christodoulatos, C.; Koutsospyros, A. Leaching Mechanisms of Cr(VI) from Chromite Ore Processing Residue. J. Environ. Qual. 2008, 37, 2125–2134. [Google Scholar] [CrossRef] [PubMed]
  20. Richardson, I.G.; Groves, G.W. Microstructure and microanalysis of hardened cement pastes involving ground granulated blast-furnace slag. J. Mater. Sci. 1992, 27, 6204–6212. [Google Scholar] [CrossRef]
  21. Kilcoyne, A.L.D.; Tyliszczak, T.; Steele, W.F.; Fakra, S.; Hitchcock, P.; Franck, K.; Anderson, E.; Harteneck, B.; Rightor, E.G.; Mitchell, G.E.; et al. Interferometer-controlled scanning transmission X-ray microscopes at the Advanced Light Source. J. Synchrotron Radiat. 2003, 10, 125–136. [Google Scholar] [CrossRef] [PubMed]
  22. Hitchcock, A.P. aXis 2000—Analysis of X-ray Images and Spectra. Available online: http://unicorn.mcmaster.ca/aXis2000.html (accessed on 21 December 2017).
  23. Bae, S.; Taylor, R.; Hernández-Cruz, D.; Yoon, S.; Kilcoyne, D.; Monteiro, P.J.M. Soft X-ray Spectromicroscopic Investigation of Synthetic C-S-H and C3S Hydration Products. J. Am. Ceram. Soc. 2015, 98, 2914–2920. [Google Scholar] [CrossRef]
  24. Bae, S.; Taylor, R.; Shapiro, D.; Denes, P.; Joseph, J.; Celestre, R.; Marchesini, S.; Padmore, H.; Tyliszczak, T.; Warwick, T.; et al. Soft X-ray Ptychographic Imaging and Morphological Quantification of Calcium Silicate Hydrates (C-S-H). J. Am. Ceram. Soc. 2015, 98, 4090–4095. [Google Scholar] [CrossRef]
  25. Bae, S.; Taylor, R.; Kilcoyne, D.; Moon, J.; Monteiro, P.J.M. Effects of Incorporating High-Volume Fly Ash into Tricalcium Silicate on the Degree of Silicate Polymerization and Aluminum Substitution for Silicon in Calcium Silicate Hydrate. Materials 2017, 10, 131. [Google Scholar] [CrossRef] [PubMed]
  26. Bae, S.; Kanematsu, M.; Hernandez-Cruz, D.; Moon, J.; Kilcoyne, D.; Monteiro, P.J.M. In Situ Soft X-ray Spectromicroscopy of Early Tricalcium Silicate Hydration. Materials 2016, 9, 976. [Google Scholar] [CrossRef] [PubMed]
  27. Rashad, A.M.; Bai, Y.; Basheer, P.A.M.; Milestone, N.B.; Collier, N.C. Hydration and properties of sodium sulfate activated slag. Cem. Concr. Compos. 2013, 37, 20–29. [Google Scholar] [CrossRef] [Green Version]
  28. Fernandez-Jimenez, A.; Puertas, F. Effect of activator mix on the hydration and strength behaviour of alkali-activated slag cements. Adv. Cem. Res. 2003, 15, 129–136. [Google Scholar] [CrossRef]
  29. Chang, J.J. A study on the setting characteristics of sodium silicate-activated slag pastes. Cem. Concr. Res. 2003, 33, 1005–1011. [Google Scholar] [CrossRef]
  30. Song, S.; Sohn, D.; Jennings, H.M.; Mason, T.O. Hydration of alkali-activated ground granulated blast furnace slag. J. Mater. Sci. 2000, 35, 249–257. [Google Scholar] [CrossRef]
  31. Roy, A. Sulfur speciation in granulated blast furnace slag: An X-ray absorption spectroscopic investigation. Cem. Concr. Res. 2009, 39, 659–663. [Google Scholar] [CrossRef]
  32. Grolimund, D.; Trainor, T.P.; Fitts, J.P.; Kendelewicz, T.; Liu, P.; Chambers, S.A.; Brown, G.E. Identification of Cr species at the aqueous solution-hematite interface after Cr(VI)-Cr(III) reduction using GI-XAFS and Cr L-edge NEXAFS. J. Synchrotron Radiat. 1999, 6, 612–614. [Google Scholar] [CrossRef] [PubMed]
  33. Naftel, S.J.; Sham, T.K.; Yiu, Y.M.; Yates, B.W. Calcium L-edge XANES study of some calcium compounds. J. Synchrotron Radiat. 2001, 8, 255–257. [Google Scholar] [CrossRef] [PubMed]
  34. Stöhr, J. NEXAFS Spectroscopy; Springer: Berlin, Germany, 1992. [Google Scholar]
  35. Doyle, C.S.; Kendelewicz, T.; Bostick, B.C.; Brown, G.E. Soft X-ray spectroscopic studies of the reaction of fractured pyrite surfaces with Cr(Vl)-containing aqueous solutions. Geochim. Cosmochim. Acta 2004, 68, 4287–4299. [Google Scholar] [CrossRef]
  36. Shen, C.; Chen, H.; Wu, S.; Wen, Y.; Li, L.; Jiang, Z.; Li, M.; Liu, W. Highly efficient detoxification of Cr(VI) by chitosan-Fe(III) complex: Process and mechanism studies. J. Hazard. Mater. 2013, 244–245, 689–697. [Google Scholar] [CrossRef] [PubMed]
  37. Kucheyev, S.O.; van Buuren, T.; Baumann, T.F.; Satcher, J.H.; Willey, T.M.; Meulenberg, R.W.; Felter, T.E.; Poco, J.F.; Gammon, S.A.; Terminello, L.J. Electronic structure of titania aerogels from soft X-ray absorption spectroscopy. Phys. Rev. B 2004, 69, 245102. [Google Scholar] [CrossRef]
  38. Andersson, K.; Allard, B.; Bengtsson, M.; Magnusson, B. Chemical-Composition of Cement Pore Solutions. Cem. Concr. Res. 1989, 19, 327–332. [Google Scholar] [CrossRef]
  39. Rimmelé, G.; Barlet-Gouédard, V.; Porcherie, O.; Goffé, B.; Brunet, F. Heterogeneous porosity distribution in Portland cement exposed to CO2-rich fluids. Cem. Concr. Res. 2008, 38, 1038–1048. [Google Scholar] [CrossRef]
  40. Johannesson, B.; Utgenannt, P. Microstructural changes caused by carbonation of cement mortar. Cem. Concr. Res. 2001, 31, 925–931. [Google Scholar] [CrossRef]
  41. Puertas, F.; Palacios, M.; Vazquez, T. Carbonation process of alkali-activated slag mortars. J. Mater. Sci. 2006, 41, 3071–3082. [Google Scholar] [CrossRef]
  42. Slegers, P.A.; Rouxhet, P.G. Carbonation of the hydration products of tricalcium silicate. Cem. Concr. Res. 1976, 6, 381–388. [Google Scholar] [CrossRef]
  43. Morandeau, A.; Thiery, M.; Dangla, P. Investigation of the carbonation mechanism of CH and C-S-H in terms of kinetics, microstructure changes and moisture properties. Cem. Concr. Res. 2014, 56, 153–170. [Google Scholar] [CrossRef] [Green Version]
  44. Glasser, F.; Matschei, T. Interactions between Portland cement and carbon dioxide. In Proceedings of the ICCC Conference, Montreal, QC, Canada, 8–13 July 2007. [Google Scholar]
  45. Thiery, M.; Villain, G.; Dangla, P.; Platret, G. Investigation of the carbonation front shape on cementitious materials: Effects of the chemical kinetics. Cem. Concr. Res. 2007, 37, 1047–1058. [Google Scholar] [CrossRef]
  46. Borges, P.H.R.; Costa, J.O.; Milestone, N.B.; Lynsdale, C.J.; Streatfield, R.E. Carbonation of CH and C-S-H in composite cement pastes containing high amounts of BFS. Cem. Concr. Res. 2010, 40, 284–292. [Google Scholar] [CrossRef]
  47. Richardson, I.G.; Brough, A.R.; Groves, G.W.; Dobson, C.M. The Characterization of Hardened Alkali-Activated Blast-Furnace Slag Pastes and the Nature of the Calcium Silicate Hydrate (C-S-H) Phase. Cem. Concr. Res. 1994, 24, 813–829. [Google Scholar] [CrossRef]
  48. Wang, S.D.; Scrivener, K.L. Hydration Products of Alkali-Activated Slag Cement. Cem. Concr. Res. 1995, 25, 561–571. [Google Scholar] [CrossRef]
  49. Suda, Y.; Saeki, T.; Saito, T. Relation between Chemical Composition and Physical Properties of C-S-H Generated from Cementitious Materials. J. Adv. Concr. Technol. 2015, 13, 275–290. [Google Scholar] [CrossRef]
  50. Beaudoin, J.J.; Feldman, R.F. The significance of helium diffusion measurements in studying the removal of structural water in inorganic hydrated systems. Cem. Concr. Res. 1978, 8, 223–231. [Google Scholar] [CrossRef]
  51. Black, L.; Breen, C.; Yarwood, J.; Garbev, K.; Stemmermann, P.; Gasharova, B. Structural features of C-S-H(I) and its carbonation in air—A Raman spectroscopic study. Part II: Carbonated phases. J. Am. Ceram. Soc. 2007, 90, 908–917. [Google Scholar] [CrossRef]
  52. Richardson, I.G.; Groves, G.W. The structure of the calcium silicate hydrate phases present in hardened pastes of white Portland cement/blast-furnace slag blends. J. Mater. Sci. 1997, 32, 4793–4802. [Google Scholar] [CrossRef]
  53. Ayub, T.; Khan, S.U.; Memon, F.A. Mechanical Characteristics of Hardened Concrete with Different Mineral Admixtures: A Review. Sci. World J. 2014, 2014, 875085. [Google Scholar] [CrossRef] [PubMed]
Materials 11 00011 g001 550

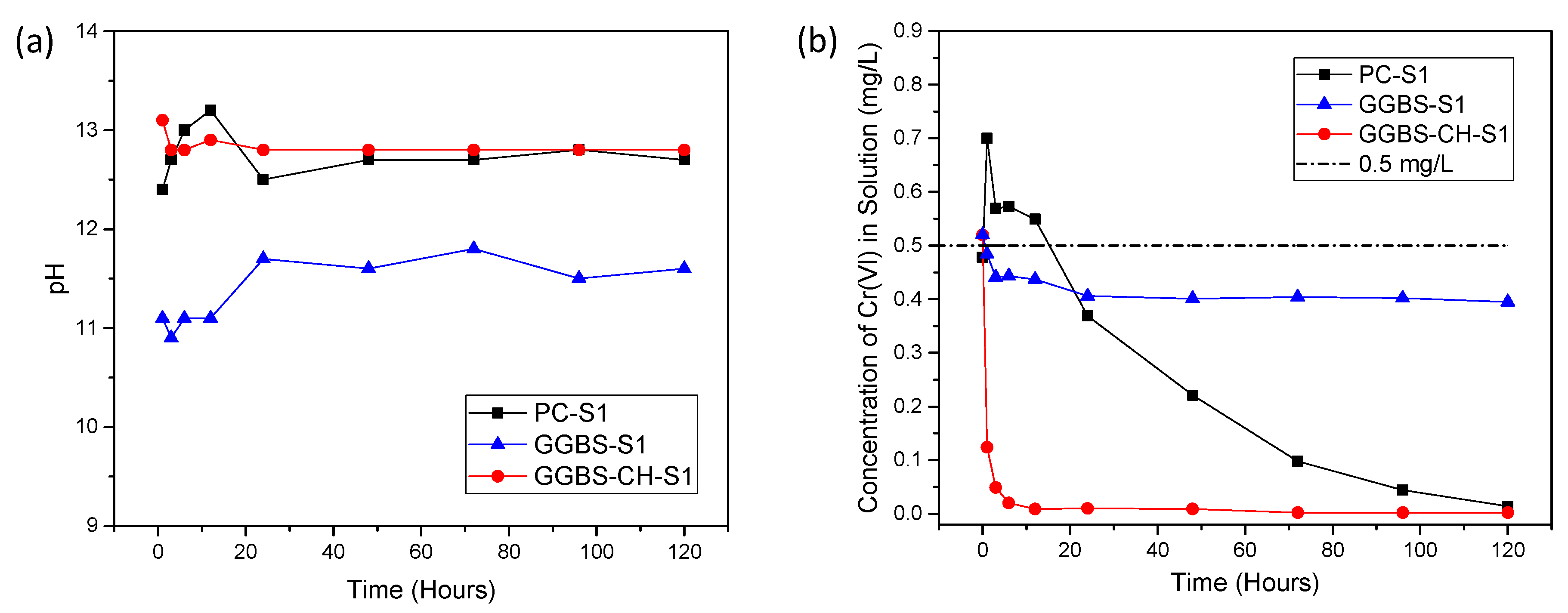

Figure 1. Time profiles of (a) the pH values of S1 samples’ suspensions and (b) the Cr(VI) concentrations in the S1 samples’ filtered solutions measured from 0 to 120 h.
Figure 1. Time profiles of (a) the pH values of S1 samples’ suspensions and (b) the Cr(VI) concentrations in the S1 samples’ filtered solutions measured from 0 to 120 h.
Materials 11 00011 g001
Materials 11 00011 g002 550

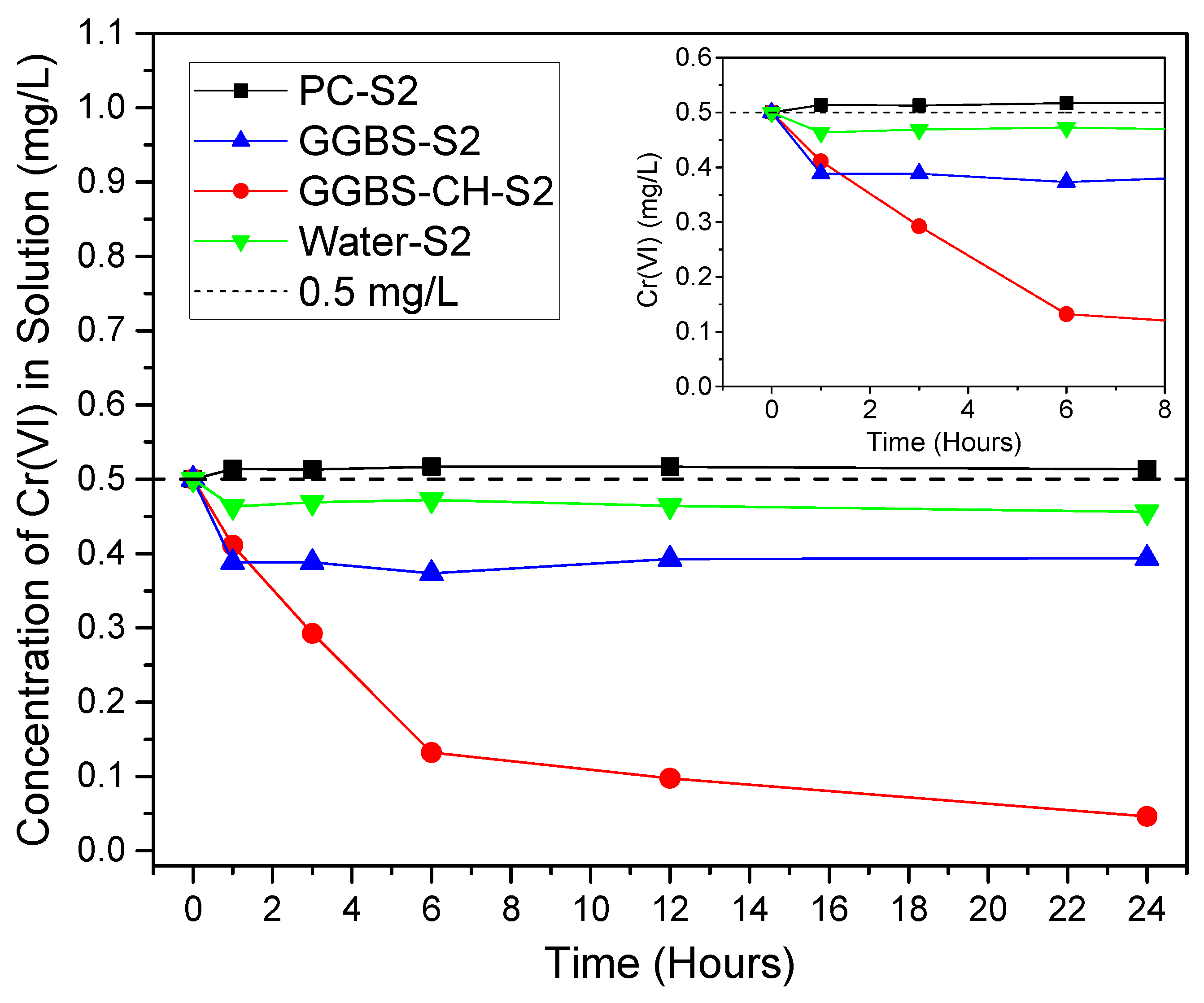

Figure 2. Time profile of the Cr(VI) concentration in the S2 specimens’ solutions from 0 to 24 h.
Figure 2. Time profile of the Cr(VI) concentration in the S2 specimens’ solutions from 0 to 24 h.
Materials 11 00011 g002
Materials 11 00011 g003 550

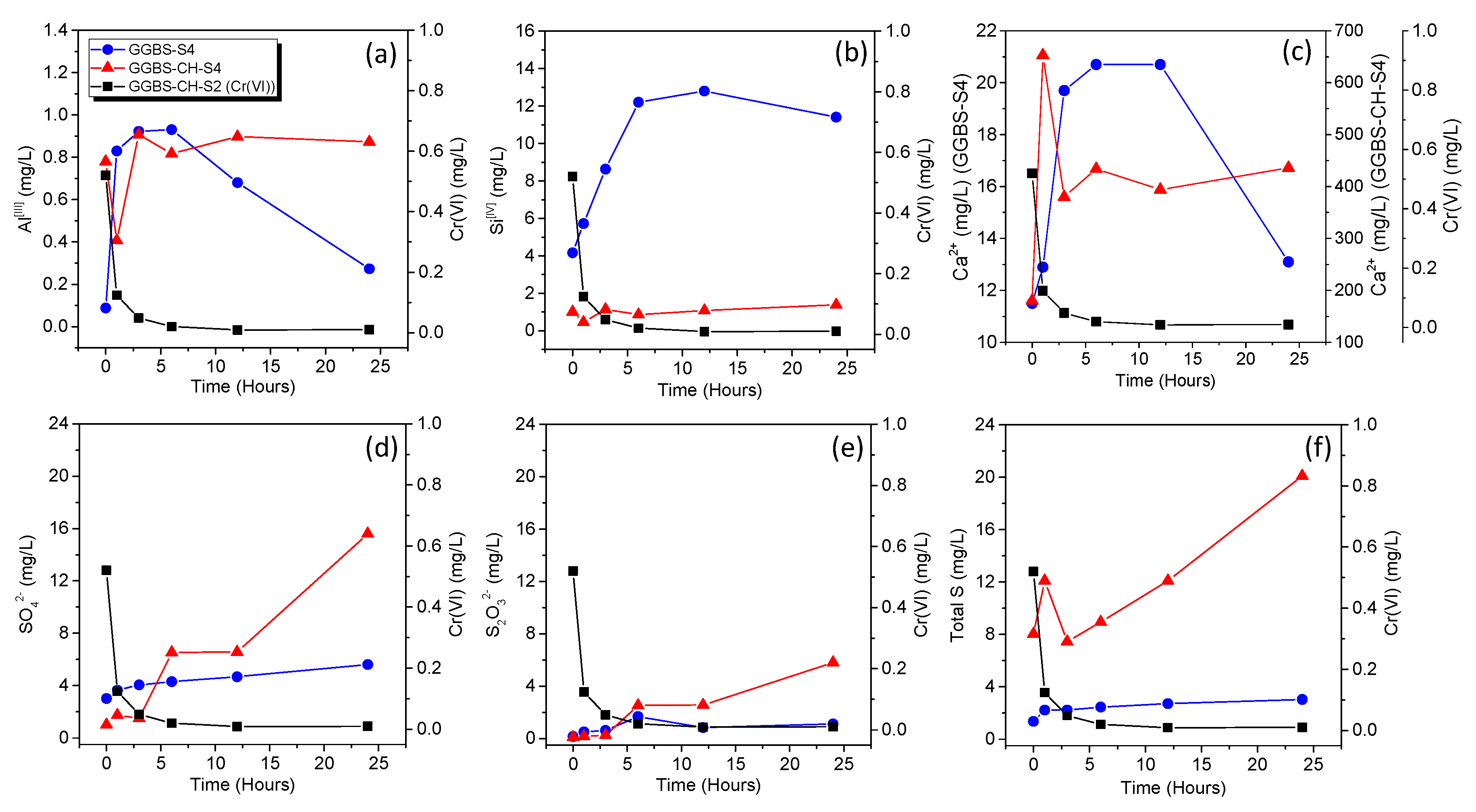

Figure 3. Time profiles for the ion dissolution from GGBS in distilled water (GGBS-S4) and GGBS in Ca(OH)2 solutions (GGBS-CH-S4) for 0 to 24 h. The Cr(VI) concentration in the GGBS-CH-S2 solution (Figure 2) is presented in the same plot. The maximum value of the y-axis was adjusted to the concentration value of each ion. (a) Al[III]; (b) Si[IV]; (c) Ca2+; (d) S2O32−; (e) SO42−; and (f) total S.
Figure 3. Time profiles for the ion dissolution from GGBS in distilled water (GGBS-S4) and GGBS in Ca(OH)2 solutions (GGBS-CH-S4) for 0 to 24 h. The Cr(VI) concentration in the GGBS-CH-S2 solution (Figure 2) is presented in the same plot. The maximum value of the y-axis was adjusted to the concentration value of each ion. (a) Al[III]; (b) Si[IV]; (c) Ca2+; (d) S2O32−; (e) SO42−; and (f) total S.
Materials 11 00011 g003
Materials 11 00011 g004 550

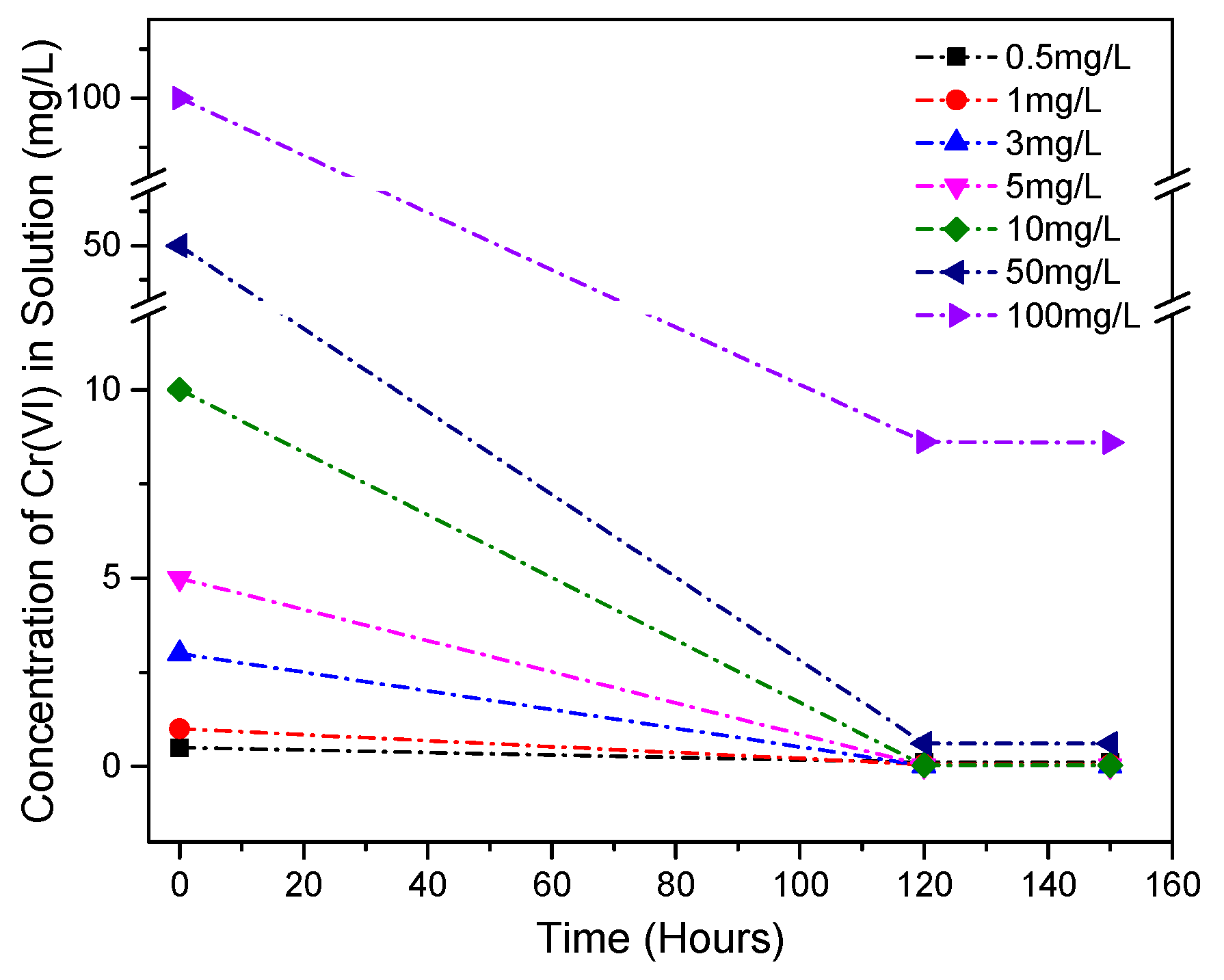

Figure 4. A comparison of the Cr(VI) concentrations in the S3 specimens’ solutions at 0, 120, and 150 h of reaction.
Figure 4. A comparison of the Cr(VI) concentrations in the S3 specimens’ solutions at 0, 120, and 150 h of reaction.
Materials 11 00011 g004
Materials 11 00011 g005 550

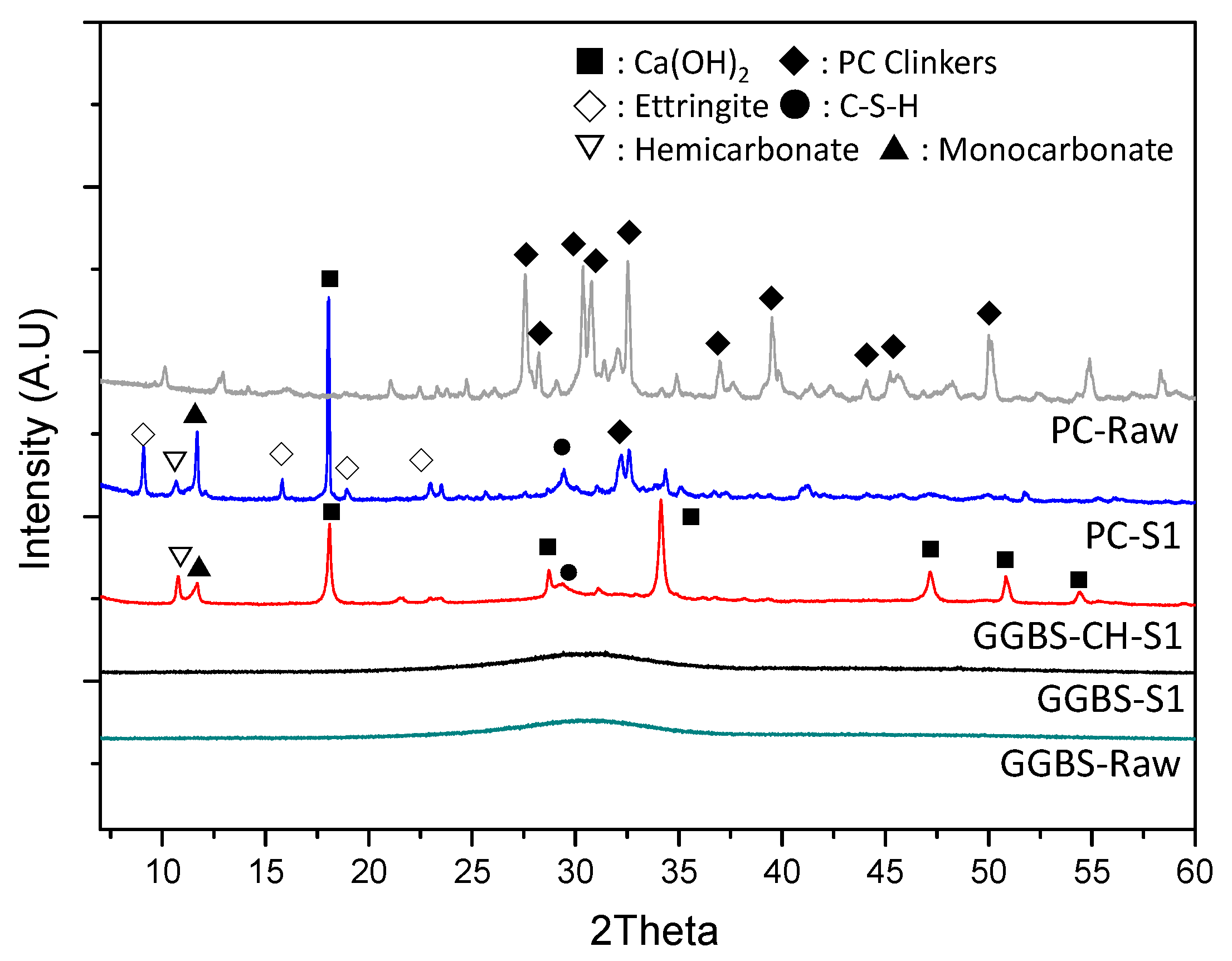

Figure 5. XRD patterns for raw materials (PC and GGBS), PC-S1, GGBS-CH-S1, and GGBS-S1.
Figure 5. XRD patterns for raw materials (PC and GGBS), PC-S1, GGBS-CH-S1, and GGBS-S1.
Materials 11 00011 g005
Materials 11 00011 g006 550

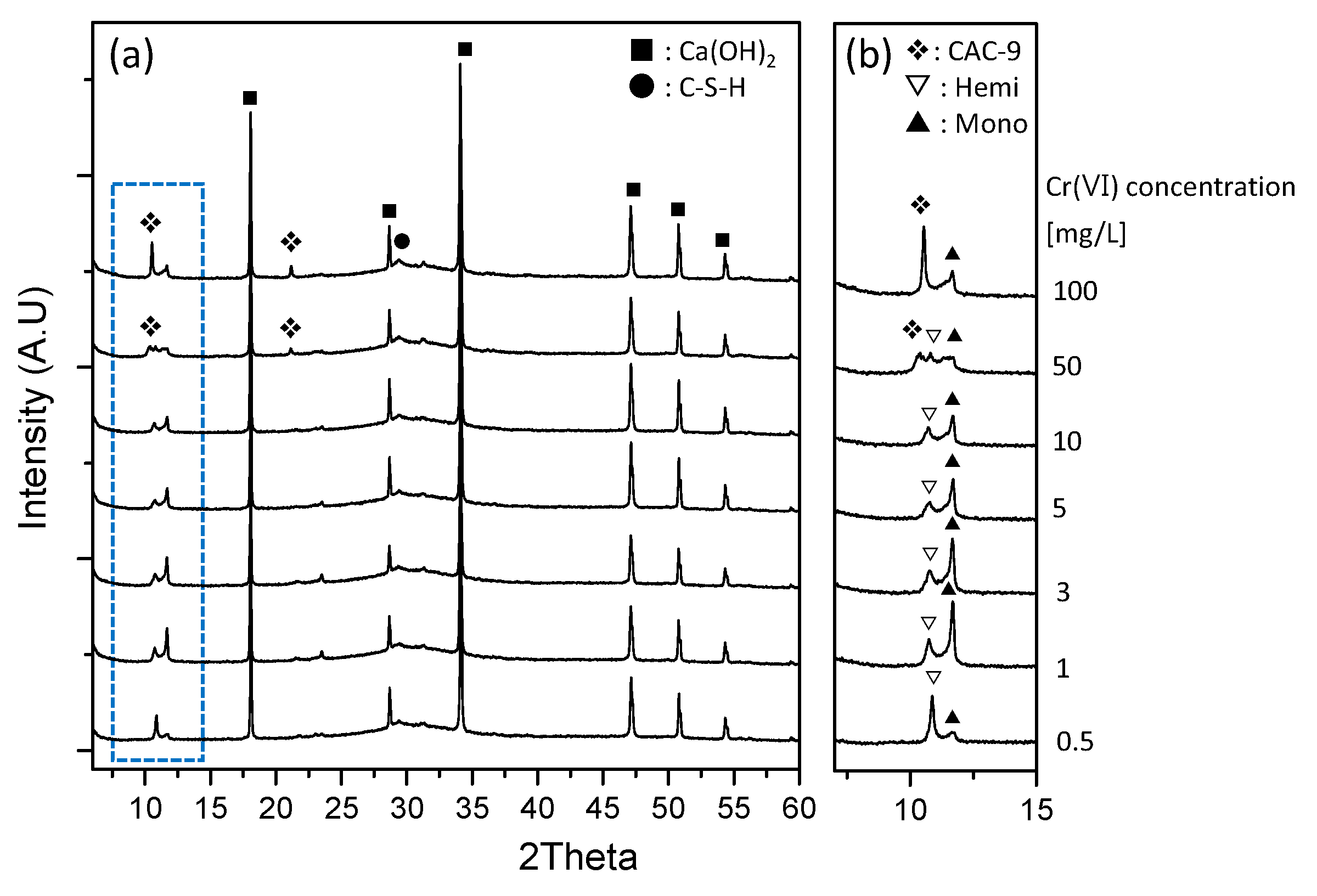

Figure 6. (a) XRD patterns of GGBS-CH-S3 in solutions containing 0.5 to 100 mg/L of Cr(VI) and (b) the magnified XRD patterns in the range of 9 to 15 degrees.
Figure 6. (a) XRD patterns of GGBS-CH-S3 in solutions containing 0.5 to 100 mg/L of Cr(VI) and (b) the magnified XRD patterns in the range of 9 to 15 degrees.
Materials 11 00011 g006
Materials 11 00011 g007 550

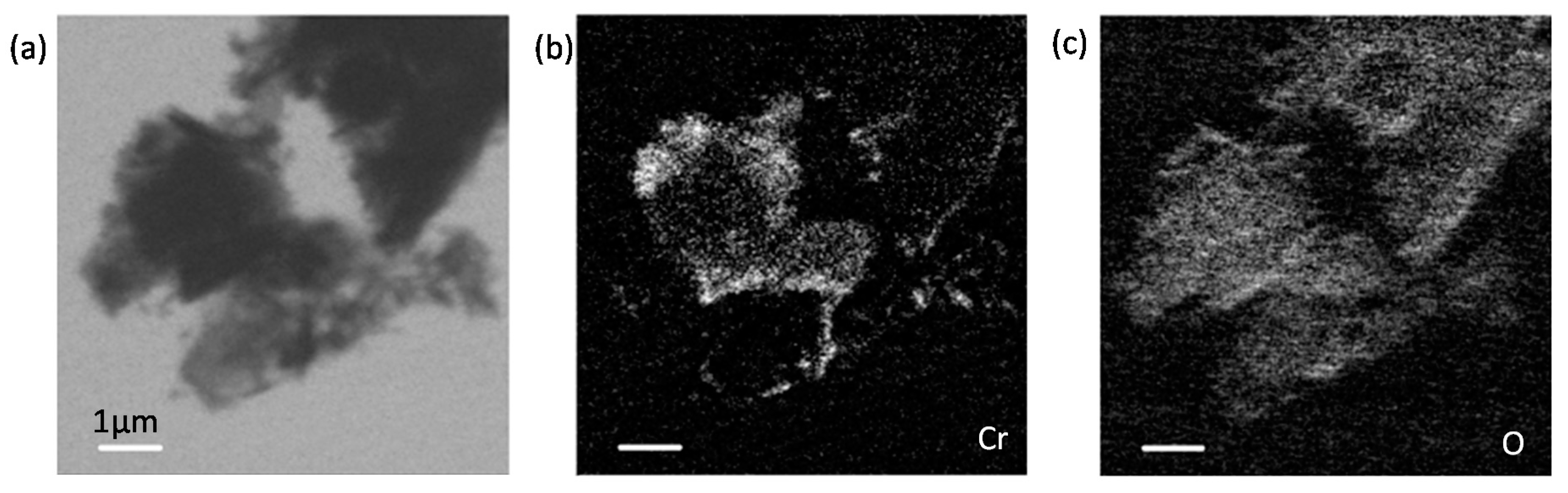

Figure 7. (a) Scanning transmission X-ray microscopy (STXM) image of GGBS-CH-S3 taken at 560 eV; (b) image contrast map of Cr; and (c) O for GGBS-CH-S3.
Figure 7. (a) Scanning transmission X-ray microscopy (STXM) image of GGBS-CH-S3 taken at 560 eV; (b) image contrast map of Cr; and (c) O for GGBS-CH-S3.
Materials 11 00011 g007
Materials 11 00011 g008 550

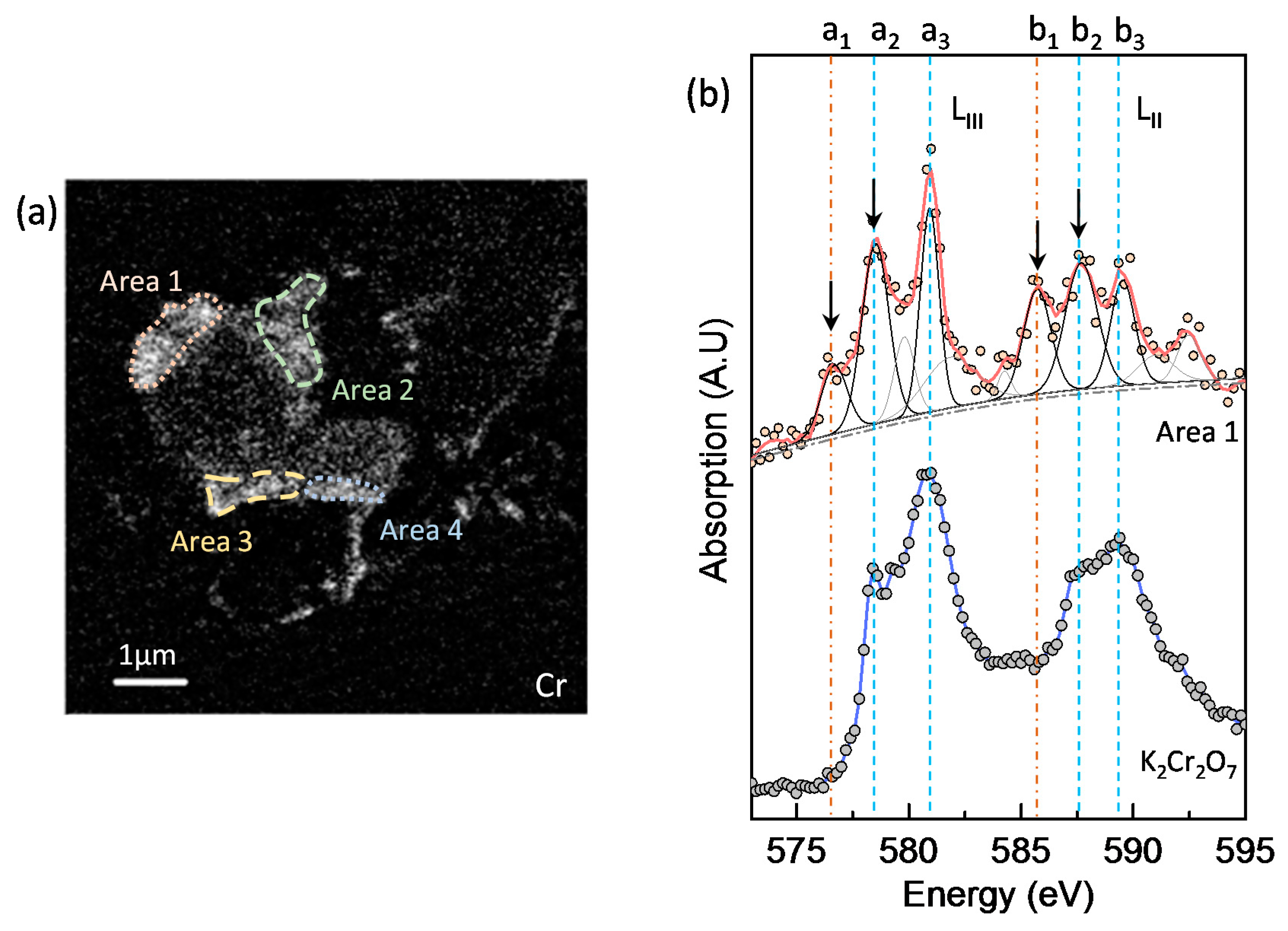

Figure 8. (a) Illustration of the analyzed areas in GGBS-CH-S3 for the Cr L2,3-edge NEXAFS in the Cr image contrast map (Figure 7b); (b) Cr L2,3-edge NEXAFS spectra for Area 1 in (a) and spectra from K2Cr2O7.
Figure 8. (a) Illustration of the analyzed areas in GGBS-CH-S3 for the Cr L2,3-edge NEXAFS in the Cr image contrast map (Figure 7b); (b) Cr L2,3-edge NEXAFS spectra for Area 1 in (a) and spectra from K2Cr2O7.
Materials 11 00011 g008
Materials 11 00011 g009 550

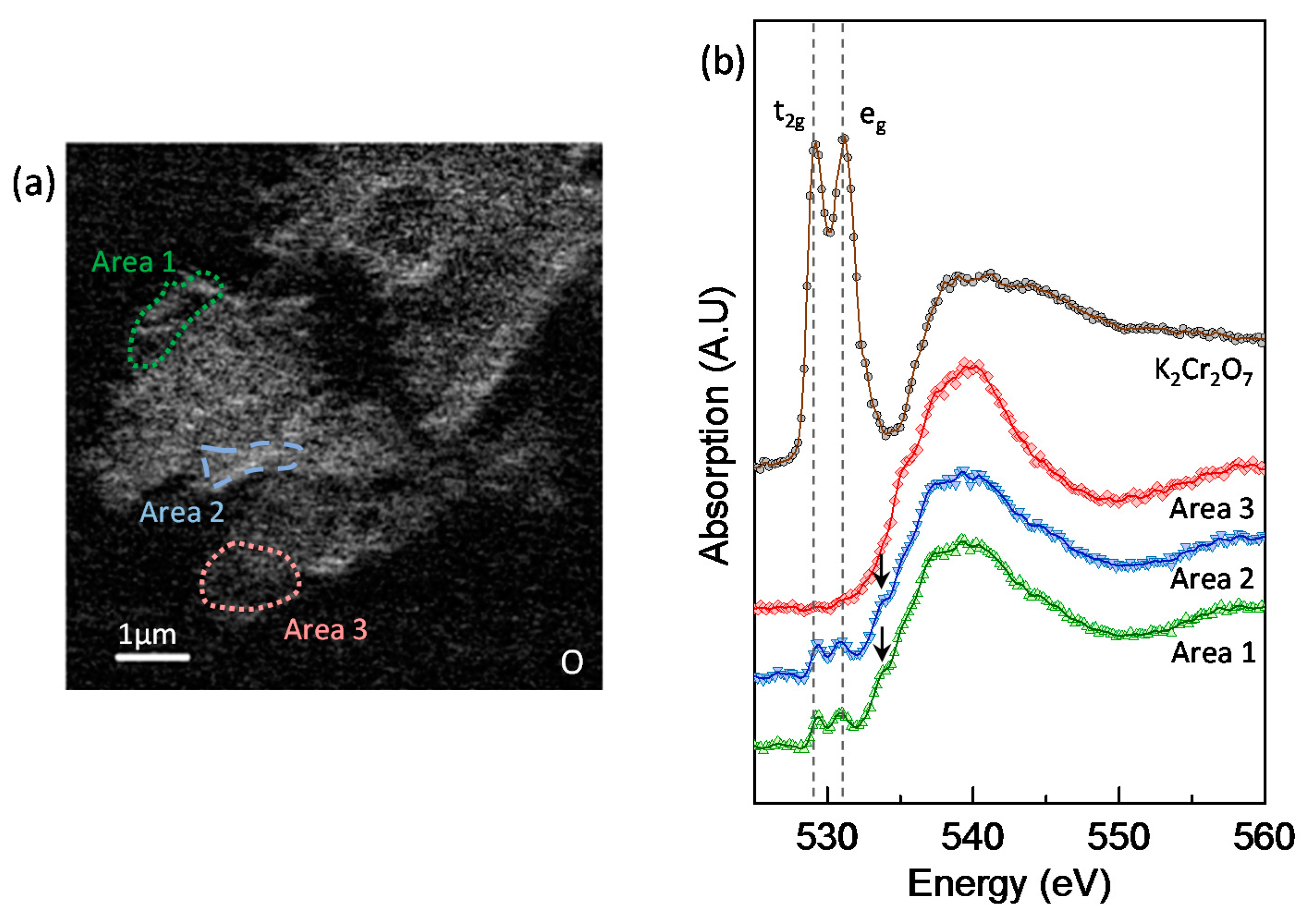

Figure 9. (a) Illustration of the analyzed areas in GGBS-CH-S3 for the O K-edge NEXAFS; (b) O K-edge NEXAFS spectra for each area in (a) and for K2Cr2O7.
Figure 9. (a) Illustration of the analyzed areas in GGBS-CH-S3 for the O K-edge NEXAFS; (b) O K-edge NEXAFS spectra for each area in (a) and for K2Cr2O7.
Materials 11 00011 g009
Materials 11 00011 g010 550

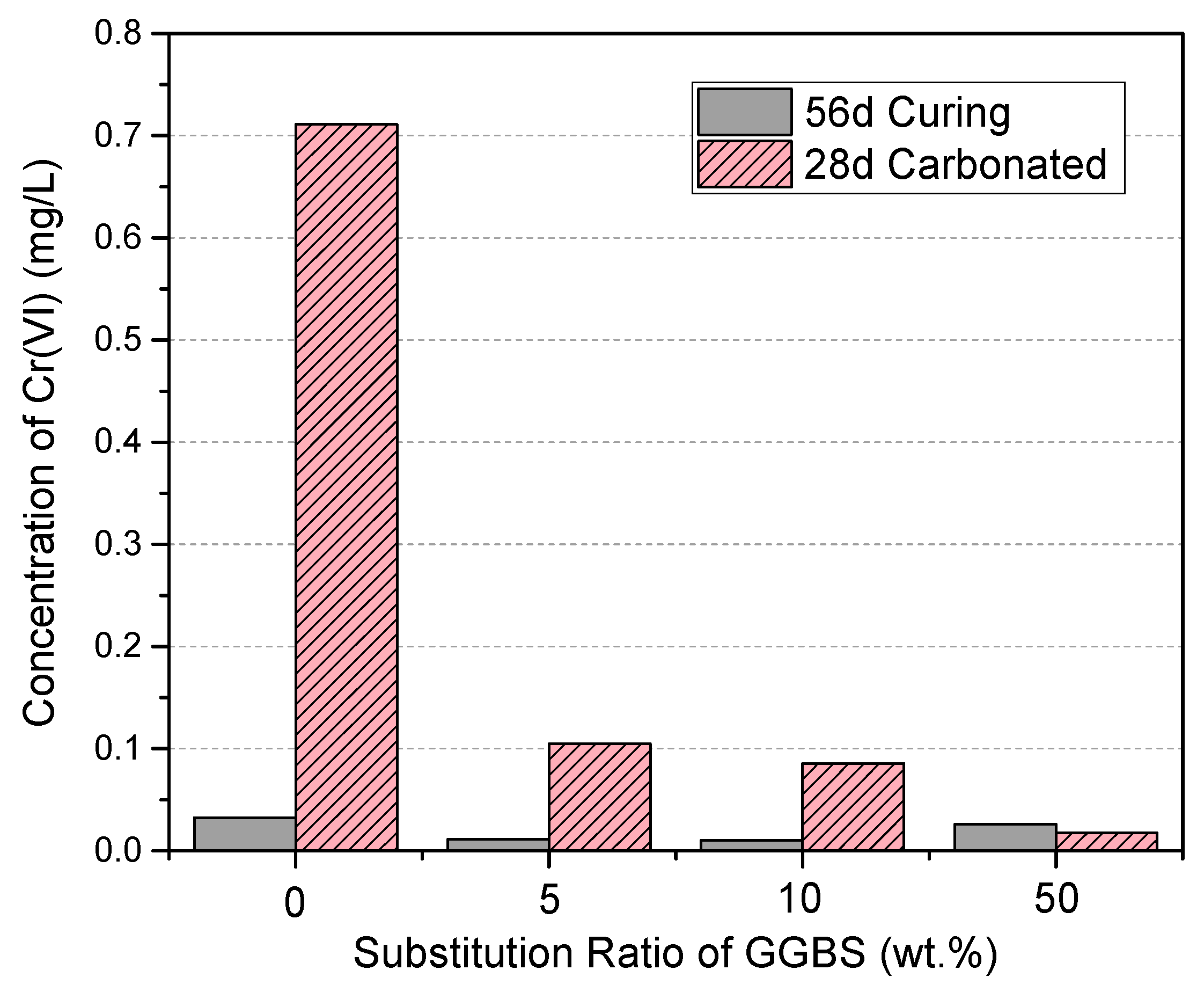

Figure 10. Tank leaching test results for the GGBS-PC paste before and after an accelerated carbonation test.
Figure 10. Tank leaching test results for the GGBS-PC paste before and after an accelerated carbonation test.
Materials 11 00011 g010
Materials 11 00011 g011 550

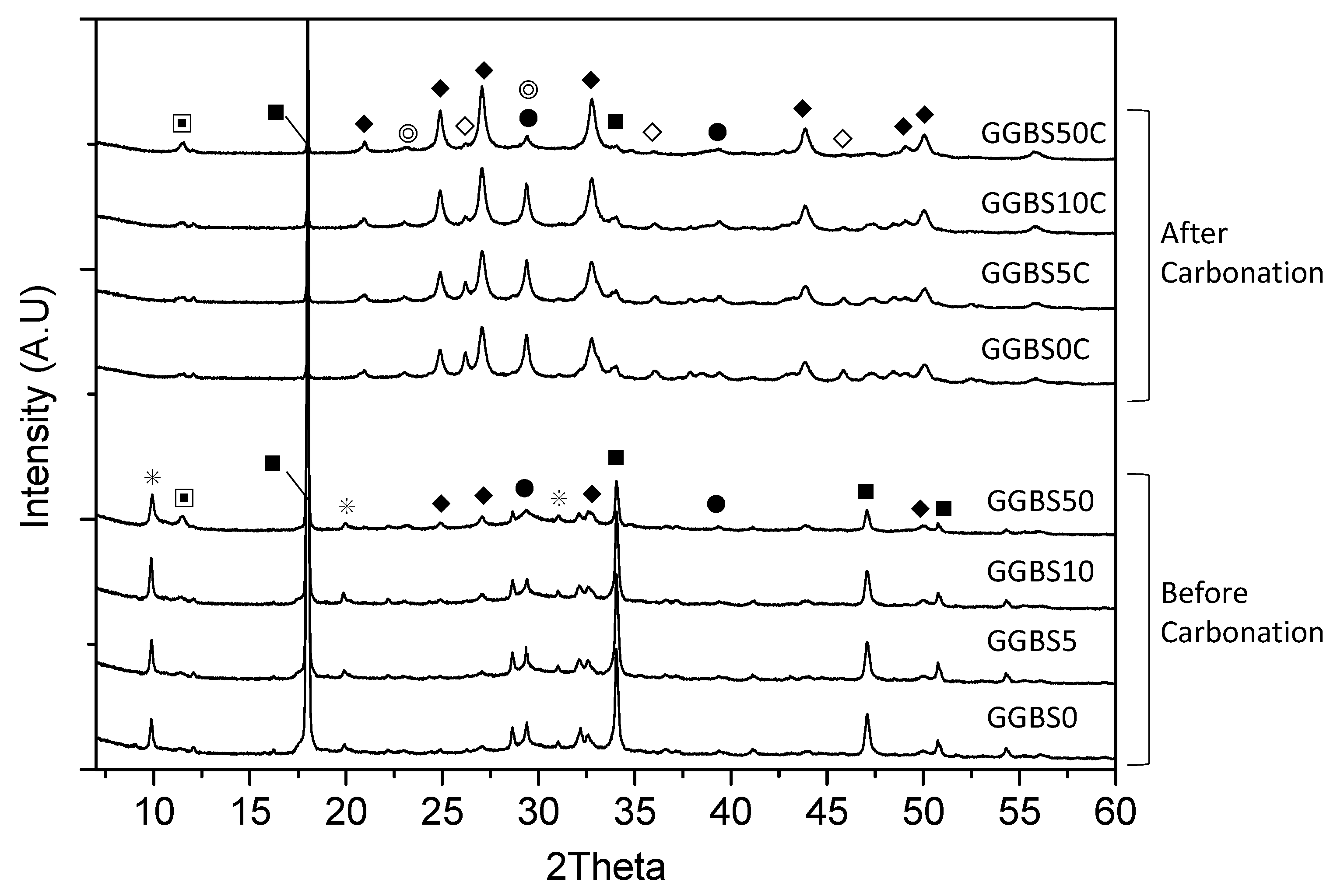

Figure 11. XRD patterns of the GGBS-PC paste with GGBS replacement ratios of 0, 5, 10, and 50 wt % before and after 28 days of accelerated carbonation. ◆: Vaterite, ♢: Aragonite, ■: Ca(OH)2, ◎: Calcite, ●: C-S-H, ✳: Monosulfate, and ⎕: Hydrotalcite.
Figure 11. XRD patterns of the GGBS-PC paste with GGBS replacement ratios of 0, 5, 10, and 50 wt % before and after 28 days of accelerated carbonation. ◆: Vaterite, ♢: Aragonite, ■: Ca(OH)2, ◎: Calcite, ●: C-S-H, ✳: Monosulfate, and ⎕: Hydrotalcite.
Materials 11 00011 g011
Materials 11 00011 g012 550

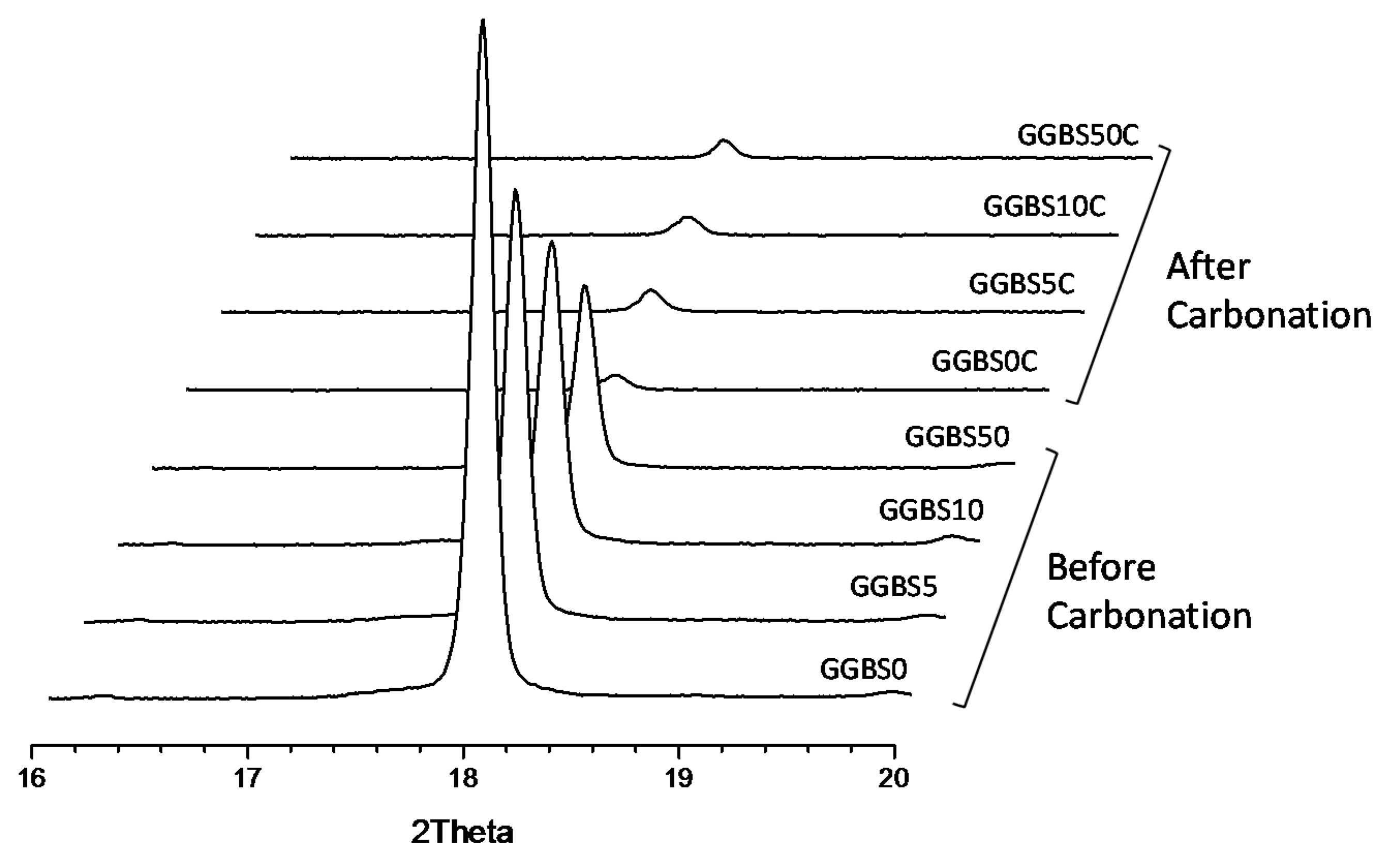

Figure 12. Comparison of the 001 basal reflection from Ca(OH)2 in GGBS-PC pastes before and after an accelerated carbonation. The numbers followed by GGBS indicate the replacement ratios of GGBS for PC.
Figure 12. Comparison of the 001 basal reflection from Ca(OH)2 in GGBS-PC pastes before and after an accelerated carbonation. The numbers followed by GGBS indicate the replacement ratios of GGBS for PC.
Materials 11 00011 g012
Table
Table 1. The chemical compositions of the raw materials.
Table 1. The chemical compositions of the raw materials.
MaterialsChemical Compositions (%)
SiO2Al2O3Fe2O3CaOMgOSO3Na2OK2OTiO2P2O5MnOTotal
PC20.945.452.8364.961.52.050.320.480.270.310.0899.22
GGBS33.0314.820.4241.446.512.070.270.270.530.040.1899.9
Table
Table 2. The mix proportions of the specimens.
Table 2. The mix proportions of the specimens.
SampleMix ProportionsMeasurements
Distilled Water (L)GGBS (g)CH (g)PC (g)Cr(VI) Concentration (mg/L)
PC-S12--400.5UV-vis, XRD, pH
GGBS-S140--UV-vis, XRD, pH
GGBS-CH-S14020-UV-vis, XRD, pH, Soft X-ray absorption microscopy
PC-S22.4--480.5UV-vis
GGBS-S248--
GGBS-CH-S24824-
GGBS-CH-S324020-0.5~100UV-vis, XRD
GGBS-S4240---Ion chromatography
GGBS-CH-S424020--
GGBS = Granulated ground blast-furnace slag; CH = Ca(OH)2; PC = Portland cement; XRD = X-ray diffraction; UV-vis = Ultraviolet-visible spectrophotometry.

Share and Cite

MDPI and ACS Style

Bae, S.; Hikaru, F.; Kanematsu, M.; Yoshizawa, C.; Noguchi, T.; Yu, Y.; Ha, J. Removal of Hexavalent Chromium in Portland Cement Using Ground Granulated Blast-Furnace Slag Powder. Materials 2018, 11, 11. https://doi.org/10.3390/ma11010011

AMA Style

Bae S, Hikaru F, Kanematsu M, Yoshizawa C, Noguchi T, Yu Y, Ha J. Removal of Hexavalent Chromium in Portland Cement Using Ground Granulated Blast-Furnace Slag Powder. Materials. 2018; 11(1):11. https://doi.org/10.3390/ma11010011

Chicago/Turabian Style

Bae, Sungchul, Fumino Hikaru, Manabu Kanematsu, Chiaki Yoshizawa, Takafumi Noguchi, Youngsang Yu, and Juyoung Ha. 2018. "Removal of Hexavalent Chromium in Portland Cement Using Ground Granulated Blast-Furnace Slag Powder" Materials 11, no. 1: 11. https://doi.org/10.3390/ma11010011

APA Style

Bae, S., Hikaru, F., Kanematsu, M., Yoshizawa, C., Noguchi, T., Yu, Y., & Ha, J. (2018). Removal of Hexavalent Chromium in Portland Cement Using Ground Granulated Blast-Furnace Slag Powder. Materials, 11(1), 11. https://doi.org/10.3390/ma11010011

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
