Materials 2017, 10(9), 1079;

Low-Temperature Self-Healing of a Microcapsule-Type Protective Coating

Department of Chemistry, Yonsei University, Wonju 26493, Gangwon-do, Korea
Author to whom correspondence should be addressed.
Received: 17 August 2017 / Revised: 9 September 2017 / Accepted: 12 September 2017 / Published: 14 September 2017
Full-Text   |   PDF [3193 KB, uploaded 14 September 2017]   |

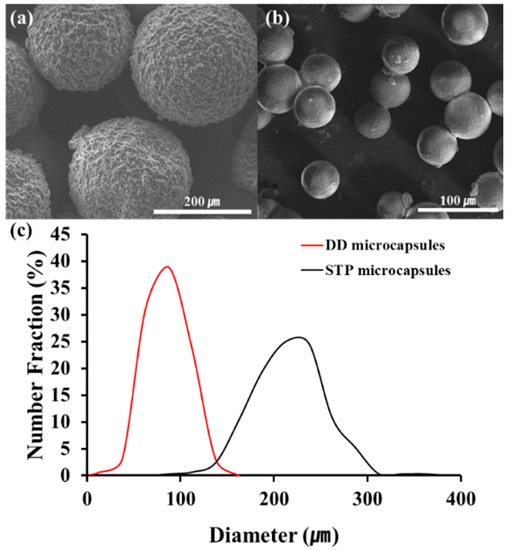

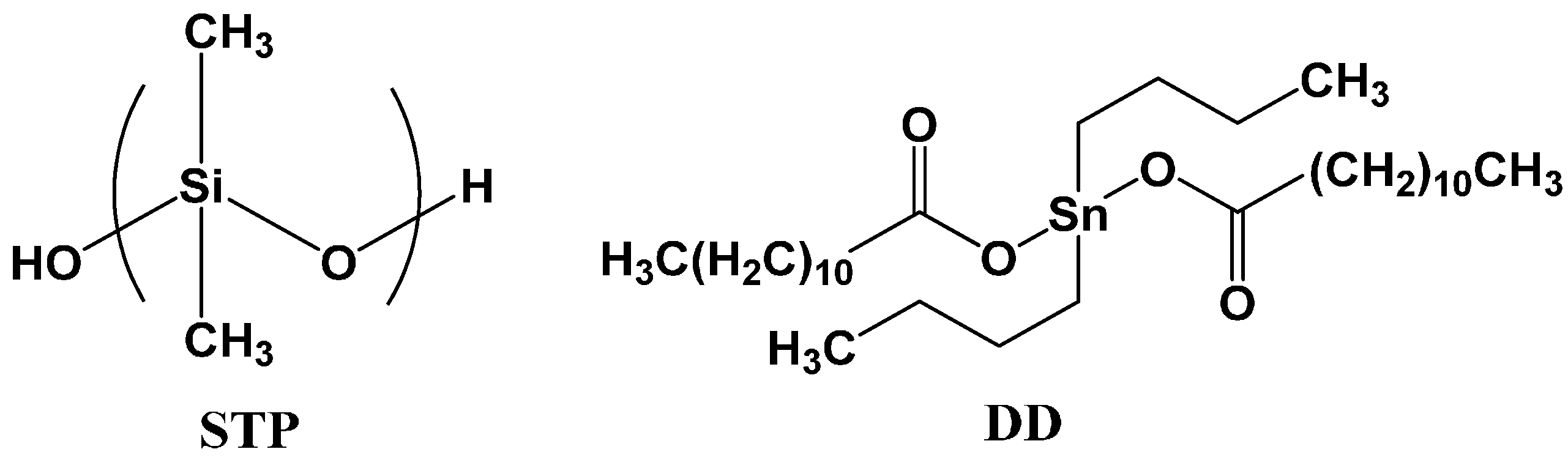

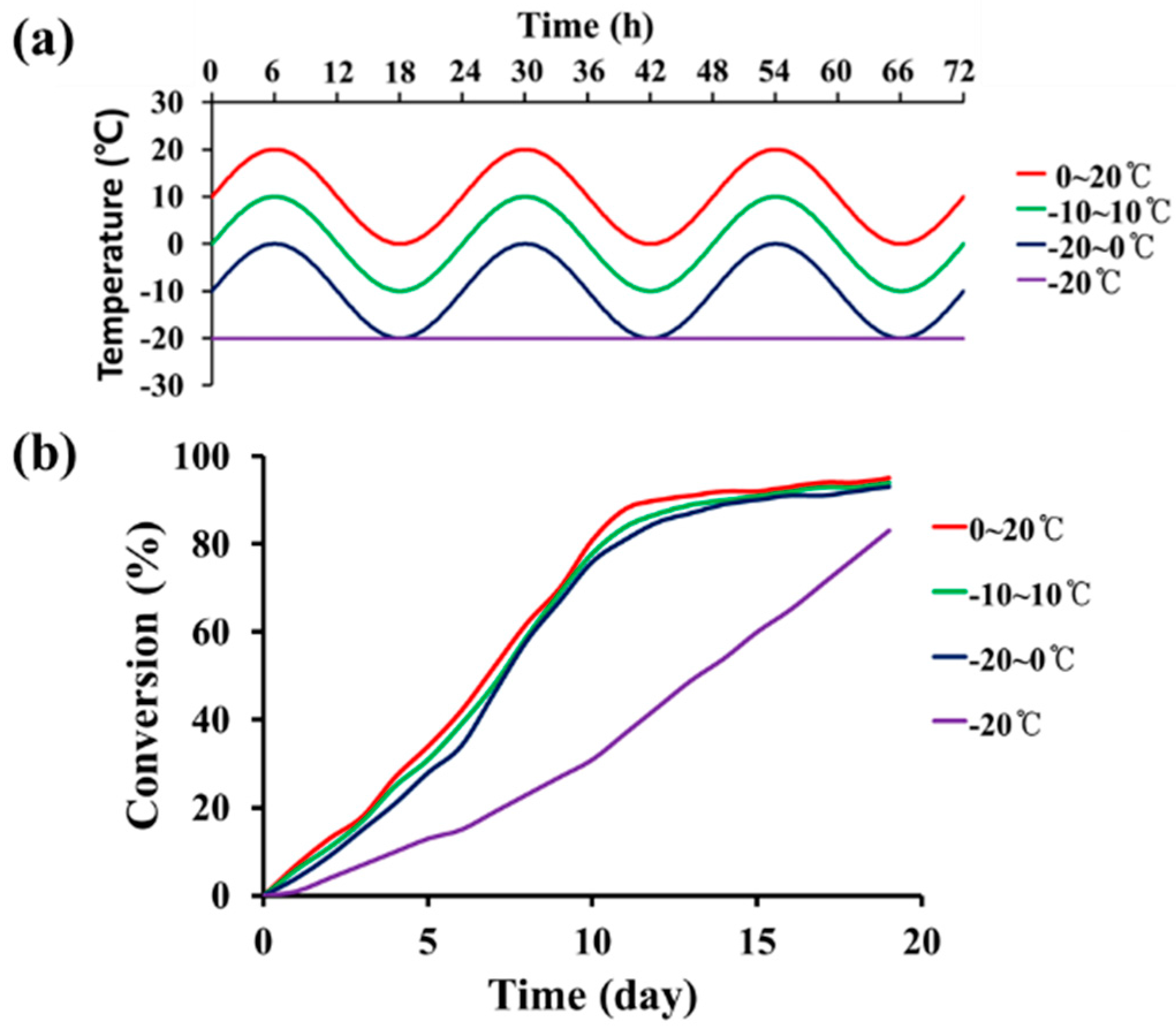

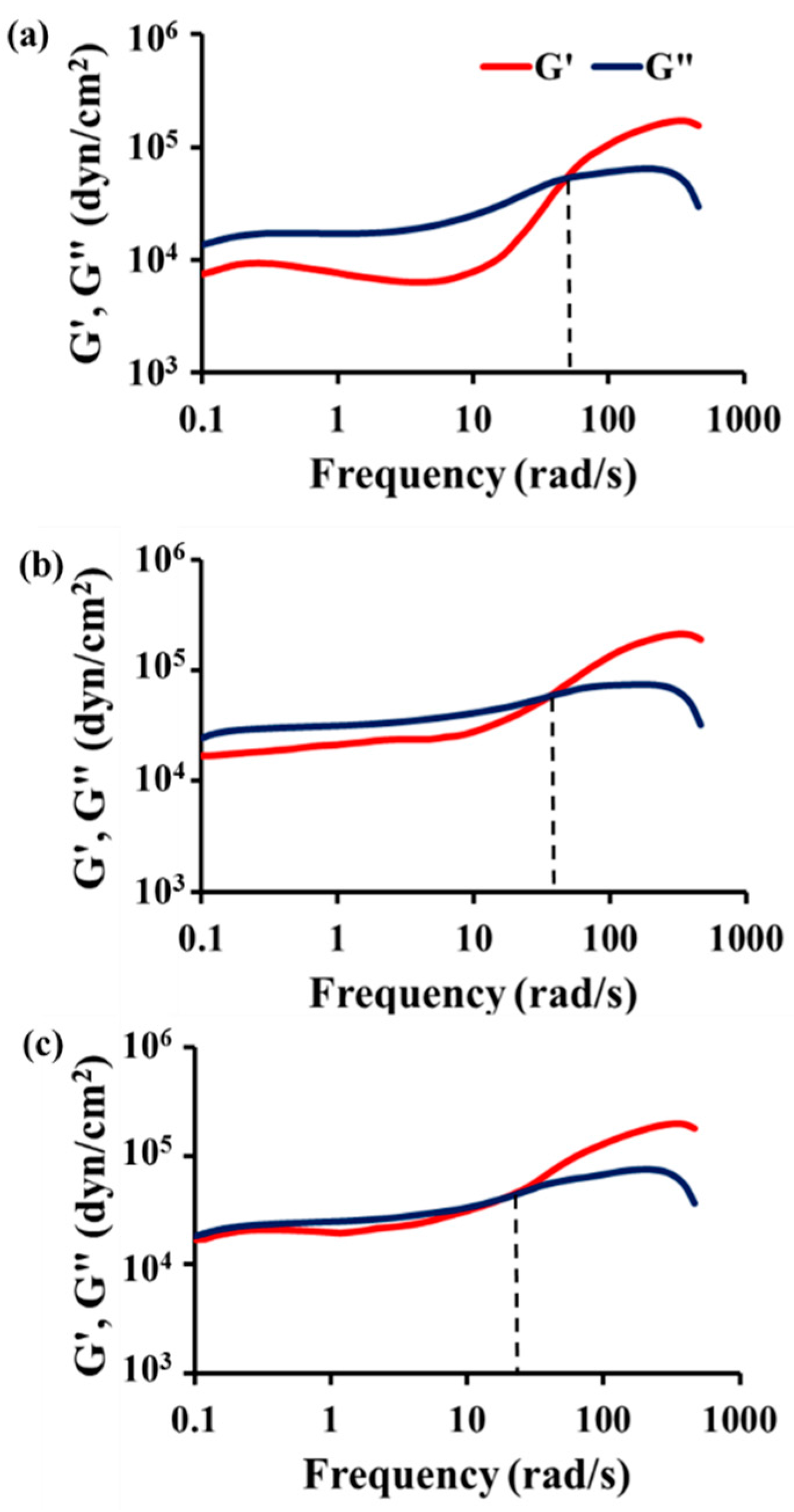

Low-temperature self-healing capabilities are essential for self-healing materials exposed to cold environments. Although low-temperature self-healing concepts have been proposed, there has been no report of a microcapsule-type low-temperature self-healing system wherein the healing ability was demonstrated at low temperature. In this work, low-temperature self-healing of a microcapsule-type protective coating was demonstrated. This system employed silanol-terminated polydimethylsiloxane (STP) as a healing agent and dibutyltin dilaurate (DD) as a catalyst. STP underwent a condensation reaction at −20 °C in the presence of DD to give a viscoelastic product. The reaction behavior of STP and the viscoelasticity of the reaction product were investigated. STP and DD were separately microencapsulated by in situ polymerization and interfacial polymerization methods, respectively. The STP- and DD-loaded microcapsules were mixed into a commercial enamel paint, and the resulting formulation was applied to glass slides, steel panels, and mortars to prepare self-healing coatings. When the self-healing coatings were damaged at a low temperature (−20 °C), STP and DD were released from broken microcapsules and filled the damaged area. This process was effectively visualized using a fluorescent dye. The self-healing coatings were scratched and subjected to corrosion tests, electrochemical tests, and saline solution permeability tests. The temperature of the self-healing coatings was maintained at −20 °C before and after scratching and during the tests. We successfully demonstrated that the STP/DD-based coating system has good low-temperature self-healing capability. View Full-Text
Keywords: low temperature; self-healing; microcapsule; protective coating low temperature; self-healing; microcapsule; protective coating
