Er-Doped LiNi0.5Mn1.5O4 Cathode Material with Enhanced Cycling Stability for Lithium-Ion Batteries

1
R&D Center for New Energy Materials and Devices, State Key Laboratory of Electronic Thin Film and Integrated Devices, University of Electronic Science and Technology of China, Chengdu 610054, China
2
Xinyun Electronic Comp. & Dev. Co. Ltd, China Zhenhua Group, Guiyang 550018, China
*
Authors to whom correspondence should be addressed.
Materials 2017, 10(8), 859; https://doi.org/10.3390/ma10080859
Received: 28 June 2017 / Revised: 23 July 2017 / Accepted: 24 July 2017 / Published: 27 July 2017
(This article belongs to the Section Energy Materials)

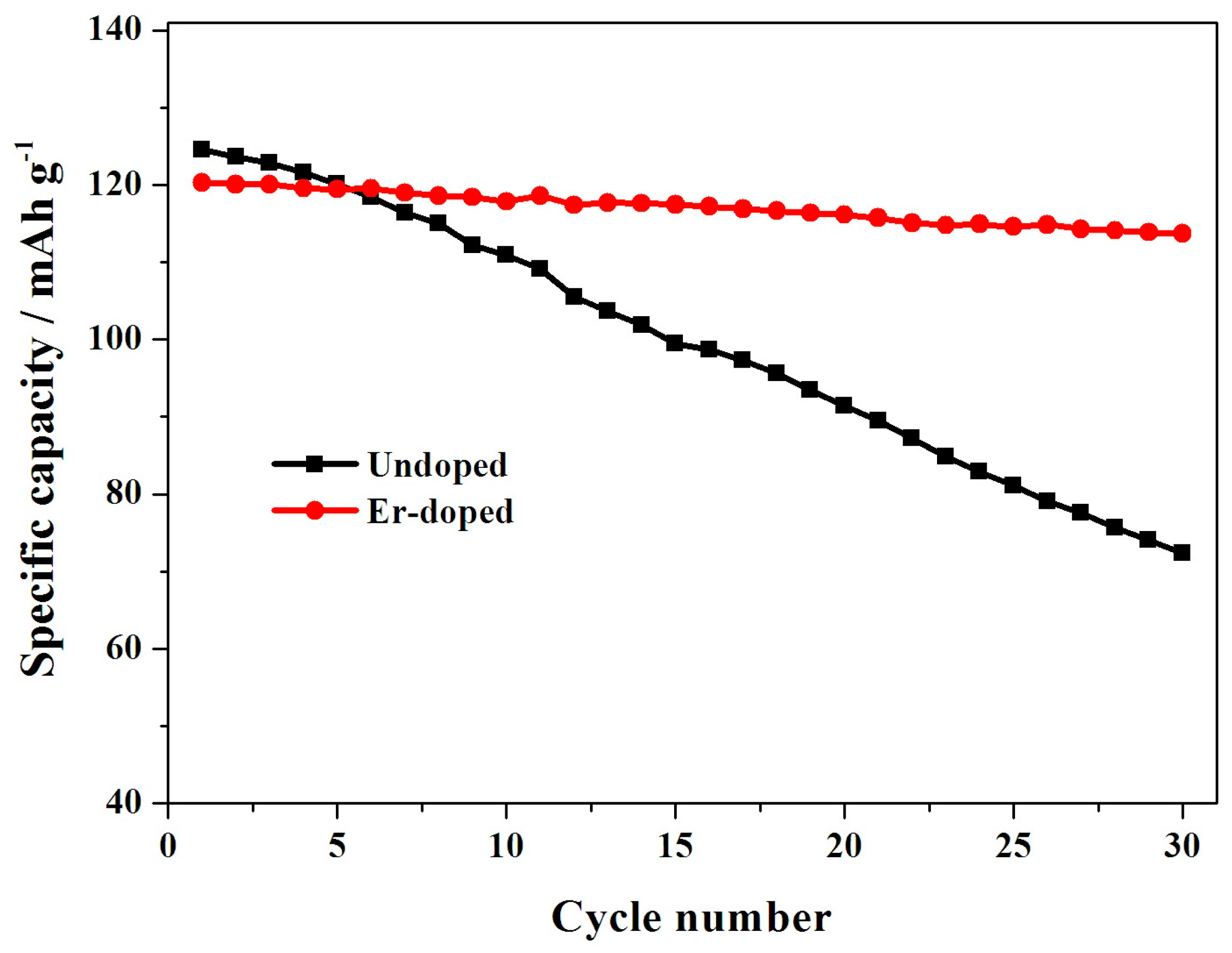

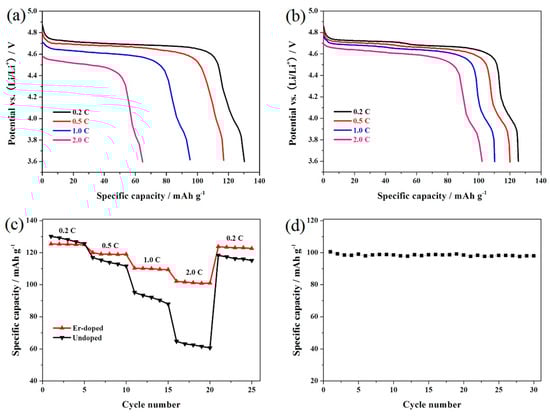

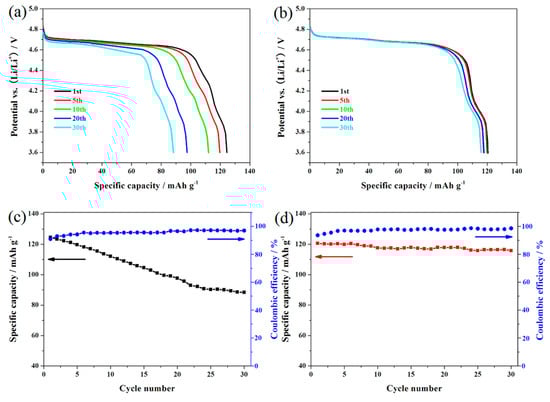

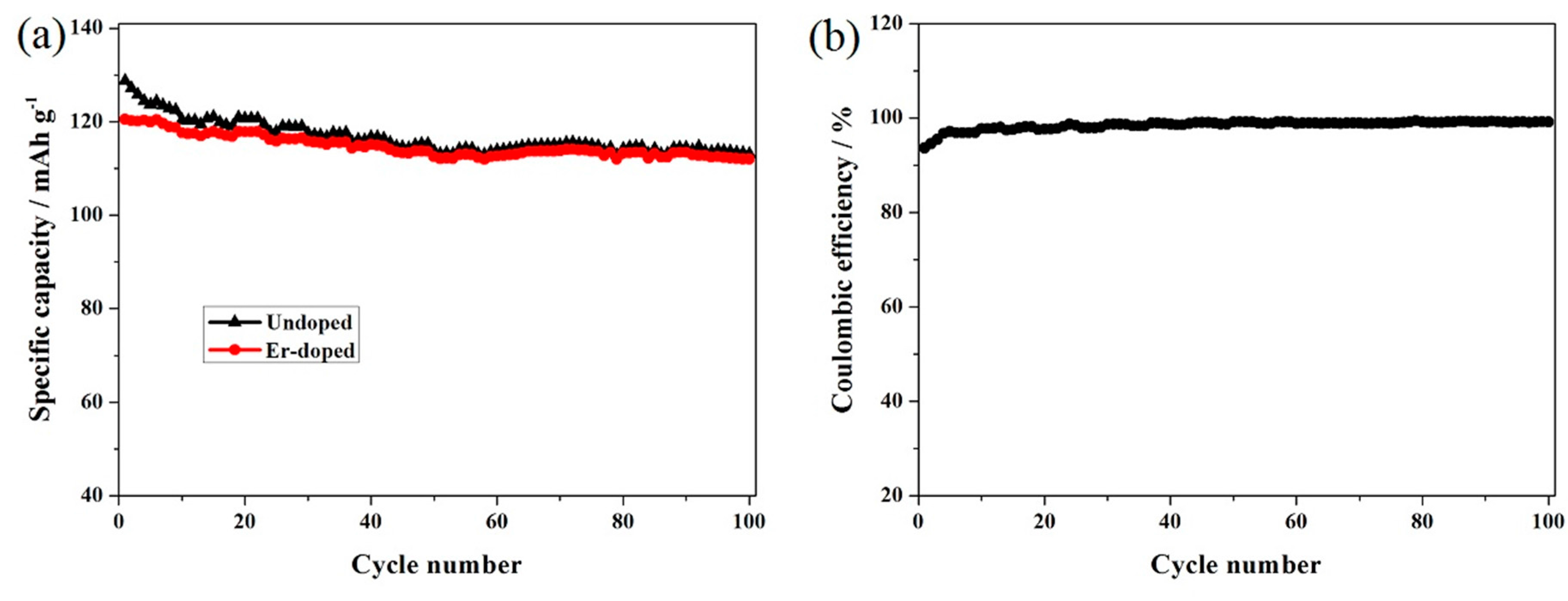

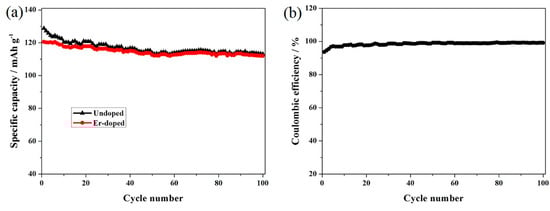

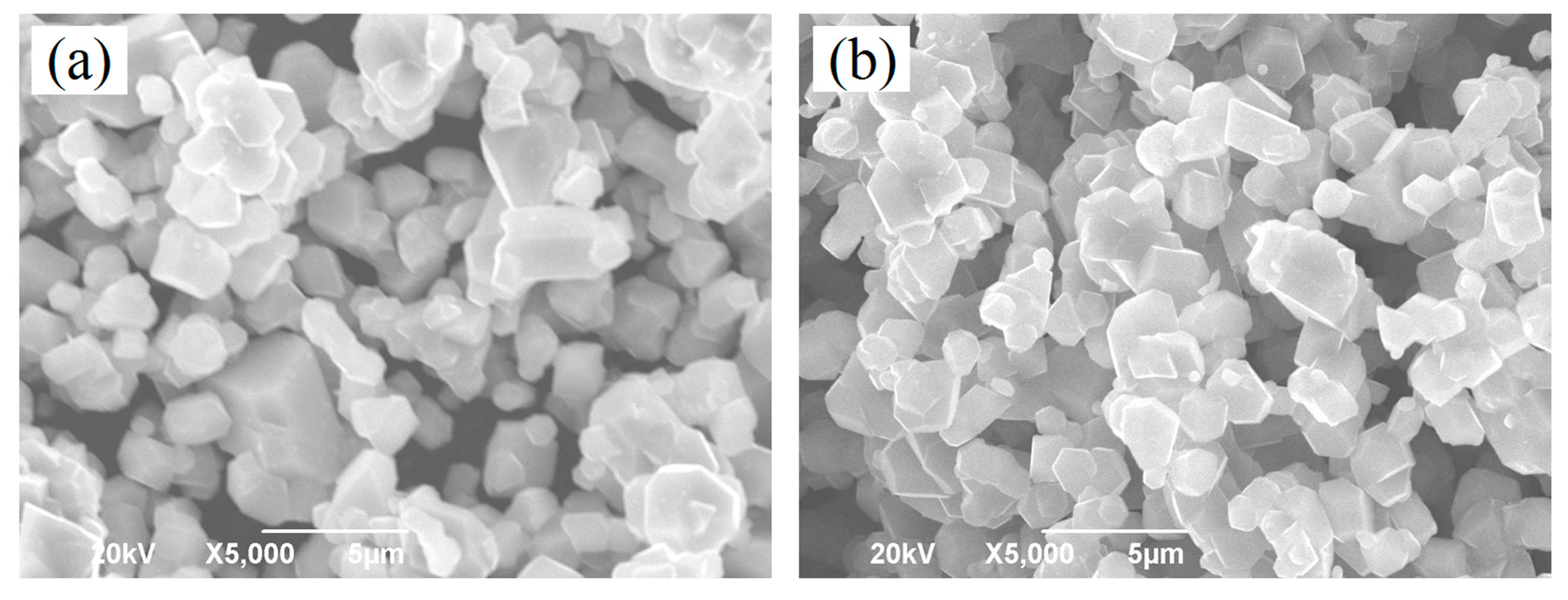

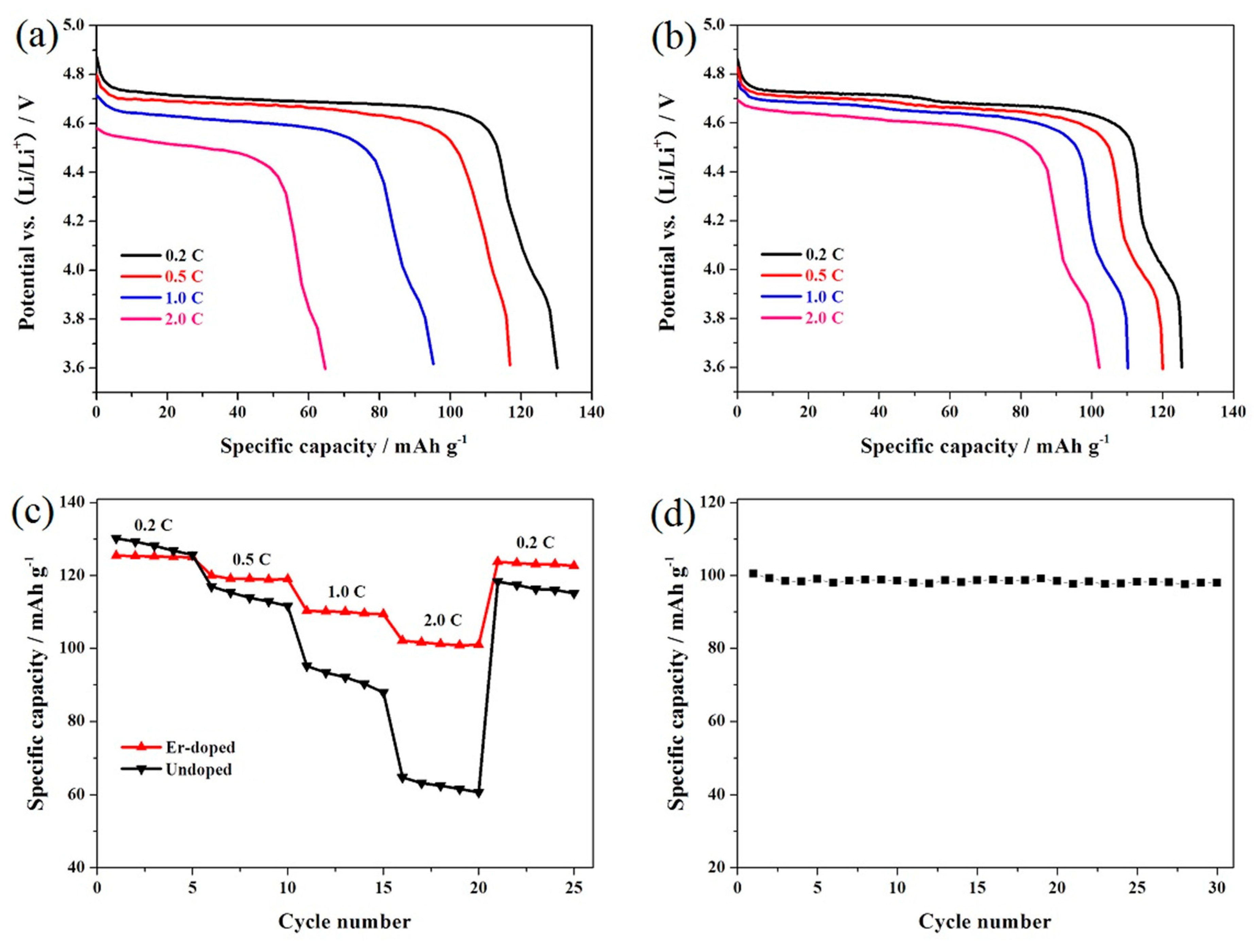

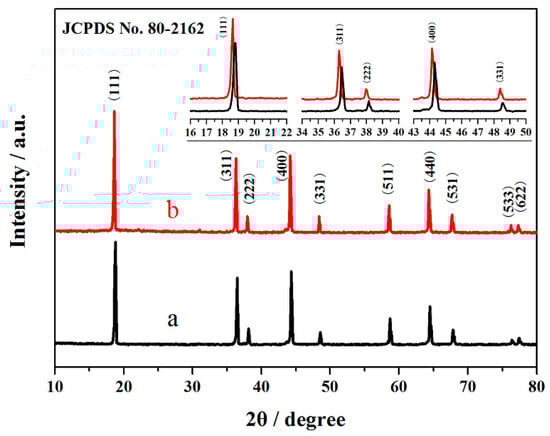

The Er-doped LiNi0.5Mn1.5O4 (LiNi0.495Mn1.495Er0.01O4) sample was successfully prepared by citric acid-assisted sol-gel method with erbium oxide as an erbium source for the first time. Compared with the undoped sample, the Er-doped LiNi0.5Mn1.5O4 sample maintained the basic spinel structure, suggesting that the substitution of Er3+ ions for partial nickel and manganese ions did not change the intrinsic structure of LiNi0.5Mn1.5O4. Moreover, the Er-doped LiNi0.5Mn1.5O4 sample showed better size distribution and regular octahedral morphology. Electrochemical measurements indicated that the Er-doping could have a positive impact on the electrochemical properties. When cycled at 0.5 C, the Er-doped LiNi0.5Mn1.5O4 sample exhibited an initial discharge capacity of 120.6 mAh·g−1, and the capacity retention of this sample reached up to 92.9% after 100 cycles. As the charge/discharge rate restored from 2.0 C to 0.2 C, the discharge capacity of this sample still exhibited 123.7 mAh·g−1 with excellent recovery rate. Since the bonding energy of Er-O (615 kJ·mol−1) was higher than that of Mn-O (402 kJ·mol −1) and Ni-O (392 kJ·mol−1), these outstanding performance could be attributed to the increased structure stability as well as the reduced aggregation behavior and small charge transfer resistance of the Er-doped LiNi0.5Mn1.5O4. View Full-Text
Keywords: Lithium-ion battery; LiNi0.5Mn1.5O4; Er-doping; citric acid-assisted sol-gel method; cycling stability Lithium-ion battery; LiNi0.5Mn1.5O4; Er-doping; citric acid-assisted sol-gel method; cycling stability
Show Figures

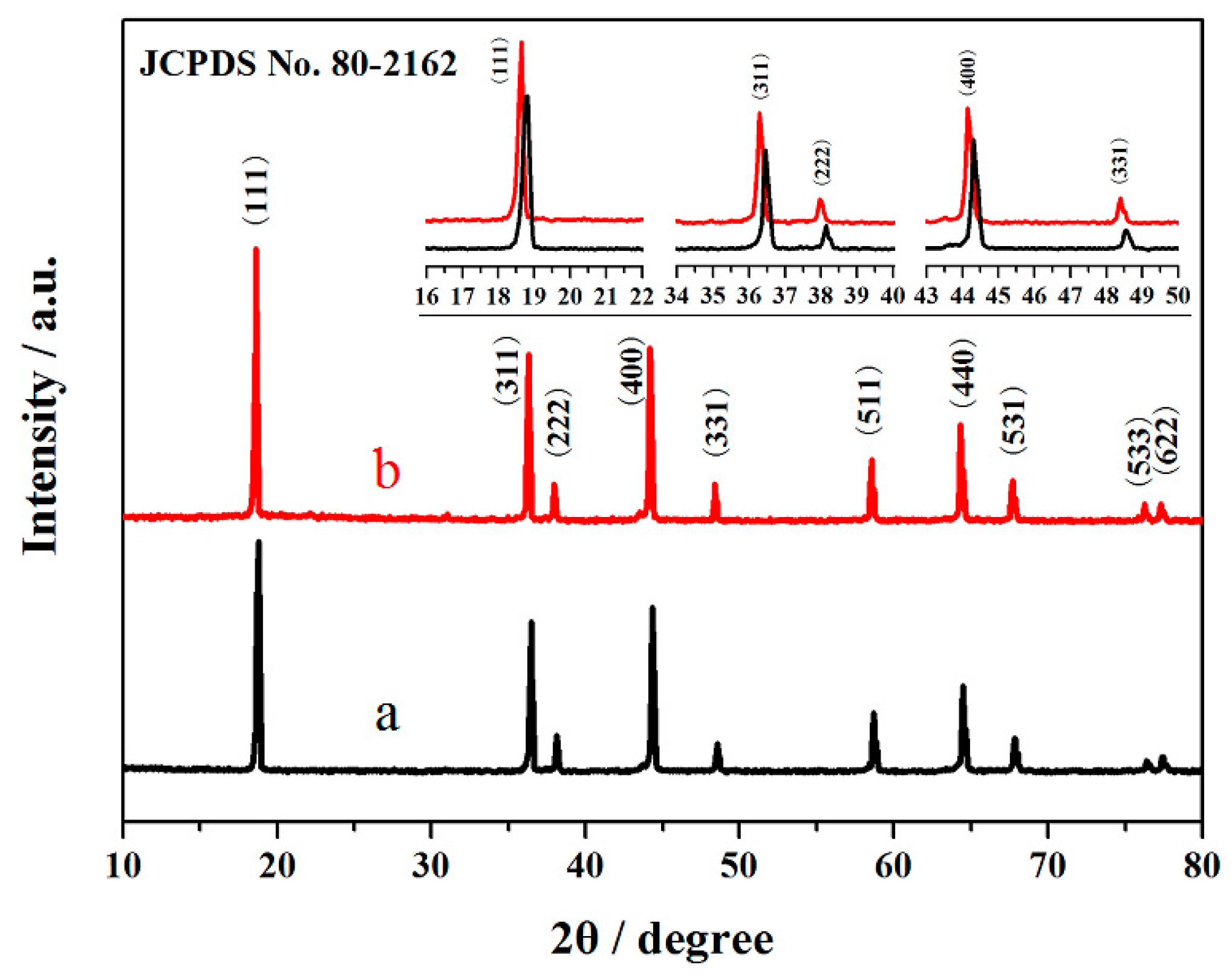

Figure 1
