Effects of HfB2 and HfN Additions on the Microstructures and Mechanical Properties of TiB2-Based Ceramic Tool Materials

by Jing An 1,2, Jinpeng Song 1,2,*, Guoxing Liang 1,2, Jiaojiao Gao 1,2, Juncai Xie 1,2, Lei Cao 1,2, Shiying Wang 1,2 and Ming Lv 1,2
1
School of Mechanical Engineering, Taiyuan University of Technology, Taiyuan 030024, China
2
Shanxi Key Laboratory of Precision Machining, The Shanxi Science and Technology Department, Taiyuan University of Technology, Taiyuan 030024, China
*
Author to whom correspondence should be addressed.
Academic Editor: Dinesh Agrawal
Materials 2017, 10(5), 461; https://doi.org/10.3390/ma10050461
Received: 23 March 2017 / Revised: 21 April 2017 / Accepted: 25 April 2017 / Published: 27 April 2017
(This article belongs to the Section Advanced Composites)

Abstract

The effects of HfB2 and HfN additions on the microstructures and mechanical properties of TiB2-based ceramic tool materials were investigated. The results showed that the HfB2 additive not only can inhibit the TiB2 grain growth but can also change the morphology of some TiB2 grains from bigger polygons to smaller polygons or longer ovals that are advantageous for forming a relatively fine microstructure, and that the HfN additive had a tendency toward agglomeration. The improvement of flexural strength and Vickers hardness of the TiB2-HfB2 ceramics was due to the relatively fine microstructure; the decrease of fracture toughness was ascribed to the formation of a weaker grain boundary strength due to the brittle rim phase and the poor wettability between HfB2 and Ni. The decrease of the flexural strength and Vickers hardness of the TiB2-HfN ceramics was due to the increase of defects such as TiB2 coarse grains and HfN agglomeration; the enhancement of fracture toughness was mainly attributed to the decrease of the pore number and the increase of the rim phase and TiB2 coarse grains. The toughening mechanisms of TiB2-HfB2 ceramics mainly included crack bridging and transgranular fracture, while the toughening mechanisms of TiB2-HfN ceramics mainly included crack deflection, crack bridging, transgranular fracture, and the core-rim structure.
Keywords: TiB2-HfB2 ceramics; TiB2-HfN ceramics; hot-pressed sintering; microstructure; mechanical properties TiB2-HfB2 ceramics; TiB2-HfN ceramics; hot-pressed sintering; microstructure; mechanical properties

1. Introduction

In recent years, with the widespread use of difficult-to-machine materials in engineering, cutting tools have faced the challenge of machining these materials under high speed, which requires that the tools have high hardness, excellent wear resistance, oxidation resistance, and so on. However, compared with the ceramic tool materials, the traditional tool materials (high-speed steel and cemented carbide) showed a lower red hardness in machining these difficult-to-machine materials, which did not meet the need of high speed machining. Recently, ceramic tools—Al2O3-based, Si3N4-based, and TiB2-based ceramic tools—exhibited excellent cutting performance in machining the difficult-to-machine materials such as martensitic stainless steel, Inconel 718, ultra-high-strength steel 300 M, heat-treated AISI4140, hardened Cr12MoV mold steel, and Invar36 alloy [1,2,3,4,5,6]. The TiB2-based ceramic tool exhibited higher hardness compared with the other ceramic tools, which was attributed to the higher hardness of TiB2 ceramic than that of the other ceramics. TiB2 also has a high melting point, excellent wear resistance, and oxidation resistance, which can also be applied in other fields such as manufacturing armor plates and dies [7,8,9,10]. However, it shows a tendency toward low flexural strength and low fracture toughness, which limits the more widespread application of TiB2. In order to reverse this tendency and improve the mechanical properties of TiB2 ceramic, reinforcements such as hard phases, metal phases, and whiskers have been employed to fabricate TiB2-based ceramic materials through spark plasma sintering, vacuum hot-pressed sintering, or reactive hot-pressed sintering.
Usually, the hard phases included TaC, TiSi2, Al2O3, WC, TiC, B4C, NbC, MoSi2, SiC, and ZrB2 [9,10,11,12,13,14,15,16], which could inhibit the grain growth of the base material to obtain a fine microstructure. HfB2 and HfN have high hardness, high melting point, and high oxidation resistance, and as reinforcements they can enhance the mechanical properties of ceramics such as ZrB2-CrSi2-HfB2, ZrB2-SiC-HfB2, B4C-HfB2, and SiBCN-HfN [17,18,19,20], which make them potential candidate reinforcements for ceramic tool materials. In addition, because HfB2 and HfN have better thermal stability to resist deformation and decomposition at elevated temperature, they may improve the cutting performance and working life of TiB2-based ceramic tools. The metal phases often contain Fe, Co, Ni, and Mo [7,12,21,22], which could decrease the sintering temperature and improve the boundary strength among grains and relative density, while the ceramic whiskers such as aluminum borate whiskers and SiC whiskers could change the direction of crack growth to consume more crack propagation energy [23,24,25], which could improve the flexural strength and fracture toughness. Usually, adopting a combination of reinforcements for fabricating TiB2-based ceramics can obtain better mechanical properties. In addition, compared with spark plasma sintering that is employed in fabricating the ceramic composites [9,16], vacuum hot-pressed sintering is considered to be easily adaptable and economically viable.
In this paper, TiB2-HfB2 and TiB2-HfN ceramic tool materials will be fabricated with powders of TiB2, HfB2, HfN, Mo, and Ni by vacuum hot-pressed sintering. The characteristics of these composites are analyzed according to their microstructures and mechanical properties.

2. Experimental Procedures

Commercially available TiB2 powder (99.9%, 1 μm, Shanghai Xiangtian Nanomaterials Co., Ltd., Shanghai, China), HfB2 powder (99.9%, 0.8 μm, Shanghai Chaowei Nanomaterials Co., Ltd., Shanghai, China) and HfN powder (99.9%, 0.8 μm, Shanghai Chaowei Nanomaterials Co., Ltd.) were used as the raw materials. Ni powder (99.8%, 1 μm, Shanghai Yunfu Nanotechnology Co., Ltd., Shanghai, China) and Mo powder (99.8%, 1 μm, Shanghai Yunfu Nanotechnology Co., Ltd.) were added as sintering aids. The compositions of the composite tool materials are shown in Table 1.
The powders were mixed and milled for 48 h in a polyethylene jar with WC (tungsten carbide) balls and alcohol as the medium. Then the mixed slurry was dried in vacuum and sieved by a 200-mesh sieve. The compacted powders were hot pressed for 30 min at 1650 °C under 30 MPa in a vacuum ((1.2–2.4) × 10−3 Pa). The hot pressed samples were cut into testing specimens by the electrical discharge wire cutting method and the surfaces of the testing bars were polished using diamond slurries. The dimensions of the specimens were 3 mm × 4 mm × 40 mm.
Flexural strength was measured at a span of 30 mm and a crosshead speed of 0.5 mm/min by the three-point bending test method on an electron universal tester (CREE-8003G, Dongguan City Kerry Instrument Technology Co., Ltd., Dongguan, China), according to Chinese National Standards GB/T 6569-2006/ISO 14704:2000 [26]. The fracture toughness (KIC) was measured via the direct indentation method and was calculated through the following equation [12,27]:
K I C = 0.203 H V a 1 / 2 ( c a ) 3 / 2
where HV is the Vickers hardness, 2a is the length of the impression diagonal, and 2c is the overall indentation crack length including 2a. The indenter (HVS-30, Shanghai Precision Instruments Co., Ltd., Shanghai, China) was of Vickers DPH (diamond pyramid hardness) type and the applied static load was 196 N for 15 s. Vickers hardness was measured on the polished surfaces using a diamond pyramid indenter under a load of 196 N by an HV-120 based on Chinese National Standards GB/T 16534-2009 [28]. The relative density of each specimen was measured by the Archimedes method with distilled water as the medium. The theoretical density was calculated according to the rule of mixtures based on the following densities: 4.52, 10.50, 13.80, 8.90, and 10.20 g/cm3 for TiB2, HfB2, HfN, Ni, and Mo, respectively. At least 15 specimens were tested for each experimental condition. X-ray diffraction (XRD, EMPYREAN, PANalytical B.V., Almelo, Netherlands) and energy dispersive spectrometry (EDS, ACT-350, Oxford Instruments, Oxford, UK) were used to analyze the compositions of the composite. Scanning electron microscopy and back scattered electron microscopy (SEM, BSE, Supra-55, Carl Zeiss AG, Oberkochen, Germany) were used to observe the polished surface and fractured surface morphologies.

3. Results and Discussions

3.1. Microstructure

Figure 1 shows the XRD patterns of the TiB2-HfB2 and TiB2-HfN ceramic tool materials. The major crystal phases are TiB2 and HfB2 in the TiB2-HfB2 ceramics, and TiB2 and HfN in the TiB2-HfN ceramics. The minor phase is the Ni3Mo intermetallic compound in the TiB2-HfB2 and TiB2-HfN ceramic tool materials. This is because Ni and Mo can form the Ni3Mo intermetallic compound at 1300 °C [29]. The Ni3Mo intermetallic compound has a high melting point of about 1320 °C, so it may be a promising high-temperature structural material [30]. Compared with the standard peaks, the peaks of HfB2 are offset about two degrees to the right and are near the peaks of TiB2. This indicates there is likely an exchange of Ti and Hf atoms in the sintering, which leads to a complex solid solution of TiB2 and HfB2 formed in the ceramic tool materials. The peaks of HfN are in accordance with the standard peaks.
SEM-BSE photographs of the polished surfaces of the TiB2-HfB2 and TiB2-HfN ceramic tool materials are presented in Figure 2. An obvious difference between the TiB2-HfB2 and TiB2-HfN ceramics is the presence of two phases (dark phase and white phase) in Figure 2a–c, while there are three phases (dark phase, white phase, and grey phase) in Figure 2d–f. The dark phase in Figure 2a–f is TiB2 based on the XRD and EDS results in Figure 3a and Figure 3c. The white phase in Figure 2a–c is mainly HfB2 according to the XRD and EDS results in Figure 3b, while the white phase in Figure 2d–f is mainly HfN according to the XRD and EDS results in Figure 3d. The grey phase in Figure 2d–f consists of TiB2 and HfN based on the XRD and EDS results in Figure 3e. Ni and Mo were also discovered in the EDS results in Figure 3. It is notable that the typical core-rim structures and pores exist in these ceramics as shown in Figure 2. The cores—the TiB2 grains—are wrapped by the rims. The rim phase in Figure 2a–c is composed of the Ni3Mo intermetallic compound and the complex solid solution of HfB2 and TiB2. However, the rim phase in Figure 2d–f is composed of the Ni3Mo intermetallic compound and the potential complex solid solution of HfN and TiB2. Moreover, in the TiB2-HfB2 ceramics, the rim phase (the complex solid solution of HfB2 and TiB2) gradually occupies a leading position as the HfB2 content increases. The number of pores decrease slightly in Figure 2a–c, but increase gradually in Figure 2d–f. In terms of size and shape, the pores in Figure 2a–c are bigger than that in Figure 2d–f; the regular pore shape in Figure 2a–c looks like the TiB2 grain shape and the irregular pore shape in Figure 2d–f looks like the shape of agglomerated HfN grains possibly pulled out in the grinding and polishing process, which indicates that a weaker grain boundary strength formed in these ceramics in the sintering processing. Moreover, in Figure 2a–c the morphology of some TiB2 grains changes from bigger polygons to smaller polygons or longer ovals which is advantageous for the formation of a relatively fine microstructure, and in Figure 2d–f the HfN grain agglomeration becomes more serious leading to the formation of more TiB2 coarse grains and pores. This indicates that the HfB2 additive not only can inhibit the growth of TiB2 grains but can also change the morphology of some TiB2 grains, and that the HfN additive exhibits a tendency toward agglomeration.
Figure 4 shows the fracture morphology of the TiB2-HfB2 and TiB2-HfN ceramic tool materials. As can be seen in Figure 4a–c, with increasing HfB2 content from 10 wt % to 30 wt %, the TiB2 grains become smaller; meanwhile, the TiB2 grain shapes exhibit the same variation trend as presented in Figure 3a–c; moreover, the pore number decreases progressively. However, in Figure 4d–f with increasing HfN content from 10 wt % to 30 wt %, the TiB2 grains become larger leading to the formation of coarse TiB2 grains; and the pore number decreases progressively. The results indicate that the HfB2 additive can not only inhibit the growth of the TiB2 grains, but can also change the microstructure of TiB2-based ceramic, and that the HfN additive cannot inhibit the TiB2 grain growth.
Figure 5 presents the relative densities of the TiB2-HfB2 and TiB2-HfN ceramic tool materials. As can be seen, their relative densities increase with increasing HfB2 and HfN contents from 10 wt % to 30 wt %, respectively. The relative density increments of the TiB2-HfN ceramics are smaller, and the relative density variation curve is relatively flat, while the relative density variation curve of TiB2-HfB2 shows a bigger increment in relative density at first, and then finally shows a smaller increment. These results are ascribed to the pore number reduction with increasing the additive content, to some extent, and is derived from the higher sintering pressure (30 MPa) and the metal phases (Ni and Mo) that can efficiently reduce the sintering temperature and can accelerate the densification of these ceramics. As a consequence, their relative densities with the addition of HfB2 or HfN can be improved, and when the HfB2 and HfN contents are 30 wt %, the optimal relative densities of the TiB2-HfB2 and TiB2-HfN ceramics are 99.0% ± 0.2% and 99.4% ± 0.3%, respectively.

3.2. Mechanical Properties

Figure 6 exhibits the variation of the mechanical properties of the TiB2-HfB2 ceramics with changes of the HfB2 content and variation of the mechanical properties of the TiB2-HfN ceramics with changes of the HfN content. In Figure 6a, with the increase of the HfB2 content from 10 wt % to 30 wt %, the flexural strength increases from 680.49 ± 15 MPa to 708.71 ± 18 MPa; Vickers hardness increases from 19.15 ± 0.21 GPa to 21.52 ± 0.24 GPa; however, the fracture toughness decreases from 6.92 ± 0.18 MPa·m1/2 to 5.53 ± 0.18 MPa·m1/2. The TiB2-30 wt %HfB2 ceramic tool material exhibits better mechanical properties including flexural strength of 708.71 ± 18 MPa, which is higher than 533 MPa (the flexural strength of TiB2-TaC ceramics [9]), Vickers hardness of 21.52 ± 0.24 GPa that is higher than 19.8 ± 0.6 GPa (Vickers hardness of the TiB2-SiC-CNTs ceramics [8]), and fracture toughness of 5.53 ± 0.18 MPa·m1/2 that is higher than 5.2 MPa·m1/2 (fracture toughness of the TiB2-SiC ceramics [31]). The improvement of flexural strength and Vickers hardness is due to the relatively fine microstructure, which is in agreement with the result that the fine microstructure can improve the mechanical properties of ceramic composite materials [32]. As the HfB2 content increases, the fracture toughness decreases gradually, which can be ascribed to the increase of the brittle rim phase. The reason is that the rim phase is mainly the complex solid solution of TiB2 and HfB2, which may be a brittle phase; moreover, the wettability between HfB2 and Ni (the wettability angle: ~99°) is poor.
In Figure 6b, with the increase of the HfN content from 10 wt % to 30 wt %, the flexural strength decreases from 813.69 ± 21 MPa to 716.37±23 MPa; the Vickers hardness decreases from 22.59 ± 0.24 GPa to 19.23 ± 0.23 GPa; however, the fracture toughness increases from 6.32 ± 0.16 MPa·m1/2 to 7.52 ± 0.17 MPa·m1/2. The TiB2-10 wt % HfN ceramic tool material shows better mechanical properties, including flexural strength of 813.69 ± 21 MPa that is higher than 705 MPa (flexural strength of the TiB2-10 wt % SiC ceramics [6]), Vickers hardness of 22.59 ± 0.24 GPa which is higher than 21.85 GPa (Vickers hardness of the TiB2-TiC-10 wt % Ni ceramics [33]), and fracture toughness of 6.32 ± 0.16 MPa·m1/2 that is higher than 6 MPa·m1/2 (fracture toughness of the TiB2-2.5 wt % MoSi ceramics [15]). The decrease of the flexural strength and Vickers hardness is due to the increase of the defects such as the TiB2 coarse grain and HfN agglomeration; this indicates that the defects have more negative effects on the flexural strength and Vickers hardness than the core-rim structure, although the core-rim structure is advantageous for improving the mechanical properties. The enhancement of fracture toughness is mainly attributed to the decrease of the pore number and the increase of the rim phase and TiB2 coarse grain; decreasing the pore formation can keep the cracks from growing, which will improve fracture toughness; the rim phase of TiB2-HfN ceramics exhibits a higher grain boundary strength than the rim phase of TiB2-HfB2 ceramics, which will provide a larger grain growth resistance for enhancing fracture toughness; in addition, TiB2 coarse grains can consume more fracture energy in the fracturing process even though the TiB2 is a brittle phase, which leads to the improvement of the fracture toughness.
In order to further analyze the toughening mechanisms of TiB2-HfB2 and TiB2-HfN ceramics, the crack propagation paths are shown in Figure 7. As can be seen, the crack propagation path in Figure 7a is straighter than that in Figure 7b; the crack deflection in Figure 7b is more obvious than that in Figure 7a; crack bridging and transgranular fracture play an important role in Figure 7a, while crack deflection, crack bridging, and transgranular fracture occupy important positions in Figure 7b, which are advantageous for enhancing fracture toughness and are the main toughening mechanisms of these ceramics. Much fracture energy will be consumed by crack bridging because crack bridging as well as crack deflection can change the direction of crack propagation (see the red circles in Figure 7), which is advantageous for improving fracture toughness. Usually the formation of the rim phase is propitious to the enhancement of fracture toughness, but in Figure 7a the rim phase shows a brittle characteristic leading to lower fracture toughness with increasing HfB2 content as mentioned above; moreover, the relatively straight crack crossing the rim phase and TiB2 grain will consume less fracture energy, which is harmful to the improvement of fracture toughness. However, intergranular fracture and transgranular fracture coexisted in Figure 7b, where the crack path is full of twists and turns which is advantageous to enhancing fracture toughness.

4. Conclusions

TiB2-based ceramic tool materials reinforced by HfB2 and HfN additives have been fabricated by hot pressed sintering. The effects of HfB2 and HfN additions on their microstructures and mechanical properties were investigated. The results showed that the HfB2 additive can inhibit the TiB2 grain growth and can change the morphology of some of the TiB2 grains from bigger polygons to smaller polygons or longer ovals, which is favorable for the formation of a relatively fine microstructure, while the HfN additive tends to agglomerate. With increasing HfB2 and HfN contents from 10 wt % to 30 wt %, the relative densities of these ceramics increased gradually. The relatively fine microstructure improved the flexural strength and Vickers hardness of the TiB2-HfB2 ceramics. The poor wettability between HfB2 and Ni resulted in the formation of weak grain boundary strength and the complex solid solution of TiB2-HfB2 is a brittle phase, which led to the decrease of fracture toughness of the TiB2-HfB2 ceramics. The increase of the defects such as the TiB2 coarse grain and HfN agglomeration resulted in the decrease of the flexural strength and Vickers hardness of the TiB2-HfN ceramics; the decrease of the pore number and the increase of the rim phase and TiB2 coarse grain are advantageous for the enhancement of fracture toughness. The toughening mechanisms of the TiB2-HfB2 ceramics mainly included crack bridging and transgranular fracture, while the toughening mechanisms of the TiB2-HfN ceramics mainly included crack deflection, crack bridging, transgranular fracture, and the core-rim structure. The TiB2-30 wt % HfB2 ceramic tool material exhibited better mechanical properties including a flexural strength of 708.71 ± 18 MPa, Vickers hardness of 21.52 ± 0.24 GPa, and fracture toughness of 5.53 ± 0.18 MPa·m1/2. The TiB2-10 wt % HfN ceramic tool material showed better mechanical properties including a flexural strength of 813.69 ± 21 MPa, Vickers hardness of 22.59 ± 0.24 GPa, and fracture toughness of 6.32 ± 0.16 MPa·m1/2.

Acknowledgments

This project is supported by the National Natural Science Foundation of China (Grant No. 51405326 and Grant No. 51575375) and the Scientific and Technological Innovation Programs of Higher Education Institutions in Shanxi (Grant No. 2014122).

Author Contributions

Jing An, Pengjin Song, and Guoxing Liang conceived and designed the experiments; Jing An, Jiaojiao Gao and Juncai Xie performed the experiments; An Jing and Lei Cao analyzed the data; Jing An and Shiying Wang contributed reagents/materials/analysis tools; Jing An, Pengjin Song, Jiaojiao Gao and Ming Lv wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, M.; Zhao, J.; Wang, L.L. Wear behaviour of Al2O3/Ti(C,N) ceramic tool during turning process of martensitic stainless steel. Mater. Res. Innov. 2015, 19, 350–354. [Google Scholar] [CrossRef]
  2. Zheng, G.M.; Zhao, J.; Zhou, Y.H.; Li, A.H.; Cui, X.B.; Tian, X.H. Performance of graded nano-composite ceramic tools in ultra-high-speed milling of Inconel 718. Int. J. Adv. Manuf. Technol. 2013, 67, 2799–2810. [Google Scholar] [CrossRef]
  3. Wang, D.; Zhao, J.; Cao, Y.; Xue, C.; Bai, Y. Wear behavior of an Al2O3/TiC/TiN micro-nano-composite ceramic cutting tool in high-speed turning of ultra-high-strength steel 300 M. Int. J. Adv. Manuf. Technol. 2016, 87, 3301–3306. [Google Scholar] [CrossRef]
  4. Kwon, W.T.; Kim, Y.W. Cutting performance of Si3N4 based SiC ceramic cutting tools. J. Mech. Sci. Technol. 2004, 18, 388–394. [Google Scholar] [CrossRef]
  5. Song, J.P.; Huang, C.Z.; Lv, M.; Zou, B.; Liu, H.L.; Wang, J. Cutting performance and failure mechanisms of TiB2-based ceramic cutting tools in machining hardened Cr12MoV mold steel. Int. J. Adv. Manuf. Technol. 2014, 70, 495–500. [Google Scholar] [CrossRef]
  6. Zhao, G.L.; Huang, C.Z.; He, N.; Liu, H.L.; Zou, B. Preparation and cutting performance of reactively hot pressed TiB2-SiC ceramic tool when machining Invar36 alloy. Int. J. Adv. Manuf. Technol. 2016, 86, 2679–2688. [Google Scholar] [CrossRef]
  7. Vlasova1, M.; Bykov, A.; Kakazey, M.; Aguilar, P.A.M.; Melnikov, I.; Rosales, I.; Tapia, R.G. Formation and Properties of TiB2-Ni Composite Ceramics. Sci. Sinter. 2016, 48, 137–146. [Google Scholar] [CrossRef]
  8. Lin, J.; Yang, Y.H.; Zhang, H.A.; Chen, W.F.; Huang, Y. Microstructure and mechanical properties of TiB2 ceramics enhanced by SiC particles and carbon nanotubes. Ceram. Int. 2016, 42, 4627–4631. [Google Scholar] [CrossRef]
  9. Demirskyi, D.; Nishimura, T.; Sakka, Y.; Vasylkiv, O. High-strength TiB2-TaC ceramic composites prepared using reactive spark plasma consolidation. Ceram. Int. 2016, 42, 1298–1306. [Google Scholar] [CrossRef]
  10. Raju, G.B.; Basu, B.; Tak, N.H.; Cho, S.J. Temperature dependent hardness and strength properties of TiB2 with TiSi2 sinter-aid. J. Eur. Ceram. Soc. 2009, 29, 2119–2128. [Google Scholar] [CrossRef]
  11. Popov, A.Y.; Sivak, A.A.; Borodianska, H.Y.; Shabalin, I.L. High toughness TiB2-Al2O3 composite ceramics produced by reactive hot pressing with fusible components. Adv. Appl. Ceram. 2015, 114, 178–182. [Google Scholar] [CrossRef]
  12. Song, J.P.; Huang, C.Z.; Lv, M.; Zou, B.; Wang, S.Y.; Wang, J.; An, J. Effects of TiC content and melt phase on microstructure and mechanical properties of ternary TiB2-based ceramic cutting tool materials. Mater. Sci. Eng. A 2014, 605, 137–143. [Google Scholar] [CrossRef]
  13. Gao, Y.B.; Tang, T.G.; Yi, C.H.; Zhang, W.; Li, D.C.; Xie, W.B.; Huang, W.; Ye, N. Study of static and dynamic behavior of TiB2-B4C composite. Mater. Des. 2016, 92, 814–822. [Google Scholar] [CrossRef]
  14. Demirskyi, D.; Sakka, Y.; Vasylkiv, O. High-temperature reactive spark plasma consolidation of TiB2-NbC ceramic composites. Ceram. Int. 2015, 41, 10828–10834. [Google Scholar] [CrossRef]
  15. Mukhopadhyay, A.; Raju, G.B.; Basu, B.; Suri, A.K. Correlation between phase evolution, mechanical properties and instrumented indentation response of TiB2-based ceramics. J. Eur. Ceram. Soc. 2009, 29, 505–516. [Google Scholar] [CrossRef]
  16. Li, B. Effect of ZrB2 and SiC addition on TiB2-based ceramic composites prepared by spark plasma sintering. Int. J. Refract. Met. Hard Mater. 2014, 46, 84–89. [Google Scholar] [CrossRef]
  17. Sonber, J.K.; Murthy, T.S.R.C.; Subramanian, C.; Krishnamurthy, N.; Hubli, R.C.; Suri, A.K. Effect of CrSi2 and HfB2 addition on densification and properties of ZrB2. Int. J. Refract. Met. Hard Mater. 2012, 31, 125–131. [Google Scholar] [CrossRef]
  18. Balak, Z.; Zakeri, M. Effect of HfB2 on microstructure and mechanical properties of ZrB2-SiC-based composites. Int. J. Refract. Met. Hard Mater. 2016, 54, 127–137. [Google Scholar] [CrossRef]
  19. Tu, R.; Li, N.; Li, Q.Z.; Zhang, S.; Zhang, L.M.; Goto, T. Effect of microstructure on mechanical, electrical and thermal properties of B4C-HfB2 composites prepared by arc melting. J. Eur. Ceram. Soc. 2016, 36, 3929–3937. [Google Scholar] [CrossRef]
  20. Wang, S.H.; Zhang, Y.C.; Sun, Y.; Xu, Y.; Yang, M. Synthesis and characteristic of SiBCN/HfN ceramics with high temperature oxidation resistance. J. Alloys Compd. 2016, 685, 828–835. [Google Scholar] [CrossRef]
  21. Li, B.H.; Liu, Y.; Cao, H.; He, L.; Li, J. Rapid synthesis of TiB2/Fe composite in situ by spark plasma sintering. J. Mater. Sci. 2009, 44, 3909–3912. [Google Scholar] [CrossRef]
  22. Sáez, A.; Arenas, F.; Vidal, E. Microstructure development of WCoB-TiC based hard materials. Int. J. Refract. Met. Hard Mater. 2003, 21, 13–18. [Google Scholar] [CrossRef]
  23. Zhang, G.; Yang, J.H. In situ synthesis aluminum borate whiskers reinforced TiB2 matrix composites for application in aluminum reduction cells. JOM 2013, 65, 1467–1471. [Google Scholar] [CrossRef]
  24. Farhadi, K.; Namini, A.S.; Asl, M.S.; Mohammadzadeh, A.; Kakroudi, M.G. Characterization of hot pressed SiC whisker reinforced TiB2 based composites. Int. J. Refract. Met. Hard Mater. 2016, 61, 84–90. [Google Scholar] [CrossRef]
  25. Cui, H.Z.; Zhang, Y.F.; Zhang, G.S.; Liu, W.; Song, X.J.; Wei, N. Pore and microstructure change induced by SiC whiskers and particles in porous TiB2-TiC-Ti3SiC2 composites. Ceram. Int. 2016, 42, 8376–8384. [Google Scholar] [CrossRef]
  26. China State Bureau of Technological Supervision. Chinese National Standards—Fine Ceramics (Advanced Ceramics, Advanced Technical Ceramics)—Test Method for Flexural Strength of Monolithic Ceramics at Room Temperature; Chinese Standard Publishing House: Beijing, China, 2006. [Google Scholar]
  27. Zhao, G.L.; Huang, C.Z.; He, N.; Liu, H.L.; Zou, B. Microstructure and mechanical properties at room and elevated temperatures of reactively hot pressed TiB2-TiC-SiC composite ceramic tool materials. Ceram. Int. 2016, 42, 5353–5361. [Google Scholar] [CrossRef]
  28. China State Bureau of Technological Supervision. Chinese National Standards—Fine Ceramics (Advanced Ceramics, Advanced Technical Ceramics)—Test Method for Flexural Strength of Monolithic Ceramics at Room Temperature; Chinese Standard Publishing House: Beijing, China, 2009. [Google Scholar]
  29. Khalfallah, I.; Aning, A. Bulk Processing and Mechanical Properties of Ni3Mo. In Proceedings of the 143rd TMS Annual Meeting & Exhibition, San Diego, CA, USA, 16–20 February 2014; pp. 999–1006. [Google Scholar]
  30. Qi, L.; Jin, Y.C.; Zhao, Y.H.; Yang, X.M.; Zhao, H.; Han, P. The structural, elastic, electronic properties and Debye temperature of Ni3Mo under pressure from first-principles. J. Alloys Compd. 2015, 621, 383–388. [Google Scholar] [CrossRef]
  31. Chen, H.B.; Wang, Z.; Wu, Z.J. Investigation and characterization of densification, processing and mechanical properties of TiB2-SiC ceramics. Mater. Des. 2014, 64, 9–14. [Google Scholar] [CrossRef]
  32. Anggraini, L.; Isonishi, K.; Ameyama, K. Toughening and strengthening of ceramics composite through microstructural refinement. Am. Inst. Phys. 2016, 1725, 1–5. [Google Scholar]
  33. Fu, Z.Z.; Koc, R. Sintering and mechanical properties of TiB2-TiC-Ni using submicron borides and carbides. Mater. Sci. Eng. A 2016, 676, 278–288. [Google Scholar] [CrossRef]
Figure 1. XRD patterns of TiB2-HfB2 and TiB2-HfN ceramic tool materials.
Figure 1. XRD patterns of TiB2-HfB2 and TiB2-HfN ceramic tool materials.
Materials 10 00461 g001

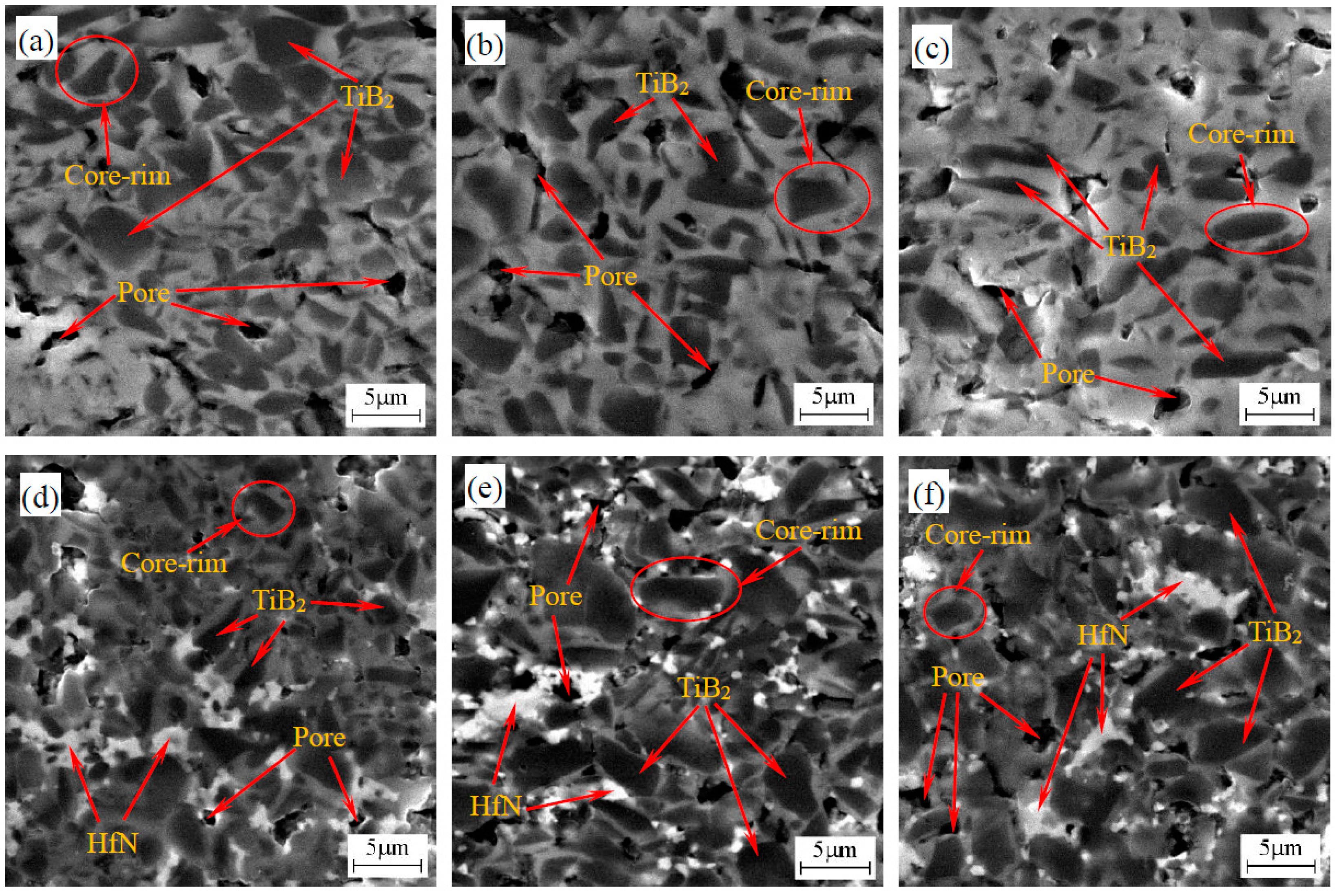

Figure 2. SEM-BSE photographs of the polished surfaces of TiB2-HfB2 and TiB2-HfN ceramic tool materials: (a) TiB2-10 wt % HfB2; (b) TiB2-20 wt % HfB2; (c) TiB2-30 wt % HfB2; (d) TiB2-10 wt % HfN; (e) TiB2-20 wt % HfN; (f) TiB2-30 wt % HfN.
Figure 2. SEM-BSE photographs of the polished surfaces of TiB2-HfB2 and TiB2-HfN ceramic tool materials: (a) TiB2-10 wt % HfB2; (b) TiB2-20 wt % HfB2; (c) TiB2-30 wt % HfB2; (d) TiB2-10 wt % HfN; (e) TiB2-20 wt % HfN; (f) TiB2-30 wt % HfN.
Materials 10 00461 g002

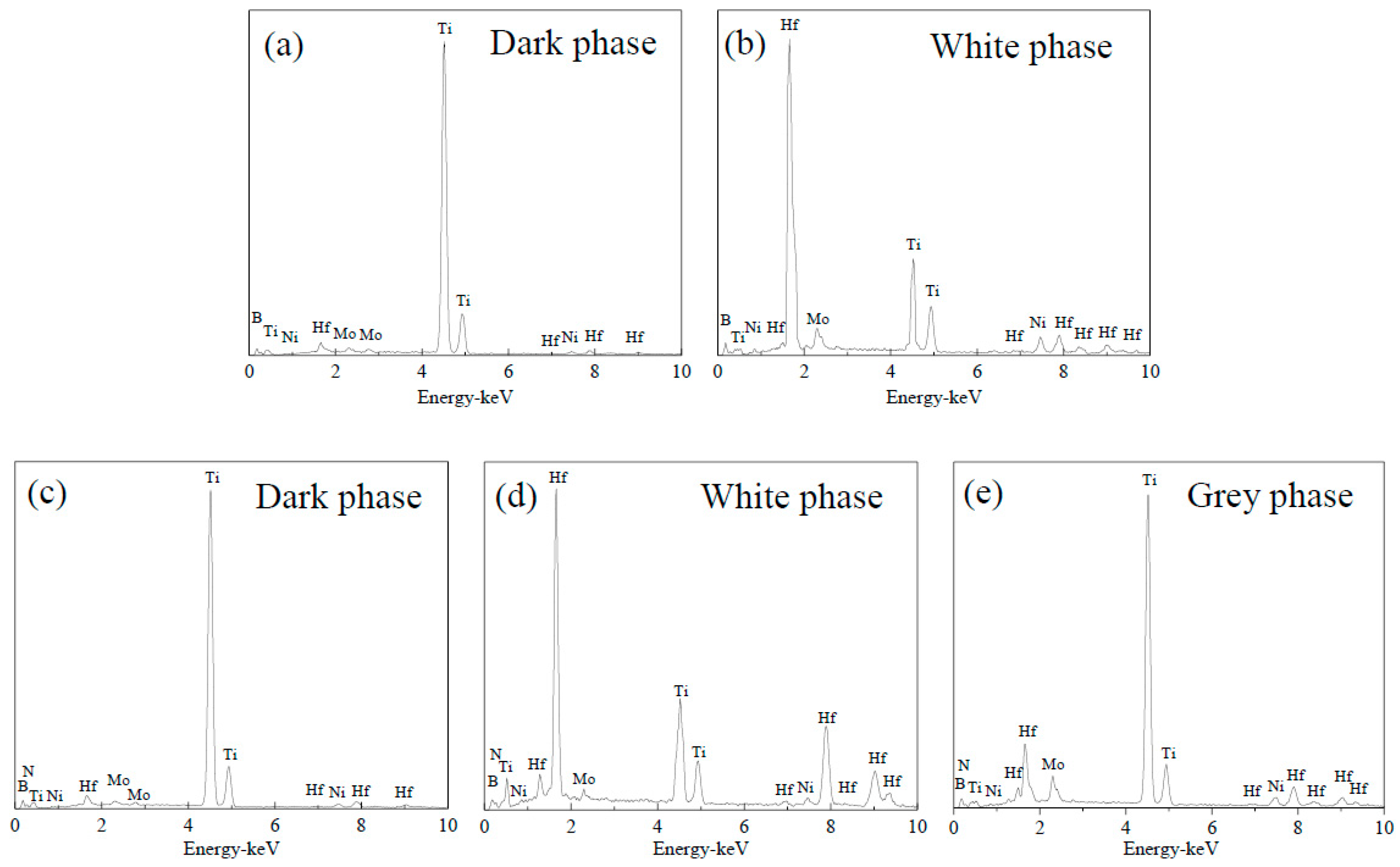

Figure 3. EDS of the phases in the TiB2-HfB2 ceramic tool materials: (a) EDS of the dark phase; (b) EDS of the white phase, and EDS of the phases in the TiB2-HfN ceramic tool materials; (c) EDS of the dark phase; (d) EDS of the white phase; (e) EDS of the grey phase.
Figure 3. EDS of the phases in the TiB2-HfB2 ceramic tool materials: (a) EDS of the dark phase; (b) EDS of the white phase, and EDS of the phases in the TiB2-HfN ceramic tool materials; (c) EDS of the dark phase; (d) EDS of the white phase; (e) EDS of the grey phase.
Materials 10 00461 g003

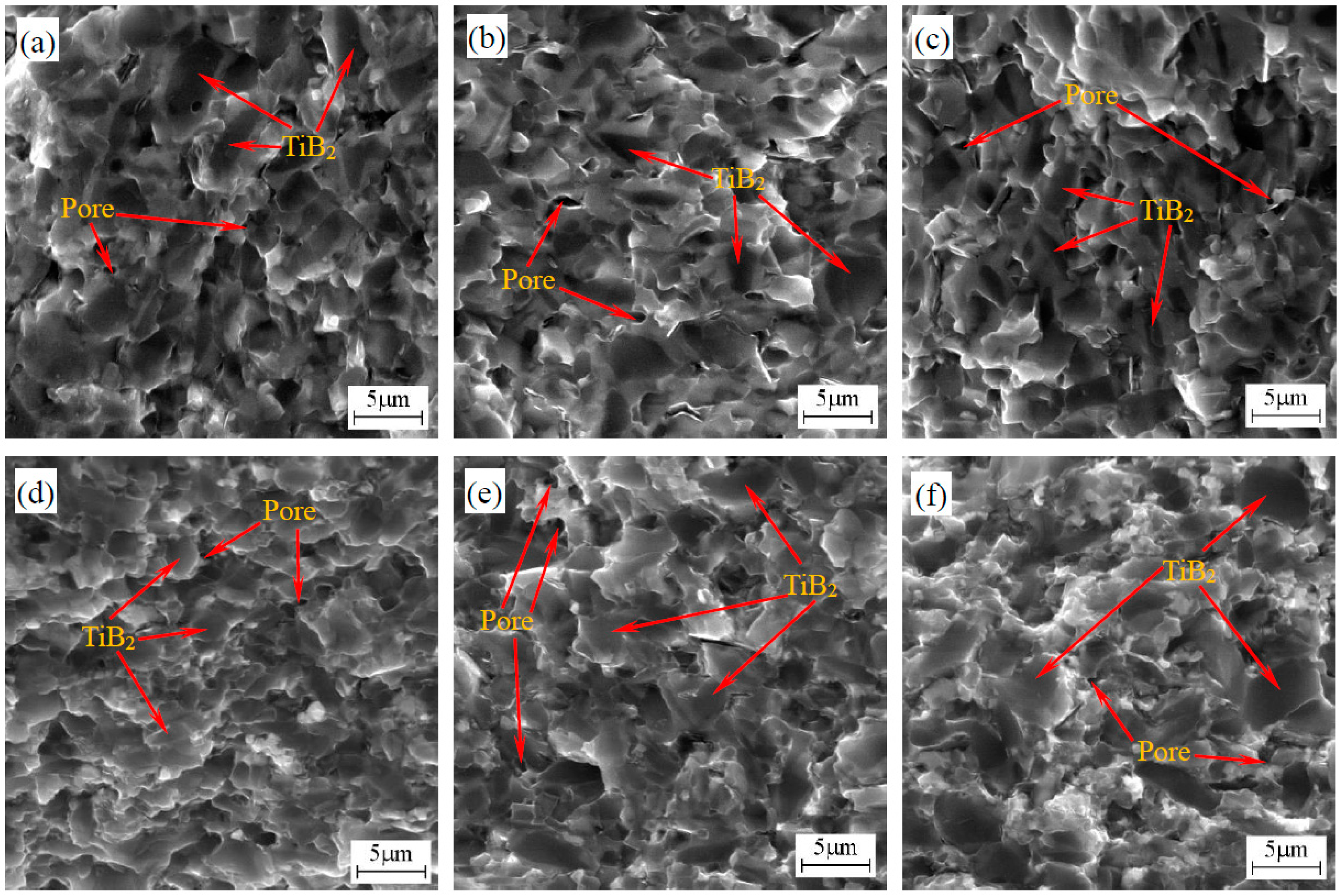

Figure 4. Fracture morphology of TiB2-HfB2 and TiB2-HfN ceramic tool materials: (a) TiB2-10 wt % HfB2; (b) TiB2-20 wt % HfB2; (c) TiB2-30 wt % HfB2; (d) TiB2-10 wt % HfN; (e) TiB2-20 wt % HfN; (f) TiB2-30 wt % HfN.
Figure 4. Fracture morphology of TiB2-HfB2 and TiB2-HfN ceramic tool materials: (a) TiB2-10 wt % HfB2; (b) TiB2-20 wt % HfB2; (c) TiB2-30 wt % HfB2; (d) TiB2-10 wt % HfN; (e) TiB2-20 wt % HfN; (f) TiB2-30 wt % HfN.
Materials 10 00461 g004

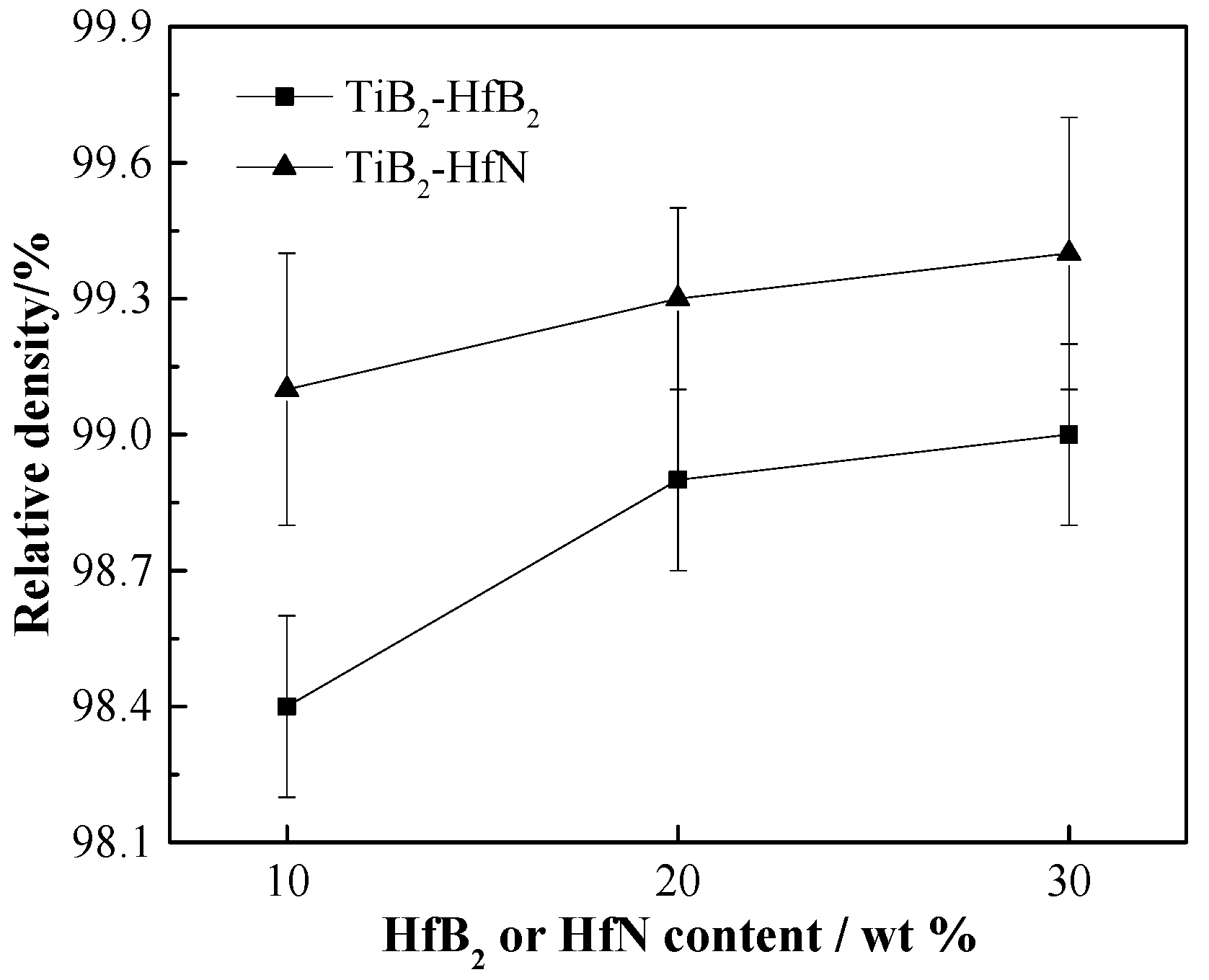

Figure 5. Relative densities of TiB2-HfB2 and TiB2-HfN ceramic tool materials.
Figure 5. Relative densities of TiB2-HfB2 and TiB2-HfN ceramic tool materials.
Materials 10 00461 g005
Figure 6. Variation of the mechanical properties of TiB2-HfB2 ceramics with a change of the HfB2 content and variation of the mechanical properties of TiB2-HfN ceramics with a change of the HfN content.
Figure 6. Variation of the mechanical properties of TiB2-HfB2 ceramics with a change of the HfB2 content and variation of the mechanical properties of TiB2-HfN ceramics with a change of the HfN content.
Materials 10 00461 g006

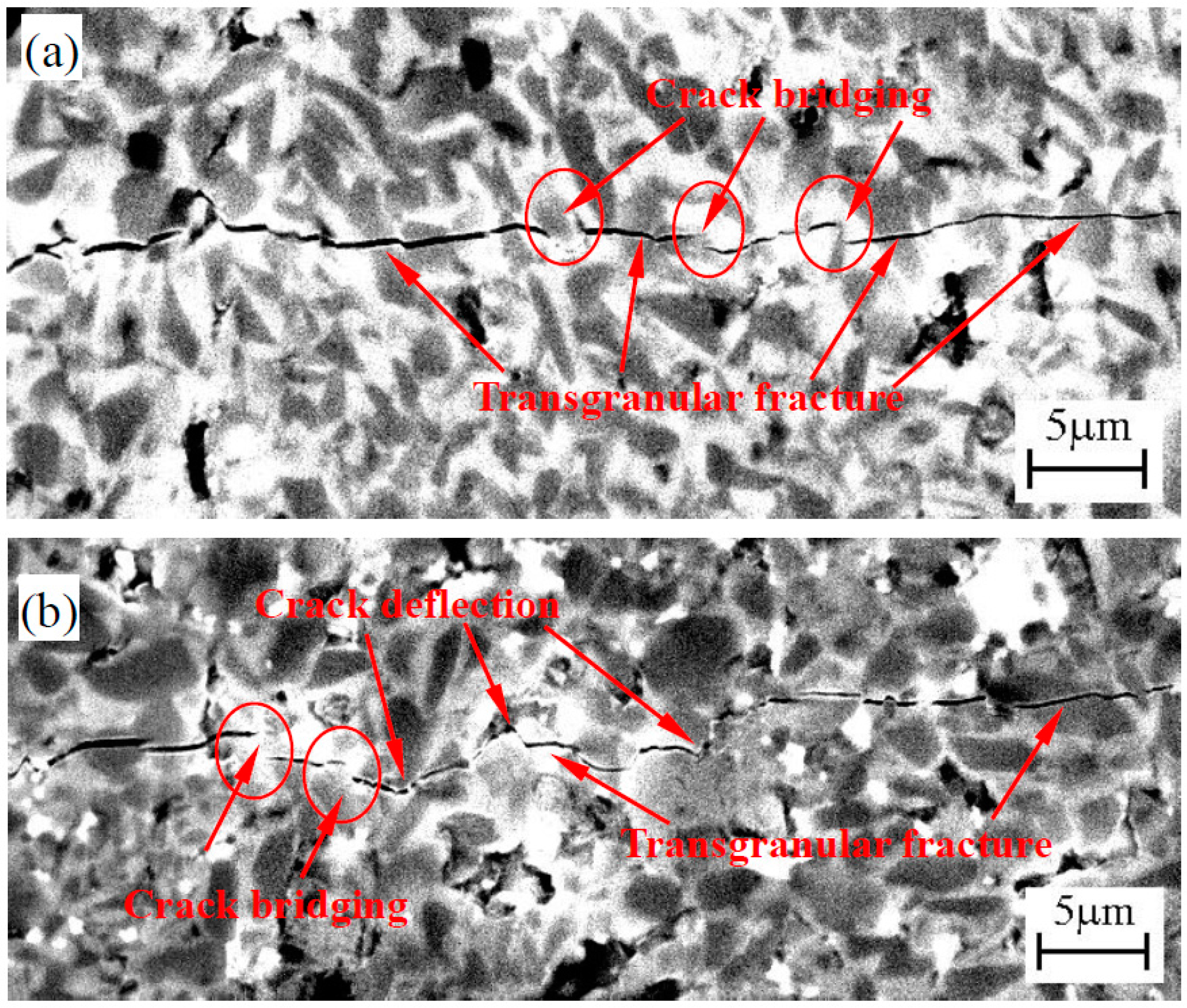

Figure 7. Crack propagation path of the TiB2-HfB2 (a) and TiB2-HfN (b) ceramic tool materials.
