Materials 2017, 10(10), 1208; https://doi.org/10.3390/ma10101208

Article
Synthesis and Characterization of TiO2 Nanoparticles for the Reduction of Water Pollutants
1
Department of Chemistry and Geological Sciences, University of Modena and Reggio Emilia, Via G. Campi 103, 41125 Modena, Italy
2
Barchemicals, Via S. Allende 14, 41051 Castelnuovo Rangone (MO), Italy
*
Author to whom correspondence should be addressed.
Received: 30 August 2017 / Accepted: 18 October 2017 / Published: 20 October 2017

Abstract

:
The aim of this manuscript was the optimization of the synthesis of TiO2 nanoparticles (TiO2 NPs) with conditions that could be easily reproducible at the industrial level. Several procedures were tested and those with C12H28O4Ti and CO(NH2)2 as precursors seemed the most promising and, consequently, were improved with different molar ratios, lower temperatures and the addition of NH4Cl as a secondary dopant of nitrogen. The obtained samples were studied with analytical techniques such as X-ray powder diffraction (XRPD) and field emission scanning electron microscopy (FESEM). To complete the study, dye degradation and bacteriological tests were also performed. The results indicate that it is possible to obtain TiO2 NPs at lower temperatures with respect to those used in the literature; the best candidate that could satisfy all the requirements was a sample with a molar ratio of C12H28O4Ti:CO(NH2)2 at 2:1 and obtained at 50 °C.
Keywords:
TiO2; nanoparticles; photocatalysis; pollutants

1. Introduction

Nanotechnologies are a set of methods and techniques for the treatment of matter and aimed at obtaining materials with novel functionalities and improved characteristics. Among the various materials, nanoparticles play a special role in a wide range of applications and, in particular, there are a large number of studies related to titanium dioxide nanoparticles (TiO2 NPs) [1,2,3]. The TiO2 NPs studied and synthesized since the twentieth century have been involved in large-scale production, thanks to several uses (sunscreen, paints, toothpastes, and so on). Other uses concerned air purification, in particular the reduction of nitrogen oxides (NOx), sulfur oxides (SOx), carbon monoxide (CO), aromatic hydrocarbons BTX (benzene, toluene, xylene), and polycondensed aromatic hydrocarbons, atmospheric particulate PM10 (with high concentrations in urban areas), and volatile organic compounds (VOCs) released by paints and plasters in adjacent environments (indoor pollution) [4,5,6,7,8].
Numerous studies have reported the properties of titanium dioxide and its use for the degradation of substances in an aqueous solution and the reduction of inorganic ions [9,10], and TiO2 has been considered the most widely used oxide in photocatalysis. ZnO and α-Fe2O3 can be also used as photocatalysts; α-Fe2O3 absorbs visible light, but with lower photocatalytic activity than that of TiO2 and ZnO, which has the further disadvantage of releasing Zn2+ ions in aqueous solution [11]. Consequently, attention was devoted to TiO2, especially in the crystalline anatase phase [12,13], and was utilized for the preparation of self-cleaning surfaces that are in contact with pool water (or water in general) and for the coating of materials, such as ceramic and natural stone, with anti-algae properties [14,15,16,17,18,19,20,21]. Unfortunately, the band gap of anatase (3.2 eV) was not ideal for solar applications, with a consequent limitation for applications in the visible spectral range. It is well known that the positive effect of doping with different elements (transition metals or non-metallic elements) improves the photocatalytic properties of TiO2 [22,23,24,25].
It is common sense that the literature is very rich in titanium dioxide papers; for example, research conducted on a well-rounded search engine, with only the title “titanium dioxide” lead to our obtaining, for 2017 only, over 1,400,000 manuscripts, and refining the search to “nanoparticles”, “photocatalysis”, “synthesis”, and “temperature”, found that about 50 manuscripts were listed. The interest derives from a synthesis that can be easily achieved in the laboratory at low temperature, without heavy metals and dangerous reagents; this kind of approach, in our opinion, does not emerge from the literature. We focused on some manuscripts from 2017 [26,27,28], which while being close to our needs do not fully meet our requirements.
The study reported in this manuscript comes from research developed in collaboration with the company that is among the co-authors of this work. This company has operated since 1984 in the water treatment and swimming pool chemical products sector for the conditioning and treatment of all types of water. The company’s need for was to find a synthesis that can be easily reproduced in a laboratory at the industrial scale. For this reason, we focused our attention on some of the syntheses of TiO2 NPs mentioned in the literature [29,30,31,32,33,34,35,36,37,38], generally deriving from a hydrothermal process and/or sol-gel route.
The purpose of the present manuscript is the determination of an improved synthesis of TiO2 NPs with conditions that could be easily reproducible in industry, both in terms of energy saving and cost reduction. These materials will be characterized by means of analytical techniques, such as X-ray powder diffraction (XRPD) and field emission scanning electron microscopy (FESEM); dye degradation and bacteriological tests will be performed successively. These last tests are very important in order to verify the effectiveness in the removal of bacterial agents of specific colonies.

2. Methods

2.1. Synthesis

Some selected procedures reported in the literature were tested and reproduced in our laboratory; subsequently, they were optimized and improved in order to obtain TiO2 NPs in the best, most simple and inexpensive procedure, in agreement with the market requirements.
The most commonly used reagents were titanium tetrachloride (TiCl4), 99%; titanium isopropoxide (C12H28O4Ti), ≥99.8%; urea (CO(NH2)2), 99%; ammonium chloride (NH4Cl), 99.5%; glacial acetic acid, 99.5%; methanol, 99.5%; and ethanol 99.8%.
In the subsequent Table 1, Table 2 and Table 3, we report three tested syntheses and a short summary of the related procedures.
Ethanol and titanium tetrachloride were introduced into a beaker; the solution was stirred for 30 min. During this period, it formed a yellow sol phase. Bidistilled water was added and the solution became clear and colorless. The solution was again stirred for 30 min at room temperature and then the formed gel was dried at 50 °C for 24 h.
Bidistilled water and urea were introduced into a beaker and the solution was stirred for five minutes. Titanium isopropoxide was added dropwise and the obtained suspension was stirred for 30 min. This suspension was introduced to a water bath for one hour at 90 °C; the separated product was dried at 80 °C for 12 h.
Isopropyl alcohol and titanium isopropoxide were introduced into a beaker and the solution was stirred for one hour; after this acetic acid and methanol were added. The solution was dried at 90 °C for 24 h until a yellow powder was obtained.
The diffractometric analysis (discussed later) performed for these samples provided the possibility to verify the formation of anatase and to evaluate the ability of the nitrogen dopant to enhance the photocatalytic properties.
The second synthesis was selected and improved. This synthesis was optimized by means of the use of different molar ratios between C12H28O4Ti and CO(NH2)2, different temperatures, and the addition of another dopant containing nitrogen (NH4Cl). NH4Cl was dissolved in an aqueous solution of CO(NH2)2 and the process was the same as described for Synthesis 2.
These new parameters (Synthesis 4) gave rise to a set of samples reported in Table 4.
All samples were tested at 50 °C and room temperature (r.t.), except for the samples with NH4Cl, where the used temperature was always 50 °C.

2.2. Dye Degradation Tests

These tests are qualitative and were used to verify the possibility to degrade a dye. The dyes used were methyl orange and bromothymol blue [39]. The tests were carried out only on selected samples: samples with molar ratios C12H28O4Ti:CO(NH2)2 10:1 and 2:1 obtained at 50 °C and at room temperature. Two grams of the samples were added to 50 mL of a solution (20%) of isopropyl alcohol and the obtained suspension was divided into two beakers containing, respectively, 0.25 mL of methyl orange and 0.25 mL of bromothymol blue. The concentration of the dyes was approximately 6 × 10−3 M. The samples were exposed to sunlight for a few hours.
Another test was also performed for samples with the molar ratios C12H28O4Ti:CO(NH2):NH4Cl 10:1:0, 2:1:0, 10:1:0.52, and 2:1:0.52 obtained at 50 °C. The samples were prepared as previously described and the obtained suspension was deposited on ceramic tiles which were exposed to sunlight for a few hours. The use of ceramic tiles was justified by the need to simulate coatings in contact with water, for example in a swimming pool.

2.3. Bacteriological Tests

These tests were performed on ceramic tiles with samples with molar ratios of C12H28O4Ti:CO(NH2):NH4Cl 2:1:0, 2:1:0.52 at 50 °C. The tiles were introduced to contaminated water and exposed to sunlight. After predefined times (5, 30, 120, and 240 min) the solution was analyzed in order to monitor the number of bacterial strains [40].

2.4. Characterization

A mineralogical analysis was performed by X-ray powder diffraction (XRPD) measurements that were carried out for all the specimens in the 5–60°, 2θ range, employing an X’Pert PANAnalytical apparatus (PANalytical, Almeno, The Netherlands), equipped with Ni-filtered Cu Kα radiation (λ = 1.54060 Å). The identification of the crystalline phases was based on the Joint Committee on Powder Diffraction Standards (JCPDS) provided from International Centre for Diffraction Data database [41]. The crystallite size of the nanoparticles was calculated using Scherrer’s equation [42]. Morphological investigation and evaluation of the dimensions of the nanoparticles was performed by a Nova NanoSEM 450 field emission instrument (FEI CORPORATE HEADQUARTERS, Hillsboro, OR, USA).

3. Results and Discussion

The tested and related characterization results of all syntheses are reported below.

3.1. Diffractometric Analysis

The diffractograms allowed us to recognize the crystalline forms of TiO2 for the different syntheses; the original powder patterns are reported as Supplementary Materials (Figures S1–S9) and are characteristic of nanometric powders. The studied 2θ range was 5–60°, but for better interpretation we report the 2θ range between 10–50°.
We report in Table 5 and Table 6 the comparison of the most important values from the theoretical and experimental d (interplanar distance), 2θ (angles), and I% (relative intensity) for TiO2 (anatase).
Only for Synthesis 1 and 2 was it possible to recognize TiO2 in the anatase form. In particular for Synthesis 2, the peaks were more intense and best solved; consequently, this synthesis was improved (as already explained) and the results are reported in Table 6.
In all cases it was possible recognize TiO2 in the anatase form; it is also important to note that the synthesis was carried out at lower temperatures or with another dopant allowing us to obtain, again, TiO2 in the anatase form.

3.2. Morphological Analysis

In general it was possible observe that the TiO2NPs in term of distribution, shape, and dimensions were quite regular, because sometimes the nanoparticles were aggregates. We summarize the results in term of shape and distribution in Table 7.
The best conditions of synthesis (as reported in Table 7) were those with C12H28O4Ti:CO(NH2)2 in a 2:1 ratio, and obtained at 50 °C (Figure 1); the darker nanoparticles are constituted of TiO2 NPs and the clearest surrounding area is constituted of the organic matrix.
The samples with NH4Cl (as reported in Table 7) were heterogeneous with a different distribution and the presence of more aggregates (Figure 2); in fact, it is not so easy distinguish the TiO2 NPs and their dimensions.
The values of the dimensions calculated from the morphological investigation (obtained from a statistical evaluation of several images) and the diffraction analysis (Debye–Scherrer method) were reported in Table 8; these results indicated a good agreement between the two methods.

3.3. Dye Degradation Tests

In this section a qualitative approach regarding the dye degradation is reported and the results are summarized in Table 9a,b.
A similar study was carried out on ceramic tiles. This test was also extended to samples doped with NH4Cl and the results are summarized in Table 9b (in this case, there are photos, Figures S10 and S11, reported in the Supplementary Materials).

3.4. Bacteriological Tests

Ceramic tiles with a deposition of TiO2 NPs (molar ratios C12H28O4Ti:CO(NH2)2 at a ratio of 2:1, at 50 °C and C12H28O4Ti:CO(NH2)2:NH4Cl at a ratio of 2:1:0.52, at 50 °C) were introduced to the contaminated water.
Table 10a,b reported the bacterial strain values deriving from the contaminated water; for a better interpretation of the behavior with respect to the bacterial strains we also report the same results in Figure 3 and Figure 4.
Photocatalytic properties were evident in the reduction of bacterial strain Pseudomonas a.: for the other strains, fluctuations in the results do not allow us to uniquely state that they were actually effectively reduced.
In this case photocatalytic activity was not evident. We also studied the behavior of a ceramic tile without treatments and the results are reported in Table 11 and Figure 5; in this case the bacterial strain increases with time.
Thus, although there was no evidence of photocatalytic activity in the presence of NH4Cl, we can at least say that these samples did not worsen the situation.
These results led us to have clear and complete information on the characteristics of the studied materials.
First of all, the mineralogical analysis of the various samples allowed us to verify the presence of anatase and choose the best synthesis. In fact, we carried out the optimization of Synthesis 2 by varying molar ratios, temperatures and adding NH4Cl as a second dopant of nitrogen. In all cases we were able to obtain TiO2 in the anatase form.
From a morphogical evaluation we observed the formation of TiO2 NPs, almost all spherical and regularly distributed; sometimes the formation of aggregates was observed, which was especially evident with NH4Cl. These results confirm those of the mineralogical analysis and the dimension of the TiO2 NPs are about 30–40 nm, these dimensions are not considered genotoxic.
The qualitative study of the photocatalytic activity towards the two dyes in the solution and on the ceramic surface indicates that all samples allow complete degradation, except in the case of the sample with NH4Cl; the results regarding the ceramic tiles are very important because we will simulate coatings in contact with the water of a public structure.
TiO2 NPs with C12H28O4Ti:CO(NH2)2 in a ratio of 2:1 had photocatalytic properties in reducing the bacterial strain Psudomonas a.; samples with NH4Cl were not capable of leading to significant variations in the number of bacterial colonies.
Instead, as far as the synthesis with NH4Cl as a dopant is concerned, it is evident that the results are worse with respect to those without the dopant, but in term of bacteriological testing the situation is not so tragic. Consequently, this synthesis could be improved with other molar ratios, temperatures, and reaction times.

4. Conclusions

The study reported in this manuscript comes from research developed in collaboration with a company that is looking for a synthesis of TiO2 NPs that can be easily reproduced in a laboratory at the industrial scale and without dangerous products.
Consequently, the aim of this manuscript was the optimization of old syntheses of TiO2 NPs and the verification of their photocatalytic properties for water purification; several syntheses were tested and improved.
Taking into account the obtained results, it can be stated that the synthesis with the best performance of TiO2 NPs is that of molar C12H28O4Ti:CO(NH2)2 in a ratio of 2:1 and at a temperature of 50 °C.
These are easily reproducible conditions at an industrial level, with low economic impact and without dangerous products.

Supplementary Materials

The following are available online at www.mdpi.com/1996-1944/10/10/1208/s1, Figure S1: XRPD pattern of sample of Synthesis 1; Figure S2: XRPD pattern of sample of Synthesis 2; Figure S3: XRPD pattern of sample of Synthesis 3; Figure S4: XRPD pattern of sample with molar ratio C12H28O4Ti:CO(NH2)2:NH4Cl 10:1: 0, 50 °C; Figure S5: XRPD pattern of sample with molar ratio C12H28O4Ti:CO(NH2)2:NH4Cl 2:1: 0, 50 °C; Figure S6: XRPD pattern of sample with molar ratio C12H28O4Ti:CO(NH2)2:NH4Cl 10:1: 0, r.t.; Figure S7: XRPD pattern of sample with molar ratio C12H28O4Ti:CO(NH2)2:NH4Cl 2:1: 0, r.t.; Figure S8: XRPD pattern of sample with molar ratio C12H28O4Ti:CO(NH2)2:NH4Cl 10:1: 0.52, 50 °C; Figure S9: XRPD pattern of sample with molar ratio C12H28O4Ti:CO(NH2)2:NH4Cl 2:1: 0.52, 50 °C; Figure S10: Ceramic titles with molar ratio C12H28O4Ti:CO(NH2)2 10:1 (left part of image) and 2:1 (right part of image), 50 °C, before (a) and after (b) ½ hour of sunlight exposure; Figure S11: Ceramic titles with molar ratio C12H28O4Ti:CO(NH2)2:NH4Cl 10:1:0.52 (left part of image) and 2:1: 0.52 (right part of image), 50 °C, before (a) and after (b) ½ hour of sunlight exposure;

Acknowledgments

The authors thank the Barchemicals group for the realization of this project and “Centro Interdipartimentale Grandi Strumenti” (CIGS) of the University of Modena e Reggio Emilia for instrument availability and assistance.

Author Contributions

All the authors have contributed equally to the realization of work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, X.; Mao, S.S. Titanium Dioxide Nanomaterials:  Synthesis, Properties, Modifications, and Applications. Chem. Rev. 2007, 107, 2891–2959. [Google Scholar] [CrossRef] [PubMed]
  2. Shipra, M.; Gupta, E.; Manoj, T. A review of TiO2 nanoparticles. Chin. Sci. Bull. 2011, 56, 1639–1657. [Google Scholar]
  3. Lan, Y.; Lu, Y.; Ren, Z. Mini review on photocatalysis of titanium dioxide nanoparticles and their solar application. Nano Energy 2013, 2, 1031–1045. [Google Scholar] [CrossRef]
  4. Park, H.; Kim, H.I.; Moon, G.H.; Choi, W. Photoinduced charge transfer processes in solar photocatalysisbased on modified TiO2. Energy Environ. Sci. 2016, 9, 411–433. [Google Scholar] [CrossRef]
  5. Martinez, T.; Bertron, A.; Ringot, E.; Escadeillas, G. Degradation of NO using Photocatalytic coatings applied to different substates. Build. Environ. 2014, 71, 176–182. [Google Scholar]
  6. Carp, O.; Huisman, C.L.; Raller, A. Photoinduced reactivity of titanium dioxide. Prog. Solid State Chem. 2004, 32, 33–177. [Google Scholar] [CrossRef]
  7. Taoda, H. Development of TiO2 photocatalysts suitable for practical use and their application in environmental cleanup. Res. Chem. Intermed. 2008, 34, 417–426. [Google Scholar] [CrossRef]
  8. Hussain, M.; Russo, N.; Saracco, G. Photocatalytic abatement of VOCs by novel optimized TiO2 nanoparticels. Chem. Eng. J. 2011, 116, 138–149. [Google Scholar] [CrossRef]
  9. Manoj, A.L.; Shaji, V.; Santhosh, S. Photocatalytic Water Treatment by Titanium Dioxide: Recent Updates. Catalysts 2012, 2, 572–601. [Google Scholar]
  10. Motta, F.; Strini, A.; Carraro, E.; Bonetta, S. Photocatalytic bacterial inactivation by TiO2-coated surfaces. AMB Express 2013, 3, 1–8. [Google Scholar]
  11. Herrmann, J.M.; Guillard, C.; Pichat, P. Heterogeneous photocatalysis: An emerging technology for water treatment. Catal. Today 1993, 17, 7–20. [Google Scholar] [CrossRef]
  12. Ambrus, Z.; Mogyorosi, K.; Szalai, A.; Alapi, T.; Demeter, K.; Dombi, A.; Sipos, P. Substrate-dependent photocatalytic activity of nanocrystalline TiO2 with tailor-made rutile to anatase ratio. Appl. Catal. A 2008, 340, 153–161. [Google Scholar] [CrossRef]
  13. Inagaki, M.; Nakazawa, Y.; Hirano, M.; Kobayashi, Y.; Toyoda, M. Preparation of stable anatase-type TiO2 and its photocatalytic performance. Int. J. Inorg. Mater. 2001, 3, 809–811. [Google Scholar] [CrossRef]
  14. Fujishima, A.; Rao, T.N.; Tryk, D.A. Titanium dioxide photocatalysis. J. Photochem. Photobiol. C 2000, 1, 1–21. [Google Scholar] [CrossRef]
  15. Mills, A.; Hunte, S.L. An overview of semiconductor photocatalysis. J. Photochem. Photobiol. A 1997, 108, 1–35. [Google Scholar] [CrossRef]
  16. Kim, S.H.; Ngo, H.H.; Shon, H.K.; Vigneswaran, S. Adsorption and photocatalysis kinetics of herbicide onto titanium oxide and powdered activated carbon. Sep. Purif. Technol. 2008, 58, 335–342. [Google Scholar] [CrossRef][Green Version]
  17. Vo, P.T.; Ngo, H.H.; Guo, W.; Zhou, J.L.; Nguyen, P.D.; Listowski, A.; Wang, X.C. A mini-review on the impacts of climate change on wastewater reclamation and reuse. Sci. Total Environ. 2014, 494–495, 9–17. [Google Scholar]
  18. De la Cruz, N.; Romero, V.; Dantas, R.F.; Marco, P.; Bayarri, B.; Giménez, J.; Esplugas, S. o-Nitrobenzaldehyde actinometry in the presence of suspended TiO2 for photocatalytic reactors. Catal. Today 2013, 209, 209–214. [Google Scholar] [CrossRef]
  19. Zhang, G.; Kim, G.; Choi, W. Visible light driven photocatalysis mediated via ligand-to-metal charge transfer (LMCT): An alternative approach to solar activation of titania. Energy Environ. Sci. 2014, 7, 954–966. [Google Scholar] [CrossRef]
  20. De Filipo, G.; Palermo, A.M.; Rachiele, F. Preventing fungal growth in wood by titanium dioxide nanoparticles. Int. Biodeterior. Biodegrad. 2013, 85, 217–222. [Google Scholar] [CrossRef]
  21. Robertson, P.K.J.; Robertson, J.M.C.; Bahnemann, D.W. Removal of microorganism and their chemical metabolites from water using semiconductors photocatalysis. J. Hazard. Mater. 2012, 211–212, 161–171. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Dvoranova, D.; Brezova, V.; Mazur, M.; Malati, M.A. Investigation of metal-doped titanium dioxide photocatalysts. Appl. Catal. B 2002, 37, 91–105. [Google Scholar] [CrossRef]
  23. Reddy, K.M.; Baruwati, B.; Jayalakshmi, M. S-,N-and C-doped titanium dioxide nanoparticles: Synthesis, characterization and redox charge transfer study. J. Solid State Chem. 2005, 178, 3352–3358. [Google Scholar] [CrossRef]
  24. Lee, H.U.; Lee, S.C.; Choi, S.; Son, B. Efficient visible-light induced photocatalysis on nanoporous nitrogen-doped titanium dioxide catalysts. Chem. Eng. J. 2013, 228, 756–764. [Google Scholar] [CrossRef]
  25. Jo, W.K.; Kim, J. Application of visible light photocatalysis with nitrogen-doped or unmodified titanium dioxide for control of indoor-level volatile organic compounds. J. Hazard. Mater. 2009, 164, 360–366. [Google Scholar] [CrossRef] [PubMed]
  26. Zadeh, E.K.; Zebarjad, S.M.; Janghorban, K. Optimization of synthesis conditions of N-doped TiO2 nanoparticles using Taguchi robust design. Mater. Chem. Phys. 2017, 201, 69–77. [Google Scholar] [CrossRef]
  27. Mezni, A.; Saber, N.B.; Ibrahim, M.M.; Kemary, M.E.; Aldalbahi, A.; Smiri, L.S.; Altalhi, T. Facile synthesis of highly thermally stable TiO2 photocatalysts. New J. Chem. 2017, 41, 5021–5030. [Google Scholar] [CrossRef]
  28. Ojeda, M.; Kumar, D.K.; Chen, B.; Xuan, J.; Maorto-Valer, M.M.; Leung, D.Y.C.; Wang, H. Polymeric templating synthesis of Anatase TiO2 nanoparticles from low-cost inorganic titanium sources. Chem. Select 2017, 2, 702–706. [Google Scholar]
  29. Su, C.; Hong, B.Y.; Tseng, C.M. Sol-gel preparation and photocatalysis of titanium dioxide. Catal. Today 2004, 96, 119–126. [Google Scholar] [CrossRef]
  30. Yin, H.; Wada, Y.; Kitamura, T.; Kambe, S.; Murasawa, S.; Mori, H.; Sakata, T.; Yanagida, S. Hydrothermal synthesis of nanosized anatase and rutile TiO2 using amorphous phase TiO2. J. Mater. Chem. A 2001, 11, 1694–1703. [Google Scholar] [CrossRef]
  31. Yamashita, H.; Honda, M.; Harada, M.; Ichihashi, Y.; Anpo, M.; Hirao, T.; Itoh, N.; Iwamoto, N. Preparation of titanium oxide photocatalysts anchored on porous silica glass by a metal ion-implantation method and their photocatalytic reactivities for the degradation of 2-propanol diluted in water. J. Phys. Chem. B 1998, 102, 10707–10711. [Google Scholar] [CrossRef]
  32. Miao, L.; Jin, P.; Kaneko, K.; Terai, A.; Nabatova-Gabain, N.; Tanemura, S. Preparation and characterization of polycrystalline anatase and rutile TiO2 thin films by RF magnetron sputtering. Appl. Surf. Sci. 2003, 212, 255–263. [Google Scholar] [CrossRef]
  33. Kominami, H.; Kato, J.I.; Murakami, S.Y.; Kera, Y.; Inoue, M.; Inui, T.; Ohtani, B. Synthesis of titanium (IV) oxide of ultra-high photocatalytic activity: High temperature hydrolysis of titanium alkoxides with water liberated homogeneously from solvent alcohols. J. Mol. Catal. A Chem. 1999, 144, 165–171. [Google Scholar] [CrossRef]
  34. Liu, N.; Chen, X.; Zhang, J.; Schwank, J.W. A review on TiO2 based nanotubes synthetized via hydrothermal method: formation mechanism, structure modification and photocatalytic application. Catal. Today, 2014, 225, 34–51. [Google Scholar] [CrossRef]
  35. Suyama, Y.; Kato, A. TiO2 produced by vapor-phase oxygenolysis of TiCI4. J. Am. Ceram. Soc. 1976, 59, 146–149. [Google Scholar] [CrossRef]
  36. Akhtar, M.K.; Vemury, S.; Pratsinis, S.E. Competition between TiCl4 hydrolysis and oxidation and its effect on product TiO2 powder. AIChE J. 1994, 40, 1183–1192. [Google Scholar] [CrossRef]
  37. Ani, J.K.; Savithri, S.; Surender, G.D. Characteristics of titania nanoparticles synthesized through low temperature aerosol process. Aerosol Air Qual. Res. 2005, 5, 1–13. [Google Scholar]
  38. Kirkbir, F.; Komiyama, H. Low temperature synthesis of TiO2 by vapor-phase hydrolysis of titanium isopropoxide. Chem. Lett. 1988, 5, 791–794. [Google Scholar] [CrossRef]
  39. Comparelli, R.; Fanizza, E.; Curri, M.L. Photocatalytic degradation of azo dyes by organic-capped anatase TiO2 nanocrystals immobilized onto substrates. Appl. Catal. B Environ. 2005, 55, 81–91. [Google Scholar] [CrossRef]
  40. International Organization for Standardization (ISO). Quanti-Tray®, Standard 9308-2:2012; ISO: Geneva, Switzerland, 2012. [Google Scholar]
  41. JCPDS (Joint Committee on Powder Diffraction Standards) International Center for Diffraction Data. PCPFWIN, version 2.3; JCPDS International Center for Diffraction Data: Swarthmore, PA, USA, 2002. [Google Scholar]
  42. Patterson, A. The scherrer formula for X-ray particle size determination, Phys. Rev. 1939, 56, 978–982. [Google Scholar]
Figure 1. Field Emission Scanning Electron Micrograph (FESEM) of TiO2 NPs with C12H28O4Ti:CO(NH2)2 at a ratio of 2:1, at 50 °C.
Figure 1. Field Emission Scanning Electron Micrograph (FESEM) of TiO2 NPs with C12H28O4Ti:CO(NH2)2 at a ratio of 2:1, at 50 °C.
Materials 10 01208 g001
Figure 2. FESEM micrograph of TiO2 NPs with C12H28O4Ti:CO(NH2)2:NH4Cl at a ratio of 2:1:0.52, at 50 °C.
Figure 2. FESEM micrograph of TiO2 NPs with C12H28O4Ti:CO(NH2)2:NH4Cl at a ratio of 2:1:0.52, at 50 °C.
Materials 10 01208 g002

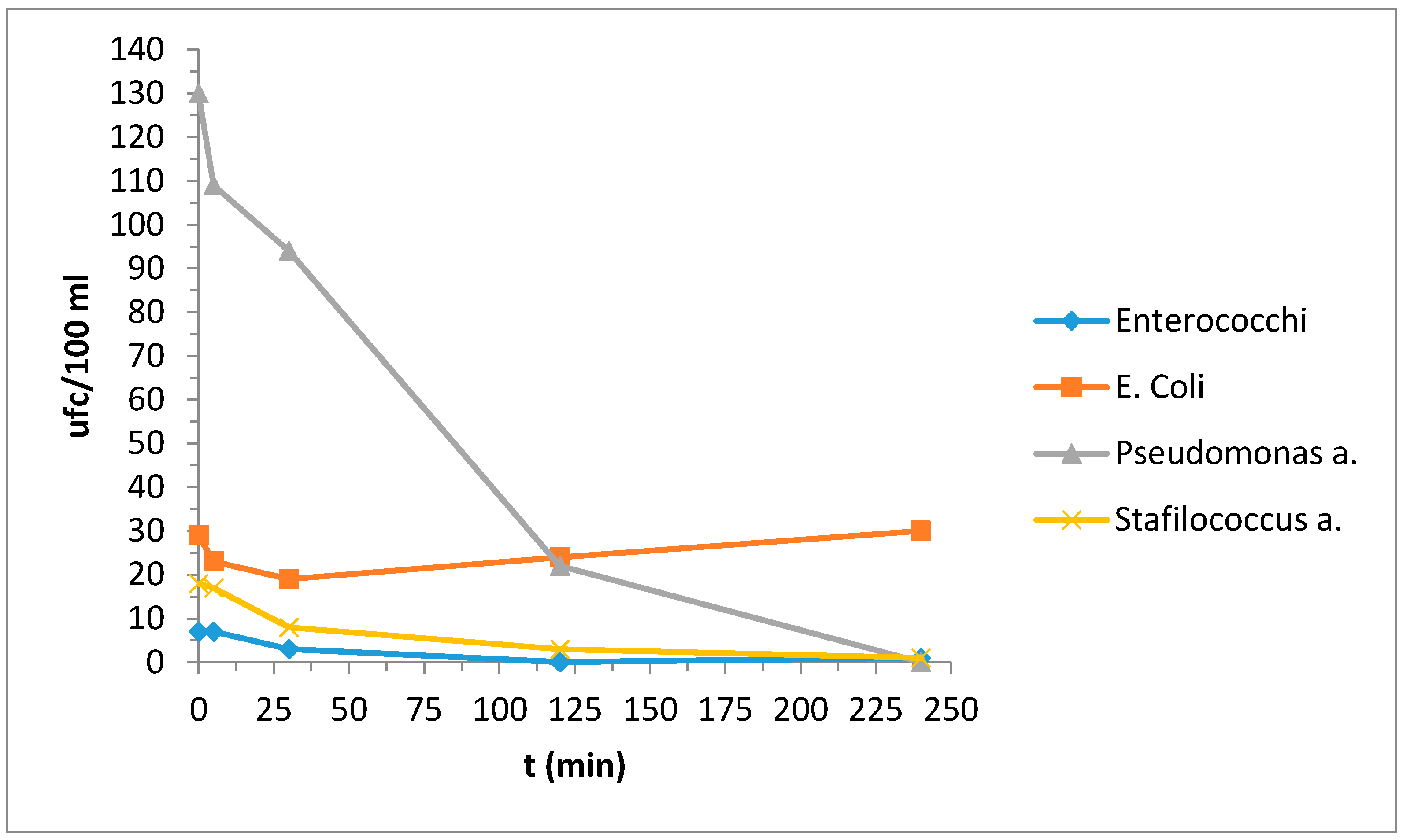

Figure 3. Evaluation of the concentration of the bacterial strains as a function of time.
Figure 3. Evaluation of the concentration of the bacterial strains as a function of time.
Materials 10 01208 g003
Figure 4. Evaluation of the concentration of the bacterial strains as a function of time.
Figure 4. Evaluation of the concentration of the bacterial strains as a function of time.
Materials 10 01208 g004

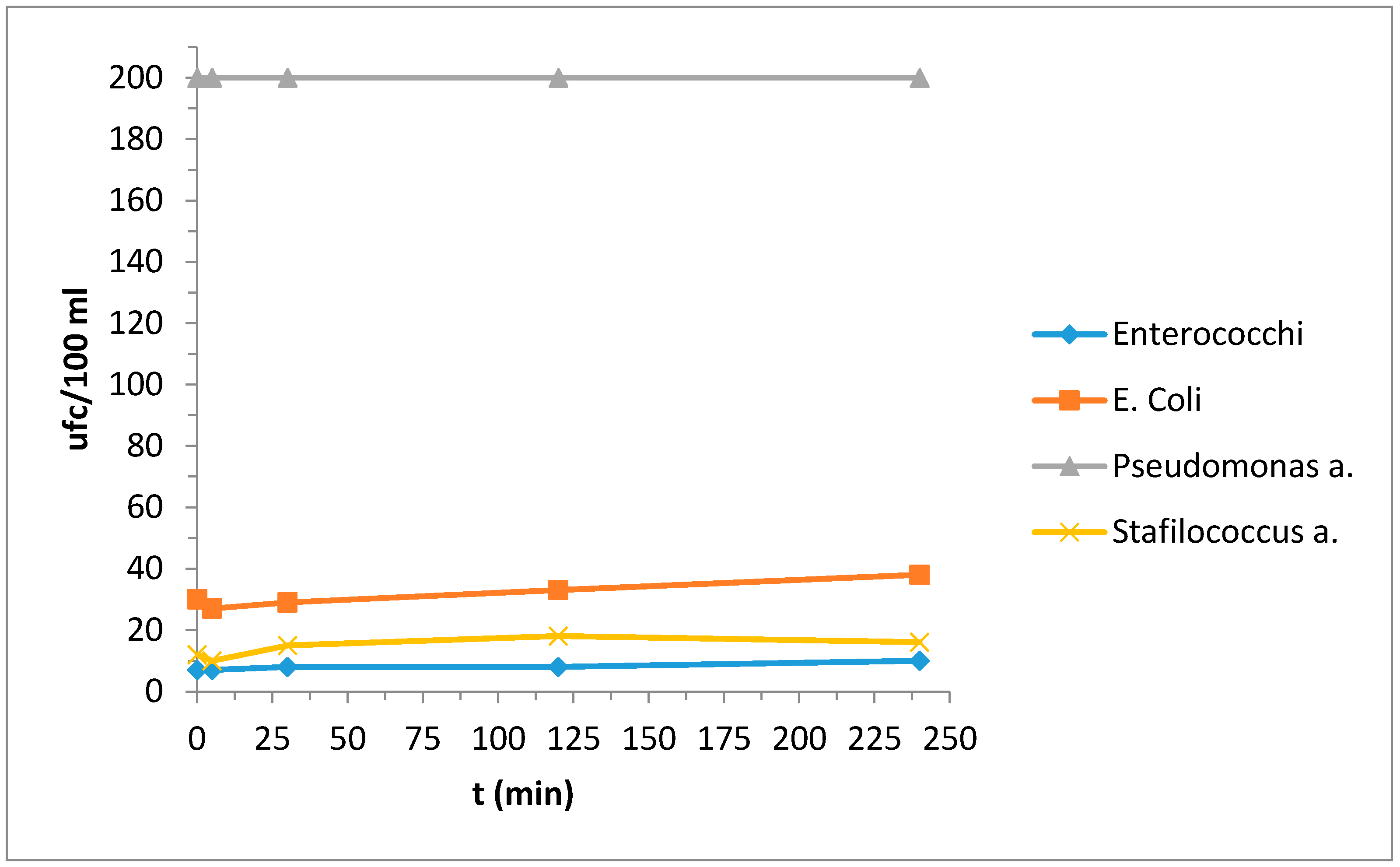

Figure 5. Evaluation of the concentration of the bacterial strains as a function of time.
Figure 5. Evaluation of the concentration of the bacterial strains as a function of time.
Materials 10 01208 g005
Table 1. Reagents for Synthesis 1.
Table 1. Reagents for Synthesis 1.
CompoundsAmounts
TiCl45 mL
C2H5OH50 mL
H2O200 mL
Table 2. Reagents for Synthesis 2.
Table 2. Reagents for Synthesis 2.
CompoundsAmounts
C12H28O4Ti50 mL
H2O200 mL
CO(NH2)21 g
Table 3. Reagents for Synthesis 3.
Table 3. Reagents for Synthesis 3.
CompoundsAmounts
C12H28O4Ti3.17 mL
C3H8O9.50 mL
CH3COOH10 mL
CH3OH24 mL
Table 4. Reagents for Synthesis 4.
Table 4. Reagents for Synthesis 4.
Molar Ratios C12H28O4Ti:CO(NH2)2:NH4ClCompoundsAmounts
10:1:0C12H28O4Ti50 mL
CO(NH2)21 g
H2O200 mL
2:1:0C12H28O4Ti50 mL
CO(NH2)25 g
H2O200 mL
10:1:0.52C12H28O4Ti10 mL
CO(NH2)20.2 g
NH4Cl0.95 g
H2O40 mL
2:1:0.52C12H28O4Ti10 mL
CO(NH2)240 mL
NH4Cl0.2 g
H2O1.02 g
Table 5. Theoretical and experimental values for diffraction analysis.
Table 5. Theoretical and experimental values for diffraction analysis.
AnataseSynthesis 1Synthesis 2Synthesis 3
d (Å)I (%)I (%)I (%)I (%)
3.5225.25100100100
1.8947.97351423
2.3837.80282532
Table 6. Theoretical and experimental values for the diffraction analysis.
Table 6. Theoretical and experimental values for the diffraction analysis.
AnataseSynthesis 4 Molar Ratio C12H28O4Ti:CO(NH2)2:NH4Cl Temperature
10:1:0 50 °C2:1:0 50 °C10:1:0 r.t.2:1:0 r.t.10:1:0.52 50 °C2:1:0.52 50 °C
d (Å)I (%)I (%)
3.5225.25100100100100100100100
1.8947.9735322948192061
2.3837.8028323070271957
Table 7. Morphological characteristic of TiO2 NPs.
Table 7. Morphological characteristic of TiO2 NPs.
Molar Ratio, C12H28O4Ti:CO(NH2)2:NH4Cl Temperature
10:1:0 50 °C2:1:0 50 °C10:1:0 r.t.2:1:0 r.t.10:1:0.52 50 °C2:1:0.52 50 °C
ShapeIrregularSphericalIrregularSphericalQuite sphericalQuite spherical
DistributionIrregular, aggregatesRegularIrregular, aggregatesIrregular, aggregatesIrregular, aggregatesIrregular, aggregates
Table 8. Dimensions of TiO2 NPs calculated with FESEM and XRD analyses.
Table 8. Dimensions of TiO2 NPs calculated with FESEM and XRD analyses.
Molar Ratios, C12H28O4Ti:CO(NH2)2:NH4Cl Temperature
10:1:0 50 °C2:1:0 50 °C10:1:0 r.t.2:1:0 r.t.10:1:0.52 50 °C2:1:0.52 50 °C
XRD (nm)272727272828
FESEM (nm)303040404030
Table 9. (a) Qualitative evaluation of the dye degradation for C12H28O4Ti:CO(NH2)2; (b) Qualitative evaluation of the dye degradation for C12H28O4Ti:CO(NH2)2:NH4Cl.
Table 9. (a) Qualitative evaluation of the dye degradation for C12H28O4Ti:CO(NH2)2; (b) Qualitative evaluation of the dye degradation for C12H28O4Ti:CO(NH2)2:NH4Cl.
(a)
Molar RatiosDyes
Methyl OrangeBromothymol Blue
10:1 50 °CTotal degradation after two hoursTotal degradation after two hours
2:1 50 °CTotal degradation after four hoursTotal degradation after four hours
10:1 r.t.Total degradation after one hourTotal degradation after one hour
2:1 r.t.Partial degradation after four hoursPartial degradation after four hours
(b)
Molar RatiosDyes
Methyl OrangeBromothymol Blue
10:1:0Low degradationTotal degradation after ½ h
2:1:0Total degradation after ½ hTotal degradation after ½ h
10:1:0.52No degradationNo degradation
2:1:0.52No degradationLow degradation
Table 10. (a) Bacterial strains (ufc/100 mL) for C12H28O4Ti:CO(NH2)2 at a ratio of 2:1, at 50 °C; (b) Bacterial strains (ufc/100 mL) for C12H28O4Ti:CO(NH2)2:NH4Cl at a ratio of 2:1:0.52, at 50 °C.
Table 10. (a) Bacterial strains (ufc/100 mL) for C12H28O4Ti:CO(NH2)2 at a ratio of 2:1, at 50 °C; (b) Bacterial strains (ufc/100 mL) for C12H28O4Ti:CO(NH2)2:NH4Cl at a ratio of 2:1:0.52, at 50 °C.
(a)
Bacterial Strainst (min)
0530120240
Enterococchi77301
E. coli2923192430
Pseudomonas a.13010994220
Stafilococcus a.1817831
(b)
Bacterial Strainst (min)
0530120240
Enterococchi73313
Escherichia coli292115815
Pseudomonas a.200200200200130
Stafilococcus a.33335
Table 11. Bacterial strains (ufc/100 mL).
Table 11. Bacterial strains (ufc/100 mL).
Bacterial Coloniest (min)
0530120240
Enterococchi778810
Escherichia coli3027293338
Pseudomonas aeruginosa200200200200200
Stafilococcus aureus1210151816

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
