Energies 2016, 9(7), 512; https://doi.org/10.3390/en9070512

Letter
Inductive Power Transfer Systems for Bus-Stop-Powered Electric Vehicles
Department of Electrical Engineering, Chung Hua University, Hsinchu 30012, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Chunhua Liu
Received: 20 February 2016 / Accepted: 20 June 2016 / Published: 30 June 2016

Abstract

:
This study presents an inductive power transfer (IPT) system for electric vehicles (EVs) based on EE-shaped ferrite cores. The issues of the IPT system such as efficiency, air gap, displacement, dislocation, and motion are discussed. Furthermore, finite element analysis software is utilized to simulate the IPT system operated under large air gap conditions. Simulation and measurement results are presented to validate the performance of the proposed scheme and meet the requirements for bus-stop-powered EVs.
Keywords:
inductive power transfer; bus-stop-powered; electric vehicles

1. Introduction

As the air pollution problems caused by gasoline-powered vehicles have become more and more serious, electric vehicles (EVs) [1,2,3] or hybrid EVs have been regarded as good solutions and gained increasing attention. However, the batteries used in EVs or hybrid EVs have some significant disadvantages, such as high cost and heaviness, limited capacitance and charging/discharging cycles, and long charging time, etc. The roadway-powered EVs [4,5,6,7,8] scheme has therefore been discussed to reduce the battery capacitance and to extend the driving range. This study would like to furthermore present the inductive power transfer (IPT) system [9,10,11,12,13] for bus-stop-powered EVs [14] with much less cost than the roadway-powered EVs system.
Figure 1 shows the IPT system for bus-stop-powered EVs or hybrid EVs. The active front-end (AFE) converter is utilized as interface between the AC voltage grid and DC voltage grid. The advantages of the AFE converter are bidirectional power flow and low total harmonic distortion (THD) of the line current. The primary side of the IPT system is DC-AC H-bridge inverters. The multi-H-bridge inverters are utilized to increase the transfer power and efficiency of the IPT system. The secondary side of the IPT system is a pick-up coil and receiver built in the EVs or hybrid EVs. The IPT receiver is utilized to charge up battery or supply power to motor through the inverter. The IPT system for moving EVs or hybrid EVs is convenient for charging up battery and could also extend driving range. Furthermore, the position regulation sensors of the IPT system are utilized to control the operation of multi-H-bridge inverters and improve the efficiency of the IPT system.

2. Inductive Power Transfer System

Figure 2 shows the simplified IPT system based on EE-shaped ferrite cores for bus-stop-powered EVs or hybrid EVs. As shown in Figure 2a, the DC bus voltage is Vdc, the DC-AC H-bridge inverter is utilized to generate the high frequency square wave voltage Vin. The EE-shaped ferrite cores are utilized to transfer the power to secondary side load (by pick-up coil and receiver). The primary inductance and secondary inductance are Lp and Ls. The mutual inductance is M (=Lm). The coupling coefficient (k) is defined as in (1):
k = M L P L S
As shown in Figure 2b, the dimensions of the EE-shaped cores are A (80 mm), B (38 mm), C (20 mm), D (28 mm), E (59 mm), F (20 mm), G (F/2), H (E/2–F/2), and I (A/4–E/4). The material of the EE-shaped cores is 3C90 made by Ferroxcube (New Taipei City, Taiwan, R.O.C.). The relative permeability is 2300 (permeability of free space: 4π × 10−7 H/m). Figure 2c shows the equivalent circuit of the primary series resonant and secondary parallel resonant (SP) topology IPT system and Figure 2d shows the secondary parallel resonant (P) topology IPT system, respectively.
The mutual inductance is M (=Lm) and the equivalent resistance of core loss is Rm. The primary and secondary leakage inductances are Llp and Lls as in (2).
Llp = (1−k)Lp, Lls = (1−k)Ls
The primary and secondary resistances are rp and rs. The load is simplified as RL. The primary series resonant capacitor is CP and the secondary parallel resonant capacitor is Cs. The transfer function of the SP topology IPT system is given as in (3):
v o u t ( s ) v i n ( s ) = s 2 × C P × L m × R L / [ R m × ( R L + r S ) ] ( 1 + s p H ) × ( 1 + 2 ζ 1 ω n 1 s + s 2 ω n 1 2 ) × ( 1 + 2 ζ 2 ω n 2 s + s 2 ω n 2 2 )
The pole (s = −PH) operated at the high frequency domain is as in (4):
p H = R m × ( 1 L l p + 1 L l s + 1 L m )
The complex-conjugate poles operated at the low frequency domain are as in (5):
s = ( ζ 1 ± j 1 ζ 1 2 ) ω n 1
where the damping ratio is ζ 1 = r P C P ω n 1 / 2 , natural undamped frequency is ω n 1 = 1 / C P ( L l p + L m ) and resonant frequency is ω r 1 = 1 ζ 1 2 ω n 1 , respectively.
The complex-conjugate poles operated at the middle frequency domain are as in (6):
s = ( ζ 2 ± j 1 ζ 2 2 ) ω n 2
where the damping ratio is ζ 2 = 1 / 2 R L C S ω n 2 , natural undamped frequency is ω n 2 = ( 1 + r S / R L ) C S ( L l s + L l p × L m L l p + L m ) and resonant frequency is ω r 2 = 1 ζ 2 2 ω n 2 , respectively.
According to (3), the transfer function of the IPT system with P topology is reduced as in (7):
v o u t ( s ) v i n ( s ) = s × L m × R L / ( r P × ( R L + r S ) ) ( 1 + s p L ) × ( 1 + s p H ) × ( 1 + 2 ζ 2 ω n 2 s + s 2 ω n 2 2 )
The high frequency pole (s = −PH) is as in (4) and the low frequency pole (s = −PL) is as in (8):
p L = r P / ( L l p + L m )
The complex-conjugate poles operated at the middle frequency domain are as in (9):
s = ( ζ ± j 1 ζ 2 ) ω n
where the damping ratio is ζ = 1 / 2 R L C S ω n , natural undamped frequency is ω n = ( 1 + r S / R L ) C S ( L l s + L l p × L m L l p + L m ) and resonant frequency is ω r = 1 ζ 2 ω n , respectively.
According to (3) and (7), there are two pairs of resonant poles in the SP topology IPT system and one pair of resonant poles in the P topology IPT system.

3. Frequency Response of the IPT System

The parameters of the IPT system are as follows: the primary inductance and secondary inductance are Lp (325 μH) and Ls (325 μH). The primary series resonant capacitor is CP (0.2 μF) and the secondary parallel resonant capacitor is Cs (0.2 μF). The resistances rp and rs are 0.72 Ω. The load resistance RL is 100 Ω.
Figure 3 shows the frequency response of the IPT system based on EE-shaped cores with varied air gap (fsw: 10–100 kHz). In SP topology, the resonant frequencies ωr1 and ωr2 move to each other as the air gap is increased as shown in Figure 3a. In P topology, the resonant peak value is decreased as the air gap is increased as shown in Figure 3b. Therefore, the SP topology is suitable for a large air gap IPT system and the P topology suits a small air gap IPT system. The coupling coefficient and resonant frequency of the IPT system with varied air gap are given in Table 1.
Figure 3c shows the input power and output power of the SP topology IPT system with varied air gap (test results; Vdc: 30 V). The resonant frequencies of the IPT system are 15 kHz (ωr1) and 23 kHz (ωr2) under air gap 5 mm, 17 kHz (ωr1) and 22 kHz (ωr2) under air gap 10 mm, and 20 kHz (ωr1,2) under air gap 20 mm, respectively. The input power and output power are increased and the efficiency is decreased as air gap increased. The measurement results of the SP topology IPT system are given in Table 2. Figure 3d shows the input power and output power of the P topology IPT system with varied air gap (test results; Vdc: 30 V). The input power, output power, and the efficiency are decreased as air gap increased. The measurement results of the P topology IPT system are given in Table 2. As shown in Figure 3, the measurement results agree with the simulation results produced by using MATLAB.

4. Simulation and Experimental Results

Figure 4 shows the prototype of measurement for the P topology IPT system operated at small air gap. The multi-H-bridge inverters are utilized to increase the transfer power and efficiency of the P topology IPT system as shown in Figure 4a. The X-Z table and controller are utilized to move the pick-up coil and IPT receiver along the X-axis as shown in Figure 4b. The parameters of measurement are the same as Section 3. The issues of the IPT system [13] such as efficiency, air gap (Z-axis), displacement (X-axis), dislocation (Y-axis), and motion (X-axis) are discussed as follow:

4.1. Air Gap

Figure 5 shows the efficiency, input power, and output power of the P topology IPT system based on one H-bridge inverter with varied air gap and operating frequency. The switching frequency (fsw) is from 10 kHz to 100 kHz. As shown in Figure 5a, for various operating frequencies, the IPT system exhibits superior performance at the resonant frequency (20 kHz). The efficiency of the IPT system is decreased by increased operating frequency. Table 3 shows the efficiency, input power, and output power of the P topology IPT system at 20 kHz. The maximum efficiency of the IPT system is 93% at air gap 5 mm. Figure 5b shows the efficiency, input power, and output power of the IPT system with varied air gap from 5 mm to 65 mm (fsw: 20 kHz). The efficiency, input power, output power, and power loss of the IPT system are 50.9%, 49.5 W, 25.2 W, and 24.3 W (gap: 21 mm). The performances of the P topology IPT system are increased by a decreased air gap.
Figure 5c shows the efficiency of the P topology IPT system with varied load 50–1000 Ω (Vdc: 150 V; fsw: 20 kHz). The efficiency, input power, and output power of the P topology IPT system are 85%, 150 W, and 128 W under load 100 Ω (gap: 10 mm). The efficiency, input power, and output power of the P topology IPT system are 79%, 150 W, and 119 W under load 200 Ω (gap: 15 mm). The efficiency, input power, and output power of the P topology IPT system are 72%, 120 W, and 86 W under load 300 Ω (gap: 20 mm). The efficiency of the P topology IPT system is affected by the load and air gap.

4.2. Displacement

The displacement is defined as moving along the X-axis. Figure 6 shows the displacement effect of the IPT system based on one H-bridge inverter with varied air gap from 5 mm to 40 mm (fsw: 20 kHz). Table 4 shows the efficiency, input power, output power, and power loss of the IPT system. Table 4 is for displacements of 10 mm and 20 mm, respectively. The performances of the IPT system are increased by decreased displacement.

4.3. Dislocation

The dislocation is defined as moving along the Y-axis. Figure 7 shows the dislocation effect of the IPT system based on one H-bridge inverter with varied air gap from 5 mm to 40 mm (fsw: 20 kHz). The dislocation effect of the IPT system with varied air gap is given in Table 5. Table 5 is for dislocations of 10 mm and 20 mm, respectively. The performances of the IPT system are increased by decreased dislocation.

4.4. Motion

As shown in Figure 4, three H-bridge inverters are connected with each primary E-shaped core and are utilized to transfer power to a secondary E-shaped core. The width of E-shaped core is C = 20 mm (Figure 2b). The space of each primary E-shaped core is 20 mm (Table 4). The three operation modes of three H-bridge inverters are controlled by position regulation sensors. The mode 1H is designed as one H-bridge inverter operated each time; mode 2H, two H-bridge inverters; mode 3H, three H-bridge inverters, respectively. The operating range of mode 1H for each H-bridge inverter is 40 mm without overlap as moving along X-axis. The total operating range of mode 1H for three H-bridge inverters is 120 mm. The operating range of mode 2H for each H-bridge inverter is 80 mm as moving along X-axis. The nearby two H-bridge inverters are operated with 40 mm overlap. The total operating range of mode 2H for three H-bridge inverters is 160 mm. The operating range of mode 3H for three H-bridge inverters are the same range 140 mm as moving along the X-axis.
Figure 8 shows the efficiency, input power, and output power of the IPT system in motion. The air gaps of the IPT system are 10 mm (Figure 8a) and 20 mm (Figure 8b) as moving along the X-axis. As shown in Figure 8a,b, comparing modes 1H, 2H, and 3H, the efficiency, input power, and output power of mode 1H vary seriously due to each H-bridge inverter being operated without overlap; the input power of mode 3H is high, but the efficiency of mode 3H is low due to the wide operating range for three H-bridge inverters; the efficiency, input power, and output power of mode 2H are high and stable due to the adequate overlap operation for three H-bridge inverters. The motion effect of the IPT system as moving along X-axis is given in Table 6 (mode 1H), Table 7 (mode 2H), and Table 8 (mode 3H), respectively. The efficiency, input power, and output power of mode 2H are 76%, 224 W, and 169 W (air gap: 10 mm; X-axis: 0 mm) and 51%, 107 W, and 54.1 W (air gap: 20 mm; X-axis: 0 mm). Among mode 1H, 2H, and 3H, mode 2H exhibits superior performances of the IPT system and meets the requirements for bus-stop-powered EVs.
Figure 9 shows the waveforms of the P topology IPT system operated at mode 1H. As shown in Figure 4b, the X-Z table is utilized to move the secondary E-shaped core along the X-axis at a speed of 16.7 cm/s. The time intervals of T1, T2, and T3 are 0.24 s. The mode 1H is designed as one H-bridge inverter operated at each time interval. Therefore, voltage (vs) and current (is) waveforms of the IPT system are varied seriously.
Figure 10 shows the waveforms of the P topology IPT system operated at mode 2H (speed: 16.7 cm/s). The time intervals of T1, T2, T3, and T4 are 0.24 s. The voltage (vs) and current (is) waveforms of mode 2H are high and stable due to the adequate overlap operation for three H-bridge inverters. Compared Figure 10 (mode 2H) with Figure 9 (mode 1H), mode 2H exhibits high efficiency 76%, stable input power and output power. Therefore, the P topology IPT system operated at mode 2H is validated to meet the requirements for bus-stop-powered EVs.

5. IPT System Operated at Large Air Gap

The IPT system operated at large air gap is restricted by the EE-shaped ferrite cores used. Therefore, finite element analysis (FEA) software is utilized to validate the performances of the proposed scheme. Figure 11 shows the IPT system based on the FEA software. According to Figure 2b, and Figure 11a which shows the 3D model of the EE-shaped ferrite cores, the dimensions are A (760 mm), B (30 mm), C (760 mm), D (20 mm), E (720 mm), F (40 mm), G (F/2), H (E/2–F/2), and I (A/4–E/4). The air gap between the EE-shaped cores is 150 mm. The material of the EE-shaped cores is 3C90 made by Ferroxcube. Figure 11b shows the circuit of the SP topology based on the FEA software. The primary and secondary excitation windings are 11 turns and 11 turns, respectively. The primary and secondary inductances are Lp (147 μH) and Ls (147 μH). The primary series capacitor and secondary parallel capacitor are Cp (0.43 μF) and Cs (0.43 μF). Therefore, the resonant frequency is designed as 20 kHz.
Figure 12a,b show the waveforms of the SP topology IPT system based on FEA. As shown in Figure 12a, the input voltage is a square wave with amplitude 300 V and the output voltage is a sinusoidal wave with amplitude 793 V. The amplitudes of the input current and output current are 41 A and 43 A as shown in Figure 12b. The efficiency, input power, and output power of the SP topology IPT system are 80%, 3930 W, and 3136 W, respectively.
Figure 12c,d show the waveforms of the P topology IPT system based on FEA. As shown in Figure 12c, the input voltage is a square wave with amplitude 300 V and the output voltage is a sinusoidal wave with amplitude 432 V. The amplitudes of the input current and output current are 25.5 A and 23 A as shown in Figure 12d. The efficiency, input power, and output power of the P topology IPT system are 59.8%, 1560 W, and 934 W, respectively. Comparing the SP topology (Figure 12a,b) with the P topology (Figure 12c,d), the IPT system adopting a SP topology exhibits superior performances under large (150 mm) air gap conditions.

6. Conclusions

This study discusses the IPT system based on EE-shaped ferrite cores. The transfer function and frequency response of the SP topology and P topology IPT systems are presented. The SP topology is suitable for large air gaps and the P topology is suitable for small air gaps. The issues of the IPT system such as efficiency, air gap, displacement, dislocation, and motion are discussed. Finite element analysis is utilized to validate the SP topology IPT system operated under large air gap conditions. Furthermore, multi-H-bridge inverters are utilized to increase the transfer power of the IPT system. The three operation modes (1H, 2H, and 3H) of three H-bridge inverters are controlled by position regulation sensors. Among mode 1H, 2H, and 3H, mode 2H exhibits superior performance in the IPT system and meets the requirements for bus-stop-powered EVs.

Acknowledgments

This work was supported by the Ministry of Science and Technology of R.O.C. under grant MOST 103-2221-E-216-008.

Author Contributions

Chung-Chuan Hou modeled the system, analyzed the experimental data, wrote the draft and revised the paper; Kuei-Yuan Chang established the experimental platform, measured and analyzed the experimental data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Miller, J.M.; Onar, O.C.; Chinthavali, M. Primary-side power flow control of wireless power transfer for electric vehicle charging. IEEE J. Emerg. Sel. Top. Power Electron. 2015, 3, 147–162. [Google Scholar] [CrossRef]
  2. Wang, C.; Stielau, O.H.; Covic, G.A. Design considerations for a contactless electric vehicle battery charger. IEEE Trans. Ind. Electron. 2005, 52, 1308–1314. [Google Scholar] [CrossRef]
  3. Li, S.; Mi, C.C. Wireless power transfer for electric vehicle applications. IEEE J. Emerg. Sel. Top. Power Electron. 2015, 3, 4–17. [Google Scholar]
  4. Choi, S.Y.; Gu, B.W.; Jeong, S.Y.; Rim, C.T. Advances in wireless power transfer systems for roadway-powered electric vehicles. IEEE J. Emerg. Sel. Top. Power Electron. 2015, 3, 18–36. [Google Scholar] [CrossRef]
  5. Zhang, W.; Wong, S.; Tse, C.K.; Chen, Q. An optimized track length in roadway inductive power transfer systems. IEEE J. Emerg. Sel. Top. Power Electron. 2014, 2, 598–608. [Google Scholar] [CrossRef]
  6. Shin, J.; Shin, S.; Kim, Y.; Ahn, S.; Lee, S.; Jung, G.; Jeon, S.; Cho, D. Design and implementation of shaped magnetic-resonance-based wireless power transfer system for roadway-powered moving electric vehicles. IEEE Trans. Ind. Electron. 2014, 61, 1179–1192. [Google Scholar] [CrossRef]
  7. Chen, L.; Nagendra, G.R.; Boys, J.T.; Covic, G.A. Double-coupled systems for IPT roadway applications. IEEE J. Emerg. Sel. Top. Power Electron. 2015, 3, 37–49. [Google Scholar] [CrossRef]
  8. Nagendra, G.R.; Chen, L.; Covic, G.A.; Boys, J.T. Detection of EVs on IPT highways. IEEE J. Emerg. Sel. Top. Power Electron. 2014, 2, 584–597. [Google Scholar] [CrossRef]
  9. Kurs, A.; Karalis, A.; Moffatt, R.; Joannopoulos, J.D.; Fisher, P.; Soljacic, M. Wireless power transfer via strongly coupled magnetic resonances. Science 2007, 317, 83–86. [Google Scholar] [CrossRef] [PubMed]
  10. Zhang, W.; Wong, S.; Tse, C.K.; Chen, Q. Analysis and comparison of secondary series- and parallel-compensated inductive power transfer systems operating for optimal efficiency and load-independent voltage-transfer ratio. IEEE Trans. Power Electron. 2014, 29, 2979–2990. [Google Scholar] [CrossRef]
  11. Aldhaher, S.; Luk, P.C.; Whidborne, J.F. Electronic tuning of misaligned coils in wireless power transfer systems. IEEE Trans. Power Electron. 2014, 29, 5975–5982. [Google Scholar] [CrossRef]
  12. Pantic, Z.; Lee, K.; Lukic, S.M. Multifrequency inductive power transfer. IEEE Trans. Power Electron. 2014, 29, 5995–6005. [Google Scholar] [CrossRef]
  13. Pinuela, M.; Yates, D.C.; Lucyszyn, S.; Mitcheson, P.D. Maximizing dc-to-load efficiency for inductive power transfer. IEEE Trans. Power Electron. 2013, 28, 2437–2447. [Google Scholar] [CrossRef][Green Version]
  14. Musavi, F.; Eberle, W. Overview of wireless power transfer technologies for electric vehicle battery charging. IET Power Electron. 2013, 7, 60–66. [Google Scholar] [CrossRef]

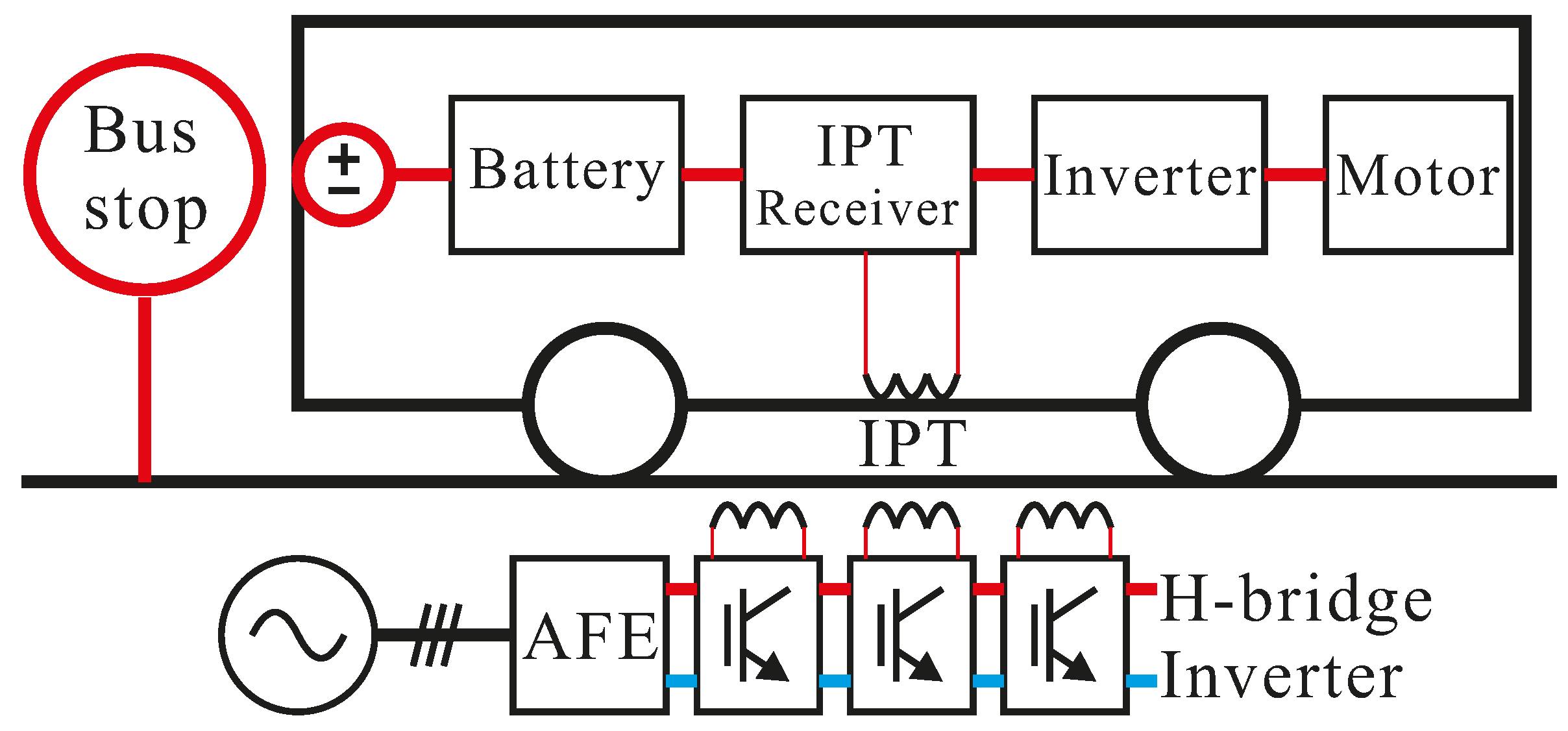

Figure 1. Inductive power transfer system for bus-stop-powered EVs or hybrid EVs.
Figure 1. Inductive power transfer system for bus-stop-powered EVs or hybrid EVs.
Energies 09 00512 g001

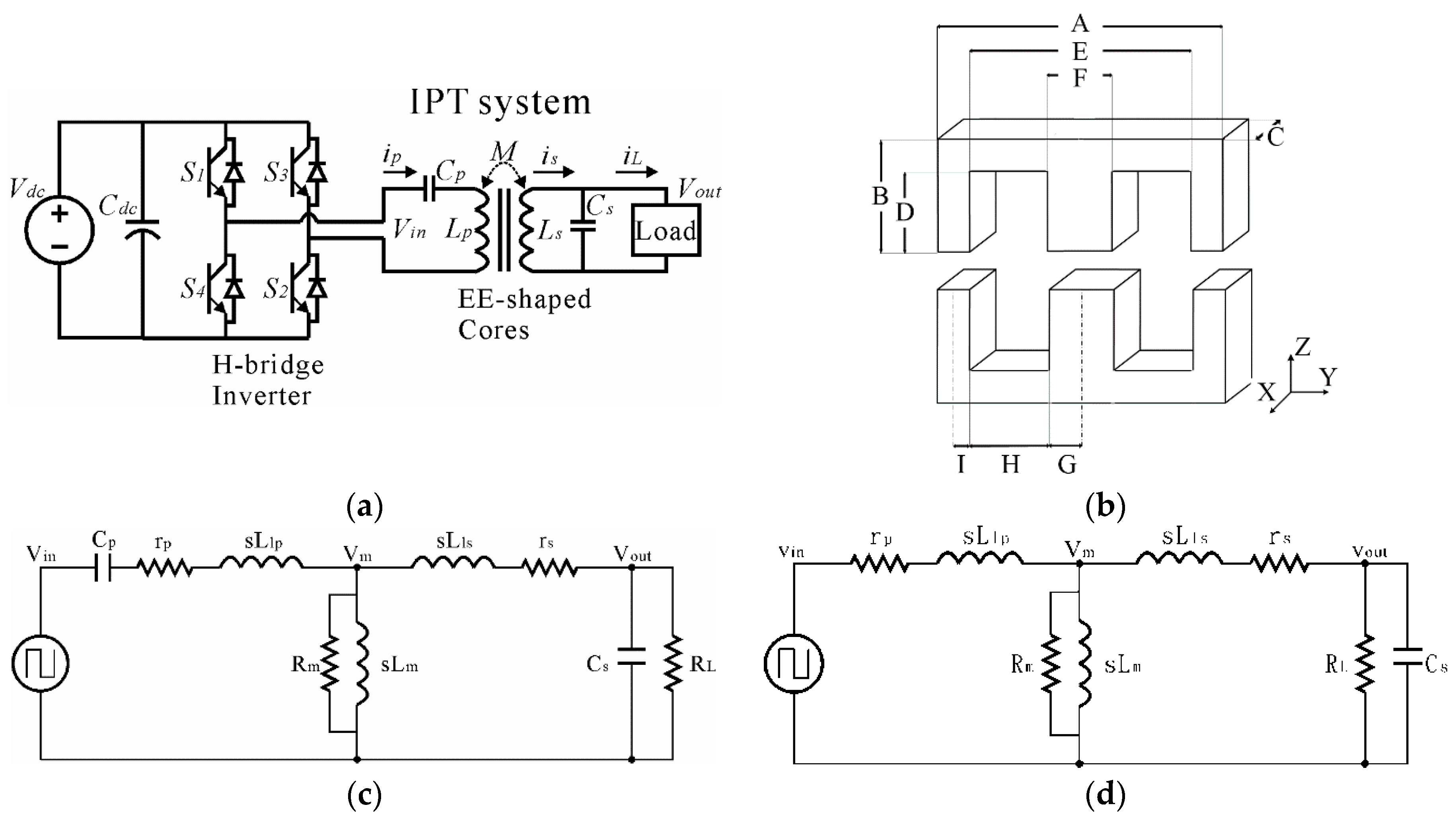

Figure 2. Simplified inductive power transfer system. (a) Circuit of the IPT system; (b) EE-shaped cores; (c) Equivalent circuit of the SP topology; (d) Equivalent circuit of the P topology.
Figure 2. Simplified inductive power transfer system. (a) Circuit of the IPT system; (b) EE-shaped cores; (c) Equivalent circuit of the SP topology; (d) Equivalent circuit of the P topology.
Energies 09 00512 g002

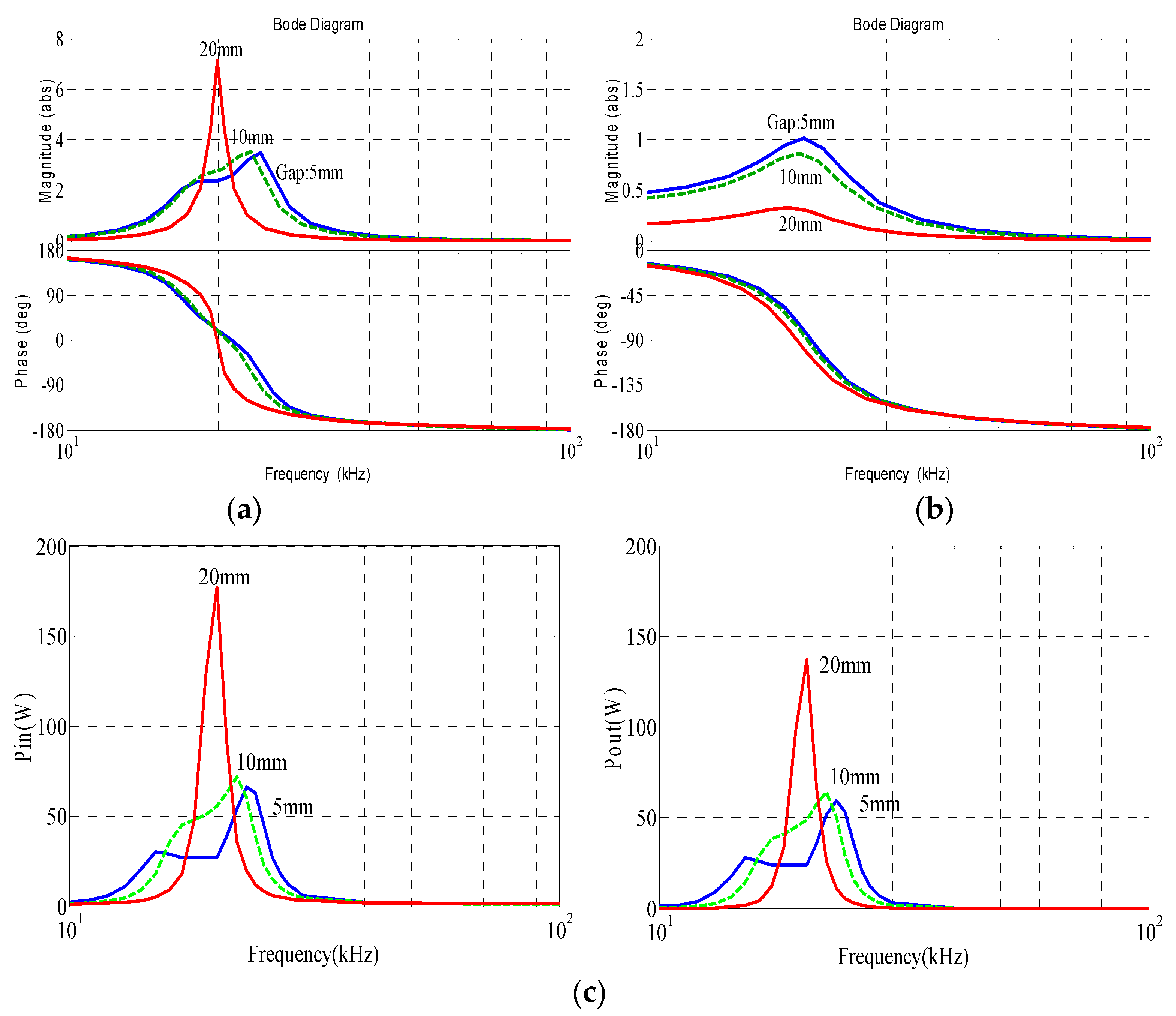

Figure 3. Frequency response of the IPT system based on EE-shaped cores with varied air gap. (a) SP topology (MATLAB); (b) P topology (MATLAB); (c) Input power and output power of SP topology (test results; Vdc: 30 V); (d) Input power and output power of P topology (test results; Vdc: 30 V).
Figure 3. Frequency response of the IPT system based on EE-shaped cores with varied air gap. (a) SP topology (MATLAB); (b) P topology (MATLAB); (c) Input power and output power of SP topology (test results; Vdc: 30 V); (d) Input power and output power of P topology (test results; Vdc: 30 V).
Energies 09 00512 g003aEnergies 09 00512 g003b

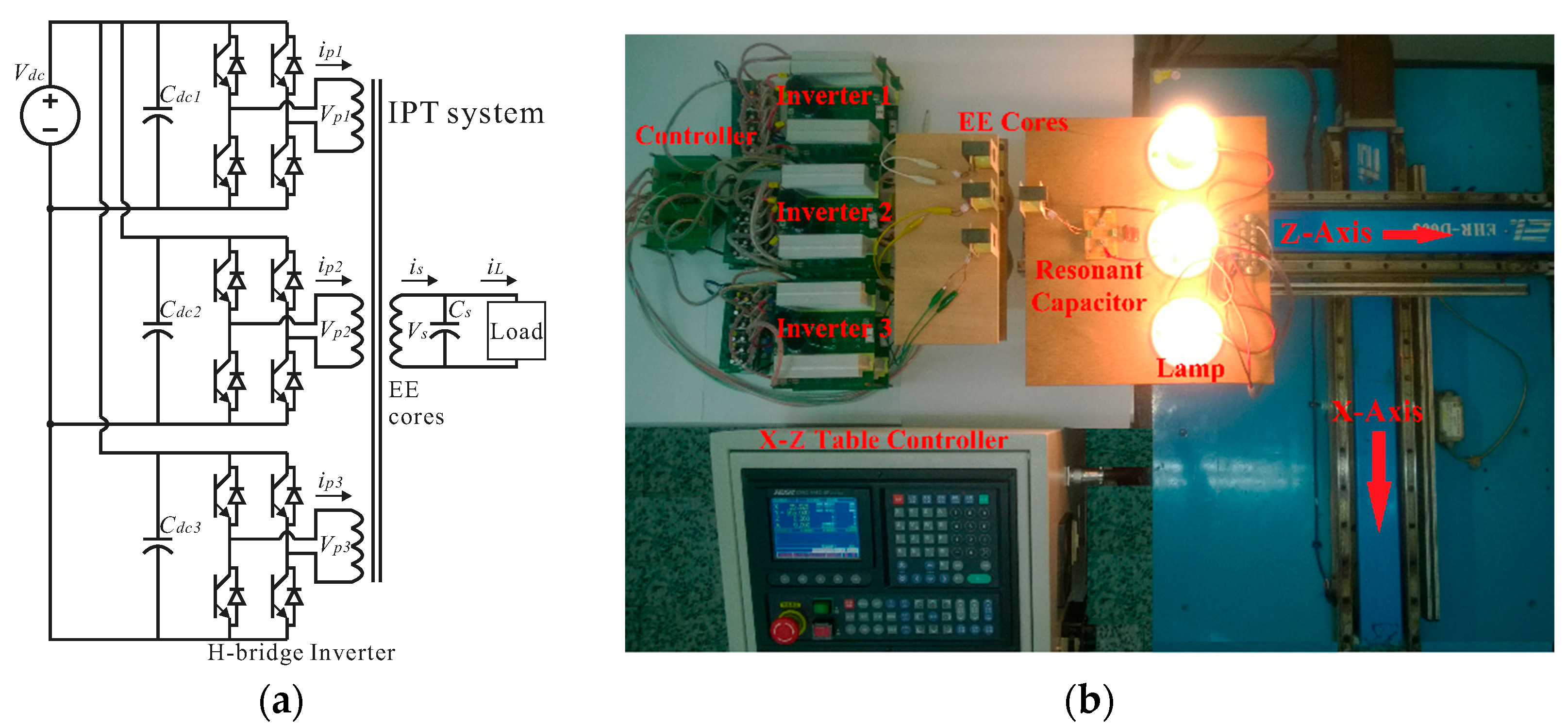

Figure 4. Prototype of measurement for the P topology IPT system. (a) multi-H-bridge inverters (b) prototype of measurement.
Figure 4. Prototype of measurement for the P topology IPT system. (a) multi-H-bridge inverters (b) prototype of measurement.
Energies 09 00512 g004
Figure 5. Efficiency, input power, and output power of the P topology IPT system with varied air gap and frequency (Vdc: 150 V; RL: 100 Ω). (a) Efficiency, input power, and output power; (b) Varied air gap from 5 mm to 65 mm (20 kHz); (c) Varied load (20 kHz).
Figure 5. Efficiency, input power, and output power of the P topology IPT system with varied air gap and frequency (Vdc: 150 V; RL: 100 Ω). (a) Efficiency, input power, and output power; (b) Varied air gap from 5 mm to 65 mm (20 kHz); (c) Varied load (20 kHz).
Energies 09 00512 g005aEnergies 09 00512 g005b

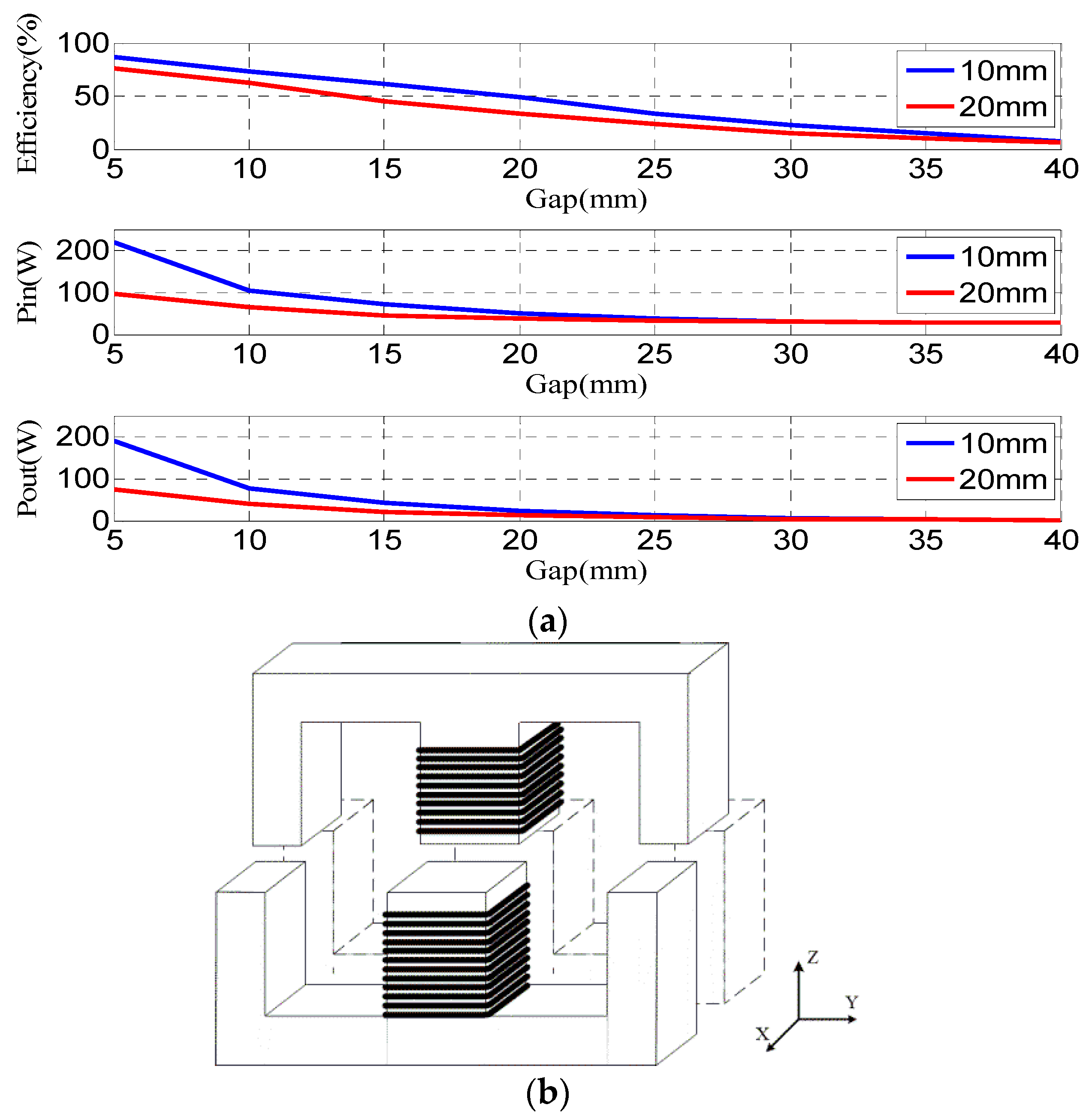

Figure 6. Displacement effect of the IPT system with varied air gap from 5 mm to 40 mm (Vdc: 150 V; fsw: 20 kHz). (a) Efficiency, input power; and output power (b) Displacement.
Figure 6. Displacement effect of the IPT system with varied air gap from 5 mm to 40 mm (Vdc: 150 V; fsw: 20 kHz). (a) Efficiency, input power; and output power (b) Displacement.
Energies 09 00512 g006

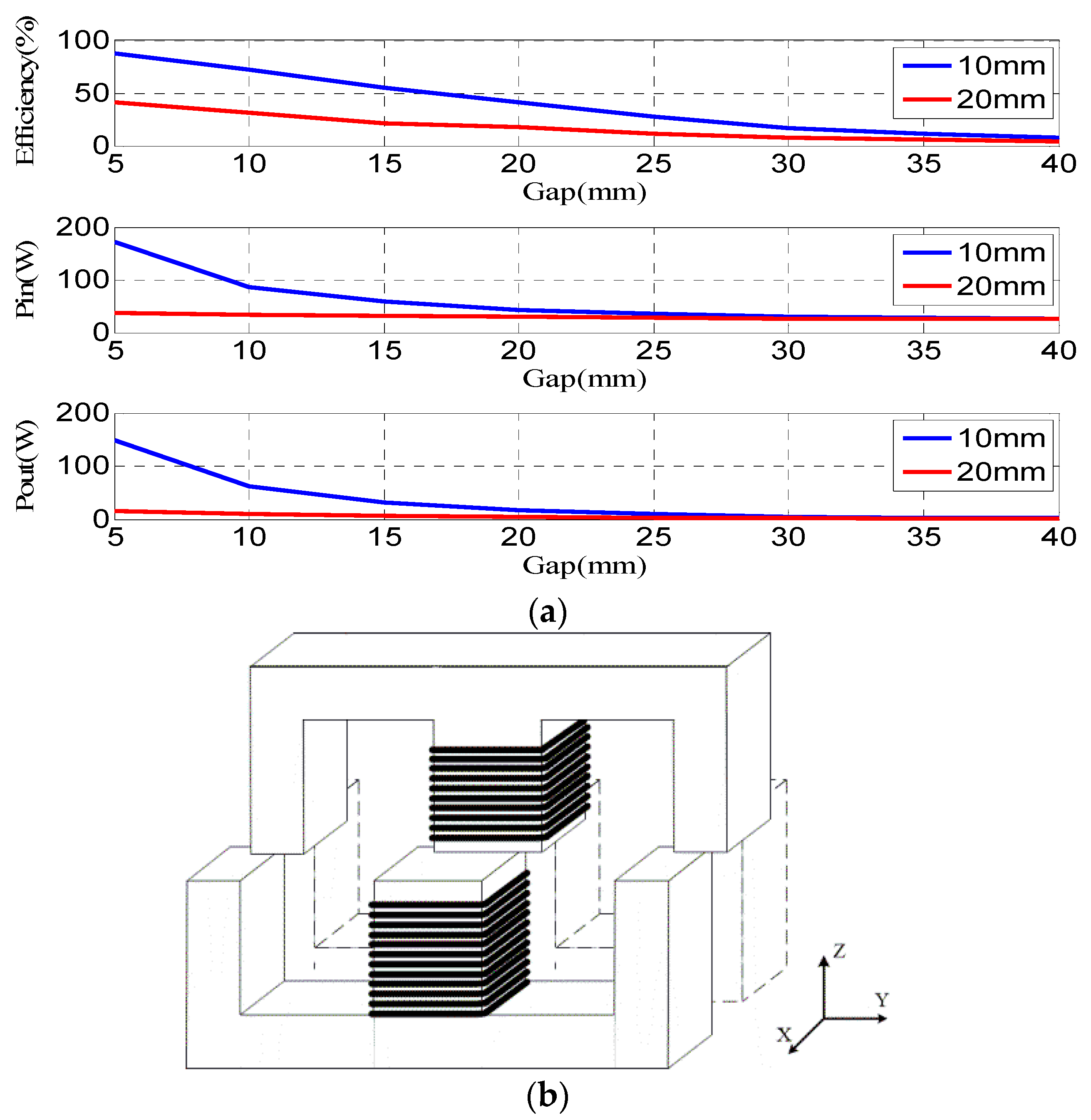

Figure 7. Dislocation effect of the IPT system with varied air gap from 5 mm to 40 mm (fsw: 20 kHz). (a) Efficiency, input power; and output power (b) Dislocation.
Figure 7. Dislocation effect of the IPT system with varied air gap from 5 mm to 40 mm (fsw: 20 kHz). (a) Efficiency, input power; and output power (b) Dislocation.
Energies 09 00512 g007

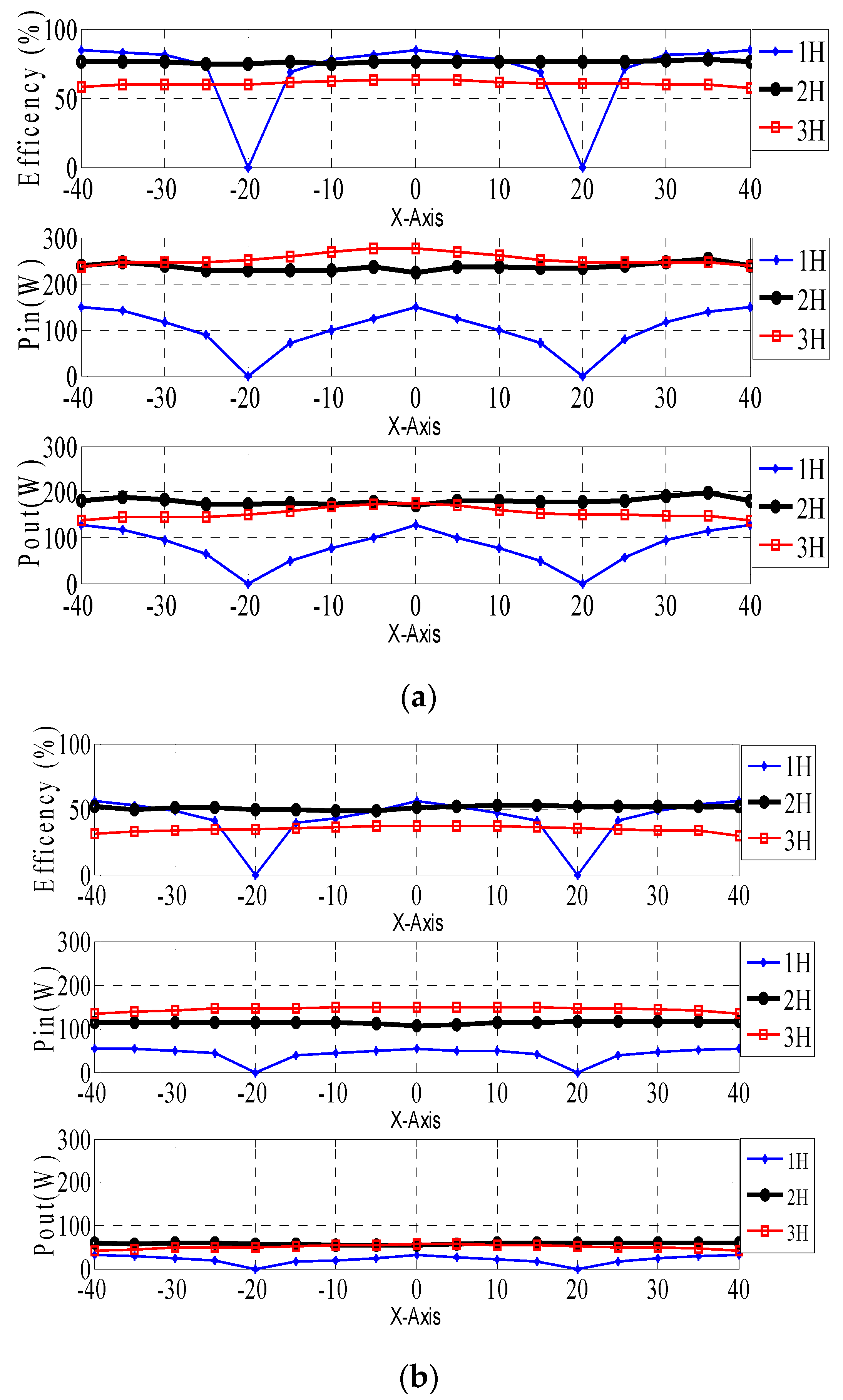

Figure 8. Efficiency, input power, and output power of the IPT system in motion. (a) Air gap: 10 mm (b) Air gap: 20 mm.
Figure 8. Efficiency, input power, and output power of the IPT system in motion. (a) Air gap: 10 mm (b) Air gap: 20 mm.
Energies 09 00512 g008
Figure 9. Waveforms of the P topology IPT system operated at mode 1H (air gap: 10 mm; time: 100 ms/div.; voltage: 200 v/div.; current ip1, ip2, and ip3: 5 A/div.; current is: 2 A/div.). (a) Voltages; (b) Currents.
Figure 9. Waveforms of the P topology IPT system operated at mode 1H (air gap: 10 mm; time: 100 ms/div.; voltage: 200 v/div.; current ip1, ip2, and ip3: 5 A/div.; current is: 2 A/div.). (a) Voltages; (b) Currents.
Energies 09 00512 g009
Figure 10. Waveforms of the P topology IPT system operated at mode 2H (air gap: 10 mm; time: 100 ms/div.; voltage: 200 v/div.; current ip1, ip2, and ip3: 5 A/div.; current is: 2 A/div.) (a) Voltages; (b) Currents.
Figure 10. Waveforms of the P topology IPT system operated at mode 2H (air gap: 10 mm; time: 100 ms/div.; voltage: 200 v/div.; current ip1, ip2, and ip3: 5 A/div.; current is: 2 A/div.) (a) Voltages; (b) Currents.
Energies 09 00512 g010

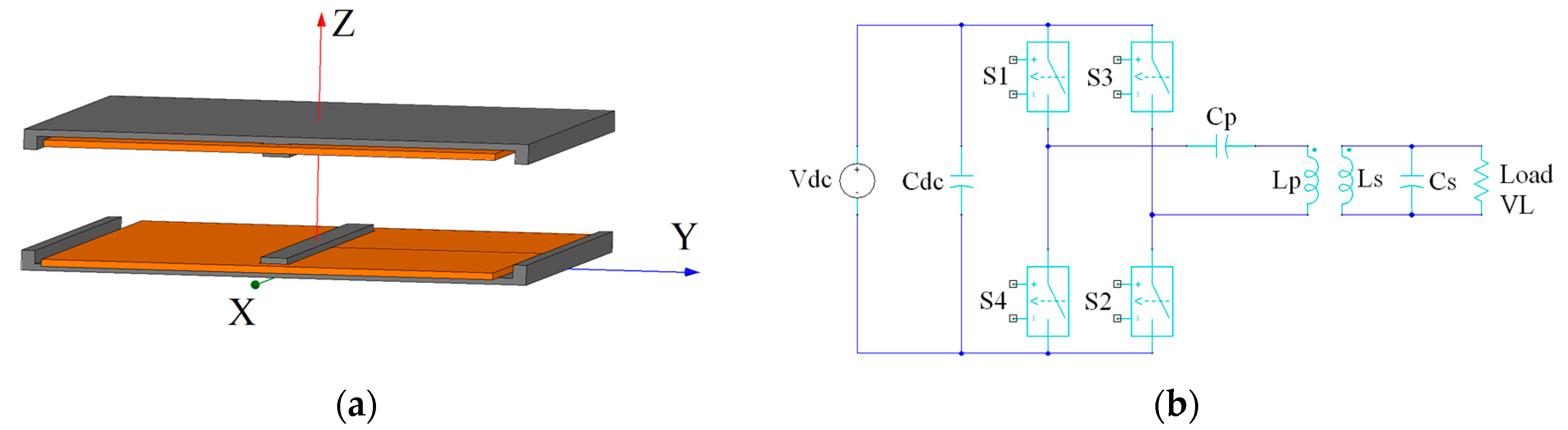

Figure 11. IPT system based on finite element analysis (Vdc: 300 V; fsw: 20 kHz; air gap: 150 mm). (a) 3D Model of EE-shaped ferrite cores; (b) Circuit of the SP topology.
Figure 11. IPT system based on finite element analysis (Vdc: 300 V; fsw: 20 kHz; air gap: 150 mm). (a) 3D Model of EE-shaped ferrite cores; (b) Circuit of the SP topology.
Energies 09 00512 g011

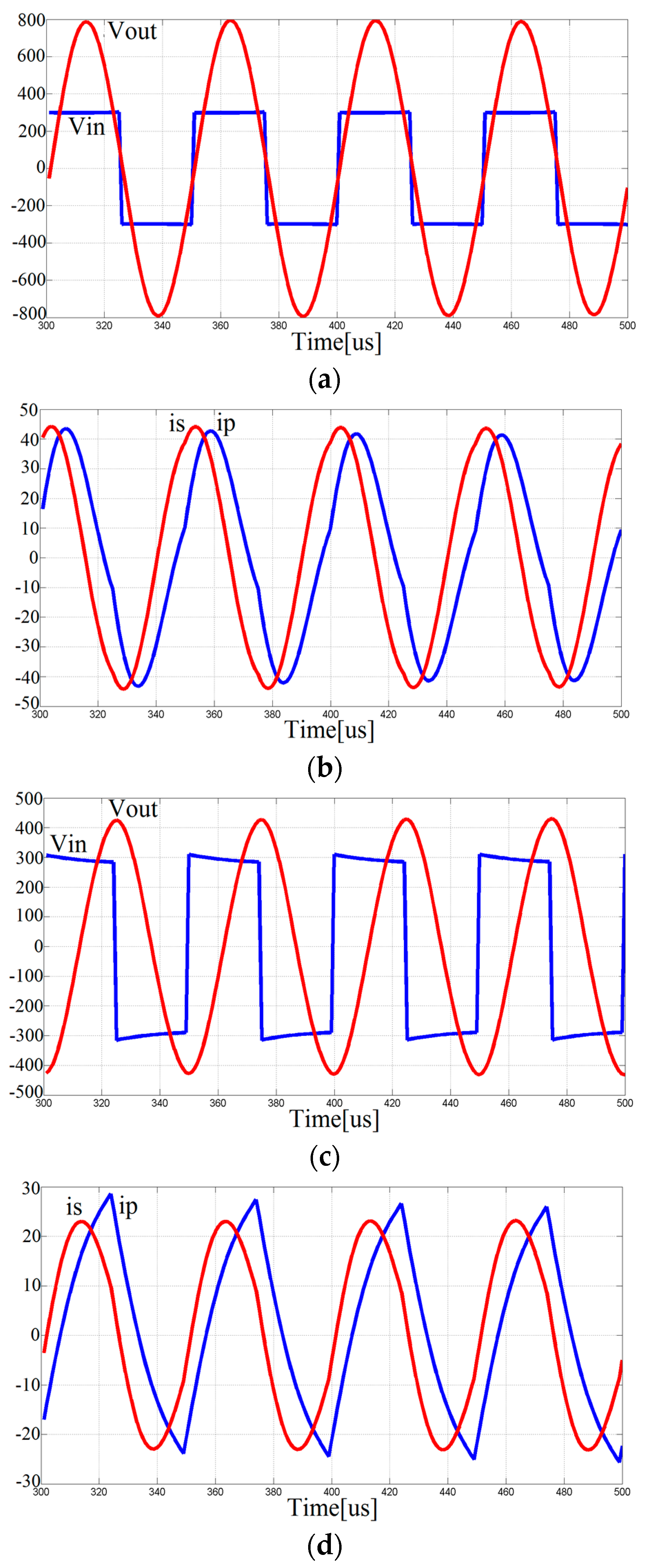

Figure 12. Waveforms of the IPT system based on finite element analysis (Vdc: 300 V; fsw: 20 kHz; air gap: 150 mm). (a) Input and output voltages of SP topology; (b) Input and output currents of SP topology; (c) Input and output voltages of P topology; (d) Input and output currents of P topology.
Figure 12. Waveforms of the IPT system based on finite element analysis (Vdc: 300 V; fsw: 20 kHz; air gap: 150 mm). (a) Input and output voltages of SP topology; (b) Input and output currents of SP topology; (c) Input and output voltages of P topology; (d) Input and output currents of P topology.
Energies 09 00512 g012
Table 1. Coupling coefficient and resonant frequency of the IPT system with varied air gap.
Table 1. Coupling coefficient and resonant frequency of the IPT system with varied air gap.
Gap5 mm10 mm20 mm
Llp217.7 μH237.2 μH282.7 μH
Lls217.7 μH237.2 μH282.7 μH
Lm107.3 μH87.8 μH42.3 μH
k0.330.270.13
ωr115 kHz17 kHz20 kHz
ωr223 kHz22 kHz20 kHz
ωr20 kHz20 kHz20 kHz
Table 2. Input power, output power, and efficiency of the IPT system.
Table 2. Input power, output power, and efficiency of the IPT system.
SP topologyGap5 mm ωr1: 15 kHz5 mm ωr2: 23 kHz10 mm ωr1: 17 kHz10 mm ωr2: 22 kHz20 mm ωr1,2: 20 kHz
Input power30 W66 W45 W72 W177 W
Output power28 W59.3 W38.4 W64 W136.9 W
Efficiency94%90%85%89%77%
P topologyGap5 mm ωr: 20 kHz10 mm ωr: 20 kHz20 mm ωr: 20 kHz
Input power13.2 W7.2 W3.9 W
Output power11.9 W5.5 W1.6 W
Efficiency90%77%40%
Table 3. Efficiency, input power, and output power of the IPT system with varied air gap at 20 kHz.
Table 3. Efficiency, input power, and output power of the IPT system with varied air gap at 20 kHz.
Air Gap (mm)51020
Efficiency93%85%60%
Input Power(W)30015054
Output Power(W)27812832
Table 4. Displacement effect of the IPT system with varied air gap from 5 mm to 40 mm (fsw: 20 kHz).
Table 4. Displacement effect of the IPT system with varied air gap from 5 mm to 40 mm (fsw: 20 kHz).
DisplacementAir Gap (mm)510152025303540
Displacement: 10 mmEfficiency86.8%73.2%61.4%49.5%33.3%22.9%14.8%7.4%
Input power (W)2191057249.537.531.528.527
Output power (W)191.177.244.124.512.57.24.22
Displacement: 20 mmEfficiency76.3%62.7%45.4%33.3%24.2%15.0%10.6%6.0%
Input power (W)97.564.546.537.533302727
Output power (W)74.440.521.112.584.52.91.6
Table 5. Dislocation effect of the IPT system with varied air gap from 5 mm to 40 mm.
Table 5. Dislocation effect of the IPT system with varied air gap from 5 mm to 40 mm.
DislocationAir Gap (mm)510152025303540
Dislocation: 10 mmEfficiency87.5%72.1%54.7%41.4%28.1%17.1%11%7.4%
Input power (W)1718758.543.3363028.527
Output power (W)147.962.7321810.15.13.12
Dislocation: 20 mmEfficiency41.8%31.2%21.7%18.1%11.8%8.1%6.0%4.4%
Input power (W)37.534.531.53028.5272725.5
Output power (W)15.710.86.85.43.32.21.61.1
Table 6. Motion effect of the IPT system as moving along X-axis; mode 1H (fsw: 20 kHz).
Table 6. Motion effect of the IPT system as moving along X-axis; mode 1H (fsw: 20 kHz).
Air GapX-Axis (mm)−40−30−20−10010203040
Air Gap: 10 mmEfficiency85%81%0%78%85%78%0%81%85%
Input power (W)150117098150980117150
Output power (W)1289507712877095128
Air Gap: 20 mmEfficiency56%49%0%43%56%43%0%49%56%
Input power (W)5449045544504954
Output power (W)3024019301902430
Table 7. Motion effect of the IPT system as moving along X-axis; mode 2H (fsw: 20 kHz).
Table 7. Motion effect of the IPT system as moving along X-axis; mode 2H (fsw: 20 kHz).
Air GapX-Axis (mm)−40−30−20−10010203040
Air Gap: 10 mmEfficiency76%76%75%75%76%75%75%76%76%
Input power (W)238240230230224230230240238
Output power (W)181182173173169173173182181
Air Gap: 20 mmEfficiency52%51%50%49%51%49%50%51%52%
Input power (W)115114114113107113114114115
Output power (W)59.458.357.255.154.155.157.258.359.4
Table 8. Motion effect of the IPT system as moving along X-axis; mode 3H (fsw: 20 kHz).
Table 8. Motion effect of the IPT system as moving along X-axis; mode 3H (fsw: 20 kHz).
Air GapX-Axis (mm)−40−30−20−10010203040
Air Gap: 10 mmEfficiency58.1%59.4%59.7%62.4%63.0%62.4%59.7%59.4%58.1%
Input power (W)237246250.5268.5277.5268.5250.5246237
Output power (W)137.8146.2149.6167.4174.8167.4149.6146.2137.8
Air Gap: 20 mmEfficiency31.3%33.7%34.4%36.1%37.5%36.1%34.4%33.7%31.3%
Input power (W)135142.5145.5150150150145.5142.5135
Output power (W)42.348.050.054.156.254.150.048.042.3
