A High Temperature Experimental Characterization Procedure for Oxide-Based Thermoelectric Generator Modules under Transient Conditions

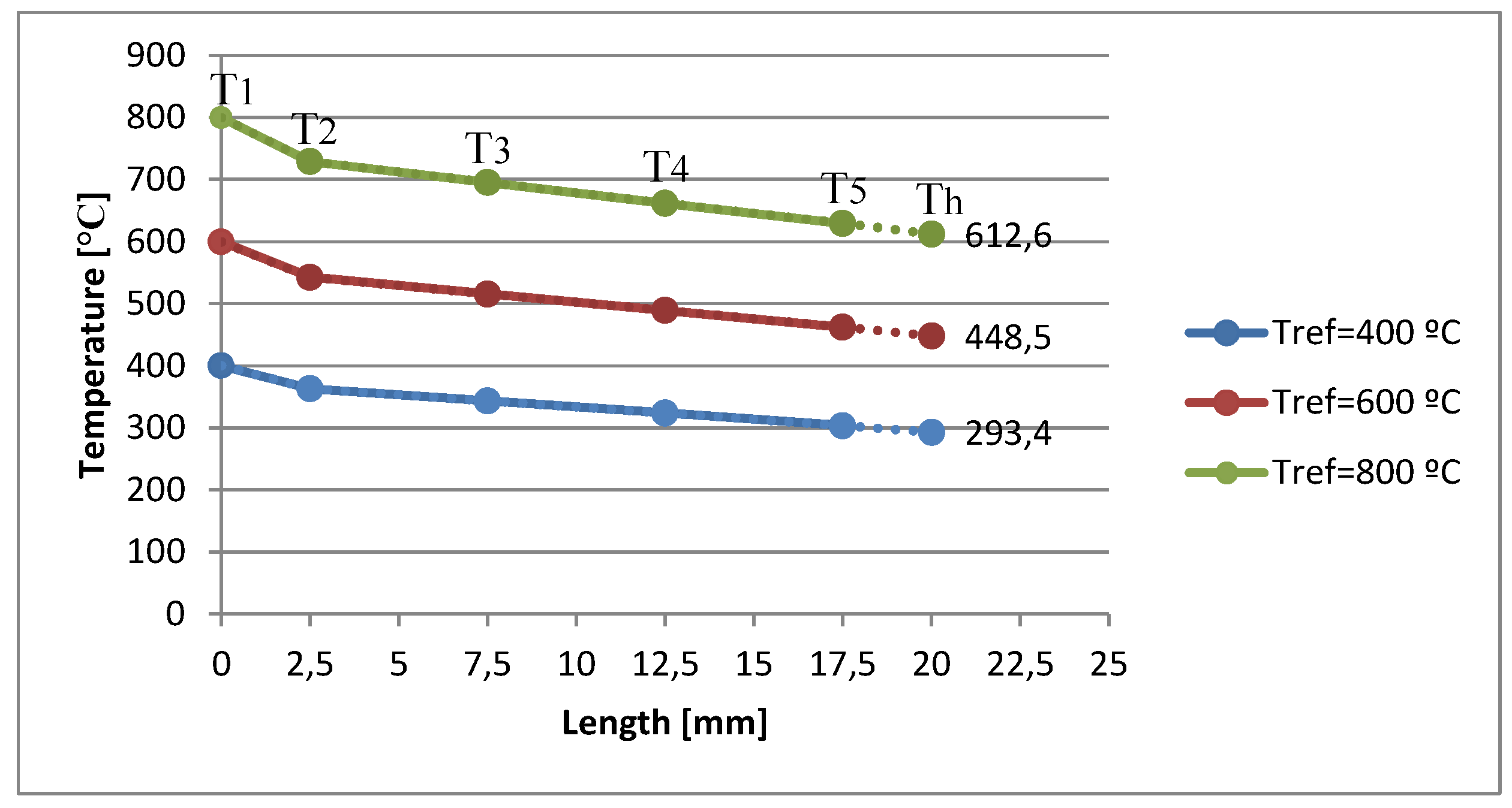

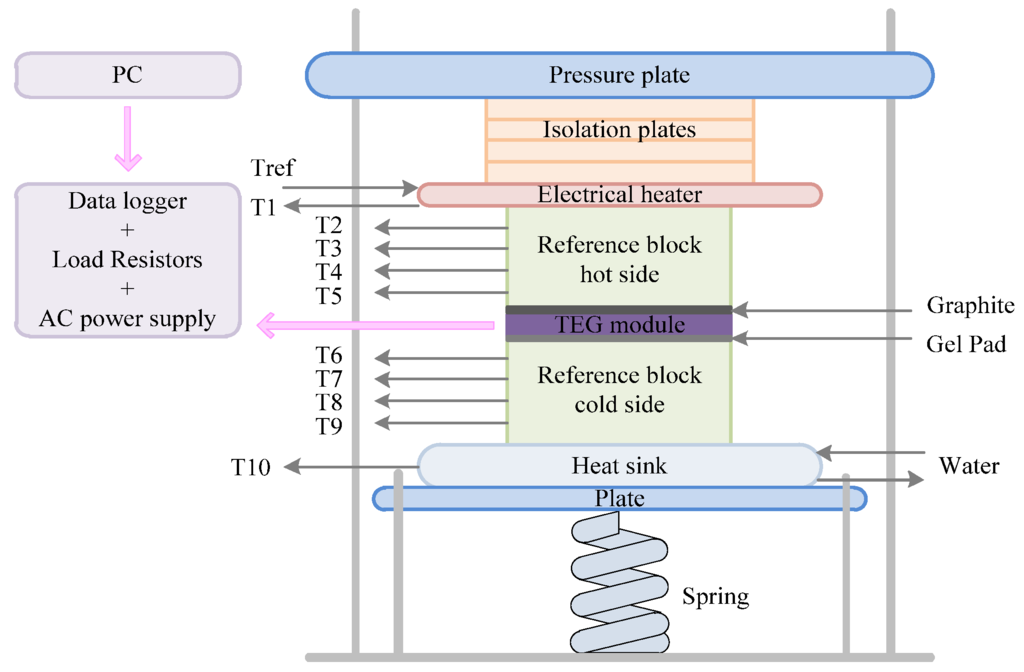

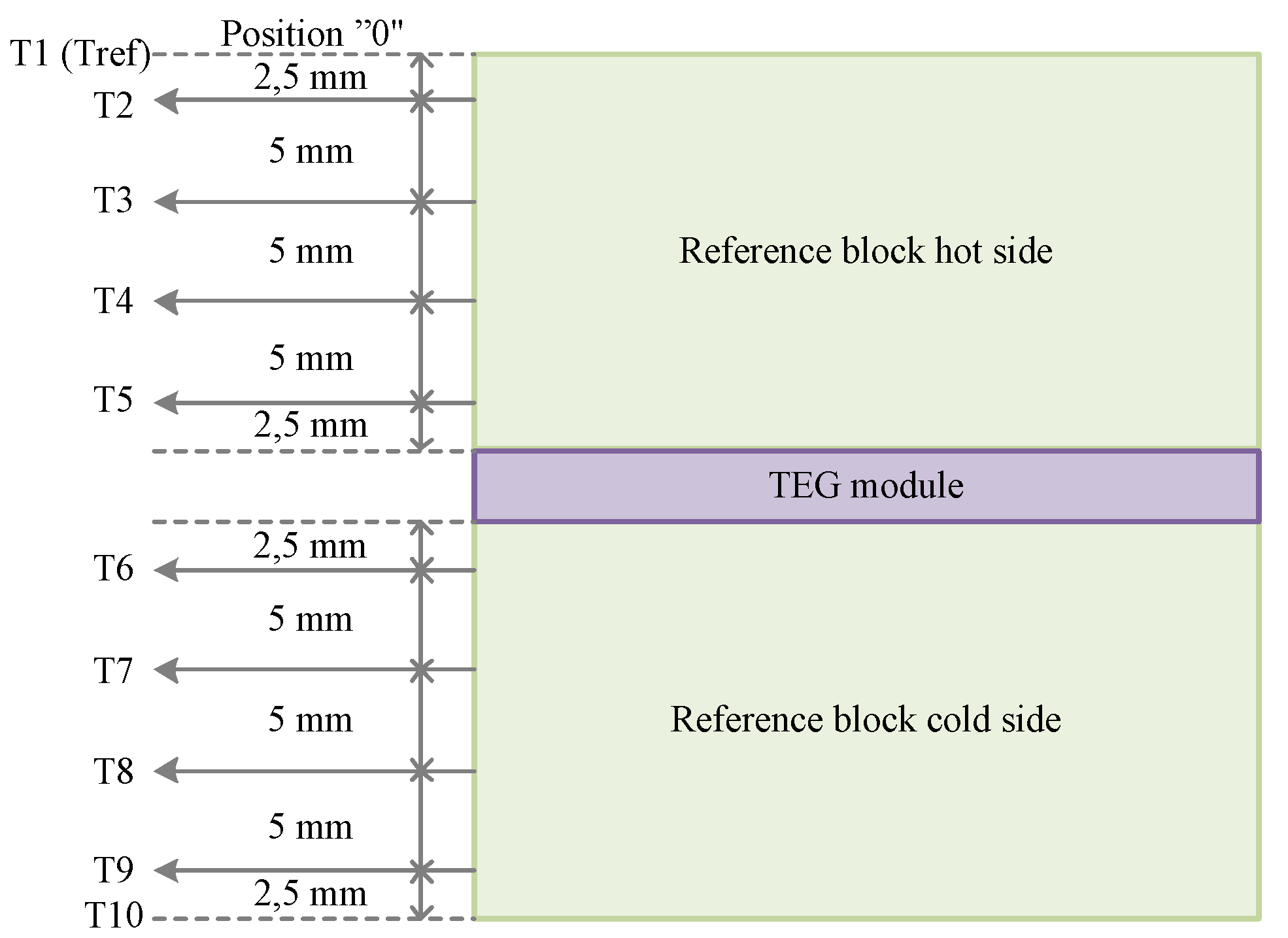

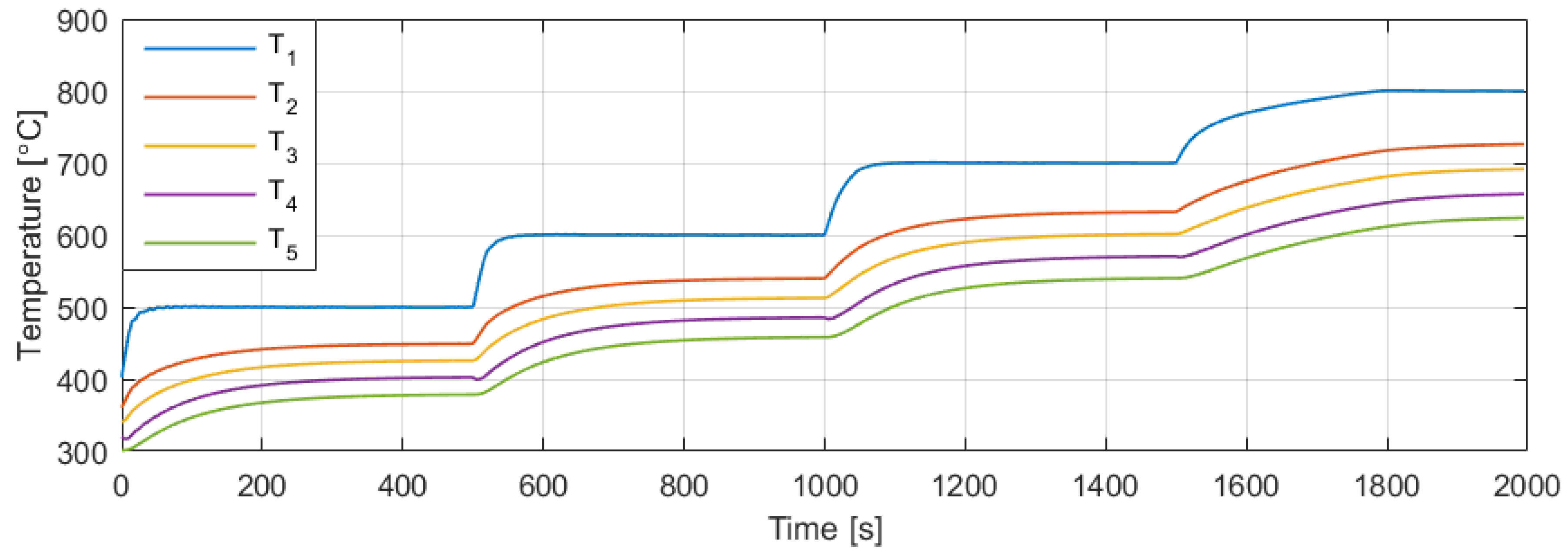

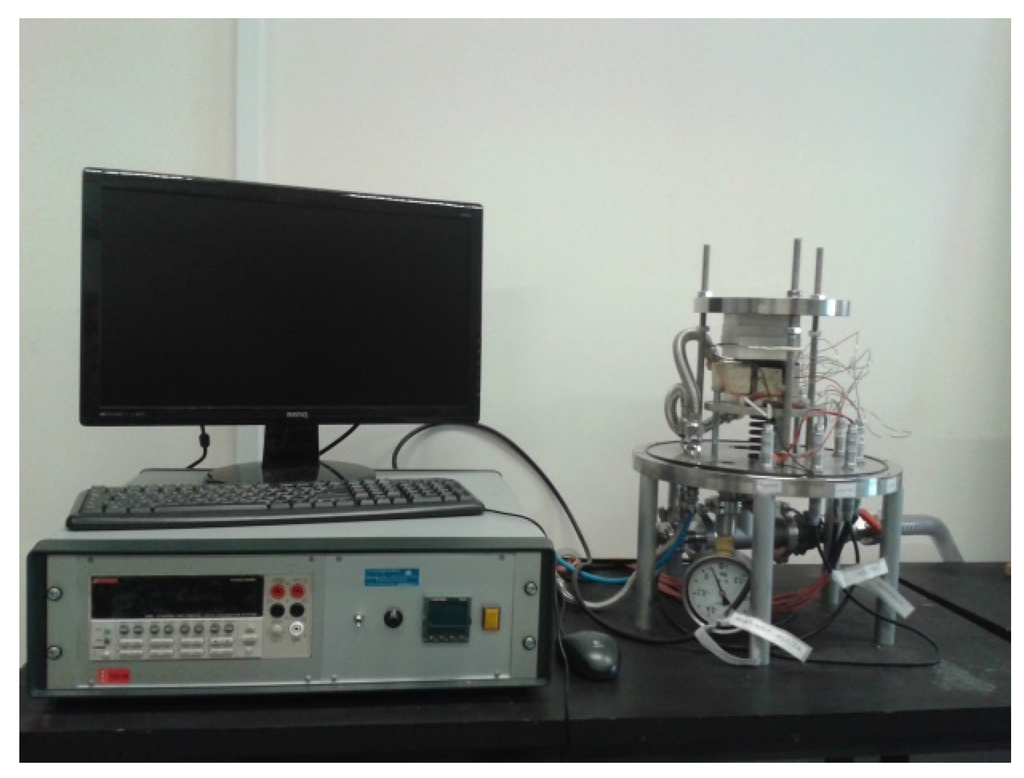

The purpose of this study is to analyze the steady-state and transient behavior of the electrical and thermal parameters of thermoelectric generators (TEGs). The focus is on the required wait-time between measurements in order to reduce measurement errors which may appear until the system reaches steady-state. By knowing this waiting time, the total characterization time can also be reduced. The experimental characterization process is performed on a test rig known as TEGeta, which can be used to assess the output characteristics of TEG modules under different load values and temperature conditions. The setup offers the possibility to control the hot side temperature up to 1000 °C with a load variation range value between 0.22–8.13 Ω. A total of ten thermocouples are placed in the setup with the purpose of measuring the temperature in specific points between the heater and the heat sink. Based on the readings, the temperature on the hot and cold side of the modules can be extrapolated. This study provides quantitative data on the minimum waiting time of the temperatures in the surrounding system to reach equilibrium. Laboratory tests are performed on a calcium-manganese oxide module at temperatures between 400 and 800 °C to explore the high temperatures features of the setup. View Full-Text
