Grain Boundary Engineering of an Additively Manufactured AlSi10Mg Alloy for Advanced Energy Systems: Grain Size Effects on He Bubbles Distribution and Evolution
Abstract
1. Introduction
2. Methodology
2.1. Material Fabrication
2.1.1. Laser Powder Bed Fusion (LPBF)
2.1.2. KOBO Extrusion Process
2.1.3. Post-Extrusion Annealing
2.1.4. He Implantation Experiment
2.2. Sample Preparation and Microstructure Analysis
2.2.1. Electron Backscatter Diffraction (EBSD)
2.2.2. Data Processing and Grain Size Quantification
2.2.3. Transmission Electron Microscopy (TEM)
3. Results
3.1. Microstructure Analysis Before He Implantation
3.2. Effect of He Irradiation on Microstructure
4. Discussion
5. Conclusions

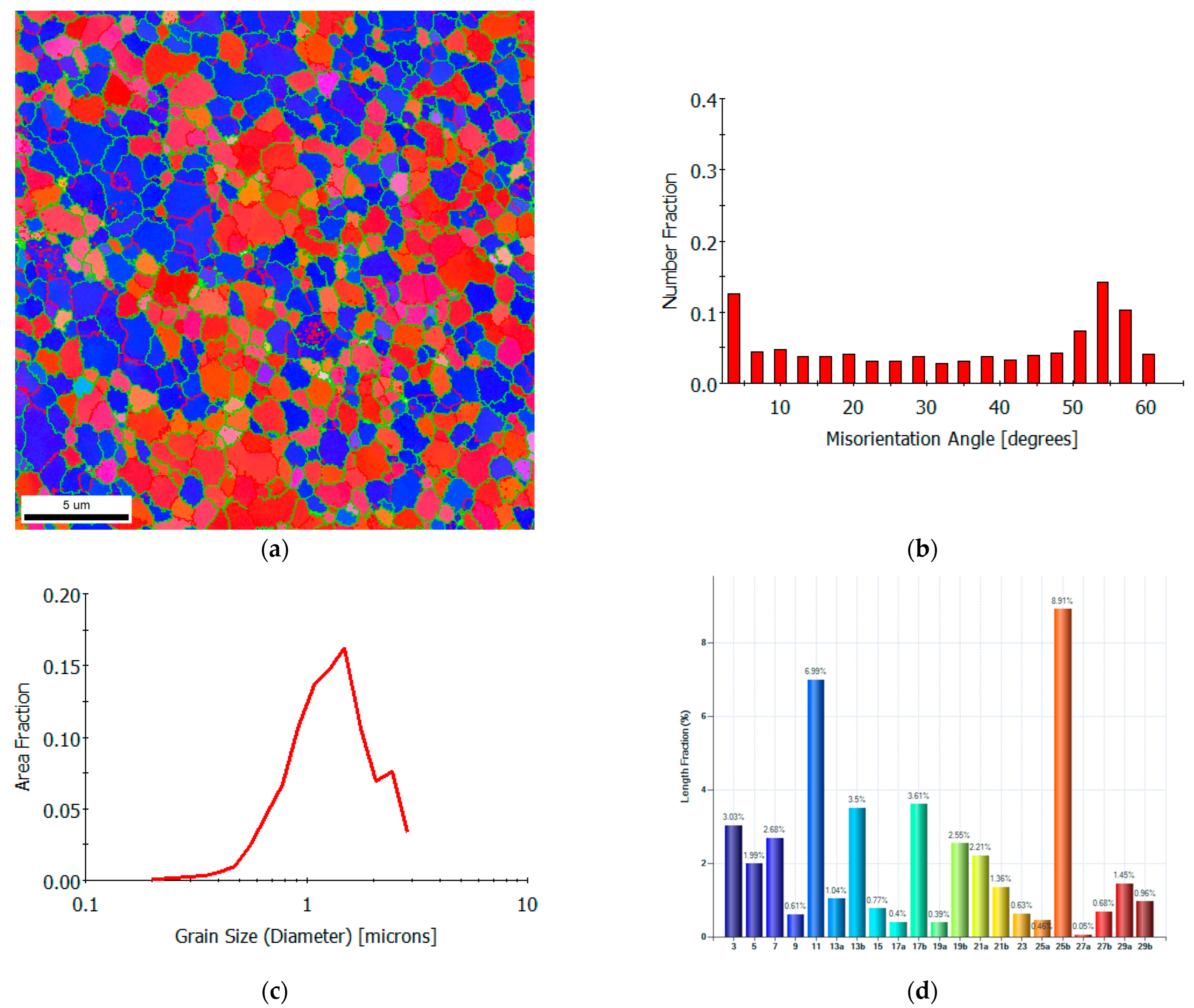

- Analysis by Electron Backscatter Diffraction (EBSD) showed that the KOBO-extruded sample has an average grain size of 0.8 µm and a Coincidence Site Lattice (CSL) boundary fraction of approximately 41%.

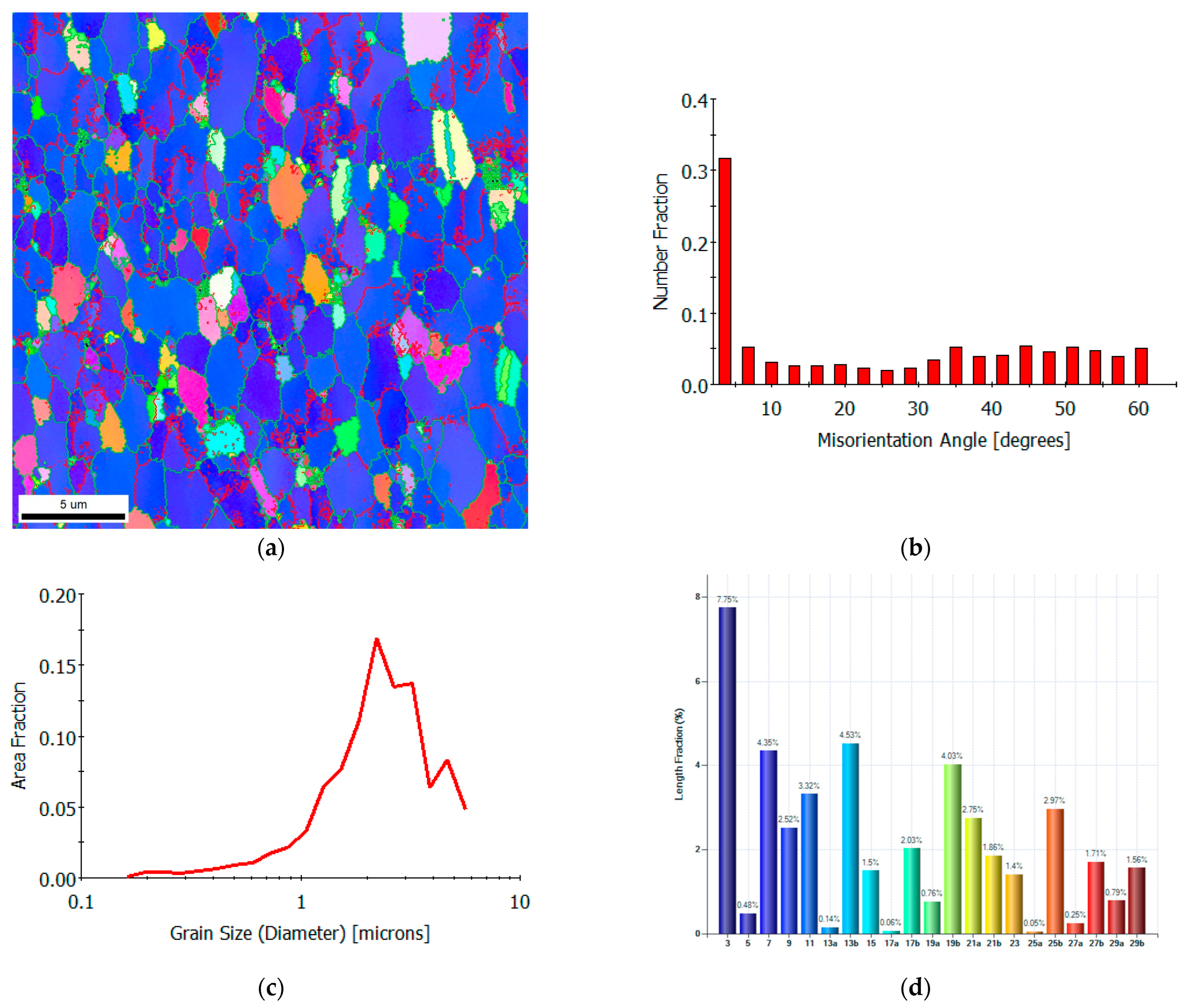

- Following annealing, the KOBO-processed sample exhibited a larger average grain size of about 1.2 µm and a higher CSL boundary fraction of approximately 45%.
- Helium bubbles formed in both samples because of He ion irradiation, and TEM analysis revealed that grain boundaries are preferential sites for the accumulation and growth of these bubbles.

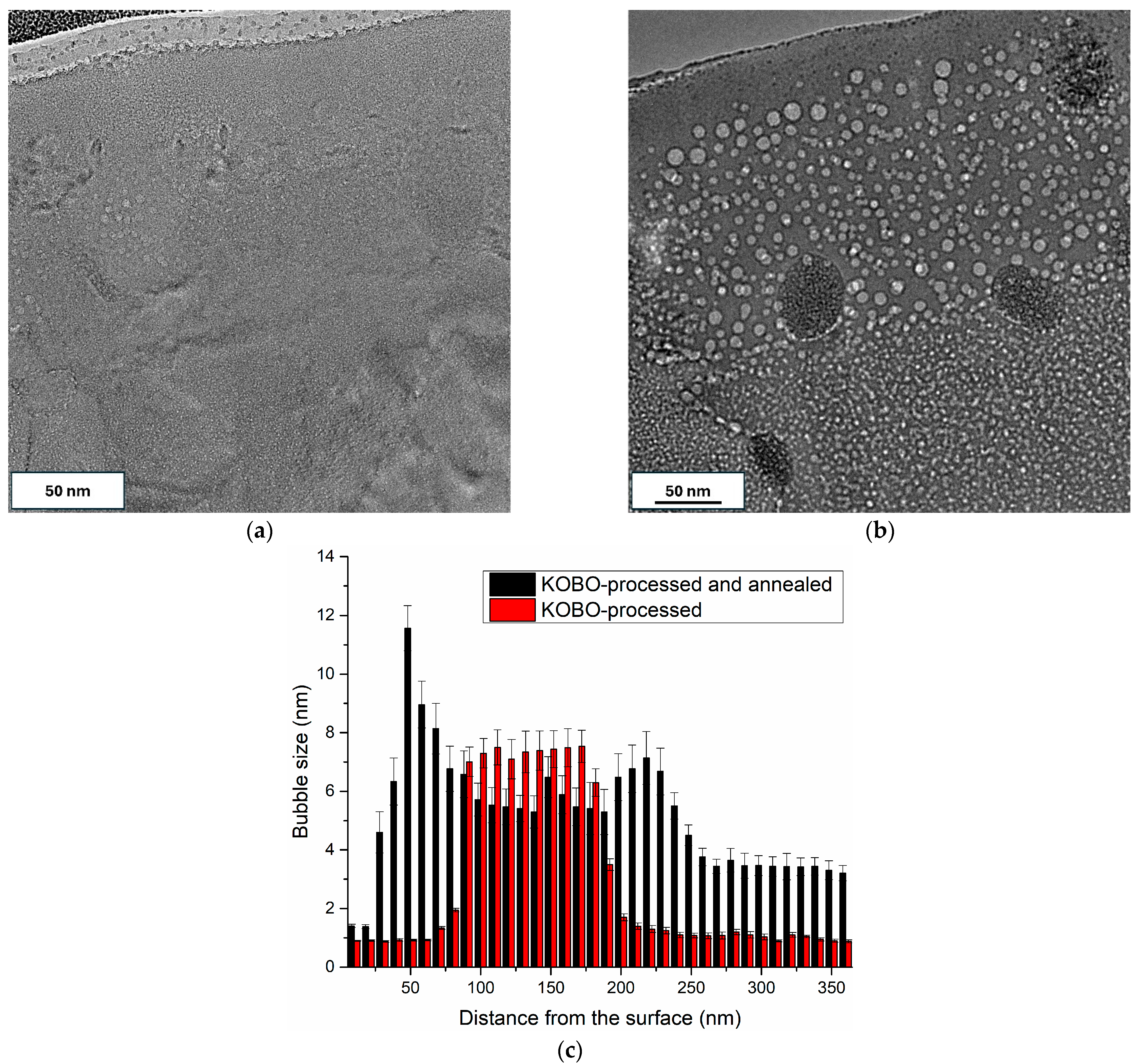

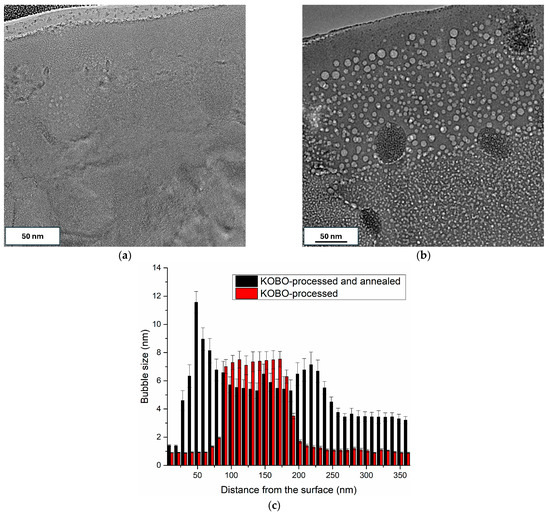

- The onset of helium bubble formation occurred at a greater depth in the as-extruded sample (~80 nm) compared to the annealed sample (~25 nm). The high density of defect sinks in the as-extruded material suppressed bubble nucleation near the surface, forcing helium to diffuse deeper into the material.
- HRTEM analysis confirmed that ion irradiation induced a high density of nanoscale defects in both material conditions. In the as-extruded sample, these defects included dislocation loops and nanotwins or stacking faults, while the annealed sample showed a high density of dislocation loops.
- The superior performance of the as-extruded sample in suppressing helium bubble growth is attributed to its high density of sinks (grain boundaries and dislocations). These sinks trapped radiation-induced point defects, promoting their annihilation and reducing the vacancy concentration required for bubble formation.
