Characterizing Wake Behavior of Adaptive Aerodynamic Structures Using Reduced-Order Models

Abstract

In recent times, blades that have the ability to change shape passively or actively have garnered interest due to their ability to optimize blade performance for varying flow conditions. Various versions of morphing exist, from simple chord length changes to full blade morphing with multiple degrees of freedom. These blades can incorporate smart materials or mechanical actuators to modify the blade shape to suit the wind conditions. Morphing blades have shown an ability to improve performance in simulations. These simulations show increased performance in Region 2 (partial load) operating conditions. This study focuses on the effects of the wake for a flexible wind turbine with actively variable twist angle distribution (TAD) to improve the energy production capabilities of morphing structures. These wake effects influence wind farm performance for locally clustered turbines by extracting energy from the free stream. Hence, the development of better wake models is critical for better turbine design and controls. This paper provides an outline of some approaches available for wake modeling. FLORIS (FLow Redirection and Induction Steady-State) is a program used to predict steady-state wake characteristics. Alongside that, the Materials and Methods section shows different modeling environments and their possible integration into FLORIS. The Results and Discussion section analyzes the 20 kW wind turbine with previously acquired data from the National Renewable Energy Laboratory’s (NREL) AeroDyn v13 software. The study employs FLORIS to simulate steady-state non-linear wake interactions for the nine TAD shapes. These TAD shapes are evaluated across Region 2 operating conditions. The previous study used a genetic algorithm to obtain nine TAD shapes that maximized aerodynamic efficiency in Region 2. The Results and Discussion section compares these TAD shapes to the original blade design regarding the wake characteristics. The project aims to enhance the understanding of FLORIS for studying wake characteristics for morphing blades.

1. Introduction

According to recent figures, global energy consumption has been increasing in recent years. Current consumption in the United States of America is estimated to be 2.93 × 10¹³ kWhs annually [1]. With climate change and volatile fossil fuel prices, there has been an increase in attention towards renewable energy. Wind energy shows potential to provide an alternative to fossil fuels. The current utility-scale wind energy infrastructure in the USA can only provide 35% of the current energy demand of 107 GW [2]. The International Energy Agency (IEA) has indicated an interest in blade design and control techniques to complement current turbine performance to diversify and optimize energy sources [3]. Current control schemes aim to improve wind capture through gearbox designs and power conversion equipment for variable rotor speed [4]. During partial (Region 2) or full load (Region 3) conditions, the aerodynamic efficiency can be affected by blade control through adjusting generator torque and blade pitch [5]. These operating regimes can be seen in Figure 1 below.

While these efforts are fruitful, there is a physical limit, known as the Betz limit, that restricts the ability to extract the kinetic energy of the air, regardless of the blade design and control [7]. This limit, based on conservative estimates, caps the maximum efficiency of a turbine at 59.3 %. This is often parameterized as the coefficient of power $c_p$, defined as the ratio of electric power produced to the wind power available [8].

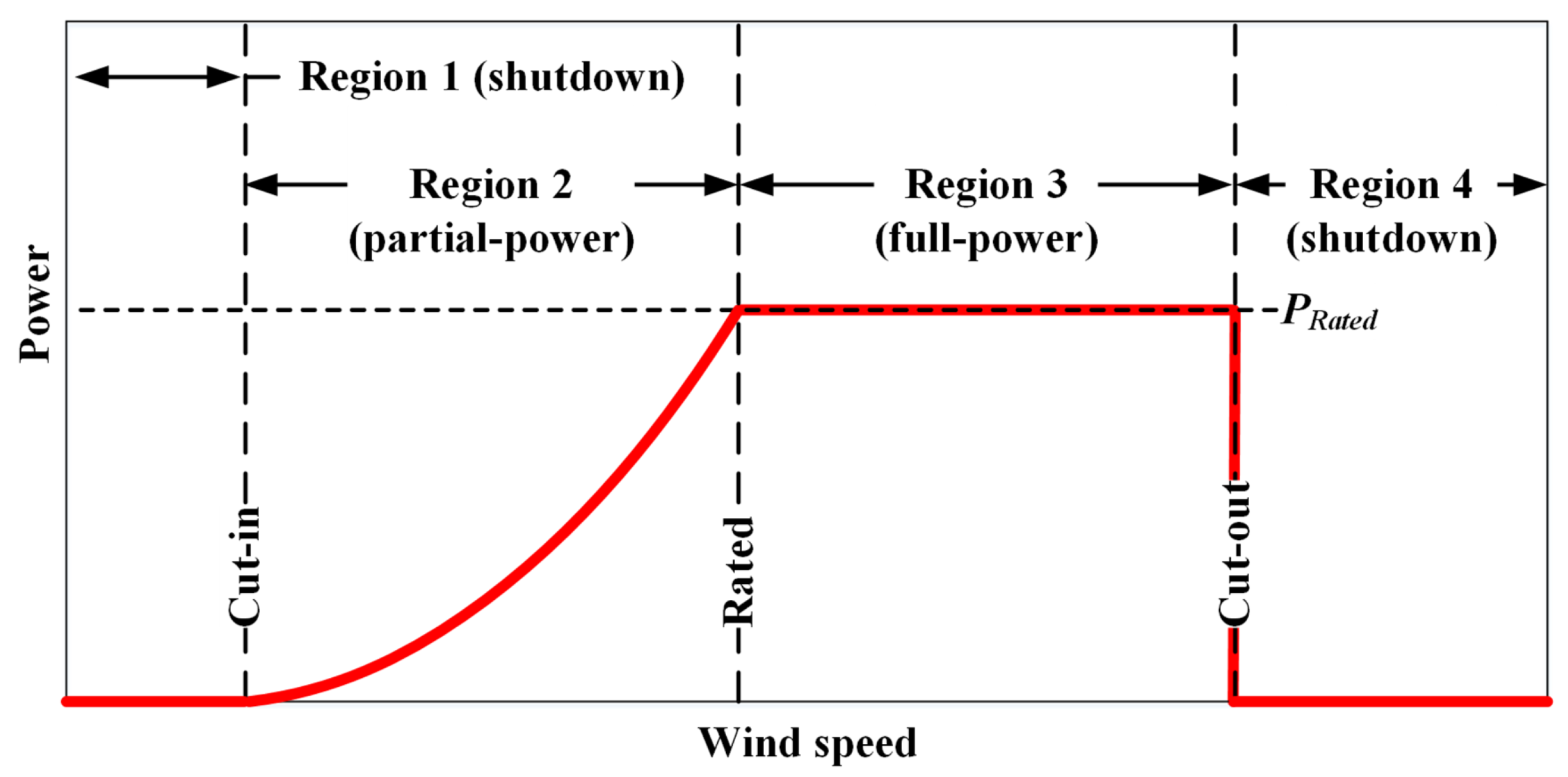

Industry standard turbine and blade control attempts to maximize power under freestream flow conditions. Turbines are often located in clusters, arranged in arrays in close proximity. The rationale behind this is to concentrate them geographically and increase profitability with regard to the wind resources available. The clustering also reduces the maintenance and transportation costs by requiring materials to be carried to a single local site. Due to an increase in energy demands, more wind farms are being built in proximity (±40 km) to one another [9]. This leads to a substantial drawback in the aerodynamic performance of the wind farm due to the induced wake effects. A 209 MW capacity Texas wind farm situated downstream to another wind farm demonstrated power generation losses due to wake effects as 184,415 ± 120,930 MWh between the years of 2011–2015. This roughly corresponds to USD 730 K ± 485 K annually [10]. Since the upwind farm extracts kinetic energy of the air and reduces the velocity and momentum of the air, the downstream farm will produce less power and revenue [9,11]. A similar concept can be applied to turbines within a wind farm. When the incoming air flows through the upstream turbine, it produces a region of separated flow dominated by pressure drag and, hence, reduces the performance of the downstream turbine. These deficits are quantified as a 20–30% reduction in power relative to unimpeded turbines. There is also a 5–10% increase in fatigue loading for the downstream blades due to an increase in wake turbulence intensity (TI) and an increase in noise emission from the downstream turbine [9,11,12]. Along with the growth of onshore wind farms, offshore wind has garnered great interest as well. Offshore wind comes with its own unique challenges like energy transportation, fatigue detection, and maintenance, which are being investigated [13]. Due to the harsher wind conditions and more expensive maintenance costs, morphing blades discussed in this study could be even more suitable for offshore wind. Therefore, it is critical to develop an understanding of the wake effects to extract maximum power out of a wind turbine; quantifying this phenomenon is seen as a motivating factor for this project.

The wake characteristics can be affected by techniques such as active wake control by varying turbine characteristics like tip-speed ratio (TSR), pitch angle, and yaw angle. In a previous work by Bingzheng et al., TSR and pitch angle were varied to quantify the performance and the spatial wake evolution of a small-scale wind turbine [14]. The largest wind velocity deficit and maximum power coefficient occurred at the optimal TSR value when the TSR was varied. Alternatively, an increase in just the pitch angle did not lead to the largest wind velocity but induced greater effects on wake velocity. Along with that, large pitch angles yielded a low wind velocity deficit and weak wake TI. Hence, the change of the blade’s pitch angle exhibits a greater effect on the wind velocity when compared with controlling the TSR in both near and far wake regions. When increasing the yaw angle, both the wake velocity and TI are reduced, generating an asymmetric wake structure [15]. In another study, the two-turbine case was examined to understand the effects on the downstream turbine. Axial induction-based wake control was achieved by using torque control to increase the blade pitch angle and/or reduce the TSR. This study showed an increase in wake velocity, reduction in axial induction factor (AIF), rotor thrust, and power production of the upstream turbine while increasing the power production of the downstream turbine [14]. Yaw-based wake control of the upstream turbine reduces the wake overlap with the downstream turbine through misalignment of the incoming flow. This increases the power production of the downstream turbine in comparison to the upstream turbine [16]. This technique is known as secondary steering, where turbines work together to build larger vortex structures, thus leading to the deformation and deflection of the downstream wake and resulting in an increase in wind farm performance [17,18].

Advances in blade design, materials, and control have led to the progress of turbine performance in a range of environmental conditions. However, current fixed geometry blades, employing torque and blade pitch control, are not optimal across all operating conditions. Current blade stiffness hinders the development of control approaches that enhance wind capture, lessen fatigue loads, and improve mechanical and electrical stability; these shortcomings need to be rectified [19]. Variable blade geometry is a new frontier for achieving blade control to improve operation and lifespan [20]. While not a new concept, recent improvements in material and manufacturing technology position morphing blades as an avenue for growth for wind turbine operation and lifespan [21]. A geometrical change in shape as a result of blade actuation or smart materials is referred to as morphing. An example of morphing technology is the flaps on an airplane wing [22]. These morphing blades have been influenced by the ability of birds to adapt to changing environmental conditions to optimize the flight path [21,22,23]. These abilities to adapt to changing conditions are particularly effective for wind turbines, making them suitable for a range of inflow conditions when compared to standard fixed-blade technology [24,25].

MacPhee and Beyene validated higher torque, increased cp, and broader operational wind speeds for flexible blade technology when compared to traditional fixed blade counterparts [19]. Wu et al. discuss a novel Wind-Speed-Adaptive Resonant Piezoelectric Energy Harvester for off-shore wind applications, showing performance improvements [26]. Giammichele et al. discuss the use of a morphing trailing edge device to increase or decrease the lift coefficient of wind turbine blades [27]. Redonnet et al. showed substantial gains of power delivered across all flow regimes through morphing designs using numerical simulations [28]. Conventional control surfaces in wind turbines could exploit adaptability through active twist, camber, chord, and stiffness variations in blade geometry, such as using active tendons [29,30,31]. Studies show that combining active twist and chord extension improves aerodynamic performance by 11% [24]. Similarly, optimizing chord and twist angle distribution enhances the annual energy production (AEP) in small wind turbines [30]. Loth et al. proposed tension cables to distribute equivalent forces between cable and centrifugal loads passively [31]. Morphing blades improve efficiency, reduce vibrations, resist stall, and increase the lift-to-drag ratio. Gili and Frulla studied a segmented blade with adjustable pitch angles for electric motors and cables to vary twist and enhance lift [32]. Daynes and Weaver demonstrated a flexible flap assembly on a turbine blade that increased lift, reduced drag, and regulated power [33]. Wang et al. demonstrated that modifying twist at blade tip and base in a simplified morphing blade boosts AEP over pitch/stall-regulated designs [20]. Morphing blades have primarily been tested in wind tunnels using small prototypes, with limited fabrication for large-scale applications [25]. This underscores the need for further research to support the IEA vision for advancing this technology [3].

Previous studies developed a design framework for blades with active twist angle distribution (TAD), ensuring an optimal angle of attack along the rotor radius, where the twist angle varies with blade length [8,34,35,36]. This framework, validated using NREL’s AeroDyn software, analyzed twist angles at discrete blade points and identified TAD geometries that maximize operational efficiency. This paper aims to consolidate knowledge on wake effects and integrate aerodynamic analysis of ideal TAD shapes using NREL FLORIS v4.0 software for wind speeds in Region 2. The mechanical design for implementing such blades is also explored. Blade shapes were modeled as a function of wind speed and radial distance from the hub. The current literature discussed previously lacks a full understanding of the wake effects and their impacts on the wind farm layout. Preliminary work in the wind turbine wake analysis has been carried out previously. However, this paper gives a broader overview and a unique approach to how the authors’ patented novel twist morphing idea could deal with the wake effects of the wind turbines. The wake effects were studied using data from the NREL Unsteady Aerodynamics Experiment (UAE) Phase VI, a fixed-speed 20 kW turbine with TAD blades. Subsequent sections delve into wake physics (Section 2), wake models (Section 3), simulation software and the flexible blade concept (Section 4), and preliminary FLORIS results (Section 5).

2. Wake Aerodynamics

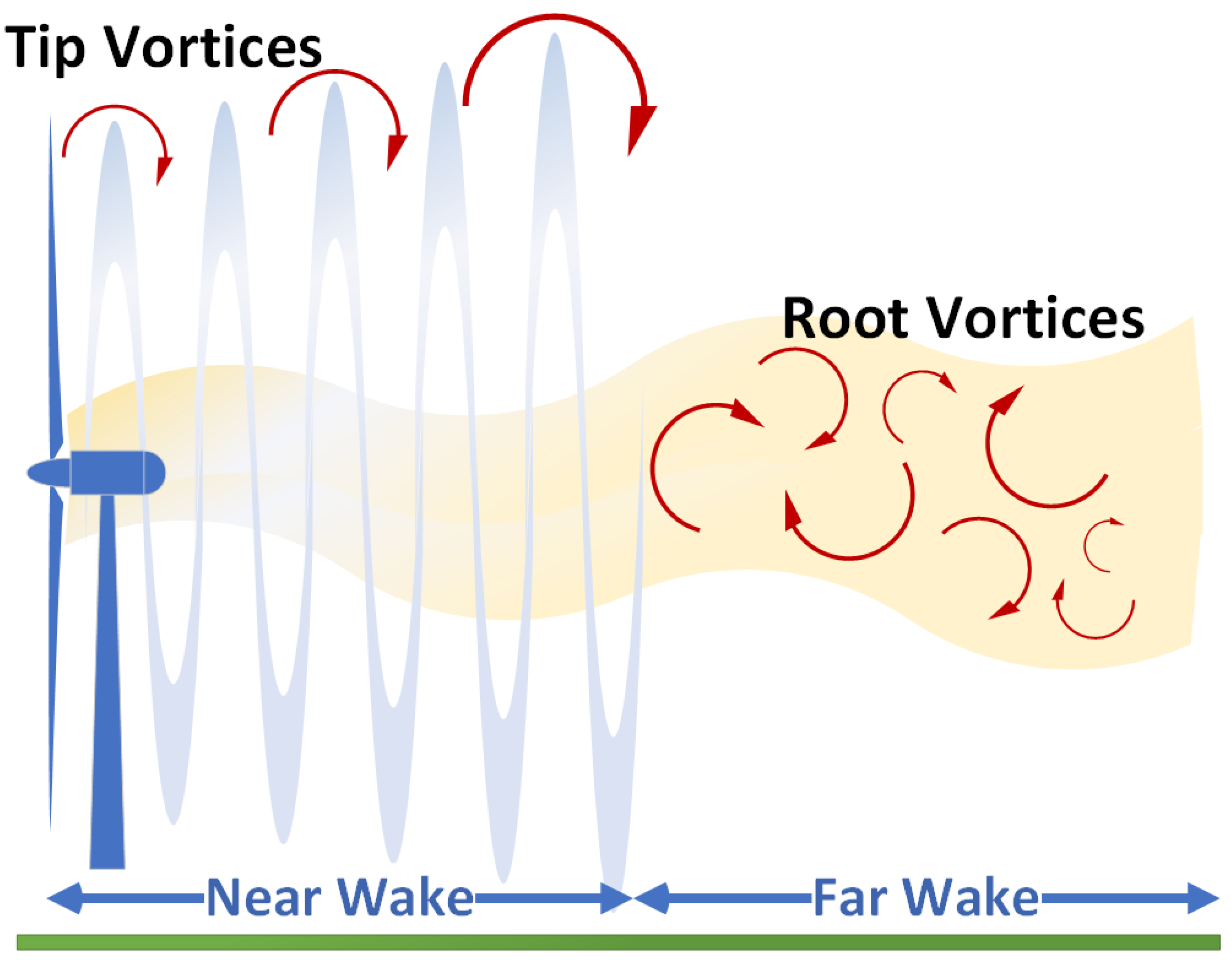

Wake is defined as a region of recirculating flow immediately behind a bluff body or a wave pattern in the downstream fluid generated by a moving object. These flow patterns can be attributed to viscosity, resulting in flow separation, turbulence, and density gradients [37]. A static turbine acting as a bluff body creates a velocity gradient and shear stress due to the no-slip conditions as the fluid moves over the surface. These effects of reduced flow velocity and non-zero shear stress are carried away from the body due to viscous diffusion [38]. These effects of viscous diffusion are carried out at a slow rate, but convection drives them faster, creating a thin boundary layer. Which of these competing effects of viscous diffusion and convection are dominant depends on the Reynolds number (Re). A high Re results in a higher rate of downstream convection away from the surface; thus, the vorticity generated at the surface is swept back further. At moderate Re, the flow separates when it interacts with the body; hence, the flow does not have sufficient momentum to go around the body [39]. After flow separation, an adverse pressure gradient develops due to the low velocity and momentum within the boundary layer. When subjected to this adverse pressure gradient, the boundary layer lacks sufficient momentum to overcome it, causing the flow to detach from the surface rather than follow it. With high Re, the region of flow separation is reduced because turbulent mixing brings higher-momentum flow closer to the surface [40]. High Re is also known to produce von Kármán Street vortex, a form of unstable flow. This appears in the form of vortex shedding that arises from instabilities in attached eddies, when flow in the shear layers is slower than the surrounding flow, hence rolling into vortices. The resulting oscillating forces, characterized by the Strouhal number, cause unsteady loading on structures [37,39]. A rotating propellor in uniform flow produces various vortex structures by the hub, nacelle, tower, and the blade tips due to the turning blades [41]. These wake formations can be categorized into two regions: the near-wake and the far-wake. In the far-wake region, the geometry of the turbine no longer plays a significant role since the helical vortex structure formed in the near-wake structure breaks down due to instabilities. The geometry of the wind turbine dominates the vortex structures seen in the near-wake regions since this is dependent upon the rotor radius and the wake growth rate. As the blades rotate, the vortices from the tip and the root start shedding [40,42]. These tip vortices, rotating in the opposite direction to the rotor, are located in the shear layers that form between the near- and far-wake regions due to the difference in velocities between the inside and the outside air. This region increases in thickness as it moves downstream, ultimately reaching the wake axis. A description of these wake structures can be seen in Figure 2.

These highly turbulent shear layers lead to momentum transfers due to turbulent mixing; hence, the velocity deficit is reduced as the wake moves downstream. Both velocity deficit and enhanced turbulence are used to characterize this turbine wake. Velocity deficit leads to reduced power output from the downstream turbine, while the enhanced turbulence results in dynamic loading (fatigue), which reduces the blade lifespan. This velocity deficit recovers downstream as the turbulence mixing occurs and has a Gaussian shaped profile [43]. Immediately behind the wind turbine, tightly wound helical vortices form from the blade tips, roots, and nacelle, with streamwise vortex structures concentrated at the center. Further downstream, wake instability caused by expansion and vortex interactions destabilizes the helical structure. Tip vortices lose uniform vorticity, and root vortices unwind, forming counter-rotating vortex pairs that drift away from the turbine axis. These two vortex structures interact further downstream but do not alter the flow [44]. These vortices, along with turbulence from the nacelle, tower, and boundary layers, create a significant velocity deficit immediately downstream, which recovers gradually in the far wake. High TI is concentrated in regions of strong vorticity, while areas outside this zone experience lower TI. However, unsteady loads on downstream turbine blades, caused by vortex structures, reduce power output and induce fatigue, impacting turbine performance.

3. Wake Models

These models compute the wake interplay between the upstream and downstream turbines. The upstream turbine is considered as an isolated system, but the effect of wake from the upstream turbine changes the initial conditions of the downstream turbine. FLORIS models are classified by velocity deficit, wake combination, deflection, and added turbulence [45,46]. Velocity deficit models take the effect of reduced velocity from the upstream turbine into account. This reduced velocity affects the power output of the downstream turbine. Wake deflection models address horizontal or vertical displacement in the upstream turbine due to free stream and turbine misalignment based on the model used [47]. The wake combination models demonstrate how the resulting velocity profiles are combined with each other, addressing the wake superposition concept. The added turbine models compute the added turbulence from the turbine interaction with ambient turbulence. These numerical models can involve differential equations solved from fluid, turbine dynamics, governing equations, analytical equations from mass or momentum conservation, or data-driven reduced-order models through CFD data [48]. The various models that are available for wake modeling alongside their key features, limitations, and mathematical representation are seen in the section below.

3.1. Jensen Model

This model uses an actuator disc model with linear wake expansion and a tunable wake decay constant [49]. It is simple and computationally inexpensive, widely adopted in FLORIS. The computation time for this model in FLORIS is 0.0018 s [50]. However, it ignores added turbulence from turbine operations [45]. The velocity profile at a point ($x,r$) is computed as follows:

$$u(x,r,a)=U_{\infty }[1-\delta u(x,r,a)]$$

(1)

$$\delta u=\left\{\begin{array}{cc}2\alpha {\left({\displaystyle \frac{r}{D+2x}}\right)}^2,\hfill & \mathrm{if}r\le {\displaystyle \frac{D+2xϵ}{2}}\hfill \\ 0,\hfill & \mathrm{otherwise}\hfill \end{array}\right.$$

(2)

where U_inf is the free stream velocity, $\delta$u is the velocity deficit, k is the wake decay constant, D is the rotor diameter, and a is the induction factor that the turbine is operating at [45].

3.2. Multi-Zone Model

The multi-zone model divides the wake into three zones (near-wake, far-wake, and mixing-wake), each with its own linear expansion factors [51]. The model is computed in 0.0019 s in FLORIS [50]. The wake zones of each upstream turbine, j, is combined to find the effective velocity of the downstream turbine i [45]. The tuned scaling factor (MU, q) causes the velocity of the outer zones to recover faster than the inner zones. It accounts for partial wake overlap but is sensitive to tuning parameters and ignores added turbulence effects.

$$u_t=U_{\infty }\left(1-2\sqrt{\sum _j{\left\{a_j{\sigma }_{q=1}^3{c}_{jq}\left[X_{i}min\left({\displaystyle \frac{A_{j,i,q}^{ol}}{A_i}},1\right)\right]\right\}}^2}\right)$$

(3)

where $X_i$ is the x location of the turbine i, $A_{j,i,q}^{ol}$ is the overlap area of a wake zone, and q of a turbine i with rotor if turbine j, and $c_{i,q}\left(x\right)$ defines the recovery of zone q to the freestream conditions [45].

$$c_{i,q}\left(x\right)={\left({\displaystyle \frac{D_i}{D_i+2k_e{m}_{U,q}\left({\gamma }_i\right)|x-X_i|}}\right)}^2$$

(4)

where $m_{U,q}$ is defined as

$$m_{U,q}\left({\gamma }_i\right)={\displaystyle \frac{M_{U,q}}{cos(a_U+b_U{\gamma }_i)}}$$

(5)

where $q=1,2,3$ corresponds to the wake overlap zones, and $a_U$ and $b_U$ are tuned model parameters. $D_i$ is the rotor diameter of turbine i, ${\gamma }_i$ is the yaw offset, and $M_{U,q}$ are scaling factors [45].

3.3. Jimenez Model

Jimenez model simulates yaw-induced wake deflection with small angle approximations and uniform wake velocity [52]. It effectively accounts for yaw effects but oversimplifies flow dynamics, leading to errors in far-wake estimations. Using small angle approximations, the skew angle $\zeta$ (defined as the angle between the wind direction and skew direction) is defined as

$$\zeta \left(x\right)\approx {\displaystyle \frac{{\zeta }_{init}^2}{1+2k_d\frac{x}{D}}}$$

(6)

$${\zeta }_{init}(a,\gamma )=1/2co{s}^2\left(\gamma \right)sin\left(\gamma \right)c_t$$

(7)

where ${\zeta }_{init}$ is the initial skew angle, and $k_d$ is the wake recovery rate. Using this skew angle and the Taylor series expansion, the amount of deflection by yaw misalignment in the spanwise (y-direction) is determined as follows [45]:

$$\delta \left(x\right)={\int }_0^{x}tan\left(\zeta \left(x\right)\right)dx$$

(8)

$$\zeta \left(x\right)\approx {\displaystyle \frac{{\zeta }_{init}\left[15{\left(\frac{2k_{d}x}{D}+1\right)}^4+{\zeta }_{\mathrm{init}}^4\right]}{\frac{30k_d}{D}{\left(\frac{2k_{d}x}{D}+1\right)}^5}}-{\displaystyle \frac{{\zeta }_{\mathrm{init}}D(15+{\zeta }_{\mathrm{init}}^2)}{30k_d}}$$

(9)

3.4. Bastankhah and Porté-Agel Model

The Bastankhah and Porté-Agel model is based on RANS equations; it separates wake sections by streamwise position to account for wake deflection and steering [53]. FLORIS calculates the axial induction factor in terms of $C_t$, irrespective of the sub model chosen, defined below [47]. It is accurate for wake steering but limited by simplified RANS analysis assumptions.

$$C_t\approx 4a[a-acos\left(\gamma \right)]$$

(10)

$$a\approx {\displaystyle \frac{1}{2cos\left(\gamma \right)}}[1-\sqrt{1-C_{t}cos\left(\gamma \right)}]$$

(11)

$$\chi =\zeta +\gamma \approx (0.6a+1)\gamma$$

(12)

$$\zeta \approx {\displaystyle \frac{0.3\gamma }{cos\left(\gamma \right)}}[1-\sqrt{1-c_{t}cos\left(\gamma \right)}]$$

(13)

where $C_T$ is the thrust coefficient, $\zeta$ is the skew angle, and $\chi$ is the flow skew angle in terms of the rotor axis [53].

The total deflection of the wake as a consequence of the wake steering is seen in the equations below, where $\zeta$ is constant in terms of the potential core of uniform velocity $u_c$, and the wake growth rate is linearly proportional to the incoming TI.

$$\delta ={\delta }_0+{\displaystyle \frac{\zeta E_0}{5.2}}\sqrt{{\displaystyle \frac{{\sigma }_{y0}{\sigma }_{z0}}{k_y{k}_z{M}_0}}}ln\left[{\displaystyle \frac{(1.6+\sqrt{M_0})\left(1.6\sqrt{\frac{{\sigma }_y{\sigma }_z}{{\sigma }_{y0}{\sigma }_{z0}}}-\sqrt{M_0}\right)}{(1.6-\sqrt{M_0})\left(1.6\sqrt{\frac{{\sigma }_y{\sigma }_z}{{\sigma }_{y0}{\sigma }_{z0}}}+\sqrt{M_0}\right)}}\right]$$

(14)

$${\delta }_0=x_{0}tan\left(\zeta \right)$$

(15)

$$E_0=C_0^2-3e^{{\displaystyle \frac{1}{12}}}{C}_0+3e^{{\displaystyle \frac{1}{3}}}$$

(16)

3.5. Gaussian Model

The model employs a Gaussian velocity deficit distribution based on self-similar shear flow theory [53]. Due to its simplified NSE and free shear flow theory, the computational time is low at 0.0025 [50]. It is computationally efficient and models lateral/vertical wake meandering but is limited by simplified Navier–Stokes assumptions. In the far-wake region, an analytical 3D velocity deficit expression is presented:

$${\displaystyle \frac{u(x,y,z)}{U_{\infty }}}=1-Cexp\left[-{\displaystyle \frac{{(y-\delta )}^2}{2{\sigma }_y^2}}\right]exp\left[-{\displaystyle \frac{{(z-z_h)}^2}{2{\sigma }_z^2}}\right]$$

(17)

$$C=1-\sqrt{1-{\displaystyle \frac{\left({\sigma }_{y0}{\sigma }_{z0}\right)M_0}{{\sigma }_y{\sigma }_z}}}$$

(18)

$$M_0=C_0(2-C_0)$$

(19)

$$C_0=1-\sqrt{1-c_t}$$

(20)

$\delta$ is the wake deflection, and the subscript “0” refers to the initial values at the start of far-wake, which is dependent on the TI $I_0$. The velocity distribution of the lateral and vertical wake width ($\sigma$), in the y and z direction, are defined in the equations below [45].

$${\displaystyle \frac{{\sigma }_y}{D}}=k_y{\displaystyle \frac{(x-x_0)}{D}}+{\displaystyle \frac{{\sigma }_{y0}}{D}}$$

(21)

$${\displaystyle \frac{{\sigma }_{y0}}{D}}={\displaystyle \frac{{\sigma }_{z0}}{D}}cos\left(\gamma \right)$$

(22)

$${\displaystyle \frac{{\sigma }_z}{D}}=k_z{\displaystyle \frac{(x-x_0)}{D}}+{\displaystyle \frac{{\sigma }_{z0}}{D}}$$

(23)

$${\displaystyle \frac{{\sigma }_{z0}}{D}}={\displaystyle \frac{1}{2}}\sqrt{{\displaystyle \frac{u_R}{U_{\infty }+u_0}}}$$

(24)

where C is the velocity deficit, $\delta$ is the wake deflection, $k_y$ defines the wake expansion in the lateral direction, and $k_z$ defines the wake expansion in the vertical direction; ${\sigma }_y$ and ${\sigma }_z$ define the wake width in the y and z direction [45].

3.6. Curl Model

The model captures curled wake effects under yaw using elliptic vorticity distribution and parabolic PDE solutions. It provides detailed modeling of wake deflection but at a higher computational cost (1.6 s in FLORIS) and requires numerical methods [50]. The equations below describe the downstream evolution of the wake deficit ($u^{\prime }$). Here, $v^{\prime }$ and $w^{\prime }$ are assumed to be zero; hence, there is a single parabolic partial differential equation that can be solved as a marching problem [54]. Martínez-Tossas et al. suggested possible improvements to the model, noting the differences between the model and the LES simulations [55].

$$u{\displaystyle \frac{\partial u^{\prime }}{\partial x}}+v{\displaystyle \frac{\partial u^{\prime }}{\partial y}}+w{\displaystyle \frac{\partial (u+u^{\prime })}{\partial z}}={\nu }_{\mathrm{eff}}\left({\displaystyle \frac{{\partial }^2{u}^{\prime }}{\partial x^2}}+{\displaystyle \frac{{\partial }^2{u}^{\prime }}{\partial y^2}}+{\displaystyle \frac{{\partial }^2{u}^{\prime }}{\partial z^2}}\right)$$

(25)

3.7. Gauss–Curl Hybrid Model

As the name suggests, the model combines Gaussian and Curl models to improve wake deficit and deflection accuracy while maintaining a low computational cost [54]. The model is effective, especially when it comes to addressing the discrepancies of Gaussian model’s ability to estimate downstream power using field data. The GCH solves this by incorporating yaw-added recovery and secondary steering for appropriate wake deficit and deflection to match field data [18].

3.8. Larsen Model

Exclusive to the MATLAB v2021a version of FLORIS, the Larsen model assumes symmetric turbulent wake and uses Prandtl’s turbulent boundary layer equations in cylindrical coordinates [47]. While accurate for symmetric wakes, it is limited to specific turbulence assumptions like the first- or second-order approximations of RANS assuming steady and self-similar flow for velocity deficit profile [56].

$$\left\{\begin{array}{cc}{\displaystyle \frac{\partial }{\partial x}}\left(u_{x}r\right)+{\displaystyle \frac{\partial }{\partial r}}\left(u_{r}r\right)=0\hfill & \\ (U_{\infty }+u_x){\displaystyle \frac{\partial u_x}{\partial x}}+u_r{\displaystyle \frac{\partial u_x}{\partial r}}\left[l^{2}r{({\displaystyle \frac{\partial u_x}{\partial r}})}^2\right]\hfill \end{array}\right.$$

(26)

3.9. Wake Combination Models

The model combines wakes using velocity or kinetic energy summation methods such as Freestream Linear Superposition (FLS), Max Velocity Deficit, or Sum of Squares Freestream Superposition (SOSFS). These models are not fully developed and are sensitive to flow field assumptions. FLS simply adds the upwind flow field and the wake flow field to generate the velocity caused by the interaction of these flow fields.

$$U_W=U_{f}f+U_f$$

(27)

Maximum wake velocity deficit simply selects the maximum of the two points between the base flow field and the wake field.

$$U_W=max(U_{f}f,U_w)$$

(28)

SOSFS uses the Pythagorean equations to return the resulting sum of squares velocity of the two fields.

$$U_W=\sqrt{U_{ff}^2+U_w^2}$$

(29)

where $U_w$ is the wake velocity field, $U_{ff}$ is the base flow field, and $U_W$ is the combined wake velocity.

3.10. Added Turbulence Models

These models simulate turbulence from turbine operation and ambient conditions. Models like the Gaussian model and the Crespo Hernandez model take ambient conditions like the atmospheric shear, veer, changes in TI through field measurements, and the anisotropy of the wake and atmospheric flow into account.

3.10.1. Gaussian Model

The Gaussian model links ambient TI to wake expansion using empirical relations seen below [57,58].

$$k_y=k_z=0.38371I+0.003678$$

(30)

The additional turbulence generated and the ambient conditions are computed using the redefined added turbulence equations seen below, where the number of turbines is represented by N, where N = 1 indicates the strongest wake effect on the turbine being evaluated [59]. This model relies on the linear wake expansion model and the six tuning parameters ($\alpha$,$\beta$, $k_a$, $k_a$, $a_b$, $b_d$).

$$I=\sqrt{\sum _{j=0}^N{\left(I_j^{+}\right)}^2+I_0^2}$$

(31)

$$I^{+}=A^{ol}\left[0.8a_i^{0.73}{I}_0^{0.35}{\left({\displaystyle \frac{x}{D_i}}\right)}^{-0.32}\right]$$

(32)

$$a\approx {\displaystyle \frac{1}{2\cos \left(\gamma \right)}}\left[1-\sqrt{1-c_t\cos \left(\gamma \right)}\right]$$

(33)

3.10.2. Crespo Hernandez Model

This model computes the additional variability through least squares fitting to relate the turbulence kinetic energy to the standard deviation of the wind direction assuming similarity between the anisotropy of the wake to be similar to the atmospheric flow [60].

$$I={\sigma }_u/U_{\infty }=1.026k^{0.5}/U_{\infty }$$

(34)

With $x/D$ between 5 and 15, $I_0$ between 0.07 and 0.14, and a between 0.1 and 0.4, the FLORIS software only uses the added turbulence in the far-wake region [47,60].

$$I^{+}=0.73a^{0.8325}{I}_0^{0.0325}{{\displaystyle \frac{x}{D}}}^{-0.32}$$

(35)

4. Materials and Methods

In the following section, the specific modeling tools used in this study are discussed. The modeling section discusses the various tools available and the advantages and disadvantages of these tools. This study focused on the aerodynamic modeling of turbine blades. These models are of varying accuracy, categorized as steady-state models, control-oriented models, medium-fidelity models, and high-fidelity models [61]. The steady-state models predict time-averaged properties; hence, temporal dynamics are ignored. These models are computationally inexpensive but only provide quantities averaged over periods of 5–10 min. Control-oriented models capture the dominant flow characteristics on the second scale. These tend to be computationally more expensive than the steady-state models. Medium-fidelity models are less computationally expensive than the high-fidelity LES models and, hence, are suitable for controller testing while losing out on some of the finer spatial and temporal resolution available with the high-fidelity simulations. The various modeling tools available for these simulations, including their uses and limitations, are seen in the following section. Further in this section, the flexible blade concept is discussed, which serves as a baseline for the TAD optimization work seen in Section 5. This will involve an introduction to the patented flexible blade concept that lays out the framework for the TAD optimization work discussed in Section 5.

4.1. FLORIS

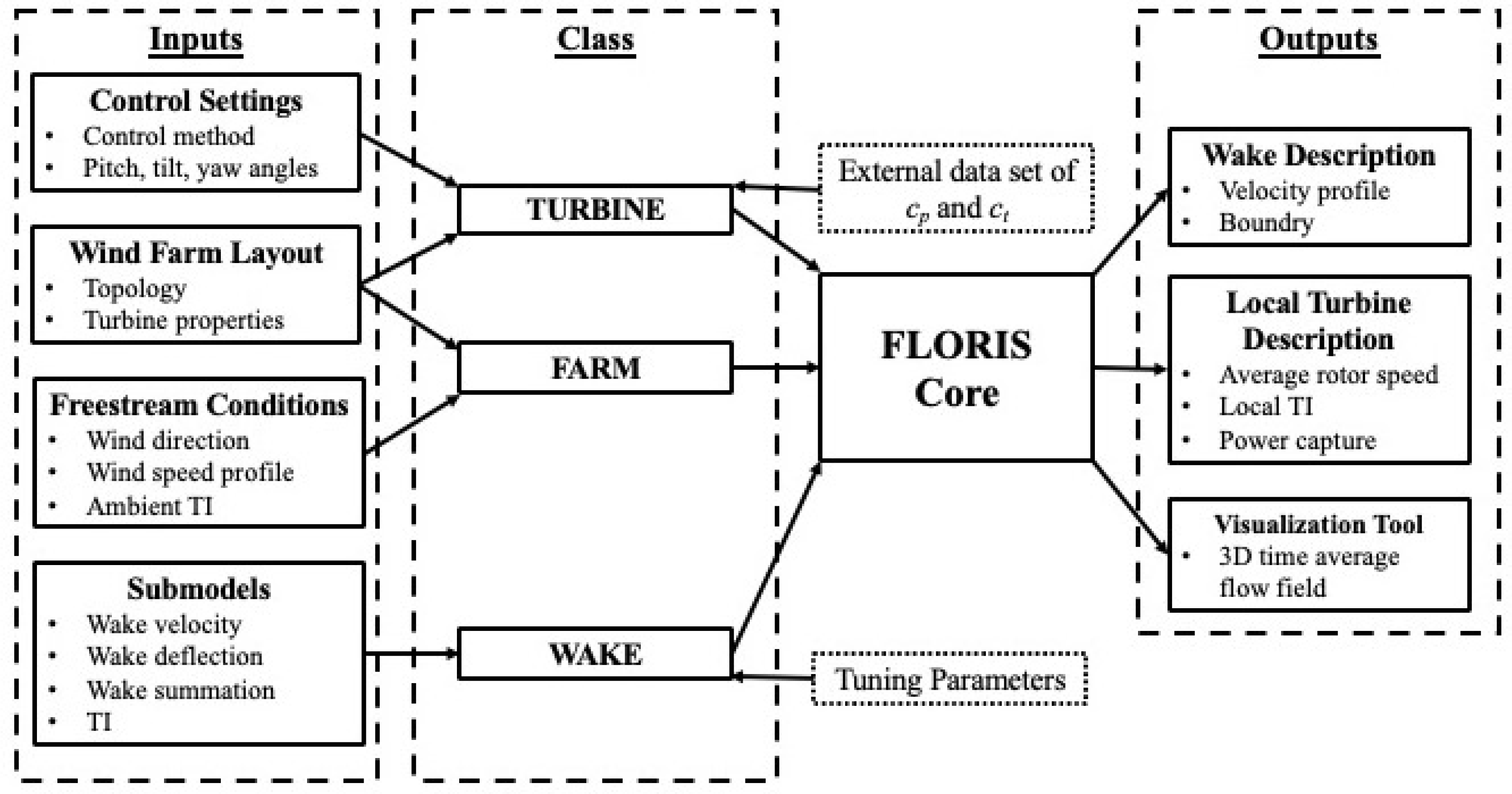

FLORIS is an open-source software designed to optimize wind farm energy production and simulate wake interactions using reduced-order engineering models. Developed originally in MATLAB v2021a as FLORISSE by Delft University of Technology and later extended in Python 3.9 through collaboration with the National Renewable Energy Laboratory (NREL), it provides a low-fidelity yet computationally efficient framework for analyzing wind farm performance [62,63]. This study focuses on the Python version of FLORIS, although a comparison with the MATLAB version is presented later in Section 4.2.

FLORIS employs steady-state, non-linear wake models to predict time-averaged flow fields and turbine power outputs. These models optimize yaw misalignment to enhance wind farm performance while maintaining low computational costs (≤1 s for 100 turbines) [50]. The software uses parameterized thrust and power coefficients, requiring consistent hub heights for turbines but not modeling wake dynamics explicitly [48]. The framework, seen in Figure 3 necessitates user-defined inputs in a JSON format, including turbine specifications, wake model parameters, and farm-level flow conditions, such as wind direction, velocity, TI, and shear factor [45].

Key features of FLORIS include its object-oriented architecture, which facilitates easy customization, integration with high-fidelity tools (e.g., SOWFA and OpenFAST by NREL located in Golden, CO, USA), and compatibility with aerodynamic codes such as CC-Blade and WISDEM [64]. For example, CC-Blade outputs turbine-specific power and thrust coefficients, which FLORIS uses to simulate yaw-aligned and misaligned conditions [45]. Although FLORIS performs well under steady-state assumptions, it lacks the ability to capture transient dynamics or ground effects, and the accuracy depends on properly tuned wake and turbulence parameters [53,64]. Integration with high-fidelity tools like SOWFA and OpenFAST has been explored to address FLORIS’s limitations. SOWFA simulations, though computationally intensive, provide tuning inputs for FLORIS, enabling better insights into wake physics under specific scenarios, such as aligned turbines with and without yaw [65]. OpenFAST, on the other hand, can supply turbine coefficients and axial induction factors derived from its AeroDyn module, allowing FLORIS to model Region 3 turbine operations [64]. Recent advancements include incorporating the Gaussian Wake Model (GWM) into the OpenFAST framework, enhancing the description of wake dynamics through real-time calculations of thrust coefficients and axial induction factors [65]. Despite its advantages, FLORIS exhibits some limitations, such as discontinuities in wake velocity across the rotor plane and inner wake zone derivatives, which are inherent to most steady-state models. However, these issues minimally impact overall results [64,66]. Future updates aim to address these limitations by incorporating local effects, advanced turbulence modeling, analytic gradients for optimization, and deeper integration with tools like CC-Blade and WISDEM [50,54].

4.2. FLORISSE

Developed by the Delft University of Technology, FLORISSE is a MATLAB version of FLORIS that has a similar architecture [67]. While these two versions share many similarities, they will be incapable of converging onto a single solution given the same initial parameters due to the errors common amongst numerical models [47]. This MATLAB version has several inputs spread across different input files. It is also noteworthy that FLORISSE does not have ability to implement dynamic control.

4.3. OpenFAST

Fatigue, Aerodynamics, Structures, and Turbulence (FAST) is a multi-physics tool developed by NREL to predict wind turbine power performance and structural loads. OpenFAST, its supported version, incorporates additional physics to simulate wind farm wakes and turbine dynamics, providing high-fidelity wake modeling and medium-fidelity turbine-level analysis [68]. It achieves computational efficiency, making it suitable for iterative and probabilistic design [61]. When comparing OpenFAST with FLORIS, notable differences emerge. FLORIS produces smooth wake velocity profiles due to its steady-state models, while OpenFAST results are influenced by turbulent wind conditions. A study by CL-Windcon demonstrated these differences, showing FLORIS predicts minimum velocity at the wake center, increasing outward, whereas OpenFAST’s velocity results depend on axial induction factors across the blade sections [48]. OpenFAST reveals no blade effects at the hub, and its wake velocity aligns more closely with incoming wind.

Additionally, OpenFAST provides smoother transitions in velocity profiles across the rotor diameter, whereas FLORIS exhibits abrupt changes at wake boundaries. This discrepancy highlights FLORIS’s limitations, including discontinuities. While advanced wake models like Porté-Agel’s could address these issues, the Jensen wake model used in FLORIS restricts wake shape adjustments and recovery factor accuracy.

4.4. SOWFA

SOWFA, developed by NREL, is a high-fidelity simulation tool for modeling time-dependent turbulent atmospheric flows and turbine–wake interactions. Built on OpenFOAM and OpenFAST, it integrates ABL dynamics, turbine aerodynamics, and flow control systems [69]. SOWFA requires both OpenFAST and OpenFOAM for operation, with turbine wakes modeled via the actuator line method. The LES model samples velocities along actuator lines and returns them to OpenFAST, where BEM theory computes aerodynamic forces. These forces are fed back to the LES solver and applied as body forces in the momentum equation, resolving rotor wakes and vortices. OpenFOAM simulates the ABL, driven by pressure gradients calculated through momentum balance. Unlike FLORIS, SOWFA can potentially incorporate pressure gradient analysis, which is critical for wake modeling [61]. SOWFA configurations include OpenFOAM and AeroDyn input files, enabling precise aerodynamic modeling suited for this study [68,69]. In conjunction with this, XFOIL and QBlade, developed by Mark Drela at MIT, can be used to design custom airfoil shapes [70]. These Output files can be used with AeroDyn/FAST for analysis, which can then be used as input for FLORIS later [71].

4.5. Flexible Blade Concept

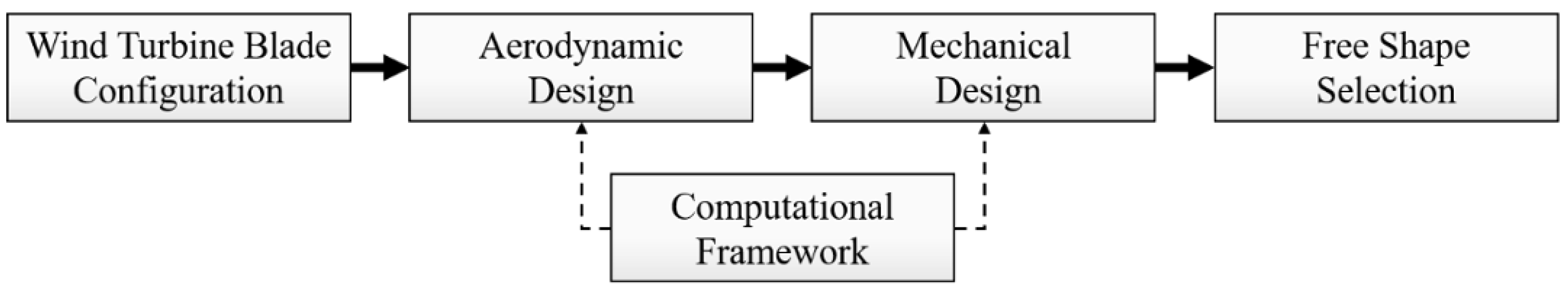

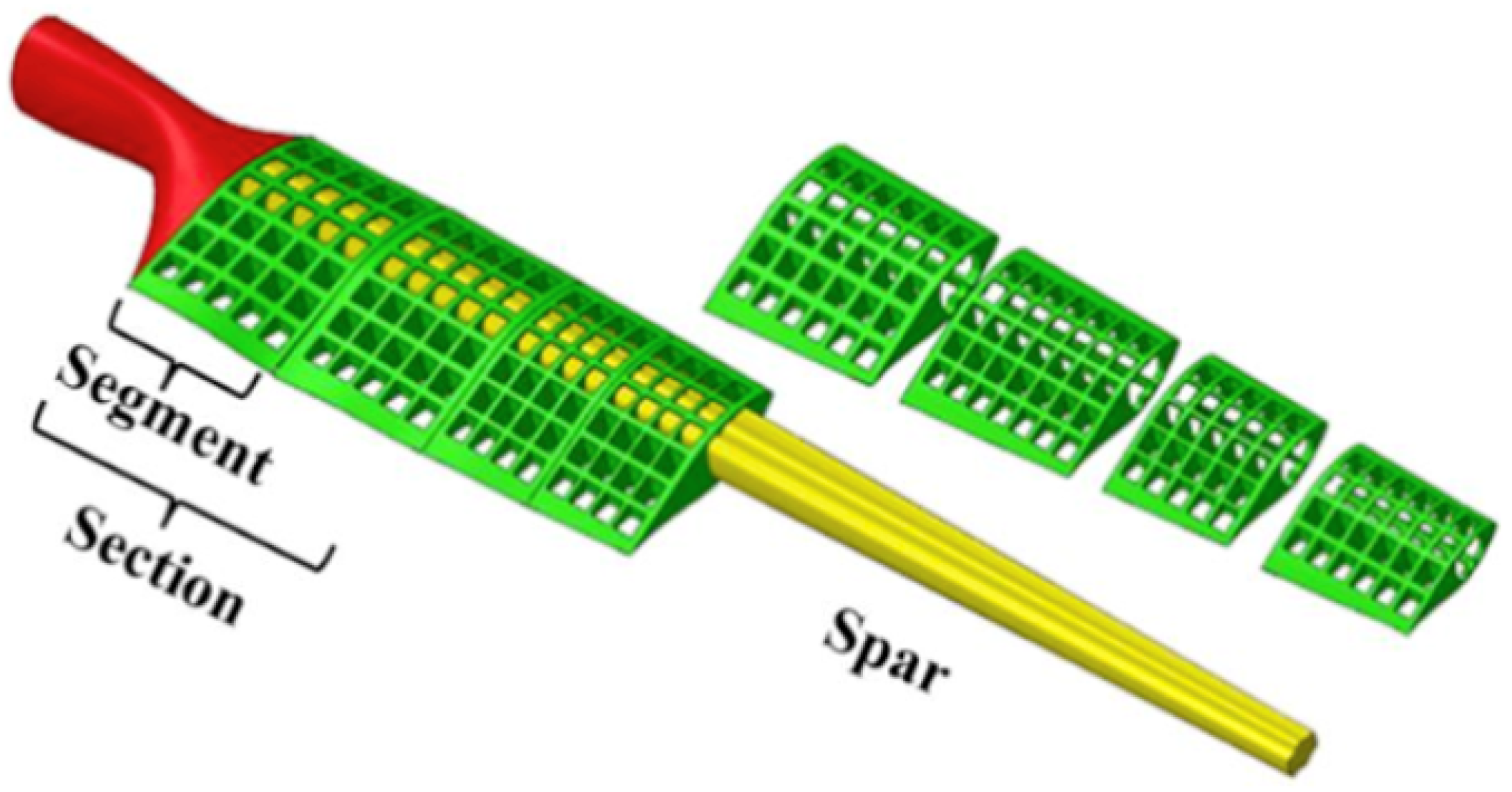

Figure 4 illustrates the flexible-blade concept, developed in our previous work [8,34,35,36]. This design includes a rigid spar, surrounded by blade segments mounted in a series and a nonstructural flexible skin. The pitch motor rotates the spar to change the blade angle and multiple actuators provide finer adjustments.

Unlike the rigid blade design, where the twist angle varies along the blade, in the proposed design, the twist angle ($\phi$) is a function of the radius (r) and wind speed (u).

$$\phi =f(r,u)$$

(36)

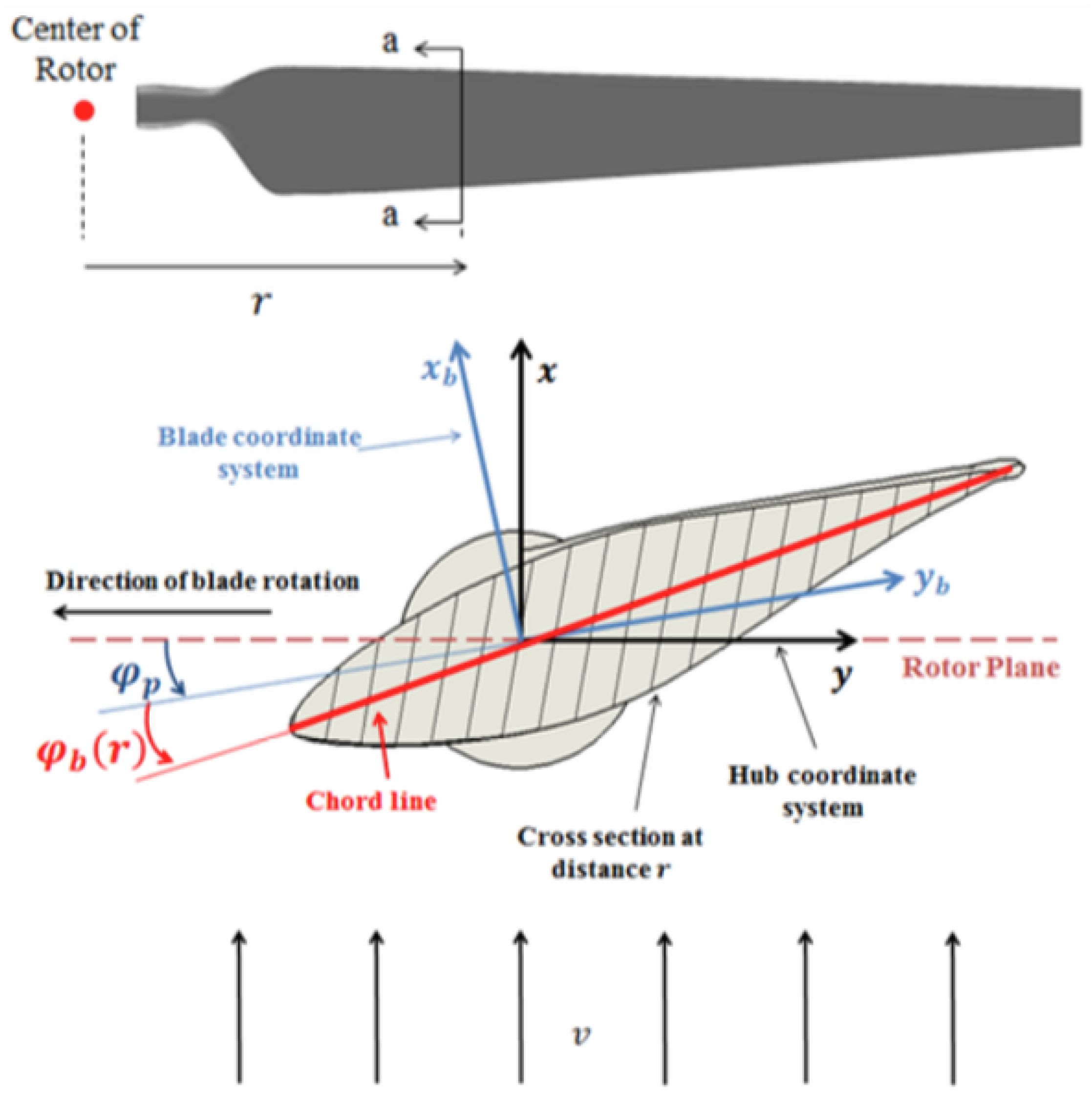

Since the blade root moves, the absolute local twist angle is found by summing the spar angle (${\phi }_p$) and the local twist angle (${\phi }_b$) seen in Figure 5.

$$\phi \left(r\right)={\phi }_p+{\phi }_b\left(r\right)$$

(37)

The authors’ previous work includes applications to the design and control of the above-mentioned concepts. The analysis employed the AeroDyn software and an iterative search algorithm to obtain a set of ideal TAD shapes for the steady-shape operation in Region 2 wind speeds. The power coefficient seen in Equation (38) below is optimized at each cross-section of the blade. A mechanical design also establishes the techniques to get these TAD shapes and the required optimal actuator positions.

$$c_p=f(\beta ,\phi ,u)$$

(38)

This procedure to find the optimal TAD shapes for each rated wind speed can be seen in Figure 6 below.

4.6. Modeling Set-Up and Assumptions

In Section 5, there will be a focus on the FLORIS simulations used to optimize twist angle configurations. Due to this study, the focus was on steady-state simulations with Gaussian wake models to study the twist angle distributions and wake study. The team used the Gaussian wake model since the wind turbine wake is shown to follow a Gaussian profile. Gaussian wake models simulate far-wake regions well, which is important when doing farm-level studies. The parameters $k_a$ and $k_b$ of the Gaussian wake model determine the linear relationship between the TI and the Gaussian wake shape. The sensitivity analysis and the tuning of these parameters is out of the scope of this paper, but the authors acknowledge the importance of these; hence, further studies are being conducted. When simulating, another common assumption is a constant growth rate for simplification. The study uses A decimal percent measure to define the TI, noting that FLORIS is not suitable for TIs over 0.14. The wind shear is used to define the vertical velocity profile with a shear factor of 0.12. The blade pitch of the turbine can also be specified per the FLORIS reference manual, and while it has not been incorporated in the current study, the authors plan to use it in future work [66].

5. Results and Discussion

The previously mentioned TAD design framework was focused on maximizing efficiency in Region 2. The results in this section expand upon the former framework by implementing AeroDyn and FLORIS wake models to demonstrate effects of wake.

For this study, a 20 kW wind turbine similar to the one used in the NREL UAE Phase VI turbine study is used. The characteristics for this turbine are listed in

Table 1. NREL UAE Phase VI turbine characteristics.

Rating	20 kW
Rotor Orientation, Configuration	Upwind, 2 blades
Blade Airfoils	S809
Control	Fixed speed
Rotational Speed	72 rpm synchronous speed
Cut-in, Rated, Cut-out Wind Speed [m/s]	3.0, 13.5, 25.0
Rotor, Hub Diameter [m]	4.6, 0.429
Hub Height [m]	12.192
Blade Pitch [°]	2–14
Tilt, Yaw Angle [°]	0.0

; this performance data has been certified by the NREL [72]. This simple system is suitable for studying the blade twist angle. Along with that, this turbine model has been used in other studies, providing us with suitable benchmarks [20,72].

The FLORIS simulations seen require the $c_p$ and $c_t$ values for the specific TAD shapes found previously. The authors used AeroDyn to study the aerodynamic response of the blades and extract the necessary data. AeroDyn implements a quasi-steady BEM theory [73]. Due to its reliability and fast computational speed, BEM is a common method for evaluating these parameters [74]. While reliable, BEM breaks down at high values of AIF and does not take the effects of vortex shedding for blade tip and hub into account. AeroDyn implements Prandtl’s tip loss and hub loss, Glauert, and skew wake to tackle these short comings. The AeroDyn model simulates each unique TAD between the speeds of 5 m/s to 10 m/s to obtain the blade performance parameters. Then, all the TAD shapes were simulated using pitch control to find the maximum $c_p$ as a function of the pitch angle with a constant rotor speed of 72 rpm for each wind speed.

Table 2. FLORIS input table.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	Original		TAD #1		TAD #2		TAD #3		TAD #4		TAD #5		TAD #6		TAD #7		TAD #8		TAD #9
	${\mathit{c}}_{\mathit{p}\mathbf{0}}$	${\mathit{c}}_{\mathit{t}\mathbf{0}}$	${\mathit{c}}_{\mathit{p}\mathbf{1}}$	${\mathit{c}}_{\mathit{t}\mathbf{1}}$	${\mathit{c}}_{\mathit{p}\mathbf{2}}$	${\mathit{c}}_{\mathit{t}\mathbf{2}}$	${\mathit{c}}_{\mathit{p}\mathbf{3}}$	${\mathit{c}}_{\mathit{t}\mathbf{3}}$	${\mathit{c}}_{\mathit{p}\mathbf{4}}$	${\mathit{c}}_{\mathit{t}\mathbf{4}}$	${\mathit{c}}_{\mathit{p}\mathbf{5}}$	${\mathit{c}}_{\mathit{t}\mathbf{5}}$	${\mathit{c}}_{\mathit{p}\mathbf{6}}$	${\mathit{c}}_{\mathit{t}\mathbf{6}}$	${\mathit{c}}_{\mathit{p}\mathbf{7}}$	${\mathit{c}}_{\mathit{t}\mathbf{7}}$	${\mathit{c}}_{\mathit{p}\mathbf{8}}$	${\mathit{c}}_{\mathit{t}\mathbf{8}}$	${\mathit{c}}_{\mathit{p}\mathbf{9}}$	${\mathit{c}}_{\mathit{t}\mathbf{9}}$
5	0.447	0.817	0.464	0.851	0.460	0.841	0.458	0.833	0.451	0.829	0.447	0.822	0.442	0.816	0.435	0.803	0.424	0.787	0.423	0.786
6	0.484	0.793	0.486	0.814	0.489	0.811	0.487	0.803	0.482	0.798	0.483	0.795	0.481	0.789	0.478	0.777	0.471	0.770	0.470	0.765
7	0.435	0.617	0.432	0.627	0.437	0.627	0.440	0.626	0.436	0.624	0.434	0.622	0.433	0.617	0.431	0.609	0.427	0.601	0.427	0.599
8	0.370	0.490	0.361	0.496	0.368	0.494	0.371	0.494	0.377	0.512	0.371	0.494	0.370	0.491	0.369	0.486	0.366	0.482	0.365	0.479
9	0.314	0.401	0.300	0.409	0.303	0.403	0.312	0.402	0.314	0.405	0.315	0.407	0.315	0.403	0.314	0.397	0.312	0.395	0.312	0.393
10	0.268	0.336	0.253	0.342	0.258	0.339	0.261	0.332	0.267	0.336	0.268	0.338	0.270	0.338	0.269	0.334	0.268	0.331	0.268	0.330
11	0.231	0.286	0.216	0.291	0.221	0.292	0.220	0.279	0.228	0.284	0.229	0.289	0.231	0.286	0.233	0.286	0.233	0.284	0.232	0.282
12	0.200	0.245	0.187	0.255	0.193	0.253	0.188	0.248	0.196	0.240	0.199	0.248	0.200	0.248	0.203	0.246	0.204	0.247	0.204	0.246
13	0.174	0.212	0.164	0.223	0.170	0.222	0.165	0.216	0.169	0.208	0.173	0.216	0.175	0.216	0.178	0.215	0.180	0.216	0.180	0.215

lists the corresponding $c_p$ and $c_t$ values for different wind speeds. These will be used as input data for FLORIS.

Table 3. Percent change in $c_p$ and $c_t$ for different TAD configurations.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	TAD #1		TAD #2		TAD #3		TAD #4		TAD #5		TAD #6		TAD #7		TAD #8		TAD #9
	% ${\mathit{c}}_{\mathit{p}\mathbf{1}}$	% ${\mathit{c}}_{\mathit{t}\mathbf{1}}$	% ${\mathit{c}}_{\mathit{p}\mathbf{2}}$	% ${\mathit{c}}_{\mathit{t}\mathbf{2}}$	% ${\mathit{c}}_{\mathit{p}\mathbf{3}}$	% ${\mathit{c}}_{\mathit{t}\mathbf{3}}$	% ${\mathit{c}}_{\mathit{p}\mathbf{4}}$	% ${\mathit{c}}_{\mathit{t}\mathbf{4}}$	% ${\mathit{c}}_{\mathit{p}\mathbf{5}}$	% ${\mathit{c}}_{\mathit{t}\mathbf{5}}$	% ${\mathit{c}}_{\mathit{p}\mathbf{6}}$	% ${\mathit{c}}_{\mathit{t}\mathbf{6}}$	% ${\mathit{c}}_{\mathit{p}\mathbf{7}}$	% ${\mathit{c}}_{\mathit{t}\mathbf{7}}$	% ${\mathit{c}}_{\mathit{p}\mathbf{8}}$	% ${\mathit{c}}_{\mathit{t}\mathbf{8}}$	% ${\mathit{c}}_{\mathit{p}\mathbf{9}}$	% ${\mathit{c}}_{\mathit{t}\mathbf{9}}$
5	3.83	4.11	3.09	2.85	2.53	2.48	1.05	1.38	0.00	0.50	−1.01	−0.17	−2.53	−1.81	−4.99	−3.78	−5.26	−3.82
6	0.35	2.70	1.05	2.33	0.60	1.27	−0.37	0.64	−0.19	0.34	−0.68	−0.40	−1.24	−1.91	−2.58	−2.83	−2.89	−3.52
7	−0.53	1.59	0.64	1.62	1.13	1.36	0.21	1.04	−0.18	0.70	−0.41	−0.02	−0.81	−1.38	−1.75	−2.64	−1.86	−2.95
8	−2.62	1.20	−0.62	0.92	0.24	0.90	1.76	4.45	0.08	0.73	0.00	0.29	−0.46	−0.90	−1.24	−1.67	−1.40	−2.22
9	−4.52	1.89	−3.63	0.35	−0.76	0.27	−0.22	0.82	0.13	1.30	0.03	0.45	−0.10	−1.00	−0.64	−1.47	−0.86	−1.97
10	−5.71	1.90	−3.92	0.92	−2.46	−1.10	−0.52	0.12	−0.04	0.65	0.63	0.62	0.37	−0.57	0.11	−1.58	−0.07	−1.90
11	−6.29	1.96	−4.29	2.31	−4.85	−2.21	−1.08	−0.46	−0.74	1.16	0.30	0.28	1.08	0.11	0.87	−0.39	0.69	−1.09
12	−6.44	4.04	−3.50	3.35	−5.89	−1.02	−2.30	−1.96	−0.70	1.10	−0.35	1.14	1.40	0.37	1.90	0.69	1.70	0.29
13	−5.68	4.99	−2.53	4.76	−5.45	1.93	−3.21	−2.26	−0.46	1.60	0.34	1.74	1.95	1.22	3.04	1.79	3.27	1.46

lists the percentage change for $c_p$ and $c_t$ relative to the baseline blade.

Once this input from the AeroDyn software was extracted, the FLORIS simulations were generated with the previously mentioned Python version of FLORIS 2.2.0. These simulations were constructed for all nine TAD shapes and the original blade design. For a single turbine, the velocity deficit is evaluated by measuring the horizontal cut-plane of the flow at the hub height. The different blade profiles contain significant overlap, making it hard to separate the distance at which the velocity recovers 99% of the inlet velocity. These distances (in meters) appear in

Table 4. Distances for full velocity recovery.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	5	6	7	8	9	10	11	12	13
Original	1994	1971	1888	1804	1735	1676	1626	1575	1527
TAD #1	1994	1997	1903	1814	1751	1692	1634	1599	1558
TAD #2	1994	1993	1903	1812	1738	1684	1637	1594	1556
TAD #3	1994	1983	1901	1812	1737	1667	1601	1576	1535
TAD #4	1994	1977	1898	1843	1742	1677	1615	1553	1503
TAD #5	1994	1974	1895	1810	1746	1682	1628	1577	1532
TAD #6	1994	1967	1888	1806	1739	1681	1621	1577	1533
TAD #7	1994	1952	1875	1795	1726	1671	1619	1571	1529
TAD #8	1994	1943	1863	1788	1722	1663	1615	1573	1534
TAD #9	1994	1936	1860	1783	1718	1660	1610	1570	1531

below.

The percentage change relative to the baseline is quantified and seen below in

Table 5. Percentage change in recovered distances.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	5	6	7	8	9	10	11	12	13
TAD #7	0.00%	−0.96%	−0.69%	−0.50%	−0.52%	−0.30%	−0.43%	−0.25%	0.13%
TAD #8	0.00%	−1.42%	−1.32%	−0.89%	−0.75%	−0.78%	−0.68%	−0.13%	0.46%
TAD #9	0.00%	−1.78%	−1.48%	−1.16%	−0.98%	−0.95%	−0.98%	−0.32%	0.26%

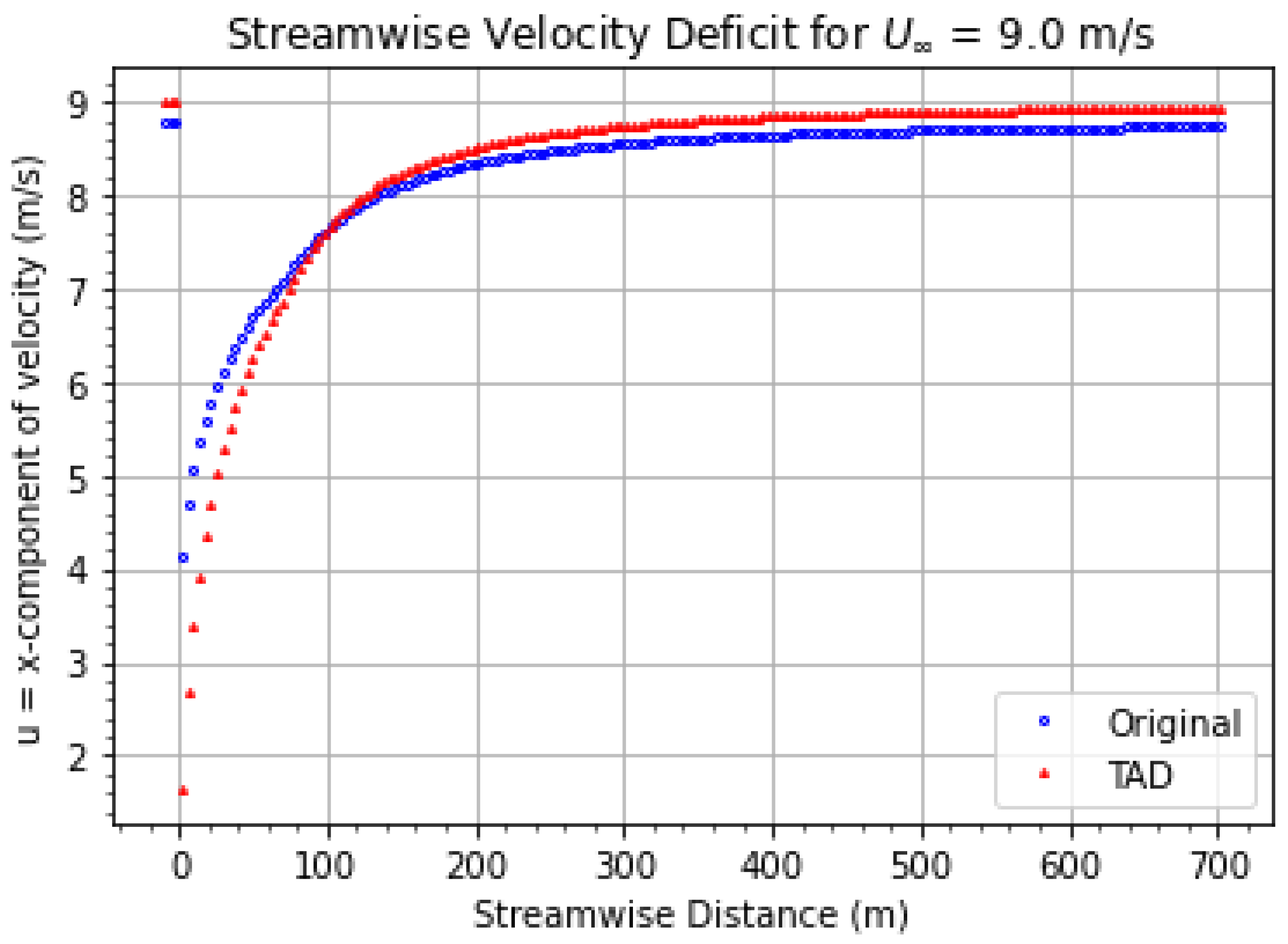

. Only the profiles that showed a decrease in velocity recovery distance are seen below as a negative percentage value. Only TAD #7–9 are seen to have a better velocity recovery.

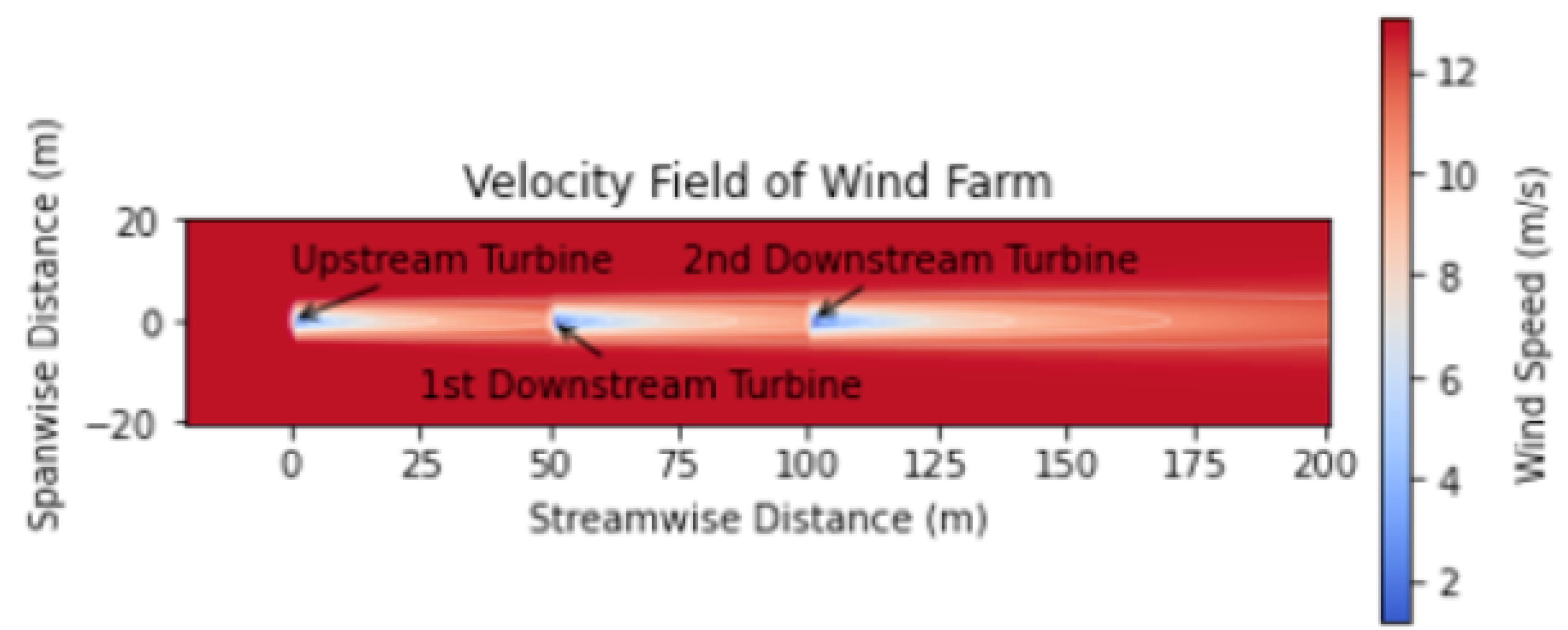

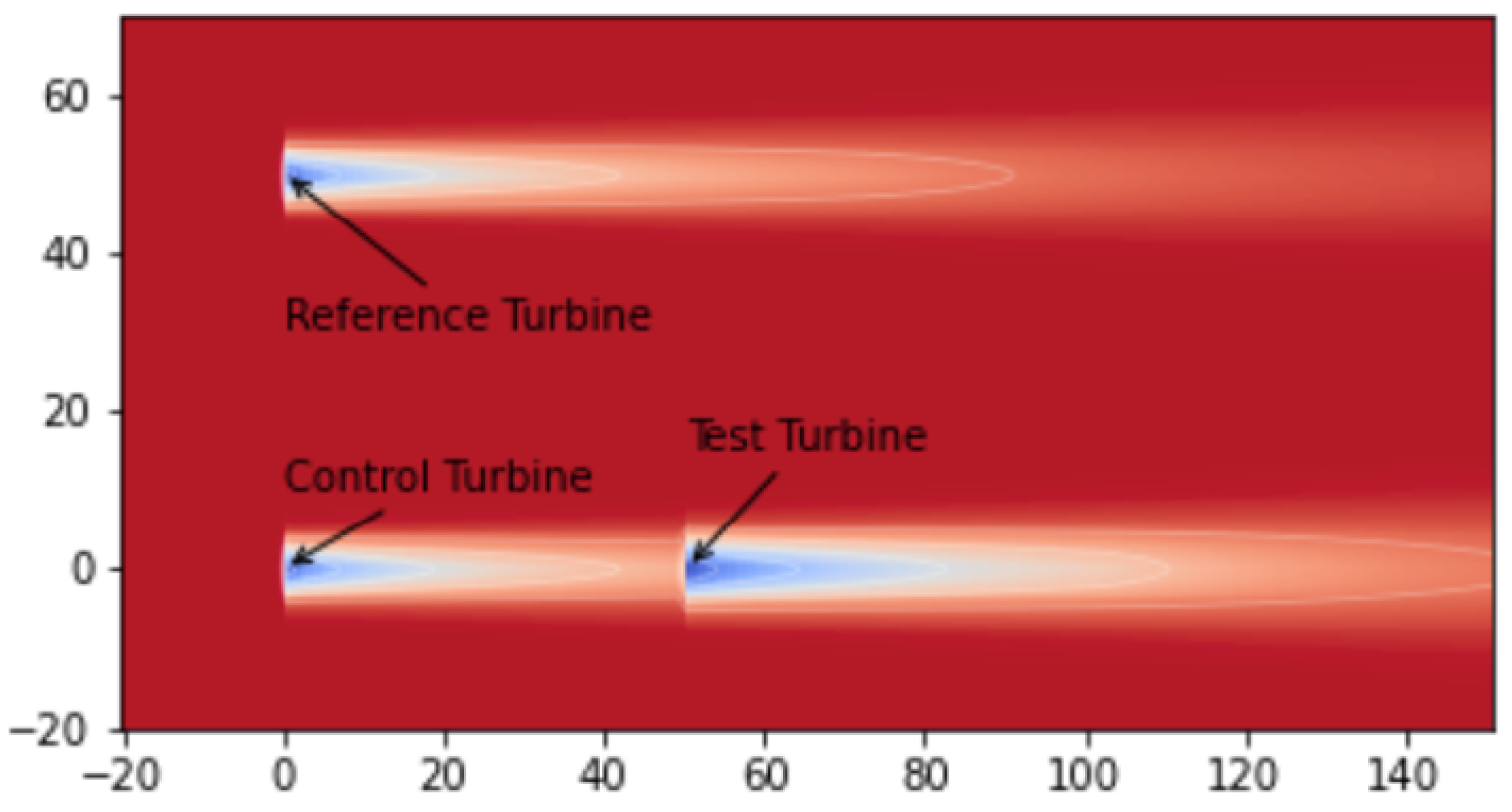

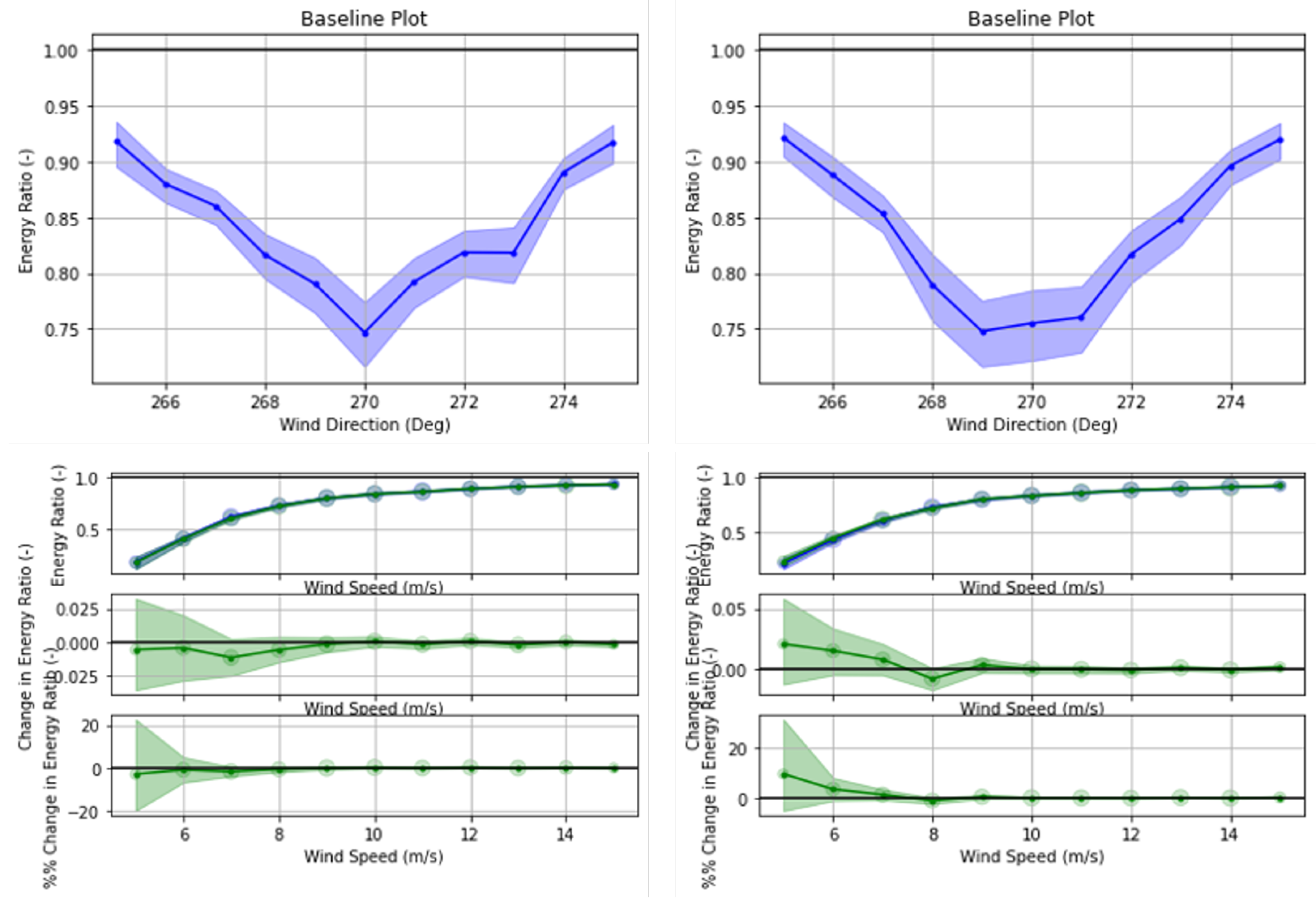

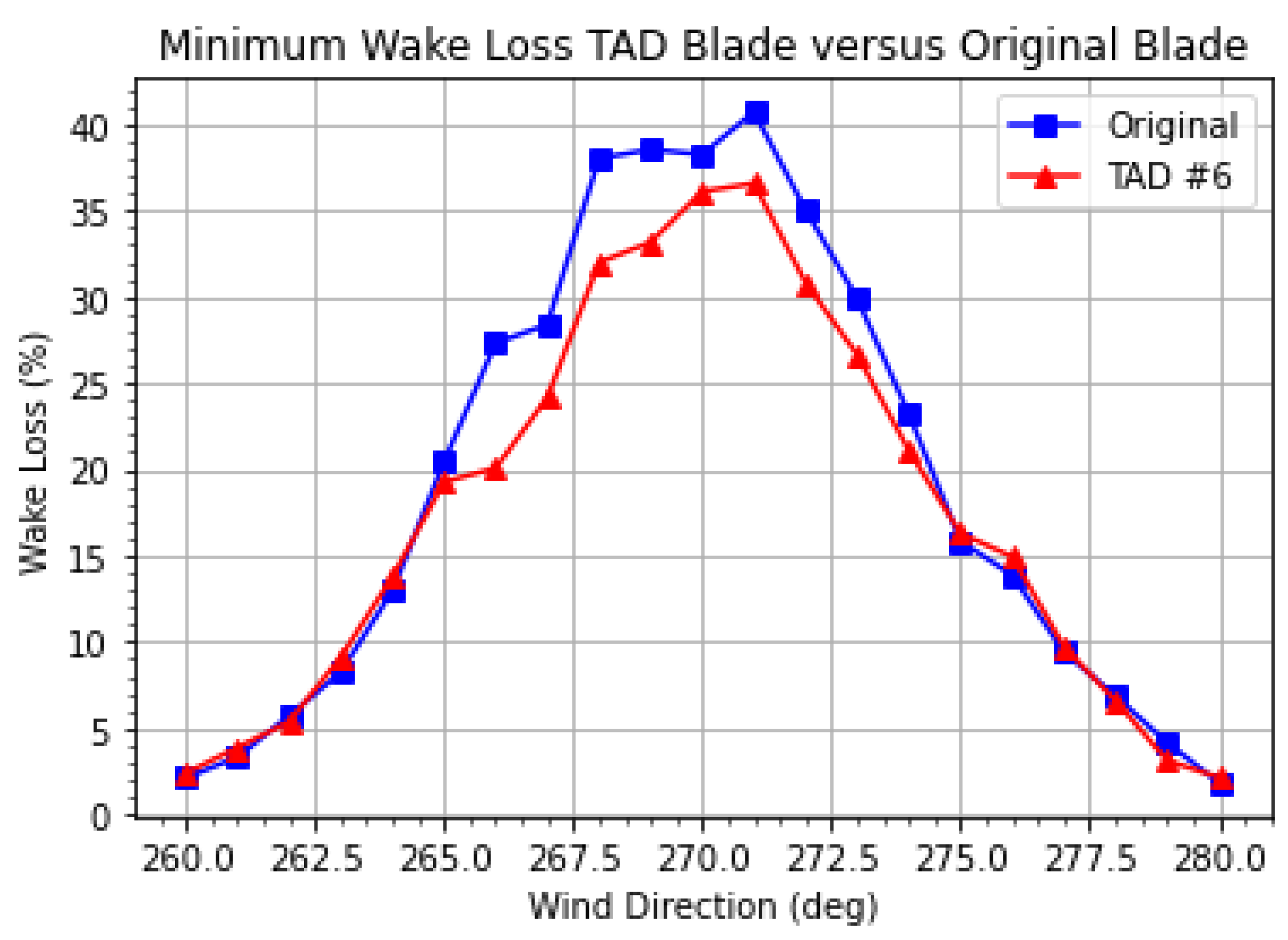

The wake interactions between the upstream and downstream turbine were also simulated together to understand the effect on the power production. Figure 7 shows the wind farm layout with the turbines spaced at 5D since this is a common minimum distance for turbines.

The power generated from this upstream and downstream turbine can be seen in

Table 6. Upstream turbine power output in kW.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	Original	TAD #1	TAD #2	TAD #3	TAD #4	TAD #5	TAD #6	TAD #7	TAD #8	TAD #9
5	2.68	2.79	2.77	2.75	2.71	2.68	2.66	2.61	2.55	2.54
6	5.03	5.05	5.09	5.07	5.02	5.02	5.00	4.97	4.90	4.89
7	7.20	7.15	7.23	7.27	7.22	7.18	7.17	7.14	7.07	7.06
8	9.18	8.93	9.10	9.20	9.30	9.18	9.17	9.14	9.06	9.05
9	11.10	10.61	10.73	11.00	11.10	11.11	11.11	11.09	11.03	11.01
10	12.99	12.26	12.48	12.66	12.92	12.98	13.06	13.05	13.01	12.98
11	14.88	13.96	14.27	14.19	14.71	14.79	14.92	15.04	15.02
12	16.76	15.70	16.18	15.81	16.38	16.65	16.74	17.00	17.08	17.06
13	17.96	16.89	17.44	16.95	17.44	17.86	17.97	18.27	18.43	18.44

,

Table 7. Downstream turbine power output in kW.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	Original	TAD #1	TAD #2	TAD #3	TAD #4	TAD #5	TAD #6	TAD #7	TAD #8	TAD #9
5	−1.99	−1.72	−1.85	−1.85	−1.87	−1.98	−2.01	−2.07	−2.14	−2.13
6	−0.50	−0.35	−0.43	−0.41	−0.43	−0.50	−0.51	−0.53	−0.57	−0.54
7	2.17	2.22	2.18	2.18	2.16	2.14	2.14	2.17	2.16	2.17
8	4.87	4.85	4.90	4.88	4.69	4.84	4.83	4.85	4.81	4.82
9	7.25	7.14	7.27	7.31	7.25	7.20	7.21	7.23	7.17	7.18
10	9.38	9.06	9.25	9.42	9.49	9.36	9.36	9.36	9.32	9.31
11	11.43	10.84	10.97	11.35	11.42	11.41	11.44	11.43	11.39	11.38
12	13.44	12.57	12.82	13.01	13.40	13.38	13.48	13.51	13.47	13.45
13	15.46	14.37	14.72	14.63	15.28	15.32	15.43	15.61	15.60	15.58

and

Table 8. 2nd downstream turbine power output in kW.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	Original	TAD #1	TAD #2	TAD #3	TAD #4	TAD #5	TAD #6	TAD #7	TAD #8	TAD #9
5	−0.94	−0.70	−0.81	−0.81	−0.84	−0.93	−0.96	−1.02	−1.08	−1.08
6	0.13	0.36	0.28	0.26	0.22	0.15	0.11	0.03	−0.04	−0.05
7	1.42	1.58	1.53	1.52	1.48	1.43	1.39	1.33	1.26	1.25
8	2.88	2.91	2.91	2.92	2.91	2.88	2.87	2.87	2.83	2.84
9	5.25	5.14	5.20	5.20	5.16	5.17	5.20	5.28	5.29	5.30
10	7.92	7.74	7.88	7.96	7.81	7.87	7.88	7.91	7.88	7.90
11	10.19	9.74	9.93	10.18	10.24	10.15	10.17	10.20	10.15	10.16
12	12.34	11.60	11.80	12.13	12.31	12.31	12.36	12.38	12.36	12.35
13	14.45	13.46	13.74	13.86	14.35	14.32	14.47	14.56	14.54	14.53

. When simulating these turbines, negative power output is seen due to hysteresis, where the turbine properties lag behind its changes. This can be seen at the cut-in and cut-off speed. From these results, the TAD #1 is the most efficient at start up with the lowest cut-in value but is not optimal for other wind speeds. TAD #9 is better for rated speed due to its higher power performance. This data suggests that the flexible blades are most useful near the cut-in and rated speed proven by the evidence that the power coefficient increased by 3.38 % and 3.27 % for TAD #1 and 9, respectively.

To better understand these effects, the percentage change in the power output is seen in

Table 9. Percent change in the upstream turbine power generation.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	5	6	7	8	9	10	11	12	13
TAD #3	2.58%	0.75%	0.99%	0.21%	−0.87%	−2.58%	−4.66%	−5.65%	−5.61%
TAD #6	−1.02%	−0.67%	−0.39%	−0.04%	0.11%	0.51%	0.25%	−0.13%	0.10%
TAD #7	−2.58%	−1.26%	−0.80%	−0.45%	−0.07%	0.41%	1.03%	1.44%	1.76%
TAD #8	−5.06%	−2.61%	−1.76%	−1.22%	−0.61%	0.12%	0.92%	1.92%	2.64%

,

Table 10. Percent change in the 1st downstream turbine power generation.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	5	6	7	8	9	10	11	12	13
TAD #2	7.23%	13.50%	0.51%	0.42%	0.32%	−1.40%	−4.01%	−4.64%	−4.78%
TAD #3	7.26%	17.61%	0.53%	0.07%	0.82%	0.42%	−0.65%	−3.26%	−5.38%
TAD #6	−0.64%	−1.40%	−1.13%	−0.91%	−0.58%	−0.22%	0.11%	0.27%	−0.20%
TAD #7	−4.01%	−5.06%	−0.08%	−0.56%	−0.33%	−0.22%	−0.02%	0.49%	0.95%
TAD #8	−7.23%	−12.76%	−0.34%	−1.31%	−1.06%	−0.64%	−0.37%	0.16%	0.88%

and

Table 11. Percent change in the 2nd downstream turbine power generation.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	5	6	7	8	9	10	11	12	13
TAD #1	25.19%	175.35%	11.56%	1.04%	−2.09%	−2.25%	−4.40%	−6.02%	−6.88%
TAD #3	13.58%	95.81%	7.10%	1.13%	−0.77%	0.53%	−0.09%	−1.73%	−4.11%
TAD #4	10.83%	67.03%	4.43%	1.00%	−1.70%	−1.39%	0.49%	−0.26%	−0.69%
TAD #6	−1.71%	−18.39%	−1.66%	−0.53%	−0.79%	−0.50%	−0.17%	0.16%	0.14%
TAD #7	−8.24%	−74.15%	−5.86%	−0.59%	0.63%	−0.12%	0.04%	0.30%	0.77%
TAD #8	−15.12%	−132.05%	−11.24%	−2.01%	0.80%	−0.46%	−0.37%	0.15%	0.61%

. These tables show the blades that are of most significance. It is seen that TAD #3 and #6–8 have the highest increase in upstream power generation for a broad range of Region 2 conditions. TAD #3 shows improved performance in the early start-up speeds. TAD #6–8 perform better at higher speeds. In the downstream turbines, TAD #1–4 outweigh the power generation of the fixed-blade design in early start-up, and TAD #6–9 have better function closer to the rated speeds. The shape of TAD 1 is optimal for low wind speed at and just above cut-in and is discussed in detail in [36]. The performance gain is measured relative to the original power production level. Since power output is lowest near the cut-in speed, even a small increase in production appears large in terms of percentage.

Wind direction is an important factor is assessing wake effects. The wind direction can affect the placement and the orientation of the wake cones. To assess this, a new layout with turbines arranged synchronously in a row is seen in Figure 8. A reference turbine is included that is unaffected by nearby turbines, while the control and test turbines are present to assess the downstream effects of wake. The team used the energy wake loss module in FLORIS to calculate the balanced wake loss. This is the total difference in energy production when compared to the reference turbine [75,76]. The formula for this can be seen below in Equation (39).

The term ${\mathrm{c}}_{wake}$ is used to measure this effect of wake, and these calculations are carried out by averaging the wake loss for each wind speed and wind direction.

$$c_{wake}={\displaystyle \frac{total output with wake effect}{total output without wake effect}}$$

(39)

Table 12. Wake loss percentage.

Wind Direction [∘]	260	261	262	263	264	265	266	267	268	269	270	271	272	273	274	275	276	277	278	279	280
Original	2.1%	3.3%	5.7%	8.2%	12.9%	20.4%	27.3%	28.4%	38.0%	38.5%	38.2%	40.7%	35.0%	29.9%	23.2%	15.8%	13.9%	9.4%	6.8%	4.2%	1.8%
TAD #1	2.7%	3.3%	4.8%	9.3%	13.7%	17.4%	21.6%	26.8%	32.9%	34.2%	37.0%	40.9%	32.0%	28.7%	26.0%	18.1%	12.5%	9.5%	5.3%	3.5%	3.2%
TAD #2	2.0%	3.8%	6.5%	8.8%	13.3%	16.7%	23.4%	27.3%	30.3%	38.8%	44.1%	34.6%	34.1%	28.7%	24.2%	16.8%	12.7%	5.2%	6.1%	4.3%	2.6%
TAD #3	2.2%	2.6%	4.0%	13.2%	13.2%	19.6%	18.4%	21.4%	32.2%	35.3%	34.4%	39.7%	29.5%	33.2%	25.2%	16.9%	13.3%	8.6%	5.4%	3.1%	1.2%
TAD #4	1.9%	3.6%	4.1%	8.8%	12.3%	17.1%	23.5%	31.0%	36.0%	33.1%	39.7%	35.8%	28.8%	30.5%	26.4%	17.5%	12.1%	8.3%	5.7%	3.3%	2.5%
TAD #5	2.4%	4.2%	6.6%	8.6%	14.9%	21.0%	22.8%	28.8%	32.8%	36.2%	40.8%	33.1%	33.8%	26.3%	21.3%	17.2%	14.1%	9.0%	5.4%	4.3%	1.4%
TAD #6	2.4%	3.9%	5.4%	9.1%	13.8%	19.3%	20.1%	24.1%	32.0%	33.2%	36.1%	36.6%	30.8%	26.6%	21.1%	16.3%	14.9%	9.7%	6.6%	3.1%	2.1%
TAD #7	2.4%	3.4%	3.9%	7.7%	14.1%	16.7%	22.7%	28.5%	30.9%	48.4%	37.8%	38.6%	32.3%	29.8%	22.2%	18.6%	11.7%	8.2%	5.6%	3.0%	1.7%
TAD #8	2.2%	3.1%	4.6%	8.2%	11.4%	16.4%	22.5%	26.6%	33.8%	39.0%	40.0%	36.8%	37.0%	30.2%	26.5%	15.7%	13.0%	9.7%	6.1%	3.1%	6.6%
TAD #9	2.8%	2.8%	4.6%	9.9%	12.1%	15.0%	21.8%	27.7%	31.3%	37.3%	39.2%	35.5%	35.6%	26.4%	21.1%	20.6%	13.1%	9.8%	5.2%	3.8%	2.6%

below demonstrates the percentage loss for each TAD and the original design. Green indicates the wake loss percentage that is higher across the defined wind direction bin while red indicates a lower percentage. TAD #3 and #7 are the most promising followed by TAD #1, 4, 6, and 8.

The difference in wake loss percentage is also calculated to show the increase or decrease to the original blade design.

Table 13. Summary of change in wake loss percent.

	TAD #1	TAD #2	TAD #3	TAD #4	TAD #5	TAD #6	TAD #7	TAD #8	TAD #9
max In $c_{wake}$	5.7%	7.7%	8.9%	6.2%	7.6%	7.3%	7.1%	4.8%	6.7%
max Red $c_{wake}$	−2.8%	−5.9%	−5.0%	−3.2%	−2.5%	−1.1%	−9.9%	−4.8%	−4.7%
$\Delta$	8.4%	13.6%	13.9%	9.4%	10.1%	8.3%	17.0%	9.6%	11.4%
$|\Delta |$	2.9%	1.8%	3.9%	3.1%	5.0%	6.2%	−2.8%	0.1%	2.0%

shows the maximum gain and loss with respect to each TAD.

TAD #3 appears to be well suited for wind direction, though the maximum decrease should be concerning; hence, TAD #2, 3, and 7 show the highest percentage range in wake loss at 13.6%, 13.9%, and 17.0%, respectively. The absolute range of percent changes is used when evaluating the TAD geometries as the decrease in wake loss may be misleading. TAD #6 was considered optimal as it had a relatively high increase in gain while minimizing the decrease in loss. Figure 9 highlights the distribution of TAD #6 that produces the least amount of wake loss.

Optimal Blade Design

Out of the nine TAD shapes, the process of selecting the the twist distribution with the lowest actuation energy was carried out. This optimum free blade shape is represented by the diagonal elements shown in Table 2. The diagonal elements show the optimal TAD producing the highest increase in power in the diagonal elements shown in Table 6.

Table 14. Power coefficients for the original and optimum TAD.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	5	6	7	8	9	10	11	12	13
$c_{p0}$	0.447	0.484	0.435	0.370	0.314	0.268	0.231	0.200	0.174
$c_{pt}$	0.464	0.489	0.440	0.377	0.315	0.270	0.233	0.204	0.180
ln [%]	3.83	1.05	1.13	1.76	0.13	0.63	1.08	1.90	3.27

and

Table 15. Thrust coefficients for the original and optimum TAD.

${\mathit{U}}_{\mathit{\infty }}$ [m/s]	5	6	7	8	9	10	11	12	13
$c_{t0}$	0.817	0.793	0.617	0.490	0.401	0.336	0.286	0.245	0.212
$c_{tt}$	0.851	0.811	0.626	0.512	0.407	0.338	0.286	0.247	0.215
ln [%]	4.11	2.33	1.36	4.45	1.30	0.62	0.11	0.69	1.46

show the aerodynamic characteristics of the optimum blade used as input data in FLORIS. The subscripts “0” and “t” represent the characteristics obtained using the conventional method and theoretical TAD, respectively.

These results match the results obtained in the previous work, showing once again that the variable twist blade provides the greatest advantage in the cut-in and rated speeds. The increase in performance also becomes less significant as the speeds approach 9 m/s, indicating that this speed is the optimal speed for the original blade. A defined set of points through a single row at hub height was collected for a single turbine layout to capture the velocity deficit. Figure 10 shows how the optimal TAD compares to the original blade when optimized for 9 m/s.

This shows that, even at optimum operating speed, the TAD blades show faster recovery. This indicates that there is sharp discontinuity in the wake velocity across the rotor. A smooth velocity recovery is now observed at an x-distance of 75 m. This may be caused by the transition from near- to far-wake. To look at this closely, a comparison between the energy ratio against wind speed and direction was carried out for both TAD shapes and can be seen in Figure 11. The TAD blade shows a higher energy ratio for a broader range of wind speeds with an exception of 270°. This indicates that a TAD blade can improve the turbine operation in Region 2, with these differences becoming more significant when scaling to a larger turbine.

6. Conclusions

The turbine blades generate complex vortex structures from the blade tip, root, and hub. Destabilization of the tip vortices due to the inflow eddies, opposite rotating vortexes stemming from the tips, and the hub vortex with intense vorticity all interact with each other to generate these complex wake effects. The literature review familiarized the reader with various characteristics of wake dynamics like the immediate velocity deficit, reduction in operation lifespan due to unstable loading from TI, and increased noise levels from these uneven loads on the downstream turbines. The scope of this project was to gain a better understanding of the wake dynamics and how the TAD blade shapes could affect these wake characteristics. The team used FLORIS, a parametric wake modeling tool, to analyze steady-state wake characteristics. While transient effects due to wind speed variations are outside this scope, future work will address these phenomena. Nine TAD blade shapes were developed based on prior research, each optimized for specific wind speeds between cut-in and rated speeds. The conclusions of the results from this study were as follows:

• The study demonstrated that TAD blades improve wake recovery (Table 4) and reduce wake losses compared to fixed-blade designs, as shown in Table 2 and Table 3.
• The simulations show that TAD #1 and TAD #9 enhance operation at cut-in and rated speeds, relative to the fixed blade, increasing the power coefficient by 3.83 % and 3.27 %, respectively.
• The optimal blade integrates these TAD designs, further improving efficiency across all wind speeds (Table 14 and Table 15).
• The optimal blade was compared with the original blade and showed comparable results for validation.

Figure 11 shows the validation for the optimal blade with comparable results. This study was a part of a larger body of work that looks to combine OpenFAST and FLORIS coupling since OpenFAST could enhance the modeling capabilities, especially for modeling the aero-hydro-elastic dynamics in wind turbines. This could help with studying TAD shapes and their capabilities in controlling wake and provide a better understanding of optimal TAD shapes, balancing efficiency, and wake control. More work could also be conducted using a larger-scale model like the DTU 10 MW model. Validation of the work carried out could also be performed using fluid structure interactions in numerical solvers and experimental methods in wind tunnels to further the knowledge of vortex structures for TAD blades.
