Revealing the Intrinsic Mechanisms of Hot and Cold Spots within a Locally Shaded Photovoltaic Module Based on Micro-Electrical Characteristics
Abstract
:1. Introduction
2. Experimental Methods and Calculation Settings

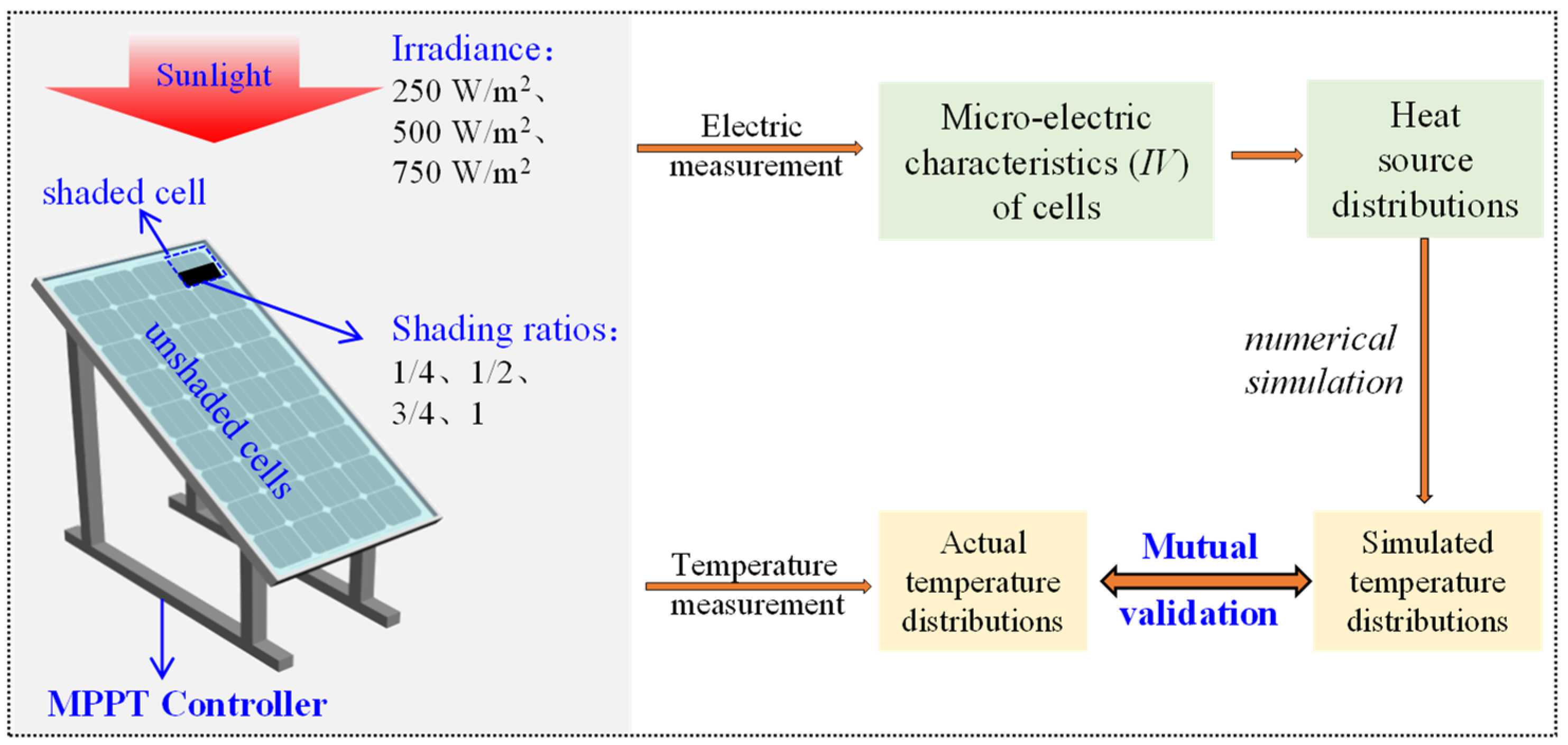

2.1. Experimental Methods
2.2. Calculation Settings
3. Results and Discussion
3.1. Micro-Electrical Characteristics of Different Solar Cells within a Locally Shaded PV Module

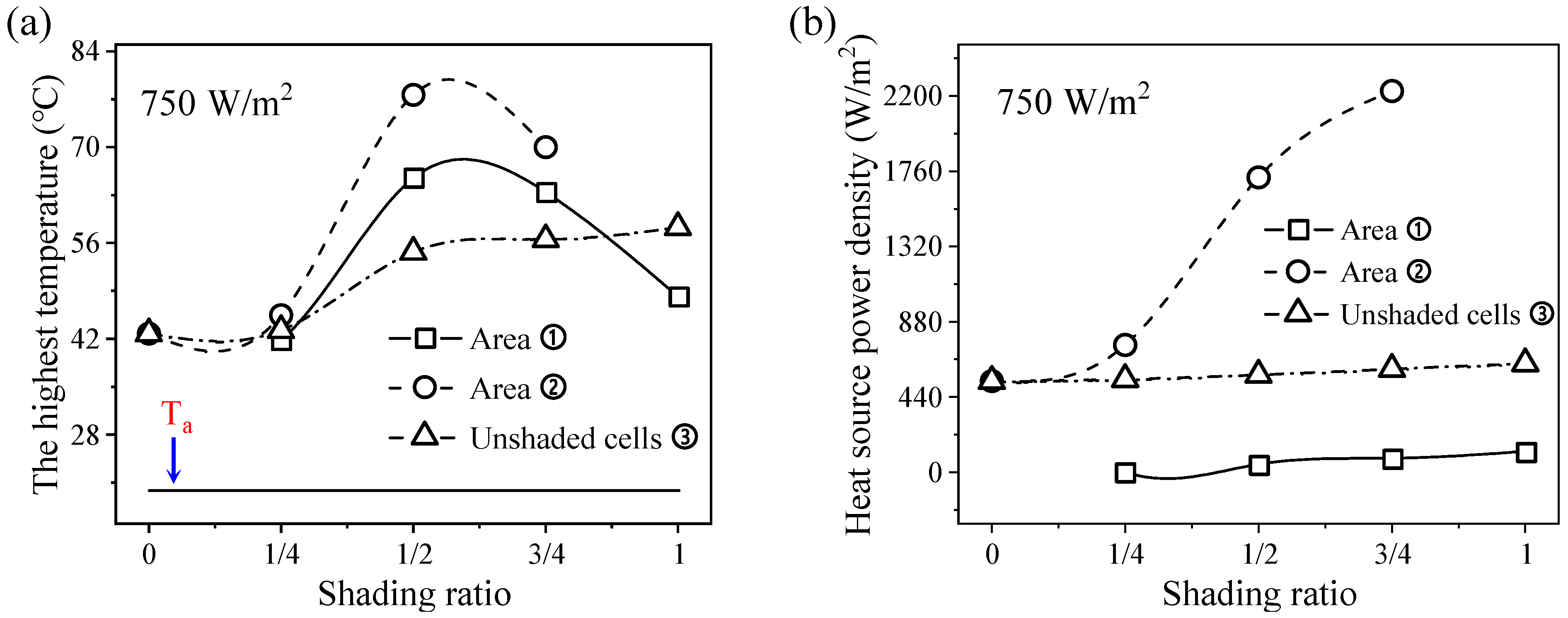

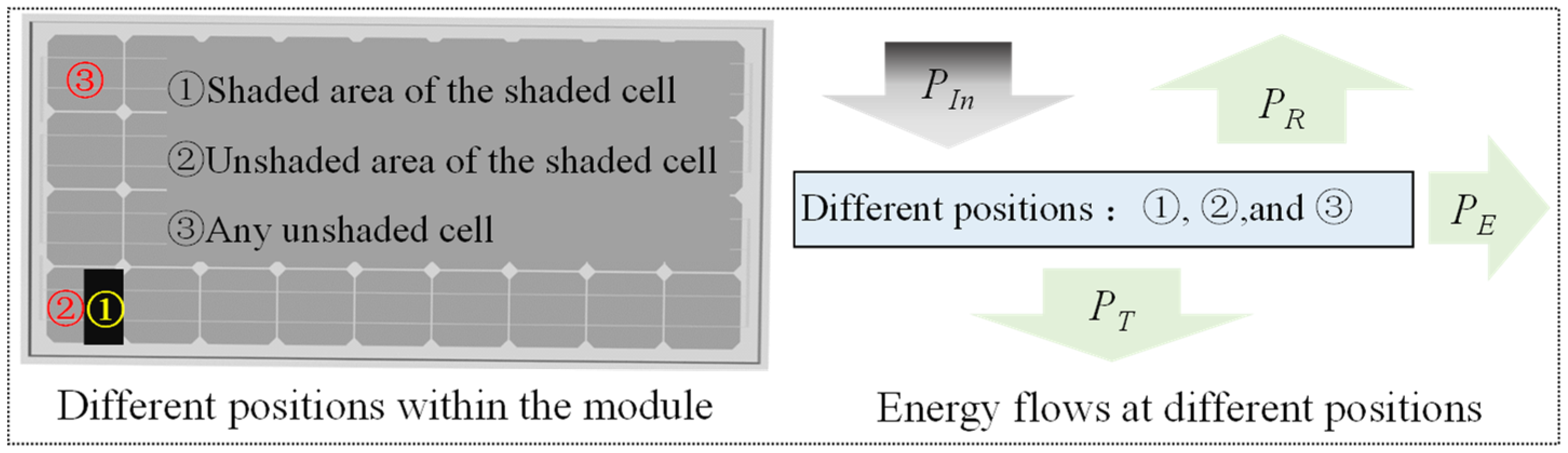

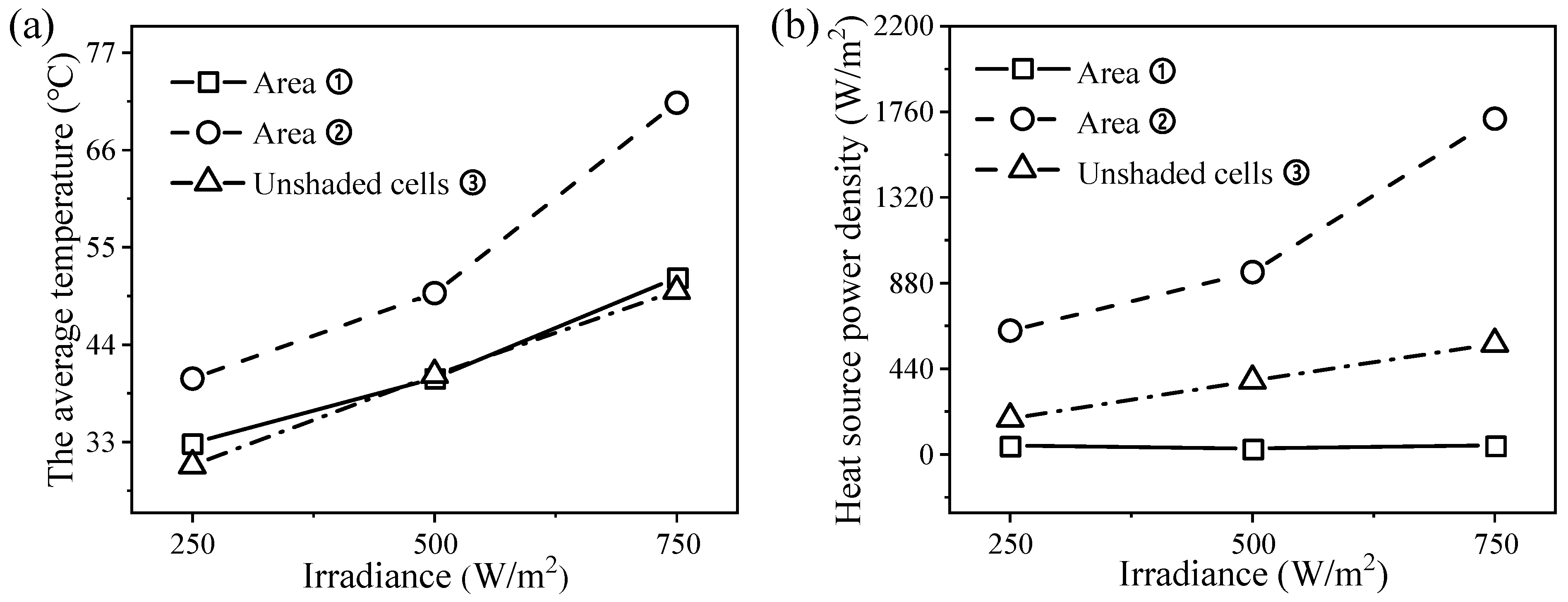

3.2. Heat-Source Power Densities for Different Positions within a Locally Shaded PV Module

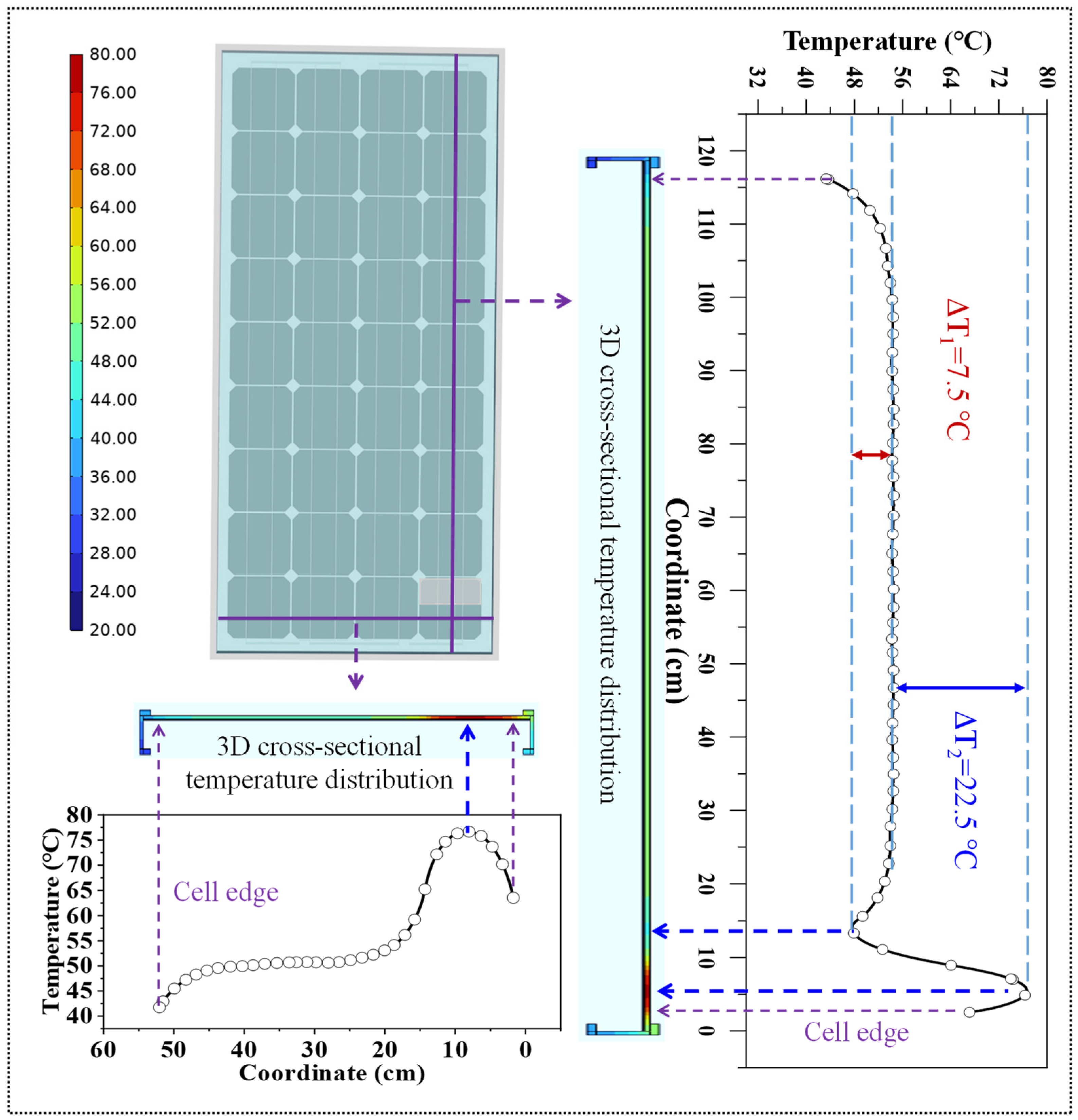

3.3. Temperature Distribution within a Locally Shaded PV Module
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
